Extractor hood
DWB67DN.. DWB97DN.. DWB67DN60B DWB97DN... DWB99DN30B
[en] User manual and installation instructions
en Table of contents
You can find additional information and explanations online.
Scan the QR code on the title page.
Table of contentsTable of contents
INFORMATION FOR USE
1 Safety ........................................................................ 2
2 Avoiding material damage ..................................... 4
3 Environmental protection and saving energy ...... 5
4 Operating modes ..................................................... 5
5 Familiarising yourself with your appliance .......... 5
6 Before using for the first time ................................ 5
7 Basic operation ....................................................... 6
8 Additional functions in the HomeConnect app
1
................................................................................. 6
9 HomeConnect ......................................................... 6
10 Hob-based hood control ....................................... 7
11 Cleaning and servicing ........................................ 7
12 Troubleshooting ................................................... 9
13 Disposal ............................................................... 10
14 Customer Service ............................................... 10
15 Accessories ......................................................... 11
16 Declaration of Conformity .................................. 11
17 Information regarding Free and Open Source
Software ............................................................... 12
18 Test information .................................................. 12
19 INSTALLATION INSTRUCTIONS ....................... 12
19.4 Secure installation ........................................... 14
Safety 1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product
information safe for future reference or for
the next owner.
¡ Do not connect the appliance if it has been
damaged in transit.
1.2 Intended use
This appliance is not intended to be used as a
built-in appliance.
The appliance can only be used safely if it is
correctly installed according to the safety in-
structions. The installer is responsible for en-
suring that the appliance works perfectly at its
installation location.
Only use this appliance:
¡ For extracting cooking vapour.
¡ in private households and in enclosed
spaces in a domestic environment.
¡ Up to an altitude of 4000m above sea level.
1.3 Restriction on user group
This appliance may be used by children aged
8 or over and by people who have reduced
physical, sensory or mental abilities or inad-
equate experience and/or knowledge,
provided that they are supervised or have
been instructed on how to use the appliance
safely and have understood the resulting
dangers.
Do not let children play with the appliance.
Children must not perform cleaning or user
maintenance unless they are at least 15 years
old and are being supervised.
Keep children under the age of 8 years away
from the appliance and power cable.
1.4 Safe use
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch
fire.
Never operate the appliance without a
grease filter.
Clean the grease filters regularly.
Never work with naked flames close to the
appliance (e.g. flambéing).
1
Available depending on software version. Further information on availability can be found on the website.
2
Safety en
Do not install the appliance near a solid fuel
heating appliance (e.g. wood- or coal-burn-
ing) unless the heating appliance has a
sealed, non-removable cover. There must be
no flying sparks.
Hot oil and fat ignites very quickly.
Always supervise hot oil and fat.
Never extinguish burning oil or fat with water.
Switch off the hotplate. Extinguish flames
carefully using a lid, fire blanket or some-
thing similar and leave to cool down.
When gas burners are in operation without any
cookware placed on them, they can build up a
lot of heat. A ventilation appliance installed
above the cooker may become damaged or
catch fire.
Only operate the gas burners with cookware
on them.
Operating multiple gas hobs at the same time
generates a great deal of heat. A ventilation
appliance installed above the cooker may be-
come damaged or catch fire.
Only operate the gas hobs with cookware on
them.
Select the highest fan setting.
Never operate two gas hobs simultaneously
on the highest flame for longer than 15
minutes. Two gas hobs correspond to one
large burner.
Never operate large burners of more than
5kW with the highest flame for longer than
15minutes, e.g. a wok.
Fatty deposits in the grease filters may catch
fire.
Clean the grease filters regularly.
WARNING‒Risk of suffocation!
Children may put packaging material over their
heads or wrap themselves up in it and suffoc-
ate.
Keep packaging material away from chil-
dren.
Do not allow children to play with packaging
material.
Children may breathe in or swallow small
parts, causing them to suffocate.
Keep small parts away from children.
Do not let children play with small parts.
WARNING‒Risk of poisoning!
Risk of poisoning from flue gases being drawn
back in. Room-air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-oper-
ated heaters, continuous flow heaters or water
heaters) obtain combustion air from the room
in which they are installed and discharge the
exhaust gases into the open through an ex-
haust gas system (e.g. a chimney). With the
extractor hood switched on, air is extracted
from the kitchen and the adjacent rooms.
Without an adequate supply of air, the air pres-
sure falls below atmospheric pressure. Toxic
gases from the chimney or the extraction shaft
are sucked back into the living space.
Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as a
room-air-dependent heat-producing appli-
ance is being operated.
It is only possible to safely operate the appli-
ance if the pressure in the room in which the
heating appliance is installed does not fall
below 4Pa(0.04mbar). This can be
achieved whenever the air needed for com-
bustion is able to enter through openings
that cannot be sealed, for example in doors,
windows, incoming/exhaust air wall boxes or
by other technical means. An incoming/ex-
haust air wall box alone is not sufficient to
ensure compliance with the limit.
In any case, consult your responsible chim-
ney sweep. They are able to assess the
house's entire ventilation setup and will sug-
gest the suitable ventilation measures to
you.
Unrestricted operation is possible if the ap-
pliance is operated exclusively in circulating-
air mode.
Using a gas cooking appliance leads to a
build-up of heat, moisture and combustion
products in the room where the appliance is
installed.
Switch on the extractor hood when using a
gas cooking appliance.
WARNING‒Risk of burns!
The accessible parts of the appliance become
hot during operation.
Never touch these hot parts.
Keep children at a safe distance.
3
en Avoiding material damage
The appliance becomes hot during operation.
Allow the appliance to cool down before
cleaning.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
Carefully clean the appliance interior.
Items placed on the appliance may fall off.
Do not place any objects on the appliance.
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
Do not make any changes to the electrical
or mechanical assembly.
The light emitted by LED lights is very dazzling,
and can damage the eyes (risk group 1).
Do not look directly into the switched-on LED
lights for longer than 100seconds.
Improper repairs are dangerous.
Repairs to the appliance should only be car-
ried out by trained specialist staff.
If the appliance is defective, call Customer
Service.
"Customer Service", Page10
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged,
this is dangerous.
Never operate a damaged appliance.
Never pull on the power cord to unplug the
appliance. Always unplug the appliance at
the mains.
If the appliance or the power cord is dam-
aged, immediately unplug the power cord or
switch off the fuse in the fuse box.
Call customer service.
Page10
Improper repairs are dangerous.
Repairs to the appliance should only be car-
ried out by trained specialist staff.
Only use genuine spare parts when repairing
the appliance.
If the power cord of this appliance is dam-
aged, it must be replaced by trained special-
ist staff.
An ingress of moisture can cause an electric
shock.
Before cleaning, pull out the mains plug or
switch off the fuse in the fuse box.
Do not use steam- or high-pressure cleaners
to clean the appliance.
Penetrating moisture may cause an electric
shock.
Do not use wet sponge cloths.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic clean-
ing agents in conjunction with aluminium parts
in the interior of the appliance may cause ex-
plosions.
Never use highly caustic alkaline or highly
acidic cleaning agents. In particular, do not
use commercial or industrial cleaning agents
in conjunction with aluminium parts, e.g.
grease filter on extractor hoods.
Avoiding material damage2 Avoiding material damage
ATTENTION
Condensate may cause corrosion damage.
To prevent condensation from building up, switch on
the appliance during cooking.
If moisture gets into the controls, this may result in dam-
age.
Never clean controls with a wet cloth.
Incorrect cleaning damages the surfaces.
Follow the cleaning instructions.
Do not use harsh or abrasive detergents.
Clean stainless steel surfaces in the direction of the
finish only.
Never clean controls with stainless steel cleaners.
Condensation that flows back in may damage the appli-
ance.
To prevent condensate from returning, fit the exhaust
air pipe with a 1° gradient from the appliance.
If you put incorrect stress on the design elements, they
may break off.
Do not pull design elements.
Do not place objects on the design elements or hang
objects from them.
There is a risk of surface damage if you do not peel off
the protective film.
Remove the protective film from all parts of the appli-
ance before using for the first time.
Painted surfaces are easily damaged.
Follow the cleaning instructions.
"Cleaning the appliance", Page8
Ensure that the painted surfaces are not scratched.
4
Environmental protection and saving energy en
Environmental protection and saving energy3 Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environmentally compatible
and can be recycled.
Sort the individual components by type and dispose
of them separately.
3.2 Saving energy
If you follow these instructions, your appliance will use
less power.
Adjust the fan speed to the amount of steam produced
during cooking.
The lower the fan speed, the less energy is con-
sumed.
Only use the intensive mode as required.
If cooking produces large amounts of steam, select a
higher fan speed in good time.
The odours are distributed around the room less.
Switch off the lighting if it is no longer required.
When the lighting is switched off, it does not con-
sume any energy.
Clean or replace the filters at regular intervals.
The effectiveness of the filter is retained.
Put the cooking lid on.
The cooking vapours and condensation are reduced.
Only use the additional functions if required.
Switching off additional functions reduces power con-
sumption.
Operating modes4 Operating modes
You can use your appliance in air extraction mode or
circulating-air mode.
4.1 Air extraction mode
The air which is drawn in is cleaned by the grease filters
and conveyed to the exterior by a pipe system.
The air must not be discharged into a flue
that is used for exhausting fumes from
appliances burning gas or other fuels (not
applicable to appliances that only dis-
charge the air back into the room).
If the exhaust air is to be conveyed into
a non-functioning smoke or exhaust
gas flue, you must obtain the consent
of the heating engineer responsible.
If the exhaust air is conveyed through
the external wall, a telescopic duct
should be used.
4.2 Air recirculation
The air which is drawn in is cleaned by the grease filters
and an odour filter, and conveyed back into the room.
To bind odours in air recirculation mode,
you must install an odour filter. The differ-
ent options for operating the appliance in
air circulation mode can be found in our
catalogue. Alternatively, ask your dealer.
The required accessories are available
from specialist retailers, from our after-
sales service or from the online shop.
Familiarising yourself with your appliance5 Familiarising yourself with your appliance
5.1 Control elements
You can use the controls to configure all functions of
your appliance and to obtain information about the oper-
ating status.
Switching the appliance on or off
Switching on fan setting1
Switching on fan setting2
Switching on fan setting3
Switching on intensive mode 1
Switching the lighting on or off
HomeConnect
Before using for the first time6 Before using for the first time
Configure the settings for initial start-up. Clean the appli-
ance and accessories.
6.1 Setting an operating mode
Your appliance is set to air extraction mode by default.
5
en Basic operation
Note: When using it in circulating-air mode, you require
additional accessories.
Basic operation7 Basic operation
7.1 Switching on the appliance
Press .
The appliance starts at fan setting 2 and the lighting
switches on.
7.2 Switching off the appliance
Press .
The fan automatically switches off after approx. 10
minutes.
The ventilation system switches off and the lighting
switches off.
7.3 Selecting a fan setting
Press , or .
7.4 Switching on intensive mode
Press .
After approx. 6 minutes, the appliance automatically
switches to fan setting 3.
7.5 Switching off intensive mode
Reset to the required fan setting.
7.6 Lighting
Switching on the lighting
The lighting can be switched on and off independently
of the ventilation system.
Press .
Setting the brightness
Press and hold until the required brightness is
reached.
Additional functions in the HomeConnect app 8 Additional functions in the HomeConnect app
1
You can find these functions in the HomeConnect app:
8.1 Intelligent hood control
With the appropriate hob and the HomeConnect app,
cooking data is supplied continuously and the appliance
uses this to automatically adjust the fan setting and to
automatically switch the appliance on and off.
8.2 Performance profile
In the HomeConnect app, you have the option to set
your personal performance profile. You can choose
between the noise-optimised or performance-optimised
performance profile.
8.3 Cooktop-based Hood Control
You can connect your appliance to a HomeConnect-
compatible hob and, in this way, control the functions of
your appliance via the hob.
8.4 Fan run-on
The fan run-on removes remaining odours and is used
to dry the odour filter after the cooking process.
8.5 Interval ventilation
In order to regularly ventilate your kitchen, you can use
the interval ventilation. With interval ventilation, the ventil-
ation system switches on and off in the selected setting
for the selected time.
8.6 Voice Control
You can control your extractor hood using voice control
with Amazon Alexa, for example.
8.7 Setting the colour temperature
In the HomeConnect app, you can set the colour tem-
perature for the light from cold to warm.
HomeConnect9 HomeConnect
This appliance is network-capable. Connecting your ap-
pliance to a mobile device lets you control its functions
via the HomeConnect app, adjust its basic settings and
monitor its operating status.
The HomeConnect services are not available in every
country. The availability of the HomeConnect function
depends on the availability of the HomeConnect ser-
vices in your country. You can find information about
this at:
www.home-connect.com
.
The HomeConnect app guides you through the entire
login process. Follow the instructions, noting the inform-
ation in the HomeConnect app.
1
Available depending on software version. Further information on availability can be found on the website.
6
Hob-based hood control en
Notes
Please note the safety precautions in this instruction
manual and make sure that they are also observed
when operating the appliance via the HomeConnect
app.
"Safety", Page2
Operating the appliance on the appliance itself al-
ways takes priority. During this time it is not possible
to operate the appliance using the HomeConnect
app.
In networked standby mode, the appliance requires a
maximum of2W.
9.1 Setting up the HomeConnect app
1.
Install the HomeConnect app on your mobile device.
2.
Start the HomeConnect app and set up access for
HomeConnect.
The HomeConnect app guides you through the entire
login process.
9.2 Setting up HomeConnect
Requirements
The appliance is switched off.
You have a mobile device with a current version of
the iOS or Android operating system, e.g. a smart-
phone.
The appliance is receiving signals from the WLAN
home network (Wi-Fi) at its installation location.
The mobile device and the appliance are within range
of your home network's Wi-Fi signal.
1.
Scan the following QR code.
You can install the HomeConnect app and connect
your appliance via the QR code.
2.
Follow the instructions in the HomeConnect app.
9.3 Resetting the connection
Requirement: The appliance is switched off.
To reset the saved connections to the home network
and to HomeConnect, press and hold twice.
9.4 Data protection
Please see the information on data protection.
The first time your appliance is registered on a home
network connected to the Internet, your appliance will
transmit the following types of data to the HomeCon-
nect server (initial registration):
Unique appliance identification (consisting of appli-
ance codes as well as the MAC address of the in-
stalled Wi-Fi communication module).
Security certificate of the Wi-Fi communication mod-
ule (to ensure a secure data connection).
The current software and hardware version of your
appliance.
Status of any previous resetting to factory settings.
This initial registration prepares the HomeConnect func-
tions for use and is only required when you want to use
the HomeConnect functions for the first time.
Note: Please note that the HomeConnect functions can
only be utilised with the HomeConnect app. Information
on data protection can be retrieved in the HomeCon-
nect app.
Hob-based hood control10 Hob-based hood control
You can connect your appliance to a suitable hob and,
in this way, control the functions of your appliance via
the hob.
If the hob and the extractor hood are HomeConnect-
compatible, connect the two appliances to HomeCon-
nect and follow the instructions in the app.
Notes
Please note the safety precautions in the instruction
manual for your appliance and ensure that they are
also observed when operating the appliance via the
hob-based hood control.
Operating your appliance always takes priority. It is
not possible to use the hob-based hood control dur-
ing this time.
You can only connect to the extractor hood via the
HomeConnect app.
Cleaning and servicing11 Cleaning and servicing
11.1 Cleaning products
You can obtain suitable cleaning products from after-
sales service or the online shop.
7
en Cleaning and servicing
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric shock.
Before cleaning, pull out the mains plug or switch off
the fuse in the fuse box.
Do not use steam- or high-pressure cleaners to clean
the appliance.
WARNING‒Risk of burns!
The appliance becomes hot during operation.
Allow the appliance to cool down before cleaning.
ATTENTION
Unsuitable cleaning products may damage the surfaces
of the appliance.
Do not use harsh or abrasive detergents.
Do not use cleaning products with a high alcohol con-
tent.
Do not use hard scouring pads or cleaning sponges.
Only use glass cleaners, glass scrapers or stainless
steel care products if recommended in the cleaning
instructions for the relevant part.
Wash sponge cloths thoroughly before use.
11.2 Cleaning the appliance
Clean the appliance as specified. This will ensure that
the different parts and surfaces of the appliance are not
damaged by incorrect cleaning or unsuitable cleaning
products.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic cleaning agents
in conjunction with aluminium parts in the interior of the
appliance may cause explosions.
Never use highly caustic alkaline or highly acidic
cleaning agents. In particular, do not use commercial
or industrial cleaning agents in conjunction with alu-
minium parts, e.g. grease filter on extractor hoods.
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric shock.
Before cleaning, pull out the mains plug or switch off
the fuse in the fuse box.
Do not use steam- or high-pressure cleaners to clean
the appliance.
WARNING‒Risk of burns!
The appliance becomes hot during operation.
Allow the appliance to cool down before cleaning.
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
Carefully clean the appliance interior.
1.
Observe the information regarding the cleaning
agents.
"Cleaning products", Page7
2.
Clean as follows, depending on the surface:
Clean stainless steel surfaces in the direction of the
finish using a sponge cloth and hot soapy water.
Clean painted surfaces using a damp sponge cloth
and hot soapy water.
Clean aluminium using a soft cloth and glass
cleaner.
Clean plastic using a soft cloth and glass cleaner.
Clean glass using a soft cloth and glass cleaner.
3.
Dry with a soft cloth.
4.
Apply a thin layer of the stainless steel cleaning
product to stainless steel surfaces using a soft cloth.
You can obtain stainless steel cleaning products from
the after-sales service or the online shop.
11.3 Cleaning controls and lights
WARNING‒Risk of electric shock!
Penetrating moisture may cause an electric shock.
Do not use wet sponge cloths.
1.
Observe the information regarding the cleaning
agents.
"Cleaning products", Page7
2.
Clean using a damp sponge cloth and hot soapy wa-
ter.
3.
Dry with a soft cloth.
11.4 Grease filter
Removing the grease filter
1.
Switch off the appliance.
2.
ATTENTION‒Falling grease filters may damage the
hob below.
Grip below the grease filter with one hand.
Open the locks on the grease filters.
3.
Remove the grease filters from the holders.
To prevent grease from dripping, hold the grease fil-
ter horizontally.
Cleaning grease filters manually
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal. We recommend cleaning the
grease filters every two months.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
Clean the grease filters regularly.
Requirement: The grease filters have been removed.
"Removing the grease filter", Page8
1.
Observe the information regarding the cleaning
agents.
"Cleaning products", Page7
2.
Soak the grease filter in hot soapy water.
Use special grease solvent for stubborn dirt. You can
obtain grease solvents from customer service or the
online shop.
3.
Use a brush to clean the grease filters.
8
Troubleshooting en
4.
Rinse the grease filters thoroughly.
5.
Allow the grease filters to drain.
Cleaning grease filters in the dishwasher
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal. We recommend cleaning the
grease filters every two months.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
Clean the grease filters regularly.
ATTENTION
The grease filters may become damaged if they are
squeezed in the dishwasher.
Do not squeeze the grease filters.
Note: When cleaning the grease filter in the dishwasher,
light discolouration may occur. This discolouration has
no effect on the performance of the metal grease filters.
Requirement: The grease filters have been removed.
"Removing the grease filter", Page8
1.
Observe the information regarding the cleaning
agents.
"Cleaning products", Page7
2.
Place the grease filters loosely into the dishwasher.
Do not clean heavily soiled grease filters with utensils.
Use special grease solvent for stubborn dirt. You can
obtain grease solvents from customer service or the
online shop.
3.
Start the dishwasher.
Select a temperature of no more than 70°C.
4.
Allow the grease filters to drain.

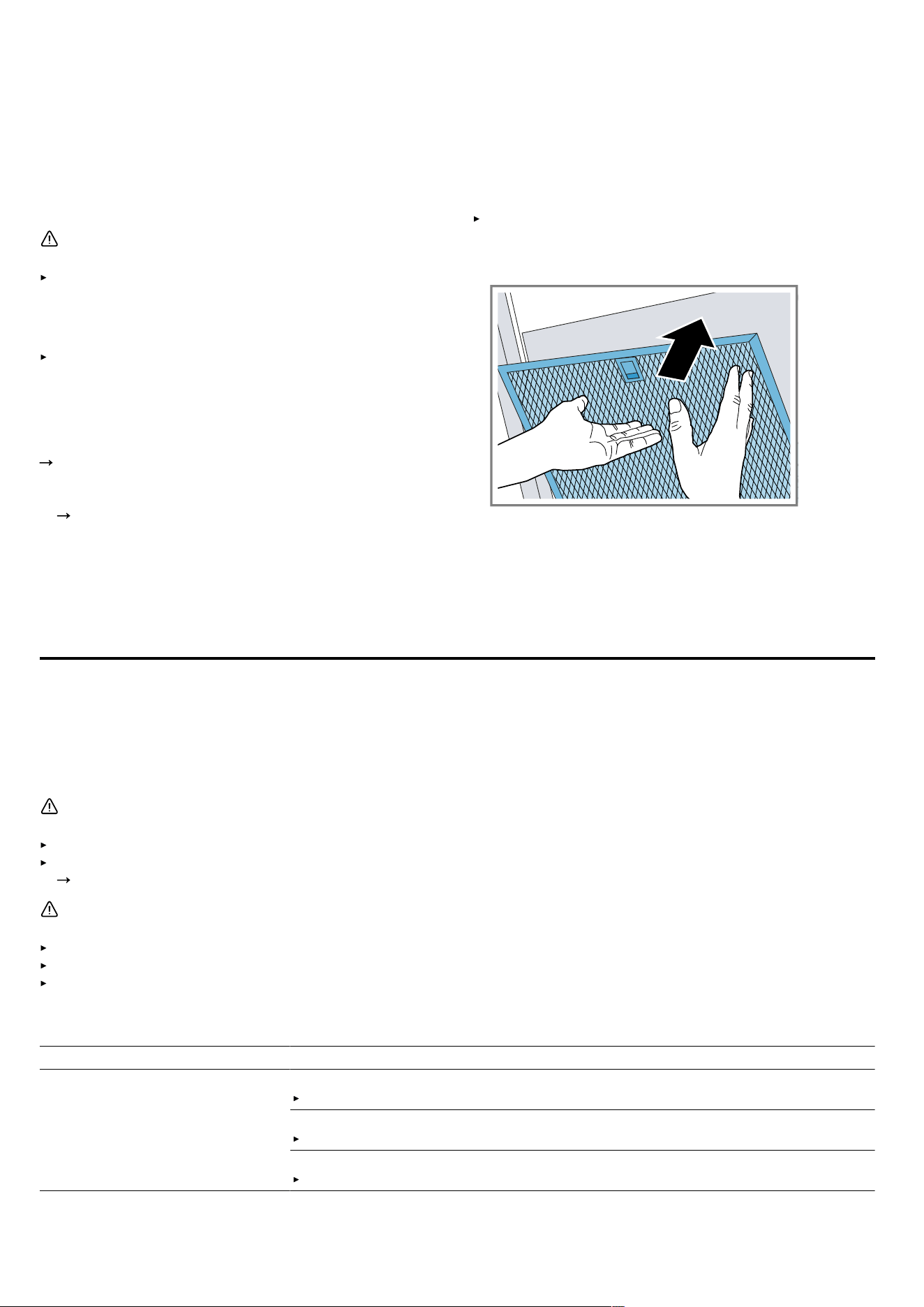

Fitting the grease filters
ATTENTION
Falling grease filters may damage the hob below.
Grip below the grease filter with one hand.
1.
Insert the grease filters.
2.
Fold the grease filters upwards and engage the locks.
3.
Ensure that the locks engage.
Troubleshooting12 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-
sales service. This will avoid unnecessary costs.
Tip: Permanently connect your appliance to the Home Connect app to automatically receive software updates. This
allows errors to be eliminated, performance to be improved and new functions to be made available.
WARNING‒Risk of injury!
Improper repairs are dangerous.
Repairs to the appliance should only be carried out by trained specialist staff.
If the appliance is defective, call Customer Service.
"Customer Service", Page10
WARNING‒Risk of electric shock!
Improper repairs are dangerous.
Repairs to the appliance should only be carried out by trained specialist staff.
Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by trained specialist staff.
12.1 Malfunctions
Fault Cause and troubleshooting
The appliance is not working. The mains plug of the power cord is not plugged in.
Connect the appliance to the power supply.
The circuit breaker in the fuse box has tripped.
Check the circuit breaker in the fuse box.
There has been a power cut.
Check whether the lighting in your room or other appliances are working.
9
en Disposal
Fault Cause and troubleshooting
The LED lighting does not work. Different causes are possible.
Defective LED lights may be replaced by the manufacturer, their customer ser-
vice or a qualified technician (electrician) only.
Call .
"Customer Service", Page10
HomeConnect is not working
properly.
Different causes are possible.
Go to
www.home-connect.com
.
The button illumination does not
work.
Different causes are possible.
Call .
"Customer Service", Page10
The hob-based hood control is
not working properly.
It may be necessary to change the settings.
Read the instruction manual for the hob.
Go to
www.home-connect.com
.
The appliance does not start
when it is switched on for the first
time.
Software updates may need to be run.
Wait around 15 minutes.
The appliance does not respond. It may need to be restarted.
Press and hold and for at least 10seconds.
All of the buttons flash.
The appliance is restarted.
The restart does not work. Different causes are possible.
1.
Disconnect the appliance from the power supply.
Pull out the mains plug or switch off the fuse in the fuse box.
2.
After approx. 2minutes, reconnect the appliance to the power supply.
It may take a few minutes until all of the functions are available.
General malfunctions occur. A software update may be required.
Update the software.
Disposal13 Disposal
13.1 Disposing of old appliance
Valuable raw materials can be reused by recycling.
1.
Unplug the appliance from the mains.
2.
Cut through the power cord.
3.
Dispose of the appliance in an environmentally
friendly manner.
Information about current disposal methods are avail-
able from your specialist dealer or local authority.
This appliance is labelled in accordance
with European Directive 2012/19/EU
concerning used electrical and elec-
tronic appliances (waste electrical and
electronic equipment - WEEE).
The guideline determines the framework
for the return and recycling of used ap-
pliances as applicable throughout the
EU.
Customer Service14 Customer Service
Function-relevant genuine spare parts according to the
corresponding Ecodesign Directive can be obtained
from Customer Service for a period of at least 10years
from the date on which your appliance was placed on
the market within the European Economic Area.
Furthermore, our Customer Service will continue to
provide you with other function-relevant and storable
genuine spare parts for up to 15years from the date on
which your appliance was placed on the market.
For more information, please contact our Customer Ser-
vice team.
Note: Under the terms of the manufacturer's warranty
the use of Customer Service is free of charge.
Detailed information about the warranty period and the
warranty conditions in your country is available via the
QR code on the enclosed document on service con-
tacts and warranty conditions, from our customer ser-
vice or on our website.
You can find the contact details for our customer ser-
vice via the QR code on the enclosed document on ser-
vice contacts and warranty conditions or on our website.
10
Accessories en
14.1 Product number (E-Nr.), production
number (FD) and consecutive numbering (Z-
Nr.)
If you contact Customer Service, you will require the
product number (E-Nr.), the production number (FD)
and the consecutive numbering (Z-Nr.), which you can
find on the appliance's rating plate.
Depending on the model, the rating plate can be found:
Inside the appliance (remove grease filters for ac-
cess).
On top of the appliance.
Make a note of your appliance's details and the Cus-
tomer Service telephone number to find them again
quickly.
Accessories15 Accessories
You can buy accessories from the after-sales service,
from specialist retailers or online. Only use original ac-
cessories, as these have been specifically designed for
your appliance.
Accessories vary from one appliance to another. When
purchasing accessories, always quote the exact product
number (E no.) of your appliance.
Page11
You can find out which accessories are available for
your appliance in our catalogue, in the online shop or
from our after-sales service.
www.bosch-home.com
Declaration of Conformity16 Declaration of Conformity
BSH Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality conforms to the essen-
tial requirements and other relevant provisions of Directive 2014/53/EU.
A detailed RED Declaration of Conformity can be found online at
www.bosch-home.com
among the additional docu-
ments on the product page for your appliance.
Hereby, BSH Hausgeräte GmbH declares that the appliance with HomeConnect functionality is in compliance with
relevant statutory requirements.
1
A detailed Declaration of Conformity can be found online at
www.bosch-home.co.uk
among the additional documents
on the product page for your appliance.
1
2.4 GHz band (2400–2483.5MHz): Max. 100mW
5-GHz band (5150–5350MHz + 5470–5725MHz): max. 150mW
BE BG CZ DK DE EE IE EL ES
FR HR IT CY LI LV LT LU HU
MT NL AT PL PT RO SI SK FI
SE NO CH TR IS UK (NI)
5GHz WLAN (Wi-Fi): For indoor use only.
AL BA MD ME MK RS UK UA
5GHz WLAN (Wi-Fi): For indoor use only.
16.1 Statement of Compliance for Great
Britain
Product type
This statement of compliance covers the products de-
scribed in this information for use whose model identi-
fier group is seen on the title page. The full model identi-
fier is made up of the characters before the slash in the
product number (E no.) which can be found on the rat-
ing plate. Alternatively, you can also find the model iden-
tifier in the first line of the UK Energy Label.
Name and address of manufacturer
BSH Hausgeräte GmbH, Carl-Wery-Strasse 34, 81739
München, Germany
This statement of compliance is prepared by the manu-
facturer.
1
Only applies to Great Britain
11
en Information regarding Free and Open Source Software
The manufacturer, BSH Hausgeräte GmbH deems that it
has complied with
provision 5.1-1 of ETSI EN 303 645 v2.1.1 and,
where relevant, provision 5.1-2 of ETSI EN 303 645
v2.1.1;
provision 5.2-1 of ETSI EN 303 645 v2.1.1;
provision 5.3-13 of ETSI EN 303 645 v2.1.1.
Support period
BSH Hausgeräte GmbH will provide security updates
that are necessary to maintain the main functions free of
charge until at least 28/02/2034.
Information regarding Free and Open Source Software17 Information regarding Free and Open Source Software
This product includes software components that are li-
censed by the copyright holders as free software or
open source software.
The applicable licence information is stored on your
home appliance. You can also access the applicable li-
cence information via your HomeConnect app: "Profile
-> Legal information -> Licence Information".
1
You can
also download the licence information on the brand
product website. (Please search on the product website
for your appliance model and additional documents). Al-
ternatively, you can request the relevant information
from [email protected] or BSH Hausgeräte GmbH,
Carl-Wery-Str. 34, 81739 Munich, Germany.
The relevant source code will be made available on re-
quest.
Please send your request to [email protected] or
BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739 Mu-
nich, Germany.
Subject: „OSSREQUEST“
The cost of performing your request will be charged to
you. This offer is valid for three years from the date of
purchase or at least as long as we offer support and
spare parts for the relevant appliance.
Test information18 Test information
This information has been produced to facilitate the in-
spection of the appliance.
Measured in accordance with EN 61591.
The appliance is operated in its as-delivered condi-
tion.
Ensure that the filters do not move during the meas-
urement (by changing the appliance position to the in-
stallation position).
Installation instructions19 Installation instructions
Observe this information when installing the appliance.
1
Depending on the appliance specifications
12
Installation instructions en

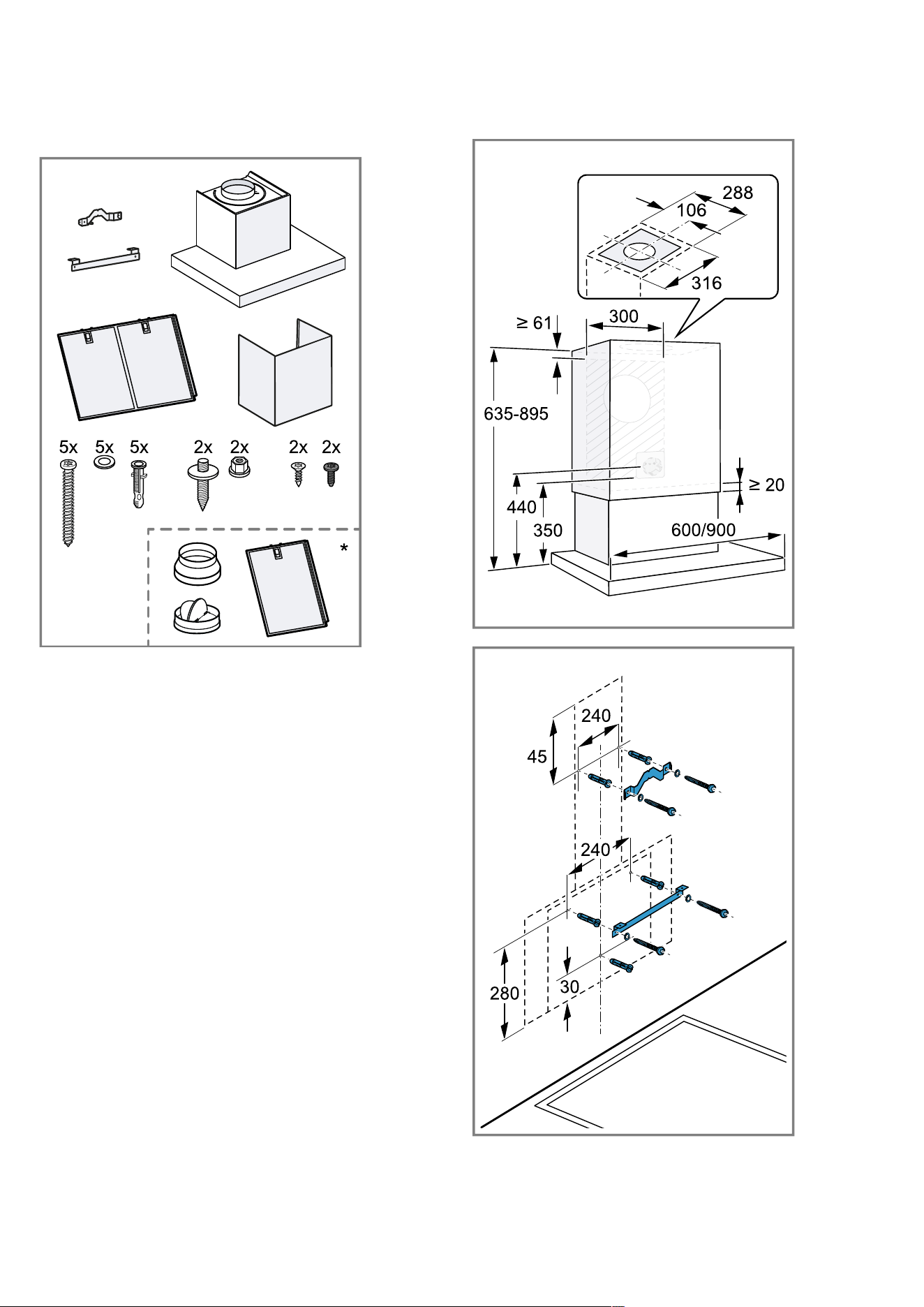

19.1 Included with the appliance
After unpacking all parts, check for any damage in
transit and completeness of the delivery.
* Depending on the appliance type, this is not included in the
scope of delivery.
Note: The retaining bracket for the flue duct section and
the small silver and black screws are included in the
scope of delivery but are not required for air recircula-
tion appliances.
19.2 Dimensions
You will find the dimensions of the appliance here
13
en Installation instructions
19.3 Safety clearances

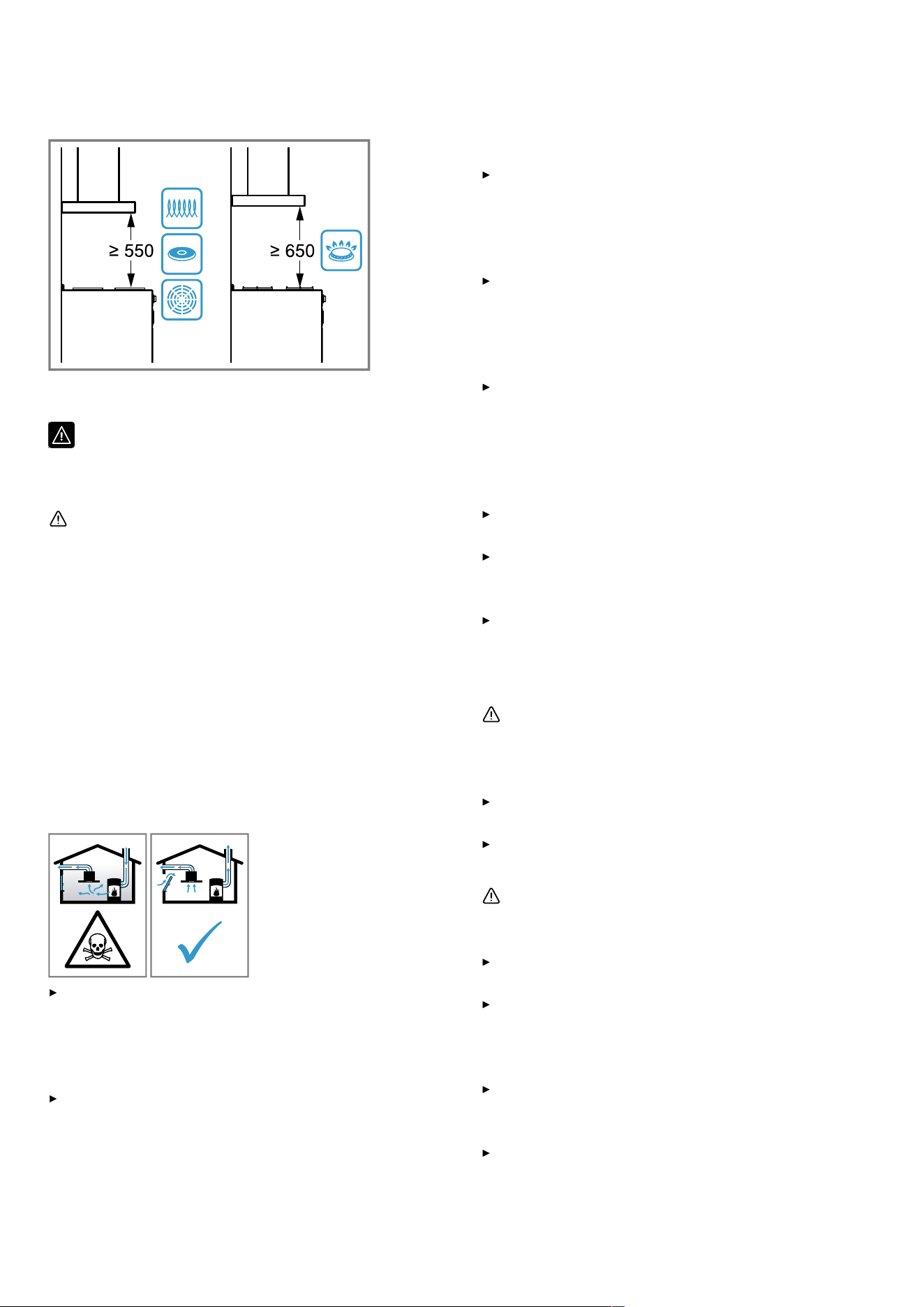

Comply with the safety clearances for the appliance.
For Australia and New Zealand the minimum safety
clearance above electrical cooktops must be 600 mm.
19.4 Secure installation
Follow these safety instructions when installing
the appliance.
WARNING‒Risk of poisoning!
Risk of poisoning from flue gases being drawn
back in. Room-air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-oper-
ated heaters, continuous flow heaters or water
heaters) obtain combustion air from the room
in which they are installed and discharge the
exhaust gases into the open through an ex-
haust gas system (e.g. a chimney). With the
extractor hood switched on, air is extracted
from the kitchen and the adjacent rooms.
Without an adequate supply of air, the air pres-
sure falls below atmospheric pressure. Toxic
gases from the chimney or the extraction shaft
are sucked back into the living space.
Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as a
room-air-dependent heat-producing appli-
ance is being operated.
It is only possible to safely operate the appli-
ance if the pressure in the room in which the
heating appliance is installed does not fall
below 4Pa(0.04mbar). This can be
achieved whenever the air needed for com-
bustion is able to enter through openings
that cannot be sealed, for example in doors,
windows, incoming/exhaust air wall boxes or
by other technical means. An incoming/ex-
haust air wall box alone is not sufficient to
ensure compliance with the limit.
In any case, consult your responsible chim-
ney sweep. They are able to assess the
house's entire ventilation setup and will sug-
gest the suitable ventilation measures to
you.
Unrestricted operation is possible if the ap-
pliance is operated exclusively in circulating-
air mode.
Risk of poisoning from flue gases being drawn
back in.
If an extractor hood with an open-flued heat
production source is installed, the power
supply for the extractor hood must be
provided with a suitable safety switch.
Risk of poisoning from flue gases being drawn
back in.
Do not emit the exhaust air into a smoke or
exhaust gas flue that is in operation.
Do not emit the exhaust air into a shaft that
is used to ventilate installation rooms for
heat-producing appliances.
If the exhaust air is to be conveyed into a
smoke or exhaust gas flue, you must obtain
the consent of the heating engineer respons-
ible.
WARNING‒Risk of suffocation!
Children may put packaging material over their
heads or wrap themselves up in it and suffoc-
ate.
Keep packaging material away from chil-
dren.
Do not allow children to play with packaging
material.
WARNING‒Risk of fire!
The grease deposits in the grease filter may
catch fire.
Never work with naked flames close to the
appliance (e.g. flambéing).
Do not install the appliance near a heat-pro-
ducing appliance for solid fuel (e.g. wood or
coal) unless a closed, non-removable cover
is present. There must be no flying sparks.
The specified safety clearances must be
complied with in order to prevent a build-up
of heat.
Observe the specifications for your cooking
appliances. If the installation instructions for
the cooking appliances specify a different
clearance, the larger of the two must always
14
Installation instructions en
be provided for. If gas hobs and electric
hobs are operated together, the largest spe-
cified clearance applies.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
Wear protective gloves.
The appliance may fall down if it has not been
properly fastened in place.
All fastening components must be fixed
firmly and securely in place.
The appliance is heavy.
The appliance must not be fitted directly
onto plasterboard or similar lightweight ma-
terials.
To ensure correct installation, you must use
a material which is sufficiently stable and
suitable for both the structural conditions
and the weight of the appliance.
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
Do not make any changes to the electrical
or mechanical assembly.
WARNING‒Risk of electric shock!
Sharp-edged components inside the appliance
may damage the connecting cable.
Do not kink or trap the connecting cable.
If the appliance or the power cord is damaged,
this is dangerous.
Never operate a damaged appliance.
Never pull on the power cord to unplug the
appliance. Always unplug the appliance at
the mains.
If the appliance or the power cord is dam-
aged, immediately unplug the power cord or
switch off the fuse in the fuse box.
Call customer service.
Page10
Improper repairs are dangerous.
Repairs to the appliance should only be car-
ried out by trained specialist staff.
Only use genuine spare parts when repairing
the appliance.
If the power cord of this appliance is dam-
aged, it must be replaced by trained special-
ist staff.
Incorrect installation is dangerous.
Connect and operate the appliance only in
accordance with the specifications on the
rating plate.
Connect the appliance to a power supply
with alternating current only via a properly in-
stalled socket with earthing.
The protective conductor system of the do-
mestic electrical installation must be properly
installed.
Never equip the appliance with an external
switching device, e.g. a timer or remote con-
trol.
When the appliance is installed, the mains
plug of the power cord must be freely ac-
cessible. If free access is not possible, an
all-pole isolating switch must be installed in
the permanent electrical installation accord-
ing to the conditions of Overvoltage Cat-
egory III and according to the installation
regulations.
When installing the appliance, check that the
power cable is not trapped or damaged.
19.5 General information
Follow these general instructions during the installation.
For the installation, observe the currently valid build-
ing regulations and the regulations of the local electri-
city and gas suppliers.
When discharging the exhaust air, the official and
legal regulations, such as the regional building code.,
must be observed.
In order to freely access the appliance for servicing,
select an easy-to-reach installation site.
The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
19.6 Instructions for the electrical
connection
In order to safely connect the appliance to the electrical
system, follow these instructions.
WARNING‒Risk of electric shock!
It must always be possible to disconnect the appliance
from the electricity supply. The appliance must only be
connected to a protective contact socket that has been
correctly installed.
The mains plug for the mains power cable must be
easily accessible after the appliance is installed.
If this is not possible, an all-pole isolating switch must
be integrated into the permanent electrical installation
according to the conditions of overvoltage category III
and according to the installation regulations.
The permanent electrical installation must only be
wired by a professional electrician. We recommend
installing a residual-current circuit breaker (RCCB) in
the appliance's power supply circuit.
Sharp-edged components inside the appliance may
damage the connecting cable.
Do not kink or trap the connecting cable.
The connection data can be found on the rating plate.
Page11
The connecting cable is approx.1.30m long.
This appliance complies with the EC interference sup-
pression regulations.
15
en Installation instructions
The appliance corresponds to protection class 1. You
should therefore only use the appliance with a pro-
tective earth connection.
Do not connect the appliance to the power supply
during installation.
Ensure that the protection against contact is guaran-
teed during installation.
19.7 Information on the installation situation
Install this appliance on the kitchen wall.
To install additional special accessory parts, observe
the enclosed installation instructions.
The width of the extractor hood must correspond at
least with the width of the hob.
To optimally detect the cooking vapours, install the
appliance in the middle of the hob.
19.8 Instructions for the exhaust air pipe
The appliance manufacturer does not provide any war-
ranty for faults attributable to the pipeline.
Use a short, straight exhaust air pipe with as large a
pipe diameter as possible.
Long, rough exhaust air pipes, many pipe bends or
small pipe diameters reduce the suction power and
increase the fan noise.
Use an exhaust pipe that is made of non-combustible
material.
To prevent condensate from returning, fit the exhaust
pipe with a 1° gradient from the appliance.
Flat ducts
Use flat ducts with an inner cross-section that corres-
ponds to the diameter of the round pipes:
Diameter of 150mm corresponds to ap-
prox.177cm².
Diameter of 120mm corresponds to ap-
prox.113cm².
Use sealing strips for different pipe diameters.
Do not use any flat ducts with sharp bends.
19.9 Instructions for the air extraction mode
For air extraction mode, a one-way flap should be in-
stalled.
Notes
If a one-way flap is not included with the appliance,
one can be ordered from a specialist retailer.
If the exhaust air is conveyed through the external
wall, a telescopic duct should be used.
19.10 Installation
Checking the wall
1.
Check whether the wall is horizontal and adequately
load-bearing.
The maximum weight of the appliance is 12kg.
2.
Drill the hole depth in accordance with the length of
the screws.
3.
Use the enclosed screws and wall plugs.
The enclosed screws and wall plugs are suitable for
use with solid brickwork. Use suitable fixing material
for other structures, e.g. plasterboard, porous con-
crete, poroton bricks.
4.
Install the appliance with a fixing material which is suf-
ficiently stable and has been adjusted accordingly for
both the structural conditions and the weight of the
appliance.
5.
Check the cut-out area for existing cables of other ap-
pliances.

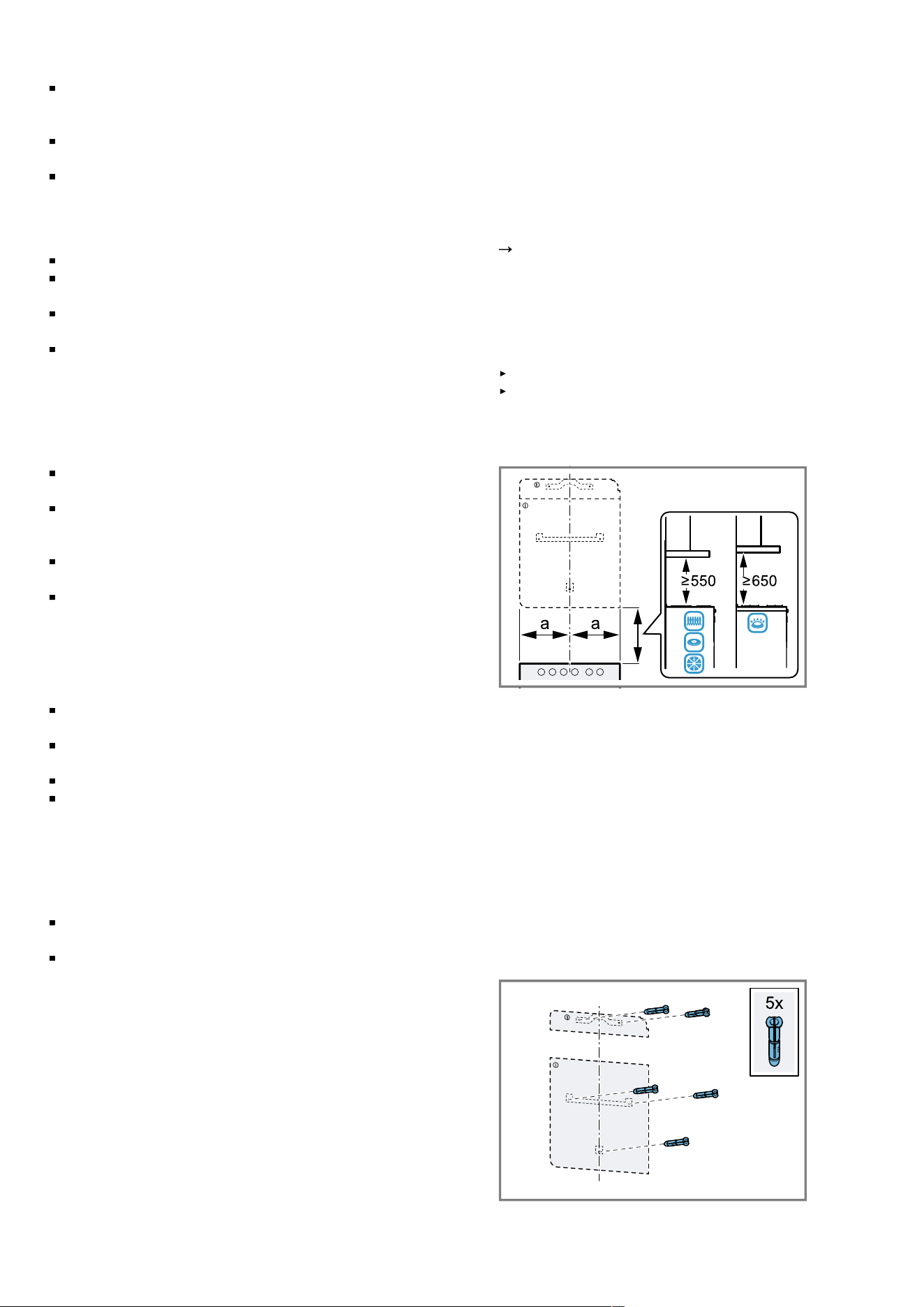

Preparing the wall
1.
Observe the information on the installation situation.
Page16
2.
Ensure that there are no electrical wires, gas pipes or
water pipes in the area where holes are to be drilled.
3.
Cover the hob to prevent damage.
4.
Determine the position of the extractor hood and
lightly mark where the lower edge of the appliance
should be on the wall.
Determine the centre of the hob.
Comply with the safety clearances for the hob.
5.
To make the installation easier, apply and secure the
packaging section that is used as the template to the
line that is marked out.
6.
Mark the positions for the screws.
7.
For the installation with the flue cover, separate the
template along the marked cut line.
8.
Place the detached part at the required position.
Observe the entire length of the flue duct.
9.
Drill the 8mmdiameter holes to a depth of 80mm
for the fastenings.
10.
Remove the template.

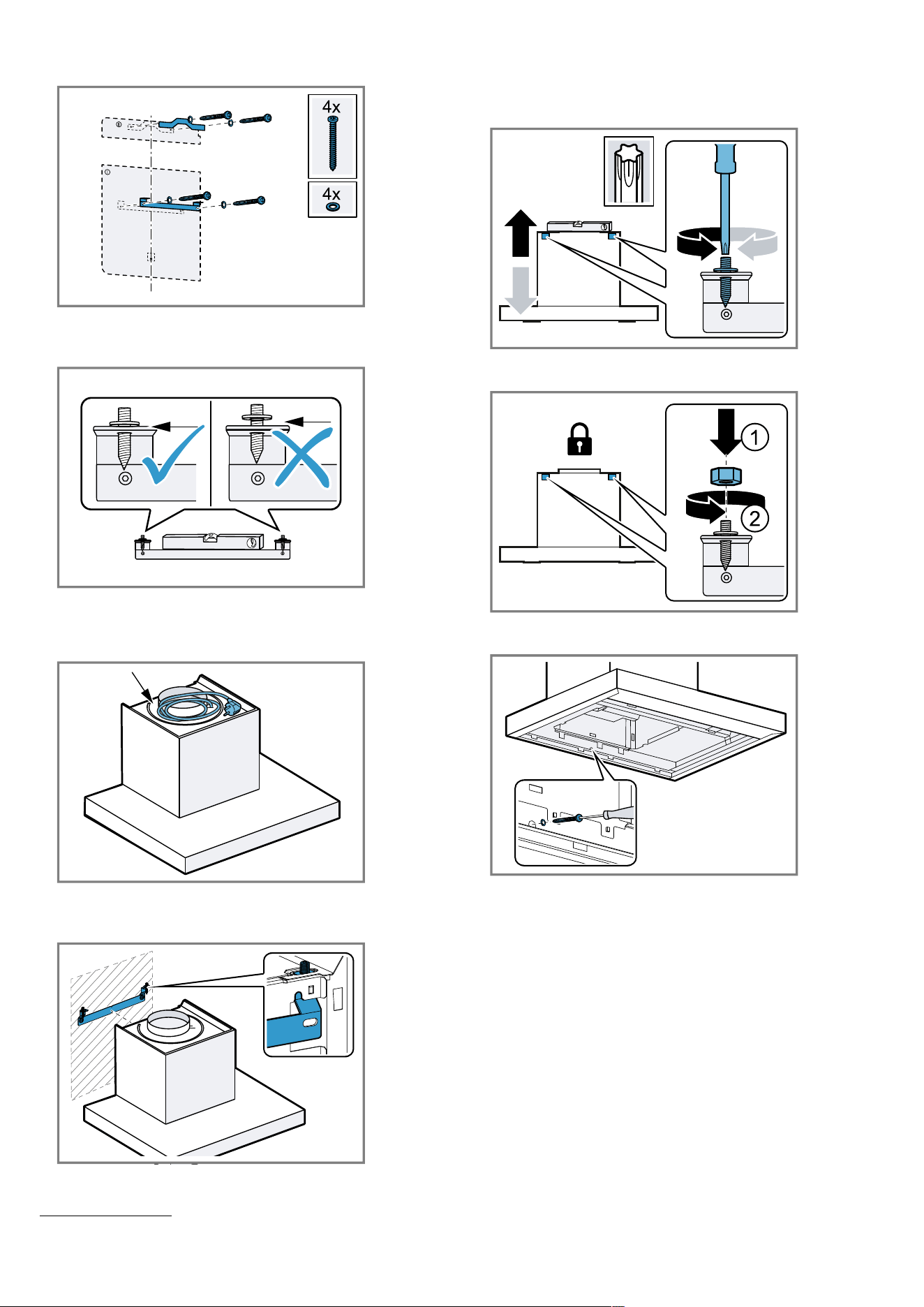

Installing the appliance bracket
1.
Remove the angle bracket for the flue duct.
2.
Screw on the appliance bracket for the extractor hood
hand-tight.
3.
Use a spirit level to align the appliance bracket hori-
zontally and screw it firmly in place.
16
Installation instructions en
4.
Screw the enclosed sleeves fully into the upper appli-
ance bracket.
Installing the appliance
1.
Place the mains plug on top of the appliance.
2.
Hook the appliance into the appliance bracket from
above.
3.
To align the appliance, if necessary, adjust the height
of the appliance from above using a screwdriver.
20
4.
Secure the appliance from above using 2 nuts.
5.
Screw in the safety screw using a screwdriver
6.
Remove the protective film from the grease filters and
insert the grease filters into the appliance.
7.
Connect the appliance to the power supply.
Piping
Note: If you are using an aluminium pipe, smooth the
connection area beforehand.
We recommend air extraction ducting with an exhaust
air pipe diameter of 150mm.
If the diameter of the air extraction ducting is less than
150 mm, you need a reducer piece available separately
from a specialist retailer.
Establishing the exhaust air connection (exhaust air
pipe, 120mm diameter)
1.
Secure the reducing connector to the air-pipe
connector.
1
1
Depending on the appliance type, this is not included in the scope of delivery.
17
en Installation instructions
2.
Secure the exhaust air pipe to the reducing con-
nector.
3.
Establish the connection to the exhaust air opening.
4.
Seal the joints.
Establishing the exhaust air connection (exhaust air
pipe, 150mm diameter)
1.
Secure the exhaust pipe to the air pipe connector.
2.
Establish the connection to the exhaust air opening.
3.
Seal the joints.

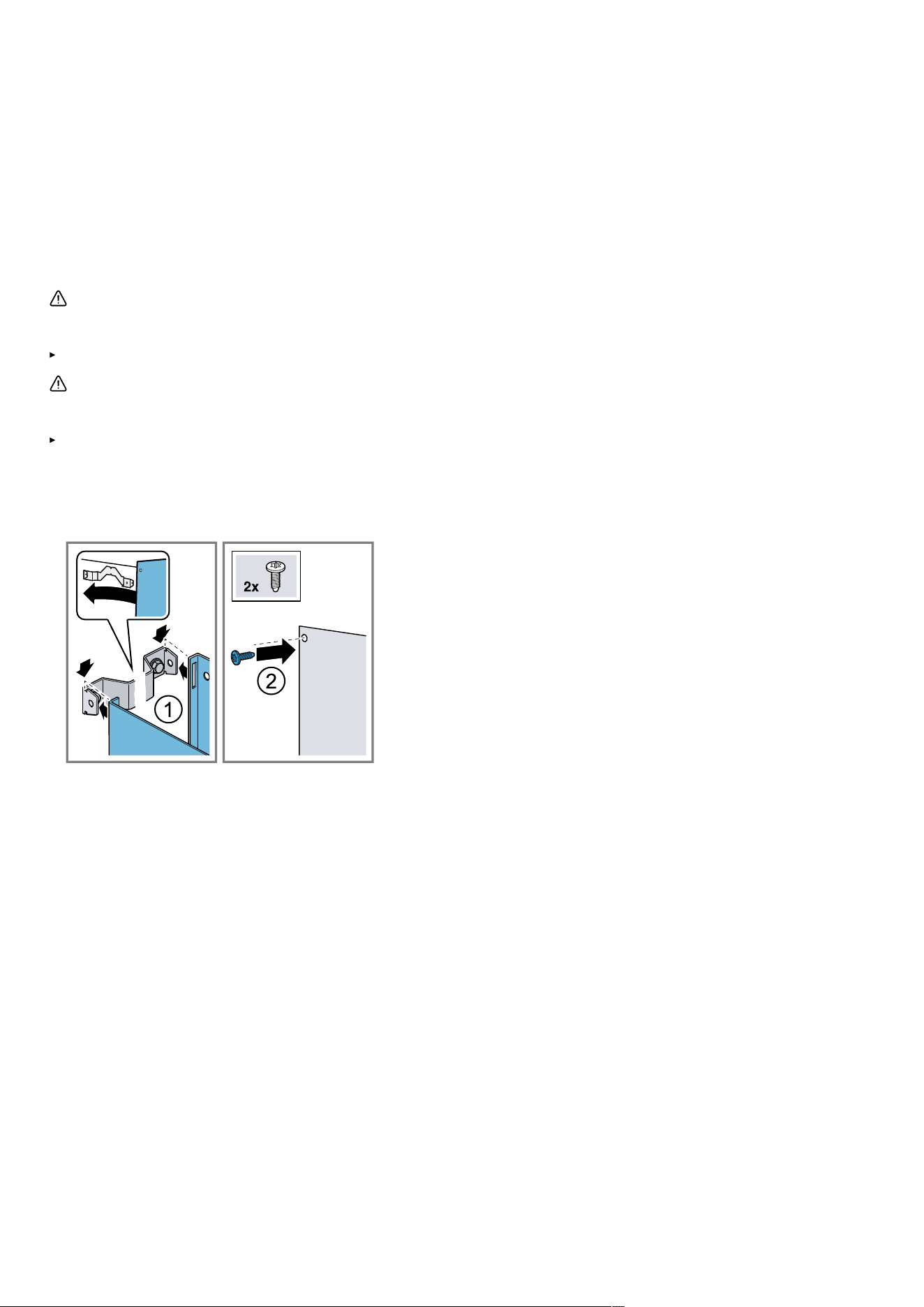

Installing the flue duct
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
Wear protective gloves.
WARNING‒Risk of electric shock!
Sharp-edged components inside the appliance may
damage the connecting cable.
Do not kink or trap the connecting cable.
1.
Where present, remove the protective film from the
flue duct.
2.
Mount the flue duct and use the 2 screws to screw it
to the sides of the retaining bracket.
Removing the appliance
1.
Undo the upper 2 nuts on the appliance bracket.
2.
Remove the appliance from the wall.
18
Bosch Home Connect App
Connect your home appliance today and enjoy the following
benefits:
• Focus entirely on cooking. The extractor hood starts automatically
when you begin cooking. (Compatible hob required)
• Do not forget to maintain the filters. When it’s time, you will
receive an app notification.
• Explore a world of additional functions and services within the app
and enjoy direct access with the favourites button on your
extractor hood. (available on selected models)
Need some help?
You can find it here.
Expert advice on your Bosch home appliances, help with problems or repairs by
professionals from Bosch.
Discover all the different ways Bosch can assist you:
www.bosch-home.com/service
The contact details of all countries are listed in the attached service directory.
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom
*9001999662*
9001999662 (060327)
en
