Liebherr MSDD 9012 Pure NoFrost 4-Door French Door User Manual

User Guide

Quality, Design and Innovation

home.liebherr.com/fridge-manuals

Contents

1 Appliance at a glance............................................ 3

1.1 Scope of delivery.......................................................... 3

1.2 Overview of the appliance and equipment.............. 3

1.3 VarioTempZone............................................................. 3

1.4 SmartDevice.................................................................. 4

1.5 Appliance range of use............................................... 4

1.6 Conformity..................................................................... 4

1.7 SVHC substances according to REACH regulation. 4

1.8 EPREL database........................................................... 4

1.9 Spare parts.................................................................... 5

2 General safety instructions.................................. 5

3 Functionality of the Touch&Swipe display......... 6

3.1 Navigation and symbol explanation......................... 6

3.2 Menus............................................................................. 6

3.3 Sleep mode................................................................... 7

4 Putting into operation........................................... 7

4.1 Switching on appliance (first use)............................ 7

4.2 Starting the EasyTwist-Ice for the first time........... 7

5 Storage.................................................................. 8

5.1 Information regarding storage................................... 8

5.2 Fridge compartment.................................................... 8

5.3 EasyFresh..................................................................... 8

5.4 Freezer compartment.................................................. 8

5.5 Storage times............................................................... 9

6 Saving energy........................................................ 9

7 Controls................................................................. 9

7.1 Controls and displays.................................................. 9

7.1.1 Status display..............................................................9

7.1.2 Display symbols.......................................................... 9

7.2 Appliance functions..................................................... 10

7.2.1 Notes on the appliance functions..........................10

Switching the appliance off and on......................10

Switching temperature zone off and on.............. 10

WiFi............................................................................ 10

Temperature.............................................................. 11

Temperature unit......................................................12

SuperCool..................................................................12

SuperFrost.................................................................13

Start defrosting cycle..............................................13

PartyMode ................................................................ 14

HolidayMode............................................................. 14

SabbathMode............................................................15

EnergySaver .............................................................15

CleaningMode...........................................................16

Display brightness...................................................16

H-Value...................................................................... 16

Door alarm................................................................. 17

Input lock...................................................................17

Language...................................................................18

Appliance and software information....................18

Reminder................................................................... 18

Demo mode............................................................... 19

Resetting to factory settings................................. 19

7.3 Messages...................................................................... 19

7.3.1 Overview of warnings..............................................20

7.3.2 Ending warnings.......................................................20

7.3.3 Overview of reminders.............................................20

7.3.4 Ending reminders..................................................... 20

8 Features................................................................. 20

8.1 Door rack....................................................................... 20

8.2 Drawers.......................................................................... 23

8.3 Compartment lid for EasyFresh Safe........................ 24

8.4 Glass shelves................................................................ 24

8.5 EasyTwist-Ice................................................................ 25

8.6 Butter dish.................................................................... 26

8.7 Egg rack......................................................................... 26

8.8 Bottle holder................................................................. 26

9 Maintenance.......................................................... 26

9.1 FreshAir carbon filter................................................... 26

9.2 Disassembling / assembling pull-out systems...... 27

9.3 Compartment lid for EasyFresh Safe........................ 27

9.4 Defrosting the appliance............................................ 27

9.5 Cleaning the appliance............................................... 28

10 Customer help....................................................... 30

10.1 Technical specifications............................................. 30

10.2 Operating noises.......................................................... 30

10.3 Technical fault.............................................................. 31

10.4 Customer Service......................................................... 32

10.5 Model plate................................................................... 32

11 Shutting down....................................................... 32

12 Disposal................................................................. 32

12.1 Preparing appliance for disposal.............................. 32

12.2 Disposing of the appliance in an environmentally

friendly manner............................................................ 32

The manufacturer is continually working on the further

development of all types and models. Please be aware that

we reserve the right to make changes to the shape, equip‐

ment and technology.

Symbol

Explanation

Read instructions

Please read the information in these instruc‐

tions carefully to understand all of the benefits

of your new appliance.

2 * Depending on model and options

Symbol Explanation

Additional information on the Internet

The digital manual with additional informa‐

tion and in other languages can be found

via the QR code on the front of the

manual or by entering the service number at

home.liebherr.com/fridge-manuals.

The service number can be found on the serial

tag:

Fig.Example illustration

Check appliance

Check all parts for transport damage. If you

have any complaints, please contact your

agent or customer service.

Differences

These instructions apply to a range of models,

so differences are possible. Sections that

apply to certain models only are marked with

an asterisk (*).

Instructions and results

Instructions are marked with a .

Results are marked with a .

Videos

Videos about the appliances are available on

the YouTube channels of Liebherr-Hausgeräte.

Open source licences:

The appliance contains software components that use

open source licences. Information on the open source

licences used can be found here: home.liebherr.com/

open-source-licences

These operating instructions apply to:

M..

90..

1 Appliance at a glance

1.1 Scope of delivery

Check all parts for transport damage. Contact your

dealer or customer service in the event of complaints.

(see 10.4 Customer Service)

Your new appliance comes with the following parts:

Standalone appliance

Features (depending on the model)

Installation materials (depending on the model)

“Quick Start Guide”

“Installation Guide”

Service Brochure

1.2 Overview of the appliance and

equipment

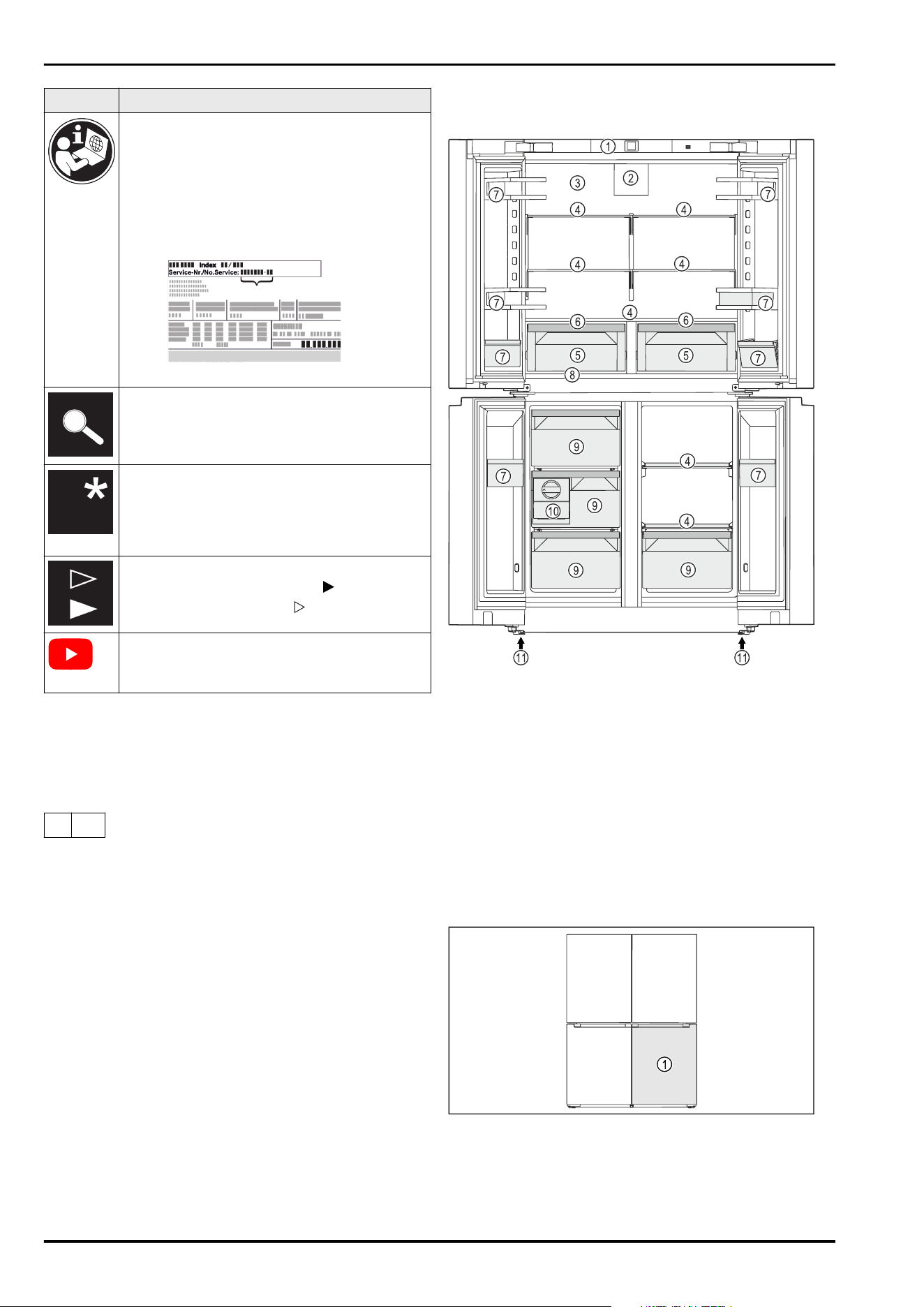

Fig. 1 Example illustration

Equipment

(1)

Controls (7) Door racks

(2) Fan with FreshAir acti‐

vated charcoal filter

(8) Type plate

(3) Dry rear wall (9) Freezer drawer

(4) Shelf (10) EasyTwist-Ice

(5) EasyFresh-Safe (11) Adjustable feet

(6) Lid for EasyFresh-Safe

1.3 VarioTempZone

Your appliance is equipped with a VarioTempZone (-18 °C to

+5 °C). This allows you to use an area of the freezer section

as an additional cooling zone.

Fig. 2 Example illustration

(1)

VarioTempZone

If you use the VarioTempZone as an additional cooling zone,

louder appliance noises may occur. However, the appliance

is fully functional.

Appliance at a glance

* Depending on model and options 3

More information:

Set the temperature in the VarioTempZone. (see Setting

the temperature in the VarioTempZone)

Observe the notes on storing food. (see 5.1 Information

regarding storage)

1.4 SmartDevice

SmartDevice is the networking solution for your fridge-

freezer.

If your appliance SmartDevice-enabled or compatible, you

can quickly and easily connect your appliance to your

WiFi. With the SmartDevice app, you can operate your appli‐

ance from a mobile device. Additional functions and setting

options are available in the SmartDevice SmartDevice app.

SmartDevice-

compatible appli‐

ance:

Your appliance is compatible for use

with the SmartDeviceBox. You must

first purchase and install the Smart‐

DeviceBox. In order to connect your

appliance to the WiFi, you need to

download the SmartDevice app.

More information

about SmartDe‐

vice:

smartdevice.liebherr.com

Purchasing the

SmartDeviceBox

in the Liebherr-

Hausgeräte store:

home.liebherr.com/shop/de/deu/

smartdevicebox.html

Downloading the

SmartDevice app:

After installing and configuring the

SmartDevice, you can connect your

appliance to the WiFi using the

SmartDevice app and the WiFi appli‐

ance function (seeWiFi) .

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

1.5 Appliance range of use

Intended use

The appliance is only suitable for cooling

food products in a domestic or household-like

environment. This includes, for example, use:

in staff kitchens, bed and breakfast estab‐

lishments,

by guests in country houses, hotels, motels

and other accommodation,

for catering and similar services in the

wholesale trade.

The appliance is not suitable as a built-in

unit.

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly

forbidden:

Storing and refrigerating medicines, blood

plasma, laboratory preparations or similar

substances and products based on the

Medical Device Directive 2007/47/EC

Use in areas at risk of explosions

Misusing the appliance may lead to damage

to the goods stored or they may spoil.

Climate classifications

Depending on the climate classification the

appliance is designed to operate in restricted

ambient temperatures. The climate classifica‐

tion applying to your appliance is printed on

the rating plate.

Note

►Keep to the specified ambient tempera‐

tures in order to guarantee that the appli‐

ance works properly.

Climate clas‐

sification

for ambient temperatures of

SN 10°C to 32°C

N 16°C to 32°C

ST 16°C to 38°C

T 16°C to 43°C

SN-ST 10°C to 38°C

SN-T 10°C to 43°C

The appliance is designed for a maximum

relative humidity of 80%. If the appliance is

operated at a relative humidity of more than

80%, the appliance will work, but condensa‐

tion will form on the surface of the appliance.

1.6 Conformity

The refrigerant circuit has been tested for leaks. The appli‐

ance complies with the applicable safety regulations and

with the corresponding directives.

The full text of the EU Declaration of Conformity is available

on the following website: www.Liebherr.com

1.7 SVHC substances according to

REACH regulation

You can check whether your appliance contains SVHC

substances according to REACH regulation at the following

link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐

haltigkeit/umwelt/scip/scip.html

1.8 EPREL database

Details about energy labelling and ecodesign requirements

will be available on the European product database (EPREL)

from 1st March 2021. You can access the product database

Appliance at a glance

4 * Depending on model and options

at the following link: https://eprel.ec.europa.eu/ You will be

asked to enter the model ID. You can find the model ID on

the nameplate.

1.9 Spare parts

The spare parts availability for functional parts and stock‐

able parts of the equipment is 15 years.

2 General safety instructions

Please keep these operating instructions in a

safe place so you can refer back to them at

any time.

If you pass the appliance on, please hand

these operating instructions to the next user.

Read these operating instructions carefully

before use to ensure safe and correct use of

the appliance. Follow the instructions, safety

instructions and warning messages included

at all times. They are important for ensuring

you can operate and install the appliance

safely and without any problems.

Danger for the user:

This device can be used by children and

people with impaired physical, sensory or

mental abilities or with a lack of experi‐

ence and knowledge provided that they are

supervised or have received instruction in

the safe use of this device, and about the

resulting hazards.

Children must not play with this appliance.

Cleaning and user maintenance work must

not be carried out by children without adult

supervision. Children aged between 3 and

8 are allowed to load and unload the appli‐

ance. Children below the age of 3 must be

kept away from the appliance unless they

are under continuous adult supervision.

The socket must be easily accessible so

that the appliance can be disconnected

quickly from the electricity in an emer‐

gency. It must not be located in the area

behind the appliance.

When disconnecting the appliance from the

supply, always take hold of the plug. Do not

pull the cable.

In the event of a fault pull out the mains

plug or deactivate the fuse.

Do not damage the mains power cable. Do

not operate the appliance with a defective

mains power cable.

Only customer service or other specially

trained staff may repair or perform other

operations on the appliance.

Only assemble, connect and dispose of the

appliance according to the instructions.

Fire hazard:

The coolant used (information on the model

plate) is ecofriendly but also flammable.

Any leaking coolant may ignite.

•

Do not damage the refrigerant circuit

pipes.

•

Do not handle ignition sources inside the

appliance.

•

Do not use electrical appliances inside

the appliance (e.g. steam cleaners,

heaters, ice cream makers, etc.).

•

If the refrigerant leaks: remove any naked

flames or ignition sources from the

vicinity of the leakage point. Properly air

the room. Inform customer services.

Do not store explosives or sprays using

combustible propellants such as butane,

propane, pentane, etc. in the appliance. To

identify these spray cans, look for the list

of contents printed on the can, or a flame

symbol. Gases possibly escaping may ignite

due to electrical components.

Keep burning candles, lamps and other

items with naked flames away from the

appliance so that they do not set the appli‐

ance on fire.

Please be sure to store alcoholic drinks

or other packaging containing alcohol in

tightly closed containers. Any alcohol that

leaks out may be ignited by electrical

components.

Danger of tipping and falling:

Do not misuse the plinth, drawers, doors

etc. as a step or for support. This applies

particularly to children.

Danger of food poisoning:

Do not consume food which has been

stored too long.

Danger of frostbite, numbness and pain:

Avoid prolonged skin contact with cold

surfaces or refrigerated/frozen goods or

take protective measures, e.g wear gloves.

Danger of injury and damage:

Hot steam can lead to injury. Do not use

electrical heating or steam cleaning equip‐

ment, open flames or defrosting sprays to

defrost.

Do not use sharp implements to remove the

ice.

Risk of crushing:

Do not hold the hinge when opening and

closing the door. Fingers may get caught.

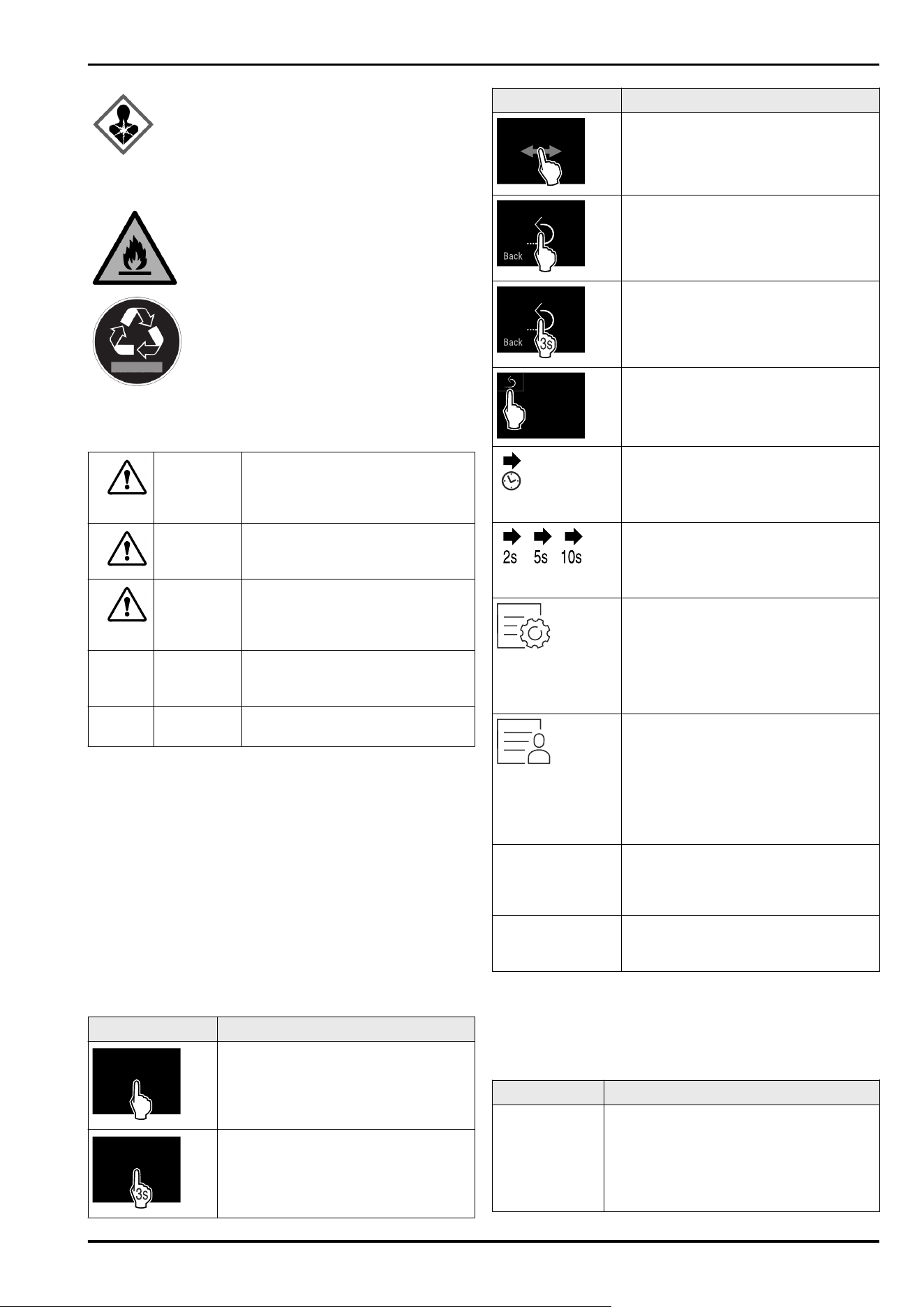

Symbols on the appliance:

General safety instructions

* Depending on model and options 5

This symbol may be located on the

compressor. It relates to the oil in the

compressor and makes reference to the

risk that: Swallowing or inhaling can be

fatal. This advice is only relevant to recy‐

cling. There is no danger in normal opera‐

tion.

This symbol is located on the compressor

and indicates the danger of flammable

materials. Do not remove the sticker.

This or a similar sticker may be located

on the rear of the appliance. This sticker

indicates that there are vacuum insulation

panels (VIP) or perlite panels in the door

and/or housing. This advice is only relevant

to recycling. Do not remove the sticker.

Please note the warning messages and other

specific advice in the other chapters:

DANGER

indicates an immediately

hazardous situation which will

lead to death or serious injuries if

it is not avoided.

WARNING indicates a hazardous situation

which may lead to death or serious

injuries if it is not avoided.

CAUTION indicates a hazardous situation

which may lead to minor or

moderate injuries if it is not

avoided.

NOTICE indicates a hazardous situation

which may lead to damage to

property if it is not avoided.

Note indicates useful instructions and

tips.

3 Functionality of the

Touch&Swipe display

You operate your appliance using the Touch & Swipe display.

You select appliance functions in the Touch & Swipe display

(hereafter referred to as display) by tapping them. If you

do not perform any action on the display for 10 seconds,

the display either jumps back to the higher-level menu or

directly to the status display.

3.1 Navigation and symbol explanation

In the illustrations, different symbols are used to navigate

the display. The following table describes these symbols.

Symbol

Description

Briefly touch the display:

Activates/deactivates function.

Confirms selection.

Opens submenu.

Touch the display for a specified time

(e.g. 3seconds):

Activates/deactivates function or

value.

Symbol Description

Swipe left or right:

Navigate in the menu.

Briefly touch the Back symbol:

Jumps back one menu level.

Press and hold the Back symbol for

3seconds:

Jumps back to the status display.

Briefly touch the Back symbol at the

top left:

Jumps back one menu level.

Arrow with clock:

It takes more than 10 seconds for the

following message to appear in the

display.

Arrow with a time indication:

It takes the specified amount of time

until the following message appears in

the display.

“Open Settings menu” symbol:

Navigates to the Settings menu and

opens the settings menu.

If necessary: Navigate to the desired

function in the Settings menu.

(see 3.2.1 Opening the Settings menu)

“Open Advanced menu” symbol:

Navigates to the Advanced menu and

opens the advanced menu.

If necessary: Navigate to the desired

function in the Advanced menu.

(see 3.2.2 Opening the expanded

menu)

No action for

10seconds

If you do not perform any action on

the display for 10 seconds, the display

either jumps back to the higher-level

menu or directly to the status display.

Open door and

close it again.

If you open the door and immedi‐

ately close it again, the display jumps

directly back to the status display.

Note: Illustrations of the display are shown in the English

version.

3.2 Menus

The appliance functions are distributed over various menus:

Description

Main menu When you switch the appliance on, you

are automatically in the main menu.

From here you can navigate to the most

important appliance functions, to the

Settings menu and to the Advanced

menu.

Functionality of the Touch&Swipe display

6 * Depending on model and options

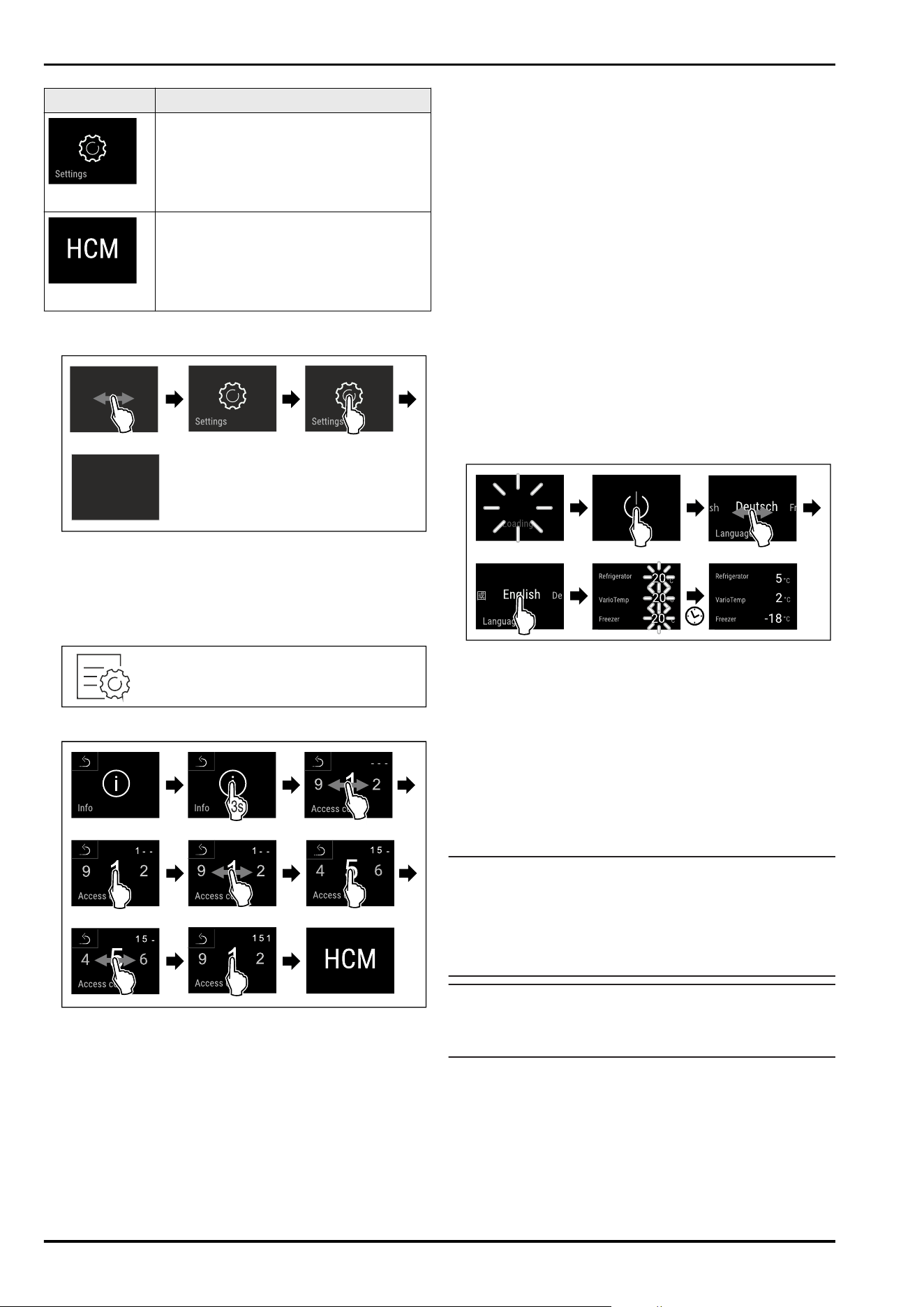

Menu Description

Settings menu

The Settings menu contains additional

appliance functions for setting up your

appliance.

Advanced menu

The advanced menu contains special

appliance functions for setting up your

appliance. Access to the Advanced menu

is protected by the numerical code 151.

3.2.1 Opening the Settings menu

Fig. 3 Example illustration

► Carry out action steps according to the illustration.

▷ Settings menu is open.

► If necessary: Navigate to the desired function.

3.2.2 Opening the expanded menu

Fig.4

Fig. 5 Example illustration, access with numerical code 151

► Carry out action steps according to the illustration.

▷ The expanded menu is open.

► If necessary: Navigate to the desired function.

3.3 Sleep mode

If you do not touch the display for 1 minute, the display

switches to sleep mode. In sleep mode, the display bright‐

ness is dimmed.

3.3.1 Ending sleep mode

► Touch the display briefly with your finger.

▷ Sleep mode is ended.

4 Putting into operation

4.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

❑

The appliance has been installed and connected in

accordance with the installation instructions.

❑

All adhesive strips, adhesive and protective films and

transport locks are removed from inside and on the appli‐

ance.

❑

All marketing leaflets are removed from the drawers.

❑

You are familiar with the functionality of the

Touch & Swipe display. (see 3 Functionality of the

Touch&Swipe display)

Switch on the appliance using the Touch&Swipe display:

► If the display is in sleep mode: Briefly touch the display.

► Carry out action steps according to the illustration.

Fig. 6 Example illustration

▷ Status display appears.

▷ The appliance cools to the temperature set at the factory.

▷ The appliance starts in demo mode (status display with

DEMO appears): If the appliance starts in demo mode,

you can deactivate demo mode within the next 5 minutes.

(seeDemo mode)

More information:

Start the EasyTwist-Ice for the first time. (see4.2Starting

the EasyTwist-Ice for the first time)

Start the SmartDevice for the first time. (see 1.4 Smart‐

Device) and (seeWiFi)

Note

The manufacturer recommends:

► Stock with food: Wait for around 6 hours until the set

temperature is reached.

► Store frozen foods at -18°C or colder.

► Observe the notes on storing food. (see 5.1 Information

regarding storage)

Note

Accessories can be purchased from the Liebherr-

Hausgeräte store at home.liebherr.com/shop/de/deu/

zubehor.html.

4.2 Starting the EasyTwist-Ice for the

first time

If your appliance is equipped with EasyTwist-Ice, you must

clean the EasyTwist-Ice before using it for the first time.

Make sure that the following requirements are fulfilled:

❑

The appliance is properly connected.

Putting into operation

* Depending on model and options 7

► Clean the EasyTwist-Ice. (see 9.5.5 Cleaning the Easy‐

Twist-Ice)

► Fill the water tank. (see Filling the water tank)

5 Storage

5.1 Information regarding storage

WARNING

Risk of fire

► Do not use any electrical appliances in the food area of

the appliance unless recommended by the manufacturer.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always keep air slots clear.

Observe the following specifications for storage:

Keep the air vents on the fan free.

In the freezer compartment: Package food properly.

Package or cover foods that readily take on or give off

odours or taste in closed containers.

Package raw meat or fish in clean, closed containers.

This will prevent meat or fish from touching or dripping

onto other food.

Keep liquids in closed containers.

Leave space between goods to ensure good air circula‐

tion.

Store food according to the instructions on the pack‐

aging.

Always observe the best-before date indicated on the

packaging.

Note

Failure to follow these guidelines can lead to foodstuffs

spoiling.

Temperature zone Food

VarioTempZone

Store food according to the set temper‐

ature. Liebherr recommends storing

food in the VarioTempZone:

Temperature

range

Food

4°C to 5°C ready prepared food,

cheese, tinned food

0°C packaged fruit and

vegetables

-2°C fresh fish and

seafood

-18°C siehe Gefrierteil

VarioTempZone overview

5.2 Fridge compartment

The air circulation in the appliance creates different temper‐

ature zones. You will find the different temperature zones in

the appliance and equipment overview. (see 1.2 Overview of

the appliance and equipment)

5.2.1 Arranging your food properly

► Upper area and door: Store butter, cheese, tinned food

and tubes.

►

Coldest temperature zone: Store perishable foods such

as pre-cooked meals, meat and lunch meats.

► Bottom shelf: Store raw meat or fish.

5.3 EasyFresh

EasyFresh is great for non-packaged foods, such as fruit

and vegetables.

The humidity in the compartment depends on the moisture

content of the chilled goods placed in it, and also depends

on how often the compartment is opened. You can regulate

the humidity level.

5.3.1 Arranging your food properly

► Store unpackaged fruit and vegetables.

If the humidity is too high:

► Regulate the humidity.

5.4 Freezer compartment

Here, a dry, frosty storage climate is created at -18 °C. The

frosty storage climate is suitable for storing frozen food for

several months, for making ice cubes or freezing fresh food.

5.4.1 Freezing food

Freezing quantity

The maximum amount of fresh food that you can

freeze within 24 hours is specified on the type plate

(see 10.5 Model plate) under “Freezing capacity ... kg/24h”.

To ensure that food quickly freezes through, adhere to the

following quantities per package:

Fruit and vegetables up to 1 kg

Meat up to 2.5 kg

Freezing food using SuperFrost

Depending on the quantity to be frozen, you can activate

SuperFrost before freezing in order to achieve lower freezing

temperatures. (see SuperFrost)

► Activate SuperFrost if the amount of food you have to

freeze is more than approx. 2 kg.

The time at which you activate SuperFrost depends on the

amount of food you have to freeze:

Freezing quan‐

tity

Time at which you should activate

SuperFrost

Small amount of

food to freeze

Activate SuperFrost about 6 hours

before freezing.

You can place the food in the freezer

as soon as the appliance automatically

deactivates SuperFrost.

Maximum

amount of food

to freeze

Activate SuperFrost about 24 hours

before freezing.

You can place the food in the freezer

as soon as the appliance automatically

deactivates SuperFrost.

Arranging your food properly

CAUTION

Risk of injury from broken glass!

Bottles and cans with beverages can burst during freezing.

This applies in particular to carbonated beverages.

► Only freeze bottles and cans with beverages if you have

activated the BottleTimer function in the SmartDevice

app.

Storage

8 * Depending on model and options

Freezing quan‐

tity

Arranging your food properly

Small amount of

food to freeze

Place packaged food in the top drawer.

If possible, place groceries at the back

of the drawer near the rear wall.

Maximum

amount of food

to freeze

Distribute packaged groceries

throughout all drawers, but only place

frozen food in the bottom drawer.

If possible, place groceries at the back

of the drawer near the rear wall.

5.4.2 Defrosting food

WARNING

Risk of food poisoning!

► Do not re-freeze thawed food.

► Use defrosted foodstuff as soon as possible.

You can defrost food in several ways:

In the fridge compartment

In the microwave

In the oven/fan-assisted oven

At room temperature

► Take out only as much food as necessary.

5.5 Storage times

Refer to the specified storage times as a guide.

In the case of foods with a minimum shelf life, the date

indicated on the packaging still applies.

5.5.1 Fridge section

Always follow the best-before date stated on the packaging.

5.5.2 Freezer compartment

Recommended storage period for various types of food

Ice cream at -18°C 2 to 6 months

Sausages, ham at -18°C 2 to 3 months

Bread, baked goods at -18°C 2 to 6 months

Game, pork at -18°C 6 to 9 months

Fatty fish at -18°C 2 to 6 months

Lean fish at -18°C 6 to 8 months

Cheese at -18°C 2 to 6 months

Poultry, beef at -18°C 6 to 12 months

Vegetables, fruit at -18°C 6 to 12 months

6 Saving energy

Pay attention to good ventilation. Do not cover ventilation

holes or grids.

Always keep the fan air slits clear.

Do not place the appliance in direct sunlight or near radi‐

ators or similar sources of heat.

If the appliance is placed directly next to an oven,

the energy consumption may increase slightly. This is

dependent on the service life and usage intensity of the

oven.

Energy consumption depends on the installation condi‐

tions, e.g. the ambient temperature (see 1.5 Appliance

range of use) . A warmer ambient temperature can

increase the energy consumption.

Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy

consumption.

Sort your food: home.liebherr.com/food.

Keep all food properly packed and covered. This prevents

frost from forming.

Only take food out for as long as necessary so that it

doesn’t warm up too much.

Inserting warm food: allow to cool down to room temper‐

ature first.

Thaw frozen food in the refrigerator.

For longer periods of absence, use HolidayMode

(seeHolidayMode) .

7 Controls

7.1 Controls and displays

7.1.1 Status display

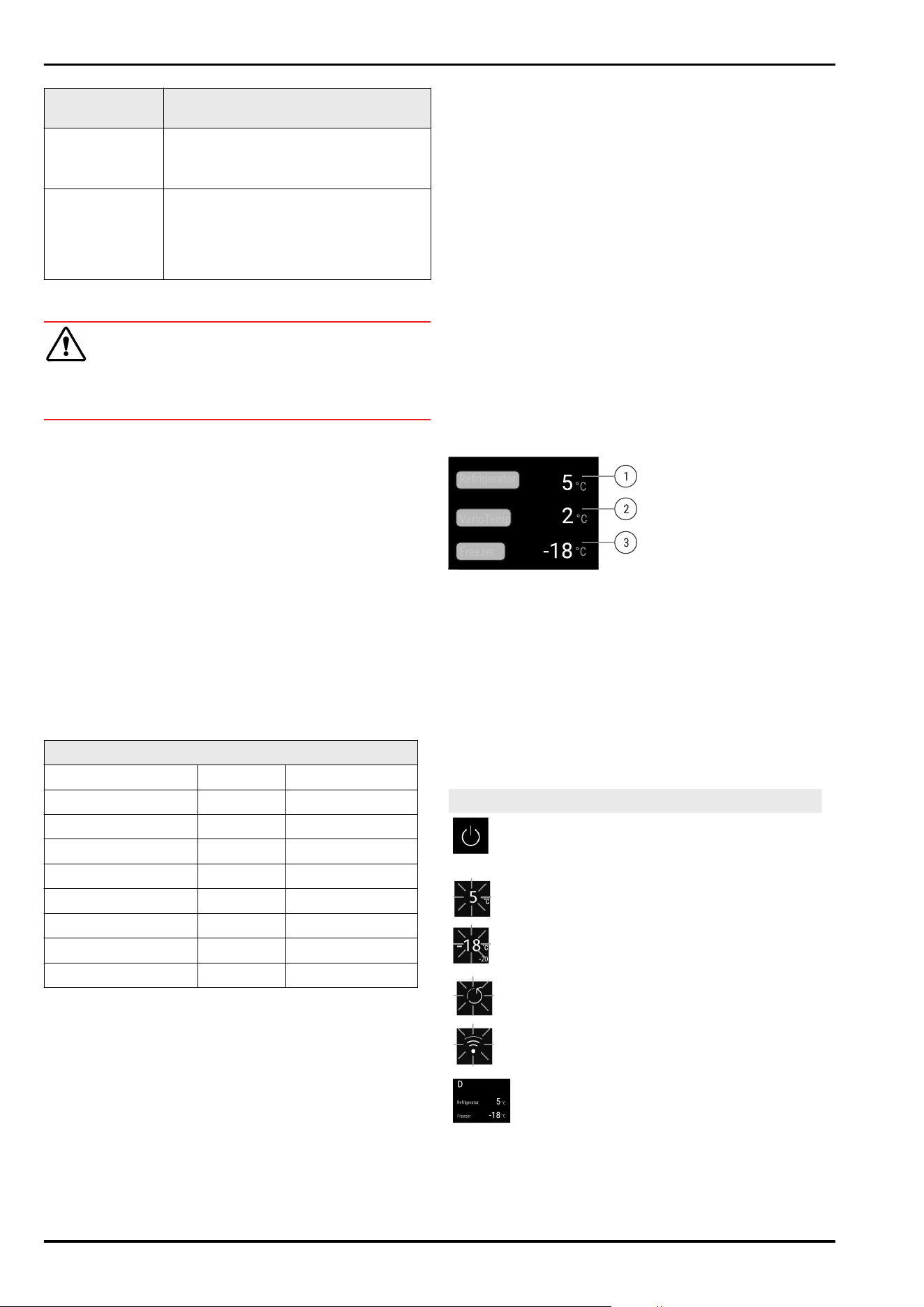

Fig. 7 The status display shows the actual temperature.

(1)

Fridge section temper‐

ature display

(3) Freezer section tempera‐

ture display

(2) VarioTempZone

temperature display

The status display shows the actual temperature and is the

initial display. Navigation to the functions takes place from

there.

7.1.2 Display symbols

Display symbols provide information on the current appli‐

ance status:

Symbol

Appliance status

Standby

The appliance or temperature zone

is switched off.

Flashing number

Appliance is working. Temperature

flashes until the set temperature is

reached.

Flashing symbol

Appliance is working. Setting is

made.

"D" on the status display

Demo mode is active.

Saving energy

* Depending on model and options 9

7.2 Appliance functions

7.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your

appliance is fully functional.

Before you alter, activate or deactivate the device functions,

make sure that the following requirements are met:

❑

You have read and understood the descriptions of

how the display works. (see 3 Functionality of the

Touch&Swipe display)

❑

You have familiarised yourself with the operating and

display elements of your appliance.

Switching the appliance off and on

Use this function to switch the entire appliance off and on.

Switching off the appliance

When you switch the appliance off, then the previously

saved settings are saved.

Make sure that the following requirements are fulfilled:

❑

Handling instructions (see 11 Shutting down) are carried

out.

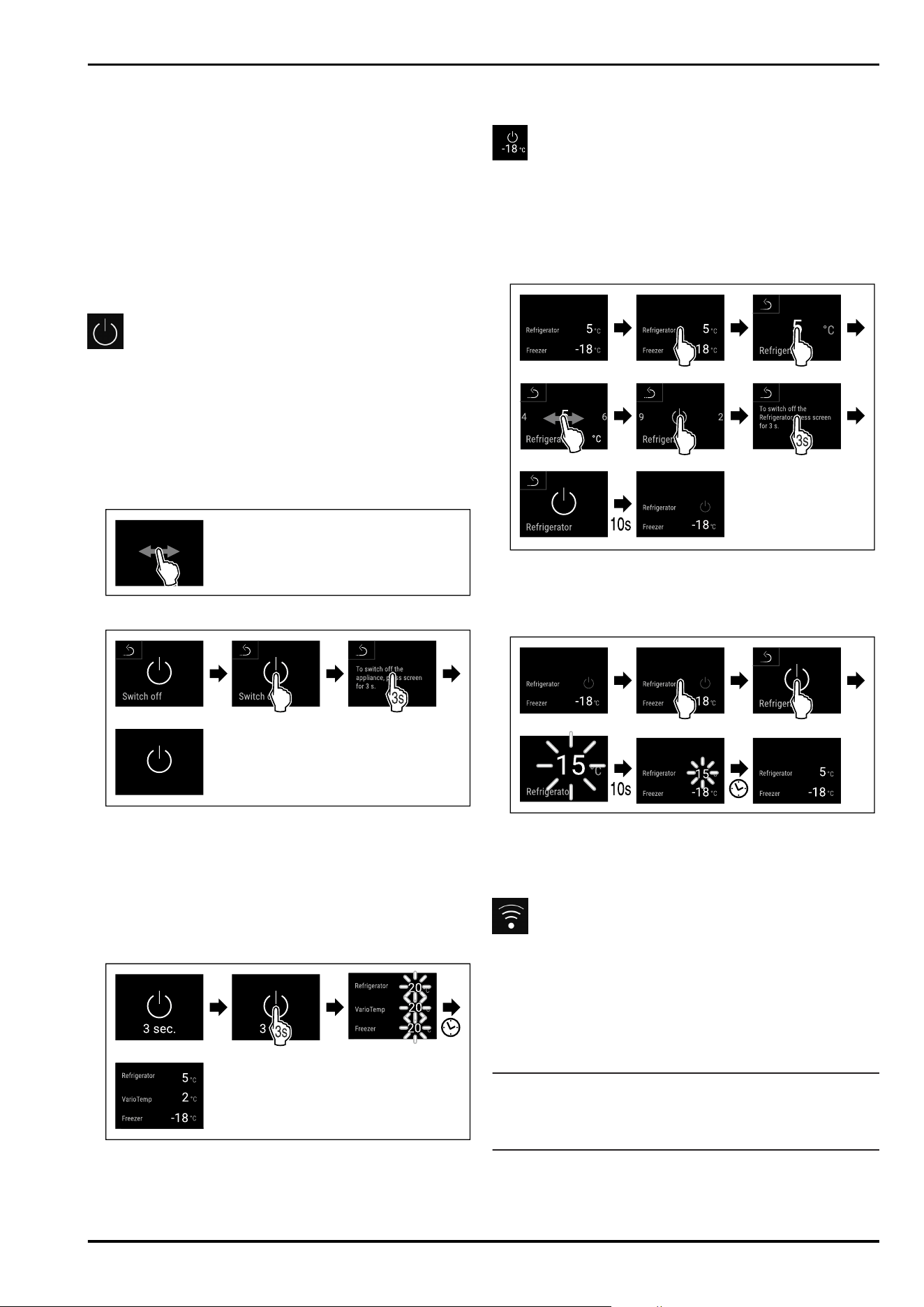

Fig.8

Fig.9

► Carry out action steps according to the illustration.

▷ Appliance is switched off.

▷ The standby symbol appears in the display.

▷ Display turns black.

Switching on the appliance

If the display is in sleep mode:

► Briefly touch the display.

Fig. 10 Example illustration

► Carry out action steps according to the illustration.

When the appliance starts in demo mode:

► Deactivating demo mode. (see Deactivating demo mode)

▷ The appliance is switched on.

▷

Previous settings are restored.

▷ The appliance cools to the target temperature set.

Switching temperature zone off and on

You can switch temperature zones of the appliance off inde‐

pendently.

Switching the fridge compartment off

Make sure that the following requirements are fulfilled:

❑

Refrigerator compartment has been emptied.

Fig. 11 Example illustration

► Carry out action steps according to the illustration.

▷ Refrigerator compartment is switched off.

Switching the fridge compartment on

Fig. 12 Example illustration

► Carry out action steps according to the illustration.

▷ Refrigerator compartment is switched on.

▷ The appliance cools to the last set temperature.

WiFi

Use this function to connect your appliance to WiFi. You can

then operate it via the SmartDevice app on a mobile device.

You can also use this function to disconnect or reset the

WiFi connection.

To connect your device to WiFi, you need the SmartDevi‐

ceBox.

More information on the SmartDevice: (see1.4 SmartDevice)

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

Controls

10 * Depending on model and options

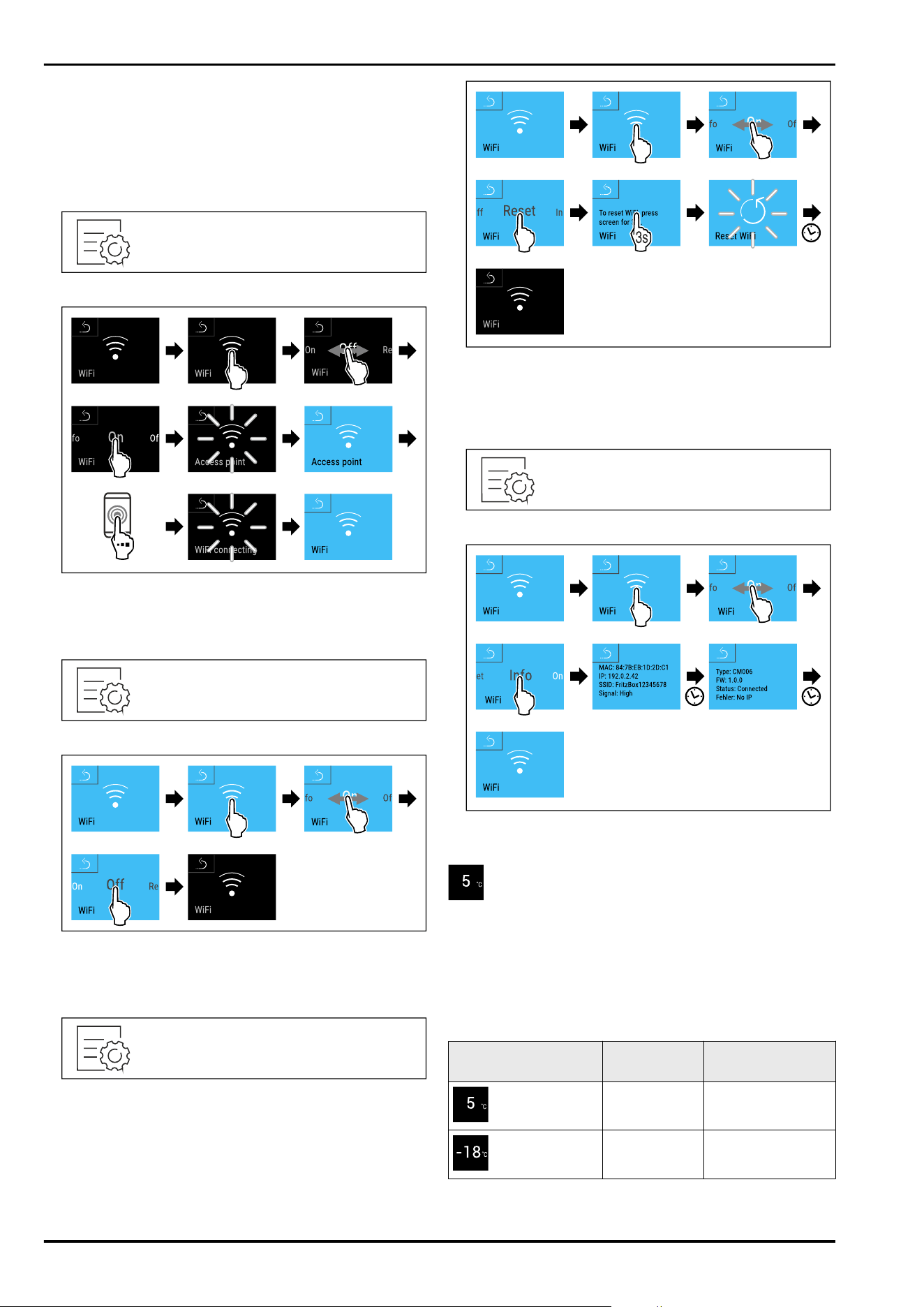

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

❑

You have purchased and inserted a SmartDeviceBox.

(see1.4 SmartDevice)

❑

You have installed the SmartDevice app (see

apps.home.liebherr.com).

❑

Registration in the SmartDevice app is completed.

Fig.13

Fig. 14

► Carry out action steps according to the illustration.

▷ Connection is established.

Disconnecting from the WiFi

Fig. 15

Fig. 16

► Carry out action steps according to the illustration.

▷ There is no connection.

Resetting the WiFi connection

Fig.17

Fig. 18

► Carry out action steps according to the illustration.

▷ WiFi connection and other WiFi settings are reset to

factory settings.

Showing information about the WiFi connection

Fig. 19

Fig.20

► Carry out action steps according to the illustration.

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

Frequency of door opening

Duration of door opening

Room temperature of the installation site

Type, temperature and quantity of food

Temperature zone

Factory-set

temperature

Recommended

setting

Fridge section

4°C 4°C

Freezer section

-18°C -18°C

Controls

* Depending on model and options 11

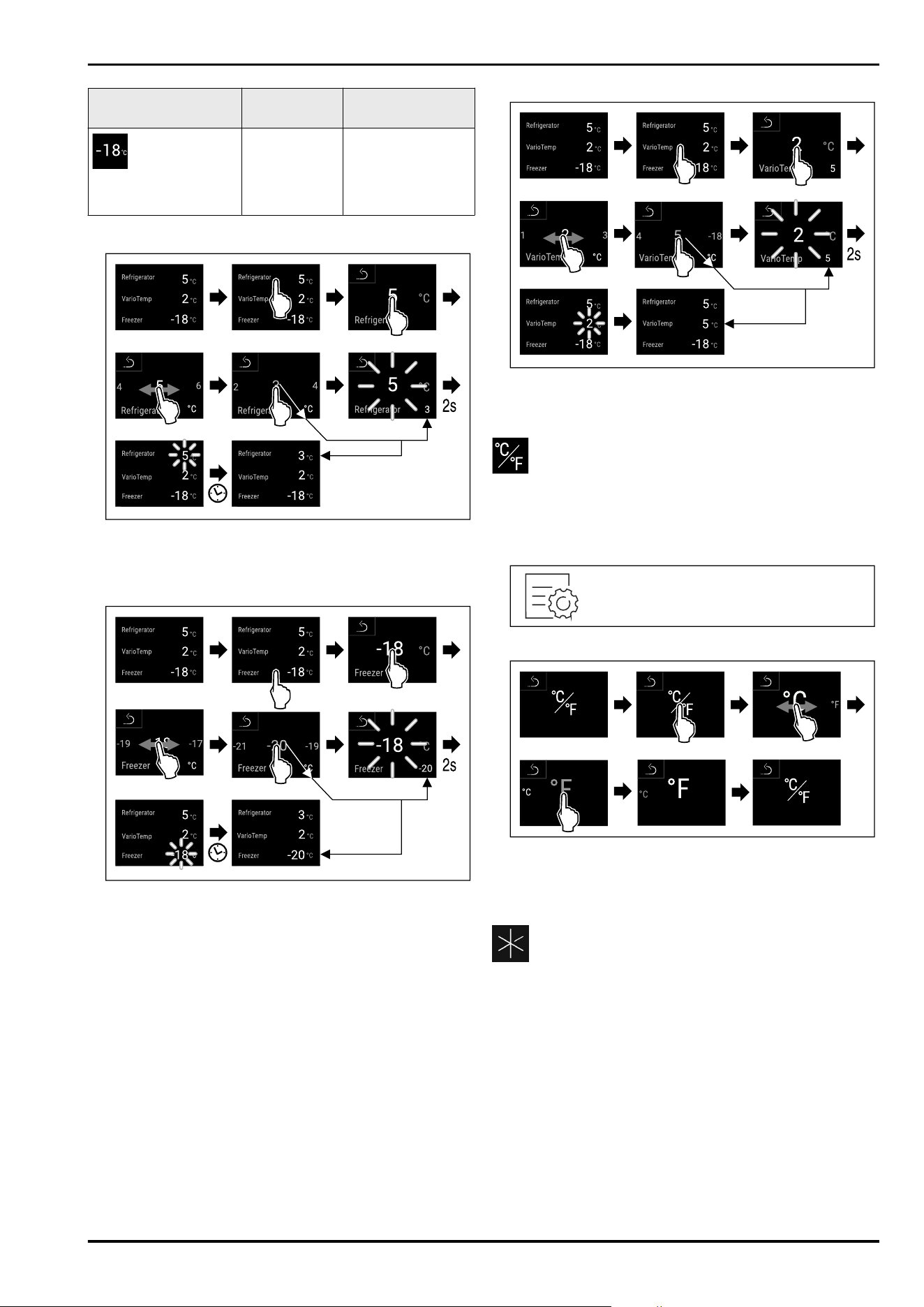

Temperature zone Factory-set

temperature

Recommended

setting

VarioTempZone

-18°C Depending on

the use of

the VarioTempZone

(see 1.3 VarioTemp‐

Zone)

Setting the temperature in the fridge section

Fig. 21 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Setting the temperature in the freezer section

Fig. 22 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Setting the temperature in the VarioTempZone

Fig. 23 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Temperature unit

Use this function to set the temperature unit. You can set

degrees Celsius or degrees Fahrenheit as the temperature

unit.

Setting the temperature unit

Fig. 24

Fig. 25 Example illustration: Switch from degreesCelsius

to degrees Fahrenheit.

► Carry out action steps according to the illustration.

▷ The temperature unit is set.

SuperCool

You can use this function to activate or deactivate Super‐

Cool. If SuperCool is activated, then the appliance increases

the cooling capacity. It allows you to achieve lower cooling

temperatures. You can activate SuperCool when you would

like to cool a large quantity of food quickly.

The temperature in the VarioTempZone remains as preset.

The active SuperCool function has no effect on the Vario‐

TempZone.

If the function is active, the appliance operates at higher

power. As a result, the appliance's operating noise may be

temporarily louder and energy consumption will increase.

Controls

12 * Depending on model and options

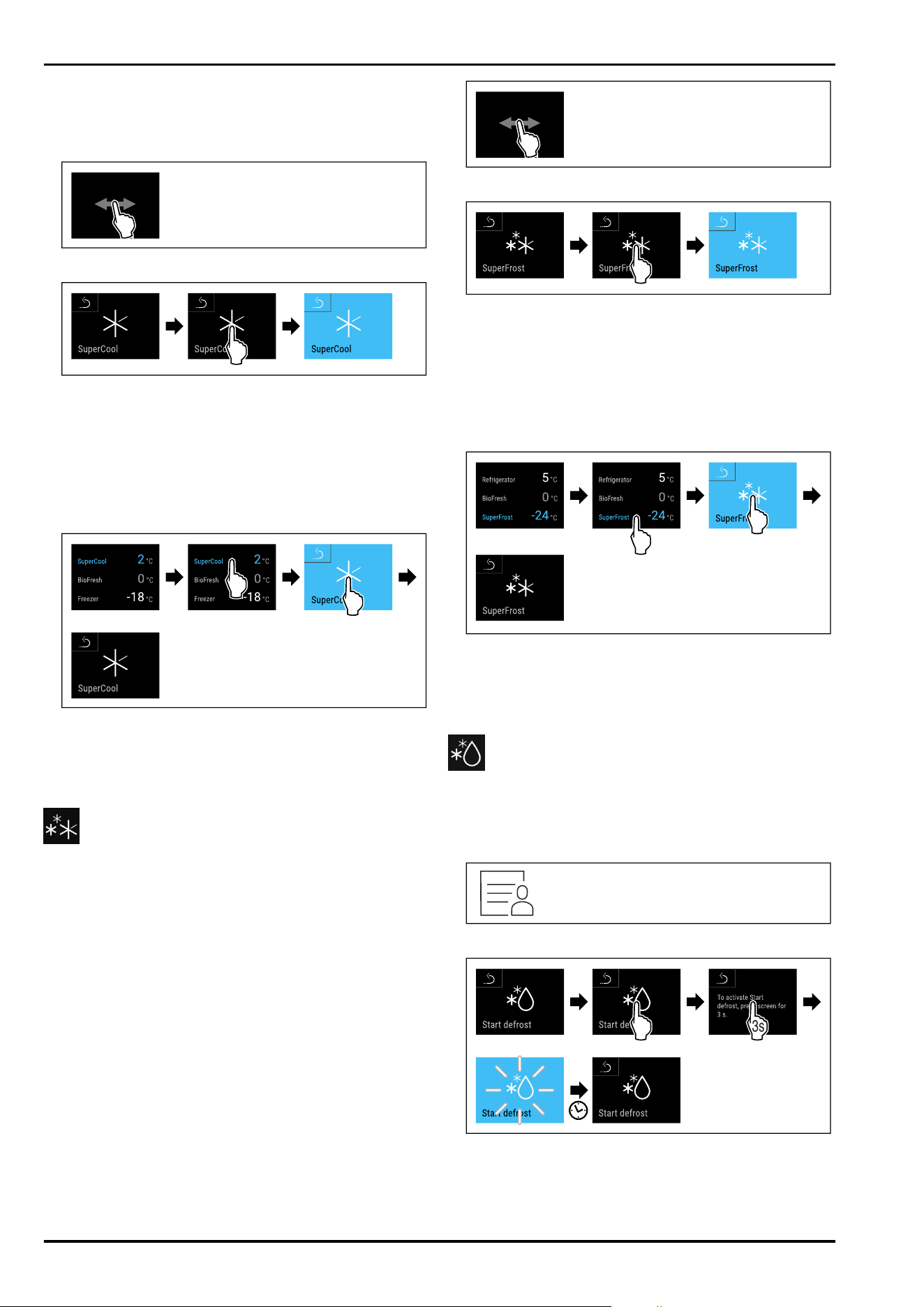

Activating SuperCool

Time for activation of the function:

When you would like to store fresh food in the fridge

section: Activate the function when inserting food.

Fig. 26

Fig.27

► Carry out action steps according to the illustration.

▷ SuperCool is activated.

▷ The temperature display turns blue.

Deactivating SuperCool

SuperCool is deactivated automatically after 18 hours.

However, you can also deactivate SuperCool manually at

any time:

Fig. 28 Example illustration

► Carry out action steps according to the illustration.

▷ SuperCool is deactivated.

▷ The appliance continues to run in normal mode.

▷ The appliance cools to the temperature set previously.

SuperFrost

You can use this function to activate or deactivate

SuperFrost. If SuperFrost is activated, then the appliance

increases the freezing capacity. It allows you to achieve

lower freezing temperatures.

Application:

Quickly freeze fresh food through to the core.

This ensures that the nutrition, appearance and taste of

frozen food is maintained.

Increase the cold reserve in stored frozen food before

defrosting the appliance.

The temperature in the VarioTempZone remains as preset.

The active SuperFrost function has no effect on the Vario‐

TempZone.

If the function is active, the appliance operates at higher

power. As a result, the appliance's operating noise may be

temporarily louder and energy consumption will increase.

Activating SuperFrost

Make sure that the following requirements are fulfilled:

❑

Freezing quantity and time for activation of SuperFrost

are taken into account. (see Freezing food using

SuperFrost)

Fig.29

Fig.30

► Carry out action steps according to the illustration.

▷ SuperFrost is activated.

▷ The temperature display turns blue.

Deactivating SuperFrost

SuperFrost is automatically deactivated after 56 to 72 hours

depending on the quantity of the food inserted. However,

you can also deactivate SuperFrost manually at any time:

Fig. 31 Example illustration

► Carry out action steps according to the illustration.

▷ SuperFrost is deactivated.

▷ The appliance continues to run in normal mode.

▷ The appliance cools to the temperature set previously.

Start defrosting cycle

Use this function to start the automatic defrosting cycle

manually if it does not start automatically in the event of a

fault.

Starting defrosting cycle

Fig.32

Fig.33

► Carry out action steps according to the illustration.

▷ Defrosting cycle has started: Icon flashes until defrosting

cycle is automatically completed.

Controls

* Depending on model and options 13

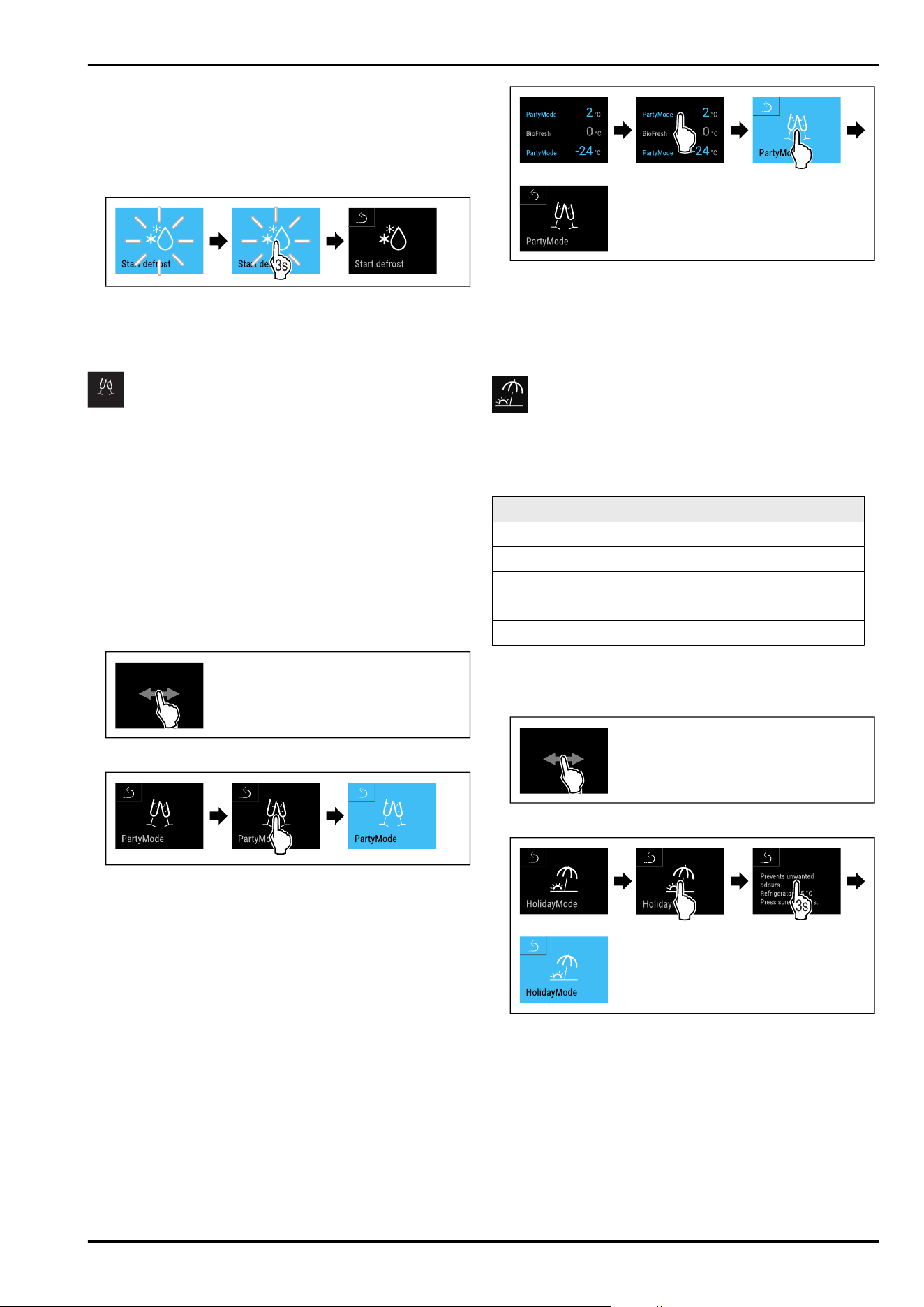

▷ When defrosting cycle is finished: The device continues

to run in normal mode.

Cancelling defrosting cycle

The defrosting cycle will be stopped automatically. However,

you can also cancel the defrosting cycle at any time during

the defrosting process:

Fig.34

► Carry out action steps according to the illustration.

▷ Defrosting cycle is cancelled.

▷ The device continues to run in normal mode.

PartyMode

You can use this function to activate or deactivate Party‐

Mode. PartyMode activates various functions that are useful

for a party.

PartyMode activates the following functions:

SuperCool (seeSuperCool)

SuperFrost (see SuperFrost)

You can adjust all listed functions individually and flexibly.

When you deactivate PartyMode, all changes are discarded.

If the function is active, the device operates at higher

power. As a result, the device's operating noise may be

temporarily louder and energy consumption will increase.

Activating PartyMode

Fig.35

Fig.36

► Carry out action steps according to the illustration.

▷ PartyMode and the associated functions are activated.

▷ The temperature display turns blue.

▷ The current temperature flashes until the target tempera‐

ture is reached.

Deactivating PartyMode

The PartyMode is automatically deactivated after

24 seconds. However, you can also deactivate PartyMode

manually at any time:

Fig. 37 Example illustration

► Carry out action steps according to the illustration.

▷ PartyMode is deactivated.

▷ The appliance cools to the temperature set previously:

The current temperature flashes until the target tempera‐

ture is reached.

HolidayMode

You can use this function to activate or deactivate Holiday‐

Mode. If you activate HolidayMode, the fridge section is set

to 15 °C. This saves you energy during longer periods of

absence and prevents bad odours and growth of mould.

Appliance status when HolidayMode is active

Fridge section cools to 15°C.

EasyFresh cools to 15°C.

The set temperature is maintained in the freezer section.

PartyMode is deactivated.

SuperCool is deactivated.

Activating HolidayMode

► Empty the fridge section completely.

► Empty EasyFresh completely.

Fig.38

Fig. 39

► Carry out action steps according to the illustration.

▷ HolidayMode is activated.

▷ Temperature display turns blue and shows HolidayMode

symbol.

Controls

14 * Depending on model and options

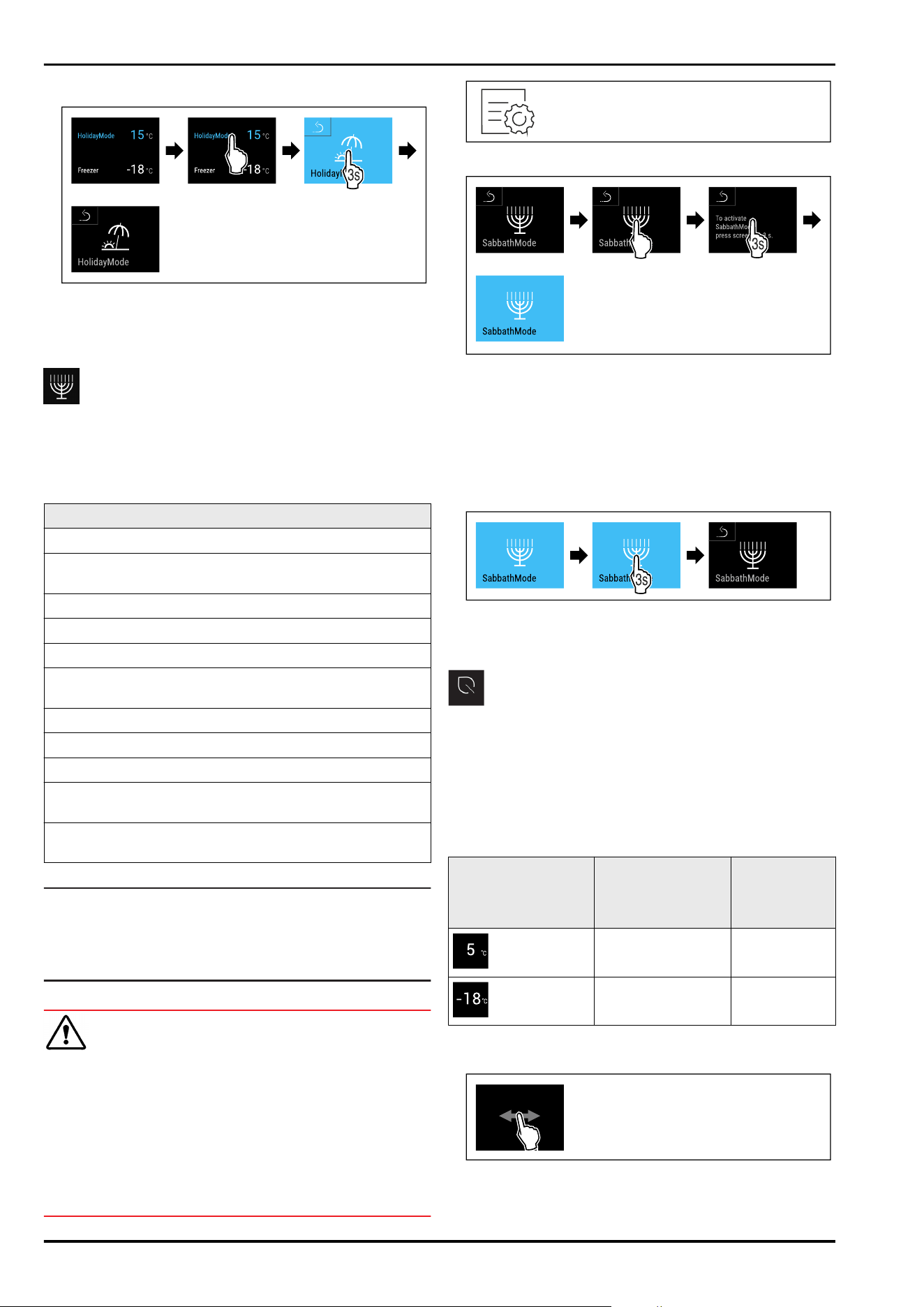

Deactivating HolidayMode

Fig.40

► Carry out action steps according to the illustration.

▷ HolidayMode is deactivated.

▷ The appliance cools to the temperature set previously.

SabbathMode

You can use this function to activate or deactivate

SabbathMode. If you activate this function, some electronic

functions are switched off. As a result, your device meets

the religious requirements for Jewish holidays such as

Sabbath and complies with STAR-K Kosher certification.

Device status when SabbathMode is active

The status display shows SabbathMode permanently.

All functions on the display are locked except for the

Deactivate SabbathMode function.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Reminders are not implemented. The set time interval

stops.

Reminders and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The defrosting cycle operates only for the specified time,

without considering the appliance consumption.

After a power failure, the appliance returns to

SabbathMode.

Device status

Note

This appliance has certification from the “Institute for

Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at

www.star-k.org/appliances.

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food!

If you have SabbathMode activated and a power failure

occurs, no message appears in the status display about the

power failure. Once the power is restored, the appliance

continues to operate in SabbathMode. The power failure

may mean that food spoils and the consumption of this food

could lead to food poisoning.

After a power failure:

► Do not consume food that was frozen and has thawed

out.

Fig. 41

Fig. 42

► Carry out action steps according to the illustration.

▷ SabbathMode is activated.

▷ The status display shows SabbathMode permanently.

Deactivating SabbathMode

The SabbathMode is automatically deactivated after

80 hours. However, you can also deactivate SabbathMode

manually at any time:

Fig.43

► Carry out action steps according to the illustration.

▷ SabbathMode is deactivated.

EnergySaver

You can use this function to activate or deactivate Energy

saving mode. If energy saving mode is activated, the energy

consumption decreases and the temperature in the device

increases. The food remains fresh, but the shelf life is short‐

ened.

The temperature in the VarioTempZone remains as preset.

The active EnergySaver function has no effect on the Vario‐

TempZone.

Temperature zone

Recommended

setting (see Setting

the temperature in

the fridge section)

Temperature

with active

EnergySaver

Fridge section

4°C 7°C

Freezer section

-18°C -16°C

Temperatures

Activating EnergySaver

Fig.44

Controls

* Depending on model and options 15

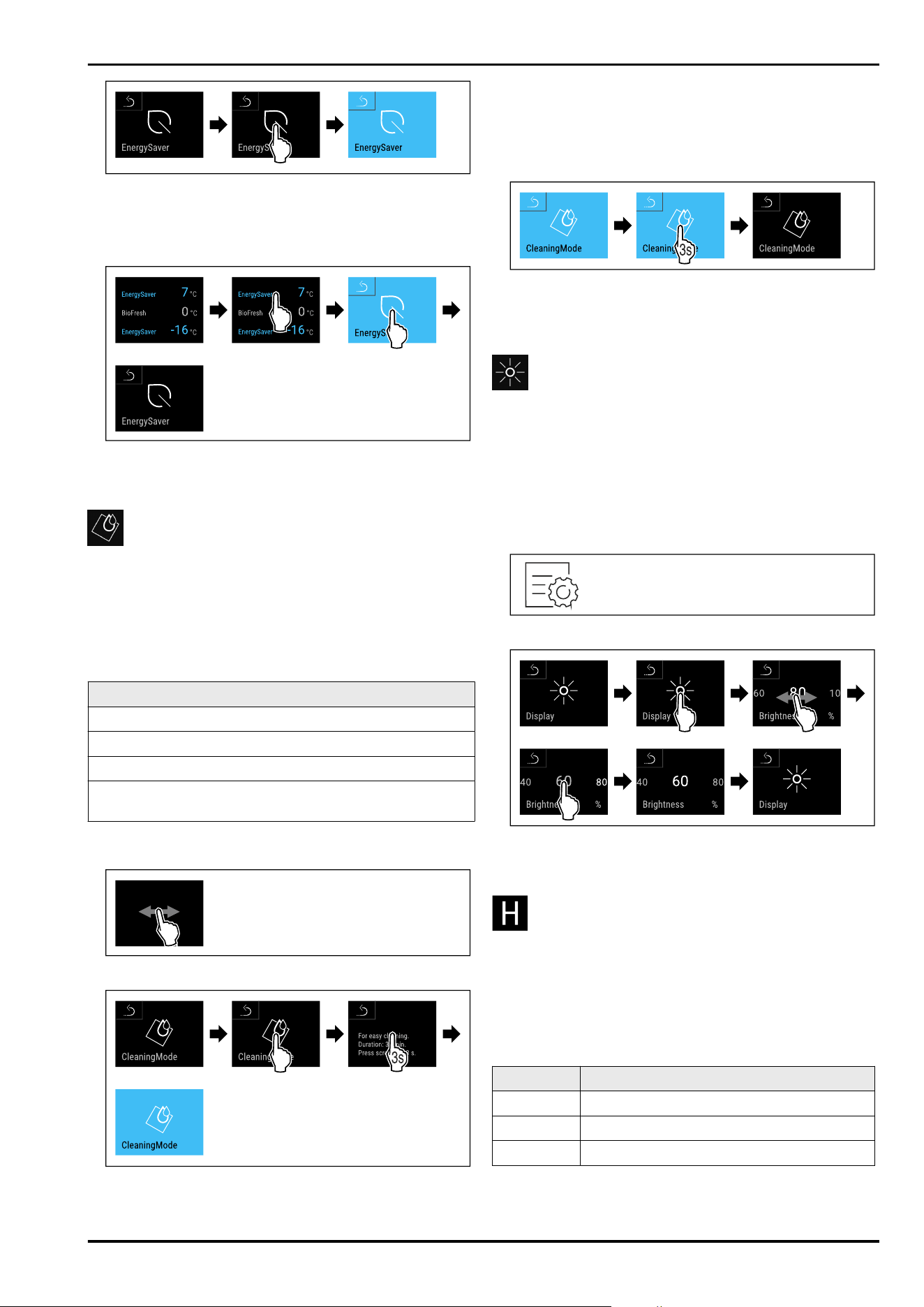

Fig.45

► Carry out action steps according to the illustration.

▷ Energy saving mode is activated.

Deactivating EnergySaver

Fig. 46 Example illustration

► Carry out action steps according to the illustration.

▷ Energy saving mode is deactivated.

CleaningMode

You can use this function to activate or deactivate Cleaning‐

Mode. CleaningMode enables the appliance to be cleaned

conveniently.

This setting applies to the fridge section.

Application:

Clean the fridge section. (see 9.5Cleaning the appliance)

Device status when CleaningMode is active

The status display shows CleaningMode permanently.

The fridge section is switched off.

Interior lighting is activated.

The reminders and warnings are not displayed. No signal

tone sounds.

Device status

Activating CleaningMode

Fig. 47

Fig.48

► Carry out action steps according to the illustration.

▷ CleaningMode is activated.

▷

The status display shows CleaningMode permanently.

Deactivating CleaningMode

CleaningMode is deactivated automatically after

30 minutes. However, you can also deactivate Cleaning‐

Mode manually at any time:

Fig. 49

► Carry out action steps according to the illustration.

▷ CleaningMode is deactivated.

▷ The appliance cools to the temperature set previously.

Display brightness

Use this function to set the display brightness in stages.

You can select the following brightness levels:

40%

60%

80%

100 % (pre-setting)

Setting the brightness

Fig.50

Fig. 51 Example illustration: Switch from 80 % to 60%.

► Carry out action steps according to the illustration.

▷ The brightness is set.

H-Value

Use this function to set the H-Value. You can use the

H-Value to switch on and control the appliance's frame

heating if condensation forms around the fridge section or

freezer section. Condensation can form in high humidity and

low ambient temperatures.

The H-Value is set to HA on delivery. If you change the

H-Value, refer to the following table:

Value

Description

HA Little condensation: low heat output

H1 Lots of condensation: high heat output

H0 Frame heating is switched off.

Controls

16 * Depending on model and options

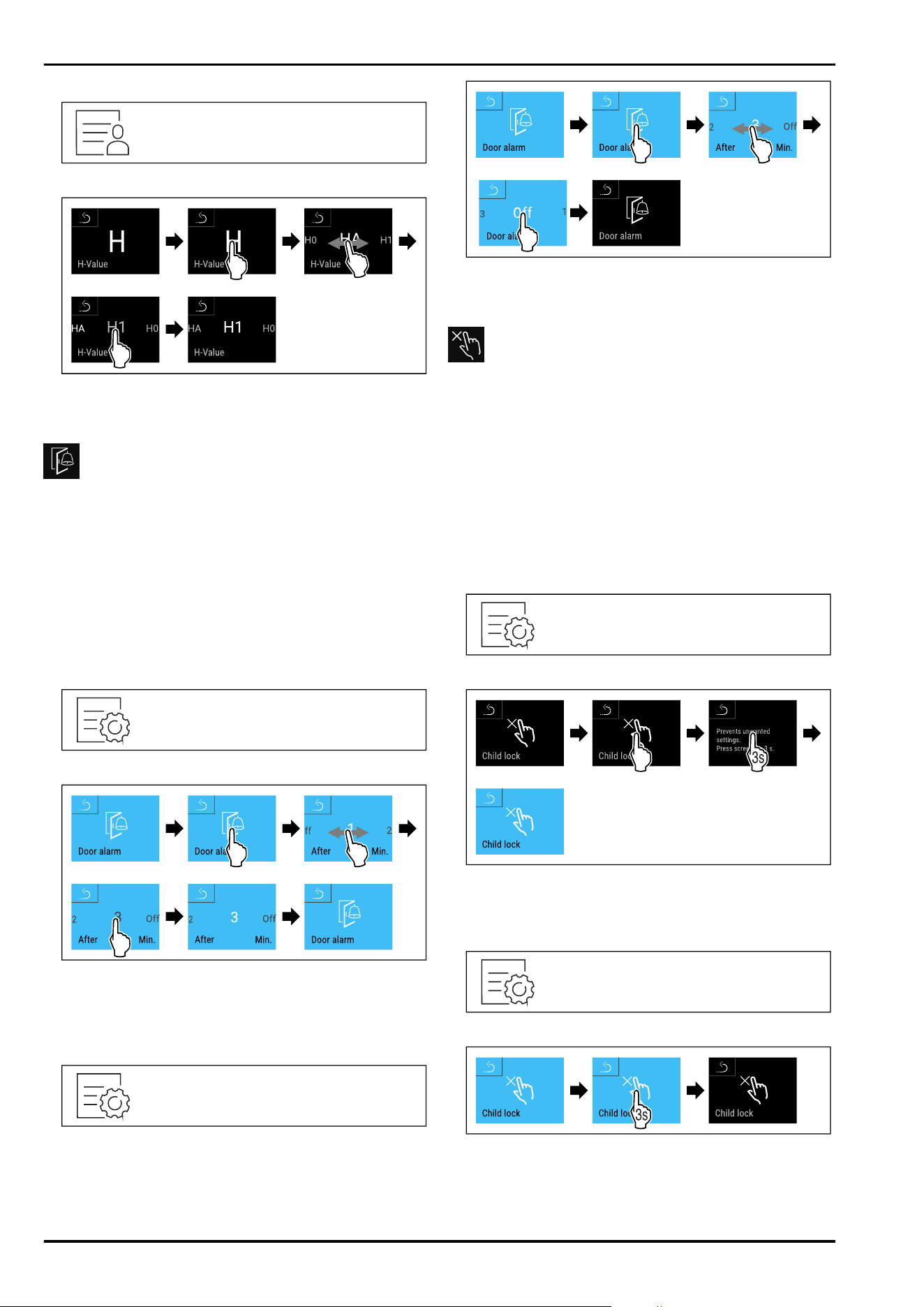

Setting the H-Value

Fig.52

Fig. 53 Example illustration: Switch from HA to H1.

► Carry out action steps according to the illustration.

▷ The H-Value is set.

Door alarm

Use this function to activate or deactivate the door alarm.

The door alarm sounds if the door is open for too long. The

door alarm is activated on delivery. You can set how long

the door may be open before the door alarm sounds.

The following values can be set:

1 minute

2 minutes

3 minutes

Off

Setting the door alarm

Fig.54

Fig. 55 Example illustration: Change door alarm from

1 minute to 3 minutes.

► Carry out action steps according to the illustration.

▷ The door alarm is set.

Deactivating the door alarm

Fig.56

Fig.57

► Carry out action steps according to the illustration.

▷ The door alarm is deactivated.

Input lock

You can use this function to activate or deactivate the input

lock. The input lock prevents the appliance being operated

accidentally, e.g. by children.

Application:

Avoid unintentional modification of functions.

Avoid unintentional switching off of the device.

Avoid unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate

in the menus but you cannot select or change other func‐

tions.

Fig.58

Fig. 59

► Carry out action steps according to the illustration.

▷ Input lock is activated.

Deactivating the input lock

Fig.60

Fig.61

► Carry out action steps according to the illustration.

▷ Input lock is deactivated.

Controls

* Depending on model and options 17

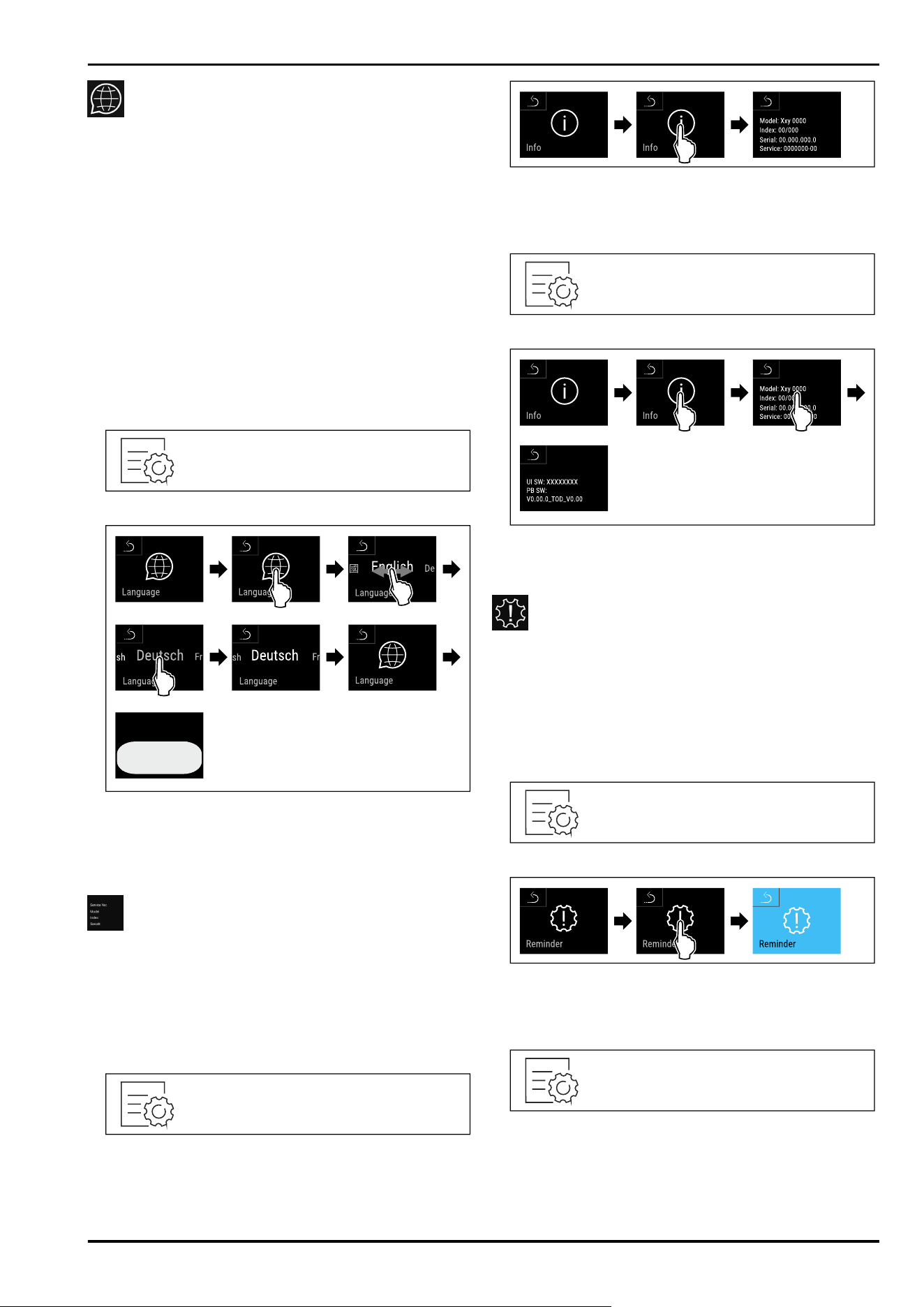

Language

Use this function to set the display language.

You can select the following languages:

Deutsch

English

Français

Español

Italiano

Nederlands

Čeština

Polski

Português

Bulgarian

Русский

温度单位

Setting the language

Fig. 62

Fig. 63 Example illustration depending on the language

and temperature

► Carry out action steps according to the illustration.

▷ The language is set.

▷ The display returns to the status display.

Appliance and software information

Use this function to indicate the model name, index, serial

number and service number of your device. You will need

the device information when you contact customer service.

(see 10.4 Customer Service)

This function also opens the Advanced menu. (see 3 Func‐

tionality of the Touch&Swipe display)

Indicating the device information

Fig.64

Fig.65

► Carry out action steps according to the illustration.

▷ Display indicates device information.

Displaying software information

Fig.66

Fig. 67

► Carry out action steps according to the illustration.

▷ Display shows software information.

Reminder

Use this function to activate or deactivate the reminders.

The function is activated on delivery.

If the function is activated, the following reminders will

appear:

Replace the FreshAir activated carbon filter (see Replace

the FreshAir activated carbon filter)

Activating the reminder

Fig.68

Fig. 69

► Carry out action steps according to the illustration.

▷ Reminder is activated.

Deactivating the reminder

Fig.70

Controls

18 * Depending on model and options

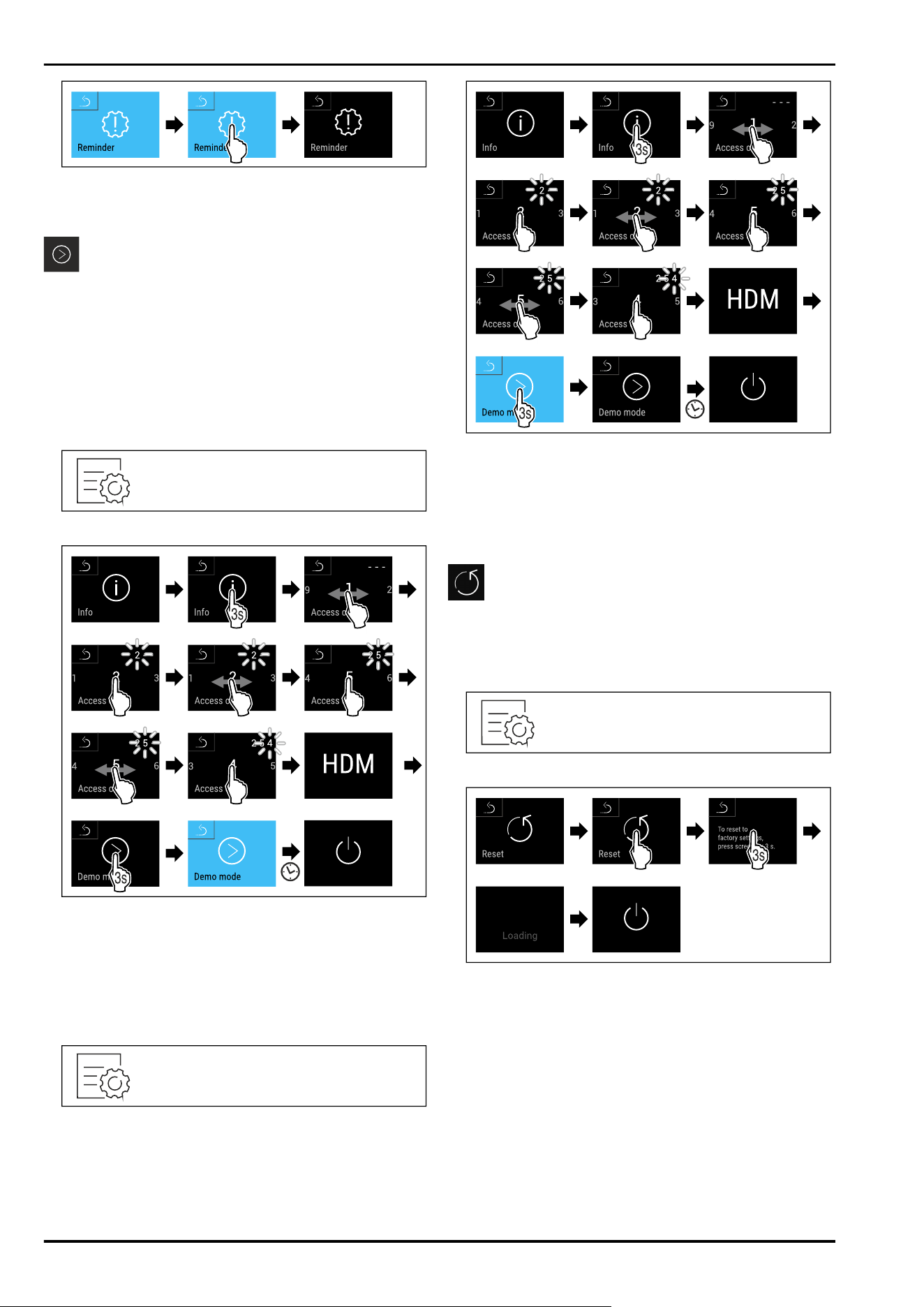

Fig.71

► Carry out action steps according to the illustration.

▷ Reminder is deactivated.

Demo mode

Demo mode is a special feature for dealers who want to

demonstrate appliance features. If you activate demo mode,

all refrigeration functions are deactivated.

If you switch on your appliance and a “D” appears on the

status display, demo mode is already activated.

If you activate and then deactivate demo mode, the appli‐

ance will be reset to factory defaults. (see Resetting to

factory settings)

Activating demo mode

Fig.72

Fig.73

► Carry out action steps according to the illustration.

▷ Demo mode is activated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ “D” appears in the status display.

Deactivating demo mode

Fig. 74

Fig.75

► Carry out action steps according to the illustration.

▷ Demo mode is deactivated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory defaults.

All settings you have made so far are reset to their original

settings.

Performing a reset

Fig. 76

Fig.77

► Carry out action steps according to the illustration.

▷ Device is reset.

▷ Device is switched off.

► Restart the device. (see 4.1 Switching on appliance (first

use))

7.3 Messages

There are two categories of messages:

Controls

* Depending on model and options 19

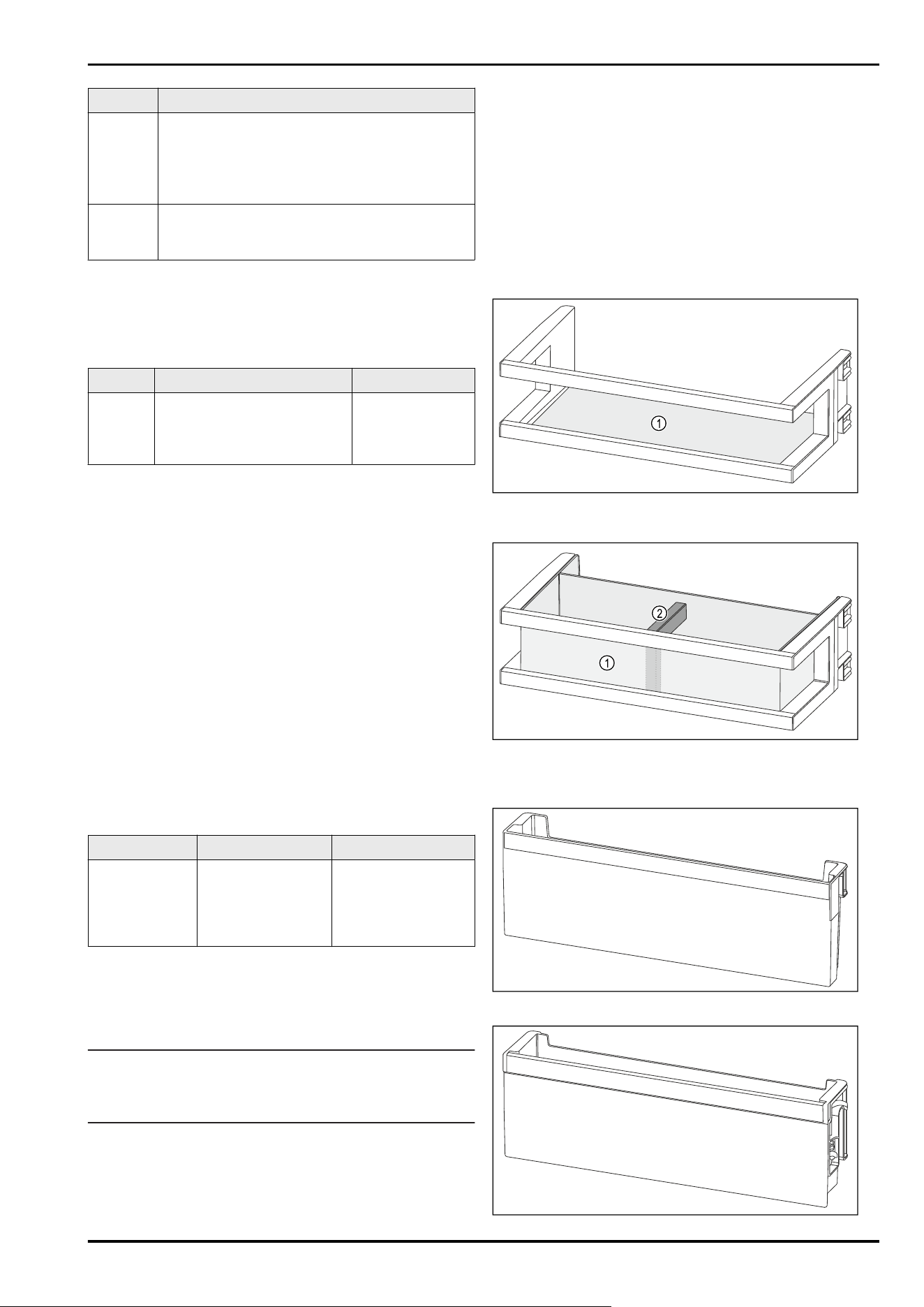

Category Importance

Warning Warnings appear in the event of malfunctions.

Simple warnings can be cancelled by yourself.

In the event of serious malfunctions, you must

contact customer service. (see 10.4 Customer

Service)

Reminder Reminders remind you of general processes.

You can carry out these operations to end the

message.

7.3.1 Overview of warnings

Behaviour of the appliance in the event of warnings:

The alarm tone sounds at an ever-increasing volume.

The interior lighting pulsates for some warnings.

Message

Cause Exit the message

Error The message appears if

there is an appliance error. A

component of the appliance

has a fault.

Carry out action

steps (see Error) .

7.3.2 Ending warnings

Door alarm

► Carry out action steps according to the illustration.

-or-

► Close the door.

▷ The display returns to the status indicator.

You can set how long the door may be open before the door

alarm sounds. (see Setting the door alarm)

Error

▷ Error code is displayed.

► Note the error code.

▷ The display returns to the status indicator.

► Contact Customer Service. (see 10.4 Customer Service)

7.3.3 Overview of reminders

Behaviour of the appliance during reminders:

Alarm tone sounds.

The interior lighting pulsates for some reminders.

Message

Cause Exit the message

Replace the

FreshAir acti‐

vated carbon

filter

The message

appears when the

activated carbon

filter needs to be

replaced.

Carry out action

steps (see Replace

the FreshAir acti‐

vated carbon filter) .

7.3.4 Ending reminders

Replace the FreshAir activated carbon filter

Liebherr recommends: Replace the FreshAir activated

carbon filter every 6 months.

Note

FreshAir activated charcoal filters can be purchased

from the Liebherr-Hausgeräte store at home.liebherr.com/

shop/de/deu/zubehor.html.

► Replace the activated carbon filter. (see 9.1 FreshAir

carbon filter)

▷ Activated carbon filter ensures optimum air quality in the

cooling unit.

▷ Reminder appears again after 6 months.

If you no longer wish to receive this reminder, you can deac‐

tivate it. (see Deactivating the reminder)

8 Features

8.1 Door rack

Door racks are suitable for storing drinks and food. You can

move door racks for your own individual use and take them

apart for cleaning. However, Liebherr recommends using the

door racks in the position in the door as delivered from the

factory.

Fig. 81 Example illustration, Door rack

(1)

Shelf

Fig. 82 Example illustration, Door rack with organiser and

bottle holder

(1)

Organiser (2) Bottle holder

Fig. 83 Example illustration, Door rack

Features

20 * Depending on model and options

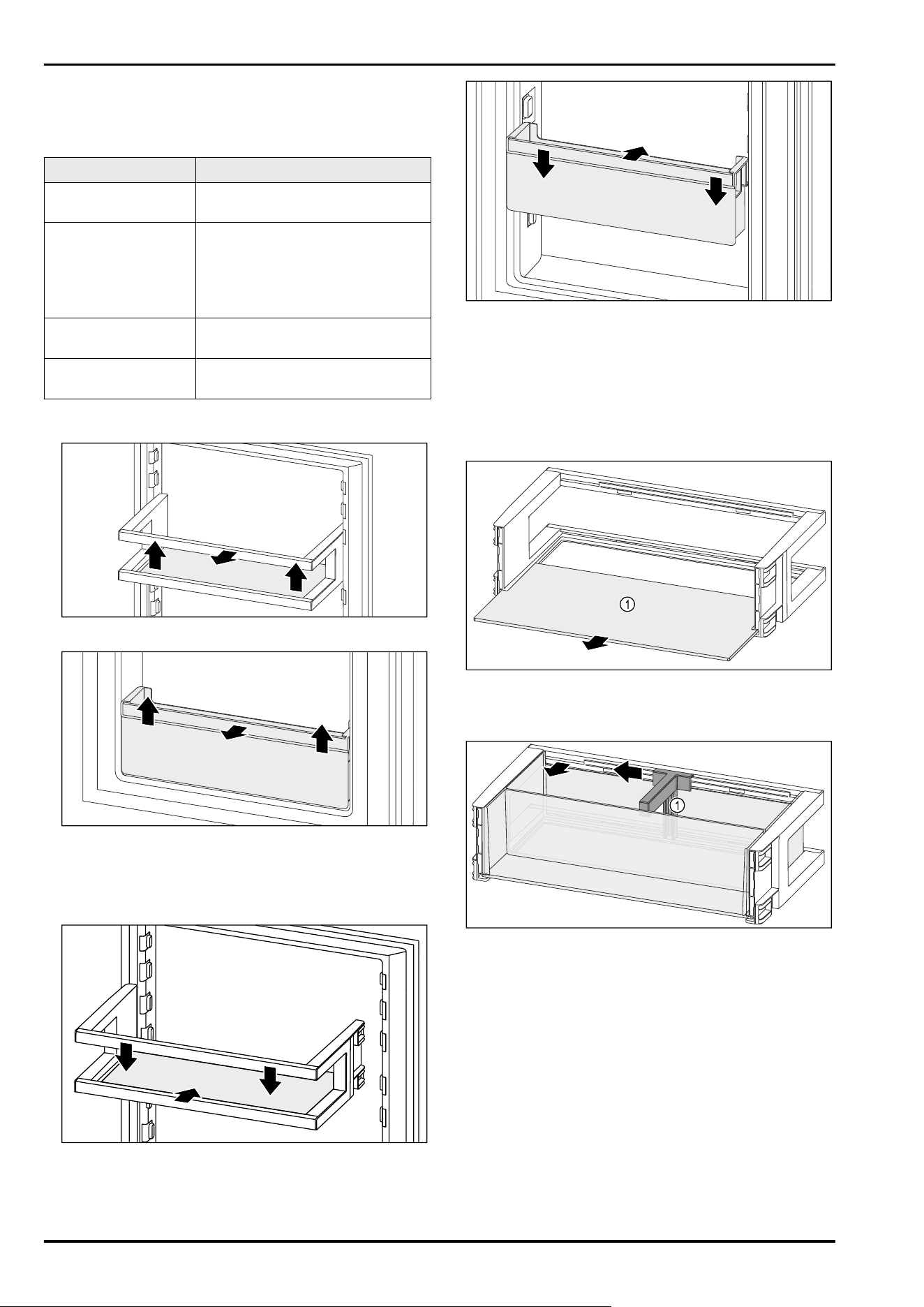

Fig. 84 Example illustration, fold-down door racks

The following table shows examples of what can be stored

in each door rack. Do not exceed the maximum loading

weight of the door.

Door rack Food

Door rack (see Fig.81) Butter, cheese, tinned food, large

containers

Door rack with organ‐

iser and bottle holder

(see Fig.82)

Bottles, tubes

The sliding bottle holder secures

the bottles in the door rack.

The divider for small food items

can be used in any door rack.

Door rack (see

Fig.83)

small food items and packages,

tubes, cosmetics

Fold-down door rack

(see Fig.84)

small food items and packages,

tubes, cosmetics

8.1.1 Removing the door rack

Fig. 85 Example illustration

Fig. 86 Example illustration

► Push the door rack upwards.

► Pull the door rack forward.

8.1.2 Inserting the door rack

Fig. 87 Example illustration

Fig. 88 Example illustration

► Slide in the door rack.

► Press the door rack down.

8.1.3 Dismantling the door rack

It is possible to dismantle some of the door racks if you

want to clean them or install or remove spare parts.

Dismantling the door rack

Fig.89

► Remove the shelf Fig.89(1).

Dismantling the door rack with organiser and bottle holder

Fig.90

► Slide the bottle holder Fig. 90 (1) to the side as far as the

recess.

► Remove the bottle holder Fig.90(1).

Features

* Depending on model and options 21

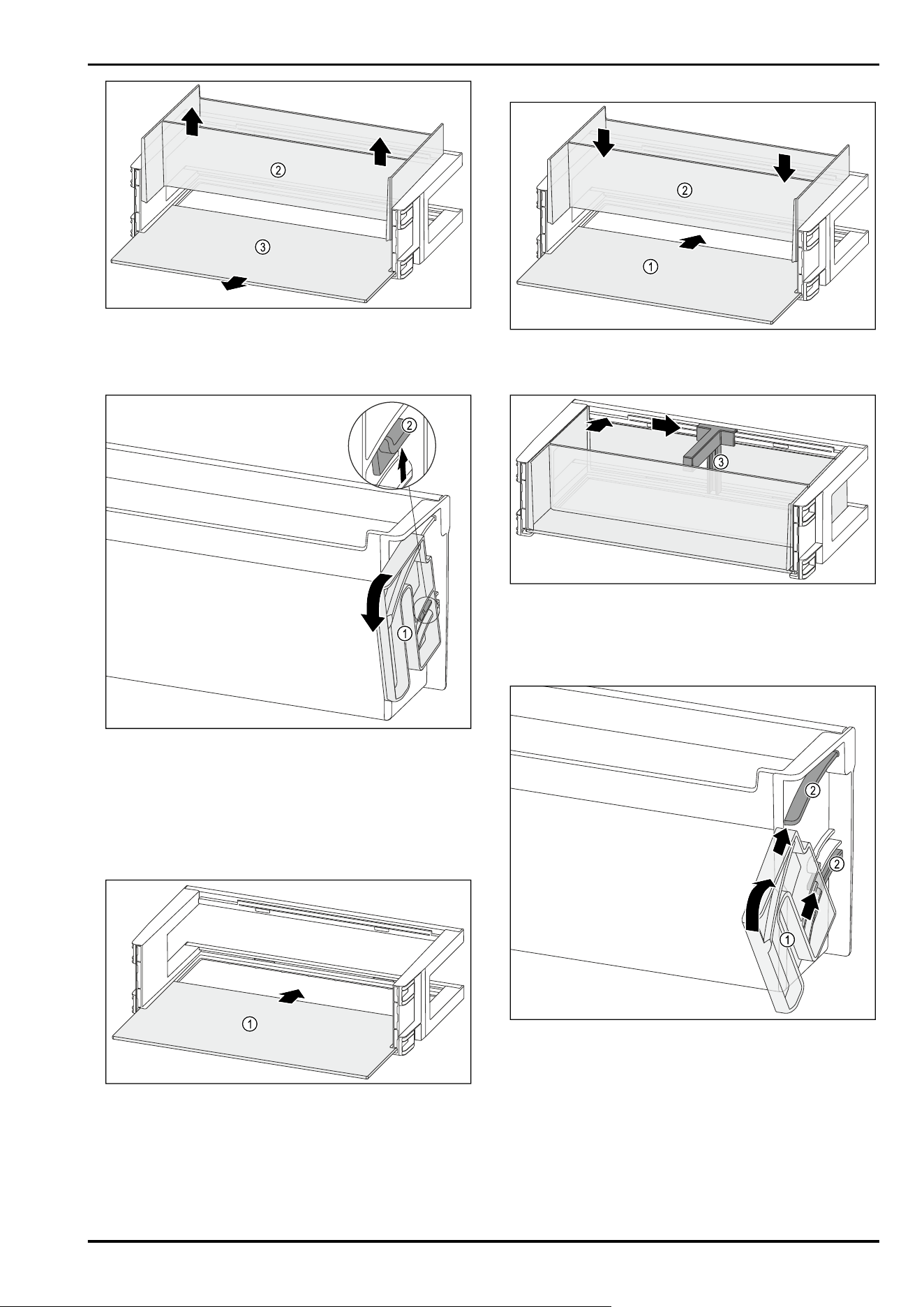

Fig. 91

► Remove the organiser Fig. 91(2) upwards.

► Remove the shelf Fig. 91(3).

Dismantling the fold-down door rack

Fig.92

► Turn the turning unit Fig. 92 (1) in the specified direction

to the end stop.

► Press the tab Fig. 92 (2) up and remove the turning unit

Fig.92(1).

8.1.4 Assembling the door rack

Assembling the door rack

Fig. 93

► Push the shelf Fig. 93(1) into the side recesses.

Assembling the door rack with organiser and bottle holder

Fig. 94

► Push the shelf Fig. 94(1) into the side recesses.

► Insert the organiser Fig. 94(2).

Fig.95

► Insert the bottle holder Fig.95(3) in the recess.

► Push the bottle holder Fig. 95 (3) to the desired position

to the side.

Assembling the fold-down door rack

Fig.96

► Position the turning unit Fig. 96 (1) so that the recesses

are exactly opposite the guide channels Fig. 96 (2) of the

door rack.

► Turn the turning unit Fig. 96 (1) towards the specified

direction.

Features

22 * Depending on model and options

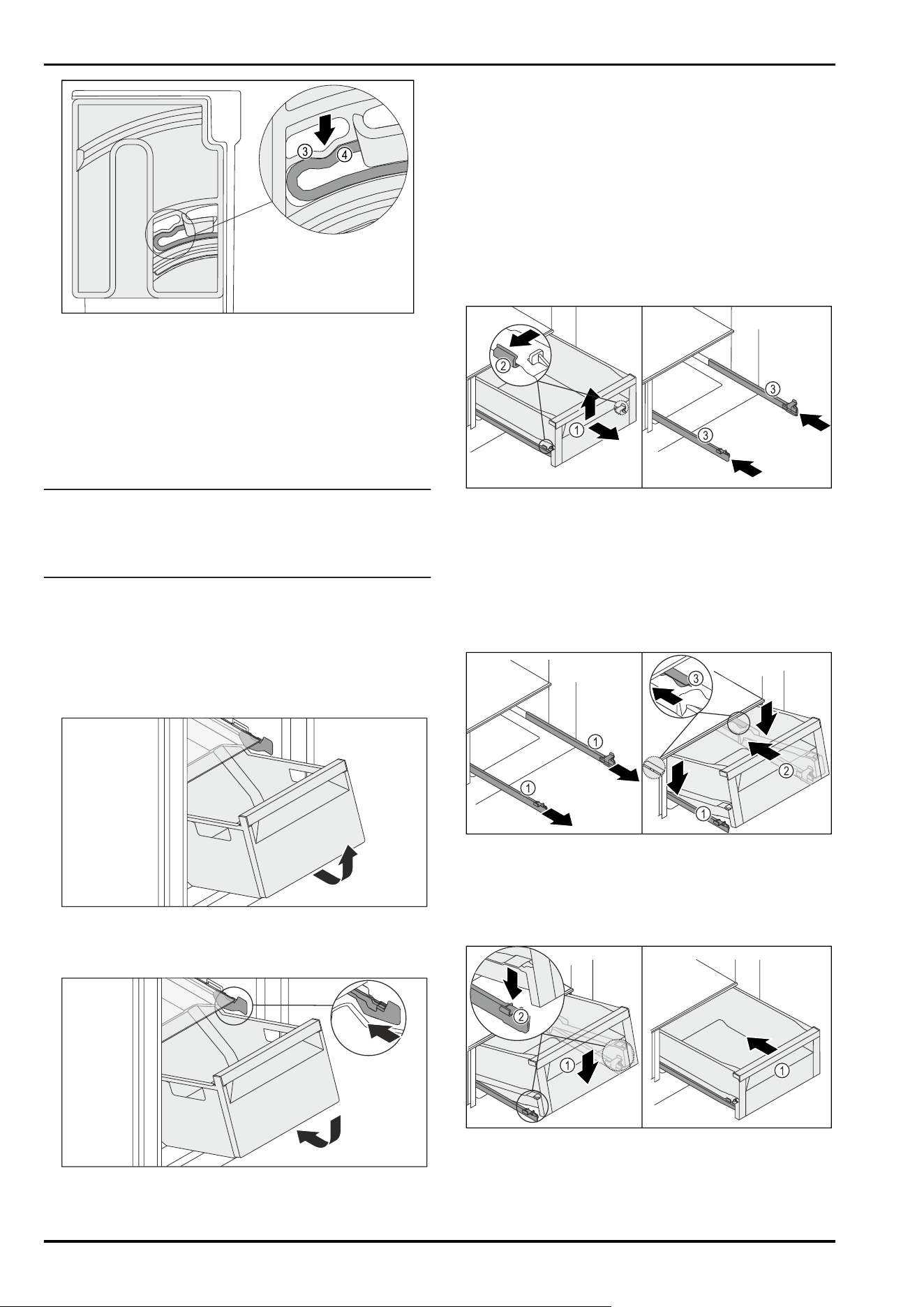

Fig.97

▷ The elastic element Fig. 97 (3) of the turning unit audibly

engages in the round shape of the rib Fig.97(4).

8.2 Drawers

You can remove the drawers for cleaning.

The way to remove/insert the drawers varies depending

on the pull-out system. Your appliance can contain various

pull-out systems.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Leave the bottom drawer in the appliance!

► Always leave the fan air vents clear on the back wall!

8.2.1 Drawer on appliance base or glass shelf

The drawer runs directly on the appliance base or on a glass

shelf. There are no rails.

When you remove the drawers, you can use the glass

shelves below them as storage shelves.

Removing drawer

Fig.98

► Remove drawer as shown in the illustration.

Inserting drawer

Fig.99

► Insert drawer as shown in the illustration.

8.2.2 Drawer on telescopic rails

The drawer runs on extendible rails (telescopic rails). There

are fully extendible telescopic rails and telescopic rails with

partial pull-out. Drawers which are fully extendible can be

pulled out fully from the appliance. Drawers with partial

pull-out cannot be removed fully from the appliance. The

system in your appliance depends on the type of appliance.

Fridge section partial pull-out

Removing the drawer

Ensure that the following requirements are met:

❑

Door is open more than 90°.

Fig. 100

► Pull the drawer Fig. 100(1) out as far as it will go.

► Press the left and right clamps Fig. 100 (2) on the rails

slightly outwards at the same time.

▷ Drawer Fig. 100(1) detaches from the rails.

► Lift up the drawer Fig. 100(1) forwards.

► Remove the drawer Fig. 100(1) forwards.

► Push in the rails Fig. 100(3).

Inserting the drawer

Fig. 101

► Hold the rails Fig. 101 (1) firmly and place the drawer

Fig. 101 (2) on the rails Fig. 101 (1) from above behind the

stopper Fig. 101(3).

► Slide the drawer Fig. 101 (2) backwards on the rails

Fig. 101(1) as far as it will go.

Fig. 102

► Lower the drawer Fig. 101 (2) at the front so that the

drawer slides into the clamp Fig. 102 (2) on the left and

right.

▷ The drawer Fig. 102(1) locks in audibly.

Features

* Depending on model and options 23

► Push in the drawer Fig. 102(1).

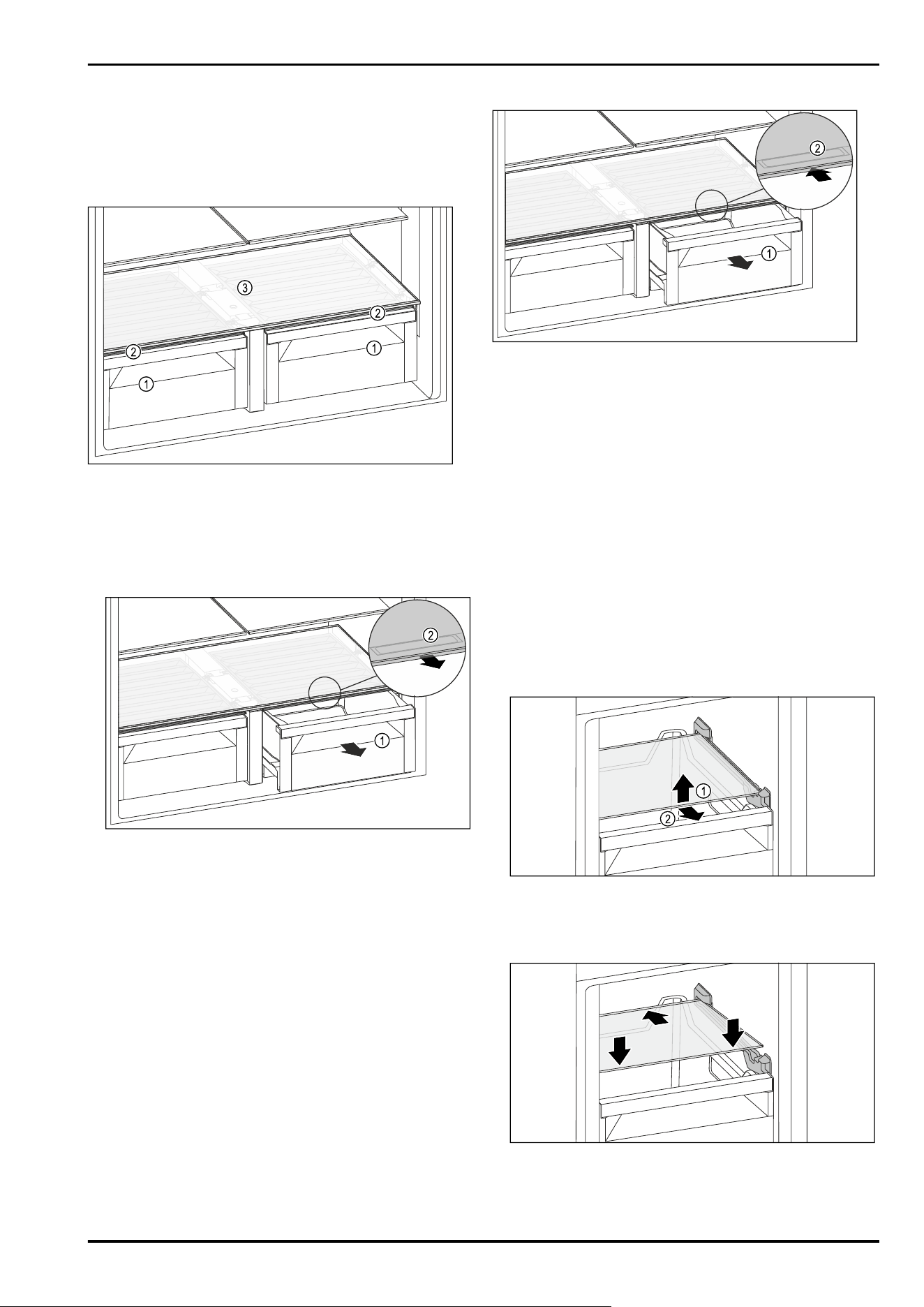

8.3 Compartment lid for EasyFresh Safe

The compartment lid ensures constant levels of humidity.

The compartment lid is directly on the drawer and can be

covered by shelves or additional drawers.

Fig. 103 Example illustration, compartment lid for EasyFresh

Safe

(1)

EasyFresh Safe (3) Shelf

(2) Compartment lid for

EasyFresh Safe

8.3.1 Reducing the air humidity in the drawer

Fig. 104

► Pull out the drawer Fig. 104(1).

► Grasp the recessed grip Fig. 104 (2) on the compartment

lid and pull the compartment lid forwards at the same

time.

► Carry out the same action steps for the second compart‐

ment lid.

▷ When the drawer is closed, there is a small gap between

the compartment lid and the drawer.

8.3.2 Increasing the air humidity in the drawer

Fig. 105

► Pull out the drawer Fig. 105(1).

► Grasp the recessed grip Fig. 105 (2) on the compartment

lid and push the compartment lid backwards at the same

time.

► Carry out the same action steps for the second compart‐

ment lid.

▷ When the drawer is closed, the compartment lid seals

with the drawer.

8.4 Glass shelves

You can remove the glass shelves under the drawers for

cleaning.

8.4.1 Removing / inserting the glass shelf

Make sure that the following requirements are fulfilled:

❑

Glass shelf under the drawer: The drawer has been

removed. (see8.2 Drawers)

Removing glass shelf

Fig. 106 Example illustration, glass shelf

► Lift the glass shelf forwards.

► Remove the glass shelf forwards.

Inserting glass shelf

Fig. 107 Example illustration, glass shelf

► Place the glass shelf at an angle behind the stoppers.

► Lower glass shelf.

► Slide in glass shelf to the back.

Features

24 * Depending on model and options

8.5 EasyTwist-Ice

With the EasyTwist-Ice you can make enough ice cubes for

the whole household. The EasyTwist-Ice is supplied with

water via a water tank.

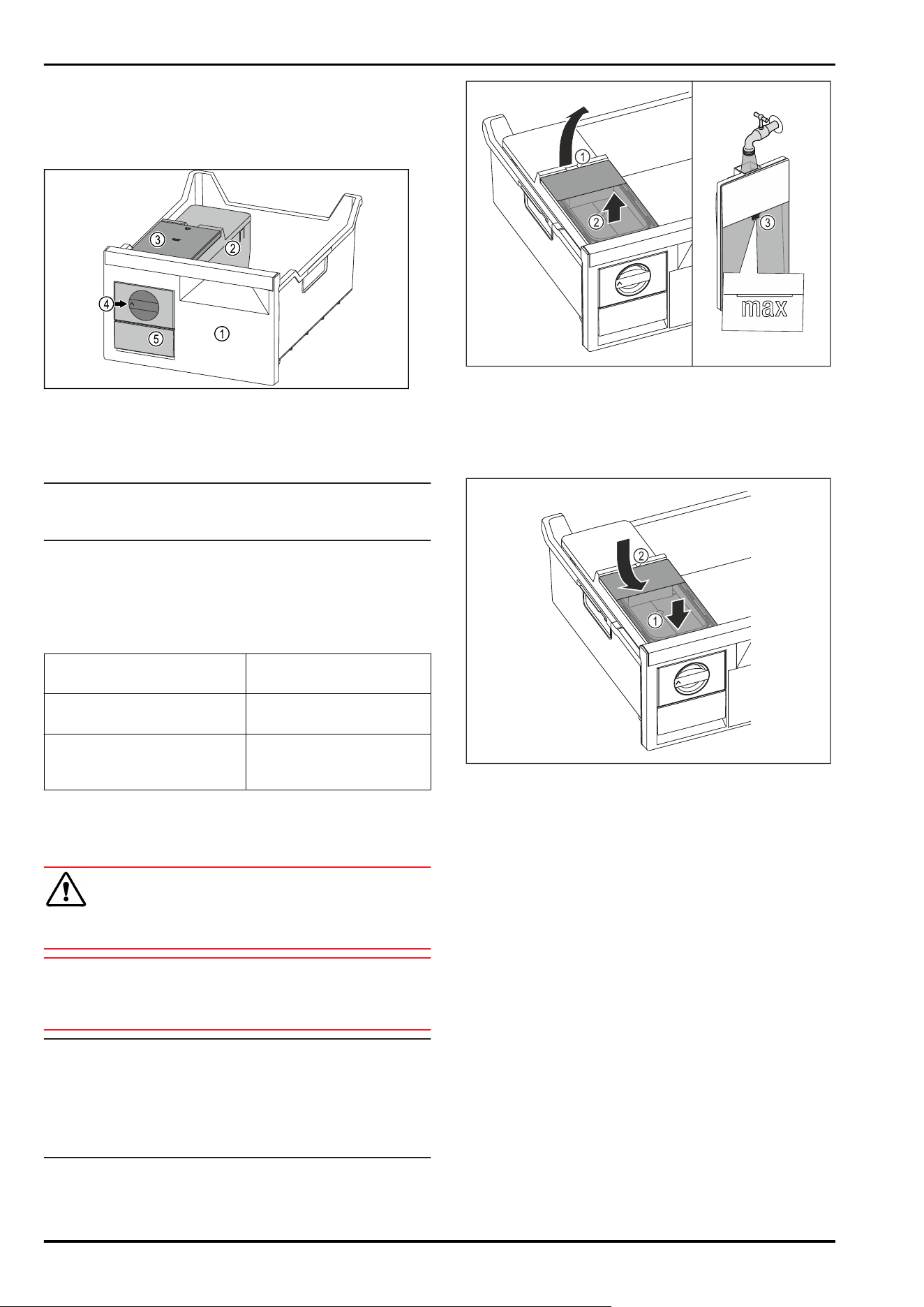

Fig. 108 Example illustration

(1)

Freezer drawer with

EasyTwist-Ice

(4) Rotary knob

(2) Body with ice cube tray (5) Ice cube drawer

(3) Water tank

Note

Do not change the position of the freezer drawer with the

EasyTwist-Ice in the appliance.

8.5.1 Making ice cubes

The amount of ice cubes you can make in a given period of

time with the EasyTwist-Ice depends on the freezer temper‐

ature of the appliance. The lower the temperature in the

appliance, the more ice cubes you can make.

Maximum number of ice

cubes in the ice cube tray:

20 ice cubes

Maximum capacity of the ice

cube drawer:

40 ice cubes (equivalent to

two ice cube batches)

More information about the

time needed for ice cube

production:

(see 10.1 Technical specifi‐

cations)

Make sure that the following requirements are fulfilled:

❑

Components of the EasyTwist-Ice have been cleaned.

Filling the water tank

WARNING

Risk of poisoning due to contaminated water!

► Only fill the water tank with potable water.

NOTICE

Sugar-content liquids!

Damage to EasyTwist-Ice.

► Only fill with cold drinking water.

Note

Using filtered, decarbonised water ensures the best-tasting

drinking water for your ice cubes.

This water quality can be achieved using a table water filter

of the kind available in trade retail outlets.

► Always fill the water tank only with filtered, decarbonised

drinking water.

Fig. 109

► Pull out freezer drawer as far as it will go.

► Lift the water tank at the recess Fig. 109(1).

► Remove the water tank by lifting it upwards. Fig. 109(2)

► Fill the water tank with drinking water up to the mark

Fig. 109(3).

Fig. 110

► Position the water tank at the front. Fig. 110(1)

► Lower the water tank at the rear. Fig. 110(2)

► Slide in the freezer drawer.

Releasing the ice cubes

Make sure that the following requirements are fulfilled:

❑

The required time for the production of ice cubes has

been observed. (see 10.1 Technical specifications)

❑

Freezer drawer is fully inserted.

❑

Ice cube drawer is fully inserted.

► Turn the rotary knob Fig. 108(4) clockwise as far as it will

go.

▷ Ice cubes fall from the ice cube tray into the ice cube

drawer Fig. 108(5).

If all the ice cubes do not come out of the ice cube tray:

► Turn the rotary knob clockwise several times to the stop.

Features

* Depending on model and options 25

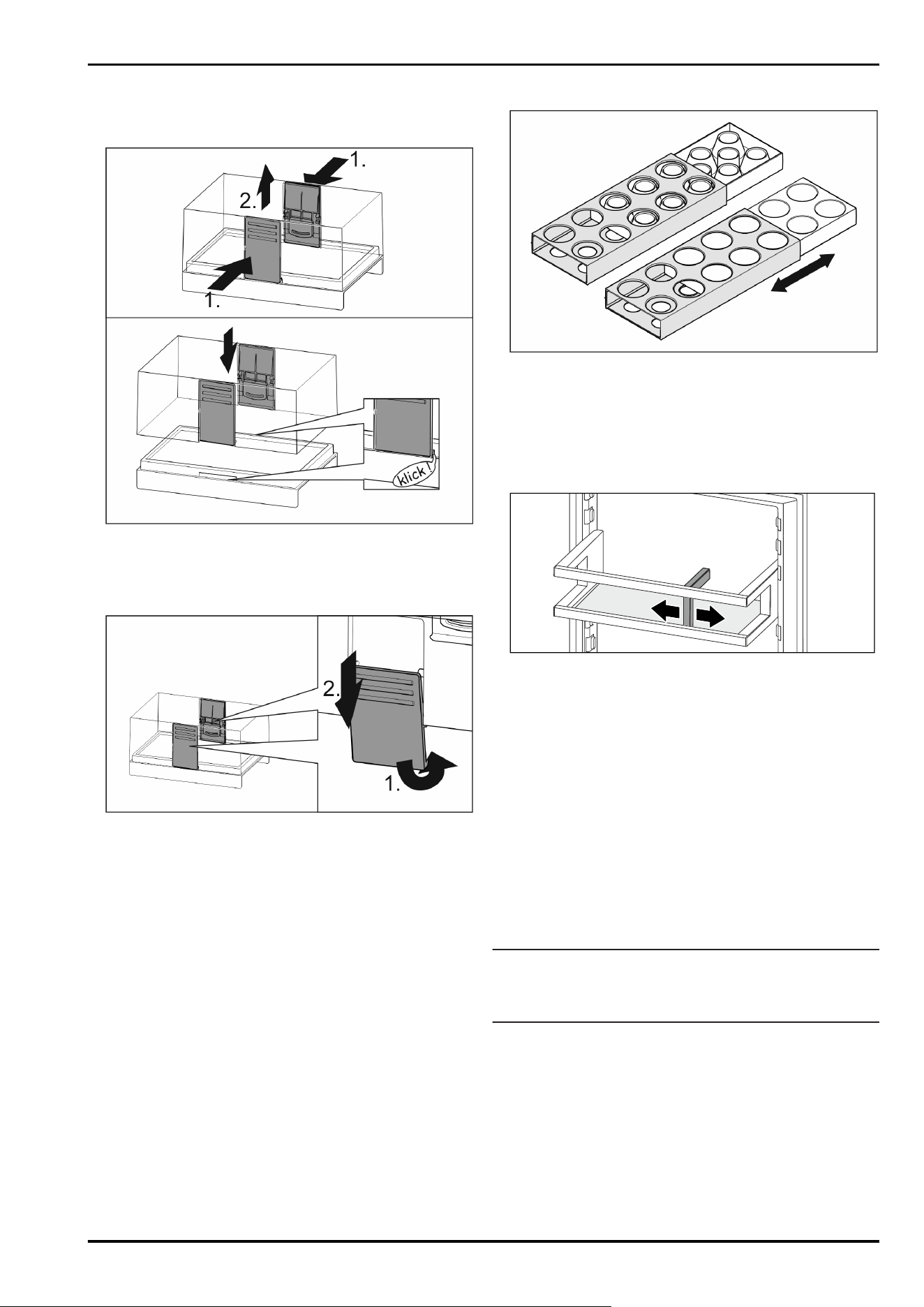

8.6 Butter dish

8.6.1 Opening/closing the butter dish

Fig.111

8.6.2 Dismantling the butter dish

You can take the butter dish apart for cleaning.

Fig.112

► Disassembling the butter dish.

8.7 Egg rack

You can pull out and turn the egg rack. You can use both

sides of the egg rack so you can label specifics like the

purchase date.

8.7.1 Using the egg rack

Fig.113

► Top layer: for storing hen eggs.

► Bottom layer: for storing quail eggs.

8.8 Bottle holder

8.8.1 Using the bottle holder

Fig. 114

► Push the bottle holder onto the bottles.

▷ The bottles are prevented from falling over.

9 Maintenance

9.1 FreshAir carbon filter

The FreshAir carbon filter is in the compartment above the

fan.

It guarantees the best air quality.

❑

Replace the carbon filter every 6 months.

When the reminder is set, a message on the display

prompts you to change it.

❑

The carbon filter can be disposed of with the regular

household waste.

Note

FreshAir activated charcoal filters can be purchased

from the Liebherr-Hausgeräte store at home.liebherr.com/

shop/de/deu/zubehor.html.

Maintenance

26 * Depending on model and options

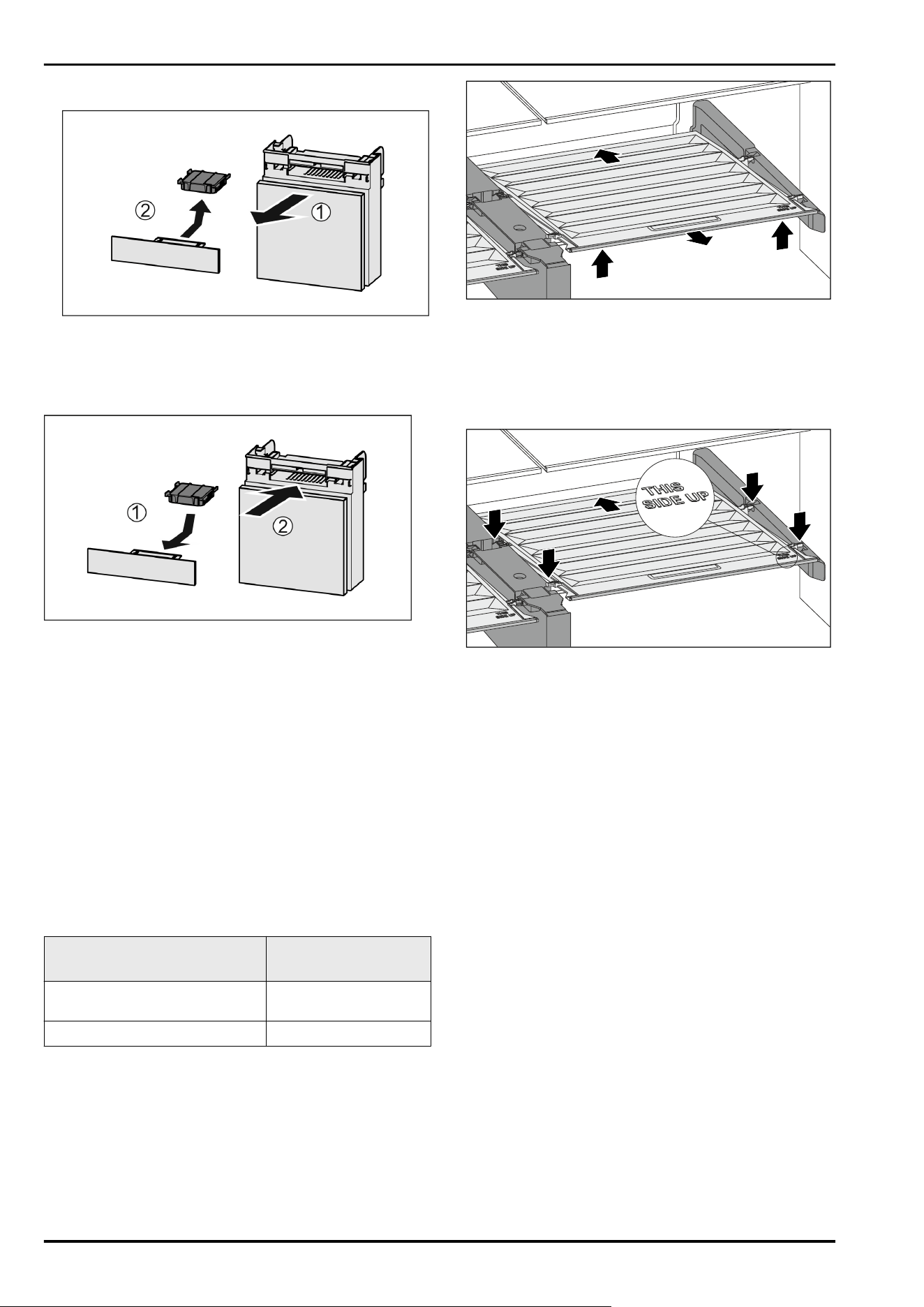

9.1.1 Removing the FreshAir carbon filter

Fig. 115

► Pull out the compartment Fig. 115(1).

► Remove the carbon filter Fig. 115(2).

9.1.2 Inserting the FreshAir carbon filter

Fig. 116

► Insert the carbon filter as shown in the diagram

Fig. 116(1).

▷ The carbon filter clicks into place.

If the carbon filter is pointing downwards:

► Push the compartment in Fig. 116(2).

▷ The carbon filter is now ready for use.

9.2 Disassembling / assembling pull-

out systems

9.2.1 Notes on disassembly

You can disassemble some of the pull-out systems for

cleaning. Your appliance can contain a variety of pull-out

systems.

The following pull-out systems can be disassembled or

cannot be disassembled:

Pull-out system

can be disassembled/

cannot be disassembled

Drawer on appliance base or

glass shelf

cannot be disassembled

Fridge section partial pull-out cannot be disassembled

9.3 Compartment lid for EasyFresh Safe

You can remove one or both compartment lids for cleaning.

9.3.1 Removing the compartment lid

Ensure that the following requirements are met:

❑

The shelf directly above the drawer has been removed.

❑

The drawer directly below the compartment lid has been

removed. (see8.2 Drawers)

Fig.117

► Push the compartment lid backwards.

► Lift the compartment lid forwards.

► Remove the compartment lid forwards and upwards at an

angle.

9.3.2 Inserting the compartment lid

Fig. 118

If the THIS SIDE UP lettering is at the top:

► Insert the rear retaining parts into the relevant rear open‐

ings.

► Push the compartment lid backwards.

► Lower the compartment lid forwards and engage the

front retaining parts into the openings.

► Move the compartment lid into the required position.

9.4 Defrosting the appliance

9.4.1 Defrosting the fridge compartment

Defrosting is performed automatically. The water from the

thawing process drains through the outlet and evaporates.

► Clean the drain opening at regular intervals.

(see 9.5Cleaning the appliance)

9.4.2 Defrosting the freezer compartment with

NoFrost

Defrosting is performed automatically with the NoFrost

system. The moisture is deposited on the evaporator, is peri‐

odically defrosted and evaporates.

The appliance does not have to be defrosted.

Maintenance

* Depending on model and options 27

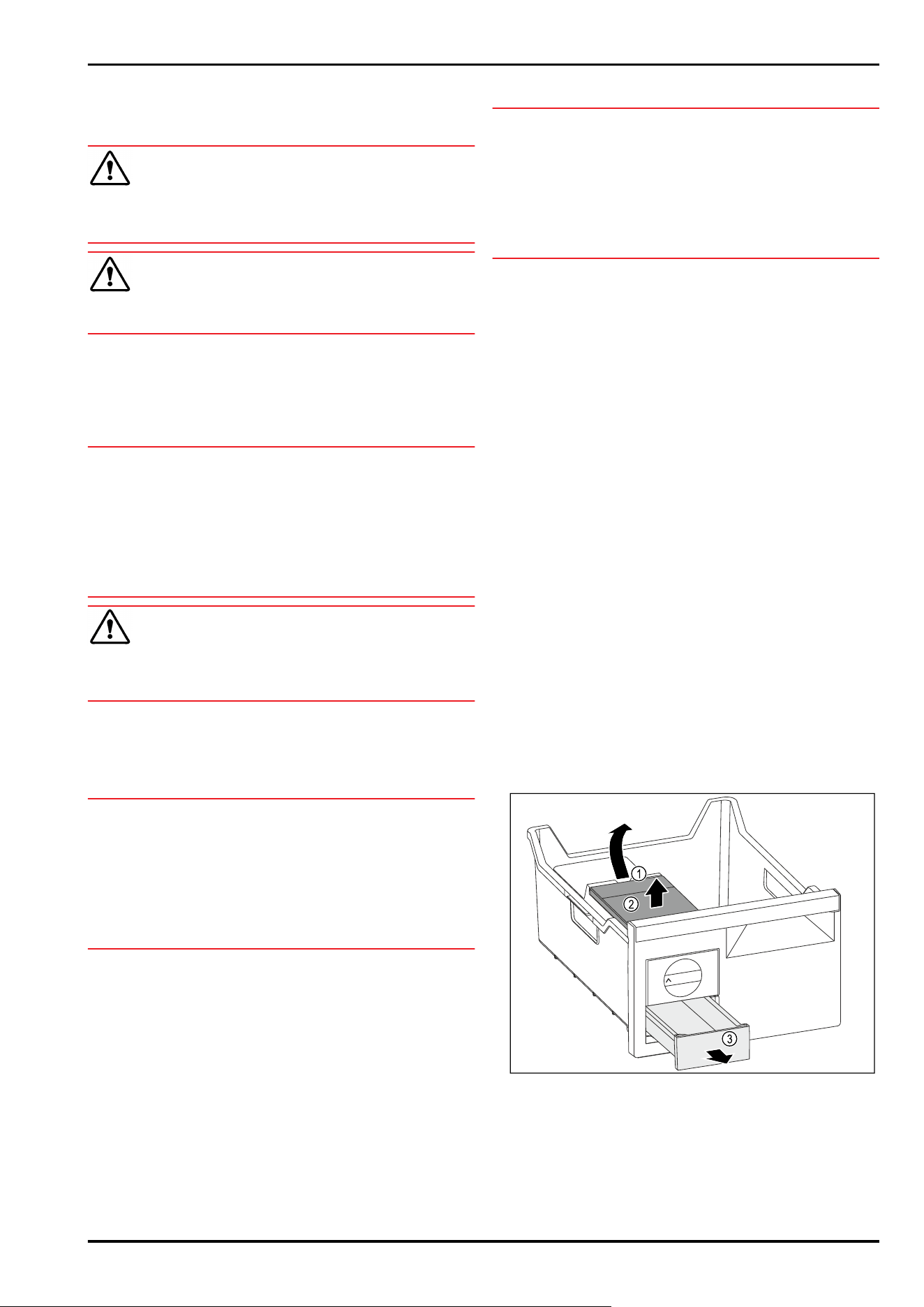

9.5 Cleaning the appliance

9.5.1 Ready

WARNING

Danger of electric shock!

► Remove the refrigerator connector or interrupt the power

supply.

WARNING

Risk of fire

► Do not damage the refrigeration circuit.

►

Empty the appliance.

► Remove mains connector.

-or-

► Activate CleaningMode. (seeCleaningMode)

9.5.2 Clean the housing

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

WARNING

Risk of injury and damage as a result of hot steam!

Hot steam can lead to burns and can damage the surfaces.

► Do not use any steam cleaners!

► Wipe the housing down with soft, clean cloth. If very

dirty, use lukewarm water with a neutral cleaner. Glass

surfaces can also be cleaned with glass cleaner.

9.5.3 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

► Plastic surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Metal surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Drain hole: remove deposits using a thin item (for

example a cotton bud).

9.5.4 Clean the components

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some

detergent:

- Shelf

- Compartment lid for EasyFresh Safe

- Drawer

- Components of the EasyTwist-Ice

Clean with a damp cloth:

- Retractable rails

Please note: The grease in the tracks is used for lubrica‐

tion and must not be removed!

Wash in the dishwasher up to 60°C:

- Door rack

- Bottle rack

- Holder of the dividing shelf

- Egg rack

- Butter dish

► To disassemble components: see the relevant section.

► Clean the components.

9.5.5 Cleaning the EasyTwist-Ice

Clean the EasyTwist-Ice in the following situations:

First use

Not using for more than 48 hours

When cleaning is required

Dismantling the EasyTwist-Ice

Make sure that the following requirements are fulfilled:

❑

The drawer has been removed. (see8.2 Drawers)

❑

The drawer is placed on a table.

Fig. 119

► Removing the water tank: Lift the water tank by the

recess Fig. 119(1).

► Remove the water tank Fig. 119(2) upwards.

► Remove the ice cube drawer Fig. 119(3) to the front.

Maintenance

28 * Depending on model and options

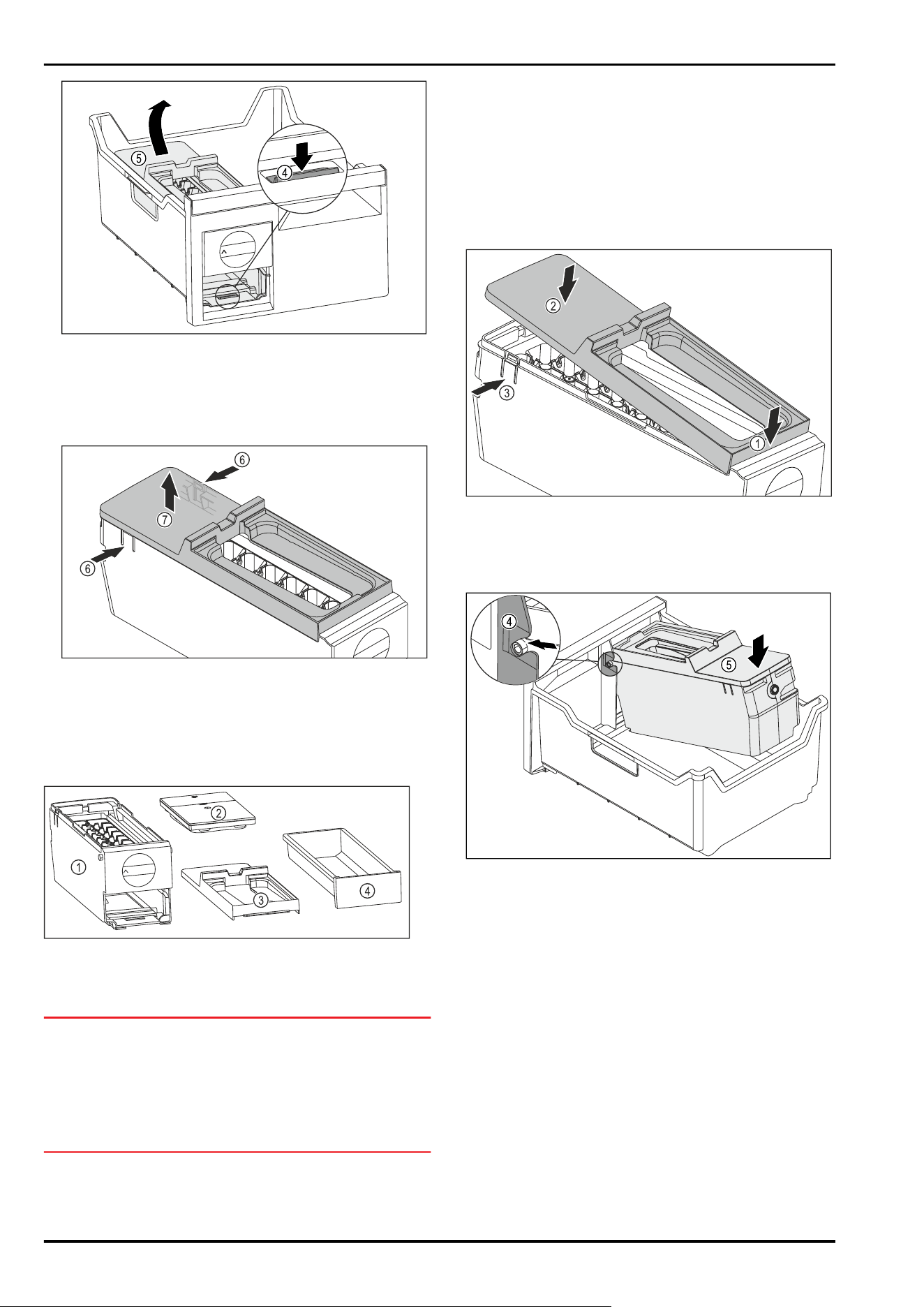

Fig.120

► Removing the EasyTwist-Ice body: Use your finger to

push the tab Fig.120(4) down and use your other hand to

lift the EasyTwist-Ice body Fig. 120 (5) from behind at the

same time.

► Remove the EasyTwist-Ice body from the freezer drawer.

Fig.121

► Removing the EasyTwist-Ice body cover: Push the tabs

Fig. 121 (6) on both sides of the EasyTwist-Ice body with

one hand.

► Use the other hand to remove the cover Fig. 121 (7)

upwards.

▷ EasyTwist-Ice is dismantled into four parts. (see Fig.122)

Fig. 122 Components of the EasyTwist-Ice

(1)

EasyTwist-Ice body

with ice cube tray

(3) Cover

(2) Water tank (4) Ice cube drawer

NOTICE

Risk of damage due to improper dismantling!

Equipment breaking, jumping and cracking. If you dismantle

the EasyTwist-Ice body further, you may damage the rotary

knob or other parts of the EasyTwist-Ice body.

► Only dismantle the EasyTwist-Ice into the components

shown. (see Fig.122)

► Clean the EasyTwist-Ice body Fig.122(1) as a whole.

Cleaning the EasyTwist-Ice

Make sure that the following requirements are fulfilled:

❑

The EasyTwist-Ice is dismantled. (see Dismantling the

EasyTwist-Ice)

► Clean the ice cube drawer, water tank, cover and Easy‐

Twist-Ice body with warm water and a little detergent.

► Dry all cleaned components thoroughly with a dry cloth.

▷ The EasyTwist-Ice is clean.

Installing the EasyTwist-Ice

Fig.123

► Installing the EasyTwist-Ice body cover: Place the cover

on the front. Fig.123(1)

► Lower the cover at the rear. Fig.123(2)

▷ The cover locks into both tabs Fig.123(3) audibly.

Fig. 124

► Installing the EasyTwist-Ice body: Push the axes for the

EasyTwist-Ice body into the guides Fig. 124(4).

► Press the EasyTwist-Ice body Fig. 124 (5) down at the

back.

▷ The EasyTwist-Ice body locks in audibly.

Maintenance

* Depending on model and options 29

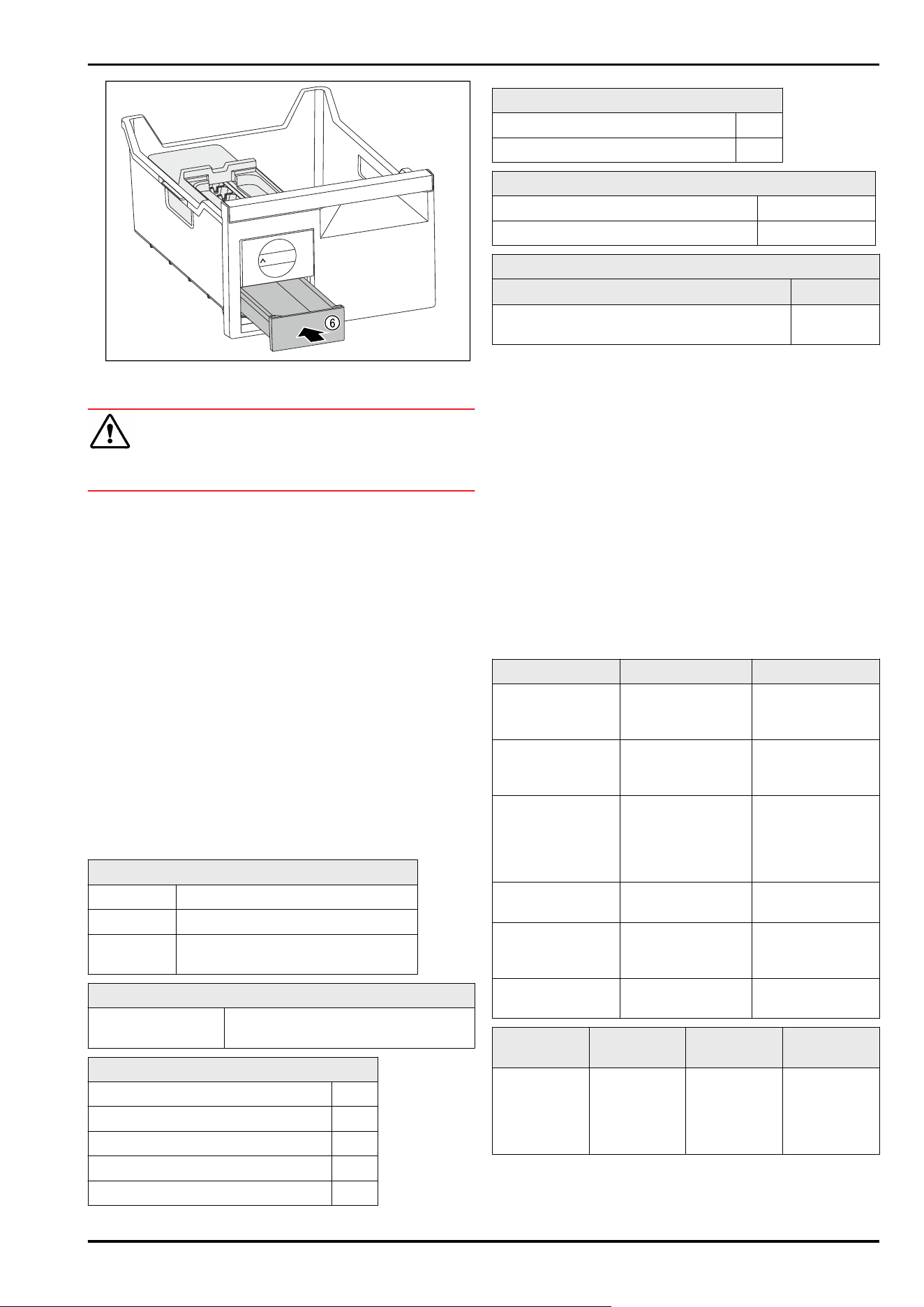

Fig.125

► Insert the ice cube drawer Fig.125(6).

WARNING

Risk of poisoning due to contaminated water!

► Only fill the water tank with potable water.

► Fill the water tank with water.

► Insert the water tank.

► Insert the drawer. (see8.2 Drawers)

If you are using unfiltered water:

► Dispose of ice cubes that were produced 24 hours after

initial ice cube production.

-or-

If you are using filtered water:

► Dispose of ice cubes that were produced 48 hours after

initial ice cube production.

9.5.6 After cleaning

► Wipe the appliance and the components dry.

► Connect and switch on the appliance.

► Activate SuperFrost (see 7.2Appliance functions) .

► Repeat cleaning regularly.

10 Customer help

10.1 Technical specifications

Temperature range

Cooling 2°C to 9°C

Freeze -24°C to -15°C

VarioTemp‐

Zone

-18°C to +5°C

Maximum ice cube quantity / 24 hours

Freezer compart‐

ment

see type plate under “Freezing

capacity …/ 24 h”

Maximum loading weight for the equipment

Left refrigerator door 12 kg

Right refrigerator door 12 kg

Left freezer compartment door 1 kg

Right freezer compartment door 1 kg

Freezer compartment top drawer 15 kg

Maximum loading weight for the equipment

Freezer compartment middle drawer 15 kg

Freezer compartment bottom drawer 10 kg

Ice cube production with EasyTwist-Ice

Time required at -18°C approx. 5.5 hours

Time required with SuperFrost activated approx. 3 hours

Lighting

Class

Light source

This product contains one or more energy

efficiency class G light sources.

LED

The appliance may contain light sources with different

energy efficiency classes. The lowest energy efficiency class

is indicated.

10.2 Operating noises

The appliance makes different noises when it is on.

At higher temperatures the appliance uses less energy

but works for longer. It is quieter.

At lower temperatures the food is cooled faster. It is

louder.

Examples:

•

Functions on (see 7.2Appliance functions)

•

Fan running

•

Food recently added

•

High ambient temperature

•

Door open for a while

Noise

Possible cause Type of noise

Bubbling and

splashing

Coolant flowing

into the cooling

circuit.

Normal operating

noise

Hissing Coolant sprays

into the cooling

circuit.

Normal operating

noise

Humming The appliance

is cooling. The

volume depends

on the cooling

output.

Normal operating

noise

Humming and

rustling

The fan is running. Normal operating

noise

Clicking Components are

switched on and

off.

Normal switching

noise

Rattling or

humming

Valves or flaps are

working.

Normal switching

noise

Noise Possible

cause

Type of noise Lifting

Vibration Improper

setup

Defective

noise

Level the

appliance

using the

adjustable

feet.

Customer help

30 * Depending on model and options

Noise Possible

cause

Type of noise Lifting

Rattling Components,

items inside

the appliance

Defective

noise

Secure

components.

Leave

enough

space

between the

items.

10.3 Technical fault

Your appliance is designed and built to ensure it works reli‐

ably and has a long service life. In the unlikely event that

a fault occurs during operation, please check whether it is

due to an operating error. If so, you will be charged for the

callout and repair costs even if it falls within the warranty

period.

You can fix the following faults yourself.

10.3.1 Appliance function

Defect Cause Remedy

The appliance is

not working.

→ The appliance is not switched on. ► Switch the appliance on.

→ The power plug is not properly

plugged into the socket.

► Check the power plug.

→ There is something wrong with the

power outlet fuse.

► Check the fuse.

→ Power cut ► Keep the appliance closed.

► Safeguarding food: Place cold packs on top of food or

use another freezer if the power cut lasts longer.

► Do not re-freeze defrosted food,

→ The IEC socket is not plugged into

the appliance correctly.

► Check the IEC socket.

Temperature is not

cold enough.

→ The appliance door is not closed

properly.

► Close the appliance door.

→ The ambient temperature is too

high.

► Problem solution: (see 1.5 Appliance range of use)

→ The appliance was opened too

many times or for too long.

► Wait to see if the required temperature corrects itself.

If not, contact Customer Service. (see 10.4 Customer

Service)

→ Too much fresh food was placed

inside without SuperFrost.

► Solution: (see SuperFrost)

→ The appliance is too close to a heat

source (oven, radiator, etc).

► Move the appliance or the heat source.

The door seal is

defective or needs

to be replaced for

another reason.

→ The door seal can be replaced. It

can be replaced without the need

for special tools.

► Contact Customer Service. (see 10.4 Customer Service)

The closing

damper is defec‐

tive or requires

replacement for

another reason.*

→ The closing damper is replaceable.

It can be changed without the need

for any additional tools.

► Contact Customer Service. (see 10.4 Customer Service)

The appliance

builds up too much

ice or condensa‐

tion.

→ The door seal may have slipped out

of its groove.

► Check that the door seal is well fitted in the groove.

The exterior

surfaces of the

appliance are

warm.*

→ The heat of the refrigeration circuit

is used to avoid condensation.

► This is normal.

Customer help

* Depending on model and options 31

10.3.2 Features

Defect Cause Remedy

The internal light

does not come on.

→ The appliance is not switched on. ► Switch the appliance on.

→ The door was open for longer than

15 minutes.

► Interior lighting switches off automatically after

about 15 minutes when the door is open.

→ The LED interior light is faulty or

the lid is damaged.

► Contact Customer Service. (see 10.4 Customer Service)

10.4 Customer Service

First check whether you can rectify the fault yourself

(see 10 Customer help) . If you cannot rectify the problem,

contact Customer Service.

You can find the address in the enclosed brochure “Liebherr-

Service” or at home.liebherr.com/service.

WARNING

Unprofessional repair!

Injuries.

► Have any repairs and action - not expressly specified -

on the appliance and mains cable carried out by service

personnel only. (see9 Maintenance)

► A damaged mains cable may only be replaced by the

manufacturer, the manufacturer’s Customer Service or a

similarly qualified person.

► In the case of appliances with an IEC connector, the

change may be made by the customer.

10.4.1 Contacting Customer Service

Make sure that the following appliance information is avail‐

able:

❑

Appliance name (model and index)

❑

Service no. (Service)

❑

Serial no. (S no.)

► Note down the appliance information.

► Notify customer service: Report errors and the appliance

information.

▷ This will help us to provide you with a faster, more accu‐

rate service.

► Follow further instructions from Customer Service.

10.5 Model plate

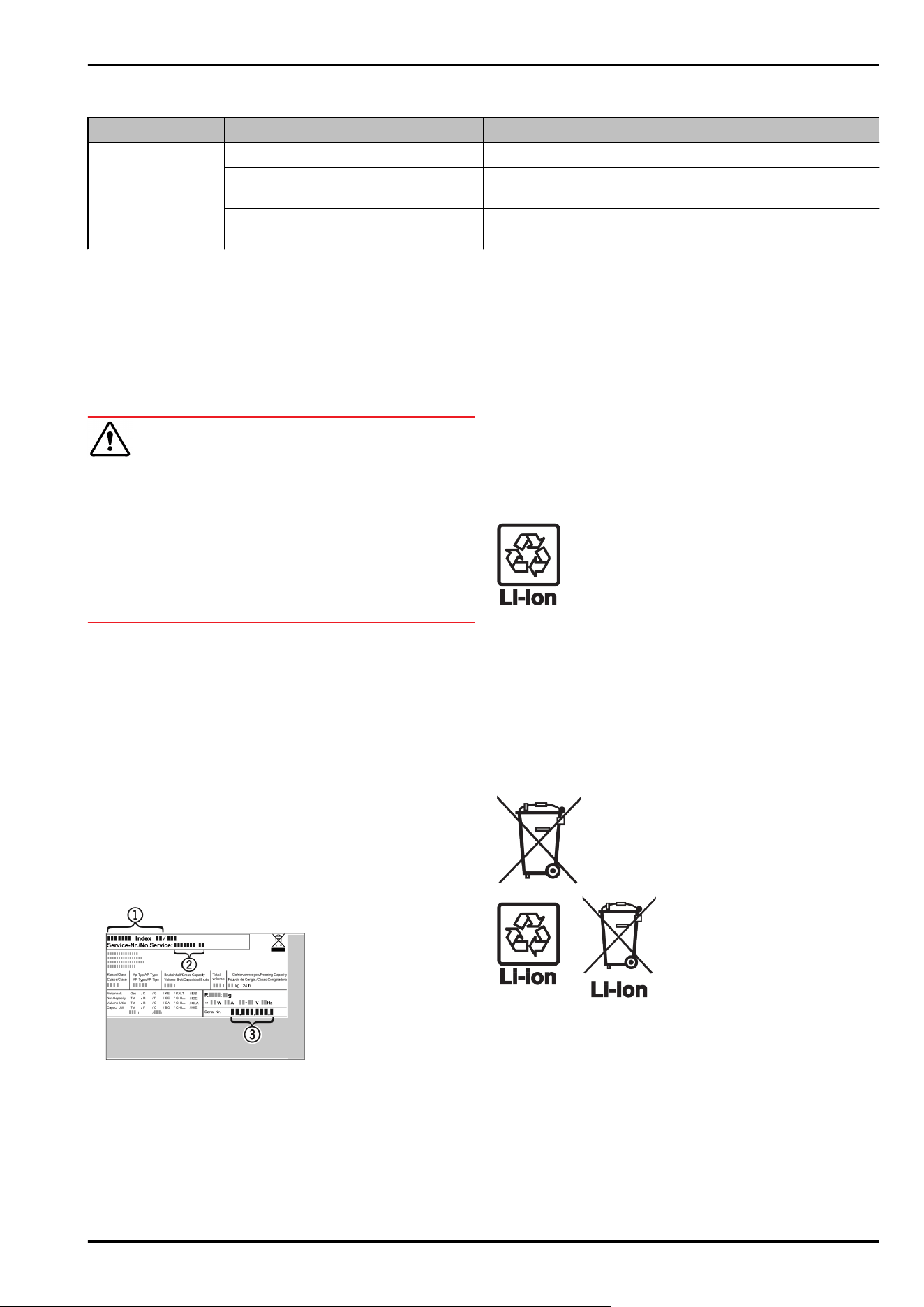

Fig. 126

(1)

Appliance description (3) Serial no.

(2) Service no.

► Note the data on the model plate.

11 Shutting down

► Empty the appliance.

►

Switch off appliance. (see Switching the appliance off

and on)

► Pull the mains plug out of the socket.

► Remove the IEC socket if required: Pull the IEC socket out

of the appliance plug and move it to the left and right at

the same time.

► Clean appliance. (see 9.5Cleaning the appliance)

► Leave the door open, so that no unpleasant odours arise.

12 Disposal

12.1 Preparing appliance for disposal

Liebherr uses batteries in some of its appli‐

ances. In the EU, for environmental reasons,

legislation obliges the end user to remove

these batteries before disposing of old appli‐

ances. If your appliance contains batteries, a

corresponding notice is attached.

Lamps If you can remove the lamps yourself without

destroying them, also remove these before

disposal.

► Take the appliance out of operation.

► If possible: remove lamps without destroying them.

12.2 Disposing of the appliance in an

environmentally friendly manner

The appliance still contains

valuable materials and must

be disposed of separately from

unsorted municipal waste.

Dispose of batteries separately

from the old appliance. To do

this, you can return the batteries

free of charge to retailers as

well as recycling centres and

collection centres for recyclable

materials.

Lamps Dispose of removed lamps

via the respective collection

systems.

Shutting down

32 * Depending on model and options

For Germany: You can dispose of the appli‐

ance free of charge via the

class 1 collection containers

at the local recycling and

recyclable material collection

centres. When purchasing a new

fridge/freezer, if the sales area

> 400 m

, retailers will also take

back the old appliance free of

charge.

WARNING

Leaking coolant and oil!

Fire. The coolant contained in the appliance is eco-friendly,

but also flammable. The oil contained in the appliance

is flammable. Escaping coolant and oil can ignite if the

concentration is high enough and in contact with an

external heat source.

► Do not damage the pipelines of the coolant circuit and

the compressor.

►

Observe the notes on transporting the appliance.

► Transport the appliance without damaging it.

► Dispose of batteries, lamps and the appliance according

to the above specifications.

Disposal

* Depending on model and options 33

home.liebherr.com/fridge-manuals

fridge/freezer

Issue date: 20250521

Part number index: 7086273-00

Liebherr-Hausgeräte Marica EOOD

Bezirk Plovdiv

4202 Radinovo

Bulgarien

Liebherr MSDD 9012 Pure NoFrost 4-Door French Door Fridge-Freezer

Product's Documents

Operating instructions

Specifications

Liebherr MSDD 9012 PURE NOFROST Questions and Answers
