24" FROST-FREE REFRIGERATOR/
FREEZER WITH ICE MAKER
User Manual
MODELS:
FFRF5IM FFRF55 LRF4IM LRF45
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Felix Storch, Inc.
ISO 9001:2015 registered company
770 Garrison Avenue
www.summitappliance.com
Write Model and Serial No. (on lower left
side of inside cabinet) here:
Model
Serial No.
TABLE OF CONTENTS
Appliance Safety 1
Important Safeguards 1-4
Disposal 5
Location of Parts 6
Installation Instructions 7-13
Before Using Your Appliance
Installation of Your Appliance
Connecting to the Water Supply
Reversing the Door Swing of Your Appliance
Installing the Stainless Steel Handle
Full Overlay Panel Installation Instructions
7
7-9
10
11
12
12-13
Operating Your Appliance 14-17
Control Panel
14
Interior Light
Sabbath Mode
Temperature Memory Function
Defrosting
Using the Freezer
Ice Maker
Temperature Alarm / Door Alarm
Door Lock
Shelves
Door Racks
Care and Maintenance
Cleaning Your Appliance
Power Failure
Vacations
Moving Your Appliance
Energy-Saving Tips
Troubleshooting
Limited Warranty
15
15
15
15
16
16
16
16
17
17
18
18
18
18
18
18
19-20
22
1
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. The symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the word DANGER or WARNING.
DANGER means that failure to heed this
safety statement may result in severe
personal injury or death.
WARNING means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury,
and let you know what can happen if the instructions are not followed.
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precautions,
including the following:
•
Plug into a grounded 3-prong outlet, do not remove the grounding prong, do not use an adapter,
and do not use an extension cord.
•
Replace all panels before operating.
•
It is recommended that a separate circuit serving only your appliance be provided. Use receptacles
that cannot be turned off by a switch or pull chain.
•
WARNING: Never clean appliance parts with flammable fluids. These fumes can create a fire
hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids or
explosive substances such as aerosol cans with a flammable propellant in this appliance or in the
vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
•
Do not connect or disconnect the electric plug when your hands are wet.
•
Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
•
Do not attempt to repair or replace any part of your appliance unless it is specifically recommended
in this manual. All other servicing should be referred to a qualified technician.
•
If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similar
qualified person in order to avoid a hazard.
A3 Warning: Risk of Fire / Flammable Materials. R600a
2
•
This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R600a) which is
environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase
the greenhouse effect. Care must be taken during transportation and setting up of the appliance so
that no parts of the cooling system are damaged. Leaking coolant can ignite and may damage the
eyes.
•
In the event of any damage:
-
Avoid open flames and anything which creates a spark.
-
Disconnect from the power supply,
-
Air the room in which the appliance is located for several minutes and contact the Service
Department for advice.
•
The more coolant there is in an appliance, the larger the room it should be installed in. In the event of
a leakage, if the appliance is in a small room, there is the danger of combustible gases building up.
For every ounce of coolant, at least 325 cubic feet of room space is required. The amount of coolant
in the appliance is stated on the data plate inside the appliance. It is hazardous for anyone other than
an Authorized Service Person to carry out servicing or repairs to this appliance.
•
Take serious care when handling, moving, and using the appliance to avoid either damaging the
refrigerant tubing or increasing the risk of a leak.
•
Replacing component parts and servicing shall be done by factory-authorized service personnel, so
as to minimize the risk of possible ignition due to incorrect parts or improper service.
•
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
•
Children should be supervised to ensure that they do not play with the appliance.
FOLLOW THE WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
•
Use two or more people to move and install the appliance. Failure to do so can result in back or
other injuries.
•
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
•
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process or
to clean, other than those recommended by the manufacturer.
•
WARNING: The appliance shall be stored in a room without continuously operating ignition sources
(for example: open flames, an operating gas appliance or an operating electric heater.
•
WARNING: Do not pierce or burn. Do not damage the refrigerant circuit.
•
WARNING: Be aware that refrigerants may not contain an odor.
•
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
•
WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with
the instructions.
•
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
•
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
•
WARNING: Danger of injury from LED lamp. If the cover is defective: do not look directly into the
illumination with optical lenses from close proximity. The eyes can be injured.
•
CAUTION: Use this appliance only for its intended purpose. This equipment is intended for the
storage and display of packaged products only.
•
To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 44°F (7°C) and below 90°F
(32°C).
•
The appliance should not be located next to ovens, grills, or other sources of high heat.
•
The appliance must be installed with all electrical, water, and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
•
Do not kink or pinch the power supply cord of the appliance.
3
•
The size of the fuse (or circuit breaker) should be 15 amperes.
•
It is important that the appliance be leveled in order to work properly. You may need to make
several adjustments to level it.
•
All installations must be in accordance with local plumbing code requirements.
•
Make certain that the pipes are not pinched, kinked, or damaged during installation.
•
Check for leaks after connection.
•
Never allow children to operate, play with or crawl inside the appliance.
•
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
•
Use this appliance only for its intended purpose as described in this Instruction Manual.
•
Keep fingers out of the “pinch point” areas. Clearances between the door and cabinet are
necessarily small. Be careful closing the door when children are in the area.
•
This appliance is intended to be used in household and similar applications such as:
–
staff kitchen areas in shops, offices and other working environments
–
farmhouses and by clients in hotels, motels, and other residential type of environments
–
bed and breakfast type environments
–
catering and similar non-retail applications
- SAVE THESE INSTRUCTIONS –
4
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord
is damaged, have it replaced by a qualified electrician or an authorized service center.
Electrical Connection
This appliance should be properly grounded for your safety. The power cord of this appliance is equipped
with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of
electrical shock.
Do not under any circumstances cut or remove the third (grounded) prong from the power cord supplied.
For personal safety, this appliance must be properly grounded. Any questions concerning power and/or
grounding should be directed toward a certified electrician or an authorized service center.
This appliance requires a standard 115/120 Volt AC ~ 60Hz three-prong grounded electrical outlet. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or
dangling.
The appliance should always be plugged into its own individual electrical outlet which has a voltage rating
that matches the rating label on the appliance. This provides the best performance and also prevents
overloading house wiring circuits that could cause a fire hazard from overheating. Never unplug the
appliance by pulling on the power cord. Always grip the plug firmly and pull it straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do not
use an extension cord with this appliance. However, if you must use an extension cord, it is absolutely
necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a
grounding type plug and outlet and that the electrical rating of the cord is 115 volts and at least 10
amperes.
5
DISPOSAL
Dispose of your appliance packaging properly. Ensure that any plastic wrappings, bags, etc., are
disposed of safely and kept out of the reach of babies and young children. Danger of suffocation!
Refrigeration equipment must be properly disposed of in a professional and appropriate way, in
accordance with the current local regulations and laws which protect the environment. This applies to
your old appliance and to your new unit once it has reached the end of its service life.
WARNING: Please ensure that old, worn appliances are rendered unusable before disposal by removing
the doors, removing the plug, cutting the network cable, and removing or destroying any snap fastenings
or bolts. Leave shelving in place. You will thus prevent children from locking themselves in the appliance
during play (risk of suffocation) or endangering their lives in any other way. DO NOT dispose of the
appliance in landfill as the insulation (Cyclopentane) and refrigerant gas (R600a) contained in these
appliances are flammable.
Disposal instructions:
•
The appliance must not be disposed of in the dustbin or with normal household rubbish.
•
The coolant circuit, particularly the heat exchanger at the back/bottom of the unit, must not be
damaged.
•
The appliance is not to be handled as normal household waste but is to be taken to a recycling
collection point for electrical and electronic goods. By correctly disposing of this product, you are
contributing to the protection of the environment and to the health of your fellow human beings.
Improper disposal endangers health and the environment. Further information about the recycling of
the product may be obtained from your town hall, refuse collection department or the store where you
purchased the product.
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances
are still dangerous, even if they will “just sit for a few days.”
Before you throw away your old refrigerator or freezer:
•
Take off the doors
•
Leave the shelves in place so that children may not easily climb inside.
6

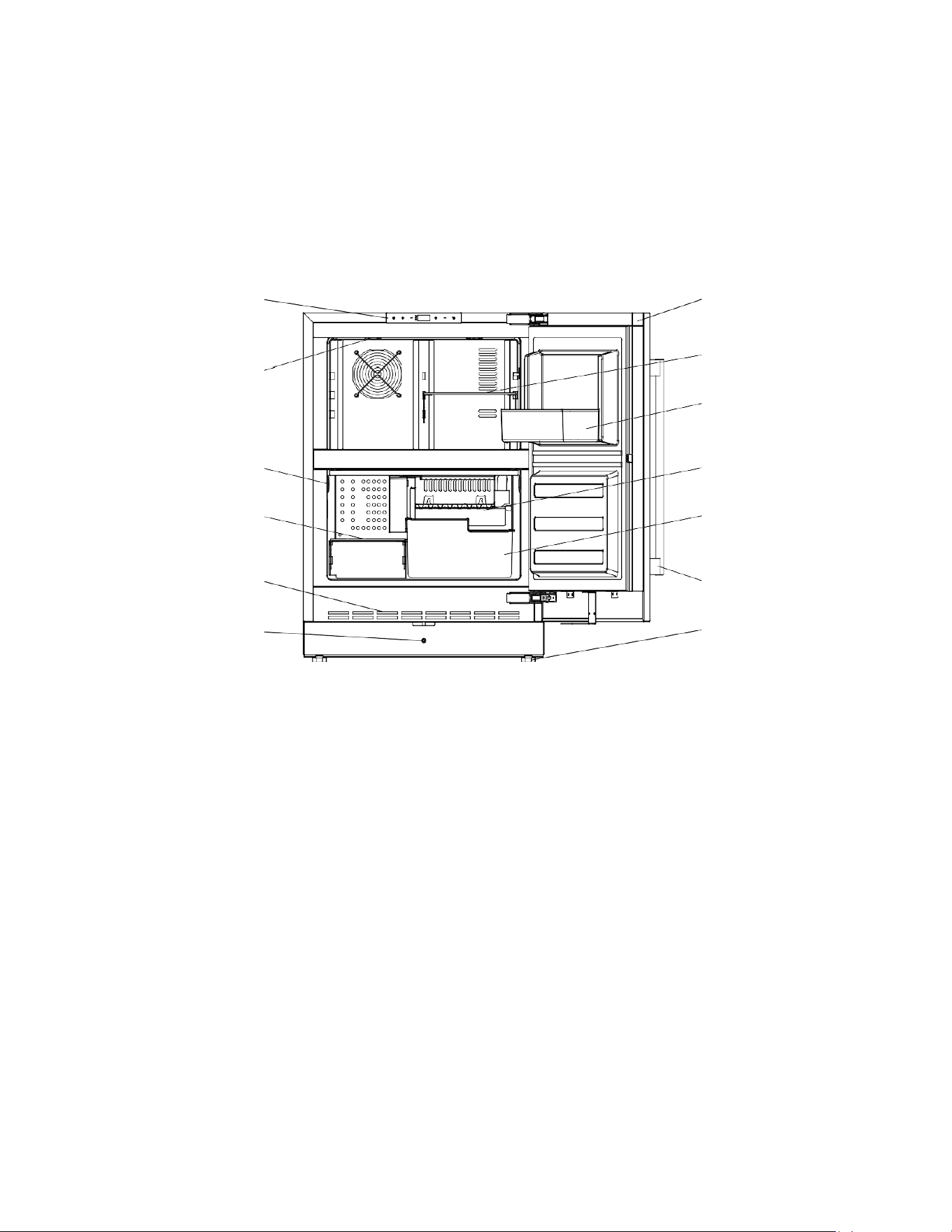

LOCATION OF PARTS
Digital Control
Panel
LED Light
LED Light
Freezer Shelf
Ventilation Grille
Security Lock
Door
Fridge Shelf
Door Rack
Ice Maker(*)
Ice Bucket(*)
Handle
Adjustable
Legs
(*) Only available for models with ice maker.
7
INSTALLATION INSTRUCTIONS
Before Using your Appliance
•
Remove the exterior and interior packing.
CAUTION: After unpacking you MUST allow this appliance to stand upright for at least 2
hours to allow the lubricant and refrigerant to drain back into the compressor
and stabilize. Failure to do so may adversely affect performance and the
lifetime of this unit.
•
Clean the interior surface with lukewarm water using a soft cloth.
•
Install the handle on the door. (See Installing the Stainless Steel Handle.)
Installation of your Appliance
CAUTION: This appliance is designed for storing and cooling fresh food, beverages,
and drinks. Do not store perishable food, medicine, or other medical products.
•
The appliance is designed for built-in, recessed, or free-standing installation for indoor use only.
NOTE: Do not store or install the appliance outdoors for models with indoor use only.
•
Place your appliance on a floor that is strong enough to support it when it is fully loaded. To level
the unit, adjust the front leveling legs.
•
For freestanding installation, leaving 5” (127mm) of space at the back and sides of the unit and
4“(102mm) at the top is suggested, which allows the proper air circulation to cool the compressor
and condenser to save energy. For built-in installation, it is better to leave at least ¼" (5mm) of
space on each side, 1" (25mm) at the back, and ⅛" (3mm) at the top to ensure proper service
access and ventilation. And the air vent at the front of the appliance must never be covered or
blocked in any way.
CAUTION: Ensure that the socket and ON/OFF switch are easily accessible after the
appliance has been installed.
•
Avoid installing the unit in a moist area.
•
Plug the appliance into an exclusive, properly grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized service center.
NOTE: It is recommended that you do not install the appliance near an oven, radiator, or other
heating sources. Direct sunlight may affect the acrylic coating and heat sources may
increase electrical consumption. Do not install in a location where the temperature will fall
below 60°F (16°C). For best performance, do not install the appliance behind a cabinet door
or block the base grille.
8

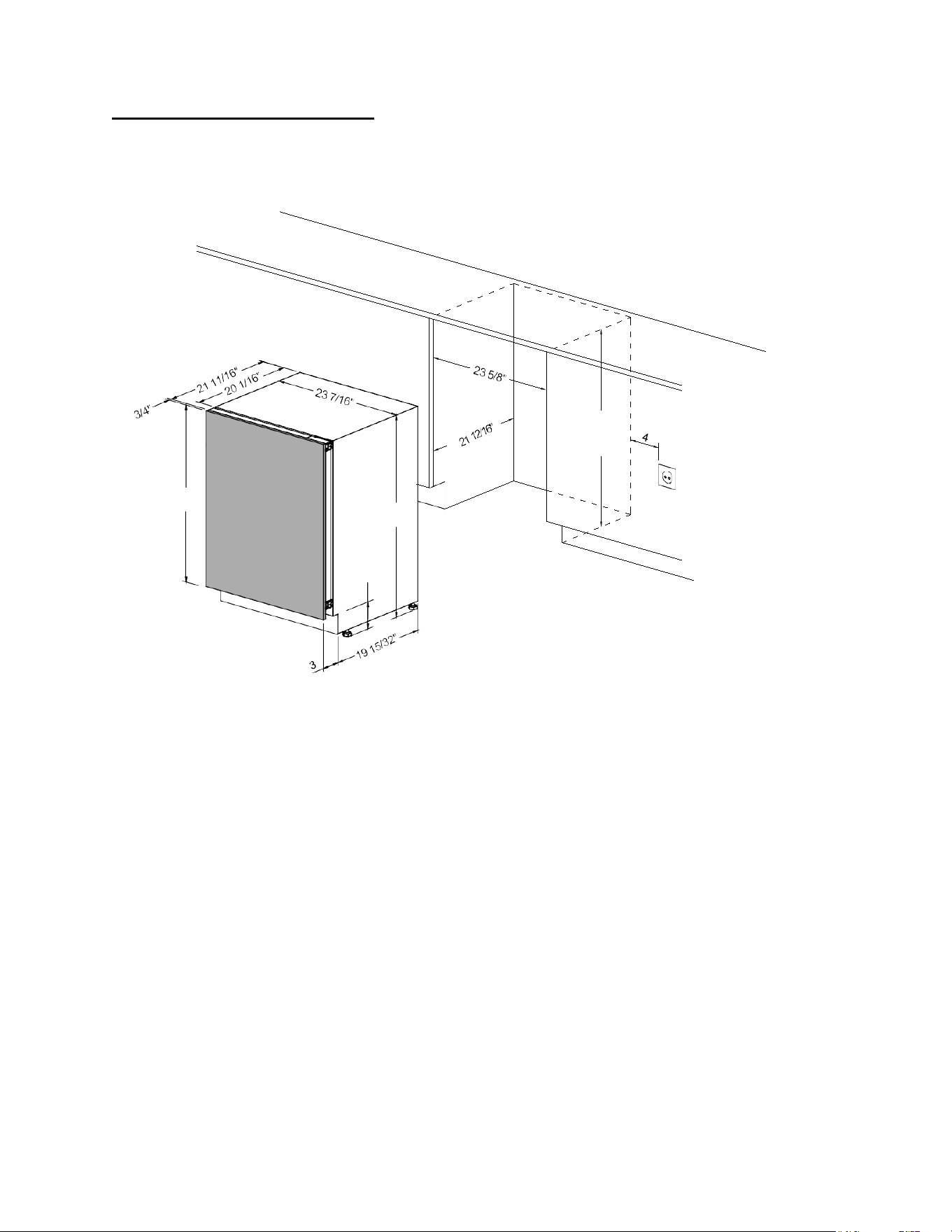

Built-in Under-counter Instructions
Ensure your installation does not block the ventilation grille. The unit is designed to fit under worktops.
NOTE: When sliding the appliance into the cutout, make sure that the main cable does not get trapped.
30"
4"
34"
34 1/16"
9

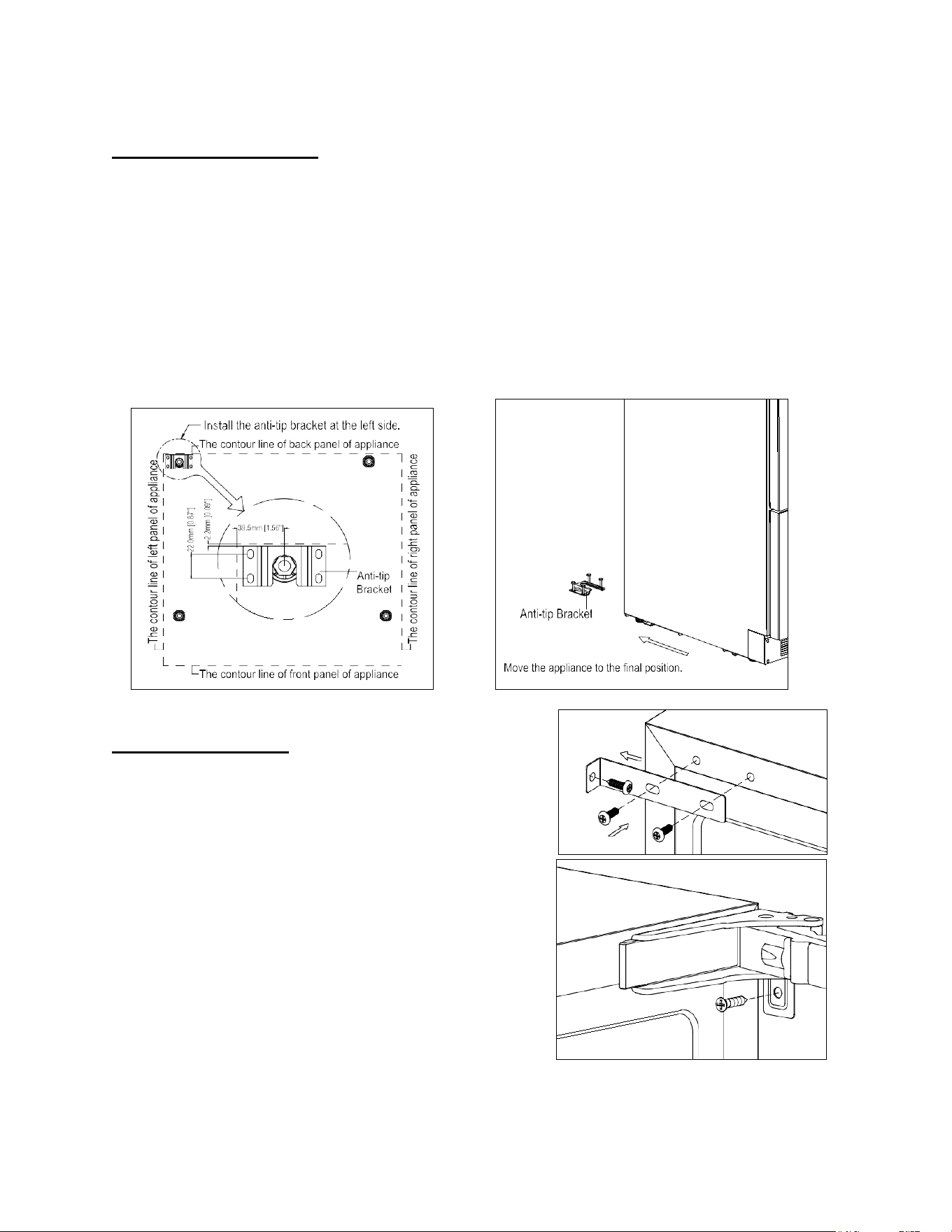

Anti-tip Bracket Installation
To reduce the risk of tipping the unit by abnormal usage or improper loading, the appliance must be
secured by properly installing the anti-tip device packed with the appliance.
1.
Place the anti-tip bracket on the floor as shown in the figure below. The anti-tip bracket
must be installed on the left side.
2.
Mark the locations of the 4 holes of the anti-tip bracket on the floor.
3.
Use a 5/16” masonry drill bit and insert plastic anchors.
4.
Secure the bracket onto the floor using screws.
5.
Slide the appliance into position ensuring the leg engages the anti-tip bracket.
NOTE: If the unit is relocated, the bracket must be removed and reinstalled in the new location.
Securing the Appliance
Pop out the cover cap on the opposite side of the hinge
and secure the appliance in the niche by tightening the
screws through the attachment bracket if the unit is
provided with an attachment bracket.
10
WARNING
Improper water line connection may result in flooding. You must use a licensed plumber. Review
state and local plumbing codes before installation.
Connecting to the Water Supply
•
Prepare water supply line before installation for models with ice maker. Installation requires a ¼" ID
copper cold water line and compression fitting (not supplied).
•
All the necessary hardware is not provided so it is necessary to hire a professional licensed
plumber to complete the installation.
•
Connect the water line to the nearest cold water source. Leave sufficient coiled copper tubing to the
unit to allow the unit to be pulled out of the cabinet or away from the wall for cleaning and service.
Also make sure that the tubing is not pinched or damaged during the transportation.
WARNING: Connect to potable water supply only.
IMPORTANT NOTE:
•
Water lines cannot be exposed to freezing temperatures.
•
This appliance is intended to be permanently connected to the water mains and not connected by a
hose-set.
•
The water temperature must be between 41°F - 90°F (5°C - 32°C).
•
The water pressure must be between 20 - 80 psig (138 - 552kPA).
11
WARNING
Use extreme caution with the articulated hinges. The hinge is self-closing, and many pinch points
exist prior to built-in installation.

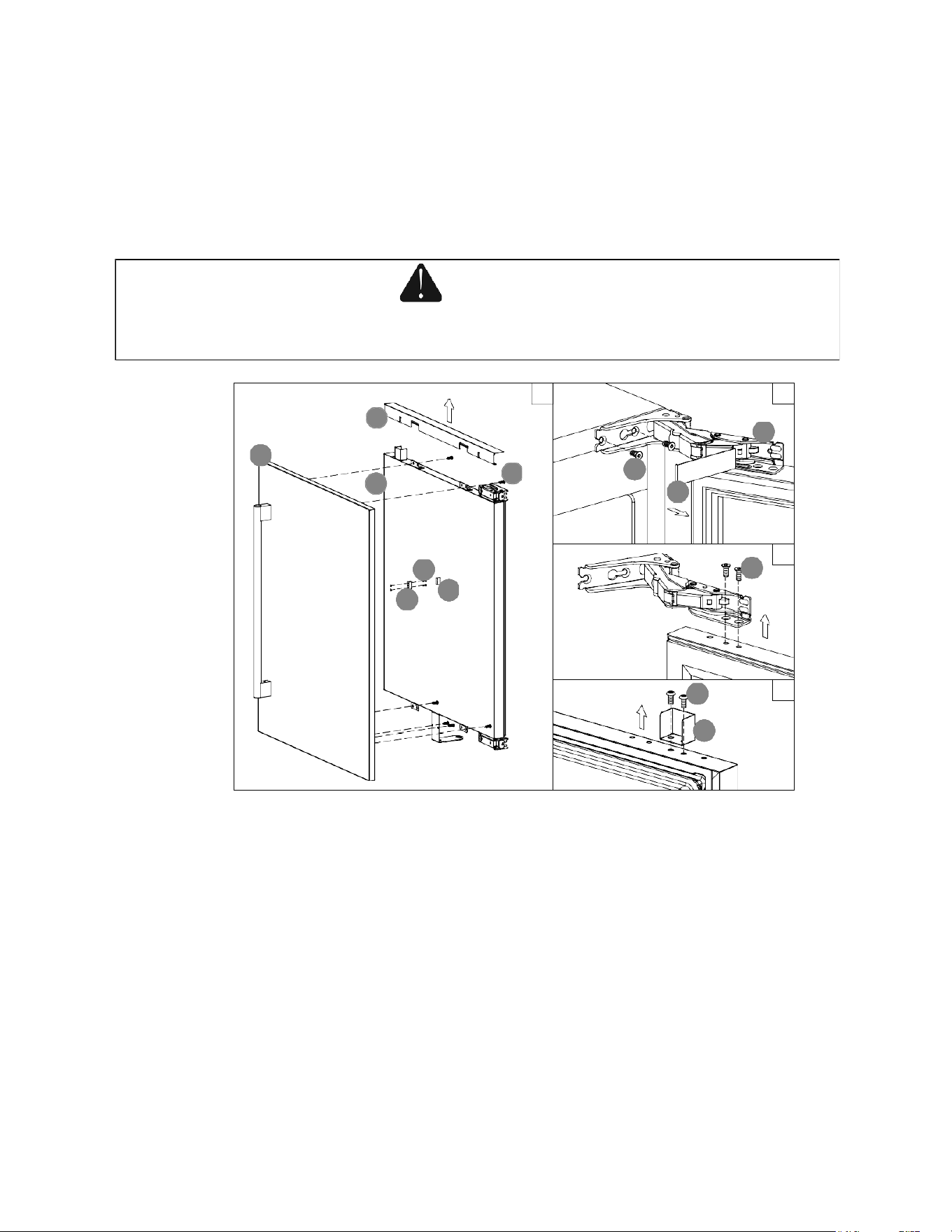

Reversing the Door Swing of your Appliance
This unit has the capability of the door opening from either the left or right side. The unit is delivered to you with the
door opening from the left side. Should you desire to reverse the opening direction, please follow the reversal
instructions shown below.
NOTE: All parts removed must be saved to allow the door swing to be reversed.
1
3
1
2
4
6
5
7
2
10
8
9
3
11
12
4
13
1.

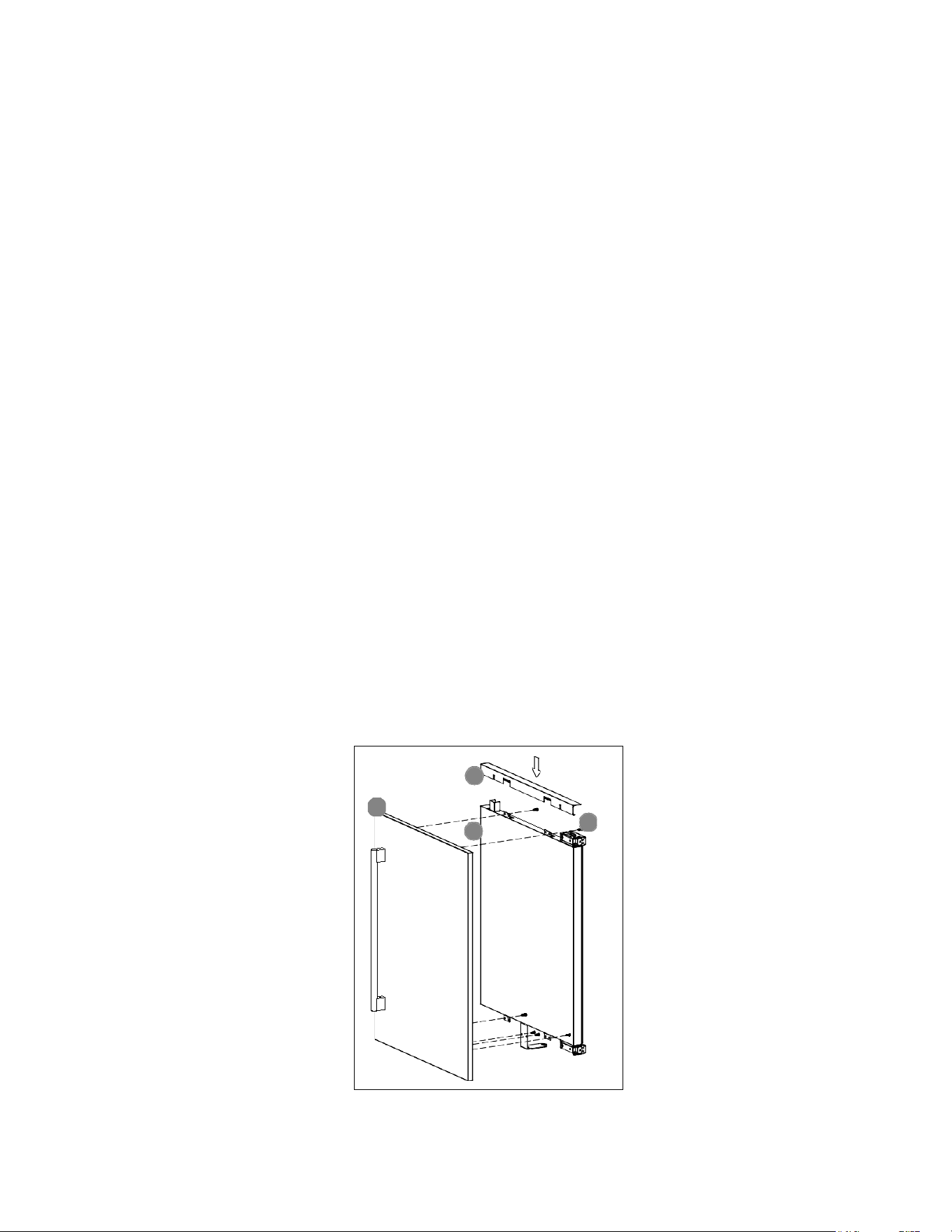

Open the door. Pull the top decoration cover (3) upward to remove it. (Figure 1)
2.
Remove the door panel by unscrewing the six screws (4). Hold the door panel firmly after removing the screws and
place it on a padded surface to avoid the risk of damage. (Figure 1)
3.
Pull to remove the silicone cushion (7). Unscrew and transfer the cushion base (5) to the opposite side of door. Then
re-install the silicone cushion (7). (Figure 1)
4.
Remove the hinge covers (9) and then remove the door by unscrewing the four screws (8). Hold the door firmly after
removing the screws and place it on a padded surface to avoid the risk of damage. Leave the hinges open. (Figure 2)
5.
Pop out the cover caps on the left side of the cabinet and use them to cover the screw holes on the right-hand side.
6.
Unscrew the four screws (11) to remove the top and bottom articulated hinges. (Figure 3)
7.
Unscrew the two screws (12) and transfer the retaining bracket (13) to the opposite side of the door. (Figure 4)
8.
Refit the articulated hinges to the opposite side of the door by using the four screws (11). (Repeat step 6 in reverse.)
9.
Relocate the door to the opposite side. Then screw and tighten it after the door is leveled. (Repeat step 4 in reverse.)
10.
Rotate the door panel 180° and fix the door panel to the designated position (Repeat step 2 in reverse.).
11.
Refit the alternative top decoration cover included in the fittings on the top of door.
12
Installing the Stainless Steel Handle
This appliance includes a stainless steel handle that
is not required to operate the unit. To install the
handle, follow the instructions below:
Place the handle (1) over the mounting stub (3) of the
door and using the supplied Allen key, tighten the
securing grub screws (2) to affix the handle.

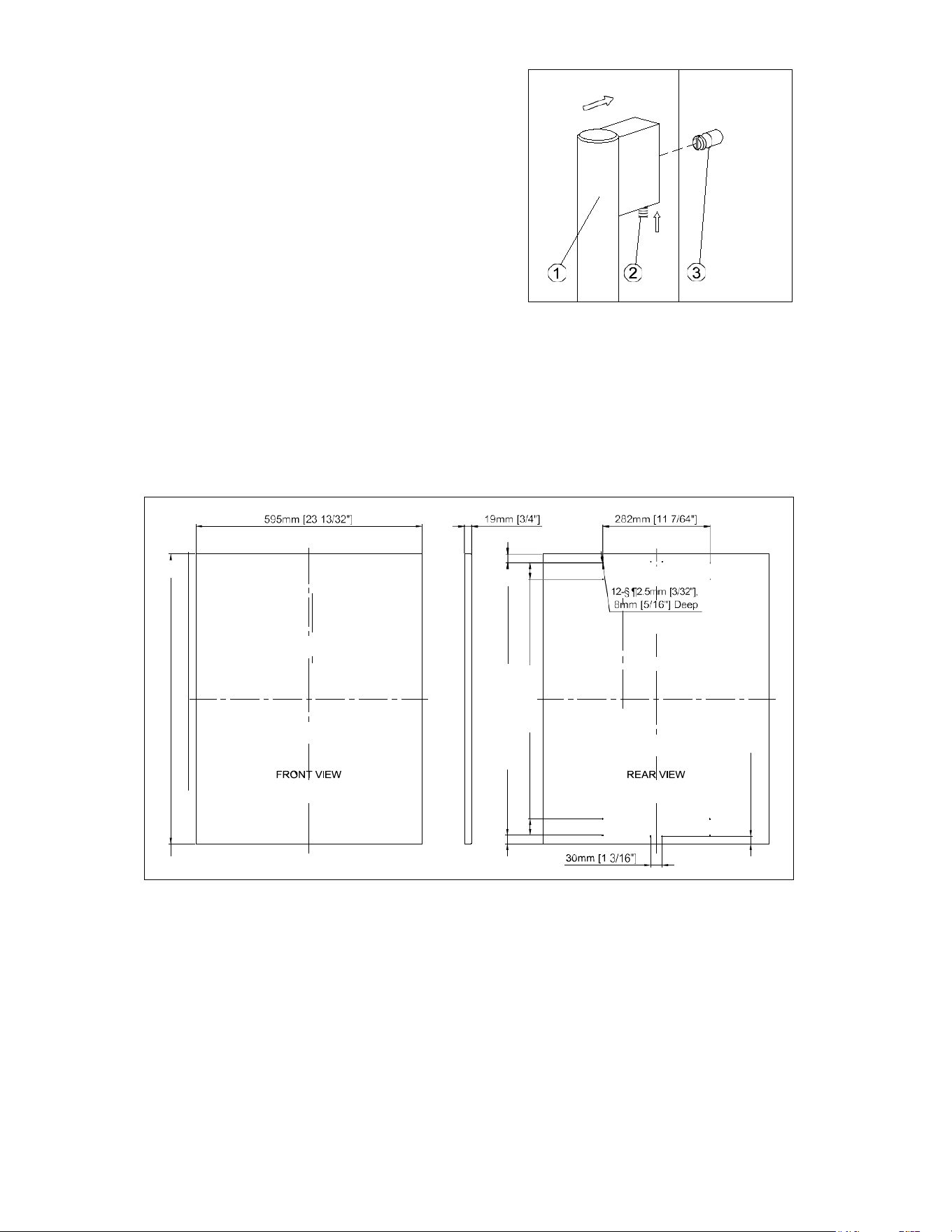

Full Overlay Panel Installation Instructions
An overlay panel covers the door to give an integrated appearance. The overlay panel and
appropriate hardware are not included with the unit and the end user needs to provide it. Please
follow the instructions below for installation:
Door Panel Preparation
Prepare the overlay panel to the dimensions as per the descriptions given below. Then attach the
handle to the overlay panel by using the flat head screws and drive the screws flush with the panel.
NOTE:
1.
The weight of the overlay panel should not exceed 15 lbs (7 kgs).
2.
It is important to ensure that all drilled holes are drilled to the correct depth to avoid splits in the
wood when the hardware is installed.
3.
Drill the handle installation holes in the overlay panel to match the handle you plan to use. If reusing
the original handles supplied with the unit, drill two holes in the overlay panel, spaced 19 ¼” (490
mm) apart, each with a diameter of 3/16” (5 mm).
762mm [30"]
H
23mm [29/32"]
23mm [29/32"]
43mm [1 11/16"]
43mm [1 11/16"]
14.5mm [37/64"]
20mm [25/32"]
13
3
1
2
4
Door Panel Installation
Installing the Handle on the Overlay Panel
If reusing the handle that came with the unit:
1.
Unscrew the studs located on the front face of the door and set them aside for later use.
2.
Remove the screws from the door and proceed to mark their positions on the overlay
panel by using the handle as a guide.
3.
Use a 3/16” (5mm) drill bit to the make the holes on the overlay panel for the screws.
4.
Insert the screws, ensure the head of the screw is flush with the surface of the
panel (use a countersink screws if necessary).
5.
Take the studs you saved in Step 1 and screw them back. They are now projecting from
the face of the panel.
6.
Place the handle over the mounting studs and, using the supplied Allen key, tighten the
securing grub screws to fix the handle. Refer to “Installing a Stainless Steel Handle”.
If using a customer supplied handle(s):
1.
Attach the handle to the overlay panel by using flat head or countersunk screws.
2.
Unscrew the studs located on the front face of the door and save them for later possible use.
Installing the Overlay Panel
1.
Open the door and pull the top decoration cover upward to remove it.
2.
Remove the original stainless steel door panel by unscrewing the six screws (4). Hold the door
panel firmly after removing the screws and store it for potential future use. Refer to “Reversing
the Door Swing of Your Appliance”.
3.
Fix the overlay panel to the designated position by the six screws (Repeat step 2 in reverse.).
4.
Refit the top decoration cover.
14
OPERATING YOUR APPLIANCE
It is recommended you install the appliance in a place where the ambient temperature is between 44ºF and
90ºF (7ºC and 32ºC). If the ambient temperature is above or below the recommended temperatures, the
performance of the unit may be affected. For example, placing your unit in extremely cold or hot conditions
may cause interior temperatures to fluctuate. The optimal temperature range may not be reached.

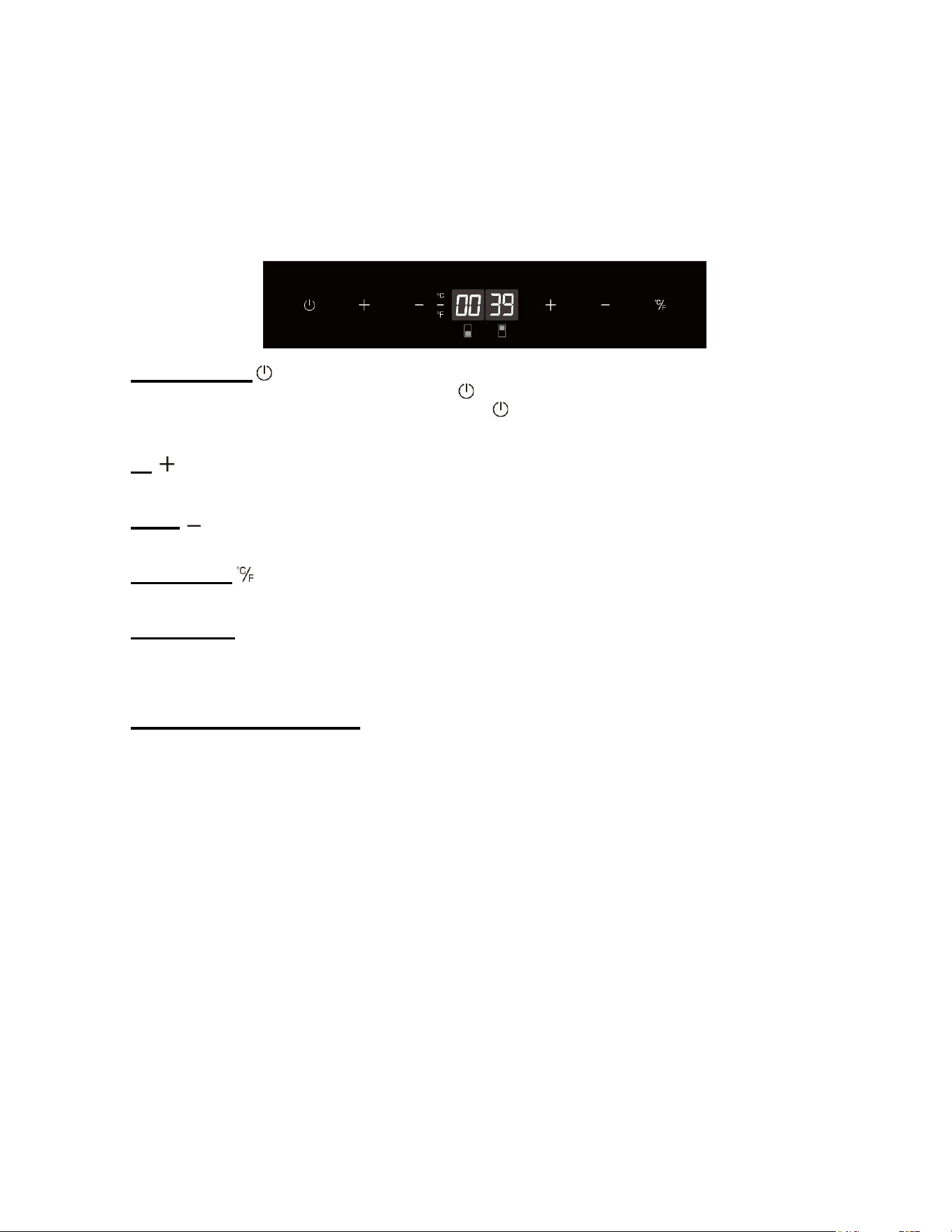

Control Panel
ON/OFF POWER
To power on the appliance: Press and hold the key for 1 second until temperature display lights up.
To power off the appliance: Press and hold the key key for 5 seconds until the temperature display
goes out.
UP
To increase (warm) the set temperature by 1°C or 1ºF.
DOWN
To decrease (cool) the set temperature by 1°C or 1ºF.
ºF/ºC Selector
Set the temperature to be displayed in degree Fahrenheit or degree Celsius.
Indicator Light
The indicator light is the dot located at the bottom right corner of the display. The indicator light will be
on when a multi-key function is selected. To perform a multi-key function, press and hold the first key,
then touch the second key for at least 5 seconds and then release both keys.
Setting the Temperature Control
•
The unit has two separate temperature compartments. You can set the temperature for the top and
bottom compartments.
Bottom Compartment (freezer):
-
The temperature is preset to 0°F (-18°C)
-
Press the UP and DOWN keys on the left side.
-
The temperature range is from -11°F to 11°F (-24°C to -12°C)
Top Compartment (refrigerator):
-
The temperature is preset to 38°F (3°C)
-
Press the UP and DOWN keys on the right side.
-
The temperature range is from 36°F – 43°F (2°C - 6°C)
•
When you press the UP and DOWN keys for the first time, the LED readout will show the previously set
temperature.
•
To view the set temperature at any time, touch the UP or DOWN symbol. The set temperature will
temporarily flash in the display window for 5 seconds. Then the display shows the current inner
temperature again.
15
Interior Light
The unit is equipped with interior LED lights which will turn ON when a door is opened. LED- type lights are designed
for extremely long life. They are not user serviceable. To change them, contact the service department.
NOTE: Use the original LED light fittings provided by the manufacturer.
Sabbath Mode
Sabbath mode is available for the observance of certain religious holidays. This mode turns off the
displays, interior light, and audible alarms and prevents them from turning on again. Normal cooling
operations will still take place.
To initiate Sabbath mode, press the POWER and ºC/F keys at the same time for at least 5 seconds.
The temperature display will go out to confirm that the Sabbath mode is ON.
Sabbath mode can be canceled by repeating the above process. The Sabbath Mode will automatically
turn off after 96 hours.
CAUTION: For models with ice maker, switch the ice maker off when initiating the
Sabbath mode.
Temperature Memory Function
In the event of a power interruption (power surge, breaker switch, etc.), the unit can remember the
previous temperature settings, and when the power is recovered, the cabinet temperature will return
to the same setting temperature as before the power went off.
Defrosting
•
The unit defrosts automatically in normal operating conditions.
•
The evaporator behind the rear wall of the unit defrosts automatically. The condensate collects in
the drainage channel behind the rear wall of the unit and flows through the drainage hole into the
drip tray by the compressor where it evaporates.
•
However, frost may accumulate on the evaporator if the unit is repeatedly opened in a high heat or
high humidity location. If this frost pattern does not clear within 24 hours, your unit will require
manual defrosting.
NOTES:
•
If the unit is unplugged or power is lost or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the unit will not start.
•
When you use the unit for the first time or restart the unit after it has been shut off for a long time,
there could be a few degrees variance between the temperature you select, and the one indicated on
the LED readout. This is normal and is due to the length of the activation time. There should not be
a problem once the unit has been running for a few hours.
16
Using the Freezer
•
The freezer is designed for the long-term storage of frozen food. Storage time is up to three
months.
•
The storage life of frozen foods varies, and the recommended storage time should not be
exceeded.
•
Pre-packaged commercially frozen food should be stored in accordance with the frozen foods
manufacturer’s instructions for a three-star frozen food storage compartment or home freezer.
•
Place frozen food into the freezer as quickly as possible after purchase. If there are instructions
on the packet, carefully follow these instructions regarding storage times.
Ice Maker (if available)
Ensure the water supply is ON and lower the metal arm on the ice maker to its ON position. As
soon as the inner mechanism reaches the proper temperature, the ice maker will fill the mold with
water. The first cubes may be small because of air in the water line. Later cubes will be of standard
crescent moon type size.
For first time use:
•
Let the ice maker make ice for 1-2 days.
•
Discard the first 2-3 batches of ice to remove the impurities in the water supply system.
When the ice bucket is full, the ice making mechanism will automatically shut off.
Ice delivery may be interrupted by raising the metal arm to the OFF position.
If the ice maker is not used regularly, it is recommended that the ice bucket be emptied periodically
to ensure fresh ice.
Temperature Alarm / Door Alarm
•
An audible alarm sounds if the storage temperature is not cold enough. The temperature display
flashes at the same time.
•
The cause of the temperature being too high may be:
–
Warm fresh food was placed inside
–
Too much warm ambient air flowed in when rearranging and removing food
–
Power failure for some time
–
The appliance is faulty
•
The audible alarm is automatically silenced, and the temperature display stops flashing when the
temperature is sufficiently cold again.
•
If the door has been left open for more than 60 seconds, the alarm will sound. Pressing the
POWER key once can switch off the audible alarm.
Door Lock
Your unit is provided with a lock and key combination.
The keys are located inside the plastic bag that contains the Instruction Manual. Insert the key into
the lock and turn it counterclockwise to unlock the door. To lock the door, do the reverse operation,
making sure the metal pin is engaged completely. Remove the key and put it in a secure place for
safekeeping.
17
Cantilevered Shelves
Any of the shelves can be removed to store larger items.
•
When removing the shelf, make sure to have the door
all the way open and remove all items first. Hold the
front of the shelf, and then gently lift up and move out
toward you.
•
In order to replace the shelf, hold the shelf at an angle
so the front is higher than the back, and then insert the
top hook into the notch of clip-in strip. Then, lower the
shelf and insert the bottom shelf hook into the notch of
clip-in strip.
CAUTION: When removing or replacing the shelf, use
caution not to scratch the sides of the unit.
Door Rack
To remove, lift it up and then pull out straight.
18
CARE AND MAINTENANCE
Cleaning your Appliance
•
Turn off the power, unplug the appliance, and remove all items, including shelves.
•
Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of
baking soda to a quart of water).
•
Wash the shelves with a mild detergent solution.
•
Wring excess water out of the sponge or cloth when cleaning the area where the controls are
located, or any electrical parts.
•
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean, soft cloth.
•
Use an approved stainless steel cleaner to clean the doors and handles. Do not use steel wool or a
steel brush on the stainless steel.
CAUTION: Failure to unplug the appliance during cleaning could result in electrical shock or other
personal injuries.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the doors are opened. If the power is going to be off for a
longer period of time, you need to take the proper steps to protect the contents.
Vacations
•
Short vacations: Leave the appliance operating during vacations of less than three weeks.
•
Long vacations: If the appliance is not used for several months, remove all items and turn off the
appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the doors
open slightly, blocking them open if necessary.
Moving your Appliance
1.
Remove all the items.
2.
Securely tape down all loose items (shelves) inside the appliance.
3.
Turn the adjustable legs up to the base to avoid damage.
4.
Tape the doors shut.
5.
Be sure the appliance stays secure in the upright position during transportation. Also, protect the
outside of the appliance with a blanket or similar item.
Energy-Saving Tips
•
The appliance should be located in the coolest area of the room or outdoor location, away from heat-
producing appliances and out of direct sunlight.
•
Ensure that the unit is adequately ventilated. Never cover air vents.
•
Do not keep the doors open any longer than necessary.
•
Let hot foods cool to room temperature before placing in the unit. Overloading the unit forces the
compressor to run longer.
•
Be sure to wrap foods properly, and wipe containers dry before placing them in the unit. This cuts
down on frost build-up inside the unit.
•
Unit shelves and storage bins should not be lined with aluminum foil, wax paper, or paper
toweling. Liners interfere with cold air circulation, making the unit less efficient.
•
Organize and label food to reduce door openings and extended searches. Remove as many items as
needed at one time and close the door as soon as possible.
19
TROUBLESHOOTING
You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions
below to see if you can solve the problem before calling the servicer.
PROBLEM
POSSIBLE CAUSE
REMEDY
Appliance
does not
operate.
Appliance is not connected to a power
supply.
The appliance is turned off.
Tripped circuit breaker or blown fuse
Connect the appliance.
Switch on the appliance.
Switch on circuit breaker or replace fuse.
Appliance is
not cold
enough.
The temperature is not set correctly.
The ambient temperature could require a
lower temperature setting.
Drawers were opened too often.
A drawer was not closed completely.
Drawer is not hermetically sealed.
The condenser is too dirty.
The ventilation opening is blocked or too
dusty.
Check the set temperature. Set a
lower temperature.
Do not open drawers more often than
necessary.
Close drawer properly.
Check the seal and clean or replace. Clean
the condenser when necessary.
Clear the obstructions and clean off the dust.
Appliance
turns itself on
and off
frequently.
The room temperature is higher than
average.
A large amount of food has been added to
the unit.
Drawers are opened too often.
A drawer is not closed completely.
A drawer gasket does not seal properly.
Put the appliance in a cooler place.
Leave the appliance to work for a while until
the set temperature has been reached.
Do not open the drawers more often than
necessary.
Close drawer properly.
Check the drawer seal and clean or replace it.
The light does
not work.
Appliance is not connected to a power
supply.
Tripped circuit breaker or a blown fuse.
The light was switched off on the control
panel.
Connect the appliance.
Switch on circuit breaker or replace fuse.
Switch on the light.
Vibrations
The appliance is not properly leveled.
Level the appliance with the adjustable feet.
The appliance
seems to
make too
much noise.
The rattling noise may come from the flow of the refrigerant, which is normal. As each cycle
ends, you may hear gurgling sounds caused by the flow of refrigerant in your appliance.
If temperature fluctuations occur, the contraction and expansion of the inner walls may
cause popping and crackling noises.
The appliance is not properly leveled.
Level the appliance with the adjustable feet.
One or more of the following sounds is
heard:
-
Buzzing
-
Trickling water
-
Thud (clatter of ice)
The water valve is operating.
Water is entering the icemaker to fill cup.
Ice is being dumped into the ice bin.
Drawers
will not close
properly.
The appliance is not properly leveled.
The gaskets are dirty.
The racks or bins are out of position.
Level the appliance with the adjustable feet.
Clean the drawer gaskets.
Check the racks and bins and refit correctly.
20
Display “E0”,
“E1”. “E2”,
“E3”, “E4”,
“E5” or “E7”.
“E0” indicates a communication error for 3
zone models.
“E1” or “E2” indicates that the air
temperature sensor has failed.
“E3” or “E4” indicates that the defrost
sensor in the evaporator has failed.
“E5” indicates defrost heater failure.
“E7” indicates door switch failure.
Call for service.
The alarm
sounds and
the
temperature
display
flashes.
Has a drawer been open for longer than
60 seconds? If not, then the temperature
has risen higher or fallen lower than the
temperature that has been set. This
could be due to:
The appliance drawers being opened too
often.
The ventilation opening being covered or
too dusty.
A lengthy interruption in the power supply.
A large amount of food has been added to
the unit.
If yes, close the drawer.
Do not open drawers more often than
necessary.
Clear the obstructions and clean off the
dust.
Leave the appliance to work for a while
until the set temperature has been
reached.
The icon “--” is
lit and flashing
in the
temperature
display.
The display temperature is out of range.
Only temperatures within the range
16~99°F/-9~37°C for refrigerators and
the range -99~99°F/-73~37°C
for freezers can be displayed. If the
temperature is not within this range,
the icon “--” will be displayed instead.
This is normal.
Ice tastes
stale.
The ice is old.
Make a new batch.
Water in
icemaker
overflows
Refrigerator or icemaker is not level.
If the icemaker still overflows after
leveling.
Level the appliance with the adjustable
feet. Water pressure must be 20-80 psi.
Turn off the icemaker’s water supply at
the shut-off valve and raise the
icemaker’s bail arm to the “off” position
(see previous page); then contact your
local service center.
Not enough
ice.
It will take 48 hours to fill the ice bucket.
The icemaker will make ice every 2 to 3
hours.
For more ice, adjust the freezer control
to a colder setting.
Ice making
has stopped.
Be sure that the bail arm is lowered to its
ON position. Make sure that the water
shut-off valve is open. The water shut-off
valve or the water valve screen is clogged.
Contact your local service center.
If you have checked the information above and you still need help with your appliance, call our Customer Service facility
at 800-932-4267 (Ext. 513) between 9:00 AM and 5:00 PM ET or visit our website summitappliance.com/support at
any time. We will do our best to answer your questions.
To order replacement parts, visit our website: summitapplianceparts.com
21
CALIFORNIA CARB/SNAP DISCLOSURE
This product uses eco-friendly hydrocarbon refrigerant and fully complies with California CARB
regulations.
However, we are required by California Law to provide the following disclosure statement in every product
sold in California.
"This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited Substances'
for that specific end-use, in accordance with California Code of Regulations, title 17, section 95374. This
disclosure statement has been reviewed and approved by Felix Storch, Inc. and Felix Storch, Inc. attests,
under penalty of perjury, that these statements are true and accurate."
This product does not use any refrigerants on the 'List of Prohibited Substances'"
NOTES
22
WARNING: This product can expose you to chemicals including Nickel
(Metallic) which is known to the State of California to cause cancer.
For more information go to www.P65Warnings.ca.gov
Note: Nickel is a component in all stainless steel and some other metallic compositions.
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Warranty coverage is available within the 48 contiguous United States, along with select areas of Alaska, Hawaii, and Canada.
For locations not covered, consumers can either contact a local provider or coordinate with Felix Storch, Inc. to find nearby
service options, which may qualify for partial reimbursement.
The warranty for this appliance is valid for one year from the date of purchase, provided the appliance is operated and
maintained according to the instructions included with the product. The warrantor will cover the cost of factory-specified
parts and repair labor needed to correct defects in materials or workmanship. Service must be performed by a designated
service company.
All parts, except the compressor, are warranted for one year against manufacturing defects. Plastic parts, shelves, and
cabinets are produced to commercially acceptable standards but are not covered for damages incurred during handling or
for breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or
repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are
excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the 48 contiguous United States, along with
select areas of Alaska, Hawaii, and Canada.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in
accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED
HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE
EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.summitappliance.com
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
Revised 2025-08-11
Printed in China
