PIPE WRENCHES
Feb. 2021
54-49-3155
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
DATE
STRAIGHT PIPE WRENCHES (Steel and Aluminum)
CATALOG NO. 48-22-7106 6" Wrench Page 1
48-22-7108 8" Wrench Page 1
48-22-7110, 48-22-7210, 48-22-7213 10" Wrenches Page 2
48-22-7112, 48-22-7212 12" Wrenches Page 2
48-22-7114, 48-22-7214 14" Wrenches Page 2
48-22-7118, 48-22-7218 18" Wrenches Page 2
48-22-7124, 48-22-7224 24" Wrenches Page 2
48-22-7136, 48-22-7236 36" Wrenches Page 3
48-22-7148, 48-22-7248 48" Wrenches Page 3
48-22-7160 60" Wrench Page 3
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. Lisbon Road, Brookeld, WI 53005
Drwg. 3
NOTE:
To install Heel Jaw Kit (8), the head of
the production rivet (7) must be care-
fully ground o. Use a thin tool like a
metal punch or nail to tap out the rivet.
Place the heel jaw (3) on the wrench
body (5), align the holes and tap roll
pin (7a) in place to secure.
OFFSET PIPE WRENCHES (Aluminum)
CATALOG NO. 48-22-7184 14" Wrench Page 4
48-22-7185 18" Wrench Page 4
48-22-7182 24" Wrench Page 4
OFFSET HEX PIPE WRENCH and SMOOTH JAW WRENCH
CATALOG NO. 48-22-7171 10" Oset Hex Page 5
48-22-7186 12" Smooth Jaw Page 5
1
2
10
4
6
9
3 7
7a
8
1
4
6(2x)
5
2
7
7a
3

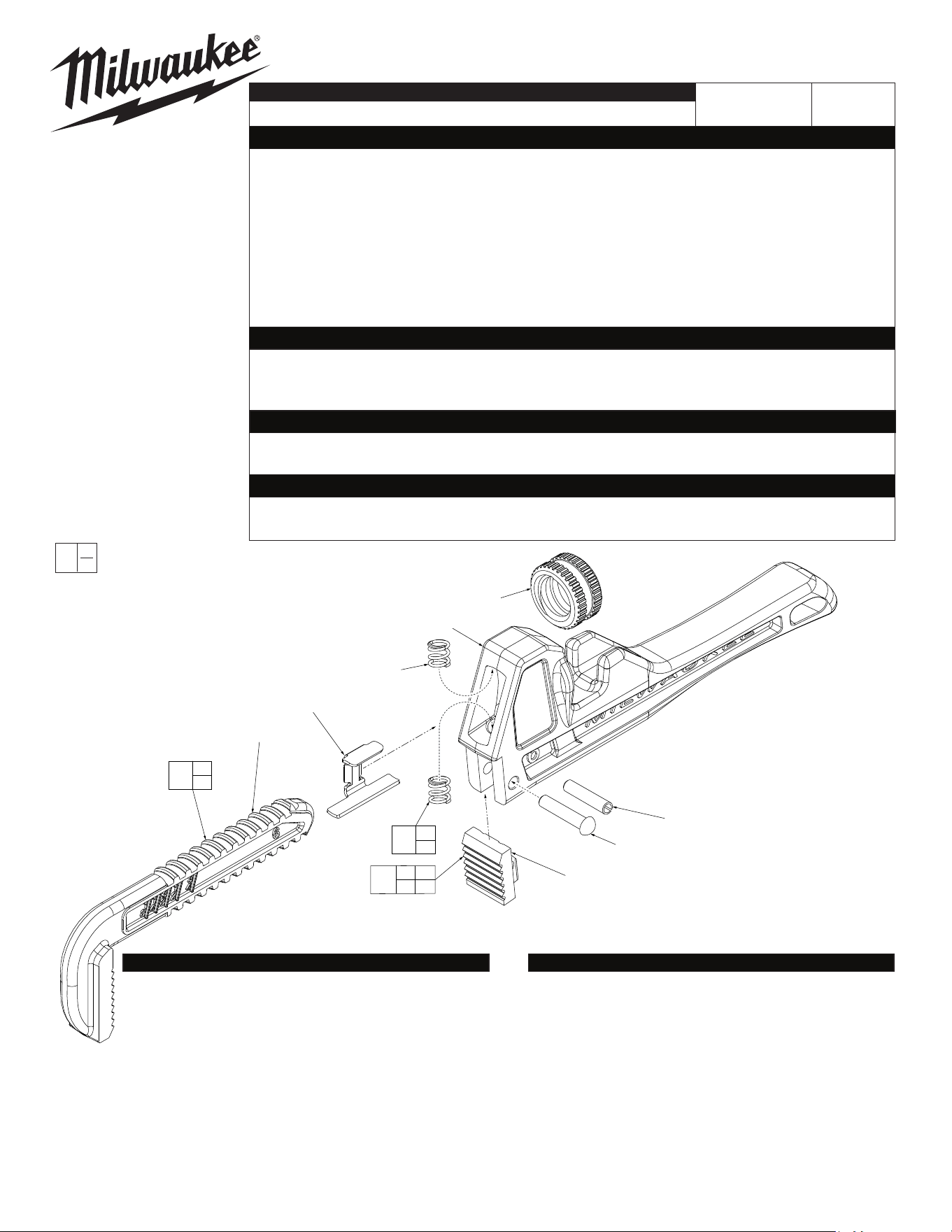

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 6" Hook Jaw (1)
2 --------------- 6" Adjustment Nut (1)
3 --------------- 6" Heel Jaw (1)
4 --------------- Spring Plate Bracket (1)
5 --------------- 6" Straight Wrench Body (1)
6 --------------- Coil Spring (2)
7 --------------- Rivet (1)
7a --------------- Roll Pin (1)
8 43-90-3002 6" Heel Jaw with Rivet & Roll Pin Kit (1)
9 40-50-0446 6" Spring and Bracket Kit (1)
10 43-90-3004 6" Hook Jaw with Adjustment Nut Kit (1)
48-22-7106 6" STEEL STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 8" Hook Jaw (1)
2 --------------- 8" Adjustment Nut (1)
3 --------------- 8" Heel Jaw (1)
4 --------------- Spring Plate Bracket (1)
5 --------------- 8" Straight Wrench Body (1)
6 --------------- Coil Spring (2)
7 --------------- Rivet (1)
7a --------------- Roll Pin (1)
8 43-90-3003 8" Heel Jaw with Rivet & Roll Pin Kit (1)
9 40-50-0447 8" Spring and Bracket Kit (1)
10 43-90-3005 8" Hook Jaw with Adjustment Nut Kit (1)
48-22-7108 8" STEEL STRAIGHT PIPE WRENCH

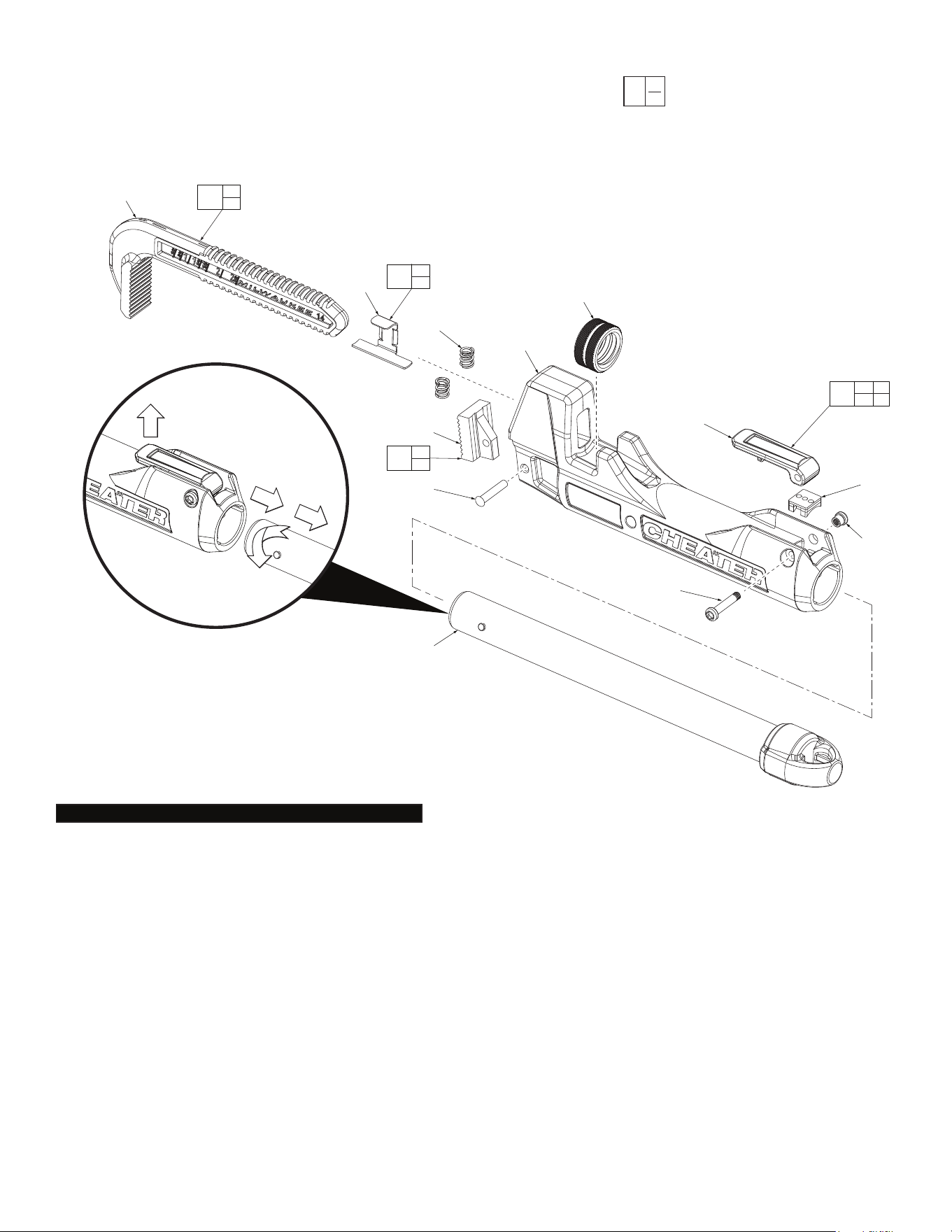

ADJUSTABLE CHEATER PIPE WRENCHES (Steel and Aluminum)
CATALOG NO. 48-22-7314 14" Cheater Page 6
48-22-7318
Aluminum Cheater
Page 7
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00

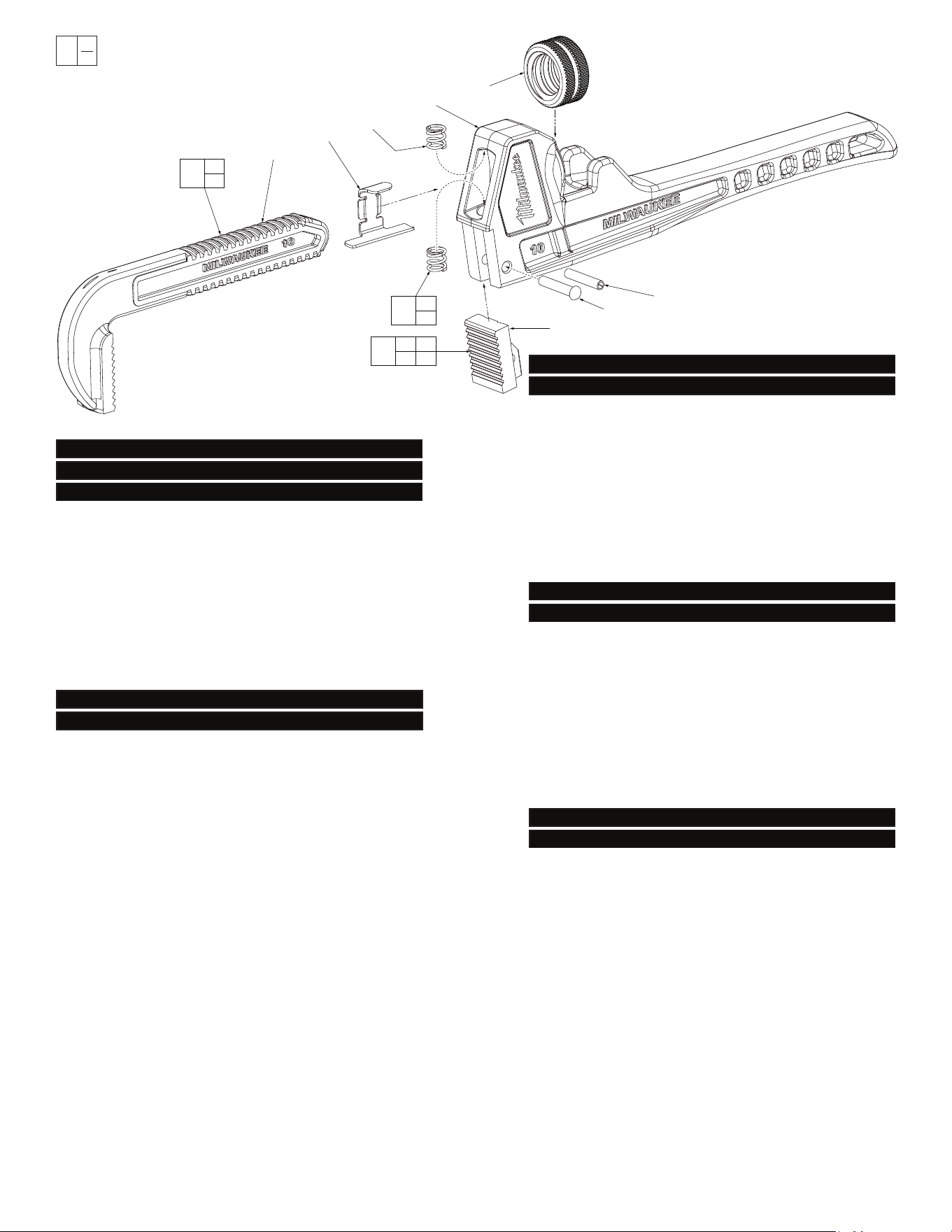

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 10" Hook Jaw (1)
2 --------------- 10" Adjustment Nut (1)
3 --------------- 10" Heel Jaw (1)
4 --------------- Spring Plate Bracket (1)
5 --------------- 10" Straight Wrench Body (1)
6 --------------- Coil Spring (2)
7 --------------- Rivet (1)
7a --------------- Roll Pin (1)
8 43-90-2000 10" Heel Jaw with Rivet & Roll Pin Kit (1)
9 40-50-3230 10" Spring and Bracket Kit (1)
10 43-90-0191 10" Hook Jaw with Adjustment Nut Kit (1)
1
4
6(2x)
5
2
3
7
7a
1
2
10
4
6
9
3 7
7a
8
NOTE:
To install Heel Jaw Kit (8), the head of
the production rivet (7) must be care-
fully ground o. Use a thin tool like a
metal punch or nail to tap out the rivet.
Place the heel jaw (3) on the wrench
body (5), align the holes and tap roll
pin (7a) in place to secure.
48-22-7210 10" ALUMINUM STRAIGHT PIPE WRENCH
48-22-7110 10" STEEL STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 12" Hook Jaw (1)
2 --------------- 12" Adjustment Nut (1)
3 --------------- 12" Heel Jaw (1)
4 --------------- Spring Plate Bracket (1)
5 --------------- 12" Straight Wrench Body (1)
6 --------------- Coil Spring (2)
7 --------------- Rivet (1)
7a --------------- Roll Pin (1)
8 43-90-2001 12" Heel Jaw with Rivet & Roll Pin Kit (1)
9 40-50-3231 12" Spring and Bracket Kit (1)
10 43-90-0192 12" Hook Jaw with Adjustment Nut Kit (1)
48-22-7212 12" ALUMINUM STRAIGHT PIPE WRENCH
48-22-7112 12" STEEL STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 14" Hook Jaw (1)
2 --------------- 14" Adjustment Nut (1)
3 --------------- 14" Heel Jaw (1)
4 --------------- Spring Plate Bracket (1)
5 --------------- 14" Straight Wrench Body (1)
6 --------------- Coil Spring (2)
7 --------------- Rivet (1)
7a --------------- Roll Pin (1)
8 43-90-2001 14" Heel Jaw with Rivet & Roll Pin Kit (1)
9 40-50-3232 14" Spring and Bracket Kit (1)
10 43-90-0193 14" Hook Jaw with Adjustment Nut Kit (1)
48-22-7214 14" ALUMINUM STRAIGHT PIPE WRENCH
48-22-7114 14" STEEL STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 18" Hook Jaw (1)
2 --------------- 18" Adjustment Nut (1)
3 --------------- 18" Heel Jaw (1)
4 --------------- Spring Plate Bracket (1)
5 --------------- 18" Straight Wrench Body (1)
6 --------------- Coil Spring (2)
7 --------------- Rivet (1)
7a --------------- Roll Pin (1)
8 43-90-2002 18" Heel Jaw with Rivet & Roll Pin Kit (1)
9 40-50-3233 18" Spring and Bracket Kit (1)
10 43-90-0194 18" Hook Jaw with Adjustment Nut Kit (1)
48-22-7218 18" ALUMINUM STRAIGHT PIPE WRENCH
48-22-7118 18" STEEL STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 24" Hook Jaw (1)
2 --------------- 24" Adjustment Nut (1)
3 --------------- 24" Heel Jaw (1)
4 --------------- Spring Plate Bracket (1)
5 --------------- 24" Straight Wrench Body (1)
6 --------------- Coil Spring (2)
7 --------------- Rivet (1)
7a --------------- Roll Pin (1)
8 43-90-2003 24" Heel Jaw with Rivet & Roll Pin Kit (1)
9 40-50-3234 24" Spring and Bracket Kit (1)
10 43-90-0195 24" Hook Jaw with Adjustment Nut Kit (1)
48-22-7124 24" STEEL STRAIGHT PIPE WRENCH
48-22-7213 10" ALUMINUM STRAIGHT PIPE WRENCH
48-22-7224 24" ALUMINUM STRAIGHT PIPE WRENCH
1
2
10
4
6
9
3 7
7a
8
1
4
6(2x)
5
2
7
7a
3

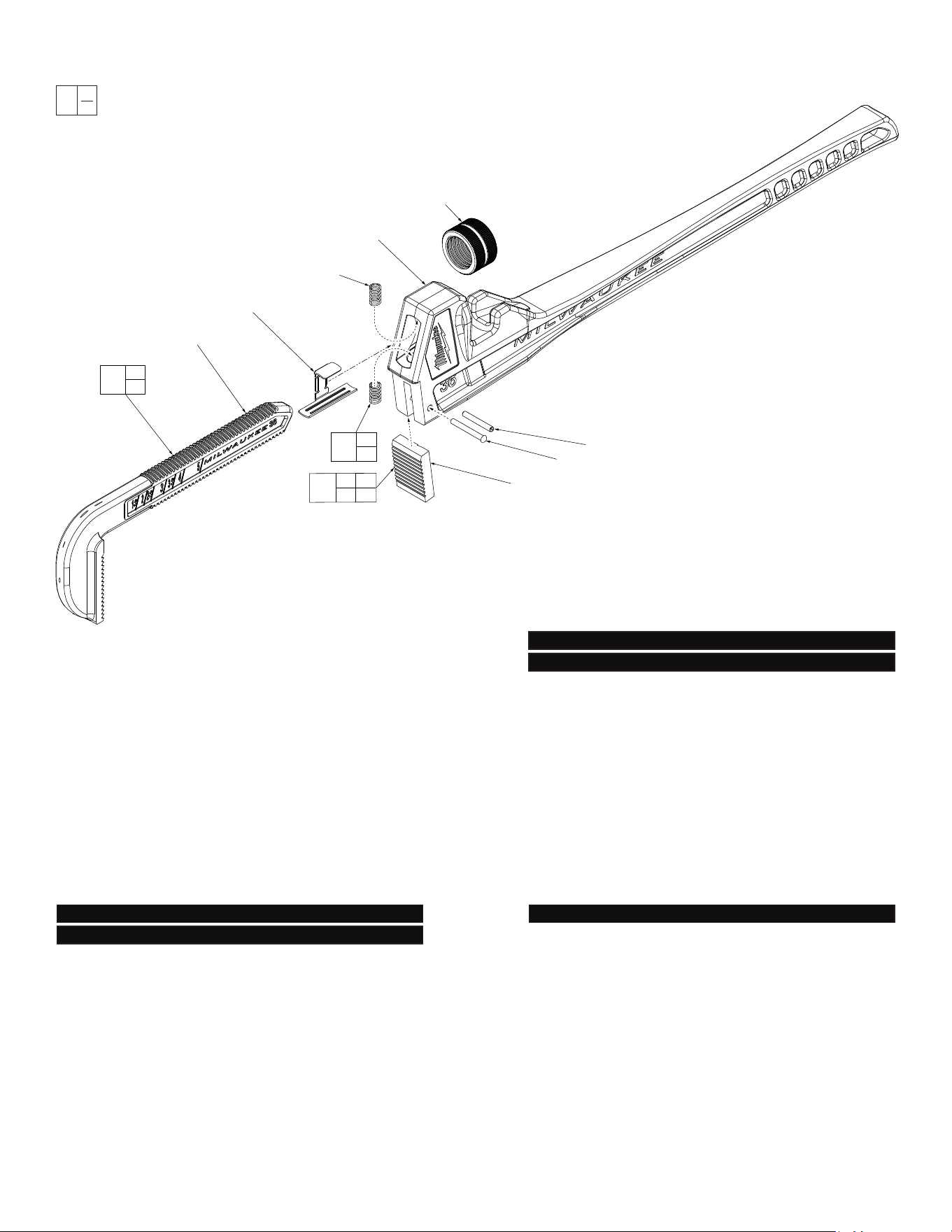

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 60" Hook Jaw (1)
2 --------------- 60" Adjustment Nut (1)
3 --------------- 60" Heel Jaw (1)
4 --------------- Spring Plate Bracket (1)
5 --------------- 60" Straight Wrench Body (1)
6 --------------- Coil Spring (2)
7 --------------- Rivet (1)
7a --------------- Roll Pin (1)
8 43-90-2006 60" Heel Jaw with Rivet & Roll Pin Kit (1)
9 40-50-3237 60" Spring and Bracket Kit (1)
10 43-90-0199 60" Hook Jaw with Adjustment Nut Kit (1)
48-22-7160 60" STEEL STRAIGHT PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 48" Hook Jaw (1)
2 --------------- 48" Adjustment Nut (1)
3 --------------- 48" Heel Jaw (1)
4 --------------- Spring Plate Bracket (1)
5 --------------- 48" Straight Wrench Body (1)
6 --------------- Coil Spring (2)
7 --------------- Rivet (1)
7a --------------- Roll Pin (1)
8 43-90-2005 48" Heel Jaw with Rivet & Roll Pin Kit (1)
9 40-50-3236 48" Spring and Bracket Kit (1)
10 43-90-0198 48" Hook Jaw with Adjustment Nut Kit (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 36" Hook Jaw (1)
2 --------------- 36" Adjustment Nut (1)
3 --------------- 36" Heel Jaw (1)
4 --------------- Spring Plate Bracket (1)
5 --------------- 36" Straight Wrench Body (1)
6 --------------- Coil Spring (2)
7 --------------- Rivet (1)
7a --------------- Roll Pin (1)
8 43-90-2004 36" Heel Jaw with Rivet & Roll Pin Kit (1)
9 40-50-3235 36" Spring and Bracket Kit (1)
10 43-90-0197 36" Hook Jaw with Adjustment Nut Kit (1)
48-22-7148 48" STEEL STRAIGHT PIPE WRENCH
48-22-7136 36" STEEL STRAIGHT PIPE WRENCH
48-22-7248 48" ALUMINUM STRAIGHT PIPE WRENCH
48-22-7236 36" ALUMINUM STRAIGHT PIPE WRENCH
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
1
2
8
3 6
6a
7
1
4
5
2
6
6a
3

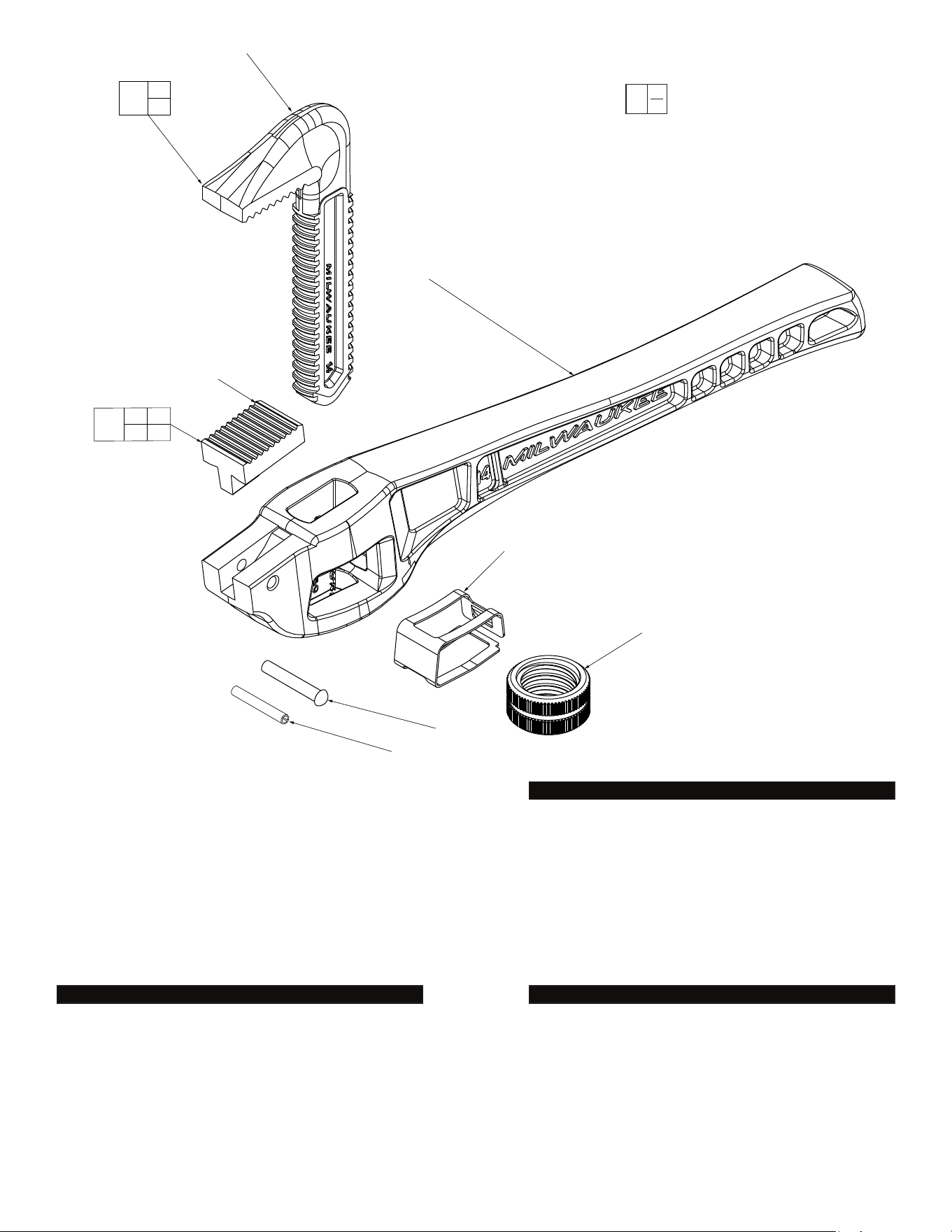

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 24" Oset Hook Jaw (1)
2 --------------- 24" Adjustment Nut (1)
3 --------------- 24" Heel Jaw (1)
4 44-66-0403 Spring Plate Bracket (1)
5 --------------- 24" Straight Wrench Body (1)
6 --------------- Rivet (1)
6a --------------- Roll Pin (1)
7 43-90-2003 24" Heel Jaw with Rivet & Roll Pin Kit (1)
8 43-90-0253 24" Oset Hook Jaw with
Adjustment Nut Kit (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 18" Oset Hook Jaw (1)
2 --------------- 18" Adjustment Nut (1)
3 --------------- 18" Heel Jaw (1)
4 44-66-0402 Spring Plate Bracket (1)
5 --------------- 18" Straight Wrench Body (1)
6 --------------- Rivet (1)
6a --------------- Roll Pin (1)
7 43-90-2002 18" Heel Jaw with Rivet & Roll Pin Kit (1)
8 43-90-0252 18" Oset Hook Jaw with
Adjustment Nut Kit (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 14" Oset Hook Jaw (1)
2 --------------- 14" Adjustment Nut (1)
3 --------------- 14" Heel Jaw (1)
4 44-66-0401 Spring Plate Bracket (1)
5 --------------- 14" Straight Wrench Body (1)
6 --------------- Rivet (1)
6a --------------- Roll Pin (1)
7 43-90-2001 14" Heel Jaw with Rivet & Roll Pin Kit (1)
8 43-90-0251 14" Oset Hook Jaw with
Adjustment Nut Kit (1)
48-22-7182 24" ALUMINUM OFFSET PIPE WRENCH
48-22-7185 18" ALUMINUM OFFSET PIPE WRENCH
48-22-7184 14" ALUMINUM OFFSET PIPE WRENCH
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
NOTE:
To install Heel Jaw Kit (7), the head of
the production rivet (6) must be care-
fully ground o. Use a thin tool like a
metal punch or nail to tap out the rivet.
Place the heel jaw (3) on the wrench
body (5), align the holes and tap roll
pin (6a) in place to secure.
1
2
4
1
3
2
1
2
4
1
3
2

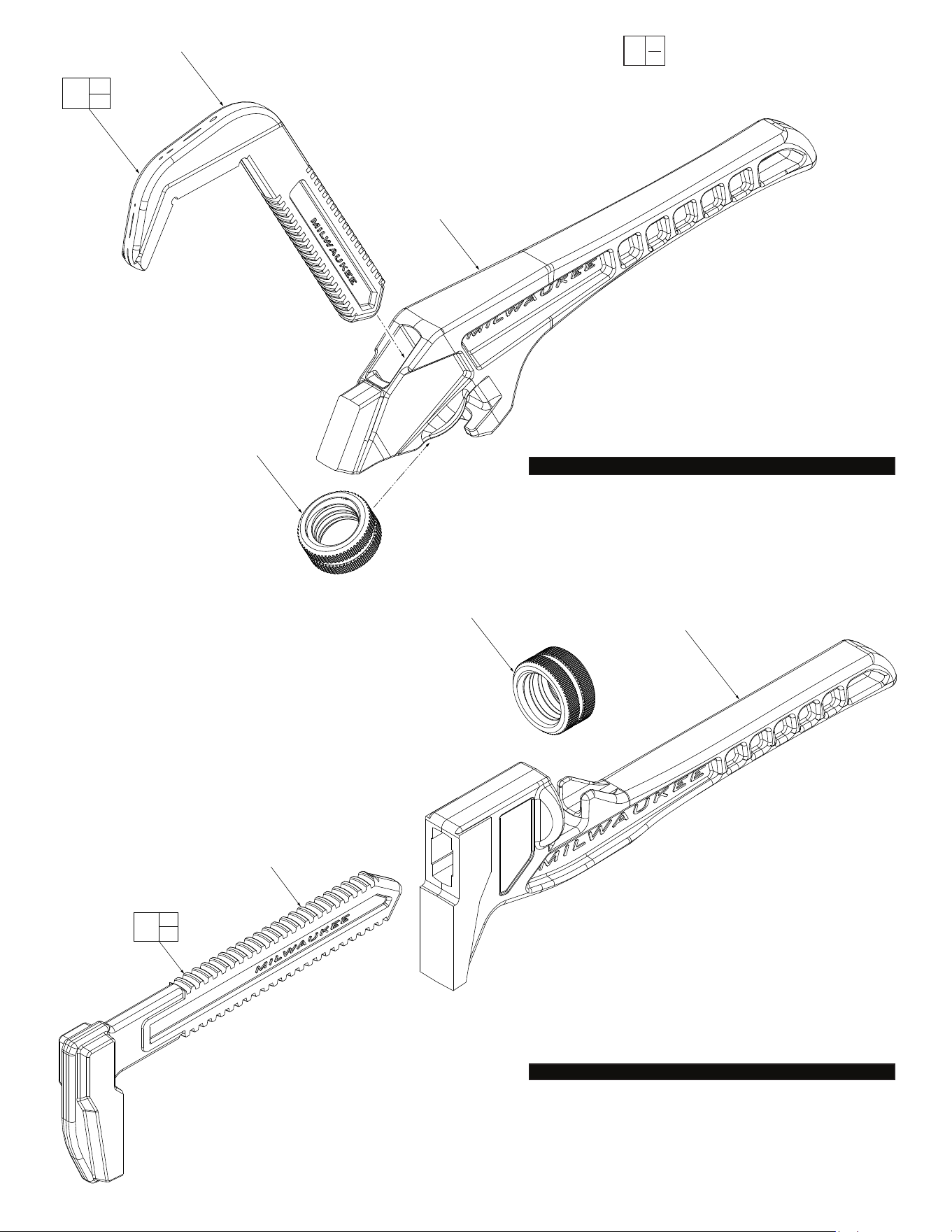

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 12" Smooth Hook Jaw (1)
2 --------------- 14" Adjustment Nut (1)
3 --------------- 12" Smooth Jaw Pipe Wrench Body (1)
4 43-90-3001 12" Smooth Hook Jaw with
Adjustment Nut Kit (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 10" Oset Hex Smooth Hook Jaw (1)
2 --------------- 10" Adjustment Nut (1)
3 --------------- 10" Oset Hex Smooth
Pipe Wrench Body (1)
4 43-90-3000 10" Oset Hex Smooth
Hook Jaw with Adjustment Nut Kit (1)
48-22-7186 12" STEEL SMOOTH JAW WRENCH
48-22-7171 10" STEEL OFFSET HEX PIPE WRENCH
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00

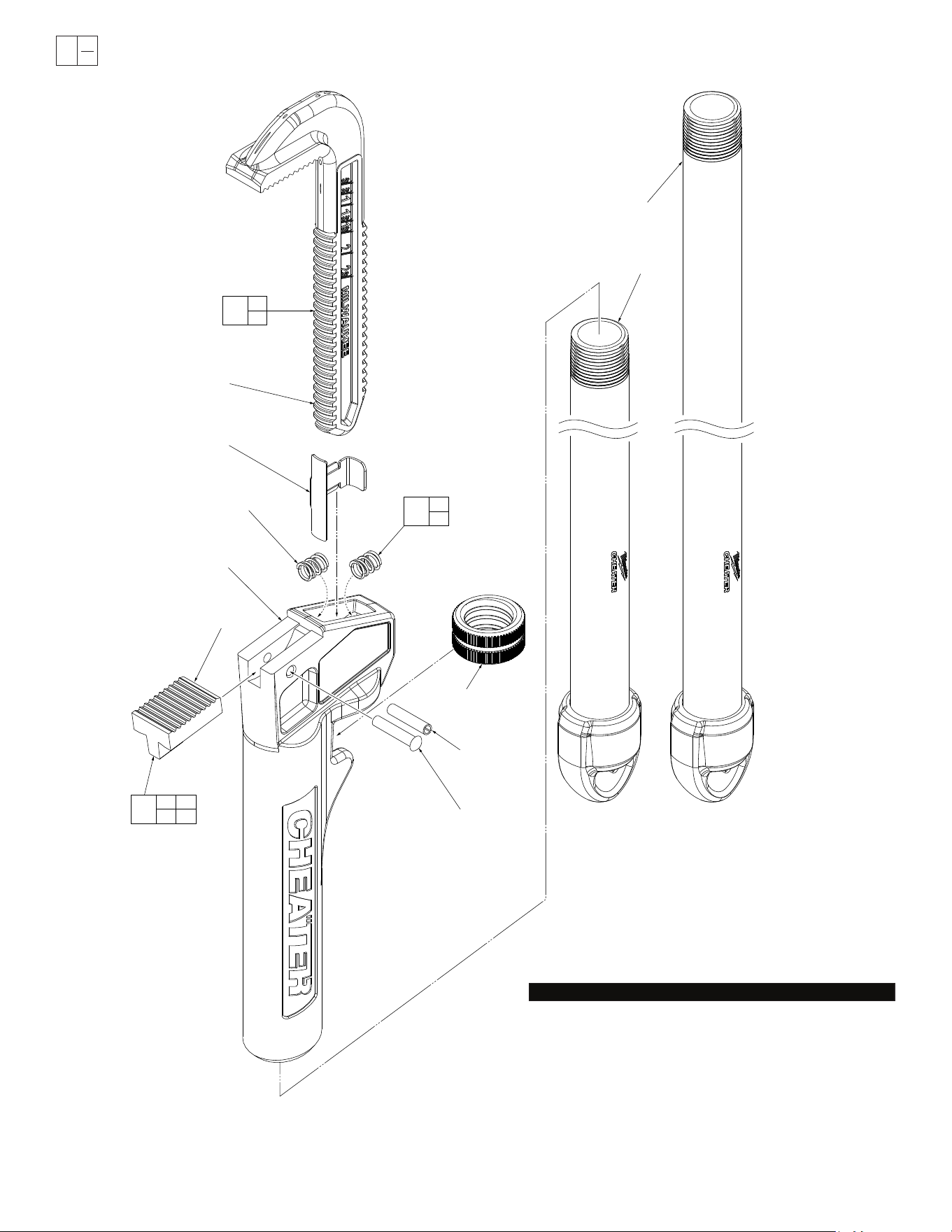

SEE PAGE TWO FOR CAT. NO. 48-22-7314
14" STEEL CHEATER PIPE WRENCH
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Cheater Hook Jaw (1)
2 --------------- Cheater Adjustment Nut (1)
3 --------------- Cheater Heel Jaw (1)
4 --------------- Spring Plate Bracket (1)
5 --------------- Cheater Wrench Body (1)
6 --------------- Coil Spring (2)
7 --------------- Rivet (1)
7a --------------- Roll Pin (1)
8 43-90-2001
Cheater Heel Jaw with Rivet & Roll Pin Kit
(1)
9 40-50-3232 Cheater Spring and Bracket Kit (1)
10 43-90-0196
Cheater Hook Jaw with Adjustment Nut Kit
(1)
11 43-62-0641 Short Handle Assembly (1)
12 43-62-0643 Long Handle Assembly (1)
48-22-7314 14" CHEATER ADJUSTABLE PIPE WRENCH
2
7a
7
1
4
6(2x)
5
3
12
11
1
2
10
4
6
9
3 7
7a
8
NOTE:
To install Heel Jaw Kit (8), the head
of the production rivet (7) must be
carefully ground o. Use a thin tool
like a metal punch or nail to tap out
the rivet.
Place the heel jaw (3) on the
wrench body (5), align the
holes and tap roll pin (7a)
in place to secure.
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Cheater Hook Jaw (1)
2 --------------- Cheater Adjustment Nut (1)
3 --------------- Cheater Heel Jaw (1)
4 --------------- Spring Plate Bracket (1)
5 --------------- Cheater Wrench Body (1)
6 --------------- Coil Spring (2)
7 --------------- Rivet (1)
8 --------------- Locking Lever (1)
9 --------------- Friction Block (1)
10 --------------- Screw (1)
11 --------------- Binding Post (1)
12 43-62-0652 Cheater Handle Assembly (1)
13 43-90-2001
Cheater Heel Jaw with Rivet & Roll Pin Kit
(1)
14 40-50-3232 Cheater Spring and Bracket Kit (1)
15 43-90-0196
Cheater Hook Jaw with Adjustment Nut Kit
(1)
16 14-46-6325 Friction Block and Lever Kit (1)
48-22-7318
ALUMINUM CHEATER ADJUSTABLE PIPE WRENCH
1
4
5
8
9
10
6
x2
2
3
7
12
11
13
3
7
14
4
6
16
15
1
2
8 9
10 11
CHEATER BAR ASSEMBLY REMOVAL:
1. Lift lever (8)
2. Pull Cheater Bar Assembly (12) until the line is shown on the bar.
3. Rotate Cheater Bar Assembly (12) counter-clockwise to the unlock
position.
4. Pull Cheater Bar Assembly away from the Cheater Wrench Body (5).
1
2
4
3
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
