FREESTANDING FRENCH DOOR
GAS RANGE
INSTALLATION GUIDE
SPECIFICATIONS, INSTALLATION, AND MORE
MODEL NUMBERS:
FFSGS6444-30 FFSGS6444-36 FFSGS6444-48
Conforms to CSA / ANSI STD Z21.1
Certified to CSA STD 1.1
Door Handle Installations
Cooktop Burner Grills Installation
3
6
7
11
Electrical 14
Gas Supply 15
Pressure Regulator 16
Gas Shut-off Valve 16
Product Dimensions and Cabinets 17
Exhaust Hood Installation 21
Gas Conversion Operation 21
Gas Supply Connection 27
Ignition 27
Simmer and Boil 28
Burner Grates 28
Griddle Operation
Cooktop Cleaning Tips
Preheating
Convection Bake
Convecti
on Roast
Setting Broil
Oven Cleaning Tips
29
29
29
30
30
30
31
31
32
32
33
13
14
35
Please Read Before Using Your Oven
Oven Racks Installation 14
2
12
27
Important Safety Information
Oven Operation
Broiler Operation
s
36
Wire Diagram
Warranty
4
3
Thank you for purchasing a FORNO product. Please read the entire instruction manual before operating
your new appliance for the first time. Whether you are an occasional user or an expert , it will be beneficial
to familiarize yourself with the safety practices, features, operation and care recommendations of your
appliance.
Both the model and serial number are listed inside the product. For warranty purposes, you will also need
the serial number, the date of purchase & a copy of your proof of purchase.
Record this information below for future reference.
Use these number in any correspondance or
service calls concerning your product.
If you received a damaged product,
immediately contact FORNO.
Save time
and money. Before you call for
service,
check
the Troubleshooting Guide. It
lists the causes of minor operating problems
that you can correct yourself.
SERVICE IN CANADA & UNITED STATES
Keep the
instruction manual handy to answer your questions. You can also find all the information
you need online at www.forno.ca.
If you don't understand something or need more assistance, please visit our website or email:
If there is a problem, please contact FORNO customer service. Please note that troubleshooting
with a customer service representative will be needed before being able to send a service
provider. All warranty work needs to be authorized by FORNO customer service. All our
authorized service providers are carefully selected and rigorously trained by us.
4
What this limited warranty covers:
The Warranty coverage provided by Forno Appliances in this statement applies exclusively to the original Forno
appliance (“Product”) sold to the consumer (“Purchaser”) by an authorized Forno dealer/distributor/retailer,
purchased and installed in the United States or Canada, and which has always remained within the original
country of purchase (the United States or Canada). Warranty coverage is activated on the date of the Product's
original retail purchase and has a duration of two (2) years.
Warranty coverage is non-transferable. In the event of replacement of parts or of the entire product, the
replacement Product (or parts) shall assume the remaining original Warranty activated with the original retail
purchase document. This Warranty shall not be extended with respect to such replacement. Forno Appliances
will repair or replace any component/part which fails or proves defective due to materials and/or workmanship
within 2 years of the date of the original retail purchase and under conditions of ordinary residential,
non-commercial use. Repair or replacement will be free of charge, including labor at standard rates and shipping
expenses. Purchaser is responsible for making the Product reasonably accessible for service. Repair service
must be performed by a Forno Authorized Service company during normal working hours.
IMPORTANT
Retain proof of original purchase to establish warranty period. Forno’s liability on any claim of any kind, with
respect to the goods and/or services provided, shall in no event exceed the value of the goods or service or part
there of which has given rise to the claim.
30-Day Cosmetic Warranty
The Purchaser must inspect the product at the time of delivery. Forno warrants that the Product is free from
manufacturing defects in materials and workmanship for a period of thirty (30) days from date of the original retail
purchase of the Product.
This coverage includes:
- Paint blemishes
- Chips
- Macroscopic finish defects
Cosmetic warranty does NOT cover:
> issues resulting from incorrect transport, handling and/or installation (e.g.: dents, broken, warped or deformed
structures or components, cracked or otherwise damaged glass components);
> slight color variations on painted/enameled components;
> differences caused by natural or artificial lighting, location or other analogous factors;
> stains/corrosion/discoloration caused by external substances and/or environmental factors;
> labor costs, display, floor, B-stock, out- of-box,“as is” appliances and demo units.
How to receive service
To receive warranty services, the Purchaser must contact the Forno Support department in order to determine
the problem and the required service procedures. Troubleshooting with a customer service representative will be
necessary before moving forward with the service. Model number, serial number and date of original retail
purchase will be requested.
Warranty
THERE ARE NO EXPRESS
WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO
WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE THAT SHALL APPLY
AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR
GUARANTEE GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT
SHALL BE BINDING ON FORNO. FORNO SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS,
FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, TIME AWAY FROM WORK, MEALS, LOSS OF FOOD
OR BEVERAGES, TRAVELING OR HOTEL EXPENSES, EXPENSES TO RENT OR PURCHASE APPLIANCES,
REMODELING/CONSTRUCTION EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE UNDENIABLY
CAUSED EXCLUSIVELY BY FORNO OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE
LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF FORNO HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST FORNO BE GREATER
IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY FORNO AND CAUSING THE
ALLEGED DAMAGE.WITHOUT PREJUDICE TO THE FOREGOING, PURCHASER ASSUMES ALL RISK AND
LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO
OTHERS AND THEIR
PROPERTY ARISING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT
SOLD BY FORNO THAT IS NOT A
DIRECT RESULT OF NEGLIGENCE ON THE PART OF FORNO THIS
LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF
THIS PRODUCT, IS NON-TRANSFERABLE, AND STATES YOUR EXCLUSIVE REMEDY.
> Use of the Product in any non-residential,
commercial application.
> Use of the Product for anything other than its
intended purpose.
> Repair services provided by anyone other than a
Forno Authorized Service
agency.
> Damages or repair services to correct services
provided by unauthorized parties or the use of
unauthorized parts.
> Installation not in accordance with
local/state/city/county fire codes, electrical codes, gas
codes, plumbing codes, building codes, laws or
regulations.
> Defects or damage due to improper storage of the
Product.
> Defects,damage or missing parts on products sold
out of the original factory packaging or from displays.
> Service calls or repairs
to correct an incorrect
installation of the Product and/or related accessories.
> Replacement of parts/service calls to connect,
convert or otherwise repair the electrical wiring and/or
gas line in order to properly use the product.
> Replacement of parts/service calls to provide
instructions and information
on the use of the Product.
> Replacement of parts/service calls to correct issues
arising from the product being used in a manner other
than what is normal and customary for residential use.
> Replacement of parts/service calls due to wear and
tear of components such as seals, knobs, pan
supports, shelving, cutlery baskets, buttons, touch
displays, scratched or broken ceramic-glass tops.
> Replacement of parts/service calls for lack
of/improper maintenance, including but not limited to:
build up of residues, stains,
scratches, discoloration,
corrosion.
> Defects and damages arising from accidents,
alteration, misuse, abuse or improper installation.
> Defects and damages arising from Product
transport, logistics and handling.
Inspection of the
product must be made at time of delivery. Following
receipt and inspection, the selling dealer/delivery
company must be notified of any issues arising from
handling, transport and logistics.
> Defects and damages arising from external forces
beyond the control of Forno Appliances, including but
not limited to wind, rain, sand, fires,
floods,
mudslides,
freezing temperatures, excessive moisture or
extended exposure to humidity, power surges,
lightning, structural failures surrounding the appliance
and other acts of God.
> Products whose serial number has been
altered/damaged/tampered with. In no case shall
Forno be held liable or responsible for damage to
surrounding property, including furniture, cabinetry,
flooring, panels, and other structures surrounding the
Product. Forno is neither liable nor responsible for the
Product if it is located in a remote area or an area
where certified trained technicians are not reasonably
available. Purchaser must bear any transportation and
delivery costs of the Product to the nearest Authorized
Service Center or the additional travel expenses of a
certified trained technician
Warranty Exclusions: What Is Not Covered.
5
6
This is a safety alert symbol. It will alert you to potential personal or property safety hazards.
Obey all safety messages to avoid any property damage, personal injury or death.
WARNING
WARNING indicates a potentially ha
z
ardous situation which, if not avoided,
could result in serious injury or death.
CAUTION
CAUTION indicates a moderate hazardous situation which, if not avoided,
could result in minor or moderate injury. All safety messages will alert you
what the potential hazard is, tell you how to reduce the chance of injury, and
let you know what can happen if the instructions are not followed.
WARNING
If the information in this manual is not followed exactly, a fire or explosion may result,
causing property damage, personal injury or death.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do
not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
ANTI-TIP DEVICE
WA
RNING
Tip-over Hazard
A Child or adult can tip the range which can result in serious injuries or death.
Install the anti-tip device to the range and/or structure per installation instructions.
Engage the range to the Anti-tip device installed to the structure.
Re-engage the anti-tip device if the range is removed.
Failure to follow these instructions can result in death or serious injuries and/or
burns to children and adults.
To reduce the risk of tipping the range, the range must be secured by properly installed anti-tip device
packed with the range. See installation instructions shipped with the bracket for complete details before
attempting to install.
All ranges can tip and cause injuries.
Consumer information
Range Safety
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
Safely tilt the front of the range upward slightly
and move back against wall. Making sure the pin
slides under bracket.
! WARNING
5
7

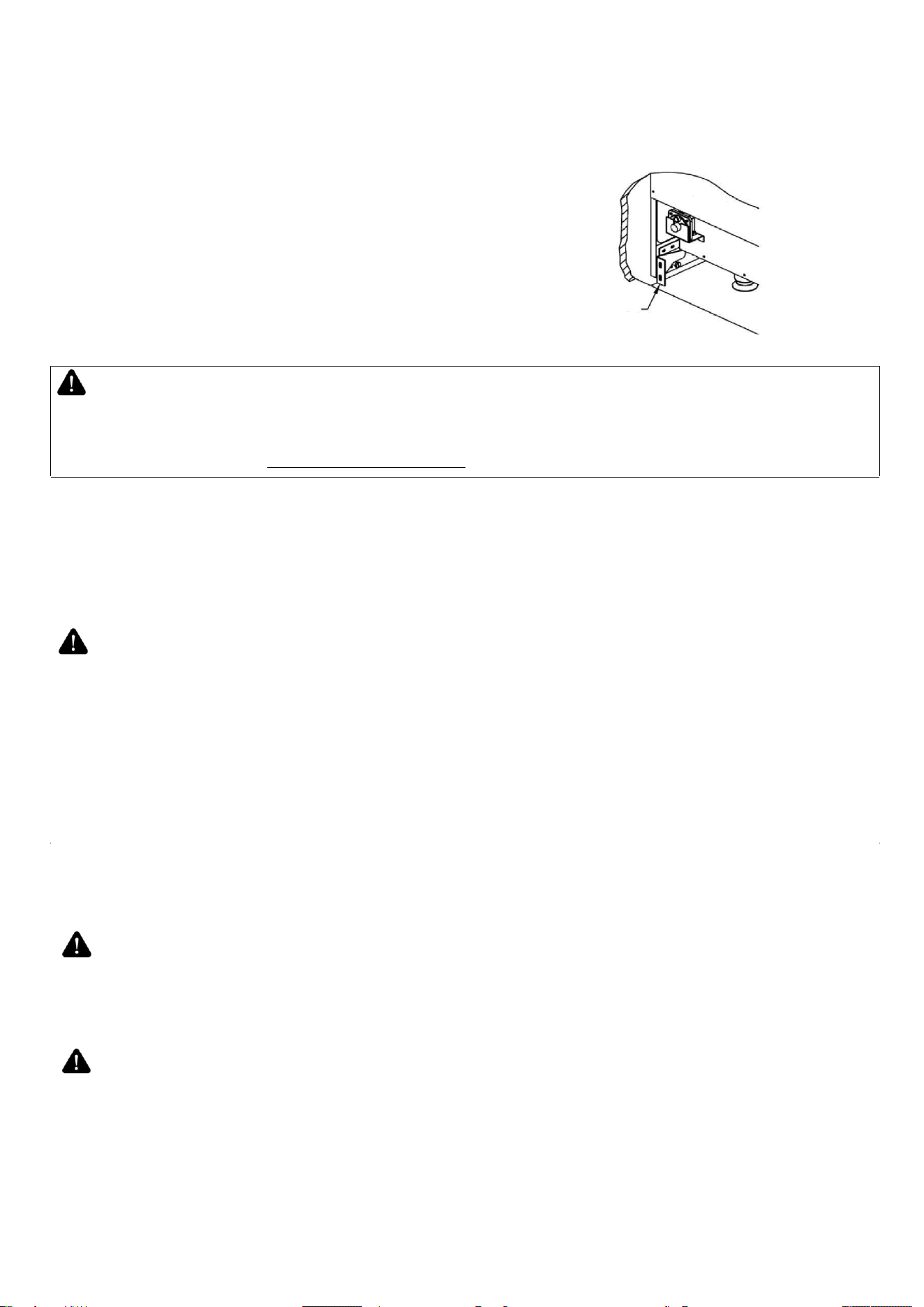

Make sure the anti-tip bracket is installed.
Slide range forward.
Make sure the anti-tip bracket is securely attached
to the wall behind the range.
IMPORTANT SAFETY INFORMATION
AD ALL INSTRUCRE TIONS BEFORE USING THE APPLIANCE
WARNING Read all safety instructions before using the product. Failure to follow these
instructions may result in fire, electrical shock, serious injury or death.
GENERAL SAFETY INSTRUCTIONS
WARNING NEVER use this appliance as a space heater to heat or warm the room. Doing
so may result in carbon monoxide poisoning and overheating of the oven.
1. Use this range for its intended purpose as described in this instruction manual.
2. Have your range installed and properly grounded by a qualified installer in accordance with the provided
installation instructions.
Anti-tip bracket
Range back panel
WARNING
This product can expose you to chemicals including carbon monoxide, which is known to the State of
California to cause developmental harm.
For more information go to www.P65Warnings.ca.gov
WARNING
Never operate the top surface cooking section of the appliance unattended
Failure to follow this warning statement may result in fire, explosion or burn hazard that could cause
property damage, personal injury or death.
If a fire should occur, keep away from the appliance and immediately call your fire department.
DO NOT ATTEND TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER
The installation must conform with local codes or, in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 or, in Canada, the Natural Gas and Propane Installation Code, CSA
B149.1.
8
11. CAUTION Do not store items of interest to children in cabinets above an oven-children who
climb onto the oven to reach items could be seriously injured.
12. Never block the vents (air openings) of the range. They provide the air inlets and outlets that are
necessary for the range to operate properly with correct combustion. Air openings are located at the rear of
the cooktop, at the top and bottom of the oven door, and at the bottom of the range.
13. Use only dry pot holders--moist or damp pot holders on hot surfaces may result in burns from steam. Do
no
t let pot holders touch surface burners, burner grate, or oven heating element. Do not use a towel or other
bulky fabrics in place of pot holders.
14. Do not touch the heating elements or the interior surface of the oven. These surfaces may be hot enough
to burn even though they are dark in color. During and after use, do not touch, or let clothing or other
flammable materials contact any interior area of the oven; allow sufficient time for cooling first. Other
surfaces of the appliance may become hot enough to cause burns. Potentially hot surfaces include the
burners, grates, oven vent opening, surfaces near the opening, crevices around the oven door, metal trim
parts above the door, any back guard, or high shelf surface.
15. Do not heat unopened food containers. Pressure could build up and the container could burst, causing
any injury.

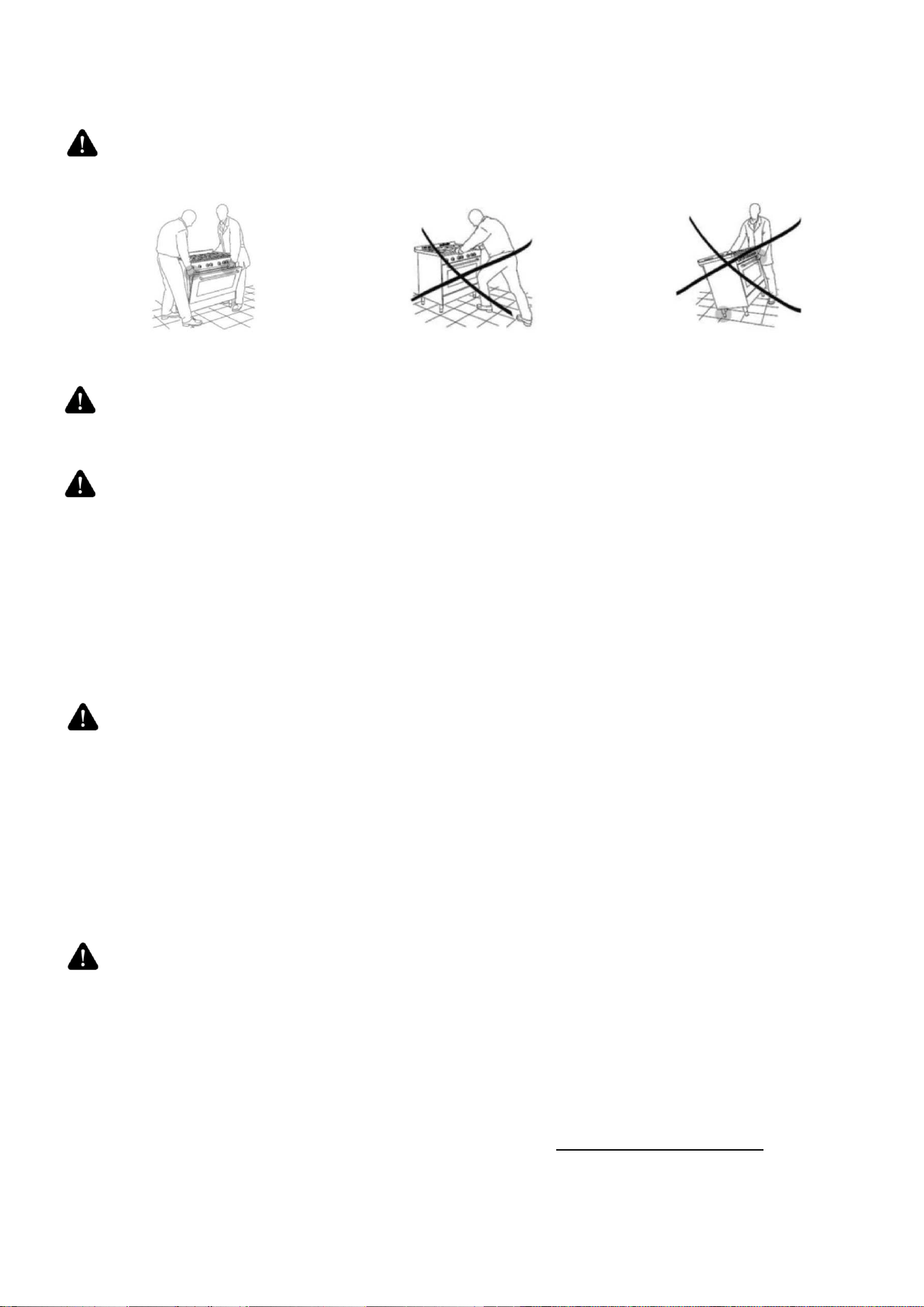

WARNING Extremely Heavy.
Proper equipment and adequate manpower are needed when move the range to avoid personal injury or damage
to the unit or the floor.
Failure to follow this advice may result in damage or personal injury.
8. Be sure all packing materials are removed from the range before operating to prevent ignition of these
materials.
9. Avoid scratching or impacting glass displays. Doing so may lead to glass breakage. Do not cook on a
product with broken glass. Shock, fire, or cuts may occur.
10. Do not leave children alone or unattended in an area where an appliance is in use. They should never be
allowed to climb, sit or stand on any part of the rang
e.
3. Any adjustment and service should be performed only by a qualified gas range installer or service
technician. Do not attempt to repair or replace any part of your range unless it is specifically recommended
in this manual.
4. Your range is shipped from the factory set for use with natural gas or propane (LP) gas. It can be
converted for use with either. If required, these adjustments must be made by a qualified technician in
accordance with the installation instructions and local codes. The agency performing this work assumes
responsibility for the conversion.
5. Have the installer show you the location of the range gas shut-off valve and how to turn it off if necessary.
6. Plug your range into a 120-volt grounded outlet only. Do not removed the round grounding prong from the
plug. If in doubt about the grounding of the home electrical system, it is your responsibility and obligation to
have an ungrounded outlet in accordance with the National Electrical Code. Do not use an extension code
with this range.
7. Before performing any service, unplug the range or disconnect the power supply at the household
distribution panel by removing the fuse or switching off the circuit breaker.
9
WARNING KEEP FLAMMABLE MATERIAL AWAY FROM THE RANGE
Failure to do so may result in fire or personal injury.
Do not store or use flammable materials in an oven or near the cooktop, including paper, plastic, pot
holders, linens, wall coverings, curtains, drapes and gasoline or other flammable vapors and liquids.
Never wear loose-fitting or hanging garments while using the appliance. These garments may ignite if they
contact hot surfaces causing severe burns.
Do not let cooking grease or other flammable materials accumulate in or near the range. Grease in the
oven or on the cooktop may ignite.
WARNING IN THE EVENT OF A FIRE, TAKE THE FOLLOWING STEPS TO
PREVENT INJURY AND FIRE SPREADING.
Do not use water on grease fires. Never pick up a flaming pan. Turn the controls off. Smother a flaming
pan on a surface unit by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a
multi-purpose dry chemical or foam-type fire extinguisher.
If there is a fire in the oven during baking, smother the fire by closing the oven door and turning the oven
off or by using a multi-purpose dry chemical or foam-type fire extinguisher. If there is a fire in the oven
during self-clean, turn the oven off and wait for the fire to go out. Do not force the door open.
Introduction of fresh air at self-clean temperatures may lead to a burst of flame from the oven. Failure to
follow this instruction may result in severe burns.
WARNING Cook food thoroughly to help protect against foodborne illness. Minimum safe food
temperature recommendations can be found at www.IsItDoneYet.gov and www.fsis.usda.gov. Use a food
thermometer to take food temperatures and check several locations.
Do not allow anyone to climb, stand or hang on the oven door, drawer or cooktop. They could damage the
range or tip it over causing severe injury or death.
Keep the ventilator hood and grease filter clean to maintain good venting and to avoid grease fires. Turn the
ventilator OFF in case of a fire or when intentionally "flaming" liquor or other spirits on the cooktop. The
blower if in operation, could spread the flames.
WARNING DO NOT carry or lift the cooking range by the oven door handle or the control panel!
CORRECT INCORRECT INCORRET
WARNING Never pour cold water to hot surfaces in a hot oven. The steam created could
cause serious burns or scalding and the sudden change in temperature can damage the enamel in the oven.
Do not store or use flammable materials in an oven or near the cooktop, including paper,
10
WARNING OVEN SAFETY INSTRUCTIONS
NEVER cover any slots, holes, or passages in the oven bottom or cover an entire rack with materials
such as aluminum foil or oven liners. Never place foil or oven liners on the oven bottom. They can
heat causing risk of smoke or fire.
Stand away from the range when opening the oven door. Escaping hot air or steam can cause burns
to hands, face and/or eyes.
Never place cooking utensils, pizza or baking stones, or any type of foil or liner on the oven floor.
These items can trap heat or melt, resulting in damage to the product and risk of shock, smoke or fire.
Place oven racks in desired location while oven is cool. If the rack must be moved while the oven is
hot, be careful to avoid touching hot surfaces.
Do not leave items such as paper, cooking utensils, or food in the oven when not in use. Items stored
in an oven can ignite.
Do not leave items on the cooktop near the oven vent. Items may overheat resulting in a risk of fire
or burns.
Never broil with the door open. Open-door broiling is not advised due to overheating of control knobs.
Never leave the surface burners unattended at medium or high heat settings. Foods, especially oily foods,
may ignite resulting in fire that could spread to surrounding cabinets.
Never leave oil unattended while frying. If allowed to heat beyond its smoking point, oil may ignite resulting
in fire that may spread to surrounding cabinets. Use a deep fat thermometer whenever possible to monitor
oil temperature.
To avoid oil spillover and fire, use the minimum amount of oil when frying in a shallow pan and avoid cooking
frozen foods with excessive amounts of ice.
Use proper pan size and avoid pans that are unstable or easily tipped. Select cookware that matches the
size of the burner. Burner flames should be adjusted so that they do not extend beyond the bottom of the
pan. Excessive flames may be hazardous.
When using glass/ceramic cookware, make sure it is suitable for cooktop use; others may break because of
a sudden change in temperature.
To minimize the possibility of burns, ignition of flammable materials and spillage, cookware handles should
be turned toward the center of the range without extending over nearby burners.
Do not use a wok with a round metal support ring. The ring may trap heat and block air to the burner
resulting in a carbon monoxide hazard.
Do not attempt to lift the cooktop. Doing so may damage the gas tubing to the surface burners resulting in a
gas leak and risk of fire.
Do not use aluminum foil to cover the grills or line any part of the cooktop. Doing so may result in carbon
monoxide poisoning, overheating of the cooktop surfaces, or a potential fire hazard.
WARNING COOKTOP SAFETY INSTRUCTIONS
Not all features are on all models.Appearance may vary.

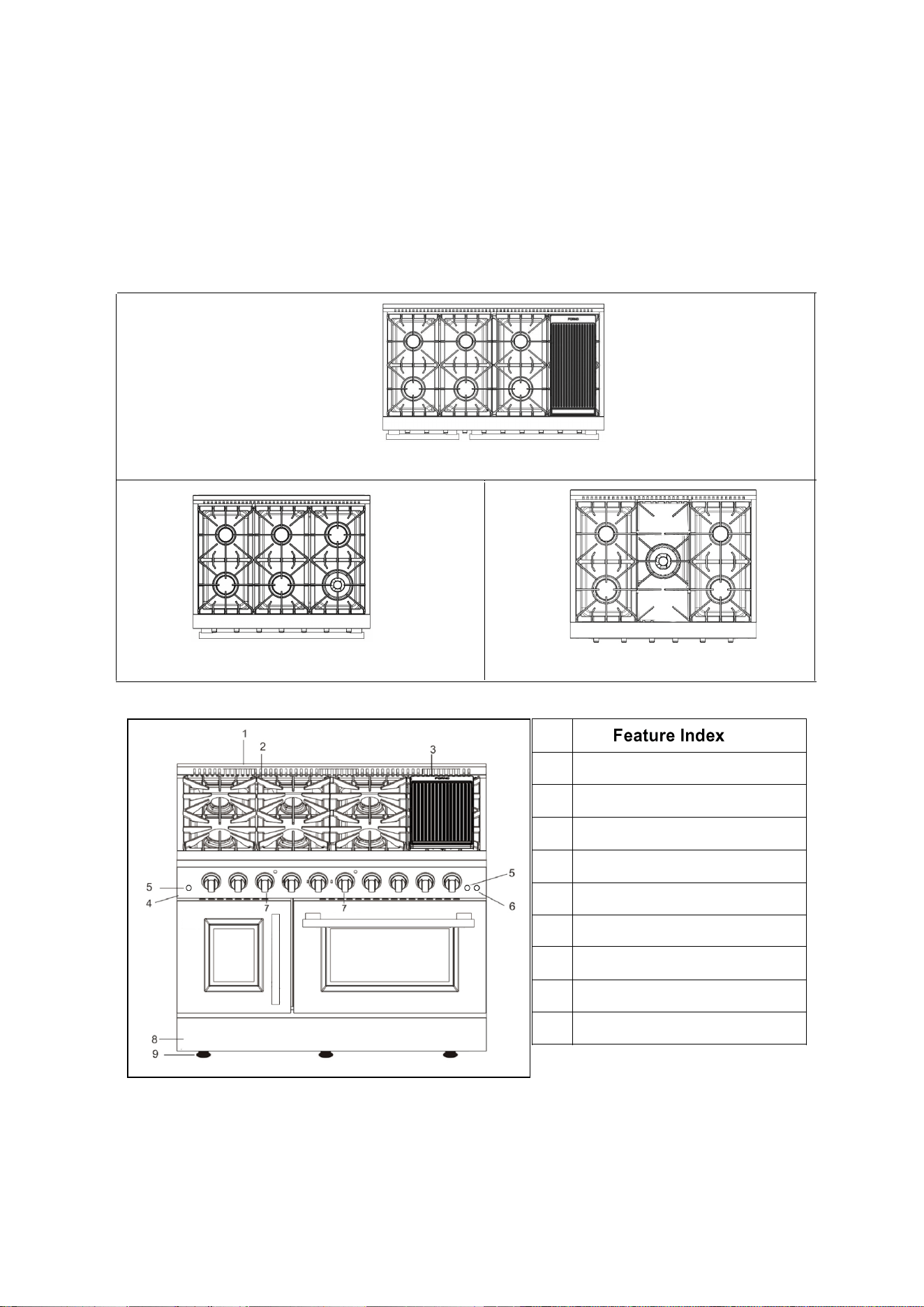

Features of Your Range
11
1 Oven Vents
2
Cooktop Burner Grates
3
Griddle (on some models)
4
5
Control Panel
6
7
Convention Fan Control Panel
8
Oven Lights
9
Oven/Broil Burner
Kick Panel
Leveling System
8 burners
6 burners 5 burners
Installation Instructions
Before using your range
1. Remove all packaging material.

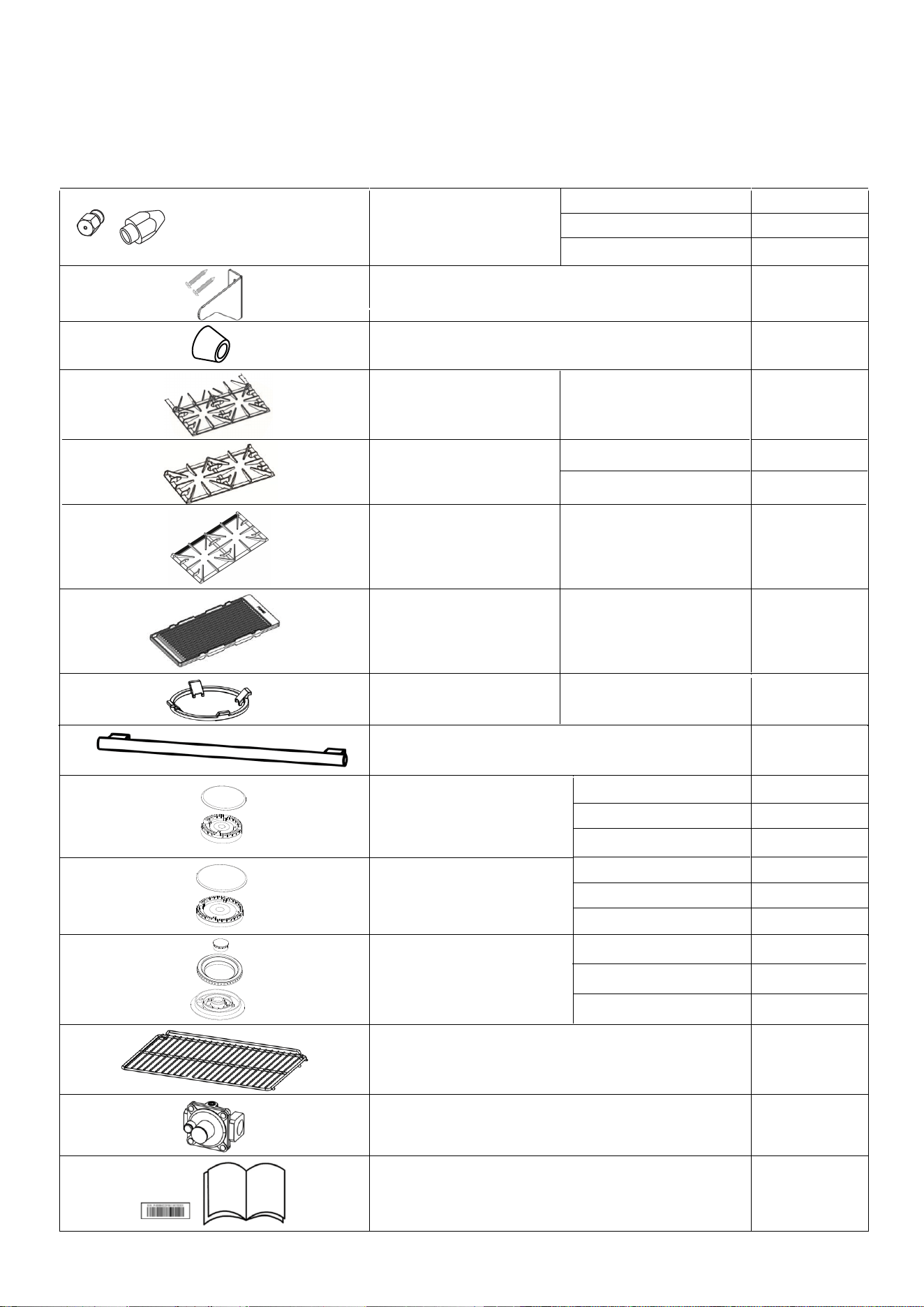

2. Check to make sure you have all of the accessories listed below
FFSGS6444-30
9 sets
FFSGS6444-36 10 sets
FFSGS6444-48
13 sets
Burner Grills
1 piece
Cook plate (Griddle)
1 piece
2
piece
Burner & Cap
(9000BTU)
FFSGS6444-30 2 sets
FFSGS6444-36 2 sets
FFSGS6444-48 3 sets
Burner & Cap
(15000BTU)
FFSGS6
4
44-30
2
sets
FFSGS6444-36 3 sets
FFSGS6444-48 4 sets
1 set
Baking rack
(*4 pcs for FFSGS6444-48)
2
pieces
Regulator (pre-installed)
1
piece
Serial Number Sticker & Instruction Manual 1 set
FFSGS6444-36
3 pieces
Burner Grills
3 pieces
FFSGS6444-48
Oven door handle
LPG injector
12
2 pieces
FFSGS6444-30
FFSGS6444-48
FFSGS6444-30
FFSGS6444-36
FFSGS6444-
48
Burner & Cap
(20000BTU)
1 set
1
set
Burner Grills
FFSGS6444-48
Anti-tip bracket and screws
1 set
Wall-against mat
2 pieces
0.46, 0.9, 0.94, 1.18,
1.39,
(*1.12 only for 48")
Wok Support
1 piece
FFSGS6444-48
YOU NEED TOOLS FOR INSTALLATION. (not supplied with the range)
Screwdriver Wrench Socket wrench Allen key
Tape measure
&Pencil
Protective
gloves
Hammer
Adjustable
wrench
Adjustable
pliers
Drill

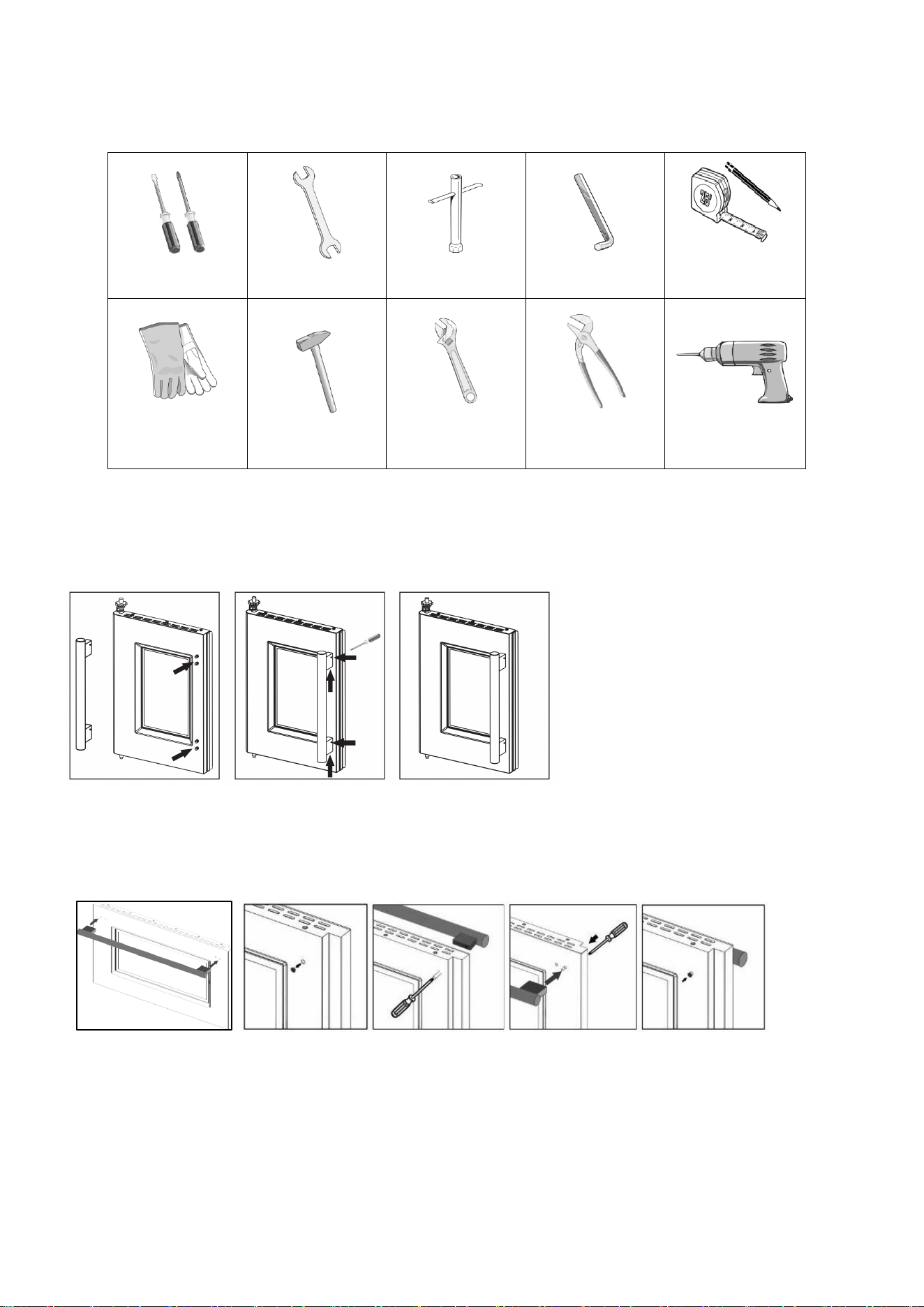

Door handle installations
The door handle is not pre-installed. Follow the illustrations
below to install the door handle quickly and easily.
1. Align the handle with the screw on the door.
2.
13
1. Remove the black rubber cap on the inside of oven door. (Do not throw it away).
2. Insert the screwdriver to the hole to reach the embedded
screw.
3. Position the handle holder correctly to accept the screw bolt on the outside of oven door, tighten the
screw.
4. Repeat step No. 1 to 3 for the other side.
5. Put the black rubber caps back to cover the two holes on the inside of oven door.
Then tighten the hexagon socket screws on the handle with a hexagon socket screwdriver.
Chef door （for 30'' oven of FFSGS6444-48)
Electrical
Your range must be ele
ctrically grounded in accordance with local codes or, in the absence of local
codes, in accordance with the National Electrical Code (ANSI/NFPA 70, latest edition). In Canada,
electrical grounding must be in accordance with the current CSA C22.1 Canadian Electrical Code
Part 1 and/or local codes.
The power supply must be the correct polarity. Reverse polarity will result in continuous sparking
of the electrodes, even after flame ignition. If there is any doubt as to whether the power supply
has the correct polarity or grounded, have it checked by a qualified electrician.
ELECTRICAL REQUIREMENTS
Electrical Supply
Service
Grounded, 110/120 VAC, 60 Hz
15 amp or 20 amp dedicated circuit
Receptacle 3-prong grounding-type
Power Cord 5' (1.3 m)
14

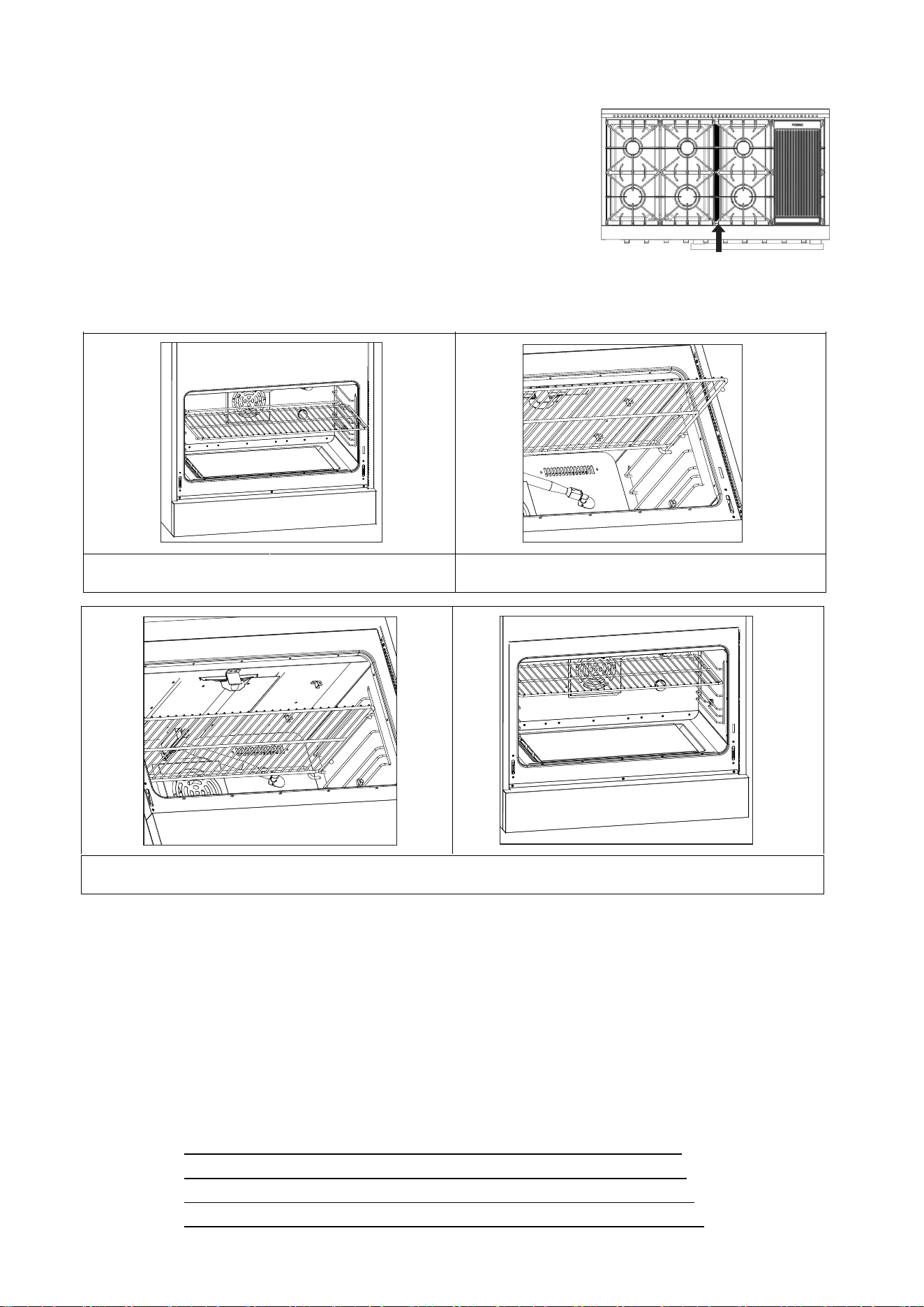

Oven Racks Installation
Put the baking rack to the center position of the side rack.
Raise the baking rack a little bit so that the steel ball can
cross the side rack.
Push the baking rack smoothly all the way into the oven cavity.

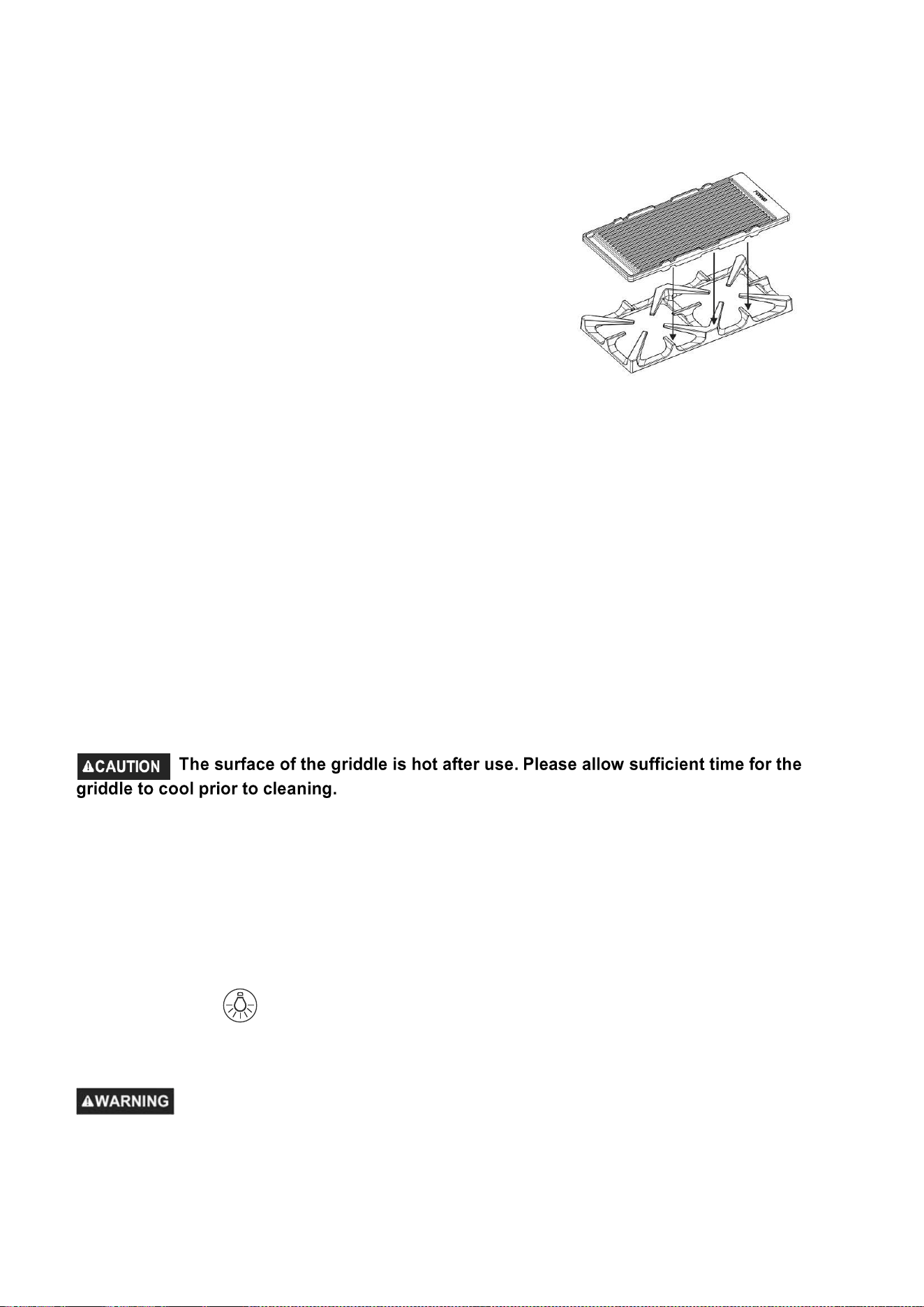

Cooktop Burner Grills Installation
Remove the packing materials from the cooktop burner
grills. Place the burner grills to the correct position. Check
the
direction
of
middle
grill
on
the
right
as
illustrated, the
thicker side should be towards the left.
Put the cook plate (for FFSGS6444-48) and the wok support
to the burner(s) you like to cook.
48"

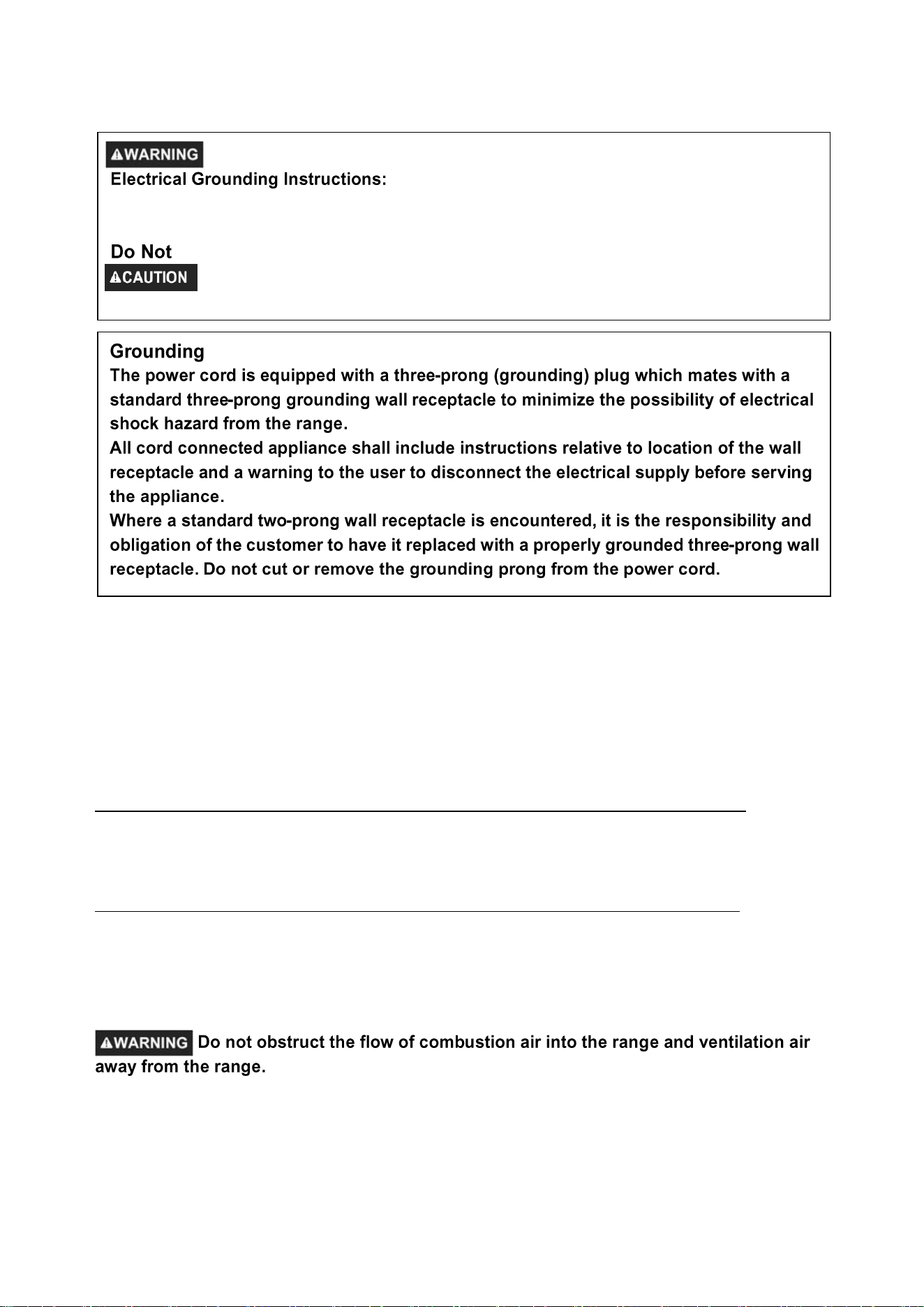

this cooking range is equipped with a three-prong
(grounding) plug for your protection against shock hazard and should be plugged directly into a
properly grounded three-pronged receptacle.
cut or removes the grounding prong from the plug.
Label all wires prior to disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify proper operation after servicing.
Gas Supply
Installation must comply with local codes or, in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1 / NFPA 54. In Canada, installation must conform to the current natural
Gas Installation /code, CAN 1-1.1-M81 and with local codes where applicable.
This range has been design-certified according to ANSI Z21.1b-2012 latest edition.
GAS REQUIREMENTS
NATURAL GAS
WC
5" (12.5 mb)
6"
14" (34.9 mb), 0.5 psi (3.5 kPa)
Regulator Pressure
Minimum Supply Pressure
Maximum Supply Pressure
LP GAS
WC
10" (25 mb)
Regulator Pressure
Minimum Supply Pressure
Maximum Supply Pressure
11"
14" (34.9 mb), 0.5 psi (3.5 kPa)
Ventilation: it is recommended that the unit be operated with an oven head, vented exhaust
hood
of sufficient
size
and capacity.
15
The min and max gas supply pressure stands for the pressure at the Gas Shut-Off Valve.
Electric Power Supply Requirements
16
Pressure Regulator
Recommended
power outlet area
For reference only, please refer to the real object.
20" 4/5 (530)
26" 4/5 (680)
38" 1/2 (980)
Gas Shut-off Valve
Pressure regulator can withstand
a maximum input pressure of 0.5
psi (3.5 kPa), and is set
at 5"
WC outlet pressure when used
on NATURAL GAS and 10" WC
outlet pressure when used on
LIQUID PROPANE.
Gas Shut-off Valve
(not included)
P
X
GAS INLET
Pressure Regulator
Since service pressure may fluctuate with local demand, every gas cooking range must be equipped
with a pressure regulator on the incoming service line for safe and efficient operation.
The pressure regulator preinstalled on the range has a gas inlet of 1/2" NPT for the 30", 36" & of 3/4"
NPT for the 48".
The supply line must be equipped with an approved external gas shut-off valve located near the range
in an accessible location. Do not block access to the shut-off valve. Refer to the illustration below.
A 3/4" (19 mm) ID gas supply line must be connected to the range. If local codes permit, a certified, 3'
(.9 m) long, 1/2" (13 mm) or 3/4" (19 mm) ID flexible metal gas line is recommended to connect the
unit’s 1/2" NPT (30", 36") or 3/4" NPT (48") female inlet to the gas supply line. Pipe joint compounds
suitable for use with natural or LP gas should be used.
The appliance and its shut-off valve must be disconnected from the gas supply piping system during
must be isolated from the gas supply piping system by closing its individual manual shutoff
valve
during any pressure testing of the system at test pressures equal to or less than 0.5 psi (3.5 kPa).

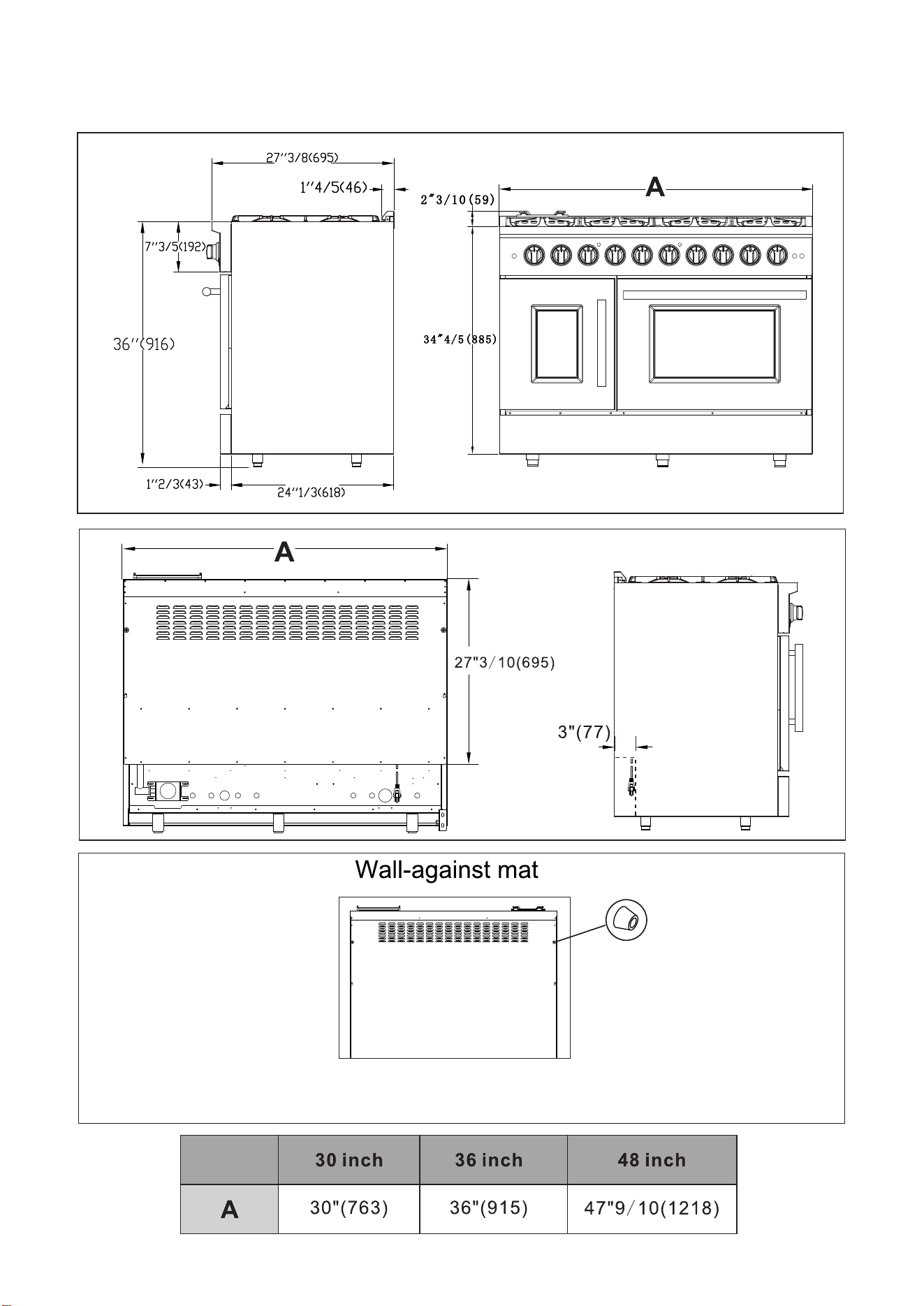

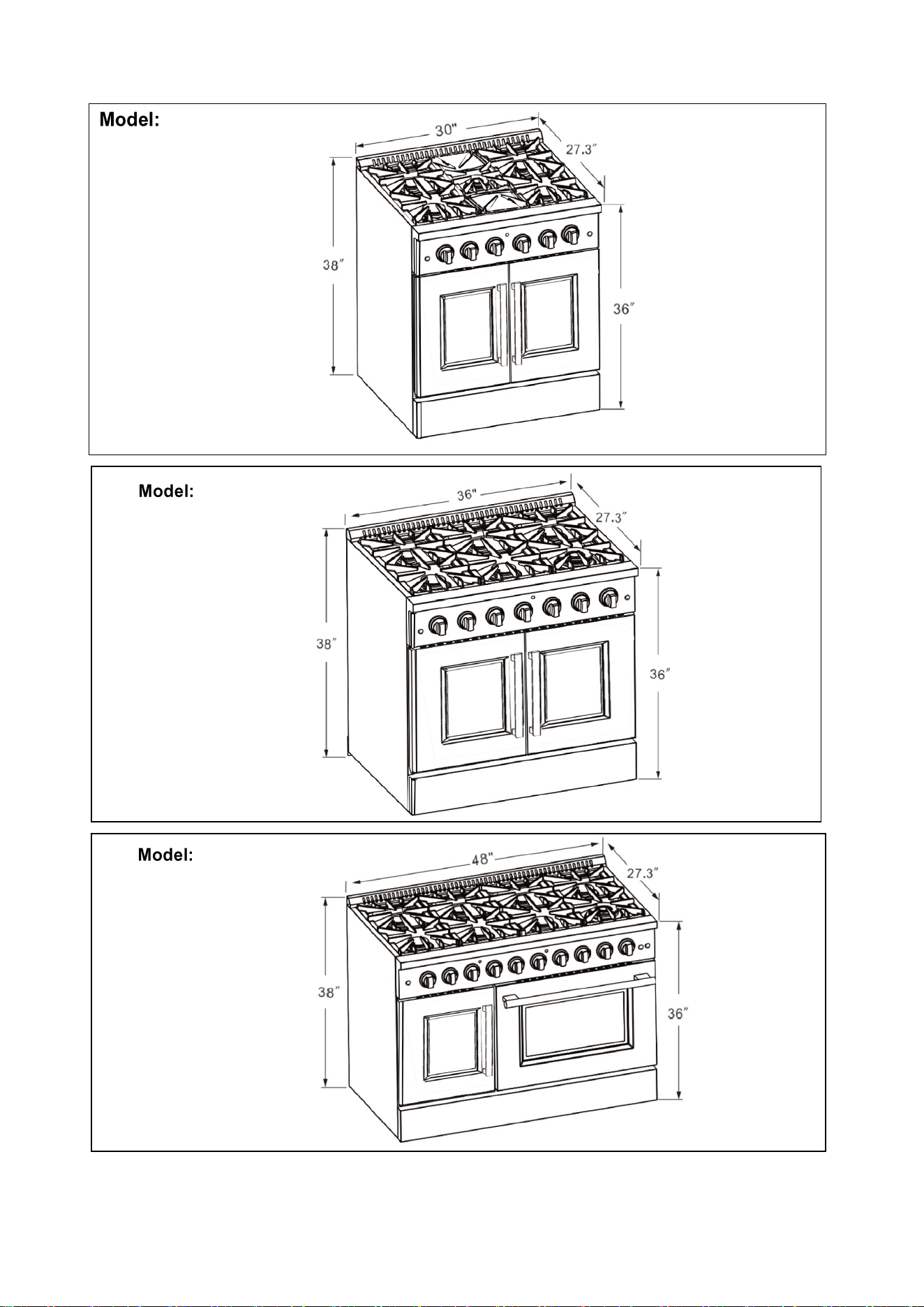

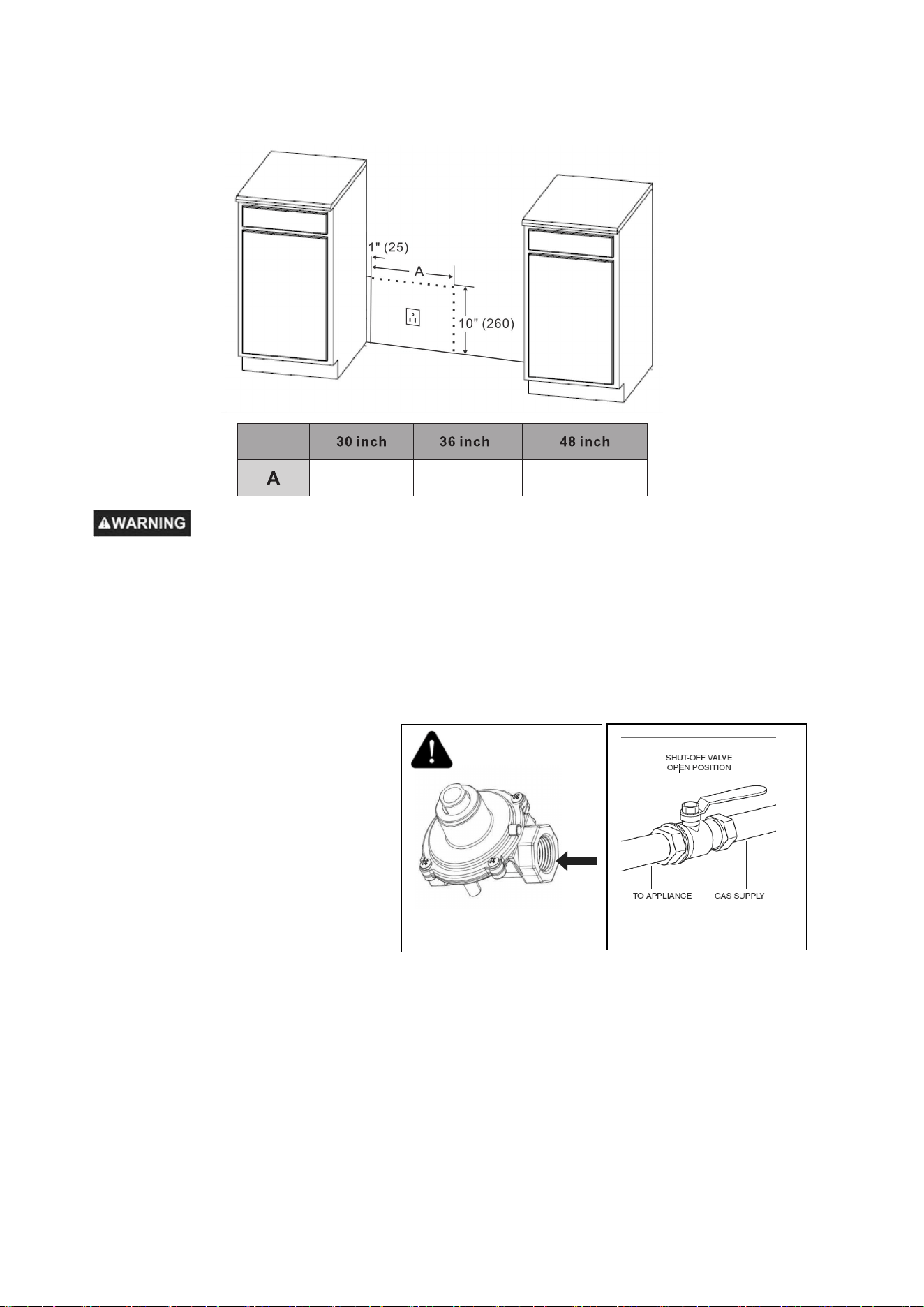

Product Dimensions and Cabinets
17
FFSGS6444-36
FFSGS6444-30
FFSGS6444-48
This range may be installed directly adjacent to existing countertop-height cabinets (36" or 91.5
cm from the floor).To achieve the best look, the cooktop should be level with the cabinet
countertop.
This can be accomplished by raising the unit using the adjustment spindles on the
legs.
18
1/ Remove the two screws in the back of the range.
2/ Install the wall-against mat instead.
#
#
FFSGS6444-30
FFSGS6444-36
19

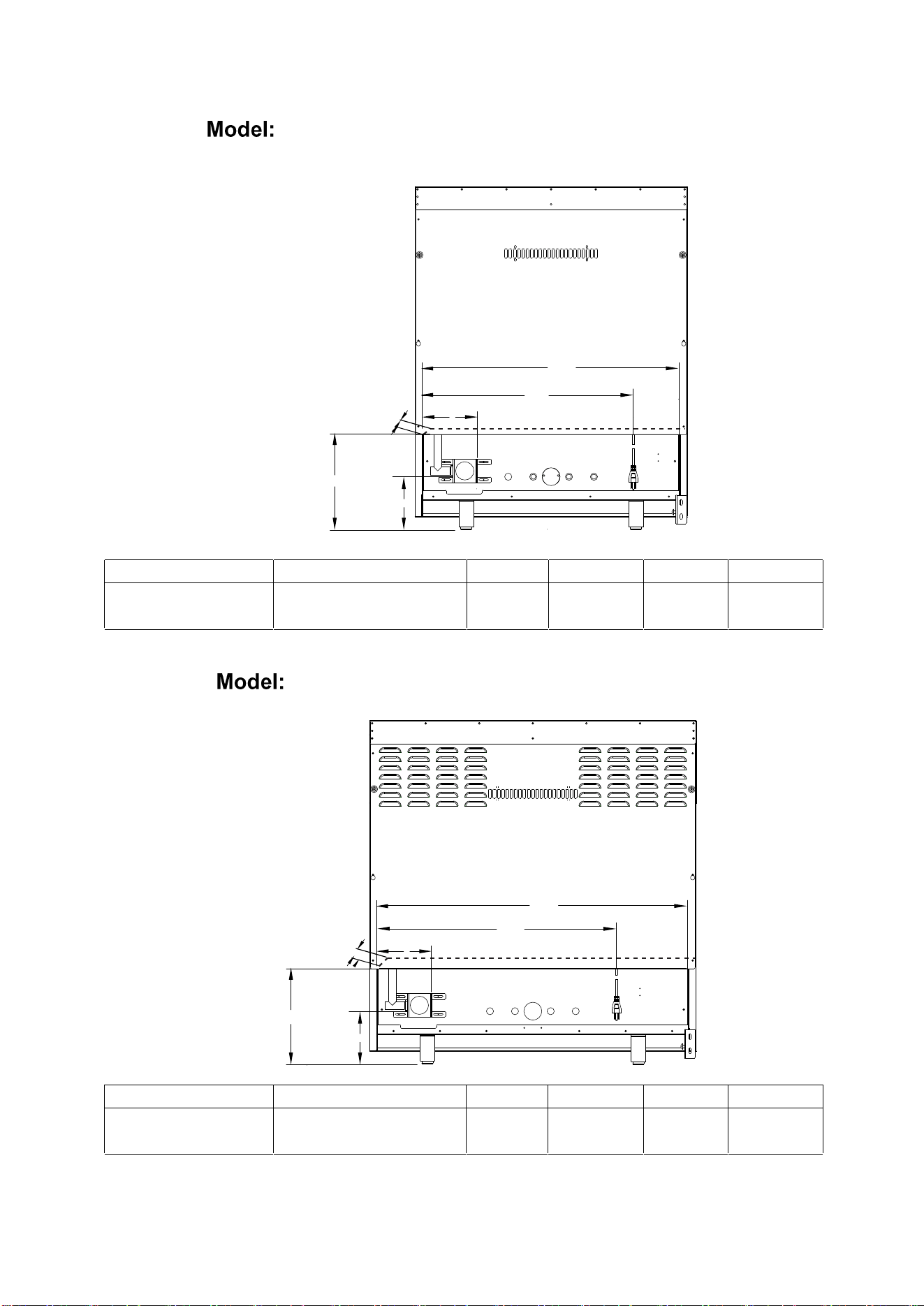

A. B. C. D. E. F.
Min. 10’’ 1/5 (260mm)
Max. 12’’ (303mm)
Min. 5’’ 3/5 (142mm)
Max. 7’’ 3/10 (185mm)
3’’ (77mm)
5’’ 4/5
(149mm)
23’’
(588mm)
28’’ (715mm)
A. B. C. D. E. F.
Min. 10’’ 1/5 (260mm)
Max. 12’’ (303mm)
Min. 5’’ 3/5 (142mm)
Max. 7’’ 3/10 (185mm)
3’’ (77mm)
5’’ 4/5
(149mm)
26’’ 1/5
(667mm)
34’’ (866mm)
A.
B.
C.
D.
E.
F.
A.
B.
C.
D.
E.
F.

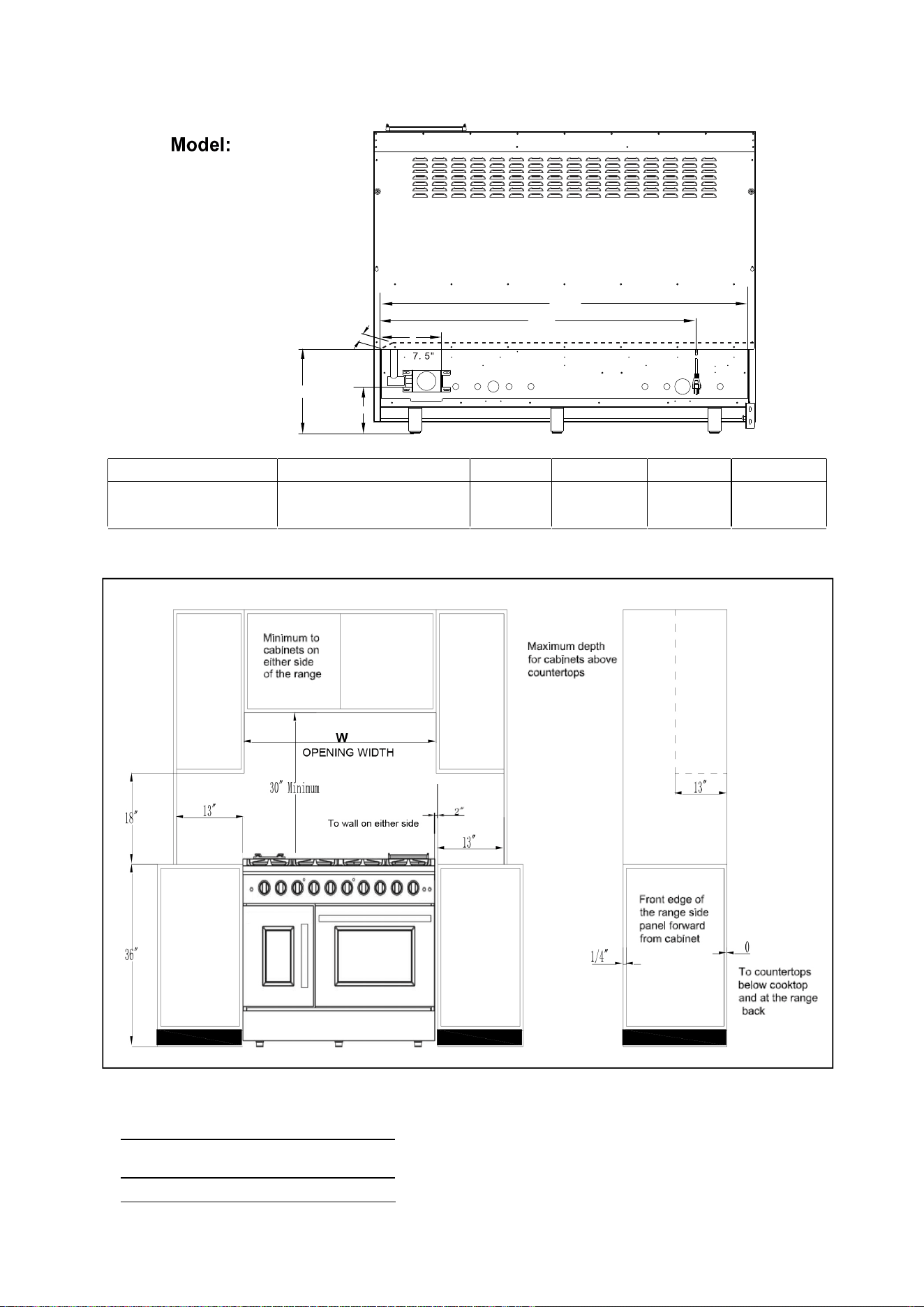

W OPENING WIDTH
30" Model 30" (762)
36" Model
36" (914)
48" Model 48" (1219)
20
FFSGS6444-48
A. B. C. D. E. F.
Min. 10
’’ 1/5 (260
mm)
Max. 12
’’ (
303
mm)
Min. 5’’ 3/5 (142mm)
Max. 7’’ 3/10 (185mm)
3’’ (77mm)
7’’ 1/2
(191mm)
39’’ 1/2
(1004mm)
46’’ (1169mm)
A.
B.
C.
D.
E.
F.

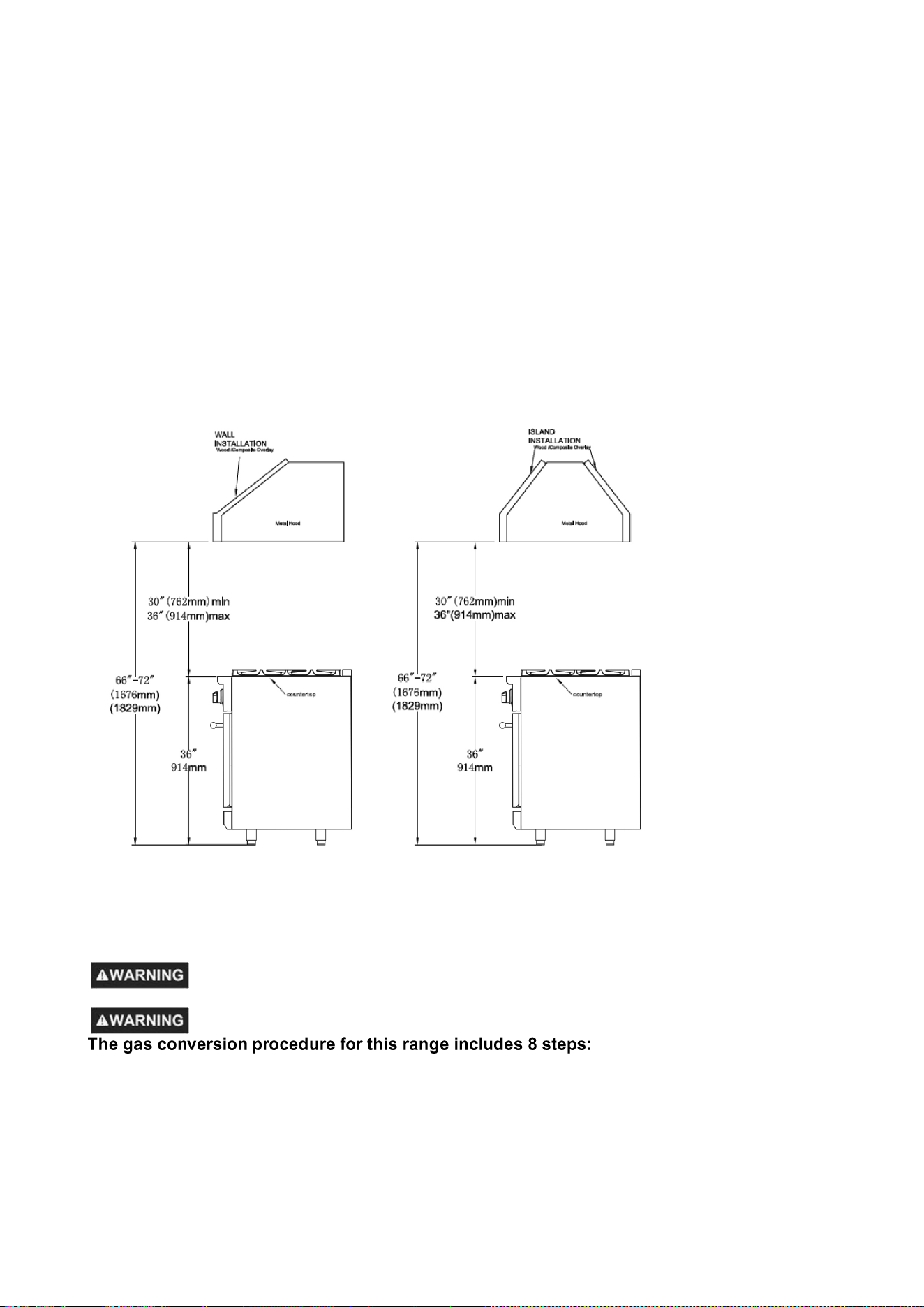

The bottom of the hood should be 30" min. to 36" above the countertop. This would typically result
in the bottom of the hood being 66" to 72" above the floor. These dimensions provide safe and
efficient operation of the hood.
After Installation:
1. Check ignition of cooktop burners.
2. Check the air shutter adjustment – sharp blue flame, with no yellow tipping or lifting flames.
3. Check ignition of oven burner.
4. Visually check tubular burner (oven burner) re-ignition to be sure both rows of
burner ports are relighting each time.
5. Check for gas leaks at all gas connections (using a gas detector, never a flame).
6. Check oven bake and convection bake function.
Gas Conversion Operation
This cooking range can be used with LP gas and NG gas. It is shipped from the factory adjusted
for use with NG(Nature Gas). Conversion nozzles are included. Follow the instruction shown
below for gas conversion.
Gas conversion shall be conducted by a factory- trained professional.Call the
customer service hotline to identify a factory-trained professional near your home.
Before carrying out this operation, disconnect the range from gas and electricity.
1. Pressure regulator 5. Gas valves
2. Cooktop burners 6. Reconnect Gas and Electrical Supply
3. Oven burner 7. Air shutter oven burner
4. Broil burner 8. Installation of new rating label
Exhaust Hood Installation
21
The conversion is not completed if all 8 steps have not been concluded properly.
Before performing the gas conversion, locate the package containing the replacement nozzles
shipped with every range.
STEP 1: Pressure Regulator
To access the gas regulator, pull the range away from the cabinet wall. The gas
regulator is located at the bottom back left corner of the range.
Electrical shock hazard can occur and result in injury or death. Disconnect electrical
power to the range before servicing. Do not remove regulator or allow it to turn during servicing.
a. Unscrew the cap from the regulator.
STEP 2: Cooktop Burners
a. Remove cooking grates, burner caps and inner burner rings.
b. Lift off outer burner heads and burner bases.
c. Remove the factory installed natural gas nozzles from the center
of the nozzle holders using a 7mm socket wrench. Replace the LP
nozzle in each nozzle holder. Tighten each nozzle until snug. Use
caution not to over tighten.
Care should be taken when removing and replacing gas
components. Use proper support to prevent damage to components.
Each nozzle has a number indicating its flow diameter printed on the body. Consult
the table below for matching nozzles and burners.
Socket Wrench
22
NG
->
LP
->
Position NG Position LP
b.
Unscrew the brass insert from the cap. Do not remove the spring from the brass insert. Rotate the brass
insert with the fully extended spring 180° and screw back the brass insert on the cap. Insert the cap with
the spring first into the regulator. Make sure the cap is fully tighten on the regulator, if not done correctly
a gas leak can occur.
Model:FFSGS6444-30
Model:FFSGS6444-36
23

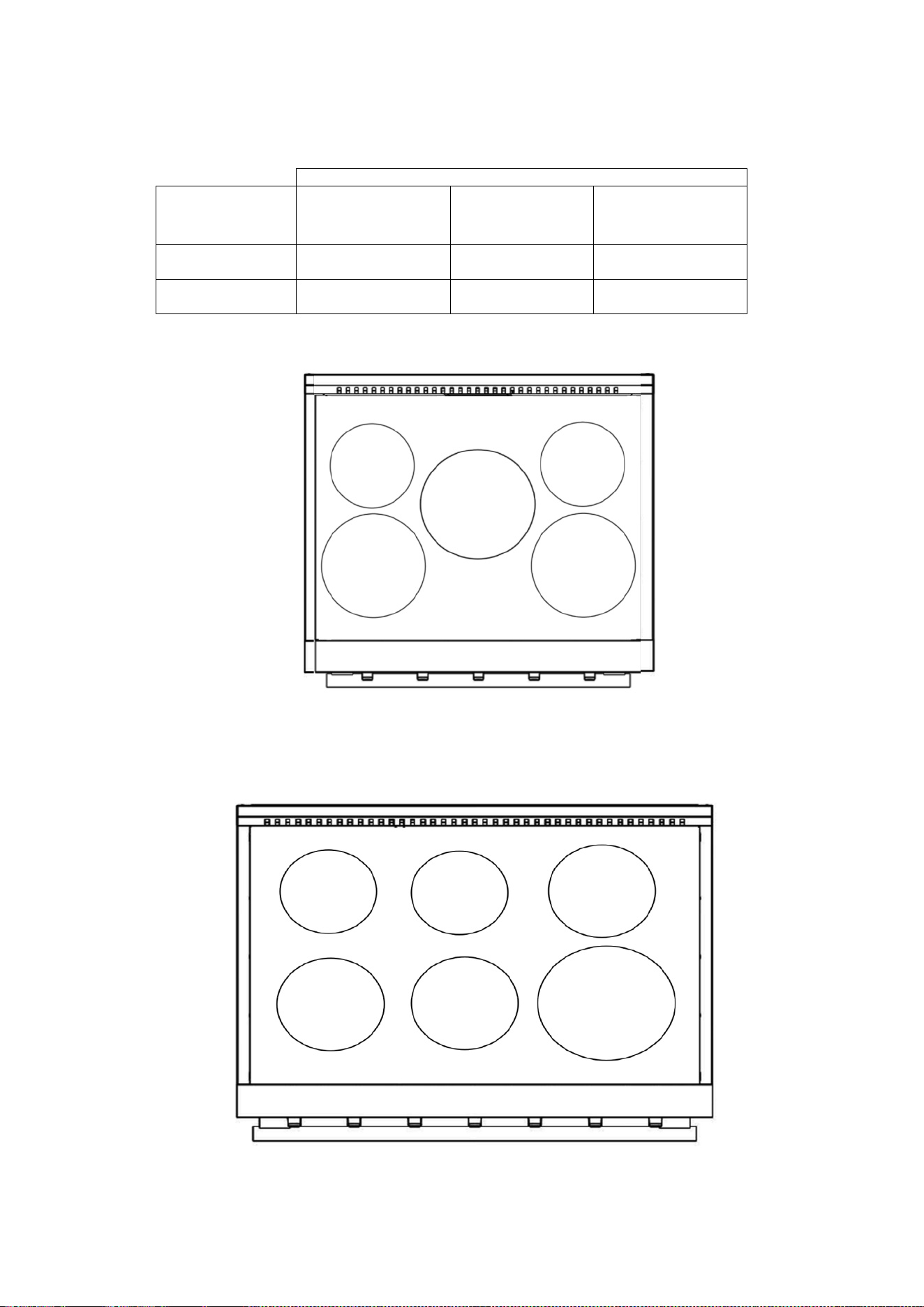

COOKTOP BURNERS
ORIFICE FOR
NATURAL GAS (NG)
& LIQUID PROPANE
(LP)

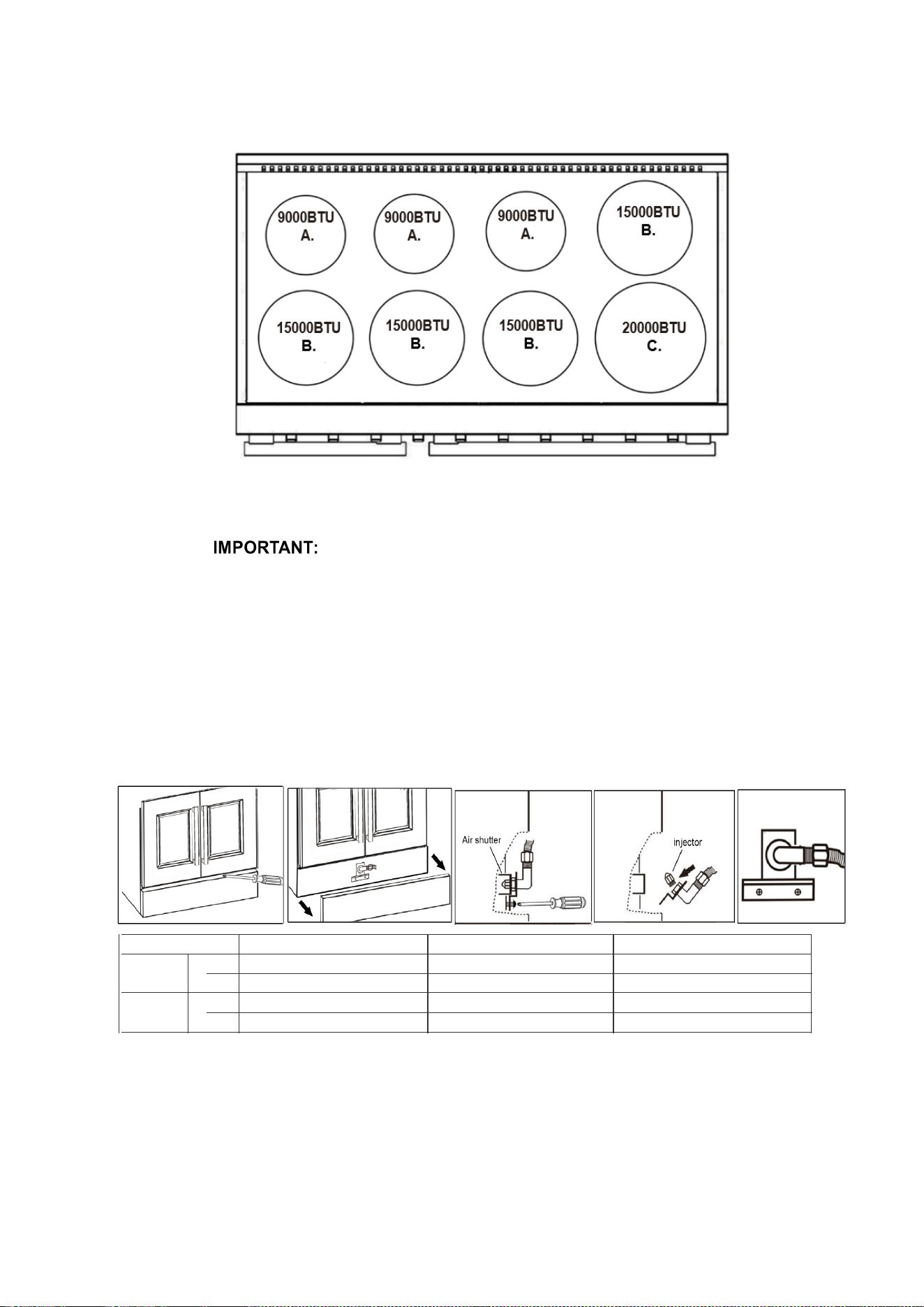

A. 9,000BTU B.15,000BTU C.20,000BTU
NG
1.33 1.75
1.38 x 2 (OUTER)
0.75 x 1 (CENTER)
LP
0.9 1.18
0.9 x 2 (OUTER)
0.46 x 1 (CENTER)
9000BTU
A.
9000BTU
A.
15000BTU
B.
15000BTU
B.
20000BTU
C.
20000BTU
C.
9000BTU
A.
9000BTU
A.
15000BTU
B.
15000BTU
B.
15000BTU
B.

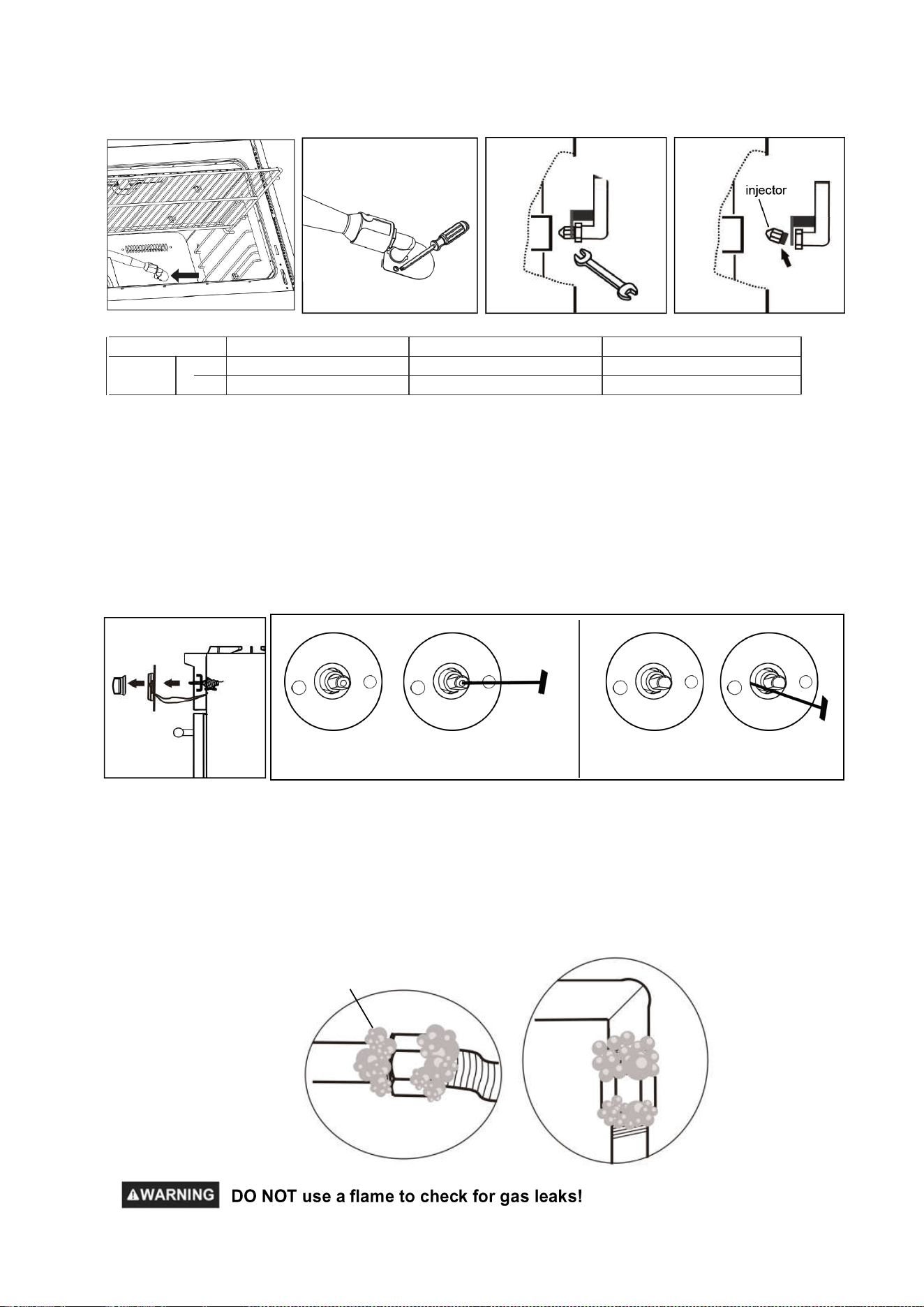

STEP 3: Oven Burner
a. Remove 3 screws between the kick panel and the oven door . Hold the toe kick panel on both
ends and slowly pull away towards the front.
b. Remove 2 screws which holding the nozzle bracket and locate the nozzle.
Replace with oven burner nozzle, size 1.32mm and tighten. Replace the nozzle bracket, aligning
the new nozzle into the air shutter of the oven burner.
Repeat upon steps for 18”oven (48" ranges only).
18''
Oven
1.7
1.12
Oven
NG
LPG
2.2
1.39
Model:FFSGS6444-30
2.2
1.39
Model:FFSGS6444-36
2.2
1.39
Model:FFSGS6444-48
NG
LPG
STEP 4: Broil Burner
a. Remove 2 screws which fixing the nozzle bracket and locate the nozzle.
b. Using a 5/8”or 19mm open wrench, remove the gas line from the nozzle holder. Using a ½”open
wrench, remove the nozzle from the orifice holder. Replace with 0.94 mm oven broiler nozzle.
24
Model:FFSGS6444-48
Save the nozzles removed from the range for future use.

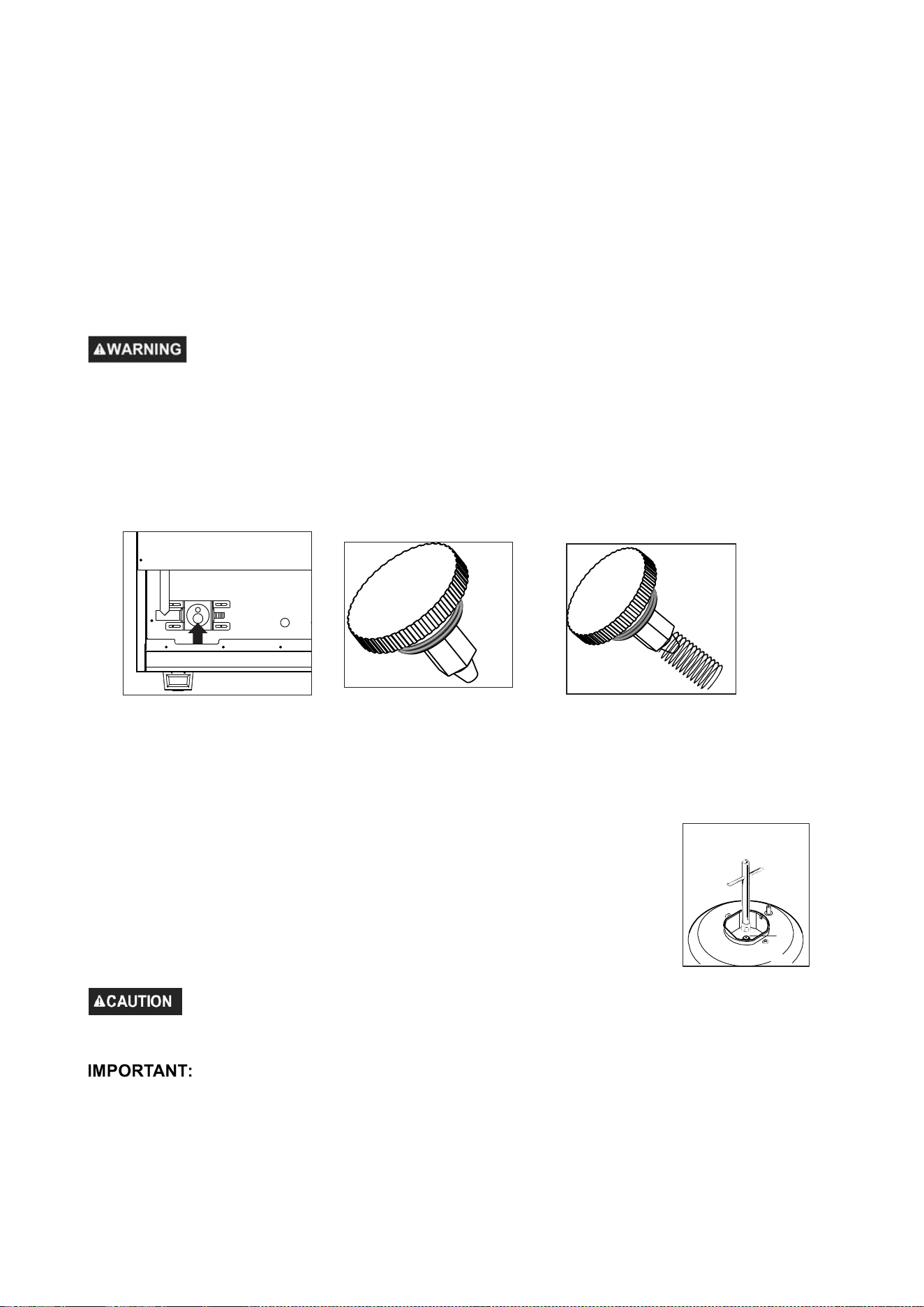

STEP 5: Gas Valve
a. Remove control knobs.
b. Using a flat screwdriver, adjust main burner bypass jets toward to 1/4 circle for LP until the flame
is normal. For 9,000btu and 15,000btu burners, please refer to fig.1, which is in the center of valve
axis. For 20,000btu burners, please refer to fig.2, which is in the left side of valve axis.
STEP 6: Reconnect Gas and Electrical Supply
Leak testing of the range shall be conducted according to the installation instructions provided with
the range.
Before operating the range after the gas conversion, always check for leaks with a soapy water
solution or other acceptable method in at gas connections installed between the gas inlet pipe of the
range, gas regulator, and the manual shut-off valve.
25
fig.1
fig.2
Use soapy solutions to check for leakage on all joints.
PLEASE NOTE: If the bypass jets screw is tighten too much, the igniter will go ON when burner is
set to minimum because the gas outlet is too low.
Broil
NG
LPG
1.38
0.94
Model:FFSGS6444-30
Model:FFSGS6444-36
Model:FFSGS6444-48
1.38
0.94
1.38
0.94
STEP 7: Air Shutter Oven Burner (no necessary)
The air shutter for the oven burner may need adjustment, especially if the unit has been converted
for use with LP. The approximate flame height at the oven burner is one inch (distinctive
inner blue flame).
To determine if the oven burner flame is acceptable:
a. With the kick plate removed, set the oven to bake at 350° F and observe the flame. If the flame
yellow in color, increase the air shutter opening size. If the flame is blue and lifting away from the
burner, reduce the air shutter opening size.
b. Turn off the oven and allow it to cool before adjusting the air shutter. To adjust, loosen the lock
screw, reposition the air shutter and tighten the lock screw. Retest the burner by repeating the
steps above. When the burner flame is a distinct blue colour and burning steadily, the air shutter is
adjusted correctly.
STEP 8: Installation of New Rating Label
Record the model and serial number on the LP / Propane Rating serial plate provided in this kit.
The information can be obtained from the existing Rating / Serial plate. Place the new plate as
close as possible to the existing Rating / Serial plate on the range.
Before moving the range, protect any finished flooring and secure oven door(s) closed to prevent
damage.
The oven door(s) can be removed to lighten the load or to fit the unit through a doorway. Only
remove if necessary. Do not remove the griddle or any other component. Door removal should only
be done by a certified installer or service technician.
Placement
Do not lift or carry the oven door by the door handle.
Use an appliance dolly to move the range near the opening. Remove and recycle
packing materials. Do not discard the anti-tip bracket supplied with the range.
Leveling
Raise the range to the desired height by adjusting the legs. The legs can be adjusted by
rotating the metal leg leg clockwise to raise and counter clockwise to lower.
Anti-Tip Bracket
To prevent the range from tipping forward, the anti-tip bracket must be installed. Refer to the
illustration on page 5.
Preparation
26
to the illustration.
be seated horizontally on the burner. Refer

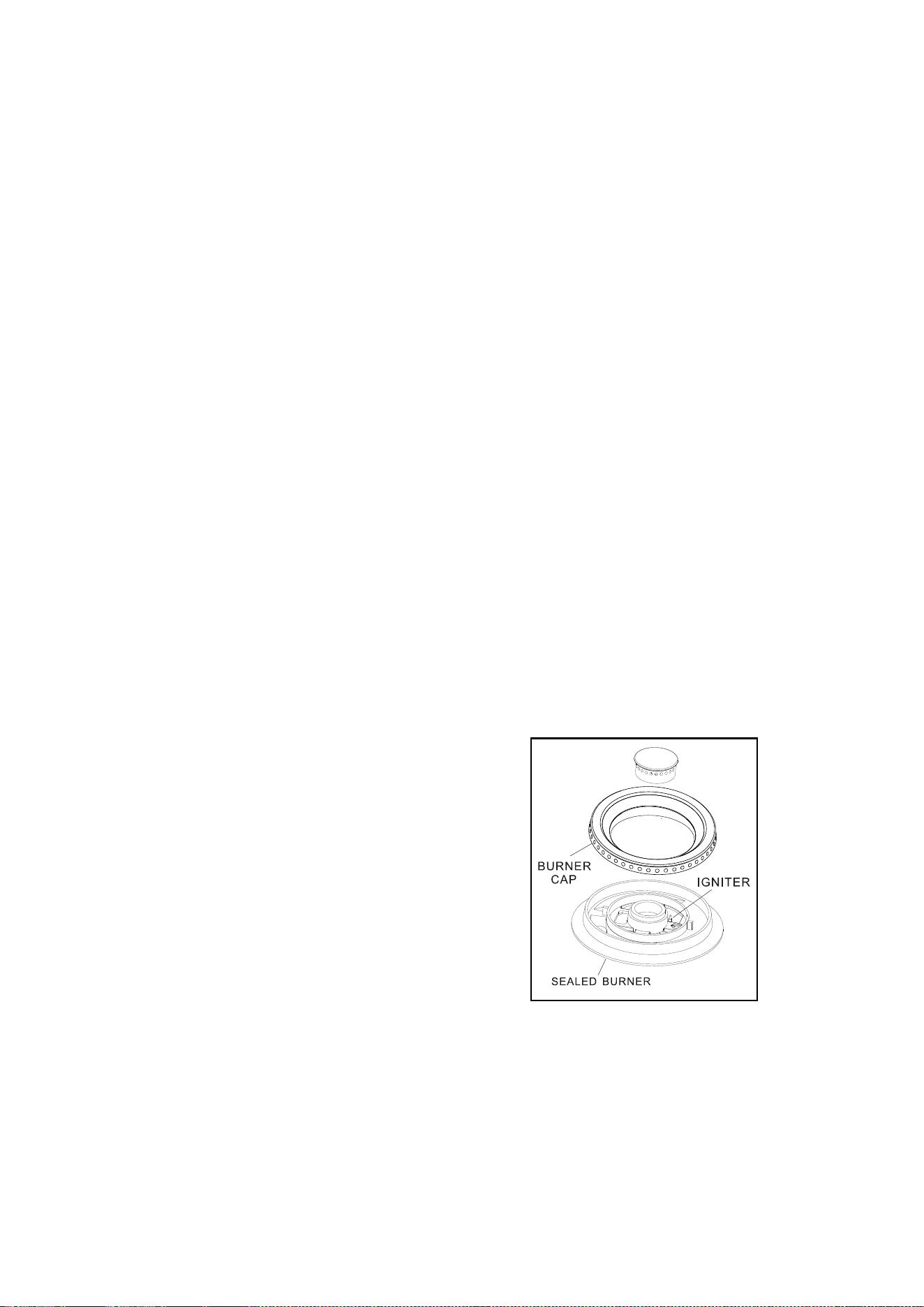

The burner design combines all burner
Gas Supply Connection
All connections to the gas piping must be wrench-tightened. Do not overtighten or allow pipes to
turn when tightening.
When all connections have been made, check that all range controls are in the “OFF” position and
turn on the main gas supply valve.
If a flexible metal connector is being used, verify it is not kinked, then attach the gas supply line to
the regulator on the range. Open the valve and check for leaks by placing a liquid detergent
solution onto all gas connections. Bubbles around connections indicate a gas leak. If a leak
appears, close the shut-off valve and adjust connections.
Leak testing of the appliance shall be conducted according to the manufacture’s instructions .Use
some soap water (50% water and 50% soap) or a leak detector at all joints and connections to
check for leaks in the system. Do not use a flame to check for gas leaks.
The appliance must be isolated from the building’s gas supply piping system by closing its
individual manual shut-off valve during any pressure testing of the gas supply piping system at test
pressure equal to or less than 0.5 psi (3.5kPa).
Getting Started
Before you start cooking, please take the following steps.
• Remove the exterior and interior packing.
• Remove the protective film on steel and aluminum parts.
• Clean the range thoroughly with hot water and a mild detergent. Rinse and dry with a soft cloth to
remove any residual oil and grease left over from the manufacturing process.
• Check that surface burner components are assembled correctly.
• Furnish the interior of the oven by inserting the shelves and tray.
Cooktop Operation
parts in one assembly. The burner cap must
27
Ignition
To light the cooktop burners, push and turn the appropriate control knob counter clockwise to a “Hi”
position. You will hear a clicking noise –the sound of the electric spark igniting the burner.
Once burner ignition has been achieved, turn the burner control knob to adjust the flame size. If
the knob stays at “Hi”, it will continue to click.
NOTE: When one burner is turned to the “Hi” position, all the burners will spark. Do not attempt to
disassemble or clean around any burner while another burner is on. Do not touch any burner cap,
burner base, or igniter while the igniters are sparking.
Hi Ignites the burners.
Simmer Melting small quantities, steaming rice, warming food, melting
chocolate or butter.
Low Melting large quantities.
Low-Medium Low-temperature frying, simmering large quantities, heating milk,
cream sauces, gravies.
Medium Sautéing and browning, braising, pan-frying, maintaining
slow boil on large quantities.
Medium-Hi High-temperature frying, pan boiling, maintaining slow boil
on large quantities.
Hi Boiling liquid quickly, deep frying.
• When you select the flame size, watch the flame when you turn the knob.
• Any flame larger than the bottom of the cookware is wasted.
• The flame should be steady and blue in color. Foreign material in the gas line may cause an
• If the gas does not ignite within four seconds, turn off the valve and allow at least five
minutes for any gas to dissipate. Repeat the lighting procedure.
• In the event of a power failure, the surface burners can be lighted manually. Hold a lighted match
near a burner and turn the knob counter-clockwise to “HI”. After burner lights, turn knob to the
desired setting.
Heat Settings:
Flame Size
orange flame during initial operation.
28
Simmer and Boil
A smaller flame will give the best results when simmering. Small flames offer precise cooking
performance for delicate foods, keeping food warm, melting chocolate or butter, and for cooking
over low heat for long period of time.
The highest (larger) flame settings provide the maximum heat that is available on your range. This
setting should be used for heavy cooking jobs such as boiling water and cooking pasts.
Please Note: Only the 20,000BTU burner can reach a simmer flame to the minimum setting.
Power Failure
Burner Grates
1.
2. Do not operat
e the burners without a pan or utensil on the
grills.

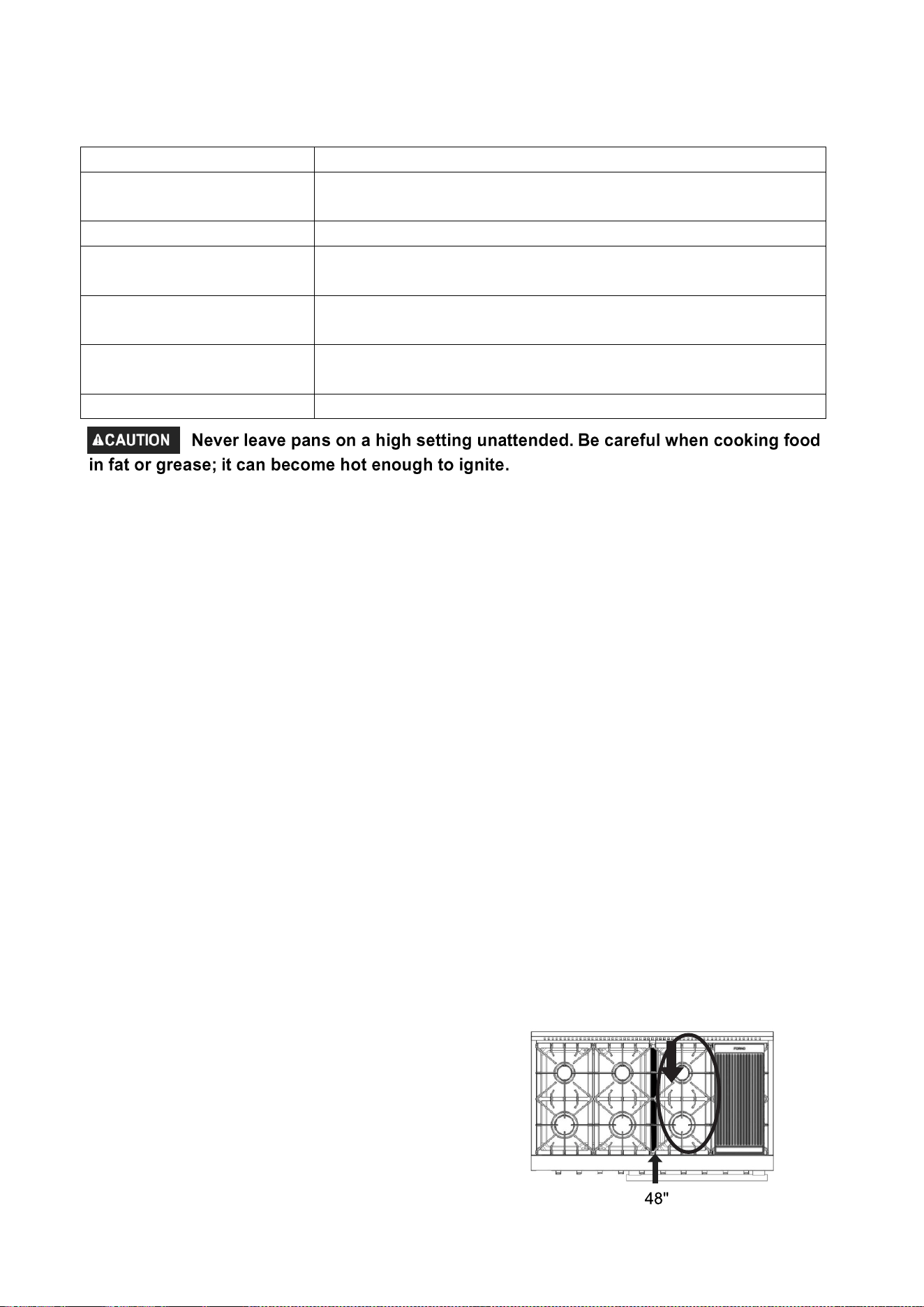

NOTE: On the 48" unit, there's a total of 4 grates, 3
that are the same and one
unique slightly wider than
the others. The unique grate has one side wider than
the other. The wider side needs to over lap the
middle junction of the cooktop, creating one
continuous grate.
The grills must be properly positioned before cooking. Improper installation of the grills may result in
scratching of the cooktop and / or poor combustion.
• To prevent the cooktop from discoloring or staining, clean cooktop after each use, and wipe up
acidic or sugary spills as soon as the cooktop has cooled.
• The sealed burners of your range are not secured to the cooktop and are designed to be
removed. Boil overs or spills will not seep underneath the cooktop. The burners should be cleaned
after each use.
The oven light is controlled by a push switch on the control panel.
The light can be used while cooking or cleaning the oven.
Check that power is disconnected from the electrical box before replacing the light bulb.
Allow the
oven to cool completely, then unscrew the light cover and remove the light bulb by unscrewing
it from the socket. Replace with a 40-watt halogen bulb.
Cooktop Cleaning Tips
Oven Light
29
Use of the Cook plate (Griddle)
Your FORNO range may have come with a standard reversible grill/griddle. For best use and
results please read below.
Pre-heat gently - Because the FORNO grill/griddle is so large it can take time for it to heat
evenly. Once it's up to temp it will stay there for a long time! We recommend starting with your
range set to low heat and gradually increasing the heat until you get to your target temp. It's
easier to make a grill hotter once it's already warmed up, by pre-heating slowly you can control
the heat more easily. To be efficient with your time you can start the pre-heating process while
you're getting your ingredients together. It typically takes 10-15 minutes to completely pre-heat
the FORNO grill/griddle this when pre-heating in this manner. Then enjoy your cooking
experience on the FORNO grill/griddle
Start low and don't overheat! - You might get the urge to turn your burners up to full blast the
first time you use the FORNO grill/griddle, but don't! Burners only need to be set to 1/3 to 1/2
power to heat the grill/griddle to over 500 degrees. Most chefs agree that the maximum cooking
temperature you'll ever need is 500-550 degrees for searing a steak.
1.
2.
Griddle
Operation (Available on the 48” models)
Before Using the Griddle
Rinse with clean water and wipe off to dry with soft, clean,
lint-free towel/cloth.
Clean the griddle thoroughly with warm, soapy water to remove
dust or any protective coating.
1.
Never cover any slots, holes or passages in the oven bottom or cover an entire rack with
materials such as aluminum foil. Doing so blocks air flow through the oven and may cause
carbon
monoxide poisoning. The aluminum foil lining may also trap heat, causing a fire hazard.
Do not use
aluminum foil on any porcelain surface. Doing so will damage the porcelain and affect
its
durability.
2. Position the racks before preheating the oven.
Oven Function
Natural Airflow Bake occurs when heat is transferred into the oven from the bake burners in the
bottom of the oven cavity. Heat is then circulated by natural airflow.This is a traditional bake setting.
Convection Bake
Heat is transferred from the bake burners in the bottom of the oven cavity to the oven cavity itself.
The convection fan at the rear of the oven then circulates it. This convection process provides a
more even heat distribution throughout the oven cavity.
Using multiple racks is possible for large-batch baking. Convection cooking is faster, can be
done at lower temperatures and provides more even temperatures than regular cooking.
Oven Operation
Oven Baking Tips
30
Convection Roast
The convection fan circulates the heated air evenly over and around the food. Using a broiler pan,
heated air will be circulated over the around the food being roasted. The heated air seals in juices
quickly for a moist and tender product, while at the same time creating a rich golden brown
exterior. When convection roasting, it is important that you use the broiler pan for best convection
roasting results. The pan is used to catch grease spills and has a cover to prevent grease
splatters.
Preheating
Allow the oven to preheat before placing food in the oven. Preheating is necessary for good results
when baking cakes, cookies, pastry and breads.
Remove any cookware
before preheating with the oven burner or the infrared broiler. Foods will stick
on hot metal. To preheat, turn the “Oven” selector knob to the desired temperature. Wait for the
red light indicator to turn off before placing your food inside the oven.
Note: Condensation or fogging on the inside of the oven door glass is normal while preheating and it
will usually evaporate by the end of the preheating cycle.
oven function
function
With temperature control off, the motorized fan in the rear of the oven circulates air. The fan
accelerates natural defrosting of the food without heat. To avoid illness and food waste, do not
allow defrost food to remain in the oven for more than two hours without being cooked.
With the temperature control on 175˚F, warm air is radiated from the bake burners in the bottom of
the oven cavity and is circulated by a motorized fan in the rear of the oven. Over a period of time,
the water is removed from the food by evaporation. Removal of water inhibits growth of
microorganisms and retards the activity of enzymes.
Broiler Operation
Note: Door must be closed during broiling operation.
The broil burner is located at the top of the oven. This burner heats the metal screen until it glows. The
glowing screen produces heat, searing the outside of broiled foods and sealing in juices. Broiling is a
method of cooking tender cuts of meat directly under the broiler in the oven.
Oven broiling is done with the oven door closed. It is normal and even necessary to have some smoke
to give the food a broiled flavor.
1. Place the broiler pan insert on the broiler pan. Then place the food on the broiler pan insert.
2. Arrange the interior oven rack and place the broiler pan on the rack. Be sure to center the
broiler pan and position it directly under the broil burner. If preheating the broil burner first, position
the broiler pan after the broil burner is preheated.
3. Turn the knob to Broil.
The oven indicator light will remain on until the knob is turned to the off position or the
temperature control cycles off.
Position the rack at the correct level. The farther away the food is from the broiler, the more well
done it will be inside. Preheating the oven is necessary. Push in and turn the knob to BROIL. Turn
the food over at the halfway point. Always pull the rack out to the “stop” position before turning or
removing food.
1. After each use, and once cooled, clean splatters and spills immediately.
2. Do not allow foods with a high sugar or acid content to remain on the oven cavity surface.
3. Use an oven cleaner to clean the oven cavity.
Convection Defrost
Convection Dehydrate
Oven Cleaning Tips
31
Setting Broil
The “Oven” selector knob controls the Broil feature. When broiling, heat radiates downward from the
oven broiler for even coverage. The Broil feature temperature is 500˚F (260˚C).
Used together, the broil pan (not provided) and insert allow dripping grease to drain and be kept
away from the high heat of the oven broiler. DO NOT use the broil pan without the insert (not
provided). DO NOT cover the broil pan insert with foil. The exposed grease could catch fire.).
To set the oven to Broil:
Stainless steel
Use a non-abrasive stainless steel cleaner and apply with a soft lint-free cloth. To
bring out the natural luster, lightly wipe surface with a water-dampened
microfiber cloth followed by a dry polishing cloth. Always follow the grain of
stainless steel.
Burner pan Remove surface debris before cleaning to help speed up the cleaning process
and decrease the chance of scratching the surface during cleaning. Using mild
abrasive cleaners or spray degreasers, clean and rinse the surface and dry
immediately to avoid streaking. To clean hard water stains, use white vinegar
and water. Rinse and dry immediately.
Control knobs Using a damp cloth, wipe with a mild detergent or spray degreaser; rinse and
dry. Do not place in dishwasher.
Oven interior Use mild abrasive cleaners, spray degreasers. Use a razor blade to gently lift
baked on foods from oven cavity and window. For stubborn stains, spray with a
mild abrasive cleaner or spray degreaser. Wash the entire oven cavity with soap
and water to remove all cleaning chemicals.
Oven racks
To clean the upper rack, use mild detergent and a scouring pad. Rinse and dry.
To clean the bottom pan, discard grease and wash with hot water and mild
detergent. Rinse and dry. The stainless steel upper rack is dishwasher safe.
However, do not place the porcelain-coated rack or pan in dishwasher.
Care and Cleaning Recommendations
Oven Thermostat & Cooking times
The numbers printed on the control panel indicate the increasing oven temperature value (°F).
To regulate the temperature, set the desired number on the control knob indicator.
Note: The BROIL position is only to turn on the broil burner.
Cooking times can vary according to the type of food, its density and its size. It is advisable to
watch when cooking for the first time and to check results since similar results are obtained when
preparing the same dishes under the same conditions.
Use the thermostat to control the temperatures, and control the time according to the cooking
guides.
32
Burner grates Remove and place on a flat surface near the sink. Clean with hot water and mild
detergent or paste of baking soda and water. Do not immerse in water. Towel dry
and rub lightly with olive oil. This help the grates keeping their shine and avoid any
rust from appearing. Any leftover of water on the grates might result in rust or
marks.
Surface burners
To clean hard water stains, use white vinegar and water. Rinse and dry
immediately. Allow to cool. Use mild detergent or spray degreaser to clean. Rinse
with water and towel dry. NOTE:
Pro-style gas range require a high level of
maintenance, if the orifices are clog or that the burners dirty, they might stop
working. If it's the case, remove them from, clean them thoroughly and remove
any excess of water. Forno is not responsible for any maintenance related issues.
Range does not operate
Check that power is on.
Check that electrical power to range and home circuit breaker
is on.
Burners Do Not Light Or Spark
Randomly
Electrical plug is not plugged into a live power outlet.
Gas supply not turned on.
Burner parts not replaced correctly.
Holes in the sim
mer rings or slits in the burner rings are
clogged.
Clogged nozzles, or wet burners or electrodes.
A fuse in your home may be blown or circuit breaker tripped.
Burners Have Yellow Or
Yellow-Tipped Flames
Burner parts not replaced correctly.
A. Yellow flames: Call for service.
B. Yellow tips on outer cones: Normal for propane (LP) gas.
C. Soft blue flames: Normal for natural gas.
If burner flames look like (A), call for service. Normal burner
flames should look like (B) or (C), depending on the type of
gas.
Burner Flames Very Large Or Yellow
The range may be connected to the wrong fuel type. Contact
the person who installed your range or made the conversion.
Burner Flames Contain Orange Flickers
Airborne dust; cool-mist humidifier; debris on or inside burner.
Oven Lights Do Not Work
The light bulb is defective. Replace the bulb.
Oven Racks Are Hard To Slide
Do not spray with a cooking spray or other lubricant sprays.
See Full extension oven racks in the Care and Cleaning
section.
Food Does Not Bake Or Roast
Properly
The oven controls are improperly set. See the Baking or
Roasting section.
Oven not preheated for a long enough time.
Troubleshooting Tips
Before you call for service
33
Incorrect cookware or cookware of improper size being used.
Racks in the wrong position. See the Baking or Roasting
section.
Use a foil tent to slow down browning during roasting.
Oven thermostat needs adjustment. See the Oven thermostat
adjustment section.
Food Does Not Broil Properly This model is designed for closed door broiling only. Close the
door. Always broil with the door closed.
The oven controls are not set at BROIL. See the Broiling
section.
Improper rack position.
Cookware is not suited for broiling. Use the broiling pan and
rack that came with your oven.
Aluminum foil used on the broiling pan and rack has not been
fitted properly and slit as recommended.
Oven Temperature Too Hot Or Too
Cold
Need to adjust the oven knob temperature setting.
Steam From The Vent
When using the convection mode, it is normal to see steam
coming out of the oven vent. As the number of racks or amount
of food being cooked increases, the amount of visible steam
will increase.
Burning Or Oily Odor Emitting From
The Vent
This is normal in a new oven and will disappear in time.
Strong Odor
This is temporary. An odour caused by the insulation around
the inside of the oven is normal for the first few times the oven
is used.
Convection Fan Not On All The Time
The convection fan (depending on the function you are using)
may cycle on and off until the function is over or the door is
opened for optimized performance.
This is normal. In addition, the convection fan may cycle in the
clockwise and counter clockwise direction until the function is
over or the door is opened.
Condensation Or Fogging On The
Inside of the Door Glass
Condensation or fogging on the inside of the oven door glass is
normal during the preheating of the oven and will evaporate
usually by the end of the preheating cycle.
Cracking Or Popping Sound During
Cleaning
This is normal. This is the sound of the metal heating and
cooling during both the cooking and cleaning functions.
Excessive Smoking Occurs During
Cleaning
The oven is heavily soiled. Turn the Oven Mode Selector and
the Temperature knobs to OFF. Open the windows to rid the
room of smoke. Wait until the locked door indicator light goes
off. Wipe up excess soil and do the cleaning again.
34
PLEASE READ BEFORE USING YOUR OVEN
For Forno Commercial Style Ranges Models:
FFSGS6444, FFSGS6356, FFSGS6460, FFSGS6387,
FFSGS6439, FFSGS6325
Useful information for your oven:
• This oven is very powerful.
•
To avoid burns, please use oven mitts when manipulation oven racks and be careful not
to touch the oven door when in use.
•
All knobs may reach 123F when oven is in use – although the standard regulations is max 148F
please handle with care.
•
For better Broil efficiency, pre-heat to 500F for 8 Minutes.
Cooking tips:
1- Pizza: Place rack on bottom level at 375F for 16 minutes then broil 2 to 3 minutes on top level.
2- Vegetables: Place rack second from bottom at 350F for 14 to 17 minutes.
3- Place rack on middle level at 350F for:
Fish: 4 to 6 minutes
Meats
10oz: 9-14 minutes
Chicken 8oz: 14-19 minutes
4- Turkey and Braised Meats:
Place rack at bottom level at 350F, no need to rise the cooking temperature above 350F
for the first 20 minutes.
forno.ca
1-866-231-8893
info@forno.ca
35

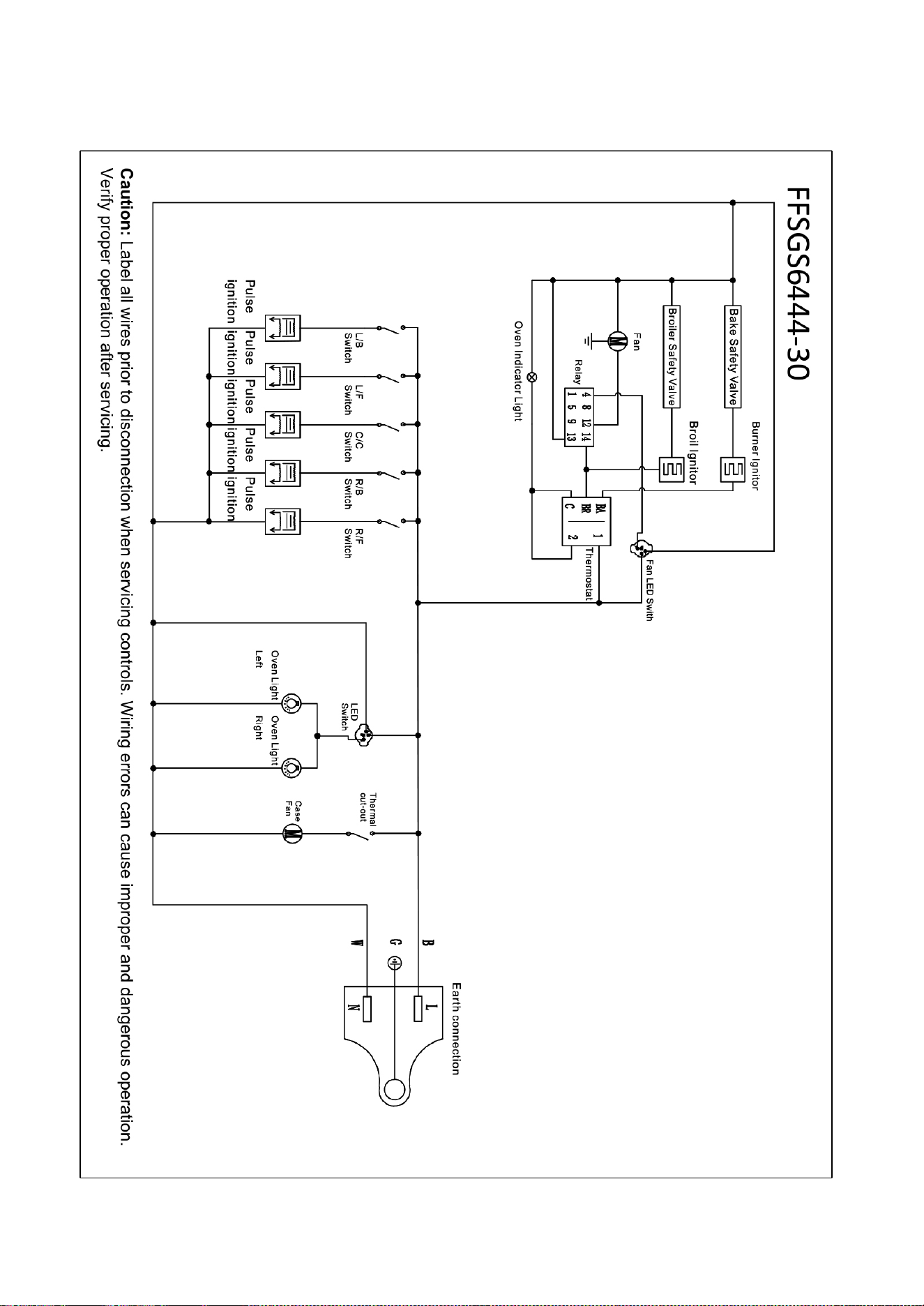

Wire Diagram
36

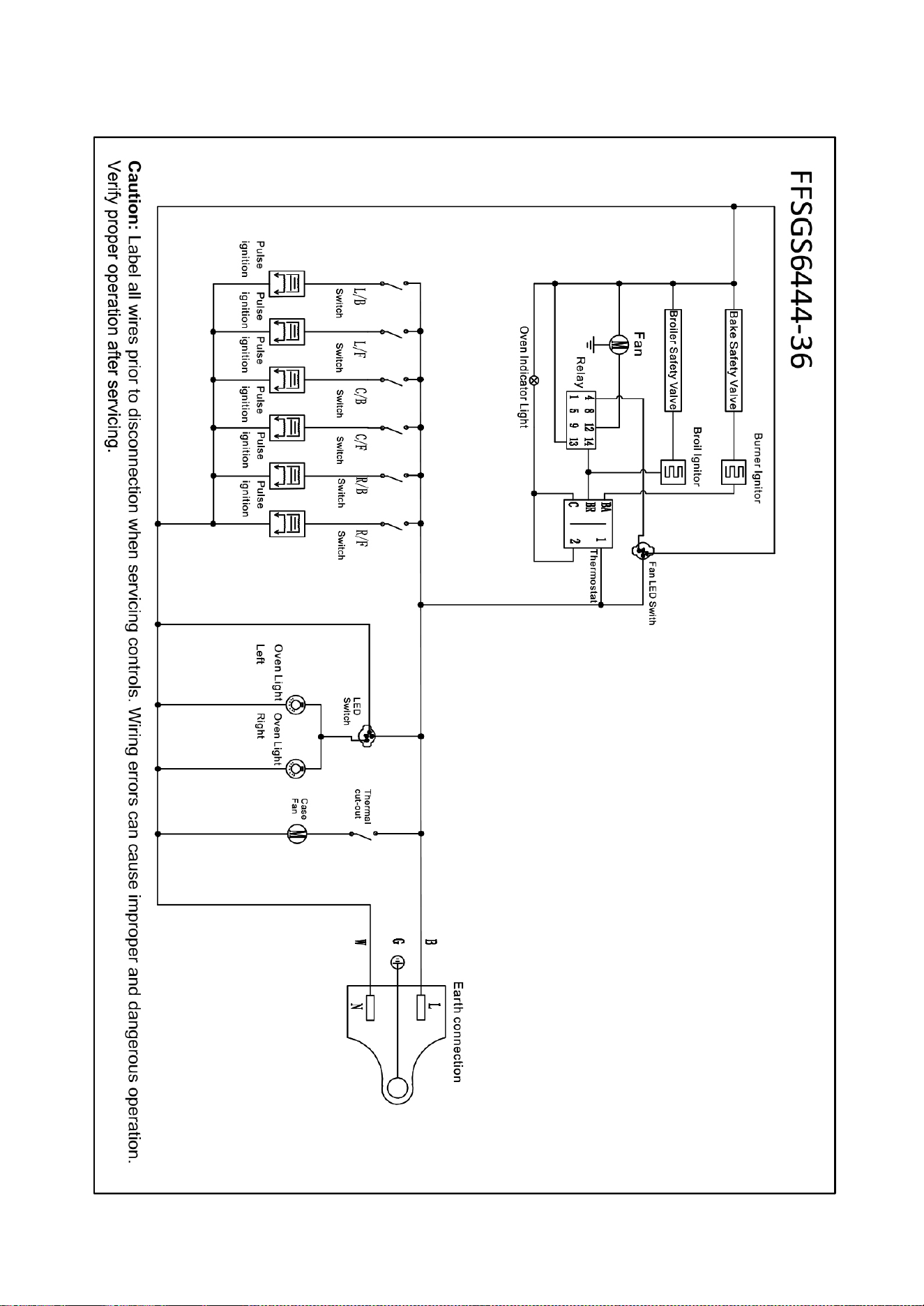

37

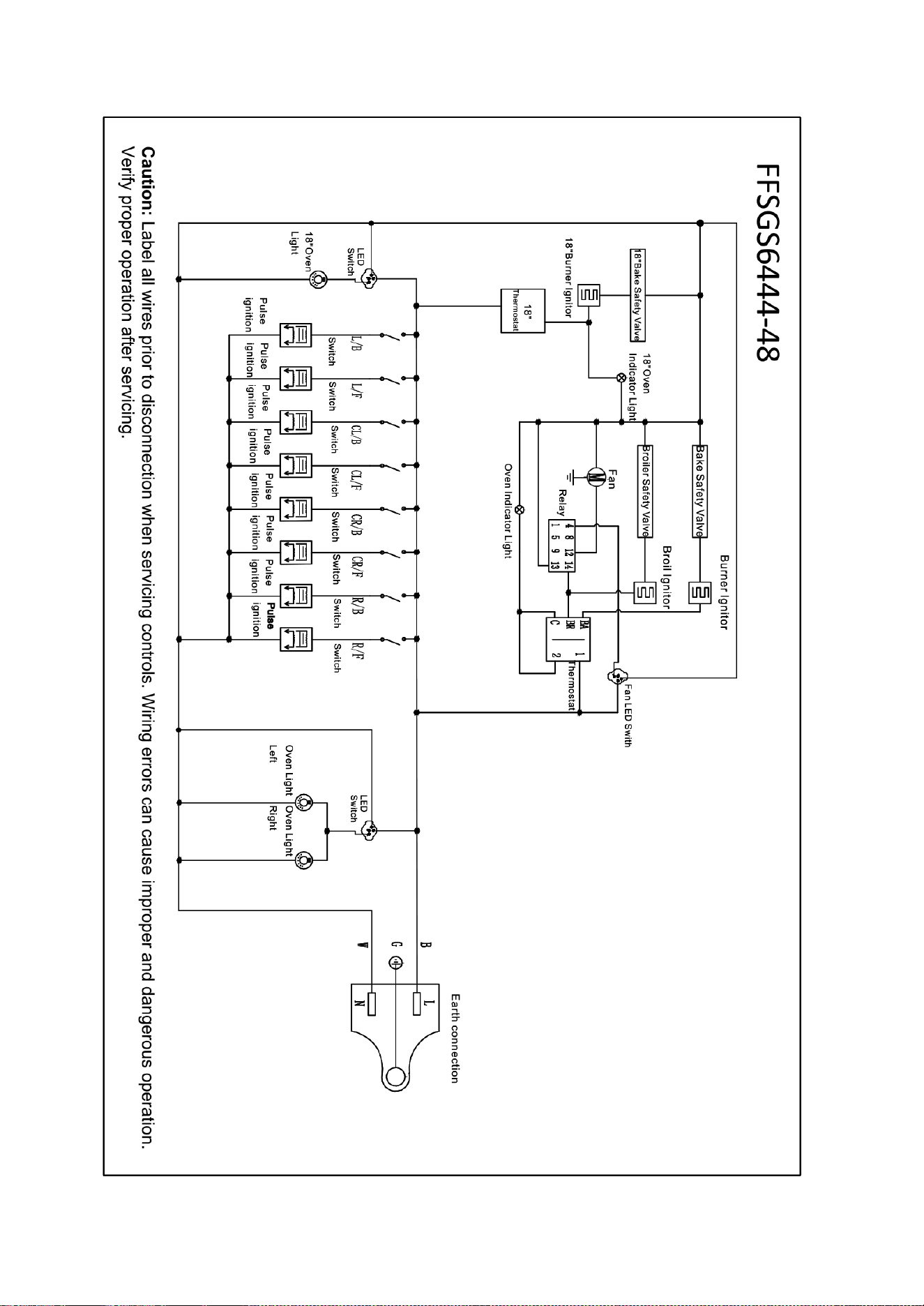

38
2022.12 C
