Back Vent Applications (Page 1 of 4)
Hood Model/Hood Style
Back Vent
Diagram
K250
(3-1/4” x 10”)
B100
(6” Round)
B200
(8” Round)
B300
(8” Round & 6” Round)
B400
(Two 8” Round)
K-Series Under Cabinet Hood and Liner Insert A Standard n/a n/a n/a n/a
6” Under Cabinet (Excluding K-Series) B n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
9” Under Cabinet B n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
CWEH6-K B VP559 n/a n/a n/a n/a
CWEH9 B n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
CWLH9 B n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
GTH-K D VP559 n/a n/a n/a n/a
XLH12 with 10” x 10” Duct Cover D n/a n/a VP515 or VP561 n/a n/a
ZTH D n/a n/a VP515 or VP561 VP513 & VP515 or VP561 n/a
18” Tall Wall Mount B n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
18” Tall Wall Mount - Special Deck at 9” C n/a VP513 VP561* VP513 & VP561* 2-VP561*
14” Tall Eurostyle Wall Mount (PD, SLD) D n/a VP513 n/a n/a n/a
18” Tall Eurostyle Wall Mount (EP, NEP, SEP) D n/a n/a VP561* n/a n/a
18” Tall Eurostyle Wall Mount (EPT, NEPT, SEPT) C n/a n/a n/a VP513 & VP515 or VP561 n/a
30” Tall Wall Mount C n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
CWH B n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
TILT-Out (TLH) C n/a VP513 VP561* n/a n/a
JCH/A1 Designer Series D n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
JCH/B1 Designer Series D n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
JCH/C1 Designer Series C n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
JCH/C2 Designer Series C n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
JDH/C1 Designer Series C n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
JDH/C2 Designer Series C n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
JDH/D1 Designer Series C n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
12” Tall Magic Lung Wall Mount Liner Insert B n/a VP513 VP515 or VP561 VP513 & VP515 or VP561 2-VP515 or 2-VP561
*Can also use VP515(s) with duct cover (elbow(s) will extend above the top of the hood.
Note: This chart outlines the most common applications. Contact Vent-A-Hood or your distributor for more information.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE (Rev. 04/11a)

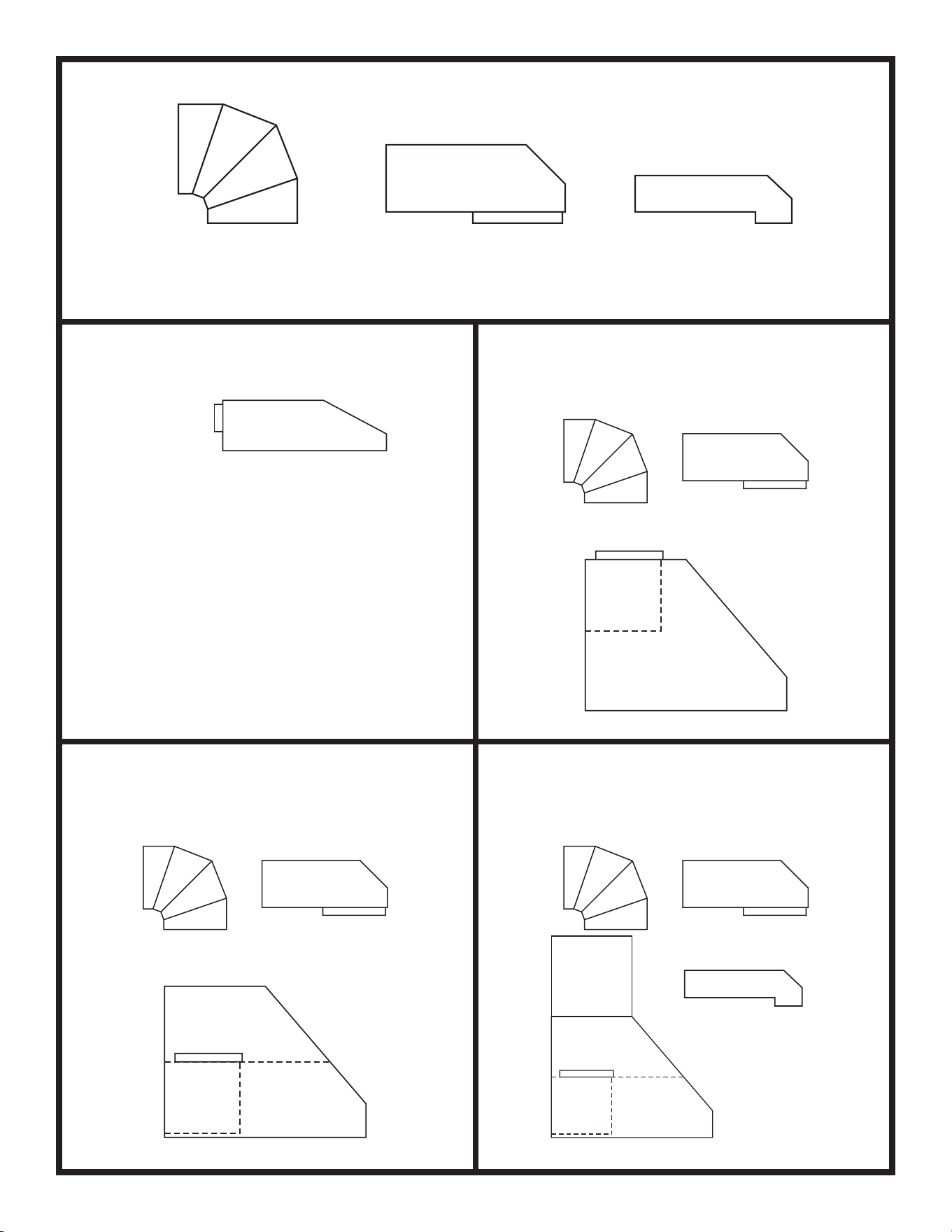

Diagram A - Direct Back Vent
(Drawing Not To Scale)
Side View
3 1/4” x 10”
Rectangular
Diagram B - Off the Top
(Drawing Not To Scale)
Side View
VP513 - 6” Round
VP515 - 8” Round
VP561 - 8” Round
to 6” x 8 1/2” Rectangular
8” Round
Diagram C - Within the
Height of the Hood
(Drawing Not To Scale)
Side View
VP513 - 6” Round
VP515 - 8” Round
VP561 - 8” Round
to 6” x 8 1/2” Rectangular
8” Round
Diagram D - Off the Top
Within the Duct Cover
(Drawing Not To Scale)
Side View
VP513 - 6” Round
VP515 - 8” Round
VP561 - 8” Round
to 6” x 8 1/2” Rectangular
8” Round
VP559 - 3 1/4” x 10”
Rectangular
VP561: 8” Round to 6” x 8 1/2”
Rectangular - 7” Tall
VP559: 3 1/4” x 10” - 4 1/4” TallVP513: 6” Round - 8 1/2” Tall
When Fully Adjusted to 90 Degrees
VP515: 8” Round - 10 3/4” Tall
When Fully Adjusted to 90 Degrees
Elbow and Transition Heights
10”
4 ¼”
3 ¼”
Hood C/L
Level of
Blower Deck
6”
8 ½”
3 ¼”
Hood C/L
Level of
Blower Deck
8”
10 ¾”
Hood C/L
Level of
Blower Deck
6”
7”
Hood C/L
Level of
Blower Deck
8 ½”
VP513 - 6” Round
VP515 - 8” Round
VP561 - 8” Round
to 6” x 8 1/2” Rectangular
VP559 - 3 1/4” x 10”
Rectangular

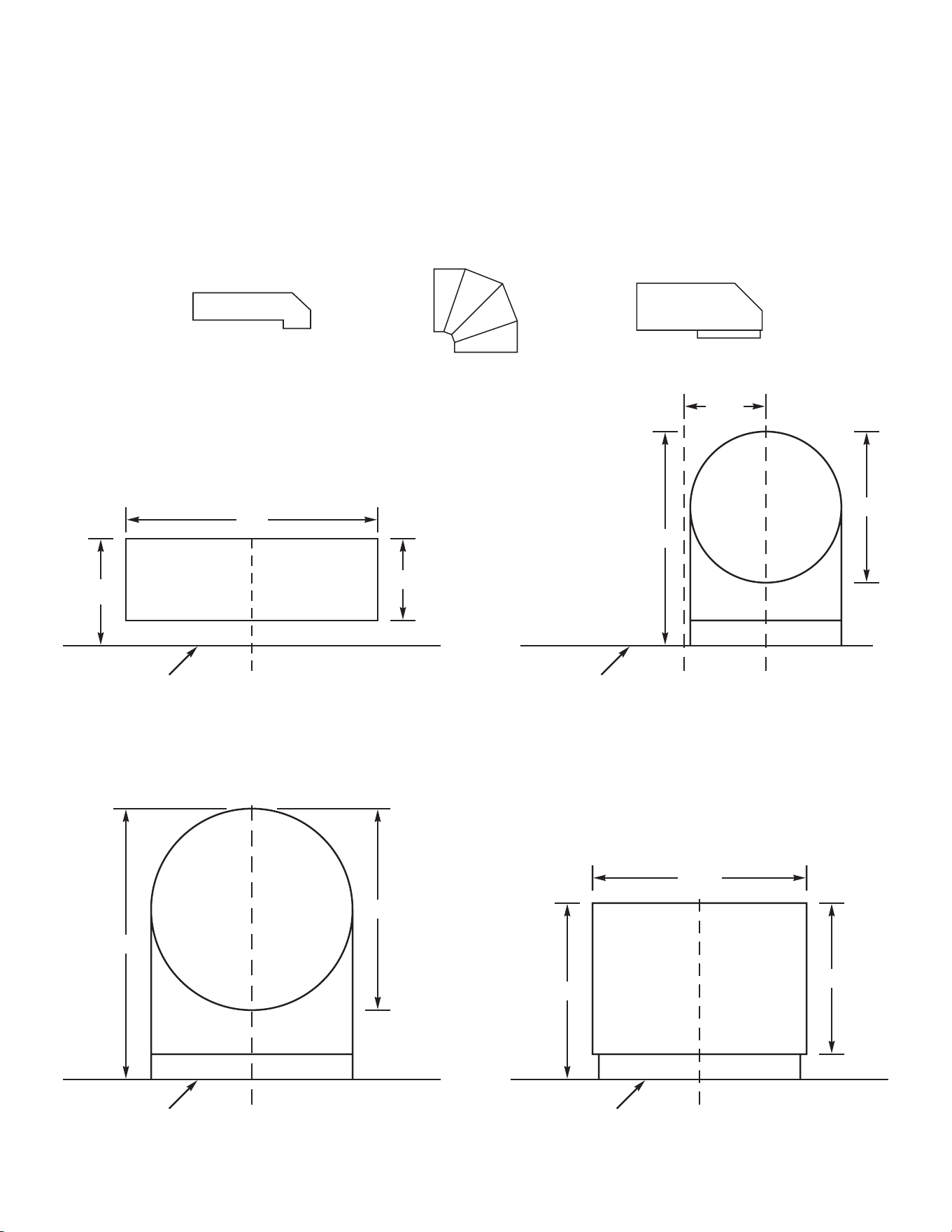

Back Vent Applications (Page 2 of 4)
NOTE: Excluding the SLH6-K, Under Cabinet Range Hood and the KHSLD Liner Insert, all Vent-A-Hood
range hoods duct out the top and can be back-vented only by use of transitions and/or elbows.
Transition Heights
VP559: 3 1/4” x 10” Rectangular - 4 1/4” Tall
VP513: 6” Round - 8 1/2” Tall When Adjusted To 90 Degrees
VP515: 8” Round - 10 3/4” Tall When Adjusted To 90 Degrees
VP561: 8” Round To 6” x 8 1/2” Rectangular - 7” Tall
K Series With VP559
Installed (Back View)
B100 Blower Outlet With VP513
Installed (Back View)
B200 Blower Outlet With VP515
Installed (Back View)
B200 Blower Outlet With VP561
Installed (Back View)
8”
10 ¾”
6”
8 ½”
Level of
Blower Deck
Hood C/L
14 �⁄�”
7 �⁄��” 7 �⁄��”
6”
7”
8 ½”
6”
8 ½”
Level of
Blower Deck
Hood C/L
14 �⁄�”
7 �⁄��” 7 �⁄��”
VP513 - 6” Round
VP515 - 8” Round
VP561 - 8” Round
to 6” x 8 1/2” Rectangular

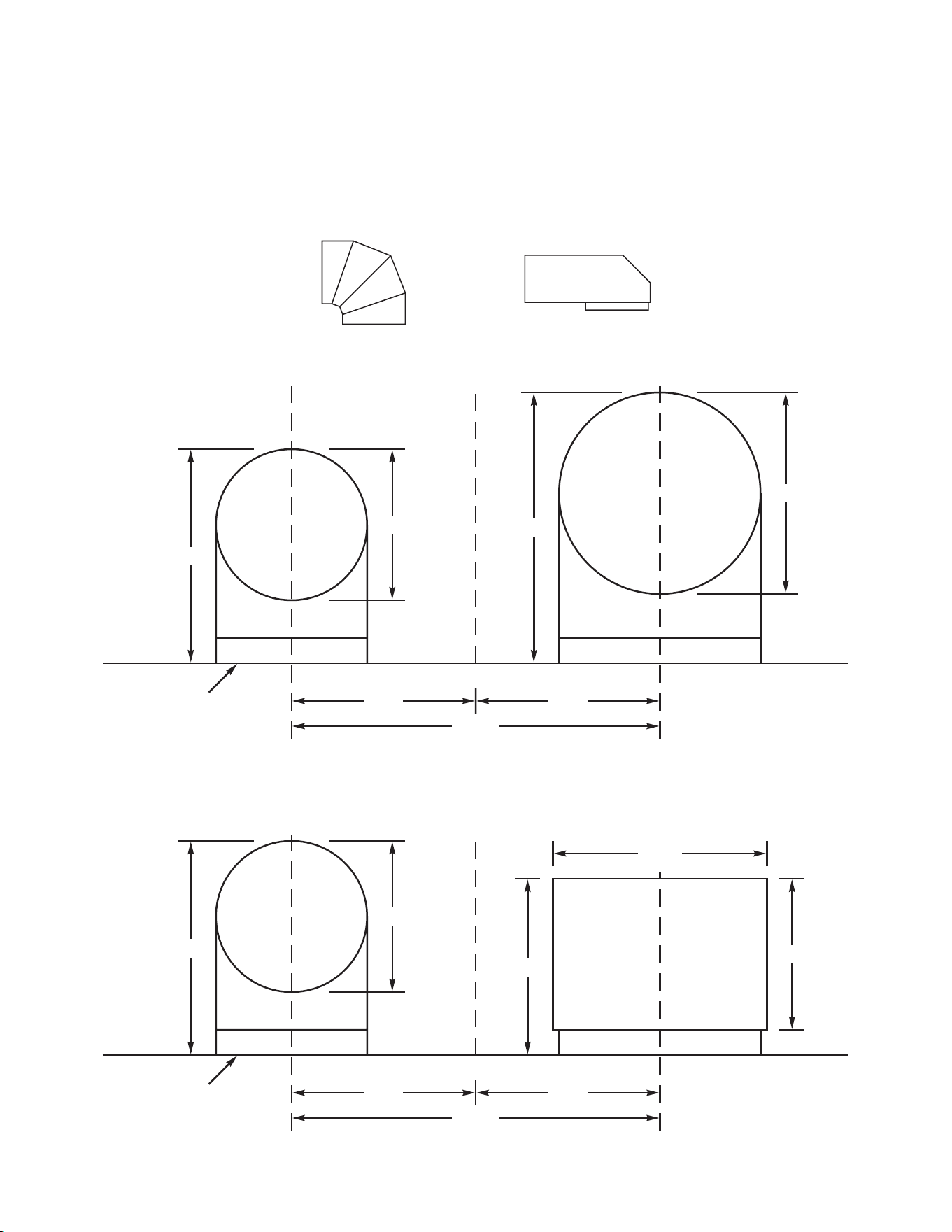

Back Vent Applications (Page 3 of 4)
NOTE: Excluding the SLH6-K, Under Cabinet Range Hood and the KHSLD Liner Insert, all Vent-A-Hood
range hoods duct out the top and can be back-vented only by use of transitions and/or elbows.
Transition Heights
VP513: 6” Round - 8 1/2” Tall When Adjusted To 90 Degrees
VP515: 8” Round - 10 3/4” Tall When Adjusted To 90 Degrees
VP561: 8” Round To 6” x 8 1/2” Rectangular - 7” Tall
B300 Blower Outlets With VP513
And VP561 Installed (Back View)
B300 Blower Outlets With VP513
And VP515 Installed (Back View)
8”
10 ¾”
Level of
Blower Deck
Hood C/L
22”
11” 11”
8”
10 ¾”
8 ½”8 ½”
6”
7”
Level of
Blower Deck
Hood C/L
22”
11” 11”
6”
7”
VP513 - 6” Round
VP515 - 8” Round
VP561 - 8” Round
to 6” x 8 1/2” Rectangular

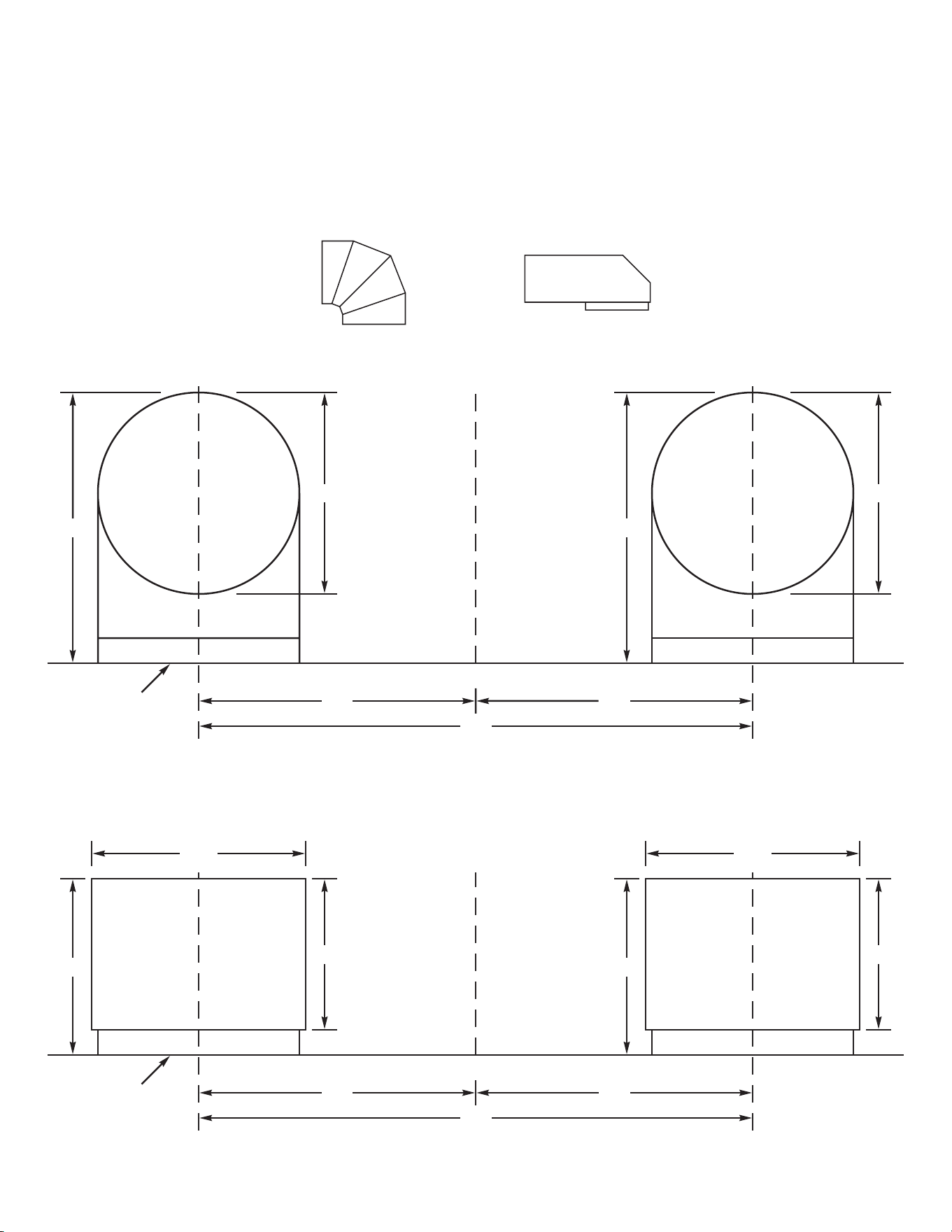

Back Vent Applications (Page 4 of 4)
NOTE: Excluding the SLH6-K, Under Cabinet Range Hood and the KHSLD Liner Insert, all Vent-A-Hood
range hoods duct out the top and can be back-vented only by use of transitions and/or elbows.
Transition Heights
VP513: 6” Round - 8 1/2” Tall When Adjusted To 90 Degrees
VP515: 8” Round - 10 3/4” Tall When Adjusted To 90 Degrees
VP561: 8” Round To 6” x 8 1/2” Rectangular - 7” Tall
B400 Blower Outlets With 2 VP561s
Installed (Back View)
B400 Blower Outlets With 2 VP515s
Installed (Back View)
