UR35 -OAWA Datasheet
奥

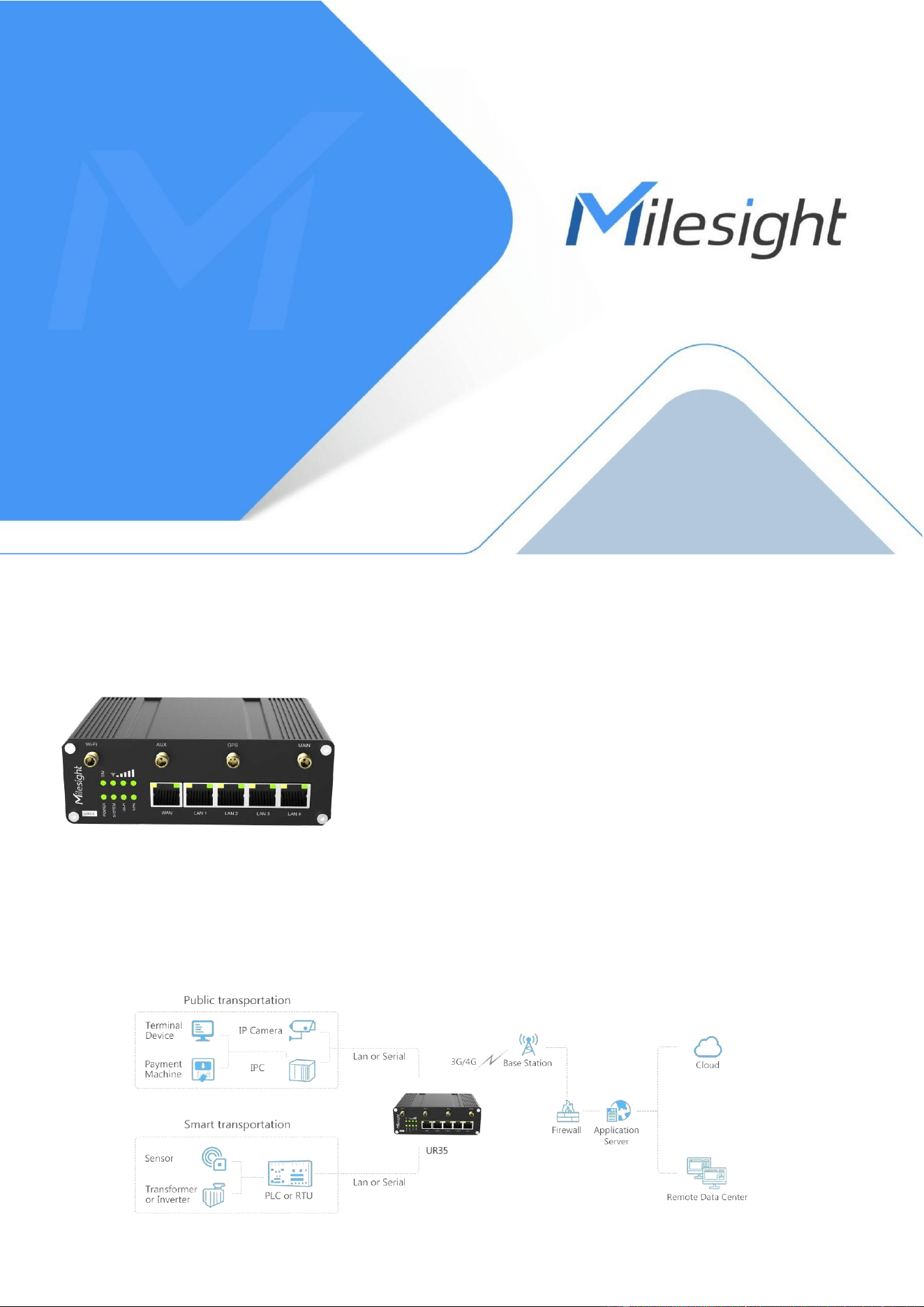

◆ Application Example
Pro Series
In du s t r i al Ro u t er
UR35-OAWA
UR35-OAWA is a cost-effective industrial cellular router
with embedded intelligent features that are designed for
multifarious 4G LTE carrier suppor ted make this drop-in
connectivity a great help for operators in maximizing
uptime. Integrating embedded cellular modem and dual SIM
function, the UR35-OAWA provides 4G cellular network with
maximum 15 0Mbps download and 50 Mbps uplink, italso
has 5 fast Ethernet p orts and supports Wi-Fi that
compliance with 802.11b/g/n stan dard. All these
capabilities deliver users an uninterrupted internet a ccess.
Easy deployment and comprehensive remote device
management makes UR35-OAWA versatile in most of IoT/
M2M applications.
◆
UR35 -OAWA Datasheet
Benefits
-
-
-
-
-
-
◆ Security &
NXP industrial grade processor
Global 4G LTE network with dual SIM cards
for backup between multiple
carrier networks
Embedded Python SDK for secondary
development
Flexible modular design provides users
with different connection modules like
Ethernet, I/O, serial port, Wi-Fi, GPS for
connecting diverse field assets
Rugged enclosure, optimized for DIN rail or
shelf mounting
3-year warranty included
Reliability
-
-
-
-
◆ Easy
Automated failover/failback between
Ethernet, Cellular (dual SIM) and Wi-Fi
Secure transmission with VPN tunnels like
IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
/WireGuard/ZeroTier
Embeds hardware watchdog to
automatically recover from various failure,
ensure highest level of availability
Establishes a secured mechanism on centr
alized authentication and authorization of
device access by supporting AAA (Radius,
TACACS+, LDAP, local Authentication) and
multiple levels of user authority
Maintenance
- DeviceHub and Milesight Development
Platform provide easy setup, mass
configuration, and centralized
management of remote devices
- The user-friendly web interface design
and more than one option of upgrade
help administrator to manage the device
as easy as pie
- WEB GUI and CLI enable the admin to
achieve simple management and quick
configuration among a large quantity of
devices
- Efficiently manage the remote routers on
the existing platform through the
industrial standard SNMP and TR069
◆ Capabilities
-
-
-
-
-
Link remote devices in an environment
where communication technologies are
constantly changing
Support 802.11 b/g/n, as AP or client
mode, to establish versatile wireless
network or be the backup WAN link for
4G
Support rich protocols like SNMP, TR069,
MQTT, Modbus bridging, RIP, OSPF
Provide power to 802.3af/at standard
PoE devices and support power
management
Support wide operating temperature rangi
ng from -40°C to +70°C/-40°F to +158°F
UR35 -OAWA Datasheet
SIM 2 × SIM Slot (Mini SIM-2FF), 1.8V/3V
Ethernet Interface
Positioning Accuracy 2.5m CEP
(Open
Air)
Extendable Storage 1 × Micro SD Slot
◆ Hardware Specifications
CPU ARM Cortex-A7，528 MHz
Memory 128 MB DDR3 RAM and 128MB Flash
Network
4G LTE (CAT 4)/GSM (Differ as regions)
Antenna Connector
2 × 50 Ω SMA Connectors (Center PIN: SMA Female)
Numbers 5 × RJ45 10/100 Mbps
Property 1 × WAN + 4 × LAN
Mode Full or half duplex (Auto-Sensing)
Ethernet Isolation 1.5 kV RMS
Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: RP-SMA Female)
Standards IEEE 802.11 b/g/n，2.4GHz
802.11b: 16 dBm +/-1.5 dBm (11 Mbps)
Tx Power 802.11g: 14 dBm +/-1.5 dBm (54 Mbps)
802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7)
Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
Technology GPS/GLONASS/BDS/Galileo/QZSS
Numbers 1 × RS232 + 1 × RS485 (2 × RS485 Hardware Customizable)
Connector 3.5mm Terminal Block
Numbers 1 × DI + 1 × DO, Galvanic Isolation
Connector 3.5mm Terminal Block
Digital Input Dry Contact
Digital Output Wet Contact, maximum 0.3A@30VDC
PoE (Optional) 4 × 802.3 af/at PoE PSE on LAN Ports
GNSS (Optional)
Baud Rate 300bps to 230400bps
DI/DO
Hardware System
UR35 -OAWA Datasheet
Power Consumption Typical 3.9 W, Max 4.6 W (In Non-PoE mode)
Relative Humidity 0% to 95%
(non
-
condensing)
at 25°C/77℉
Reset Button 1 × RESET
LED Indicators 1 × POWER, 1 × SYSTEM, 1 × SIM, 1 × Wi-Fi, 1 × VPN, 3 × Signal strength
1 × 2-pin 5.08 mm Terminal Block, with Surge-Protection and Reverse
Power Connector
Polarity Protection
Power Input 9-48 VDC(48V is need for PoE)
Power Output
(Optional)
4 × 802.3 af/at PoE PSE on LAN Ports
Per Port 30W Max., Total 60W Max.
Ingress Protection IP30
Housing & Color Metal, Black
Weight 485 g
Dimension 135 x 103 x 45 mm (5.31 x 4.06 x 1.77 in)
Operating Temperature
-40°C to +70°C (-40°F to +158°F)
Reduced Cellular Performance Above 60°C
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Regulatory CE, FCC, RCM, JATE, Telec
Environmental RoHS
EMC EN 55032, EN 55035
IEC 61000-4-2 Level 3
IEC 61000-4-3 Level 2
IEC 61000-4-4 Level 3
EMS
Radio Frequency
IEC 61000-4-5 Level 3
IEC 61000-4-6 Level 3
IEC 61000-4-8 Level 4
IEC 61000-4-11 Level 3
EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413,
EN300 328
Built-in Watchdog, Timer
Installation Desktop, Wall Screw Mounting, DIN Rail Mounting
UR35 Datasheet
MAC Filter
Blacklist, Whitelist
GNSS (Optional)
Safety EN62368-1
◆ Software Specifications
Network Protocols
IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2,
OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN,
SSH, MQTT, MQTTS, TR069, etc.
Routing Static Routing, RIP, OSPF
DDNS Supported >16 service providers, others can be configured manually
QoS Upload/Download Bandwidth Limit
IP Passthrough Support to assign WAN IP address to the device on LAN
Reliability VRRP, WAN Failover, Dual SIM Backup
Ping, Traceroute, TCPDUMP, QXDM, Log Server, Cellular AT Command
Diagnostics Tools
Debugger, Firewall iptables Debugger
Modes AP or Client mode
WEP/WPA-PSK/WPA2-PSK/WPA-EAP/WPA2-EAP authentication,
Security
TKIP/AES encryption
Wi-Fi Users Up to 15 simultaneous connections
Protocol NMEA0183, PMTK
Firewalls
Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls,
DoS&DDoS Protection, Filtering(IP&Domain)
VLAN Port and tag-based VLAN separation
AAA Radius, Tacacs+, LDAP, Local Authentication, 802.1x
OpenVPN Multiple Clients and a Server Support
IPsec Multiple Clients and a Server Support
GRE GRE Tunnel Support
L2TP L2TP Client Support
Mode
Support reading by Serial Port, MQTT, TCP Client/Server, UDP Server
Multilevel Authority
Multiple Levels of User Authority
Network
UR35 Datasheet
ZeroTier Support
PPTP PPTP Client Support
DMVPN DMVPN Spoke Support
WireGuard Support
Serial Mode
Transparent(TCP Client/Server, UDP Server, MQTT Client), Modbus
Server/Client, Modbus Gateway (Modbus RTU to Modbus TCP)
Digital Input Support reading by SMS, Email, CLI, Modbus TCP/RTU Server, MQTT
Digital Output Support triggering by DI, SMS, CLI, Modbus TCP/RTU Server, MQTT
Configuration
Web, CLI (SSH/Telnet), SMS, On-demand dial up, SNMP v1/v2c/v3,
TR069, DeviceHub, Milesight Development Platform, HTTP(s) API
Update Web, DeviceHub, Milesight Development Platform
Device Management DeviceHub, Milesight Development Platform, MilesightVPN
SNMP SNMP v1/v2/v3, Support SNMP Trap
TR069 Support
SMS Send/Receive SMS, SMS Control, SMS Configuration
Event Alarm System Restart/Reboot, Network Up/Down, Link Switch, etc.

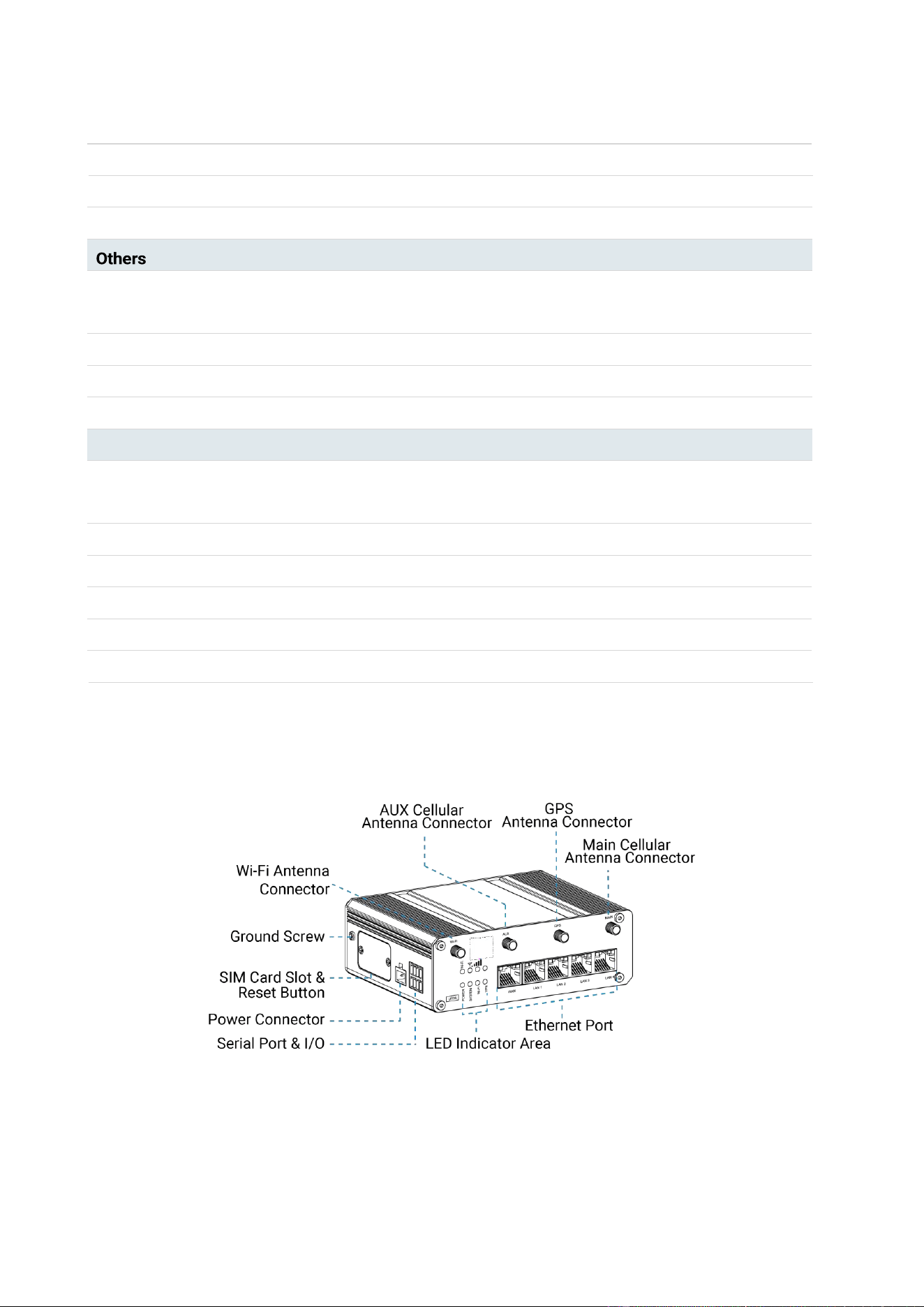

◆ Hardware Overview
App Python SDK
Management
UR35 Datasheet

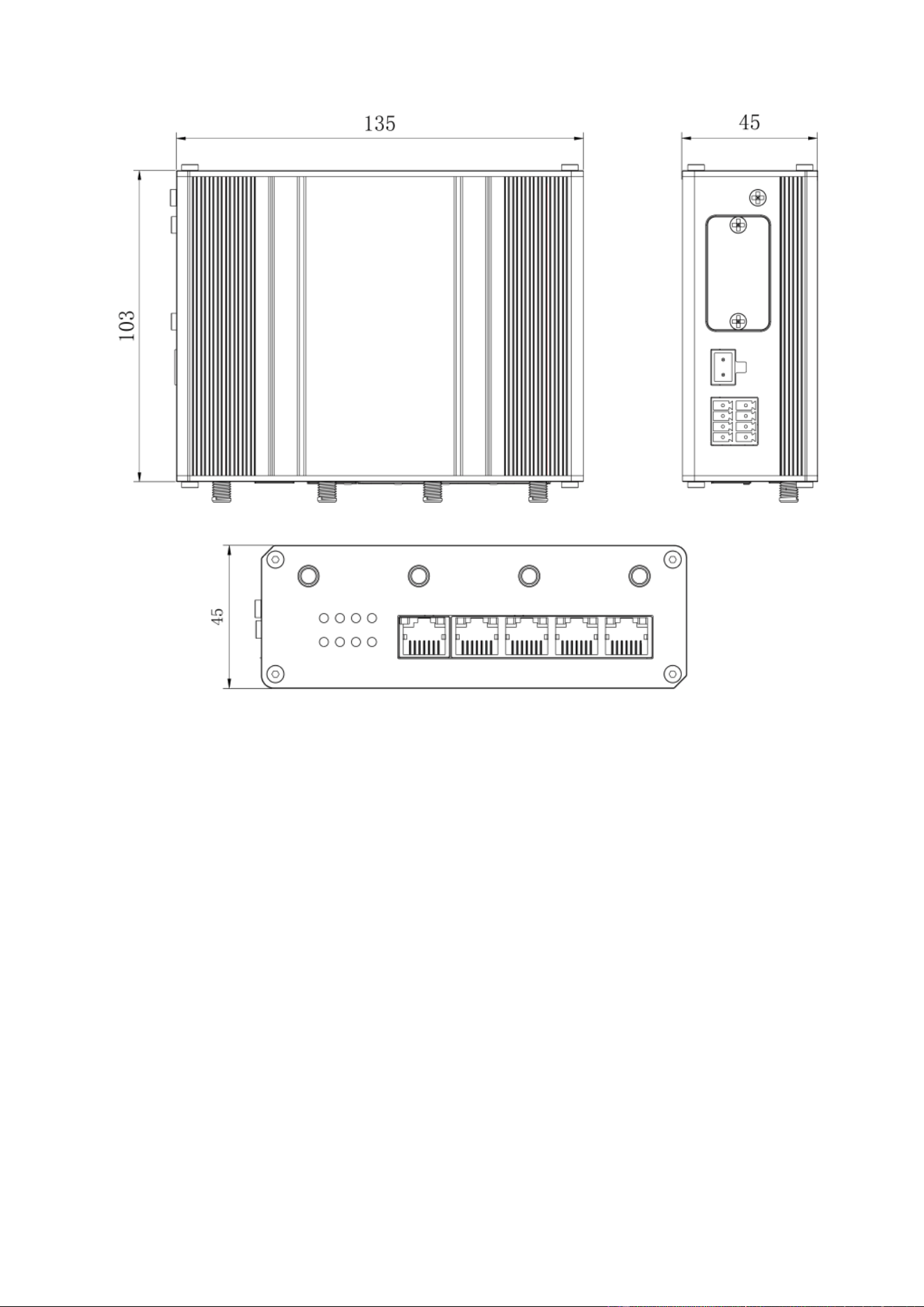

◆ Dimensions(mm)
FCC Warning Statement
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment. This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
‐‐ Reorient or relocate the receiving antenna.
‐‐ Increase the separation between the equipment and receiver.
‐‐ Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
‐‐ Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
RF Exposure Statement
To maintain compliance with FCC's RF Exposure guidelines, This
equipment should be installed and operated with minimum distance of
20cm the radiator your body. This device and its antenna(s) must not be
co-located or operation in conjunction with any other antenna or
transmitter.
