Installation Manual
©2022 Hunter Fan Co.
Model: 51795 Brushed Nickel
51939 Fresh White
51940 Matte Black
Fan weight ±2 lbs: 18.7 lbs (8.5 kg)
Alexander
PG4044 r022822
Pull Chain w/LIGHT or Remote not button w/ NO LIGHT or Remote no button w/ LIGHT
1886
Ladder
9/64” Drill BitDrill
Screwdriver
Pliers
Wire Strippers
OPTIONAL
If mounting to a support structure, you will also need these tools.
Congratulations on purchasing your new Hunter
®
ceiling fan!
Here are the tools you’ll need to complete your installation:
1
The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This instruction manual contains
complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to supply you with the
best ceiling fan available anywhere in the world.
We are here to help!
This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction Manual, keep
your smartphone or tablet nearby. We have added video links to help you through the more technical sections. If you are unfamiliar or
uncomfortable with wiring, contact a qualied electrician. We also provide telephone support at 1.888.830.1326 or visit us
at HunterFan.com.
WARNING
READ and SAVE These Instructions
Warning
w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the
mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you
cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
Caution
c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This product conforms to UL Standard 507.
© 2022 Hunter Fan Company
7130 Goodlett Farms Pkwy, Suite 400
Memphis TN 38016
PB
2
1886
1886
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
x4
x4
x15
x5
x15
x2
x2
For installing the hanger bracket and wiring the fan
For installing the blades
For installing the canopy
For installing the light xture
bag
bag bag
Hunter Pro Tip:
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.
Spare Parts
For your convenience,
you may receive extra fasteners.
bag
Glass
Switch Housing Plate
Light Kit Assembly
Motor
Blade Screw
BladeWasher
Blade
Ceiling Bracket
Wood Screw
WIre Nut
Washer
M3931-01 r032522
We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.

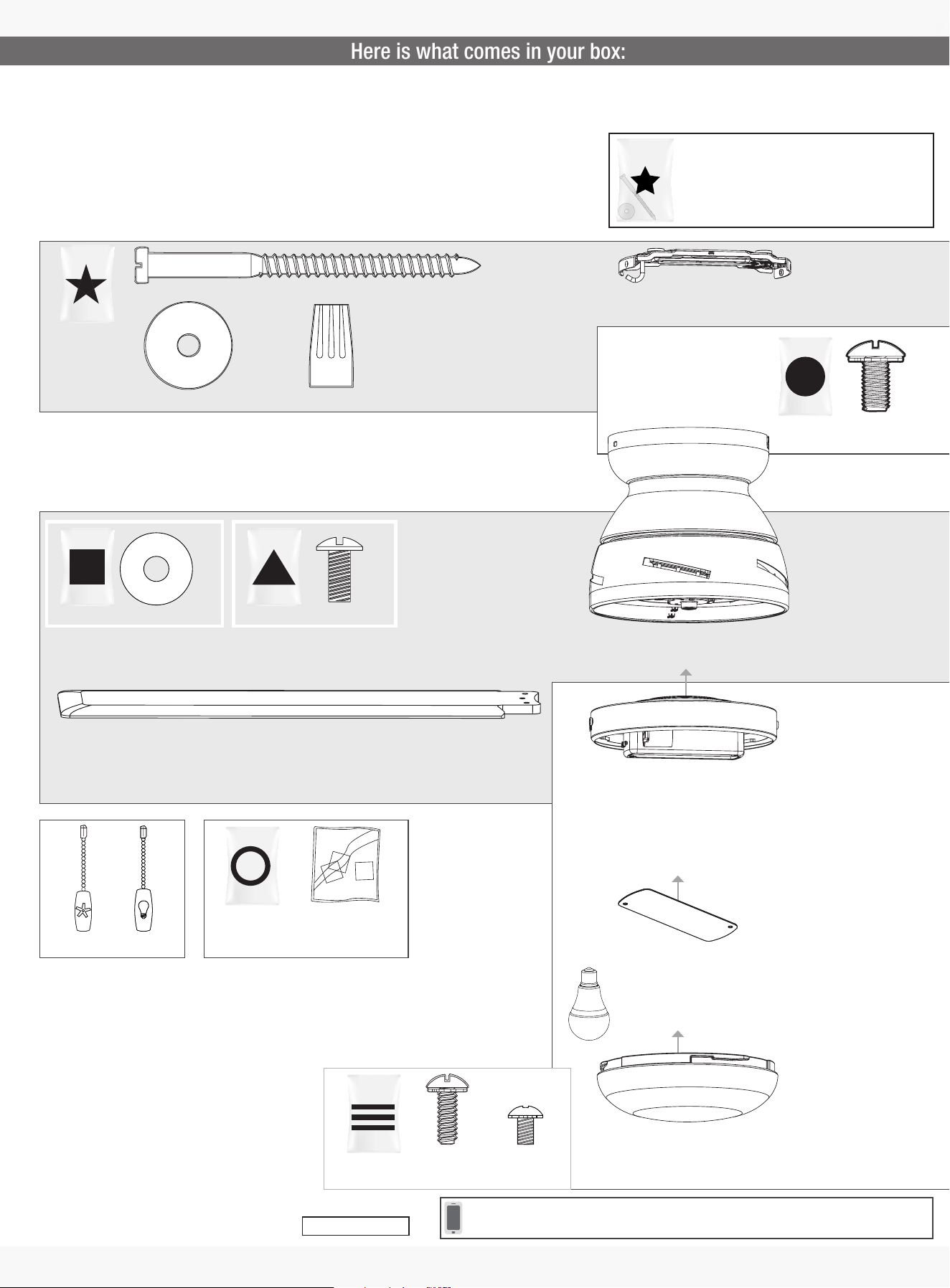

Here is what comes in your box:
x2
Bulb
bag
x6
Light Kit Screw
x3 x2
bag
Short Light
Kit Screw
Fan style may vary.
Note:
Canopy Screw
Pullchains
3
4
1886
1886

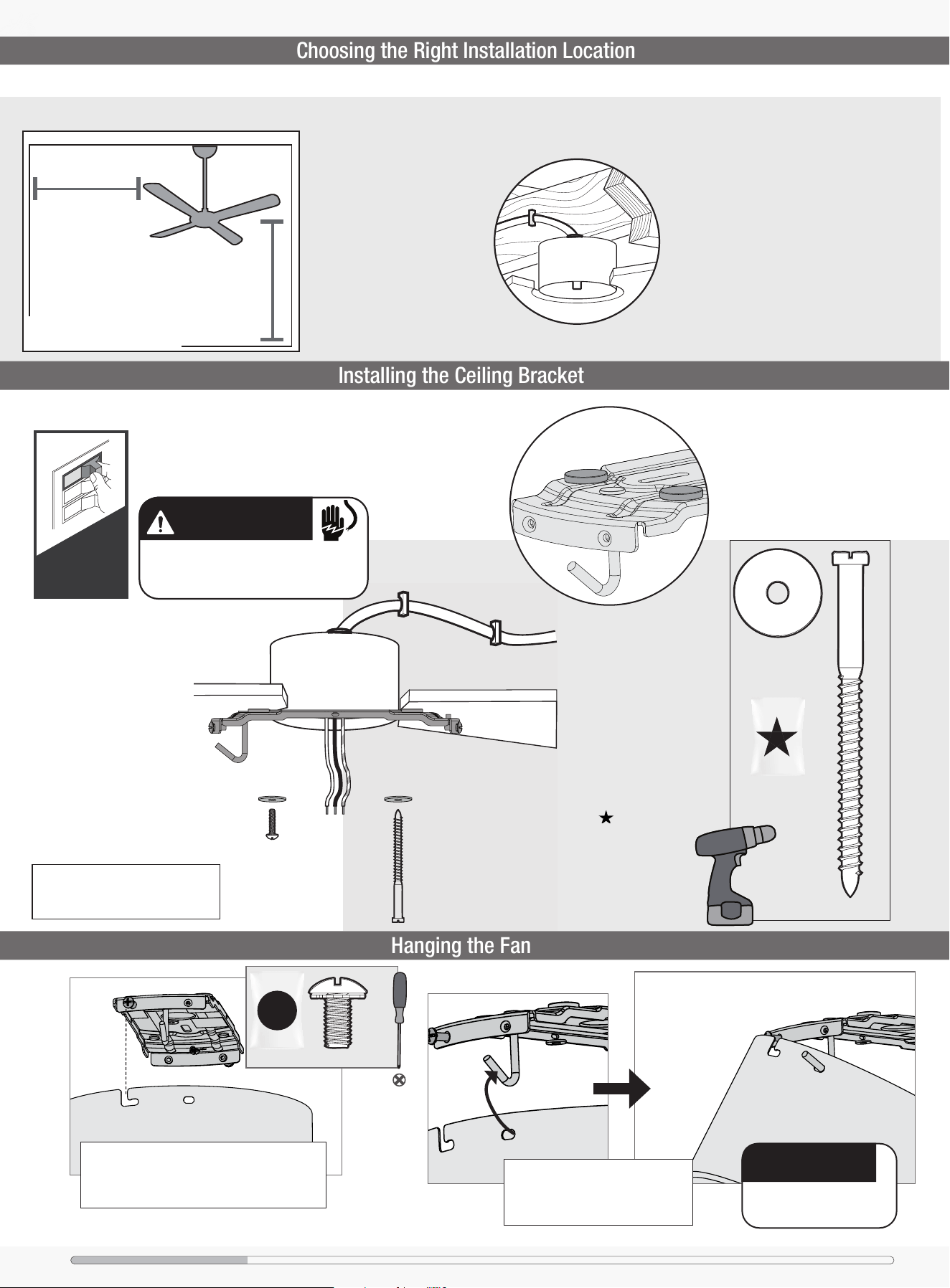

Choosing the Right Installation Location
You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.
Check the room dimensions: Check the outlet box:
You must be able to
secure the fan to building
structure or fan-rated
outlet box.
30 inches
from blade tip to
nearest wall or
obstruction
7 feet
from bottom edge
of blade to the
oor
Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Pull Chains
Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64” pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the hardware bag.
Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of
31.8 kg (70 lbs) or less.
Option 2:
Wood Screws
Option 1:
Machine Screws
OFF
Turn Power
Do this rst!
The machine screws are the ones
that came with your outlet box.
Hunter Pro Tip:
bag
Washer
Wood Screw
x2
x2
You have two options for installation. Pick which one works best for your location.
M
a
k
e
s
u
r
e
a
l
l
f
o
u
r
b
u
m
p
e
r
s
a
r
e
s
t
i
l
l
a
t
t
a
c
h
e
d
.
Hanging the Fan
Partially install two of the canopy screws into
screw holes on the left side of the ceiling plate
as shown. Choose the two screw holes that are
aligned with the hanging slots in the fan body.
DO NOT PICK THE FAN UP BY THE
WIRES. Use the hanging hole on the
body of the fan to hang the fan on the
hook of the ceiling mounting plate.
NOTICE
To prevent damage to fan,
ALWAYS lift holding the fan
housing.
2 of 4
Canopy Screw
bag
WARNING
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
Installing the Ceiling Bracket
3
4
1886
1886
Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Pull Chains
Wood Screw

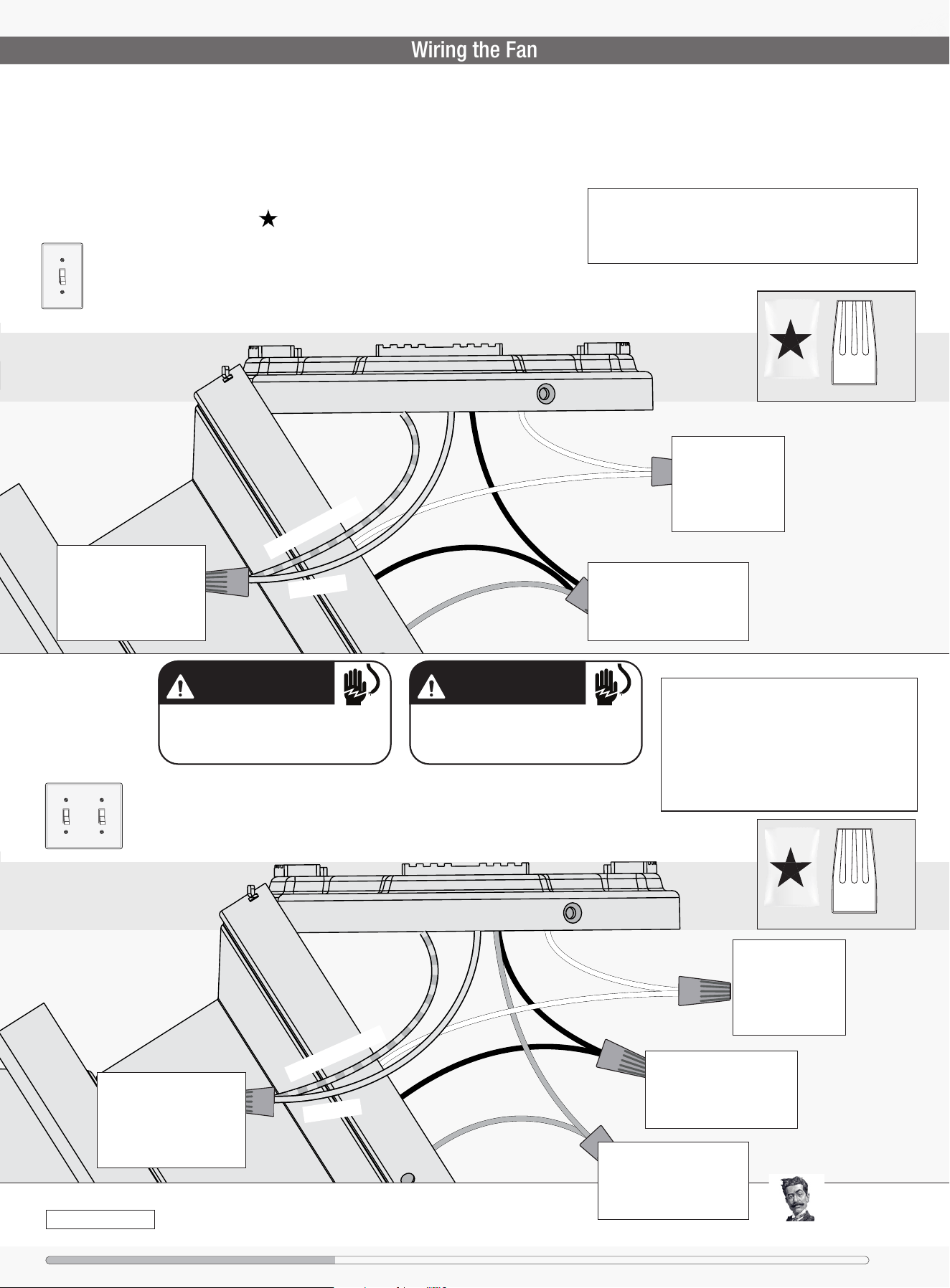

We know wiring is hard. Let’s make it easier.
You are going to need these:
4 Wire Nuts (these are in the
bag)
Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch
setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a quali ed electrician.
Wiring the Fan
Have a single switch?
Follow these steps:
Have dual switches?
Follow these steps:
Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.
Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.
Connect the grounding
wires (green, green/
yellow stripe, or bare
copper) coming from the
ceiling and ceiling plate.
Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the fan.
Blue
Black
Green/Yellow Stripe
White
Ungrounded
Ungrounded (light)
Grounded
Grounding
x4
bag
x4
bag
Wire Nut
Wire Nut
Connect the black wire
(ungrounded) from the
ceiling to the black and the
blue wires from the fan.
Connect the grounding
wires (green, green/
yellow stripe, or bare
copper) coming from the
ceiling and ceiling plate.
Green/Yellow Stripe
White
Ungrounded
Grounding
Blue
Black
Grounded
LPSMKSTKPC-01 r092421
Hunter Pro Tip:
Here is how to connect the wires:
Push the bare metal ends of the wires together and slide a wire
nut over them. Then, twist the wire nut clockwise until tight.
Give it a gentle pull to make sure none of the wires are loose.
WARNING
All wiring must be in accordance with
national and local electrical codes ANSI/NFPA
70. If you are unfamiliar with wiring or in
doubt, consult a quali ed electrician.
WARNING
The ceiling fan must be grounded. If the
ground wire for the installation site is not
present, immediately STOP installation and
consult a quali ed electrician.
Have extra wiring?
Turn the wires upward and push them carefully
back through the hanger bracket into the outlet
box. Spread the wires apart, with the grounded
wires on one side of the outlet box and the
ungrounded wires on the other side of the outlet
box. Make sure that the wires are still attached
to the wire nuts.
Hunter Pro Tip:
Fan style may vary.
Note:
Connect the second
ungrounded (light) wire
from the ceiling to the
blue wire from the fan.
Installing the Ceiling Bracket
5
6
1886
1886
Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Pull Chains
Installing the Blades
Repeat x5
x15
bag
Blade Screw
x15
bag
Blade Washer
Put the blade washers found in the hardware
bag onto the blade screws found in the
hardware bag. Then install the blade screws to
secure each blade to the fan.
Fan style may vary.
Note:
Fan style may vary.
Note:

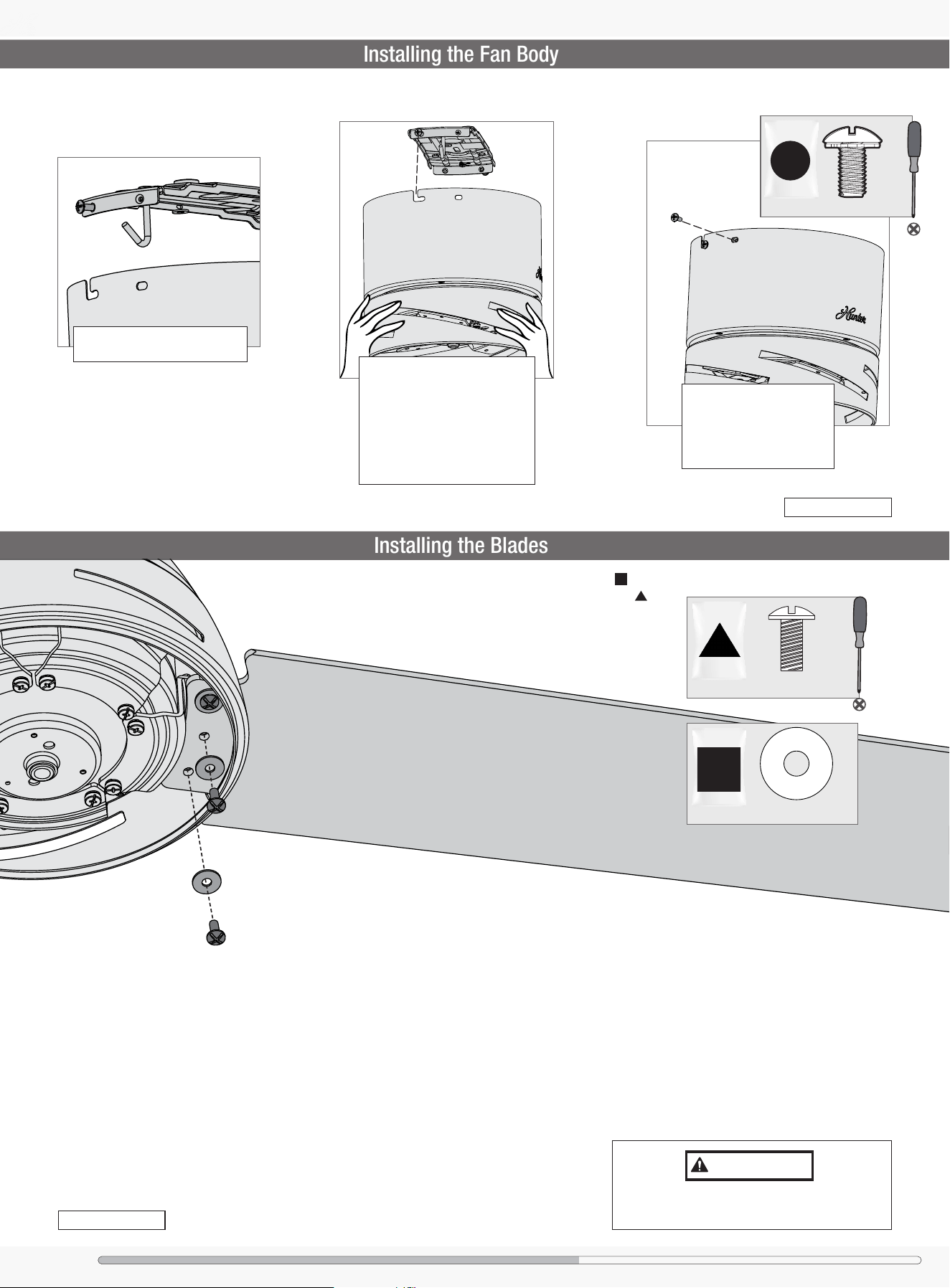

Installing the Fan Body
2 of 4
Canopy Screw
bag
Install the remaining two
canopy screws by holding the
fan body cover to the ceiling
mounting plate. Tighten all
four screws securely.
Align the hanging slots on both
sides of the fan body with the two
partially installed canopy screws.
Slide the two slots on both sides of
the fan body between the head of
the screws and rotate the fan body
counterclockwise so the screws
hold the fan body rmly in place.
Using both hands, lift the fan body
from the hook
Installing the Bulbs and Glass

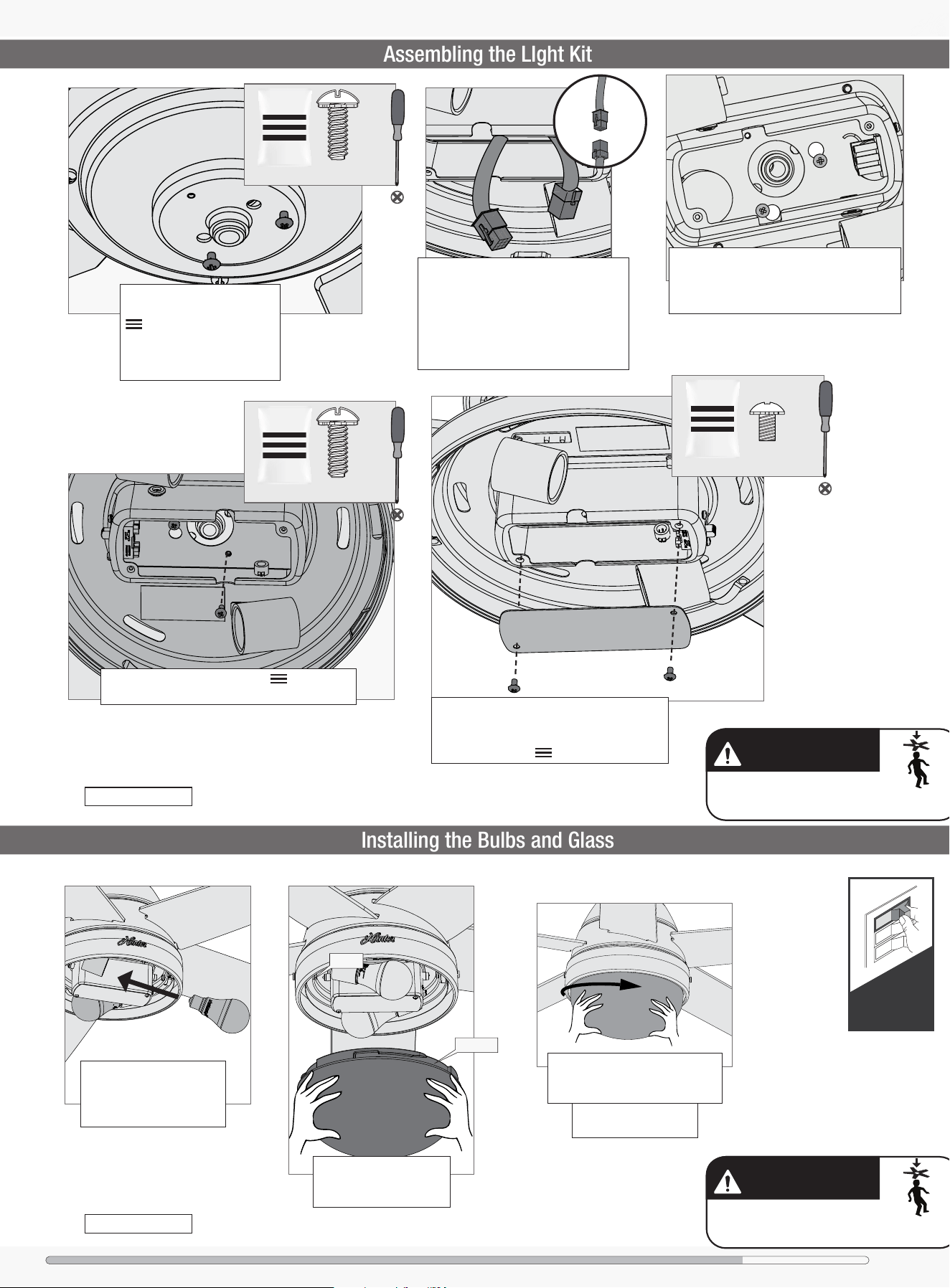

Assembling the LIght Kit
IMPORTANT
NOTE: Follow the instructions on the blade. Installing it
incorrectly could result in your fan not functioning.
5
6
1886
1886
Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Pull Chains
Installing the Bulbs and Glass
ON
Turn Power
Install the included bulbs
into the sockets. When
necessary, replace with
bulbs of same wattage.
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.
Assembling the LIght Kit
Notch
Tab
Align the keyhole slots in the top of the light kit
assembly with the partially installed assembly
screws. Wrap the keyhole slots around the
screws and twist counterclockwise.
Partially install two light kit
assembly screws, found in the
hardware bag, halfway into
the motor housing as shown.
It does not matter which two
screw holes you choose.
Feed the 9-pin plug connector coming
from the bottom of the motor housing
through the center hole in the light kit
assembly. Connect it to the plug connector
found in the switch housing area of the
light kit assembly. Make sure to line up
the colored markings on the connectors.
WARNING
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
WARNING
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
2 of 3
Light Kit Screw
bag
1 of 3
Light Kit Screw
bag
2 of 2
Short Light Kit
Screw
bag
Insert the third screw, found in the hardware
bag, in place and rmly tighten all the three screws.
Carefully push all switch housing components
into the switch housing, then install the switch
housing plate using two short light kit assembly
screws, found in the hardware bag.
Fan style may vary.
Note:
Fan style may vary.
Note:
7
8
1886
1886
Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Pull Chains
Limited Lifetime Warranty

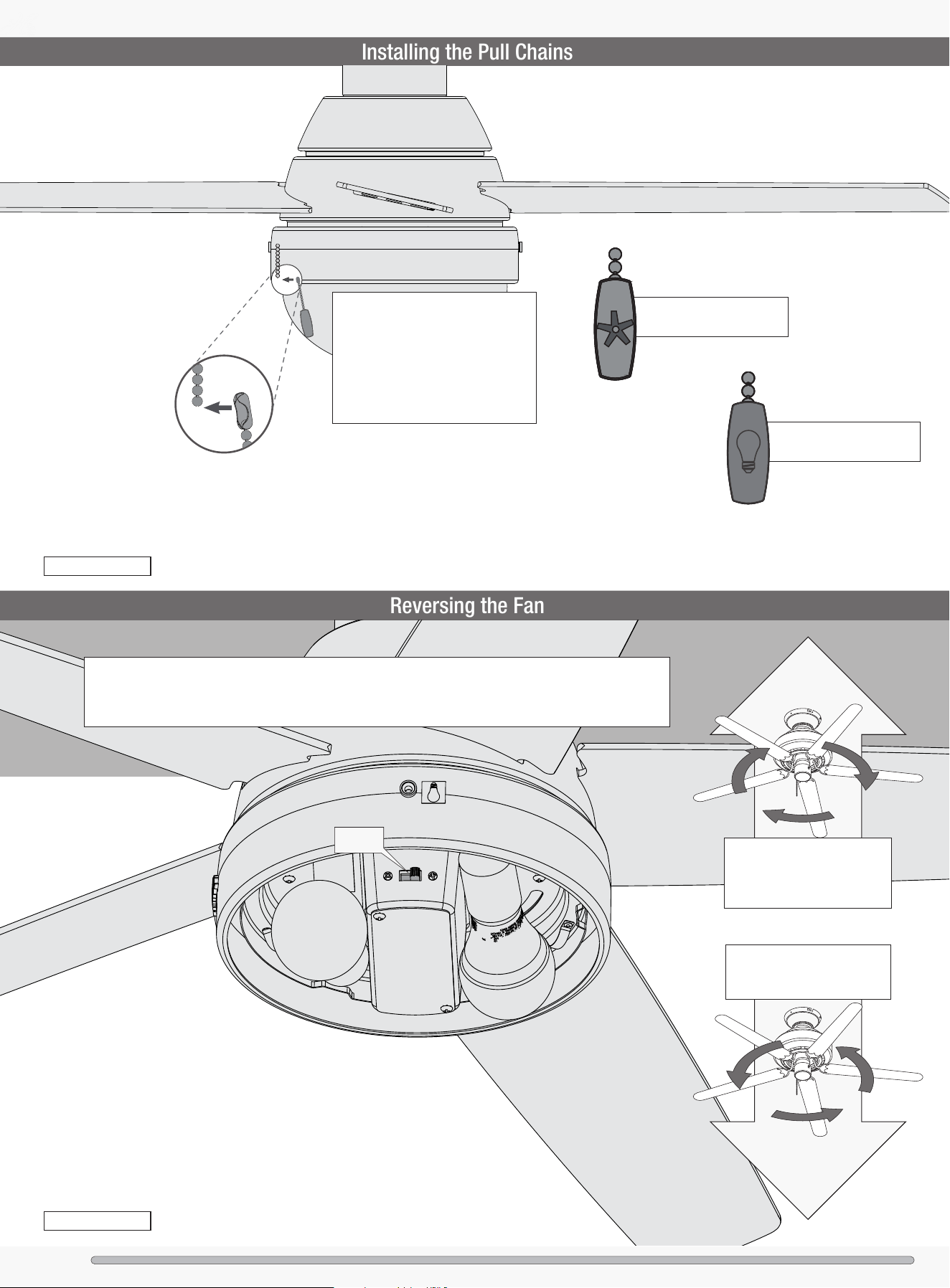

Reversing the Fan
Reverse
Switch
Ceiling fans work in two directions: downdraft (counterclockwise rotation) and updraft (clockwise rotation). To change the
direction of air ow, turn the fan off and let it come to a complete stop. The reversing switch is located inside the light
xture. It can only be accessed when the glass is removed. Slide the reversing switch to the opposite position. Restart
the fan.
Updraft (clockwise rotation)
creates a more indirect airow.
Updraft airow is great for
moving warm air downward.
Downdraft (counterclockwise
rotation) creates a direct breeze
and maximum cooling effect.
The fan pull chain controls
the speed: from high to off.
The light pull chain controls
the light xture: on and off.
Installing the Pull Chains
Repeat x2
Remove and discard the plastic
connectors from the ends of the short
pull chain. Feed the pull chains from
the fan switch and the light switch
down through the holes in the upper
switch housing as shown. Attach the
pull chain pendants to the light and fan
pull chains.
Fan style may vary.
Note:
Fan style may vary.
Note:
7
8
1886
1886
Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter
ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!
How Can Warranty Service Be Obtained?
Proof of purchase is required when requesting warranty service. The original
purchaser must present a sales receipt or other document that establishes proof of
purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service,
contact Hunter Fan Company online or by phone.
www.HunterFan.com/Support/Contact-Us/
1-888-830-1326
Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.
What Does This Warranty Cover?
Motor — Limited Lifetime Warranty
If any part of your ceiling fan motor fails during your ownership of the fan due to a
defect in material or workmanship, as determined solely by Hunter, Hunter will provide
you with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the one-year limited warranty below.
Other — One-Year Limited Warranty
Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within one year of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*
Light Kits — Warranty May Vary
Light kits are included in the one-year limited warranty. However, you may qualify for
additional warranty coverage if your fan includes one of the following:
• LED Light Kits — Three-Year Limited Warranty
If your LED light kit module (not including glass components) or LED bulb
fails at any time within three years of the date of purchase due to a defect
in material or workmanship, as determined solely by Hunter, Hunter will
provide a replacement part free of charge.*
* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.
What Does This Warranty NOT Cover?
Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs (except where otherwise noted); remote control
batteries; fans purchased or installed outside the United States; fans owned by
someone other than the original purchaser; fans for which proof of purchase has not
been established; fans purchased from an unauthorized dealer; ordinary wear and tear;
minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any
of the following: improper installation, misuse, abuse, improper care, failure to follow
Hunter instructions, accidental damage caused by the fan owner or related parties,
modications to the fan, improper or incorrectly performed maintenance or repair,
improper voltage supply or power surge, use of improper parts or accessories, failure to
provide maintenance to the fan, or acts of God (e.g. ood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF
COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States
do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
How Does State Law Affect Warranty Coverage?
This warranty gives you specic legal rights. You may also have other rights which vary
from state to state.
Limited Lifetime Warranty
Troubleshooting
Fan Doesn’t Work
• Make sure power switch is on.
• Pull the pull chain to make sure it is on.
• Push the motor reversing switch rmly left or right to
ensure that it is engaged.
• Check the circuit breaker to ensure the power is
turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit breaker, then loosen
the canopy and check all the connections according
to the wiring diagram.
• Check the plug connection in the switch housing.
Excessive Wobbling
• Make sure the blades are properly installed on the
blade iron posts.
• Turn the power off, support the fan carefully, and
check that the hanger ball is properly seated.
• Use the provided balancing kit and instructions to
balance the fan.
Noisy Operation
• Make sure the blades are properly installed.
• Check to see if any of the blades are cracked. If so,
replace all of the blades.
Cleaning the Fan
Use soft brushes or cloths to prevent scratching.
Cleaning products may damage the nishes.
Hunter Pro Tip:
