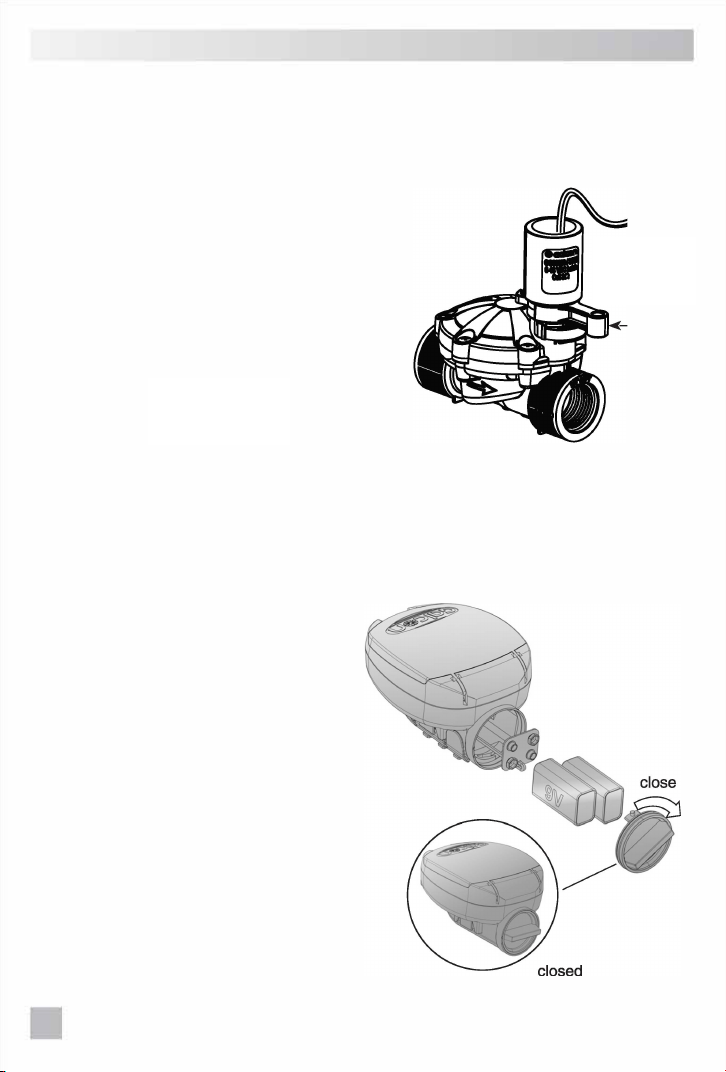

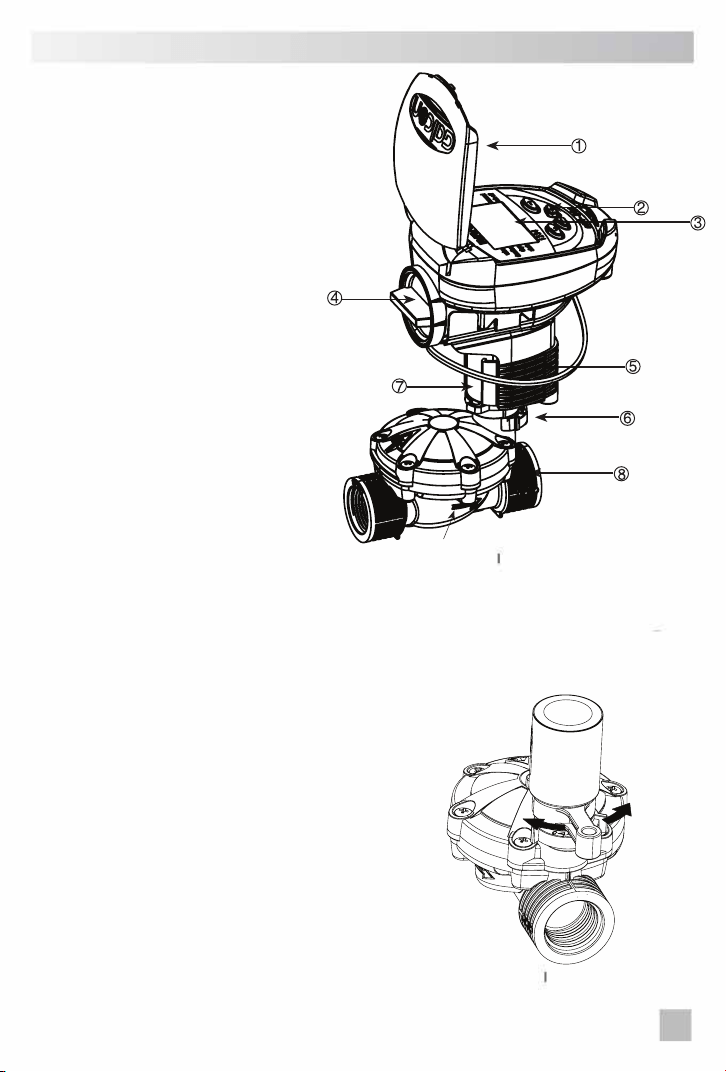

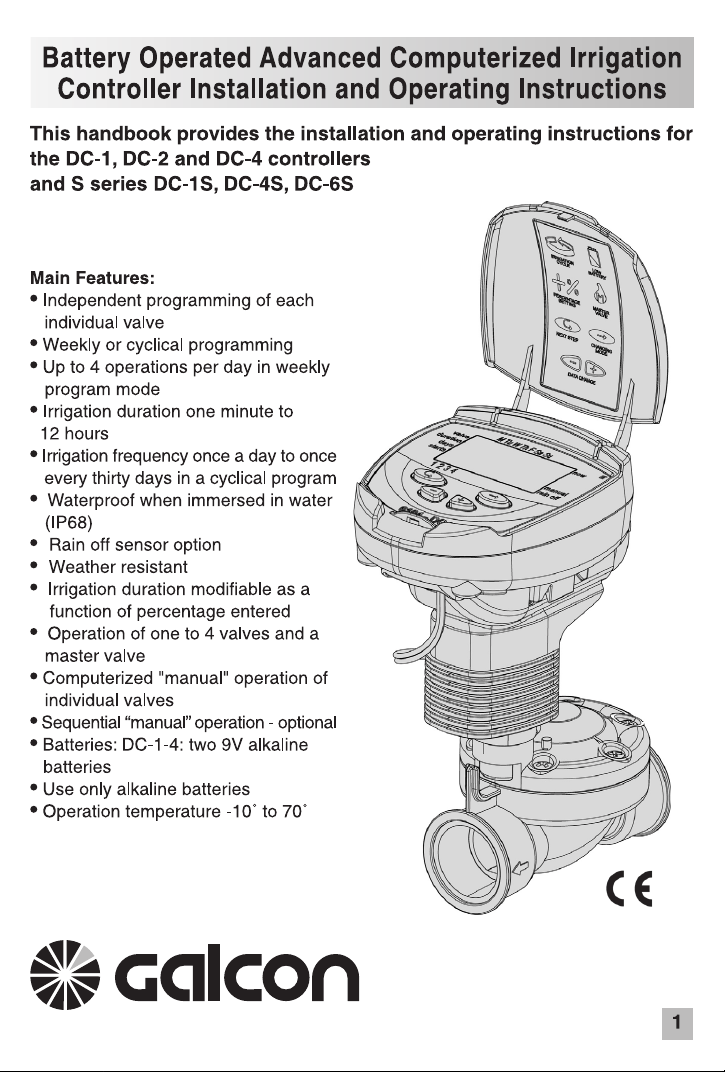

1. Parts ldentification
1. Cover
2. Push buttons
3. Controller display
4. Battery compartment cover
5. Adaptor
6. Mechanical operation lever
7. Solenoid
8. Hydraulic valve
lmportant!

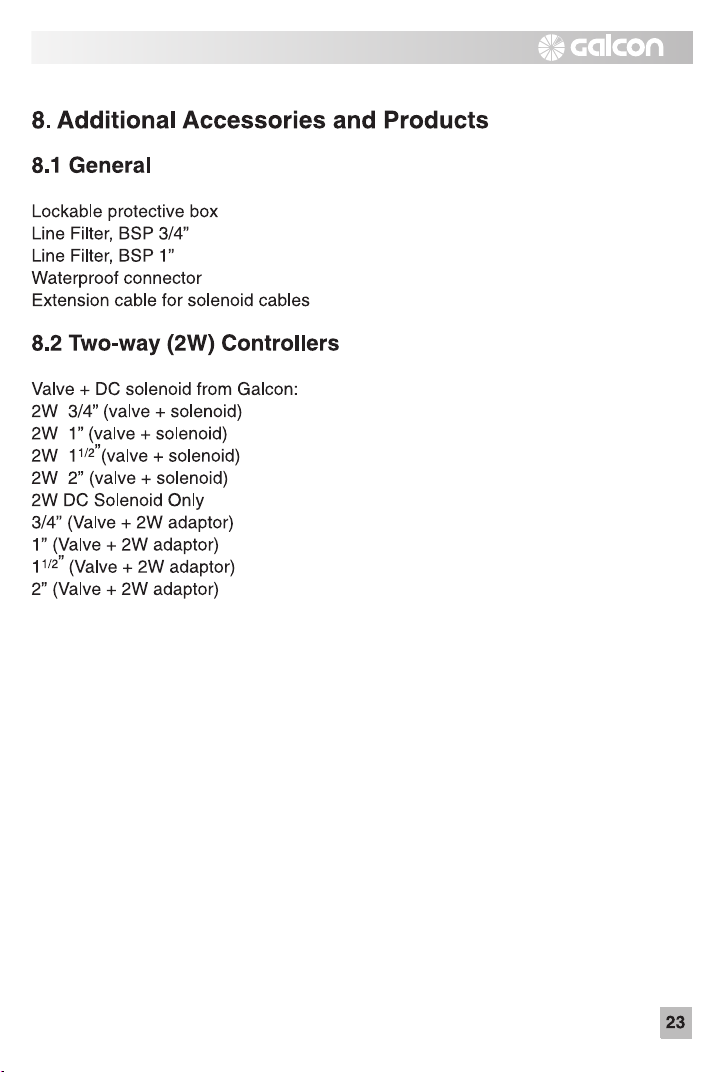

Assembly of a filter upstream
of the valve is mandatory.
(See list of accessories page 20).
��Glcon
Water Flow Direction
2. Setting up the
lrrigation Controller
2.
1
V
al
v
e an
d
Solenoi
d
Ass
e
mb
l
y
The mechanical opening lever is
black.The lever has 3 positions:
1. AUTO – mid position
2. CLOSE - rotating clockwise, in any position
3. OPEN - rotating counter clockwise
In normal working conditions, the lever
should
be in the middle, position
AUTO.
*If it is necessary to replace the solenoid, do
not disassemble the blue ring underneath
Water Flow Direction
3
1
3
2
2.2 Manual-Mechanical Operation
The irrigation valve can be opened and closed
independent of the controller's operation.
Manual operation is useful when immediate
irrigation is required, and the controller is not
assembled yet.
2.3 Battery lnstallation
Open the battery compament cover.
lnse 9V batteries (see illustration). AII the
controller display
elements appear briefly
סחthe display, followed by a blinking time
of 12:00. The controller is now ready to be
programmed.
lmportant!
Make sure to replace the battery
compament cover with the grip (see
drawing) and then rotate the cover 1/8 of a
turn to the right.Be sure to do so
otherwise the battery cover pins might
break.
4
��Glcon
mechanical
operation
lever

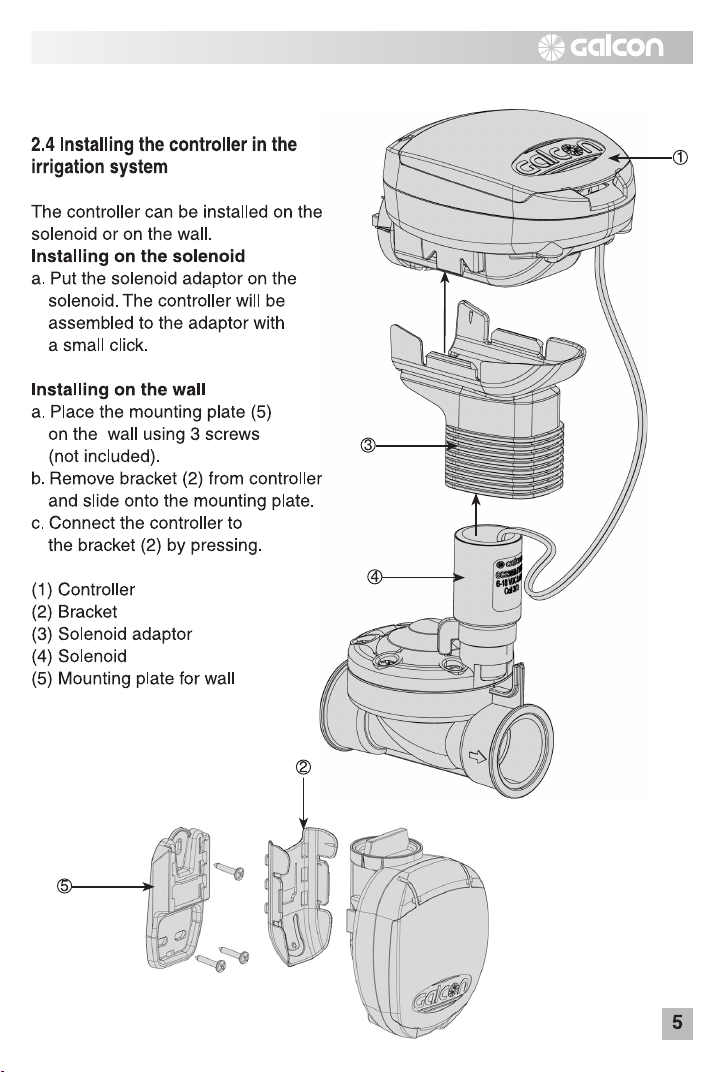

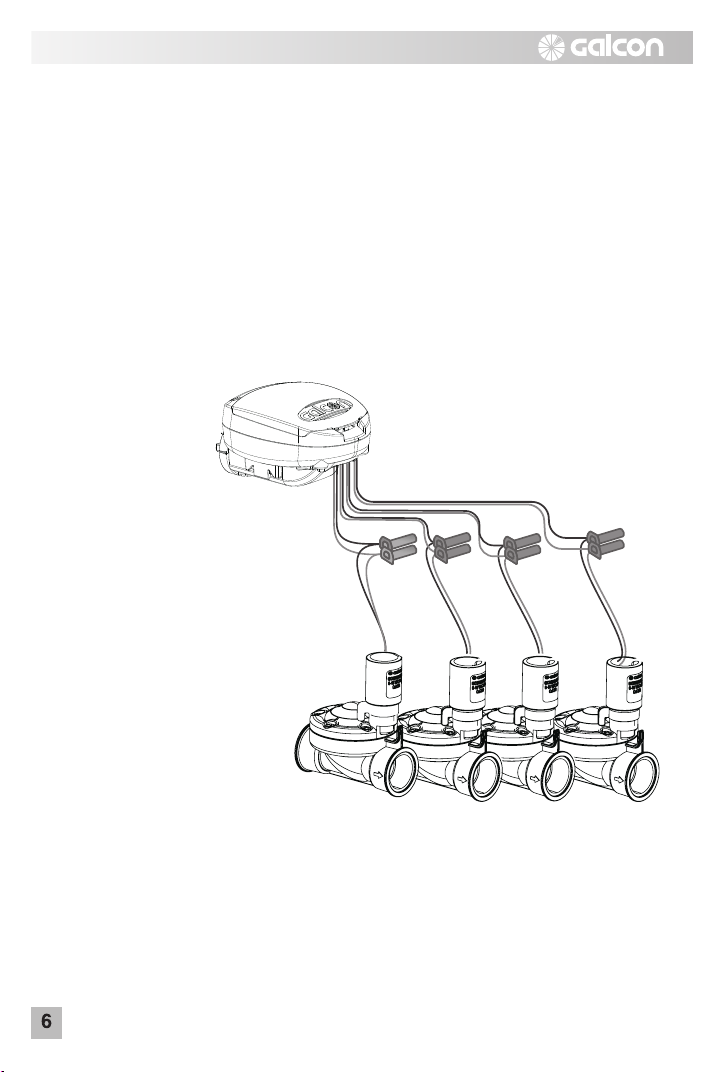

2.5 Wiring the solenoids
NOTE: Each zone requires a dedicated pair of wires from the controller.
The four and six station controllers have red and black pairs of wires numbered for
each valve. Notice there are 2 extra sets of wires. One set of wires (black and red)
is stamped with the letter M representing the master valve, and one set of wires
(yellow) with the letter S representing the rain sensor connection. Connect
each of the controller wire sets (each with red and black) to each solenoid wire (red
and black).
Connect the red wirefrom the controller to the red wire on the solenoidsand each of
the black wires from the controller to each black wire on the solenoids using
waterproof connectors.
NOTE: If you install a master valve, it will open automatically with each valve.No
special programming needed.
NOTE: Do not strip the master valve or sensor wires unless using master valve or
rain sensor.
NOTE: The solenoid operates only with standard 2-way normally closed valves.
