Model: 53620 Fresh white
Fan weight ±2 lbs: 16.3 lbs (7.4 kg)
Installation Manual
Glissar
PG4240 r120125
Step 1: Scan QR code with smart phone or tablet
Step 2: Follow on screen instructions
Step 3: Register your product
3D INTERActive GUIDE
Our digital guided installation
takes you seamlessly from
unboxing to completion with
clear instructions and visual
aids. With the convenience
of accessing the guide on
your smartphone, tablet,
or computer, you can take
your installation experience
wherever you go.
SCAN ME
Warning
w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg)
and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch
location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in
between rotating fan blades.
w.5 - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision. It is recommended that children be supervised to ensure that they are not using the appliance
improperly.
w.6 - To reduce the risk of re or electric shock or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home
using a 3D printer).
w.7 - Non-rechargeable batteries are not to be recharged. Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries. Do not mix old and new
batteries.
w.8 - Do not dispose of batteries in re. Batteries may explode or leak.
Caution
c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance
with the instructions may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Ladder Screwdriver
Pliers
Wire Strippers
9/64" Drill BitDrill
OPTIONAL
If mounting to a support structure, you will also need
these tools.
Congratulations on purchasing your new Hunter
®
ceiling fan!
Here are the tools you’ll need to complete your installation:
1
The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This instruction manual
contains complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to
supply you with the best ceiling fan available anywhere in the world. This Instruction Manual is designed to make installation as
simple as possible. If you are unfamiliar or uncomfortable with wiring, contact a qualied electrician. We also provide telephone
support at 1.888.830.1326 or visit us at HunterFan.com.
To activate your free limited lifetime warranty, please scan the QR code and register your product. This will
ensure you receive exceptional service and support for years to come.
READ and SAVE These Instructions
This product conforms to
UL Standard 507.
© 2025 Hunter Fan Company
7130 Goodlett Farms Pkwy, Suite 400
Memphis TN 38016
REGISTER TODAY!
FREE Limited Lifetime Warranty
SCAN ME
2
1886
1886
Do not discard the hardware bags or mix parts
from different bags. Make note of the symbol
printed on each hardware bag. The symbols
can be used to identify the appropriate
hardware for each step.
We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you’ll need for
those parts. The screws below are drawn to scale to make it easier to identify
what piece of hardware is needed to install each component.
x2
x2
x2
For installing the hanger bracket and wiring the fan
For installing the blades
For installing the canopy
For installing the light kit
Motor
Downrod
Canopy
Canopy
Screw
Ceiling Bracket
Wood Screw
Washer
bag
Hunter Pro Tip:
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

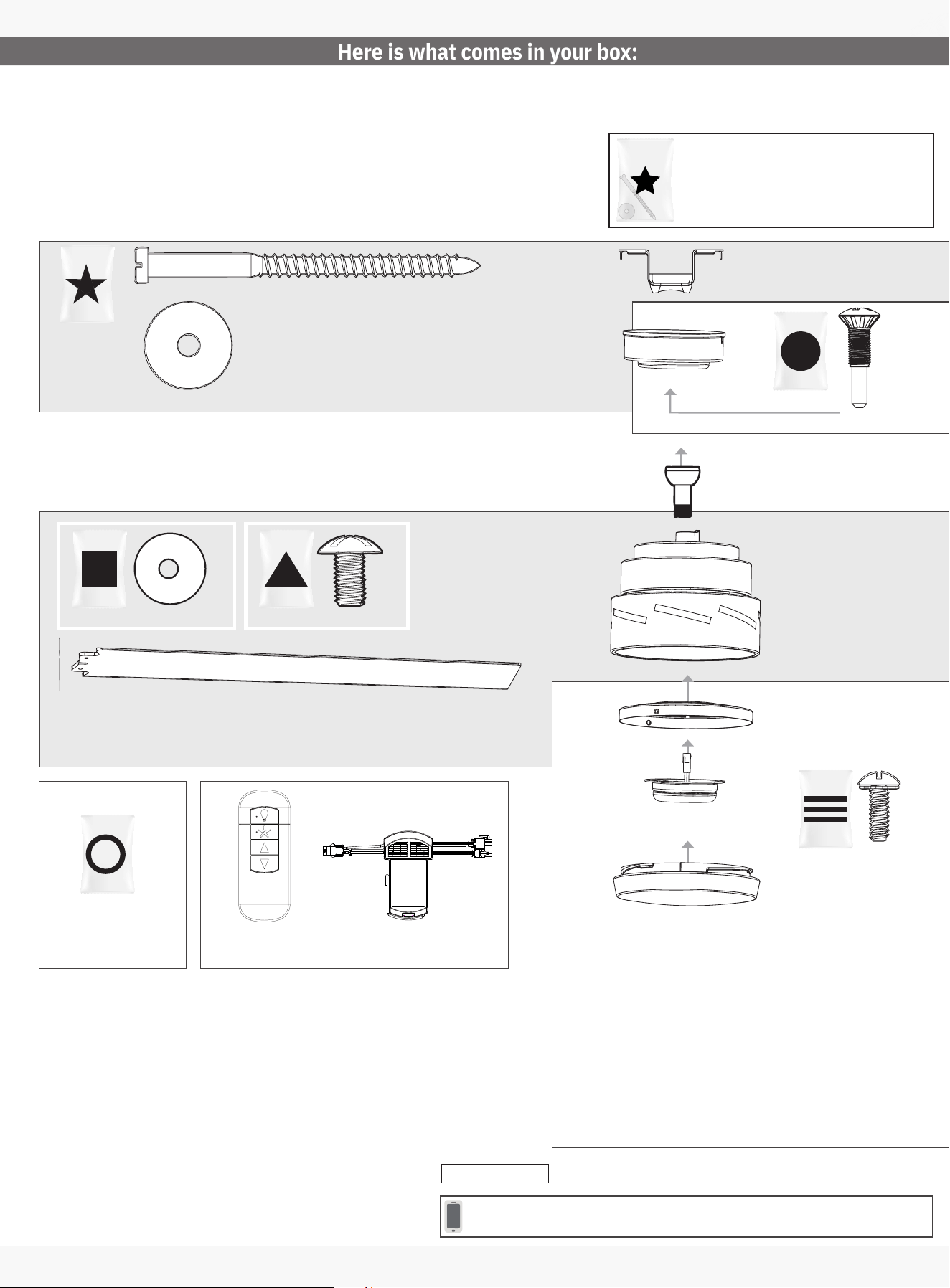

Here is what comes in your box:
bag
For your convenience,
you may receive extra
fasteners.
bag
Remote Components
Remote Control
M4140-01 r120525
Fan style may vary.
Note:
LED Module
Upper Switch
Housing
Globe
Receiver
x14 x14
Blade ScrewBlade Washer
bag
bag
x7
Blade
X6
Light Kit Screw
bag
3
1886
1886

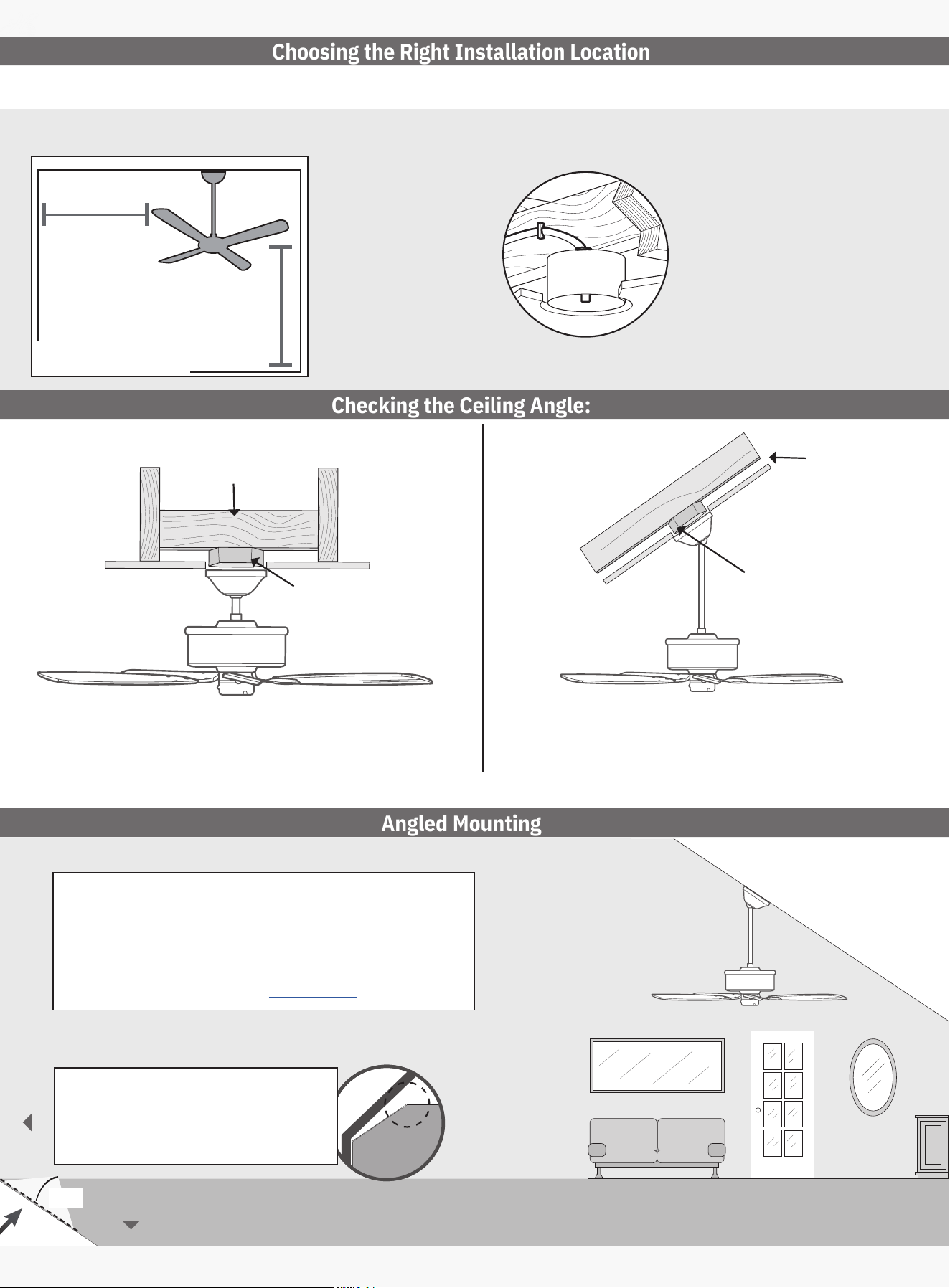

Choosing the Right Installation Location
Checking the Ceiling Angle:
Angled Mounting
You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.
If you have an angled or vaulted ceiling:
1. You will need a longer downrod. (sold separately at HunterFan.com)
2. If your ceiling angle is greater than 34°, you will also need an Angled
Mounting Kit. (Sold separately at HunterFan.com)
Check the room dimensions: Check the outlet box:
You must be able
to secure the fan to
building structure or
fan-rated outlet box.
30 inches
from blade tip to
nearest wall or
obstruction
7 ft
from bottom edge
of blade to the
floor
Support
Structure
Ceiling
Outlet Box
(required)
Angled Mounting
If you have a flat ceiling:
Hang your fan by a standard downrod. Some fans
come with a shorter downrod for a Low Prole
installation.
Support Structure
Ceiling
Outlet Box
(required)
Standard Mounting
A little more information on Angled Mounting:
For optimum performance and appearance, a longer downrod
should be used with your Hunter ceiling fan when installing on high
or angled ceiling. If your ceiling is angled greater than 34° you will
also need an Angled Mounting Kit. Longer downrods and the Angled
Mounting Kit are sold separately at HunterFan.com.
Determining if you need an Angled Mounting Kit:
Fold on the dotted line. Place against edge againts
the wall. Slide towards the ceiling.
If the guide touches the wall but not the ceiling, you
need an angled mounting kit.
Hunter Pro Tip:
CEILING
WALL
34°
Installing the Ceiling Bracket
ANGLED
MOUNTING TIP
4
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote HunterSMART
TM

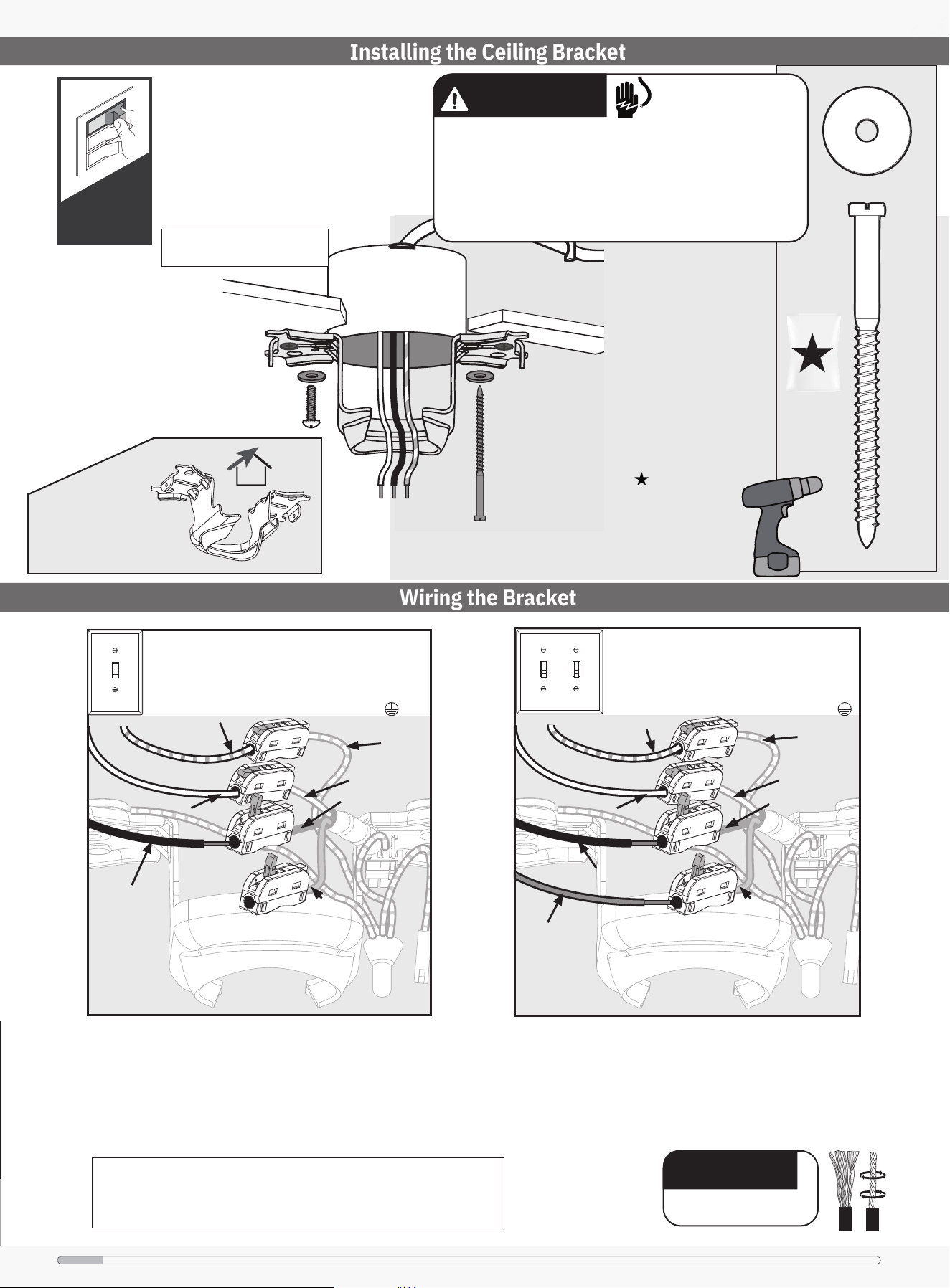

Wiring the Bracket
Check the outlet box:
Installing the Ceiling Bracket
Use wood screws and
washers (included) when
securing to support
structure with approved
electrical outlet box. Drill
9/64 inch pilot holes in
support structure to aid in
securing ceiling bracket
with hardware found in
the
hardware bag.
Use machine screws (provided
with outlet box) and washers
when securing to existing ceil-
ing fan-rated outlet box. Make
sure it is securely installed and
is acceptable for fan support
of 70 lbs.
Option 2:
Wood Screws
Option 1:
Machine Screws
OFF
Turn Power
Do this rst!
The machine screws are the ones
that came with your outlet box.
Hunter Pro Tip:
For angled
ceilings, point
opening toward
peak.
ANGLED
MOUNTING TIP
bag
Wood Screw
Washer
x2
x2
You have two options for installation.
Pick which one works best for your
location. Remove any existing bracket
prior to installation. Only use the
provided Hunter ceiling bracket that
came in your fan’s box.
Connect wiring from ceiling to lever lock wiring (on side of canopy mount) by lifting lever and inserting wire. Lift lever on
connector until fully upright to open. Insert stripped wire and secure by lowering lever. Make sure no bare or uninsulated
wire is exposed.
Single Switch Wiring
OR
Dual Switch Wiring
Green
striped
Green, Green Yellow Stripe, or Bare Copper
(grounding)
Green, Green Yellow Stripe, or Bare Copper
(grounding)
White (grounded)
White (grounded)
Black
(ungrounded)
Black
(ungrounded)
Ungrounded (light)
Green
striped
Black
Red Red
Black
White
White
WARNING
•To avoid possible electrical shock, before installing your fan, disconnect the
power by turning off the circuit breakers to the outlet box associated with the
wall switch location.
•All wiring must be in accordance with national and local electrical codes ANSI/
NFPA 70. If you are unfamiliar with wiring or in doubt, consult a qualied
electrician.
•The ceiling fan must be grounded. If the ground wire for the installation site is
not present, immediately STOP installation and consult a qualied electrician.
Turn the wires upward and push them carefully back through the hanger
bracket into the outlet box. Spread the wires apart, with the grounded wires
on one side of the outlet box and the ungrounded wires on the other side of
the outlet box. Make sure that the wires are still attached to the connectors.
Hunter Pro Tip:
NOTICE
Twist wire strands prior to
inserting into connector.
5
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote HunterSMART
TM

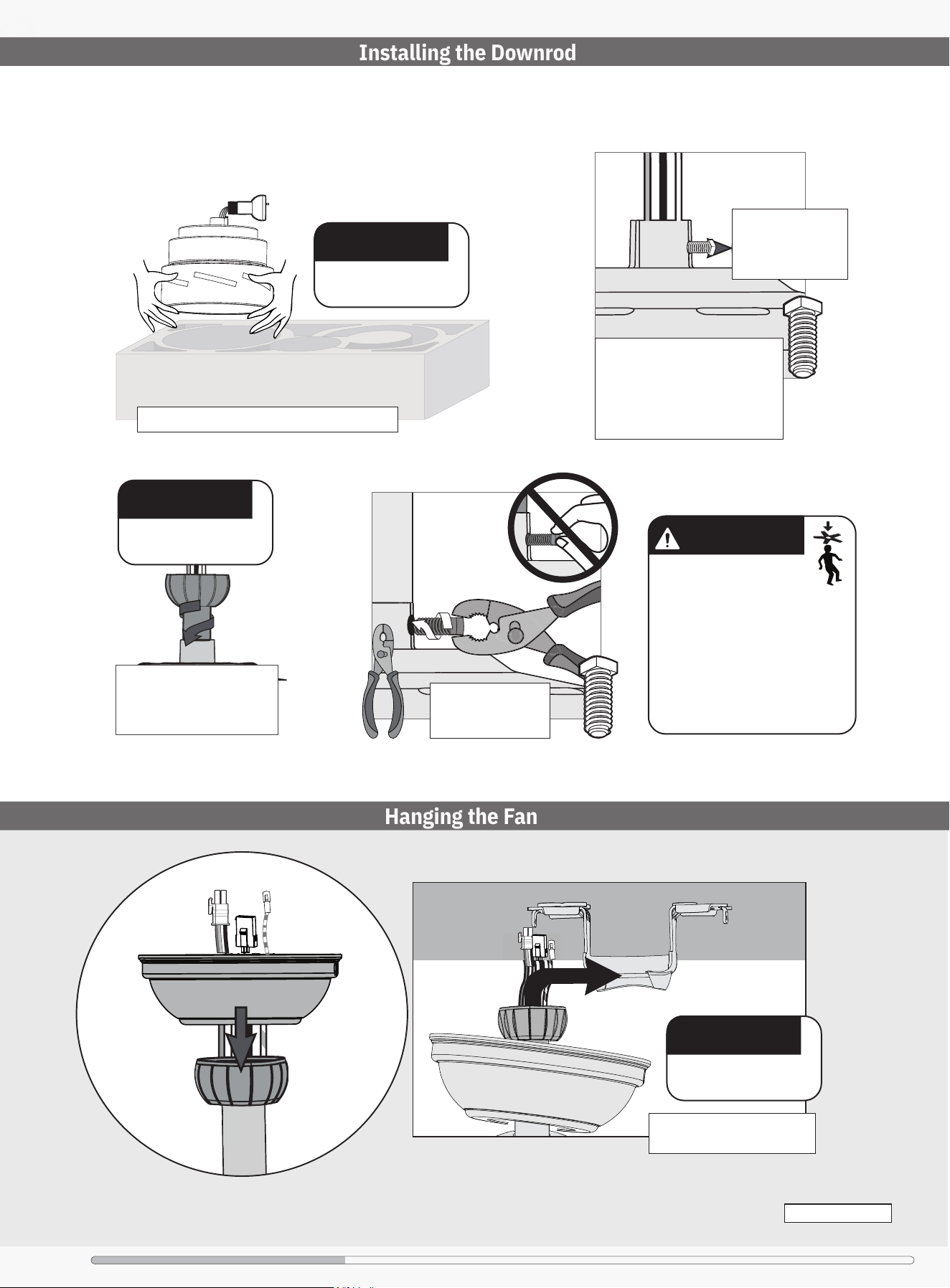

Installing the Downrod
Hand tighten the downrod
(at least 4-5 full turns) until
it stops.
NOTICE
To prevent damage to fan,
ALWAYS lift holding either
the fan housing.
NOTICE
Make sure wires are not
being tangled while twisting.
K
E
E
P
!
Back out the pre-installed
setscrew so that the setscrew’s
threads are still engaged while
the shank does not protrude
and obstruct the insertion of the
downrod.
DO NOT REMOVE
SETSCREW
COMPLETELY
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
Follow below if you are using the downrod that came pre-assembled in your box. Need to install a longer or shorter downrod? Check out
the guide at the end of this manual.
WARNING
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• ALWAYS tighten setscrew with pliers.
• DO NOT hand tighten setscrew.
• CHECK the setscrew is tight using pliers
each time you change fan direction.
• Pin must be reinserted to secure
downrod assembly
Remove product from packaging.
Hanging the Fan
S
l
i
d
e
c
a
n
o
p
y
o
v
e
r
d
o
w
n
r
o
d
a
n
d
w
i
r
e
s
.
Place the downrod ball into
the slot in the ceiling bracket.
NOTICE
To prevent damage to fan,
ALWAYS lift holding either the
fan housing or the downrod.
Fan style may vary.
Note:
6
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote HunterSMART
TM
From bracket
From bracket
From receiver
From fan
From receiver
From receiver
From fan
From fan

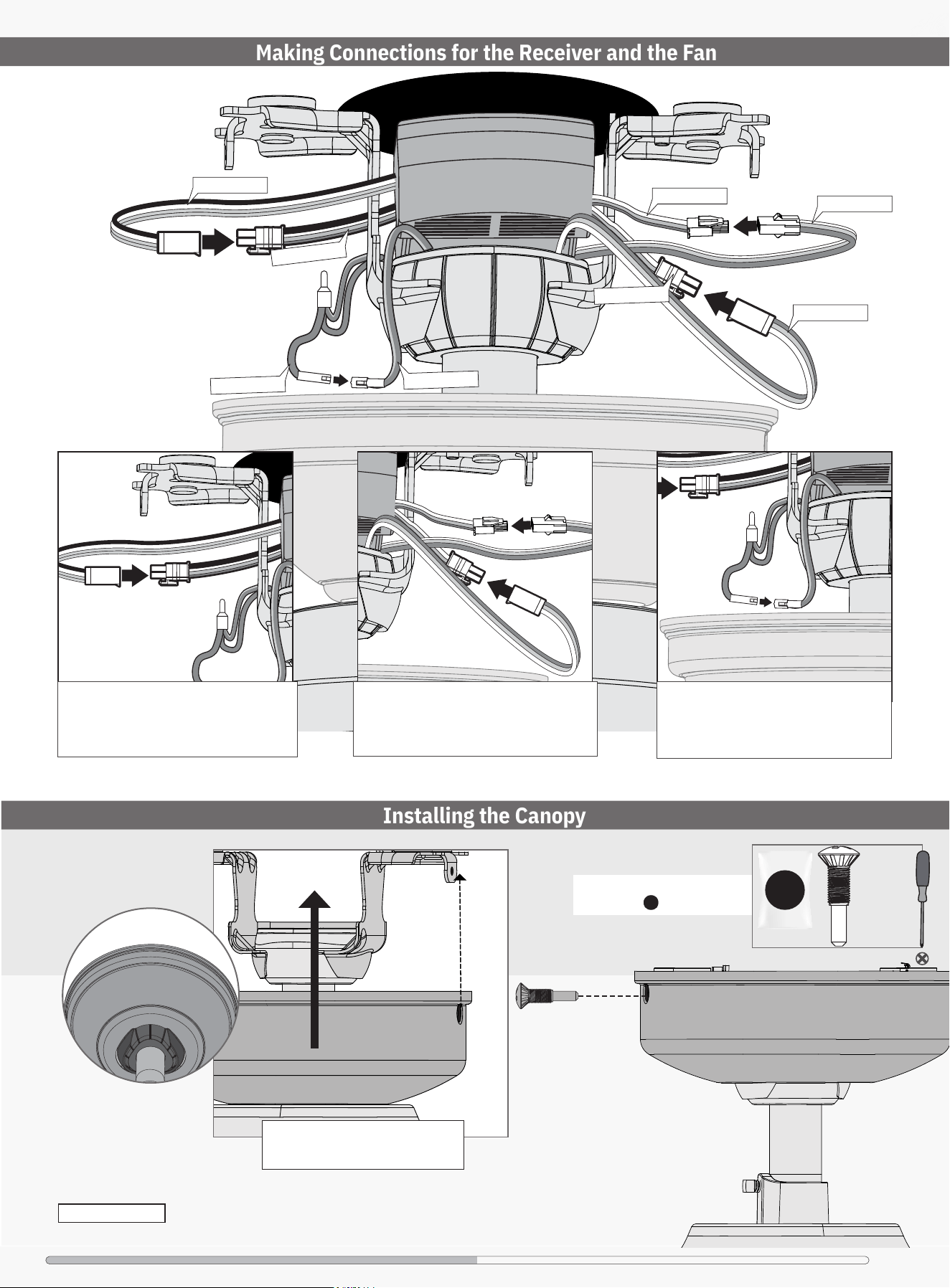

Making Connections for the Receiver and the Fan
Connect wiring harness from ceiling
bracket to the wiring harness from the
receiver. Match up the colored wires.
Connect both wiring harnesses from fan
to the wiring harness from the receiver.
Match up the colored wires.
Connect the grounding wire plug from
the downrod to the grounding wire plug
from the ceiling bracket.
Installing the Canopy
x2
Lift the canopy into place so that the
screw holes are aligned.
Insert the two canopy screws
found in the hardware bag.
F
i
t
t
h
e
c
a
n
o
p
y
i
n
p
l
a
c
e
a
s
s
h
o
w
n
.
bag
Canopy
Screw
Fan style may vary.
Note:
7
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote HunterSMART
TM

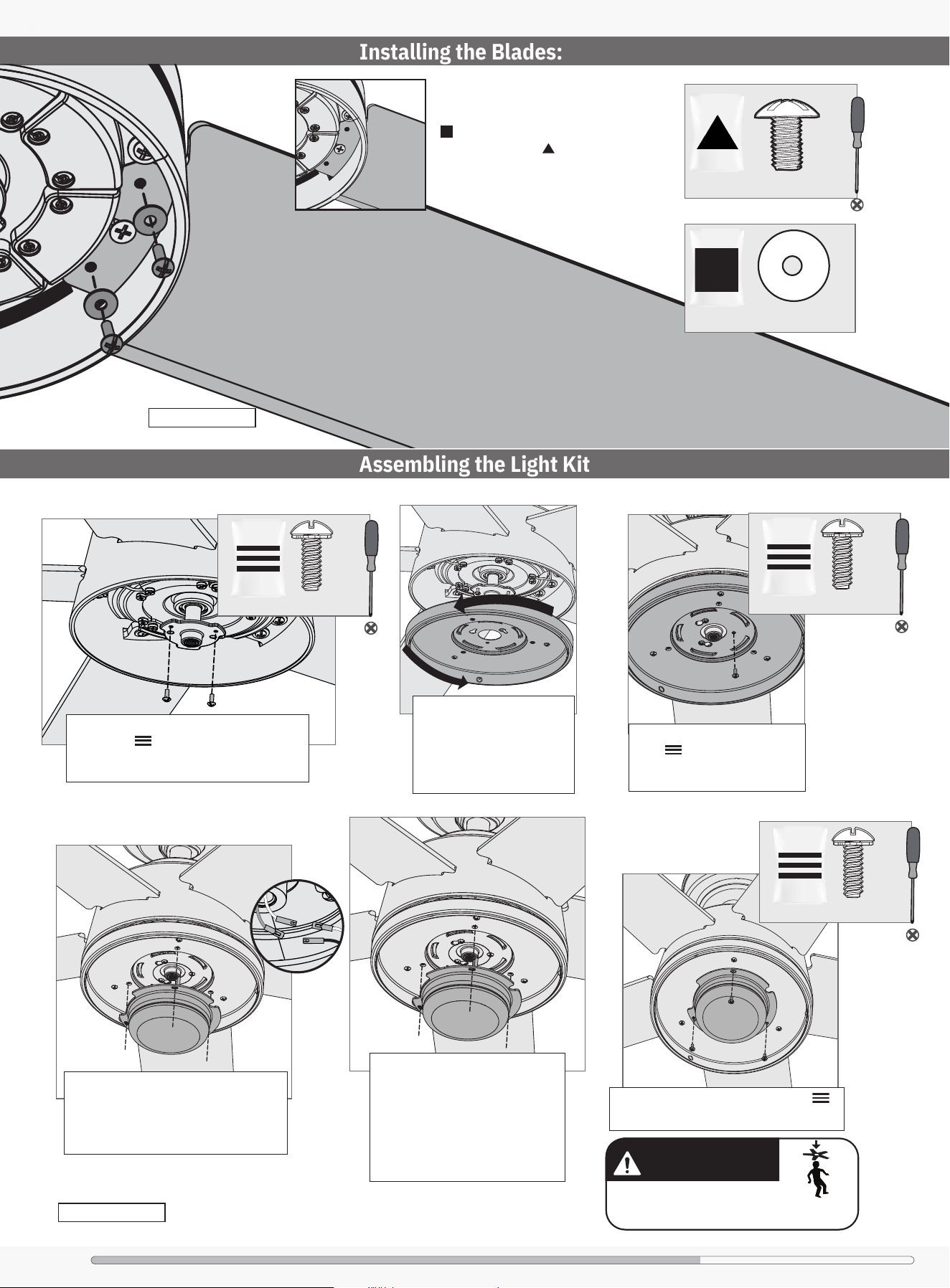

Installing the Blades:
Repeat x7
x14
bag
Blade Screw
x14
bag
Blade Washer
Insert the blade into the blade
slot around the center screw. Put
the blade washers found in the
hardware bag onto the blade
screws found in the hardware
bag. Then install the blade screws
to secure each blade to the fan.
Assembling the Light Kit
Assembling the Light Kit
Insert the third screw, found
in the hardware bag, into
place and then tighten all three
screws.
Partially install two light kit assembly screws,
found in the hardware bag, halfway into
the motor housing as shown. It does not
matter which two screw holes you choose.
Feed the wire plugs through
the center hole of the
upper switch housing,
then wrap keyhole slots
around the screws and twist
counterclockwise.
2 of 6
Light Kit Screw
bag
1 of 6
Light Kit Screw
bag
WARNING
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
Connect the single-pin connectors from
the light kit to the connectors from the
fan. Connect the white wires together.
Connect the blue and black wires
together.
Align the holes of LED assembly
with the holes of the upper switch
housing. Make sure all the wires
from the fan and the light kit are
snug inside the center of the light
kit, not pinched in between the
upper switch housing and the light
kit or hanging out of the sides.
Insert the light kit screws, found in the
hardware bag. Tighten all three screws.
3 of 6
Light Kit Screw
bag
Fan style may vary.
Note:
Fan style may vary.
Note:
8
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote HunterSMART
TM

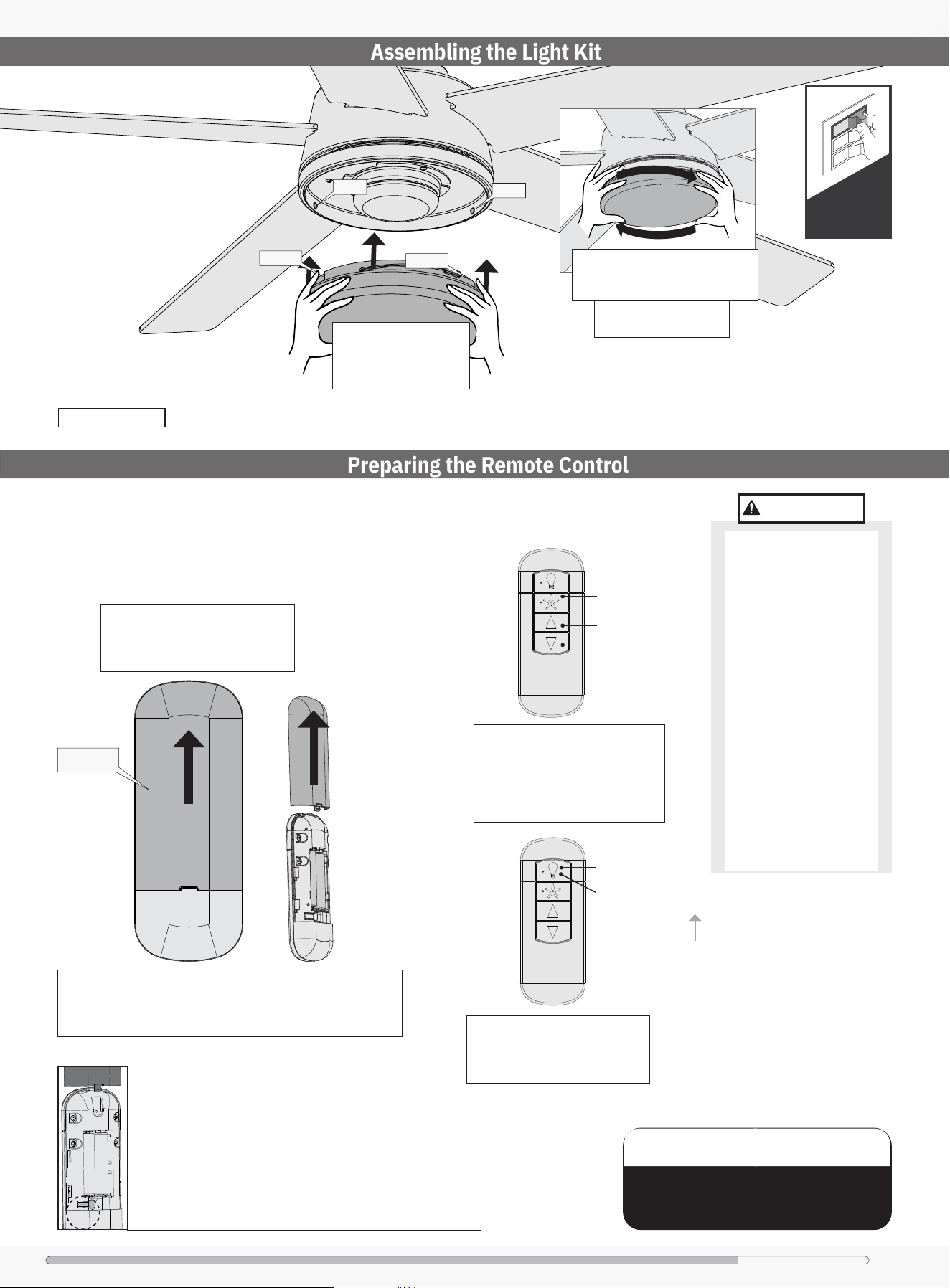

Assembling the Light Kit
ON
Turn Power
Assembling the Light Kit
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the globe until it stops.
Notch
Notch
Tab
Tab
NOTE: On start up your ceiling fan will oscillate back and
forth. This is NORMAL OPERATION for DC ceiling fan as it goes
through its calibration cycle. The fan is NOT DEFECTIVE.
Lift the globe and align
the notches in the globe
with the tabs in the
light kit.
Fan style may vary.
Note:
Preparing the Remote Control
The remote control is already paired for
use. For your convenience, a remote function
card is packed in with your remote.
Install two AAA batteries, found in the remote control hardware
bag, into the transmitter. Clean the battery contacts prior to
installing the batteries. Please contact your local battery recycling
center for proper battery disposal information.
To access the battery compartment,
remove the the battery door to the
transmitter assembly.
IMPORTANT
• Always purchase the correct
size and grade of battery
most suitable for the
intended use.
• Replace all batteries of a set
at the same time.
• Clean the battery contacts
and also those of the device
prior to battery installation.
• Ensure the batteries are
installed correctly with
regard to polarity (+ and -).
• Remove batteries from
equipment which is not to be
used for an extended period
of time.
• Remove used batteries
promptly.
NOTICE
To toggle Dimming Mode on or off, long press the
“Fan Speed Up” button and “Fan Speed Down”
button.
: DIMMING MODE
Battery Door
The remote transmitter is already paired to the receiver and ready
to use. Dimming mode is on by default.
Note: If you need to pair your remote, turn fan power off and back
on at the wall switch. Within 3 minutes, press and release the
“PAIR” button on the back of the remote. Do not hold down the
button. To prevent faulty operation, please ensure all other ceiling
fans within range are turned off at the wall switch while pairing.
Quickly press the Light button to
turn the lights off and on. Hold the
Light button to raise and dim the
light level.
Quick Press:
Light On/Off
Long Press:
Light Dimming
The Fan On/Off button turns the fan
on or off. Long press the Fan On/Off
button to change the direction of
the fan. Adjust the fan speed using
the “Fan Speed Up” or “Fan Speed
Down” directional buttons.
Fan Speed Up
Fan Speed Down
Fan On/Off
Long Press Reverse
9
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote HunterSMART
TM

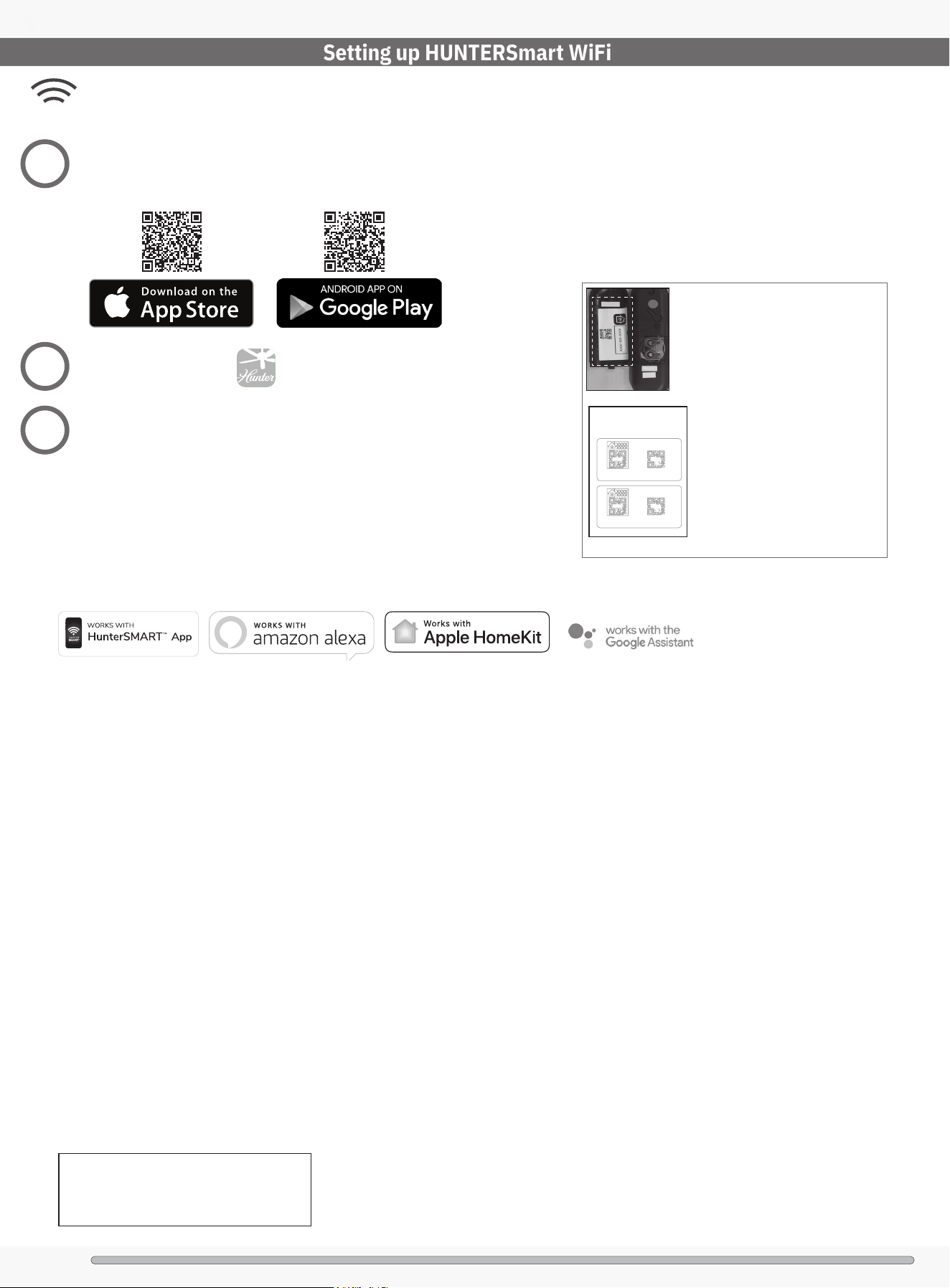

HUNTERSmart connects to available 2.4 GHZ WiFi networks.
Setting up HUNTERSmart WiFi
Note: The HomeKit setup
code is located on the
inside of the remote cover.
(remote style may vary).
Extra HomeKit setup code
labels are provided as shown
below. It is recommended
to place one of the labels
on top of the fan housing
as well as one on top of the
manual for future use.
Follow the onscreen prompts to set up your fan.
Download the app:
To download the app, scan your preferred device here or
search “HunterSmart” in your app store.
1
3
Need to install the app later?
When ready, turn the wall switch off and then
on. Wait three minutes before downloading
the app.
Hunter Pro Tip:
Use of the HomeKit logo means that an electronic accessory
has been designed to connect specically to iPod, iPhone, or
iPad, respectively, and has been certied by the developer to
meet Apple performance standards. Apple is not responsible
for the operation of this device or its compliance with safety and
regulatory standards. Please note that the use of this accessory
with iPod, iPhone, or iPad may affect wireless performance.
Compatible with iOS 16.2 or higher / Android 12.0 or higher
Android and Google Play are trademarks of Google Inc.
Apple logo is a trademark of Apple, Inc.
App store is a service mark of Apple, Inc.
Launch the app.
2
10
1886
1886

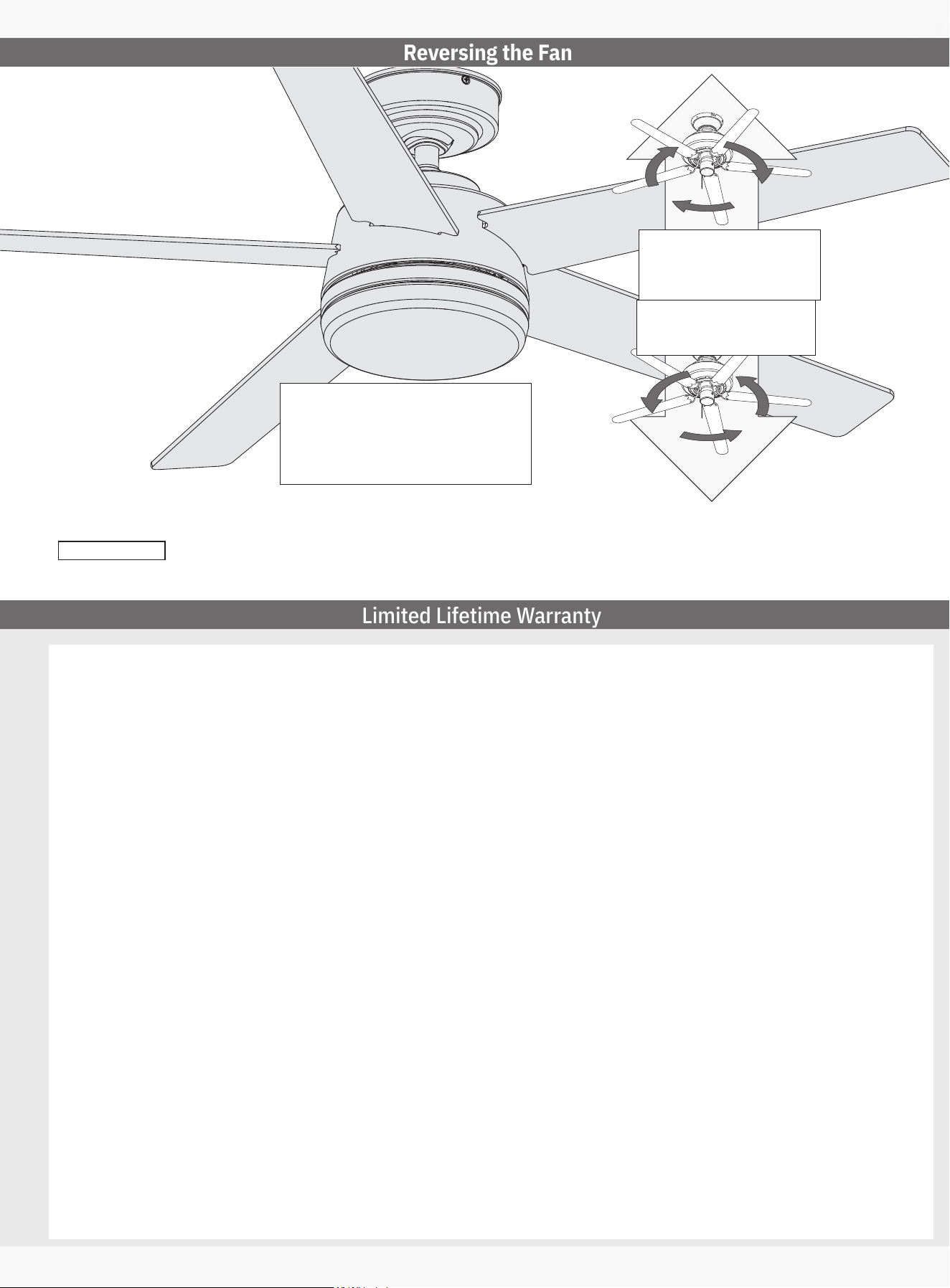

Reversing the Fan
Updraft (clockwise rotation)
creates a more indirect airflow.
Updraft airflow is great for
moving warm air downward.
Downdraft (counterclockwise
rotation) creates a direct breeze
and maximum cooling effect.
Ceiling fans work in two directions: downdraft
(counterclockwise rotation) and updraft
(clockwise rotation). To change the direction
of air flow, turn the fan off and let it come to a
complete stop. Use the remote to change the
direction of the air flow. Restart the fan.
Fan style may vary.
Note:
Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter
ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!
How Can Warranty Service Be Obtained?
Proof of purchase is required when requesting warranty service. The original purchaser
must present a sales receipt or other document that establishes proof of purchase.
Hunter, at its sole discretion, may accept a gift receipt. To obtain service, contact Hunter
Fan Company online or by phone.
www.HunterFan.com/Support/Contact-Us/
1-888-830-1326
Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.
What Does This Warranty Cover?
Motor — Limited Lifetime Warranty
If any part of your ceiling fan motor fails during your ownership of the fan due to a defect
in material or workmanship, as determined solely by Hunter, Hunter will provide you
with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the one-year limited warranty
below.
Other — One-Year Limited Warranty
Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within one year of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*
Light Kits — Warranty May Vary
Light kits are included in the one-year limited warranty. However, you may qualify for
additional warranty coverage if your fan includes one of the following:
• LED Light Kits — Three-Year Limited Warranty
If your LED light kit module (not including glass components) or LED bulb
fails at any time within three years of the date of purchase due to a defect
in material or workmanship, as determined solely by Hunter, Hunter will
provide a replacement part free of charge.*
• ENERGY STAR® Rated Light Kits — Three-Year Limited Warranty
If your ENERGY STAR rated light kit (not including glass components) fails at
any time within three years of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a
replacement light kit free of charge.*
* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.
What Does This Warranty NOT Cover?
Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs (except where otherwise noted); remote control
batteries; fans purchased or installed outside the United States; fans owned by
someone other than the original purchaser; fans for which proof of purchase has not
been established; fans purchased from an unauthorized dealer; ordinary wear and tear;
minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any
of the following: improper installation, misuse, abuse, improper care, failure to follow
Hunter instructions, accidental damage caused by the fan owner or related parties,
modications to the fan, improper or incorrectly performed maintenance or repair,
improper voltage supply or power surge, use of improper parts or accessories, failure to
provide maintenance to the fan, or acts of God (e.g. flood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD
OF COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some
States do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you.
How Does State Law Affect Warranty Coverage?
This warranty gives you specic legal rights. You may also have other rights which vary from state to state.
Limited Lifetime Warranty
11
1886
1886
WARNING
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• ALWAYS follow the
downrod assembly
instructions exactly.
• VERIFY the downrod
is assembled correctly
by rmly pulling on the
hanger ball.
• Pin must be
reinserted to secure
downrod assembly.

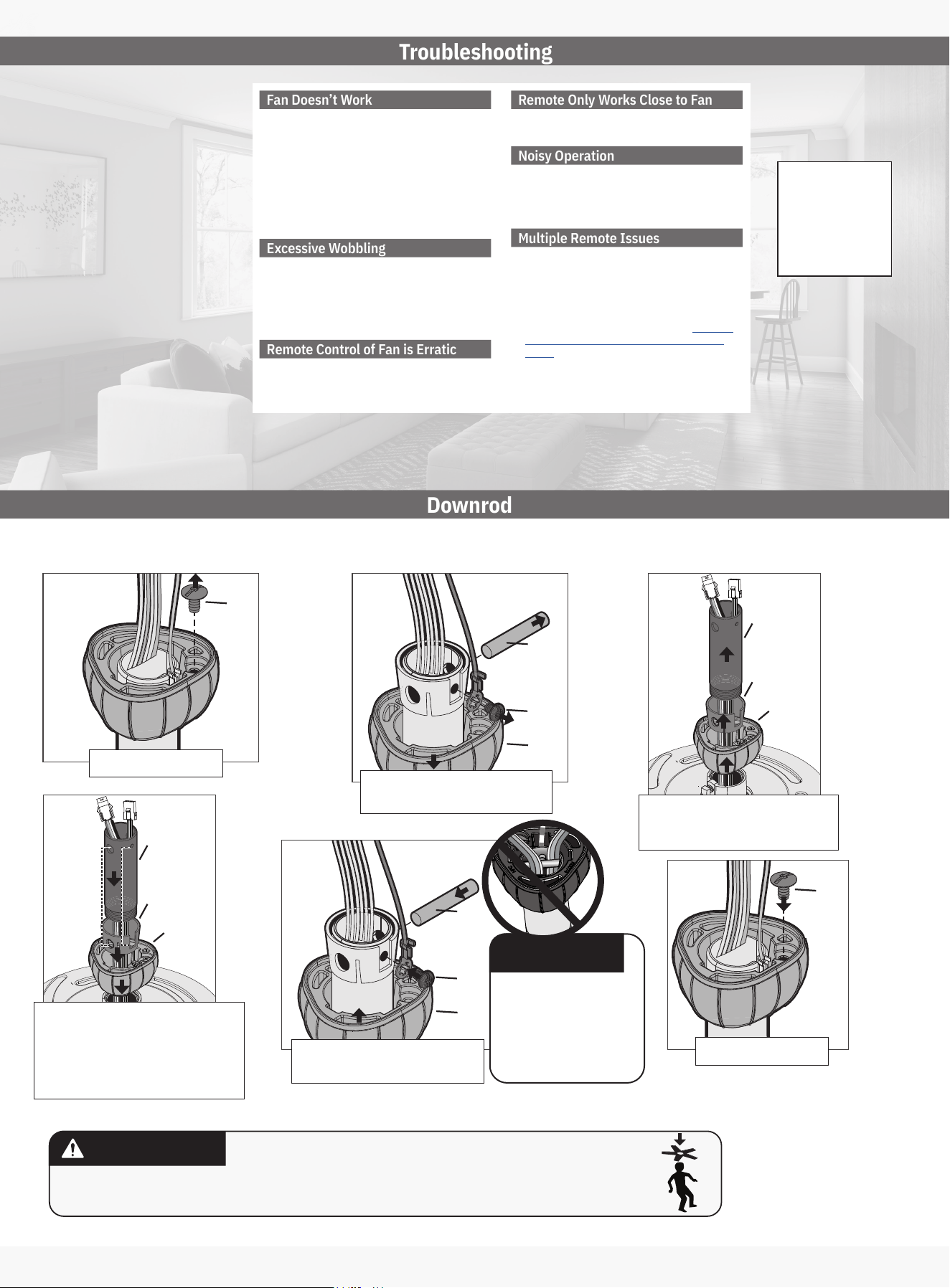

Downrod
If you need a different downrod length follow these steps:
A
A
A
A
A
A
B
B
C
C
B
B
C
C
Remove ball screw (A).
Reinstall ball screw (A).
Slide ball down (A), remove small
metal pin (B) and ground screw (C).
Reinstall small metal pin (B) and
ground screw (C). Slide ball up (C).
Remove ball (A), inner sleeve (B)
and downrod (C) from fan body and
wiring harnesses.
Route wiring harnesses from the fan
through the accessory downrod (C).
Slide inner sleeve (B) and ball (A) over
downrod. Make sure to align the holes
for the sleeve (B) and downrod (C).
NOTICE
Make sure all wiring from the
wiring harnesses are on one
side of the downrod pin to
avoid wire entanglement when
engaging the dowrod. Do not
have wiring on the same side
as the grounding screw to avoid
damage to the wiring.
For ceilings over 10 feet, purchase a DC wire extension kit and downrod online.
Troubleshooting
Fan Doesn’t Work
• Make sure power switch is on.
• Check the circuit breaker to ensure the power is
turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit breaker, then
loosen the canopy and check all the connections
according to the wiring diagram.
Excessive Wobbling
• Make sure the blades are properly installed on
the blade iron posts.
• Turn the power off, support the fan carefully, and
check that the hanger ball is properly seated.
Remote Control of Fan is Erratic
• Make sure the battery is installed correctly.
• Install a fresh battery.
Remote Only Works Close to Fan
• Change battery.
Noisy Operation
• Make sure the blades are properly installed.
• Check to see if any of the blades are cracked. If
so, replace all of the blades.
Multiple Remote Issues
• If you have multiple remotes or multiple remote-
controlled fans installed on the same circuit
breaker and you are experiencing interference or
faulty operation of your remote controls, please
go to
www.HunterFan.com/FAQs and click “How do
I properly install multiple remote-controlled
fans?” for information on how to correct this
issue.
Cleaning the Fan
Use soft brushes
or cloths to
prevent scratching.
Cleaning products
may damage the
nishes.
Hunter Pro Tip:
