Parameters
Display Instruction
Measuring Voltage(internal supply): 10 - 85V
Measuring Voltage(external supply): 0.01 - 120V
Current: 0.1 - 50A/ 0.4 - 300A
Capacity: 0.001AH - 99999AH
Energy: 0.00WH - 99999.9WH
Time: 0 - 100 hours
Power Value: 60KW
Temperature: 1 - 100℃
Voltage Precision: ±1% + 2 digits
Current Precision: ±2% + 5 digits
Temperature Precision: ±2℃
External Supply Voltage: 12 - 60V
Display: 1.8 inch colored digital screen
Power: 0.5W(turn on display); 0.2W(turn off display)
Communication Bit Rate: 9600bps
Measuring Speed: 20 times per second
OVP: 0.01-120V
LVP: 0.01-120V
OCP: 0-500A
NCP: 0-500A
OPP: 0-60KW
OTP: 1-100℃
Size(Display Board): 78*42*26 mm / 3.07*1.65*1.02 inches
Size(Measuring Board): 56*36*34 mm / 2.21*1.42*1.34 inches
Telecommunication Relay Multimeter with Hall Sensor
Voltage Curve
Magnification
200595/200596
Measured Current Value
Measured
Voltage Value
Temperature
Refresh Time
Current Curve
Voltage Curve
Stop/Start Curve
Current Curve
Magnification
Supply Capacity Value
Measured Power Value
Measured
Current Value
Measured
Voltage Value
Accumulative Operation Time
Supply Capacity
Percentage
Temperature
Output State
1. Switch AH/WH Display: short press to switch.
2. Maximum Capacity: long press for 5 seconds, the
capacity is automatically filled up to 100%.
3. Switch between normal display and waveform display
mode: short press to switch.
4. Clear Capacity: long press for 5 seconds, capacity
cleared.
5. Parameters Setting: long press for 5 seconds to “OK”
enter parameters setting interface, short press to“OK”
switch parameters.
6. In Curve display mode: short press to switch curve
refresh time. Short press to Stop/Start curve refresh.“OK”
Press to return normal display mode.
Mode 0: When the battery is fully charged, the relay shuts
and starts to discharge. When the battery is under-voltage,
the relay disconnects. When the battery is over-voltage, the
relay automatically shuts(achieve automatic discharge).
Mode 1: When the battery is under-voltage, the relay shuts
and start to charge. When the battery is over-voltage, the
relay disconnects. When the battery is under-voltage, the
relay automatically shut(achieve automatic charge).
Mode 2: When the battery starts to charge or discharge.
The relay will disconnect if voltage is higher than OVP or
lower than LVP.
Charge-Discharge Monitor
Operating Instruction
Relay Working Modes

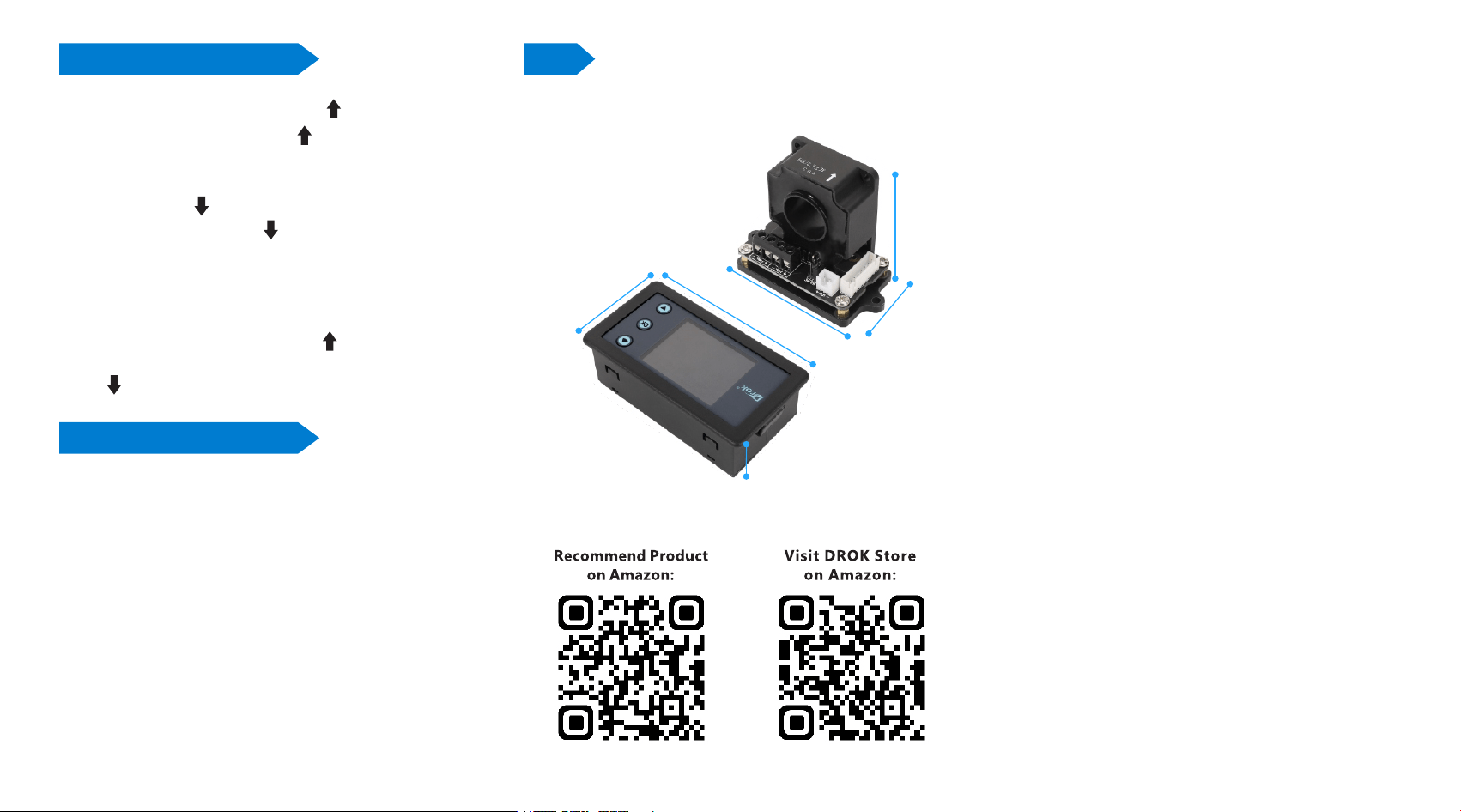

Size
26.5mm/1.04in
4
2.
5
mm
/
1.
6
8i
n
7
9m
m/
3
.
10
i
n
79
m
m/
3.10i
n
4
2.5m
m
/
1.6
8
in
2
6
.
5m
m
/1
.
0
4
in
