Child Lock
Low Noise Level
3- Stage
Filtration System
True HEPA Filter
Model: HQZZ-60
Air Purifier
User Manual
60
Our customer service team is standing by to assist
you if you have any questions or concerns.
CUSTOMER SERVICE
www.tailulu.com
1-833-368-8825
CONTENT
Product introduction
Product overview
Before using the appliance
Control panel and function
Operation
Maintenance
Specifications
IMPORTANT
Troubleshooting Guide
1
2
3
4
5
7
8
9
10
--------------------------------------
-----------------------------------------------
---------------------------------------------
-----------------------------------------------
-------------------------------------------------
----------------------------------
--------------------------------
-------------------------------------------
----------------------------------------
To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan
With Any Solid-State Speed Control Device.
READ AND SAVE THESE INSTRUCTIONS
PRODUCT INTRODUCTION1
Dear users,
Thank you for using our air purifier.
Please read this manual carefully before use and master the
usage method correctly.
This product is a small desktop air purifier.
Its unique appearance design can bring you aesthetic experi-
ence.
The structure of air inlet on four sides and air outlet on the top
enables it better circulate and purify the air.
The compact size makes it placed on the desktop without affect-
ing your work.
This air purifier can absorb, decompose or convert various air
pollutants and effectively improve air cleanliness.
It adopts multiple technologies and media so that it can provide
you with clean and safe air.
A SMALL "BODY" CAN REALIZE GREAT EFFCTS!
PRODUCT OVERVIEW2
Filter cover
Filter
Adapter
BEFORE USING THE APPLIANCE3
1. Open the package, take out the air purifier. Rotate the twist
handle counterclockwise to unlock the base cover.
2. Take out the power adapter (placed in the middle of the filter).
3. Remove the new filter protective film before installation.
4. Place the filter into the air purifier and put the base cover back
(Align the base cover locking notches and rotate it clockwise until
it clicks into place.)
5. To better exert the performance of the air purifier, the air inlet
of the machine should be kept a certain distance (above 20cm
recommended) from the obstruction.
6. Please insert the plug into the power socket firmly.
4 CONTROL PANEL AND FUNCTIONS
Child Lock
Timing Function
Power On/Off
Speed Control
5 OPERATION
1. “POWER" ON/OFF
Press the" POWER " button to switch on the purifier, then you wil find
the filtration runs in speed 2 automatically. Press the" POWER" button
again to switch off the purifier.
2. Child lock function:
Pressing the “LOCK” key will enable the child lock function and it will
disable the other keys. To re-enable the other keys, press and hold the
“LOCK” key for 5 seconds.
3. Speed:
Press the "Speed" button to adjust the speed level ( ) and choose
the most comfortable one for you. Please note the noise will increase
when the speed level is increased.
4. Timer function:
Press the "Timer" button to pick the required operating time (2, 4, 8
hours). Air purifier shuts off automatically at the end of the selected
period.
，，

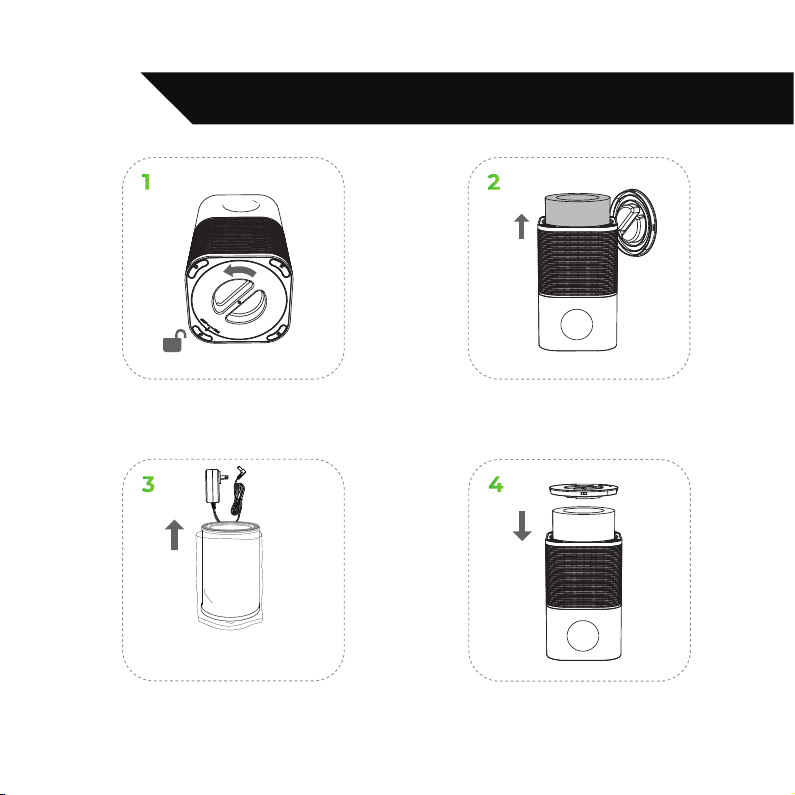

HOW TO REMOVE THE PROTECTIVE BAG
6
Take out the power adapter and remove
the filter protective bag before installation.
Rotate the twist handle clockwise to
unlock the base cover.
Flip the air purifier over and
remove the filter.
Place the filter into the air purifier and
install the base cover properly.Tighten
the filter buckle until it clicks into place.
Maintenance7
1.Recommended daily cleaning and maintenance frequency of
the filter: about once a month. The surface of the filter can only be
cleaned with a brush or dry cotton cloth. Do not clean the filter with
water or detergent. The filter is easy to be damaged and deformed. Do
not pull and press it with force during cleaning. Replace the filter with
a new one in case of damage.
2.Recommended replacement frequency of the filter: about once
every 3-6 months depending on the place and the usage method. For
example, the filter replacement cycle may be shortened in case of
heavily polluted areas, smoking of family members, etc. Please
replace the filter in time if the filtering effect is not good.
3.Surface cleaning: Wipe the outer surface and the air inlet and
outlet with a wrung soft cloth. Do not clean the surface with chemical
cleaners.
4.Long-time idling: Unplug the power adapter and clean the outer
surface and,the filter. Put the purifier in a plastic bag and store it in a
place with less moisture.
Be sure to unplug the power adapter before any maintenance!
SPECIFICATIONS8
Air purifier
162x162x255 mm
185x185x280 mm
1.03KG
1.26KG
HQZZ-60
Touch keys
100-240V AC 50/60 Hz
12V DC
5W
Product name:
Product dimension:
Package dimension:
Net weight:
Gross weight:
Model:
Operation
Input voltage of the adapter:
Operating voltage
Rated power:
IMPORTANT9
Do not clean or sprinkle the product with liquid.
1.There is a high-speed wind wheel rotating in the purifier, so do
not put your hands or foreign matters into the air inlet and outlet.
2.Keep the purifier away from the children and do not let them
play with this product.
3.Keep hair, fabric, etc. away from the machine to avoid being
caught in or blocking the air inlet and outlet.
4.Close the doors and windows to improve the purification effect
when using the product. (Please ventilate when using the purifier
with a combustion device to avoid carbon monoxide poisoning.)
5.Please only use the power adapter that came with the device.
6.Do not use the device in wet or moist are such as bathrooms,
steamy kitchens or near swimming pool otherwise it may cause
electric shock.
TROUBLESHOOTING GUIDE10
Faults Cause and solutions
The air purifier
produces a
strange smell.
No wind at
the air outlet
Can't feel
the effect
The motor is not running. Check the power supply,
replace the power adapter or contact the customer
support team.
The filter is too dirty and has not been replaced for
a long time-replace the filter.
The water has entered the filter or the machine has been
used in a humid environment. Please replace the filter.
Reuse after sealed for a period of time-clean the filter,
if it cannot be solved replace the filter.
Filter failure - Replace the filter.
Used in inappropriate places (excessive area)
If there is a burning smell-stop using it immediately,
unplug the power supply and contact customer
support team.
