VXDAS TPA01
TPMS Relearn Tool Plus
TIPS FOR USING:
1.This device requires a new 9V battery.
2.TPMS relearn function only for GM series
cars and FORD series cars, GM and FORD
original tire sensor can be activated 100%.
3.When resetting tire sensors,the car gear set
needs to in P and learning mode.
4.When resetting tire sensors, press the button
to wait right green light up.
5.When measuring tire pressure, need to test
under the condition that the valve is not
leaking, then waiting left green light up.
6.Tire pressure is different for different cars,
please compare the tire pressure values
recommended by the car's instruction manual.

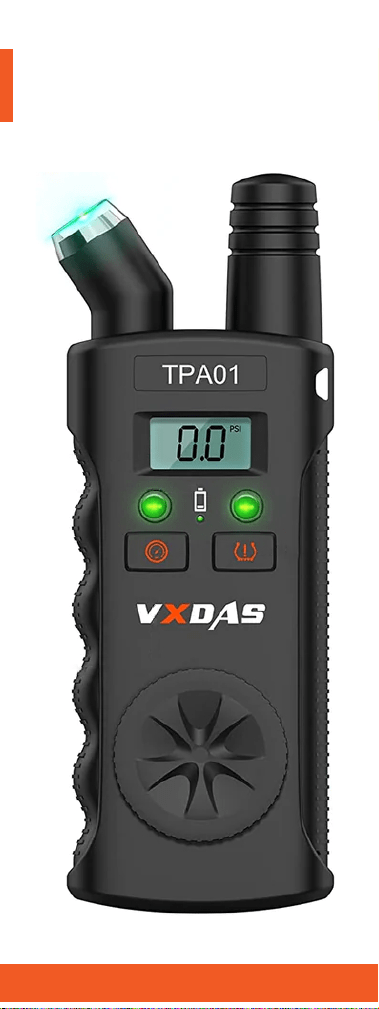

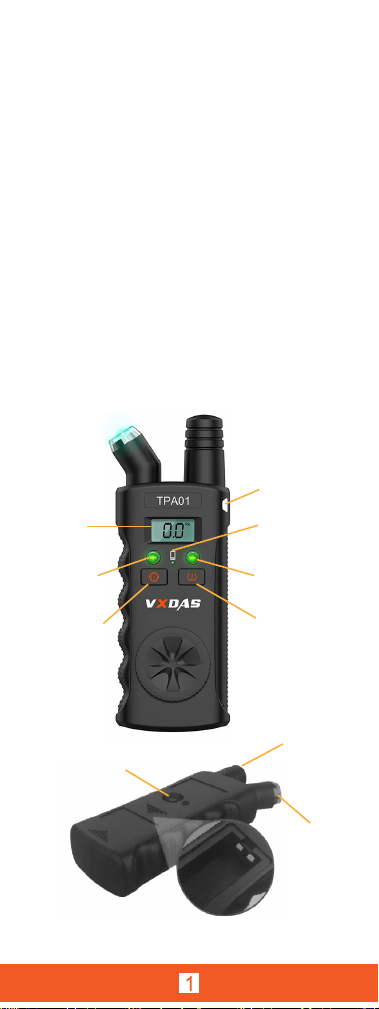

Display
Gauge light
Gauge button
Lanyard hole
Power light
Relearn light
Relearn button
Antenna
Air nozzle
Power button
PRODUCT INTRODUCTION:
VXDAS TPMS relearn tool plus
TPMS relearn function: Most of GM and FORD
vehicles equipped with a 315 or 433 MHZ(TPMS)
tire pressure monitoring system, the body control
module records ID information of each position
in the tire pressure sensor when it works normally.
A “sensor relearn procedure”must be performed
after tire rotations. Remote Control Door Lock
Receiver Module replacement or Tire pressure
sensor replacement.
This relearn procedure can be performed by
using VXDAS TPMS relearn tool plus.
Please follow the methods below to read the tire
pressure sensor after replacing a tire or wheel
speed sensor.
Tire Pressure Gauge function can check the
consistency of the tire pressure and the data
displayed by the on-board computer in the
process of using the car in time, and test the
pressure after replacing the tire inflation to
refill the insufficient situation immediately.
For GM cars and FORD cars, tire pressure reset
operation is required after tire pressure sensor or
tire pressure alarm or tire replacement.
HOW TO RELEARN
TIRE SENSORS:
1.Enter Leaning Mode
(1)GM
Set the vehicle to tire pressure training mode
(insert the key, step on the parking brake, turn the
car key from off 3 times, step on the parking
brake again, turn off the car key, and then turn it
off to on 3 times; partly When the vehicle starts,
the vehicle enters the training mode by
continuously turning on and off the hazard
warning flasher 3 times. If you hear the beep of
the horn, it means that the training mode has
been activated.
(2)FORD
Make the gear in P position.With the ignition
switch to OFF,press and release the brake pedal.
Turn the ignition switch from the OFF position to
the RUN position 3 times and end at RUN
position.Depress and release the brake pedal.
Ignition to OFF position.Ignition goes from the
OFF position to the RUN position 3 times and
ends at RUN position.Horn will ring once and the
TPMS indicator flashes,then the learning mode
has been successfully entered. If equipped, the
message center will display the front left (LF) tire.

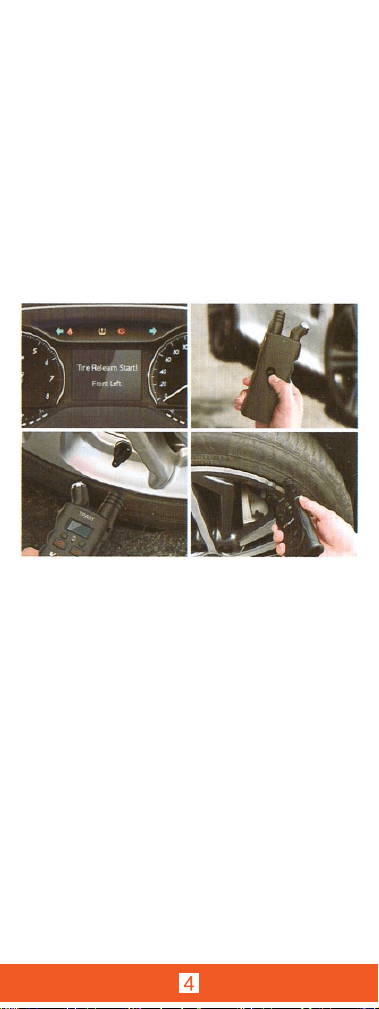

2. Starting from the left front tire, turn the
antenna of the tire pressure monitoring special
tool upward, press the tire sidewall near the valve
stem rim to activate the antenna. Press and
release the right button and wait for the horn to
sound. Once the horn buzzes and the sensor
information is read in, the turn signal at the next
position to be read will light up;
3. After the horn sounds and the front right turn
signal lights up, the remaining 3 sensors repeat
step (2) in the following order: 3.1. Right front 3.2.
Rear right 3.3. Rear left;

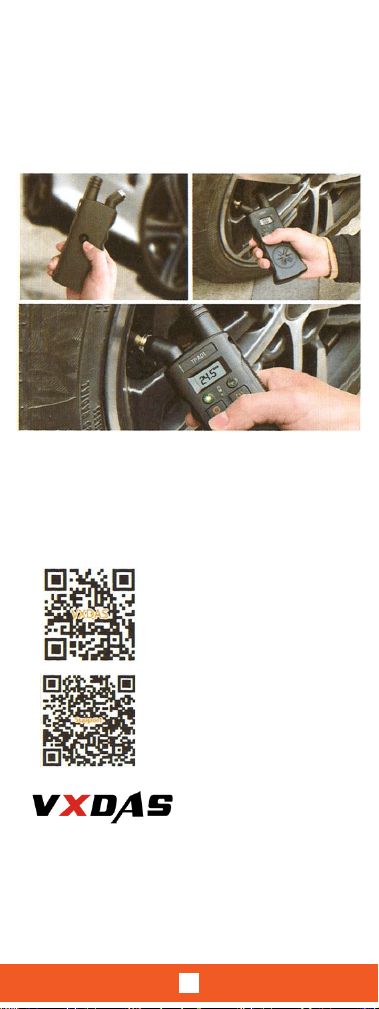

4. After the left rear sensor reads in, the horn
also buzzes twice, the reading process is
completed, and the car control module exits the
reading mode.
Relearn Tire Sensors
TIRE PRESSURE GAUGE
Specification:
Range: 0-150PSl or 0-7.0 Bar or 0-7.0 Kgf/em2
or 0-700 kPa
Display: 21*10mm LCD display
Power supply: 9V battery
Working temperature: -5 ~50"C
Operation instructions:

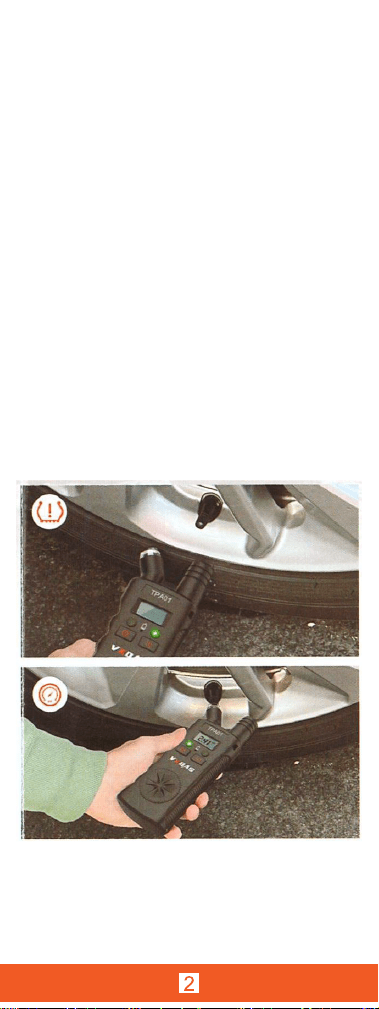

Press the left button. Wait for "0.0" PSI or "0.00"
Bar or"0.00 Kgf/cm2" or "0" Kpa to display.
Place the valve of the pressure gauge on the tire
valve. Press hard to ensure a good seal and
prevent air leakage.
Wait for 1 second until the green LED light above
the button lights up.
Precautions.
(1) The new battery does not meet the standard
emission power due to insufficient power, please
charge it for about 2 hours after use.
(2) The position of the antenna on the top of the
car tire, should be close to the air core between
the tire and the hub, instead of leaning on the air
core.
(3) When the green LED on the right side of the
device is on, it means that the tire pressure reset
signal is being sent.
5
Tire Pressure Gauge
Thanks for purchasing VXDAS product and
patiently using this product under the guidance
of the product manual, wishing you a happy
and safe trip with your car.
Quickly remove the pressure gauge from the
valve and read the pressure.
To retake the reading, simply place the nozzle on
the tire valve again and repeat.
The meter will automatically turn off 30 seconds
after use.
