Quartz Perfect Drain
TM
InSinkErator
®
Disposer
Installation Instructions
Elkay
®
Quartz Perfect
Drain
™
sinks are designed and approved
for compatible disposers manufactured by InSinkErator
®
utilizing the Quick Lock
®
mounting configuration.
Use of non-approved disposers may void
Elkay warranty.
InSinkErator, Quick Lock and the mounting collar
configuration are trademarks of Emerson Electric Co.
To install garbage dispo
ser onto Elkay
®
Quartz Perfect Drain
™
Sink:

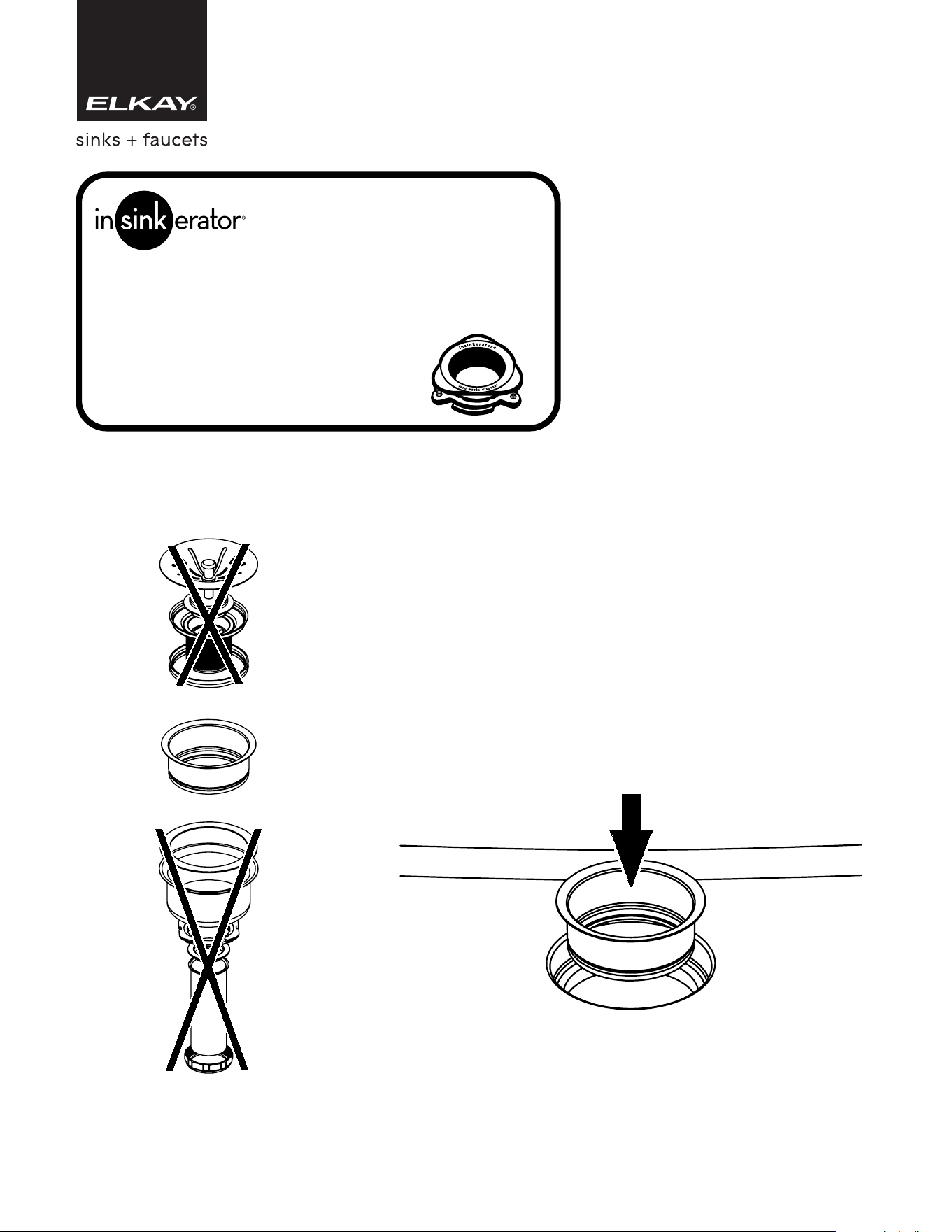

1. Disassemble LKPDQ1 drain assembly and
remove the Flange component. Remaining
components will not be used.
2. Apply non-staining plumbers putty to underside
of the Flange and install the Flange into Quartz
Perfect Drain™ Sink opening.
Quartz Perfect Drain
TM
InSinkErator
®
Disposer
Installation Instructions
(1)
Sink
Flange
(2)
Fiber
Gasket
(3)
Backup
Flange
(4)
Mounting
Ring
(5)
Screws
(6)
Snap
Ring
3. Locate appropriate step in disposer
installation guide (provided with garbage
disposer) represented by image below:
WARNING!
OVER-TIGHTENING OF MOUNTING
ASSEMBLY SCREWS (5) COULD
CAUSE
PERMANENT DAMAGE TO
SINK.
DO
NOT
USE
POWER
TOOLS
TO
TIGHTEN!
For further assistance, contact
InSinkErator® Customer Service Line
1.800.558.5700
or visit www.insinkerator.com
Zurn Elkay
1333 Butterfield Road, Suite 200
Downers Grove, IL 60515
©2024 Zurn Elkay
elkay.com
1000004396
Rev: 03/24

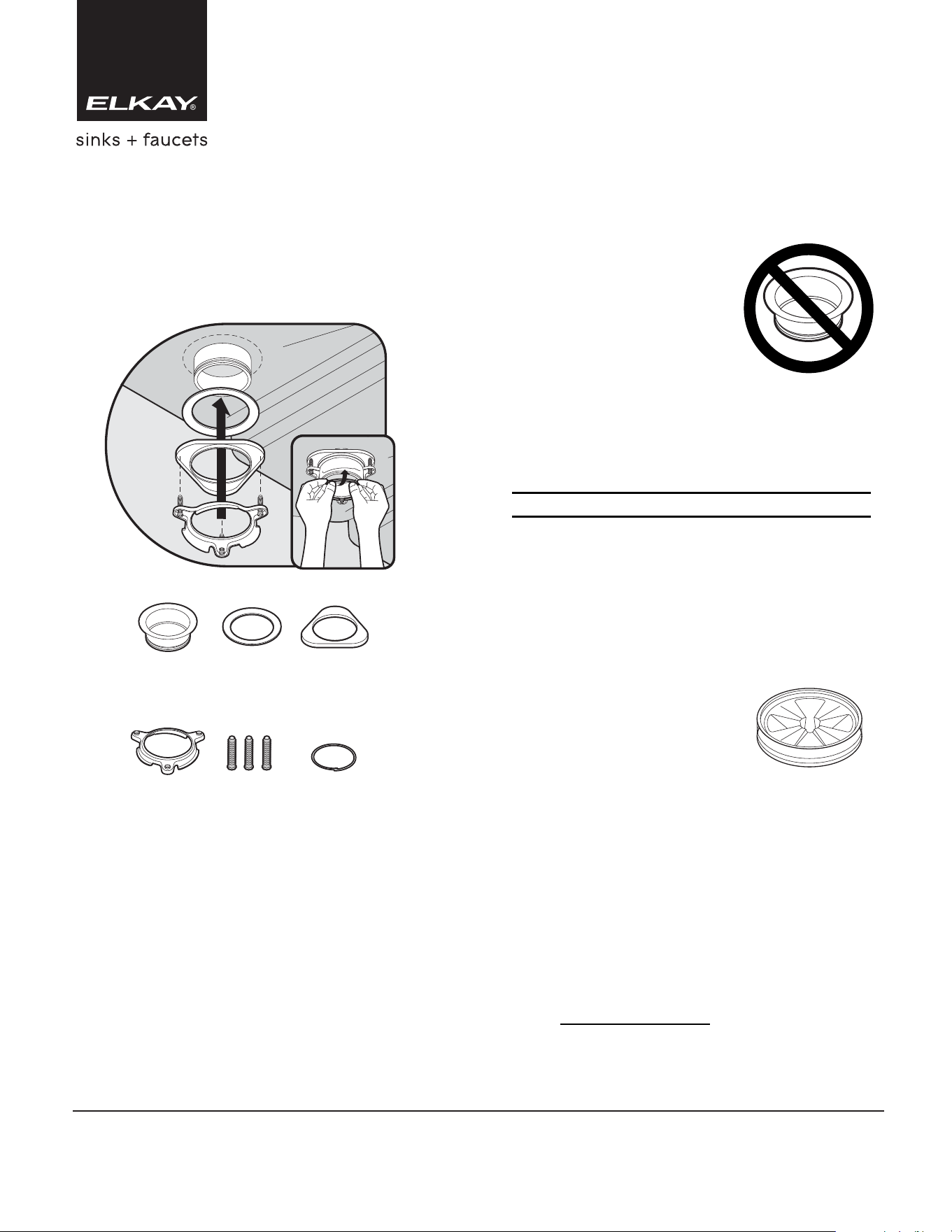

4. Disassemble Quick Lock
®
mounting assembly components
provided
provided with disposer
(1, 2, 3, 4, 5, 6). Sink Flange
component (1) is not required.
5. Follow remaining installation
steps
as outlined in disposer
installation guide, utilizing
remaining
components (2, 3, 4, 5, 6).
6. Install Quiet Collar
®
Sink Baffle into
Flange groove.
