PRECAUTIONS - 1991477B417/D
e
PRECAUTIONS 19
General safety instructions 19
For this appliance 21
Appliance purpose 22
This user manual 23
Manufacturer’s liability 23
Technical Support. 23
Identification plate 23
Energy label 23
Disposal 23
Information for control bodies 24
To save energy 24
Light sources 24
How to read the user manual 24
DESCRIPTION 25
General Description 25
Accessories 25
USE 26
Preliminary operations 26
First use 26
Temperature setting 26
Alarm for door open 27
Using the accessories 27
Ventilation 27
Using the refrigerator compartment 27
Using the freezer compartment 28
Noises during operation 28
Heated front surface 29
Turning the appliance off 29
Storage advice 29
CLEANING AND MAINTENANCE 29
Cleaning the appliance 29
Defrosting 30
Interior lighting 30
Replacing the seal 30
What to do if... 30
INSTALLATION 31
Electrical connection 31
Positioning 31
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities. For further information on the
product: www.smeg.com
PRECAUTIONS
General safety instructions
Risk of personal injury
• According to current
regulations, children
between 3 and 8 years of
age can take or load food
from the appliance, but it is
highly discouraged to allow
children under 8 years of
age to perform these
operations and in general to
use the appliance.
• Keep children under the age
of eight at a safe distance
unless they are constantly
supervised and make sure
that they do not play with
the appliance.
• Never try to put out a fire or
flames with water: turn off
the appliance and smother
the flames with a fire
blanket.
• Do not touch the heating
elements on the outside of
the appliance.
• Cleaning and maintenance
that should be performed
by the user must not be
carried out by unsupervised
children.
•Do not modify this
appliance.
• Do not insert pointed metal
objects (cutlery or utensils)
into the slots in the
appliance.
• Do not touch (especially
with wet hands) frozen
20 - PRECAUTIONS 91477B417/D
products or put them in
your mouth directly.
• Do not store inflammable,
explosive or volatile
substances.
• Do not keep explosive
substances, such as spray
bottles with flammable
propellants in the
appliance.
• Bottles containing strong
alcoholic drinks must be
tightly closed and stored
vertically.
• Organic compounds, acids
and essential oils can
corrode the seals and
plastic surfaces if left in
contact with them for
extended periods.
• Turn off the appliance and
unplug it from the mains
before cleaning or
maintenance.
• Do not pull the cable to
unplug the appliance.
Risk of damaging the appliance
• Never rest sharp metal
objects such as knives,
forks, spoons and lids on
the appliance during use.
• Do not use abrasive or
corrosive detergents on
glass parts (e.g. scouring
powders, stain removers
and metallic sponges).
• Do not sit on the appliance.
• Do not sit or lean on the
door or any open drawers.
• Do not use leverage on the
door or handle to move the
appliance.
• Do not use steam jets to
clean the appliance.
• Do not use electrical
devices (e.g. hair dryers) or
sprays for defrosting, the
plastic parts could be
damaged.
• Do not use the appliance to
cool rooms for any reason.
• Always unplug the
appliance in the event of a
fault or when performing
cleaning or maintenance.
• Do not keep liquids in tins or
glass containers in the
freezer.
• Do not use sharp metal
objects to remove excess
ice build-up in the freezer
compartment.
• Do not use adaptors for
plugs.
• CAUTION: do not place
portable multiple sockets or
portable power supply units
at the back of the
appliance.
• Do not place heavy objects
on the top of the appliance.
• Do not use sharp objects
when removing ice and
frost in order not to damage
the appliance's walls.
Installation and maintenance
• The appliance must be
connected to ground in
compliance with electrical
system safety standards.
• Position the appliance with
the aid of a second person.
PRECAUTIONS - 2191477B417/D
e
• Never use the open door to
lever the appliance into
place when fitting.
• Avoid exerting too much
pressure on the door when
open.
• The appliance must not be
installed near heat sources.
If this is not possible,
suitable insulation must be
used.
• The appliance must not be
exposed to direct sunlight.
• Do not use the appliance
outdoors.
• Installation and servicing
should be carried out by
qualified personnel in
accordance with current
standards.
• Have the electrical
connection performed by
authorised technical
personnel.
• For avoiding dangers, if the
power supply cable is
damaged, contact technical
support immediately and
they will replace it, so as to
prevent any risk.
• Always use any necessary/
required personal
protective equipment (PPE)
before performing any work
on the appliance
(installation, maintenance,
positioning or movement).
• Before performing any
operation on the appliance,
switch off the power
supply.
• If installed near another
refrigerator or freezer, keep
it at a minimum distance of
2 cm.
• Do not try to repair the
appliance yourself or
without the assistance of a
qualified technician.
• Do not install/use the
appliance outdoors.
• CAUTION: while positioning
the appliance, make sure
that the power supply cable
is not caught or damaged.
• To prevent instability of the
appliance, install and
secure it correctly as
indicated in the instructions
provided in this manual.
• This appliance can be used
up to a maximum altitude of
2,000 metres above sea
level.
For this appliance
• The appliance may only be
used by children aged 8
years and over, and by
people of reduced physical,
sensory or mental capacity,
or lacking in experience and
knowledge in the use of the
appliance, provided that
they instructed on safe use
of the appliance and the
risks connected to it by
adults who are responsible
for their safety.
•Children must be
supervised to ensure that
they do not play with the
appliance.
• Do not rest any weight or
sit on the open door of the
22 - PRECAUTIONS 91477B417/D
appliance.
• Take care that no objects
are stuck in the doors.
• The appliance contains a
small quantity of isobutane
(R600a), make sure not to
damage the cooling circuit
during transport,
installation and cleaning.
• Keep the ventilation
openings surrounding the
appliance or in the nearby
area free from any
obstructions.
• Do not use mechanical,
electrical or chemical
products other than those
recommended by the
manufacturer to speed up
the defrosting process.
• Do not damage the cooling
circuit (if it can be
accessed).
• Do not use electrical
appliances inside food
storage compartments
unless these are of the type
recommended by the
manufacturer.
• In the event of damage to
the cooling circuit, avoid the
use of naked flames and
ventilate the area properly.
• Do not use the appliance or
parts of it in ways other
than those specified in this
manual.
• Caution: risk of fire,
flammable materials.
• Opening the door for long
periods can cause the
temperature in the
appliance compartments to
rise considerably.
• Clean surfaces that may
come into contact with food
and accessible drainage
systems regularly.
• Store raw meat and fish in
suitable containers in the
refrigerator, so that it does
not come into contact with
other food or drip on it.
• If the appliance is left empty
for long periods of time,
switch it off, thaw it, clean
it, dry it and leave the door
open to prevent the
development of mould
inside.
Appliance purpose
• This appliance is not
intended to be used as a
built-in appliance.
• The appliance is not
designed for professional
and commercial use.
• This appliance is for
refrigeration and
conservation of fresh and
frozen foods in the home.
Every other use is
considered improper.
• The appliance is designed
PRECAUTIONS - 2391477B417/D
e
for use in a domestic or
similar environment, for
instance:
- Staff kitchen areas in
shops, offices and other
working environments;
- farm houses and by
guests in hotels, motels
and other residential type
environments;
- bed and breakfast
establishments;
- catering and similar non-
retail applications.
• The appliance is not
designed to operate with
external timers or with
remote-control systems.
This user manual
• This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the user's
reach for the whole working life of the
appliance.
• Read this user manual carefully before
using the appliance.
Manufacturer’s liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than that
specified;
• failure to comply with the instructions in
the user manual;
• tampering with any part of the
appliance;
• use of non-original spare parts.
Technical Support.
• In the event of failure of the appliance,
contact the technical support and have
the repair carried out by qualified
personnel only.
• make sure you have the model and
serial number available on the
identification plate.
• Use original spare parts only.
• Do not try to repair the appliance
yourself or without the assistance of a
qualified technician: this affects safety
and may void the warranty.
• Genuine spare parts for some specific
components remain available for a
minimum of 7 or 10 years, depending on
the type of component, from the date
the model is released on the market.
Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
Energy label
To be informed about the performance of
your device via the EU EPREL database
visit the following web address and enter
the model name (available on the
identification plate):
https://eprel.ec.europa.eu
On the energy label there is a QR code for a
quick access to the web address. Use a
device equipped with an appropriate
reading program.
The energy label must be kept together with
all documents supplied with the appliance.
Disposal
This appliance conforms to the WEEE
European directive (2012/19/EU) and
must be disposed of separately from
other waste at the end of its service life.
The appliance does not contain substances
in quantities sufficient to be considered
hazardous to health and the environment,
in accordance with current European
directives.
To dispose of the appliance:
• Cut the power cable and remove it.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it
to the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
This appliance may only
be installed and used
indoors.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
24 - PRECAUTIONS 91477B417/D
appropriate recycling centre.
Information for control bodies
• For EcoDesign checks, the installation
and preparation of the appliance must
comply with EN 62552 standard.
• Ventilation requirements, dimensions
and minimum space from the rear wall
are indicated in the "Installation" chapter
of this manual.
• Contact the manufacturer for more
information.
To save e n e rgy
• Correct use of the appliance, correct
packaging of foodstuffs, a constant
temperature and food hygiene have
effects on the quality of storage.
• Reduce the number of times that the
doors are opened and the length of time
they remain open to prevent the
compartments from heating up
excessively.
• Clean the condenser (if it can be
accessed) at the rear of the appliance
periodically to prevent the appliance
from losing efficiency.
• Defrost frozen food in the refrigerator
compartment in order to make use of the
cold stored in the frozen foods.
• Placing the shelves at different heights
does not affect the stated energy
consumption.
Light sources
• This appliance contains light sources
which cannot be replaced by the user
and must only be replaced by the
technical assistance service.
• This appliance contains light sources of
efficiency class "G".
How to read the user manual
This user manual uses the following reading
conventions:
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
Warning/Caution
Information/Advice
DESCRIPTION - 2591477B417/D
e
DESCRIPTION
General Description
1 Freezer compartment
For storing frozen foods, freezing fresh
foods and producing ice cubes.
2 Fan
Distributes the temperature and reduces
condensation on the shelves and other
surfaces.
3 Interior lighting
The interior of the appliance is lit when the
door is opened.
4 Refrigerator compartment
For storing fresh foods.
5 Super-cold drawer
6 Fruit and vegetable drawer
7 Freezer door
8 Thermostat
For setting the temperature inside the
refrigerator and freezer compartments.
9 Fridge door
Accessories
Shelves
For optimising fridge space and placing
Not all accessories are available on
some models.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres. Use
only original accessories supplied by
the manufacturer.
26 - USE 91477B417/D
foodstuffs inside the refrigerator
compartment.
Fruit and vegetable drawer
For storing fruit and vegetables,
maintaining a constant humidity level.
Super-cold drawer
Can be used for maintaining freshness and
flavour of delicate food such as meat, fish
and lightly frozen foods for a longer time
period, since temperature is kept constantly
between −2°C and +3°C.
Door balconies and shelves
For storing foodstuffs in small containers.
The shelf in the lower part of the door is
useful for storing bottles.
USE
Preliminary operations
• Remove any protective film from the
outside or inside of the appliance,
including accessories.
• Remove any labels (apart from the
technical data plate) from the
accessories and shelves.
• Remove and wash all the appliance
accessories (see chapter "CLEANING
AND MAINTENANCE").
First use
Make sure that the appliance is connected
to the electrical outlet.
Temperature setting
Turn the thermostat knob from position
(minimum) to (maximum) depending on
the desired temperature.
Do not place food to be frozen or
trays to make ice in the super-cold
compartment.
See General safety instructions.
After installing or repositioning the
appliance, wait at least two hours
before activating it.
Increasing from position to
the temperature decreases in the
refrigerator compartment.
5
5
USE - 2791477B417/D
e
Alarm for door open
When the appliance door is left open for a
long period of time, a sound and visual
signal (flashing interior lights) will inform the
user to close the door.
Using the accessories
Shelves
These can be positioned at different heights
on the guides according to requirements.
Each shelf has a safety fitting to prevent it
from being accidentally removed.
To extract them fully, lift up the rear part (1)
and remove them (2).
Door balconies and shelves
Suitable for storing eggs, butter, dairy
products, conserves and other small food
packages/containers. The lower part of the
door has a shelf for bottles. Avoid placing
excessively heavy bottles on the shelf and
do not let them drop onto the bottom when
inserting them.
Fruit and vegetable drawer
Located at the bottom of the refrigerator
compartment, which is fitted with a glass
shelf to cover fresh foods that require
constant humidity for optimum storage.
Freezer drawers
For storing frozen foods and foods to be
frozen. To remove them, pull them towards
you and lift the front part of each drawer.
Ventilation
The forced recirculation air in the appliance
is free of humidity and quickly dries the food
inside.
The inner ventilation system cools food
more rapidly and keeps refrigeration
homogeneous inside the appliance.
Using the refrigerator
compartment
Arranging food
Arrange food on the various shelves,
making sure that they are wrapped and
covered hermetically. This precaution
ensures that:
• the flavour, moisture and freshness of
Perishable foods should be placed
on the rear part of the shelves
where the temperature is lower.
Storing vegetables with high
content of water can generate
condensation on the glass shelf.
This is a natural phenomenon which
does not affect the appliance’s
operation in any way.
Before introducing food into the
appliance, seal it thoroughly.
28 - USE 91477B417/D
the foods is preserved;
• any contamination of foods with odours
or tastes from other foods can be
avoided;
• the humidity level inside the refrigerator
is prevented from becoming too high as
a result of the normal transpiration of
food (especially fresh fruit and
vegetables). In some operating
conditions (rise in ambient temperature
and humidity, more frequent opening of
the door) this might cause condensation
to form on the shelves.
Storage life table
Using the freezer compartment
To keep and freeze foods properly:
• pack fruit and vegetables in portions of
no more than 1 kg; meat and fish in
portions of up to 2 kg.
• small packages freeze quickly which
means that the foods' nutritional
properties are preserved better,
including after defrosting/preparation.
• package foods in hermetically sealed
packages, expelling air as much as
possible.
• Do not use paper bags or shopping
bags, use the suitable freezer bags/
containers.
Frozen foods storage life table
Defrosted foods
Food must be consumed as soon as
possible once defrosted. Freezing foods
preserves them, but it does not destroy any
micro-organisms, which are activated after
thawing, damaging the foods.
Partial defrosting lowers the nutritional
value of the foodstuffs, particularly of fruit,
vegetables and ready meals.
Noises during operation
The refrigerator and freezer compartments
are cooled by means of a compression
system. In order to maintain the preset
temperature inside the refrigerator and
freezer compartments, the compressor
comes into operation in response to the
level of cooling required, and may operate
continuously if necessary. When the
compressor starts up a humming sound will
be heard, tending to drop in volume after a
few minutes.
Another normal operating noise of the
appliance is a gurgling due to the coolant
flowing through the pipes in the circuit. This
noise is normal and does not indicate an
appliance malfunction. If it becomes too
loud, this may mean that there are other
causes. Checks must then be made to
ensure that:
• The refrigerator is properly levelled on
the floor and does not vibrate when the
compressor is in operation: if this is not
the case, adjust the appliance's feet until
it is level;
• The drawers, shelves and trays on the
door are correctly positioned in their
holders: if they are not, put them in
correctly;
• Bottles and containers on the various
shelves are stable and not touching
each other: otherwise, the vibration
resulting from compressor operation
could generate noise;
Always allow hot foods and drinks
to cool to room temperature before
putting them in the appliance.
Foodstuff Time
Eggs, smoked meats, mari-
nated foods, cheese
max 10 days
Root vegetables max 8 days
Butter max 7 days
Pastries, fruit, ready meals,
fresh meat
max 2 days
Fish, minced meat, seafood max 1 day
Always allow hot foods and drinks
to cool to room temperature before
putting them in the appliance.
Foodstuff Time
Fruit, beef max 10-12 months
vegetables, veal, poultry max 8-10 months
Game max 6-8 months
Pork max 4-6 months
Mince max 4 months
Bread, desserts, cooked
foods, oily fish
max 3 months
Offal max 2 months
Sausages, lean fish max 1 month
CLEANING AND MAINTENANCE - 2991477B417/D
e
• Do not place the fridge in such a way
that it is in contact with furniture or other
household appliances.
Heated front surface
There is a front surface heating system
inside the cabinet to limit the formation of
condensation around the door seal.
Turning the appliance off
Whenever the appliance is to remain
unused for long periods, it should be
switched off.
1. Unplug the appliance from the wall
socket.
2. Empty the compartments.
3. Once the freezer has fully defrosted, dry
any residual accumulated moisture with
a tea towel.
Storage advice
General advice
• Always check the expiry date on the
food packaging.
• The foodstuffs must be stored in closed
or pre-packaged containers and must
not be able to emit or absorb moisture
and odours.
• Remove perishable products from the
appliance if you are going away for a
long period.
Refrigerator compartment door
• Keep eggs, butter, cheese etc. in the
upper and central parts.
• Keep drinks, bottles, cans etc. in the
lower part.
Refrigerator compartment
• Keep conserves, wine, biscuits etc. in the
upper part.
• Keep dairy products, ready meals,
pastries, fruit juices, beer etc. in the
central part.
• Keep meats, cold cuts etc. in the lower
part.
• Keep fresh and tropical fruit, vegetables,
carrots, potatoes, onions, etc. in the fruit
and vegetable drawer.
Freezer compartment
• The type of food, quantity and date of
freezing should be marked on the
container/packaging.
• Use small containers, if possible already
cold.
• The quantity of fresh foods which can
be frozen at the same time is listed on
the nameplate inside the refrigerator
compartment.
• Use suitable freezer bags, tinfoil, cling-
film for use with food, and freezer
containers.
• Do not use paper bags, cellophane for
non-food use, shopping bags or pre-
used freezer bags.
• Avoid frozen food coming into contact
with fresh food to be frozen.
• Keep bagged frozen vegetables, ice, ice
cream etc.
CLEANING AND MAINTENANCE
Cleaning the appliance
They must be cleaned regularly in order to
keep them in good condition.
Cleaning the outside of the appliance
• The appliance may be cleaned with
water or alcohol-based liquid
detergents (e.g. window cleaning
products).
• Avoid aggressive detergents and rough
sponges in order not to damage the
surfaces.
• Use a soft brush to remove dust and
fume deposits from the condenser on
the rear of the appliance.
• Clean the tank above the compressor.
Cleaning the inside of the appliance
• Clean the inside of the appliance with
diluted liquid detergent and warm
water, adding a little bit of vinegar.
• The door balconies and shelves can be
removed: tap them upwards with your
fist, first on one side and then on the
other in the insertion zone.
• Remove any ice thicker than 3-5 mm. Do
not use sharp objects or spray products.
Leave the door ajar to ensure that
moisture and stagnant air do not
cause unpleasant odours.
See General safety instructions.
30 - CLEANING AND MAINTENANCE 91477B417/D
Defrosting
Defrosting the refrigerator compartment
The refrigerator/freezer compartment does
not require defrosting, as any ice which
forms on the refrigeration plate will melt
when the compressor is switched off. The
defrosting process is automatic.
Defrost water is channelled directly into the
dedicated pan on the back of the appliance,
which lets it evaporate by means of the
heat generated by the compressor.
Interior lighting
Interior lighting, if damaged, must be
repaired by Technical Service only.
Replacing the seal
The door seal can be replaced by the user:
1. Remove the seal by pulling it out of its
housing.
2. Reposition the new seal and press along
the entire perimeter to insert it into the
appropriate housing.
What to do if...
The appliance does not work:
• Make sure that the appliance is plugged
in and that the main switch is turned on.
The compressor starts to function too often
or functions continuously:
• The room temperature is too high.
• The door is being opened too often or for
too long.
• The door is not closing/sealing properly.
• The freezer is loaded with too many
fresh foods.
• Check that sufficient air can circulate
around the sensor on the right-hand
side of the refrigerator compartment.
• Check that the back of the refrigerator is
properly ventilated and that the
condenser is not too dirty.
Excessive ice or condensation has built up
inside the refrigerator compartment:
• The door is being opened too often or for
too long.
• Hot foods have been placed inside the
refrigerator compartment.
• The foodstuffs or containers are in
contact with the rear wall.
• The door seal is damaged or dirty. Clean
or replace it.
The refrigerator compartment is not
sufficiently cold:
• The thermostat is set at too high a
temperature.
• The door is being opened too often or for
too long.
• The door is not closing/sealing properly.
• The room temperature is too high.
The temperature inside the refrigerator
compartment is too cold and the foodstuffs
are freezing:
• The thermostat is set at too low a
temperature.
• Foodstuffs not contained in suitable
containers or bags.
• Fruit and vegetables might be too wet.
• Foodstuffs placed against the rear wall
of the refrigerator compartment.
Temperature inside freezer compartment
not low enough to freeze foods properly:
• The thermostat is set at too high a
temperature.
• The door is being opened too often or for
too long.
• The door is not closing/sealing properly.
• The door seal is damaged or dirty. Clean
or replace it.
• The food to be frozen contains large
quantities of sugar.
Excessive ice has built up inside the freezer
compartment:
• The thermostat is set at too low a
temperature.
• The room temperature is too high.
• The door is being opened too often or for
too long.
• The door is not closing/sealing properly.
• The door seal is damaged or dirty. Clean
or replace it.
• Hot foods have been placed inside the
freezer compartment.
Doors are hard to open just after closing:
• If you attempt to open the door again
just after closing it (especially the freezer
door), considerable strength is required.
This is due to the vacuum created by the
cooling of the warm air which has
Occasional presence of frost inside
the freezer compartment is normal.
Do not use electrical appliances (e.g.
hair dryers) or sprays for defrosting,
the plastic parts could be damaged.
INSTALLATION - 3191477B417/D
e
entered the freezer.
The doors are misaligned:
• Check that the appliance is level.
• Level the appliance using its feet.
INSTALLATION
Electrical connection
General information
• Check the mains characteristics against
the data indicated on the plate. The
identification plate bearing the technical
data, serial number and brand name is
visibly positioned inside the appliance.
Do not remove this plate for any reason.
• Make sure that the plug and socket are
of the same type.
• Avoid using adapters, gang sockets or
shunts as these could cause
overheating and a risk of burns.
• The plug must always be accessible
when the appliance is installed.
• Leave the appliance standing vertically
for at least two hours before turning it
on for the first time.
• If it is necessary to replace the power
cable, this must be performed by an
authorised technician from Technical
Support Service.
Positioning
Choice of location
Always install the appliance in a dry place
with satisfactory ventilation. Depending on
its climate class (stated on the nameplate
inside the refrigerator compartment), the
appliance can be used in different
temperature conditions.
• Install the appliance at least 3 cm away
from electrical or gas cookers and at
least 30 cm away from combustion
heaters or radiators.
• The appliance must not be installed near
heat sources. If this is not possible,
suitable insulation must be used.
• If installed underneath wall units, at
least 5 cm clearance must be left.
• Ensure that the appliance is located
with sufficient space for the door to
open and for the internal drawers and
shelves to be removed, if necessary.
Spacers (For models with exposed
condenser only)
To ensure proper cooling of the condenser,
the appliance must not be placed too close
to the wall. To prevent this, the appliance
comes complete with two plastic spacers,
which must be fitted in the rear part of the
appliance.
Positioning
Position the appliance on a firm, level
See General safety instructions.
See General safety instructions.
Class Room temperature
SN (Subnormal) + 10°C to + 32°C
N (Normal) + 16°C to + 32°C
ST (Subtropical) + 18°C to + 38°C
T (Tropical) + 18°C to + 43°C
32 - INSTALLATION 91477B417/D
surface.
The appliance has two small wheels on the
back to allow it to be moved and positioned
more easily.
In any case, we recommend moving the
appliance very carefully in order to avoid
damaging the floor (especially in the case of
wooden floors).
If the floor is not perfectly level, use the two
adjustable feet on the front part of the
appliance.
Level the appliance horizontally adjusting
its feet.
A few days after installation, check that the
initial level adjustment is still correct. Make
sure that the appliance is still stable and the
door seals still close hermetically when it is
in operation and loaded with food. If
necessary, re-adjust the level and the seals.

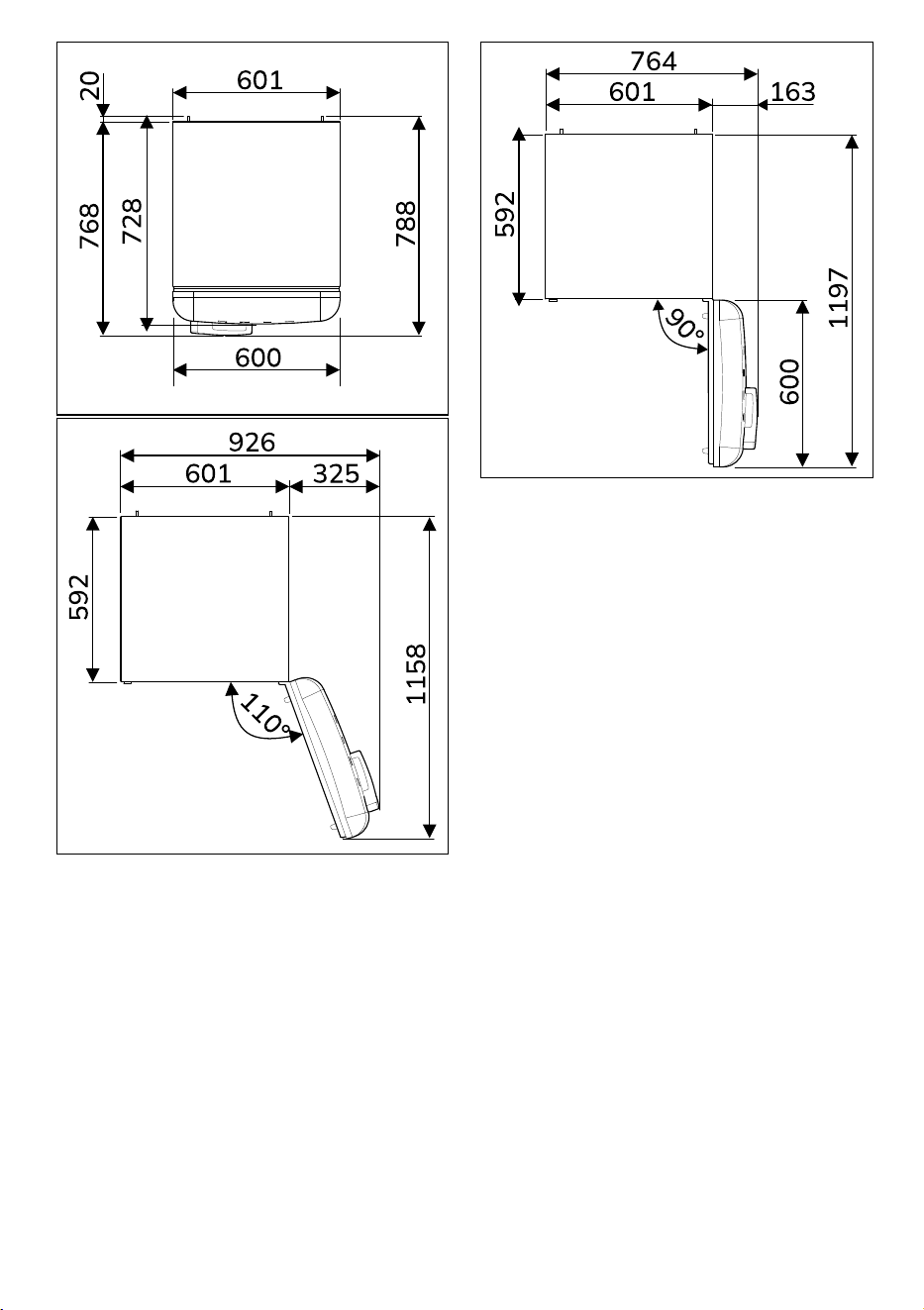

Appliance overall dimensions (mm)
Lean the appliance slightly towards
the rear part to facilitate proper door
closure.
In order for the freezer to be
installed correctly, the door must be
able to close properly. Ensure that
the door seals close hermetically,
especially at the corners.
Pressure on the seal
Risk of damage to the appliance
• Do not press, do not tear or detach the
seal from the door.
INSTALLATION - 3391477B417/D
e
