OPEN END CIRCUIT TESTER (ELECTRICAL FORK)
June 2009
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 23-66-0555 Rotary Switch and Contacts (1)
2 31-50-1410 Top Case (1)
3 05-81-0370 PCB Screw (3)
4 22-06-0155 Main PCBA (1)
5 31-50-1415 Bottom Case (1)
6 42-42-0915 Hold Button (1)
7 42-42-0925 Flashlight Button (1)
8 31-21-0045 Battery Door (1)
9 05-81-0365 Bottom Case Screw (4)
10 05-81-0360 Battery Door Screw (2)
11 --------------- AA Battery (2)
12 22-58-0015 Input Post (1)
13 --------------- Red Test Lead (1)
14 --------------- Black Test Lead (1)
16 49-77-1001 Test Lead Set (Contains 13 & 14) (1)
54-07-2210
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005

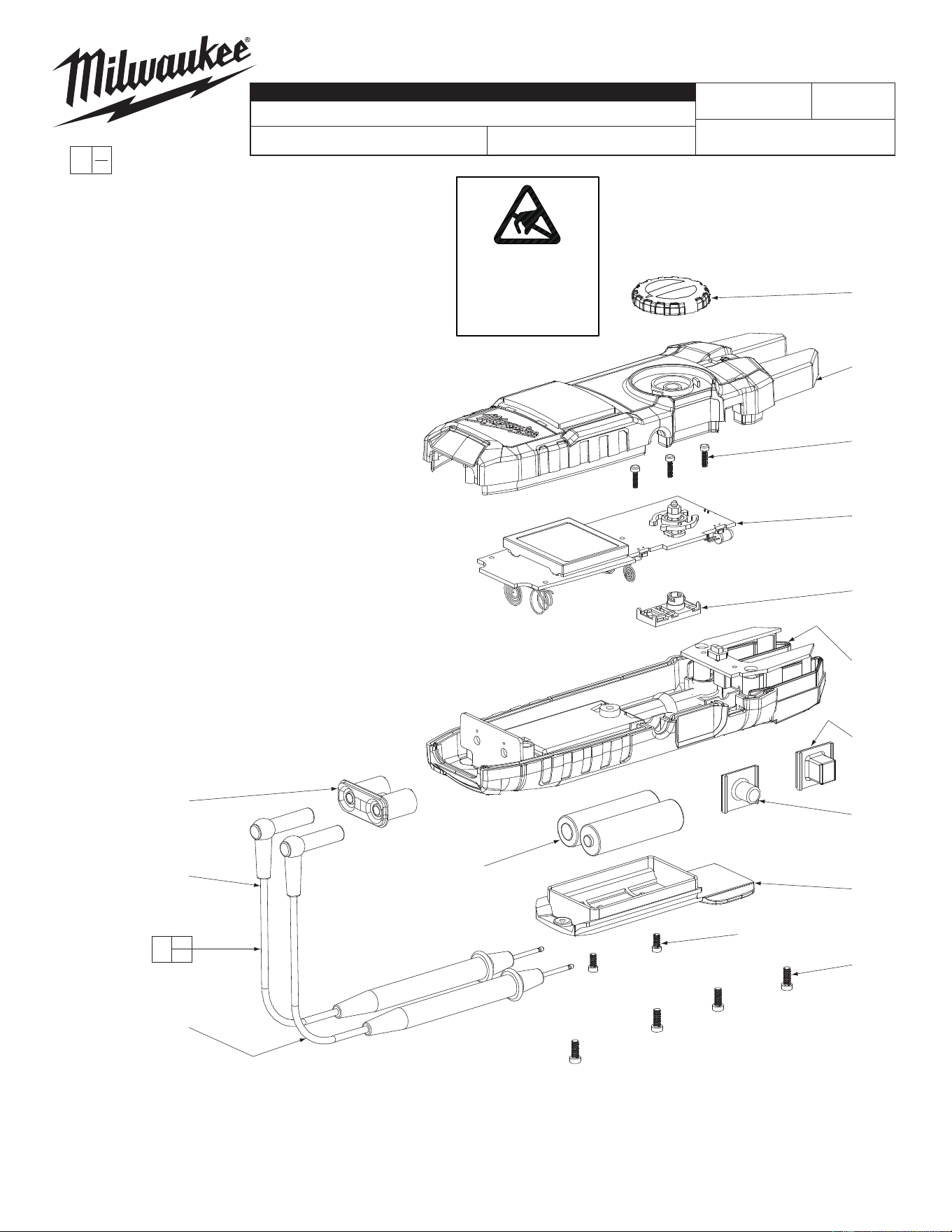

Drwg. 1
