BUILT-IN BEVERAGE REFRIGERATOR
MODEL:YC-204
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and does not necessarily mean to cover
all categories of tools offered by us. You are kindly reminded to verify carefully
when you are placing an order with us if you are actually Saving
Half in comparison with the top major brands.
- 1 -
MODEL:YC-204
<Picture Only For Reference >
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
BEVERAGE
REFRIGERATOR
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
This product is subject to the provision of European Directive
2012/19/EC. The symbol showing a wheelie bin crossed
through indicates that the product requires separate refuse
collection in the European Union. This applies to the product
and all accessories marked with this symbol. Products marked
as such may not be discarded with normal domestic waste, but
must be taken to a collection point for recycling electrical and
electronic devices
Safety warning items
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on
your appliance. Always read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts
you to potential hazards that can kill or injure you
and others. All safety messages will follow the
Safety Alert Symbol and either the words
“DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed
this safety statement may result in
severe personal injury or death.
Warning means that failure to heed
this safety statement may result in
extensive product damage, serious
personal injury, or death.
- 3 -
Caution means that failure to heed
this safety statement may result in
minor or moderate personal injury,
or property or equipment damage.
All safety messages will alert you do what the potential hazard is, tell you
how to reduce the chance of injury, and let you know what can happen if
the instructions are not followed.
Important safeguides
Before the appliance is used, it must be properly
positioned and installed as described in this manual, so
read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance,
follow basic precaution, including the following:
• Plug into a grounded 3-prong outlet, do not remove grounding prong, do
not use an adapter, and do not use an extension cord.
• Replace all panels before operating.
• Never clean appliance parts with flammable fluids. These fumes can
create a fire hazard or explosion. And do not store or use gasoline or other
flammable vapour and liquids in the vicinity of this or any other appliance.
The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure
the power line of the unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect power before cleaning or servicing.
Failure to do so can result in electrical shock or death.
- 4 -
• Do not attempt to repair or replace any part of your appliance unless it is
specifically recommended in this material. All other servicing should be
referred to a qualified technician.
The symbol is a warning symbol for risk of fire/flammable
material.
WARNING: When positioning the appliance, ensure the supply cord is not
trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• Use two or more people to move and install appliance. Failure to do so
can result in back or other injury.
• To ensure proper ventilation for your appliance, the front of the unit must
be completely unobstructed. Choose a well-ventilated area with
temperatures above 16°C (60°F) and below 32°C (90°F). This unit must be
installed in an area protected from the element, such as wind, rain, water
spray or drips.
• The appliance should not be located next to ovens, grills or other sources
of high heat.
• The appliance must be installed with all electrical, water and drain
connections in accordance with state and local codes. A standard electrical
supply (115V/60Hz), properly grounded in accordance with the National
Electrical Code and local codes and ordinances is required.
• Do not kink or pinch the power supply cord of appliance.
• The fuse (or circuit breaker) size should be 13 amperes.
• It is important for the appliance to be leveled in order to work properly.
- 5 -
You may need to make several adjustments to level it.
• Never allow children to operate, play with or crawl inside the appliance.
• Do not use solvent-based cleaning agents of abrasives on the interior.
These cleaners may damage or discolour the interior.
• Do not use this apparatus for other than its intended purpose.
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT
puncture refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be
repaired only by trained service personnel. DO NOT puncture
refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used.
Consult repair manual / owner’s guide before attempting to service this
product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in
accordance with federal or local regulations. Flammable refrigerant
used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant
tubing. Follow handling instructions carefully. Flammable refrigerant
used.
CAUTION - To prevent a child from being entrapped, keep out of reach
of children and not in the vicinity of the refrigerator.
- 6 -
Main parts
1
Handle
2
Lock
3
Shelves
4
Door
5
Exhaust
Window
6
Control Panel
7
Leveling Legs
Note:Due to technological innovation, the descriptions of the product in
this manual may not be completely consistent with your upright showcase.
Installation instructions
Before using your refrigerator
• Remove the exterior and interior packing.
• Before connecting the refrigerator to the power source, let it stand upright
for approximately 2 hours. This will reduce the possibility of a malfunction
in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
Installation of your refrigerator
• This Beverage refrigerator is designed for free standing or built-in (fully
recessed) installation.
• Place your Beverage refrigerator on a solid and level floor that is strong
enough to support it when it is fully loaded. This will ensure a vibration-free
and noise-free operation. Adjust the leveling legs in and out to stabilize the
refrigerator horizontally. If the legs are not properly adjusted, the
refrigerator may be unstable and result in excess noise or vibration.
- 7 -
• Locate the Beverage refrigerator away from direct sunlight and sources of
heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic
coating and heat sources may increase electrical consumption. Extremely
cold ambient temperatures may also cause the refrigerator not to perform
properly.
• It is not advisable to install this refrigerator in moist areas or directly
adjacent to a kitchen sink, as moisture could cause premature corrosion to
the components of your new refrigerator.
• It is recommended you install the Beverage refrigerator in a place with
temperatures above 60°F (15°C) and below 90°F (32°C), and humidity is
under 60%. If the ambient temperature is above or below recommended
temperatures, the performance of the refrigerator may be affected. Placing
your refrigerator in extremely cold or hot conditions may cause interior
temperatures to fluctuate, and the temperature range of YC-100 5ºC-18ºC
(40ºF-65ºF) ,YC-150 3ºC-18ºC (37ºF-65ºF) may not be reached.
• Connect the Beverage refrigerator to an exclusive, properly grounded,
standard electrical supply (115V/60Hz), in accordance with the National
Electrical Code and local codes and ordinances. Any questions concerning
power and/or grounding should be directed toward a certified electrician or
an authorized products service center.
Electrical connection
Warning: Improper use of the grounded plug can result in the risk of
electrical shock. If the power cord is damaged, have it replaced by an
authorized service center.
This appliance should be properly grounded for your safety. The power
cord of this appliance is equipped with a three-prong plug which mates with
standard three prong wall outlets to minimize the possibility of electrical
shock.
Do not under any circumstances cut or remove the third ground prong from
the power cord supplied. For personal safety, this appliance must be
- 8 -
properly grounded.
This appliance requires a standard 115V/60Hz electrical ground outlet with
three-prong. Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded. When a standard
2-prong wall outlet is encountered, it is your responsibility and obligation to
have it replaced with a properly grounded
3-prong wall outlet. The cord should be secured behind the appliance and
not left exposed or dangling to prevent accidental injury.
The appliance should always be plugged into its own individual electrical
outlet which has a voltage rating that matches the rating label on the
appliance. This provides the best performance and also prevent
overloading house wiring circuits that could cause a fire hazard from
overheated. Never unplug the appliance by pulling the power cord.
Always grip the plug firmly and pull straight out from the receptacle. Repair
or replace immediately all power cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion
damage along its length or at either end. When moving the appliance, be
careful not to damage the power cord.
Extension cord
Because of potential safety hazards under certain conditions, it is strongly
recommended that you do not use an extension cord with this appliance.
However, if you must use an extension cord it is absolutely necessary that
it be a 3-wire grounding type appliance extension cord having a grounding
type plug and outlet and that the electrical rating of the cord be 115 volts
and at least 13 amperes.
Power bar with surge protection
Most electrical appliances use a series of electric control boards to operate.
These boards are very susceptible to power surges and could be damaged
or destroyed.
If the appliance is going to be used in an area or if your city / country is
- 9 -
prone to power surges / outages; it is suggested that you use a power
surge protector for all electrical devices / appliances you use. The surge
protector that you select must have a surge block high enough to protect
the appliance it is connected to. If you have any questions regarding the
type and size of surge protector needed contact a licensed electrician in
your area.
Damages due to power surges are not considered a manufacturer covered
defect and will void your product warranty.
Operation instructions
After plugging the Beverage cooler into a wall outlet, the cooler would turn
on automatically and the LED screen would show the temperature inside of
the cooler.
After setting your desired serving temperature, allow the cooler to cool
down for 3 to 4 hours before placing drinks in the Beverage cooler.
Control Panel
Press for 3 seconds to turn on /off the appliance
Press to increase or press to decrease the
temperature in 1 degree increments.
Temperature setting range：0-18℃(32-64℉)
- 10 -
C
F
°
°
Press for 1 second:Turns the interior light on or off
Press for 3 seconds: Toggles the temperature display between
Celsius and Fahrenheit
WARNING:
• If the appliance is power off suddenly. Please turn on the appliance after
3-5 minutes later. The temperature setting is with automatic memory
function.
• If it is the first time to use this appliance, it is normal that the preset
temperature and display temperature is different. Everything will back to
normal after few hours working.
Door Lock
Your unit is provided with a lock and key. The keys are located inside the
plastic bag that contains the Instruction Manual. Insert the key into the lock
and turn it counter clockwise to unlock the door. To lock the door do the
reverse operation making sure metal pin is engaged completely. Remove
the key and place it in a secure place for safekeeping.
Cleaning your refrigerator
Turn off the power, unplug the appliance, and remove all items including
shelves. Wash the inside surfaces with a warm water and baking soda
solution. The solution should be about 2 tablespoons of baking soda to 1
cup of water.
Wash the shelves with a mild detergent solution. Wring excess water out of
the sponge or cloth when cleaning area of the controls, or any electrical
parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse
well and wipe dry with a clean soft
cloth. Do not use steel wool or steel brush on the stainless steel. These will
contaminate the stainless steel with steel particles and rusting may occur.
- 11 -
Storage
Many bottles may differ in size and dimensions. As such the actual number
of bottles you may be able to store may vary. The bottle capacity is based
on standard Bordeaux bottles.

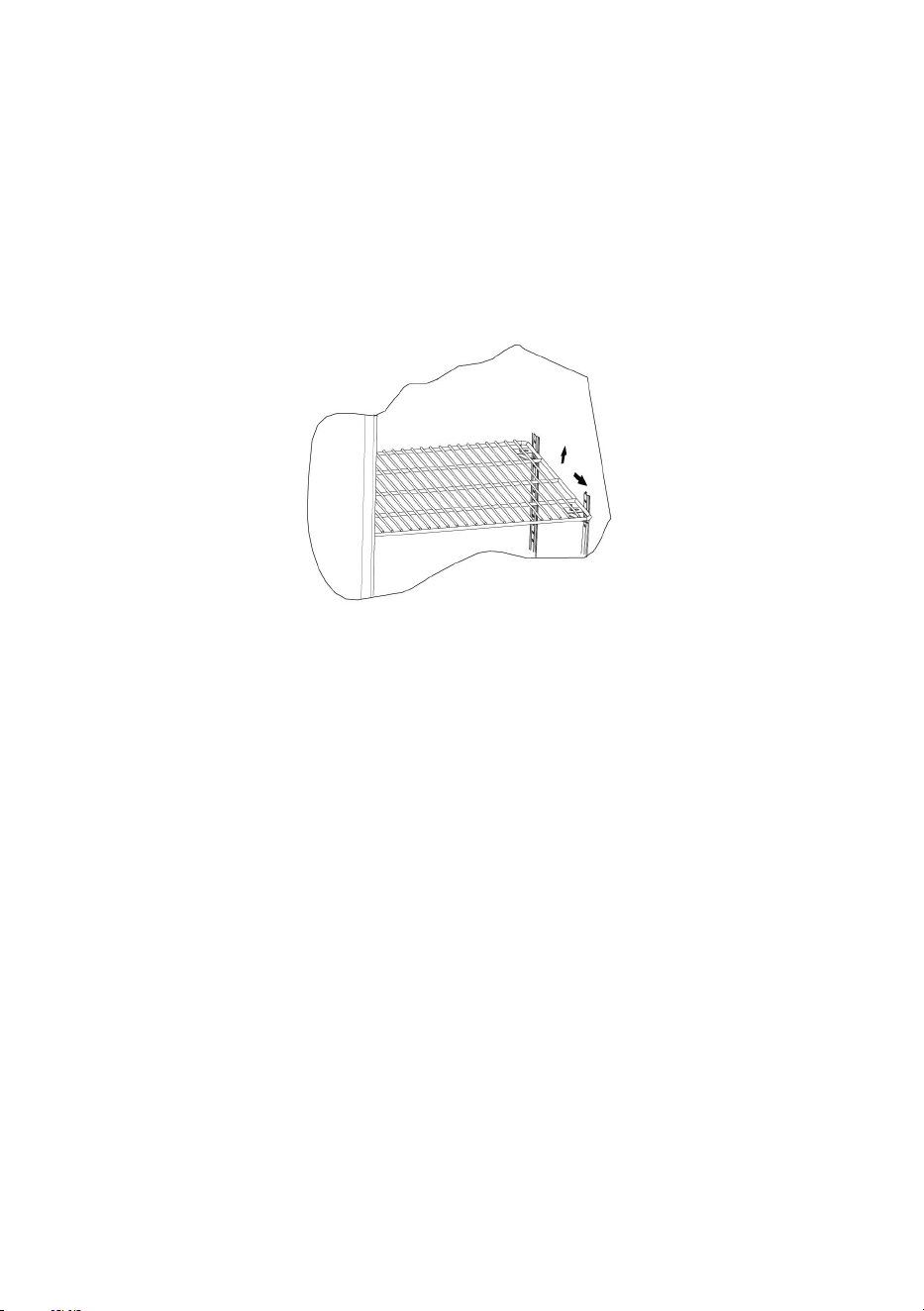

Shelves
You can remove the shelf by lift up and pull it out smoothly.
Power failure
Most power failures are corrected within a few hours and should not affect
the temperature of your appliance if you minimize the number of times the
door is opened. If the power is going to be off for a longer period of time,
you need to take the proper steps to protect your contents.
Vacation Time
Leave the Beverage cooler operating during vacations of less than three
weeks. For periods longer than this, turn the Beverage cooler off and leave
the door slightly ajar to prevent odor from building inside the Beverage
cooler.
Moving your refrigerator
• Remove all items (bottles)
• Tape down securely all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
- 12 -
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during
transportation. If you absolutely need to transport the refrigerator
horizontally, transport the refrigerator on its back (door on top). Also protect
outside of appliance with a blanket, or similar item.
Energy saving tips
• The cooler should be located in the coolest area of the room away from
heat sources or direct sunlight.
• Ensure that the cooler is adequately ventilated. Never cover air vents.
• Only open the cooler door for as long as necessary. Frequent opening of
the door will affect internal temperature.
Troubleshooting methods
PROBLEM
POSSIBLE CAUSE
SOLUTION
The
Beverage
refrigerator
does not
run.
The Beverage
refrigerator may not be
plugged in, or plug may
be loose.
Ensure the Beverage
refrigerator has been
plugged in properly.
The Beverage
refrigerator is turned off.
Press to turn on the
refrigerator.
House fuse blown or
tripped circuit breaker.
Check/replace fuse. Reset
circuit breaker.
The
Beverage
refrigerator
is not cold
enough.
External environment
may require a higher
setting.
Set a colder setting. Allow
several hours for the
temperature to stabilize.
The Beverage
refrigerator has recently
been disconnected for a
period of time.
It takes 3-4 hours for the
Beverage refrigerator to cool
down completely.
- 13 -
Prolonged or frequent
door openings.
Open the door less often.
The door is not closed
completely.
Close the door properly.
The door gasket does
not seal properly.
Check the door gasket.
Clean or change gasket if
necessary.
The
compressor
turns on and
off
frequently.
The room temperature is
hotter than normal.
It’s normal for the Beverage
refrigerator to work harder
under these conditions.
A large amount of
contents has been
added to the refrigerator.
A large amount of contents
cause the Beverage
refrigerator to run more until
the desired temperature is
reached.
Prolonged or frequent
door openings.
Open the door less often.
The temperature has not
been set correctly.
Press either or to
check the set temperature,
and set the temperature
properly.
The door is not closed
completely.
Close the door properly.
The door gasket does
not seal properly.
Check the door gasket.
Clean or change gasket if
necessary.
The light
does not
work.
Not plugged in.
Plug the refrigerator in.
The circuit breaker
tripped or a blown fuse.
Check the breaker and/or
fuses.
The light button is
“OFF”.
Press
C
F
°
°
to turn the light
ON.
- 14 -
Vibrations.
The refrigerator is not
leveled.
Check to assure that the
refrigerator is level.
The bottles are vibrating.
Make sure the bottles don’t
touch each others.
There is an object under
the refrigerator.
Remove the object under
the refrigerator.
The
refrigerator
seems to
make too
much noise.
The refrigerator is not
level.
Level the refrigerator.
Normal noise from the
flow of the refrigerant
The rattling noise may come
from the flow of the
refrigerant, which is normal.
As each cycle ends, you
may hear gurgling sounds
caused by the flow of
refrigerant in your
refrigerator. Contraction and
expansion of the inside walls
may cause popping and
crackling noises.
The door
will not
close
properly.
The refrigerator is not
level.
Level the refrigerator.
The door was reversed
and not properly
installed.
Re-install the door properly.
The gasket is dirty.
Clean the door gasket.
The shelves are out of
position.
Place the shelves properly.
- 15 -
Moisture
build up on
interior or
exterior of
the
Beverage
refrigerator.
This is normal during
high humidity periods.
Lower the room humidity.
This is normal in high
temperature
environment.
Move the refrigerator to a
refrigerator place, and avoid
heat and sunlight.
Prolonged or frequent
door openings.
Open the door less often.
The door does not seal
completely.
Check door gaskets for
proper seal.
“E1”Error
Code
Temperature sensor
disconnect.
Check whether the plug of
the temperature sensing
head is inserted incorrectly
or loose
“E2”Error
Code
Temperature sensor
failure.
Replace the sensor
Packing List
No.
Item
Qty
Remark
1
Refrigerator
1 set
2
Left upper hinge
1 pcs
For YC-100
、
YC-150
Series
3
Left lower hinge
1 pcs
For YC-100
、
YC-150
Series
4
Handle
1 pcs
For YC-100、YC-150
Series
4
Handle
2 pcs
For YC-120-2D
5
Key
2 pcs
6
Screw
1 pack
For YC-100、YC-150
Series
7
Manual
1 pcs
- 16 -
Important safety instructions
WARNING
To reduce the risk of fire, electrical shock, or injury
when using your appliance, follow these basic
precautions:
Read all instructions before using the refrigerator.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or
abandoned appliances are still dangerous.
Before you throw away your old refrigerator, take off the door but leave
the shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can
create a fire hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids
in the vicinity of this or any other appliance. The fumes can create a fire
hazard or explosion.
-Save these instructions-
1.This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
2.Children should be supervised to ensure that they do not play with the
appliance.
3. This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer,
- 17 -
its service agent or similarly qualified persons in order to avoid a hazard.
5. To avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instructions. 6.When positioning the appliance, ensure
the supply cord is not trapped or damaged.
7. Do not locate multiple portable socket-outlets or portable power supplies
at the rear of the appliance.
8. Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
9. Do not use mechanical devices or other means to accelerate the
defrosting process,other than those recommended by the manufacturer.
10.Do not damage the refrigerant circuit.
11. Do not use electrical appliances inside the drink storage compartments
of the appliance, unless they are of the type recommended by the
manufacturer.
12.Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
13.This appliance is intended to be used in household and similar
applications such as
-staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
14.To avoid contamination of drink, please respect the following
instructions:
- Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with drink and
accessible drainage systems.
-Clean water tanks if they have not been used for 48 h, flush the water
system connected to a water supply if water has not been drawn for 5
days.
-If the refrigerating appliance is left empty for long periods, switch off,
- 18 -
defrost, clean, dry, and leave the door open to prevent mould developing
within the appliance.
WARNING:Risk of fire / flammable materials
The coolant circuit of this unit contains the refrigerant lsobutane (R600a),a
natural gas that-is flammable and of high environmental compatibility.
Make sure no parts of the coolant circuit get damaged-during transport and
installation of the appliance.
-Save these instructions-
During using, service and disposal the appliance, please
pay attention to symbol similar as left side, which is
located on rear of appliance (rear panel or compressor)
and with yellow or orange color.
It’s risk of fire warning symbol. There are flammable
materials in refrigerant pipes and compressor.
Please be far away fire source during using, service and
disposal.
