CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Op e r a t O r ’s Ma n u a l
Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
4 x 4 Utility Vehicle — Models M466, M467, M46E & M46F
Form No. 769-04153
(June 16, 2008)
Customer Support
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
Visit us on the web at www.cubcadet.com◊
Locate your nearest Cub Cadet Dealer at (877) 282-8684◊
Write us at Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019◊
Thank you for purchasing a Utility Vehicle manufactured by
Cub Cadet LLC. It was carefully engineered to provide excellent
performance when properly operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. Cub Cadet
LLC reserves the right to change product specifications, designs
and equipment without notice and without incurring obligation.
If you have any problems or questions concerning the machine,
phone your local Cub Cadet dealer or contact us directly. Cub
Cadet’s Customer Support telephone numbers, website address
and mailing address can be found on this page. We want to
ensure your complete satisfaction at all times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position.
The engine manufacturer is responsible for all engine-related
issues with regards to performance, power-rating, specifications,
warranty and service. Please refer to the engine manufacturer’s
Owner’s/Operator’s Manual, packed separately with your
machine, for more information.
Thank You
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate under the operator’s seat. Flip the seat forward to
view the model plate. This information will be necessary, should
you seek technical support via our web site or with your local
Cub Cadet dealer.
MO d e l nu M b e r
se r i a l nu M b e r
To The Owner
1
2
Safe Operation Practices ........................................ 3

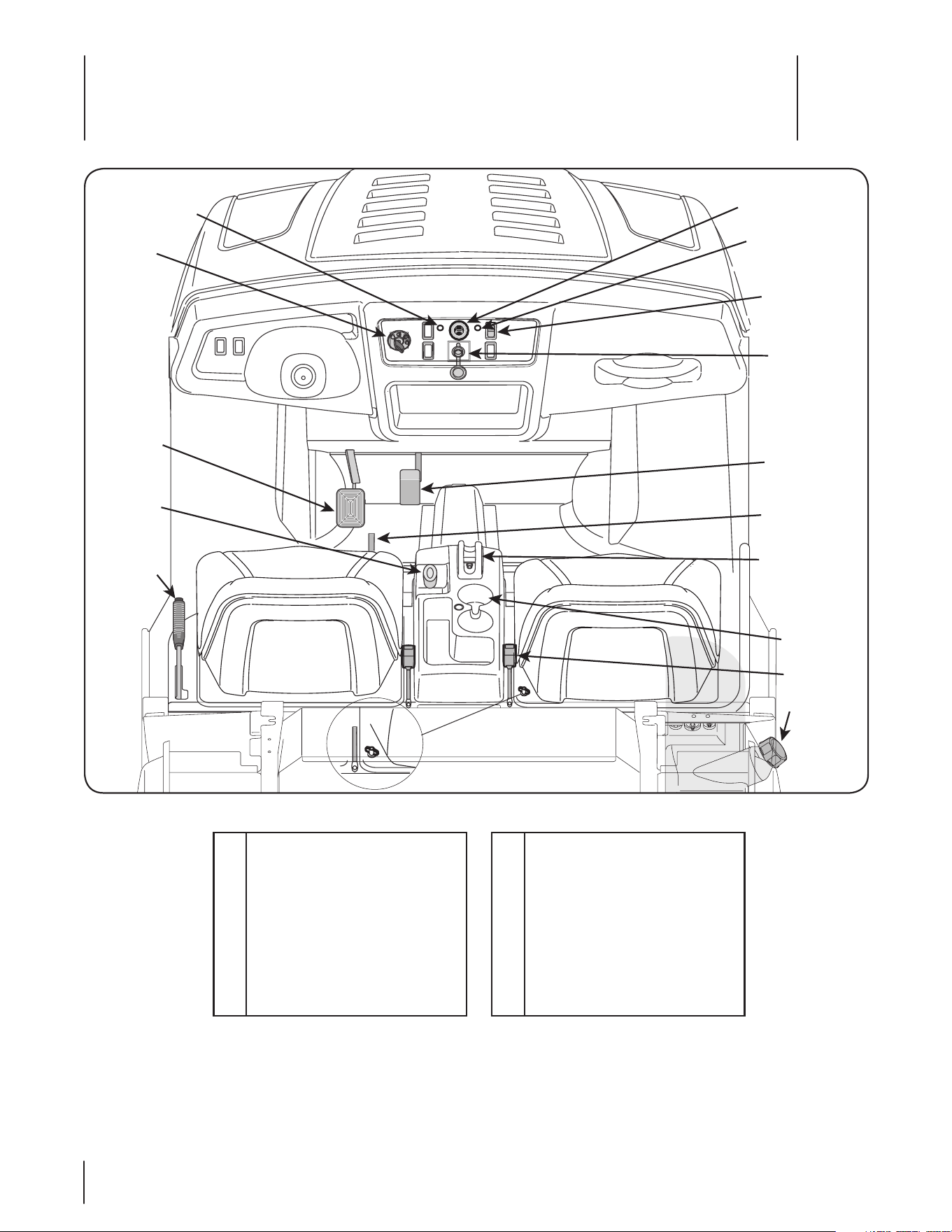

Controls & Features ................................................. 8
Operation ................................................................11
Maintenance & Adjustment..................................14
Service .....................................................................19
Maintenance Chart ................................................21
Accessories ............................................................. 22
Specications ......................................................... 23
Troubleshooting .................................................... 24
Warranty ................................................................ 32
Table of Contents
Important Safe Operation Practices
2
3
Operation
Safe Handling Of Gasoline:
To avoid personal injury or property damage use extreme 1.
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive. Serious personal injury can
occur when gasoline is spilled on yourself or your clothes
which can ignite. Wash your skin and change clothes
immediately.
Use only an approved gasoline container.a.
Never fill containers inside a vehicle or on a truck b.
or trailer bed with a plastic liner. Always place
containers on the ground away from your vehicle
before filling.
When practical, remove gas-powered equipment c.
from the truck or trailer and refuel it on the ground.
If this is not possible, then refuel such equipment on
a trailer with a portable container, rather than from a
gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of the fuel d.
tank or container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
Extinguish all cigarettes, cigars, pipes and other e.
sources of ignition.
Never fuel machine indoors.f.
Never remove gas cap or add fuel while the engine g.
is hot or running. Allow engine to cool at least two
minutes before refueling.
Never over fill fuel tank. Fill tank to no more than ½ h.
inch below bottom of filler neck to allow space for
fuel expansion.
Replace gasoline cap and tighten securely.i.
If gasoline is spilled, wipe it off the engine and j.
equipment. Move unit to another area. Wait 5
minutes before starting the engine.
To reduce fire hazards, keep machine free of grass, k.
leaves, or other debris build-up. Clean up oil or fuel
spillage and remove any fuel soaked debris.
Never store the machine or fuel container inside l.
where there is an open flame, spark or pilot light
as on a water heater, space heater, furnace, clothes
dryer or other gas appliances.
General Operation
Read, understand, and follow all instructions on the vehicle 1.
and in the manual before attempting to operate or service.
Keep this manual in a safe place for future and regular
reference and for ordering replacement parts.
WARNING: This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER: This machine was built to be operated according to the rules for safe operation in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating hands and feet
and throwing objects. Failure to observe the following safety instructions could result in
serious injury or death.
CALIFORNIA PROPOSITION 65
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.
WARNING: Battery posts, terminals, and related accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer and reproductive
harm. Wash hands after handling
4 se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
This is an off-road utility vehicle and it should not be 2.
operated on public highways. Know and comply with all
laws and regulations governing the use of off-highway
vehicles in your area.
This vehicle handles and maneuvers differently than 3.
a normal passenger car. Sharp high speed turns and
abrupt maneuvers can cause vehicle to roll over or go out
of control. Slow down when turning and avoid abrupt
maneuvers.
Handling and maneuvering characteristics of vehicle 4.
change depending upon cargo load. Heavy loads affect
steering, braking, stability, and overall handling of vehicle.
Be familiar with all instructions and controls and their 5.
proper operation before starting vehicle.
Never allow adults to operate this vehicle without proper 6.
instruction.
Never allow children under 16 years old to operate this 7.
vehicle. Children 16 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.
Watch for traffic when operating near or crossing 8.
roadways. This vehicle is not intended for use on any public
roadway.
Do not operate this vehicle while under the influence of 9.
alcohol or drugs.
Never carry more than one passenger. This vehicle is 10.
designed to carry the driver and one passenger only.
No riders are allowed in cargo box or anywhere else on
vehicle.
Keep all body parts (i.e. head, arms, hands, legs, feet) inside 11.
vehicle when vehicle is in motion.
Always remain seated and keep both hands on the steering 12.
wheel when driving the vehicle.
Sit on the center of the seat and keep both feet within the 13.
foot platform perimeter. Clean foot platform if dirty and
remove any debris from around foot controls, e.g. brake
pedal.
Do not misuse the utility vehicle. It is an utility vehicle, not 14.
a recreation vehicle or toy. Recreational riding can lead to
accidents, severe bodily injury or death.
Inspect area around vehicle before moving, especially in 15.
reverse. Back up slowly. Always look down and behind
before and while backing to avoid a back-over accident.
Keep bystanders out of area.
Avoid driving through water, since loss of control may 16.
occur. Drive belt may slip if exposed to water thus reducing
vehicle pulling power and stopping vehicle entirely.
Always use vehicle lights while operating in low light 17.
situations.
Do not mount or leave vehicle while it is in motion or in 18.
actual operation.
Avoid sudden starts, stops, or turns and always use a level 19.
turn-around area.
Never leave vehicle unattended with the key in the 20.
ignition. Always turn key to the “Stop” position, set the
parking brake and remove key.
Check overhead clearances carefully before driving under 21.
low hanging tree branches, wires, power lines, bridges,
before entering or leaving buildings, or in any other
situation where the operator and/or operator protective
structure (OPS) may be struck, which could result in serious
injury.
Use the operator protective structure (OPS) and seat belt 22.
for safe operation. Overturning the utility vehicle without
a operator protective structure (OPS), or with a operator
protective structure (OPS) and the seat belt unfastened,
can result in death or injury.
Always use the seat belt, except if the operator protective 23.
structure (OPS) has been removed.
Improper use of the vehicle or failure to properly maintain 24.
it could result in decreased vehicle performance or
personal injury.
Engine must be stopped when cleaning, servicing, 25.
adjusting, repairing, or installing attachments on utility
vehicle.
After striking foreign objects, stop the unit and shut off the 26.
engine. Inspect for damage and repair the damage before
restarting and operating equipment.
Do not start or operate vehicle in an inside area, unless it 27.
is adequately ventilated. Engine exhaust contains carbon
monoxide fumes, which are very poisonous and can be
deadly.
Do not change engine governor setting or over speed the 28.
engine. The governor is set at the factory for safe operating
speed.
Assure safety interlock switch is adjusted correctly so 29.
engine cannot be started unless gearshift is in the neutral
position.
Do not touch engine or muffler while engine is running or 30.
soon after it is stopped. They will be hot and can cause a
burn.
Always inspect your vehicle each time you use it to make 31.
sure it is in safe operating condition. Always follow the
inspection and maintenance procedures and schedules
described in this manual.
If situations occur which are not covered in this manual, 32.
use care and good judgement. Contact your local service
center or call toll free 1-877-282-8684 for the name of your
nearest service center.
Slope Operation
Slopes are a major factor related to loss of control and rollover
accidents, which can result in severe injury or death. If a slope is
steeper than a 15° incline, do not operate this unit on that area.
Exercise extreme caution while operating on slopes.
Do:
Travel straight up and down slopes, not across. Exercise 1.
extreme caution when changing direction on slopes.
5se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Travel slowly while on a slope. Always keep the forward 2.
speed limited when going down slopes to take advantage
of the motor braking action.
Keep all movement on the slopes slow and gradual. Avoid 3.
starting or stopping on a slope.
Avoid slopes with slippery, loose, or bumpy surfaces as 4.
they are especially hazardous.
Use extra care while carrying cargo. It may affect the 5.
stability of the vehicle. Spread the load evenly or tie down.
Do Not:
Do not travel near drop-offs, ditches or embankments. The 1.
vehicle could suddenly turn over if a wheel is over the edge
of a cliff, ditch, or if an edge caves in.
Do not stop or start suddenly when going uphill or 2.
downhill. Be especially cautious when changing direction
on slopes.
Do not turn sideways to the hill. The vehicle may roll over. If 3.
you must turn, go slow and do so carefully and gradually.
Do not carry cargo on steep slopes or tow loads.4.
Towing
Always use an approved hitch and hitch point provided on 1.
the utility vehicle.
Do not tow more than 1400 lbs. rolling weight (i.e. trailer 2.
plus cargo).
Never load more than 140 lbs. tongue weight on tow 3.
bracket provided.
Go slow and use extra care when towing a trailer. Allow for 4.
increased braking distance. Load trailer properly.
Do not tow heavy loads on slopes greater than 5° incline. 5.
When going downhill or turning, the extra weight tends to
push the tow vehicle and may cause you to loose control
(i.e. braking and steering ability are reduced, towed
equipment may jack-knife and cause utility vehicle to
overturn).
Cargo Box Loading/Operation
Do not exceed vehicle’s Total Load Capacity rating of 1,400 1.
lbs. This includes operator, passenger, accessories, and
cargo.
Do not exceed 1000 lbs. load in cargo box.2.
Spread load evenly and secure to prevent movement.3.
Do not load above height of cargo box front panel. Load 4.
could shift forward and injure driver or passenger.
Avoid loads which exceed the physical dimensions of cargo 5.
box.
Go slow. Heavy loads will affect steering, braking, stability, 6.
and overall handling of the vehicle. Limit loads to those
that can be safely controlled.
Avoid sudden starts, stops, and turns which could cause 7.
load to shift.
Cargo Box Lift
Stop vehicle on level ground and set Parking Brake before 1.
raising cargo box.
On manual lift units, unload cargo box before raising cargo 2.
box.
Do not operate vehicle with cargo box in raised position.3.
Do not operate vehicle with cargo box latch unlatched. 4.
Always re-latch upon manually lowering cargo box.
When using optional electric lift:
Stay in driver’s seat.a.
Keep body parts away from cargo box and keep all b.
bystanders away.
Do not allow rear wheels to hang over the edge of c.
a drop-off when raising cargo box. The load in the
cargo box may shift causing the vehicle to tip over
backwards.
Safety Frame (OPS)
Your vehicle is equipped with a operator protective 1.
structure (OPS) which must be maintained in a fully
functional condition. Use care when driving through
doorways or spaces with a low overhead.
Never modify the OPS in any way.a.
Never attempt to straighten or reweld any part of b.
the main frame or retaining brackets that have been
damaged. Doing so may weaken the structure and
endanger your safety.
Never secure any parts other than Cub Cadet c.
approved accessories on the main frame or attach
the safety frame with anything other than the
special fasteners specified.
Never attach ropes, chains, or cables to the OPS for d.
pulling purposes.
Although the OPS provides you the maximum e.
protection possible, never take unnecessary risks.
Children
Tragic accidents can occur if the operator is not alert to 1.
the presence of children. Children are often attracted to
the vehicle. They do not understand the dangers. Never
assume that children will remain where you last saw them.
Avoid run over accidents.
Keep children out of the immediate area of the a.
vehicle and in watchful care of a responsible adult
other than the operator.
Be alert and turn the vehicle off if a child enters the b.
area.
Before and while backing, look behind and down for c.
small children.
Never carry small children, they may fall off and d.
be seriously injured or interfere with safe vehicle
operation.
6 se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Use extreme care while approaching blind corners, e.
doorways, shrubs, trees or other objects that may
block your vision of a child who may run into the
path of the vehicle.
Remove key when vehicle is unattended to prevent f.
unauthorized operation.
Never allow children under 16 years old to operate this 2.
vehicle. Children 16 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.
Do not let children ride in the cargo box, in the driver’s or 3.
passenger’s lap or anywhere other than the passenger seat.
Never give small children a ride; not even in the passenger
seat. They may fall off.
Service
Never run an engine indoors or in a poorly ventilated area. 1.
Engine exhaust contains carbon monoxide, an odorless,
and deadly gas.
Before cleaning, repairing, or inspecting, make certain 2.
all moving parts have stopped. Disconnect the spark
plug wires and ground against the engine to prevent
unintended starting.
Check brake operation frequently as it is subjected to wear 3.
during normal operation. Adjust and service as required.
If equipped, the cooling system is under pressure. Never 4.
remove the radiator cap when the system is hot. Slowly
turn the cap the to the first stop to release pressure before
removing the cap.
Keep all nuts, bolts, and screws tight to be sure the 5.
equipment is in safe working condition.
Never tamper with the safety interlock system or other 6.
safety devices. Check their proper operation regularly.
Never attempt to make adjustments or repairs to the 7.
machine while the engine is running.
Do not change the engine governor settings or over-speed 8.
the engine. The governor controls the maximum safe
operating speed of the engine.
Maintain or replace safety and instruction labels, as 9.
necessary.
According to the Consumer Products Safety Commission 10.
(CPSC) and the U.S. Environmental Protection Agency
(EPA), Utility Vehicles have an Average Useful Life of seven
(7) years, or 390 hours of operation. At the end of the
Average Useful Life, have the unit inspected annually by
an authorized service dealer to ensure that all mechanical
and safety systems are working properly and not worn
excessively. Failure to do so can result in accidents, injuries
or death.
Observe proper disposal laws and regulations for gas, oil, 11.
etc. to protect the environment.
Prior to disposal, determine the proper method to dispose 12.
of waste from your local Environmental Protection Agency.
Recycling centers are established to properly dispose of
materials in an environmentally safe fashion.
Use proper containers when draining fluids. Do not use 13.
food or beverage containers that may mislead someone
into drinking from them. Properly dispose of the containers
immediately following the draining of fluids.
If applicable, escaping hydraulic fluid under pressure can 14.
penetrate the skin. If fluid is injected into the skin, seek
immediate medical attention. Do not use your hand to
check for leaks. Use a piece of cardboard or paper.
DO NOT pour oil or other fluids into the ground, down a 15.
drain or into a stream, pond, lake or other body of water.
Observe Environmental Protection Agency regulations
when disposing of oil, fuel, coolant, brake fluid, filters,
batteries, tires and other harmful waste.
We do not recommend the use of a pressure washer or 16.
garden hose to clean your unit. They may cause damage to
electrical components; spindles; pulleys; bearings; or the
engine. The use of water will result in shortened life and
reduce serviceability.
Do not modify engine
To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
Notice Regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM), Oxidizing Catalyst (OC), Secondary Air
Injection (SAI) and Three Way Catalyst (TWC) if so equipped.
Spark Arrestor
WARNING: This unit is equipped with an internal
combustion engine and should not be used on or
near any unimproved forest-covered, brushcovered
or grass-covered land unless the engine’s exhaust
system is equipped with a spark arrester meeting
applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective
working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws
apply on federal lands.
A spark arrester for the muffler is available through your
nearest engine authorized service dealer or contact the service
department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
7se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
WARNING: Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!

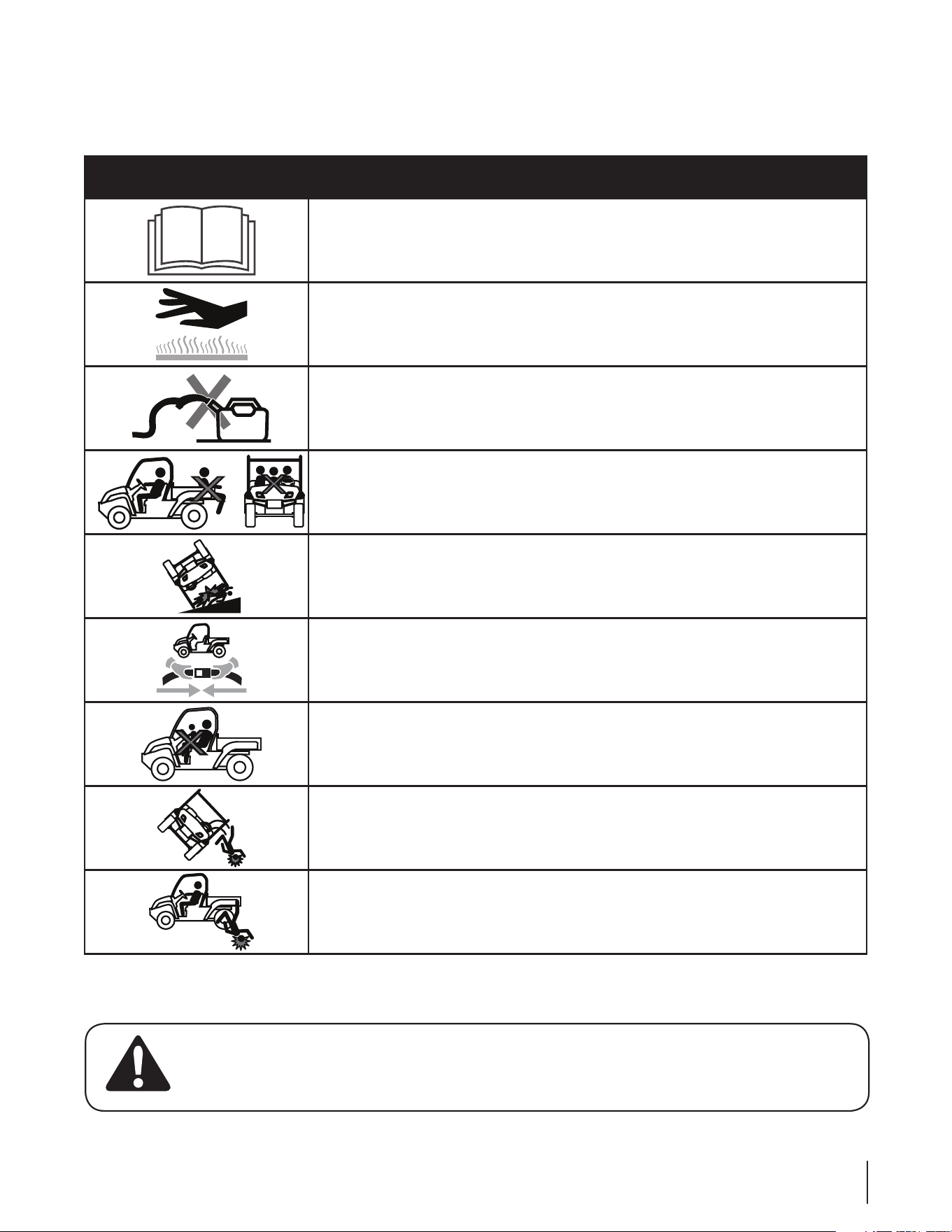

Safety Symbols
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
WARNING— HOT SURFACE
Hot Surface - Do not touch.
WARNING — GAS CONTAINER
Avoid injury from explosion. Do not place gas container in cargo box when fueling.
WARNING— RIDERS MUST BE IN SEATS
No riders in cargo box or anywhere other than seats.
MAX 15º
WARNING— SLOPES
Do not operate on slopes greater than 15°.
WARNING— SEAT BELTS
Always wear the seat belt when operating the utility vehicle equipped with an OPS .
However, if the OPS is not present or has been removed, the seat belt must not be used.
WARNING— ONE RIDER PER SEAT
Only one person in each seat.
WARNING— ROLL OVER
Falling off or rollover may cause serious injury or death.
WARNING — RIDERS FALLING
Riders can fall off and be seriously injured or killed.
Controls and Features
4
8
Read this operator’s manual, safety labels, and operating instructions on the vehicle before operating. Compare the illustrations in
this manual with your unit to familiarize yourself with the location of various controls and adjustments. Reference to the right or left
hand side of unit is observed from the operating position. Save this manual for future reference.
IMPORTANT: Read the Kohler Engine operator’s manual before operating this vehicle to familiarize yourself with the engine controls
and adjustments.
Figure 4-1
A
F
G
H
I
J
K
L
N
O
M
E
B
C
D
A Check Engine Light
B Ignition Switch
C Brake Pedal
D Dierential Lock Lever
E Parking Brake Lever
F Warning Light Cluster
G Engine Over-Temp Light
H 4x4 Switch
I 12 Volt Power Outlet
J Accelerator Pedal
K Adjustable Seat Lever
L Shift Lever
M Cup Holders
N Seat Belts
O Fuel Tank
9se c t i O n 4 — cO n t r O l s a n d fe a t u r e s
Engine Over-Temp Light
The engine over-temp light (red) is located on the dash panel on
the right side of the warning light cluster. When lit, this indicates
that the engine is running too hot, and MUST be immediately
shut off and allowed to cool.
Ignition Switch
WARNING: Never leave a running machine
unattended. Always set parking brake, stop engine
and remove key to prevent unintended starting.
The ignition switch is located to the right of the steering wheel
on the left side of the dash panel. To start the engine, insert the
key into the ignition switch and turn clockwise to the START
position. Release the key into the Run position once engine has
fired. See Fig. 4-1.
Refer to Starting The Engine in the Operation Section of this
manual for detailed starting instructions.
Warning Light Cluster
The warning light cluster is located in the middle of the dash
panel. See Fig. 4-2. There are four warning lights: alternator
discharge light (Battery), parking brake light, engine oil pressure
light, and low fuel light.
The engine oil pressure light activates when engine has low oil
pressure. The alternator discharge light will indicate that the
alternator is not charging. The low fuel light activates when fuel
is low in the tank. The parking light indicates that the parking
brake is engaged.
Hour Meter
The hour meter is located in the center of the warning light
cluster. It reads the elapsed time engine has run. See Fig. 4-2.
Accelerator Pedal
The accelerator pedal is located on the right side of the floor
beneath the dash panel. Depressing the accelerator pedal will
move the vehicle in the direction selected on the gearshift. As
the pedal is depressed, speed will increase to the maximum
selected range. Releasing the pedal reduces the speed, but does
not stop the vehicle. The brake must be applied to stop vehicle.
See Fig. 4-1.
Brake Pedal
The brake pedal is located on the left side of the floor beneath
the dash panel. Remove foot from accelerator pedal apply
pressure to the brake pedal evenly until vehicle slows down and
stops. See Fig. 4-1.
Parking Brake Lever
The parking lever is located to the left of the driver’s seat. It holds
the brake in the engaged position for parking. See Fig. 4-1.
To engage the parking lever, place shift lever in Neutral, push
brake pedal down firmly, pull up on the parking brake lever, and
release foot from brake pedal. Brake pedal will stay down and
parking brake light on dash will come on to indicate parking
brake is engaged.
To release parking brake, push down on brake pedal and parking
brake latch will release.
NOTE: There is a buzzer which will become activated (audible
sound) when the parking brake is engaged and the unit is not in
Neutral.
Shift Lever
The shift lever is located in the center console between
the seats and has four positions, FORWARD, LOW,
NEUTRAL, and REVERSE. The brake pedal must be
depressed and the utility vehicle must not be in motion
when the moving shift lever.
NOTE: To shift into LOW, move the shift lever from the
neutral position towards the passenger seat and then
forward.
IMPORTANT: Never force the shift lever. Doing so
may result in serious damage to the utility vehicle’s
transmission.
Differential Lock Lever
The differential lock lever is located in the center console
between the seats. When engaged, the differential lever locks
the differential so both drive wheels will pull equally when rear
wheels start to slip. See Fig. 4-1.
Check Engine Light
The check engine light (green) is located on the dash panel on
the left side of the warning light cluster. See Fig. 4-1. When lit,
take unit to your Cub Cadet dealer for a diagnostic test.

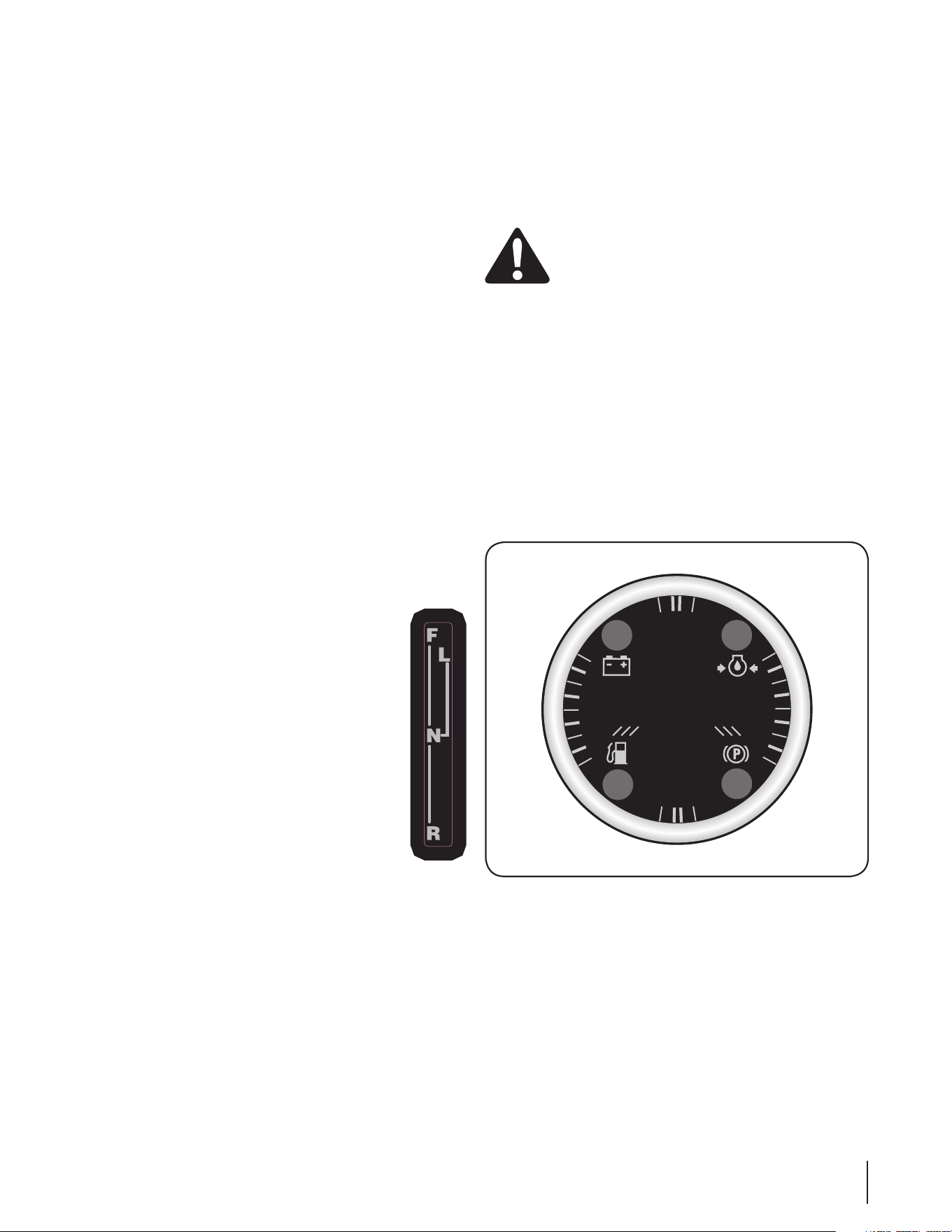

HOURS 1/10
FUEL
PARK
BRAKE
OILBATT.
Figure 4-2
10 se c t i O n 4— cO n t r O l s a n d fe a t u r e s
NOTE: Every 50 hours a “change oil” message will flash on the
display for 2 minutes every time the tractor is started. This
message will repeat for the first two after each 50 hour interval.
The oil pressure indicator light will also flash when this display is
active. Before the interval expires, change the crankcase oil level
as instructed in the Engine Manual.
4x4 Switch
The 4x4 switch is located on the right side of the dash panel.
Push in top/bottom of switch to activate or deactivate 4x4
capability. See Fig. 4-1.
12V Power Outlet
The 12V power outlet is located in the center of the dash panel.
It is used for the convenience of plugging in accessories that
require a power source with a maximum load of 5 amps at 12
volts. See Fig. 4-1.
Cup Holders
The cup holders are located between the seats. They are
designed for the use of non-alcoholic beverages.
WARNING: Never operate this vehicle while under
the influence of alcohol or drugs. Doing so can result
in serious personal injury or death.
Seats
The passenger seat is secured with a wing nut located on the
interior corner of the seat plate, underneath the seat belt. See
Fig. 4-1 insert. To lift the seat remove the wing nut, then lift the
seat.
The driver seat has a tool box underneath it, which can be
easily accessed by lifting the seat. This box may be removed by
removing the two screws securing it to the frame for easy access
to belts, etc.
Seat Belts
The seat belts are located on either side of the driver and
passenger seats. When used together with the OPS (Rollover
Protective Structure) they are effective in reducing injuries to the
operator in the event of an accidental rollover.
WARNING: Always wear the seat belt when
operating the utility vehicle equipped with a OPS.
However, if the OPS is not present or has been
removed, the seat belt must not be used.

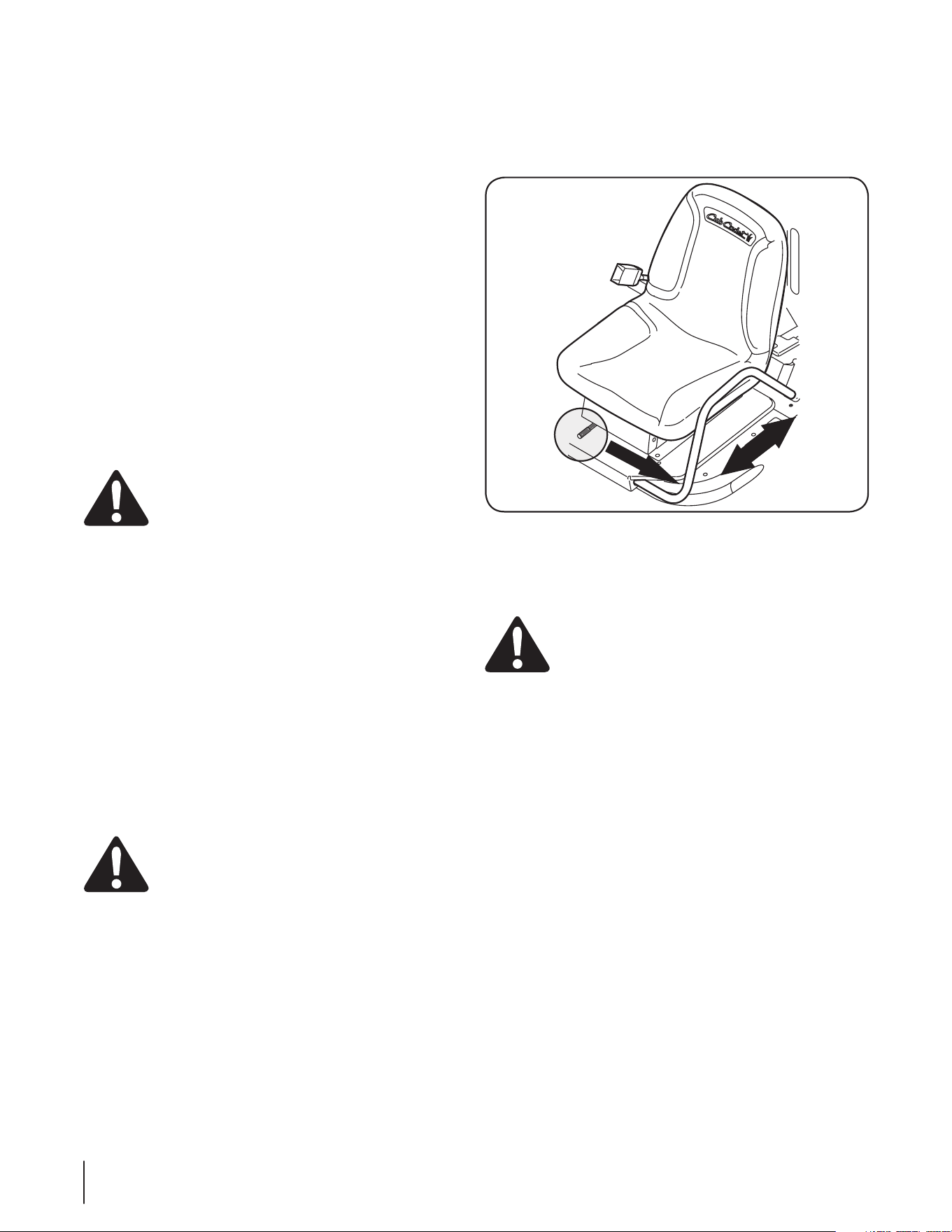

Adjustable Seat Lever
The adjustable seat lever is located beneath the driver’s seat
on the front side and it is used to move the seat forward and
backward. See Fig. 4-3.
Slide the lever to the left and push the seat forward or back to
the desired position. Release the lever so that it locks the seat in
place.
WARNING: Make sure seat is in locked position prior
to operation and do not try to adjust the seat
position while operating the vehicle.
Cargo Box
The cargo box is raised by a gas spring. Manually remove the
contents of the cargo box before lifting the cargo box. Pull up on
the release latch located behind the driver’s seat and lift up the
cargo box. Once the cargo box is in the raised position, access to
the engine is possible. If equipped with a electrical lift, the cargo
box can be raised to dump cargo.
IMPORTANT: Do not exceed the vehicle’s Total Load Capacity
of 1,400 lb., which includes driver, passenger, accessories, and
cargo. Do not exceed 1000 lbs. in the cargo box.
Figure 4-3
Operation
5
11
Filling Fuel Tank
Stop vehicle on a level surface and apply parking brake.1.
Turn the ignition key to the STOP position and remove the 2.
key.
Allow engine to cool several minutes before you add fuel.3.
Clean area around fuel cap and remove cap.4.
Fill tank with fresh, unleaded, regular grade fuel only to 5.
bottom of filler neck. Use a minimum of 87 octane.
After refueling, make sure tank cap is closed securely.6.
Starting Engine
WARNING: This is an off-road utility vehicle and it
should not be operated on public highways. Know
and comply with all laws and regulations governing
the use of off-highway vehicles in your area.
IMPORTANT: Before starting the engine read this manual and the
Kohler Engine manual thoroughly to understand all instructions.
WARNING: Do not run an engine in an enclosed
area. Move the vehicle to an outside area before
running the engine.
IMPORTANT: Tires are shipped over-inflated. Reduce inflation
pressure in all tires to approximately 14-18 psi.
Sit in the operator’s seat and place key switch in STOP 1.
position.
Put into Neutral.2.
Lock parking brake.3.
NOTE: Engine will stop when the parking brake is engaged
and the unit is not in Neutral.
Turn key to the START position.4.
Release key to the RUN position when engine starts.5.
If engine does not start, wait a few seconds and repeat 6.
procedures.
Release parking brake.7.
IMPORTANT: DO NOT run the starter continuously for
more than 5 seconds, otherwise the battery may discharge
quickly.
IMPORTANT: Do not operate the engine under full load
until engine has warmed up.
Stopping Engine
To stop utility vehicle, release accelerator pedal and 1.
depress brake pedal until vehicle comes to a complete
stop.
Put unit back into Neutral.2.
Lock parking brake and turn key switch to STOP position.3.
Remove the key when not in use.4.
WARNING: The vehicle will roll if the parking brake
is not engaged and locked.
Driving Utility Vehicle
Adjust the operator’s seat to the most comfortable position 1.
that allows you to operate all controls and pedals. See Seat
Adjustment in the Controls & Features section.
Adjust the seat belt to fit snugly but comfortably around 2.
your lap, then buckle the seat belt.
WARNING: DO NOT use the seat belt if the OPS has
been removed from the utility vehicle.
Make sure front wheels are turned to the desired direction.3.
Depress brake pedal to release parking brake.4.
Move the shift lever in the center console to the desired 5.
setting. To avoid damaging transmission, depress brake
pedal fully and make sure vehicle is completely stopped
before shifting into Forward, LOW, or Reverse.
NOTE: Use the Forward range when travelling on level and
stable surfaces. Use the LOW Forward range when climbing
or descending slopes or on unstable surfaces.
WARNING: Do not stop or start suddenly when
going uphill or downhill. Be especially cautious
when changing direction on slopes. Apply brakes
when going down slopes to maintain control of
vehicle.
Release brake pedal and apply pressure to the accelerator 6.
pedal.
Release accelerator and apply brake pedal evenly and 7.
firmly to slow down or stop.
12 se c t i O n 5— Op e r a t i O n
Engaging 4x4
The 4x4 switch is located on the right side of the dash panel. See
the Controls & Features section.
To engage, stop or slow vehicle speed and push up on the 1.
switch. All four wheels will now continue to have power.
IMPORTANT: Engage the 4x4 feature as the first option
when stuck in mud or similar situation where two wheel
drive is ineffective at moving vehicle.
If still unable to move vehicle with the 4x4 engaged, 2.
disengage 4x4 by pushing down on the switch and
engaging the differential lock as described below.
Engaging Differential Lock
The differential lock lever is located in the center console
between the seats. See Know Your Utility Vehicle.
To engage, stop vehicle, place into Neutral, and pull the 1.
lever rearward. The differential will then lock and remain
so until it is disengaged, giving continuous power to both
rear wheels.
IMPORTANT: Engage the differential as the last option when
stuck in mud or similar situation or when the left and right side
wheels are turning at slightly different speeds.
WARNING: To avoid transmission damage, injury,
or turf damage, go slow when operating vehicle
with differential lock engaged as steering response
is noticeably reduced. Also, do not drive the unit
with the differential lock engaged on concrete,
asphalt or any high traction surfaces.
Disengaging Differential Lock
To disengage the differential lock, stop the unit, place in 1.
Neutral, and push the lever forward.
Raising & Lowering Cargo Box
WARNING: To prevent the possibility of bodily
injury from unintentional lowering of the cargo box,
be sure vehicle is on a level and stable surface and
parking brake is locked before raising cargo box.
Manual Lift
Park the vehicle safely on level ground and set parking 1.
brake.
Empty cargo by hand and unlatch cargo box by pulling up 2.
on the cargo latch.
While holding the latch down, lift the cargo box.3.
Lower and allow bed to re-latch cargo box before 4.
operating unit.
Electric Lift (Optional)
Park the vehicle safely and turn key to the RUN position.1.

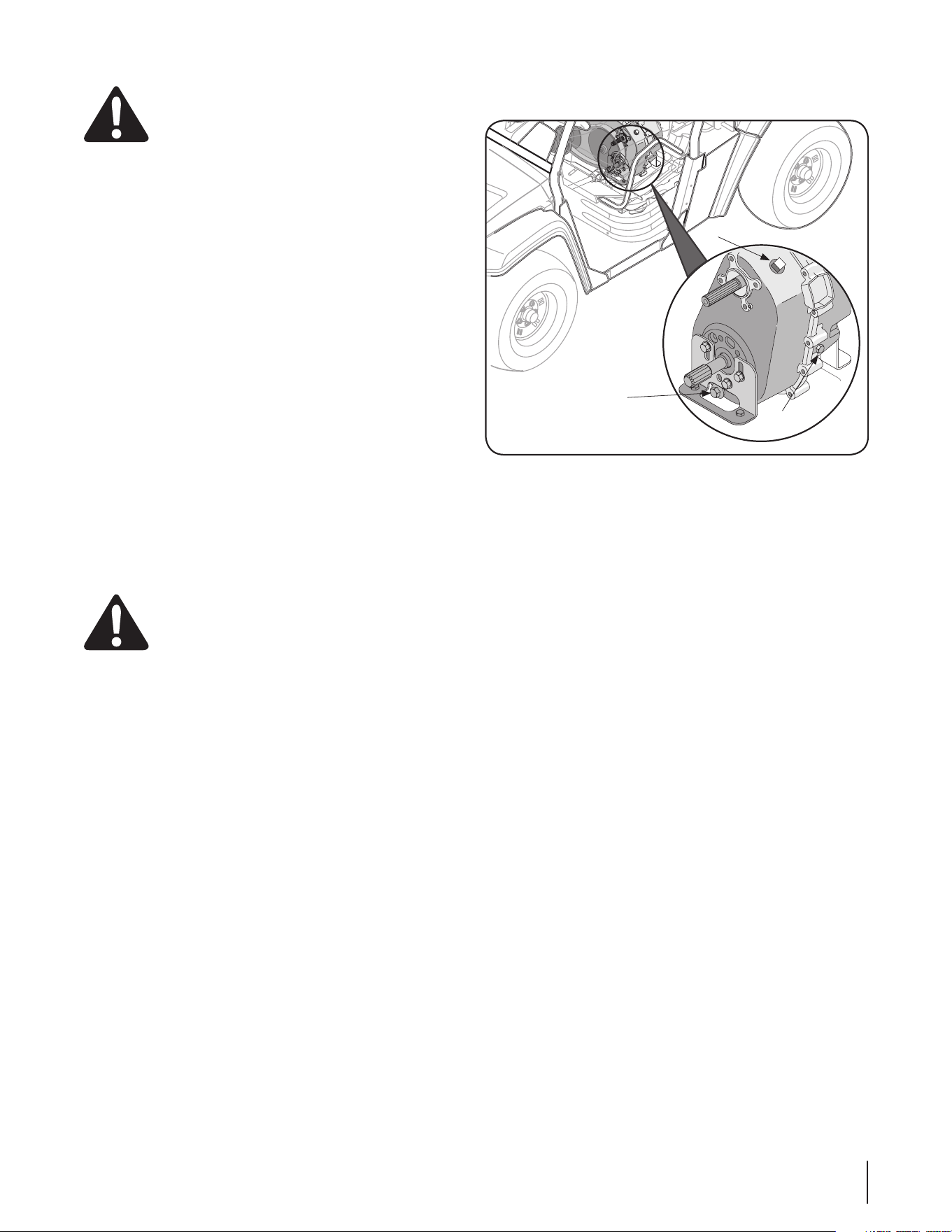

Raise cargo box by pressing and holding top of electric lift 2.
switch. Release switch when box is at desired dump height
or when maximum height is reached.
NOTE: A ratcheting noise will indicate cargo box is at full
extension. The same noise will also be heard when cargo
box is at the full down position. If lift capacity of the power
lift is exceeded, a ratcheting will also be heard.
To lower cargo box, push on bottom of electric lift switch. 3.
Turn ignition switch to the STOP position.
Dumping Load From Cargo Box
Back up the vehicle to the dump site and apply parking 1.
brake.
Unlatch the tailgate from cargo box.2.
If using an electric lift, raise cargo box to dump load and 3.
lower box when empty.
WARNING: The center of gravity changes as a
loaded cargo box is raised. Do not allow rear wheel
to hang over the edge of a loading dock or ravine.
The cargo box weight may shift over center and
vehicle could tip over backwards.
WARNING: A loaded cargo box can be very heavy.
Do not attempt to dump a loaded cargo box unless
vehicle is equipped with an electric lift option.
IMPORTANT: If dumping by electric lift, stop
immediately if actuator clutch slippage occurs. Lower cargo box
completely and remove excess load by hand before dumping.
Reconnect the tailgate to the cargo box. Do not drive the 4.
vehicle with cargo box in the raised position.
Loading the Cargo Box
WARNING: The utility vehicle may become
unstable if the cargo box is loaded incorrectly. Avoid
loose and shifting loads or uneven loading of
material.
Verify cargo box is latched before loading.1.
Securely anchor all loads in cargo box and do not load 2.
beyond maximum capacity.
The maximum box capacity is 1,000 lbs..3.
When loading objects into vehicle, be sure load is securely 4.
anchored and evenly distributed in cargo box.
Do not load above height of cargo box front panel. Load 5.
could shift forward striking driver or passenger or cause
driver to loose control of vehicle.
Avoid loads which exceed physical dimensions of cargo 6.
box.
Avoid concentrated loads at rear or side of cargo box. Be 7.
sure load is distributed evenly.
Reduce load and ground speed when operating over 8.
rough or hilly terrain. DO NOT overload vehicle. Limit loads
to those that can be safely controlled.
13se c t i O n 5 — Op e r a t i O n
Towing Loads
WARNING: To help prevent personal injury due to
loss of control or tipping, always tow a load slowly
enough to maintain control.
Do not tow a load that exceeds 1,400 lbs. rolling weight (i.e. 1.
trailer plus cargo) and never exceed 140 lbs. tongue weight.
Go slow when towing a heavy load. Allow for increased 2.
braking distance. Tow load at a speed slow enough to
maintain control.
Do not tow on slopes greater than 5°.3.
Be particularly cautious when towing down even a gradual 4.
slope or turning. The extra weight tends to push the tow
vehicle and may cause you to lose control (braking and
steering ability are reduced; towed equipment may jack-
knife).
IMPORTANT: Extreme angles such as high railroad
crossings can place high bending loads on hitch
connection. If traversing terrain where these conditions
exist, use of a ball or pintle type hitch is recommended.
Always use approved hitch and hitch point provided for the 5.
utility vehicle. Do not modify the hitch in any way.
Transporting Vehicle
IMPORTANT: Never tow the vehicle. Transmission damage will
occur if vehicle is towed. Haul the vehicle on a heavy-duty trailer
or on a full-size truck.
Once the utility vehicle is loaded onto the trailer or truck, 1.
leave transaxle gearshift lever in forward or reverse.
Apply parking brake during transport.2.
Fasten vehicle to trailer or truck with straps, chains, or 3.
cables.
Operator Protective Structure (OPS)
This utility vehicle is equipped with a Operator Protection
Structure (OPS) and seat belts. When used together they are
effective in reducing injuries to the operator in the event of
an accidental Operator. The safety provided by the OPS is
minimized if the seat belt is not properly adjusted AND buckled.
WARNING: Always wear the seat belt when
operating the utility vehicle equipped with a OPS.
However, if the OPS is not present or has been
removed, the seat belt must not be used.
Use the following guidelines when using a utility vehicle
equipped with a OPS:
Be aware of overhead clearances in the area of operation. 1.
Check for clearance of door (or gate) openings and other
overhead objects such as utility lines and tree branches.
Overhead objects could catch the OPS and upset the utility
vehicle.
Do not modify the OPS by drilling holes for, or welding 2.
accessories to the structure.
Do not use the OPS to pull objects with the utility vehicle. 3.
Use ONLY the utility vehicle hitch for pulling.
In the event of an accident, have the OPS carefully 4.
inspected and, if necessary, replaced by your Cub Cadet
dealer. Do not attempt to repair the OPS.
Maintenance & Adjustments
6
14
Engine
Read the Kohler engine operator’s manual for any service or
maintenance information pertaining to the engine.
Engine Coolant
Checking Engine Coolant Level
Before each use, the engine coolant level in the overflow
reservoir should be checked to ensure it is within the operating
range. Engine coolant absorbs heat from the engine and
transfers the heat to the air flowing through the radiator. If the
coolant level becomes low, the engine may overheat and could
cause severe damage to the engine.
Use a permanent type antifreeze containing corrosion and rust
inhibitors. Dilute the antifreeze with water at a 1 : 1 ratio to mix
the coolant solution (50% antifreeze : 50% water).
NOTE: Distilled water is recommended for the coolant solution
IF your tap water has a high mineral content. Minerals cause
scaling in the engine and the radiator coolant passages. System
efficiency will be greatly reduced over time and severe engine
damage may result. Refer to the antifreeze manufacturer’s
instructions for additional information on dilution procedures.
Check the coolant level when the engine is cold and the 1.
utility vehicle is on a level surface.
Raise the hood and check the coolant level in the overflow 2.
reservoir on the right side of the engine.

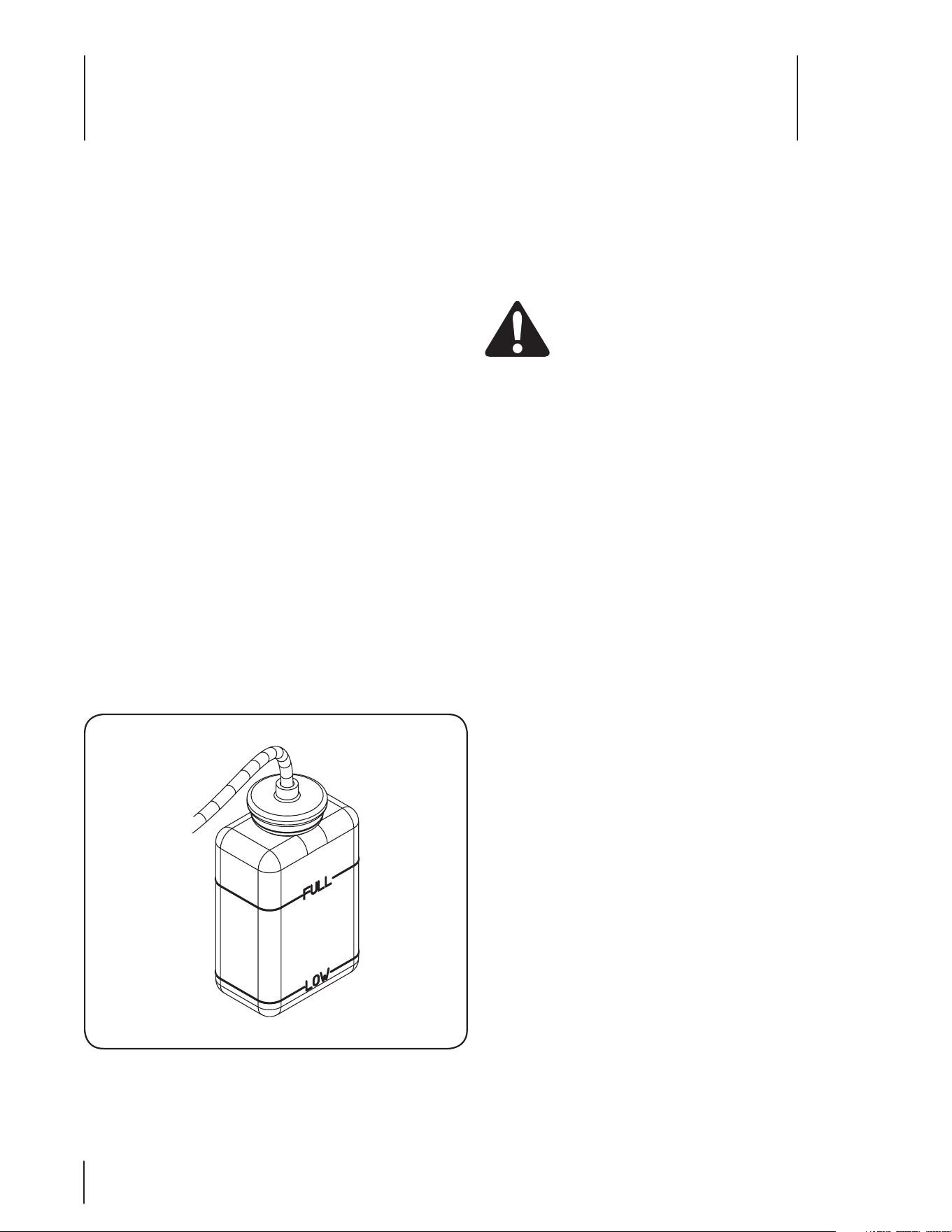

If the coolant level is below the “LOW” mark, remove the 3.
cap from the reservoir and add coolant solution to the
“FULL” mark. Refer to Fig. 6-1.
NOTE: The cooling system is a closed type. Normally, to prevent
air from entering the system, the radiator cap should not be
removed.
If the overflow reservoir is empty, the radiator cap should be
removed and the coolant level in the radiator checked before
adding coolant to the reservoir. If necessary, first refill the system
through the radiator filler neck as follows:
WARNING: It is dangerous to remove the radiator
cap when the system is hot. Allow the system to cool
before removing the radiator cap.
Turn the radiator cap counterclockwise to the first stop to 1.
release any pressure.
Push downward on the cap and turn counter-clockwise 2.
until the cap stops then lift cap off.
Slowly pour coolant into the filler neck until the level 3.
reaches the bottom of the filler neck overflow flange.
Wait a few minutes to allow as much air as possible to 4.
escape through the filler neck, then reinstall the radiator
cap.
Fill the overflow reservoir to the “FULL” mark.5.
Start the engine and allow it to run for a short period. Stop 6.
the engine.
Recheck the coolant level in the overflow reservoir and 7.
refill as needed. Reinstall the reservoir cap.
Changing the Engine Coolant
The engine coolant should be drained and replaced with new
coolant solution every 2 years or 500 hours.
Dilute the antifreeze with water at a 1 : 1 ratio to mix the coolant
solution (50% antifreeze : 50% water).
Change the engine coolant as follows:
Drain the coolant when the engine is cold.1.
Place the unit on a level surface and raise the hood.2.
Slide the overflow reservoir upward and off the reservoir 3.
bracket to access the radiator drain plug.
Locate the radiator drain plug in the lower right rear corner 4.
of the radiator.
Place a suitable container beneath the drain plug and 5.
remove the cap from the overflow reservoir.
Turn the drain plug counterclockwise to re-move. Allow 6.
as much of the old coolant as possible to drain from the
system.
Figure 6-1
15se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s
WARNING: Coolant is a toxic substance. Dispose in
an environmentally safe manner. Contact your area
EPA office for proper disposal methods and
recycling center locations.
Reinstall the drain plug and turn clockwise until fully 7.
tightened.
Turn the radiator cap counterclockwise to the first 8.
stop, then push downward on the cap and turn
counterclockwise to remove.
In stages, SLOWLY pour the coolant solution into the filler 9.
neck, allowing as much air as possible to escape through
the neck. Fill to the overflow flange of the filler neck.
Wait a few minutes to allow air to escape through the filler 10.
neck and refill as needed, then reinstall the radiator cap.
Fill the overflow reservoir to the “FULL” mark.11.
Start the engine and allow it to run for a short period. Stop 12.
the engine.
Recheck the coolant level in the overflow reservoir and 13.
refill as needed. Reinstall the reservoir cap.
Cooling System Hoses
Check the cooling system hoses and fan belt for any cracks or
deterioration after every 100 hours of operation. Check for loose
hose connections. Replace any damaged hoses and tighten any
loose connections. Replace a worn or damaged fan belt.
Transfer Case Oil
WARNING: The fluid for your transmission has
been specially formulated to ensure the safe and
proper operation of your vehicle. When changing
the transmission fluid replace it with 80W-90 Shell
Dentax Low Foam Oil. Failure to use 80W-90 Shell
Dentax Low Foam Oil may result in a failure of the
drive system which could result in property damage
or personal injury. DO NOT substitute.
Check the transfer case oil every 100 hours or yearly and change
it at the first 50 hours and then again at 500 hours.
Park vehicle on level surface, place shift lever in Neutral, 1.
and apply parking brake.
Allow transmission sufficient time to cool before 2.
attempting any maintenance or repairs.
Raise and secure cargo box, if manual lift.3.
Access drain plug through slot on underside of machine 4.
and remove plug. See Fig. 6-2.
Check O-ring on drain plug and replace if missing or in 5.
poor condition.
Install and tighten drain plug.6.
IMPORTANT: Dirt and debris in oil may cause damage to
transfer case. Clean area around opening before removing
oil cap.
Remove oil cap and add approximately 64 oz of 80W-90 7.
Shell Dentax Low Foam Oil.
NOTE: If necessary, you may remove the fill level plug to
assist with determining the level to which the transmission
may be filled. See Fig. 6-2. When oil begins coming out of
fill level opening, the transmission is full. Replace fill level
plug when finished.
Install oil cap, and lower and latch cargo box.8.
Figure 6-2
Oil Cap
Fill
Level
Plug
Drain
Plug
16 se c t i O n 6— Ma i n t e n a n c e & ad j u s t M e n t s
Connect positive (+) jumper cable to booster battery 1.
positive (+) post (A). See Fig. 6-3.
Connect the other end of positive (+) jumper cable to the 2.
disabled vehicle battery positive (+) post (B).
Connect negative (-) jumper cable to booster battery 3.
negative (-) post (C).
Connect the other end (D) of negative (-) jumper cable to 4.
a metal part of the disabled machine frame away from
battery.
Start the engine of the disabled machine and run machine 5.
for several minutes.
Carefully disconnect the jumper cables in the exact reverse 6.
order: negative cable first and then the positive cable.
IMPORTANT: Alternator will not charge unless battery has
minimum of 11 volts. Unit will not run if battery voltage is below
11.
Charging Battery
WARNING: Charge battery in a well ventilated area
and keep away from an open flame or pilot light as
on a water heater, space heater, furnace, clothes
dryer or other gas appliances.
If the vehicle has not been put into use for an extended period of
time, charge the battery with an automotive type 12-volt charger
for a minimum of one hour at six amps.
Battery
WARNING: The battery produces a flammable and
explosive gas. Do not smoke near battery. Wear eye
protection and gloves when handling the battery.
Do not allow direct metal contact across battery
posts. The battery is sealed and is maintenance free.
Acid levels cannot be checked and fluid can not be
added.
WARNING: California Proposition 65 Warning:
Battery posts, terminals, and related accessories
contain lead and lead compounds, chemicals known
to the State of California to cause cancer and
reproductive harm. Wash hands after handling.
IMPORTANT: If removing the battery for any reason,
disconnect the NEGATIVE (Black) wire from it’s terminal
first, followed by the POSITIVE (Red) wire. When re-
installing the battery, always connect the POSITIVE (Red)
wire to its terminal first, followed by the NEGATIVE (Black)
wire. Be certain that the wires are connected to the correct
terminals; reversing them could change the polarity and
cause damage to your engine’s alternating system.
Cleaning Battery and Terminals
Remove battery from vehicle. Always remove negative 1.
cable first when disconnecting.
Wash battery with solution of four tablespoons of baking 2.
soda to one gallon of water.
Rinse the battery with plain water and dry.3.
Clean terminals and battery cable ends with wire brush 4.
until bright.
Apply petroleum jelly or silicone spray to terminals to 5.
prevent corrosion.
Install battery. Always install negative cable last when 6.
connecting.
Jumping Battery
WARNING: Do not attempt to jump start a frozen
battery. Warm to 60 degrees F (16 degrees C). Do not
smoke near battery and wear eye protection and
gloves when handling battery.
Figure 6-3
Jumper Cables
Booster BatteryDisabled Battery
D
C
B
A
17se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s

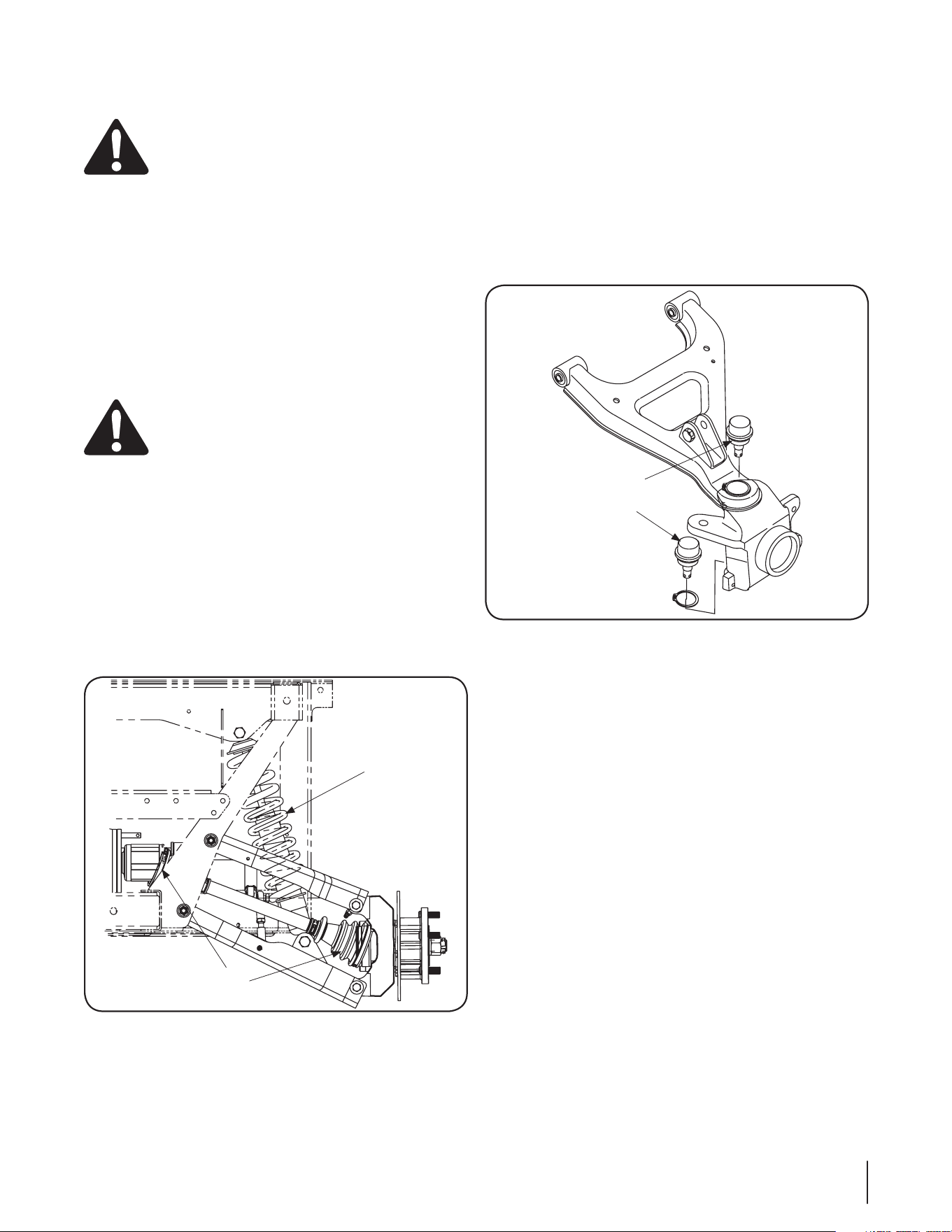

CV Boots
Inspect CV boots (two on each CV joint axle end, eight total)
for tears every 50 hours. See Fig. 6-4. If tears or excessive wear
appear, have boots replaced by your local Cub Cadet dealer.
Ball Joints
Inspect the upper and lower front A-arm ball joints on each side
of the vehicle and the two tie rod ends for wear every 100 hours
or once a year. See Fig. 6-5. If excessive wear appears, have ball
joints or tie rod ends replaced by your local Cub Cadet dealer.
Tire Pressure
WARNING: Explosive separation of tire and rim
parts is possible when they are serviced incorrectly.
Do not stand in front or over tire assembly when
inflating.
The recommended operating tire pressure is approximately
14-18 psi for all tires. Overinflating above recommended tire
pressure can reduce the life of the tire. Check tire pressure before
driving the vehicle.
Operator Protective Structure (OPS)
Periodically (at least every six months) visually inspect the OPS
for damage and loose fasteners. If damage is noted, contact your
Cub Cadet dealer.
If an accident has occurred which may have damaged the OPS,
have the OPS thoroughly inspected by your Cub Cadet dealer.
WARNING: To ensure the structural integrity of the
OPS to provide operator protection, do not attempt
to straighten or weld the OPS. A damaged OPS
should be replaced.
If the OPS is removed for any reason, make sure the proper
hardware is used to reinstall it, and that the recommended
torque values are applied to the fasteners.
If you are not installing new bolts when replacing or reinstalling
the OPS, apply Loctite ® 242 to the threads of the bolts that were
removed. Torque the bolts to 32 to 36 ft. lbs.
Front and Rear Shocks
Inspect the front and rear shocks every 100 hours or once a year
for oil leakage. See Fig. 6-4. If excessive oil leakage appears, have
shocks repaired or replaced by your local Cub Cadet dealer.
Figure 6-4
Figure 6-5
Shock
CV
Boots
Ball
Joints
18 se c t i O n 6— Ma i n t e n a n c e & ad j u s t M e n t s

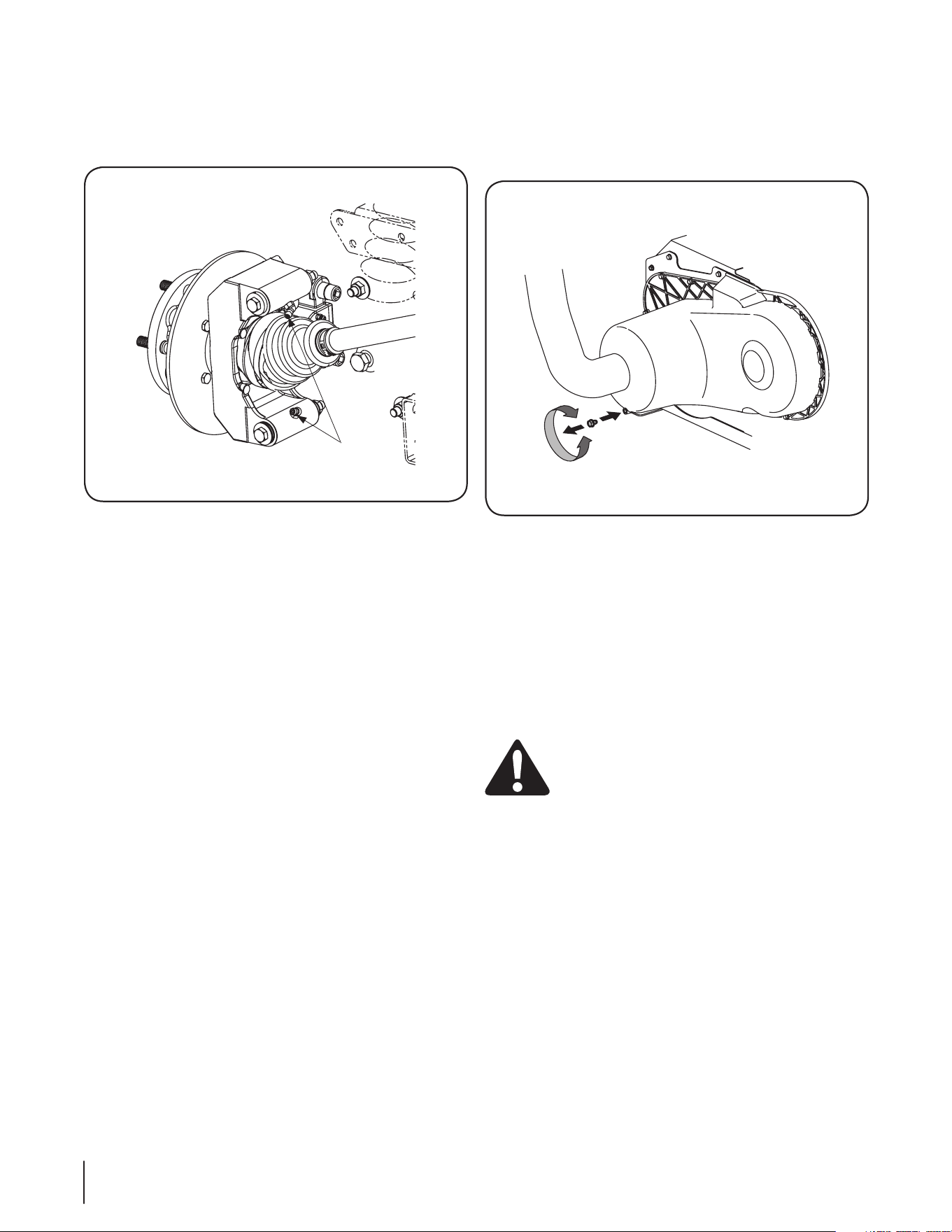

Draining CVT Cover
Drain CVT cover every 50 hours or after driving vehicle through
more than 12” of water.
Remove CVT cover drain plug. See Fig. 6-7.1.
Allow water to completely drain out.2.
Reinstall drain plug, and tighten securely.3.
Cleaning
The body panels are scratch and impact resistant automotive
quality ABS plastic. The use of standard car wash soap and
non-abrasive car wax is acceptable for cleaning the body panels.
Avoid any abrasive cleaner or rubbing compounds for these will
damage the body panels. Dry thoroughly to avoid water spots.
WARNING: DO NOT use a pressure washer.
Damage may occur if direct hose spray comes in
contact with intake openings, or any other electrical
components, i.e. at instrument cluster or under
dash.
Rear Knuckles
Lubricate two grease fittings on each axle with 2 or 3 shots of
grease every 50 hours or after each use if consistently running
unit in water deeper than axle. See Fig. 6-6.
Lube
Figure 6-6
Figure 6-7
Service
7
19

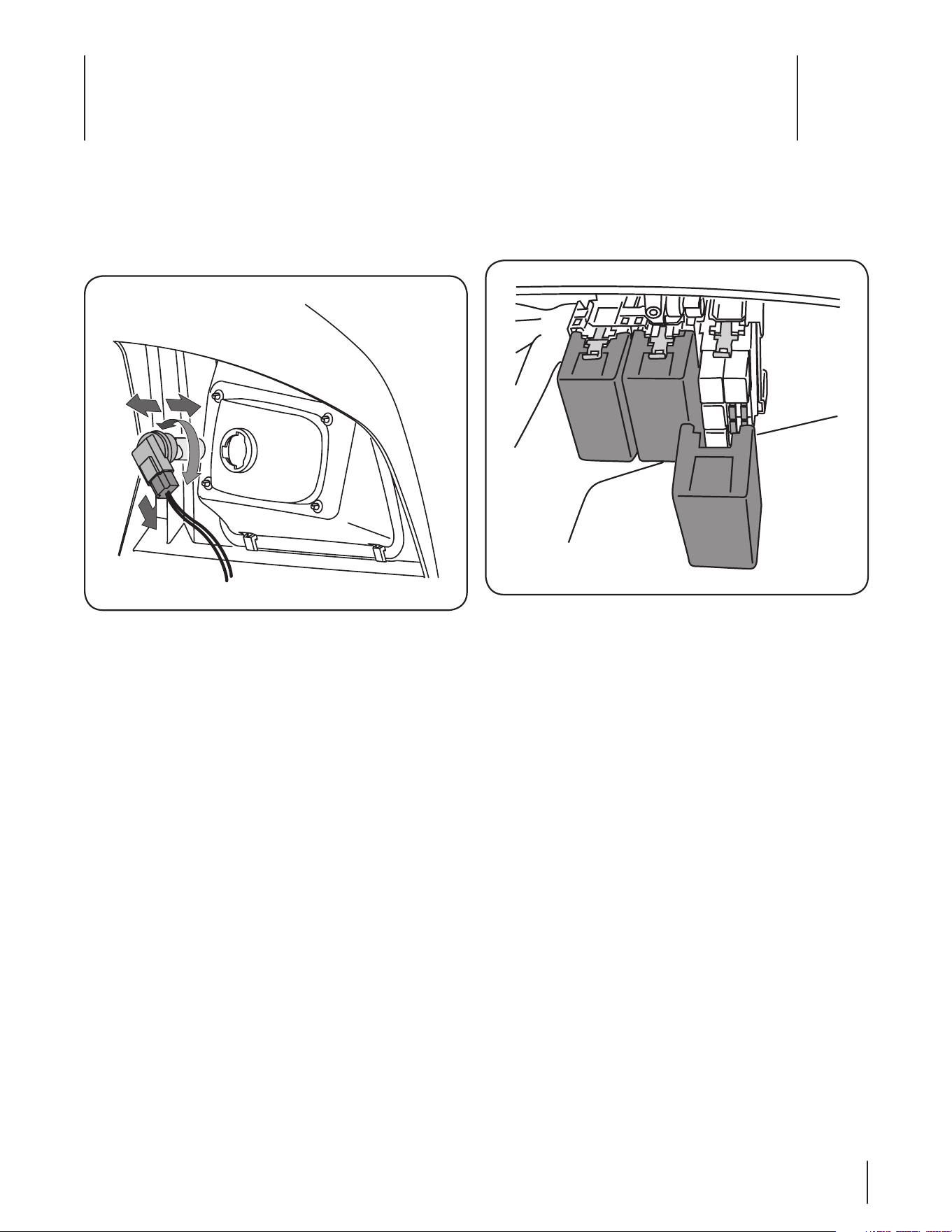

Fuses
Unlatch and lift hood forward to get access to under the 1.
dash panel.
Remove fuse holder cover. See Fig. 7-2.2.
Remove the appropriate electrical fuse and replace with 3.
proper amperage fuse.
Lower and secure hood.4.
Headlight Bulbs
Raise hood to get access to the headlight assembly.1.
Turn the bulb/socket assembly approximately a quarter 2.
turn counterclockwise to align its tabs with the notches of
the reflector, then remove from the reflector. See Fig. 7-1.
Unplug the wire harness from the bulb/socket assembly.3.
Plug the new bulb/socket assembly into the wire harness.4.
Align the tabs of the new bulb/socket assembly with the 5.
notches of the reflector and insert the bulb. Turn the bulb/
socket assembly clockwise to lock in place.
Lower and secure hood.6.
Figure 7-1
Figure 7-2
20 se c t i O n 7— se r v i c e

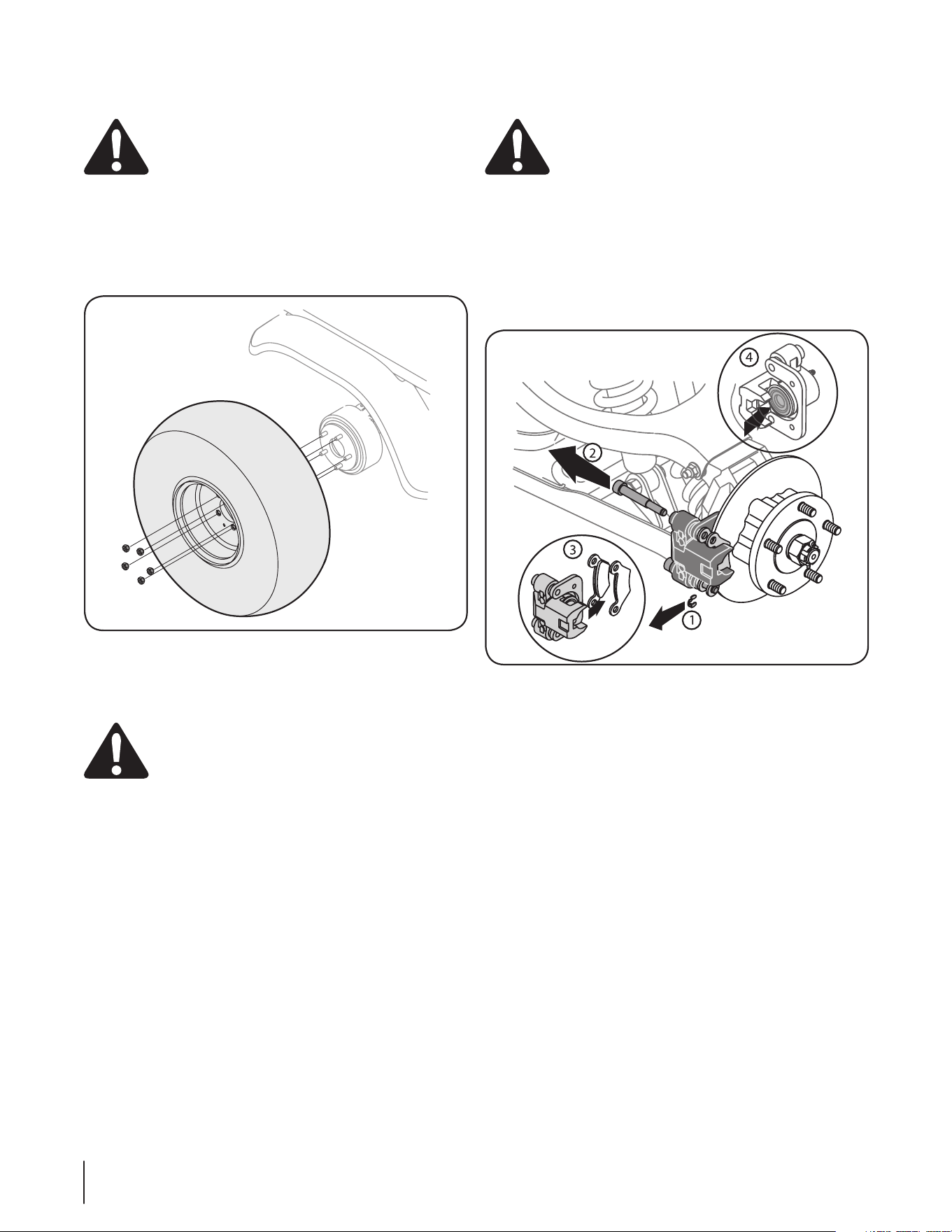

Wheels
WARNING: Using an unstable lifting device and
vehicle support may result in bodily injury. Use a
safe lifting device and supports to work on raised
vehicle.
Stop the vehicle on a level surface and apply parking brake.1.
Turn the ignition key to the STOP position and remove the 2.
key.
Loosen but do not remove the five lug nuts from the axle 3.
hub. See Fig. 7-3.
Raise rear/front of vehicle with a safe lifting device and 4.
place support stands under vehicle frame.
WARNING: When lifting the rear of the vehicle for
any reason, DO NOT engage the rear wheels. Even if
the 4x4 switch is in the OFF position, there is a
possibility that the front wheels may engage if the
rear wheels are spinning fast enough.
Remove the five lug nuts and the wheel. Place new wheel 5.
on the axle hub and secure with nuts.
Tighten nuts diagonally until snug.6.
Remove support stands and lower vehicle.7.
Finish tightening the nuts to 65-75 lb-ft using a torque 8.
wrench.
Figure 7-3
Changing Brake Pads
WARNING: Using an unstable lifting device and
vehicle support may result in bodily injury. Use a
safe lifting device and supports to work on raised
vehicle.
To gain access to the brake pads, remove the wheel as described
in the Wheel Section. If less than .030” of material remains on the
pad, replace.
NOTE: Brake pads must be replaced as a set, ie., right rear and
left rear.
To change the brake pads, follow the steps below and refer to
Fig. 7-4.
Remove clips at the end of the mounting bolts.1.
Remove mounting bolts securing caliper and brake pads to 2.
mounting bracket.
Remove brake pads from caliper and replace with new 3.
pads.
Press in brake piston and place caliper and new brake pads 4.
into place in the mounting bracket, making sure brake disc
is between the two brake pads.
IMPORTANT: When pressing in brake piston, take care not
to damage rubber piston seal.
Secure caliper and brake pads to mounting bracket with 5.
mounting bolts and clips removed earlier. Torque the
mounting bolts to 32 to 36 ft. lbs.
Replace wheel as described in Wheel section.6.
Drive Belt
IMPORTANT: Several components must be removed in order
to change the vehicle’s drive belt. See your Cub Cadet Dealer to
have your drive belt replaced.
Figure 7-4
Maintenance Chart
8
21
* Change at the first 50 hours, then again at 500 hours.
† Lubricate after each use if unit is run through water deeper than axle.
†† Drain after a deep water crossing (More than 12”).
Maintenance Schedule
Before Each
Use
First 10
Hours
Every 50
Hours
Every 100
Hrs. or Yearly
Every 500
Hrs. or 2 Yrs.
Service
Dates
Check Transfer Case Oil
P
Change Transfer Case Oil*
P
Tighten Wheel Bolts
P
Check Engine Coolant Level
P
Change Engine Coolant
P
Inspect Cooling System Hoses
P
Lubricate Rear Knuckles †
P
Inspect OPS
P
Inspect Front and Rear Shocks
P
Inspect Ball Joints
P
Inspect CV Boots
P
Drain CVT Cover ††
P P
NOTE: For information regarding engine service, see the separate Engine Owner’s Manual included with your unit.
Accessories
9
22
NOTE: Availability of these accessories are subject to change. Please see your local Cub Cadet service dealer for the latest information
regarding accessories for your utility vehicle.
Description
Horn (Requires Accessory Harness)
Acrylic Windshield
Glass Windshield
Manual Wiper Kit
Electric Wiper Kit
Basic Lighting and Fuse Box Kit
Soft Roof w/Rear Window
Hard Roof
Soft Side Door Kit
Hard Side Door Kit
Light Bar (Requires Accessory Harness)
Winch (Requires Accessory Harness)
Hood Rack
Electrical Accessory Harness
Front Receiver
NOTE: For parts or accessories, contact your local Cub Cadet dealer. To locate the dealer nearest you call 877-282-8684 or log onto
www.cubcadet.com.
Specifications
10
23
NOTE: Specifications subject to change without notice.
Engine/Electrical
Make 31HP* Kohler® Aegis EFI
Type/ Cylinders 4 Cycle Gas/ 2 Cylinders
Displacement 748cc
Maximum Torque 45.4 ft. lb. @ 2400 RPM
Ignition Mechanically Controlled
Lubrication Full Pressure w/ Filter
Speed (No Load) 1,000 RPM(idle)/ 4,200 RPM (fast)
Cooling System Liquid
Air Cleaner Heavy-duty replaceable, remote dual
element
Battery 540 Cold Cranking Amps
Alternator 12 Volt-60 Regulated, 90 Amp
Headlights Two, 37.5 Watt Incandescent
Wiring Automotive - Style Fused Control System
Suspension Front & Rear - Fully Independent Dual A-
Arms with Coil Over Shocks
Transmission
Type Continuously Variable (CVT)
Dierential Lock Rear - Standard
Hand Operated
Front - Flip Switch in Dash
Drive Chain N/A
Ground Speed 0-32 mph
Transaxle Fully Enclosed, Oil Bath
Gear Selection Forward Hi-Low, Neutral, Reverse
Overall Reduction Ratio Low 23.8:1/ High 13.4:1
Rear Axle Housing Cast Iron
Features
Rear Hitch Standard 2” Rear Receiver
Dual Cup Holders Standard
Additional Storage Dash Box
Power Port 12V, Dash Mounted
Front Bumper Standard
Front Brush Guard Standard - (Front bumper required)
Electric Bed Lift Optional
Rubber Floor Mats Optional
Horn Optional
Dimensions
Length/ Width 119” x 63.5”
Tread Center F: 52”/ R: 50”
Height (Overall) 78”
Wheelbase 78”
Weight (Including Fuel
& Fluids)
1,650 lbs.
Ground Clearance
(Under Transaxle)
9”
Ground Clearance
(Under Footboard)
11”
Turn Clearance Circle 22.0 ft.
Bed 51 5/8”L x 42”W x 11 1/2” H
Operation
Brake Type Four Wheel 8” Hydraulic Disc
Parking Brake Hand Operated Mechanical Disc
Steering Rack & Pinion
Fuel System
Capacity 7 Gallons
Low Fuel Indicator Dash Mounted Indicator Light
Capacity
Volume - Cargo Box 14.4 cu. ft.
Cargo Box Capacity 1,000 lbs.
Seating - Capacity/Type 2/ Professional High Back
Towing Capacity 1,400 lbs.
Payload Capacity** 1,400 lbs.
Ground Pressure (Max.)
w/200 lb. Operator Only N/A (Trail Tires)
Fully Loaded Vehicle N/A (Trail Tires)
Cargo Box
Material 16-Gauge Steel
Attachment Rubber Isolated
Tires
Trail Front 25” x 10” - 12”
Trail Rear 25” x 11” - 12”
* As rated by engine manufacturer.
** Includes 200 lb. operator, 200 lb. passenger, and maximum bed capacity.
Troubleshooting
11
24
Problem Cause(s)
Engine will not start Battery has low voltage.1.
Loose or corroded battery connections.2.
Fuse is blown.3.
Spark plug wire is loose or disconnected.4.
Faulty spark plug or coil.5.
No Fuel or improper fuel.6.
Plugged fuel filter.7.
Defective starter solenoid.8.
Open-circuit in wiring.9.
Engine is difficult to start Engine is cold.1.
Plugged fuel filter.2.
Engine oil viscosity too heavy.3.
Spark plug is fouled.4.
Faulty spark plug or wire.5.
Loose or corroded electrical connections.6.
Stale or improper fuel.7.
Choke (if equipped) not being used or adjusted properly.8.
Engine misses under load Faulty spark plug.1.
Stale or dirty fuel.2.
Plugged fuel filter.3.
Faulty coil or wire.4.
Engine vapor locks Poor quality fuel.1.
Very hot weather conditions.2.
Fuel tank vent plugged.3.
Dirt in fuel filter.4.
Engine runs unevenly Loose electrical connections.1.
Choke (if equipped) or throttle cable sticking.2.
Fuel line or fuel filter plugged.3.
Stale or dirty fuel.4.
Improper fuel.5.
Air cleaner element plugged.6.
Spark plug is fouled.7.
Continued on next page
25se c t i O n 11 — tr O u b l e s h O O t i n g
Problem Cause(s)
Engine overheats Air cleaner element missing or plugged.1.
Engine oil low.2.
Engine operated too long at slow engine speed.3.
Engine knocks Low engine speed.1.
Stale or low octane fuel.2.
Engine overloaded.3.
Engine loses power Engine overheating.1.
Too much oil in engine.2.
Faulty spark plug.3.
Fuel supply being restricted.4.
Fuel filter plugged.5.
Fuel line pinched or kinked.6.
Fuel pump output not adjusted to specification.7.
Improper fuel.8.
Air cleaner element plugged.9.
Starter does not work Loose or corroded connections.1.
Low battery output2.
Sulfate or worn-out battery.3.
Faulty starter.4.
Starter cranks slowly Low battery output.1.
Sulfated or worn-out battery.2.
Engine oil too heavy.3.
Loose or corroded connections.4.
Entire electrical system does not work Blown fuse.1.
Loose or corroded connections.2.
Sulfated or worn-out battery.3.
Dead battery Shorted starter solenoid.1.
Key switch not turned to STOP position.2.
Sulfated or worn-out battery.3.
Battery light comes on when engine is
running
Low engine speed.1.
Faulty voltage regulator.2.
Faulty battery.3.
Faulty alternator4.
Grounded wire in circuit.5.
Indicator lights do not come on when key
switch is in START position
Faulty bulb.1.
Faulty wiring.2.
Faulty sensor.3.
Continued on next page
26 se c t i O n 11 — tr O u b l e s h O O t i n g
Problem Cause(s)
Battery will not take a charge Dead battery.1.
Loose or corroded connections.2.
Sulfated or worn-out battery.3.
Fluid level low.4.
Difficult to shift Gears not lined up. Flip throttle
and let it return to idle. If still hard
to shift, contact your nearest Cub
Cadet dealer.
Notes
11
27
28 nO t e s
29nO t e s
FEDERAL and CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board, the United States Environmental Protection Agency, and MTD Consumer Group Inc are pleased to explain the evaporative
emission control system warranty on your 2008 off-road engine and equipment. In California, new off-road engine and equipment must be designed, built and
equipped to meet the State’s stringent anti-smog standards (in other states, 1997 and later model year equipment must be designed, built, and equipped to meet
the U.S. EPA small off-road, spark ignition engines). MTD Consumer Group Inc must warrant the EECS on your off-road engine and equipment for the period of
time listed below provided there has been no abuse, neglect or improper maintenance of your off-road engine and equipment.
Your EECS may include parts such as the carburetor, fuel-injection system, the ignition system, catalytic converter, fuel tanks, fuel lines, fuel caps, valves,
canisters, filters, vapor hoses, clamps, connectors, and other associated emission-related components.
Where a warrantable condition exists, MTD Consumer Group Inc will repair your off-road engine and equipment at no cost to you including diagnosis,
parts and labor.
MANUFACTURER’S WARRANTY COVERAGE:
This evaporative emission control system is warranted for two years. If any evaporative emission-related part on your equipment is defective, the part will be repaired or replaced by
MTD Consumer Group Inc.
OWNER’S WARRANTY RESPONSIBILITIES:
As the off-road engine and equipment owner, you are responsible for performance of the required maintenance listed in your owner’s manual. MTD Consumer
Group Inc recommends that you retain all receipts covering maintenance on your off-road engine and equipment, but MTD Consumer Group Inc cannot deny
warranty solely for the lack of receipts.
As the off-road engine and equipment owner, you should however be aware that MTD Consumer Group Inc may deny you warranty coverage if your off-road
engine and equipment or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
You are responsible for presenting your off-road engine and equipment to MTD Consumer Group Inc’s distribution center or service center as soon as the problem
exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have a question regarding your warranty coverage,
you should contact the MTD Consumer Group Inc Service Department at 1-800-800-7310.
GENERAL EMISSIONS WARRANTY COVERAGE:
MTD Consumer Group Inc warrants to the ultimate purchaser and each subsequent purchaser that the off-road engine and equipment is: Designed, built and
equipped so as to conform with all applicable regulations; and free from defects in materials and workmanship that cause the failure of a warranted part to be
identical in all material respects to that part as described in MTD Consumer Group Inc’s application for certification.
The warranty period begins on the date the off-road engine and equipment is delivered to an ultimate purchaser or first placed into service. The warranty period is
two years.
Subject to certain conditions and exclusions as stated below, the warranty on emission-related parts is as follows:
Any warranted part that is not scheduled for replacement as required maintenance in the written instructions supplied, is warranted for the warranty period 1.
stated above. If the part fails during the period of warranty coverage, the part will be repaired or replaced by MTD Consumer Group Inc according to subsec-
tion (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period.
Any warranted part that is scheduled only for regular inspection in the written instructions supplied is warranted for the warranty period stated above. Any 2.
such part repaired or replaced under warranty will be warranted for the remaining warranty period.
Any warranted part that is scheduled for replacement as required maintenance in the written instructions supplied is warranted for the period of time before 3.
the first scheduled replacement date for that part. If the part fails before the first scheduled replacement, the part will be repaired or replaced by MTD
Consumer Group Inc according to subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period
prior to the first scheduled replacement point for the part.
Repair or replacement of any warranted part under the warranty provisions herein must be performed at a warranty station at no charge to the owner.4.
Notwithstanding the provisions herein, warranty services or repairs will be provided at all of our distribution centers that are franchised to service the subject 5.
engines or equipment.
The off-road engine and equipment owner will not be charged for diagnostic labor that is directly associated with diagnosis of a defective, emission-related 6.
warranted part, provided that such diagnostic work is performed at a warranty station.
MTD Consumer Group Inc is liable for damages to other engine or equipment components proximately caused by a failure under warranty of any warranted 7.
part.
Throughout the off-road engine and equipment warranty period stated above, MTD Consumer Group Inc will maintain a supply of warranted parts sufficient to 8.
meet the expected demand for such parts.
Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner. Such use 9.
will not reduce the warranty obligations of MTD Consumer Group Inc.
Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted add-on or modified parts by the 10.
ultimate purchaser will be grounds for disallowing a warranty claims. MTD Consumer Group Inc will not be liable to warrant failures of warranted parts caused
by the use of a non-exempted add-on or modified part.
WARRANTED PARTS:
The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if MTD Consumer Group
Inc demonstrates that the off-road engine and equipment has been abused, neglected, or improperly maintained, and that such abuse, neglect, or improper
maintenance was the direct cause of the need for repair or replacement of the part. That notwithstanding, any adjustment of a component that has a factory
installed, and properly operating, adjustment limiting device is still eligible for warranty coverage.
The following emission warranty parts are covered:
(1) Fuel Metering System
•Coldstartenrichmentsystem(softchoke)
•Carburetorandinternalparts
•Fuelpump
•Fueltank
(2) Air Induction System
•Aircleaner
•Intakemanifold
(3) Ignition System
•Sparkplug(s)
•Magnetoignitionsystem
(4) Exhaust System
•Catalyticconverter
•SAI(Reedvalve)
(5) Miscellaneous Items Used in Above System
•Vacuum,temperature,position,timesensitivevalvesandswitches
•Connectorsandassemblies
(6) Evaporative Control
•FuelhosecertifiedforARBevaporativeemissions2008
•Fuelhoseclamps
•Tetheredfuelcap
•Carboncanister
•Vaporlines
GDOC-100176 Rev. D
The limited warranty set forth below is given by Cub Cadet LLC with
respect to new merchandise purchased and used in the United States,
its possessions and territories, and by MTD Products Limited with
respect to new merchandise purchased and used in Canada and/or its
territories and possessions.
For non-commercial use: Cub Cadet warrants this product (excluding
Batteries, as described below) against defects in material and
workmanship for a period of two (2) years from the date of original
retail purchase or lease.
For commercial uses and applications: Cub Cadet warrants this
product (excluding Batteries , as described below) against defects in
material and workmanship for a period of one (1) year from the date
of original retail purchase or lease.
“Cub Cadet” will, at its option, repair or replace, free of charge, any
part found to be defective in materials or workmanship. This limited
warranty shall only apply if this product has been operated and
maintained in accordance with the Operator’s Manual furnished with
the product, and has not been subject to misuse, abuse, neglect,
accident, improper maintenance, alteration, vandalism, theft, fire,
water, or damage because of other peril or natural disaster. Damage
resulting from the installation or use of any part, accessory or
attachment not approved by Cub Cadet for use with the product(s)
covered by this manual will void your warranty as to any resulting
damage.
Batteries have a one-year prorated limited warranty against defects
in material and workmanship, with 100% replacement during the
first three months. After three months, the battery replacement
credit is based on the months remaining in the twelve (12) month
period dating back to the original date of original sale or lease. Any
replacement battery will be warranted only for the remainder of the
original warranty period.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE, through your local authorized service
dealer. To locate the dealer in your area:
In the U.S.A.
To locate the dealer in your area, check your Yellow Pages, or contact
Cub Cadet LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or
call 1-877-282-8684, or log on to our Web site at www.cubcadet.
com.
In Canada
Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call
1-800-668-1238 or log on to our Web site at www.mtdcanada.
com.
This limited warranty does not provide coverage in the following
cases:
a. The engine or component parts thereof. These items may
carry a separate manufacturer’s warranty. Refer to applicable
manufacturer’s warranty for terms and conditions.
b. Routine maintenance items such as lubricants, filters, tune-ups,
brake adjustments, clutch adjustments and normal deterioration of
the exterior finish due to use or exposure.
c. Cub Cadet does not extend any warranty for products sold or
exported outside of the United States and/or Canada, and their
respective possessions and territories, except those sold through
Cub Cadet’s authorized channels of export distribution.
d. Replacement parts that are not genuine Cub Cadet parts.
e. Service completed by someone other than an authorized service
dealer.
f. Transportation charges and service calls.
No implied warranty, including any implied warranty of mer-
chantability of fitness for a particular purpose, applies after the
applicable period of express written warranty above as to the
parts as identified. No other express warranty, whether written
or oral, except as mentioned above, given by any person or
entity, including a dealer or retailer, with respect to any product,
shall bind Cub Cadet. During the period of the warranty, the
exclusive remedy is repair or replacement of the product as set
forth above.
The provisions as set forth in this warranty provide the sole and
exclusive remedy arising from the sale. Cub Cadet shall not be
liable for incidental or consequential loss or damage including,
without limitation, expenses incurred for substitute or replace-
ment lawn care services or for rental expenses to temporarily
replace a warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply
to you.
In no event shall recovery of any kind be greater than the amount
of the purchase price of the product sold. Alteration of safety
features of the product shall void this warranty. You assume the
risk and liability for loss, damage, or injury to you and your property
and/or to others and their property arising out of the misuse or
inability to use the product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This limited
warranty gives you specific legal rights, and you may also have other
rights that vary in different jurisdictions.
IMPORTANT: Owner must present Original Proof of Purchase to
obtain warranty coverage.
Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-877-282-8684
MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone 1-800-668-1238
GDOC-100094 REV. A
CUB CADET LLC
MANUFACTURER’S LIMITED WARRANTY FOR
UTILITY VEHICLES
