OWNER’S MANUAL
For Household Use Only
TABLE OF CONTENTS
TECHNICAL DETAILS
M
M
~
Servo motor 12V
Servomoteur 12V
Vaccum motor
Moteur d‘aspiration
Hall sensor
Sonde de Hall
~
Reed contact swivel switch
Contact à lames souples interrupteur joint
Reed contact / indicator BOOST switch*
Contact à lames souples interrupteur / indicateur BOOST*
*depending on model
*Suivant les modèles
Head lamp*
Voyant de recherche*
Main switch
Interupteur principal
Filter housing
Logement sac poussiére
Handle tube
Tube de manche
120V ~
PCB power supply / controller
Circuit imprimé Alimentation / Contrôleur électronique
©
SEBO Stein & Co. 12/2017 RH

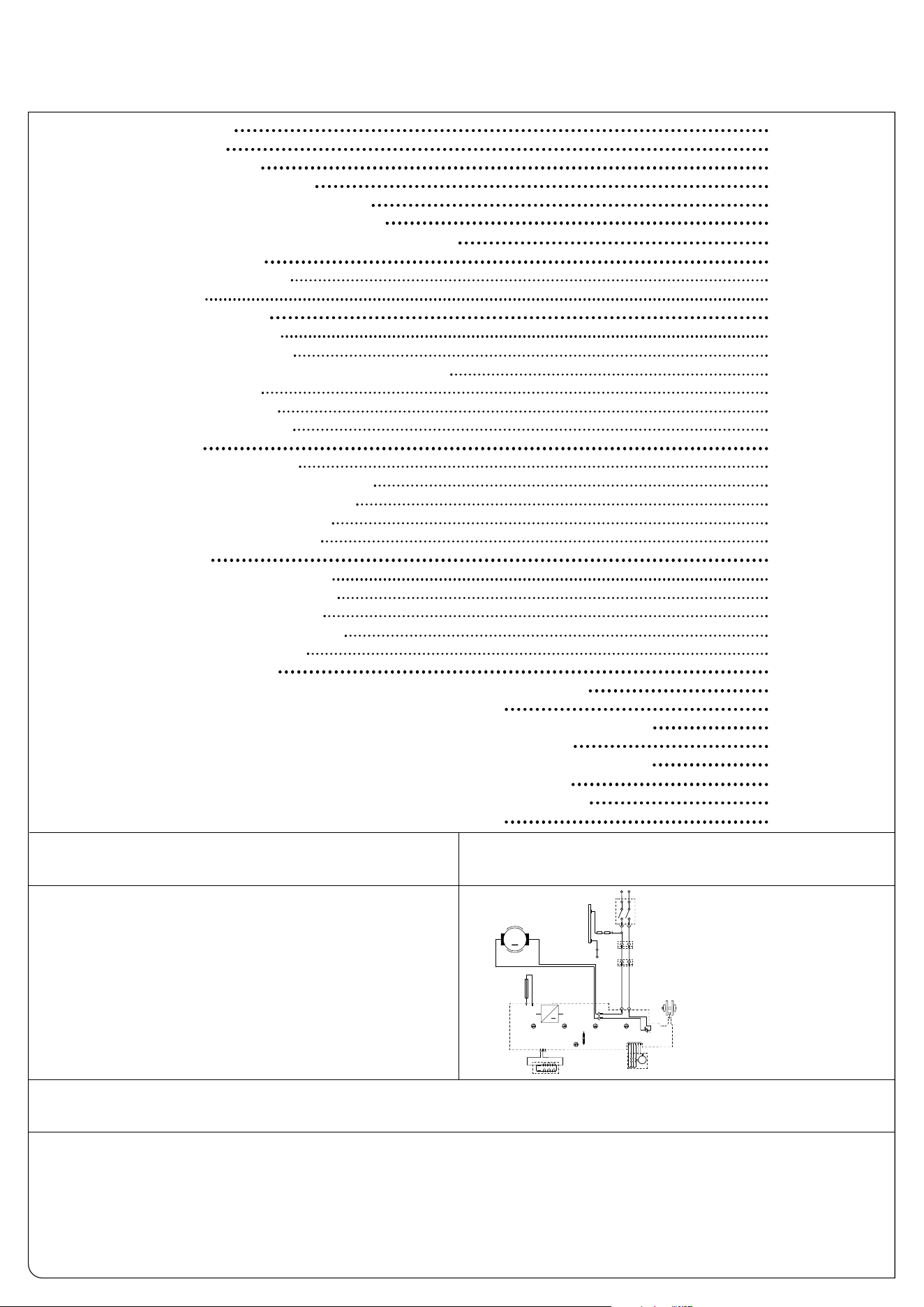

Wiring SEBO automatic X7 / X8
120 V , 2-wire
including options
BOOST
Head lamp
W:\GA_aktuell\X_XP_Geräte\USA\Abbildungen\X7-8_Wiring_BOOST+LAMP_US_2wire.ai
U.S. Patents: 5,056,175
4,955,106
5,028,245
Technical Details 2
Wiring Diagram 2
How To Contact SEBO 2
Important Safety Instructions 3
SEBO AUTOMATIC X Product Features 4
Standard Features of all SEBO Vacuums 5
Optional Attachments, Accessories, Bags & Filters 6

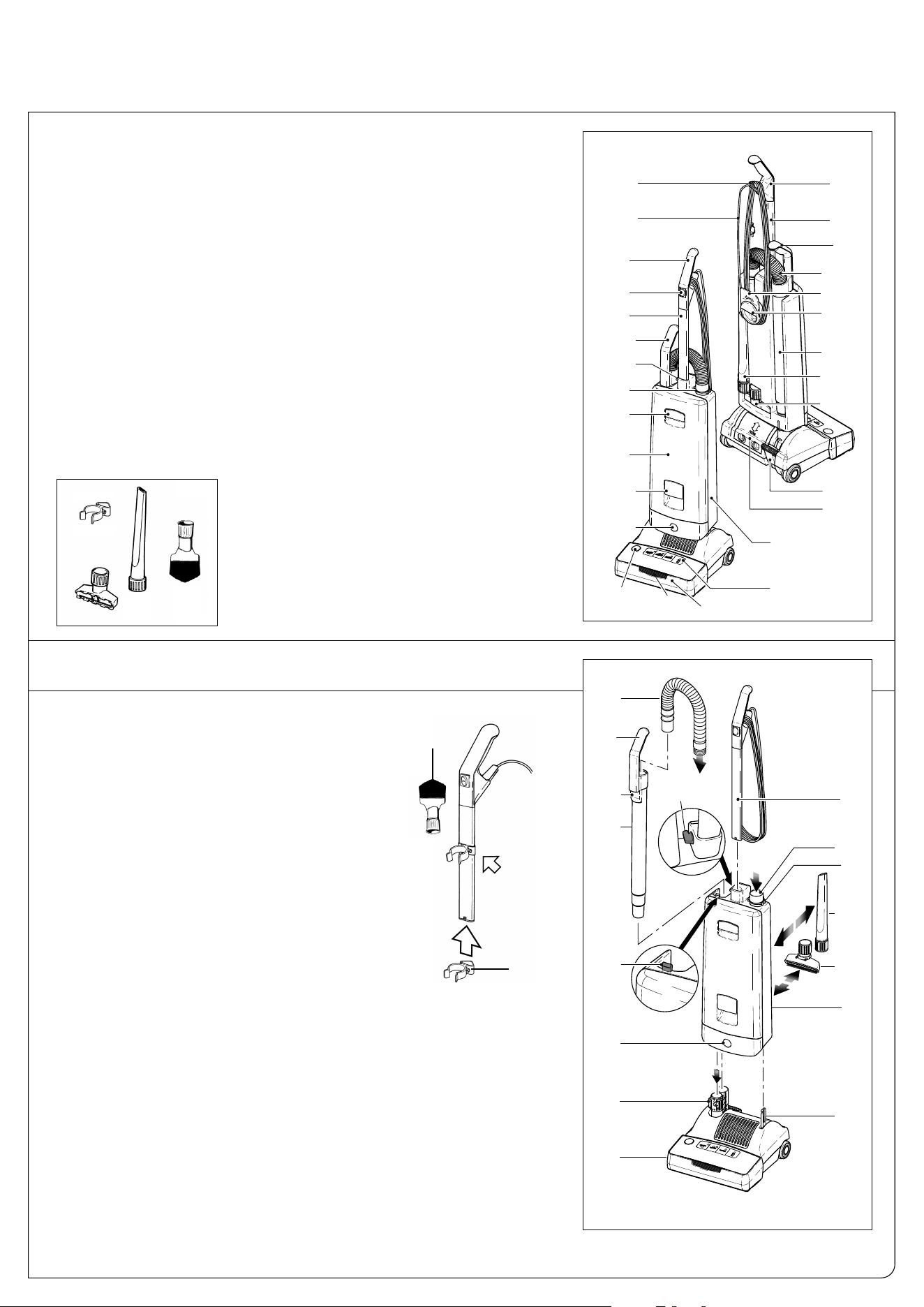

Identification of Parts 7
Standard Attachments 7
Assembly 7
Operating Instructions 8
Starting the Machine 8
Operating the Machine 8
Using the Cleaning Wand, Hose & Attachments 9
The Display Panel 9
The BOOST Function 9
The Adjustment Wheel 9
Maintenance 10
Changing the Filter Bag 10
Changing the Pre-motor Microfilter 10
Changing the Exhaust Microfilter 10
Changing the Brush Roller(s) 10
Changing the Sealing Strip 10
Clog Removal 11
Clogs in the Airflow Pathway 11
Clogs in the Attachment Hose 11
Clogs in the Cleaning Wand 11
Clogs in Entrance to Filter Bag 11
Clogs in the Swivel Neck 11
Trouble-Shooting Guide 12

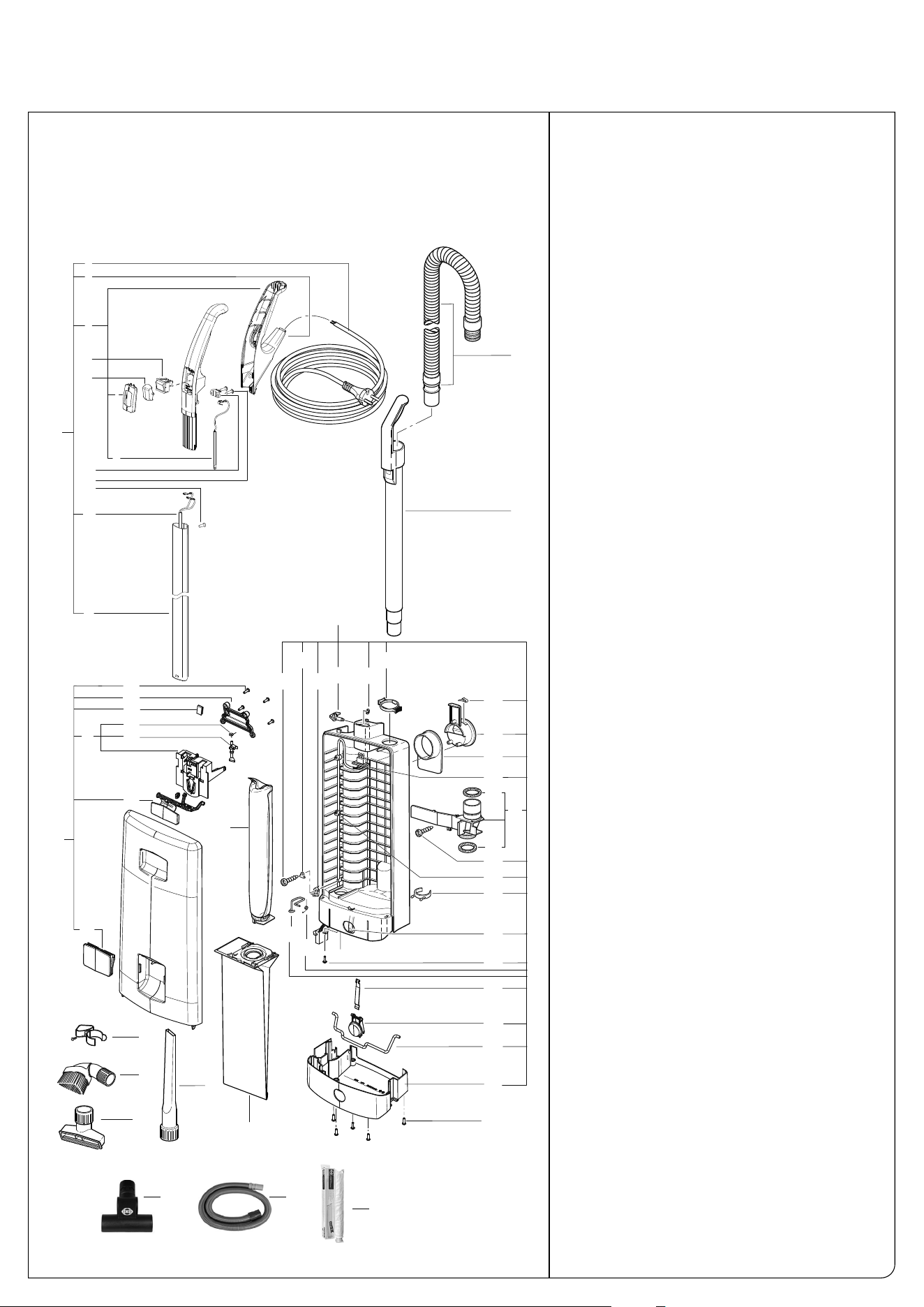

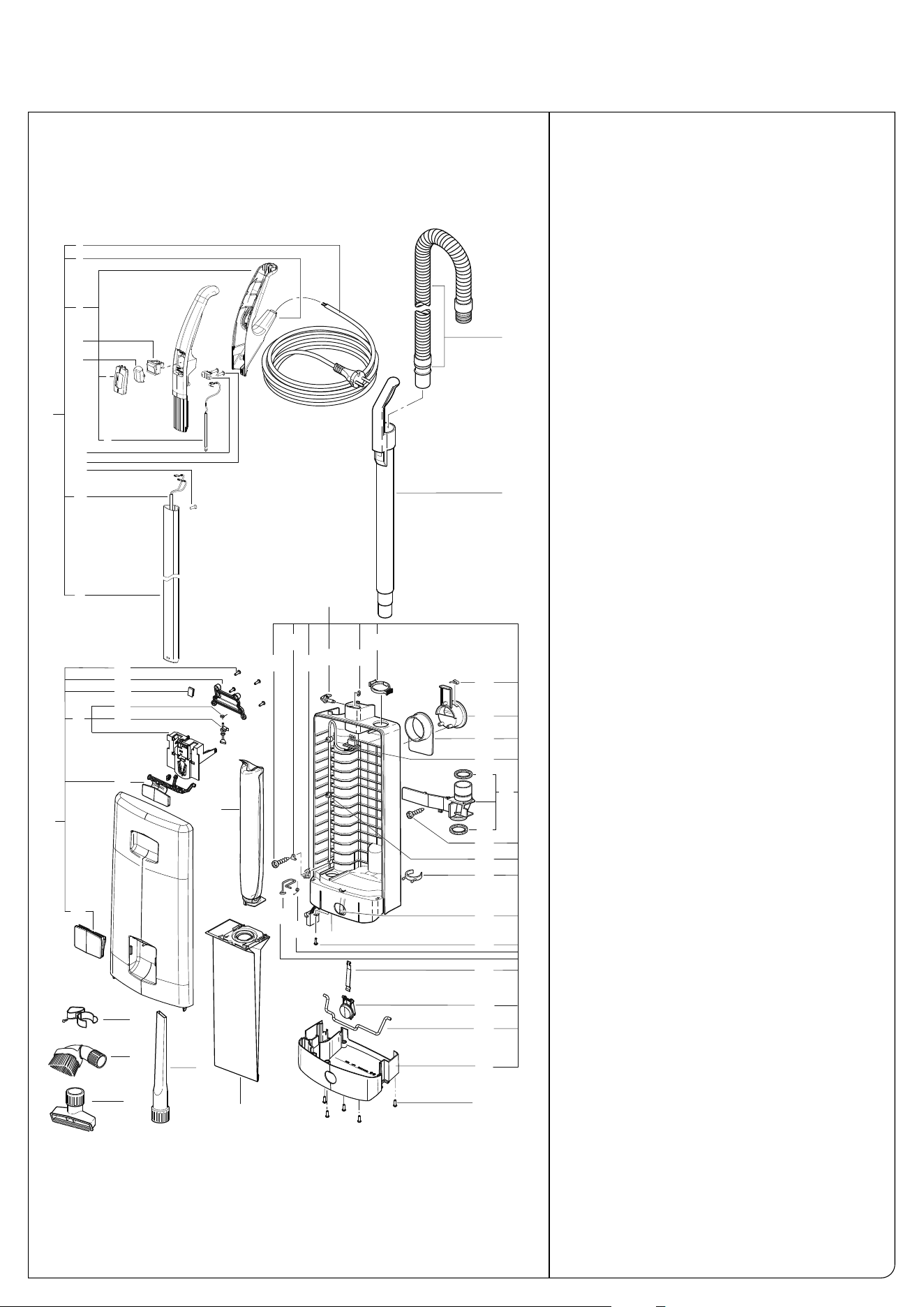

AUTOMATIC X7 Bag Housing and Handle Schematic and Part Numbers 13

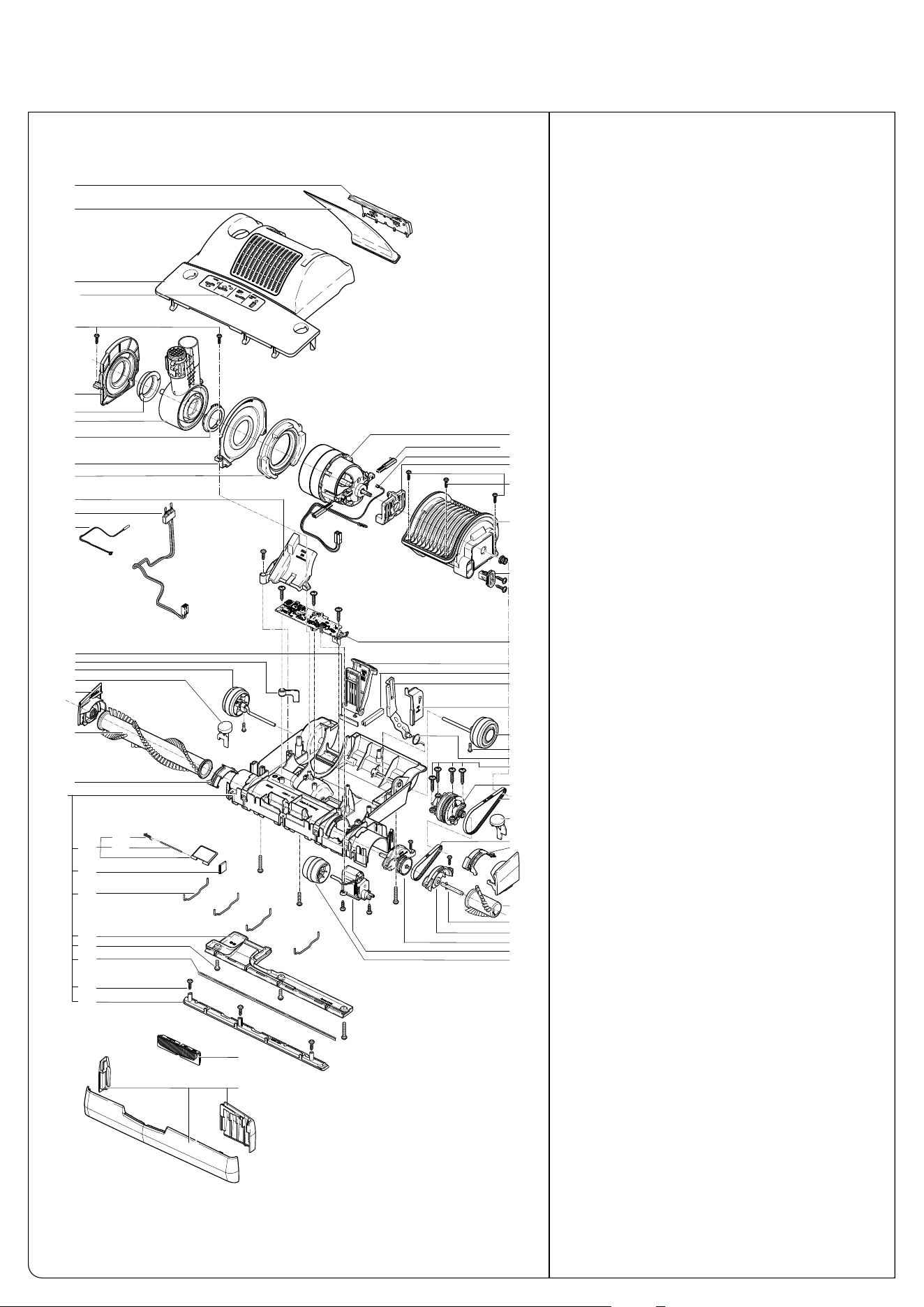

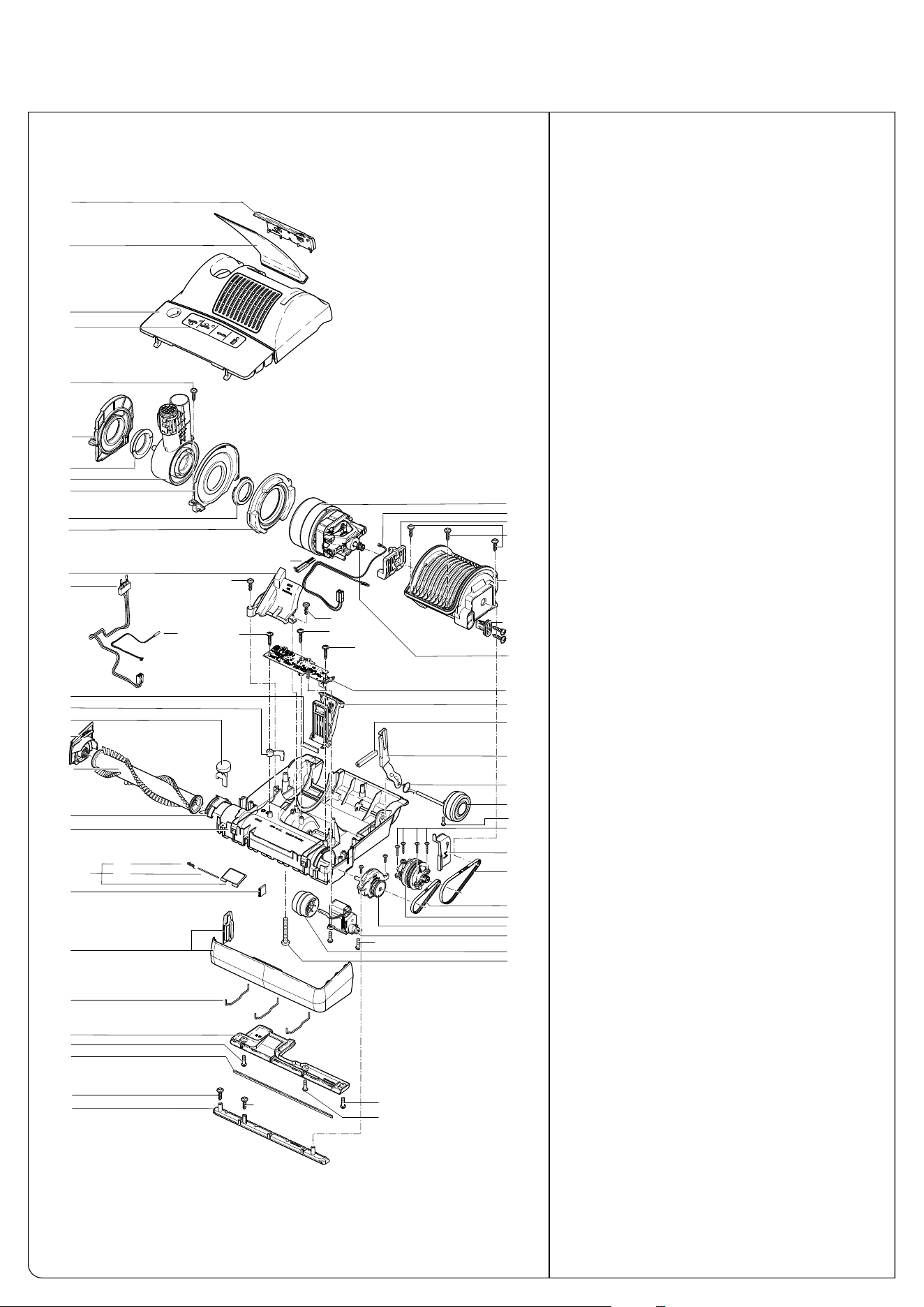

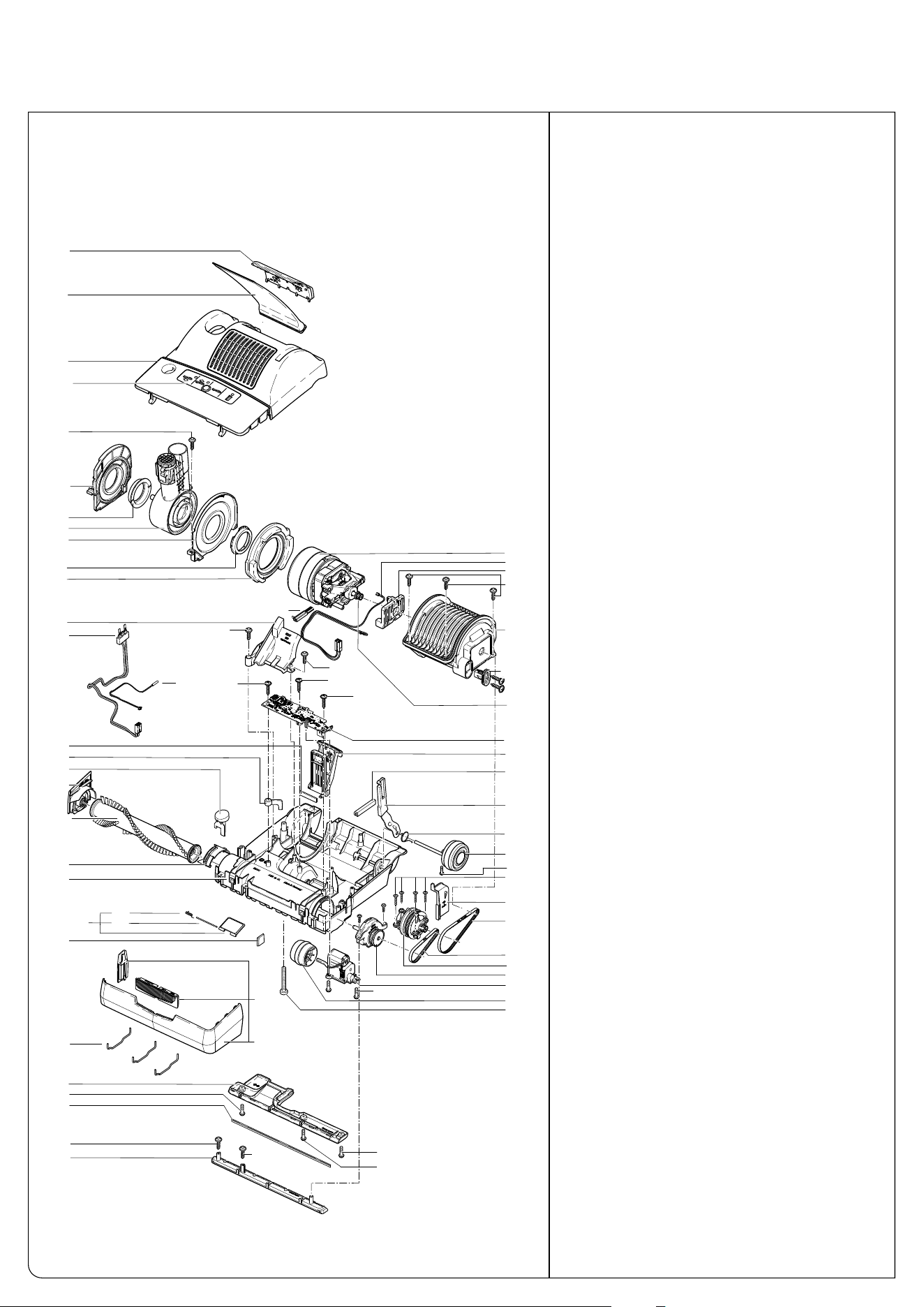

AUTOMATIC X7 Power Head Schematic and Part Numbers 14

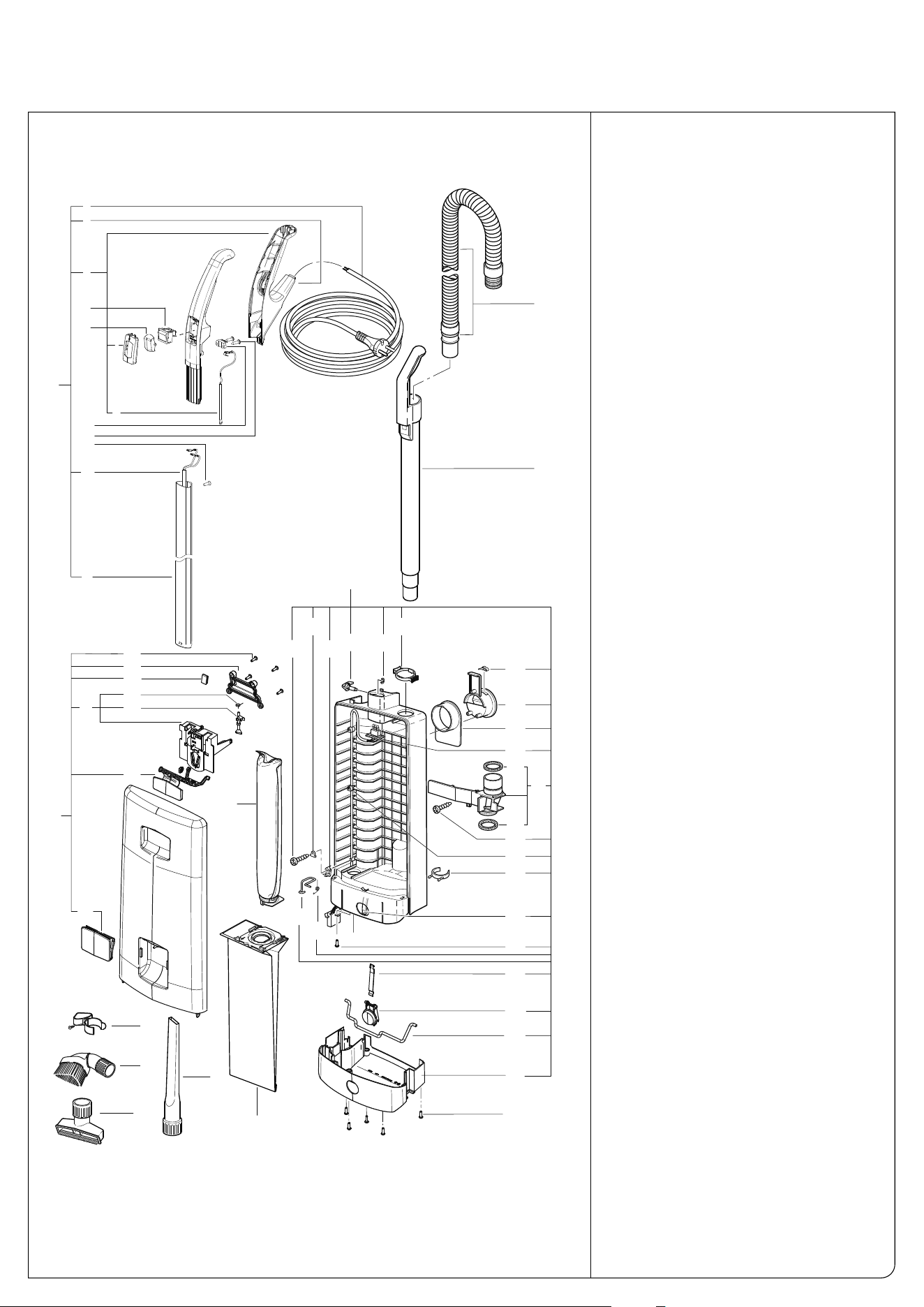

AUTOMATIC X7 Premium Bag Housing and Handle Schematic and Part Numbers 15
AUTOMATIC X7 Premium Power Head Schematic and Part Numbers 16

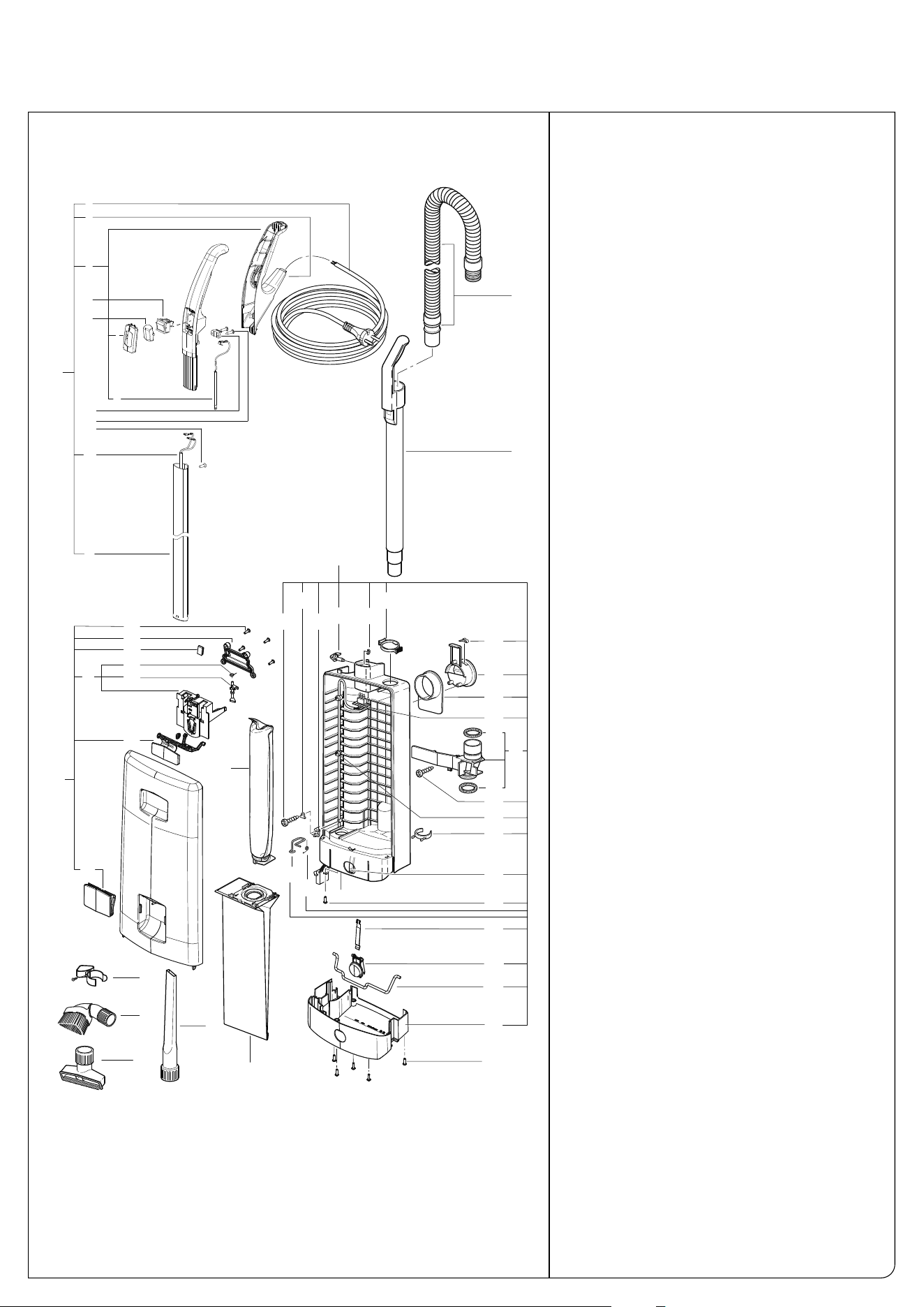

AUTOMATIC X7 PASTELS Bag Housing and Handle Schematic and Part Numbers 17
AUTOMATIC X7 PASTELS Power Head Schematic and Part Numbers 18
AUTOMATIC X8 Bag Housing and Handle Schematic and Part Numbers 19

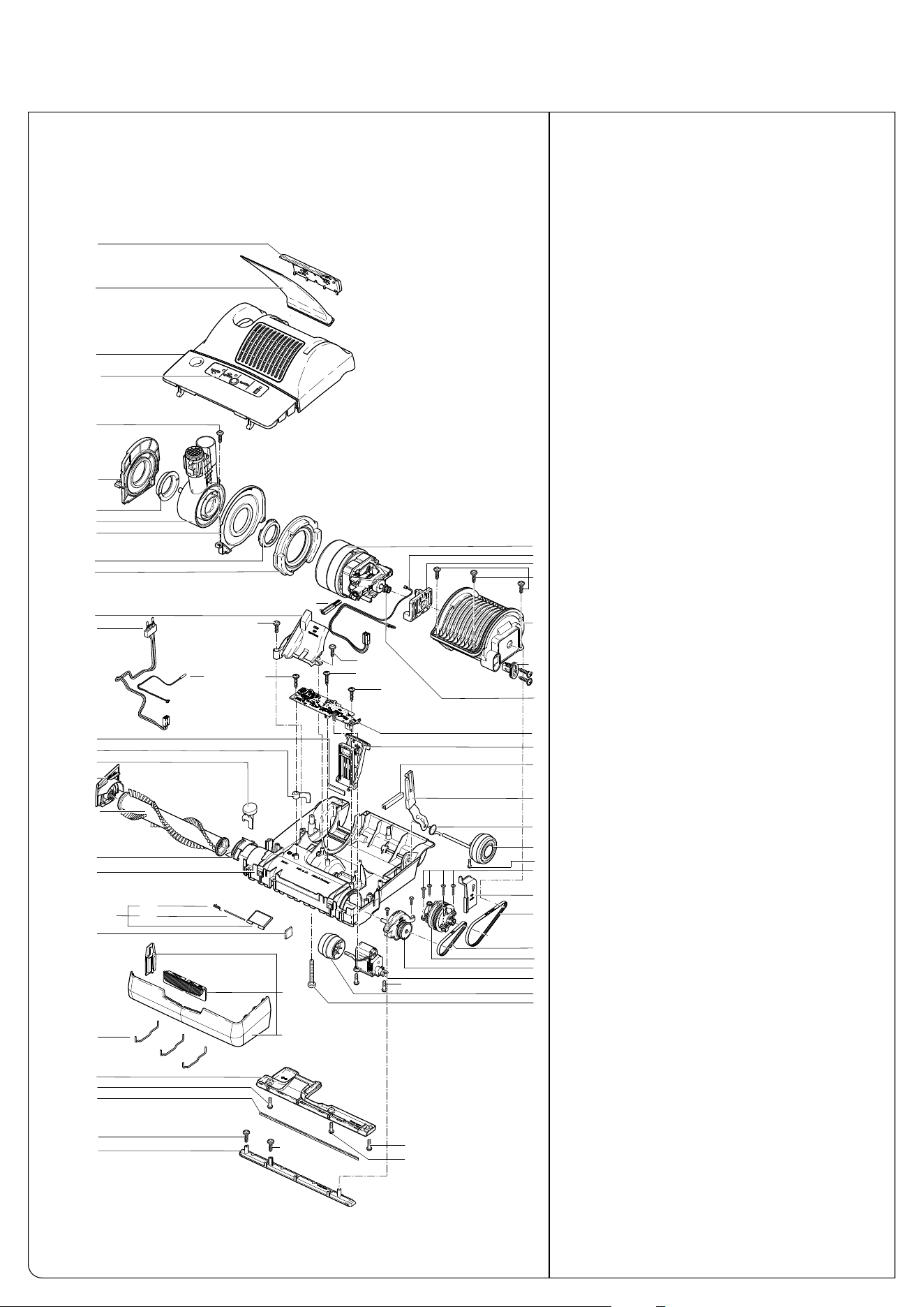

AUTOMATIC X8 Power Head Schematic and Part Numbers 20
WIRING DIAGRAM
2
To contact SEBO in the United States of America:
SEBO America, LLC
Telephone: (800) 334-6614
Fax: (303) 792-9196
Website: www.sebo.us
For warranty coverage details please refer to your
Warranty Card included with your SEBO vacuum cleaner.
To contact SEBO in Canada:
SEBO Canada
Telephone: (877) 258-5005
Fax: (800) 270-4807
Website: www.sebocanada.ca
For warranty coverage details and to register your
SEBO vacuum cleaner, go to www.sebocanada.ca
HOW TO CONTACT SEBO
Vacuum motor 120 volts (12 amps)
Water lift (at motor) 91.5 inches
Airflow (at motor) 100.2 CFM
Filter bag capacity 1.4 gal.
Sound level 69 dBA
Body weight X7-16.7 lbs / X8-16.9 lbs
Motor protection electronic cut-out
Working width X7-12 inches / X8-15 inches
1. Do not leave vacuum while plugged in. Unplug from
outlet when not in use and before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not use near small children or pets. Do not allow
to be used as a toy. Use of this product by children
should always be supervised by an adult.
4. Use only as described in this manual. Use only
manufacturer-recommended attachments.
5. Do not use with a damaged cord or plug. If vacuum
is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, take
it to a SEBO service center.
6. Do not pull or carry by cord, use cord as a handle,
close a door on cord, or pull cord around sharp
edges or corners. Do not run vacuum over cord.
Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp
the plug – not the cord.
8. Do not plug in if switch is in the “I” (ON) position.
9. Do not use outlets above counters to plug in vacuum –
damage to items in the surrounding area could
occur.
10. Always carry the vacuum over steps and sills.
11. Do not handle plug or vacuum handle with wet hands.
12. Do not put any object into vacuum openings. Do not use
machine with any openings blocked. Keep openings
free of lint, hair, and anything that may reduce air flow.
13. Do not re-use filter bags or wash the filters.
14. Do not remove any screws from vacuum.
15. Do not vacuum up anything that is burning or
smoking, such as cigarettes, matches, or hot ashes.
16. Do not use vacuum without filter bag and/or filters in
place.
17. Turn off all machine controls before unplugging.
18. Use extra care when cleaning on stairs.
19. Do not use machine to vacuum up flammable or
combustible liquids such as gasoline or use in areas
where they may be present.
20. Machines can cause a fire when operated near
flammable vapors or materials. Do not operate this
vacuum near flammable fluids, dust or vapors.
21. Maintenance and repairs must be done by qualified
personnel.
22. Use only original SEBO replacement parts.
23. Do not use vacuum as a step.
24. If vacuum is used on plush carpet or carpet with thick
padding, do not leave machine standing in one place
with machine turned on.
25. Do not use the operator’s handle, which inserts into the
top of the bag housing, to carry the machine. The
carrying handle is located on the backside of the
machine’s bag housing.
26. Keep hair, loose clothing, fingers, and all parts of body
away from vacuum openings and moving parts. Do not
place fingers or other body parts under vacuum unless
it is unplugged.
27. Do not place the power head over rug or carpet edges.
28. The vacuum has a manual reset thermal protector. The
protector is reset by switching off the vacuum. The
thermal protector needs some time to cool down after
switching off! Check the vacuum for air blockages or
mechanical failures before switching on.
29. Store the vacuum in a dry place at room temperature.
When the vacuum is not in use, you should wrap the
cord on the cable hooks.
30. Any other servicing should be performed by an
authorized service representative.
31. Always turn off this appliance before connecting or
disconnecting power head with brush.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
3
When using an electrical appliance, basic precautions must always be followed.
To reduce the risk of electric shock, this vacuum cleaner has a polarized plug; one blade is wider than
the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any
way. Connect only to the outlet type specified on the serial number plate underneath the machine.
WARNING: To reduce the risk of fire, electric shock, or injury:
!
SAVE THESE INSTRUCTIONS.
SEBO AUTOMATIC X PRODUCT FEATURES
4
Designed for All Floor Surfaces.
Automatic Height Adjustment for All
Floors – Based upon the resistance of the
brush roller against the floor, the power
head automatically adjusts up or down to
the appropriate cleaning height, providing
optimal cleaning of all floor surfaces.
The
height adjustment chosen by the machine
ensures aggressive brush action, while pro-
viding optimal air flow. This prevents suffo-
cation of air flow due to improper height
selection.
Never again manually adjust the
brush height or use different vacuums for various floor sur-
faces; the SEBO X cleans them all, automatically!

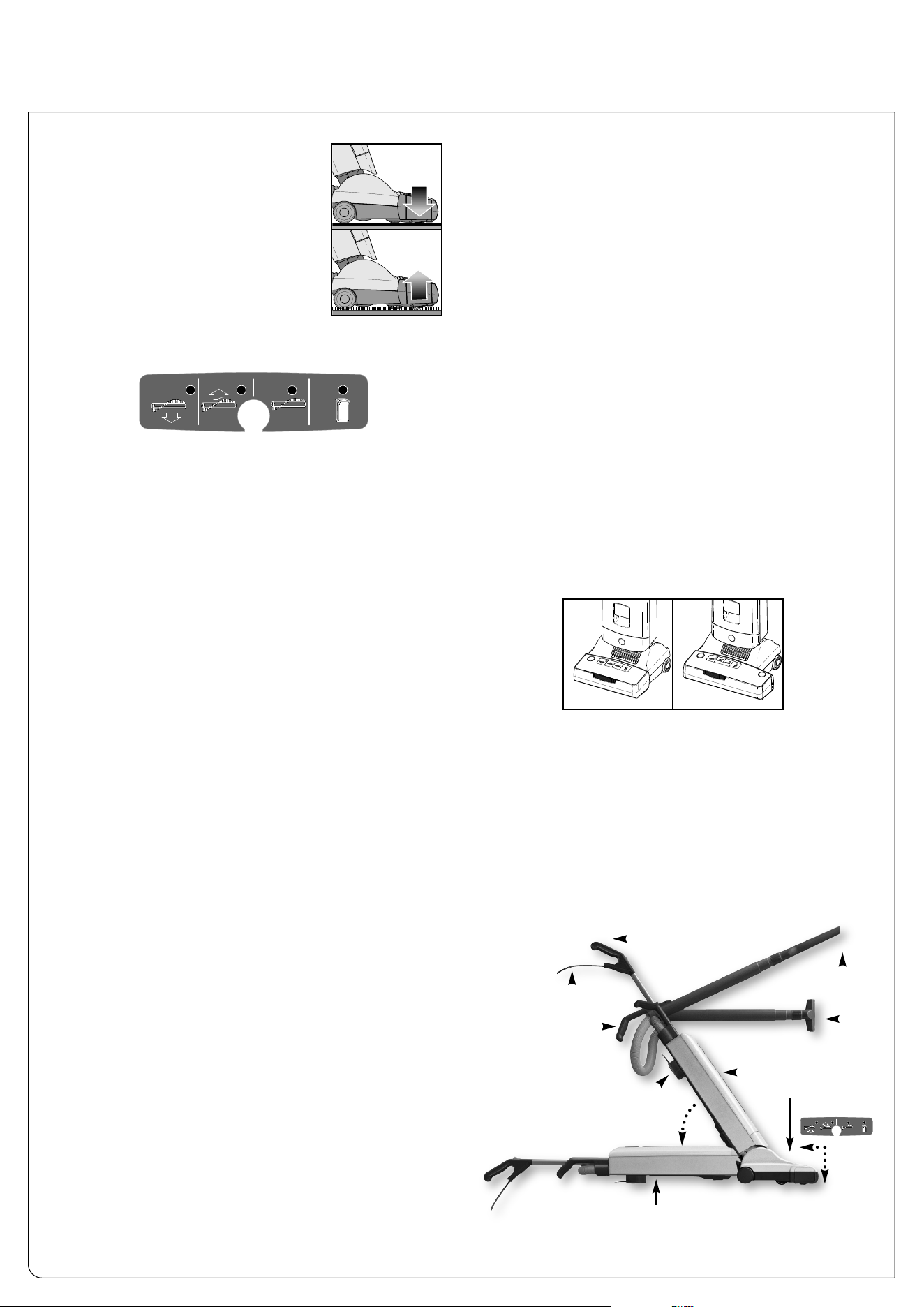

Brush Adjustment Indicator Lights – Two lights, one for “up”
and one for “down,” illuminate to indicate when the brush
roller is in the process of adjusting to the proper cleaning
height. Optimum cleaning occurs when both lights are off.
Bag Full or Clog Light & Auto Shut Off – A warning light will
illuminate and the machine will automatically shut off, when it
senses a full bag, a clog in the airflow pathway, or an exces-
sively dirty micro filter.
If the user ignores this warning for
approximately 30 seconds, the machine will shut off and the “BAG
FULL OR CLOG” light will flash. The user should turn the switch
off, unplug the machine and immediately insert a new bag or
remove the clog (to remove a clog, refer to the Clog Removal sec-
tion on page 10). If the user restarts the machine without having
solved the problem, the “BAG FULL OR CLOG” light will again illu-
minate and the machine will shut off in 30 seconds.
This feature
prevents damage to the motor due to overheating.
Brush Deterioration Light – To ensure optimum cleaning at all
times, a warning light will illuminate to indicate when the brush
roller should be replaced due to excessive wear.
The red
“CHECK BRUSH” light will illuminate (after a 10 second delay) to
notify the user that the brush roller is too worn and, therefore,
should be replaced. The light will remain illuminated until the worn
brush roller is replaced, but the machine will continue to operate.
Brush Obstruction Light & Auto Shut Off – A warning light will
quickly flash, the brush roller will immediately stop spinning
and the vacuum will shut off, if an obstruction becomes
jammed in the brush roller. This prevents the belt from break-
ing and protects the motor from damage.
The user should turn
the switch off, unplug the machine and immediately remove the
obstruction. If the user restarts the machine without removing the
obstruction, the machine will again shut off in 3 seconds and the
“CHECK BRUSH” light will flash.
Stationary Use Light – A warning light will slowly flash when
the machine is standing in its upright locked position (which
causes the power head to rise to its highest point from the
floor) yet the brush remains in contact with the carpet fibers.
This feature warns of potential carpet damage caused by
excessive time in a stationary position, during which carpet
fibers remain engaged with the brush, usually on medium to
high pile carpet.
LED Head Lamp* - This feature provides illumination for the
dark areas of a room.
* depending on model
Easy Brush Roller Removal – Quick brush cleaning or
replacement is easy, and no tools are required!
Vacuum Motor – The AUTOMATIC X has a 1300 watt motor.
Instant-use Wand and Suction Hose – The integrated instant-
use cleaning wand or suction hose is always ready. Just pull
out either tool, or both together, to clean hard-to-reach cor-
ners, edges and crevices. The suction hose is ideal for clean-
ing furniture. And an optional nine-foot extension hose is
available, which creates a total hose length of 15 feet, perfect
for cleaning stairs. Choose from a range of optional attach-
ments that can be fitted to the cleaning wand or hose. The
wand and hose together have an eight-foot reach for instant
cleaning of hard-to-reach areas.
A Flat-to-the-floor, 6-inch Profile – Such a low profile makes
cleaning under furniture and beds easy!
Forty-foot Cord – A 40-foot cord saves time because it mini-
mizes the number of electrical outlets needed during use.
Lifetime Belt Warranty - No more changing belts...they
should last the life of the machine!
Two Power Head Widths – The AUTOMATIC X7 power head is
12 inches wide, with a cleaning width of 10½ inches. The
AUTOMATIC X8 power head is 15-inches wide, with a cleaning
width of 14½ inches.
Three On-board, Full-size Tools and Large Filter Bag – The
vacuum comes standard with a crevice nozzle, dusting brush
and upholstery nozzle. Many optional accessories are also
available. The filter bag is also SEBO’s largest, with a dirt
capacity of 1.4 gallons.
CHECK
BAG
CHECK
BRUSH
UPDOWN
X7
X8
Flat-to-the-floor profile
Ergonomic Handle
40-foot Cord
Crevice and
Upholstery Nozzles
Cleaning wand
(active wand) and
flexible hose with
8-foot reach
Warning System
Display
Practical
Hand Grip
6
inches
Combination carrying handle
with rotating cord hook
CHECK
BAG
CHECK
BRUSH
UPDOWN
STANDARD FEATURES OF ALL SEBO VACUUMS
5
Designed and Manufactured in Germany – Legendary quality,
reliability and performance make SEBO vacuums the first
choice of cleaning professionals throughout the world.
World’s Best Pet Vacuums – Because of superior power-head
and brush-roller technology, SEBO vacuums are the world’s
best for pet hair removal!
Tightly Sealed Vacuums Ensure Effective Filtration – Dirty air,
which flows through a vacuum, can only be filtered completely
if it does not escape into the room through seams or seals in
the machine. This is why all SEBO vacuums have tight seals
throughout.
Many vacuum companies with high-filtration claims are actu-
ally quoting specifications made by the manufacturer of the fil-
ter material, as measured in the laboratory, not the filtration
effectiveness of the vacuum itself while operating. Whether or
not dirty air can escape through leaks in the body of the
machine is not considered. The filtration effectiveness of SEBO
vacuums is tested while they operate.
Reliable, Commercial-grade Components – All SEBO vacu-
ums are constructed with thick, reinforced, ABS plastic, alu-
minum and metal parts, steel axles and bearings, and high-
end, quality motors. Therefore, SEBO users own reliable, long-
lasting vacuum cleaners. Competing vacuums are made with
thin, flimsy, inexpensive, plastic materials, none of which are
reinforced, and typically have useful lifespans of one or two
years.
Rubber Wheels and Soft Bumpers Protect Homes – Smooth-
gliding, rubber wheels protect hard floors and provide excep-
tional maneuverability. In addition, the bumpers that surround
the power heads and the soft AIRBELT bumpers that surround
SEBO’s canisters protect furniture, walls, and vacuum hous-
ings from incurring scuffs and scratches during use.
Advanced, Brush-Roller Technology – SEBO’s brush rollers
are uniquely designed to funnel hair and debris into the power
head’s airflow channel, which improves vacuum cleaning per-
formance on all flooring surfaces.
Changing Bags is Easy and Clean – SEBO filter bags can be
changed in just a few seconds, and a hygiene cap keeps dust
sealed inside during removal and disposal.
Save Money! SEBO Vacuums Last for Years and Extend
Carpet Life! – If properly maintained, SEBO vacuums save
ordinary, residential users hundreds of dollars, by providing
excellent performance for ten to fifteen years or more, and
their deep-cleaning, power-brush technology extends the life
of carpets. Typical vacuums perform poorly, even when new,
and usually do not last beyond two years. So six or seven “dis-
posable vacuums” must be purchased during the average life
expectancy of just one SEBO machine.
Incredible Warranty Coverage – All SEBO models include a
FREE seven-year warranty on the motor and five-years on non-
wear parts and labor charges.

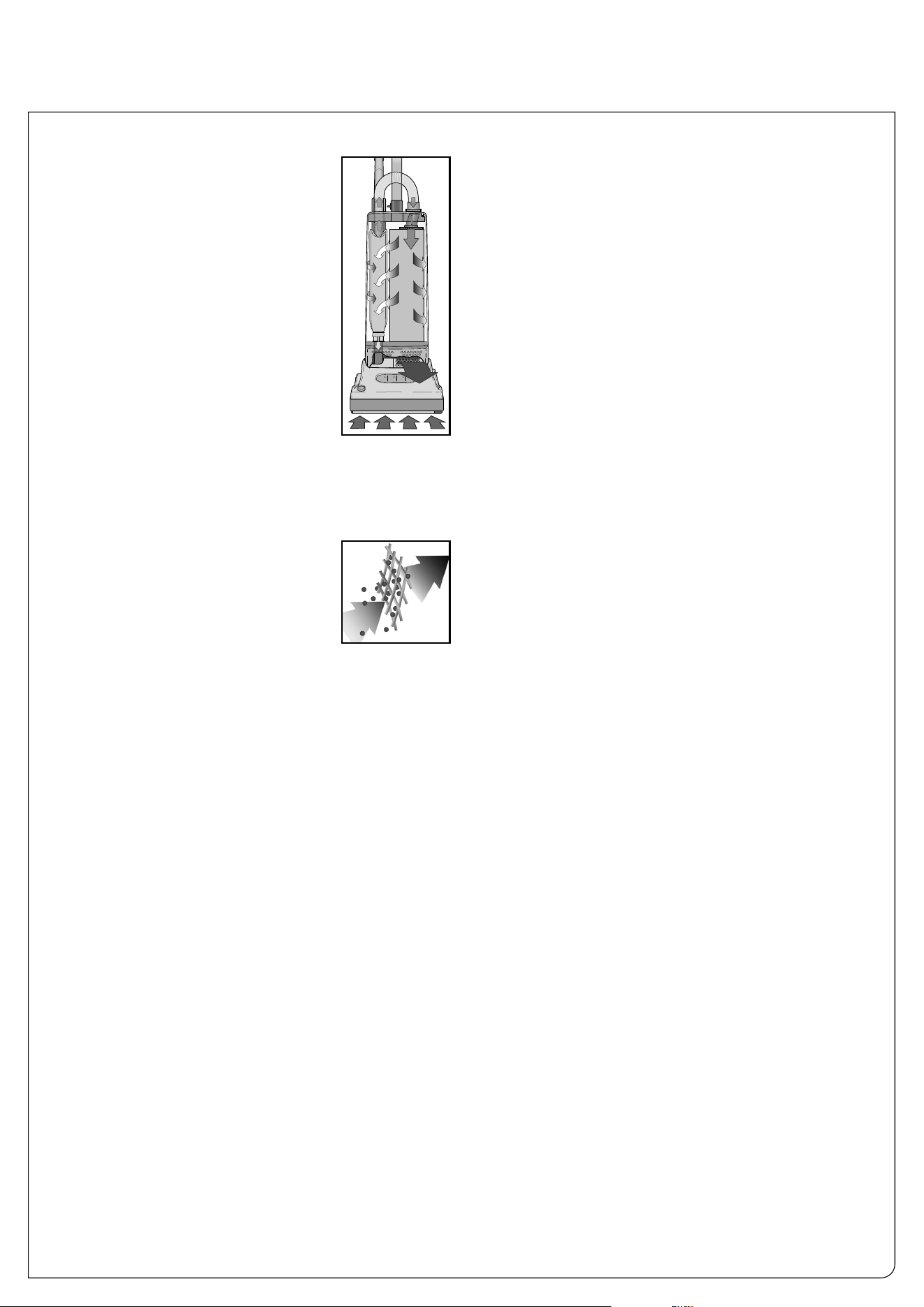

SEBO’s FILTRATION SYSTEM:
Bagged vs. Bagless . . . Bags are Better! –
Top-fill, three-layer AeraPure™ bags are an
integral part of SEBO’s filtration system
because they hold virtually all the dirt cap-
tured by the vacuum, which improves the
effectiveness and useful life of the microfil-
ters. They also ensure continuously strong
suction because dirt enters from the top,
deposits at the bottom, accumulates upward,
and air exits through the sides, which allows
unimpeded airflow as they fill to capacity.
And they can be tightly sealed with a hygiene
cap when full, so no dust can escape into the
air during bag removal and disposal.
In contrast, without bags to hold nearly all
the captured dirt, the microfilters on
bagless vacuums quickly clog from exces-
sive dirt build-up and must be replaced often, or a loss of suc-
tion and cleaning effectiveness will occur. In addition, dust
becomes airborne when emptying bagless dirt containers.
Lastly, bagless vacuum microfilters are expensive, usually
costing more than a multi-year supply of SEBO filter bags.
S-class, Pre-motor and/or Exhaust Micro-
filters – S-class, Pre-motor and Exhaust
Microfilters (S =“Schwebstoff” = airborne
particles) are made from electrostatically
charged, micro-fiber material, which
attracts and captures dust particles from the
airflow of the vacuum before and after it
passes over the motor to cool it. Cooling the motor with super-
clean air increases motor life and reduces the possibility of
maintenance, even after many years of use. Also, the exhaust
air is cleaned to the highest level before being emitted from the
machine. The S-class Standard requires filters to absorb
greater than 99.9% of particles down to 0.3 microns in diame-
ter. For comparison, 100 microns is the diameter of a human
hair. Their advantages are a relatively open texture that allows
smoother airflow for better suction performance, a longer life
expectancy, and they cost less than HEPA filters.
HEPA, Pre-motor and/or Exhaust Microfilters (Optional) –
HEPA Microfilters (“High Efficiency Particulate Air”) remove a
minimum of 99.97% of all airborne particulate matter down to
0.3 microns in diameter. Because these filters use small, grid-
like structures to capture dust particles, dirt build-up clogs the
airflow pathway sooner than what is expected from S-class
microfilters. However, SEBO’s HEPA microfilters are sold
along with three-layer AeraPure™ bags, which provide highly
effective filtration before the airflow goes through the HEPA
microfilter, greatly increasing life expectancy and reducing the
potential of diminished air flow.
6

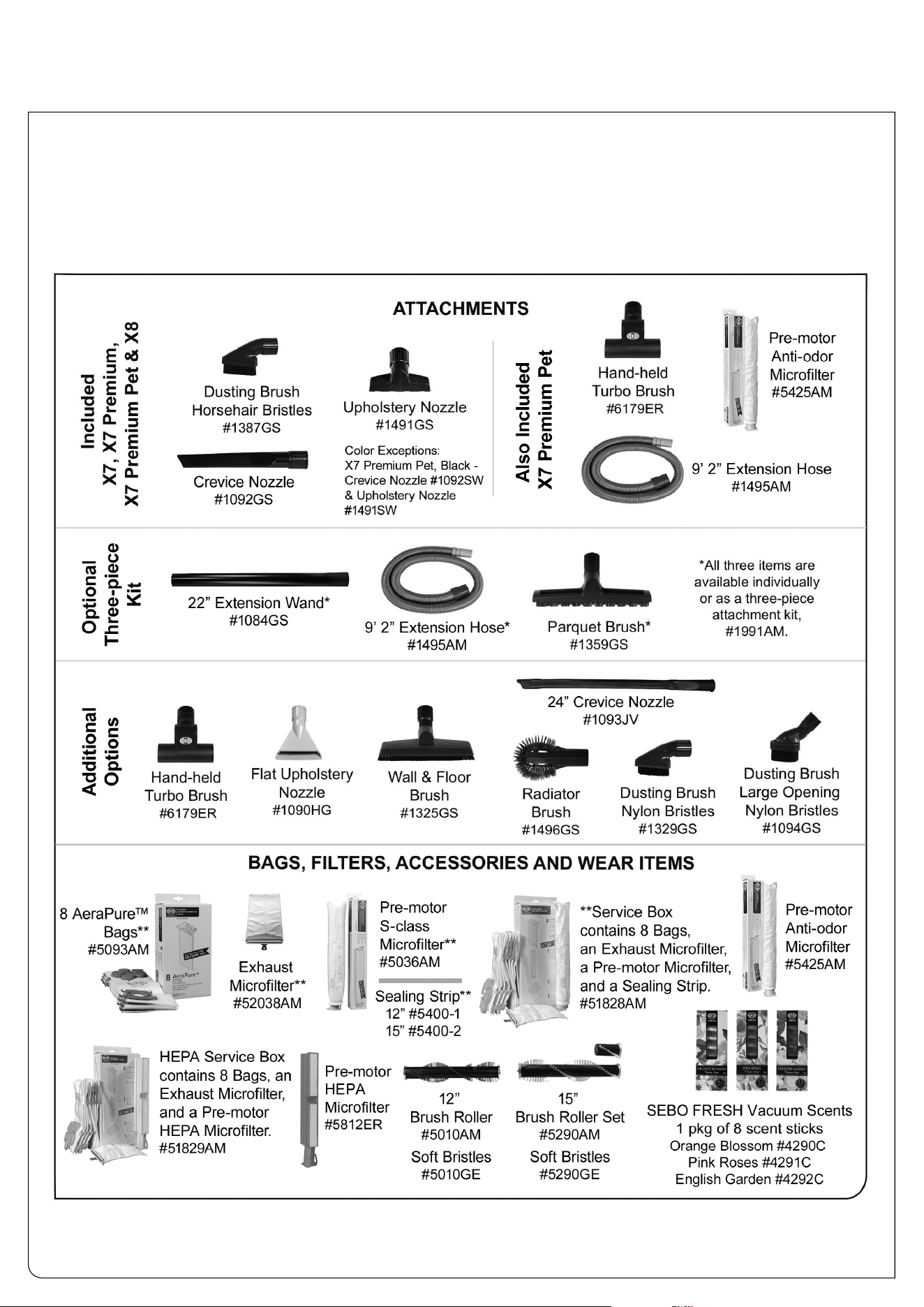

In addition to the standard on-board tools, a variety of optional
attachments are available. The 9’ 2”extension hose (extends
suction hoses) and the 22” extension wand (extends instant-use
wands) are very popular because they create useful tools for
cleaning stairs and out-of-reach areas. These two items are sold
separately or as part of multiple item attachment kits.
Another popular attachment is the hand-held turbo brush for
removing pet hair from upholstery. SEBO AeraPure™ filter bags
can be purchased in boxes of eight and filters are sold separate-
ly. SEBO bags, filters and accessories are reasonably priced and
widely available. To create a fresh scent while vacuuming, SEBO
FRESH is available. To use, deposit a scented stick in the filter
bag.
OPTIONAL ATTACHMENTS, ACCESSORIES, BAGS & FILTERS
IDENTIFICATION OF PARTS
7
ASSEMBLY
1. Handle grip
2. On/Off switch
3. Handle assembly
4. Cleaning wand handle
5. Handle catch
6. Retaining ring
7. Cover release flap
8. Front cover
9. Carrying handle
10. Housing release button
11. Brush roller release button
12. Head lamp*
13. Power head with brush
14. Display
15. Bag housing
16. Cable (cord)
*Depending on model
1
4
18
21
22
23
24
20
15
19
3
1
16
2
3
4
9
5
8
10
12
7
6
25
14
11
13
17
3
30
22
6
5
28
13
10
31
21
18
23
29
15
4
32
17. Upper cable (cord) hook
18. Attachment hose
19. Cable (cord) hook
20. Carrying handle
21. Cleaning wand (active wand)
22. Crevice nozzle
23. Upholstery nozzle
24. Foot pedal
25. Exhaust filter cover
26. Dusting brush clamp
27. Dusting brush
28. Swivel neck
29. Support lever
30. Connecting tube
31. Protruding tab
32. Hose release button
Place the power head (13) on the floor with the
swivel neck (28) and the support lever (29) upright.
Hold the bag housing (15) vertically and place it over
the swivel neck (28) and support lever (29). Push
firmly and evenly down so that the housing release
button (10) snaps outward to its “locked” position.
Slide the dusting brush clamp (26) onto the handle
tube and tighten the screw. The handle of the dust-
ing brush (27) will now snap into the clamp.
To lock the handle (3) to the bag housing (15), turn
the handle catch (5) at the handle joint of the bag
housing (15) forward to “open” position. Then slide
the handle assembly (3) in as far as possible and
lock it in by turning the handle catch to the closed
position.
Push the black end of the attachment hose (18) into
the connecting tube (30) so that it clicks into place.
Insert the cleaning wand (21) into the swivel neck (28)
and push the handle (4) over the protruding tab (31).
Insert crevice nozzle (22) and upholstery nozzle (23)
into the recesses in the back of the machine.
Attach dusting
brush clamp
with screw
26
27
27
23
22
26
Standard Attachments
22. Crevice nozzle
23. Upholstery nozzle
26. Dusting brush clamp
27. Dusting brush
NOTE: All illustra-
tions shown in this
manual represent
the X7 model except
where part numbers
and instructions are
different for each
model. In those
instances, illustra-
tions for both the X7
and X8 will be
shown.
8
OPERATING INSTRUCTIONS
Starting The Machine
- Figures 1 & 2

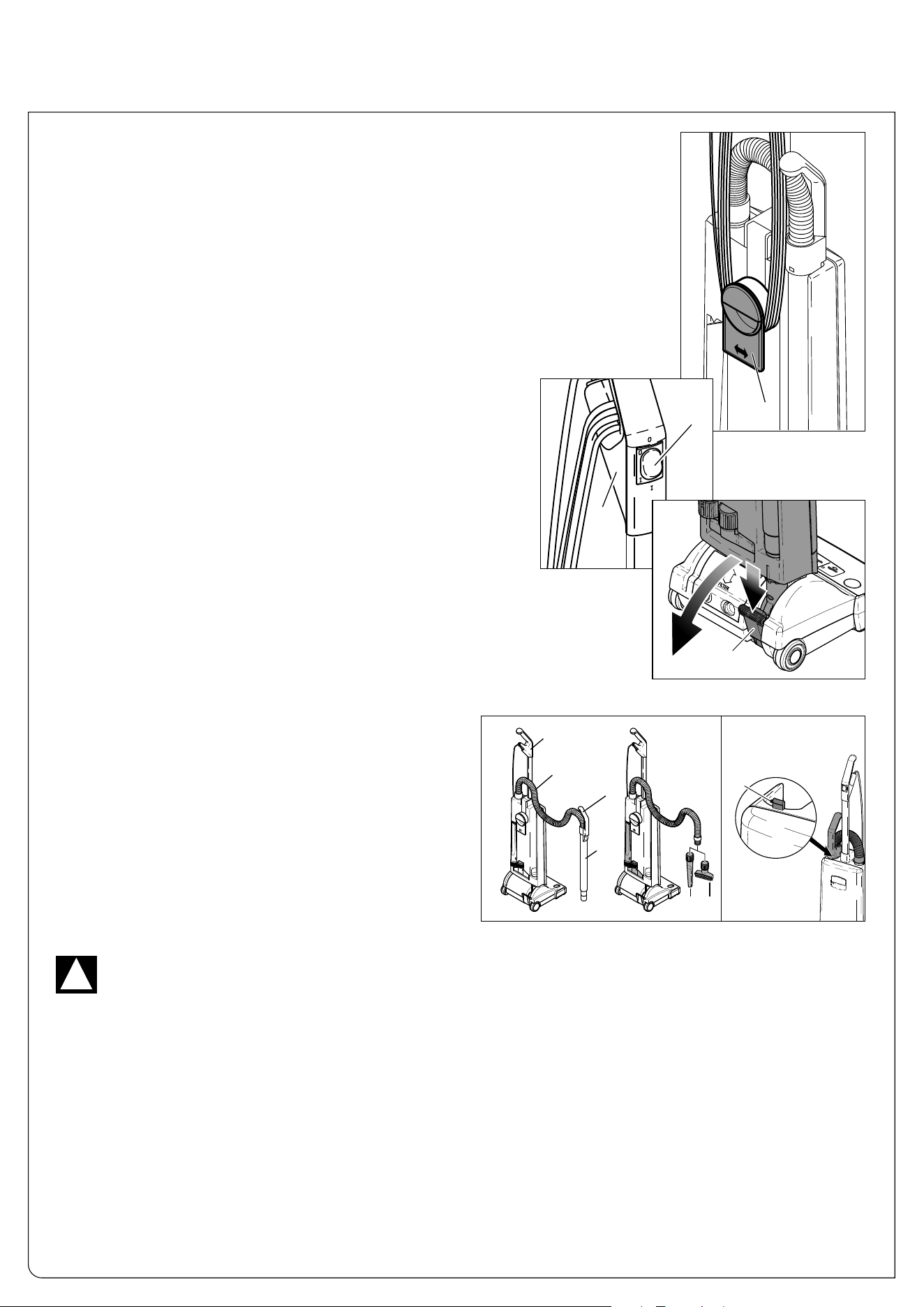

Before turning on your vacuum cleaner, make sure that the vacuum handle is in its upright
locked position and that you have a firm hold on the handle grip to keep the machine from
moving forward.
1. Turn the quick release cable hook (#19, figure 1) to the up positionby moving it to the
left or right.
2. Release the power cord plug from the power cord and lift the cord off of the upper cord
hook (#17, figure 2).
3. With the switch (#2, figure 2) in the “O” (OFF) position, plug the
polarized power cord into a 120 volt outlet located near the floor.
Switch Position
O = OFF
I = ON
NOTE: The AUTOMATIC X is equipped with a soft start system.
The gradual power-up extends vacuum life.
19

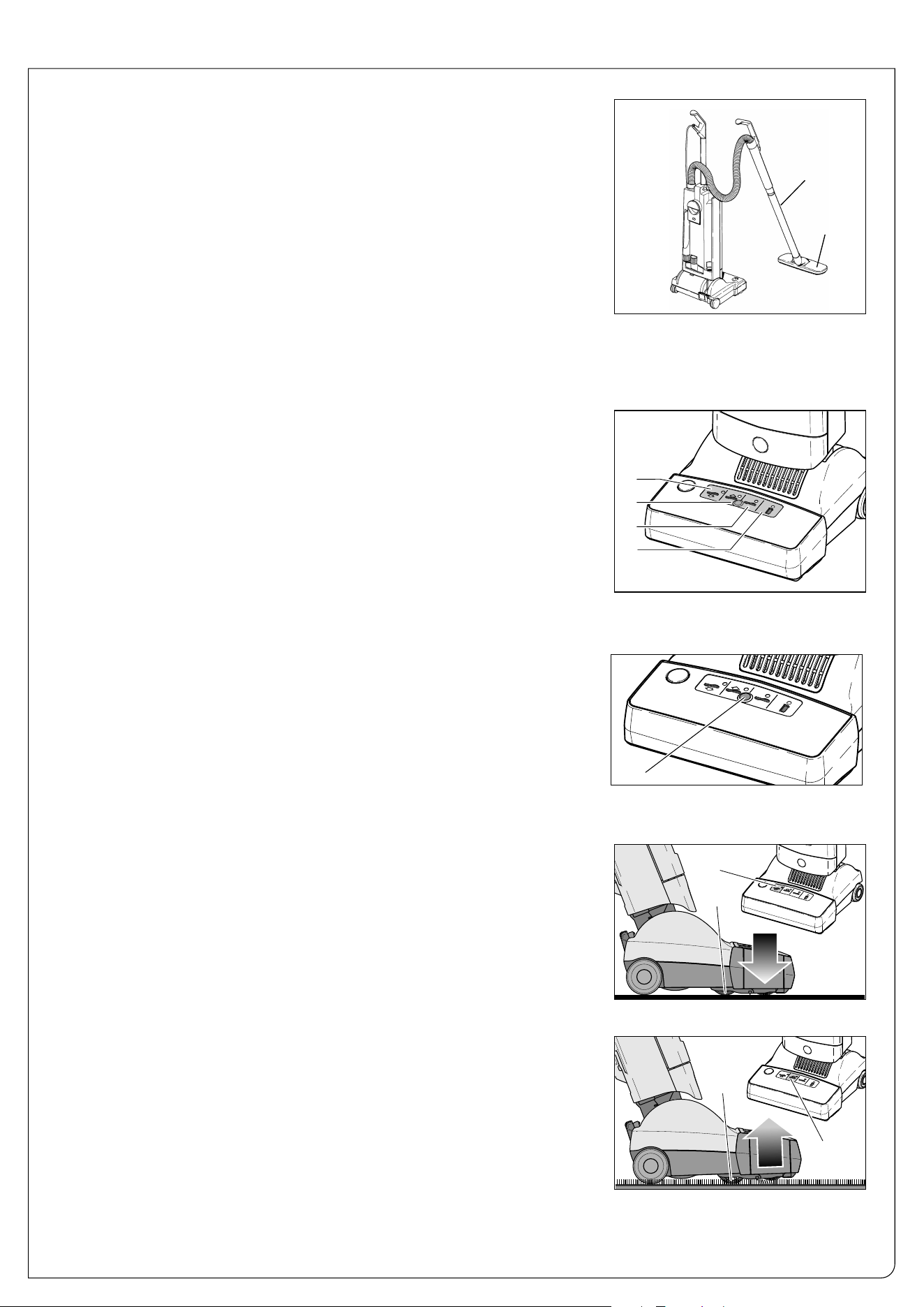

Operating the Machine
- Figure 3
When the machine is switched on with the handle in the upright locked
position, the power head and brush automatically rise from the carpet.
To release the machine from the upright locked position, press down
on the foot pedal (24) and lower the handle into the normal operating
position. The power head and brush will automatically lower to the
appropriate height.
WARNING! The quality, condition, coating, texture, age and manufacturing technique of all floor surfaces vary.
Therefore, upright vacuums with rotating brushes, including your SEBO, may damage some floor coverings or surfaces. Some
types of high-gloss hardwood floors, cushion vinyl, berber carpets, long shag, and delicate or hand-woven carpets are particu-
larly vulnerable to damage by rotating brushes. When possible, consult the materials supplied by your floor’s manufacturer for
information on proper upkeep and cleaning. To ensure that your new SEBO vacuum cleaner is compatible with your floor,
please test the vacuum cleaner on each type of flooring surface in a small inconspicuous area to determine if any dam-
age occurs. If damage occurs, stop using the vacuum cleaner immediately! The standard brush roller on your SEBO vacu-
um is appropriate for most types of floor surfaces. However, a soft-bristle brush roller (X7 part # 5010GE or X5 part # 5290GE)
that is designed for use on sensitive looped-pile carpets and/or hard floors is available for an additional charge. As with the
standard brush roller, you should test the machine using the soft-bristle brush roller in an inconspicuous area prior to wide-
spread use. The soft-bristle roller will wear more quickly than the standard brush roller, so it will need to be replaced more
often. Also, because the bristles are softer, the height adjustment on the machine will be slightly lower than normal.
Care must be taken to ensure that the bottom of the machine does not contact the floor. If this happens,
damage to the floor could occur. If damage occurs, stop using the vacuum cleaner immediately!
!
Figure 1
Figure 2
Using the Cleaning Wand, Hose & Attachments -
Figures 4, 5, 6 & 7
The cleaning wand (21) is useful for vacuuming corners and hard-to-reach areas. The
handle grip (1) should be in the upright, locked position (as shown in figure 4). Grip the
cleaning wand handle (4), pull it up and away from the
machine and stretch out the hose (18) until it locks to the back
of the tube (this locking action will prevent the hose from
retracting back into the cleaning wand while it is in use).
Various attachments may be inserted onto the end of the tube.
After use, remove attachment and re-insert the cleaning wand
into the back of the machine. Be sure that the cleaning wand
handle (4) is inserted over the protruding tab (31) as shown
in figure 6. If the cleaning wand handle is properly seated over
the protruding tab, the hose will automatically retract and you
may resume vacuuming. There is no need to turn off the vac-
uum while switching from upright vacuuming to using the
cleaning wand or hose.
31
Figure 6
Figure 3
2
17
24
Figure 4
Figure 5
1
4
21
18
22 23
To use the hose without the cleaning wand (as shown in figure 5), pull the hose out of
the cleaning wand while the tube is still attached to the machine and securely seated
over the protruding tab (31 figure 6). Insert an attachment tool, if desired, onto the
end of the flexible hose. You may also release the hose while the cleaning wand is dis-
engaged from the machine by pressing the hose release button (32) at the base of the
cleaning wand handle (4).
While using attachment tools, if the power head brush roller is not able to disengage
from the floor surface, the stationary-use warning light will flash. You may keep the
brush roller off the carpet by placing the handle (1) in its upright locked position and
lowering the handle with one hand to raise the brush roller off of the floor. Operate
attachment accessories with the other hand. Or, with the handle in the upright
locked position, the machine may be tipped backward so that it rests against furni-
ture or the floor on the back side of the bag housing (15), and the power head is
locked in a perpendicular position to the floor. Ensure that no children or pets can
come into contact with the spinning brush roller.
To vacuum walls, under beds, or higher-reach areas, etc., the SEBO AUTOMATIC X
can be fitted with an optional straight tube (33) and the optional wall and floor brush
(34). The machine will then perform as a canister vacuum (as shown in figure 7).
36
a
b
36
a
b
c
d
The Adjustment Wheel - Figures 10 & 11
On hard floors (figure 10), the adjustment wheel (36), moves upward into the machine
so that the brush lowers and becomes flush with the floor.
On carpeted floors (figure 11), the adjustment wheel (36) moves downward out of the
machine so that the brush rises. The adjustment wheel moves up and down automat-
ically to adjust the brush to the correct setting. This provides aggressive brush action,
while maintaining optimal air flow.
Hard Floor - Figure 10
Carpeted Floor - Figure 11
The Display Panel - Figure 8
Green light (a): Brush is lowering
Green light (b): Brush is rising
Red light (c): Flashing and motor off - brush jammed – clear jam
Red light (c): Flashing and motor on (when machine is in upright,
locked position) – Take care, brush in contact with carpet
Red light (c): Continuous – change brush roller
Red light (d): Continuous – change bag or clear clog
Red light (d): Flashing – motor switched off due to full bag or clog
For more information on the display panel, see pages 4 and 5.
Boost Function* (X7 Premium and X7 Premium Pet) - Figure 9
For high energy efficiency and deep cleaning of the carpet, the SEBO AUTOMATIC
X7 Premium and X7 Premium Pet vacuums are equipped with a boost button (35).
Press the button (35) by hand to activate the boost function. Once activated, the
button will illuminate green. To deactivate the boost function, press the boost but-
ton again.
NOTE: The boost function will be automatically deactivated when the machine is
turned off. After switching on the machine again, the boost function has to be acti-
vated separately.
* Depending on model
Figure 7
Figure 8
33
34
9
35
Figure 9
10

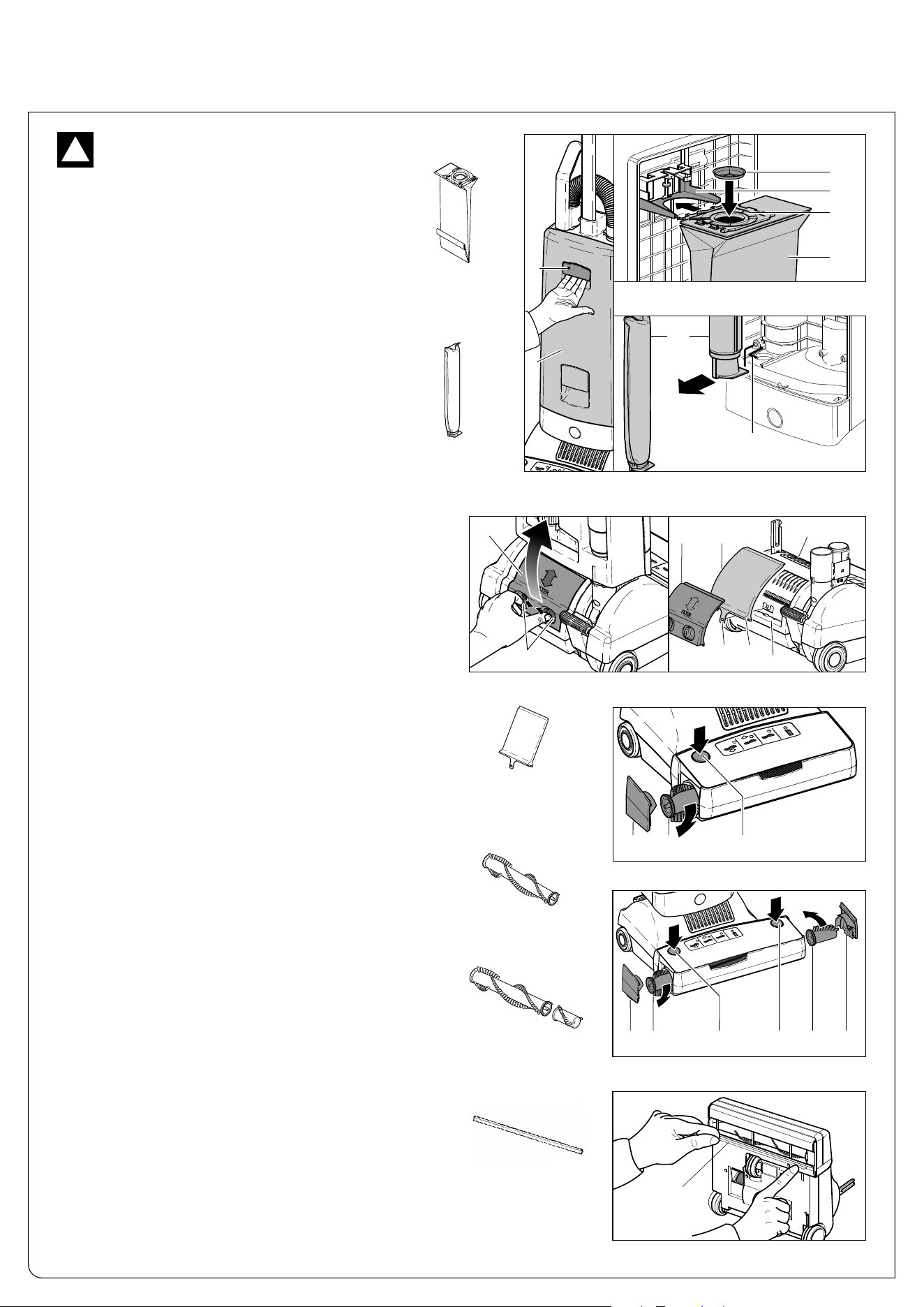

VACUUM MAINTENANCE
Changing the Filter Bag - Figures 12 & 13
To change the filter bag (37), pull the cover release
flap forward (7) and lift the front cover (8) from the
bag housing. The cover release flap must remain in
a forward “pulled-out” position to change filter bags
and lock them into place. Squeeze the clamps on
both sides of the filter bag sealing plate (38), slide the
plate from the holder (39) and push the cap (40) on to
seal the bag. Slide the sealing plate (38) of a new bag
into the holder and push it in firmly. Re-insert cover
into bag housing, push it forward, then lock it in place
by pushing down the cover release flap. You may find
it convenient to store the bag cap inside the bag hous-
ing below the filter bag.
37
38
40
39
40
41
44 45 11
Changing the Pre-motor Microfilter -
Figures 12 & 14
The pre-motor microfilter (40) needs to be changed when it
becomes extremely dirty or clogged with dust, or after
approximately 20 filter bags have been used. To change the
pre-motor microfilter, pull the cover release flap (7) forward
and lift the cover (8) from the filter bag housing. Then, slide
the filter out at the bottom. To replace, lift the safety lever
(41) and slide the new filter in using the tracks as guides.
Changing the Brush Roller(s) - Figure 17 (X7),
Figure 17a (X8)
To change the brush roller(s) (45, 45a), push the brush roller
release button(s) (11, 11a), remove the side plate(s) (44, 44a),
turn the brush(s) clockwise a quarter of a turn, and pull the
old brush roller(s) out. Slide the new brush roller(s) into the
brush housing and turn it until it locks into position. While
slightly pushing the button(s) (11, 11a), press the side plate(s)
(44, 44a) back into the locked position.
Figure 13
Figure 14
Figure 17 (X7)
Figure 18
Always unplug vacuum from outlet
before dismantling any part of machine!
!
SEBO
AeraPure™
Filter Bags
Part #5093AM
Pre-motor
Microfilter
Part #5036AM
Exhaust Microfilter
Part #52038AM
Brush Roller (X7)
Part #5010AM
Changing the Sealing Strip - Figure 18
The sealing strip (46) is located just behind the brush roller
opening. The sealing strip seals the power head to hard floors
to prevent kick-back of debris while vacuuming. To replace a
worn sealing strip, push the brush roller release button(s) (11,
11a), remove the side plate(s) (44, 44a) and slide the old strip
out. Insert the new strip into the slot and slide into place.
Changing the Exhaust Microfilter - Figures 15 & 16
After 20 bags have been used, change the exhaust filter (42).
To remove the exhaust filter, squeeze the filter door release
buttons (43) toward the middle and remove the filter cover
(25). Unhook the filter tab (A) from the catch (B) and pull the
filter out. Slide the closed end of the new filter into the
machine. Fit filter opening (C) to the air channel (D) and lock
the filter tab (A) onto the catch (B), making sure it is smooth
and flat. The correct positioning of the filter can be checked by
looking through the slots (E) on the front of the powerhead.
Slide the filter cover (25) into the top of the opening and move
it downward until it clicks into place.
46
44 44a45 45a11 11a
Figure 17a (X8)
Brush &
Edge Roller (X8)
Part #5290AM
Sealing Strip
Part #5400-1 (X7)
Part #5400-2 (X8)
25
43
Figure 15
25 42
A
D
C
E
B
Figure 16
7
8
Figure 12
11

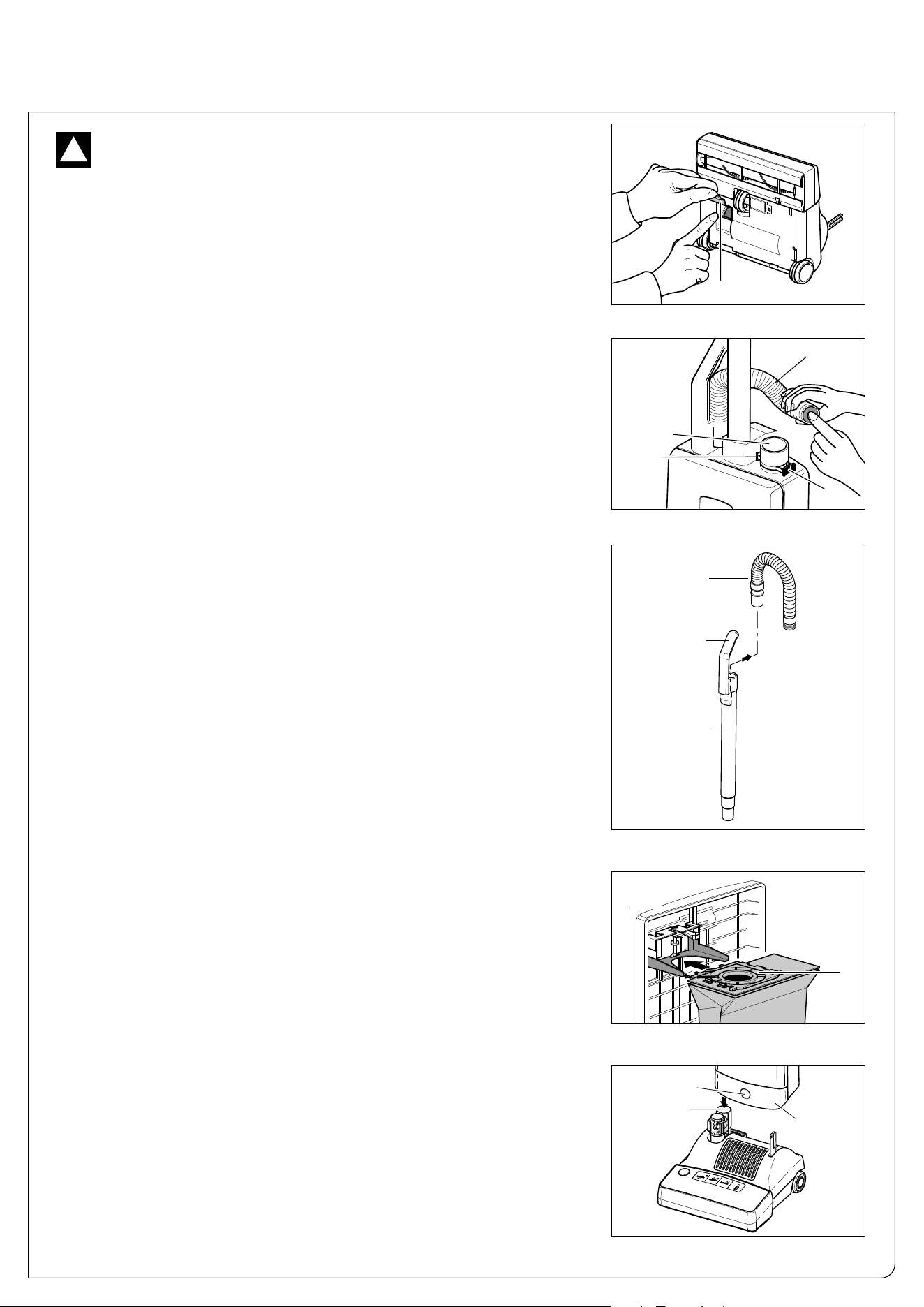

CLOG REMOVAL
15
28
10
Figure 23
18
6
30
6
Clogs in the Attachment Hose - Figure 20
Blockages in the hose can be cleared by removing the attachment hose (18)
from the machine by squeezing the retaining ring (6) and inserting the oppo-
site end of the hose in the connecting tube (30). Hold the hose upright with
one hand blocking the top end and switch on the machine. If necessary,
quickly lift your hand on and off the end of the hose. If this procedure does
not clear the clog, a straight wire can be inserted into the hose to push out
the clog. Take care not to puncture the hose with the wire.
Clogs in the Airflow Pathway - Figure 19
Most clogs can be removed by accessing the airflow pathway via the orange
colored access door (48) located on the underside of the power head.
However, other clogs may only be removed by accessing the airflow pathway
by disassembling the machine in the opposite sequence of the machine’s
original assembly (see assembly, page 7).
48
Figure 20
Figure 19
Clogs in the Cleaning Wand (Active Wand) - Figure 21
Remove attachment hose (18) from the cleaning wand (21). Then, grip clean-
ing wand handle (4) and remove tube from the machine. A straight wire can
be inserted into the tube to push out the clog.
Always unplug vacuum from outlet before removing
any clogs!
!
Clogs in the Swivel Neck - Figure 23
Clogs in the swivel neck (28) can be removed by first pressing the housing
release button (10) and lifting off the bag housing (15). Lift upward firmly and
evenly to properly remove the bag housing. Then, release the foot pedal (24),
lower the swivel neck, check inside the swivel neck channel closest to the
foot pedal (see arrow), and clean out pathway.
Clogs in Entrance to Filter Bag - Figure 22
Remove attachment hose (18) from vacuum cleaner (see figure 20) and remove
front cover (8). Clean out connecting tube (30) and/or entrance to bag (49).
49
8
Figure 22
21
18
4
Figure 21
12
TROUBLE-SHOOTING GUIDE
PROBLEM
Does not turn on
or machine shuts off
intermittently
Bag full or clog light on
or flashing &
machine shuts off
Brush light on
Brush light slowly
flashing
Brush light flashing &
machine shuts off
Up & down lights flicker
Does not pick up
Front bag door won’t
fully close
Hose doesn’t retract
after cleaning wand is
inserted
REASON
1. Handle not fully inserted into the bag
housing, causing a faulty connection.
2. Not plugged into good outlet.
3. Cable worn.
4. Bag housing (15) not seated fully
into proper “locked” position
on top of power head.
1. Bag full.
2. Clog in airflow pathway, attach-
ment hose, cleaning wand, swivel
neck or entrance to filter bag.
3. Microfilter dirty.
1. Brush worn.
1. Vacuum is stationary and in
upright locked position.
1. Brush jammed.
1. Operating on uneven floor.
1. Cleaning wand not properly
inserted.
2. Front cover not closed.
1. Cover release flap not fully closed.
2. Bag not inserted properly
3. Microfilter not properly inserted.
1. Cleaning wand not properly
inserted.
SOLUTION
1. Release handle catch, push handle
down, close handle catch.
2. Use another outlet.
3. Replace cable.
4. Housing release button (10) should
be snapped outward to its locked
position.
1. Replace bag. See Bag Replacement
on page 10. Also see page 4.
2. See Clog Removal on page 11.
Also see page 4.
3. Replace microfilter. See page 10.
1. Replace brush. See page 10.
Also see page 4.
1. See pages 8 and 9.
1. Shut off the power switch, unplug
the machine and pull the obstruc-
tion from the brush roller. Also see
page 4.
1. Ignore.
1. Reinsert cleaning wand, making
sure lower end of tube is in the
lower hole and handle is properly
seated over the protruding tab (31).
2. See below.
1. Reinsert bag. Lock the cover
release flap down firmly.
2. Reinsert bag with cover release
flap (7) up, until firmly latched in
bag holder.
3. Lift safety lever and insert filter with
vertical plastic ridge on filter facing
you.
1. Reinsert making sure top of handle
is pointing back and tube is fully
seated on the protruding tab (30)
on top of the bag housing. See
page 8, figure 6.
Always unplug vacuum from outlet before dismantling any part of the machine!
!
13
AUTOMATIC X7 SCHEMATIC AND PARTS LIST
#91503AM, #91503FC AUTOMATIC X7 Red Machine
Pos. Part # Description
1 51132GSSB Handle cpl., gray black/dark red
2 51130GS Handle grip, gray black, incl. pos. 7+10
3 5359GS Grommet, gray black
4 5450DG Power supply cord
5 05113 Switch w/screws
6 51073SB Switch cap, silver
7 51072GS Switch cap holder, gray black
8 5162 Cable clamp
9 5253UL Wire-antistatic
10 5298ER Handle cable
11 5187 Handle tube X
12 5040SB Hose X, cpl., silver
13 5045GS Cleaning wand, gray black
14 51059GS Cover, gray black
15 5319 Bag holder spring
16 5091 Safety catch spring
17 5360 Safety catch
18 5324 Bag holder cpl., incl. pos. 16+17
19 51053SB Cover release, silver
20 51052SB Handle cover, silver
21 51051DRSB Front cover cpl., dark red
22 51050DRUL Bag housing cpl., dark red/gray black
23 5380GS Internal cover cpl., gray black
incl. pos. 36+37
24 1073 Clamp
25 5208 Filter safety catch
26 5210 Return spring
27 5164 Cable clamp
28 51003SB Bag housing locking catch, silver
29 1859SB Handle catch, silver
30 5721DR Carrying handle, dark red
31 5703DR Cable hook, dark red
32 5146 Stop spring
33 5424SB Retaining ring, silver
34 5217ER Internal cable
35 5266 Cable clamp
36 5842 Seal
37 5289 Seal
38 1823GS Attachment clip, gray black
39 5084 Spring for locking rod
40 5083 Locking rod
41 51002GS Bag housing bumper base, gray black
45 1092GS Crevice nozzle, gray black
46 1491GS Upholstery nozzle
50 0102 Screw F 3.9x13 DIN 7981
51 0103 Screw C 3.9x16 DIN 7981
52 0129 Screw M 4x12
53 0161 Clip 4, DIN 6799
54 01036 Screw 4x14, Torx 20
55 5460GS Mounting clip with screw
56 1387GS Dusting brush
60 5093AM AeraPure™ filter bag pack
61 5036AM Pre-motor microfilter
Bag Housing and Handle
12
13
31
50
23
36
60
30
32
38
54
35
24
22
33
27
50
39
34
29
53
61
25
37
26
40
28
54
41
21
18
17
15
14
54
16
20
19
39
1
9
7
2
3
5
6
51
8
11
52
10
4
45
46
56
55
#91503AM AUTOMATIC X7 - Red (dark red/silver) (USA)
#91503FC AUTOMATIC X7 - Red (dark red/silver) (Canada)
14
AUTOMATIC X7 SCHEMATIC AND PARTS LIST
#91503AM, #91503FC AUTOMATIC X7 Red Machine
Pos. Part # Description
100 52106DRSE Power head cover, cpl., dark red/silver,
incl. pos. 101a
100a 52044SB Display, silver
101 52038AM Exhaust microfilter
102 52029DR Exhaust filter cover, cpl., dark red
103 52018ER Swivel neck support r.h., incl. pos. 117
104 5101 Swivel neck bearing r.h.
105 52023ER Swivel neck assembly, cpl.
106 52020ER Swivel neck support l.h.
107 5717 Swivel neck bearing l.h.
108 52013 Motor support seal, DOMEL
109 52194ER Vacuum motor 120V/12 amps
109a 05117S Carbon brush set
110 52040ER Cable set motor
111 5100 Rubber mounting, DOMEL
112 52059UL Motor housing
113 52011ER Belt adjust, cpl.
114 5462 Motor pulley 2MR
115 52115ER Cover for air channel
116 52199ER Cable set swivel neck, incl. connector support
117 52103 Reed switch swivel neck support
118 5870ER PCB power supply/controller X7/8 100-120V
119 52009OR Foot pedal, cpl., orange
120 52052 Felt strip
121 52054 Cable guide
122 52034DR Brush roller release knob r.h., dark red
123 52112 Buffer motor housing
124 52021ER Support lever
125 5107-1 Support spring
126 52102GS Wheel, cpl. with axle
127 52032GS Bearing block r.h., gray black
128 5010AM Brush roller, blue bristles
129 52033ER Brush roller release ring with spring
130 52195GS Chassis X7 cpl., gray black, incl. pos. 120+123
w/out bumper
131 5112SW Motor pulley cover
132 5463 Opti belt/Omega 2MR-310-6
133 5110 Belt 219 3M HTDII-6
134 52108 Sensor, cpl.
135 52111ER Bearing block l.h., cpl.
136 5172OR Access door, incl. pos. 137+138, orange
137 5304 Access door spring
138 5303 Access door axle
139 5155GS Rubbing plate
140 5060ER Servo motor with gear box
141 5174GS Pile adjustment wheel
142 52050GS Bumper set, X7, gray black
143 5402 Wire tie
144 52110GS Rear bottom plate X7, cpl., incl. pos. 145+160
145 5400-1 Sealing strip
146 50404GSER Front bottom plate X7, cpl.
160 01029 Screw C2, 9x13
161 01016 AMTEC screw, 4.0x16 TORX 20
162 0176 Screw AM 4x30 DIN 7985TL
163 0104 Screw C 3.9x25 DIN 7981
164 0102 Screw F 3.9x13 DIN 7981
165 0197 Screw M 4x12 Z1
100
101
102
113
109
110
111
118
119
125
160
126
132
133
135
131
134
162
3x
141
140
165
165
112
122
121
128
127
139
142
144
146
107
116
103
124
104
105
106
108
115
137
138
136
143
161
145
161
160
160
109a
163
4x
123
120
129
130
165
161
161
161
3x
161
164
114
164
2x
1612x
164
117
100a
Power Head
#91503AM AUTOMATIC X7 - Red (dark red/silver) (USA)
#91503FC AUTOMATIC X7 - Red (dark red/silver) (Canada)
15
AUTOMATIC X7 PREMIUM SCHEMATIC AND PARTS LIST
#91542AM, #91542FC AUTOMATIC X7 Premium
Arctic White Machine
Pos. Part # Description
1 5642AM Handle complete, gray black/white
2 51130GS Handle grip, gray black, incl. pos. 7+10
3 5359GS Grommet
4 5450DG Power supply cord
5 05113 Switch w/screws
6 5160WE Switch cap, white
7 51072GS Switch cap holder, gray black
8 5162 Cable clamp
9 5253UL Wire-antistatic
10 5298ER Handle cable
11 5187 Handle tube X
12 5040SB Hose X, cpl., silver
13 5045GS Cleaning wand, gray black
14 51059GS Cover, gray black
15 5319 Bag holder spring
16 5091 Safety catch spring
17 5360 Safety catch
18 5324 Bag holder cpl., incl. pos. 16+17
19 51053SB Cover release, silver
20 51052SB Handle cover, silver
21 51051WESB Front cover complete, white
22 51050WEUL Bag housing X, cpl., white
23 5380GS Internal cover cpl., gray black incl. pos. 36+37
24 1073 Clamp
25 5208 Filter safety catch
26 5210 Return spring
27 5164 Cable clamp
28 51003SB Bag housing locking catch, silver
29 1859SB Handle catch, silver
30 5721WE Carrying handle, white
31 5703WE Cable hook, white
32 5146 Stop spring
33 5424SB Retaining ring, silver
34 5217ER Internal cable
35 5266 Cable clamp
36 5842 Seal
37 5289 Seal
38 1823GS Attachment clip, gray black
39 5084 Spring for locking rod
40 5083 Locking rod
41 51002WE Bag housing bumper base, white
45 1092GS Crevice nozzle, gray black
46 1491GS Upholstery nozzle
50 0102 Screw F 3.9x13 DIN 7981
51 0103 Screw C 3.9x16 DIN 7981
52 0129 Screw M 4x12
53 0161 Clip 4, DIN 6799
54 01036 Screw 4x14, Torx 20
55 5460GS Mounting clip with screw
56 1387GS Dusting brush
60 5093AM AeraPure™ filter bag pack
61 5036AM Pre-motor microfilter
#91543AM, #91543FC AUTOMATIC X7 Premium
Graphite Machine Exceptions
1 51132GSSB Handle cpl., gray black/silver
6 51073SB Switch cap, silver
21 51051GSSB Front cover cpl., gray black
22 51050GSUL Bag housing cpl., gray black
30 5721GS Carrying handle, gray black
31 5703GS Cable hook, gray black
41 51002GS Bag housing bumper base, gray black
#91540AM, #91540FC AUTOMATIC X7 Premium PET
Black Machine Exceptions
1 5113SWSB Handle complete, black/silver
2 51130SW Handle grip black, incl. pos. 7+9
3 5359SW Grommet, black
6 51073SB Switch cap, silver
7 5161SW Switch cap holder, black
13 5045SW Cleaning wand, black
21 51051SWSB Front cover cpl., black
22 51050SWUL Bag housing X cpl., black
23 5380SW Internal cover, incl. pos. 40+41
30 5721SW Carrying handle, black
31 5703SW Cable hook, black
38 1823SW Attachment clip, black
41 51002SW Bag housing bumper base, black
45 1092SW Crevice nozzle, black
46 1491SW Upholstery nozzle, black
62 6179ER Hand-held turbo brush
63 1495AM Extension hose
64 5425AM Pre-motor anti-odor microfilter
Bag Housing and Handle
#91542AM AUTOMATIC X7 Premium - Arctic White (white/gray black) (USA)
#91542FC AUTOMATIC X7 Premium - Arctic White (white/gray black) (Canada)
#91543AM AUTOMATIC X7 Premium - Graphite (gray black/silver) (USA)
#91543FC AUTOMATIC X7 Premium - Graphite (gray black/silver) (Canada)
#91540AM AUTOMATIC X7 Premium PET - Black (black/silver) (USA)
#91540FC AUTOMATIC X7 Premium PET - Black (black/silver) (Canada)
12
13
31
50
23
36
60
30
32
38
54
35
24
22
33
27
50
39
34
29
53
61
25
37
26
40
28
54
41
21
18
17
15
14
54
16
20
19
39
1
9
7
2
3
5
6
51
8
11
52
10
4
45
46
56
55
62
63
64
16
AUTOMATIC X7 PREMIUM SCHEMATIC AND PARTS LIST
#91542AM, #91542FC AUTOMATIC X7 Premium
Arctic White Machine
Pos. Part # Description
100 52126WEAM Power head cover, cpl. white/silver,
incl. pos. 100a
100a 52045SB Display, silver
101 52038AM Exhaust microfilter
102 52029WE Exhaust filter cover, cpl., white
103 52018ER Swivel neck support r.h., incl. pos. 117
104 5101 Swivel neck bearing r.h.
105 52023ER Swivel neck assembly, cpl.
106 52020ER Swivel neck support l.h.
107 5717 Swivel neck bearing l.h.
108 52013 Motor support seal, DOMEL
109 52194ER Vacuum motor 120V/12 amps
109a 05117S Carbon brush set
110 52040ER Cable set motor
111 5100 Rubber mounting, DOMEL
112 52059UL Motor housing
113 52011ER Belt adjust, cpl.
114 5462 Motor pulley 2MR
115 52115 Cover for air channel
116 52199ER Cable set swivel neck, incl. connector support
117 52103 Reed switch swivel neck support
118 5870ER PCB power supply/controller X7/8 100-120V
119 52009OR Foot pedal, cpl., orange
120 52052 Felt strip
121 52054 Cable guide
122 52034WE Brush roller release knob r.h., white
123 52112 Buffer motor housing
124 52021ER Support lever
125 5107-1 Support spring
126 52102GS Wheel, cpl. with axle
127 52032GS Bearing block r.h., gray black
128 5010AM Brush roller, blue bristles
129 52033ER Brush roller release ring with spring
130 52195GS Chassis X7 cpl., gray black, incl. pos. 120+123
w/out bumper
131 5112SW Motor pulley cover
132 5463 Opti belt/Omega 2MR-310-6
133 5110 Belt 219 3M HTDII-6
134 52108 Sensor, cpl.
135 52111ER Bearing block l. h., cpl.
136 5172OR Access door, incl. pos. 137+138, orange
137 5304 Access door spring
138 5303 Access door axle
139 5155GS Rubbing plate
140 5060ER Servo motor with gear box
141 5174GS Pile adjustment wheel
142 52050GS Bumper set, X7 LED, gray black
143 52016ER LED assembly, cpl.
144 5402 Wire tie
145 52110GS Rear bottom plate, X7 cpl., incl. pos. 145+160
146 5400-1 Sealing strip
147 50404GSER Front bottom plate X7 cpl.
160 01029 Screw C2, 9x13
161 01016 AMTEC screw, 4.0x16 TORX 20
162 0176 Screw AM 4x30 DIN 7985TL
163 0104 Screw C 3.9x25 DIN 7981
164 0102 Screw F 3.9x13 DIN 7981
165 0197 Screw M 4x12 Z1
#91543AM, #91543AM AUTOMATIC X7 Premium
Graphite Machine Exceptions
100 52126GSAM Power head cover, cpl., gray black/silver,
incl. pos. 100a
102 52029GS Exhaust filter cover, cpl., gray black
122 52034GS Brush roller release knob, r.h., gray black
#91540AM, #91540FC AUTOMATIC X7 Premium PET
Black Machine Exceptions
100 52126SWAM Power head cover, cpl., black/silver,
incl. pos. 100a
102 52029SW Exhaust filter cover, cpl., black
122 52034SW Brush roller release knob, r.h., black
126 52102SW Wheel, cpl. with axle, black
100
101
102
113
109
110
111
118
119
125
160
126
132
133
135
131
134
162
3x
143
141
140
142
165
165
112
122
121
128
127
139
145
147
107
116
103
124
104
105
106
108
115
137
138
136
144
161
146
161
160
160
109a
163
4x
123
120
129
130
165
161
161
161
3x
161
164
114
164
2x
1612x
164
117
100a
Power Head
#91542AM AUTOMATIC X7 Premium - Arctic White (white/gray black) (USA)
#91542FC AUTOMATIC X7 Premium - Arctic White (white/gray black) (Canada)
#91543AM AUTOMATIC X7 Premium - Graphite (gray black/silver) (USA)
#91543FC AUTOMATIC X7 Premium - Graphite (gray black/silver) (Canada)
#91540AM AUTOMATIC X7 Premium PET - Black (black/silver) (USA)
#91540FC AUTOMATIC X7 Premium PET - Black (black/silver) (Canada)
17
AUTOMATIC X7 PASTELS SCHEMATIC AND PARTS LIST
#91545AM, #91545FC AUTOMATIC X7 Premium
Pastel Mint Machine
Pos. Part # Description
1 51132GSSB Handle cpl., gray black/silver
2 51130GS Handle grip, gray black, incl. pos. 7+10
3 5359GS Grommet
4 5450DG Power supply cord
5 05113 Switch w/screws
6 51073SB Switch cap, silver
7 51072GS Switch cap holder, gray black
8 5162 Cable clamp
9 5253UL Wire-antistatic
10 5298ER Handle cable
11 5187 Handle tube X
12 5040SB Hose X, cpl., silver
13 5045GS Cleaning wand, gray black
14 51059GS Cover, gray black
15 5319 Bag holder spring
16 5091 Safety catch spring
17 5360 Safety catch
18 5324 Bag holder cpl., incl. pos. 16+17
19 51053SB Cover release, silver
20 51052SB Handle cover, silver
21 51051CMSB Front cover cpl., mint
22 51050CMSB Bag housing cpl., mint
23 5380GS Internal cover cpl., gray black incl. pos. 36+37
24 1073 Clamp
25 5208 Filter safety catch
26 5210 Return spring
27 5164 Cable clamp
28 51003SB Bag housing locking catch, silver
29 1859SB Handle catch, silver
30 5721CM Carrying handle, mint
31 5703CM Cable hook, mint
32 5146 Stop spring
33 5424SB1 Retaining ring, silver
34 5299ER Internal cable
35 5266 Cable clamp
36 5842 Seal
37 5289 Seal
38 1823GS Attachment clip, gray black
39 5084 Spring for locking rod
40 5083 Locking rod
41 51002GS Bag housing bumper base, gray black
45 1092GS Crevice nozzle, gray black
46 1491GS Upholstery nozzle
50 0102 Screw F 3.9x13 DIN 7981
51 0103 Screw C 3.9x16 DIN 7981
52 0129 Screw M 4x12
53 0161 Clip 4, DIN 6799
54 01036 Screw 4x14, Torx 20
55 5460GS Mounting clip with screw
56 1387GS Dusting brush
60 5093AM AeraPure™ filter bag pack
61 5036AM Pre-motor microfilter
#91545AM, #91545FC AUTOMATIC X7 Premium
Pastel Blue Machine Exceptions
21 51051CISB Front cover cpl., blue
22 51050CISB Bag housing cpl., blue
30 5721CI Carrying handle, blue
31 5703CI Cable hook, blue
#91547AM AUTOMATIC X7 Premium
Pastel Pink Machine Exceptions
21 51051CZSB Front cover cpl., pink
22 51050CZSB Bag housing cpl., pink
30 5721CZ Carrying handle, pink
31 5703CZ Cable hook, pink
#91507FC AUTOMATIC X7
Pastel Pink Machine Exceptions
21 51051CZSB Front cover cpl., pink
22 51050CZSB Bag housing cpl., pink
30 5721CZ Carrying handle, pink
31 5703CZ Cable hook, pink
Bag Housing and Handle
#91545AM AUTOMATIC X7 Premium Pastel Mint (USA)
#91545FC AUTOMATIC X7 Premium Pastel Mint (Canada)
#91546AM AUTOMATIC X7 Premium Pastel Blue (USA)
#91546FC AUTOMATIC X7 Premium Pastel Blue (Canada)
#91547AM AUTOMATIC X7 Premium Pastel Pink (USA)
#91507FC AUTOMATIC X7 Pastel Pink (Canada)
12
13
31
50
23
36
60
30
32
38
54
35
24
22
33
27
50
39
34
29
53
61
25
37
26
40
28
54
41
21
18
17
15
14
54
16
20
19
39
1
9
7
2
3
5
6
51
8
11
52
10
4
45
46
56
55
18
AUTOMATIC X7 PASTELS SCHEMATIC AND PARTS LIST
#91545AM, #91545FC AUTOMATIC X7 Premium
Pastel Mint Machine
Pos. Part # Description
100 52126CMAM Power head cover, cpl., mint, incl. pos. 100a
100a 52045SB Display, silver
101 52038AM Exhaust microfilter
102 52029CMER Exhaust filter cover, cpl., mint
103 52018ER Swivel neck support r.h., incl. pos. 117
104 5101 Swivel neck bearing r.h.
105 52023ER Swivel neck assembly, cpl.
106 52020ER Swivel neck support l.h.
107 5717 Swivel neck bearing l.h.
108 52013 Motor support seal, DOMEL
109 52194ER Vacuum motor 120V/12 amps
109a 05117S Carbon brush set
110 52040ER Cable set motor
111 5100 Rubber mounting, DOMEL
112 52059UL Motor housing
113 52011ER Belt adjust, cpl.
114 5462 Motor pulley 2MR
115 52115 Cover for air channel
116 52199ER Cable set swivel neck, incl. connector support
117 52103 Reed switch swivel neck support
118 5870ER PCB power supply/controller X7/8 100-120V
119 52009OR Foot pedal, cpl., orange
120 52052 Felt strip
121 52054 Cable guide
122 52034GS Brush roller release knob r.h., gray black
123 52112 Buffer motor housing
124 52021ER Support lever
125 5107-1 Support spring
126 52102GS Wheel, cpl. with axle
127 52032GS Bearing block r.h., gray black
128 5010AM Brush roller, blue bristles
129 52033ER Brush roller release ring with spring
130 52195GS Chassis X7 cpl., gray black, incl. pos. 120+123
w/out bumper
131 5112SW Motor pulley cover
132 5463 Opti belt/Omega 2MR-310-6
133 5110 Belt 219 3M HTDII-6
134 52108 Sensor, cpl.
135 52111ER Bearing block l. h., cpl.
136 5172OR Access door, incl. pos. 137+138, orange
137 5304 Access door spring
138 5303 Access door axle
139 5155GS Rubbing plate
140 5060ER Servo motor with gear box
141 5174GS Pile adjustment wheel
142 52050GS Bumper set, X7 LED, gray black (Premium only)
143 52016ER LED assembly, cpl.
144 5402 Wire tie
145 52110GS Rear bottom plate, X7 cpl., incl. pos. 145+160
146 5400-1 Sealing strip
147 50404GSER Front bottom plate X7 cpl.
160 01029 Screw C2, 9x13
161 01016 AMTEC screw, 4.0x16 TORX 20
162 0176 Screw AM 4x30 DIN 7985TL
163 0104 Screw C 3.9x25 DIN 7981
164 0102 Screw F 3.9x13 DIN 7981
165 0197 Screw M 4x12 Z1
#91546AM, #91546AM AUTOMATIC X7 Premium
Pastel Blue Machine Exceptions
100 52126CIAM Power head cover, cpl., blue, incl. pos. 100a
102 52029CIER Exhaust filter cover, cpl., blue
#91547AM AUTOMATIC X7 Premium
Pastel Pink Machine Exceptions
100 52126CZAM Power head cover, cpl.,pink, incl. pos. 100a
102 52029CZER Exhaust filter cover, cpl., pink
#91507FC AUTOMATIC X7
Pastel Pink Machine Exceptions
100 52153CZAM Power head cover, cpl.,pink
102 52029CZER Exhaust filter cover, cpl., pink
142 52050GS Bumper set, X7, gray black
100
101
102
11
10
11
11
11
11
12
160
12
13
13
13
13
13
16
3
143
14
14
142
165
165
11
122
121
128
127
139
145
147
107
116
103
12
104
105
106
108
115
137
138
136
144
161
146
161
160
160
109a
16
4
12
120
129
130
165
161
161
16
3
161
16
11
164
2x
1612x
16
117
100a
Power Head
#91545AM AUTOMATIC X7 Premium Pastel Mint (USA)
#91545FC AUTOMATIC X7 Premium Pastel Mint (Canada)
#91546AM AUTOMATIC X7 Premium Pastel Blue (USA)
#91546FC AUTOMATIC X7 Premium Pastel Blue (Canada)
#91547AM AUTOMATIC X7 Premium Pastel Pink (USA)
#91507FC AUTOMATIC X7 Pastel Pink (Canada)
19
AUTOMATIC X8 SCHEMATIC AND PARTS LIST
#91566AM, #91566FC AUTOMATIC X8 Blue Machine
Pos. Part # Description
1 51132GSSB Handle complete, gray black/silver
2 51130GS Handle grip, gray black, incl. pos. 7+10
3 5359GS Grommet
4 5450DG Power supply cord
5 05113 Switch w/screws
6 51073SB Switch cap, silver
7 51072GS Switch cap holder, gray black
8 5162 Cable clamp
9 5253UL Wire-antistatic
10 5298ER Handle cable
11 5187 Handle tube X
12 5040SB Hose X, cpl., silver
13 5045GS Cleaning wand, gray black
14 51059GS Cover, gray black
15 5319 Bag holder spring
16 5091 Safety catch spring
17 5360 Safety catch
18 5324 Bag holder cpl., incl. pos. 16+17
19 51053SB Cover release, silver
20 51052SB Handle cover, silver
21 51051DBSB Front cover complete, dark blue
22 51050DBUL Bag housing X, cpl., dark blue
23 5380GS Internal cover cpl., gray black
incl. pos. 36+37
24 1073 Clamp
25 5208 Filter safety catch
26 5210 Return spring
27 5164 Cable clamp
28 51003SB Bag housing locking catch, silver
29 1859SB Handle catch, silver
30 5721DB Carrying handle, dark blue
31 5703DB Cable hook, dark blue
32 5146 Stop spring
33 5424SB Retaining ring, silver
34 5217ER Internal cable
35 5266 Cable clamp
36 5842 Seal
37 5289 Seal
38 1823GS Attachment clip, gray black
39 5084 Spring for locking rod
40 5083 Locking rod
41 51002DB Bag housing bumper base, dark blue
45 1092GS Crevice nozzle, gray black
46 1491GS Upholstery nozzle
50 0102 Screw F 3.9x13 DIN 7981
51 0103 Screw C 3.9x16 DIN 7981
52 0129 Screw M 4x12
53 0161 Clip 4, DIN 6799
54 01036 Screw 4x14, Torx 20
55 5460GS Mounting clip with screw
56 1387GS Dusting brush
60 5093AM AeraPure™ filter bag pack
61 5036AM Pre-motor microfilter
Bag Housing and Handle
#91566AM AUTOMATIC X8 - Blue (dark blue/silver) (USA)
#91566FC AUTOMATIC X8 - Blue (dark blue/silver) (Canada)
12
13
31
50
23
36
60
30
32
38
54
35
24
22
33
27
50
39
34
29
53
61
25
37
26
40
28
54
41
21
18
17
15
14
54
16
20
19
39
1
9
7
2
3
5
6
51
8
11
52
10
4
45
46
56
55
20
AUTOMATIC X8 SCHEMATIC AND PARTS LIST
#91566AM, #91566FC AUTOMATIC X8 Blue Machine
Pos. Part # Description
100 52122DBSE Power head cover, cpl., dark blue/silver,
incl. pos. 101a
100a 52044SB Display, silver
101 52038AM Exhaust microfilter
102 52029DB Exhaust filter cover, cpl., dark blue
103 52018ER Swivel neck support r.h., incl. pos. 117
104 5101 Swivel neck bearing r.h.
105 52023ER Swivel neck assembly X7 cpl.
106 52020 Swivel neck support l.h.
107 5717 Swivel neck bearing l.h.
108 52013 Motor support seal
109 52194ER Vacuum motor 120V/12 amps
109a 05117S Carbon brush set
110 52040ER Cable set motor, 2-wire
111 5100 Rubber mounting
112 52059UL Motor housing
113 52011ER Belt adjust, complete
114 5462 Motor pulley
115 52115ER Cover for air channel
116 52199ER Cable set swivel neck, incl. connector support
117 52103 Reed switch swivel neck X-2017
118 5870ER PCB power supply/controller X-2017, 100-120V
119 52009OR Foot pedal, cpl., orange
120 52052 Felt strip
121 52054 Cable guide
122 52034DB Brush roller release knob r.h., dark blue
123 52112 Buffer motor housing
124 52021ER Support lever
125 5107-1 Support spring
126 52102GS Wheel, cpl. with axle, gray black
127 52032GS Bearing block r.h., gray black
128 5290AM Brush roller set X8, blue bristles
129 52033ER Brush roller release ring r.h. with spring
130 52196GS Chassis X8 cpl., gray black, incl. pos. 120+123
w/o bumper
131 5112SW Motor pulley cover
132 5463 Opti belt/Omega 2MR-310-6
133 52224DB Brush roller release knob l.h., dark blue
134 52188ER Sensor X8, cpl.
135 5110 Belt 219 3M HTDII-6
136 52248ER Brush roller release ring l.h., w/spring
137 52134GS Brush cover l.h. X8, gray black
138 5815ER Edge brush X8, blue bristles
139 5237 Shaft extension, cpl.
140 52131 Sealed bearing X8
141 52121 Bearing block l.h., cpl.
142 5060ER Servo motor with gear box
143 5174GS Pile adjustment wheel
144 5172OR Access door cpl., incl. pos. 145+146, orange
145 5304 Access door spring
146 5303 Access door axle
147 5155GS Rubbing plate
148 5402 Wire tie
149 52120GS Rear bottom plate, X8 cpl., incl. pos. 150+165
150 5400-2 Sealing strip
151 52118GS Front bottom plate X8 cpl.
152 52016ER LED assembly, cpl.
153 52202GS Bumper set X8 LED, 3 pcs., gray black
160 01029 Screw C2, 9x13
161 01016 AMTEC screw, 4.0x16 TORX 20
162 0176 Screw AM 4x30 DIN 7985 TL
163 0104 Screw C 3.9x25 DIN 7981
164 0102 Screw F 3.9x13 DIN 7981
165 0197 Screw M 4x12 Z1
152
153
163
4x
100
101
102
107
103
104
105
106
108
116
115
117
161
122
121
127
120
126
128
129
130
145
146
144
147
149
151
161
150
165
148
164 2x
109a
110
111
161
3x
113
112
164
2x
118
119
125
126
131
124
123
164
132
135
141
134
143
142
133
137
136
162
138
139
162
162
162
164
109
140
161 2x
161
2x
161
160
3x
114
3x
2x
100a
Power Head
#91566AM AUTOMATIC X8 - Blue (dark blue/silver) (USA)
#91566FC AUTOMATIC X8 - Blue (dark blue/silver) (Canada)
