USER MANUAL
Tumble dryer
EN
TD76
T509HRW.UK
T509HRG.UK
Carefully read the instructions for use before using the dryer.
3Introduction ................................................
4Safety precautions .....................................
11
Before using the appliance for the first
time ..............................................................
11Packaging ....................................................
11Transport protection ....................................
12Cleaning .......................................................
13Installation and connection ......................
13Selecting the room .......................................
13Dryer placement ..........................................
15Adjusting the dryer feet ...............................
16Installation under the counter ......................

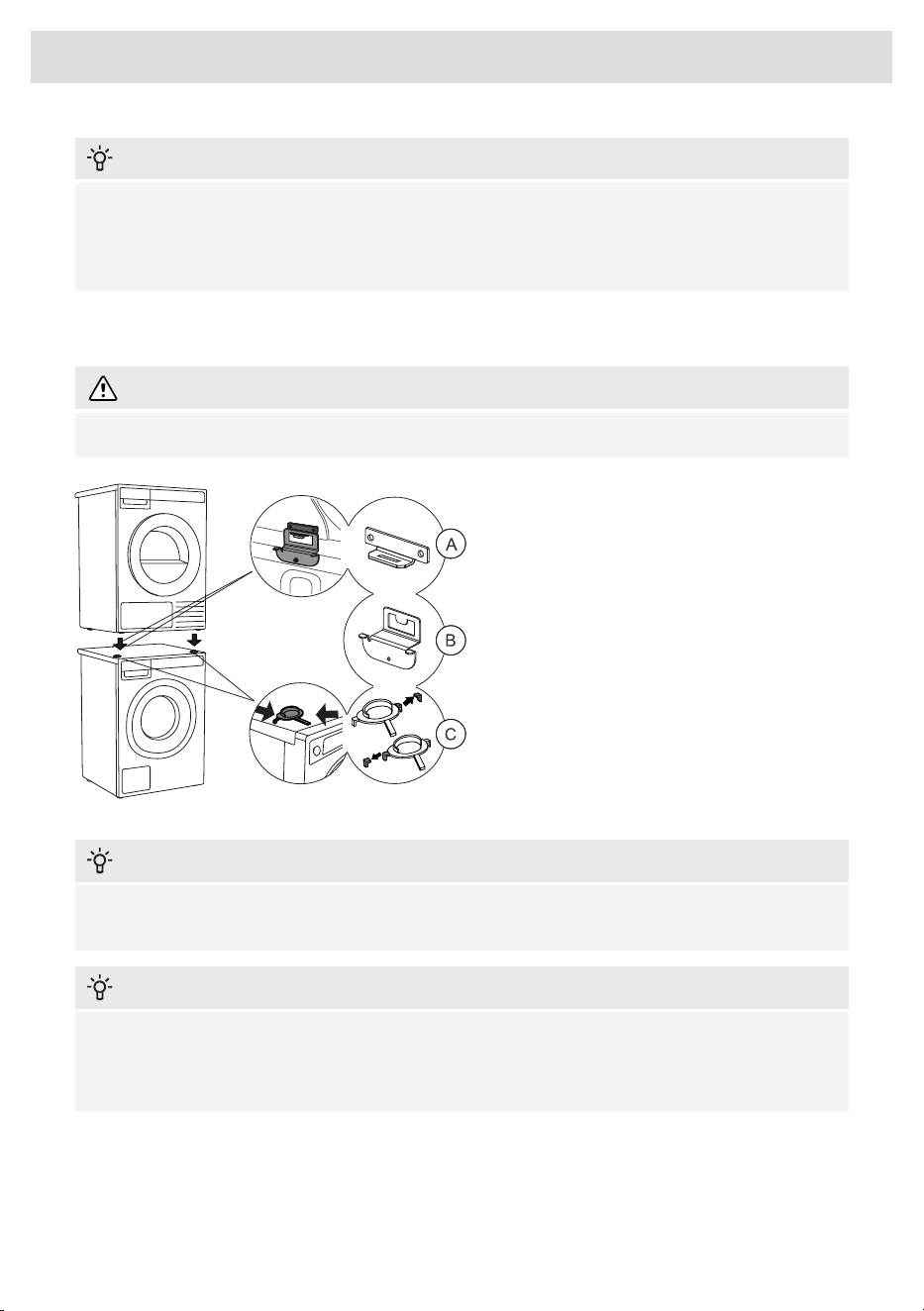

17Stacking on top of a washing machine ........

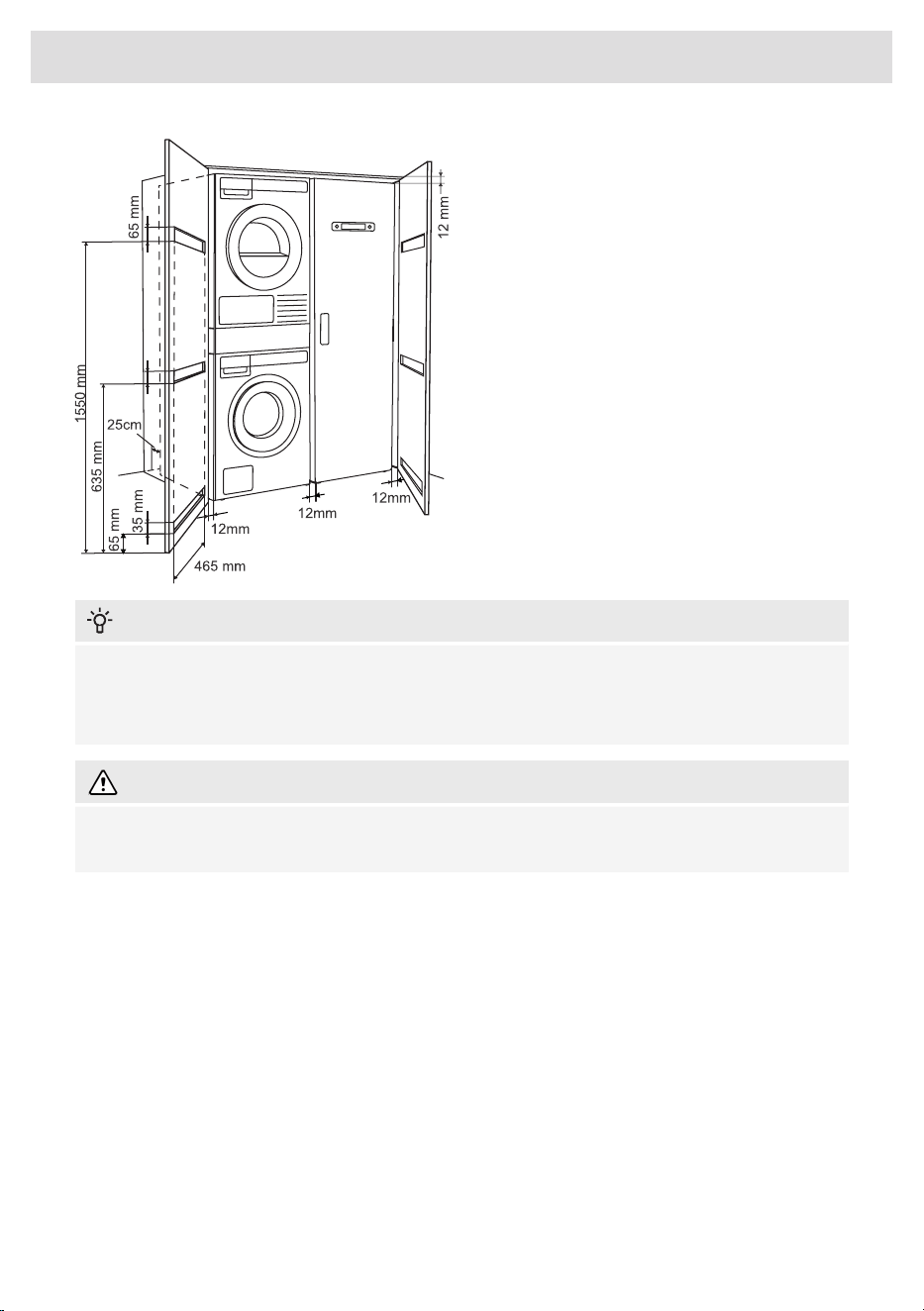

20Built-in ..........................................................
22Changing the door opening direction ..........
23Opening the Door ........................................
23Draining the condensate .............................
25Connecting to the power mains ...................
26ASKO Laundry Care - Hidden helpers .......
27Dryer description .......................................
27Control unit ...................................................
28Initial settings before use ..........................
29

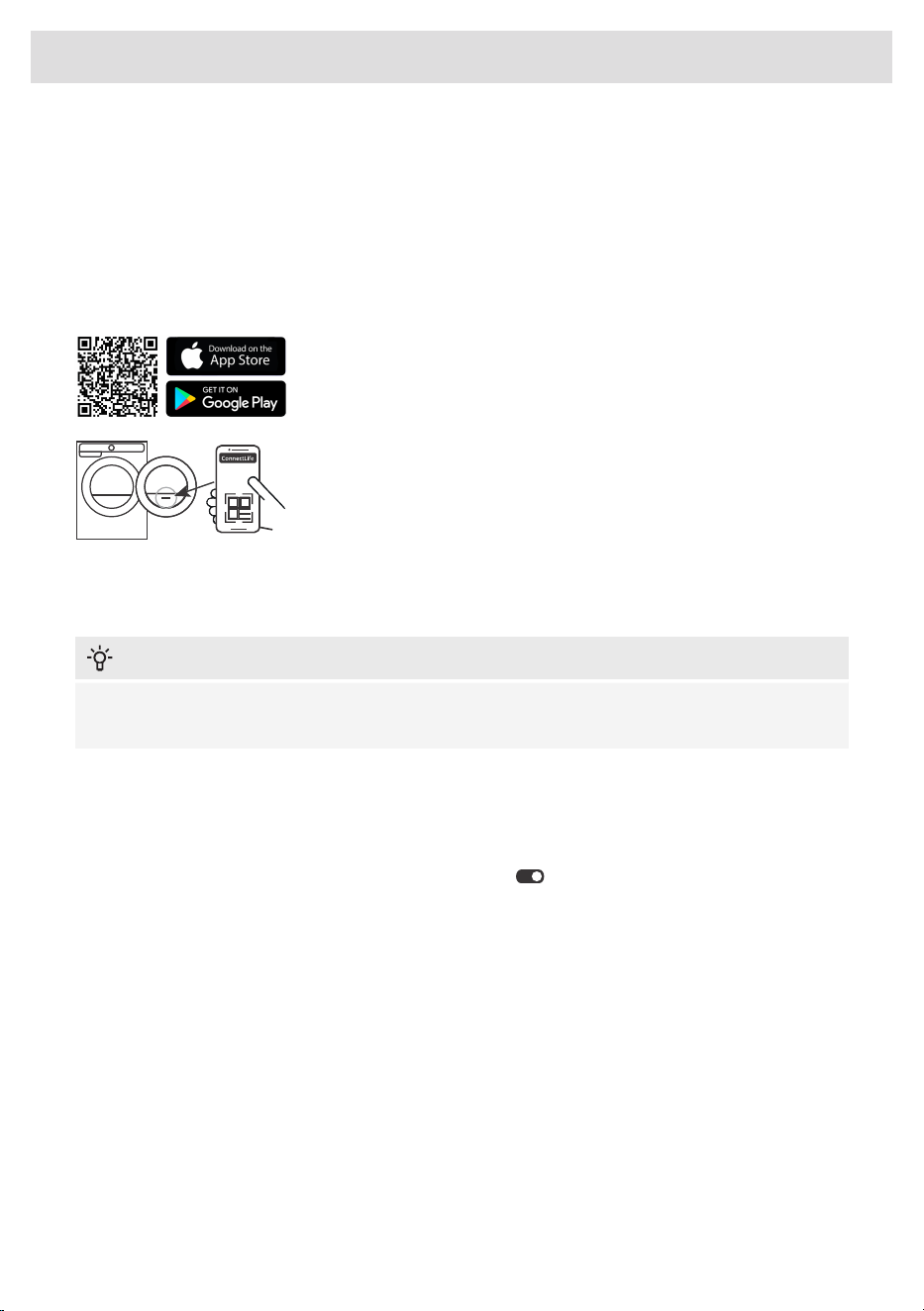

Connecting the appliance to the ConnectLife
application ...................................................
32Advices before drying ...............................
32Laundry sorting ............................................
32Clothing ........................................................
33
Materials (fabrics) suitable for drying in a
tumble dryer .................................................
33
Materials (fabrics) that may not be dried in a
tumble dryer .................................................
33
Materials that are not suitable for drying in a
tumble dryer .................................................

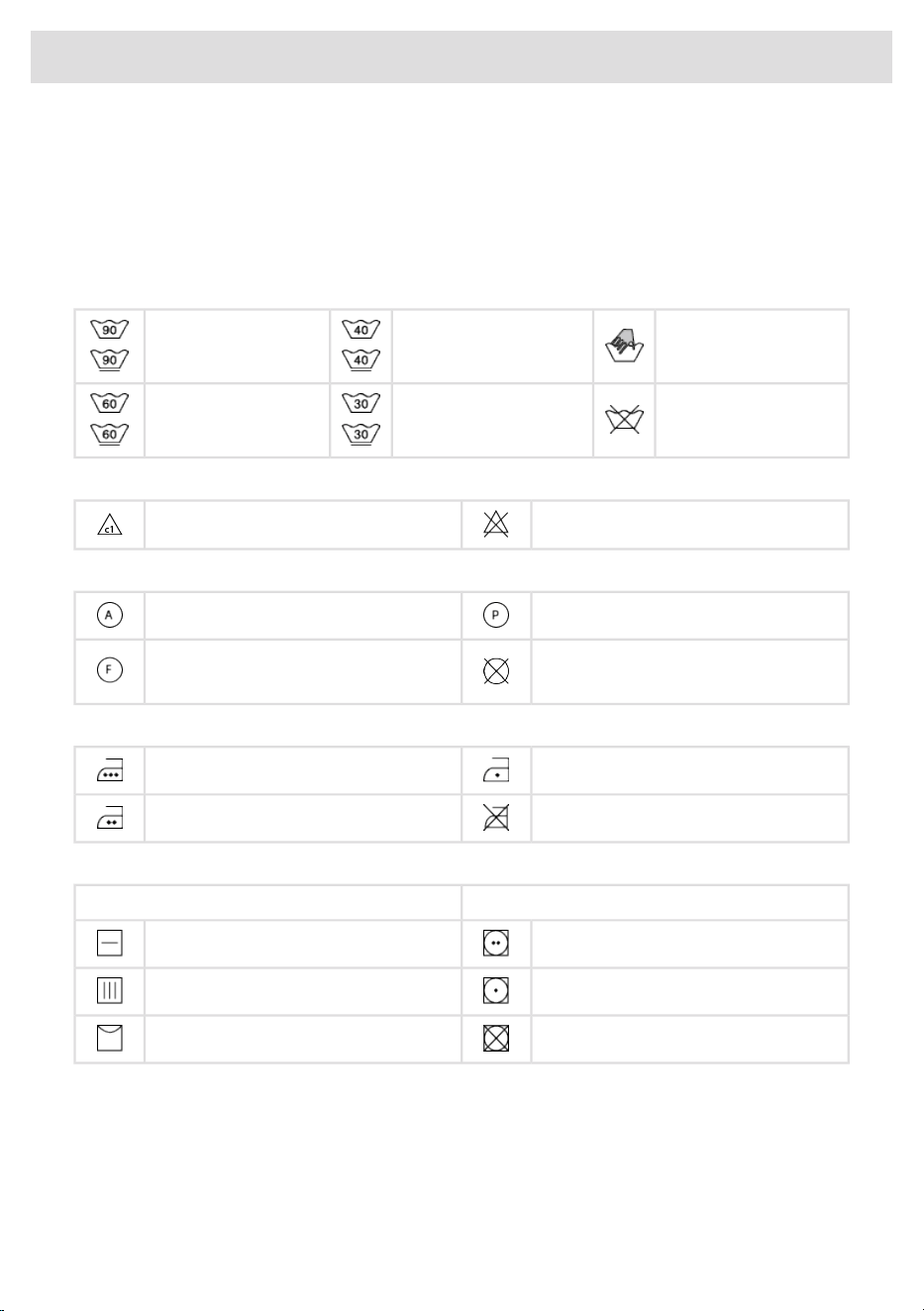

34Laundry symbols .........................................
35Drying process, step by step (1–7) ..........
35STEP 1: Sort the fabrics ...............................
35STEP 2: Turn on the main switch. ................
35
STEP 3: Open the dryer door and insert the
laundry. ........................................................
37Drying in a basket ........................................
38STEP 4: Choose the drying program. ..........
40STEP 5: Choosing the program settings ......
42
STEP 6: Close the door and start the drying
process. .......................................................
43STEP 7: End of program ..............................
45Appliance settings .....................................
45Additional service settings ...........................
49Cleaning and maintenance .......................
49Cleaning the appliance exterior ...................
49Additional information regarding cleaning ...
50Cleaning the lint filter ...................................
51Cleaning the lower lint filter ..........................
53Emptying the condensate tank ....................
54Errors: what to do? ....................................
55Failure display ..............................................
57Sounds .........................................................
58Service ........................................................
58Before calling a service center ....................
60Technical information ................................
60Technical data .............................................
60Link to the EU EPREL database ..................
60Typeface License Notice .............................
61Radio equipment type .................................
61Declaration of conformity .............................
62Table of consumption values ...................
64DISPOSAL ...................................................
Contents
Dear Customer,
We thank you for purchasing this quality ASKO product.
We hope it meets all your expectations. Scandinavian design combines pure lines, everyday
functionality, and high quality. These are the key characteristics of all our products, and the reason
why they are highly appreciated across the globe.
We kindly recommend you to read these instructions before using the tumble dryer for the first time.
The instruction manual also includes information on how you can help protect the environment.
The following symbols are used throughout the manual and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning – general danger
ELECTRIC SHOCK!
Warning – danger of electric shock
HOT SURFACE!
Warning – danger of hot surface
DANGER OF FIRE!
Warning – danger of fire
Original instructions
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!
3
Introduction
General
Please read the instruction manual and save it for
future reference.
• Please do not use the tumble dryer if you have not read
and understood these instructions or use first.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Failure to observe the instructions for use or
inappropriate use of the dryer may result in damage to the
laundry or the appliance, or injury to the user. Keep the
instruction manual handy, near the dryer.
• Instructions for use are available on our website at
www.asko.com.
• Your dryer is intended solely for household use.
• Before connecting the dryer to the power mains, please
read carefully the instructions for use that describe the dryer
and its correct and safe use. The instructions apply to
several appliance types or models; thus, settings or
equipment may be described herein which is not available
in your dryer.
• The warranty does not cover consumables, minor
deviations in colour, increased noise that results from
appliance age and which does not affect the functionality
of the dryer, and aesthetic defects on components, which
do not affect the dryer's functionality and safety.
• The maximum mass of dry textile material in kilograms to
be used in the appliance.
4
Safety precautions
Child safety
WARNING!
Children of less than 3 years should be kept away unless
continuously supervised.
Children should be supervised to ensure that they do
not play with the appliance.
• Before closing the dryer door and running the program,
make sure there is nothing except laundry in the drum (e.g.
if a child climbed into the dryer drum and closed the door
from the inside).
• Prevent your children and pets from entering the dryer drum.
• Activate Lock (Lock). See chapter: LOCK
• The dryer is made in compliance with all relevant safety
standards.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
• Children should be supervised to ensure that they do not
play with the appliance.
• Cleaning and user maintenance shall not be made by
children without supervision.
Danger of hot surface
HOT SURFACE!
WARNING! The back of the dryer may get very hot during
operation. Wait for the dryer to cool down completely
before touching its back side. (Observe the instructions
in the chapter Installation and connection)
5
Safety precautions
HOT SURFACE!
Never stop the drying process before it is completed; if you
do interrupt the cycle for any reason, be careful when
removing the laundry from the drum as it is very hot. Quickly
remove the laundry from the drum and spread it to allow it
to cool down as quickly as possible.
Connection and installation safety
ELECTRIC SHOCK!
To avoid danger, a damaged power cord may only be
replaced by the manufacturer, a service technician, or an
authorized person.
ELECTRIC SHOCK!
The door lock is under electrical voltage. The door must be
replaced by the manufacturer or their service technician or
similarly qualified persons in order to avoid any hazards.
WARNING!
Do not connect the dryer to power mains using an external
switching device such as a programme timer, or connect it
to power mains that is regularly switched on and off by the
power supply provider.
• Leave any repairs and similar tasks on the dryer to an
expert. Unprofessional repair may result in an accident or
major malfunction.
• The tumble dryer shall be disconnected from the power
source during servicing and replacement of parts. Removal
of the plug has to be such, that an operator can check, from
any of the points to which he has access that the plug
remains removed.
6
Safety precautions
• After installation, wait for 24 hours without moving the
appliance before using it for the first time. If the dryer has
to be laid down on one of the sides during transport or
servicing, place it with its left side, viewing from the
appliance front, downwards.
• Install the dryer in a room with adequate ventilation and a
temperature between 15°C and 25°C.
• After installation, the dryer should stand still for two hours
before it is connected to the power mains.
• The tumble dryer may not be in contact with a wall or
adjacent furniture.
• Place the dryer on a level and stable solid (concrete) base.
• The appliance must not be installed behind a lockable door,
a sliding door or a door with a hinge on the opposite side
to that of the tumble dryer, in such a way that a full opening
of the tumble dryer door is restricted.
• At least two persons are required to install the tumble dryer
on top of a washing machine.
• The air in the room where the dryer is installed may not
contain dust particles.
• Adequate ventilation has to be provided to avoid the back
flow of gases into the room from appliances burning other
fuels, including open fires.
• Never block the air exhaust (evacuation opening).
• In the appliance enclosure or in the built-in structure, keep
ventilation openings clear of obstruction.
• For appliances with ventilation openings in the base, a
carpet must not obstruct the openings.
• The lint must not to be allowed to accumulate around the
tumble dryer.
• The dryer shall not be connected to the power mains using
an extension cord.
7
Safety precautions
• Do not connect the tumble dryer to an electrical outlet
intended for an electric shaver or hair dryer.
• Always use the hoses supplied with the dryer.
• In case of incorrect dryer connection, incorrect use, or
servicing by an unauthorized person, the user shall bear
the cost of any damage as such damage shall not be
covered by warranty.
• In case of a defect, only use approved spare parts by
authorized manufacturers.
DANGER OF FIRE!
The refrigerant R290 in this appliance is environmentally
friendly yet combustible and may ignite if it comes into
contact with open flames or ignition sources. Keep naked
flames and ignition sources away from the appliance.
• Do not damage the refrigerant circuit.
Safe use
DANGER OF FIRE!
Only use the dryer to dry laundry that was washed with
water. Do not dry any laundry that was washed or cleaned
with flammable cleaners or substances (such as gasoline,
trichloroethylene etc.) as this may result in an explosion.
DANGER OF FIRE!
Remove all objects from pockets such as lighters and
matches.
• Do not dry unwashed laundry in the dryer.
• The tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
8
Safety precautions
• Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent
before being dried in the tumble dryer.
• Clothing that includes latex, rubber parts, shower and
bathing caps, and laundry or covers with rubber foam shall
not be dried in the dryer.
• The system consists of a compressor and a heat
exchanger. When the dryer is started, compressor operation
(the sound of flowing liquid) or flow of refrigerant may be
louder as long as the compressor operates. This is not a
sign of malfunction and it will not affect useful life of the
dryer. In time and with use of the dryer this noise will
become quieter.
• The dryer uses a heat pump system to heat the air.
• That the lint filter has to be cleaned frequently, if
applicable.
Clean the dryer filters after each drying cycle. If you have
removed the filters, replace them before the next drying
cycle.
• Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
• Do not use any solvents or cleaning agents that could
damage the dryer (please observe the recommendations
and warnings provided by the manufacturers of the cleaning
agents).
• Do not use any solvents, abrasive cleaners, glass cleaners,
or all-purpose cleaners.
• Never add chemicals or fragrances into the condensate
tank (see chapter Dryer description and Emptying the
condensate tank).
• A float will switch off the appliance if the condensed water
pipe is clogged or if there is a risk of overflowing of the
9
Safety precautions
condensed water accumulated in the condensed water
tank.
• If the condensate tube is blocked or clogged, then tumble
dryer operation is stopped (see chapter Emptying the
condensate tank).
• After the drying process, unplug the dryer power cord
from the power outlet.
Storage during the winter
Before moving the dryer or before storing it in a non-heated
room during the winter, the condensate tank has to be
emptied.
10
Safety precautions
INFORMATION!
When you run the dryer for the first time, or if the dryer has been out of use for a long time, slight
hitting noise may appear. This is normal and it will disappear after a few drying cycles.
Packaging
Remove all packaging. When removing the packaging, make sure not to damage the dryer with a
sharp object.
Please sort the materials in compliance with local waste management recommendations (see chapter
DISPOSAL).

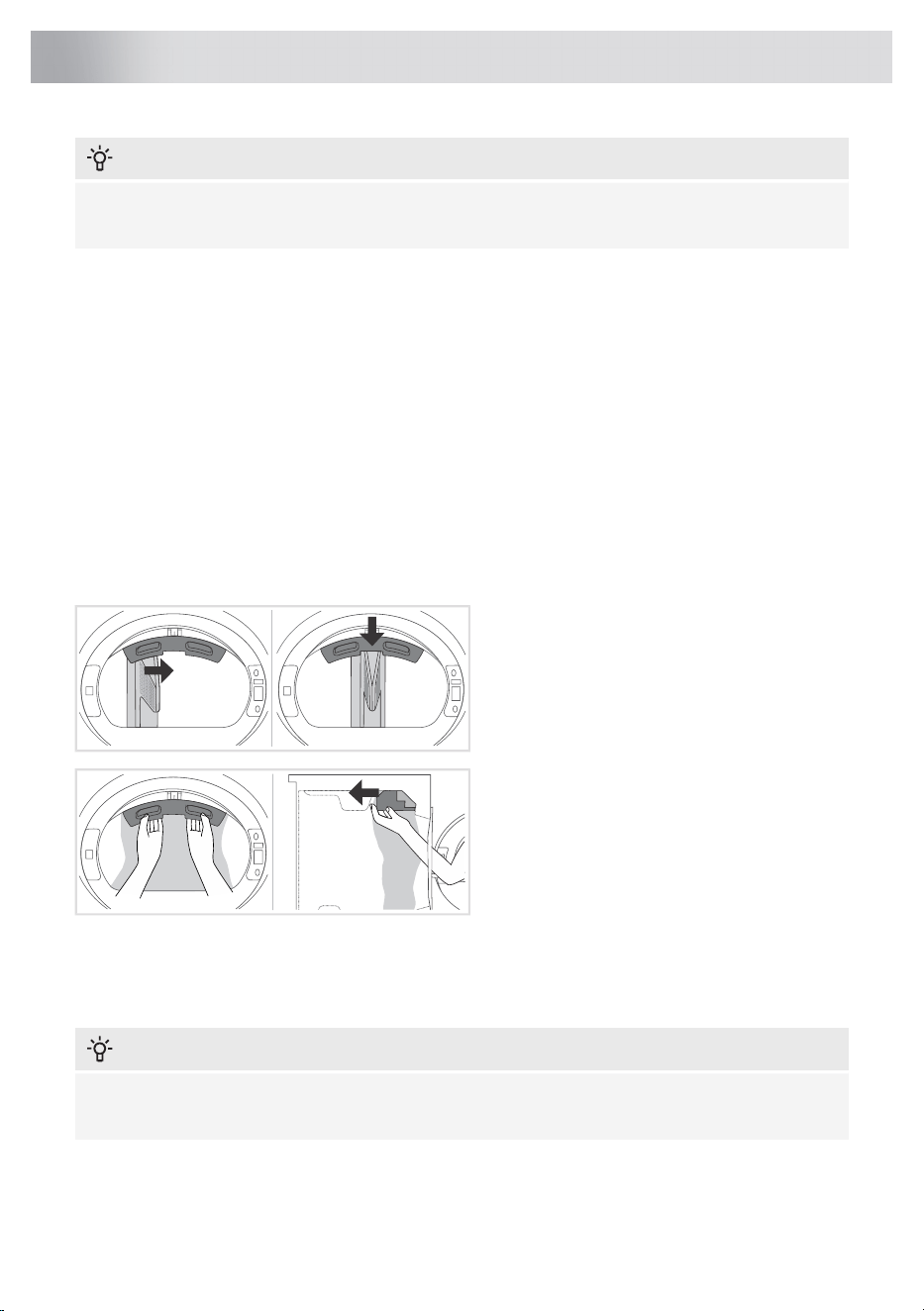

Transport protection
Before using the appliance, remove the transport protection designed to secure the appliance during
transport.
The transport protection is placed inside the drum of the dryer and secured at the top in a protective
bag.
1 Open the dryer door.
2 With one hand hold the transport protection,
and with the other hand one of the drum ribs.
Turn the rib toward the center of the transport
protection where the cutout (alignment recess)
is located.
3 Firmly hold the transport protection with
both hands to avoid damaging it during
removal.
4 With even pressure, push it straight into the
machine to remove it completely.
If you need to transport the appliance, reinstall the transport protection to prevent damage caused
by shaking during transit. When reinstalling the transport protection, slightly lift the drum from the
inside and press the protection firmly between the drum and the door frame on the inside, ensuring
that the drum is properly aligned.
INFORMATION!
In case the transport protection is lost, the appliance may be damaged during transportation,
and such damage will not be covered by the warranty.
11
Before using the appliance for the first time
Cleaning
Make sure the dryer is disconnected from the
power supply, then open the door by pulling
it towards you.
Before using the dryer for the first time, clean
the dryer drum using a soft damp cotton cloth
and water.
WARNING!
Do not use any solvents or cleaning agents that could damage the dryer (please observe the
recommendations and warnings provided by the manufacturers of the cleaning agents).
12
Before using the appliance for the first time
INFORMATION!
After installation, wait for 24 hours without moving the appliance before using it for the first time.

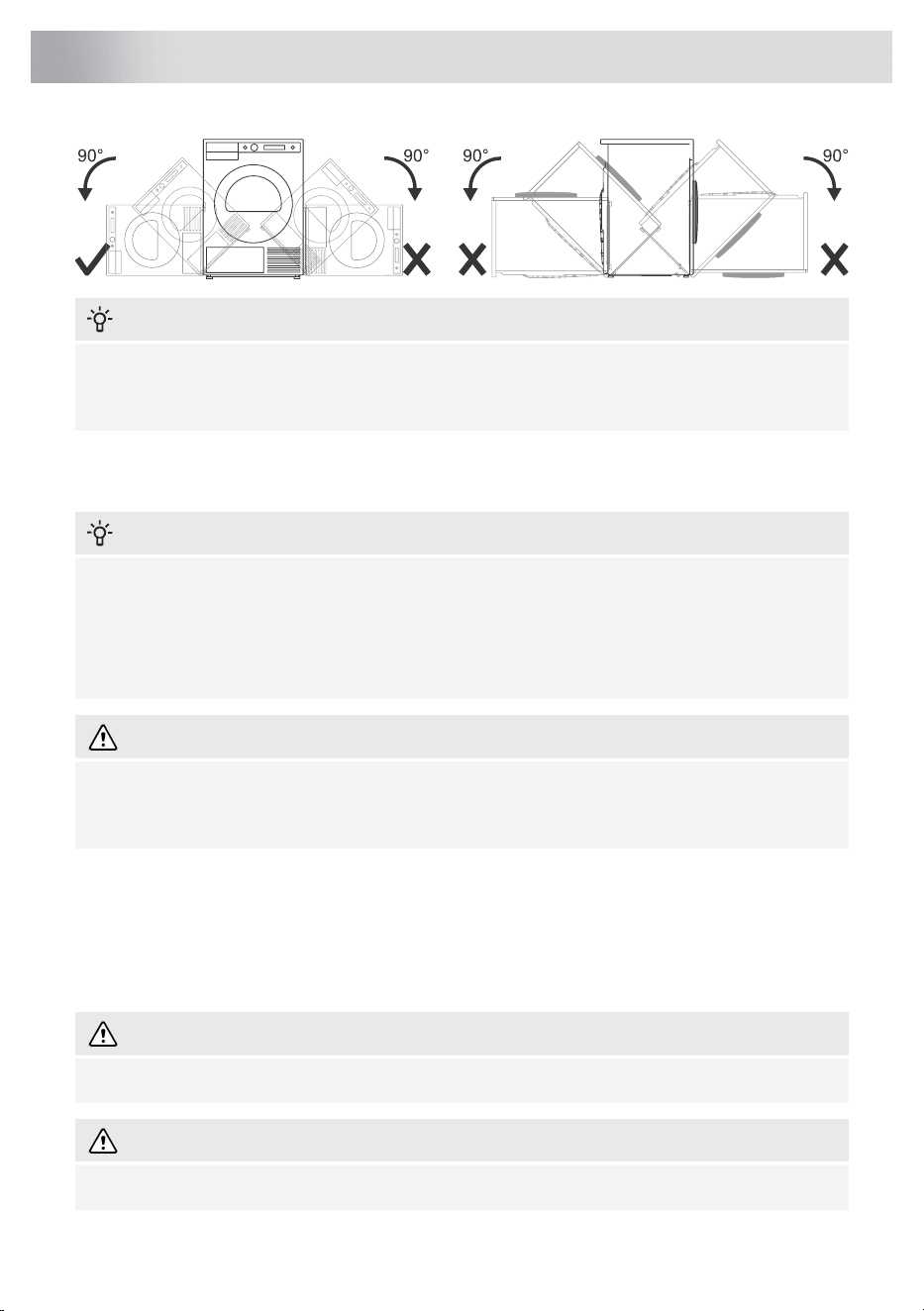

If the dryer has to be laid down on one of the sides during transport or servicing, place it with its
left side, viewing from the appliance front, downwards.
Selecting the room
INFORMATION!
Do not place the dryer in a room where temperature can drop below 0 °C, as the machine may
not operate correctly at such low temperatures, or freeze, which in turn can result in damage to
the machine.
For optimum dryer operation install it in a room with adequate ventilation and a temperature
between 15 °C and 25 °C.
WARNING!
The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge
on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble
dryer door is restricted.
Dryer placement
The dryer can be either free standing or installed on top of a washing machine.
The dryer emits heat. Therefore, do not place it in a very small room, as the drying process may be
longer due to limited amount of ambient air.
WARNING!
For appliances with ventilation openings in the base, a carpet must not obstruct the openings.
WARNING!
Never block the air vents.
13
Installation and connection
Clearance around the dryer for optimum operation
WARNING!
The dryer may not be in contact with a wall or adjacent furniture. For optimum dryer operation,
we recommend observing the clearance from the walls as indicated in the figure. In case of failure
to heed the required minimum clearance, the dryer may overheat.

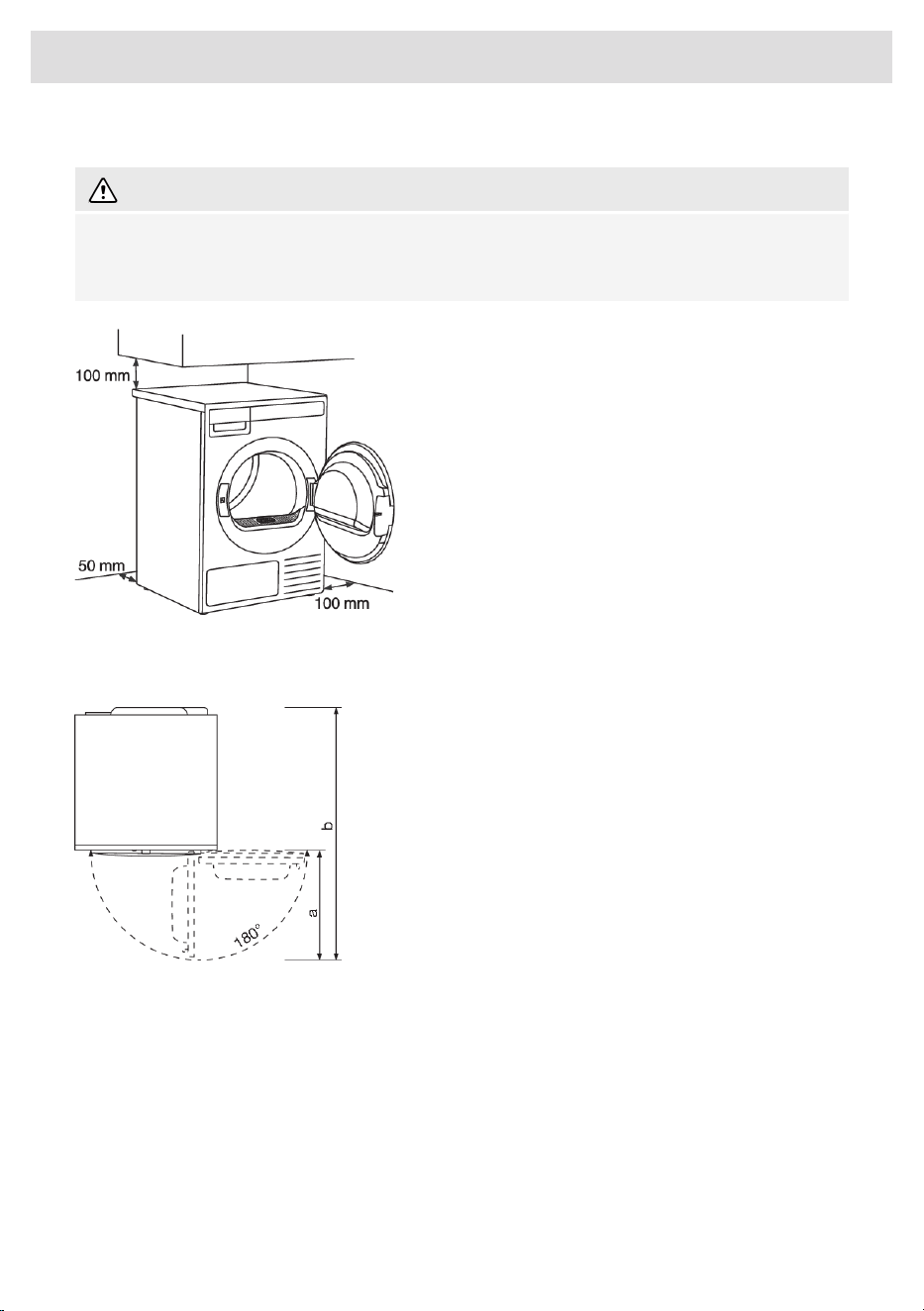

For safety reasons, the minimum distance
between the back of the appliance and the
wall must be at least 25 mm, and the distance
between the appliance and any furniture above
it must be at least 40 mm.
For installing the dryer into the cabinet, please
refer to the special installation requirements in
section Built-in.
Opening the dryer door (top view)
The dryer door width (a) is 503 mm.
The dryer depth with door open (b) is 1132,5
mm.
The dryer door can be opened up to the angle
of 180°.
14
Installation and connection

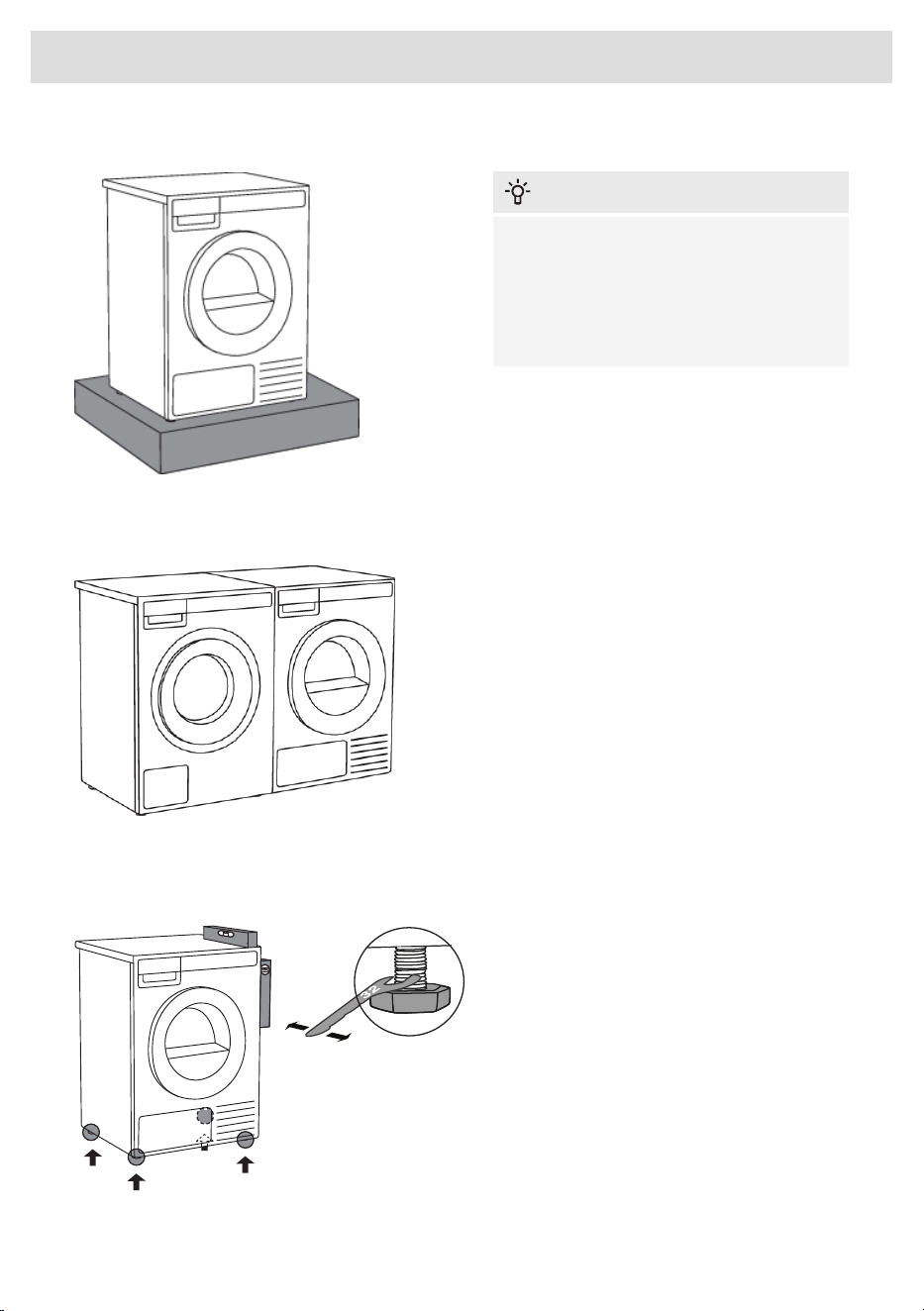

Placement on a pedestal
INFORMATION!
If the appliance is installed on a plinth or a
similar structure, then the appliance must
be fixed to it, to avoid the risk of falling.
ASKO original accessories are available
for this purpose, complete with fixing
instructions.
Free-standing appliance
The dryer may be placed adjacent to a
washing machine.
If there is insufficient friction between the dryer
feet and the floor, the dryer may slide during
operation.
To prevent any sliding, use a non-slide mat.

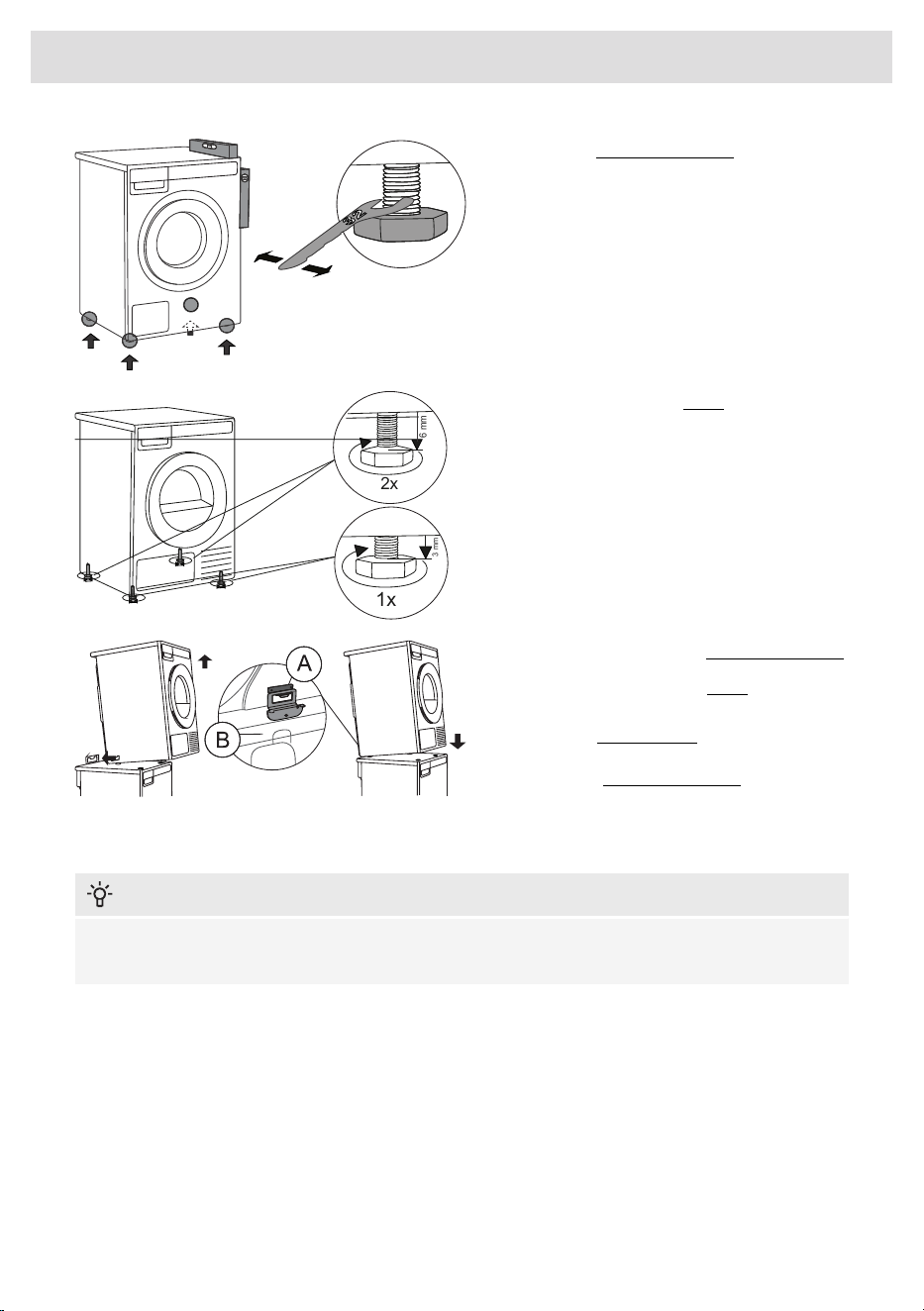

Adjusting the dryer feet
Place the dryer so that it is stable.
Use a spirit level to level the dryer in
longitudinal and traverse direction by rotating
the adjustable feet using a No. 32 spanner
(max. 15 mm).
15
Installation and connection
INFORMATION!
Incorrect levelling of the dryer with the adjustable legs may cause vibration, appliance sliding
across the room, and loud operation. Incorrect levelling of the dryer shall not be subject to
warranty.
INFORMATION!
Sometimes, unusual or louder noise may appear during appliance operation; these are mostly
the result of improper installation.
Installation under the counter
ASKO dryers can be installed under a furniture
unit or worktop which is at a height of at least
864 mm (measured from the floor to the bottom
surface of the counter). On all sides of the
appliance, there must be at least 12 mm of
room. Between the rear edge of the top panel
of the appliance and the wall behind the
appliance, the clearance must be at least
25 mm. The width of the opening in which you
want to insert the appliance must be at least
624 mm (measured between the sides that
limit the opening). The condenser models work
best when there is sufficient air circulation.
Install the dryer so the condensed water will continuously flow into a drain or sink, you will need a
drain outlet behind the unit. The maximum drain height is 1000 mm.
INFORMATION!
The height adjustment for the dryer is between 850 mm to 876 mm. Do not raise the appliance
higher than 876 mm.
It is very important to avoid a buildup of heat.
The warm air which is expelled from the rear of the dryer must be able to dissipate.
Warm air which cannot dissipate could cause a fault.
A buildup of heat could be avoided by:
• Creating a gap for the dryer in the kitchen furniture plinth facing.
• Creating ventilation gaps in the kitchen unit.
When build under, drying times may be longer.
16
Installation and connection
INFORMATION!
The dryer should not be installed next to a refrigeration appliance. The warm air expelled from
the rear of the dryer would increase the temperature around the refrigeration appliance heat
exchanger causing the compressor to run continuously. If it is not possible to install the dryer
anywhere else, then the refrigeration appliance must be sealed off from the dryer.
Stacking on top of a washing machine
WARNING!
At least two persons are required to install the tumble dryer on top of a washing machine.
To stack the dryer on top of a washing
machine, use the front feet (plastic footrests
(C)) and the tipping guard (A+B), supplied in
the dryer drum (see chapter How to stack a
dryer onto the washing machine (ASKO)).
If the washing machine and dryer are not of
the same dimensions, or if you have installed
an intermediate compartment between the
washing machine and dryer (ang.: Hidden
Helper), you can purchase a connecting plate
intended for the WM86-TD76 combination from
your dealer or at the repair shop.
INFORMATION!
The tipping guard (B) corresponds to ASKO washing machines and cannot be installed on
washing machines of other brands.
INFORMATION!
Washing machine on which you wish to install the dryer must be able to bear the weight of the
dryer (see washing machine’s rating plate or technical information).
All ASKO washing machines can bear the weight of the ASKO dryer.
17
Installation and connection

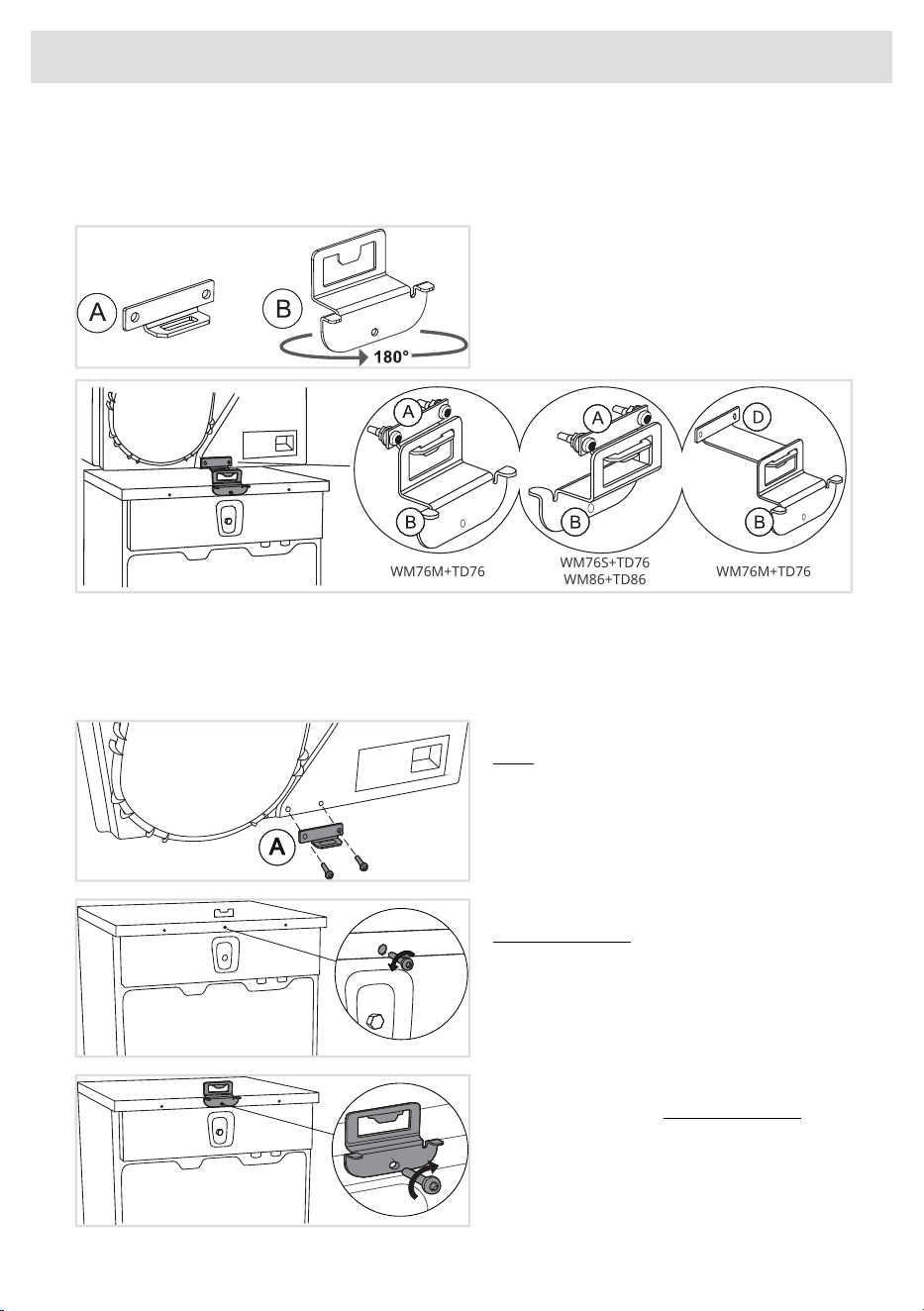

How to stack a dryer onto the washing machine (ASKO)
There is additional packaging in the dryer drum, which contains tipping guards (A, B), plastic footrests
(C) and screws.
1 The tipping guard consists of two metal
parts (A + B).
Part (B) can be rotated by 180°. Turn it
according to the depth of the washing machine
and dryer.
WM76M+TD76
WM76S+TD76
WM86+TD86
WM76M+TD76
Select the correct combination according to the type of washing machine and dryer, as indicated
on the rating plate located on the inner side of each appliance’s door (see chapter Service).
If your dryer has a smaller depth than the washing machine, you can purchase a suitable longer
guard (D) from the service center (ART. No.: 924231 OVERTURNING PROTEC.TD-76/WM-86).
2 Attach part (A) to the rear bottom of the
dryer using the two screws, washers, and nuts
included in the package.
3 Undo the screw on the back side of the
washing machine.
4 Use the screw to attach the tipping guard
(B) to the back of the washing machine.
Turn the part (B) according to the depth of
your dryer and washing machine (see point
1).
18
Installation and connection
5 Install the washing machine so that it is
stable.
1. Level the washing machine in longitudinal
and traverse direction by rotating the
adjustable feet using a No. 32 spanner.
The feet allow levelling up to +/- 1 cm.
6 Adjust the feet of the dryer.
3 mm
1x
6 mm
2x
1. First, tighten all 4 feet completely
(clockwise).
2. Unscrew the front 2 feet by exactly 1 turn
(3 mm) anticlockwise.
3. Then unscrew the last 2 feet by exactly 2
turns (6 mm) anticlockwise.
7 Place the dryer onto the washing machine.
1. Lift the front part of the dryer by 5 to 10
cm.
2. Push the tumble dryer into the tipping
guard (part B into part A) and install it on
top of the washing machine (see also
figure in chapter Stacking on top of a
washing machine).
INFORMATION!
Make sure that both parts of the tipping guard (A + B) are locked. The front sides of the washing
machine and dryer must be aligned!
19
Installation and connection
8 Stick the plastic foot attachments onto the
washing machine.
1. Break off the plastic positioners and peel
off the adhesive film from the plastic plugs.
2. Lift the front part of the dryer and adjust
and hold the plastic plugs on the front feet
of the dryer (make sure that the plugs are
correctly positioned on the right and left
feet, respectively, in relation to the
broken-off particle). Also make sure that
the feet fit properly in the plug.
3. Now lower and position the dryer onto the
washing machine, with the C-plugs
automatically sticking to the surface of the
washing machine.
Built-in

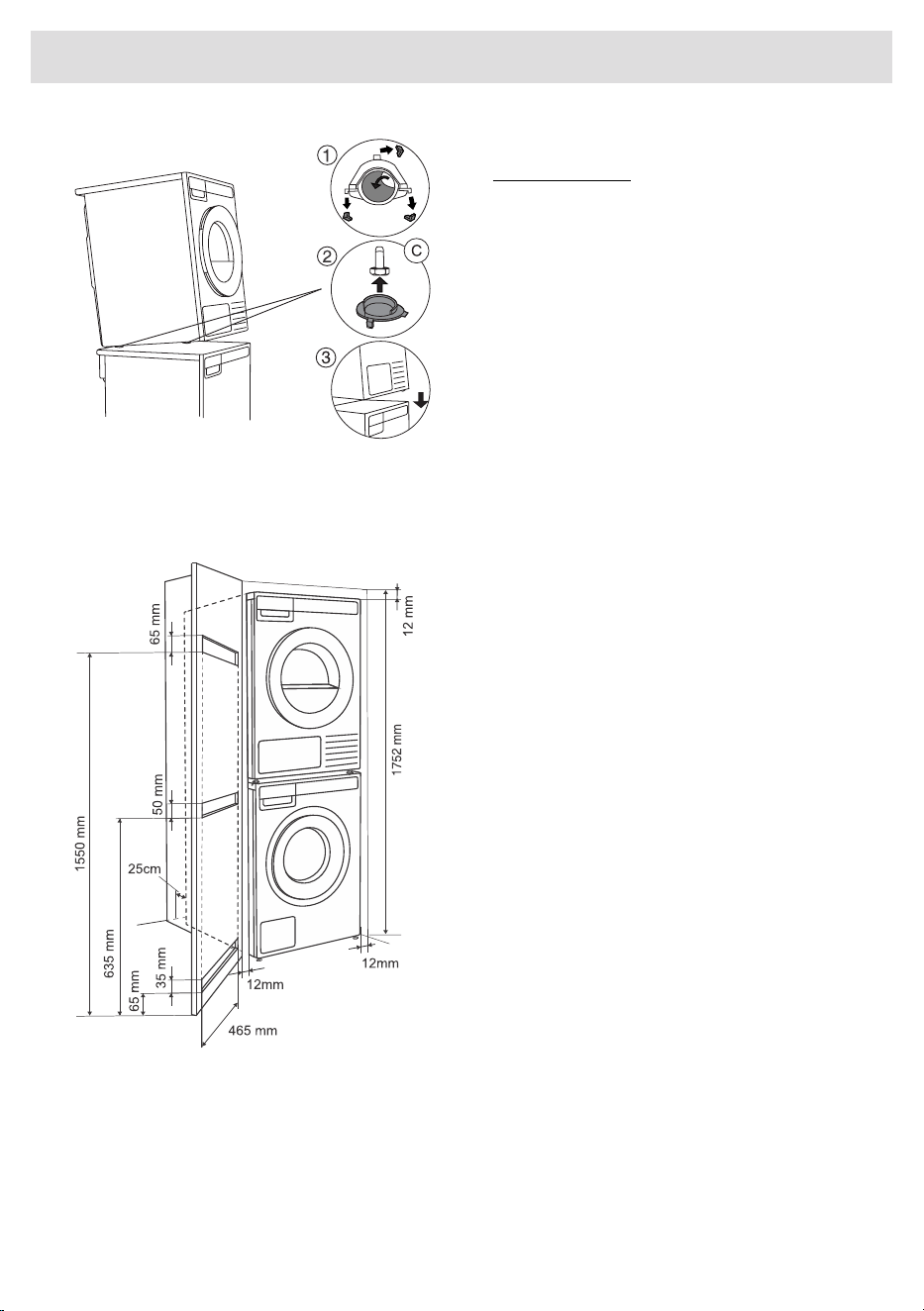

Installation in a cabinet
ASKO's front panel controls make it possible
to install the washers and dryers in a cabinet
or closet.
The distance between the left or right side of
the appliance and the surface of the side of
the cabinet or the surface of the wall of the
recess in which the appliance is installed must
be at least 12 mm. The distance between the
back of the appliance (note the deepest point
of the appliance) and the surface of the back
of the cabinet or the wall of the recess must
be at least 25 mm. See figure.
20
Installation and connection
Ventilation Requirements of ASKO
laundry concept or closet installation
Make sure there is clearance between
appliances and cabinet or wall and 25 mm
minimum clearance between the rear edge of
the appliance top panel and the cabinet or
wall.
When closet or cabinet is closed by the door,
we recommend louvered doors, to ensure
proper ventilation.
Otherwise, the door must be fitted with
ventilation gaps. See figure for dimensions of
ventilation openings.
INFORMATION!
Ensure the dryer door can be opened without hindrance after installation.
The cool air intake panel at the front of the dryer must not be blocked or covered. Doing so could
cause a fault.
WARNING!
Disregarding of instructions influences on appliance performance and may also result in failure
of the appliance.
21
Installation and connection
Changing the door opening direction
WARNING!
Before changing the door opening direction, the appliance must be disconnected from the power
supply! See chapter Safety precautions.
WARNING!
The door opening direction must be replaced by the manufacturer or their service technician or
similarly qualified persons in order to avoid any hazards.

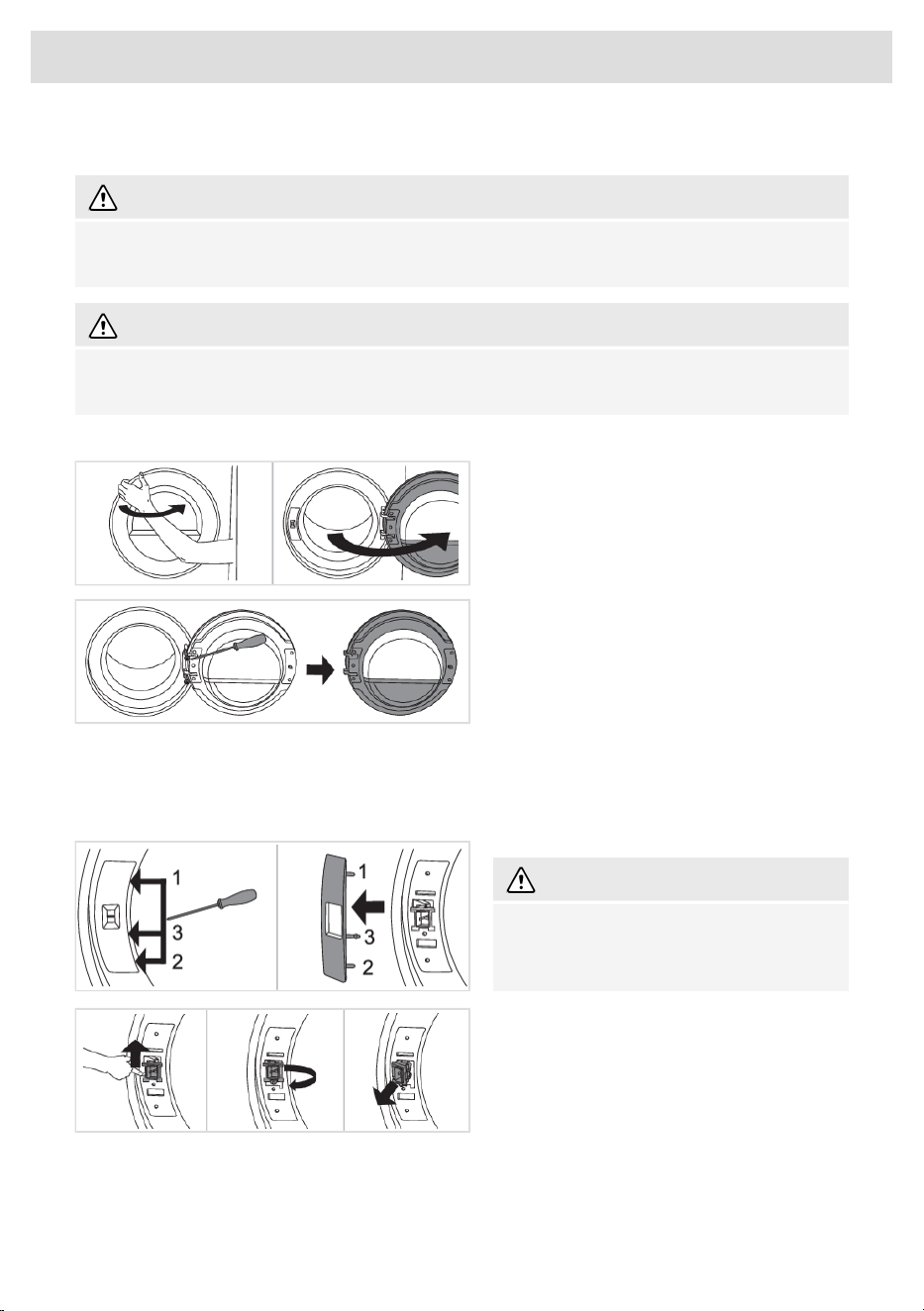

To change the direction of door opening, proceed as follows:
1 Open the door fully.
2 Undo the screws and remove the door.
3 Carefully remove the door lock cover with
a narrow, blunt object.
Release the latches on the door lock cover in
the indicated order.
WARNING!
When removing, make sure not to bend the
cover or its latches, as they may get
damaged.
4 Push the door lock up, slide it to the left and
remove it from the appliance in a rotating
motion.
22
Installation and connection

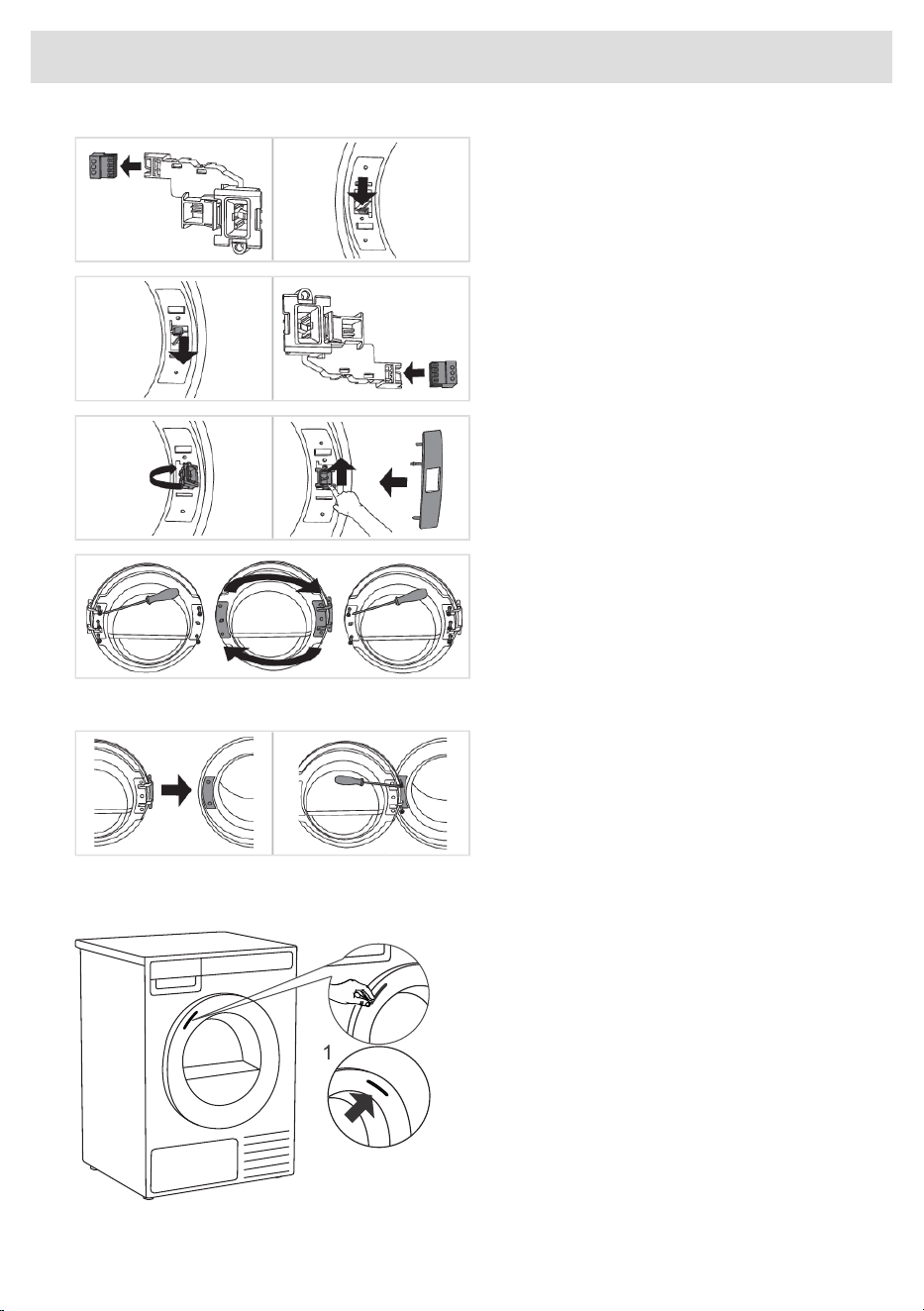

5 Remove the connector from the lock.
Insert the connector into the rib of the plastic
housing to prevent the appliance from rattling
when the connector is not plugged in.
6 On the opposite side where the door has
come off, remove the connector from the rib,
pull it out of the appliance and connect it to
the door lock.
7 Place the door lock in the appliance in the
reverse order of its removal from the appliance.
Remount the door lock cover.
8 Undo the door hinge assembly (left) and
the door latch assembly (right), switch their
positions, and replace the screws (door hinge
assembly to the right-hand side, door latch
assembly to the left-hand side).
Use a screwdriver to remove the plastic part
more easily.
9 Install the door on the front wall and screw
it in.
Opening the Door
The tumble dryer door is designed to open on
the left side, with a visual indicator in the form
of a sticker placed on the front of the door,
clearly marking the spot for gripping and
opening.
1 In case of changing the door opening
direction, you can move the sticker to the
opposite side. Carefully remove the sticker
and attach it to the right side of the door,
ensuring it is positioned at the same height.
1
23
Installation and connection
Draining the condensate
The moisture from the laundry is extracted in the condenser unit and accumulated in the condensate
tank. The condensate tank has to be emptied regularly (see chapter Emptying the condensate tank).
To avoid emptying and interruption of the drying cycle due to full condensate tank, run the condensate
drain pipe located at the back of the appliance directly into a drain (see chapter Additional service
settings).

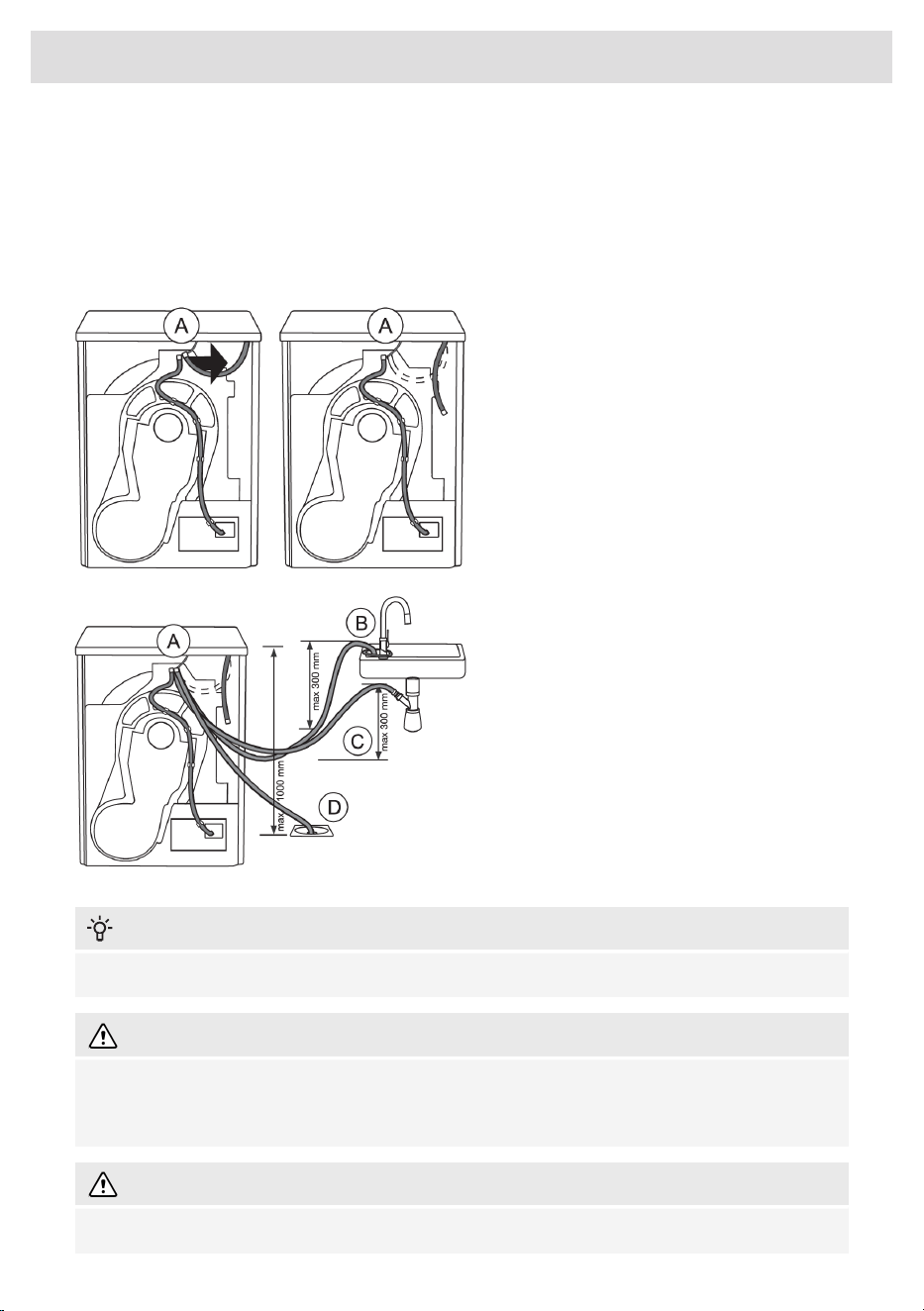

1 Remove the rubber hose from the
attachment (A).
2 Connect the supplied drain hose to the
same attachment (A).
Run the condensate drain hose into a drain.
Tie the hose onto a tap (B) so that it cannot
slip during use.
The drain hose can also be fed into the
washbasin siphon (C) or directly into the floor
drain (D).
Then, the water is pumped directly into a
washbasin, a siphon, or a floor drain.
INFORMATION!
Do not pull the drain hose, and make sure it is not under tension, clamped, or bent.
WARNING!
If you decide to run the condensate drain hose into a drain, siphon, or washbasin, make sure the
hose is securely fastened. This will prevent any water spillage that could result in unexpected
damage.
WARNING!
Always use hoses that are supplied with the appliance.
24
Installation and connection
WARNING!
If the dryer is connected to an air exhaust system already used for another appliance, a non-return
valve must be installed. Return flow into the dryer could damage the appliance and the non-return
valve prevents such flow.

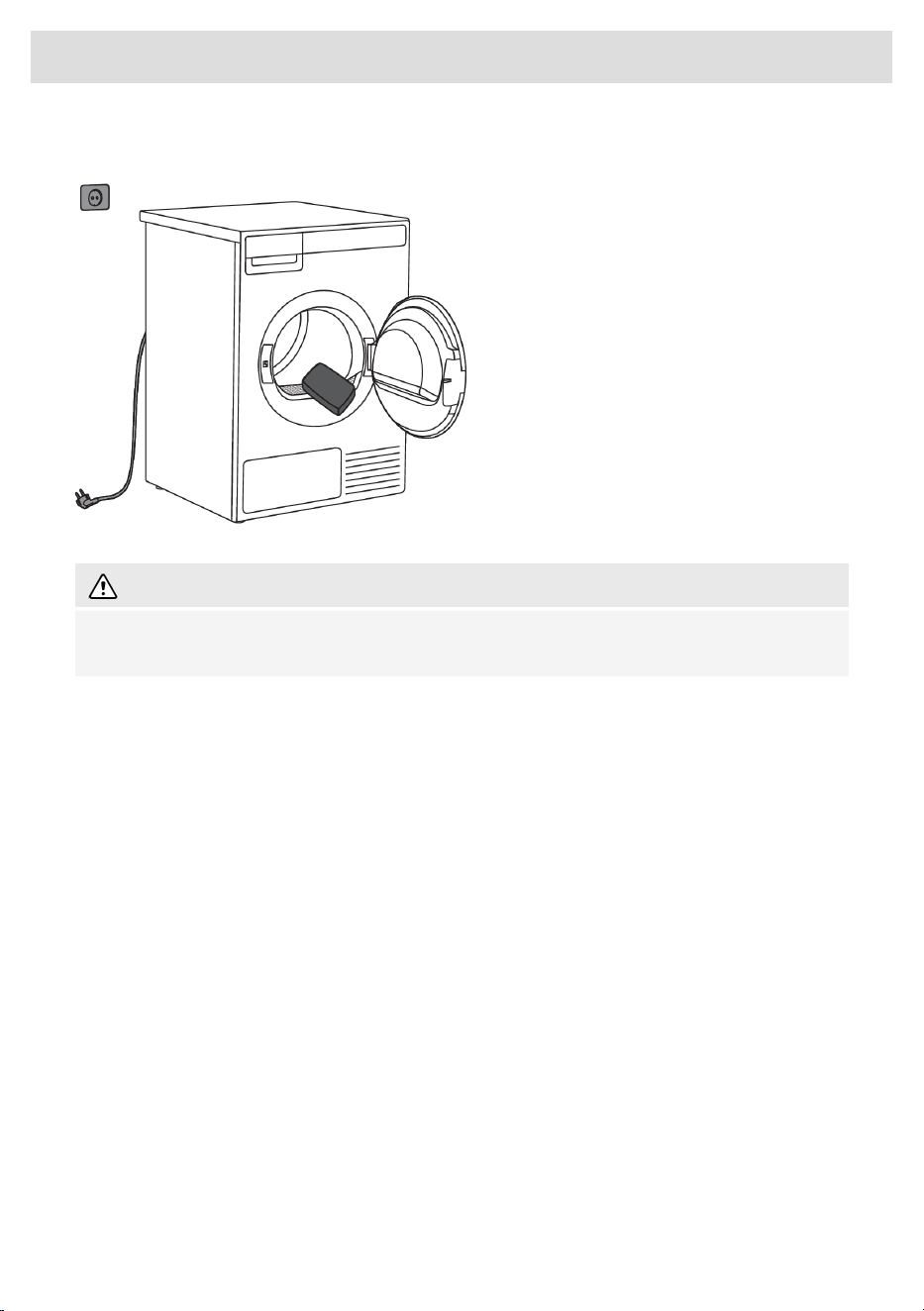

Connecting to the power mains
ELECTRIC SHOCK!
After installation, the dryer should stand still for two hours before it is connected to the power
mains.
Connect the appliance to an earthed power outlet. After installation, the wall outlet should be freely
accessible. The outlet should be fitted with an earth contact (in compliance with the relevant
regulations).
Connection upon delivery

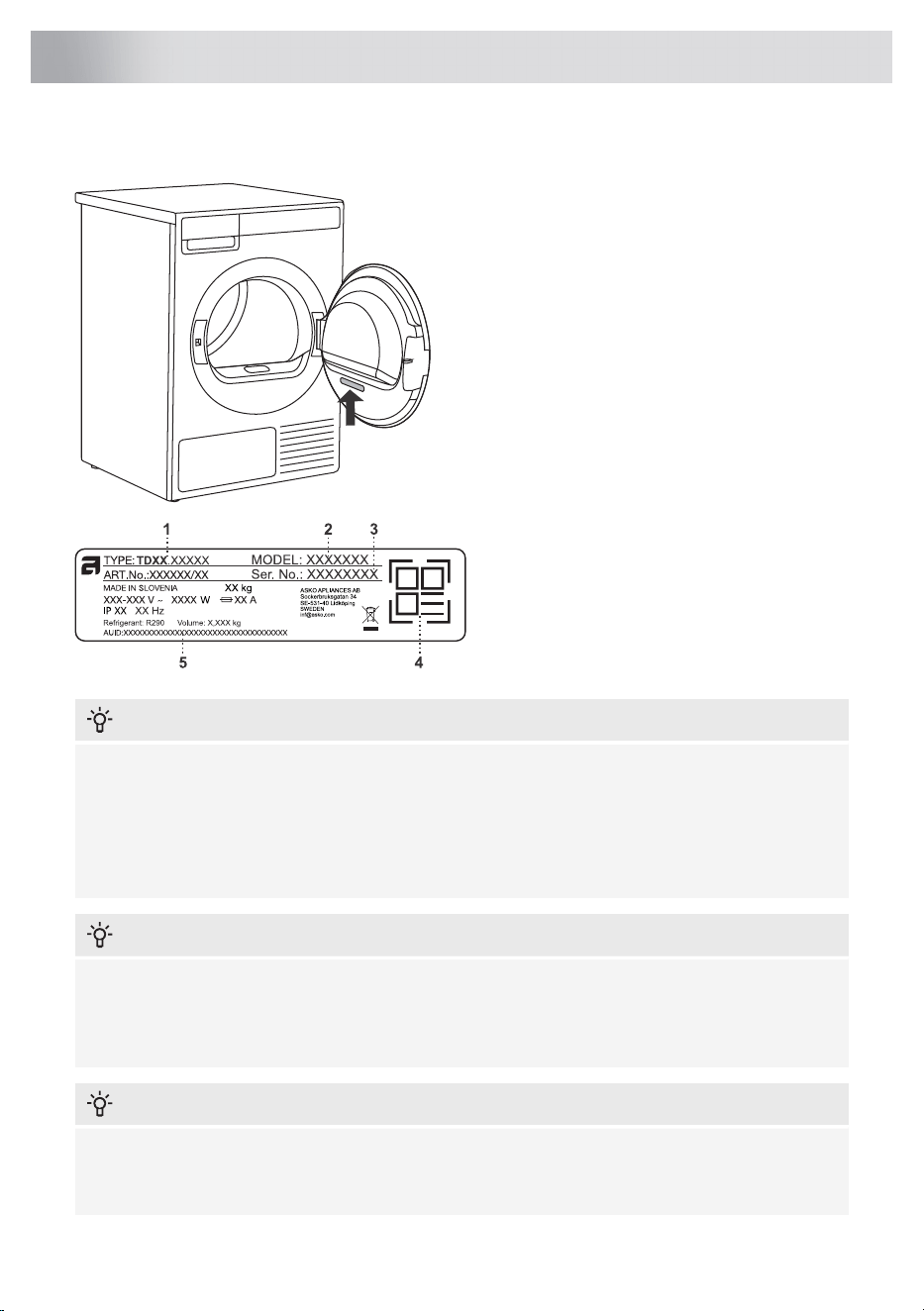

1 - Model type
2 - Model
3 - Serial number
4 - QR code
5 - AUID code
Information about your dryer is indicated on the rating (type) plate.
Use the type A differential current protection switch.
WARNING!
The dryer shall not be connected to the power mains using an extension cord.
INFORMATION!
Do not connect the tumble dryer to an electrical outlet intended for an electric shaver or hair
dryer.
INFORMATION!
Any repair and maintenance pertaining to safety or performance should be done by trained
experts.
25
Installation and connection
ASKO Laundry Care - Hidden helpers

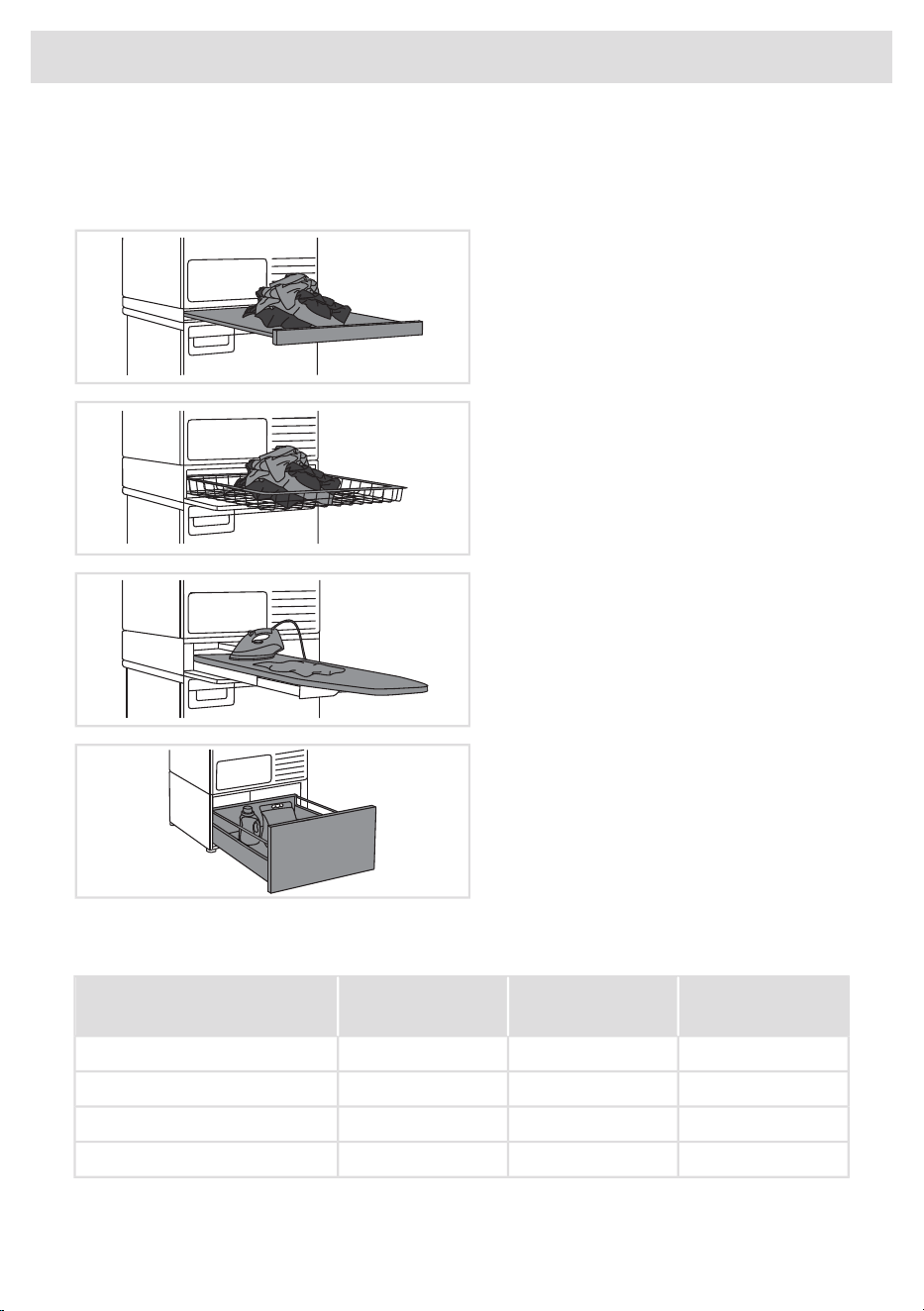

The Hidden Helper (single shelf, basket, or ironing board) can be installed between the washing
machine and the dryer, or on top of either appliance.
SLIM - Single Shelf
Pull-out shelf. It can be used as an additional
surface when folding clothes and sorting socks
or for storage. It also makes loading and
unloading your laundry much easier. It can be
installed between your washer and dryer.
BASKET
A large pull-out basket that is easily accessible
via a push-pull door opening. Useful for
removing laundry and carrying it to the
wardrobe or workbench for ironing and folding.
IRONING BOARD
The ironing board is a clever solution. It is
always handy when you need to iron your
clothes, and it can be easily, safely and
invisibly stored away when not in use.
A PEDESTAL DRAWER
A useful storage drawer with a height of 30
cm. Ideal for storing your detergent, softener,
coat hangers, pegs, user manuals and other
useful items in the laundry area.
The pedestal drawer is installed under the washing machine or the dryer.
Availability depending on market
Graphite black
ART. No.
Titanium
ART. No.
White
ART. No.
DENOMINATION
HS60G - 746297HS60T - 746296HS60W - 746295SLIM
HB150G - 746300HB150T - 746299HB150W - 746298BASKET
HI150G - 746314HI150T - 746312HI150W - 746311IRONING BOARD
HP320G - 746317HP320T - 746316HP320W - 746315A PEDESTAL DRAWER
26
Installation and connection

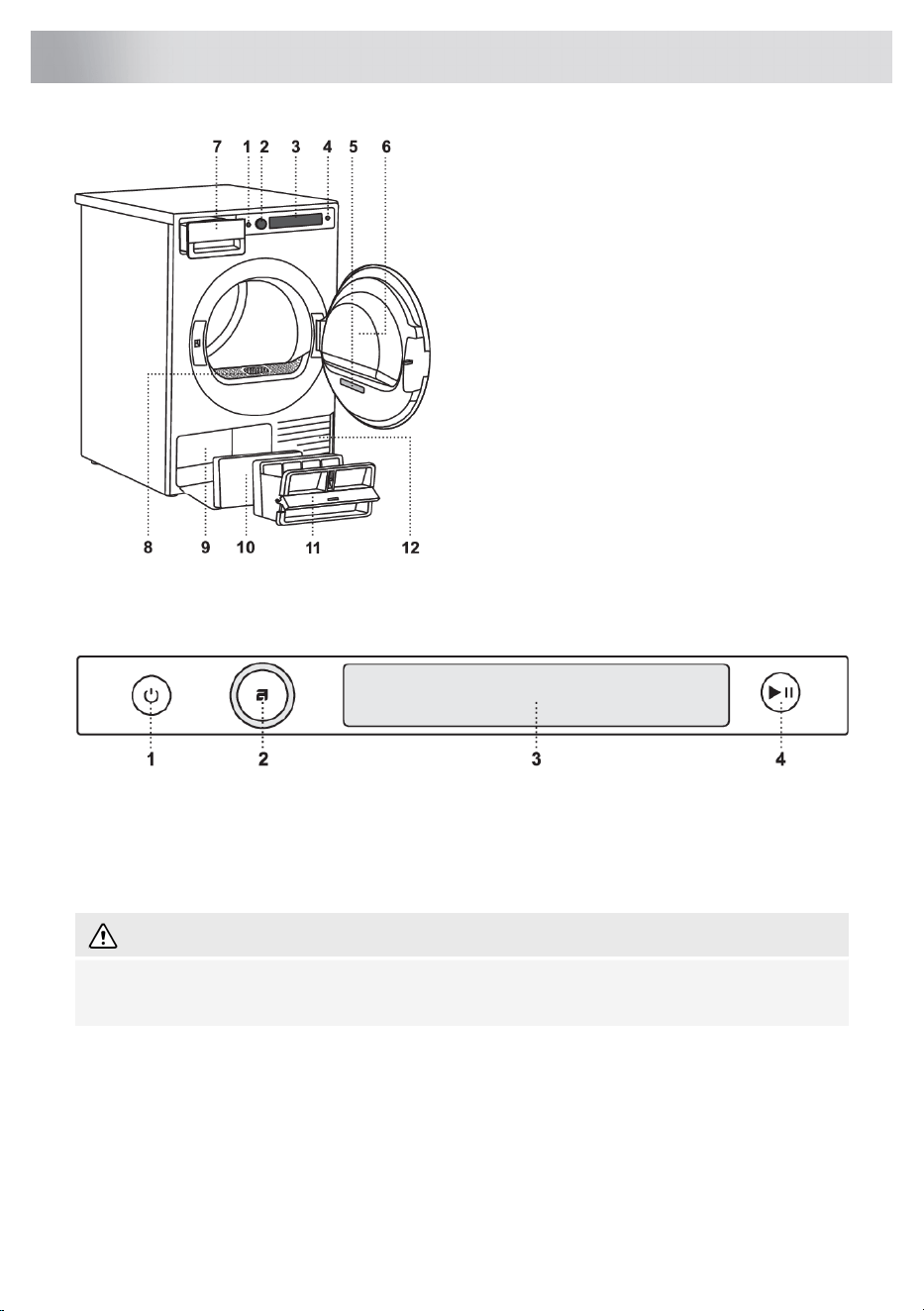

1. Main switch for turning On/Off
2. Knob for selection and confirmation
3. Touch screen
4. Start/Pause button
5. Rating plate with information about the
dryer (on the inside of the dryer door) and
QR and AUID code (on the inside of the
dryer door)
6. Dryer door
7. Condense water tank
8. Lint filter
9. Heat pump
10. Additional foam filter
11. Lower lint filter
12. Air vents
Control unit
1. Main switch for turning On/Off
2. Knob for selection and confirmation
3. Touch screen
4. Start/Pause button
WARNING!
Do not press hard on the screen or press with pointy or sharp objects, as this can permanently
damage the screen.
27
Dryer description
When the appliance has been connected and switched on, first select the language (see chapter
Installation and connection).
1 Choose language (Language)
Scroll left or right to navigate the list of
languages, then press the desired language
to confirm your selection.
You can set the following settings in the next step:
The following settings are available:
1 Water connection,
2 WI-FI settings.
If you do not want to change the factory presets, you can continue to use the dryer by touching the
key .
2 Condense water (1)
You can choose between draining condense
water tank into a condensate tank or directly
into the drain.
Confirm the selection by touching the desired drain mode. To deselect, do so by tapping .
If you opted for Drain, it is necessary to observe the proper installation of the drain hose (see chapter
Draining the condensate).
3 Wi-Fi settings (2)
Choose between On and Off Wi-Fi
the connection.
If you have enabled the Wi-Fi connection, see setup procedure in chapter How to enable Wi-Fi on
the device?.
To cancel the procedure of connecting to Wi-Fi, do so by pressing .
Your dryer is now set up and ready to use.
28
Initial settings before use
Connecting the appliance to the ConnectLife application
ConnectLife is an advanced smart home platform that enables seamless connectivity between
people, devices, and services. With the ConnectLife app you can easily monitor and manage your
smart devices, receive notifications directly to your smart device and update software (available
functions depend on your appliance and region).
To connect your smart device to the ConnectLife platform, you need a home Wi-Fi network (2,4 GHz
networks are supported) and a smart device with the ConnectLife app.
STEP 1: Download the ConnectLife app by scanning the included QR
code or searching for it in your favorite app store.
STEP 2: Install the ConnectLife app and create an account.
STEP 3: In the ConnectLife app, go to the »Add device« menu and
select the appropriate type of device. Then scan the QR code (it can
be found on the rating plate of the appliance; you can also enter the
AUID/SN number manually).
STEP 4: The application then guides you through the entire process of
connecting the appliance to your smart device.
After a successful connection, the appliance can be operated remotely via the application.
Useful tips for your smart device
INFORMATION!
The QR code of the device required by the app during the installation process can be found on
the rating plate of the appliance (see chapter Service).
How to enable Wi-Fi on the device?
1. Turn on the appliance. In the main menu, go to the far left and select Additional service settings.
2. Select Wi-Fi settings.
3.
Make sure that the Wi-Fi setting is switched on (On) .
4. Select Connection setup.
If you do not yet have the ConnectLife app installed on your smartphone (or any other smart device),
install it now (scan the QR code on the screen), create your user account and login.
• In the ConnectLife app, open the add device menu.
• Follow the instructions in ConnectLife.
- Select the type of appliance.
- Scan the QR code (it can be found on the rating plate of the appliance).
• On the appliance, press Next twice.
- The 5 minute countdown will begin. During this time, connect the app to the appliance.
• In the ConnectLife app, instructions will guide you through the process of entering the appropriate
data for your appliance to connect to your home network.
29
Initial settings before use
How to enable remote start of the appliance?
In the main menu, select Remote start. To activate, press the Start/Pause button (the door must be
closed). The screen displays.
The appliance is now ready for remote control through ConnectLife app.
INFORMATION!
Remote start will remain active for the next 24 hours unless cancelled. During this time, the
appliance can enter standby mode and switch off the display. If this happens, the logo will remain
lit, which means that Remote start is still active.
How to add another user or multiple users?
See chapter How to enable Wi-Fi on the device? and observe points 1 and 2.
Select Add device . As a new user, if you do not yet have the ConnectLife app installed, install it on
a smart device.
• In the ConnectLife app, go to the Add device menu and follow the instructions.
• On the appliance, press Next.
- The 3 minute countdown will begin. During this time, connect the app to the appliance.
How to remove the users?
How to remove a user (Unpair device)?
See chapter How to enable Wi-Fi on the device? and observe points 1 and 2.
Select Unpair device. Press Ok.
INFORMATION!
This step will remove all active users of the appliance. If you want to operate the appliance
remotely again you will need to repeat the process of adding a user.
Which Wi-Fi router can be used?
Only 2,4 GHz networks are supported. If the ConnectLife app cannot find your local network during
the connection set-up process, check the following:
• your router is operating at the frequency of 2.4 GHz,
• your network is hidden, and
• your signal is strong enough.
Do you have more questions?
30
Initial settings before use
Remotely upgrading the software
When you receive a software update notification, you can choose to update your software from the
app menu in your settings. Upon confirmation, the update is performed, the appliance must be in
standby mode during this time (more on standby mode in chapter Table of consumption values).
Check the software update options in the ConnectLife app.
31
Initial settings before use
This chapter includes several advices on how to prepare the laundry for drying.
Laundry sorting
Sort the laundry according to the type and thickness of the fabric.
For the most even drying, make sure the laundry is made of a similar material.
Clothing
1. Sort the laundry by type and thickness of the fabric (see Program chart).

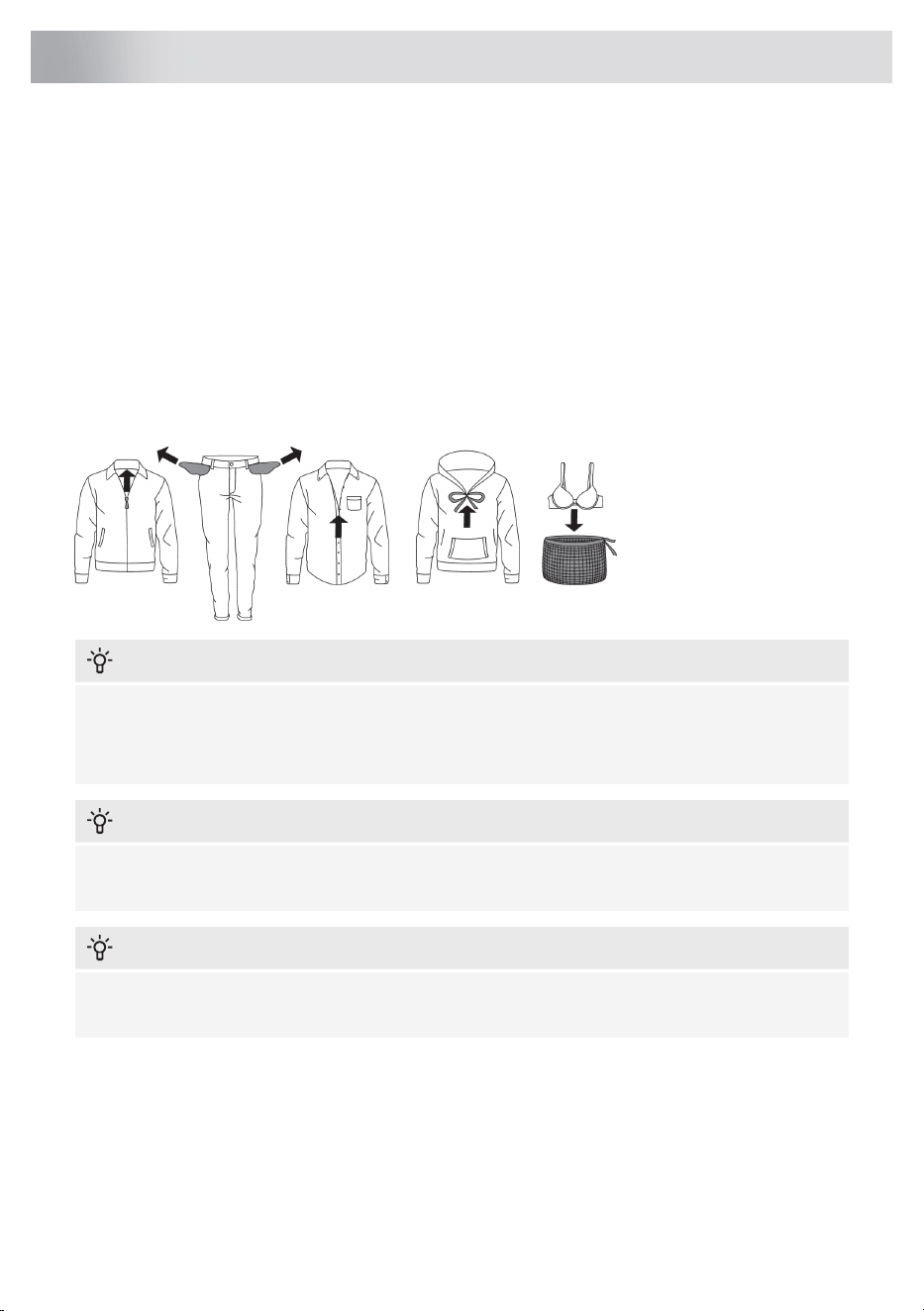

2. Close the buttons and zippers, tie any ribbons, and turn the pockets inside out; remove any
metal clips that could damage the laundry and tumble dryer interior.
3. Place very sensitive clothes and small items in a special-purpose laundry washing bag.
INFORMATION!
Do not insert laundry into the dryer if it has not been wrung or spun (recommended minimum
spinning cycle: 800 rpm).
Higher spinning speeds will save energy and cut drying time.
INFORMATION!
If you decide to dry only one large item, we recommend drying it separately from smaller items
of laundry.
INFORMATION!
Turn printed garments inside out before drying. To reduce the risk of heat damage to the prints,
use the Delicate drying mode.
32
Advices before drying
Materials (fabrics) suitable for drying in a tumble dryer
Material is suitable for tumble drying. Clothes dried in a tumble dryer will be softer and
lighter than air-dried clothes.
INFORMATION!
The dryer does not cause any considerable wear of the fabric. The lint collected in the lint filter
consists of dust and fabric fragments collected during the use of the laundry.
Materials (fabrics) that may not be dried in a tumble dryer
This symbol means that the material is not suitable for drying in a tumble dryer.
Never tumble dry the following:
• clothing that was chemically cleaned (or dry-cleaned) at home,
• foam,
• glass fibres.
Materials that are not suitable for drying in a tumble dryer
Drying laundry made of particularly delicate fabrics that may be deformed is not recommended.
The following types of laundry may not be dried in the dryer as this may cause your garments to
deform:
• leather garments and other leather products,
• garments that are waxed or treated in any other way,
• garments with major wooden, plastic, or metal parts;
• garments with spangles;
• garments with metal parts subject to rusting.
33
Advices before drying
Laundry symbols
Always follow the garment manufacturer's recommendations before drying in the dryer.
Textile maintenance symbols:
Normal wash;
Sensitive laundry
Hand wash only
Max. washing temp.
40°C
Max. washing temp.
90°C
Do not wash
Max. washing temp.
30°C
Max. washing temp.
60°C
Bleaching
Bleaching not allowedBleaching in cool water
Dry cleaning
Perchloroethylene R11, R113, petroleumDry cleaning with all agents
Dry cleaning not allowed
Dry cleaning in kerosene, pure alcohol,
and R113
Ironing
Hot ironing, max. 110°CHot ironing, max. 200°C
Ironing not allowedHot ironing, max. 150°C
Drying
Tumble dryingNatural drying
Drying at high temperaturesDrying on a flat surface
Drying at low temperaturesDrying without prior spinning
Tumble drying not allowedDrying on a clothes line or a hanger
34
Advices before drying
STEP 1: Sort the fabrics
See chapter Advices before drying.
INFORMATION!
Empty the pockets. Coins, nails etc. could damage the machine and the fabric.

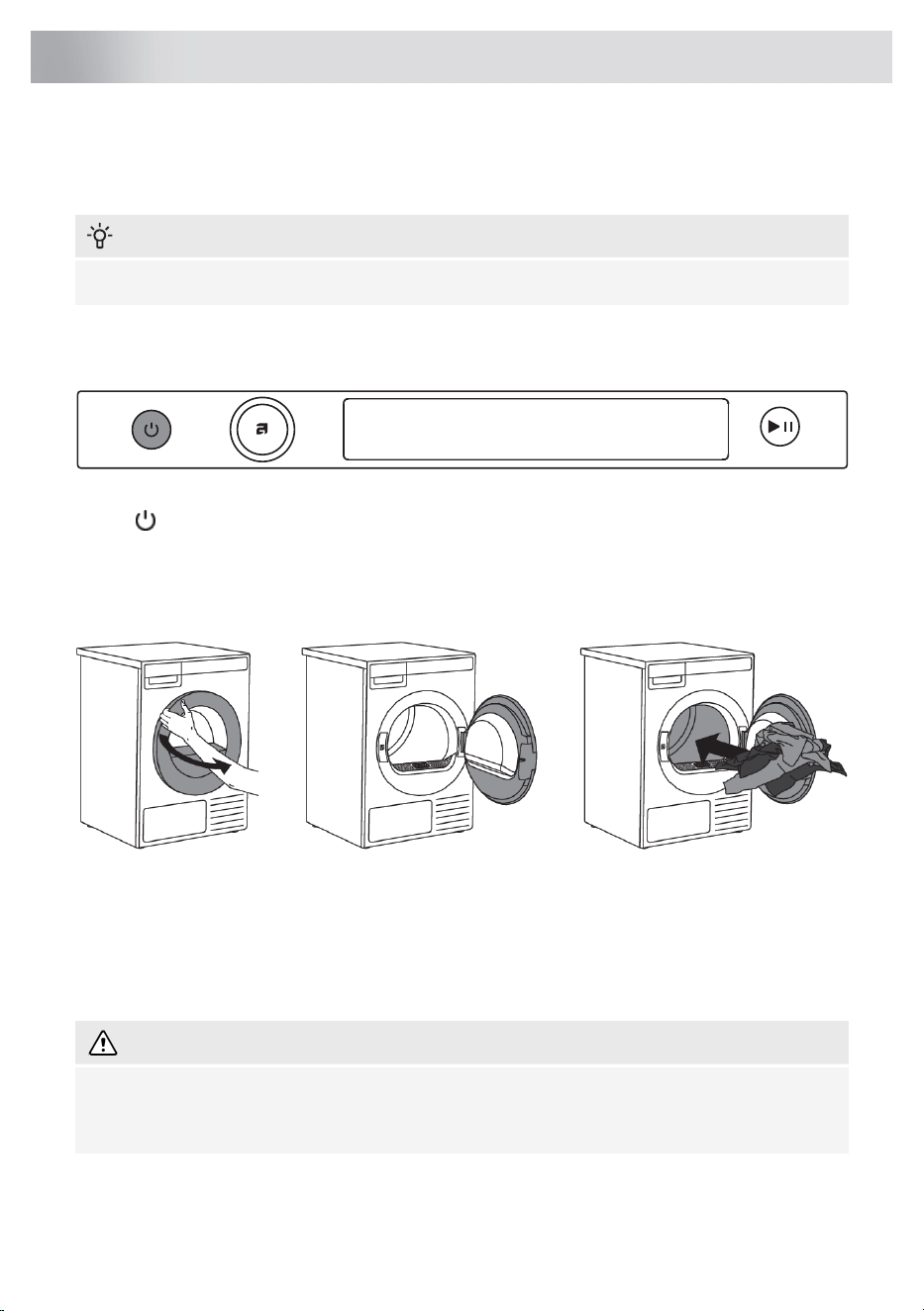

STEP 2: Turn on the main switch.
On / Off
Press the On/Off button.
STEP 3: Open the dryer door and insert the laundry.
Open the dryer door towards you.
Place the laundry into the empty dryer drum. Make sure there aren't any other objects among the
laundry, such as a detergent ball. Such objects could melt and cause damage to the dryer or your
laundry.
Do not overload the drum! (See program table and observe your nominal load as indicated on the
rating plate.) If the dryer drum is overloaded, the laundry will be more wrinkled and perhaps unevenly
dried.
WARNING!
Before inserting or removing fabrics, we recommend that the lint filter is always placed in its
designated opening. This is the only way to prevent a piece of clothing or other fabric from falling
into the open space.
35
Drying process, step by step (1–7)
INFORMATION!
There is an LED light inside the dryer drum.
The light in the dryer drum is not suitable for any other use.
The light in the dryer drum may only be replaced by the manufacturer, a service technician or
an authorized person.
36
Drying process, step by step (1–7)

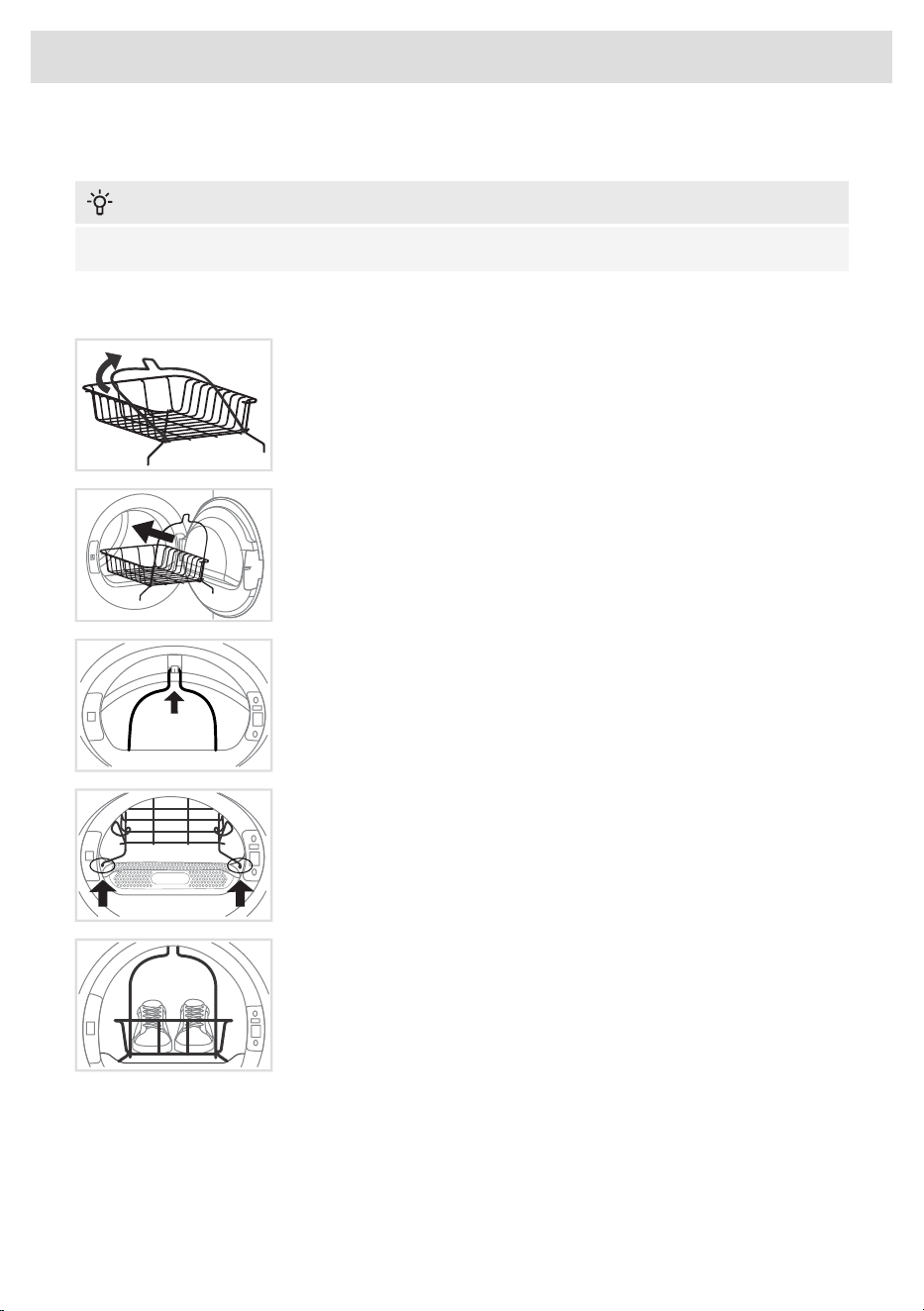

Drying in a basket
INFORMATION!
Before the first drying cycle, remove the basket and all packaging from the drum.
Laundry may only be dried in the basket when using Time program. The basket is available for
purchase as an optional accessory at the service centre (ART. No.: 914908).
The drying basket consists of two connected parts; before installation,
it must be unfolded into its final shape.
1 Open the dryer door and insert the drying basket. If you attempt to
insert the basket straight in, it will not fit properly into the dryer.

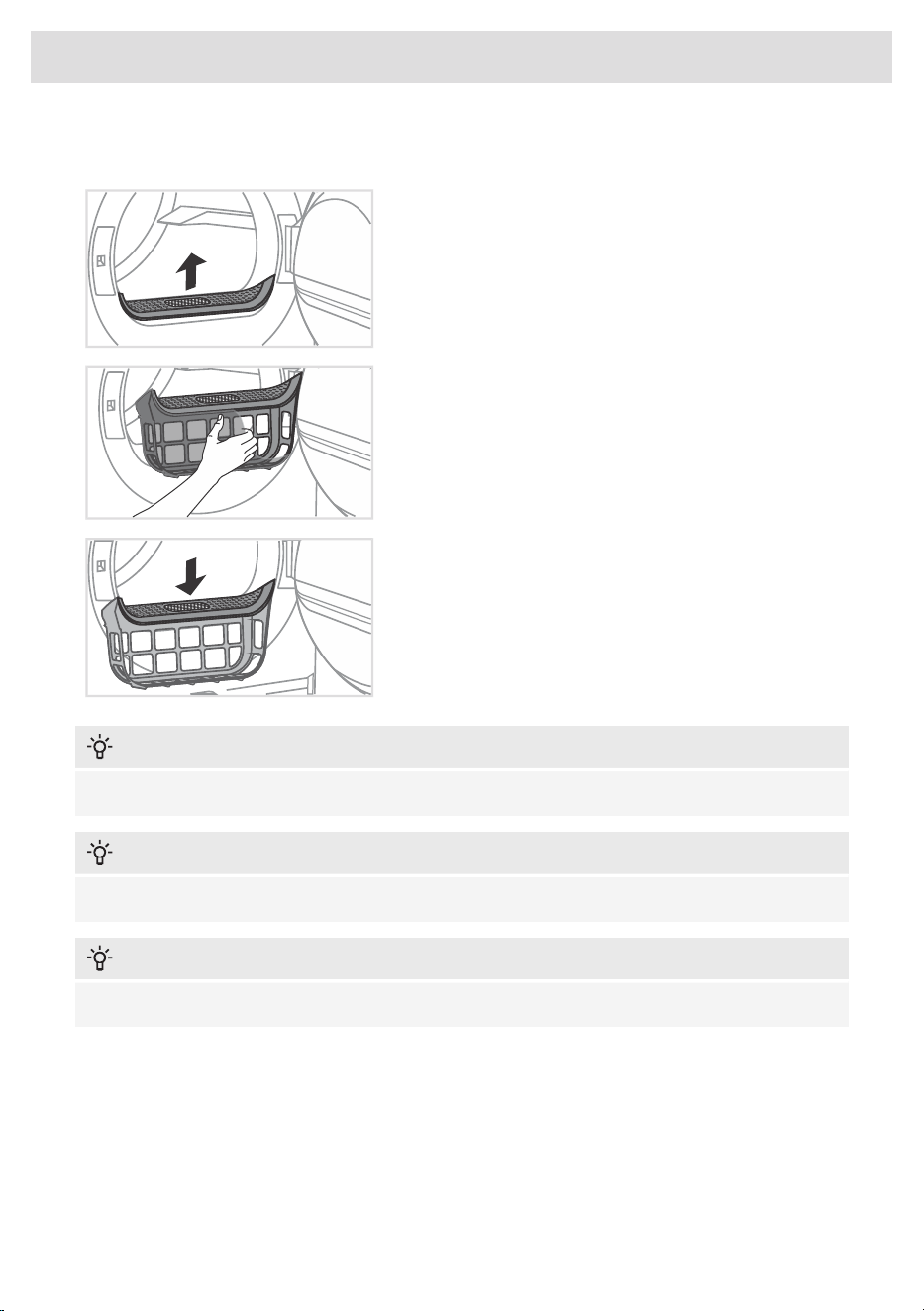

For easier installation, we recommend removing the lint filter beforehand.
Simply pull the lint filter upward to remove it. See chapter Cleaning the
lint filter.
2 Once the drying basket is inside the dryer, first attach it to the
designated holder on the upper part of the rim, located inside the dryer,
as shown in the figure.
3 After securing the basket at the top, position the lower part by pulling
the left and right sides into place until the basket locks into the
designated openings near the lint filter.
If you have removed the lint filter, reinsert it now.
Once the basket is correctly installed, check that it is securely and firmly
attached.
4 The basket can be used to dry sports shoes, slippers, or items that
you do not want to be tumbled inside the dryer drum (max. load: 4 kg).
After the drying process, remove the drying basket and close the dryer door.
Only dry clean sports shoes or slippers that have been sufficiently wrung out after washing to prevent
water from dripping. The basket remains stationary while the drum rotates, so ensure that the items
being dried do not touch the drum to avoid potential damage to both the items and the dryer.
37
Drying process, step by step (1–7)
STEP 4: Choose the drying program.
Drying programs and other settings can be selected and confirmed as follows:
• by rotating the selector knob in either direction and pressing it in the middle to confirm,
• by touching the screen.
On the selected programme, you can touch
Information to display a brief description of
the programme.
Select the programme based on the type and remaining moisture of the laundry you wish to dry.
Estimated programme duration will appear on the display.
Extra program settings can also be selected for each program. See STEP 5.
Choose between the following programs:
Program chart
Description
Max.
kg*Program
The Eco programme is suitable to dry wet cotton laundry, and is the
most efficient programme in terms of energy consumption for drying
wet cotton laundry.
9Eco Cotton *
Use this program for thicker, non-sensitive cotton laundry, which will
be completely dry after drying.
9Storage dry cotton
Use this program for non-sensitive cotton laundry. After drying, it will
be ready for ironing.
9lron dry cotton
The program is used for drying synthetic and blended textiles.4Synthetics
Use this programme to dry delicate laundry, which may be slightly
moist after drying. We recommend using a dedicated laundry bag.
1Delicates
This programme is used to dry wool and clothing according to the
manufacturer's instructions specified on the label.
2Wool
The program is used for drying cotton and synthetic laundry at the
same time.
4Mixed laundry
Use this programme for larger items. When the programme is
complete, they will be completely dry.
5Bedding/ Towels
Dry fitted sheets separately or together with similar large items. Shake
them out before drying.
Use this program to dry textiles stuffed or padded with down (pillows,
duvets, jackets etc.). Dry large items separately and use the extra
dry function or the time program if necessary.
2Down/ Bulky items
38
Drying process, step by step (1–7)
Description
Max.
kg*Program
The program is suitable for smaller amounts of laundry that you wish
to dry quickly and efficiently.
4Quick Pro
Use this program for non-sensitive laundry that is still slightly moist
and has to be thoroughly dried. In the time program, remaining
moisture is not detected automatically. If the laundry is still damp
after the program is complete, repeat the program; if it is too dry and
therefore creased and rough to touch, the drying time you selected
was too long. Program duration can be adjusted from 30 minutes to
4 hours (in 15-minute steps).
4Time program
This program does not use a heater. Use it to refresh your clothes.
Program duration can be adjusted from 15 minutes to 4 hours (in
15-minute steps).
2Airing
Use this program for clothing with a membrane, for sportswear made
of mixed materials, and breathable fabrics.
3Activewear
This programme is suitable for drying jeans and clothes with extremely
thick seams.
4Jeans
Use this program to dry shirts and blouses. Adjusted drum rotation
prevents the laundry from creasing.
2Shirts/ Blouses
Longer drying programme duration and overheating of the fabric
results in higher drying temperature, which reduces the number of
microbes and allergens on the garments. This drying programme is
not suitable for delicate items and items that should not be dried in
the dryer.
4Anti-Allergy
Use this program to thermally activate and improve the efficiency of
the impregnation agent.
2Waterproofing
This programme is designed to remove odours and bacteria. The
drum must be empty.
0Drum Cleaning
Test programme for compliance with the Commission Regulation (EU) No. 2019/2023 on
ecodesign and Regulation No. 2019/2014 on energy labelling.
1)
The Cotton Eco programme is used to assess compliance with EU legislation on eco-design
2023/2533.
*
You can save energy by filling up the household tumble dryer to the maximum capacity specified
for each programme.
INFORMATION!
If your laundry is not dried to the desired dryness level, use extra program settings or use a more
suitable program.
39
Drying process, step by step (1–7)
INFORMATION!
No program can be started while the door is open.
STEP 5: Choosing the program settings
Using the program settings, the drying programs can be further adjusted to your wishes.
Selected program settings will remain stored after the end of the drying cycle and may be changed
subsequently (except for delayed start which is not stored after the drying is complete).
In the selected programme, you can choose between three quick access settings without entering
the programme settings. By directly touching the desired setting, you can change the selection.
Quick access allows you to set:
1.
Load
2.
Dry level
3.
Delay start
For a programme that does not have any of the above settings, quick access is not possible.
INFORMATION!
Some program settings may not be available for your selected program.
For the full set of programme settings, select the programme and enter the programme settings.
Choose the programme settings before pressing Start/Pause.
When the drying programme is underway, programme settings cannot be changed.
The following programme settings may be selected:
Set time
This setting is only possible in the Airing and
Time programme.
You can choose the duration of the drying
period from Off up to 4 hours in steps of 15
minutes or from 30 minutes to 4 hours.
40
Drying process, step by step (1–7)
Drying modes
You can choose between different drying
modes:
Default ,
Low temperatre (Delicate) and
High temperature (Disinfection).
The drying time will change.
Load
You can choose between three loads in the
dryer:
Full, Medium and Low.
Selection of actual load affects the initially displayed anticipated drying time.
Dry level
You can choose between additional laundry
dryness levels (+, ++, +++).
The final level of laundry dryness and drying
time will be changed.
Steam finish
You can choose between turning the steam
drying function On or Off .
When using this function, the laundry will be steam treated at the end of the programme cycle (only
for programmes that enable steam treatment).
Anti crease
To prevent creasing, select the Anti-crease
function (gentle tumbling). This function is
recommended for delicate laundry.
Confirm your selection by pressing the On / Off button .
You may choose the duration of the anti-crease program from 0 hours to 4 hours, in 1-hour steps.
Delay start
Choose the delayed start setting when you
wish the drying programme to start after a
certain period of time.
You can choose a start delay time from 30 minutes to 6 hours in 30-minute steps, and then from 6
hours to 24 hours in 1-hour steps.
41
Drying process, step by step (1–7)
Press the Start/Pause button to start. When the countdown reaches zero, the selected drying program
will start automatically.
If you do not take any action for 5 minutes, the screen will turn off.
Press the On/Off (On/Off) button to reactivate it. The display will show the countdown to the start of
the drying cycle.
The display will activate 1 minute before the start of the drying cycle.
After the countdown, drying time will be indicated on the display.
If you want to cancel the delayed start and initiate the drying process immediately, press Skip (Skip).
When the Delayed start is already set, it can be cancelled by pressing the Start/Pause button for 3
seconds to return to initial selection.
Add to favourite
By selecting the setting Add to favourite, you
enter the menu to add your favourite
programmes. Confirm the selection by
pressing Yes.
Next to the selected programme, the following icon will light up . The programme will be stored.
By pressing Cancel, you cancel adding the programme to favourites.
You can store up to 6 favourite programmes.
• Removing a favourite programme
When all 6 slots are taken, it is not possible to set a new programme.
To add a new favourite programme, you need to delete an existing one beforehand.
To remove a favourite programme, select the programme you want to remove. Select the setting
Add to favourite and confirm the removal of the favourite program by touching Yes. The
programme will be removed.
STEP 6: Close the door and start the drying process.
Close the dryer door and press the Start/Pause button.
Start (pressed briefly – start/resume)
Pause (short press of the button - pause)
Cancel (press and hold the button for 3 seconds)
Remaining time
Depending on the selected program and load, anticipated drying time will be displayed in hours
and minutes.
Actual drying time will depend on the selected program, load, type of laundry, spinning rate etc.
Actual drying time may be longer or shorter than initially displayed.
42
Drying process, step by step (1–7)
Pausing, stopping or changing the program
To pause the programme, briefly press the Start/Pause button.
To resume a programme, press again the Start/Pause.
You can also temporarily interrupt the drying programme be interrupted opening the door.
To resume the programme, simply close the door and press Start/Pause.
If you want to cancel the drying programme, press the Start/Pause button and hold it for 3 seconds.
The selected programme will be stopped and the cooling stage will begin. Cooling time will depend
on the selected programme and the temperature in the drum.
Only after the cooling is complete, can you select a new programme and press Start/Pause.
WARNING!
The final drying cycle includes a cooling down stage without heater operation. It makes sure the
laundry is of suitable temperature at the end of the program and that it can be taken from the
dryer without risk of touch hot clothes.
The drying programme can be interrupted by pressing the On/Off button.
The dryer will switch off. After the dryer is switched on, press the Start/Pause button to resume the
program.
STEP 7: End of program
After the end of the drying programme, the display will indicate that the programme has been
successfully finished.
If you have selected the setting Anti-crease , the dryer will continue to operate after the end of the
drying cycle for the amount of time specified upon selection of this programme setting.
After the end of the drying cycle, you have the possibility to save the programme as a favourite
programme (see chapter STEP 5: Choosing the program settings).
Open the door towards you and remove the laundry from the dryer.
Clean the lint filter in the door (see chapter Cleaning and maintenance).
Make sure the dryer drum is empty, then close the door.
5 minutes after the end of the program or last activation, the display will switch off to standby mode
in order to save power.
The display will light up again if you press the ON/Off button or open the dryer door.
HOT SURFACE!
If the lint filter or lower lint filter is clogged, the compressor can be turned off preventively when
the appliance overheats, which prolongs the drying time. If you notice extended drying time,
clean the filters, wait for the appliance to cool down, and restart it.
WARNING!
After the drying process, unplug the dryer power cord from the power outlet.
43
Drying process, step by step (1–7)
WARNING!
When the door is opened, notifications will appear on the display:
• to empty the condensation tank and
• to clean the filters.
44
Drying process, step by step (1–7)

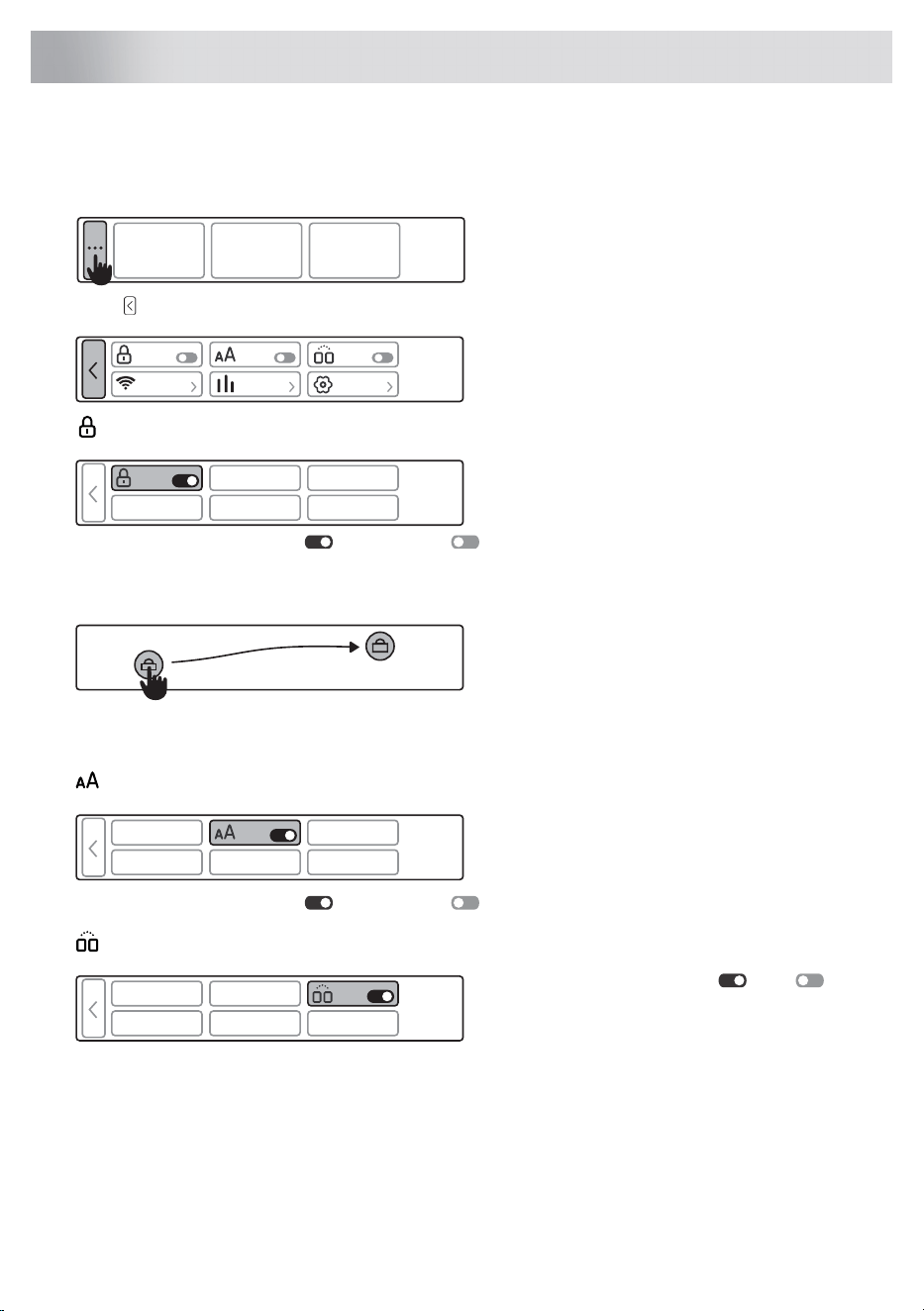

Additional service settings
In the main menu, select Additional settings (Additional service settings).
Press in any setting to return to the main menu.
LOCK
Use the setting to disable the on-screen
buttons so that children may not inadvertently
trigger or change the cycle.
Choose between turning on or turning off the lock.
While the lock is activated, the dryer will lock automatically after 1 minute of inactivity. The setting
cannot be switched on manually.
When you want to reuse the dryer, touch the
screen or rotate the selection button. You can
unlock the locked screen by swiping the left
icon to the right lock icon or by pressing both
icons at the same time.
When the Lock is activated, no other function can be selected.
EASY VIEW
Easy View reduces the amount of information
displayed and enlarges the text size.
Choose between turning on or turning off the easy view.
DRYER LINK
You can choose between On or Off for
connection with the dryer.
The setting must be switched on on the washing machine and dryer for operation.
In the ConnectLife app, connect the appliances. When the dryer and the washing machine are
connected, the dryer proposes an appropriate drying program according to the program that is
carried out in the washing machine.
45
Appliance settings
Wi-Fi SETTINGS
Choose between turning on or turning
off the Wi-Fi connection.
Refer to the setting procedure in the chapter "Initial setting before use": "How to enable Wi-Fi on the
device?".
For status information, select the Status option.
ECO STATUS
Five-leaf programmes have a minimal impact
on the environment, as they allow you to save
resources and save energy. These
programmes are good for sustainable drying
practices.
By drying more fabrics each time you start the programme, you can optimise the energy efficiency
of the appliance and save money. Clean the lint filter regularly.
SYSTEM SETTINGS
In the main menu, select Additional service
settings and then select System settings .
In System settings, you can set:
Cycle counter
Display of the number of cycles performed.
Machine status
In the appliance status settings, you can review or set the following options:
• Cleaning reminder
You can choose between turning On or Off the Cleaning reminder. If the setting is
turned off after the end of drying, no cleaning notifications will be displayed.
• Drum sanitize (Drum sanitize)
By pressing the shortcut, the Drum cleaning (Drum Sanitize) programme is displayed, which
can be started.
• First lint filter cleaning (First lint filter cleaning)
Scan the QR code for instructions on how to clean the lint filter. After cleaning, confirm the
completion of the task by pressing "Cleaned" (Cleaned).
46
Appliance settings
• Second lint filter cleaning (Second lint filter cleaning)
Scan the QR code for instructions on how to clean the bottom lint filter. After cleaning, confirm
the completion of the task by pressing "Cleaned" (Cleaned).
• Condensate tank (Condensate tank)
Scan the QR code for instructions on how to clean the condensation tank. After cleaning,
confirm the completion of the task by pressing "Cleaned" (Cleaned).
• Error (Failure read out)-
The last three faults displayed to the user are displayed in the fault reading menu.
Program management
The Main menu includes the entire set of
programs that you can choose using the
Program selector knob.
This setting allows only displaying the selected
program in the Main menu.
The programme can be selected by pressing Enable and Disable display. Favourite
programmes and Drum Cleaning cannot be disabled. Pressing and holding the selected programme
for 3 seconds allows you to arrange the order of your choice.
Reset program list
By selecting the Reset program list setting all
favourite programs and their order, if it has
been changed, will be deleted. Other settings
will not be affected.
Confirm the reset by touching the Ok button. To cancel programme reset, do so by tapping the
Back button .
Display logotype
The display of the logo can be enabled or
disabled by pressing Enable or
Disable .
Sound volume
You can choose between muted sound, 25%,
50%, 75% or 100% volume.
Display brightness
You can set the Brightness (Brightness) on
the display.
You can choose between 25%, 50%, 75% or
100% screen brightness.
47
Appliance settings
Drum light
By pressing Drum light you can choose
between turning on or turning off
the drum light.
Choose Language
You can choose between 20 languages. Scroll
left or right to navigate the list of languages.
Bundling detection
The setting helps to ensure uniform drying of
the garments and prevents the need for their
manual separation.
By pressing the Bundling detection sensor (Bundling detection) you can choose between turning
On (On) or Off (Off) .
For proper operation always clean all filters before drying.
Draining the condensate
You can choose between the following options:
"Tank (Tank)" - condensate water runs into a
condensate tank
"Drain (Drain)" - condensate water runs into a
drain
If you decide to choose option "Drain", it is necessary to observe how to connect drain hose (see
chapter "Installation and connection / Draining the condensate").
Shop mode
The appliance simulates the display and
operation of the normal cycle for silent visual
display. Only for stores.
Choose between turning on or turning off the shop mode.
Confirm the reset by touching the Ok button. In this case, you will automatically return to the main
menu.
Factory default settings
By selecting Factory default settings (Factory
reset), all the settings will return to the original
settings (your own settings and all favourite
programmes will be deleted).
Confirm the reset by touching the OK button.
48
Appliance settings

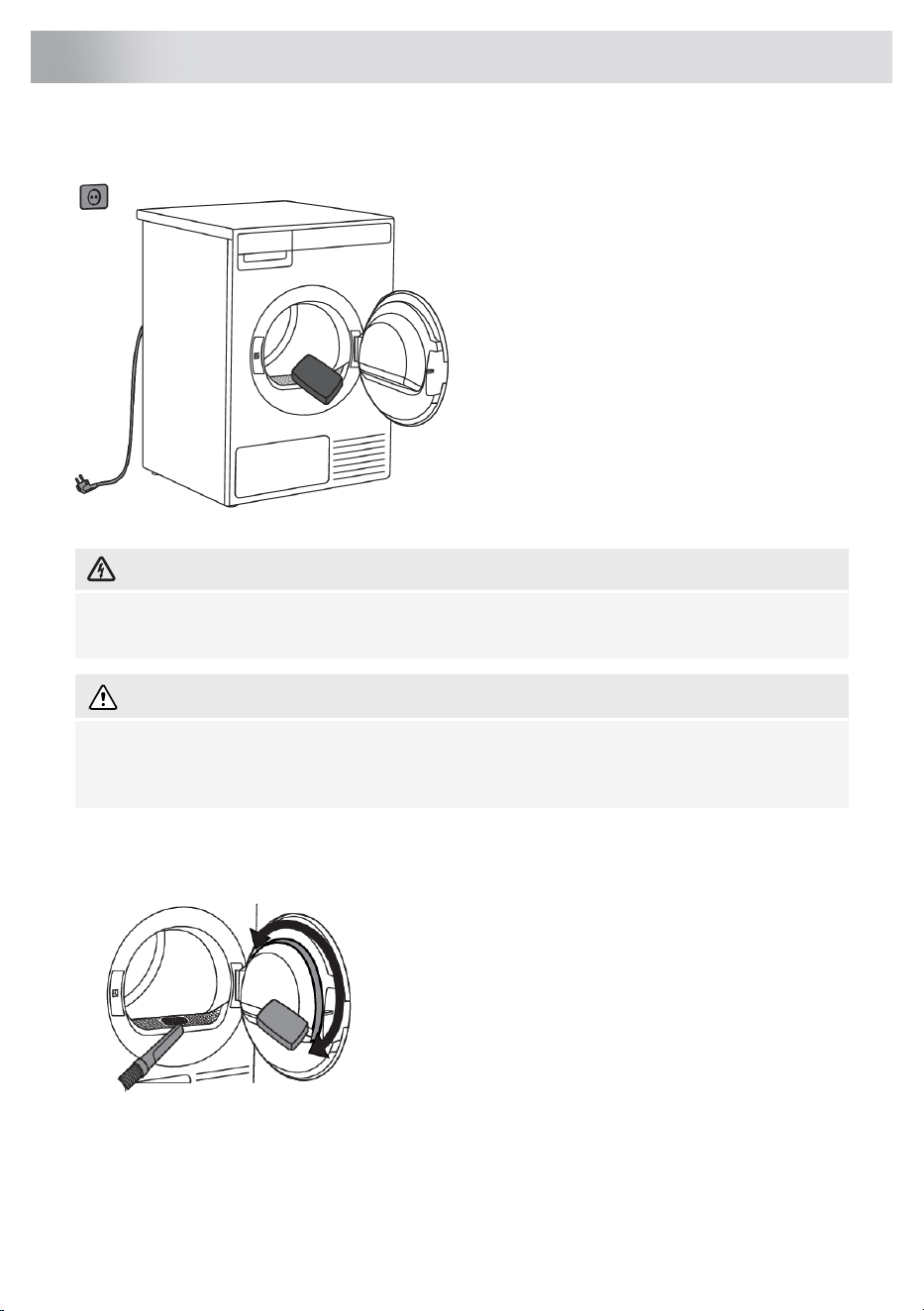

Cleaning the appliance exterior
Wipe all parts of the dryer with a soft cloth until
dry.
Keep the area around the dryer clean and
cool. Dust, heat and humidity will extend the
drying time.
ELECTRIC SHOCK!
Before cleaning, make sure to switch off the dryer and disconnect it from the power mains
(unplug the power cord from the outlet).
WARNING!
Clean the appliance exterior and the display using a soft damp cotton cloth and water. Do not
use any solvents or abrasive cleaners that could damage the appliance (please observe the
recommendations and warnings provided by the manufacturers of the cleaning agents).
Additional information regarding cleaning
If necessary, the lint filter housing and the opening into
which the lint filter is inserted must be cleaned.
If necessary, clean the door gasket as well.
49
Cleaning and maintenance
Cleaning the lint filter
1 Pull out the lint filter.
2 Carefully remove fibers and threads from the lint filter
using your hand or a vacuum cleaner.
3 Reinstall the lint filter.
INFORMATION!
Make sure the lint filter is correctly inserted.
INFORMATION!
Clean the lint filter after each drying cycle.
INFORMATION!
Never operate the dryer without a lint filter or if the lint filter is damaged.
50
Cleaning and maintenance

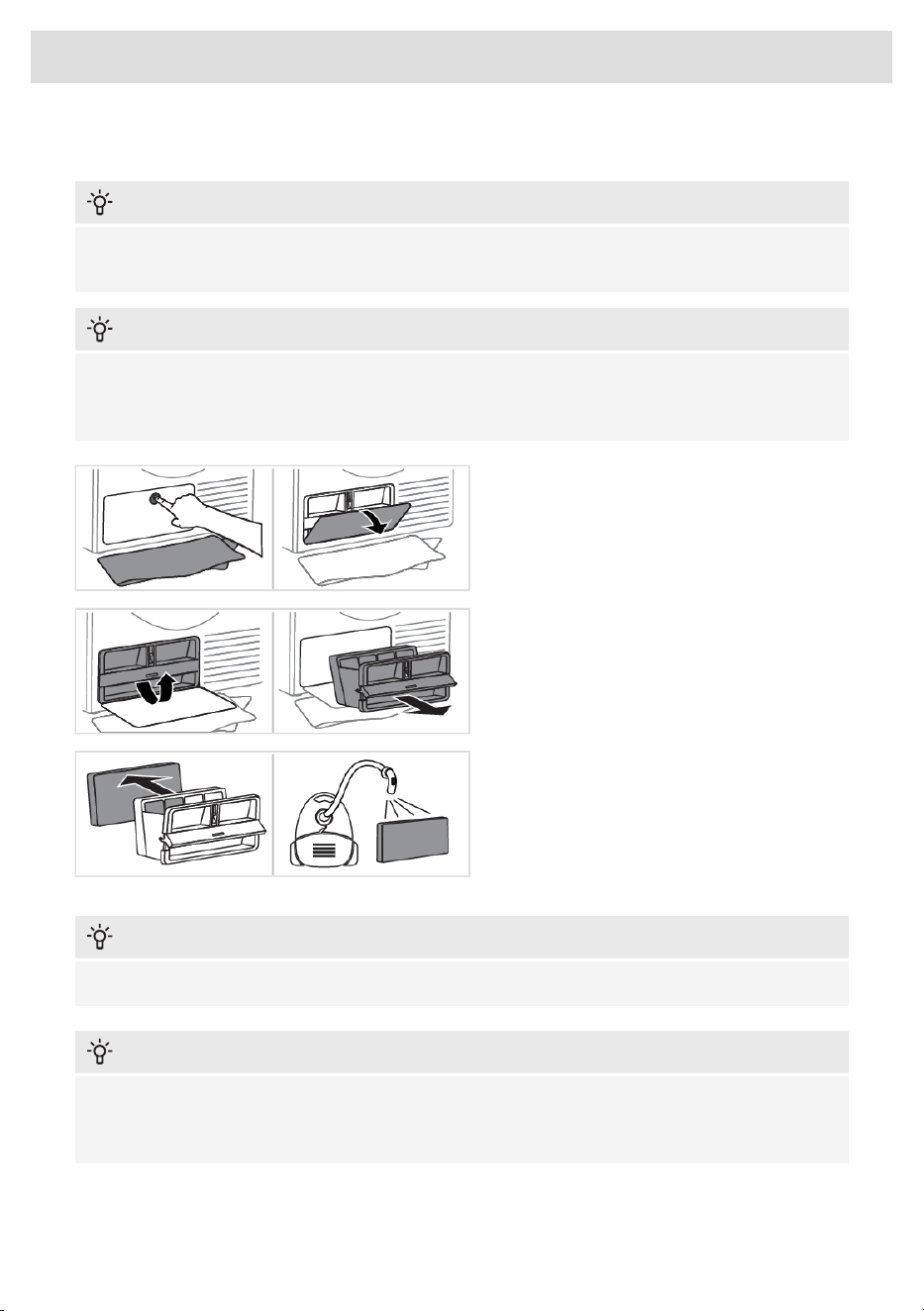

Cleaning the lower lint filter
INFORMATION!
Do not touch the inner metal parts of the heat exchanger with your bare hands. You might injure
yourself on sharp parts. Use appropriate protection gloves when cleaning the heat exchanger.
INFORMATION!
Incorrect cleaning of the metal fins of the heat exchanger can permanently damage the tumble
dryer. Do not press on the metal fins with hard objects like for example the plastic tube of a
vacuum cleaner.
1 During cleaning, some water may be
spilled. It is therefore recommended to place
an absorbent cloth on the floor.
Press inward in the center of the lid to open
the outer cover.
2 Hold the handle of the bottom lint filter
housing and rotate it upwards.
Use the handle to pull out the lower lint filter.
For easier removal, the lower lint filter must be
pulled towards you and tilted slightly.
3 Pull the foam part of the lower lint filter from
the housing. It can be cleaned with a vacuum
cleaner and a soft brush attachment.
If the foam filter is damp, leave to dry before
using a vacuum cleaner.
INFORMATION!
Do not rinse the foam filter under water to avoid micro-plastic effluent into the groundwater!
INFORMATION!
Clean the lower lint filter, foam filter and mesh housing at least after every 10 drying cycles or
whenever necessary. If the appliance is being used with a selfcleaning system, perform cleaning
after every 30 cycles or whenever necessary.
51
Cleaning and maintenance

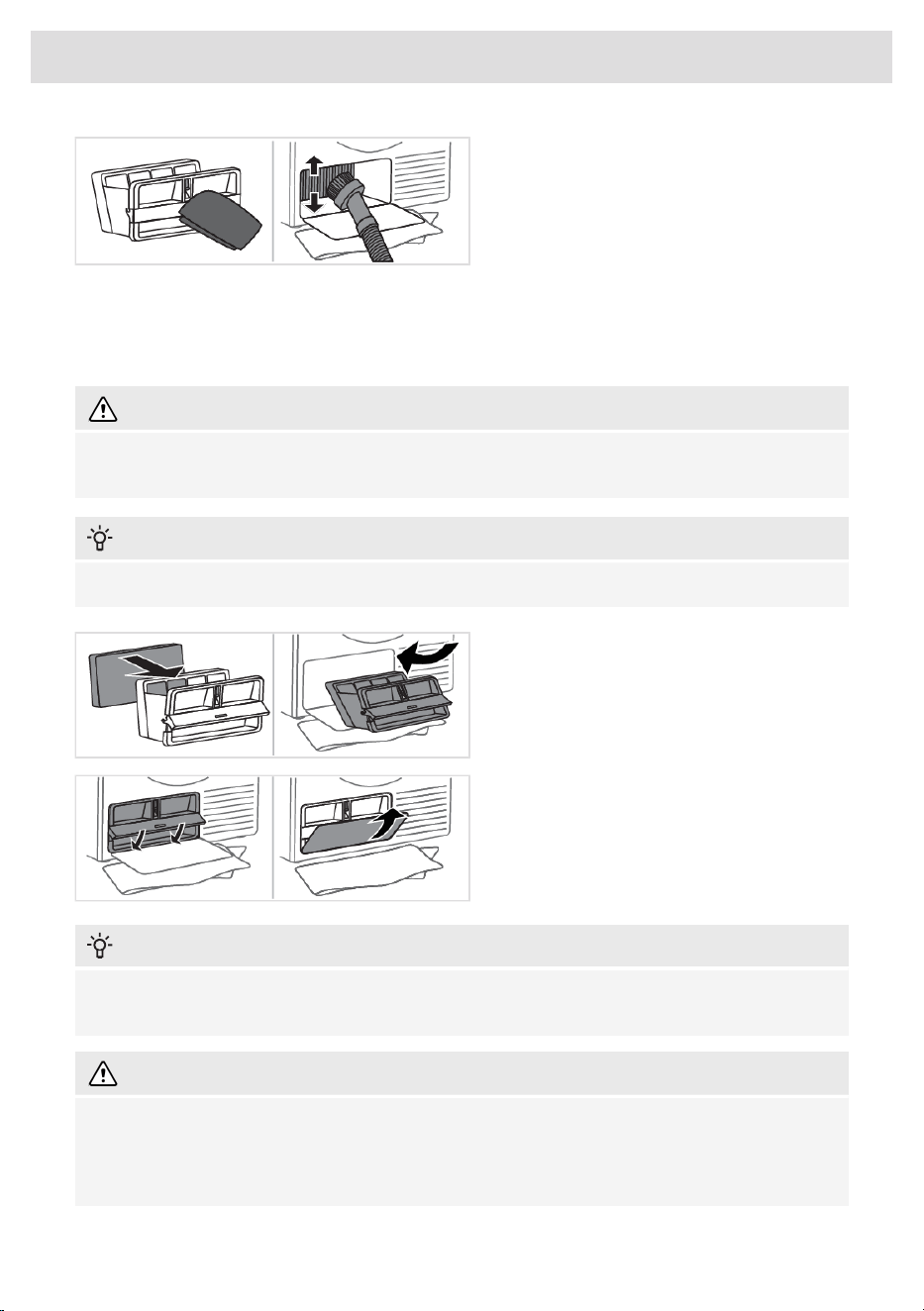

4 Carefully detach the lining of fibres and
threads from the lint filter, and also clean the
lower lint filter housing with a soft cloth.
With automatic cleaning of the mesh housing
of the lower lint filter (only available in some
models), a few drops of water may drip on the
floor after the filter is removed; therefore, lay
a cloth on the floor.
If the heat exchanger fins are covered with dust and dirt, you can clean them using a vacuum cleaner
with a soft brush attachment.
WARNING!
Without pressing, gently move the brush attachment only in the direction of the metal fins from
top to bottom. Too much pressure can damage or bend the metal fins of the heat exchanger.
INFORMATION!
Lower part of the hosing contains a lint and a filter foam which shall be cleaned thoroughly.
5 Reassemble the foam filter and the lower
lint filter housing.
The lower lint filter must be tilted and inserted
back into the dryer at a slight incline with the
handle open.
6 Close the handle and close the outer cover.
INFORMATION!
The heat pump filter has to be correctly placed into its slot. Otherwise, the heat exchanger installed
inside the dryer may be clogged.
WARNING!
Insufficient cleaning of the filters in the dryer can lead to reduced drying efficiency, increased
energy consumption, overheating of the appliance, and a higher risk of fire and mechanical
damage. Regular cleaning of the filters will ensure optimal appliance performance, shorter drying
times, and minimal energy consumption.
52
Cleaning and maintenance

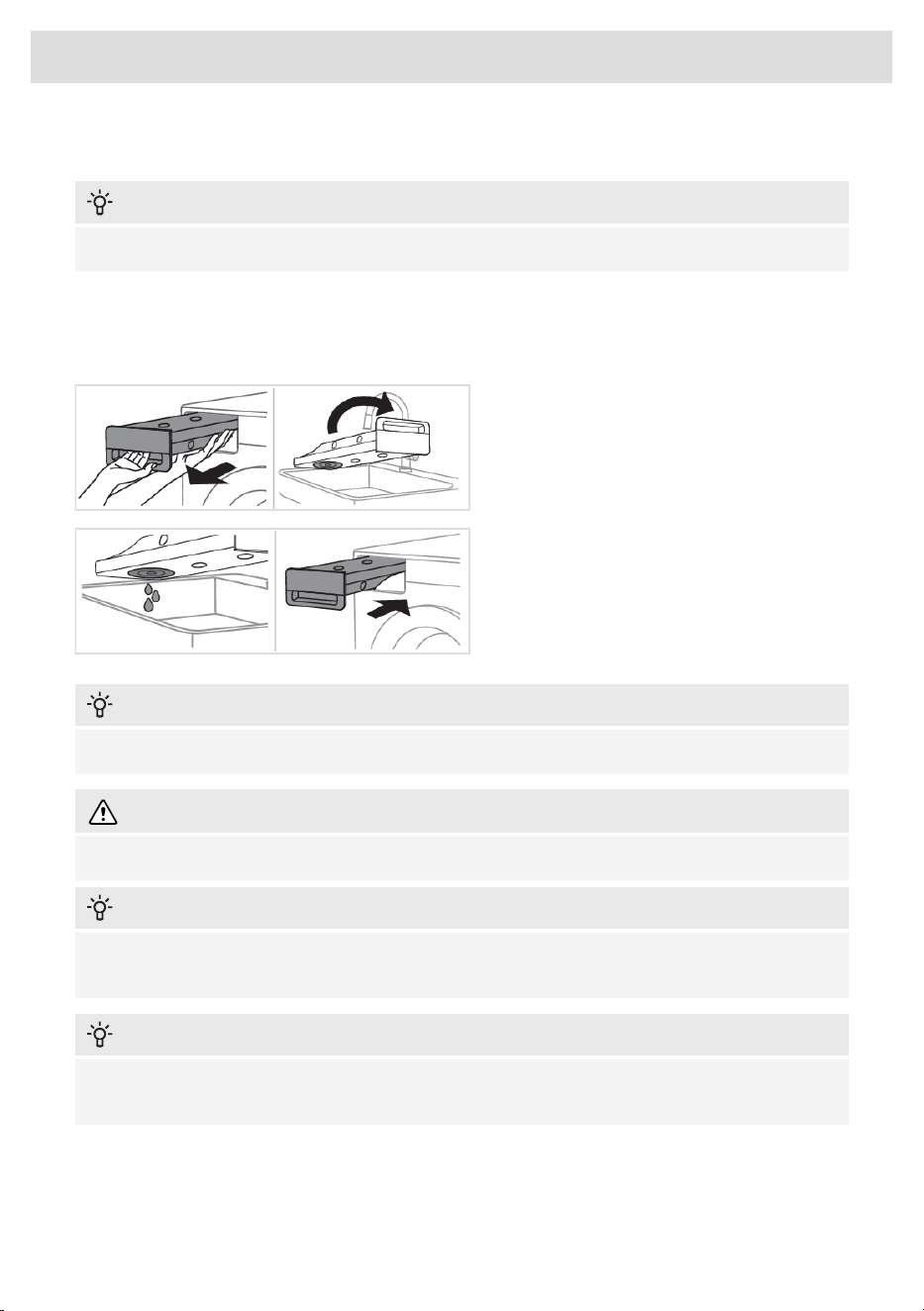

Emptying the condensate tank
INFORMATION!
Empty the condensate tank after each drying cycle.
If the condensate tank is overflowing the drying program will be paused automatically.
A warning will appear on the display that the condensate tank has to be emptied.
If the setting for draining condensed water to the drain is enabled, this warning will not be displayed.
1 Pull out the condensate tank from the dryer
(using both hands as shown in the figure), then
slowly turn it upside down over a washbasin,
sink, or any suitable vessel.
2 Discharge the water through the
condensate drain opening.
Replace the condensate tank into the dryer
housing.
INFORMATION!
Water from the condensate tank is not drinkable. If thoroughly filtered, it can be used for ironing.
WARNING!
Never add chemicals or fragrances into the condensate tank.
INFORMATION!
Condensate tank does not require draining if the drain hose is connected directly to a washbasin
or a bathroom floor drain (see chapter Installation and connection).
INFORMATION!
Before moving the dryer or before storing it in a non-heated room during the winter, the condensate
tank has to be emptied.
53
Cleaning and maintenance
Disturbances from the environment (e.g. the power grid) may result in various error reports (see
Troubleshooting table). In such case:
• Switch off the appliance, wait for 1 minute, switch the appliance back on, and repeat the drying
program.
• If the error persists, call an authorized service center.
• You will be able to solve most of the problems in appliance operation by yourself (see
Troubleshooting table).
• Repairs may only be carried out by an adequately trained person.
• Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be
covered by the warranty. In such cases, the costs of repair shall be charged to the user.
INFORMATION!
The warranty does not cover the errors or failures resulting from disturbances from the environment
(lightning strike, power grid failures, natural disasters etc.).
The following lists all the errors that the user can see on the user interface.
What to do?CauseProblem/
Error
Check whether the main switch is on.The main switch is not switched
on.
The machine will
not start.
Check the fuse.There is no voltage in the power
outlet.
Check if the power cord plug is correctly
inserted into the power outlet.
Re-read the instructions for use again.Program was not started in
accordance with the
instructions.
There is voltage
in the outlet, but
the drum does
not spin ...
Check if the door is closed properly.Door might be open.
The dryer does
not work.
Empty the condensate tank (see chapter
Cleaning and maintenance) (only applies to
condenser dryers and dryers with a heat pump
(HP)).
The condensate tank is full (only
applies to condensation dryer
and the dryer with a heat pump
(HP).
To cancel the Delayed start option, press the
Skip button .
Delayed start might be
activated.
Clean the lint filter (see chapter Cleaning and
maintenance).
The door lint filter may be
clogged. As a result, the
temperature in the dryer rises,
which in turn causes
overheating, and the dryer
switches off.
The machine
stops operating
completely
during a program.
Wait for the machine to cool down, and try
running it again. If the dryer still fails to start,
call service centre.
54
Errors: what to do?
What to do?CauseProblem/
Error
The noise will subside without any intervention.If the dryer is out of use for a
long period of time, the same
points of load-bearing elements
or components are under stress
for a long time, causing
temporary deformation.
A slight hitting
noise appears.
Reduce the amount of laundry.Excessive load on the door (too
much laundry in the drum).
The door opens
during drying.
Make sure you have sorted the laundry by
type and thickness, whether you have added
a suitable amount of laundry to the drum, and
whether you have selected a suitable program.
Laundry of varying types and
thickness, and excessive
amount of laundry.
Unevenly dried
laundry.
Clean the filters (see chapter Cleaning and
maintenance).
Filters are not clean.Laundry not dried
or drying takes
too long.
Make sure there is adequate supply of fresh
air to the dryer; for example, open the door
and/or window.
Dryer is placed in a closed
room; room that is too cold; or
room that is too small and the
air overheats as a result.
Check if the temperature in the room where
the dryer is installed is too high or too low.
If the load is still wet after completed drying
cycle, an appropriate drying program should
be run again (after cleaning filters).
Laundry was not sufficiently
wrung or spun.
Use a suitable program or extra functions.Amount of laundry dried in the
appliance is too large or
insufficient.
Close the buttons or zippers on the laundry
before drying. Select a suitable programme
(e.g. the Bed linen programme).After the
drying process, loosen the laundry and select
an additional drying programme(e.g. Timed
drying).
Laundry (such as bedding) gets
tangled into large balls.
Failure display
In case of a failure while a programme is underway, Error (Error) X is indicated on the display. Press
and hold the Ok button (Ok) to display the error description on the display. Switch off the dryer and
turn it back on.
55
Errors: what to do?
Errors indicated on the screen unit (depending on the model) may include the following:
What to do?Error indication on the screenProblem/
Error
Control unit failure.Control unit failure.E0
Call service centre.
Temperature sensor failure.Thermistor error.E1.1, E1.2, E1.3
Call service centre.
Communication error.Communication error.E2
Call service centre.
Failure on the pump for pumping the
condensate into the condensate tank
Pump error.E3
Call service centre.
Control unit failure.Relay failure.E6
Call service centre.
Control unit failure.Door failure.E7
Call service centre.
Control unit failure.Button failure.E8
Call service centre.
Call service centre.PB/UI software versions are not
compatible.
E9
Call service centre.Error in BLDC motor
communication.
E11
INFORMATION before, during, and after the end of the programme (depending on the model):
What to do?Error indication on the screen
Fill the steam tank with distilled water or
condensate.
Steam tank is empty. Please fill water.
Pour the water through the steam tank filter
located in the condensate tank housing. See
chapter Initial settings before use.
Stop adding condensate or distilled water.Steam tank full.
Close the dryer door before starting or
resuming the program.
Please close the door before pressing start.
Press Start/Pause button to resume the cycle.Cycle was interrupted by power failure. Please
resume.
See chapter Cleaning and maintenance.Please empty the condensation tank before
resuming a cycle.
See chapter Cleaning and maintenance.Clean the lint filter.
See chapter Cleaning and maintenance.Clean the lower lint filter.
56
Errors: what to do?
What to do?Error indication on the screen
See chapter Cleaning and maintenance.Please empty the condensation tank and clean the
lint filter.
See chapter Additional service settings.Lock is on. You can unlock the locked screen by
swiping the left icon to the right lock icon or by
pressing both icons at the same time.
Start Drum cleaning. The drum must be empty.It is necessary to clean the drum.
Sounds
INFORMATION!
In the initial stage of drying or during drying, the compressor and the pump may cause noise
which, however, does not affect the dryer operation.
Humming sound: compressor noise; the noise level depends on the programme and the drying
stage.
Buzzing sound: the compressor is occasionally ventilated.
Pumping or liquid flowing sound: the pump is pumping the condensate into the condensate tank.
Clicking sound: clicking noise is caused by automatic cleaning of the heat exchanger (compressor).
Rustling water sound: can be heard during automatic cleaning.
Rattling sound: can be heard during drying if laundry has any hard parts (buttons, zippers etc.)
57
Errors: what to do?
Before calling a service center
See the chapters Errors: what to do? and
Cleaning and maintenance and see if you can
resolve the problem yourself.
When you contact a service centre, please
state the model (2), type (1), and serial number
(3) of your dryer.
Model, type, and serial number are indicated
on the rating (type) plate located on the interior
side of the dryer door.
The QR and AUID codes are also located on
the rating plate.
1 - Model type
2 - Model
3 - Serial number
4 - QR code
5 - AUID code
INFORMATION!
Functional spare parts for the ASKO dryer you purchased will be available for 15 years. During
this time, original spare parts will be available to ensure the correct operation of your appliance.
A list of spare parts and repair tips in accordance with the current Ecodesign Directive can be
found by scanning the QR code located on the inside of the door of the dryer.
Or on the following link: https://auid.connectlife.io
INFORMATION!
Report any malfunction to your local call centre or web address; all information can be found in
the enclosed warranty statement. Contact details of your authorised service centre are available
in the warranty statement supplied with the appliance and on the website by scanning the QR
code on the rating plate (see chapter Service).
INFORMATION!
Some simple faults described in the chapter Errors: what to do? can be fixed by the user himself
by taking into account the instructions without risk to their own safety and without affecting the
warranty conditions.
58
Service
WARNING!
In case of a failure, only use approved spare parts by authorized manufacturers.
WARNING!
Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be
covered by the warranty. In such cases, the costs of repair shall be charged to the user.
59
Service
Technical data
850 mmHeight
595 mmWidth
630 mmDepth
117 lDrum volume
9 kgMaximum drying load
See rating plateRated power
Stainless steelDrum material
Hot-dip galvanized and powder coated sheet metal, or stainless steel sheet.Housing material
R290Type of refrigerant
Link to the EU EPREL database
From 1 March 2021, information on energy labelling and ecodesign requirements is available in the
EU EPREL product database.
The QR code on the energy label supplied with the appliance contains a web link through which
you can find your registered appliance in the EU EPREL database.
Information regarding the performance of the product can also be found in the EU EPREL database,
which is accessible via the link https://eprel.ec.europa.eu, where you have to enter the model and
product number; both are indicated on the rating plate on the appliance. On the website
www.theenergylabel.eu you can find more detailed information about the energy label.
Keep the energy label in case it is needed in the future, together with the user manual and other
documents supplied with this appliance.
Typeface License Notice
This product includes the Noto Sans font, which is licensed under the SIL Open Font License, Version
1.1.
The full text of the license is available at: https://openfontlicense.org
Noto Sans is an open-source typeface developed by Google, and it may be used, modified, and
redistributed under the terms of the SIL Open Font License.
60
Technical information
Radio equipment type
HL3215STG(depending on the model)
HLW3215-TG
HLW3215-TG01
Wi-Fi
2.4000 GHz – 2.4835 GHzOperating frequency range
≤10 dBm/MHz (EIRP) (Antenna gain <10 dBi)Maximum output power
Gain: 0 dBiMaximum antenna gain
Bluetooth
2.400 GHz – 2.4835 GHzOperating frequency range
6 dBm (≤ 10 dBm)Carrier output
F1DEmission type
Declaration of conformity
The company declares that the device with the function ConnectLife complies with the essential
requirements and other relevant provisions of Directive 2014/53/EU. The detailed Declaration of
Conformity can be found at the web address https://auid.connectlife.io on the page of your device
among the additional documents.
61
Technical information
The table lists the values for drying time and power consumption for drying of a test batch of laundry
with various spinning rpm in the washing machine.
The following requirements apply to the consumption values specified below.
room temperatureInlet air temperature
50–60%Inlet air humidity
NormalDrying temperature
Acoustic airborne noise
emission
(dB)
Electric energy
consumption
(kWh/cycle)
Programme duration
(h:min)
Final moisture content
(%)
Rated capacity
(kg)
Program
59
1,5103:18
0 ± 3
9
Eco Cotton * 0,7401:464, 5
0,9402:026,3
1,5403:20
-2
9
Storage dry cotton 1,1402:296,3
0,7702:024,5
1,0202:14
12 ± 4
9
lron dry cotton 0,6301:266,3
0,5501:104,5
0,4501:072 ± 34Synthetics
0,3000:4501Delicates
0,7701:36-24Mixed laundry
The Cotton Eco programme is suitable for drying wet cotton laundry and is used to assess
compliance with EU legislation on eco-design.
*
The Cotton Eco programme is the most efficient programme in terms of energy consumption for
drying wet cotton laundry.
All values in the table are provided per drying cycle.
The values provided for all programmes, except for the Cotton Eco programme, are for information
only.
62
Table of consumption values
INFORMATION!
You can save energy by filling up the household tumble dryer to the maximum capacity specified
for each programme.
INFORMATION!
Due to deviations in terms of type and amount of laundry, power supply oscillation, and
environment temperature and humidity, the values measured at the end user may differ from the
one stated in the table.
63
Table of consumption values
Packaging is made of environmentally friendly materials that can be recycled, disposed
of, or destroyed without any hazard to the environment. To this end, packaging materials
are labelled appropriately.
The symbol on the product or its packaging indicates that the product should not be treated as
normal household waste. Take the product to an authorized collection centre for waste electric and
electronic equipment processing.
When disposing of the appliance at the end of its useful life, remove all power cords, and destroy
the door latch and switch to prevent the door from locking or latching (child safety).
Correct disposal of the product will help prevent any negative effects on the environment and
health of people, which could occur in case of incorrect product removal. For detailed information
on removal and processing of the product, please contact the relevant municipal body in charge
of waste management, your waste disposal service, or the store where you bought the product.
64
DISPOSAL
941600
www.asko.com
We reserve the right to make changes.
-a3
