Thank you for purchasing TOSHIBA Fully Automatic Washing Machine.
Please read this manual carefully in order to operate the machine properly and safety.
Please keep this manual for future reference.
Owner’s Manual
FULLY AUTOMATIC WASHING MACHINE
WARNING
WARNING:
This indicates an important item which incorrect operation may lead to injury or death.
Never attempt to touch laundry in the spin basket until the motion of the basket
stops completely.
Use particular caution when children are present.
Never operate washing machine by young children and infirm person.
This washing machine is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge unless they have been adequately supervised by a responsible
person to ensure that they can use the washing machine safety.
Children should be supervised to ensure that they do not play with the washing
machine.
Never allow children to look into the basket or play around the washing
machine.
Do not place the stand or box near the washing machine.
Children may fall into the basket and get injured or drowned.
Never disassemble or modify the machine.
It may cause fire or electrical shock or malfunctions that lead to injuries.
Consult the store you bought the machine.
Use proper power source indicated in the rating label of the machine.
It may cause fire or electrical shock.
Failure to use a proper power source may result in the electrical outlet becoming excessively hot, leading to fire.
Unplug the power cord from the electrical outlet before attempting to cleaning or maintenance the
washing machine.
Do not insert or pull the power plug with wet hands.
It may cause electrical shock or malfunctions that lead to injuries.
Never use damaged electrical cords or plugs or loose socket.
It may cause electrical shock or malfunctions that lead to injuries or fire.
Do not damage the power cord.
Do not attempt to damage, cut, or modify the power cord, or subject it to excessive bending, pulling, twisting, or binding. Also, do not yank
the metal portion, place heavy objects on the power cord, or pinch the power cord. Doing so may damage the power cord, resulting in fire
or electrical shock.
If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a simillarly qualified
person in order to avoid a hazard.
Do not install in a bathroom or in exposed area to the rain.
Do not allow water to come into direct contact with the various parts of the outer body.
Doing so may result in electrical shock or short circuit.
Do not place flammable materials in the basket.
Do not put any kerosene, gasoline, benzene, thinners, alcohol, other flammable materials, or the laundry soaked with such materials
in the basket.
It can cause explosion or fire.
Wipe away off the dust or grime which attached to surface on pin of the plug.
The dust or grime may cause fire.
Do not place a fire source such as a candle or cigarette near the washing machine.
It may cause fire.
Make sure that water drains properly.
Using the washing machine with faulty drainage may cause water to back up within the machine, leading to electrical shock or fire.
DO NO
T
T
OUCH
OUT OF CHILD
DO NO
T MODIFY
ELECTRIC
SHOCK
UNPLUG PO
WER
DO NO
T
DISASSEMBLE
AND REPAIR
DO NOT
WET HAND
DO NOT USE
WET PLACE
DO NO
T SPLASH
WATER
AVOID
INFLAMMABLE
AVOID
INFLAMMABLE
REMOVE DUST
INSTALL
CAREFULLY
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
ELECTRIC
SHOCK
Doing so may result in electrical shock or short circuit.
Laundry in the basket may bacame wrapped around the hand, even when the basket is only moving slowly.
x
Do not install the washing machine in highly humid place.
x
Please stop operating the washing machine immediately and contact to service dealer for repairs.
is opened.
During the spin extracting, if the spin basket does not stop rotation completely within 15 seconds after the lid
Softener/Detergent case
CAUTION:
This indicates an important item which incorrect operation may lead to injury or damages to the product.
Do not pull the power cord when unplug the appliance.
Hold the plug body to unplug.
It may cause electrical shock or malfunctions that lead to injuries.
Do not connect to the hot water supply.
Do not use water with temperatures over 50°C.
Water that is too hot may cause malfunctions and deformation of the machine, which may result in electrical shock.
Do not climb or place heavy objects on the washing machine.
Doing so may result in injury due to bending or breakage.
Pull out the plug if you do not plan to use the machine for a long time.
Failure to do so may result in electrical shock or shorts due to deterioration of the insulation.
Do not place the hands or other objects under the washing machine while in operation.
Moving parts may cause injury.
Before use, make sure the faucet is open, and the connection with water inlet hose is not loose or
leakage water.
Looseness of hose nut, hose connections, water inlet valve or other areas may cause water leakage or other damage.
The bottom ventilation of washing machine must not be obstructed by carpet when the washing
machine is installed on a carpet floor.
x
x
x
x
x
x
x
x
D
ANGER HAND
WATER LEAKAGE
INSTALL
CAREFULLY
UNPLUG POWER
CAUTION
D
O NOT PULL
DO NOT USE
DO NOT WASH
DO NOT CLIMB
STOP
x
x
It will cause abnormal vibration and damage while in spin extracting.
Do not wash or spin extraction the mats, waterproof suites such as raincoats, fishing suite (jackets and pants)
ski suite, sleeping bags etc.
OPERATED
Cassette Filter
1
2
Plug
the detergent amount
the lid will be locked auto
-matically
Flowing water starts while

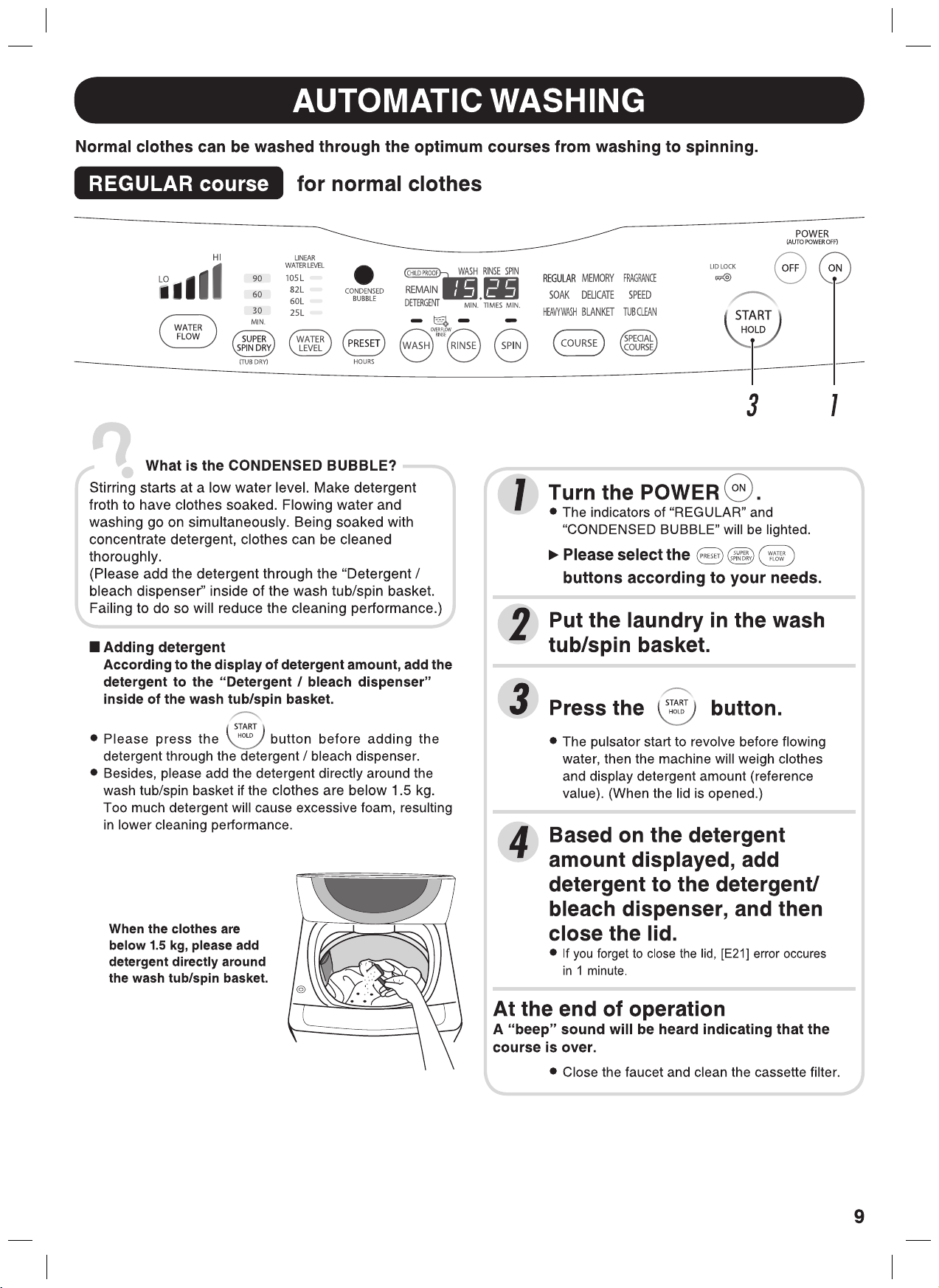

This section describes the procedure of the “REGULAR” course with “CONDENSED BUBBLE”.
Fully automatic washing machine will operated to the following.
Put the laundry in the basket and start the machine. The sensor will weigh clothes and begin flowing water.
The pulsator begins to
revolve 6 seconds after
startup under none-water
situation, and clothes are
weighed.
1

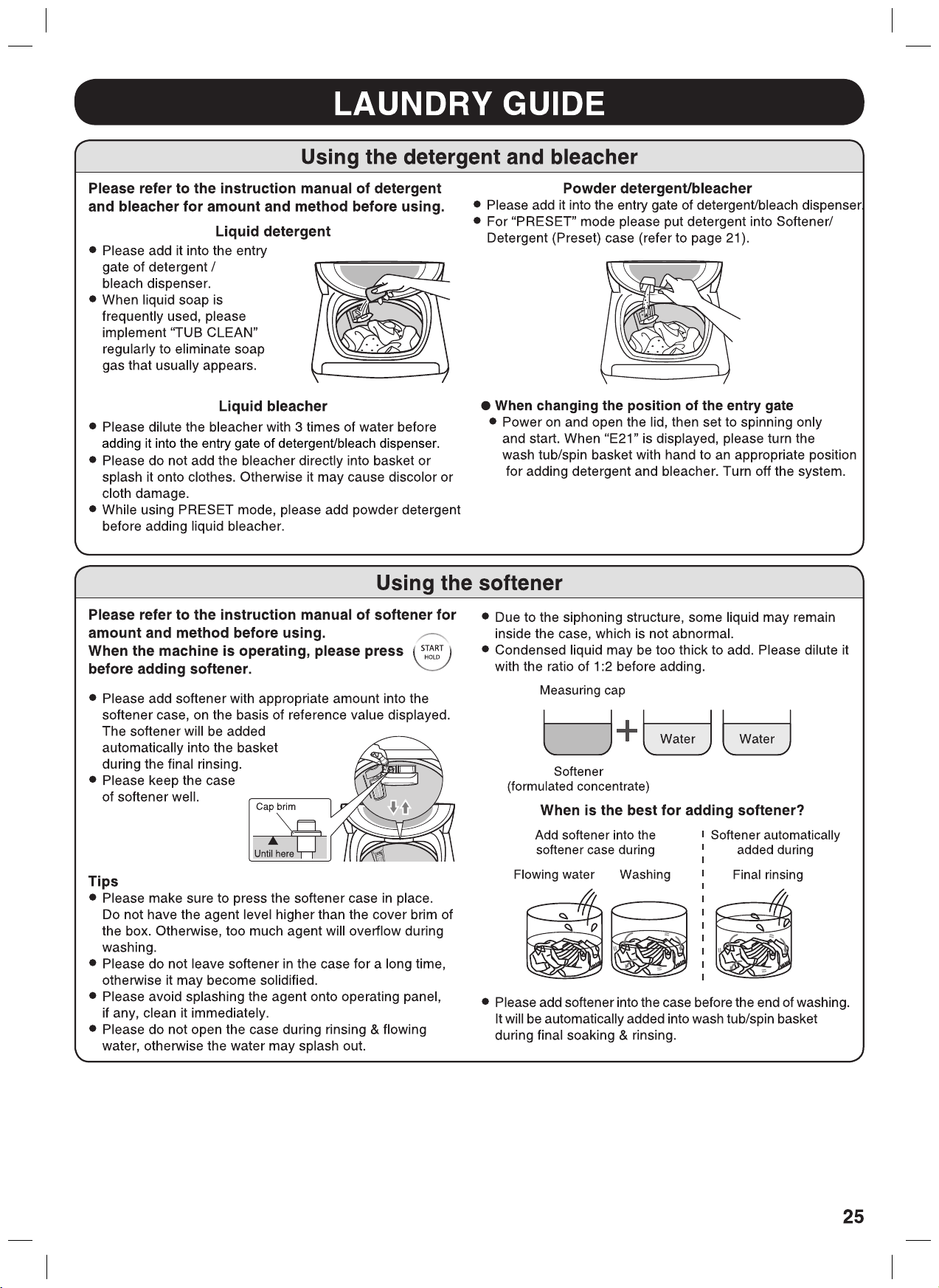

Detergent amount is
displayed. Put in dertergent
to "Detergent / Bleach
dispenser" , and softener to
softener case.
Close the lid.

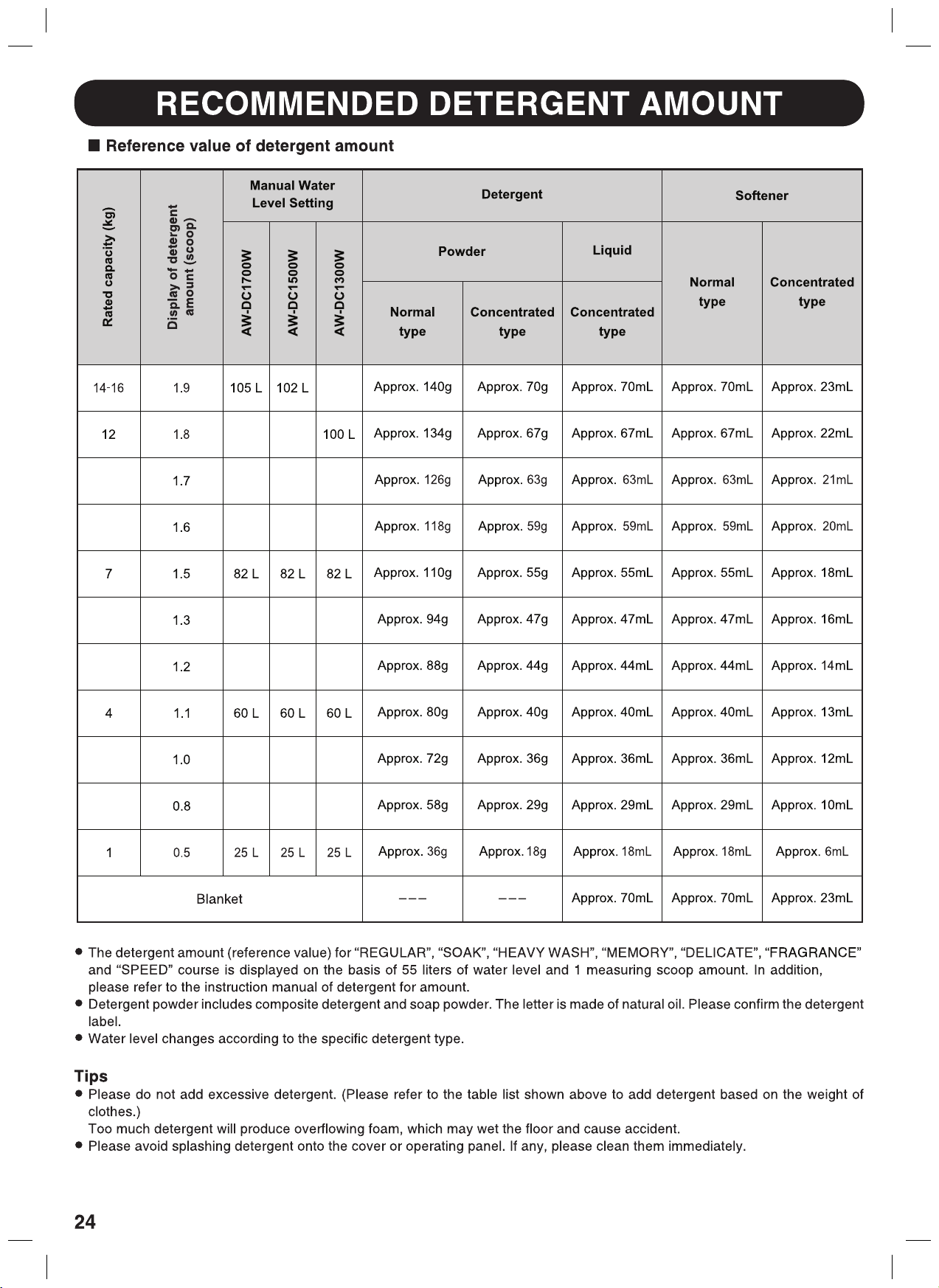

Reference value of detergent
2
amount.
3
When a chemical fiber, blending
fiber or spreadsheet is washed, the
water level may be a little bit low.

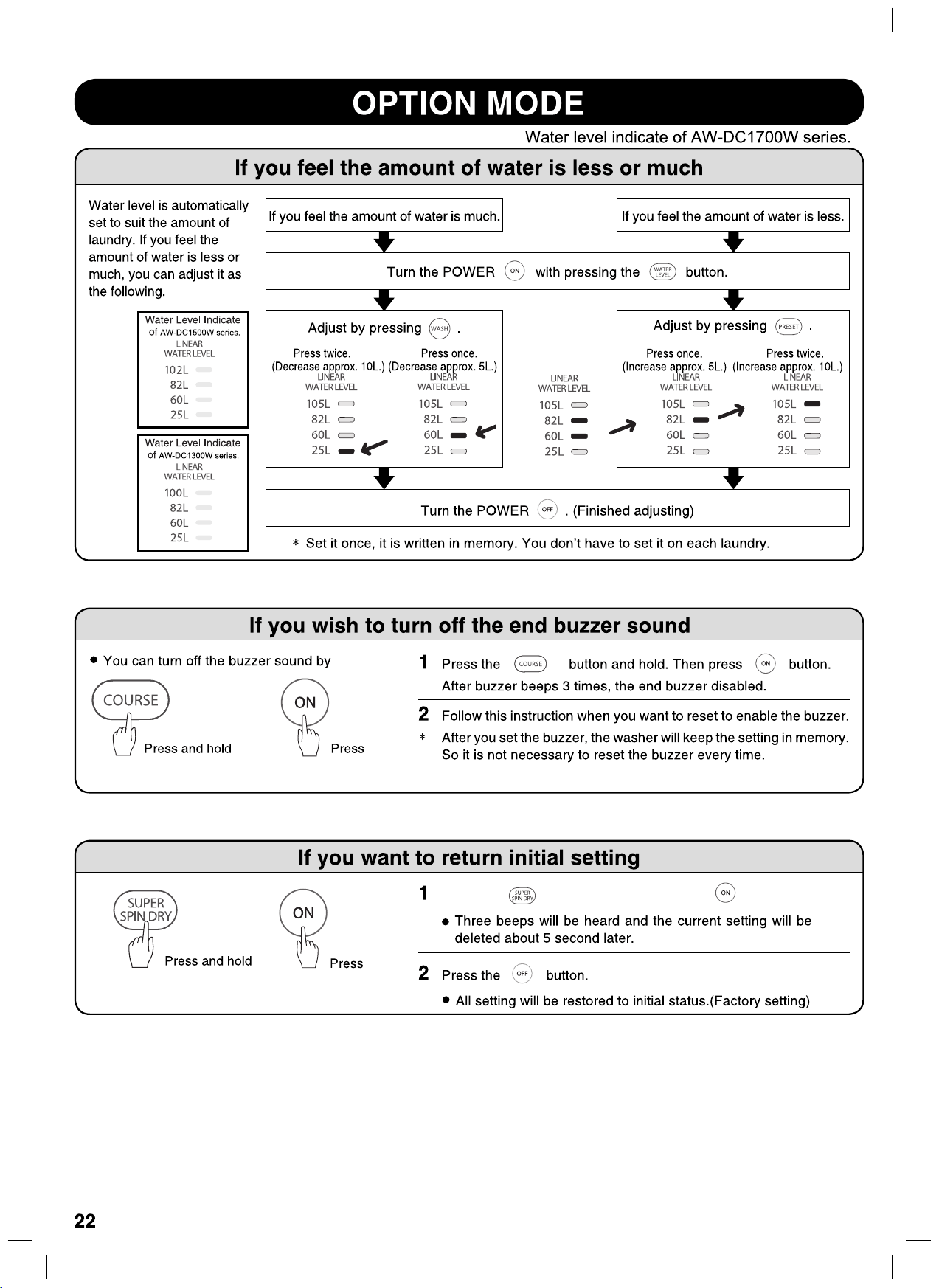

Adjust the water level by
button.

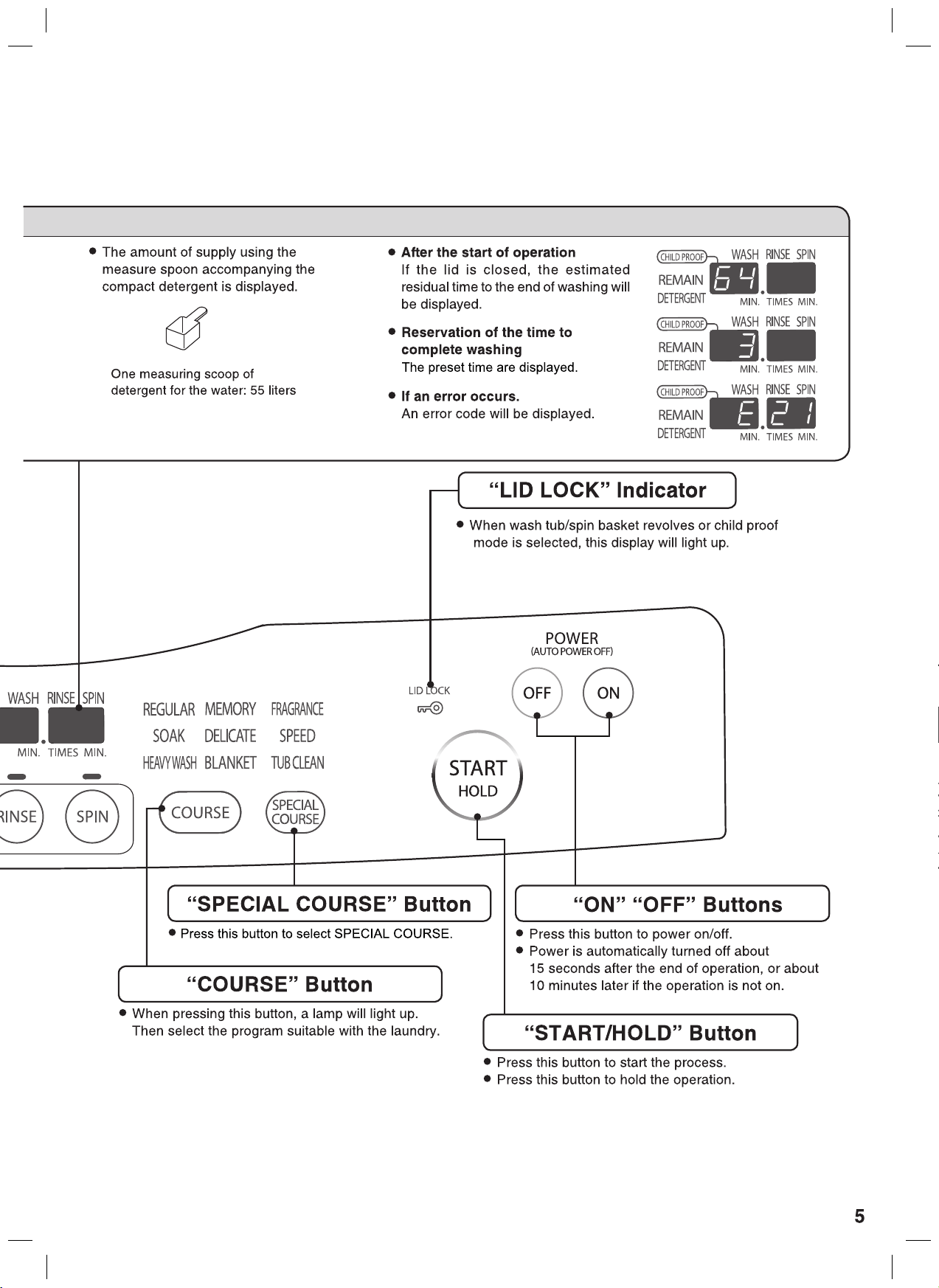

• After the start of operation
If the lid is opened

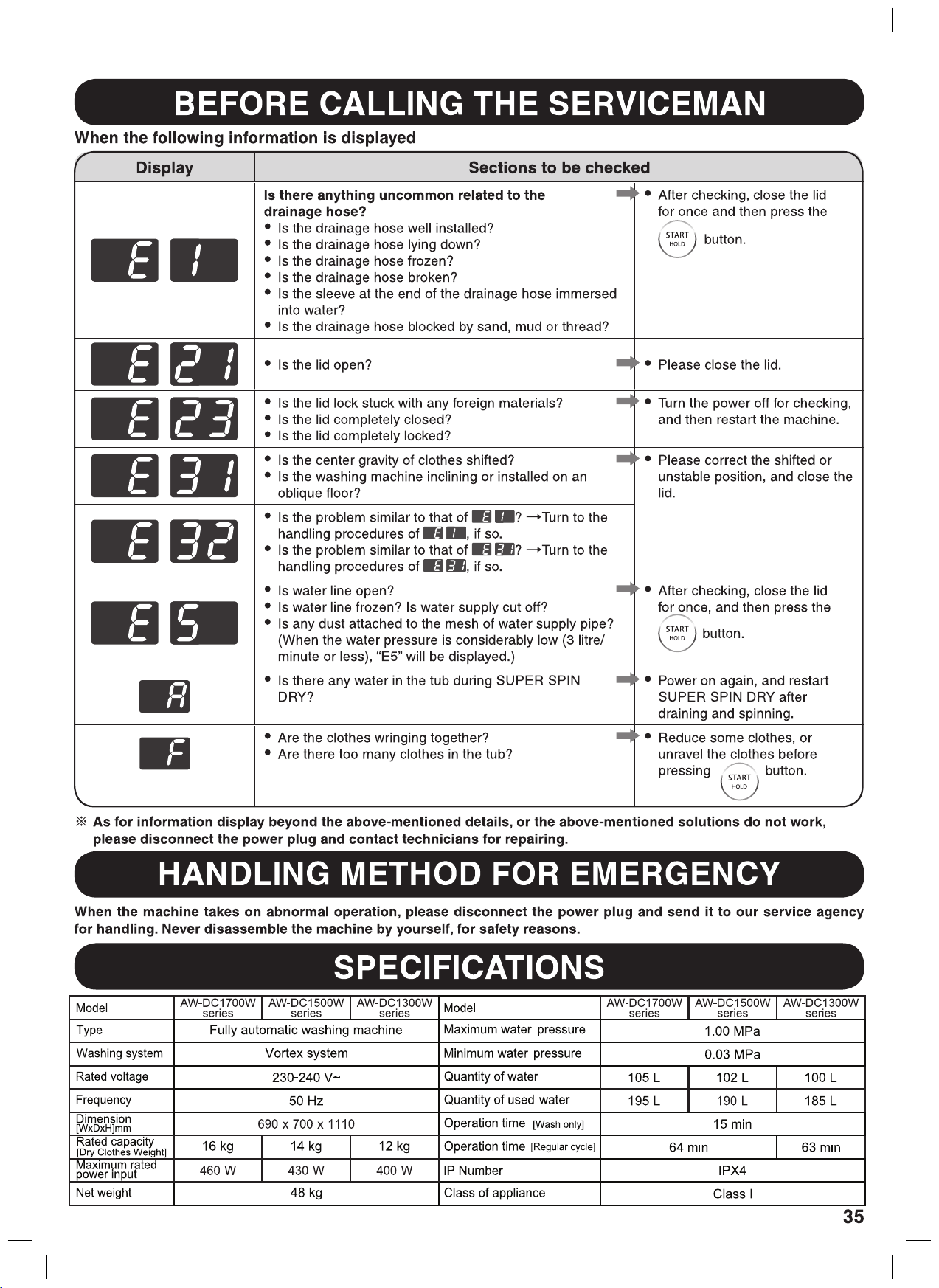

an error code will be displayed.
Set the water inlet hose correctly.
leakage at water faucet and water inlet
valve.

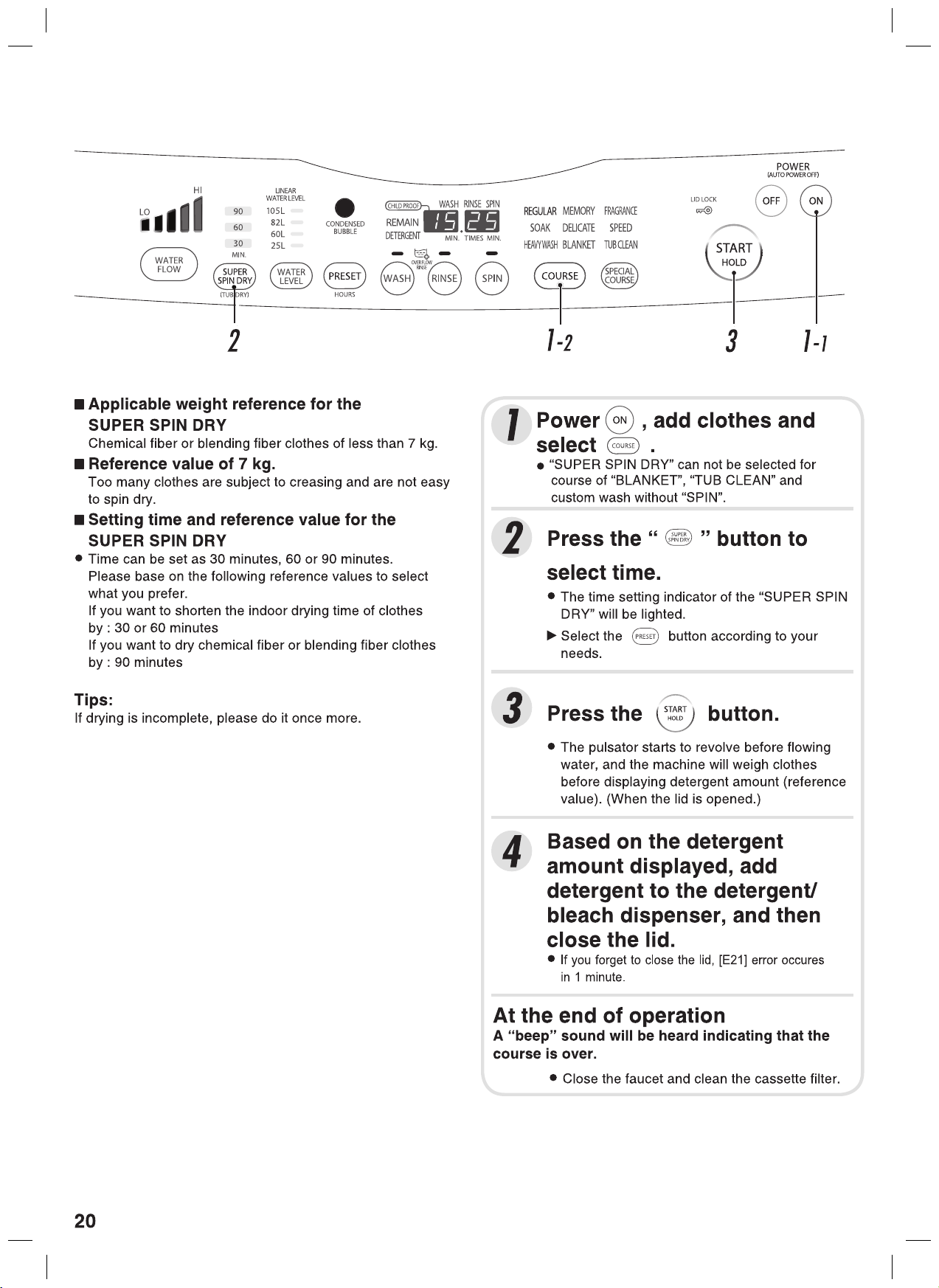

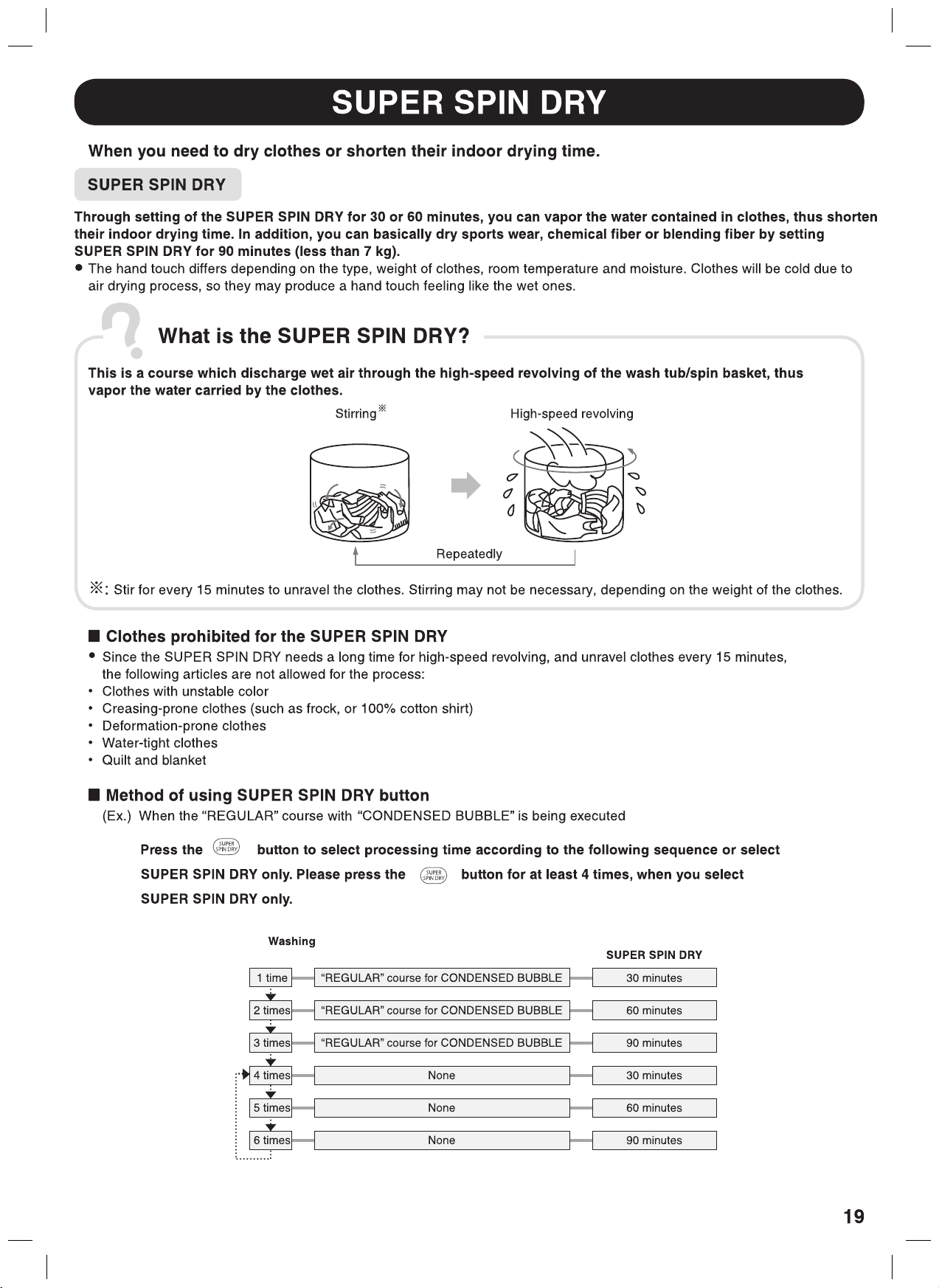

The "SUPER SPIN DRY" can not be stored , Even if you execute memory course.
If you start from rinsing without setting water level , it will be automatically set to the highest level.
Execute separate washing.
wringing out clothes.
Press the and hold. Then press the button.
L
Ho
w to remove
Hold the upper side of the casset
te filter, and push down
and pull it at the same time.
Clean the lint tr
ap at the end of operation.
Casset
te filter
When it is difficult to remove the filter case due to lint
attached, wet it with water to soften the lint.
L
Ho
w to set in
Hold the f
ilter case with its top side up. Put the lower side
of the filter case in the filter stand, and then push it until a
“click” sound is heard.
F
ilter slot
Cassette filter
Filter slot
Cassette filter
F
ilter cover
F
ilter cover
Filter case
Filter cover
Filter case
Filter valve
Concavity
Filter cover
Convexity
w
Insert the groove of the filter valve to the click at the
center of the filter cover.
Clic
k
Groove
L
Ho
w to remove
T
urn over the filter, and then slide the filter case in the arrow
direction of the following figure (q) to remove it (w).
Clean inside the filter cover and the filter case.
F
ilter case
L
When the filter valve inside the filter cover
is loosened
If the filter valve is loosened, lint may not be collected.
q Set the filter valve to the filter case while aligning its
concavity and convexity to those of the filter case.
C
ASSETTE FILTER
L
Ho
w to set in
q
Set the filter case to the filter cover as follows.
w Press down the filter cover case until a “click” sound
is heard.
of washing.
Water supply operates in the middle
