ICE MAKER
Instruction Manual
It is important that you read these instructions carefullyand keep it for future
reference.
Support email: icemaker@tazpi.com
Phone number: (252)465-3438
IMPORTANT SAFETYINSTRUCTIONS
It is important that you read these instructions carefully and keep it for future
reference.The picture is for reference only. Please be subject to the actual
products.
When using electrical appliances, basic safety precautions should be followed
to reduce the risk of fire, electric shock, and injury to persons or property.
Read all instructions before operating the machine for the first time.
CAUTION: ICE CAN’T BE STORED IN THE ICE BIN DURING NIGHT-TIME,IT’S
NOT FRIDGE,ICE WILL BE MELTED TO WATER AND GET OUT OF THE MACHINE.
1. If connect with water supply, CAUTION: must connect the potable water
supply;
2. The machine is intended to be used indoors and similar applications such as:
-staff kitchen areas in shops,offices, and other working environments;
-farm houses
-by clients in hotels,motels, and other residential type environments;
-Catering industry and similar non-retail industry.
3. The machine should be used in household and without obstacles
surrounded,good ventilation place.There is must be 50cm at least between
the four sides of the machine with the wall.
4. When using electrical appliances,basic safety precautions should be
followed to reduce the risk of fire,electric shock and injury to persons or
property.Read all instructions before using any appliance.
5. Don’t operate this or any other appliance with a damaged cord.
6. Connect to properly polarized outlets only.No other appliance should be
plugged into the same outlet.Be sure that the plug is fully inserted into the
socket.
7. Don’t place the machine and power cord near flammable material.Do not
cover the cord.Do not submerge it in water.
8. We do not recommend the use of an extension cord,as it may overheat and
become a risk of fire.
9. Unplug the ice maker before cleaning or making any repairs or servicing.
10. Exercise caution and supervision when the appliance is used near children.
11. Don’t use your ice maker outdoors.Avoid direct sunlight and make sure that
there is at least 50cm of space between the back and sides of your unit and
the wall.
12. Don’t use any liquid other than water in the unit to make the ice.
13. Do not clean your ice maker with flammable detergents.The fumes can
create a fire hazard or explosion.
14. Do not tip the machine over.
15. If the ice maker is brought indoors from outdoors during the
wintertime,give it a few hours to warm up to room temperature before
plugging to a power source.
16. This unit should be properly grounded for your safety.The power cord is
equipped with a three-prong plug mated with standard three-prong wall
outlets to minimize the possibility of electric shock.
17. Plug your appliance into a dedicated,properly installed and grounded wall
outlet.Do not,under any circumstance power and /or grounding should be
directed toward a certified electrician.
18. The foaming materials inside are combustible which must be kept away
from fire.
19. It’s forbidden to pull the cable to unplug the plug,pull the plug is a must.
IMPORTANCE: To avoid hazards due to instability,the unit must be placed on
an even and flat surface.
WARNING: The machine must be grounded and use a 110V ～ /60Hz power
supply.
1) Only connect to drinking water sources that meet local drinking water
standards.
2) In addition to the method recommended by the manufacturer, no
mechanical equipment or other methods should be used to accelerate the
defrosting process, which will damage the system.
3) The refrigeration system contains a high-pressure refrigerant, and the
refrigeration system must not be damaged. Special care must be taken
during installation and handling, installation and maintenance must be
performed by a professional, and scrap must be disposed of by designated
recycling departments.
4) The ice machine has thermal insulation materials, which are flammable
materials, and must be kept away from the fire source.

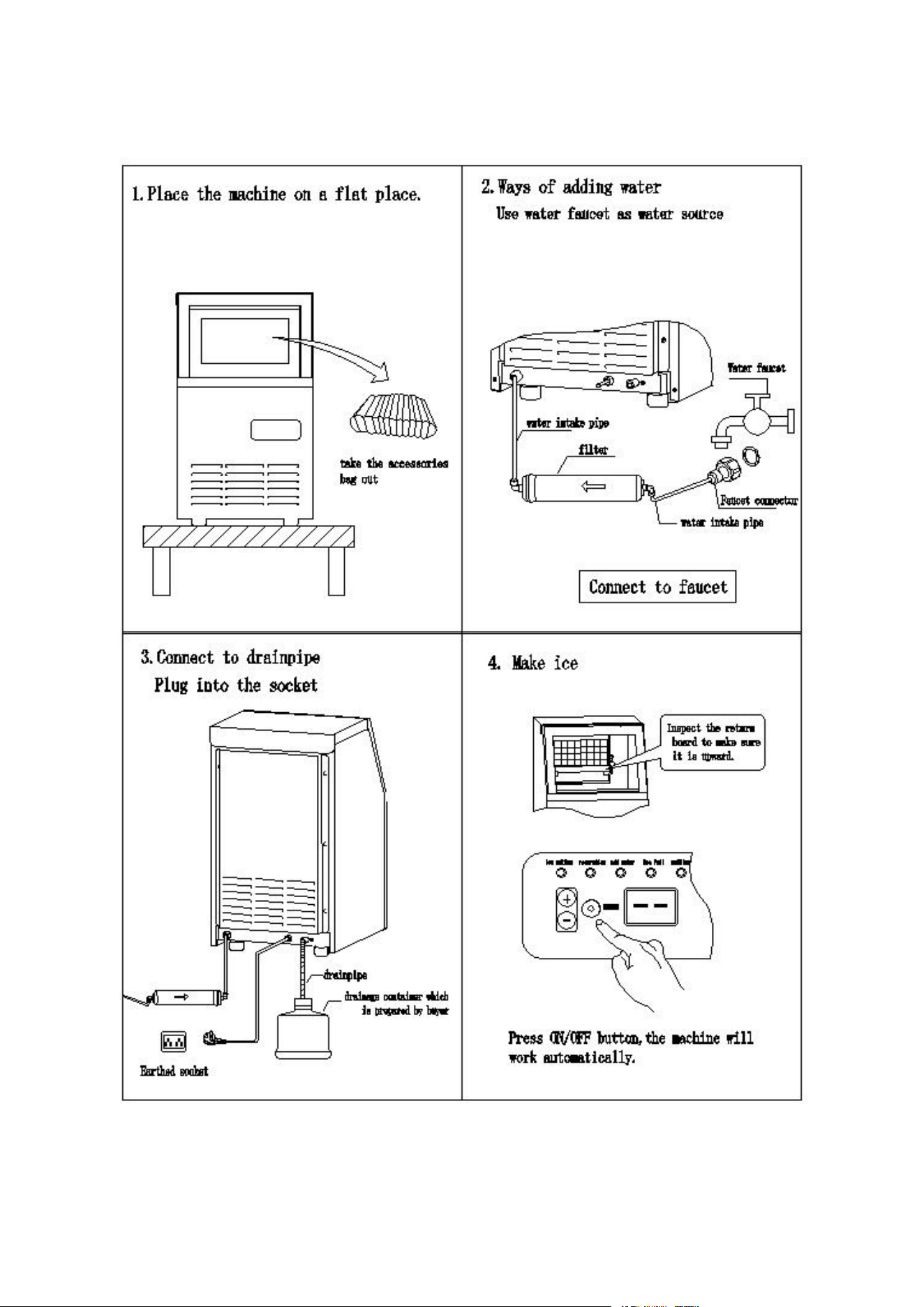

Quick installation diagram
Note: The picture is for reference only. Please be subject to the actual products.
NOTE: Installation must be operated by a professional.
UNPACKINGYOURICEMAKER
Warning:Please keep foam and other packaging materials from children and
disabled people, as this may cause danger to them.
NOTE: Please remove all packages when using,or else the machine may not
work properly.
a) Remove the packaging and check whether the machine is intact.
b) Open the accessory package and check whether the accessories are
included.

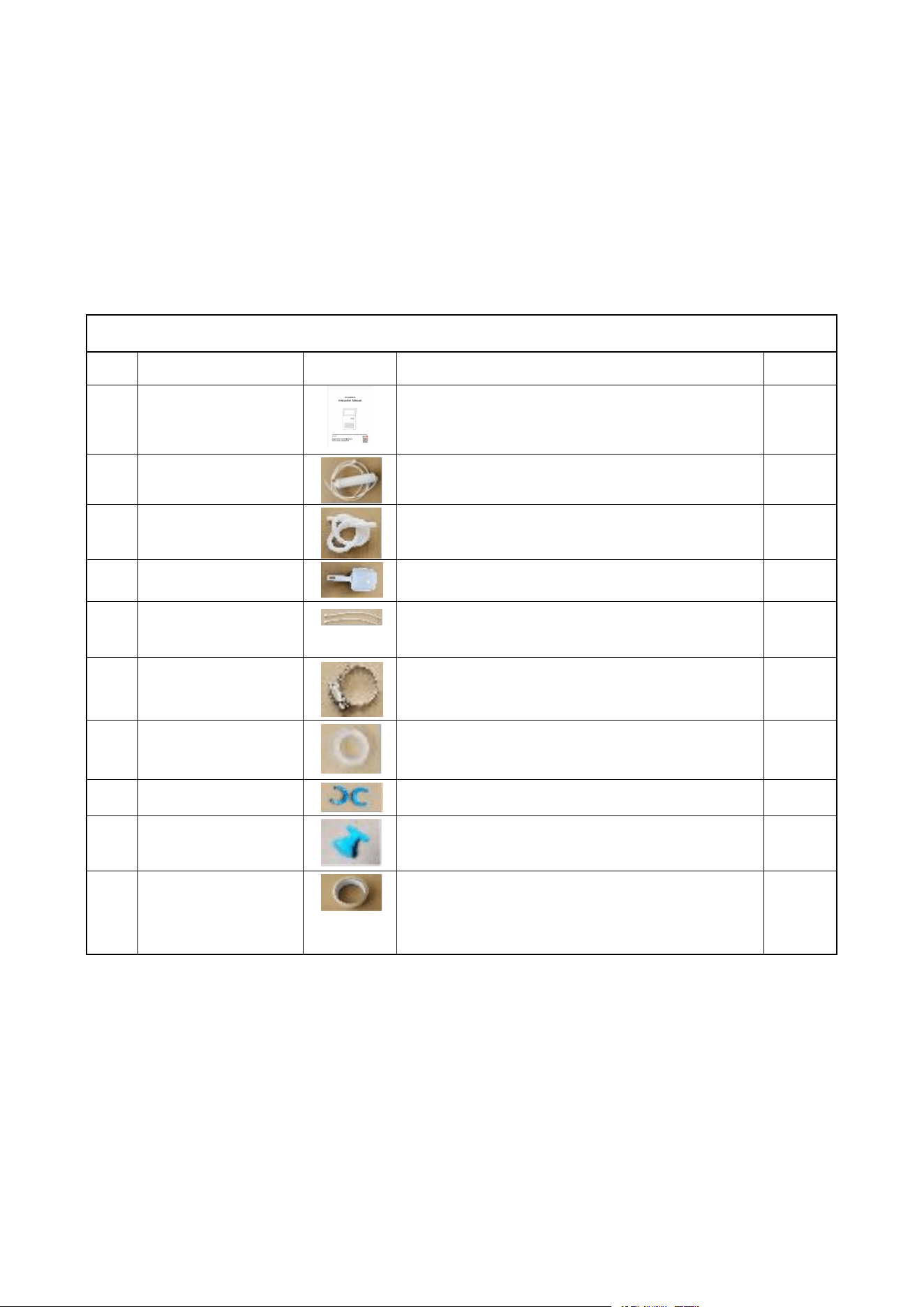

Accessories list
（
Please be subject to the actual products
）
NO
Description
Usage
QTY
1
Manual
Operation manual
1PC
2
Filter
Filter water
1PC
3
Drainage pipe
Drain
1PC
4
Ice spoon
Take ice cubes
1PC
5
nylon cable
ties
Fix pipe if needed
2PCS
6
Hoop
fasten the outlet and the drainage
pipe together if needed
1PC
7
Seal ring
Do put it in the faucet of the intake
pipe,the other one is spare.
2PCS
8
Spare blue clip
Spare blue clip if needed.
2PCS
9
Spare plug
Spare plug
1PC
10
Tape
Pack the machine if needed.It's just
for the machine which packed by
wooden base.
1PC
The placement of the machine
a) Findalocationforyouricemakerwhereit’sprotectedfromdirectsunlightandother
sources of heat(i.e.stove,furnace,radiator). Place the ice maker on a level
surface.
Makesurethatthereareatleast5inchesofspacebetweenthebackandsidesofyour
ice maker and the wall.
b) The ambient temperature around the machine should not be lower than 3℃,
not higher than 40℃, ensure there is at least 50cm of space between the
back and sides of your unit and the wall.
c) The machine should be placed in a stable place.
d) Please do not put anything on top of the machine.
e) After you unpack the machine, were commend you to leave it for 24 hours
before turning it on.
f) Clean the interior with lukewarm water and a soft cloth or clean the unit
using the Self-Clean function.
g) Theappliancemustbepositionedwheretheplugisaccessible.

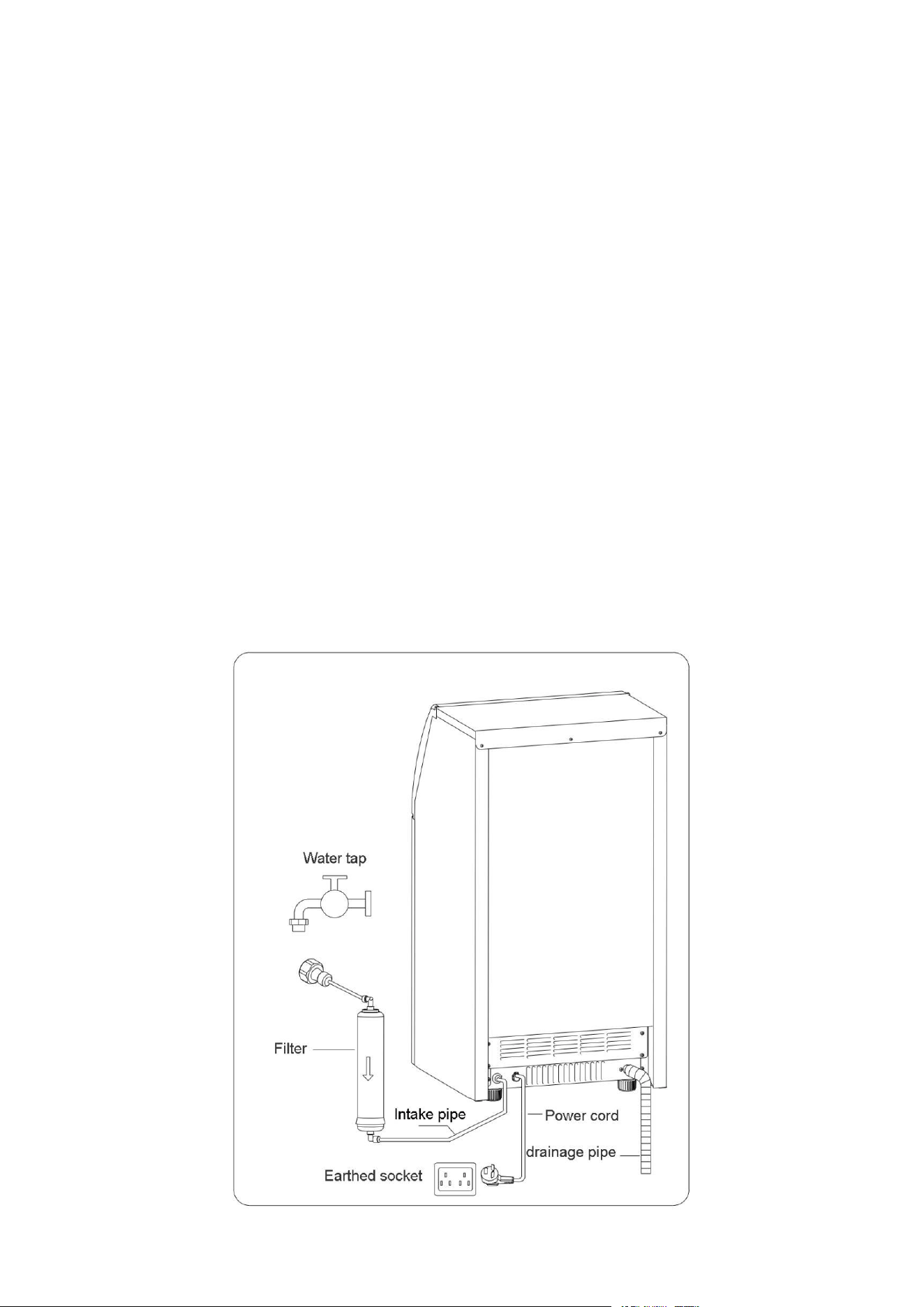

2) Water connection of the machine
Warning:
a.The ice machine can only be connected to a drinking water source, and the
water source must comply with local drinking water standards.
b.The water supply to the ice maker must be connected to a filter to improve
the drinking standard of the water. Please do not directly connect to tap
water.
c. The water supply pressure should be within 0.1-0.4MPa, if the pressure is
greater than 0.4MPa, a pressure reducing valve needs to be connected.
d. The machine is drained by its own weight, so the drainpipe should have
sufficient height.

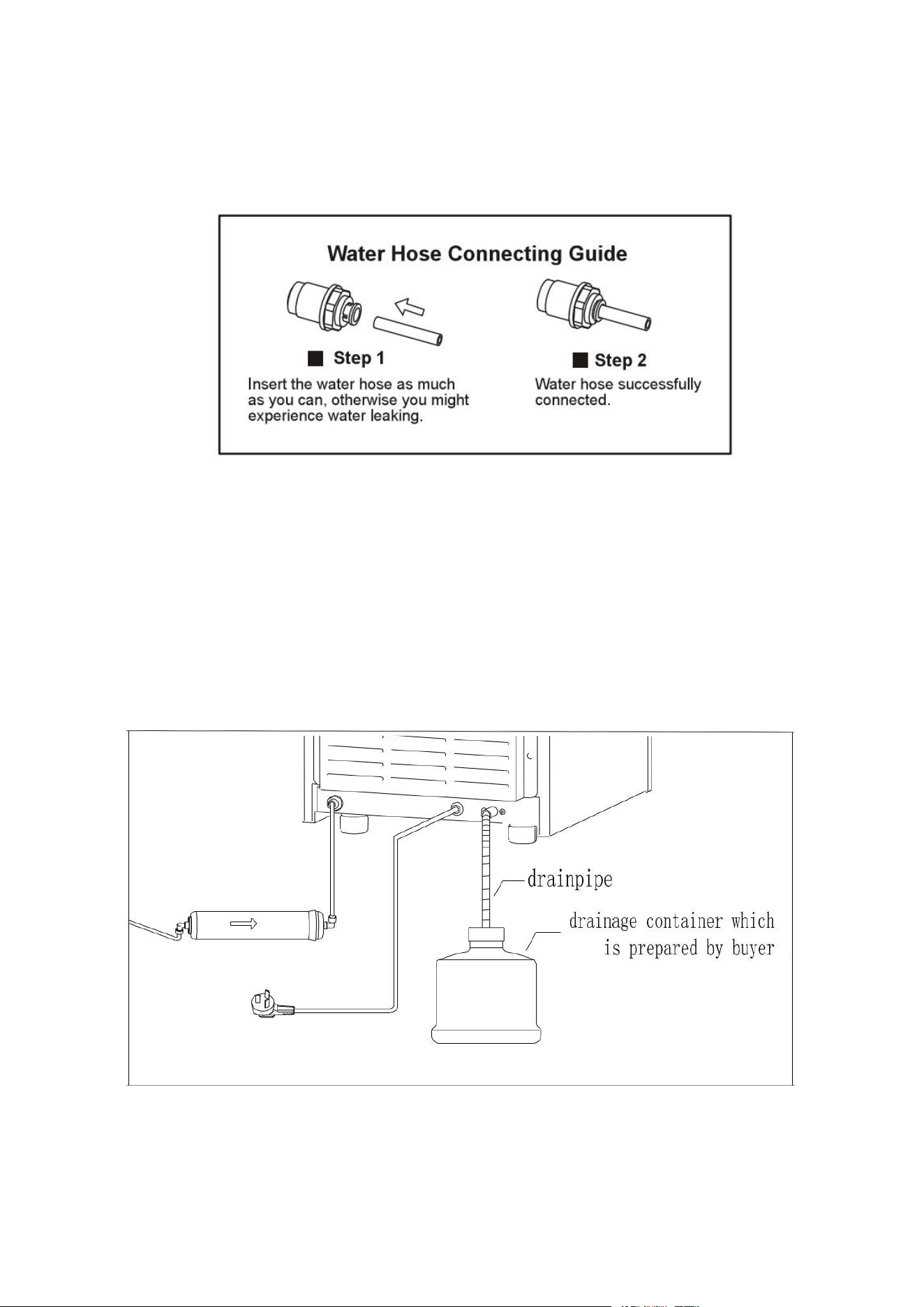

3-1) Water intake
We suggest you change the water filter for about 3 months according to your local water
quality situation. The cleanliness of the ice depends on the water and the cleaner the
water the longer the life of the ice machine will be. If you want to buy the original filter,
If you have questions about the connection, we can send the tutorial video to guide
3-2) Drainage
Warning: Because the ice in the inner tank will melt, the drainpipe must be
connected before using, and insert the drainpipe into a container or into the
sewer.
Note: Connect one end of the drainpipe to the machine and the other end to a
container or sewer. The other part of the drain pipe must be lower than the
drain port of the machine.
If you need a suitable drain pump, you could contact us by email.
Phone Number: (252)465-3438
We will guide you
4)Electrical connection
WARNING:
1) The machine must be grounded and use a 110V～/60Hz power supply.
2) The fusing current of the PCB is 15A,If it is to be replaced,must be operated
by a technician.
3) voltage fluctuation can’t exceed ±10% than the rated voltage,or a Voltage
stabilizer is needed.
4)
The blue light installed inside the machine must be replaced by a
professional.
MACHINE OPERATIONS

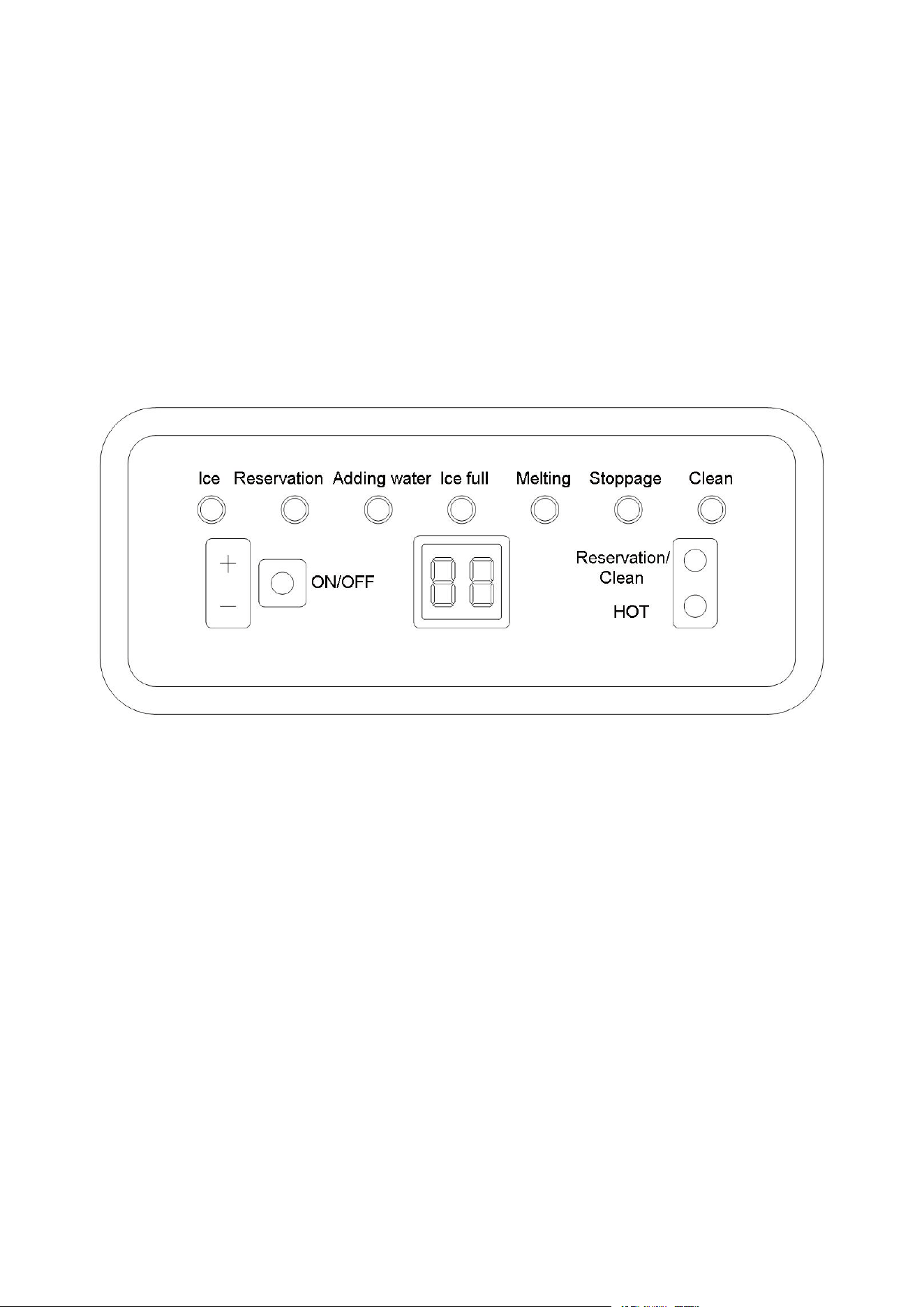

Operation Panel
Ice making operation:
1. Connect the machine to the power and press the“ON/OFF”button.The“ice
making”indicator will light on.
2. Press the “+”/“-” button to set the count down time for the ice making
procedure (The time range is from 5 minutes to 50 minutes). The machine
will enter the ice making procedure.
3. When the count down of time is finished, the “melting” indicator will light
on. The ice cubes will come off the freezing panel later.
4. After the ice cubes come off. The machine will enter another loop of ice
making automatically.
Auto Turning On/Off:
1.
When the machine is turned off while connected to the power, press the
“Reservation/Clean”button and the “+”/“-” button to set the auto-
turning-on time(in hours).The machine will automatically turns on after
the count down is finished.
2.
When the machine is at the middle of ice making, press
the“Reservation/Clean” button and the “+”/“-” button to set the
auto-turning-off time(in hours).The machine will automatically turns off
after the count down is finished.
Self-cleaning:
1. When the machine is turned off while connected to the power, press the
“Reservation/Clean”button and hold it for a while.The machine will
automatically enter self-clean program.
Notes:
(1)
Ifyouchangethecountdowntimeduringthemiddleoftheicemakingprocedure,it
will take effect at the next loop. You can long press the “HOT” button
during the ice making to unload the ice cubes ahead of time. Press “HOT”
to turn off the inner blue light, press again to power on the blue light.
(2)
The surrounding environmental temperature will influence the time
needed for ice making.
Warning:
1.To keep the ice cubes clean,wash your hands and use the scoop to take
the ice cubes.
1. Don’t store any others except ice in the tank.
The use of any electrical appliances must follow basic guidelines, especially:
A high humidity environment will increase the risk of short circuit or electric
shock. If in doubt, please cut off the power of the machine.
It’s forbidden to stop the machine by pull down the plug directly.
When there is no adult supervision, the ice maker cannot be used by children
or elderly people.
CLEANING & MAINTENANCE
Please thoroughly clean your ice maker before initial use.
EXTERIOR: the outside of the ice maker should be cleaned regularly with a
mild detergent and warm water. Always use a soft cloth to avoid scratching
or damaging the housing.
SPOON: clean with mild detergent and warm water in week.
Storage tank: clean with mild detergent and warm water in week.
PUMP: clean with mild detergent and warm water in week. Turn off and
unplug the machine,take the pump out,clean it with a brush then install it
back.
INTERIOR: please use the following Self-Clean function:
1. Add water and vinegar or lemon juice mix (1:1 ratio)
2. Plug in unit,press and hold the CLEAN button for approximately 3
seconds,then release.The unit will automatically enter Self-clean program.
This process takes about 5-6 minutes.When the Self-Clean program is
finished,unit will automatically power off.
3. The fan blade will be rotating.This process rinses the inside parts several
times.
4. After the Self-Clean program is completed,unplug the power cord and
drain out the water by unplugging the drain cap on the side.Replace drain
cap.
5. Add fresh water to the water reservoir,up to the water level mark.
6. Plug the unit and repeat the Self-Clean process by repeating steps 3 to 5.
This will rinse out the vinegar/lemon residue.
7. After draining the water,replace and tighten drain cap.
8. Dry the interior and exterior with a clean,soft cloth.
NOTE: It is strongly recommended to clean the unit before initial use or after
the unit has not been in use for a long period of time.
NOTE

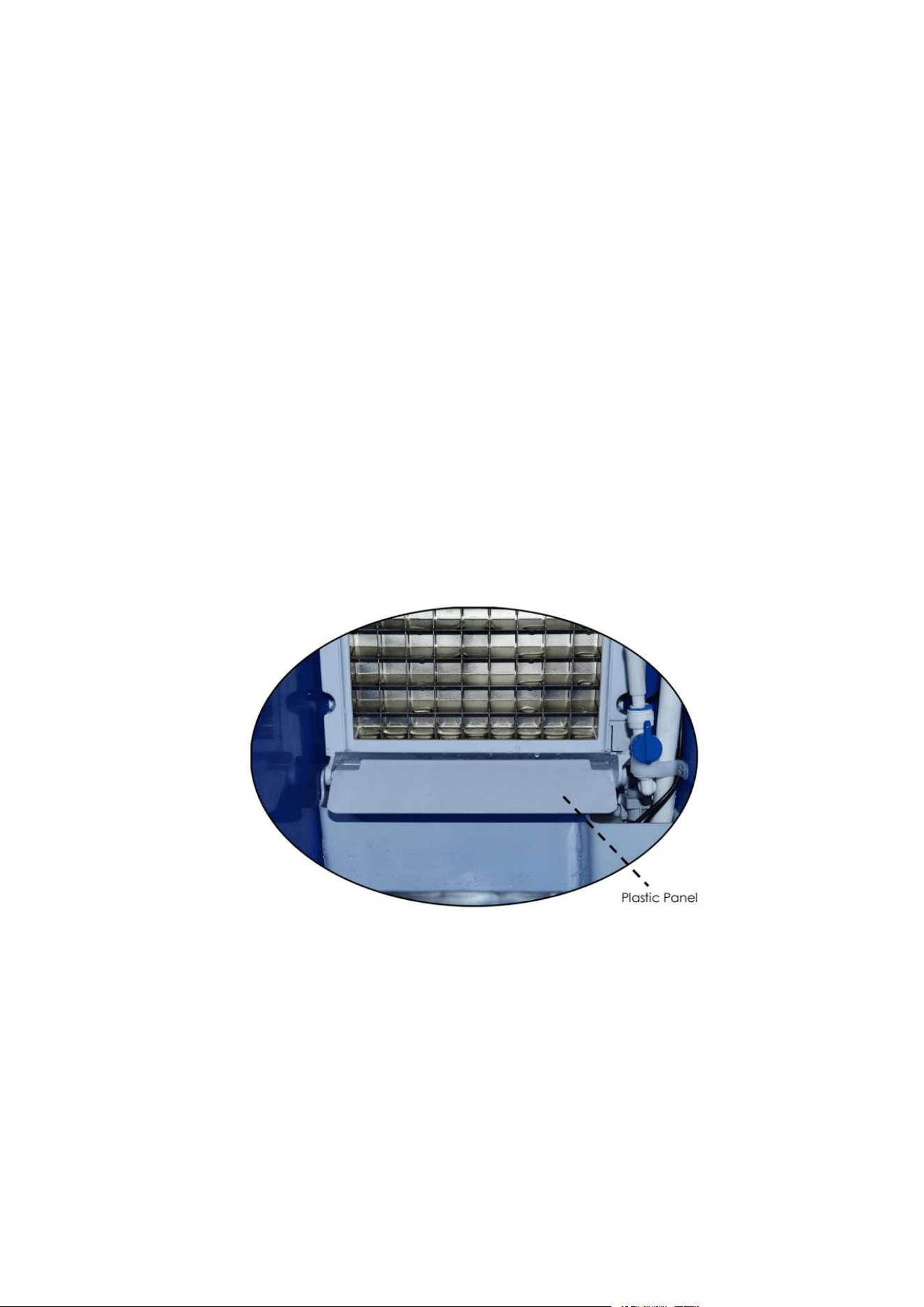

As the production of ice cubes increases, the plastic panel inside the machine
(shown above) might be pressed down by the ice cubes. When the plastic
panel is pressed down, the machine will stop producing ice cubes
automatically and the “ice full”indicator will light on. Please clean out the ice
cubes regularly for continuation of ice making.
Common malfunction analysis
E1
Ice full
indicator is
on,and
proximity
switch didn't
react
Evaporator connector didn't
assemble well
Re-install the connector
Proximity switch is not
sensitive
Replace the switch
The connector didn't return
to original position
Take away the ice to make the connector
return to original position
E2
Normal to
make ice
Stop every 4 cycles,and the
process of ice drop
continued for 5 min
Proximity switch is not sensitive,replace it
No water in
the tank
The water tank is not
plugged
Put the plug back
Use barreled water as
water source
The blue tap didn't rotate to vertical
Use barreled water as
water source
，
but no water
flow down
The water pipe was jammed, disconnect
and clean it.
Use tap water as water
source
Check the water supply
Water
slopped over
the tank
Use barreled water as
water source
Check whether the water pipe was inserted
well or not
Use tap water as water
source
The blue tap didn't rotate to horizontal
Use tap water as water
source
Water pressure is too high,water float can't
work.Adjust the water pressure or replace
by a new one.
Water in the
tank
No water or low flow
Pump is badly clogged up,replace or clean it
The spray pipe is clogged up,clean it
Water flow
and water
get cool
Thin ice on the evaporator
Increase the making time through "+"
very solid ice on the
evaporator
Reduce the making time through "-"
Some water sprayed to ice
storage tank
Adjust the spray pipe
The water leak from the
back of water tank
The tank need to be adjusted.
Water flow
down but
water is not
cool
The main board didn't
supply electricity to
compressor
Replace by a new main board
Compressor didn't work
Check the starter,replace by a new one if
needed
Compressor is very hot
Replace
Compressor work but the
connected copper pipe
didn't get cool
The compressor leak
E3
The fan is
not work
The condenser prob is not
sensitive
Unplug the prob or replace by a new one
The fan is jammed
Adjust the fan
Fan is broken
Replace by a new fan
E4
Ice full
The connector didn't return
to original position
Take away the ice to make the connector
return to original position
If your ice maker shows E1,E2,E3,E4 code, but you can’t solve it, please take a video
3438
