Product May Vary
Slightly From Pictured.
1. Save these instructions and ensure that other exercisers read this manual prior to using the Folding Upper &
Lower Body Cycle for the rst time.
2. The Folding Upper & Lower Body Cycle should only be used after a thorough review of the Owner’s Manual.
Make sure that it is properly assembled and tightened before use.
3. Do not stand up on the Folding Upper & Lower Body Cycle.
4. Keep children away from the Folding Upper & Lower Body Cycle. Do not allow children to use or play around the
Folding Upper & Lower Body Cycle. Keep children and pets away from the Folding Upper & Lower Body Cycle
when it is in use.
5. Keep ngers clear of all pinch points when folding and unfolding the Folding Upper & Lower Body Cycle.
6. Set up and operate the Folding Upper & Lower Body Cycle on a solid, level surface like a desk or table for upper
body workouts, and on an equipment mat for lower body workouts. You must always be seated when pedaling with
your feet. Do not position the Folding Upper & Lower Body Cycle on loose rugs or uneven surfaces.
7. Before using, inspect the Folding Upper & Lower Body Cycle for worn or loose components, and securely tighten
or replace any worn or loose components prior to use.
8. The surface of the crank housing may become hot during use, so allow it to cool before moving.
9. Consult a physician prior to commencing an exercise program. If, at any time during exercise, you feel faint, dizzy,
or experience pain, stop and consult your physician.
10. Always choose the workout which best ts your physical strength and exibility level. Know your limits and train
within them. Always use common sense when exercising.
11. Do not wear loose or dangling clothing while using the Folding Upper & Lower Body Cycle.
12. Never exercise with bare feet or socks. Always wear appropriate footwear.
13. The Folding Upper & Lower Body Cycle should be used by only one person at a time.
Safety Instructions
Customer Service
Operation
Warranty
Owner's Manual
Safety Instructions
!
WARNING:
Cancer and Reproductive Harm www.P65Warnings.ca.gov
!
CAUTION: Consult your physician before starting this or any exercise program. This
is especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in bodily injury and property damage.
!
WARNING:
Weight limit is not applicable if product is used properly. This unit is not
designed to support a user’s weight. To reduce the risk of serious injury, please
read all safety instructions before using
the
Folding Upper & Lower Body Cycle.
When calling for parts or
service, please specify the
following model number:
15
-
0101A
MADE IN CHINA
2020 Stamina Products, Inc.
2020, 11
Folding Upper &
Lower Body Cycle
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springeld, MO 65803
Customer Care
1 (800) 375-7520
customer[email protected]
www.staminaproducts.com
Quickstart Guide
Go to the App Store on your device or
scan the QR Code for quick access.
Smart Audio Workouts for Your Cycle
Download the app and get moving!
IMPORTANT
Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service
mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google LLC.
Assembly and Operational Instructions
3
STEP 1: Unfold the FRONT FRAME(2) from the MAIN FRAME(1) and secure with the
LOCKING KNOB(15). Press the STAND CAPS(3) onto the stabilizers on the
MAIN FRAME(1) and the FRONT FRAME(2).
STEP 2: Bolt the ADJUSTMENT KNOB(14) into the hub on the MAIN FRAME(1).
NOTE: There are two adjustment holes on each side of the PEDAL STRAPS(12).
Select the adjustment holes which allow your feet to be easily removed from
the PEDALS(11).
CAUTION: The surface of the crank housing may
become hot during use, so allow it to cool
before moving. Read the cautions posted
on the
Folding Upper & Lower Body Cycle
.
Caution Decal
(both sides)
LOAD ADJUSTMENT
To increase the intensity of your workout, turn the ADJUSTMENT KNOB(14) clockwise.
To decrease the resistance, turn the ADJUSTMENT KNOB(14) counterclockwise.
Assembly and Operational Instructions
4
USING THE ELECTRONIC TIMER
1. To time your workout, begin by pressing and holding the
button on the face of the timer until zeros are displayed.
Release the button.
2. Start the timer by pressing and releasing the button. Now
you are ready to begin your workout.
3. To stop or pause the timer, press and release the timer button. This freezes the
workout time. To resume your workout without losing the time displayed before
stopping or pausing, press and release the button again.
4. When you complete your workout, press and release the timer button. The timer will
automatically turn o after being in stop or pause mode for 4 minutes.
TIMER Function: The electronic timer displays minutes and
seconds up to 99:59.
BATTERY: The electronic timer operates with a 3V CR2032 button cell battery,
included. Replace the battery when you see inconsistencies in the display.
NOTE: Even after the timer automatically turns o, the time that was displayed prior to
shut o will remain in memory. To resume your workout without losing the time
displayed before stopping, press and release the timer button. To clear the time
and start a new workout, start again at step 1.
HOW TO INSTALL AND REPLACE BATTERY:
1. Remove the TIMER(20) from the
Folding Upper &
Lower Body Cycle
. Place the TIMER(20) up-side
down as shown in the illustration.
2. Refer to the illustration. Remove the old battery.
3. Install a new button cell battery. Assemble the
TIMER(20) back to the
Folding Upper & Lower Body
Cycle
.
CR2032
Battery
Pinch here to
release the
battery.
1. Ultimate disposal of battery should be handled
according to all state and federal laws and
regulations.
2. Do not dispose of batteries in re.
NOTE:
The safety and integrity designed into the
Folding Upper & Lower Body Cycle
can only
be maintained when the
Folding Upper & Lower Body Cycle
is regularly examined for
damage and wear. Special attention should be given to the following:
1. A light oil is applied to the pedals of your Folding Upper & Lower Body Cycle
before shipping. Reapply oil if the pedals begin squeaking.
2. Verify that all nuts and bolts are present and properly tightened. Replace missing
nuts and bolts. Tighten loose nuts and bolts.
3. Verify that the CAUTION LABEL(26) is in place and easy to read. Call Stamina
Products immediately at 1-800-375-7520 for a replacement CAUTION LABEL(26) if
it is missing or damaged.
4. It is the sole responsibility of the user/owner to ensure that regular maintenance is
performed.
5. Worn or damaged components must be replaced immediately or the Folding Upper
& Lower Body Cycle removed from service until repair is made.
6. Only Stamina Products supplied components should be used to maintain/repair the
Folding Upper & Lower Body Cycle.
7. Keep your Folding Upper & Lower Body Cycle clean by wiping it off with an
absorbent cloth after use.
1. To store the Folding Upper & Lower Body Cycle, simply keep it in a clean dry
place.
2. The minimum folded dimensions of the Folding Upper & Lower Body Cycle are
approximately 16.4" long x 14.4" wide x 5.6" tall. Please measure your Folding
Upper & Lower Body Cycle if exact dimensions are needed.
3. To move the Folding Upper & Lower Body Cycle, lift the unit by the upright of the
MAIN FRAME(1).
Caution: Make sure that the hub on the MAIN FRAME(1) has cooled before moving.
4. To fold, refer to illustration A, remove the LOCKING KNOB(15), and fold the FRONT
FRAME(2) to the MAIN FRAME(1). Reattach the LOCKING KNOB(15) to the
FRONT FRAME(2). The Folding Upper & Lower Body Cycle should appear as
shown in illustration B after folded.
Storage
Maintenance
5
A. B.

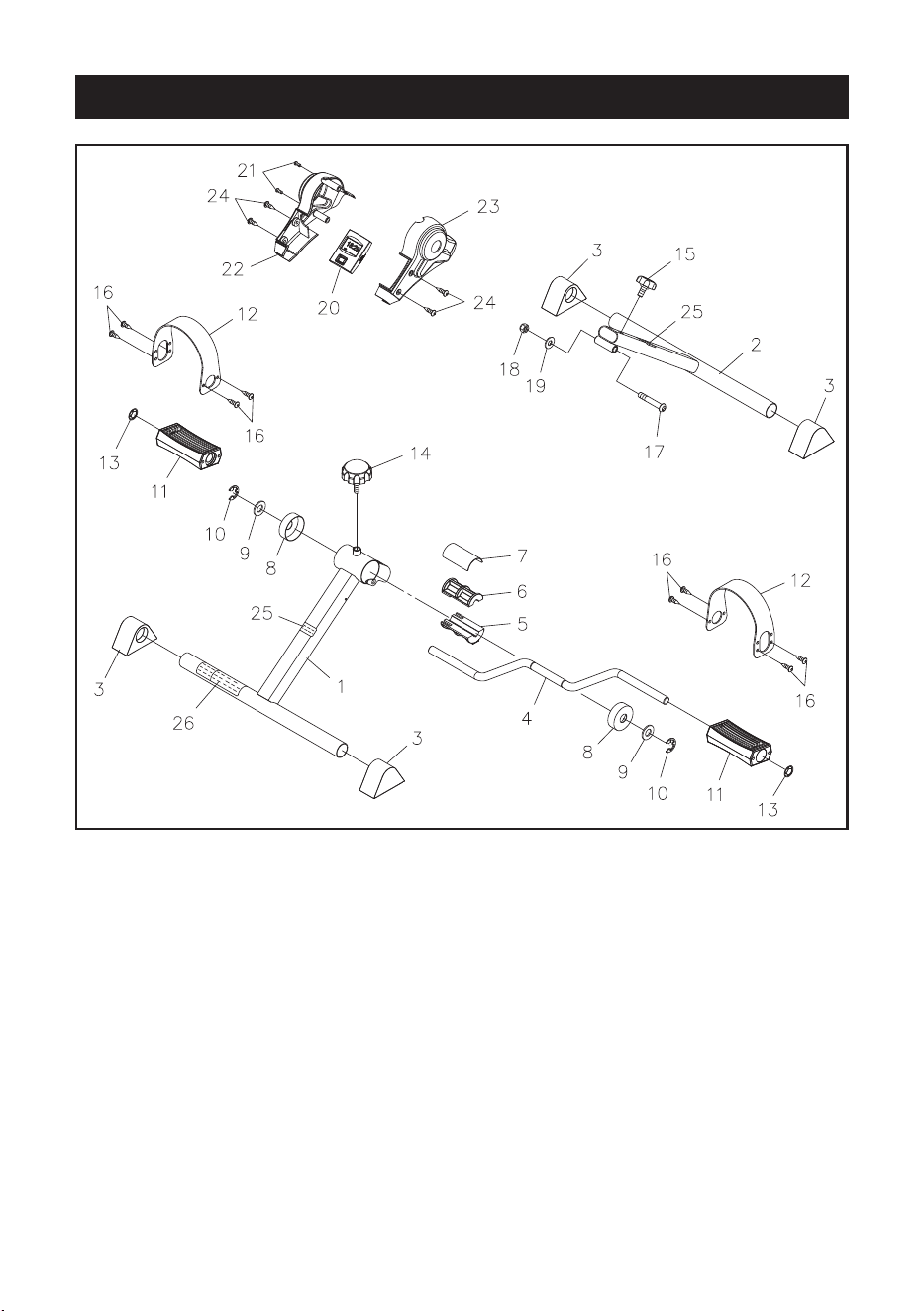

Product Parts Drawing and Parts List
FRONT
BACK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Part No. and Description Qty Part No. and Description Qty
15
16
17
18
19
20
21
22
23
24
25
26
27
6
Main Frame 1
Front Frame 1
Stand Cap (25.4mm) 4
Crank 1
Bottom Brake Block 1
Top Brake Block 1
Press Plate 1
Hub Cap 2
Nylon Washer (1/2”) 2
E Clip (1/2”) 2
Pedal 2
Pedal Strap 2
Push Nut (1/2”) 2
Adjustment Knob 1
Locking Knob 1
Screw, Round Head (M4 x 12mm) 8
Bolt, Botton Head (M8 x 1.25 x 56mm) 1
Nylock Nut (M8 x 1.25) 1
Washer (M8) 1
Timer 1
Screw, Round Head (M3 x 15mm) 2
Left Cover 1
Right Cover 1
Screw, Round Head (M4 x 13mm) 4
Caution Decal - Hot Surface 2
Caution Label 1
Owner's Manual 1
7
Limited Warranty
MODEL 15-0101A
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product
will be free from defects in materials and workmanship that arise under normal use,
service, proper assembly and proper operation in accordance with product warnings/
instructions for a period of 90 days on the parts and one year on the frame from the date
of the original purchase from an authorized retailer. THIS WARRANTY SHALL NOT
APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE,
ABUSE, MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE
CAUSED BY IMPROPER ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION
OR USE WITH PARTS NOT PROVIDED BY STAMINA. Commercial use includes use
of product in athletic clubs, health clubs, spas, gyms, and all other public or semipublic
facilities whether or not the product’s use is in furtherance of a prot making enterprise,
and all other use which is not for personal purposes.
To implement this limited warranty, send a written notice stating your name, date, and
place of purchase and a brief description of the defect along with your receipt to Stamina
Products, Inc. 2040 N Alliance Ave, Springeld, Missouri, USA, MO 65803, or email us
at customer[email protected], or call us at 1-800-375-7520. If the defect is
covered under this limited warranty, you will be requested to return the
product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED
MORE THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR
SHOULD HAVE BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED
WARRANTY (INCLUDING MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE) MAY BE COMMENCED MORE THAN ONE (1) YEAR AFTER DELIVERY
OF THE PRODUCT TO THE PURCHASER. These warranties are not transferable.
IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE WITH THIS LIMITED
WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR
REPLACEMENT IS THE EXCLUSIVE REMEDY. If any claim is made under this limited
warranty or any implied warranty, Stamina reserves the right to require the product to be
returned for inspection, at the purchaser’s expense, to Stamina’s premises in Springeld,
Missouri. Return of the enclosed warranty registration card is not required for warranty
coverage, but is merely a way of establishing the date and place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS
OF TIME, INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT,
CONSEQUENTIAL, SPECIAL OR INCIDENTAL DAMAGES DUE TO BREACH OF
THE ABOVE WARRANTY OR ANY IMPLIED WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR
WRITTEN INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES,
SHALL CREATE A WARRANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS
WARRANTY. This warranty gives you specic legal rights, and you may also have other
legal rights which vary from state to state. ANY OTHER RIGHT WHICH YOU MAY
HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF
THIS WARRANTY.
The laws in some states affect the disclaimer or limitation of implied warranties and
consequential and incidental damages. If any such law is found applicable, the foregoing
disclaimers and limitations of and on implied warranties and consequential and
incidental damages shall be deemed to be modied to the extent necessary to comply
with applicable law.
