User manual
PRO range display chillers and display freezers
To ensure safe operation, please read this user manual thoroughly before use.
© Husky. Husky reserve the right to change specifications at any time without notice.
Images used are for illustration only. Stock not included.
UK PRO upright manual 070823.indd 1UK PRO upright manual 070823.indd 1 15/08/2023 13:4907/08/2023 13:49
Thank you for buying this Husky appliance. It has been designed and manufactured for many years
of trouble-free service.
Operation is very simple, but please take a few minutes to read this user manual. It contains
important safety information, and tips to ensure you receive the best possible service from your
Husky appliance.
Welcome to your new Husky
2
CONTENTS
Important Notes ................................................................................................................................................................................. 3
Warning! Risk of electrical shock hazard ......................................................................................................................... 3
Disposal of old refrigerators ..................................................................................................................................................3
Safety instructions and warnings ..........................................................................................................................................3
How to minimise the energy consumption of your appliance ...........................................................................4
Before using for the first time ...............................................................................................................................................5
Troubleshooting ................................................................................................................................................................................... 6
Standard Range C4PRO, C5PRO, C8PRO, & C10PRO ...............................................................................................7
Operating Instructions ...............................................................................................................................................................7
Exploded diagram .........................................................................................................................................................................8
Circuit diagrams .......................................................................................................................................................................... 10
Wiring diagram ...........................................................................................................................................................................11
Freezer Range F5PRO & F10PRO ......................................................................................................................................... 12
Operating Instructions ............................................................................................................................................................ 12
Exploded diagram ......................................................................................................................................................................13
Circuit diagrams .......................................................................................................................................................................... 15
Wiring diagram ...........................................................................................................................................................................15
UK PRO upright manual 070823.indd 2UK PRO upright manual 070823.indd 2 15/08/2023 13:4907/08/2023 13:49
All models
Important Notes
WARNING: RISK OF ELECTRICAL SHOCK HAZARD
This refrigeration appliance must be earthed.
If the power cable is damaged, it must be replaced by a qualified engineer to avoid shock hazard.
DO NOT ATTEMPT TO SERVICE THE ITEM YOURSELF. Ensure that the appliance is properly
earthed. Stop using the appliance immediately if electric shock is felt when touching the cabinet.
DISPOSAL OF OLD REFRIGERATORS & FREEZERS
BE SURE TO MAKE ANY LOCKS UNUSABLE. IF POSSIBLE, REMOVE THE
DOOR(S) AND DISCARD SEPARATELY.
WARNING – CHEMICAL HAZARD: DO NOT ALLOW CHILDREN TO PLAY
WITH OLD REFRIGERATORS OR FREEZERS. CONTACT YOUR LOCAL
AUTHORITY FOR PROPER DISPOSAL PROCEDURES.
Before disposing of an old appliance, please make sure it is switched off and safe. Unplug the
appliance and break any locks in order to avoid children becoming trapped.
Please note: the refrigeration system contains gases and refrigerants which require specialist waste
disposal. The valuable materials contained in a refrigerator or freezer can be recycled.
Contact your local waste disposal depot for proper disposal of an old appliance and contact your
local authority or dealer if you have any questions.
Ensure the pipework of the old appliance is not damaged prior to disposal. You can contribute to
the environmental awareness by insisting on an appropriate non-polluting method of disposal.
USERS IN EUROPE – WEEE COMPLIANCE
These appliances are authorised to carry the CE (Conformité
Européene) and WEEE (Waste Electrical and Electronic
Equipment Directive) symbols.
The WEEE symbol on this appliance indicates that the product
must not be disposed of with household waste. To help prevent
possible harm to health and the environment, the product must be disposed of by recycling
methods authorised as environmentally safe. For more information on how to dispose of this
product appropriately, contact your dealer or the recycling department at your local authority.
These appliances and their components undergo strict product testing by independent companies
to comply or exceed all applicable local and international regulatory standards.
SAFETY INSTRUCTIONS & WARNINGS
Before switching on your appliance, read the information in this user manual carefully. The user
manual contains important observa tions relating to the assembly, operation and maintenance of
the appliance.
Please keep this user manual in a safe place for future reference. If you ever sell this appliance,
hand this user manual to the new owner.
The manufacturer does not accept responsibility for any damages that may arise due to non-
observation of these instructions.
3
UK PRO upright manual 070823.indd 3UK PRO upright manual 070823.indd 3 15/08/2023 13:4907/08/2023 13:49
4
• Do not use the appliance if it is damaged. If you are in any doubt, consult an engineer.
• Connection and installation of your Husky appliance are to be carried out in strict
compliance with the relevant instructions in this user manual.
• Make sure there is a suitable power outlet with proper grounding to power the appliance.
• For safety, the appliance must be properly earthed in accordance with specifications.
• Always remember to unplug the appliance before cleaning. Never unplug this unit by
pulling on the power cable. Always grip plug firmly and pull straight out from the socket.
• All electrical repairs must be carried out by a qualified engineer. Inadequate repairs may
be dangerous.
• Do not damage any parts of the appliance which carry refrigerant by piercing, perforating,
crushing, twisting or scraping. If refrigerant comes into contact with the eyes it may cause
serious eye injury.
• Do not obstruct or cover the ventilation grille.
• Do not allow children to play with the appliance, or to sit on it or hang onto the door.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabil ities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the unit by a person
responsible for their safety.
HOW TO MINIMISE THE ENERGY CONSUMPTION OF
YOUR APPLIANCE
• Energy consumption will be lower if the appliance stands in a well ventilated space and in
particular if the vents on the appliance are clear of obstruction.
• Do not place the appliance in direct sunlight or near a heat source such as ovens, radiators,
heaters, etc as this will increase energy consumption.
• Keep the appliance door closed as much as possible.
• Setting the thermostat colder means higher energy consumption, so set only as cold as you
really require.
• Do not overfill the appliance - overfilling means the cool air cannot circulate freely inside the
appliance which may slow the process of chilling/freezing the contents and make the
appliance less efficient.
• Defrost the appliance if frost can be seen building up inside - frost will increase energy
consumption and make the chilling/freezing process slower (see section ‘Defrosting’).
• Turn the appliance off completely if it is not required for a period of days (or longer) to avoid
wasting energy.
UK PRO upright manual 070823.indd 4UK PRO upright manual 070823.indd 4 15/08/2023 13:4907/08/2023 13:49
5
BEFORE USING FOR THE FIRST TIME
IMPORTANT: Before switching the appliance on, we recommend you allow it to
stand upright for 8 hours. Failure to do this may result in damage to the appliance.
• Remove the wooden pallet and the packing.
• To ensure correct operation, it is important that the appliance is level. The cabinet may
be levelled by turning either or both of the adjustable feet in the front corners. Use a
spirit level to check.
• IMPORTANT: When the appliance is in its final position you must secure it by winding
down the two threaded stabilising feet at the front corners of the appliance (see
illustration right) so they are firmly on the
floor. This will prevent any further unwanted
movement.
• Before operation, we recommend that the
cabinet is cleaned for reasons of hygiene and
to remove any residue left from manufacture.
• For good circulation, vents must not be
blocked. Keep a minimum of 100mm of clear
space around the appliance. Your appliance
should be placed on flat and firm surface for
quieter operation.
• Do not expose the appliance to direct sunlight or a heat source such as ovens, radiators,
heaters, etc.
• Do not under any circumstances place heated food or beverages in your appliance.
• Do not open the door more often than necessary to lessen the escape of cold air.
• For better air circulation, do not overfill the appliance.
• Adjust the thermostat according to the amount of product and the ambient temperature.
UK PRO upright manual 070823.indd 5UK PRO upright manual 070823.indd 5 15/08/2023 13:4907/08/2023 13:49
6
Troubleshooting
Before calling Technical Support, please check the following points; you may be able to solve any
problem yourself.
Problem
The appliance does not
work properly.
The appliance’s internal
temperature is too high
or too low.
The appliance is noisy
in operation or makes
unusual noises.
• Note: It is normal to
hear some noises as
refrigerant flows through
the compressor.
Outer surfaces are wet
Inner surfaces are wet
Possible Cause
The appliance is not plugged in.
The plug and/or the power cable are
faulty.
The fuse has blown.
The appliance is faulty.
The wrong temperature is selected.
The factory default settings for the
controller are incorrect.
The condenser is blocked by an
accumulation of dust.
The doors are not fully closed.
The appliance is close to a heat
source or the ambient temperature
is too high.
The ventilation grille is blocked.
The appliance is not on a level, firm
surface, or the unit may be touching
other items.
The appliance is vibrating against a
neighbouring object.
The appliance may be close to a
water source or leak.
The door may be opened too often
or kept open too long.
Action
Connect the plug to the
power supply.
Call your supplier or a
qualified engineer.
Replace the fuse with one of
the same rating.
Call your supplier or a
qualified engineer.
Check the controller and
adjust the set temperature.
Call your supplier or a
qualified engineer.
Clean using a vacuum cleaner
and soft brush attachment
(see pages 8, 14, 20, or 24)
Check the appliance is level
and the seals are not damaged.
Move the appliance to a
better location and check it is
out of direct sunlight.
Move the appliance to improve
free movement of air.
Check location and position
using a spirit level.
Relocate the appliance or the
object.
Dry surfaces thoroughly and
move the appliance.
Try to minimise opening of
the doors for better cooling
performance.
UK PRO upright manual 070823.indd 6UK PRO upright manual 070823.indd 6 15/08/2023 13:4907/08/2023 13:49
7
Standard Range C4PRO, C5PRO, C8PRO, & C10PRO
Operating Instructions
TO OPERATE THE ELECTRONIC THERMOSTAT
The thermostat has been pre-set, and in most cases it is not necessary to adjust the settings. When
the appliance is operating normally, the display will show the current temperature.
To display the set temperature press the button. Press the button again to return to normal
operation.
To set a new temperature, press . The display will flash and the current set temperature will
be displayed. Press the button to increase the set temperature, or press the
button to
decrease the set temperature. Press the button to save the new setting. The display will flash
with the new value and then revert to display the cabinet temperature.
Please note:
1. When the appliance is connected to the mains for the first time there will be a short delay
before cooling starts. During this time the Refrigeration Light will flash. After the short
delay, cooling will begin and the Refrigeration Light will be illuminated. When the
appliance reaches the set temperature, the Refrigeration Light will be off.
2. If you do not press any button, after six seconds the controller will return to its normal display.
To switch the appliance off, press for six seconds. The display will show “- - -”. To switch the
appliance back on, press for one second. The display will show the cabinet temperature and
the appliance will enter normal working mode.
DEFROSTING
The appliance defrosts automatically at preset intervals. If however the door is opened too often,
or if the appliance is in a location with high humidity, or if the contents are changed more
frequently, it may be necessary to defrost the appliance manually. To start or stop manual
defrosting, press the button for six seconds. The Defrosting Light will be illuminated. Melt
water runs to a container placed in the compressor compartment and evaporates. After
defrosting is complete, the appliance will return to normal operation.
INTERIOR LIGHT
Press the button to switch the light on or off.
EVAPORATOR FAN
As part of the appliance’s normal operation the evaporator fan will switch off automatically when
UK PRO upright manual 070823.indd 7UK PRO upright manual 070823.indd 7 15/08/2023 13:4907/08/2023 13:49
8

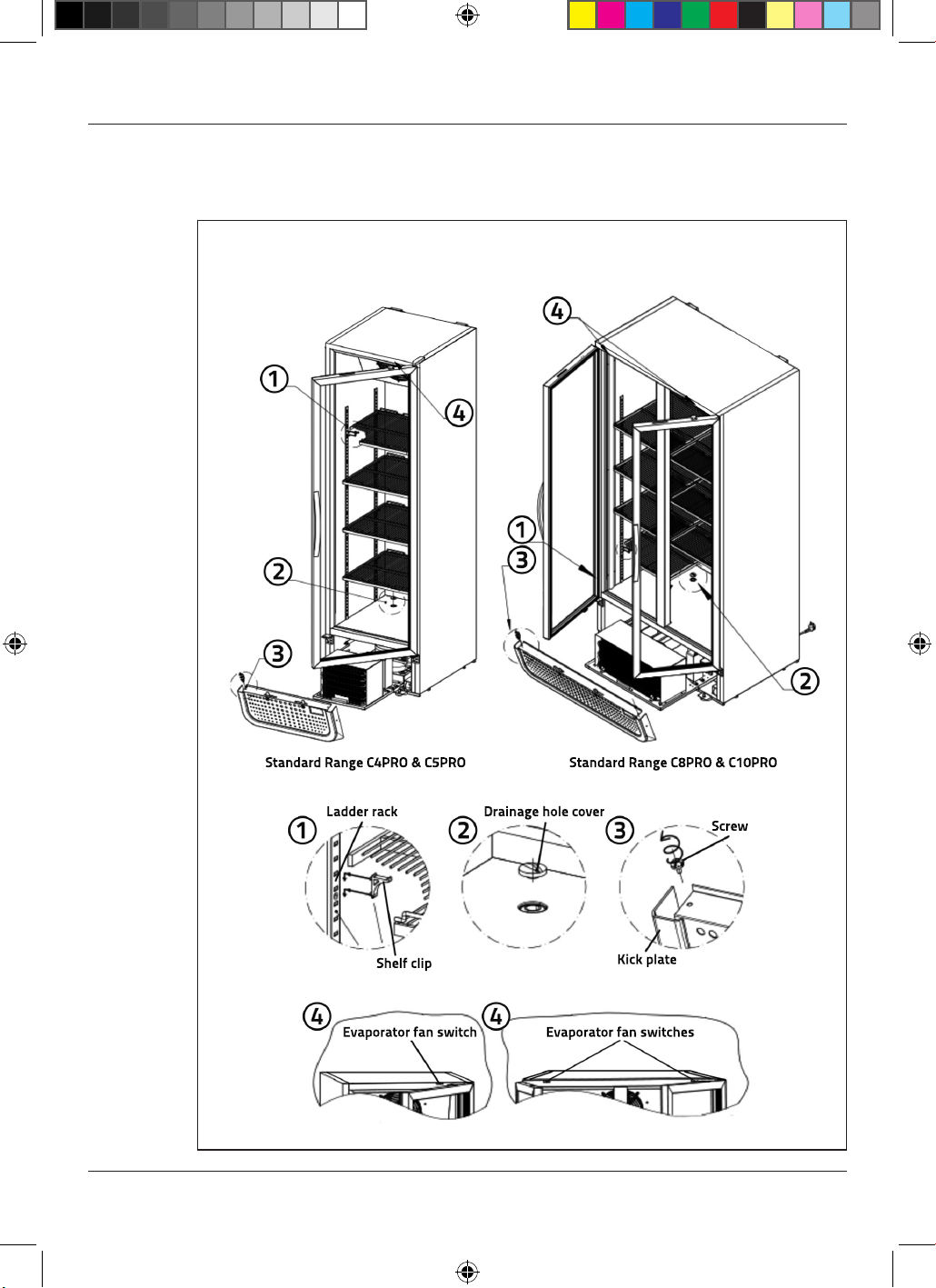

Exploded Diagram
UK PRO upright manual 070823.indd 8UK PRO upright manual 070823.indd 8 15/08/2023 13:4907/08/2023 13:49
Standard Range C4PRO, C5PRO, C8PRO, & C10PRO
the door is opened. The switch is located in the top of the door rebate (see Fig. 4 on page 8).
INSTALLING SHELVES
Fit the shelf clips to the ladder racks (see Fig. 1 on page 8) and install the shelves horizontally.
Ensure the clips are located firmly and the shelves are secure before loading the appliance.
CLEANING
The condenser MUST be cleaned quarterly. Carefully remove the kick plate (see above for how
to remove the kick plate) and use a soft brush to clean the condenser.
The external and internal surfaces of the appliance should be cleaned regularly. Switch the
appliance off and disconnect the plug from the mains socket. Remove the drainage hole cover (see
Fig. 2 on page 8v). Clean the external and internal surfaces of the appliance with a mild soap
solution, then wipe dry. Replace the drainage hole cover. Do NOT use cleansers containing
chlorine or other harsh cleansing agents, as these can damage the stainless steel surfaces and
components. Use mild soapy water to clean the gasket and seals.
GETTING SERVICE ASSISTANCE
The cooling system is a hermetically sealed circuit and does not require any maintenance other
than regular cleaning (see ‘Cleaning’).
If the appliance fails to work, first check the power supply. If you cannot locate the reason for the
failure, please contact your supplier, stating the model and serial number of the cabinet. You may
find this information on the rating plate, which is affixed inside the unit on the top right-hand
interior wall.
9
UK PRO upright manual 070823.indd 9UK PRO upright manual 070823.indd 9 07/08/2023 13:49
10

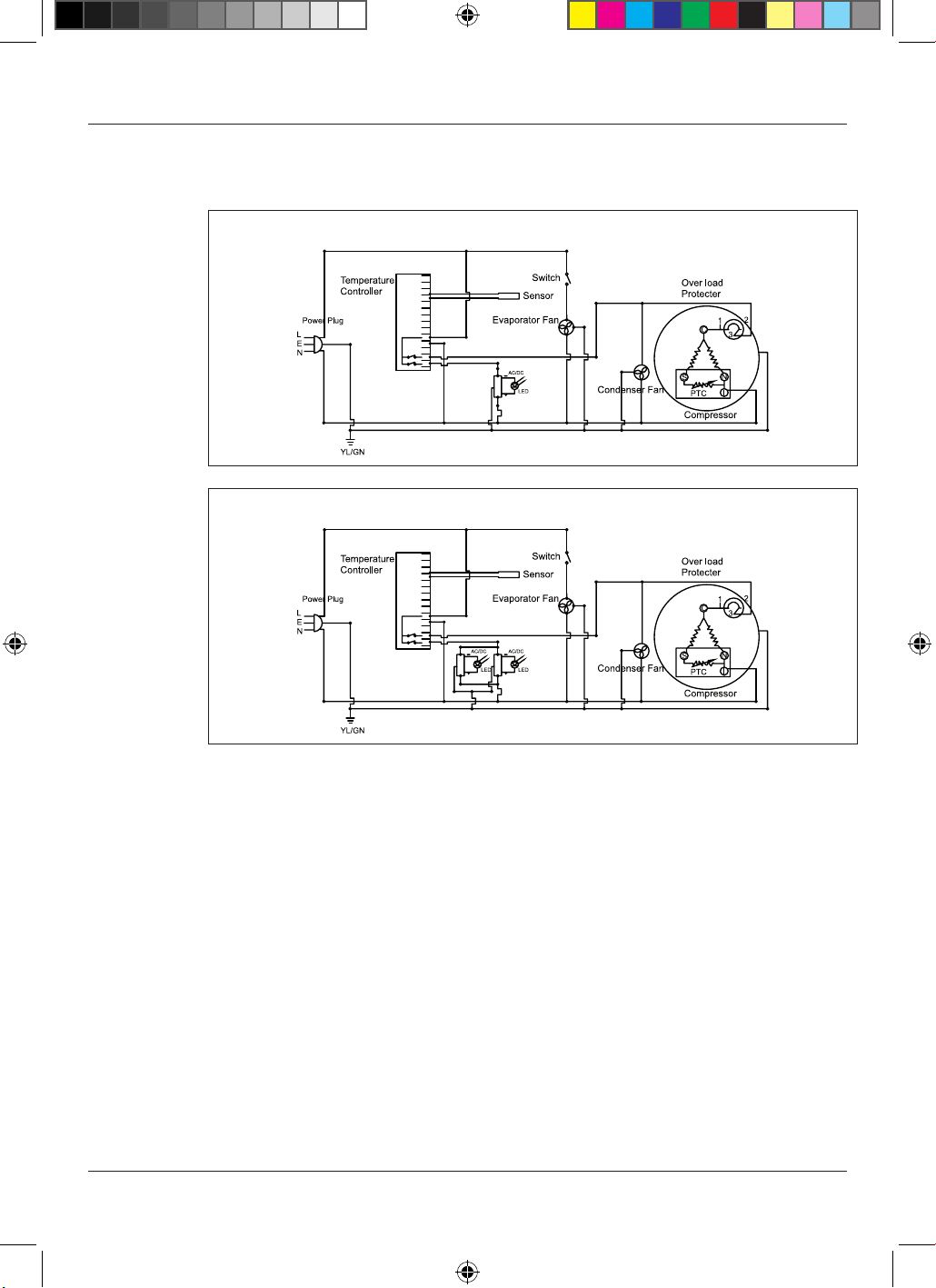

Circuit Diagrams
C4PRO & C5PRO Standard models, no canopy
C8PRO & C10PRO Standard models, no canopy
UK PRO upright manual 070823.indd 10UK PRO upright manual 070823.indd 10 15/08/2023 13:4907/08/2023 13:49
Standard Range C4PRO, C5PRO, C8PRO, & C10PRO
Wiring Diagram
ELECTRONIC THERMOSTAT SF-102SBQ-4
11
UK PRO upright manual 070823.indd 11UK PRO upright manual 070823.indd 11 15/08/2023 13:4907/08/2023 13:49
12
Freezer Range F5PRO & F10PRO
Operating Instructions
TO OPERATE THE ELECTRONIC THERMOSTAT
The thermostat has been pre-set, and in most cases it is not necessary to adjust the settings. When
the appliance is operating normally, the display will show the current temperature.
To display the set temperature press the button. Press the button again to return to normal
operation.
To set a new temperature, press . The display will flash and the current set temperature will
be displayed. Press the button to increase the set temperature, or press the
button to
decrease the set temperature. Press the button to save the new setting. The display will flash
with the new value and then revert to display the cabinet temperature.
Please note:
1. When the appliance is connected to the mains for the first time there will be a short delay
before cooling starts. During this time the Refrigeration Light will flash. After the short
delay, cooling will begin and the Refrigeration Light will be illuminated. When the
appliance reaches the set temperature, the Refrigeration Light will be off.
2. If you do not press any button, after six seconds the controller will return to its normal display.
To switch the appliance off, press for six seconds. The display will show “- - -”. To switch the
appliance back on, press for one second. The display will show the cabinet temperature and
the appliance will enter normal working mode.
DEFROSTING
The appliance defrosts automatically at preset intervals. If however the door is opened too often,
or if the appliance is in a location with high humidity, or if the contents are changed more
frequently, it may be necessary to defrost the appliance manually. To start or stop manual
defrosting, press the button for six seconds. The Defrosting Light will be illuminated. Melt
water runs to a container placed in the compressor compartment and evaporates. After
defrosting is complete, the appliance will return to normal operation.
INTERIOR LIGHT
Press the button to switch the light on or off.
EVAPORATOR FAN
As part of the appliance’s normal operation the evaporator fan will switch off automatically when
UK PRO upright manual 070823.indd 12UK PRO upright manual 070823.indd 12 15/08/2023 13:4907/08/2023 13:49
13

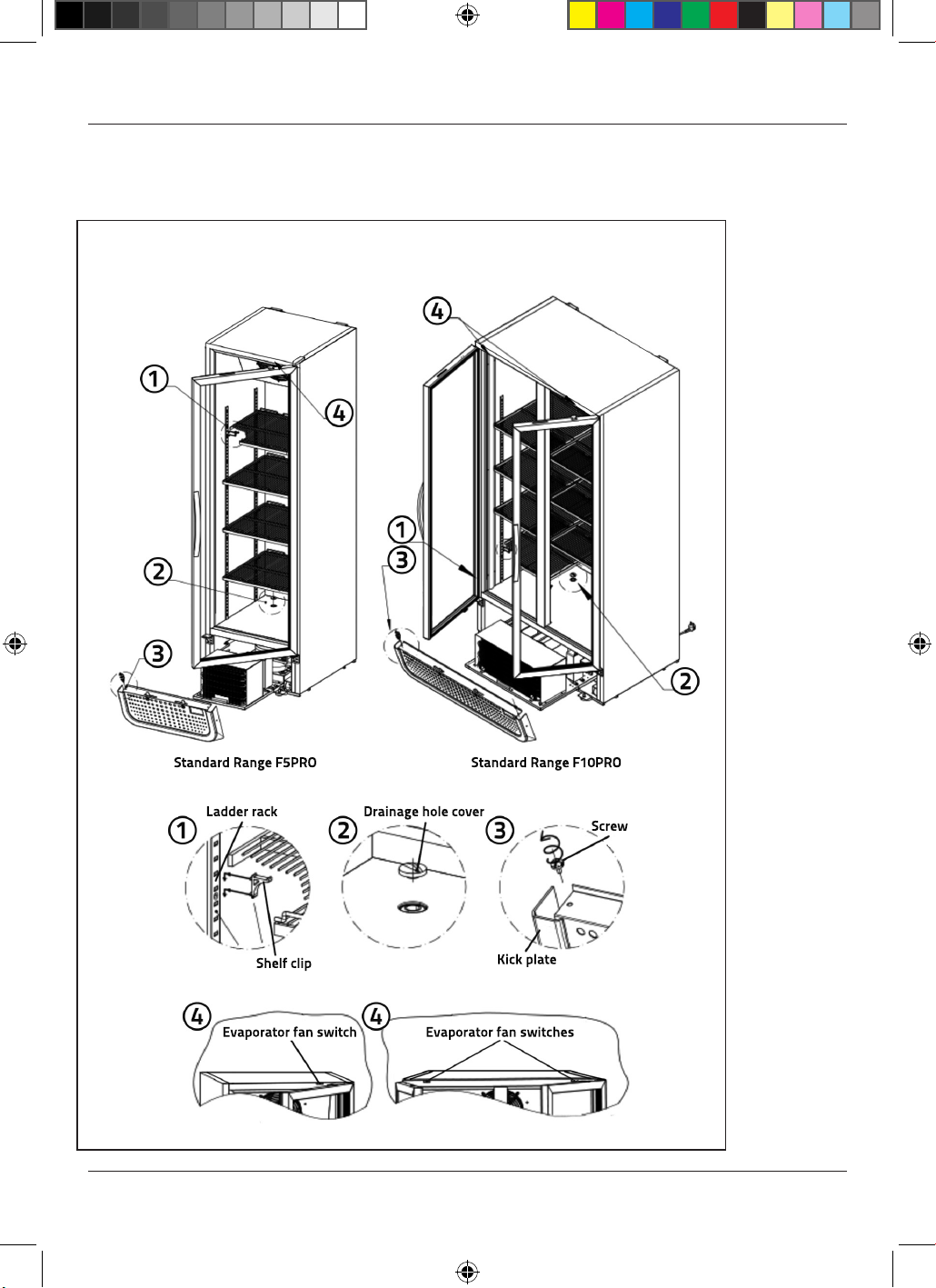

Exploded Diagram
UK PRO upright manual 070823.indd 13UK PRO upright manual 070823.indd 13 15/08/2023 13:4907/08/2023 13:49
14
Freezer Range F5PRO & F10PRO
the door is opened. The switch is located in the top of the door rebate (see Fig. 4 on page 13).
INSTALLING SHELVES
Fit the shelf clips to the ladder racks (see Fig. 1 on page 13) and install the shelves horizontally.
Ensure the clips are located firmly and the shelves are secure before loading the freezer.
CLEANING
The condenser MUST be cleaned quarterly. Carefully remove the kick plate (see above for how
to remove the kick plate) and use a soft brush to clean the condenser.
The external and internal surfaces of the appliance should be cleaned regularly. Switch the
appliance off and disconnect the plug from the mains socket. Remove the drainage hole cover (see
Fig. 2 on page 13). Clean the external and internal surfaces of the appliance with a mild soap
solution, then wipe dry. Replace the drainage hole cover. Do NOT use cleansers containing
chlorine or other harsh cleansing agents, as these can damage the stainless steel surfaces and
components. Use mild soapy water to clean the gasket and seals.
GETTING SERVICE ASSISTANCE
The cooling system is a hermetically sealed circuit and does not require any maintenance other
than regular cleaning (see ‘Cleaning’).
If the appliance fails to work, first check the power supply. If you cannot locate the reason for the
failure, please contact your supplier, stating the model and serial number of the cabinet. You may
find this information on the rating plate, which is affixed inside the unit on the top right-hand
interior wall.
UK PRO upright manual 070823.indd 14UK PRO upright manual 070823.indd 14 15/08/2023 13:4907/08/2023 13:49
15

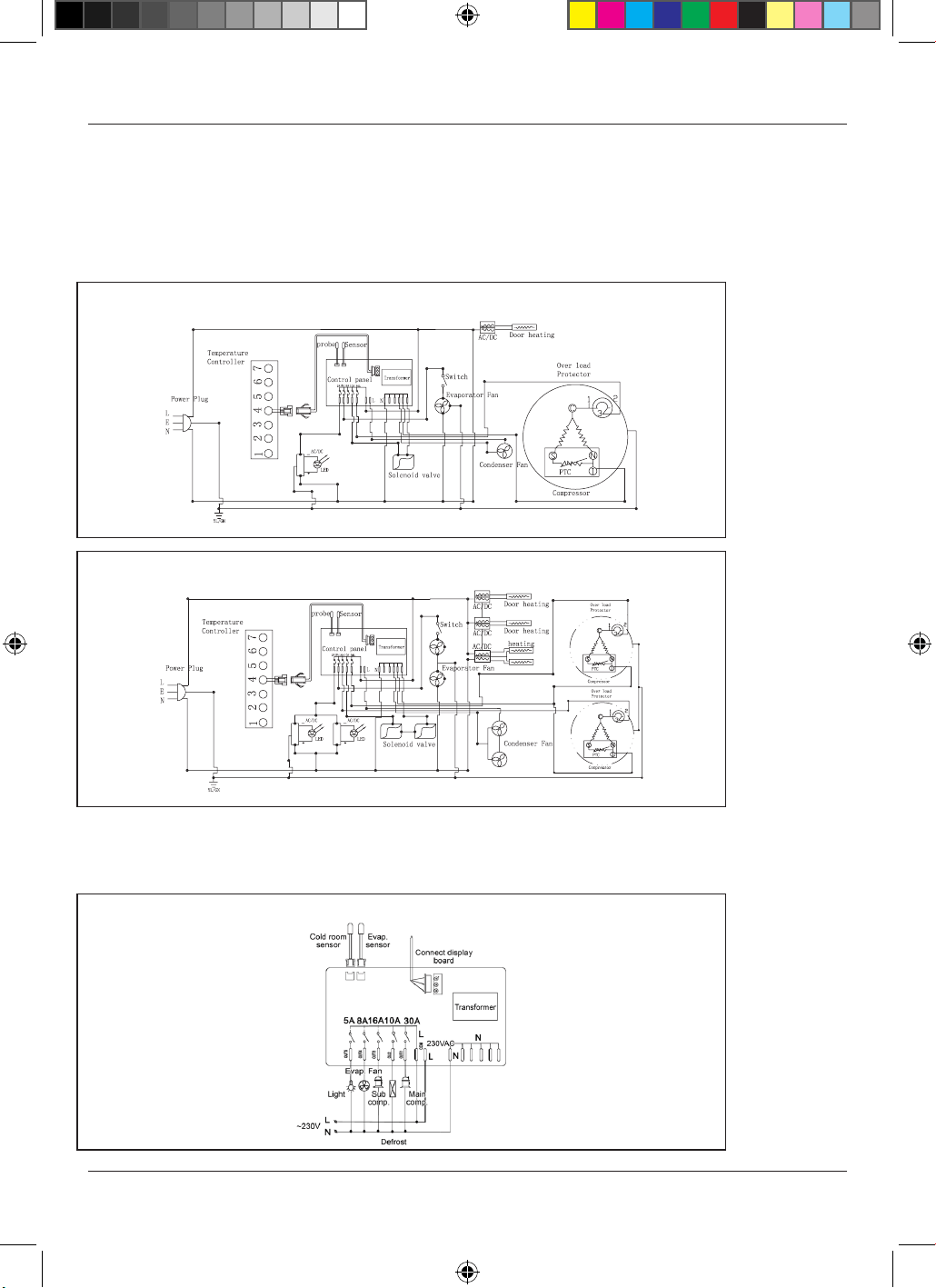

Circuit Diagrams
F5PRO Standard models, no canopy
F10PRO Standard models, no canopy
ELECTRONIC THERMOSTAT
Wiring Diagram
UK PRO upright manual 070823.indd 15UK PRO upright manual 070823.indd 15 15/08/2023 13:4907/08/2023 13:49
070823
Welcome to Husky, the home of smart refrigeration. We are a leading
global refrigeration specialist with over 25 years experience in quality
refrigeration for convenience and hospitality professionals, and we have a
great range of chillers for the home too. You’ll find Husky products all
over the world, so whatever your requirements we’re sure to have a good
looking energy-efficient model that’s perfect for you.
www.husky.co.uk
HELPLINE/TECHNICAL SUPPORT
Tel: 01455 555340 (Monday to Friday 0900 – 1700).
Email: sales@husky.co.uk
SALES
Tel: 01455 555340 (Monday to Friday 0900 – 1700).
Email: sales@husky.co.uk
OUT-OF-WARRANTY SPARES
Email: sales@husky.co.uk
UK PRO upright manual 070823.indd 16UK PRO upright manual 070823.indd 16 15/08/2023 13:4907/08/2023 13:49
