Shilo Technologies Ltd – Company Prole
Company
Shilo Technologies Ltd was founded in 1986 to provide multipurpose, cost-effective, innovative mechanical and electro-
mechanical tools for the professional and Do it Yourself markets worldwide. The company is located in Israel.
Business
Shilo Technologies Ltd. Is a leading manufacturer of innovative hand tools focusing on the field of thread restoring. Its first product
the “Nes 1 external Thread restoring Tool” is a revolutionary hand tools, used by professionals as well as do-it-yourself users to
restore damaged threads.
Due to the innovative nature of the cost effective products, the user can correct a wide range of thread types on site. Following
positive reporting by some very prestigious publications – including “Popular Mechanics” – Shilo moved forward expanding its
product range with the Nes 2 and Nes 3.
Shilo is now introducing a new range of tools for repairing internal threads that will further enhance the product range and
position the company at the forefront of thread restoring technology.
Marketing
Shilo Technologies Ltd. Participate regularly in the major international tool exhibitions, demonstrating its product family. The
products are protected by Patents and Intellectual Property Rights.
World-wide sales – USA, Europe & the Far East –are conducted via a network of international distribution outlets. Among Shilo’s
customers are some leading companies in a wide range of industries.
Restore Damaged Threads with NEW Exciting Range of Hand Tools
Nes External and now NEW PATENTED Nes Internal thread restorers are the ideal tools for saving money during maintenance,
Plumbing, construction, agriculture, car repair and many other applications where there are components with a damaged thread.
Compare the cost of disassembling the part in order to repair a component with the INSTANT repair that need to be performed
with the Nes External and Nes Internal thread restorers.

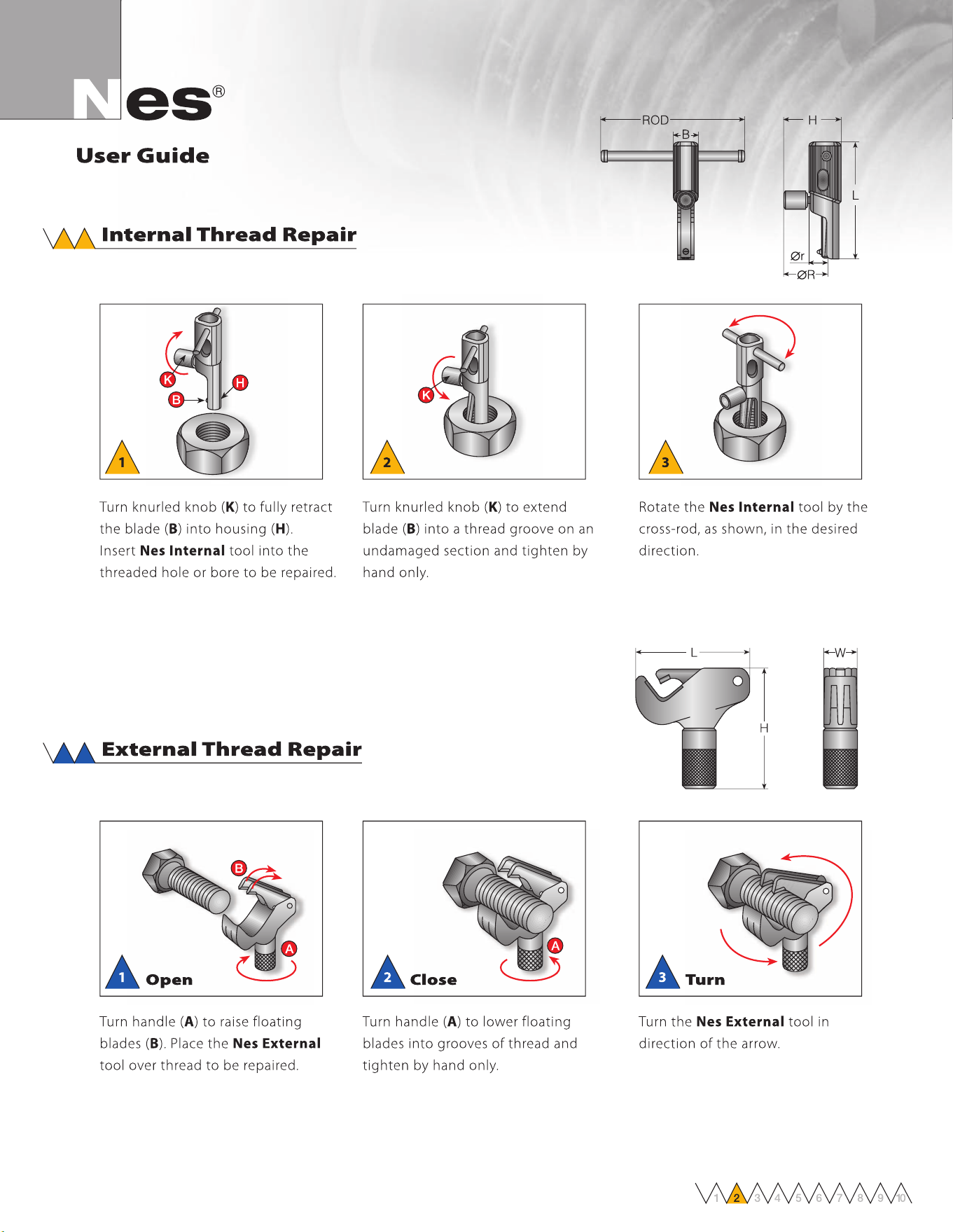

These hand tools automatically adjust to any
threads diameter and pitch, can be used on
left & right hand threads, both inch and
metric and need no prior measurement of
the thread.
Often the thread of component is damaged
at the end of the thread eliminating the use
of taps or dies for carrying out the repair. Nes
External and Nes Internal thread restorers
have the capability to enter BELOW the
damadge area and work outwards to
complete the repair.
The blades are made of high quality
hardened tool steel (internal tools’ blades –
HSS, external tools blades – O1). The blades
are guided by the existing undamaged
section of thread, in order to regroove the
damaged section.
The Nes External thread
restorer is available in 4 sizes
and can repair threads from
4 mm (⁵⁄₃₂") diameter up to
152 mm (6") diameter.

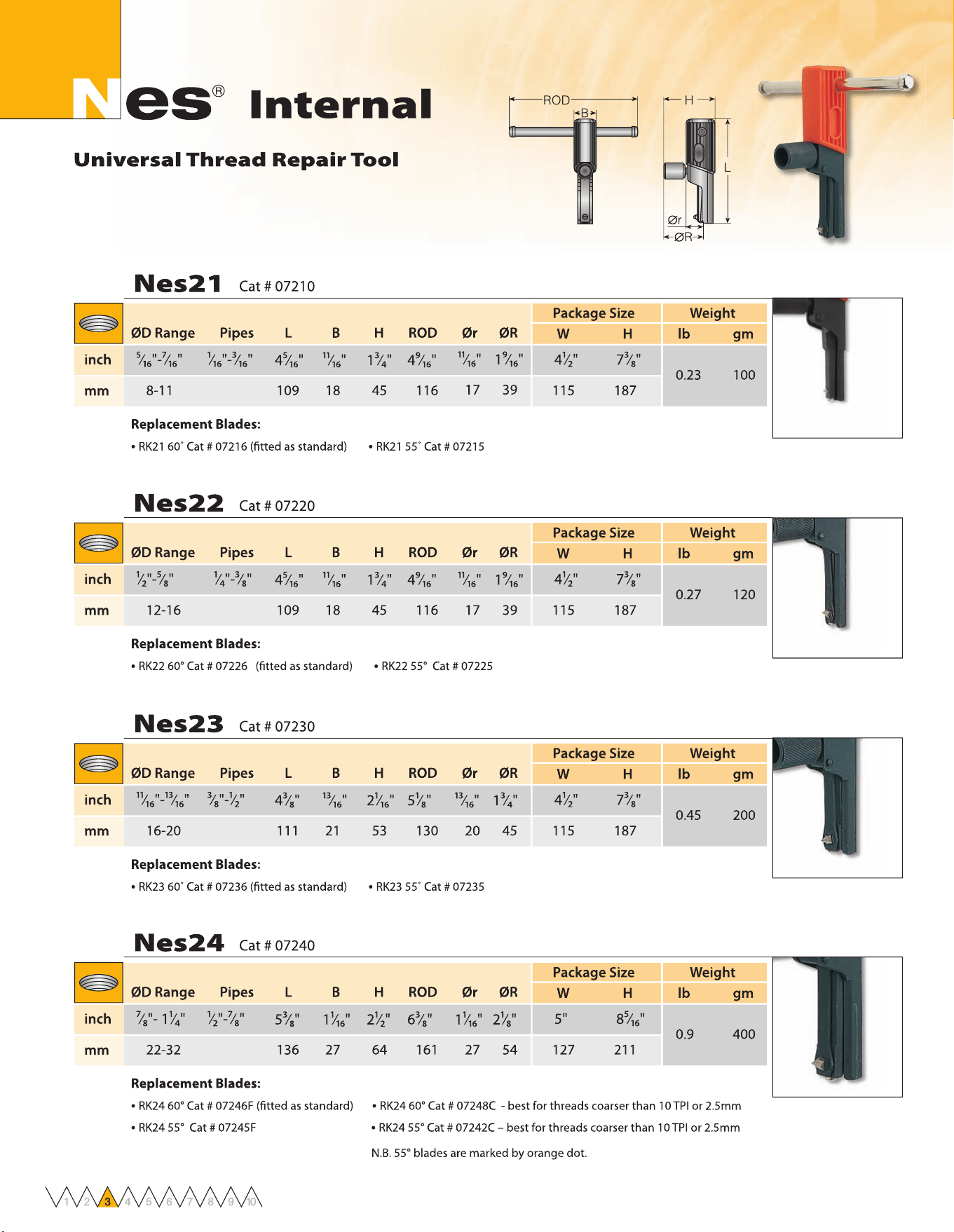

The Nes Internal thread
restorer is available in 6 sizes
and can repair threads from
5 mm (#12) diameter up to
68 mm (2 ⁵⁄₈") diameter.
C
M
Y
CM
MY
CY
CMY
K
NES_cat2010_p01-04.ai 26/02/2011 10:08:40NES_cat2010_p01-04.ai 26/02/2011 10:08:40
C
M
Y
CM
MY
CY
CMY
K
NES_cat2010_p01-04.ai 26/02/2011 10:08:52NES_cat2010_p01-04.ai 26/02/2011 10:08:52
C
M
Y
CM
MY
CY
CMY
K
NES_cat2010_p01-04.ai 26/02/2011 10:08:25NES_cat2010_p01-04.ai 26/02/2011 10:08:25
C
M
Y
CM
MY
CY
CMY
K
NES_cat2010_p01-04.ai 26/02/2011 10:08:14NES_cat2010_p01-04.ai 26/02/2011 10:08:14
Replacement Blades:
• RK 3 60° 1.0mm 03032
• RK 3 60° 1.25mm 03033
• RK 3 60° 1.5mm 03034
• RK 3 60° 1.75mm 03035
• RK 3 60° 2.0mm 03036
• RK 3 60° 24 TPI 03124
• RK 3 60° 20 TPI 03120
• RK 3 60° 18 TPI 03118
• RK 3 60° 16 TPI 03116
• RK 3 60° 14 TPI 03114
Providing a new dimension to Nes 3, This
accessory enables the versatile re-threader to
glide over Keyway, Slots, Grooves or channels.
For repairing damage threaded shafts with slots
for key or tab washer, choose the appropriate
addition cutter for best results.
External
Universal Thread Repair Tool
Replacement Blades:
• RK 1 60° Cat # 00010 (tted as standard)
• RK 1 55° Cat # 00020
Nes1A
Packaged Size Weight
lb
4-19 61 23 62 68 115 187
0.5 225
W
H
gm
ØD Range Pipes L W H R
5⁄32"- 3⁄4"
Up to - 7⁄16"
23⁄8" 27⁄16" 211⁄16"29⁄32"
inch
mm
41⁄2" 73⁄8"
Cat # 06001
Replacement Blades:
• RK 2 60° Cat # 00030 (tted as standard) • RK2 60° Cat # 00031F – For threads ner than 17 TPI or 1.5mm
• RK 2 55° Cat # 00040 • RK2 55° Cat # 00041F – For threads ner than 17 TPI or 1.5mm
Nes2
Packaged Size Weight
lb
17-38 105 32 110 117 135 205
1.2
W
H
ØD Range Pipes L W H R
11⁄16"- 11⁄2" 3⁄8"- 11⁄8"
41⁄8" 45⁄16" 45⁄8"11⁄2"
inch
mm
55⁄16" 81⁄8"
Cat # 02000
Replacement Blades: • RK 3 60° Cat # 03011C – For threads coarser than 7 TPI or 3.5mm
• RK 3 60° Cat # 03010 (tted as standard) • RK 3 55° Cat # 03021C – For threads coarser than 7 TPI or 3.5mm
• RK 3 55° Cat # 03020 • RK 3 60° Cat # 03012F – For threads ner than 14 TPI or 1.75mm
• RK 3 55° Cat # 03022F – For threads ner than 14 TPI or 1.75mm
Nes3
Packaged Size
35-152 305 32 130 250 51 140
W
H
ØD Range Pipes L W H R
13⁄8" - 6" 1" - 51⁄2"
12" 51⁄8" 97⁄8"11⁄4"
inch
mm
2" 51⁄2"
315
L
123⁄8"
Cat # 03000
Nes 3 Keyway Skip Accessory
Cat # 03101 for threads nar than 2.5mm or 10 TPI
Cat # 03104 for threads coarser than 2.5mm or 10 TPI
550
gm
Weight
lb
4.0 1820
gm
C
M
Y
CM
MY
CY
CMY
K
NES_cat2010_p05-10.ai 26/02/2011 10:04:10NES_cat2010_p05-10.ai 26/02/2011 10:04:10
C
M
Y
CM
MY
CY
CMY
K
NES_cat2010_p05-10.ai 26/02/2011 10:05:11NES_cat2010_p05-10.ai 26/02/2011 10:05:11
Sets
Universal Thread Repair Tool
Nes1015 Combination
Packaged Size Weight
Nes 1015
256 152 46
1.7 800
Model Cat. # Contents L W H lb gm
01015 Nes External 1A
Nes Internal 21
Nes Internal 22
RK 1 60°
RK 21 60°
RK 22 60°
101⁄16" 113⁄16"
inch
mm
6"
External 4-19 mm 5⁄32" - 3⁄4" Internal 8-16 mm 5⁄16" - 5⁄8"
Nes1017 Combination
Packaged Size Weight
Nes 1017
256 152 46
2.2 1000
Model Cat. # Contents L W H lb gm
01017
Nes External 1A
Nes Internal 21
Nes Internal 22
Nes Internal 23
RK 1 60°
RK 21 60°
RK 22 60°
RK 23 60°
101⁄16" 113⁄16"
inch
mm
6"
External 4-19 mm 5⁄32" - 3⁄4" Internal 8-20 mm 5⁄16" - 13⁄16"
Nes1025 Combination
Packaged Size Weight
Nes 1025
275 205 50
4.9 2200
Model Cat. # Contents L W H lb gm
01025
Nes External 1A
Nes External 2
Nes Internal 21
Nes Internal 22
Nes Internal 23
Nes Internal 24
RK 1 60°
RK 2 60°
RK 21 60°
RK 22 60°
RK 23 60°
RK 24 60°
1013⁄16" 115⁄16"
inch
mm
81⁄16"
External 4-38 mm 5⁄32" - 11⁄2" Internal 8-32 mm 5⁄16" - 11⁄4"
C
M
Y
CM
MY
CY
CMY
K
NES_cat2010_p05-10.ai 26/02/2011 10:05:28NES_cat2010_p05-10.ai 26/02/2011 10:05:28
C
M
Y
CM
MY
CY
CMY
K
NES_cat2010_p05-10.ai 26/02/2011 10:06:01NES_cat2010_p05-10.ai 26/02/2011 10:06:01
ThreadMate 20
Color Key:
& ThreadMate 21
Nes Internal 22
Nes Internal 21
Nes Internal 25
Sleeve 26
Nes Internal 24
Nes Internal 25
Including sleeve
Nes Internal 23

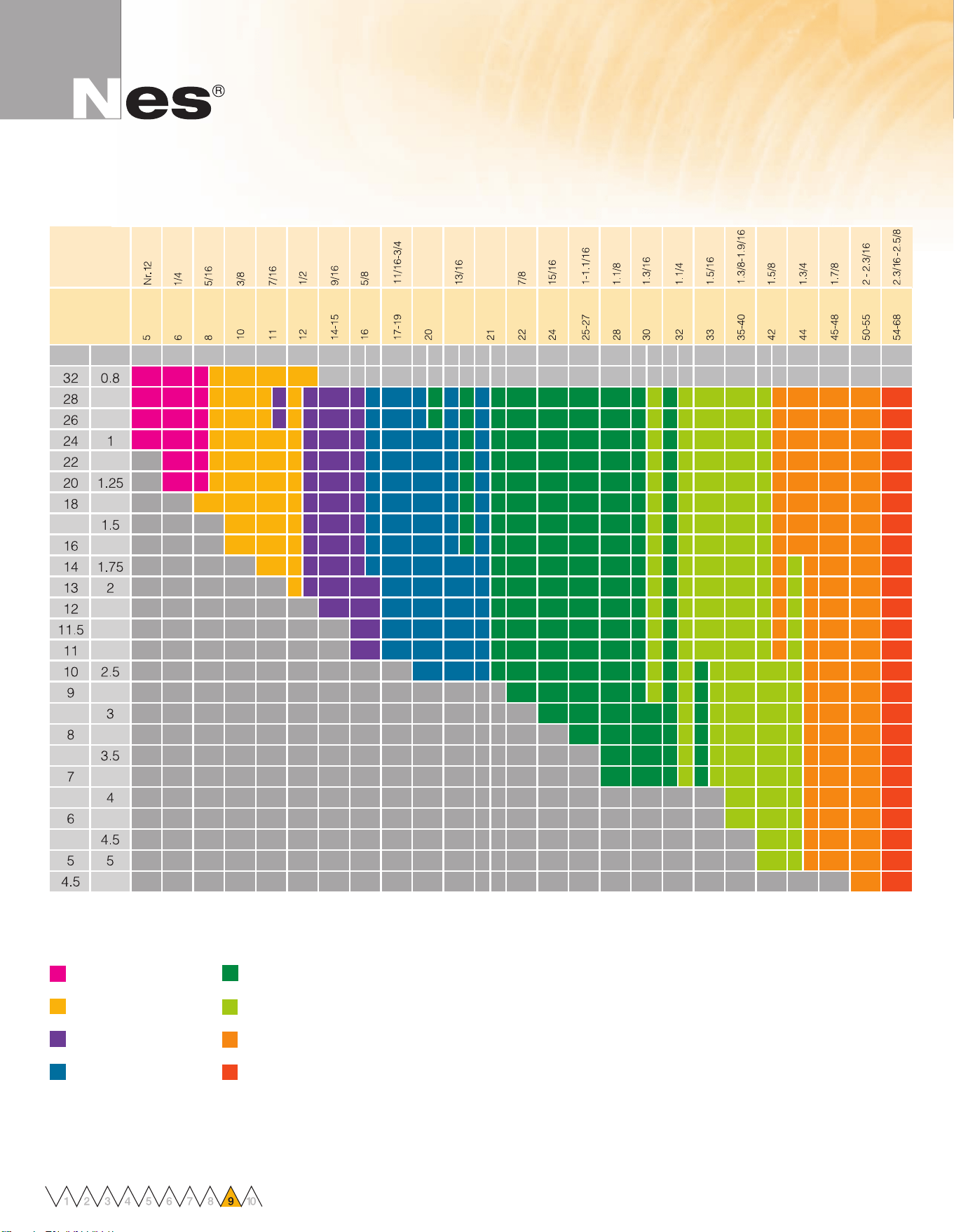

Recommendation for Nes Internal tool selection
Find the best tool for your application by the color at the intersection of the column represented by the diameter of
your workpiece and the row with the pitch of thread to be repaired.
tpi Pitch
Diameter
mm
Diameter
inch
C
M
Y
CM
MY
CY
CMY
K
NES_cat2010_p05-10.ai 26/02/2011 10:06:22NES_cat2010_p05-10.ai 26/02/2011 10:06:22

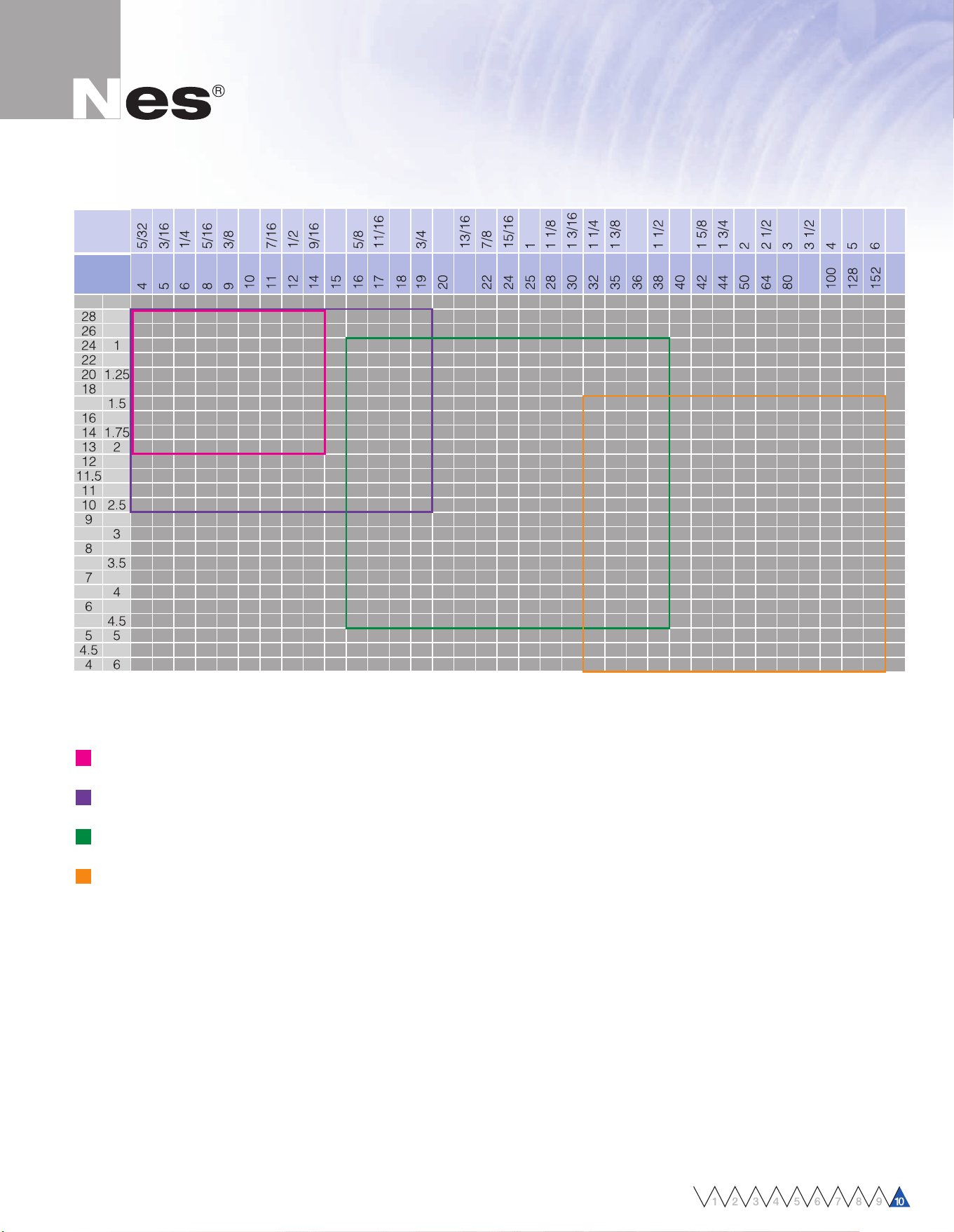

Recommendation for Nes External tool selection
tpi Pitch
Diameter
mm
Diameter
inch
ThreadMate 1
Nes 1A
Nes 2
Nes 3
Color Key:
