Beverage Refrigerator
YEG-BS24
23.4"
32.3"
22.4" (24.1" with handle installed)
C
B
A
A
B
C
Total: 42 x 3+14=140 cans
YEG-BS24
Yeego provides sincere and effective design
like reversible door design allows a flexible
choice of the direction of the door, Leveling
legs can adjust feet and keep level
placement anywhere. Two true key locks to
prevent the door from being accidentally
opened.
Yeego Beverage refrigerator runs with quiet
operation (≤41dB) and rapid cooling, and it is
equipped with an upgraded compressor and
front grille air outlet design which can provide
excellent heat dissipation function to maintain
a steady temperature and stable chiller effect.
The first layer of the beverage fridge is
reserved for large layer spacing, and it is
equipped with 3 removable glass shelves
that slide smoothly and are sturdy enough
to hold your drinks without scratches. So
you can easily position drinks of different
shapes and sizes.
Thanks to the sleek stainless steel grille
air outlet design, you don't need to leave a
lot of space for heat exhaust under your
counter. So you can choose to install it as a
built-in or freestanding installation, depending
on your preference!
Free Standing & Bulit-In Options
Full Removable Shelves
Whisper Quiet & Low Vibration Function
Double Tempered Glass & Reversible
Door (Open Left or Right)
Digital Led Temperature Panel
Soft Blue Internal Led Lighting
Before connecting the wine fridge to the
power source for the first time, please
keep it upright at least 24-36 hours.
It will reduce the possibility of a malfunction
in the cooling system from handling during
transportation. It is suggested to put the
wine fridge in a cool and ventilated place,
which will greatly improve the cooling
performance.
Please feel free contact us by after-service email
address([email protected])
Yeego 24 Inch Single Zone Beverage Refrigerator
140 12oz Cans Storage Capacity Freestanding or Built-in Installation
Upgraded Cooling System Thoughtful Design
Voltage: 115V /60Hz
Rated Current: 0.9A
Refrigerant: R600a
Capacity : 140 12 oz. standard cans
Temperature Range: 34°F-54°F(1°C - 12°C)
Net Weight: 97 Ibs
Unit Dimension(without handle):
23.4" W x 22.4" D x 32.3" H
Unit Dimension(with handle installed):
23.4" W x 24.1" D x 32.3" H
Yeego 24 Inch Single Zone
Beverage Refrigerator
BEVERAGE REFRIGERATOR

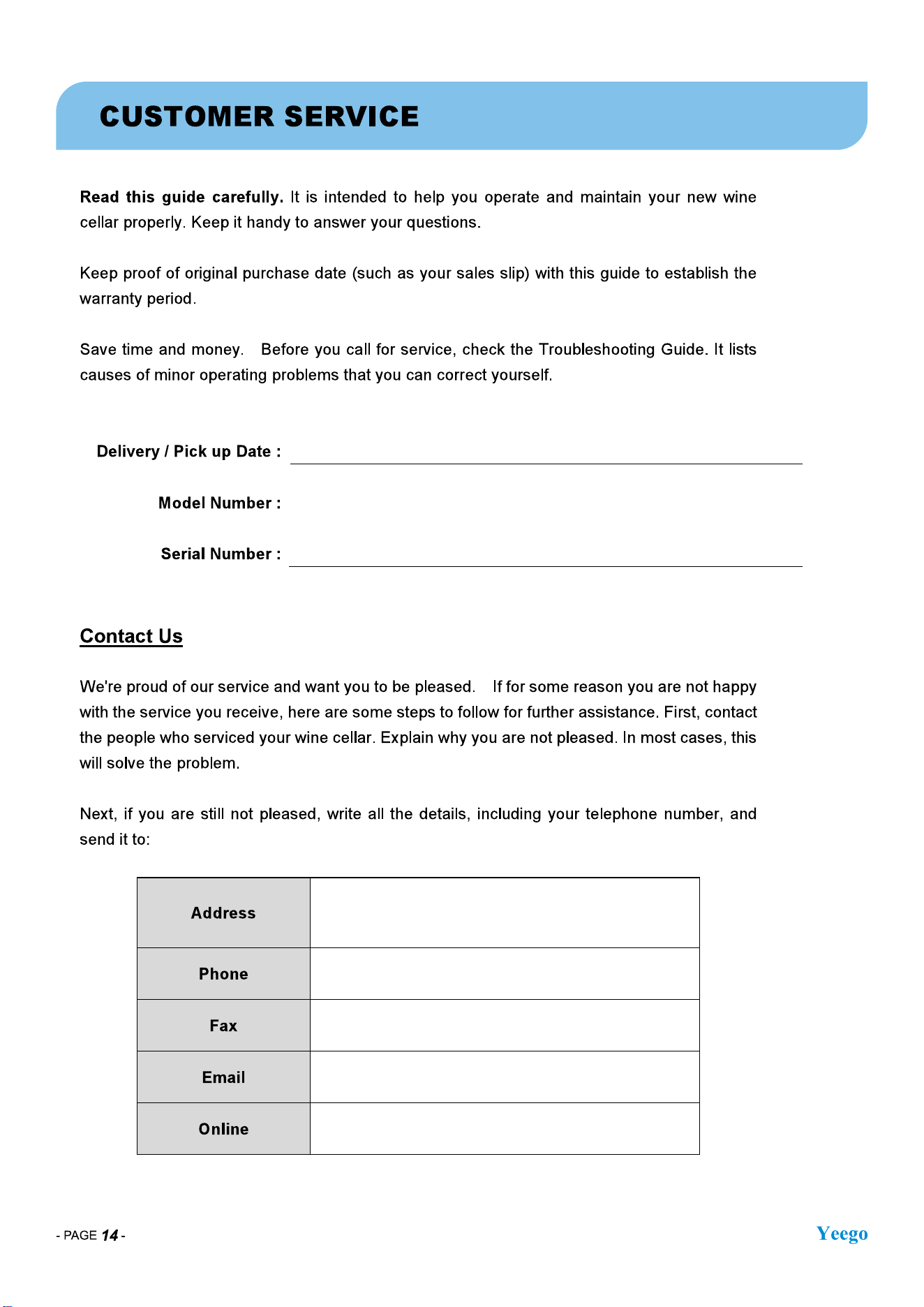

CUSTOMER SERVICE 14
YEG-BS24
140 12 oz. standard cans
3
34°F-54°F (1°C-12°C)
97 lbs
116.8 lbs
28.0"W x 26.9"D x 36.2"H
Free Standing Instructions
For free standing installation, 5 inches
(127mm) of space between the back
and sides of the appliance is suggested,
which allows the proper air circulation
to cool the compressor and condenser.
Beverage Refrigerator
Beverage Refrigerator
to
3*Shelves
1*L-Shaped Screwdriver
23.65" (60.1 cm)
32.55" (82.7 cm)
22.65" (57.6 cm)
Beverage Refrigerator
32
.
5
5"
H
2
2
.65
"D
2
3
.
65"W
(
2
4.
3
5"
wi
th Ha ndl
e)
23.4" W
32.3" H
22.4"D(24.1"with Handle)
1*
2*
1*
beverage cooler
beverage refrigerator
34°F-54°F(1°C-12°C)
When you use the beverage refrigerator for the first time or restart the beverage refrigerator
after having been shut off for a long time, there could be a few degrees variance between the
temperature you select and the one indicated on the LED readout. This is normal and it is
due to the length of the activation time. Oncee the beverage refrigerator is running for a few
hours everything will be back to normal.
The temperature range of beverage refrigerator(YEG-BS24)is 34°F-54°F(1°C-12°C). The
temperature will increase by 1°C or 1F you touch UP once, or the temperature will decrease
by 1°C or 1°F if you touch DOWN once. To view the setting temperature at any time, touch
the UP or DOWN marks.
BEVERAGE REFRIGERATOR
BEVERAGE REFRIGERATOR
While cans may vary in size and
dimension, approximately 140
standard 12 oz. drink cans can be
stored in the beverage cooler.
You can place 42 cans on each
shlef and 14 cans in the bottom of
the cabinet.
42 cans
About tobal 140 cans
This appliance is equipped with 3 pcs of glass
shelves with holes on the glass for better air
circulation to cool your drinks evenly.
drinks
Beverage Refrigerator
drinks
beverage refrigerator
beverage refrigerator
BEVERAGE REFRIGERATOR
Beverage Refrigerator
Product
Product
beverage refrigerator
YEG-BS24
