CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Illustrated Parts Manual
Fall / Winter Chore Performers
Form No. 769-08973
(May 01, 2013)
2
To The Owner
Record Product Information
To ease in ordering replacement parts, please locate the model
plate on the equipment and record the information in the
provided area to the right. You can locate the model plate by
looking beneath the seat.
Model NuMber
Serial NuMber
Table of Contents
Painted Parts
When ordering painted service parts, a four digit color suffix must be added to the part number (e.g. 783-XXXXX-0637).
Please refer to the table below for current color codes:
Thank you for purchasing a Chore Performer. It was carefully
engineered to provide excellent performance when properly
operated and maintained.
All information in this manual is relative to the most recent
product information available at the time of printing. Please be
aware that this Illustrated Part’s Manual may cover a range of
product specifications for various models.
Components listed and/or illustrated in this manual may not be
applicable to all models. We reserve the right to change product
specifications, designs and equipment without notice and
without incurring obligation.
Throughout this manual, all references to right (RH) and left (LH)
are observed from the operating position.
Thank You
0637 Black
4021 Yellow (Cub Cadet)
0499 Beige (Cub Cadet)
0685 Blue (Cub Cadet)
0691 Black Jack (Cub Cadet Commercial)
LS 27 CC .................................................................... 4
LS 25 CC .................................................................... 8
JS 1150 .....................................................................10

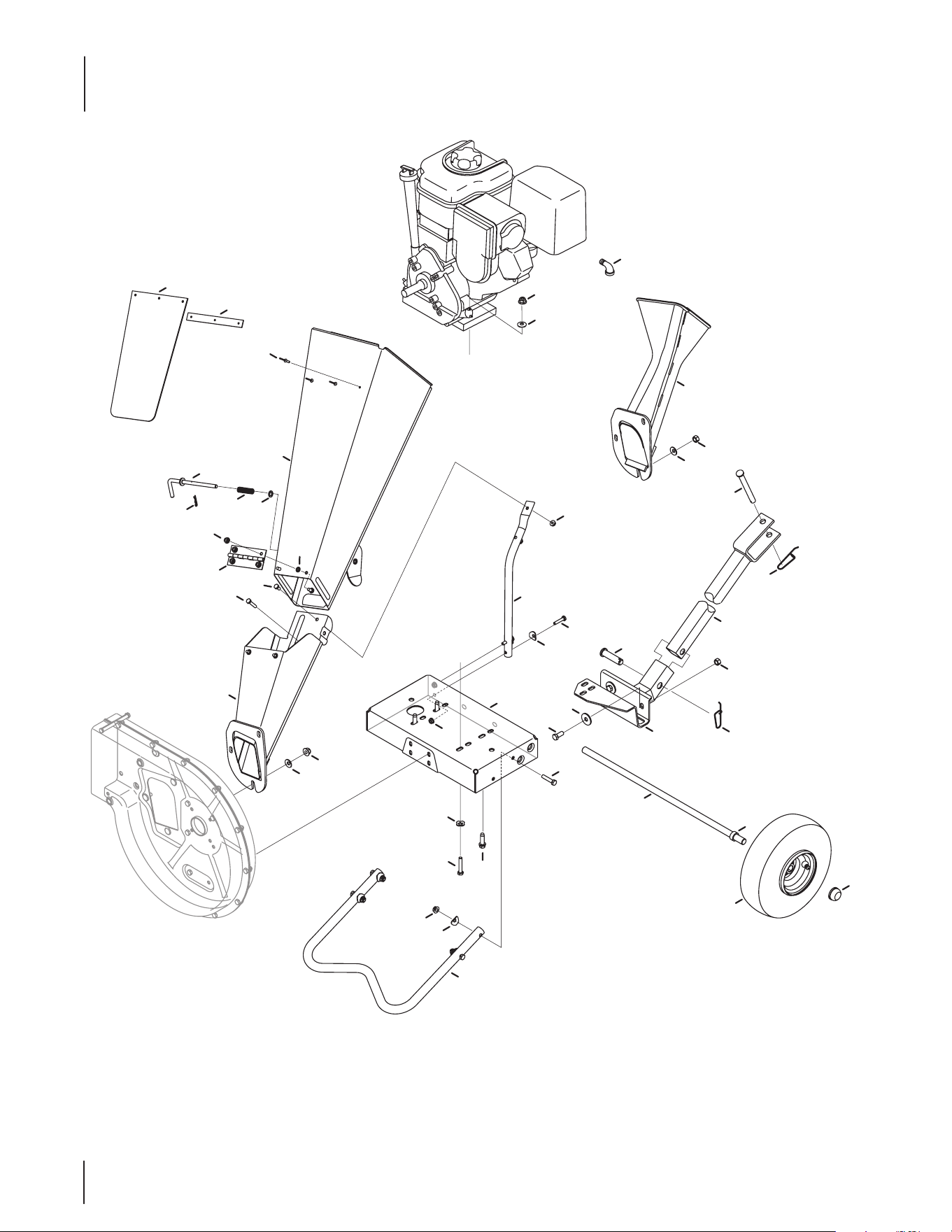

CS Model Series 410 & 420 .....................................12
CSV Model 050 ........................................................16

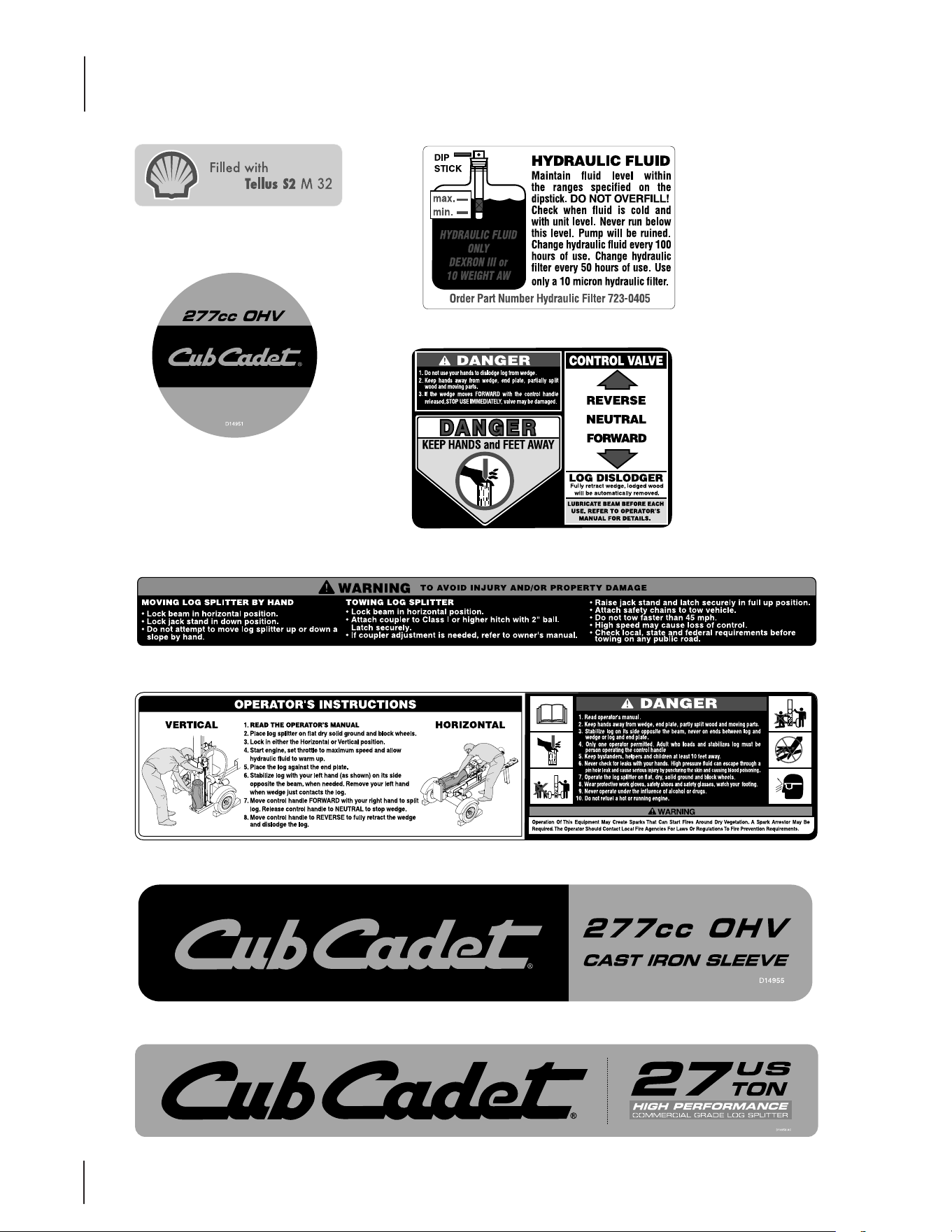

LS 27 CC Labels ...................................................... 20
LS 25 CC Labels .......................................................21
JS 1150 Labels ........................................................ 22
CSV Model 050 Labels ........................................... 23

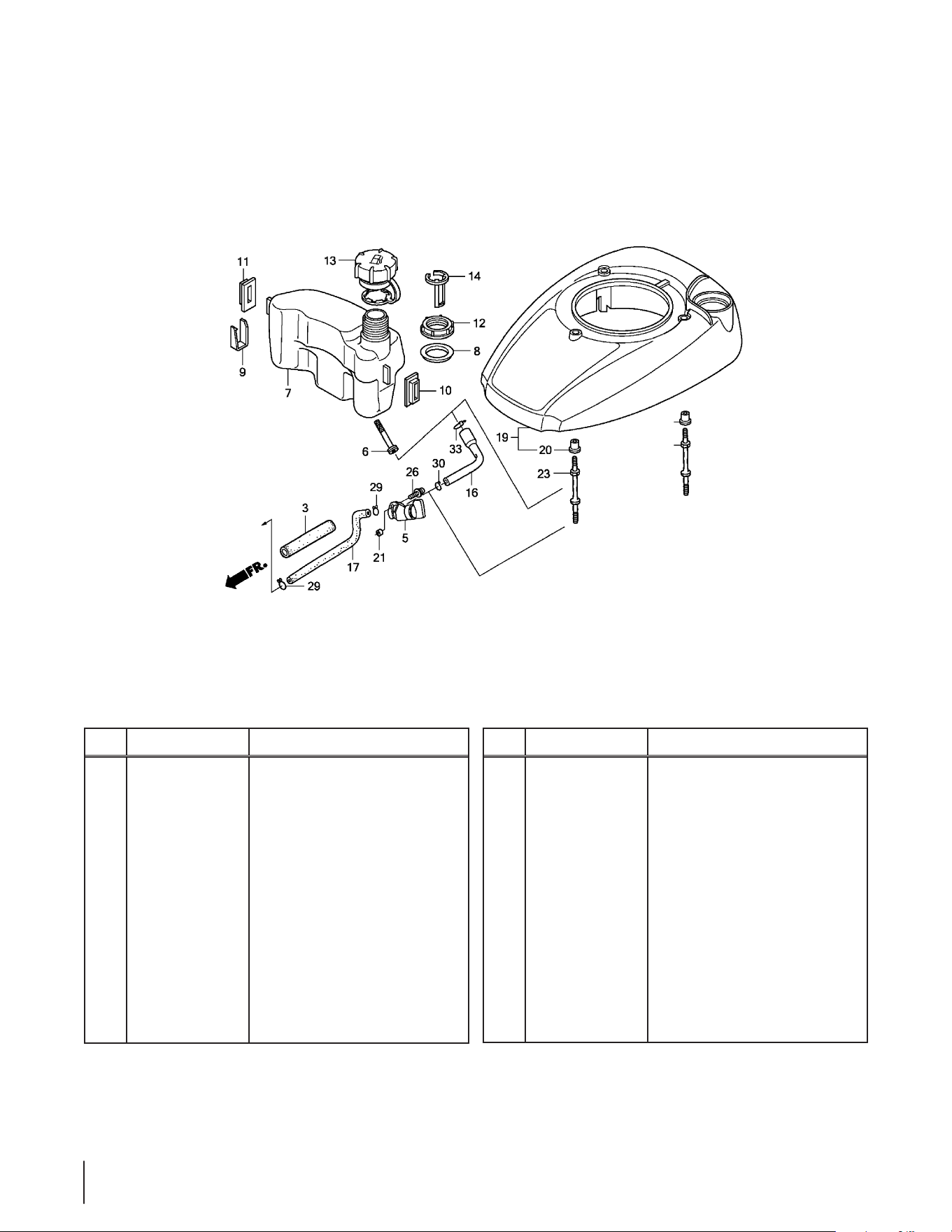

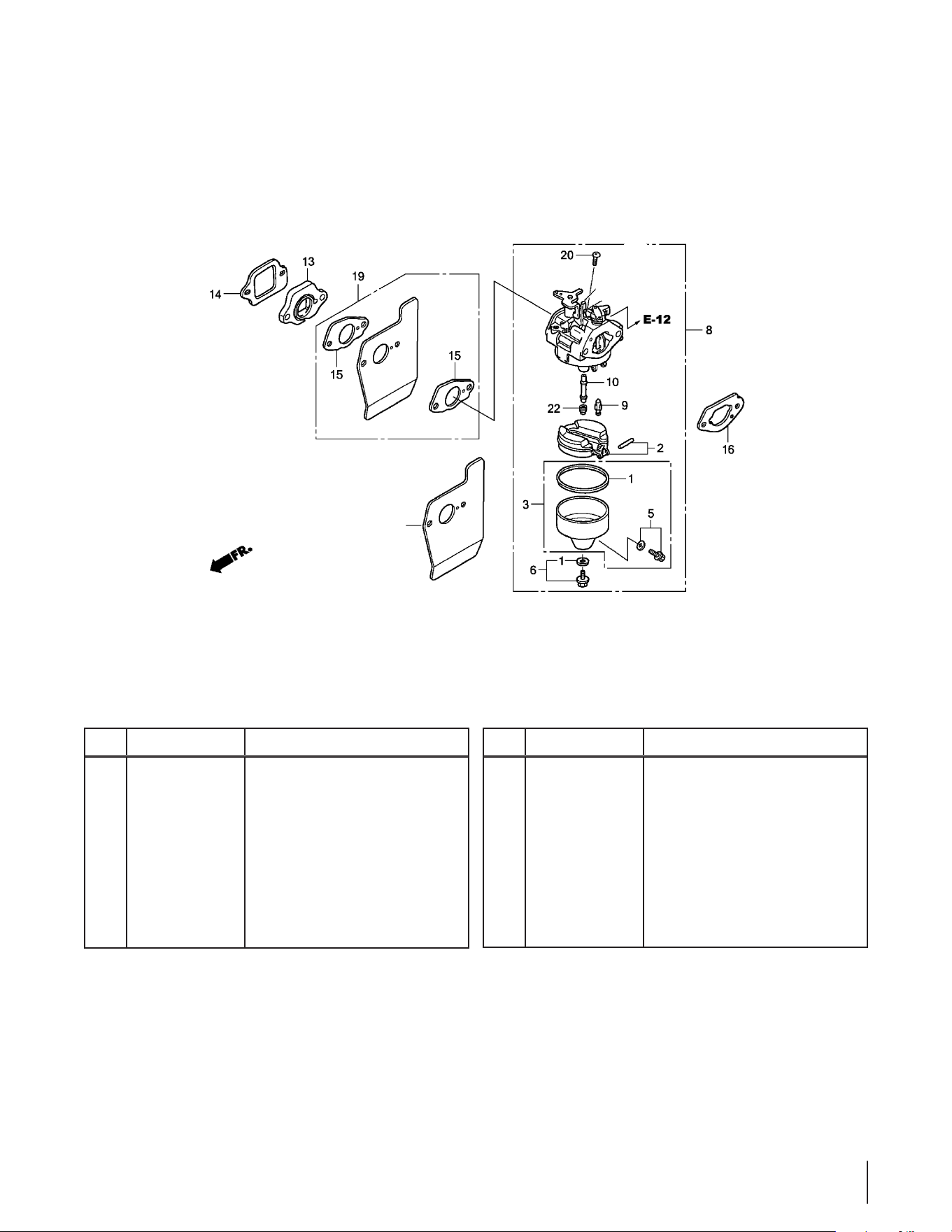

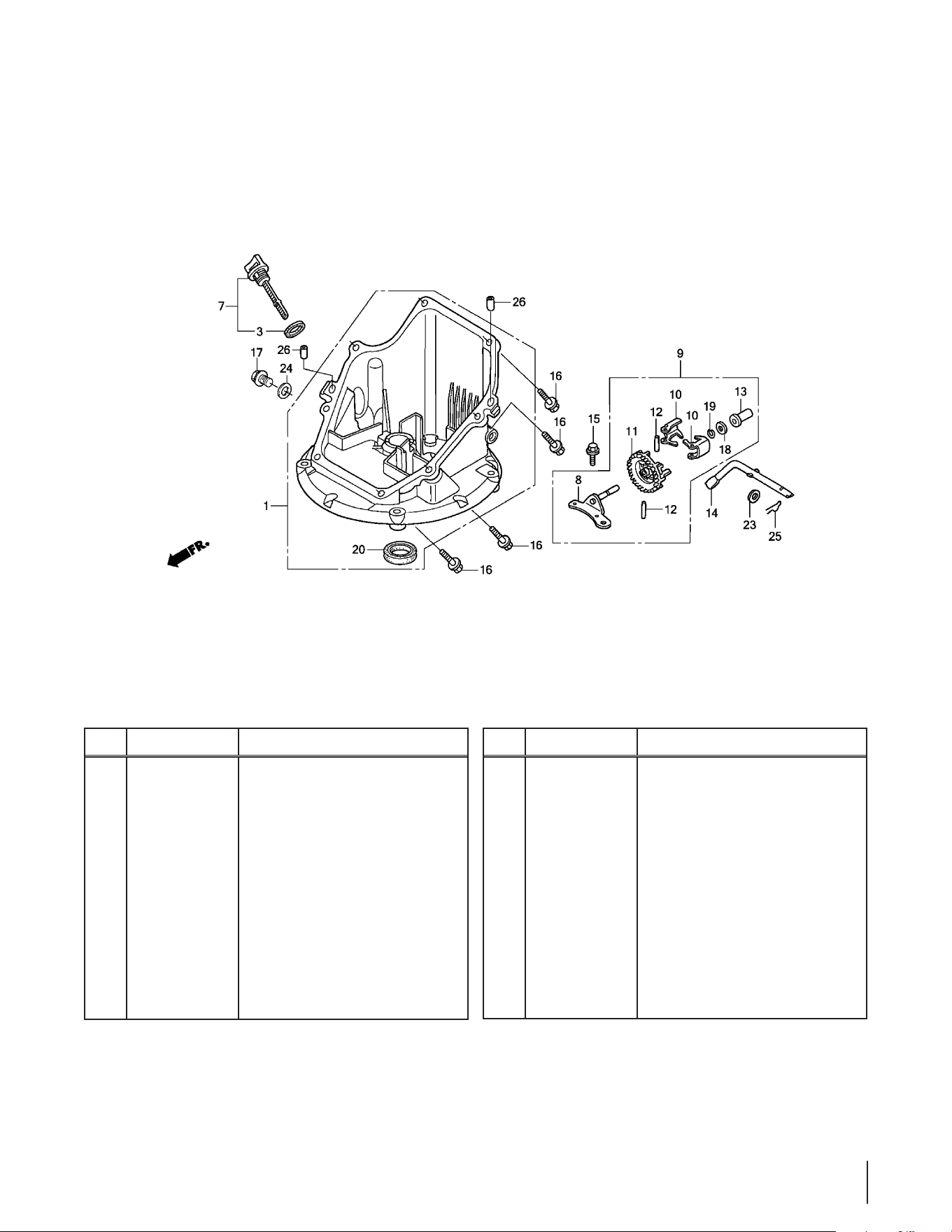

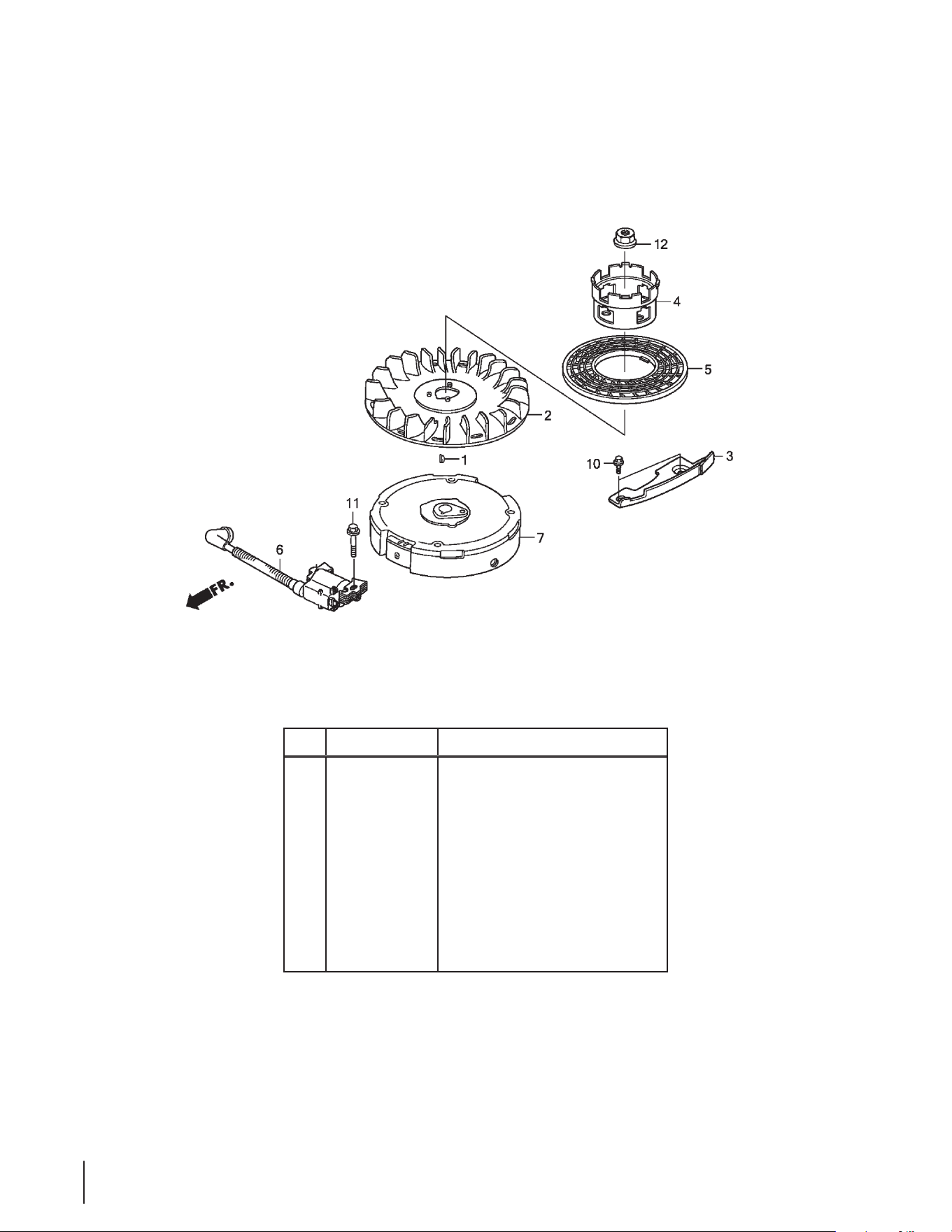

Engine Model (Honda GCV160LA0) ..................... 24
Briggs & Stratton Engine Model 15T202 ............. 40
Engine Model 178-LU ............................................ 48
Briggs & Stratton Engine Model 12T102 .............. 56
Engine Model 170-CU............................................ 64
Engine Model 1X65CU ............................................74
33
Page Left Blank Intentionally
44

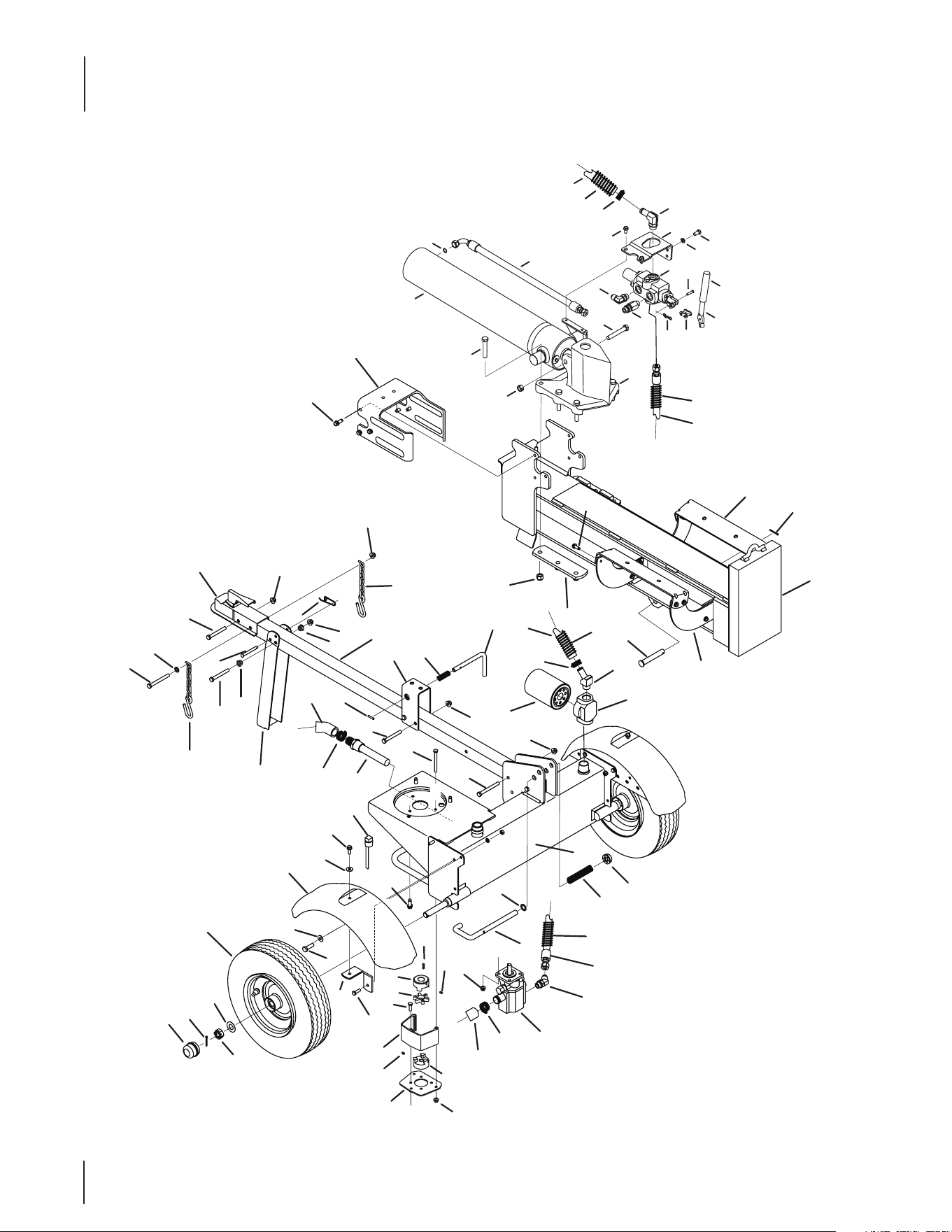

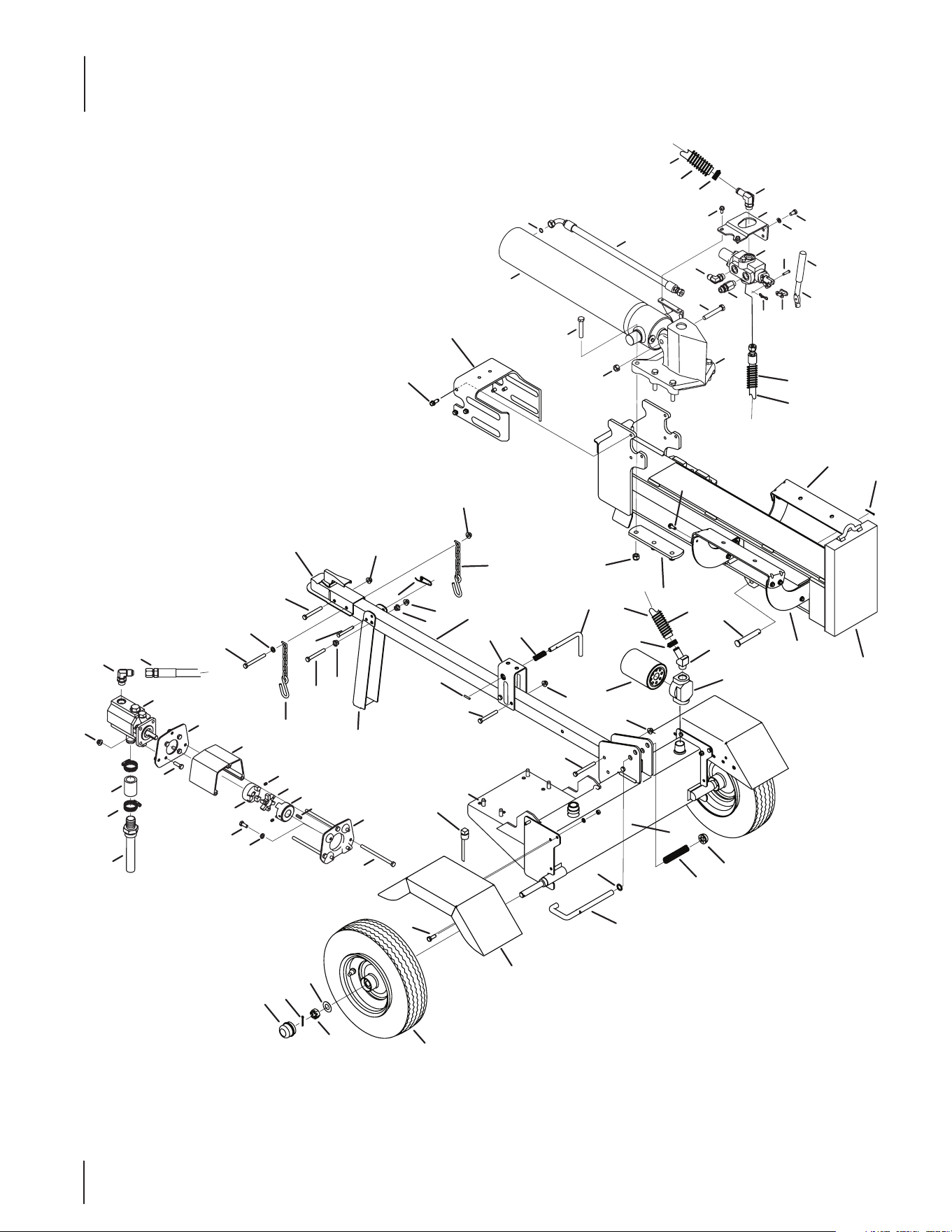

LS 27 CC
A
B
76
19
18
23
22
31
10
20
34
39
36
42
40
24
25
41
58
56
41
65
41
41
41
44
71
57
61
70
65
44
67
61
62
44
64
69
29
35
14
38
37
43
66
33
26
27
28
30
55
80
80
B
77
54
A
22
76
23
2
79
5
9
3
15
1
7
63
68
12
11
13
40
4
60
75
74
8
6
16
45
83
81
32
21
50
51
84
59
82
47
46
17
73
49
52
48
53
54
78
72
55
LS 27 CC
Ref. Part Number Description
1 918-04713 Hydraulic Cylinder
2 727-04362 Hydraulic Tube
3 710-1018 Hex Cap Screw, 1⁄2-20 x 2.75
4 737-04320 90 Degree Solid Adapter
5 718-04706P Control Valve
6 737-04307 Return Elbow
7 737-04309 Nipple Pipe, 1⁄2-14
8 710-1806 Hex Cap Screw, 1⁄2-13 x 3.25
9 719-04529 Wedge Assembly
10 912-3058 Hex Lock Nut, 1⁄2-20
11 710-0216 Hex Cap Screw, 3/8-16 x .75
12 936-0169 Lock Washer, 3/8
13 721- 0 4 411 O-Ring, .489 ID x .070 Dia.
14 936- 0116 Flat Washer, .635 x.93 x.06
15 712-3022 Hex Lock Nut, 1⁄2-13
16 681-04126 Beam Assembly
17 710-0974 Hex Screw, 5⁄16-18 x 4.75
18 710-04683A Self Tapping Screw, 3⁄8-16 x 1.0
19 781-04426 Dislodger Bracket
20 781-0790A Back Plate
21 737-04308 Inlet Filter
22 727-0443 Return Hose, 3⁄4 x 44
23 726-0132 Hose Clamp, 5⁄8
24 737-04267 Filter Housing
25 723-0405 Oil Filter
26 734-0873 Hub Cap
27 714-0162 Cotter Pin
28 712-0359 Slotted Nut, 3⁄4-16
29 634-0187 Complete Wheel Assembly
921-0168 Dust Seal
941-04089 Roller Bearing
30 936-0351 Flat Washer, .760 x.500
31 737-04323 Hydraulic Fitting, 1 1/16 Orb x .75
32 710-0376 Hex Screw, 5⁄16-18 x 1.00
33 737-0348A Vented Dipstick
34 711- 05169 Clevis Pin
35 747-04983 Lock Rod
36 914-0470 Cotter Pin
37 726-0214 Push Cap
Ref. Part Number Description
38 732-0583 Compression Spring
39 781-04293 Log Tray Bracket
40 710-04484 Hex Washer Screw, 5⁄16-18 x .750
41 712- 04065 Flange Lock Nut, 3⁄8-16
42 781-04179 Log Tray
43 681-04148 Frame Assembly
44 710-0521 Hex Bolt, 3⁄8-16 x 3
45 719-0281 Coupling Shield
46 914-0122 Square Key, 3⁄16” x .75
47 718-04395 Coupling, .875
48 712- 04063 Flange Lock Nut, 5⁄16-18
49 781-0097 Rear Coupling Support Bracket
50 726-0132 Hose Clamp, 5⁄8
51 727-0451 Hose
52 918-04729 Gear Pump
53 737-04320 45 Degree Elbow Fitting
54 727-04288 High Pressure Hydraulic Hose
55 781-04424 Tongue Assembly
56 747-1261 Latch Rod
57 781-04420 Latch
58 932-3127 Compression Spring
59 936 - 0119 Lock Washer, 5/16
60 711- 0 4585 Clevis Pin
61 710-3085 Hex Cap Screw, 3⁄8-16 x 3.50
62 936-0185 Flat Washer, .375 x.738 x.063
63 747-04539A Hydraulic Valve Control
64 681-04030 Hitch Coupling Assembly
65 713-0433A Chain
66 781-04002 Fender
67 911- 0 813 Clevis Pin
68 720-04088 Grip
69 732-0194 Spring Pin
70 781-04430 Jack Stand
71 715-0120 Spiral Pin
72 710-0602 Self-Tapping Screw, 5⁄16-18 x 1.00
73 781-0098A Front Coupling Support Bracket
74 913-04036 Valve Handle Link
75 714-04040 Cotter Pin, Bow Tie
76 781-0526A Hose Guard, 44”
Continued on next page
66
Ref. Part Number Description
77 781-0538A Hose Guard, 48”
78 710-04683A Sems Screw, 3⁄8-16 x 1.00
79 781-04418 Outer Valve Bracket
80 941-0475 Plastic Bushing, .380 ID
81 718-04392 Coupling, .500
82 735- 04103 Spider Bushing
83 710-1842A Set Screws
84 710-0157 Hex Cap Screw, 5/16-24 x .75
LS 27 CC
77
Page Left Blank Intentionally
88
LS 25 CC
A
B
C
C
77
76
19
18
23
22
31
10
20
34
39
1
6
36
42
40
24
25
41
58
56
41
65
41
41
41
21
23
51
44
71
57
17
61
70
65
44
67
6
1
62
44
64
69
29
50
73
59
73
32
80
79
46
51
23
52
53
54
18
48
35
14
38
37
43
66
59
73
33
49
81
48
45
78
78
26
27
28
30
D
D
55
72
72
B
77
54
A
22
76
23
2
47
5
9
3
15
1
7
63
68
12
11
13
40
4
60
75
74
8
6
A
99
LS 25 CC
Ref. Part Number Description
1 918-04713 Hydraulic Cylinder
2 727-04362 Hydraulic Tube
3 710-1018 Hex Cap Screw, 1⁄2-20 x 2.75
4 737-04320 90 Degree Solid Adapter
5 918-04740 Control Valve
6 737-04307 Return Elbow
7 737-04309 Nipple Pipe, 1⁄2-14
8 710-1806 Hex Cap Screw, 1⁄2-13 x 3.25
9 719-04529 Wedge Assembly
10 912-3058 Hex Lock Nut, 1⁄2-20
11 710-0216 Hex Cap Screw, 3/8-16 x .75
12 936-0169 Lock Washer, 3/8
13 721- 0 4 411 O-Ring, .489 ID x .070 Dia.
14 936- 0116 Flat Washer, .635 x.93 x.06
15 712-3022 Hex Lock Nut, 1⁄2-13
16 681- 0 4112 Beam Assembly
17 710-3056 Hex Screw, 5⁄16-18 x 3.25
18 710-04683A Self Tapping Screw, 3⁄8-16 x 1.0
19 781-04426 Dislodger Bracket
20 781-0790A Back Plate
21 737-04308 Inlet Filter
22 727-0443 Return Hose, 3⁄4 x 44
23 726-0132 Hose Clamp, 5⁄8
24 737-04267 Filter Housing
25 723-0405 Oil Filter
26 734-0873 Hub Cap
27 714-0162 Cotter Pin
28 712-0359 Slotted Nut, 3⁄4-16
29 634-0187 Complete Wheel Assembly
921-0168 Dust Seal
941-04089 Roller Bearing
30 936-0351 Flat Washer, .760 x.500
31 737-04323 Hydraulic Fitting, 1 1/16 Orb x .75
32 710-0376 Hex Screw, 5⁄16-18 x 1.00
33 737-0348A Vented Dipstick
34 711- 05169 Clevis Pin
35 747-04983 Lock Rod
36 914-0470 Cotter Pin
37 726-0214 Push Cap
38 732-0583 Compression Spring
39 781-04293 Log Tray Bracket
40 710-04484 Hex Washer Screw, 5⁄16-18 x .750
Ref. Part Number Description
41 712- 04065 Flange Lock Nut, 3⁄8-16
42 781-04179 Log Tray
43 681- 04131 Frame Assembly
44 710-0521 Hex Bolt, 3⁄8-16 x 3
45 719-0353 Coupling Shield
46 914-0122 Square Key, 3⁄16” x .75
47 781- 04418 Outer Valve Bracket
48 712- 04063 Flange Lock Nut, 5⁄16-18
49 781-0097 Rear Coupling Support Bracket
50 781-1024A Fender Mounting Bracket
51 727-04290 Hose
52 918-04127 Gear Pump
53 737-04321 45 Degree Elbow Fitting
54 727-04288 High Pressure Hydraulic Hose
55 781-04424 Tongue Assembly
56 747-1261 Latch Rod
57 781-1045 Latch
58 932-3127 Compression Spring
59 736-0371 Flat Washer
60 711- 0 4585 Clevis Pin
61 710-3085 Hex Cap Screw, 3⁄8-16 x 3.50
62 936-0185 Flat Washer, .375 x.738 x.063
63 747-04539A Hydraulic Valve Control
64 681-04030 Hitch Coupling Assembly
65 713-0433A Chain
66 731-2496A Fender
67 911- 0 813 Clevis Pin
68 720-04088 Grip
69 732-0194 Spring Pin
70 781-04430 Jack Stand
71 715-0120 Spiral Pin
72 941-0475 Plastic Bushing, .380 ID
73 710-0602 Self-Tapping Screw, 5⁄16-18 x 1.00
74 913-04036 Valve Handle Link
75 714-04040 Cotter Pin, Bow Tie
76 781-0526A Hose Guard, 44”
77 781-0538A Hose Guard, 48”
78 710-1842A Set Screws
79 718-04395 Coupling, .875
80 735-04103 Spider Bushing
81 718-04392 Coupling, .500
1010

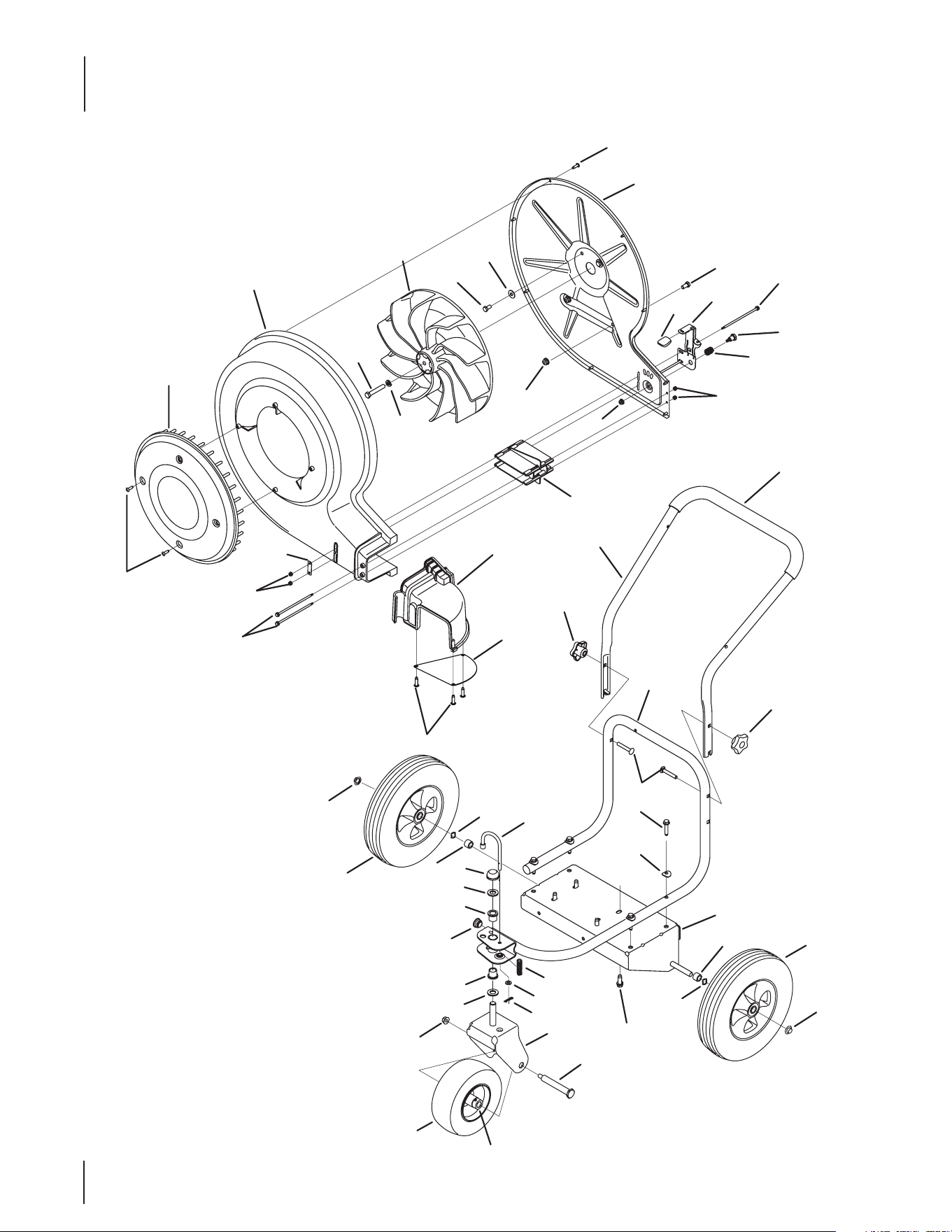

JS 1150
16
29
6
37
27
32
36
34
30
31
26
33
5
8
4
18
19
16
4
1
10
3
2
7
24
10
12
25
11
13
9
14
13
12
37
30
15
16
17
23
21
22
20
28
35
39
40
40
41
42
46
44
47
48
45
48
47
43
38
1111
JS 1150
Ref. Part Number Description
1 681-04086 Lower Handle Assembly
2
710-04605
Hex Screw, 5⁄16-18 x 1.50
3 710-0487 Carriage Screw, 5⁄16-18 x 2.00
4 720-04072A Star Knob, 5⁄16-18
5 720-04091 Foam Grip, .970 x 25
6 781-04165 Back Plate
7 936-0451 Saddle Washer, .320 x .93 x .060
8 749-04291 Upper Handle
9 734-04278 Wheel, 8 x 3
10 734-04279 Wheel, 12 x 3, Beige
11 712-04065 Flange Lock Nut, 3⁄8-16
12 726-0299 Push Cap, 1⁄2”
13 936-0504 Wave Washer, .510 x .750 x .017
14 738-04290 Shoulder Screw, .625 x 3.94
15 781- 04212 Guide Plate
16 710-04373A Hex Screw, 12-16 x .75
17 731-05929 Blower Cover
18 631-04253 Chute Assembly
19 781-04175 Chute Plate
20 631-04213 Impeler Assembly
21 710 -1254 Hex Screw, 3⁄8-24 x 2.25
22 936 -0217 Lock Washer, 3⁄8
23 731-05592 Blower Housing
24 681-04084A Frame
25 710-0654A Sems Screw, 3⁄8-16 x 1.000
Ref. Part Number Description
26 712- 04063 Flange Lock Nut, 5⁄16-18
27 781-04181 Louver Lever
28 710-0237 Hex Bolt, 5⁄16-24 x .625
29 710-3008 Hex Bolt, 5⁄16-18 x .75
30 712- 04035 Hex Lock Nut, #8-32
31 712- 04064 Flange Lock Nut, 1⁄4-20
32 720-0426 Height Adjustment Knob
33 731-05644 Louver Plate
34 932-3042 Comp. Spring, .515 x .641 x .95
35 736-0242 Bell Washer, .340 x .872 x .060
36 738-04222 Shoulder Screw, .437 x .50 x 1⁄4-20
37 738-04223 Shoulder Screw, .18 x 4.8 x 8-32
38 747-0924 Lock Pin
39 941-0706 Flange Bearing w/ Fitting
40 750-04854 Spacer, .525 x .775 x .560
41 681-04085 Caster Wheel Bracket Assembly
42 914-0104 Cotter Pin
43 726-0214 Push Cap
44 932-0306A Compr. Sprng., .531 OD x 1.75 Lg
45 735-0246A End Plug
46 936-0264 Washer, Flat, .330 x .630 x .0635
47 736-0366 Washer, Flat, .640 x 1.12 x .125
48 741- 0685 Flange Bearing, .631 ID
— 723-0400* Safety Glasses
* Not Shown
1212
CS Model Series 410 & 420
B
A
A
B
6
16
22
19
20
17
42
23
41
39
41
24
25
34
11
12
34
32
32
3
5
41
37
40
18
33
29
36
30
10
31
15
41
18
42
31
2
9
7
4
4
7
8
2
13
18
38
40
35
14
18
18
27
28
21
26
1
43
1313

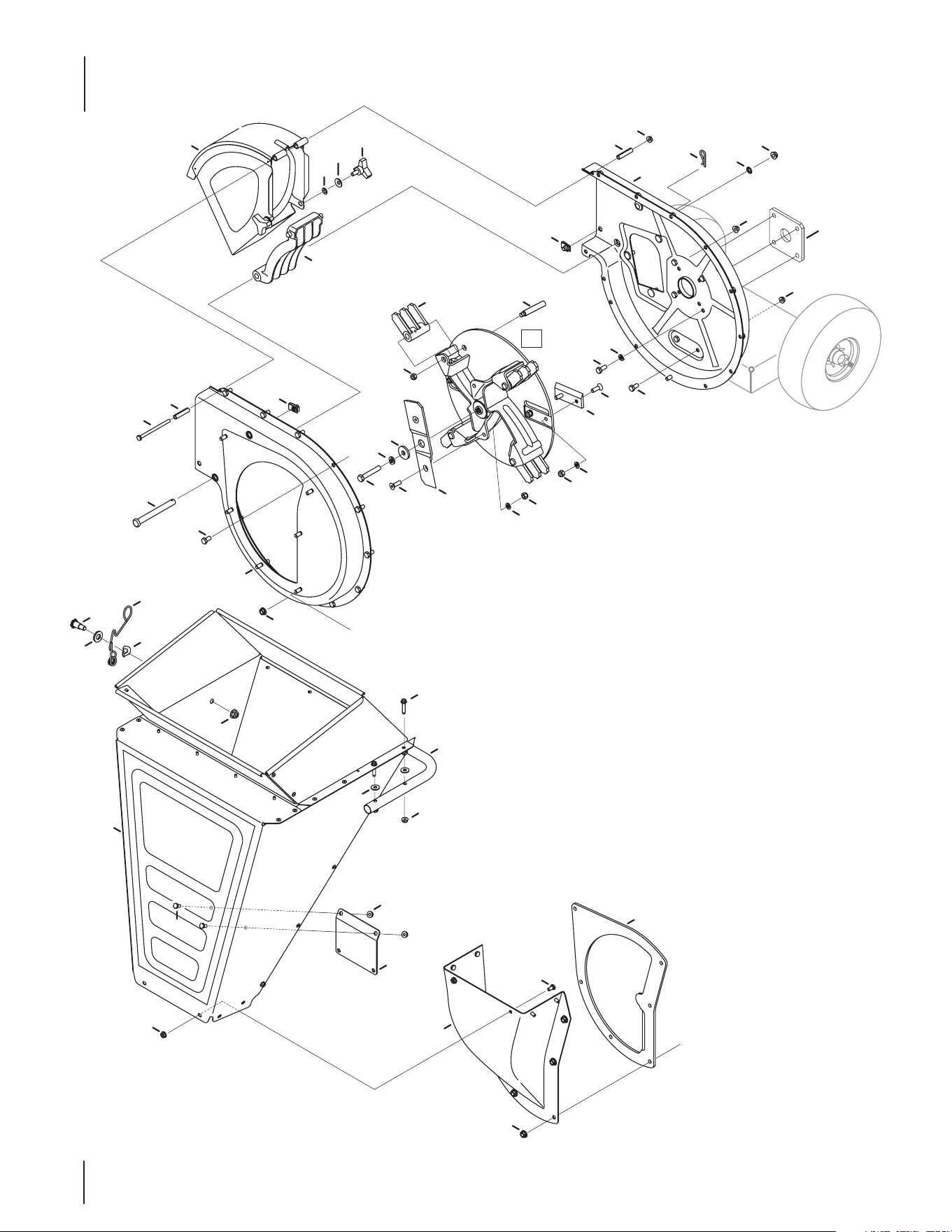

CS Model Series 410 & 420
† Model Series 420
†† Model Series 410 (208 CC)
Ref
No.
Part Number Description
1 981-04094 Impeller Assembly Complete
2 710-1054 Machine Screw, 5/16-24 x 1.0
3 738-04286A Shoulder Pin, .5 x 2.625
4 912- 0 411 Hex Lock Nut, 5/16-24
5 712-0266A Nut, Jam Lock, 3/8-16
6 719-04308 Flail Blade
7 936 - 0119 Lock Washer, 5/16
8 942-04050 Shredder Blade
9 942-0544B Chipper Blade
10 911- 0835 Clevis Pin,.50 x 4.62
11 936 - 0217 Lock Washer, 3/8
12 736-0247 Flat Washer,.406 x 1.25
13 710-1254 Hex Cap Screw, 3/8-24 x 2.2
14 736-0242 Bell Washer.340 ID x.872 OD
15 681- 0 4011 Shredder Hopper Assembly
16 710-0809 Hex Cap Screw, 1/4-20 x 1.250
17 712- 04065† Flange Lock Nut, 3/8-16
18 712- 04063 Flange Lock Nut, 5/16-18
19 932-04167† Torsion Spring
20 736-0182† Spring Washer,.50 x 1.0 x.022
21 936-0326† Flat Washer,.50 x 1.0 x.0125
22 738-0430† Shoulder Screw, 3/8-16,
Ref
No.
Part Number Description
23 749-04103 Hopper Handle
24 781-04007 Shredder Plate
25 781-04027 Hopper Support Bracket
26 781-04033 Inlet Guide
27 681- 0 4116 Inner Flail Housing Assembly
28 681-04002 Outer Flail Housing Assembly
29 710 - 0157 Hex Cap Screw, 5/16-24 x .75
710-0888††
Hex Cap Screw 5/16-24 x 1.00
30 710-0825 Hex Cap Screw, 1/4-20 x 3.75
31 710-3025 Hex Cap Screw, 5/16-18 x .625
32 926 - 0211 U-Nut, 5/16-18
33 936 - 0119 Lock Washer, 5/16
34 950-0793 Hinge Spacer,.265 x.380 x 1.66
35 720 - 0170 Knob, 5/16 -18
36 681-0094A Chute Deector Assembly
37 914-0149B Internal Cotter Pin
38 719-04070 Shredder Screen
39 736-0173 Flat Washer, .28 x .74 x .063
40 726-0201 Speed Nut,.3125ID
41 712- 04064 Nut, Flange, Lock, 1/4-20
42 710-0599 TT Screw, 1/4-20 x .5
43
781-04292††
Engine Plate
1414
CS Model Series 410 & 420
35
31
33
34
32
20
13
37
14
38
20
39
13
2
27
7
1
6
8
3
20
21
14
23
4
26
28
24
15
22
25
18
17
19
A
A
5
7
38
21
29
30
10
11
12
14
36
9
16
26
1515
CS Model Series 410 & 420
Ref
No.
Part Number Description
1 981-0133 Tongue Hitch Mount
2 681- 0134A Base Hitch Mount
3 710-3001 Hex Cap Screw, 3/8-16 x.88
4 711- 0299 Clevis Pin,.625 x 2.4
5 911- 0835 Clevis Pin,.50 x 4.62
6 712-04065 Flange Lock Nut, 3/8-16
7 732-0194 Spring Pin
8 936 -0133 Flat Washer,.411 x 1.25 x 1.0
9 681-04006† Upper Chipper Chute Assembly
10 681- 0 4117† Lower Chipper Chute Assembly
11 710-0106† Hex Cap Screw, 1/4-20 x 1.25
12 710-3013† Screw, 1/4-20 x .50
13 912-3010 Hex Nut, 5/16-18
14 712-04064† Flange Lock Nut 1/4-20
15 914-0104† Cotter Pin
16 728-0175† Pop Rivet
17 932-0306A† Compression Spring,.531 x 1.75
18 735-0249A† Chute Flap
19 936-0140† Flat Washer
20 736-0242 Bell Washer.340 ID x.872 OD
21 936-0451 Washer,.320 ID x.93 OD
22 947-04163† Lock Rod
Ref
No.
Part Number Description
23 749-1004† Chipper Chute Support
24 981-04032† Chipper Chute Hinge
25 781-0633† Chute Flap Strip
26 710-0805 Hex Cap Screw, 5/16-18 x 1.50
27 749-04104 Tube Support
28 681-0184C Frame Assembly
29 710-0502A Hex Sems Screw, 3/8-16 x 1.25
30 936-0170 Special Lock Washer, 5/16
31 726-0214 Push Cap, 5/8
32 634-04627 Wheel, 10 x 4 x 4
— 741-0487C Flange Bearing
— 941- 0706 Flange Bearing w/tting
33 950-0786 Spacer, .64 x .88 x .38
34 738- 0813 Axle, 22.47”
35 937-0195 Elbow Fitting
36 726-0233† Push Nut,.25ID x.50OD
37 681- 0 4118†† Chipper Chute
38 712- 04063 Flange Lock Nut, 5/16-18
39 710-0809† Hex Cap Screw, 1/4-20 x 1.250
— 964-04023* Debris Collection Bag
— 723-0400* Safety Glasses
† Model Series 420
†† Model Series 410
* Not Shown
1616

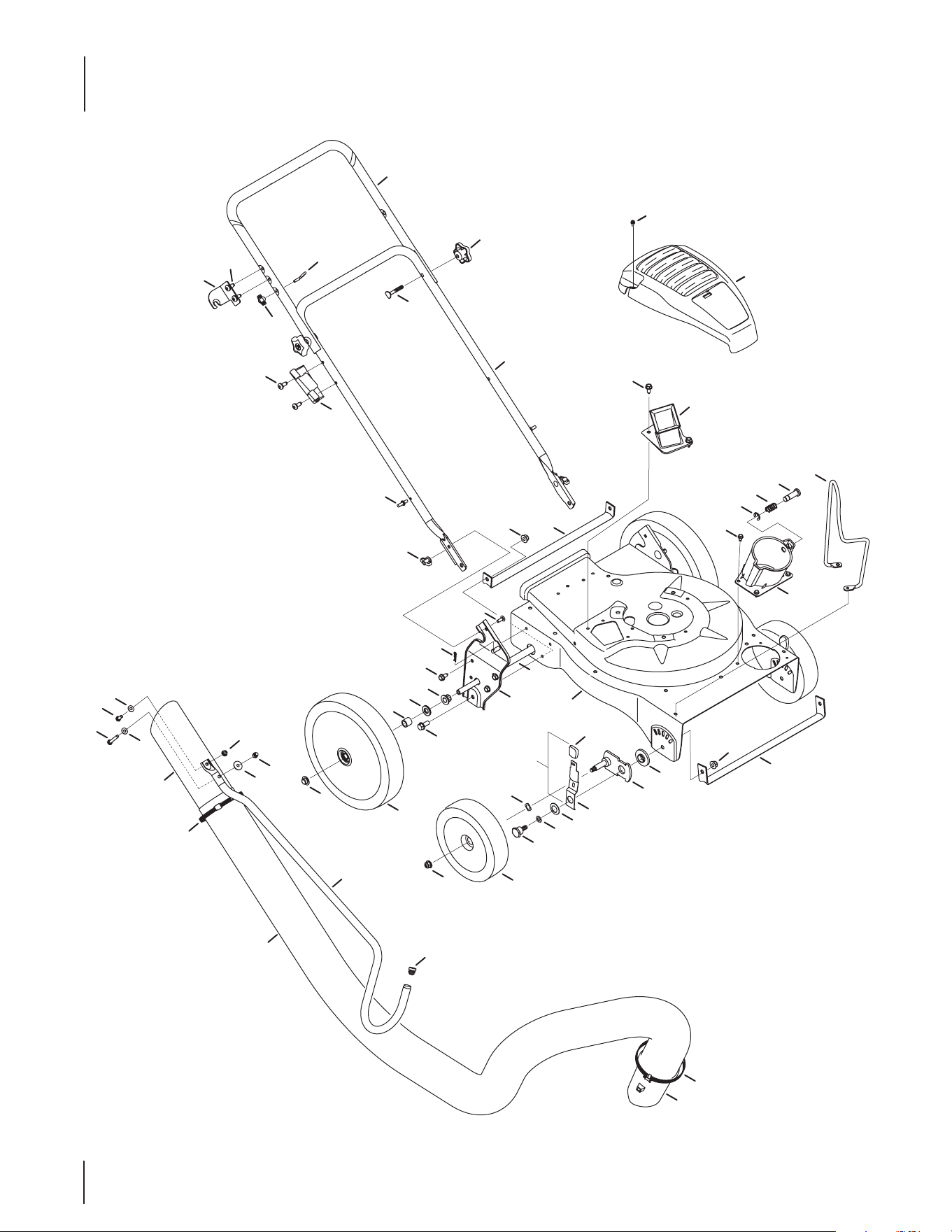

CSV Model 050
52
39
41
40
57
56
55
54
53
47
43
35
42
45
1
48
50
49
50
9
3
7
36
4
16
17
18
19
7
51
14
12
34
34
6
10
38
13
46
37
44
31
33
24
20
15
27
20
25
50
30
29
21
22
11
2
8
5
28
26
32
28
23
1717
CSV Model 050
Ref
No.
Part Number Description
1 936-0314 Thrust Washer.375 ID x.70 OD
2 749 - 04172 Upper Handle
3 720-0279 Knob
4 710-05073 Screw, 1/4-20 x .500
5 710 -1205 Eye Bolt
6 781-1056 Upper Handle Bracket
7 710-0726 Hex Cap Screw 5/16-12 x.750
8 720-04072A Star Knob
9 710 -1174 Carriage Bolt
10 731-0 4911 Nozzle Handle Clip
11 749-04165 Lower Handle
12 711-1293 Studs
13 710-0703 Carriage Screw 1/4-20 x.75
14 712-0397A Wing Nut 1/4-20
15 710-0751 Hex Cap Screw 1/4-20 x.620
16 681-0195 Hose Base Adapter Assembly
(Incl. Ref.# 17-19)
17 916-0104 E Ring.500 Dia
18 932-3035 Compression Spring
19 711-1571 Clevis Pin
20 936-3020 Flat Washer.271 ID x.630 OD
21 781-04223 Upper Flail Housing
22 681-04088 Chipper Chute Assembly
23 747-04985 Hose Cradle
24 712-04064 Flange Lock Nut, 1/4-20
25 748-0457 Spacer
26 731-2478 Hose Nozzle
27 710-3288 Hex Cap Screw 1/4-20 x 2.625
28 723-0295 Adjustment Clamp
29 749-1270A Nozzle Handle
Ref
No.
Part Number Description
30 764-0648A Vacuum Hose
31 720-0369 Handle Plug
32 731-06469 Hose Adapter
33 912- 0442 Cap Lock Nut, 1/4-20
34 710 -1611B TT Screw, 5/16-18 x .750
35 781-04082 Front Wheel Support Brace
36 781-04081 Rear Wheel Support Brace
37 981- 0156A Handle Bracket Ass’y RH
981-0155A Handle Brkt Ass’y LH
38 914-0104 Cotter Pin
39 726-0299 Push Cap
40 711- 0 4908 Axle
41 710-04482 HHg, 3/8-16 x .875
42 741-04242 Height Adjustment Bearing
43 687-02342 Pivot Arm Assembly
44 720-0426 Height Adjustment Knob
45 732-1026 Spring Lever
46 987-02051 Height Lever Assembly
(Incl. Ref.# 44-45)
47 736-0741 Bell Washer.760 ID x.25 OD
48 738-1172 Shoulder Screw,.750 x.500
49 634-04347 Front Wheel
50 712-04065 Flange Lock Nut, 3/8-16
51 936-0232 Washer, Wave, .531 x .781 x .013
52 634-04367 Rear Wheel
53 731-09094 Engine Shroud
54 710 - 04744 Screw, #12-16 x 1.00
55 741-04108 Brg. Flg, Hex
56 748- 0190 Spacer
57 936-0369 Washer, Flat, .508ID x 1.00 OD
1818

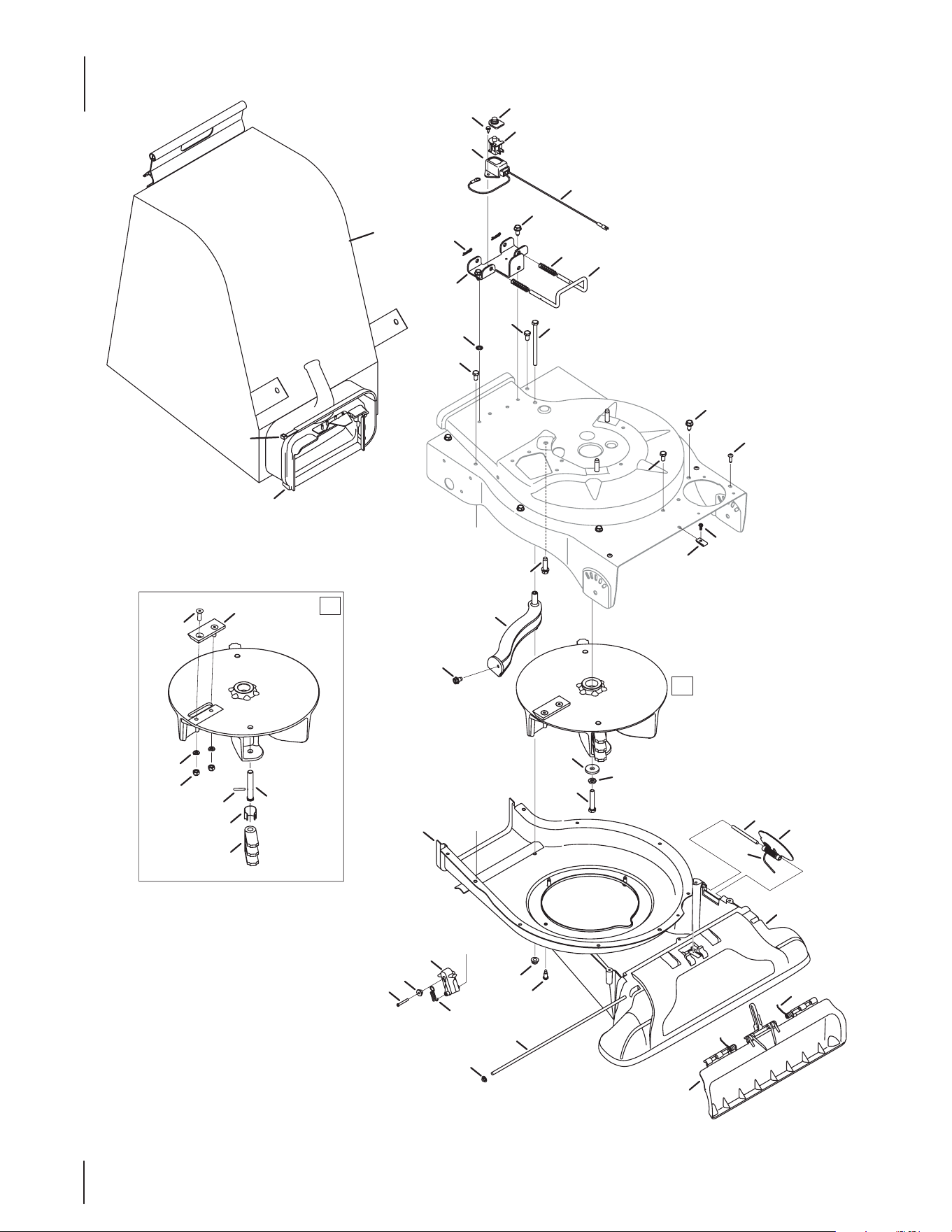

CSV Model 050
38
30
40
42
43
B
B
A
A
41
29
45
4
3
10
9
7
5
6
44
30
46
49
16
19
18
12
14
17
26
27
32
28
35
34
37
36
39
1
11
11
44
48
44
2
15
13
23
24
22
21
20
25
8
31
33
47
1919
CSV Model 050
Ref
No.
Part Number Description
1 664-04040 Bag Assembly (incl. Ref 28)
2 681-0154 Screen Assembly
3 710-1054 Hex Screw 5/16-24 x 1.0
4 981-0490 Chipper Blade
5 781-0735 Pin Clip
6 719-0329 Flail
7 715-0166 Spiral Pin
8 711-1401 Clevis Pin
9 912- 0 411 Lock Nut, 5/16-24
10 936 - 0119 Lock Washer, 5/16
11 981-0152 Impeller Assembly
(Incl. Ref.# 3 – 10)
12 710-1650 Shoulder Screw, #12-24 x.30 x.46
13 781-0721B Lower Flail Housing
14 712- 04063 Flange Lock Nut 5/16-18
15 710-0607 Screw, 5/16-18 x.500
16 747-04297 Hinge Pin
17 981-04031 Nozzle
18 781-1064 Base Adapter Door
19 732-1156 Torsion Spring
20 926-0106 Cap Speed Nut 1/4
21 711-1551 Pivot Rod
22 731-2485A Nozzle Door Lever
23 710 -1256 Hex Screw, #8-18 x 1.25
24 750-1294 Shoulder Spacer
25 732-3118 Extension Spring
Ref
No.
Part Number Description
26 732-1151A Nozzle Door Torsion Spring
27 731-2294A Nozzle Door
28 726-0288 Tie Strap, 42”
29 631-0083 Chute Assembly
30 710-0726 Hex Index Screw, 5/16-12 x.750
31 736-0247 Flat Washer.375 ID x 1.25 OD
32 936-0217 Lock Washer 3/8
33 710-0818 Hex Cap Screw 3/8-24 x 2.0
34 925-1700 Switch Cover
35 925-3166 Safety Switch
36 931-1613 Safety Switch Cover
37 910-0224 Hex Washer Screw #10-16 x.50
38 629-0920A Wire Harness
39 914-0104 Cotter Pin
40 732-0962 Compression Spring
41 781-0778A Mounting Bracket
42 747-1153 Lock Rod
43 710-3195 Hex Cap Screw 5/16-18 x 4.5
44 710-3025 Hex Cap Screw 5/16-18 x.625
45 710-0654A Hex Washer Screw 3/8-16 x 1.00
46 710-1220 Screw, #12-16 x.750
47 710-0351 Screw #10 - 16 x.500
48 736-0607 External L-Washer 5/16
49 726-0139 Speed Nut
— 723-0400 Safety Glasses (Not Shown)
2020
LS 27 CC Labels
777D14951
777D14953
777D14955
777I23426
777S33680
777S33681
777S33682
777X45191
Shell
PL-TS2M32
2121
LS 25 CC Labels
777I20798
777D18235
777I23426
777S33680
777S33681
777S33682
777X45191
777x43688
Shell
PL-TS2M32
25
US
TON
L OG SPL I T TE R
D14953 AC
USE SAE
10W30
OIL
2222

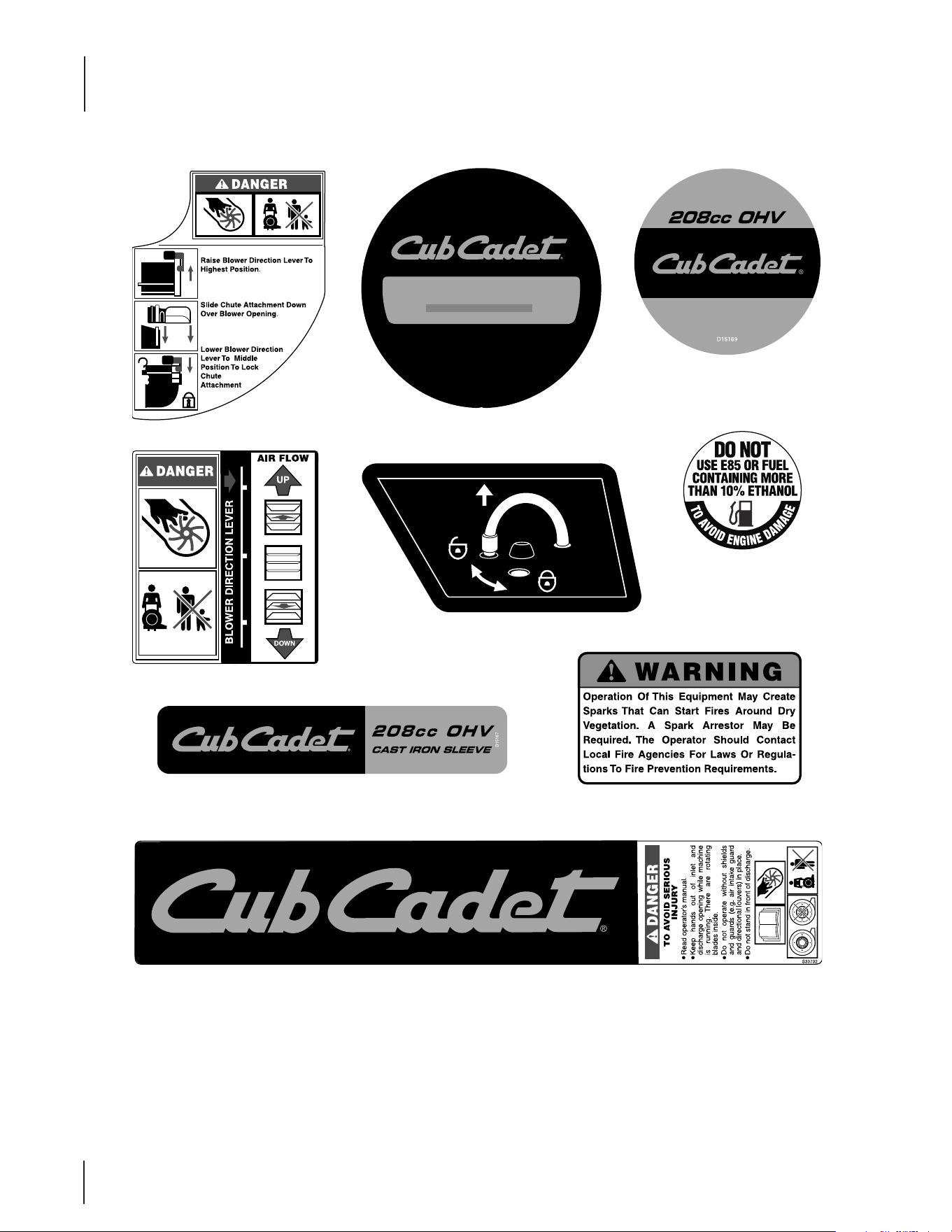

JS 1150 Labels
777D16360
777D15167
777D15169
777I22812
777S33732
777X43688
777S33200
777S32905
777S32904
2 08cc OHV
OVERHEAD VA LV E
777D16360
JS 1150
JET SWEEP BLOWER
2323

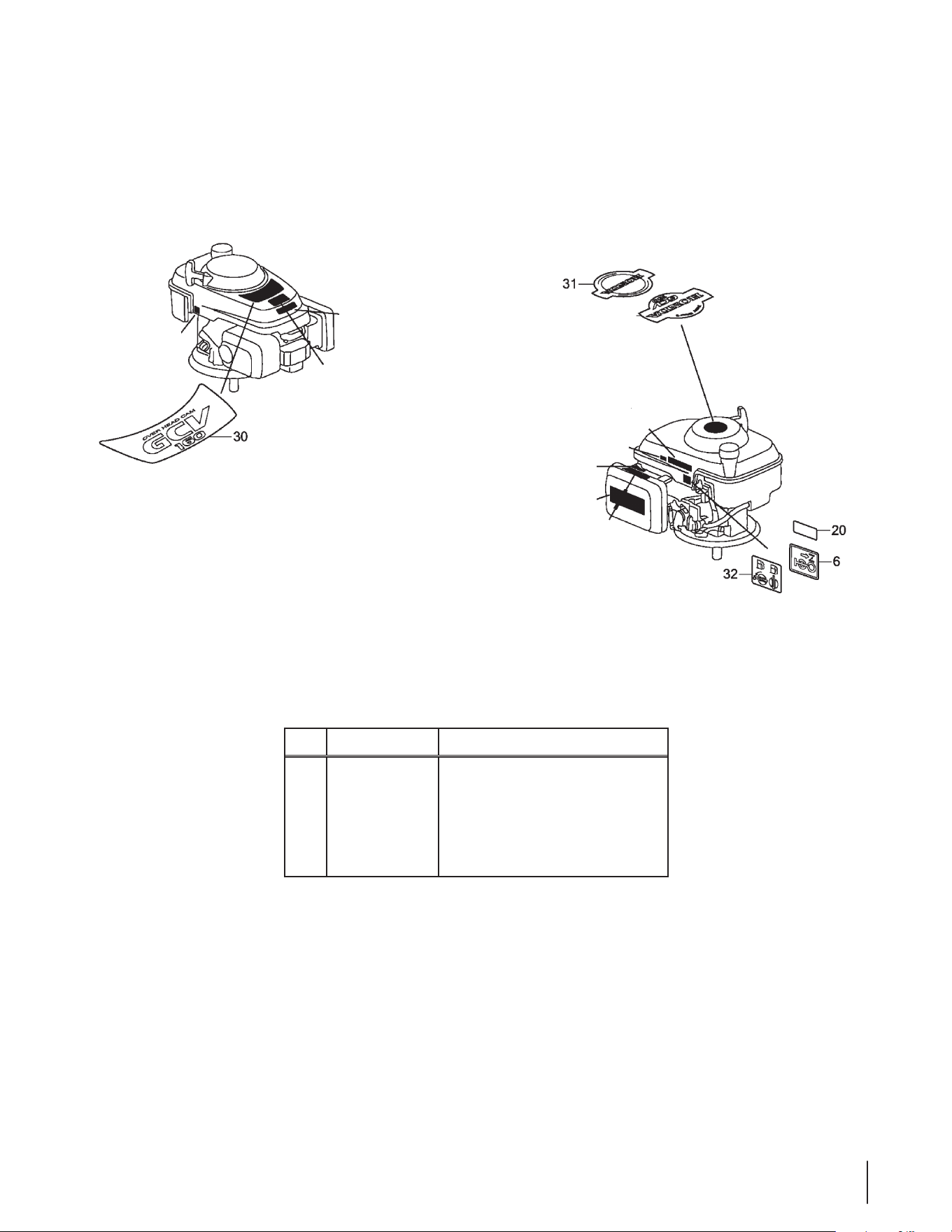

CSV Model 050 Labels
777X43688
777D16358
777S33695
777I23444
777S33694
777I23042
17 3cc OHV
OVERHEAD VA LV E
D16358
SELF PROPELLED
CSV 050
CHIPPER SHREDDER VA CUUM

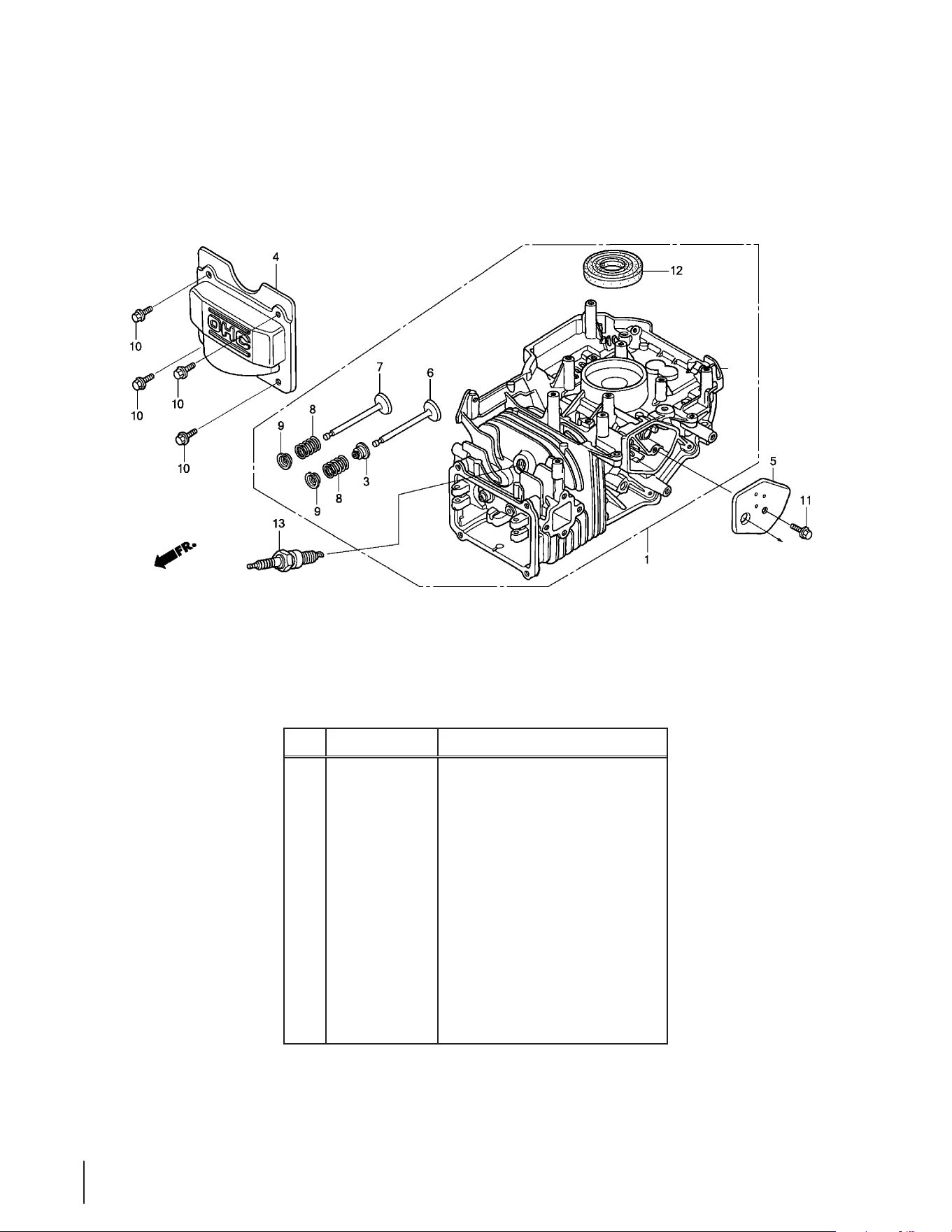

Engine Model (Honda GCV160LA0)
24
Ref.
PartNumber Description
1 12000-Z0L-840 Cylinder Assembly
3 12209 -ZM0-003 Valve Stem Seal
4 12310-Z0J-000 Head Cover
5 12355-ZL8-000 Cover, Breather
6 14711-Z0J - 800 Intake Valve
7 14721-ZL8-000 Exhaust Valve
8 14751-ZL8-000 Valve Spring
9 14771-Z0J-000 Valve Spring Retainer
10 90013-883-000 Flange Bolt, 6 x 12
11 90014-952-000 Flange Bolt, 6 x 14
12 91201-ZL8-003 Oil Seal, 25.4 x 62 x 6
13 98079-56846 SparkPlug,BPR6ES(NGK)

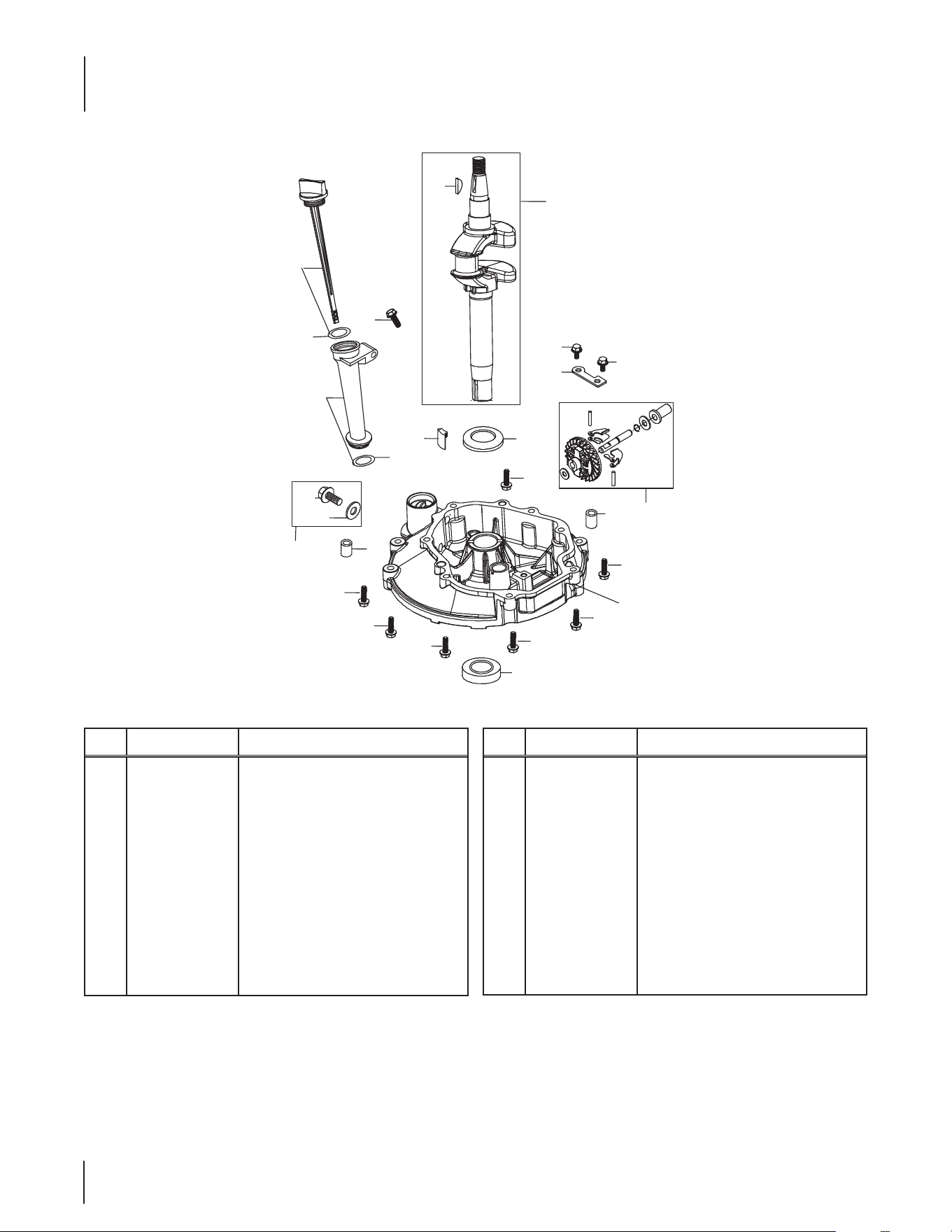

Engine Model (Honda GCV160LA0)
25
Ref.
PartNumber Description
1 11300 -Z0L- 821 Oil Pan Assembly
3 15625-Z2L- 801 Oil Filler Cap Gasket
7 15650-Z0L-000 Oil Level Gauge Assembly
8 16508-ZM0-010 Governor Holder Shaft
9 16510-ZM0-010 Governor Assembly
10 16511-ZL8-000 Governor Weight
11 16512-ZM0-000 Governor Weight Holder
12 16513-ZE1-000 Governor Weight Pin
13 16531-ZE1-000 Governor Slider
14 16541-ZM0-000 Governor Arm Shaft (to 1642935)
— 16541-Z8B-000 Governor Arm Shaft (from 1642936)
Ref.
PartNumber Description
15 90014-952-000 Flange Bolt, 6 x 14
16 90121-952-000 Flange Bolt, 6 x 25
17 90131-896 - 650 Drain Plug Bolt
18 90451-ZE1-000 Thrust Washer, 6mm
19 90602-ZE1-000 Governor Holder Clip
20 91202-ZL8- 003 Oil Seal, 28 x 41.25 x 6
23 94101- 06800 Plain Washer, 6mm
24 94109-12000 Drain Plug Washer, 12mm
25 94251-08000 Lock Pin, 8mm
26 94301-08200 DowelPin,8x20

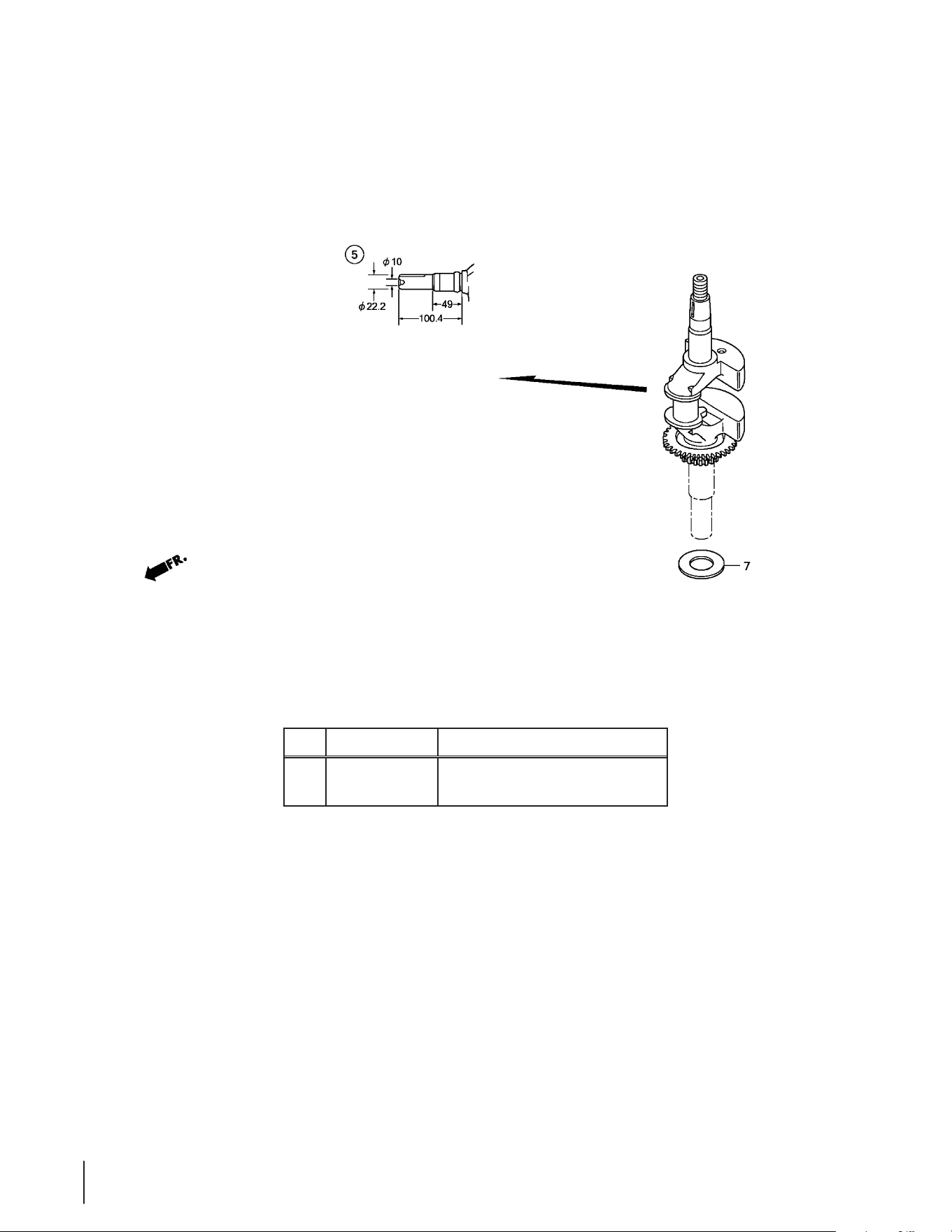

Engine Model (Honda GCV160LA0)
26
Ref.
PartNumber Description
5 13310-Z0L-650 Crankshaft
7 90402-ZL8-000 ThrustWasher
Engine Model (Honda GCV160LA0)
27
Ref.
PartNumber Description
1 13010-Z0L-014 Piston Ring Set
2 13101-Z2A-010 Piston
— 13101-Z8B-820 Piston
3 13111-ZE0 - 0 0 0 Piston Pin
4 13200-Z0J-000 Connecting Rod Assembly
5 90001-ZE1-000 Connecting Rod Bolt
6 90551-ZE0-000 PistonPinClip,13mm
Engine Model (Honda GCV160LA0)
28
Ref.
PartNumber Description
1 14320 -ZL8- 010 Camshaft Pulley
2 14324-ZL8-000 Cam Pulley Shaft
3 14400-Z0J-014 Timing Belt
4 14431-Z0J-000 Intake Rocker Arm
5 14441-Z0J-000 Exhaust Rocker Arm
6 14461-ZL8-000 Rocker Arm Shaft
7 90012-333-000 Tappet Adjusting Screw
8 90206-001-000 Tappet Adjusting Nut
9 91301-ZM0-V31 O-Ring,6.8x1.9
Engine Model (Honda GCV160LA0)
29

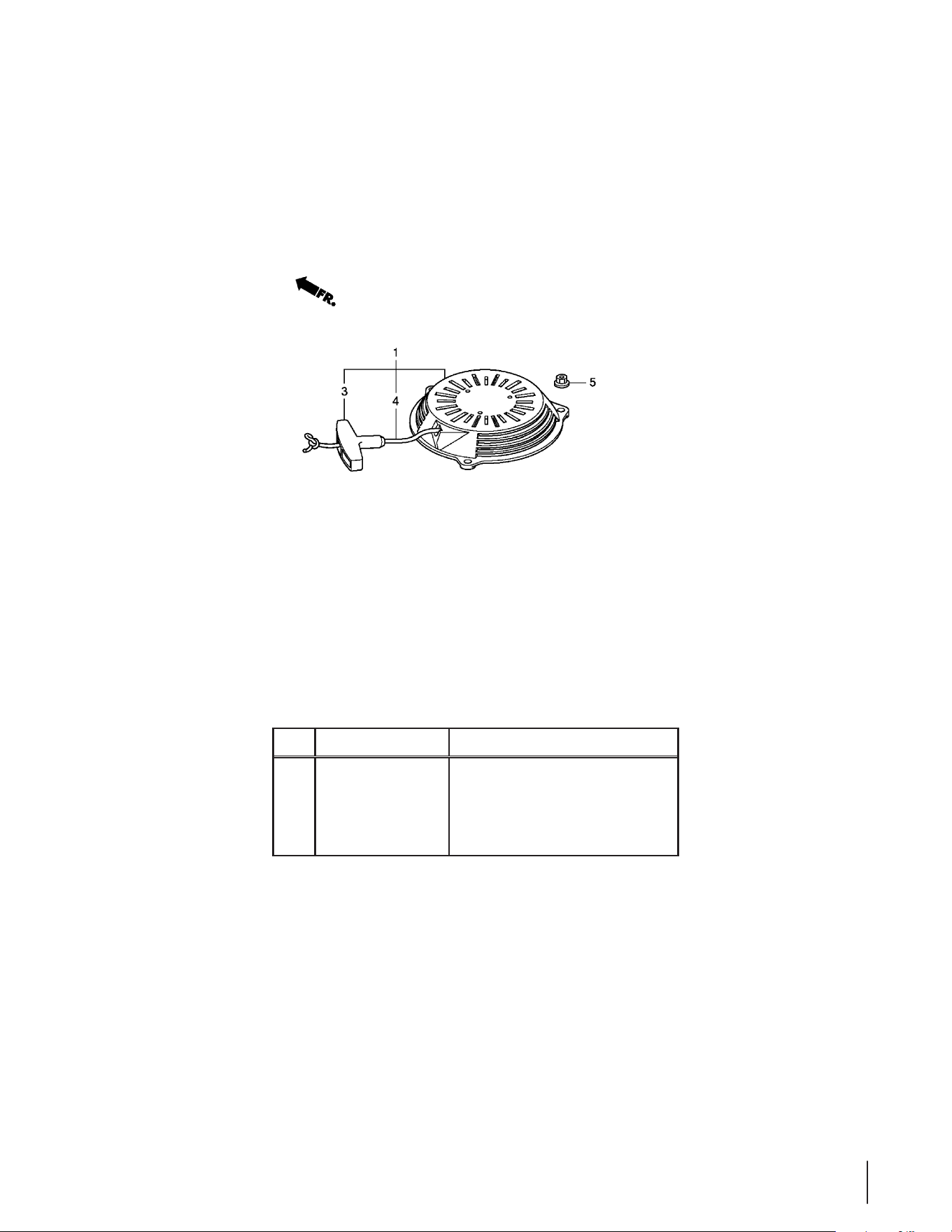

Ref.
Part Number Description
1 28400-ZL8-023ZA Recoil Starter Assembly
3 28461-ZL8-003 Starter Grip
4 28462-ZL8-003 Recoil Starter Rope
5 90201-ZM0-000 Flange Nut, 6mm
Engine Model (Honda GCV160LA0)

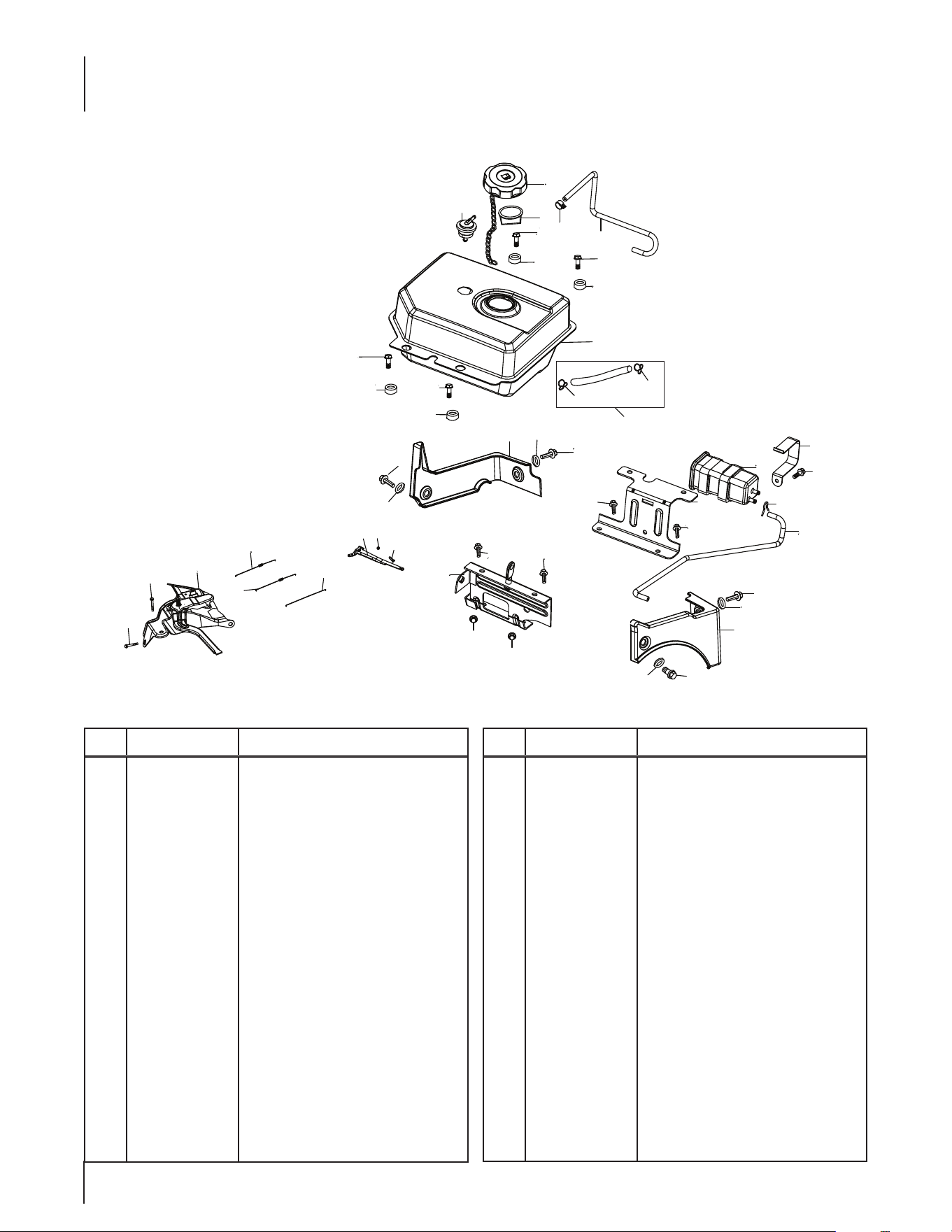

30
Ref.
Part Number Description
3 16854-ZH8-000 Fuel Line Sleeve
5 16950-ZM0-003 Petcock Assembly
6 16952-ZA8-800 Fuel Filter (to 2240292)
— 16952-Z8B-000 Fuel Filter (from 2240293)
7 17511-Z0L- 030 Fuel Tank
— 06175-Z0L-305 Fuel Tank Kit
8 17514-Z0L-000 Fuel Filler Neck Seal
9 17516-Z0L-000 Tank Mounting Clip
10 17532-Z0L-000 Tank Mounting Rubber
11 17533-Z0L-000 Tank Mounting Rubber
12 17534-Z0L-000 Tank Mounting Nut
13 17620 -Z0J-800 Fuel Cap Assembly
Ref.
Part Number Description
14 17636-Z0L-010 Fuel Level Gauge
16 17701-Z8 B - 811 Fuel Tank Tube
17 17702-Z8B-801 Fuel Tube
19 19610-Z0L-851ZA Fan Cover, Black
20 19619-ZL8-300 Fan Cover Collar
21 91501-Z0L-800 Fuel Petcock Collar
23 90043-Z0J-900 Stud Bolt, 39.5mm
26 93891-05010-08 Screw w/ Washer, 5 x 10
29 95002-40800-08 Tube Clip, D8
30 95002-41000-08 Tube Clip, D10
33 95002-41200-08 Tube Clip, D12
34 90043-ZL8-000 Stud Bolt, 42.5mm
34
Engine Model (Honda GCV160LA0)
31
Ref.
Part Number Description

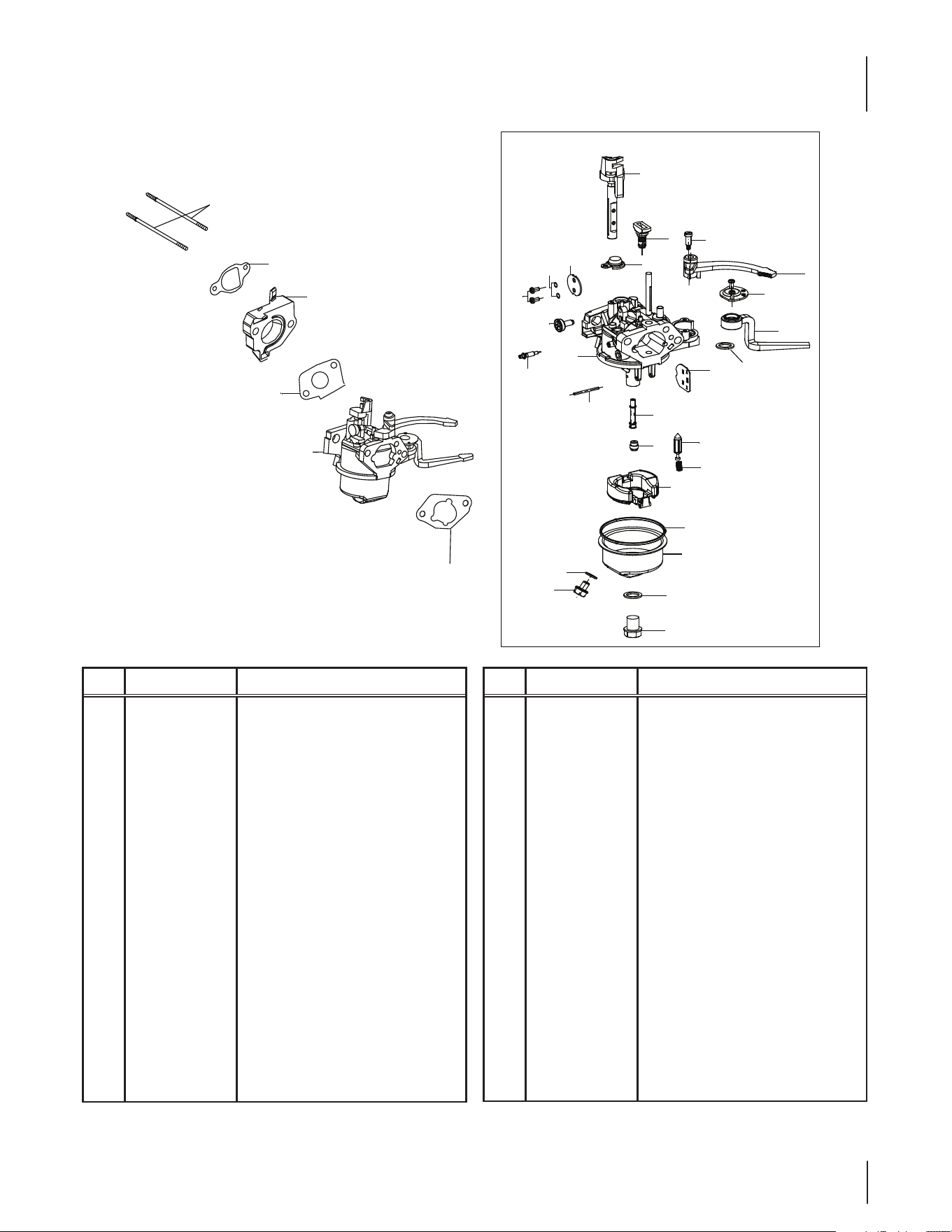

1 16010-883-015 Gasket Set
2 16013-ZL1- 003 Float Set
3 16015-Z0L-881 Float Chamber Set
6 16028-ZK7-S91 Screw Set
8 16100-Z0L-862 Carburetor Ass’ly (to 1854820)
— 16100 -Z0L-864 Carburetor Ass’ly (from 1854821)
9 16155-ZM0-013 Float Valve
10 16166-ZM0-003 Main Nozzle
Ref.
Part Number Description
13 16211-ZL8-000 Carburetor Insulator
14 16212-ZL8-000 Insulator Gasket
16 16228-ZL8-000 Carburetor Gasket
20 93500-05006-0H Pan Screw, 5 x 6
22 99101-124 - 0600 Main Jet, #60
22 99101-124 - 0620 Main Jet, #62
22 99101-124 - 0650 Main Jet, #65
23 19651-Z0L-000 Air Guide
23
Engine Model (Honda GCV160LA0)
32
Ref.
Part Number Description
1 15721-ZM0-000 Breather Tube
2 17211-ZL8 - 02 3 Air Cleaner Element
3 17220-ZM0-030 Air Cleaner Case Assembly
4 17228-ZM0-000 Air Cleaner Gasket
5 17231-Z0L-050 Air Cleaner Cover
6 90003-ZM0-010 Flange Bolt, 6 x 85

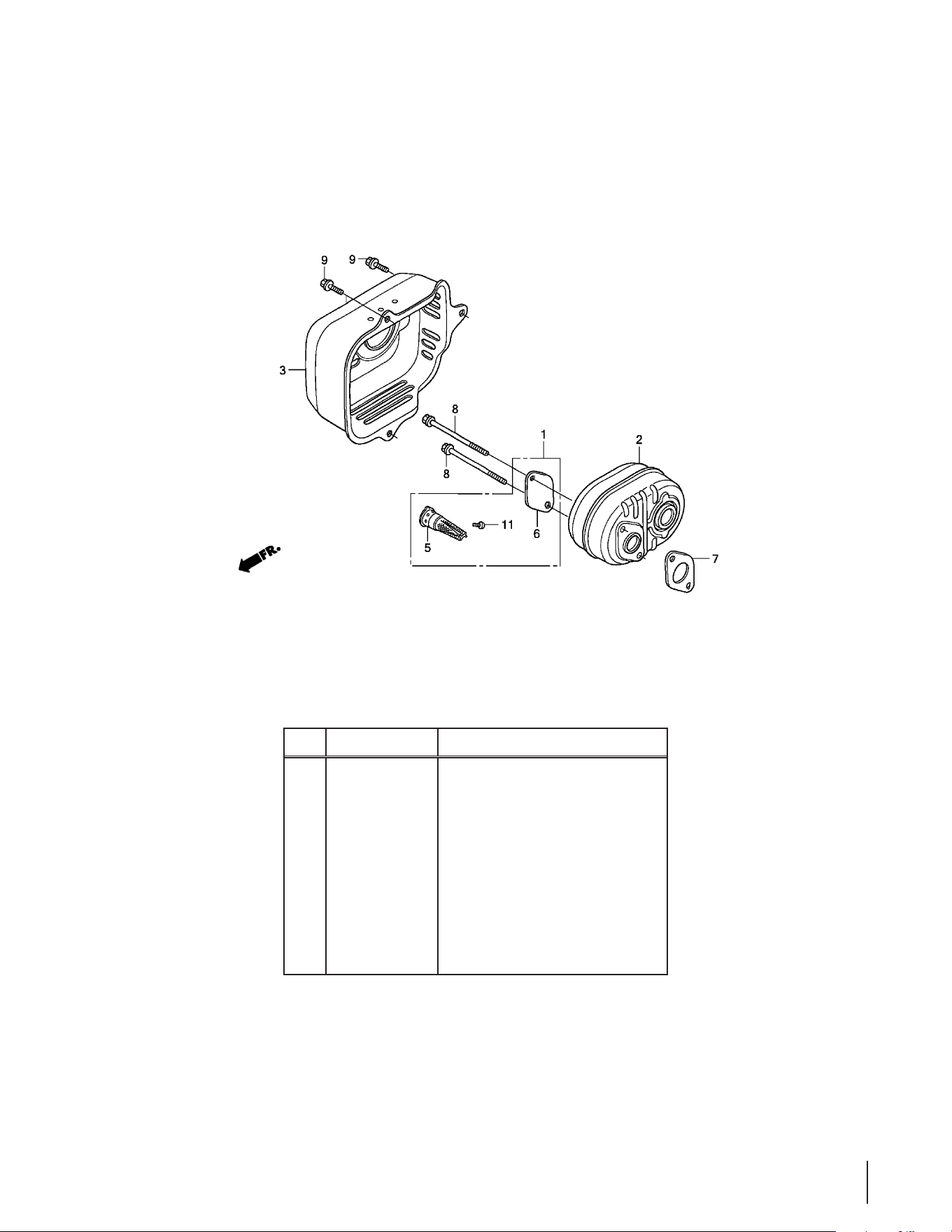

Engine Model (Honda GCV160LA0)
33
Ref.
PartNumber Description
1 06180-Z0J-000 Spark Arrester Kit
2 18310-ZM0-000 Muer
3 18321-Z0L-010 Muer Protector
5 18350-ZL8-000 Spark Arrester
6 18356-ZL8-000 Arrester Number Plate
7 18381-ZL8-305 Muer Gasket
8 90004-ZL8-000 Flange Bolt, 6 x 79
9 90013-883-000 Flange Bolt, 6 x 12
11 90055-ZE1-000 Tapping Screw, 4 x 6

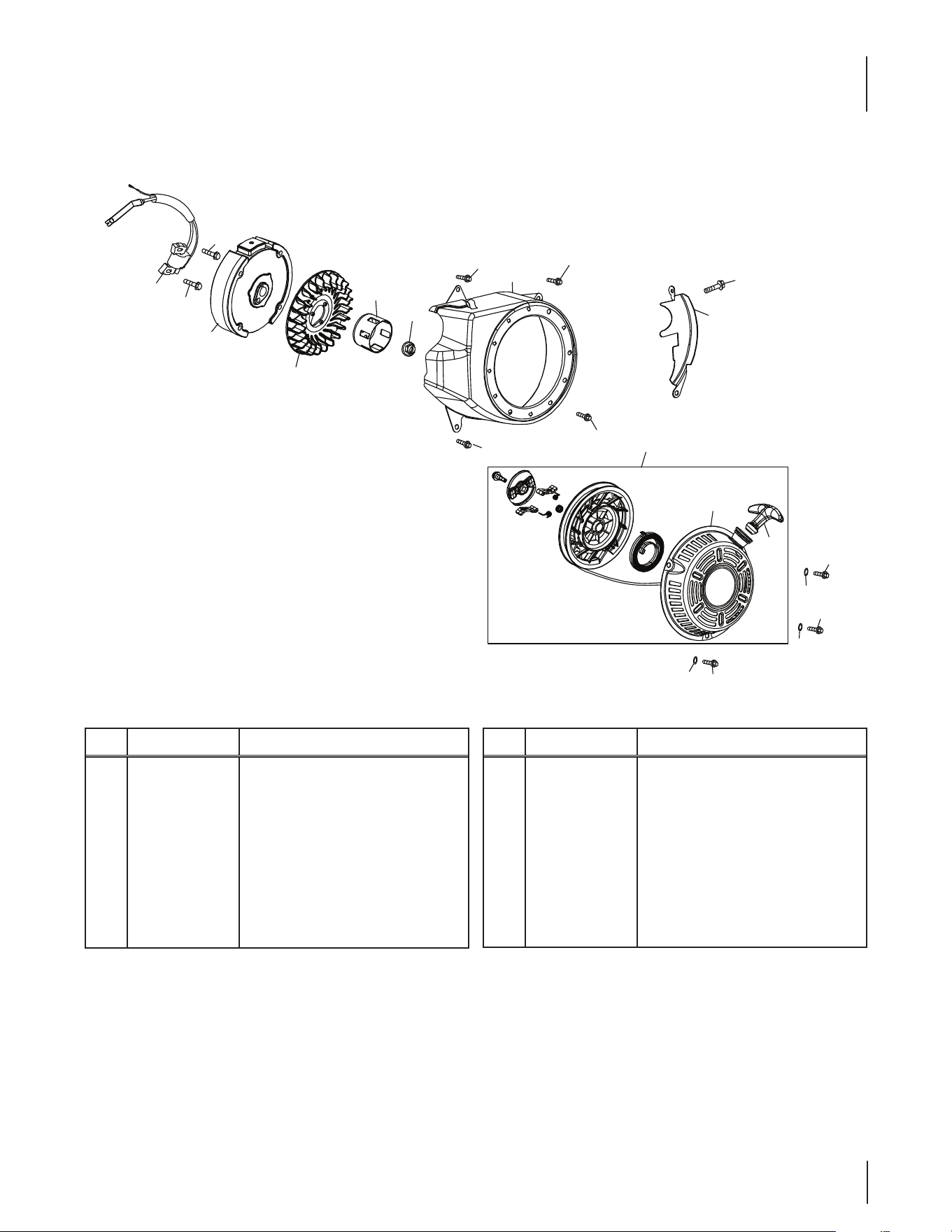

Engine Model (Honda GCV160LA0)

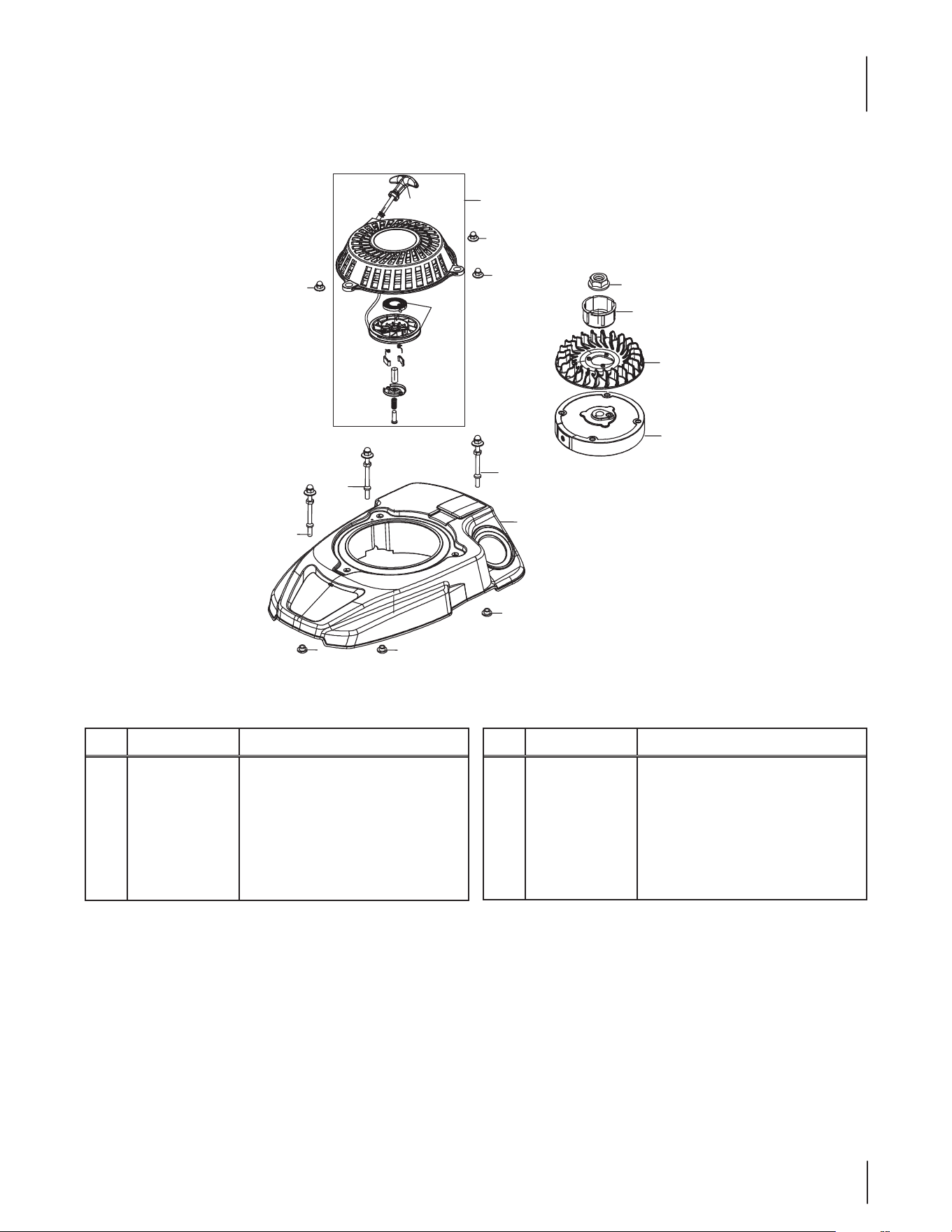

34
Ref.
PartNumber Description

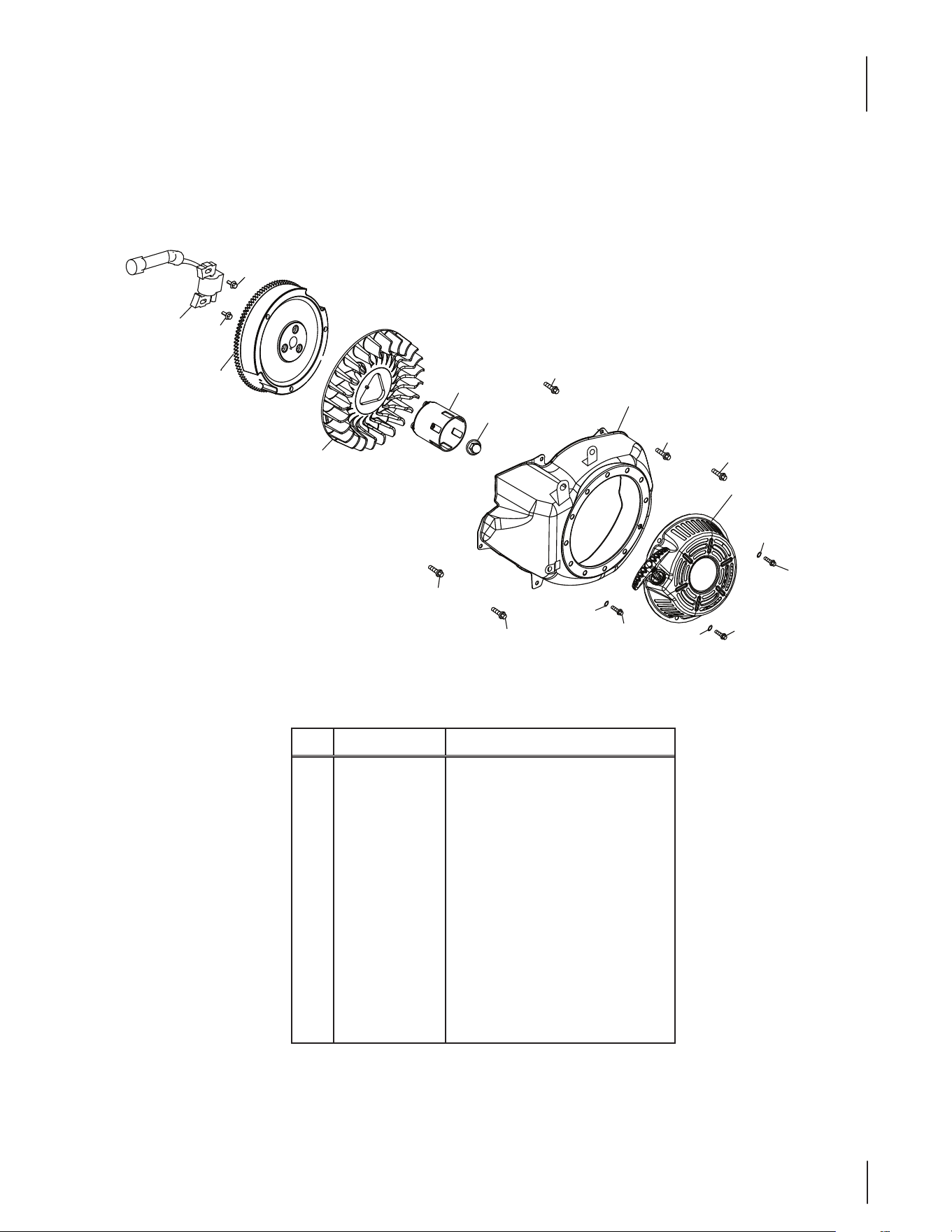

1 13331-357-000 Woodru Key
2 19511-Z0J-90 0 Cooling Fan
3 19612-Z0L-000 Side Plate
4 28451-Z0J-900 Starter Pulley
6 30500-Z0J-004 Ignition Coil Assembly
7 31110 -Z0J- 00 4 Flywheel
10 90013-883-000 Flange Bolt, 6 x 12
11 90018-ZE1-000 Flange Bolt, 6 x 23
12 90201-Z0T-800 Nut, 14mm
Engine Model (Honda GCV160LA0)

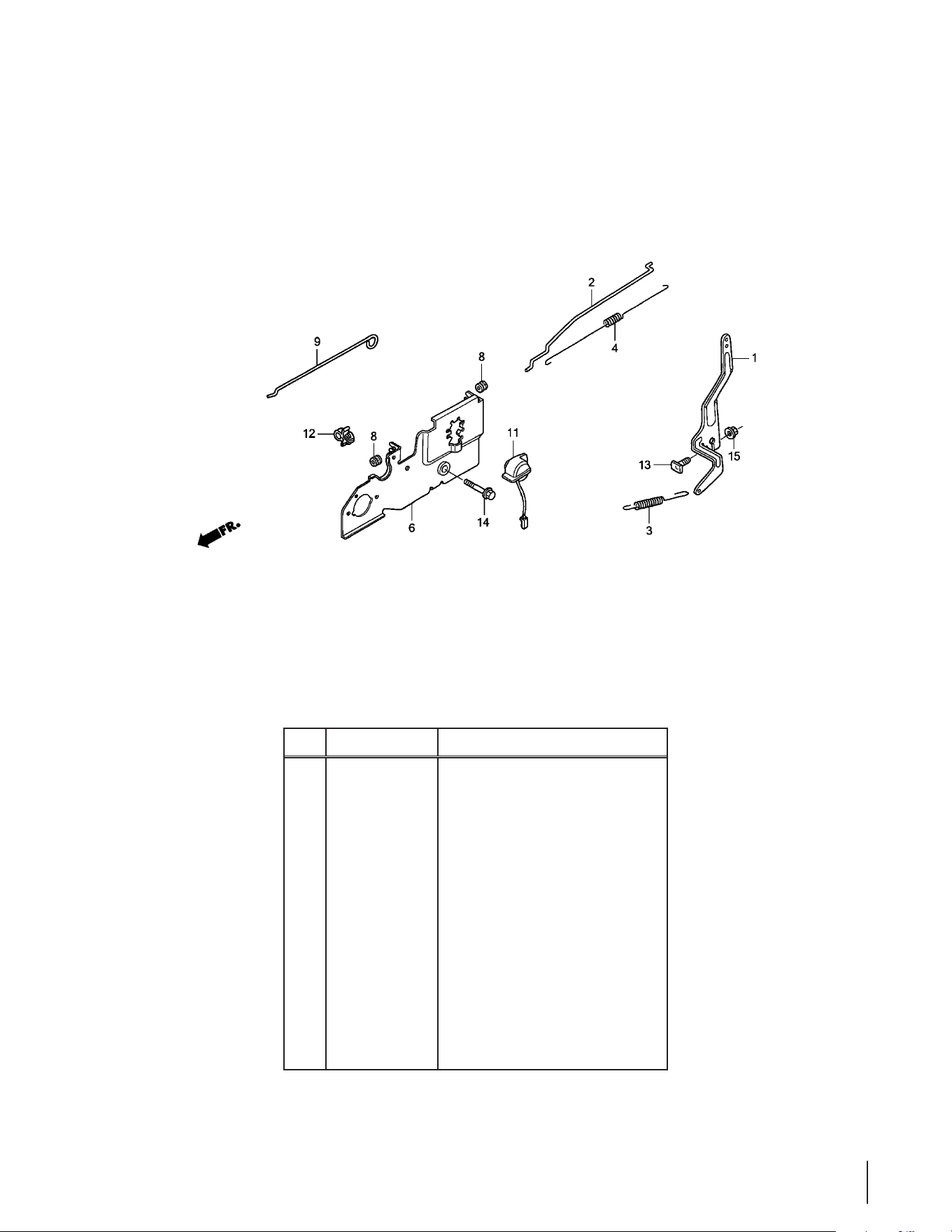

35
Ref.
PartNumber Description
1 16551-ZM0-010 Governor Arm
2 16555-Z0L-801 Governor Rod
3 16561-ZM0-V30 Governor Spring
4 16562-ZM0-000 Throttle Return Spring
6 16580-Z0L-800 Control Base
8 16613-893-000 Choke Rod Grommet
9 16674 -Z0L-800 Choke Rod
11 35120-Z0L-901 Engine Stop Switch Assembly
12 5112 5 -Z0 L- 0 03 Wire Holder
12 90681-959-003 Cable Clip
13 90015-ZE5-010 Governor Arm Bolt
14 90016-ZE8-000 Flange Bolt, 6 x 45
15 94050-06000 FlangeNut, 6mm

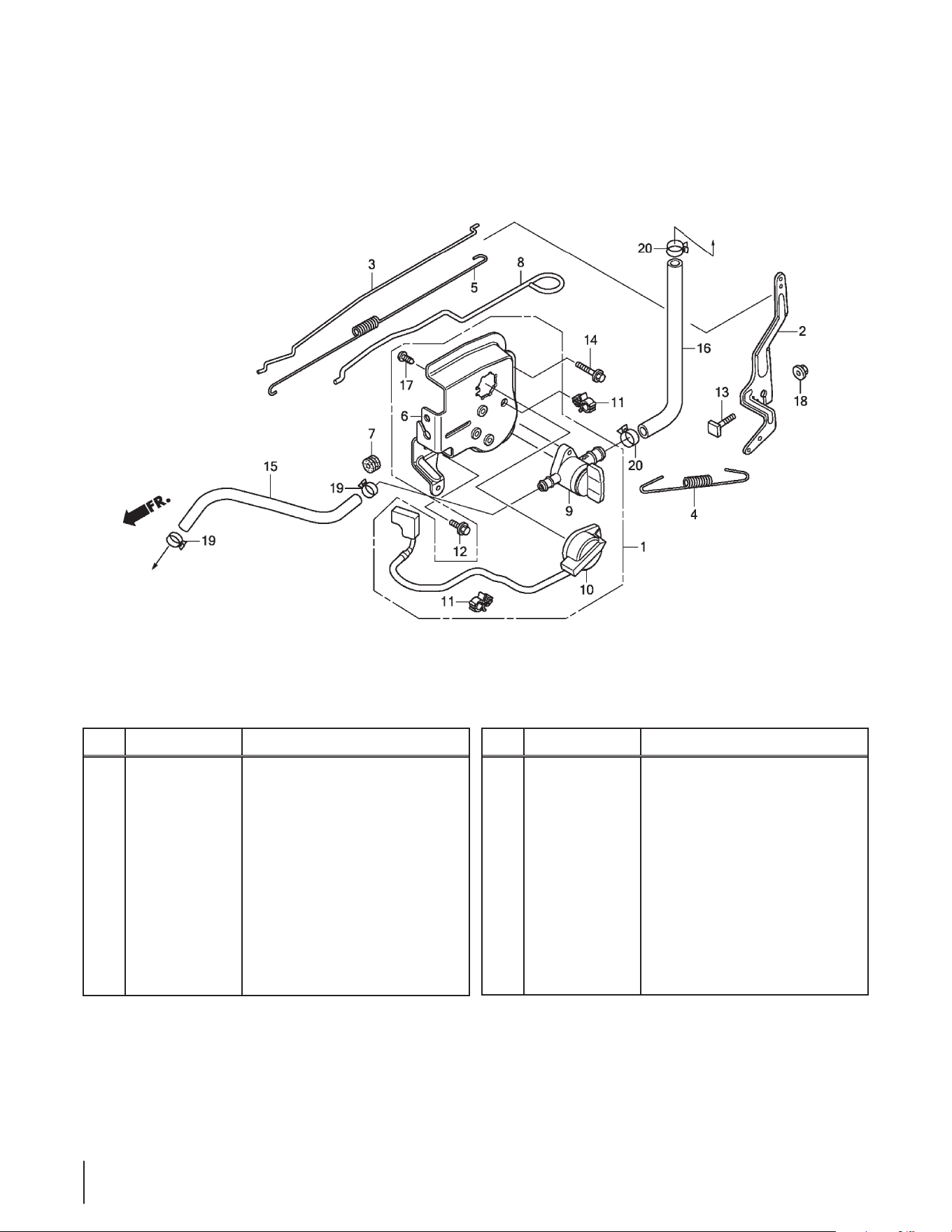

Engine Model (Honda GCV160LA0)
36
Ref.
PartNumber Description
1 16500-Z8D-000 Control Assembly
2 16551-ZM0-010 Governor Arm
3 16555-Z0L-801 Governor Rod
4 16561-Z8B-V30 Governor Spring
5 16562-ZM0-000 Throttle Return Spring
6 16581-Z8D-000 Control Base
7 16613-893-000 Choke Rod Grommet
8 16674-Z8D -800 Choke Rod
9 16950-Z0Y-003 Petcock Assembly
10 35120-Z8D-901 Engine Stop Switch Assembly
Ref.
PartNumber Description
11 5112 5 -Z0 L- 0 03 Wire Holder
12 90013-883-000 Flange Bolt, 6 x 12
13 90015-ZE5-010 Governor Arm Bolt
14 90017-883-000 Flange Bolt, 6 x 32
15 91424-Z8D-801 Tube
16 91427-Z8D-801 Tube
17 93913-25220 Screw, 5 x 12
18 94050-06000 Flange Nut, 6mm
19 95002-40800-08 Tube Clamp
20 95002-41200-08 Tube Clamp
Engine Model (Honda GCV160LA0)
37
Ref.
PartNumber Description
6 87528-ZL8-000 Choke Mark
20 87114 -ZH7- 821 Warning Label
30 87101-Z8B-000 Emblem Mark
31 87169-Z8E-000 Recoil Cover Mark
32 87524-Z8B-000 Fuel Petcock Caution Mark
Engine Model (Honda GCV160LA0)
38
Ref.
PartNumber Description
1 18348-Z0L-000 Muer Cap
3 90055-ZE1-000 Screw, 4 x 6
Notes
39
40

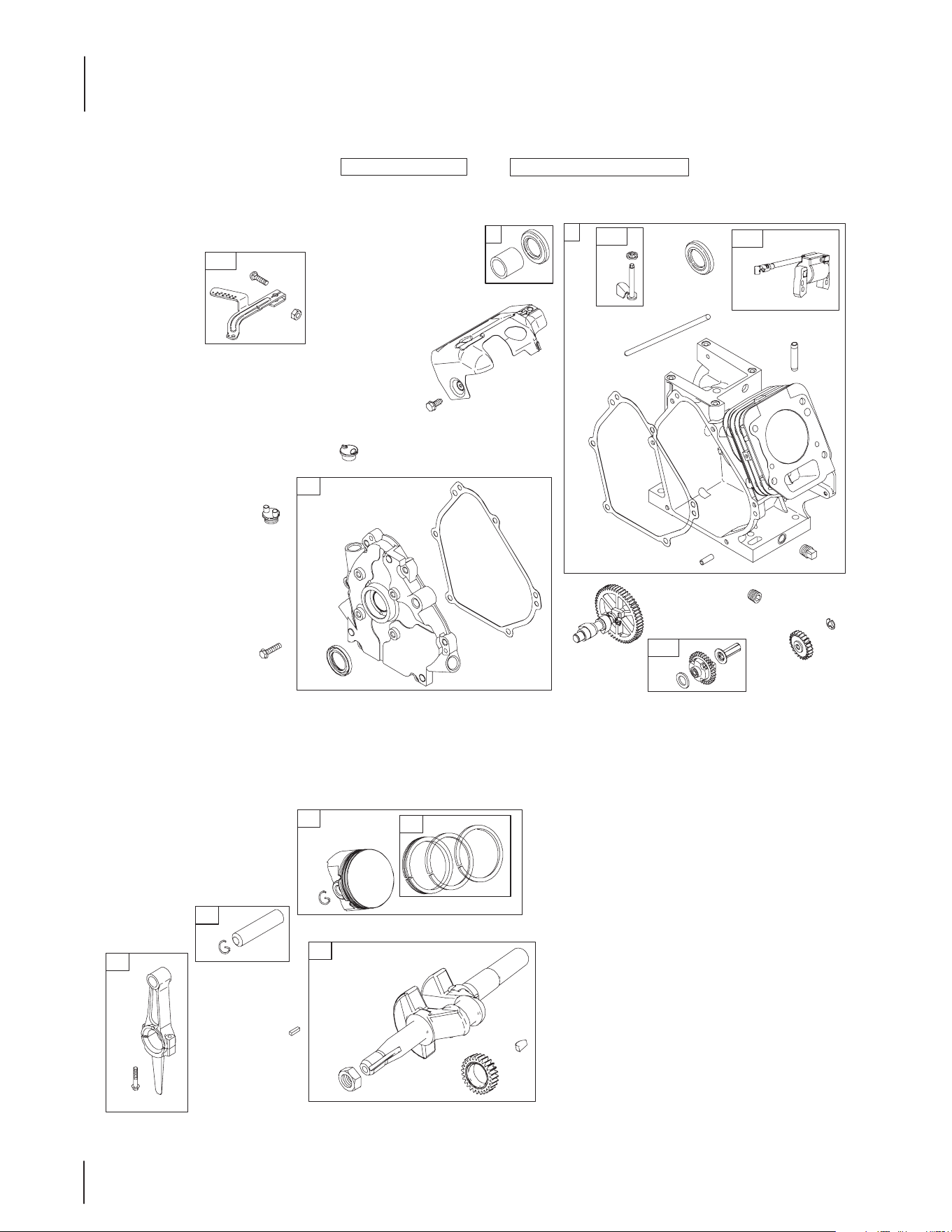

Briggs & Stratton Engine Model 15T202
552
718
15
615
3
306
307
22
20
1
616
2
18
415
522
15A
746
742
220
219
27
27
32
25
26
28
29
46
24
146
741
16
332
48 SHORTB LOCK
1329 REPLACEMENTE NGINE
3
12
21
505
562
227
584
585
12
20A
684
41
Briggs & Stratton Engine Model 15T202

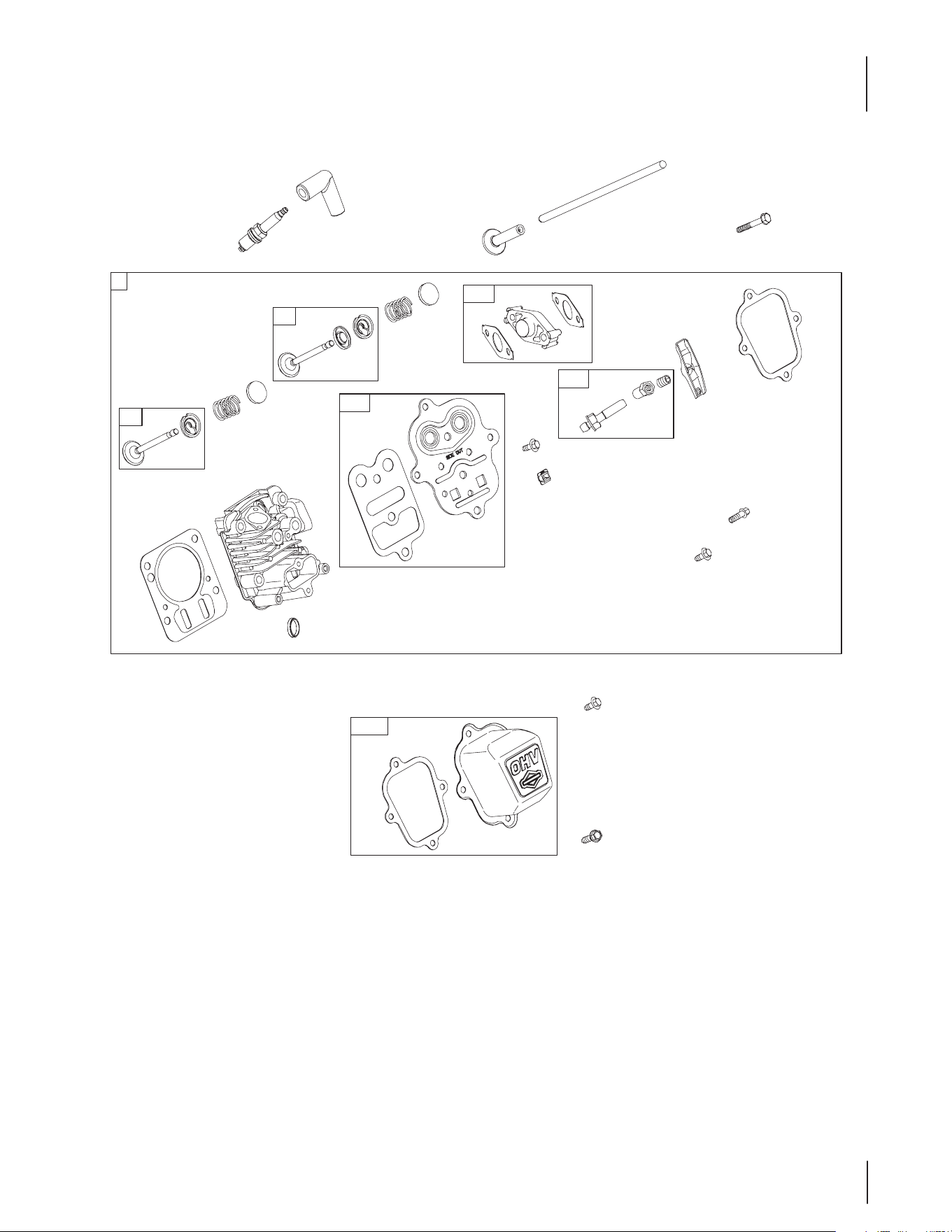

337
635
36
238
40
35
238
40
868
51
7
993
1022
619
830
1029
13
1026
45
1022
155
34
192
1023
33
122
5
1034
914
914A
51A
51
42

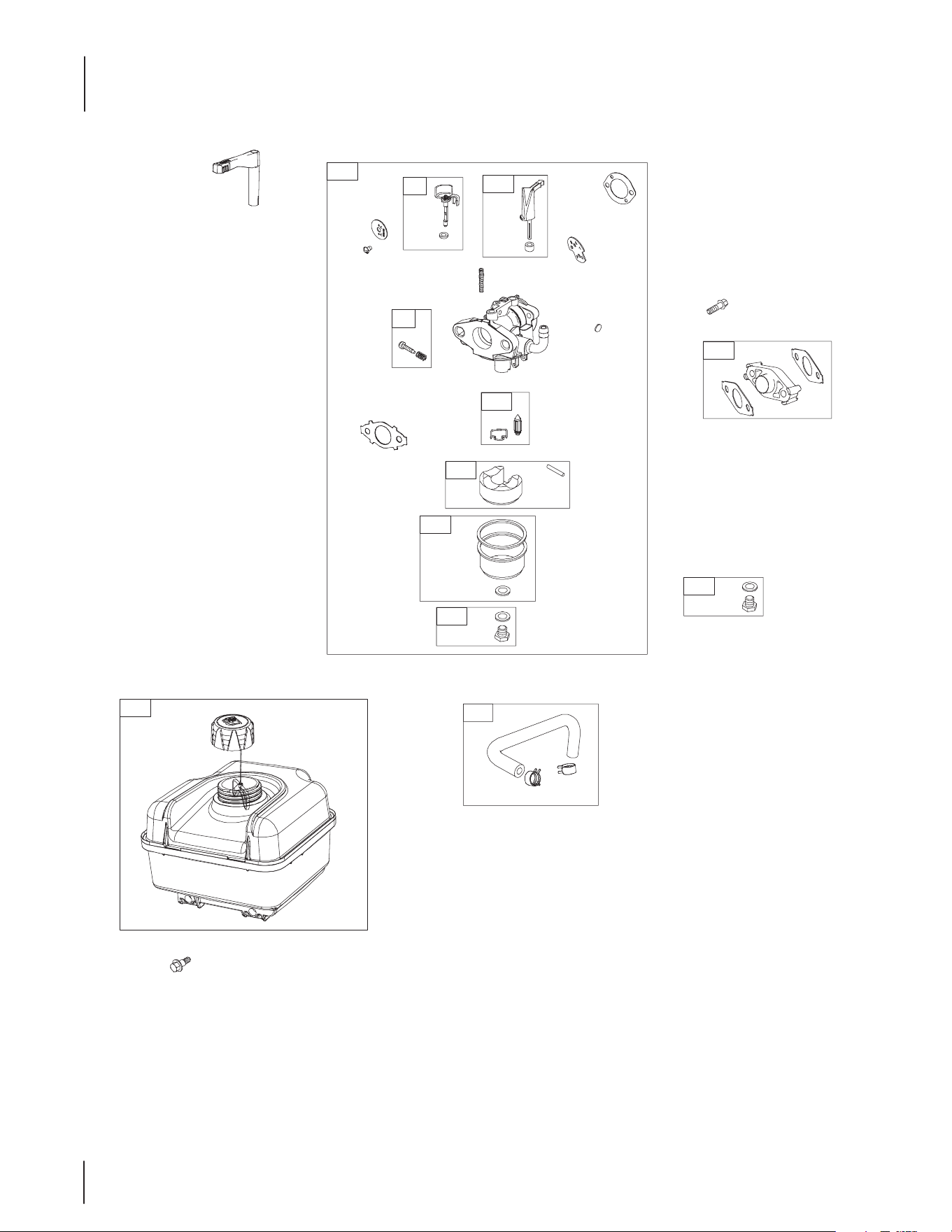

Briggs & Stratton Engine Model 15T202

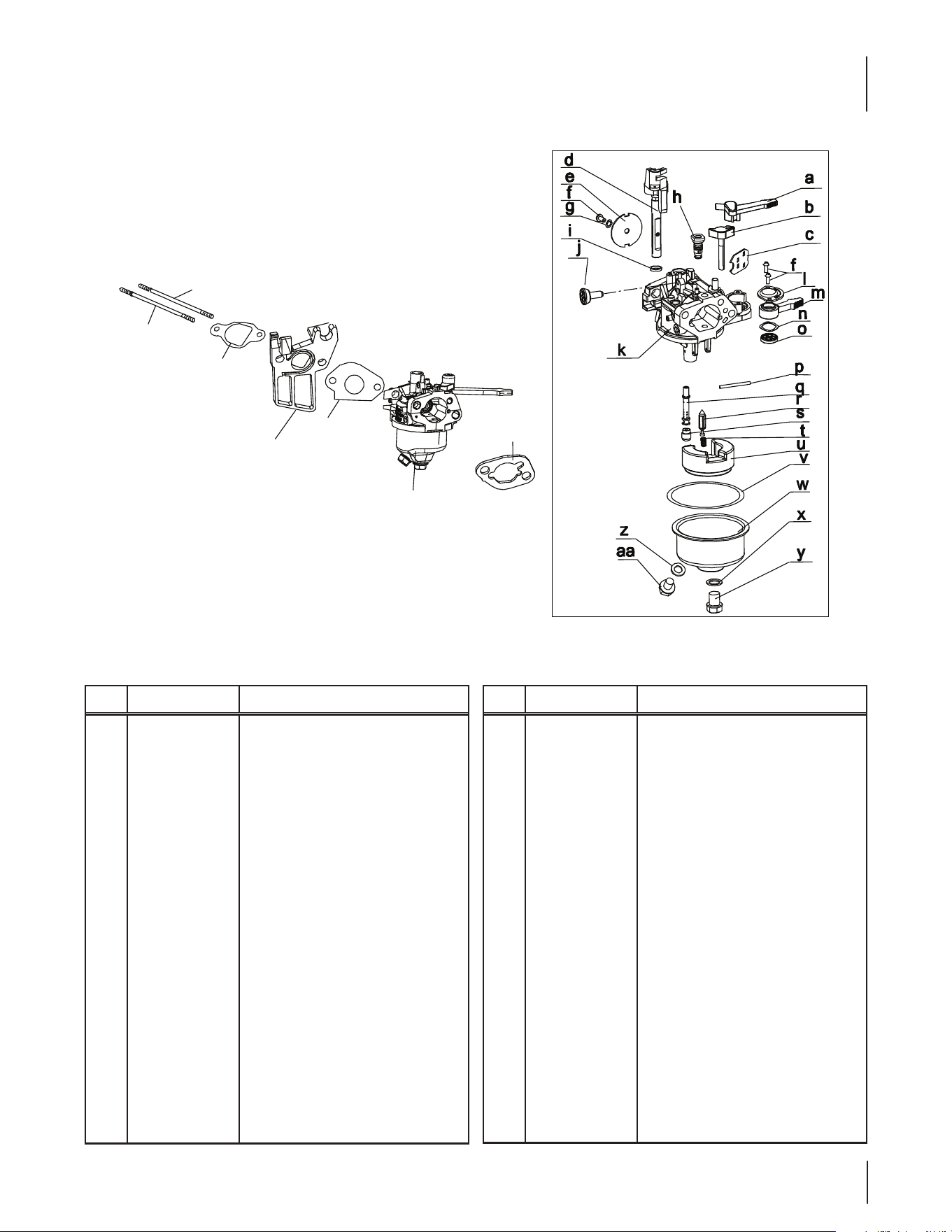

365
51A
95
692
104
137
276
633
987
130
127
163
276
276
51
118
122
117
975
133
105
125
97
109
98
957
190
972
601
51
187
951
108
43

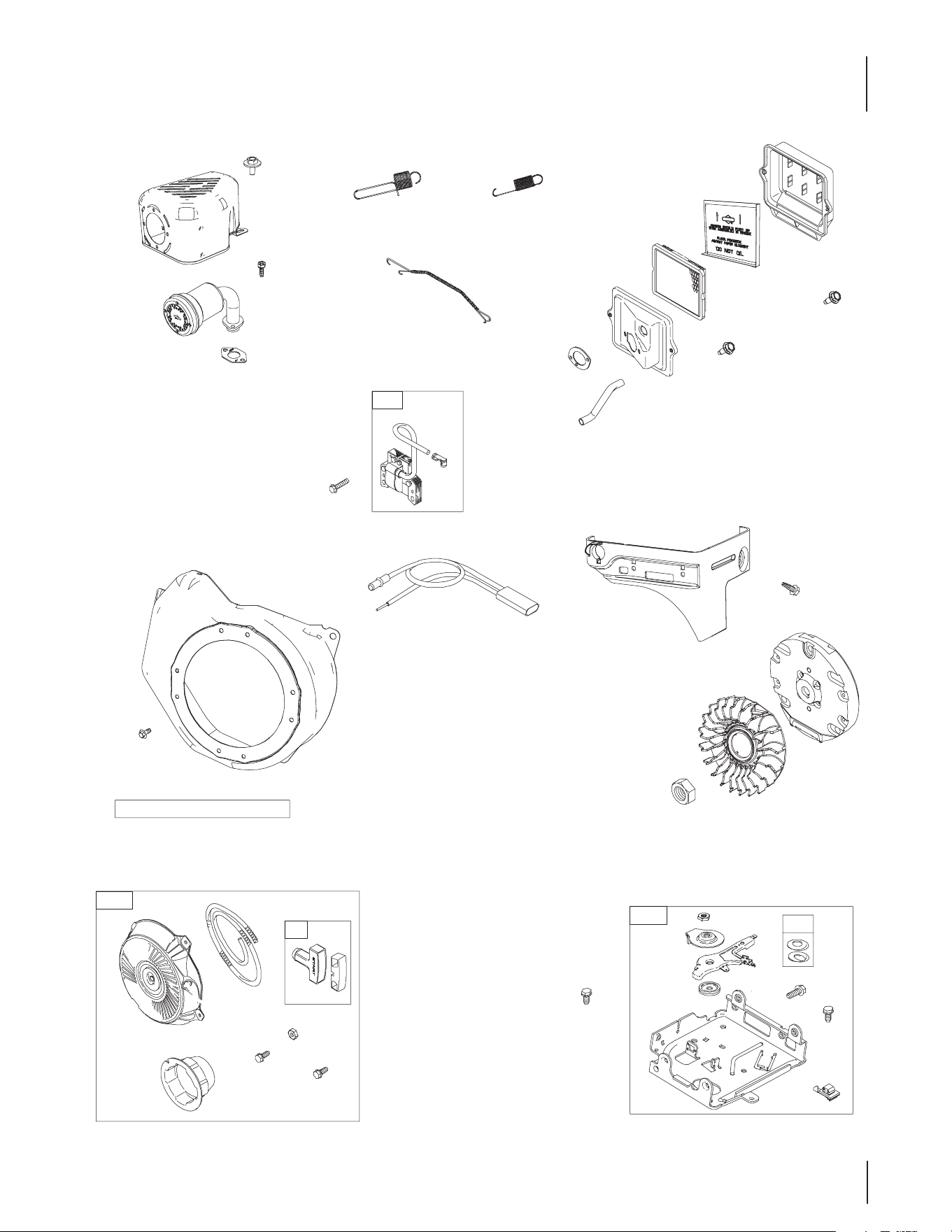

Briggs & Stratton Engine Model 15T202
883
613
300
836
832
1036E MISSIONS LABEL
305
23
1005
455
332
663
281
209
209A
632
356
334
851
333
304
58
60
608
188
427
773
271
668
621
504
222
190
968
445
1395
163
11
161
188A
535
971
65A
65
592
44
Briggs & Stratton Engine Model 15T202
12
20
51
7
993
1022
883
3
868

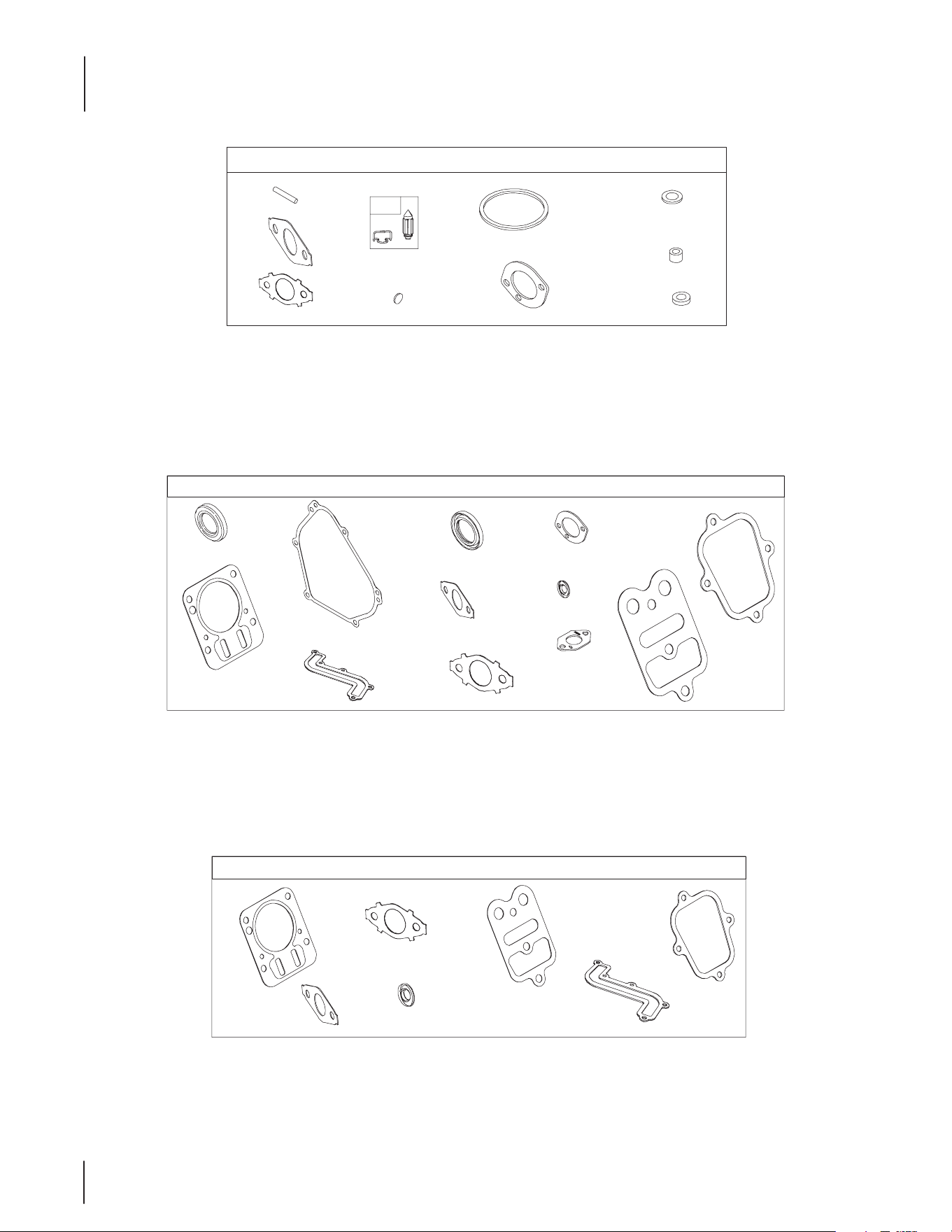

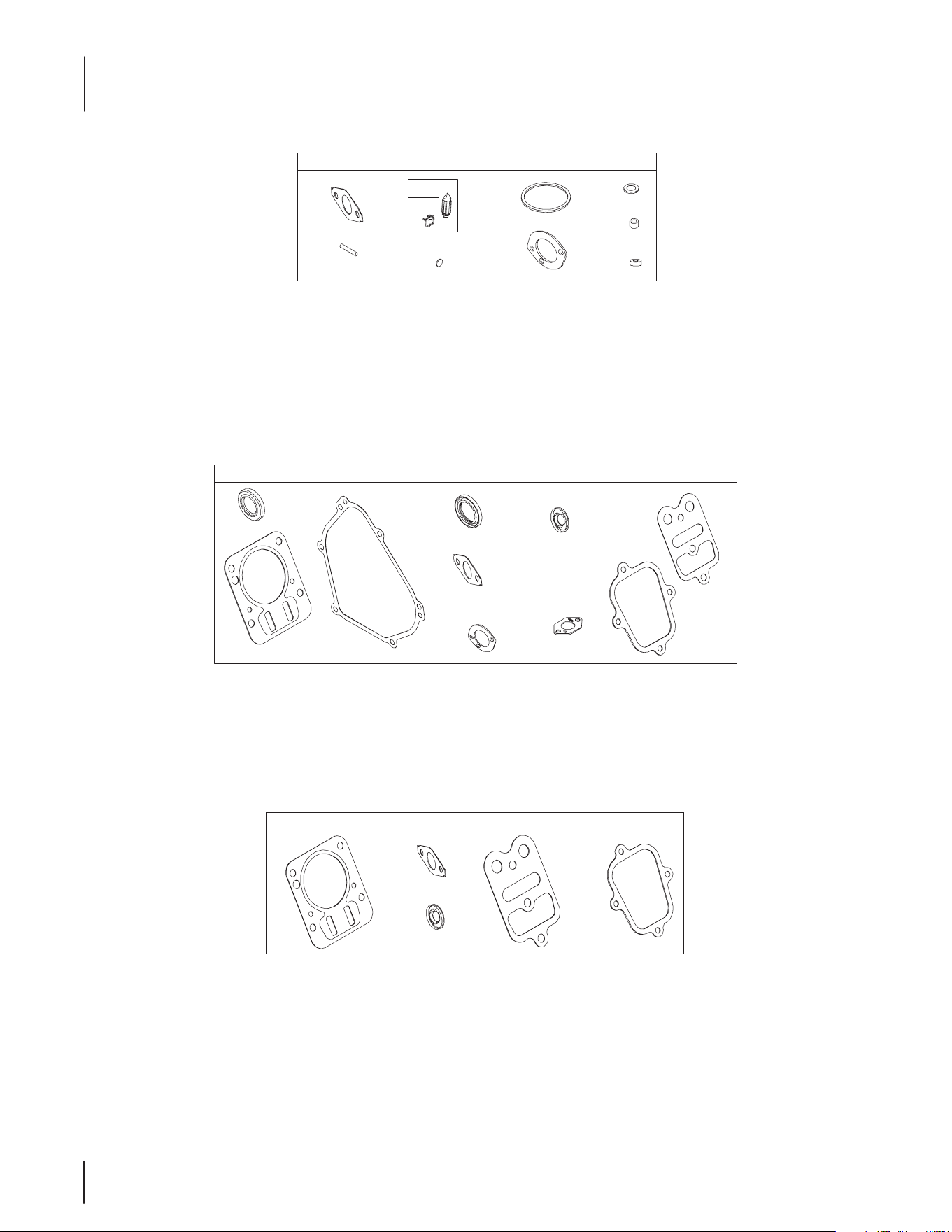

358 ENGINE GASKET SET
163
51
7
993
1022
868
1095V ALVE GASKET SET
51
104
137
276
121 CARBURETOR OVERHAUL KIT
633
987
127
163
105
51A
51A
51A
585
585
45
Briggs & Stratton Engine Model 15T202
Ref. Part No. Description

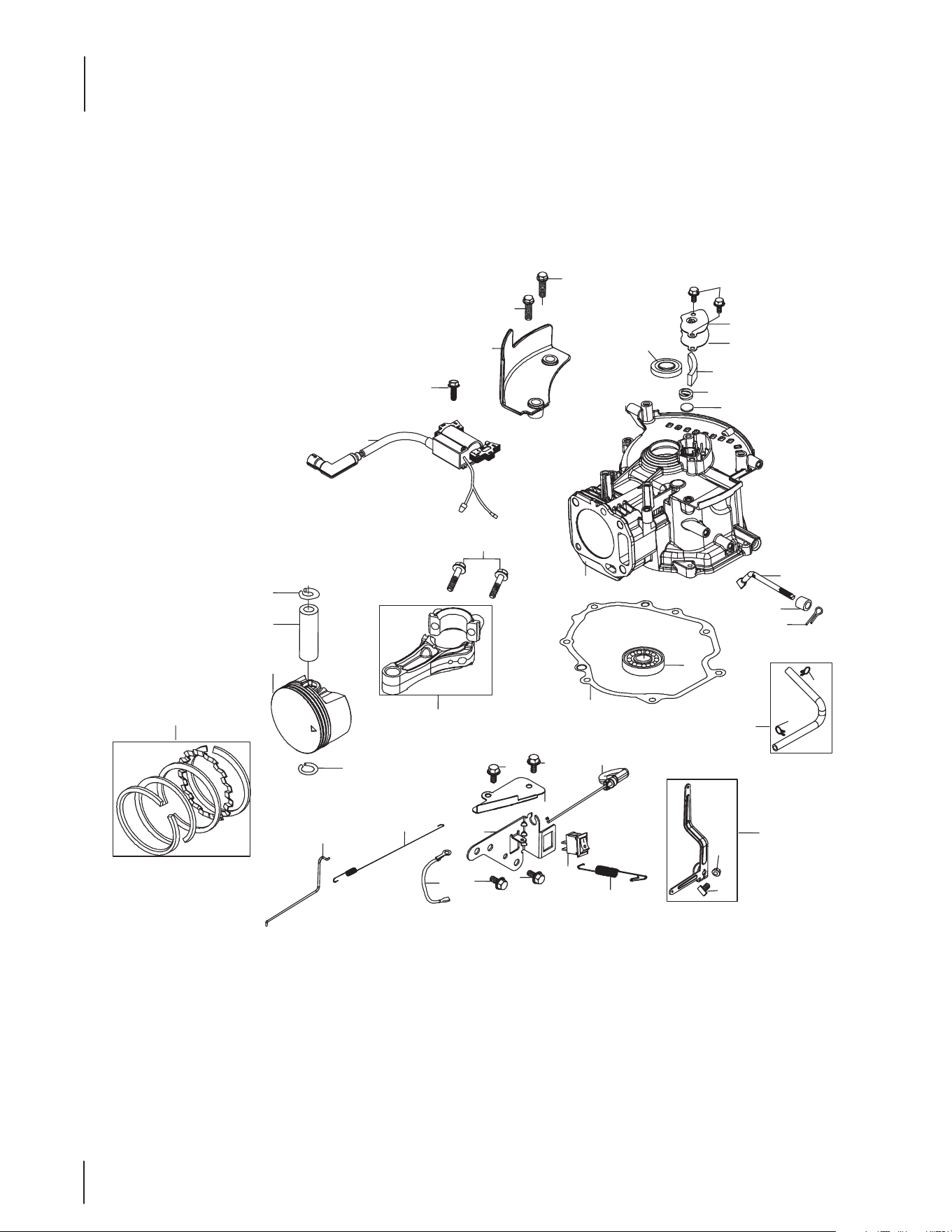

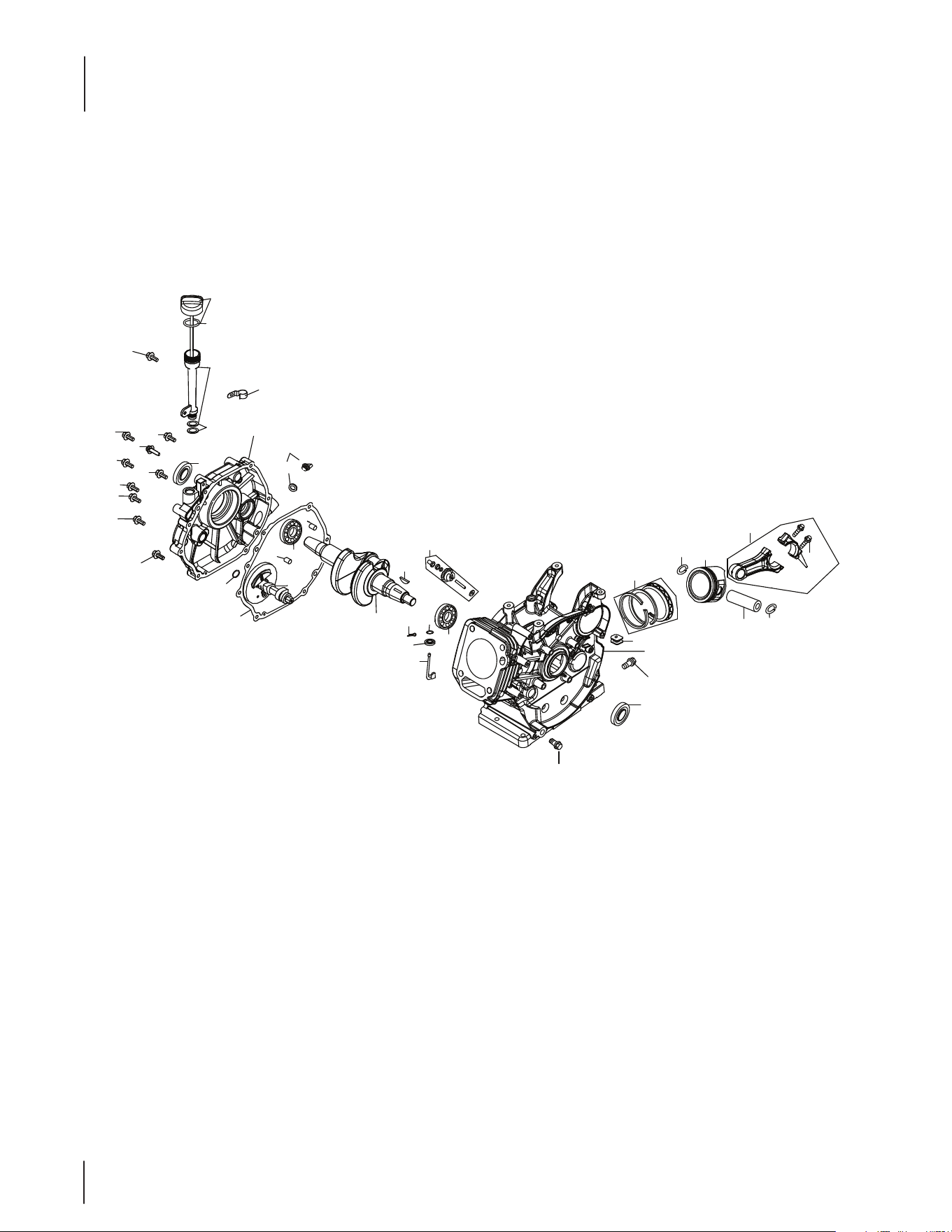

1 BS-794188 Cylinder Assembly
2 BS-399269 Kit-Bushing/Seal (Magneto Side)
3 BS-299819s Seal-Oil (Magneto Side)

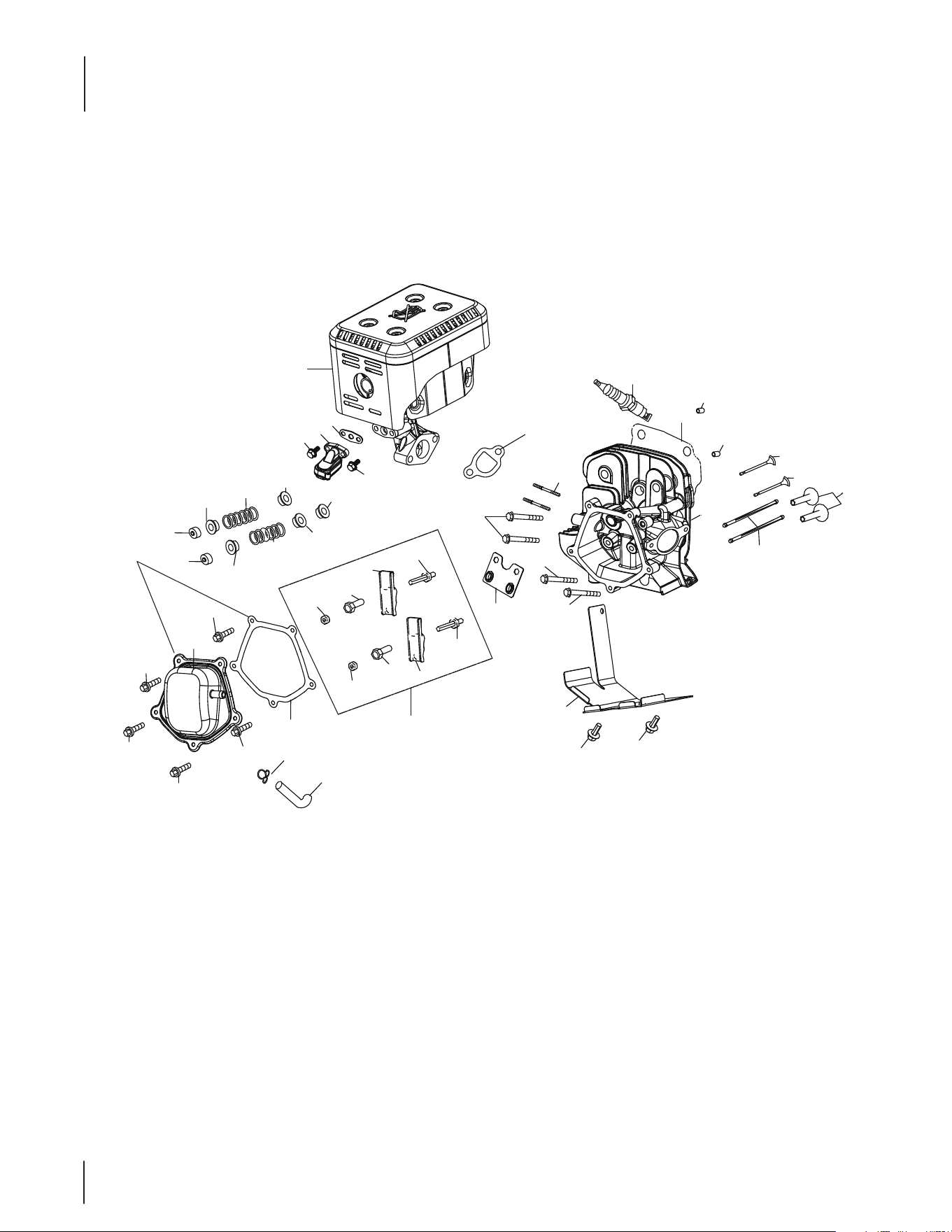

5 BS-791720 Head-Cylinder
7 BS-791716 Gasket-Cylinder Head
11 BS-790632 Tube-Breather
12 BS-699485 Gasket-Crankcase
13 BS-699482 Screw (Cylinder Head)
15 BS-691686 Plug-Oil Drain
15A BS-691682 Plug-Oil Drain (Front Drain Hole)
16 BS-797076 Crankshaft
18 BS-699804 Cover-Crankshaft
20 BS-692550 Seal-Oil (PTO Side)
20A BS-694171 Seal-Oil (PTO Side)
21 BS-281658s Cap-Oil Fill
22 BS-699478 Screw (Crankcase Cover/Sump)
23 BS-798821 Flywheel
24 BS-796335 Key-Flywheel (Steel)
25 BS-791786 Piston Assembly (Standard)
— BS-791791 Piston Assembly (.020” Oversize)
26 BS-791787 Ring Set (Standard)
— BS-791792 Ring Set (.020” Oversize)
27 BS-690975 Lock-Piston Pin
28 BS-690229 Pin-Piston
29 BS-791783 Rod-Connecting
32 BS-791784 Screw (Connecting Rod)
33 BS-499642 Valve-Exhaust
34 BS-795443 Valve-Intake
35 BS-691304 Spring-Valve (Intake)
36 BS-691304 Spring-Valve (Exhaust)
40 BS- 692194 Retainer-Valve
45 BS-690977 Tappet-Valve
46 BS-693404 Camshaft
48 N/A Short Block
51 BS-692555 Gasket-Intake
51A BS-791718 Gasket-Intake
58 BS-693389 Rope-Starter
60 BS-490652 Grip-Starter Rope
65 BS-690837 Screw (Rewind Starter) (#10-32x.27)
65A BS-699228 Screw (Rewind Starter) (Metric)
95 BS-691636 Screw (Throttle Valve)
97 BS-797628 Shaft-Throttle
Ref. Part No. Description
98 BS-797156 Kit-Idle Speed
104 BS-691242 Pin-Float Hinge
105 BS-797139 Valve-Float Needle
108 BS-796993 Valve-Choke
109 BS-690023 Shaft-Choke
117 BS-798652 Jet-Main (Standard)
118 BS-798651 Jet-Main (High Altitude)
121 BS-797634 Kit-Carburetor Overhaul
122 BS-795643 Spacer-Carburetor
125 BS-798654 Carburetor
127 BS-797633 Plug-Welch
130 BS-797630 Valve-Throttle
133 BS-797136 Float-Carburetor
137 BS-797625 Gasket-Float Bowl
146 BS-690979 Key-Timing
155 BS-797442 Plate-Cylinder Head

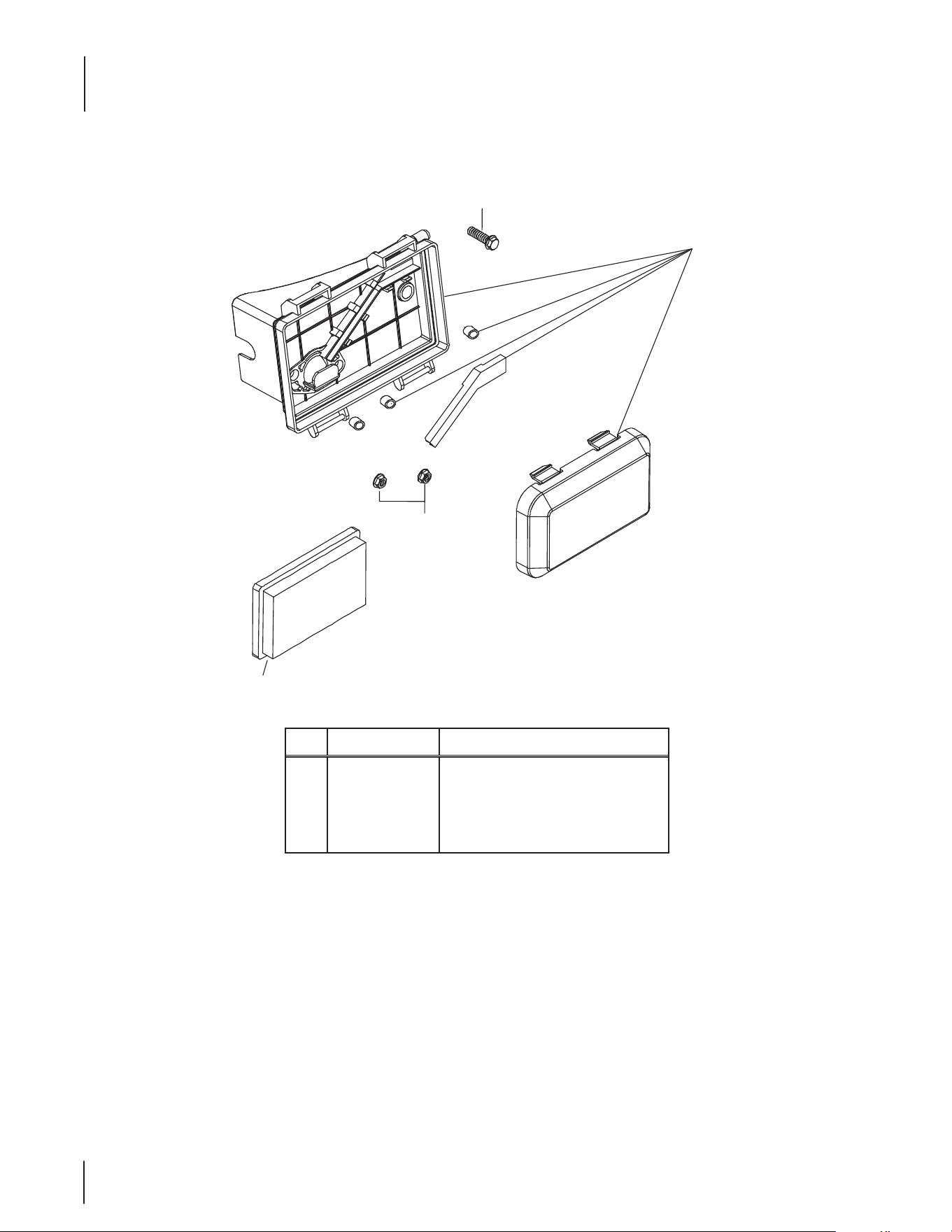

161 BS-790631 Base-Air Cleaner
163 BS-696024 Gasket-Air Cleaner
187 BS-791874 Line-Fuel (Formed)
188 BS-699479 Screw (Control Bracket) (M6x14.73mm)
188A BS-699206 Screw (Control Bracket) (M5x9.5mm)
190 BS-699220 Screw (Fuel Tank)
192 BS-797440 Adjustor-Rocker Arm
209 BS-692571 Spring-Governor (No Color)
209A BS-691278 Spring-Governor (Platinum)
219 BS-693578 Gear-Governor
220 BS- 691724 Washer (Governor Gear)
222 BS-793107 Bracket-Control
227 BS-794367 Lever-Governor Control
238 BS-691300 Valve-Cap
271 BS-694256 Lever-Control (Control Bracket)
276 BS-797632 Washer-Sealing
281 BS-793122 Panel-Control
300 BS-693593 Muer

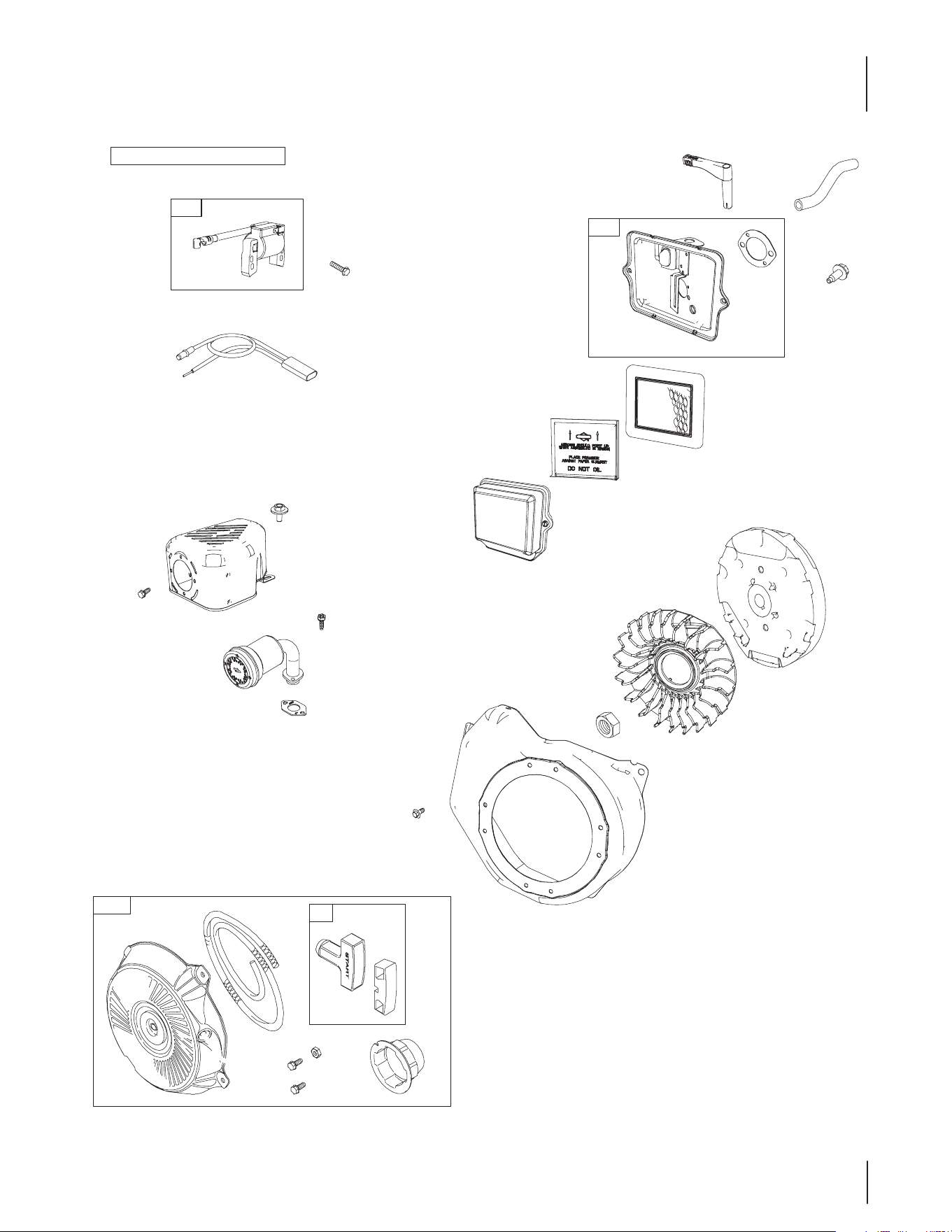

304 BS-699598 Housing-Blower
305 BS-699481 Screw (Blower Housing)
306 BS-693610 Shield-Cylinder
307 BS-699483 Screw (Cylinder Shield)
332 BS-792723 Nut (Flywheel)
333 BS-796964 Armature-Magneto
334 BS-699477 Screw (Magneto Armature)
337 759-3336 Plug-Spark
46
Briggs & Stratton Engine Model 15T202
Ref. Part No. Description
356 BS-695814 Wire-Stop
358 BS-791797 Gasket Set-Engine
365 BS-699484 Screw (Carburetor)
415 BS-693463 Plug
427 BS-798458 Nut (Governor Control Lever)
445 BS-491588s Filter-Air Cleaner Cartridge
455 BS-591302 Cup-Flywheel
504 BS-695383 Washer Set-Friction (Control Bracket)
505 BS-691251 Nut (Governor Control Lever)
522 BS-798503 Plug-Dipstick/Fill
535 BS-493537s Filter-Air Cleaner Foam
552 BS-231078 Bushing-Governor Crank
562 BS - 691119 Bolt (Governor Control Lever)
584 BS-791759 Cover-Breather Passage
585 BS-791760 Gasket-Breather Passage
592 712- 0349 Nut (Rewind Starter)
601 BS-791850 Clamp-Hose (Green)
608 BS-591301 Starter-Rewind
613 BS-791972 Screw (Muer)
615 BS-692576 Retainer-Governor Shaft
616 BS-692547 Crank-Governor
619 BS-699481 Screw (Cylinder Head Plate)
621 BS-692310 Switch-Stop
632 BS-693408 Spring/Link-Mechanical Governor
633 BS-693867 Seal-Choke/Throttle Shaft (Choke Shaft)
635 BS-692076 Boot-Spark Plug
663 BS-699206 Screw (Control Panel)
668 BS-694257 Spacer (Control Panel)
684 BS-793369 Screw (Breather Passage Cover)
692 BS-797624 Spring-Detent
718 BS-690959 Pin-Locating
741 BS-695087 Gear-Timing
742 BS-692564 Retainer-E Ring
746 BS-790278 Gear-Idler
773 BS-694258 Retainer (Control Bracket)
830 BS-797441 Stud-Rocker Arm
832 BS-693583 Guard-Muer
836 BS-699632 Screw (Muer Guard)
851 BS-493880s Terminal-Spark Plug
868 BS-795440 Seal-Valve
883 BS-691893 Gasket-Exhaust
914 BS-699481 Screw (Rocker Cover) (M6x15.88mm)
Ref. Part No. Description
914A BS-797444 Screw (Rocker Cover) (M6x9.53mm)
951 BS-790630 Lever-Choke
957 BS-799719 Cap-Fuel Tank
968 BS-791082 Cover-Air Cleaner
971 BS-798649 Screw (Air Cleaner Base to Carburetor)
972 BS-799863 Tank-Fuel
975 BS-797631 Bowl-Float
987 BS-797629 Seal-Throttle Shaft
993 BS-694088 Gasket-Cylinder Head Plate
1005 BS-794273 Fan-Flywheel
1022 BS-691890 Gasket-Rocker Cover
1023 BS-499924 Cover-Rocker
1026 BS-790287 Rod-Push
1029 BS-797443 Arm-Rocker
1034 BS-691343 Guide-Push Rod
1036
Label-Emissions (Available from a Briggs
& Stratton Authorized Dealer)
1095 BS-791798 Gasket Set-Valve
1329 N/A Replacement Engine
1395 BS-690370 Screw (Air Cleaner Base)
47Notes
48

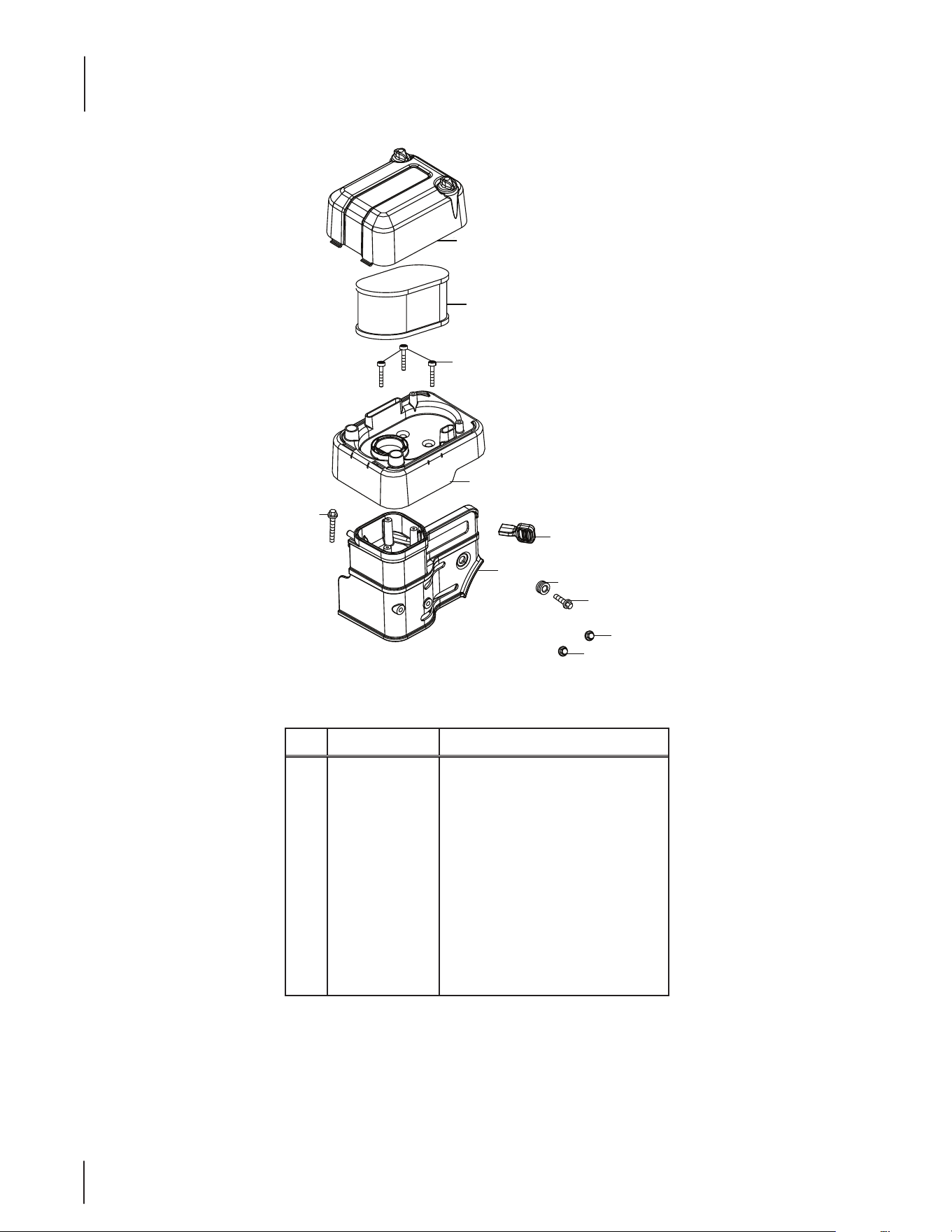

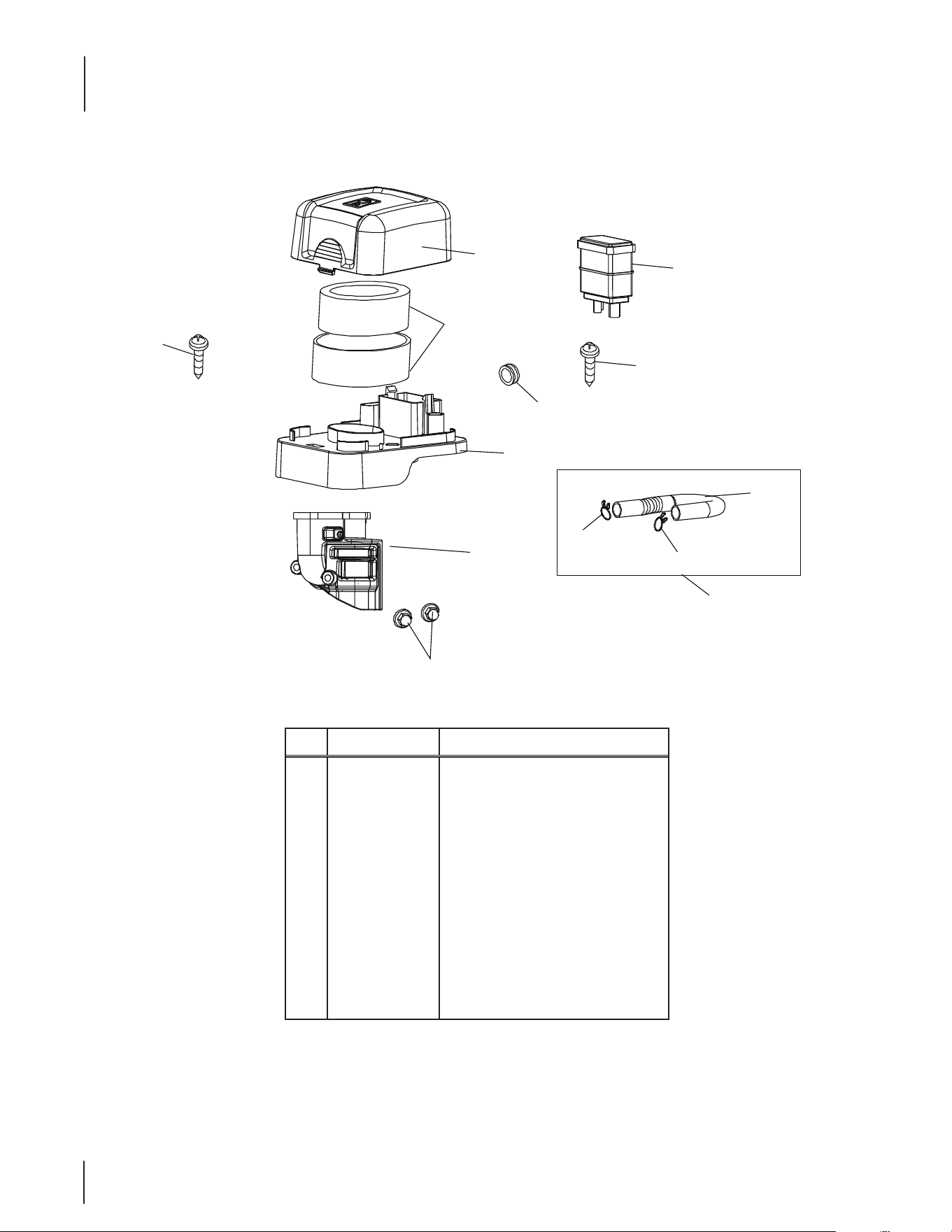

Engine Model 178-LU Air Cleaner
Ref. Part Number Description
14 736-04452 Isolator Bushing
126 710-04969 Bolt M6×30
128 951-14392 Air Filter Base
129 951-12408 Middle Air Filterbox
130 710-05352 Countersunk Screw
131 951-12260 Air Filter Cover
132 951-12047 Air Filter Cover Assembly
133 951-12409 Throttle Control Knob
134 710-04968 Bolt M6×16
135 712-04213 Acorn Nut
132
131
130
129
133
128
14
134
135
135
126
49

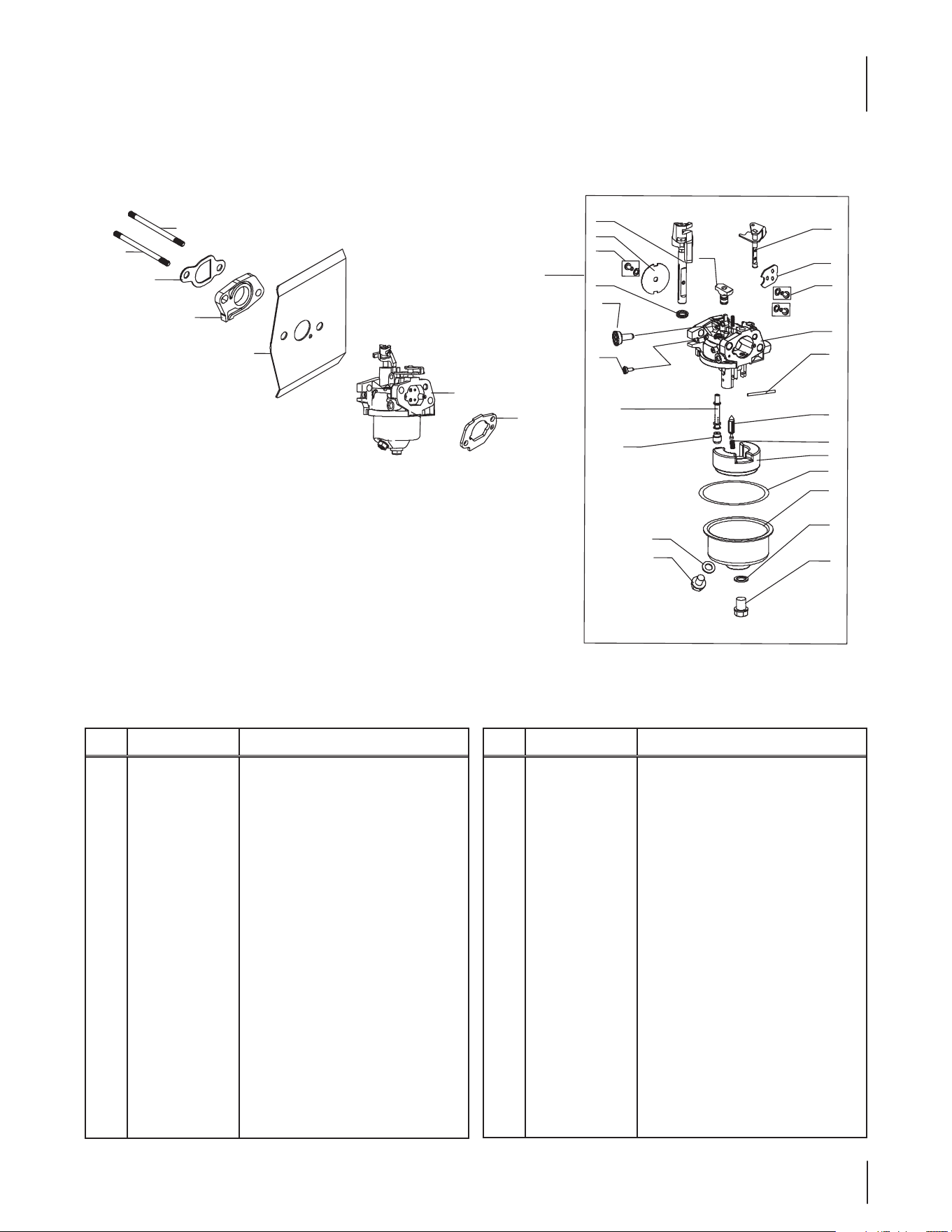

178-LU Carburetor Assembly
Ref.
Part Number Description
120 710-05351 Stud
121 951-11225 Carburetor Insulator Gasket
122 951-11222 Carburetor Insulator
123 951-112 23 Carburetor Gasket
124 951-12791 Carburetor Assembly
125 951-12406 Carburetor Gasket Plate
140 951-12762A Carburetor Kit
(Incl.b,I,j,k,l,m,n,p,s,t)
a n/a Throttle Shaft
b n/a Idle Jet Assembly
c 710-05459 Choke Control Screw
d n/a Lock Plate
e 951-12422 Choke Knob
f 951-12792 Fuel Shuto Cover
g 951-12423 Fuel Shuto Lever
h n/a Choke Plate
i n/a Emulsion Tube
Ref.
Part Number Description
j n/a Main Jet
k n/a Needle Valve
l n/a Needle Valve Spring
m n/a Float
n 951-11970 Fuel Bowl Gasket
o n/a Fuel Bowl Assembly
p 951-1134 8 Fuel Bowl Gasket
q 710-04945 Fuel Bowl Mounting Bolt
r 710-04938 Fuel Drain Plug
s 951-11349 Fuel Drain Plug Gasket
t n/a Float Pin
u n/a Mixture Screw
v n/a Carburetor Body
w 710-05469 Idle Speed Adjusting Screw
x n/a Screw M3×5
y 736-04638 Lock Washer
z n/a Throttle Plate
c
f
b
d
a
z
x
g
h
j
i
k
m
n
o
r
s
t
v
w
u
e
p
aa
q
y
l
120
121
122
123
124
125
140 - Carburetor Kit
50

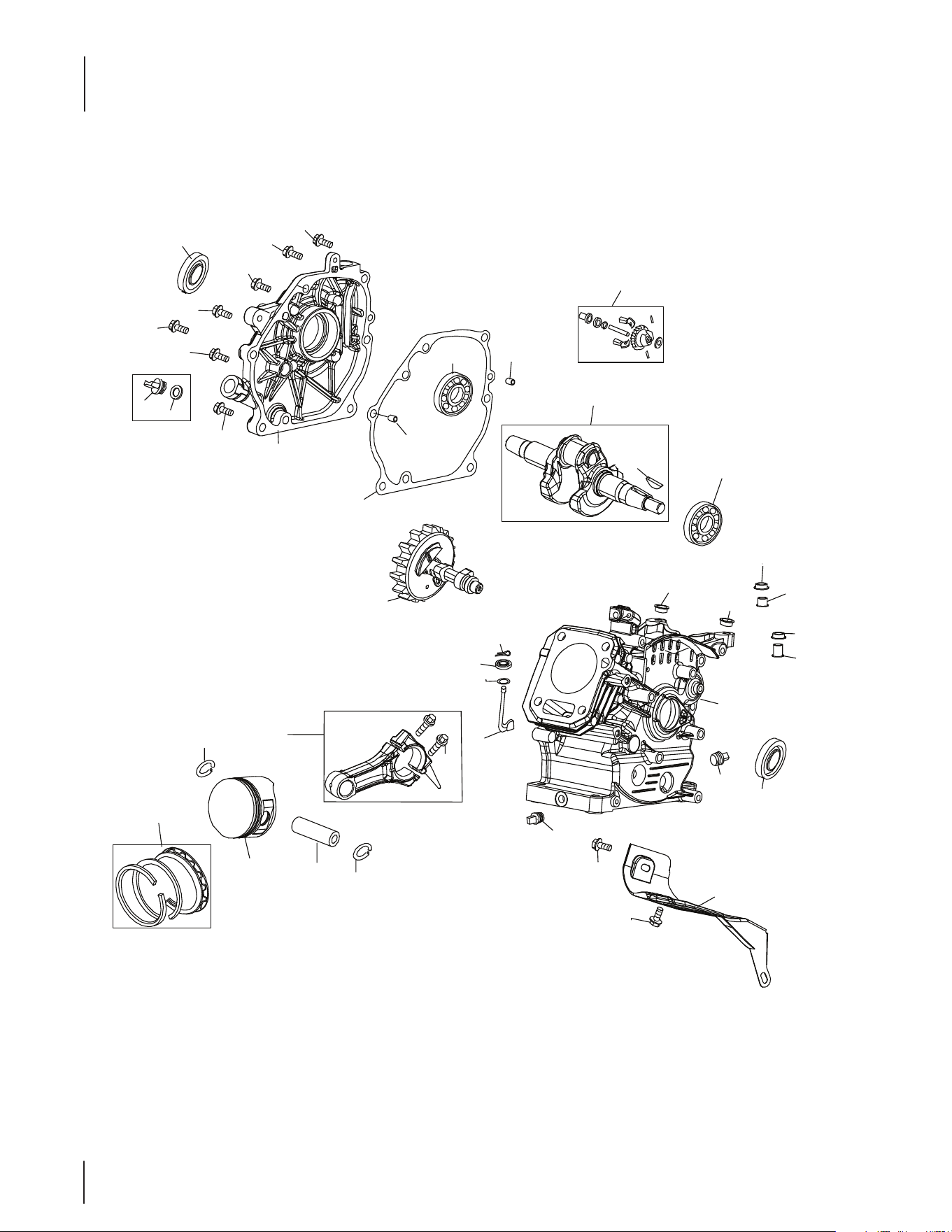

178-LU Crankshaft & Crankcase
70
69
68
67
64
65
62
63
60
60
60
62
60
61
60
59
58
55
56
54
53
137 - Gasket Kit - External
138 - Gasket Kit - Complete
139 - Complete Engine
52
50
43
51
48
45
46
47
43
44
49
42
41
39
38
34
35
3940
71
72
73
74
73
51
178-LU Crankshaft & Crankcase
Ref.
Part Number Description
34 951-12066 Connecting Rod Assembly
35 710 -05319 Connecting Rod Bolt
38 951-12043 Piston
39 951-11632 Piston Pin Snap Ring
40 951-12044 Piston Pin
41 951-12387 Piston Ring Set
42 751-12068 Governor Gear/Shaft Assembly
43 951-12069 Radial Ball Bearing
44 736-04453 Washer 8×20×0.8
45 714-04077 Cotter Pin
46 951-11958 Governor Seal
47 951-12071 Governor Arm Shaft
48 951-05050 Crankshaft Kit
(Incl.43,48,59,74)
49 951-10307 Woodru Key
50 715-04102 Dowel Pin 9×12
51 715-04092 Dowel Pin 7×14
52 951-12072 Camshaft Assy.
53 951-11374 Crankcase Cover Gasket
54 736-04545 Washer 16×24×0.5
55 951-11283 Oil Fill Plug Assembly
56 951-11577 O-Ring 15.8×2.5
58 951-12395 Crankcase Cover
951-05049 Crankcase Cover Kit
(Incl.43,53,54,58-62)
Ref.
Part Number Description
59 951-12396 Oil Seal, 30×46×8
60 710-04971 Bolt M8×38
61 710-04972 Bolt M8×45
62 710-05052 Bolt M8×35
63 710-04968 Bolt M6×16
64 951-11320 Dipstick Clamp
65 710-05349 Bolt M6×8
67 951-11381 O-Ring
68 951-12073 Oil Fill Tube Assembly
69 951-11904 O-Ring, Dipstick
70 951-11971A Disptick Assembly
71 951-12398 Wire Clamp Rubber
72 951-05051 Crankcase Service Kit
(Incl.43,46,72,74)
951-05045 Shortblock Assembly
(Incl.34,38-48,50-62,71,74,90,
93,94,97,102,115,121-123)
73 951-12514 Oil Drain Plug
74 951-12400 Oil Seal 30×46×8
137 951-05048 Gasket Kit - External
(Incl.97,115,121-123)
138 951-05047 Gasket Kit - Complete
(Incl.46,53,59,74,94,97,
115,121-123)
139 952Z178-LU Complete Engine
52

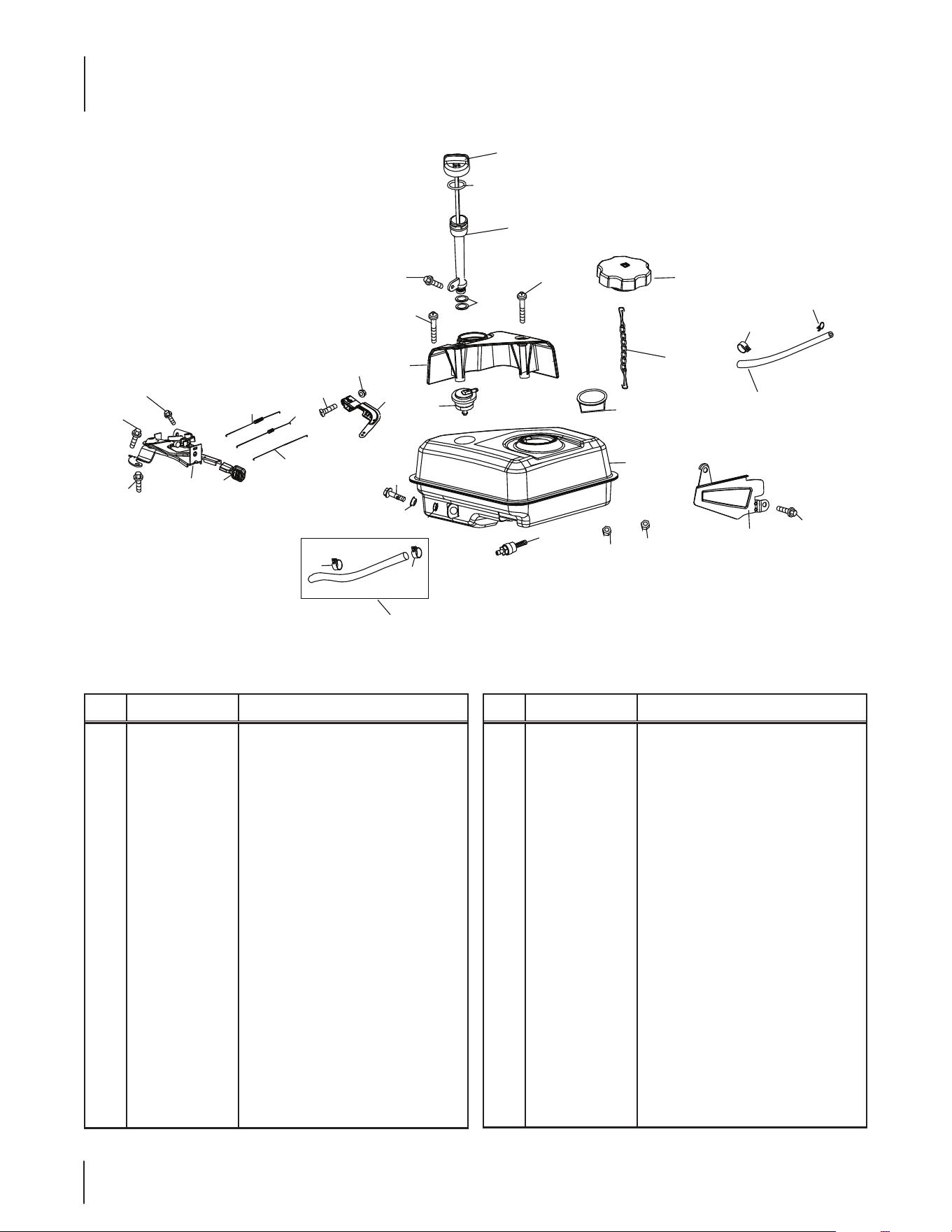

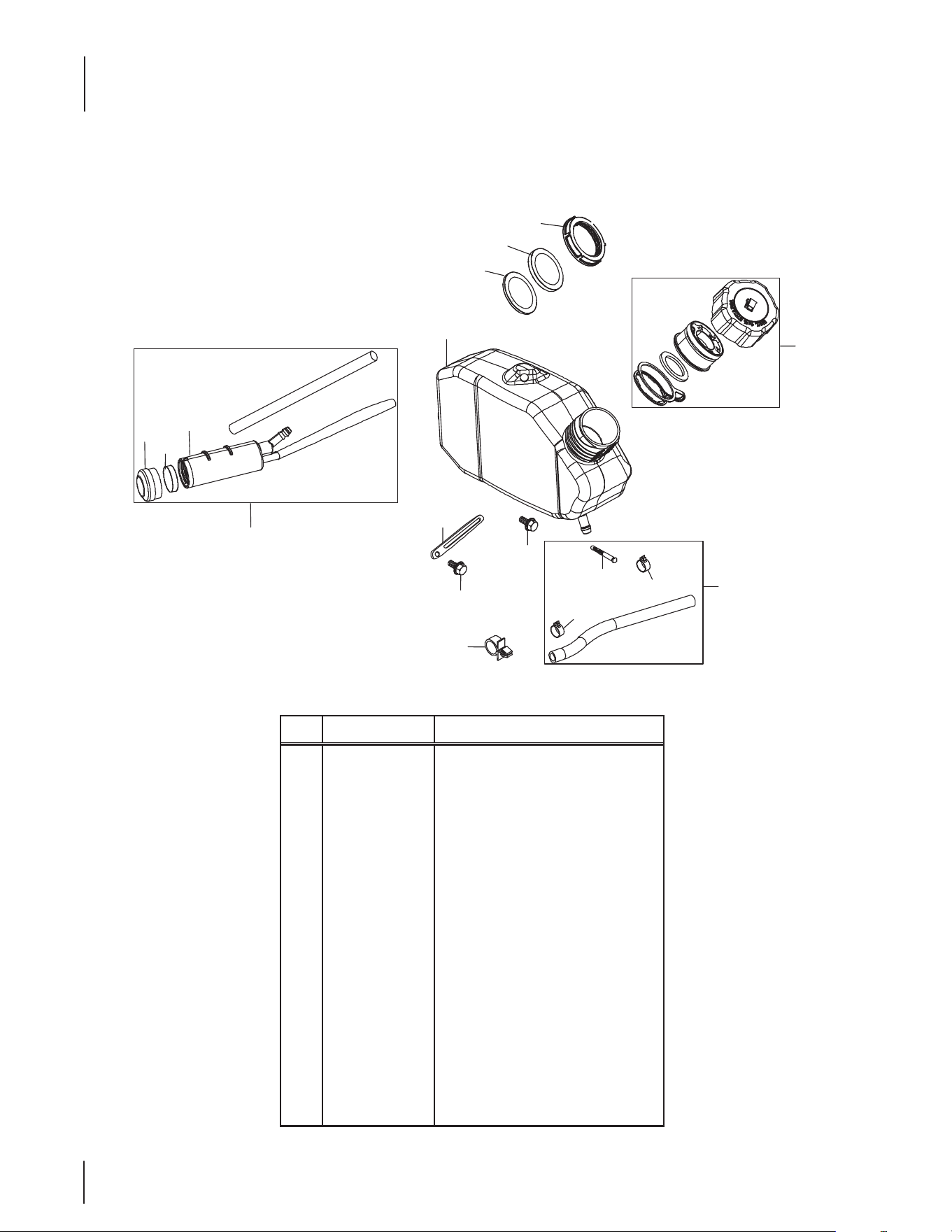

178-LU Fuel Tank & Mounting
Ref. Part Number Description
1 951-12535 Fuel Cap Assembly
1 951-14076 Tether
2 951-14265 Fuel Level Indicator
3 710-04970 Bolt M8×20
4 750-05312 Gas Tank Isolator
5 951-14376 Rollover Valve Assembly
6 951-14377 Fuel Hose Clamp
7 951-14380 Primer Hose
8 750 - 05313 Gas Tank Isolator
9 951-14381 Fuel Tank Assembly
10 951-1118 4 Governor Cover
11 951-14383 Rear Mounting Bracket Assy.
12 951-14384 Decorate Cover
13 710-04968 Bolt M6×16
14 736-04452 Isolator Bushing
15 951-11200 Fuel Line Kit
16 951-1170 0 Fuel Hose Clamp
Ref. Part Number Description
17 951-14385 Carbon Canister Bracket
18 710 - 04915 Bolt M6×12
19 951-14386 Carbon Canister
20 951-14387 Breather Hose Clamp
21 951-14388 Primer Hose
22 710-04921 Bolt M8×14
23 951-14389 Gas Tank Support Bracket
24 712- 04219 Nut M8
26 712-04212 Nut M6
27 710-04908 Governor Arm Bolt
28 951-14200 Governor Arm
29 951-11202 Governor Spring
30 951-11203 Throttle Linkage Spring
31 951-11204 Throttle Linkage
32 951-12386 Component Bracket
33 710-04916 Bolt, M6×14
1
2
3
4
5
6
7
3
4
9
15
16
16
3
8
3
8
10
14
13
13
14
28
26
27
29
30
31
32
33
33
23
24
24
22
22
22
14
13
12
14
13
22
11
21
20
18
17
19
53
178-LU Flywheel & Blower Housing
Ref.
Part Number Description
75 951-12375 Ignition Coil Assembly
76 710-05350 Ignition Coil Bolt
77 951-12401 Flywheel
78 951-11217 Fan, Cooling
79 951-11218 Pulley, Starter
80 712- 04220 Nut, Special, M16×1.5
81 710-04968 Bolt M6×16
82 710 -04915 Bolt M6×12
84 951-12402 Starter Housing
85 951-12376 Recoil Starter
86 736-04455 Gasket 6
87 710 -04974 Bolt M6×10
76
75
76
77
78
79
80
82
82
86
87
86
87
87
86
85
82
82
84
81
54

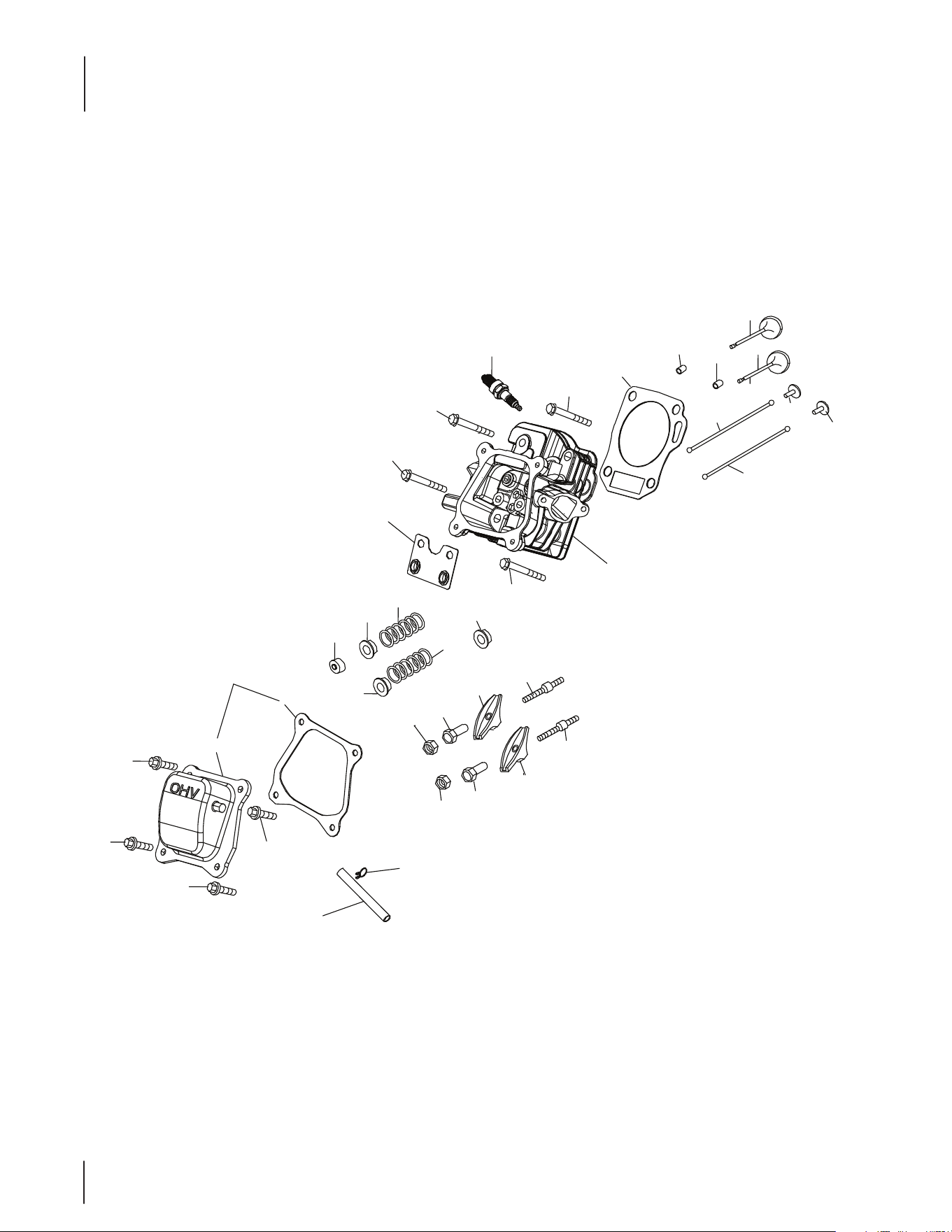

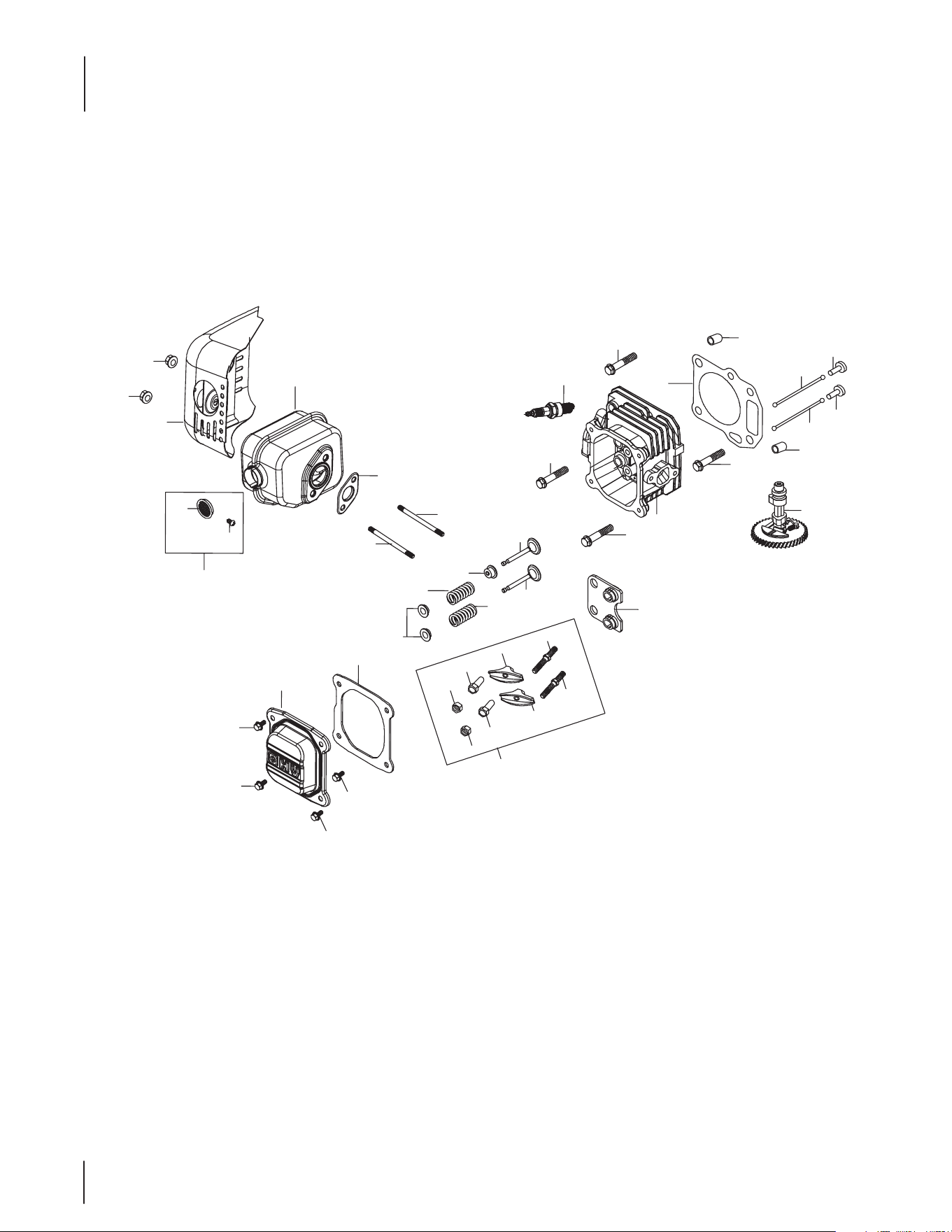

178-LU Cylinder Head
98
97
95
94
93
93
88
89
90
91
92
119
119
118
102
102
108
102
96
109
110
110
113
113
112
112
111
111
117
115
114
114
114
114
116
114
107
107
106
106
105
105
104
104
101
100
99
101
103
117
136
137 - Gasket Kit - External
138 - Gasket Kit - Complete
139 - Complete Engine
55
178-LU Cylinder Head
Ref.
Part Number Description
88 951-11198 Valve Kit
89 951-11198 Valve Kit
90 951-11962 Tappet
91 951-1119 9 Push Rod Kit
92 951-112 26 Cylinder Head Kit
(Incl.94,102,103,116)
951-05046 Cylinder Head Assembly
(Incl.88,89,92,94,96,97,102-108,
110-113,115,120 -123)
93 715- 04097 Dowel Pin 12×20
94 951-12076 Gasket, Cylinder Head
95 951-10292 Spark Plug/F6Rtc
96 710-04964 Stud M8×48.5
96 951-11207 Muer Stud Assembly
97 951-11212 Exhaust Pipe Gasket
98 951-12404 Muer Assembly
99 951-12743 Secondary Air Gasket
100 951-05043 Reed Valve Assembly
101 710-06094 Bolt M6×16
102 710-04965 Bolt M10×1.25×80
103 951-11964 Intake Valve Seal
104 951-12077 Valve Spring Retainer
105 951-12078 Valve Spring
Ref.
Part Number Description
106 951-12080 Retainer, Ex.Valve Spring
107 951-12081 Adjuster, Exh Valve
108 951-11965 Push Rod Guide
109 951-11981 Rocker Arm Assembly
110 710-04962 Bolt, Pivot
111 951-11966 Rocker Arm
112 751-11123 Adjusting Nut ,Valve
113 751-11124 Nut, Pivot Locking
114 710-05054 Valve Cover Bolt
115 951-11967 Valve Cover Gasket
116 951-112 20 Valve Cover
117 731-07059 Breather Hose
117 726-04101 Hose Clamp
118 951-12405 Air Shield
119 710-04915 Bolt M6×12
136 951-11333 Valve Cover Kit
137 951-05048 Gasket Kit - External
(Incl.97,115,121-123)
138 951-05047 Gasket Kit - Complete
(Incl.46,53,59,74,94,97,
115,121-123)
139 952Z178-LU Complete Engine
56
Briggs & Stratton Engine Model 12T102-0911-F8
48 SHORT BLOCK
552
718
15
615
3
306
307
22
12
20
1
616
2
18
415
15A
746
742
220
219
27
27
32
25
26
28
29
46
24
377
741
16
332
3
12
1026
851
333
21
505
562
227
1329 REPLACEMENT ENGINE
57
Briggs & Stratton Engine Model 12T102-0911-F8
337
635
36
238
40
35
238
40
868
7
993
1022
619
830
1029
13
1026
45
1022
155
34
192
1023
33
5
1034
914
914A
869
51
122
51
365
914A
58

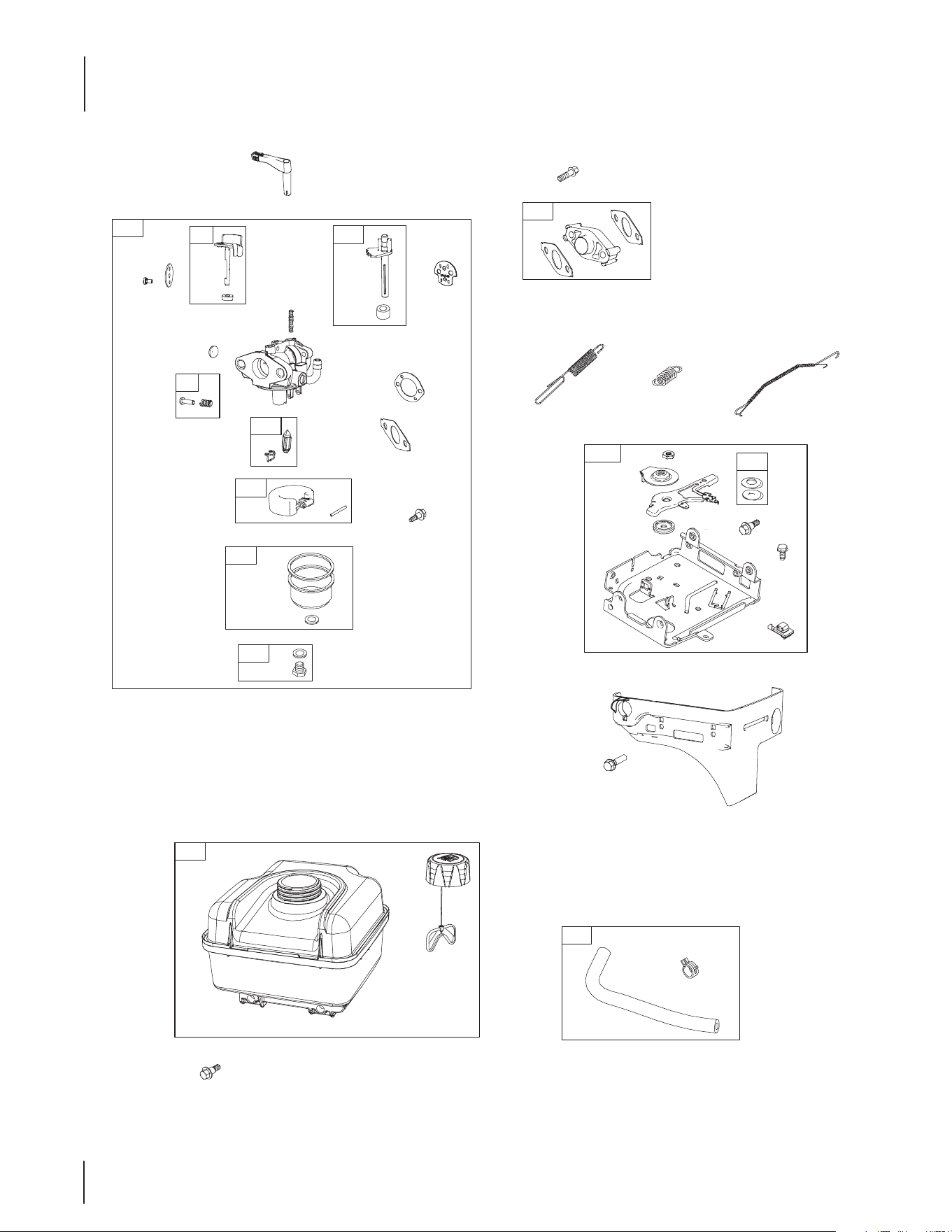

Briggs & Stratton Engine Model 12T102-0911-F8
365
51
692
104
137
276
633
987
130
108
127
163
276
51
122
117
975
133
105
125
97
109
98
957
190
972
601
51
187
951
971
95
632
281
663
209
209A
188
1147
773
271
668
621
504
222
190
59
Briggs & Stratton Engine Model 12T102-0911-F8
11
163
445
968
971
883
613
300
836
832
677
1036E MISSIONS LABEL
305
23
1005
455
332
356
334
304
951
161
65A
58
60
608
65
592
851
333
535
60
Briggs & Stratton Engine Model 12T102-0911-F8
12
20
51
7
993
1022
883
3
868
358 ENGINE GASKET SET
163
51
7
993
1022
868
1095V ALVE GASKET SET
51
104
137
276
121 CARBURETOR OVERHAUL KIT
633
127
163
105
987
61
Briggs & Stratton Engine Model 12T102-0911-F8
Ref. Part No. Description
1 BS-699510 Cylinder Assembly
2 BS-796961 Kit-Bushing/Seal (Magneto Side)
3 BS-299819s Seal-Oil (Magneto Side)
5 BS-797439 Head-Cylinder
7 BS-698210 Gasket-Cylinder Head
11 BS-790632 Tube-Breather
12 BS-699485 Gasket-Crankcase
13 BS-699482 Screw (Cylinder Head)
15 BS-691686 Plug-Oil Drain
16 BS-797076 Crankshaft
18 BS-699804 Cover-Crankshaft
20 BS-692550 Seal-Oil (PTO Side)
21 BS-281658s Cap-Oil Fill
22 BS-699478 Screw (Crankcase Cover/Sump)
23 BS-699488 Flywheel
24 BS-796335 Key-Flywheel (Steel)
— BS-222698s Key-Flywheel (Aluminum)
25 BS-795429 Piston Assembly (Standard)
— BS-799064 Piston Assembly (.020” Oversize)
26 BS-791969 Ring Set (Standard)
— BS-793001 Ring Set (.020” Oversize)
27 BS-691866 Lock-Piston Pin
28 BS-499423 Pin-Piston
29 BS-798813 Rod-Connecting
32 BS-797437 Screw (Connecting Rod)
33 BS-499642 Valve-Exhaust
34 BS-795443 Valve-Intake
35 BS-691304 Spring-Valve (Intake)
36 BS-691304 Spring-Valve (Exhaust)
40 BS- 692194 Retainer-Valve
45 BS-690977 Tappet-Valve
46 BS-693404 Camshaft
48 N/A Short Block
51 BS-692555 Gasket-Intake
58 N/A Rope-Starter, (Order 608)
60 BS-490652 Grip-Starter Rope
65 BS-690837 Screw (Rewind Starter) (#10-32x.27)
65A BS-699228 Screw (Rewind Starter) (M5x6.3mm)
95 BS-691636 Screw (Throttle Valve)
97 BS-797628 Shaft-Throttle
98 BS-797156 Kit-Idle Speed
104 BS-797622 Pin-Float Hinge
Ref. Part No. Description
105 BS-797139 Valve-Float Needle
108 BS-692567 Valve-Choke
109 BS-790624 Shaft-Choke
117 BS-798661 Jet-Main (Standard)
121 BS-797634 Kit-Carburetor Overhaul
122 BS-795208 Spacer-Carburetor
125 BS-798653 Carburetor
127 BS-797633 Plug-Welch
130 BS-797630 Valve-Throttle
133 BS-797136 Float-Carburetor
137 BS-797625 Gasket-Float Bowl
155 BS-797442 Plate-Cylinder Head
161 BS-790631 Base-Air Cleaner
163 BS-696024 Gasket-Air Cleaner
187 BS-791874 Line-Fuel (Formed)
188 BS-699479 Screw (Control Bracket)
190 BS-699220 Screw (Fuel Tank)
192 BS-797440 Adjustor-Rocker Arm
209 BS-692571 Spring-Governor (#3 Hole)
209A BS-691278 Spring-Governor (Platinum)
219 BS-693578 Gear-Governor
220 BS- 691724 Washer (Governor Gear)
222 BS-793107 Bracket-Control
227 BS-794367 Lever-Governor Control
238 BS-691300 Valve-Cap
271 BS-694256 Lever-Control (Control Bracket)
276 BS-797632 Washer-Sealing
281 BS-793122 Panel-Control
300 BS-693593 Muer
304 BS-699598 Housing-Blower
305 BS-699481 Screw (Blower Housing)
306 BS-795334 Shield-Cylinder
307 BS-699483 Screw (Cylinder Shield)
332 BS-792723 Nut (Flywheel)
333 BS-796964 Armature-Magneto
334 BS-699477 Screw (Magneto Armature)
337 759-3336 Plug-Spark
356 BS-695814 Wire-Stop
358 BS-791797 Gasket Set-Engine
365 BS-699484 Screw (Carburetor) (M6x35.5mm)
377 BS-690979 Key-Woodru
415 BS-693463 Plug
62
Briggs & Stratton Engine Model 12T102-0911-F8
Ref. Part No. Description
445 BS-491588s Filter-Air Cleaner Cartridge
455 BS-591302 Cup-Flywheel
504 BS-695383 Washer Set-Friction (Control Bracket)
505 BS-691251 Nut (Governor Control Lever)
535 BS-493537s Filter-Air Cleaner Foam
552 BS-231078 Bushing-Governor Crank
562 BS - 691119 Bolt (Governor Control Lever)
592 712- 0349 Nut (Rewind Starter)
601 BS-791850 Clamp-Hose (Green)
608 BS-591301 Starter-Rewind
613 BS-791972 Screw (Muer) (M6x20mm)
615 BS-692576 Retainer-Governor Shaft
616 BS-692547 Crank-Governor
619 BS-699230 Screw (Cylinder Head Plate)
621 BS-692310 Switch-Stop
632 BS-693408 Spring/Link-Mechanical Governor
633 BS-693867 Seal-Choke/Throttle Shaft (Choke Shaft)
635 BS-692076 Boot-Spark Plug
663 BS-699206 Screw (Control Panel)
668 BS-694257 Spacer (Control Bracket)
677 BS-699203 Screw (Muer Deector)
692 BS-797624 Spring-Detent
718 BS-690959 Pin-Locating
741 BS-695087 Gear-Timing (Metal)
742 BS-692564 Retainer-E Ring
746 BS-790278 Gear-Idler
773 N/A Retainer (Control Bracket), (Order 222)
830 BS-797441 Stud-Rocker Arm
832 BS-693583 Guard-Muer
836 BS-699632 Screw (Muer Guard) (M6x14mm)
851 BS-493880s Terminal-Spark Plug
868 BS-795440 Seal-Valve
869 BS- 691155 Seal-Valve
883 BS-691893 Gasket-Exhaust
914 BS-699481 Screw (Rocker Cover) (M6x15.8mm)
914A BS-692557 Screw (Rocker Cover) (M6x9.5mm)
951 BS-790630 Lever-Choke
957 BS-799719 Cap-Fuel Tank
968 BS-791082 Cover-Air Cleaner
971 BS-798649 Screw (Air Cleaner Base to Carburetor)
972 BS-799863 Tank-Fuel
975 BS-797631 Bowl-Float
Ref. Part No. Description
987 BS-797629 Seal-Throttle Shaft
993 BS-694088 Gasket-Cylinder Head Plate
1005 BS-794273 Fan-Flywheel
1022 BS-691890 Gasket-Rocker Cover
1023 BS-499924 Cover-Rocker
1026 BS-790287 Rod-Push
1029 BS-797443 Arm-Rocker
1034 BS-691343 Guide-Push Rod
1036
Label-Emissions (Available from a Briggs
& Stratton Authorized Dealer)
1095 BS-791798 Gasket Set-Valve
1147 BS-798458 Nut (Control Bracket)
1329 N/A Replacement Engine
63Notes
64
Engine Model 170-CU Air Filter
Ref. Part Number Description
33 951-14315 Air Cleaner Housing
34 712- 04213 Nut
35 951-14068 Self-Tapping Bolt4.2×16
36 951-14069 Carbon Canister
38 951-14070 Silencer Plate
39 951-14262 Air Filter Assembly
40 750-05314 Damper Gasket
42 951-12136 Air Cleaner Cover
43 751-14072 Primer Hose
44 951-14073 Clamp
45 951-14074 Exhaust Piping
35
34
33
43
44
44
45
38
39
40
35
36
42
65
170-CU Carburetor
Ref.
Part Number Description
27 710-05101 Stud M 6×110
28 951-11567 Carburetor Insulator Gasket
29 951-11568 Carburetor Insulator
30 951-11569A Carburetor Gasket
31 951-05106 Carburetor Assembly
32 951-11571 Carburetor Gasket Plate
152 951-05107 Carburetor Kit
(Incl.h,p,q,r,s,t,u,v,x,z)
a n/a Control Lever,Choke
b n/a Choke Shaft
c n/a Choke Plate
d n/a Throttle Shaft
e n/a Throttle Plate
f 710-05469 Screw M3×6
g 736-04638 Lock Washer
h 793- 0 0118 Idle Jet Assembly
i n/a Gasket, Throttle Plate
j n/a Idle Speed Adjusting Screw
Ref.
Part Number Description
k n/a Carburetor Body
l n/a Fuel Shuto Cover
m n/a Fuel Shuto Lever
n n/a Fuel Shuto Washer
o n/a Fuel Shuto Valve
p n/a Float Pin
q n/a Emulsion Tube
r n/a Needle Valve
s n/a Main Jet
t n/a Needle Valve Spring
u n/a Float
v 951-11589 Fuel Bowl Gasket
w n/a Fuel Bowl
x 951-11348 Fuel Bowl Gasket
y 710-04945 Fuel Bowl Mounting Bolt
z 951-113 49 Fuel Drain Plug Gasket
aa 710-04938 Fuel Drain Plug
152 - Carburetor Kit
27
27
28
29
30
31
32
66
170-CU Crankcase
Ref.
Part Number Description
52 951-14317 Piston Ring Set
53 951-11632 Piston Pin Snap Ring
54 951-14318 Piston
55 951-11633 Piston Pin
56 710-04915 Bolt M6×12
57 951-11113 Air Shield
58 951-11573 Connecting Rod Assembly
61 710-05116 Connecting Rod Bolt
62 951-14053 Governor Arm
63 736-04461 Washer 5.2×1.9
64 951-11902 Governor Seal
65 714-04078 Cotter Pin
66 951-11575A Camshaft Assembly
67 951-11369 Radial Ball Bearing, 6205
68 951-10307 Woodru Key
69 951-12133 Crankshaft Assembly
69 951-05120 Crankshaft Kit
(Incl.67-69,86,89)
70 917-05007 Governor Gear/Shaft Assembly
78 715-04092 Dowel Pin 7×14
79 715-04096 Dowel Pin 9×14
80 951-11371 Crankcase Cover Gasket
81 951-12125 Crankcase Cover
82
82
82
86
82
82
82
84
85
83
82
81
79
67
80
78
70
69
68
67
66
122
122
122
122
123
124
87
89
88
88
56
56
57
65
64
63
62
61
58
53
55
54
52
53
149 - Complete Engine
150 - Gasket Kit-Complete
151 - Gasket Kit-External
67
170-CU Crankcase
Ref.
Part Number Description
52 951-14317 Piston Ring Set
53 951-11632 Piston Pin Snap Ring
54 951-14318 Piston
55 951-11633 Piston Pin
56 710-04915 Bolt M6×12
57 951-11113 Air Shield
58 951-11573 Connecting Rod Assembly
61 710-05116 Connecting Rod Bolt
62 951-14053 Governor Arm
63 736-04461 Washer 5.2×1.9
64 951-11902 Governor Seal
65 714-04078 Cotter Pin
66 951-11575A Camshaft Assembly
67 951-11369 Radial Ball Bearing, 6205
68 951-10307 Woodru Key
69 951-12133 Crankshaft Assembly
69 951-05120 Crankshaft Kit
(Incl.67-69,86,89)
70 917-05007 Governor Gear/Shaft Assembly
78 715-04092 Dowel Pin 7×14
79 715-04096 Dowel Pin 9×14
80 951-11371 Crankcase Cover Gasket
81 951-12125 Crankcase Cover
Ref.
Part Number Description
81 951-14142 Crankcase Cover Kit
(Incl.67,80,81,82,85,86,88)
82 710-04932 Bolt M8×32
83 951-11283 Oil Fill Plug Assembly
84 951-12514A Oil Plug
85 951-11577 O-Ring 15.8×2.5
86 951-11578 Oil Seal, 25×41.25×6
87 951-05121 Crankcase Kit
(Incl.64,67,83,,86,87,89)
87 951-12122A Short Block Assembly
(Incl.5,25,28-30,46,48,49,
52-55,58-82,85-89)
88 951-12394 Oil Drain Plug
89 951-12126 Oil Seal 25×41.25×6
122 735-04266 Damping Rubber Pad
123 735-04265 Bush
124 735-04267 Bush
149 952Z170-CU Complete Engine
150 951-05032 Gasket Kit-Complete
(Incl.5,25,28-30,32,46,
63,64,80,86,89)
151 951-12026A Gasket Kit-External
(Incl.5,25,28,30,32)
68
170-CU Fuel Tank
Ref. Part Number Description
1 710-04968 Bolt M6×16
56 710-04915 Bolt M6×12
57 951-11113 Air Shield
91 951-11110 Air Flow Shield
92 710-04940 Bolt M6×10
112 951-11067 Throttle Control Knob
113 951-12131 Primer Bracket
114 710-05103 Bolt M6×12
115 951-11585 Governor Spring
116 951-10664 Throttle Linkage Spring
117 951-10665 Throttle Linkage
119 951-11106 Governor Arm
120 712- 04212 Nut M6
121 710-04908 Governor Arm Bolt
125 951-11700 Fuel Hose Clamp
126 951-10650 Kit-Fuel Line
127 750-05314 Rubber Shock Pad
Ref. Part Number Description
128 735-04268 Bush
129 951-11914 Dipstick Decoration Cover
130 710-04905 Bolt
132 951-11381 Oil Fill Tube O-Ring
133 951-11913 Oil Fill Tube Assey (Incl.132,133)
134 921-04663 Oil Fill Tube O-Ring
135 951-12482 Dipstick Assy - (Incl.134,135)
136 951-14075 Roll Over Valve
137 951-12535 Cap Comp,Fuel Feller
138 951-14076 Fuel Cap Chain
139 951-11933 Fuel Filter
140 951-14332 Fuel Tank
141 951-10651 Fuel Tank Nipple
142 712-05015 Nut M6
143 723-04093 Exhaust Piping
144 932-05143 Hose Clamp
145 951-14541 Primer Hose Assembly
135
134
133
132
130
137
138
144
143
145
92
91
140
141
139
142
142
136
129
130
56
120
119
121
115
116
117
114
114
1
113
112
125
126
125
56
128
127
69
170-CU Flywheel
Ref.
Part Number Description
56 710-04915 Bolt 6x12
90 951-10792 Ignition Coil Assembly
93 710-04919 Bolt M6×25
94 951-14320 Flywheel
95 951-10934 Cooling Fan
96 951-10911 Starter Cup
97 712-04209 Flywheel Nut, M14 X 1.5
98 951-11583 Blower Housing
Ref.
Part Number Description
99 736-04455 Gasket Ф6
100 710-04974 Bolt M6×10
101 951-12418 Recoil Starter Assembly
110 951-10663A Blower Housing
111 931-09780 Starter Handle
146 710-04918 Bolt M6×20
147 951-14138 Blower Housing Shield
90
93
93
94
95
96
97
56
98
56
56
56
101
110
111
99
100
99
100
100
99
147
146
70
170-CU Cylinder Head
18
15
50
51
48
48
47
47
49
49
46
15
15
16
15
17
14
13
13
10
11
12
9
9
8
8
7
7
6
6
3
4
1
1
1
2
1
5
148
149 - Complete Engine
150 - Gasket Kit-Complete
151 - Gasket Kit-External
71
170-CU Cylinder Head
Ref.
Part Number Description
1 710-04968 Bolt M6×16
2 951-11054B Valve Cover
3 726-04101 Clamp, Fuel Hose
4 931-09541 Venting Hose
5 951-11565 Valve Cover Gasket
6 751-11124 Nut, Pivot Locking
7 751-11123 Adjusting Nut ,Valve
8 951-11893 Rocker Arm
9 710-04902 Bolt, Pivot
10 951-12000 Valve Spring Retainer (Intake)
11 951-12002 Exhaust Lash Cap
12 951-12003 Valve Spring Retainer (Exhaust)
13 951-12004 Valve Spring
14 951-11894 Valve Seal (Intake)
15 710-06080 Bolt M8×55
16 951-11895 Push Rod Guide
17 951-05029 Cylinder Head Assembly
(Incl.5-14,16,17,25,28-30,46,50,51)
18 951-10292 Spark Plug/F6Rtc
46 951-14316 Gasket, Cylinder Head
47 951-10648 Kit-Push Rod
48 951-11899 Tappet
49 715-04108 Dowel Pin 10×16
50 951-10647A Valve Kit
51 951-10647A Valve Kit
148 951-05033 Valve Cover Kit
149 952Z170-CU Complete Engine
150 951-05032 Gasket Kit-Complete
(Incl.5,25,28-30,32,46,
63,64,80,86,89)
151 951-12026A Gasket Kit-External
(Incl.5,25,28,30,32)
72

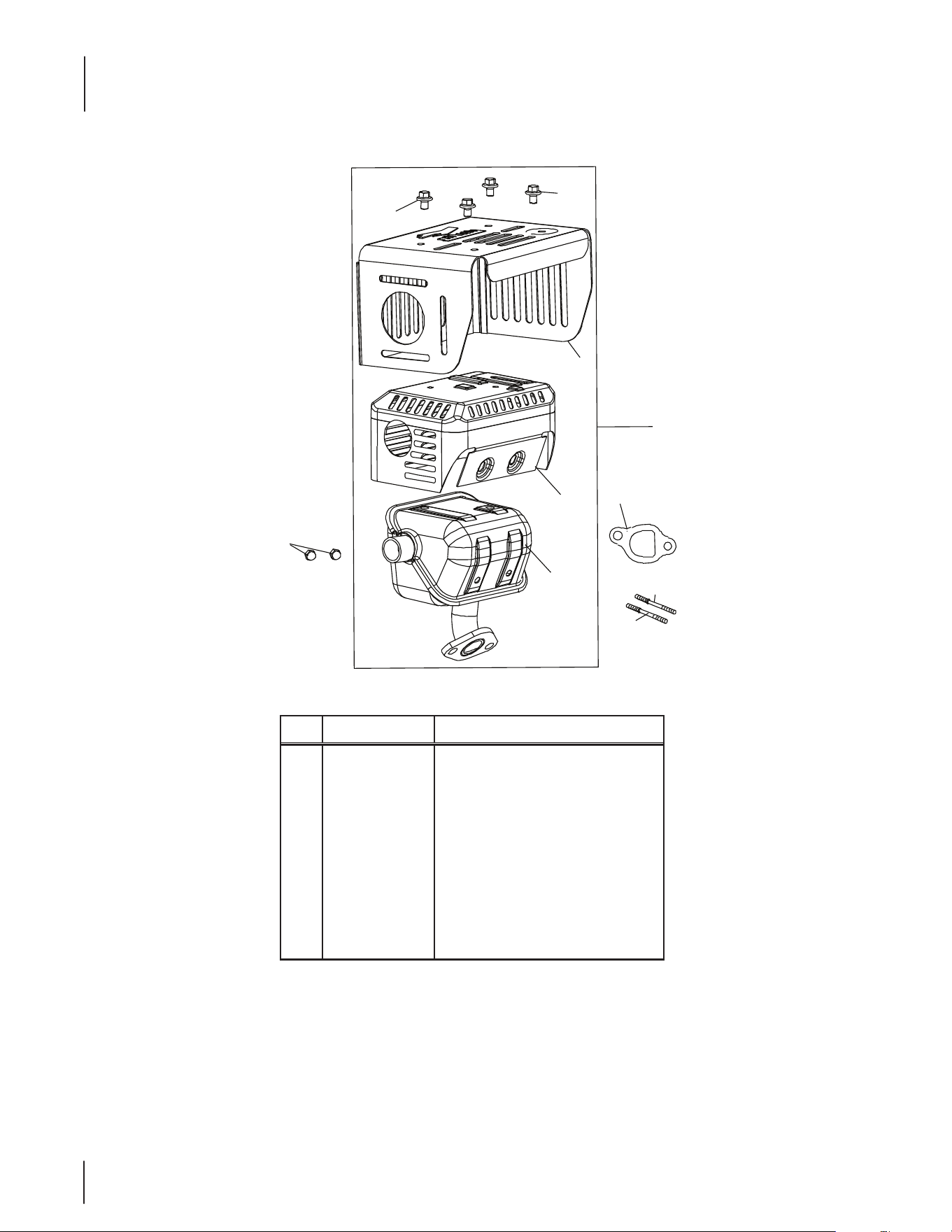

170-CU Muffler
Ref. Part Number Description
19 951-12123 Muer Assembly
20 951-14271 Muer Body
21 951-14268 Muer Shield
22 908-05060 Muer Guard
23 710-06073 Bolt M5×8
24 710 - 0 4911 Stud M8×34
24 951-10657 Muer Stud Assy
25 951-11289 Exhaust Pipe Gasket
26 712-04214 Nut, M8
23
23
22
21
20
26
25
24
24
19
73Notes
74
Engine Model 1X65CU Air Cleaner
Ref. Part Number Description
105 710-04969 Bolt M6X30 Af Base/Coil/E-Starter
106 951-14439 Air Cleaner Housing Ass'Y
108 951-10298 Air Filter
109 712- 05015 Nut M6X10Mm Starter/Carb/Mu
105
106
109
108
75
1X65CU Carburetor
Ref.
Part Number Description
114 951-14419 Air Filter Base Gasket
115 951-14608 Carburetor Assembly
116 951-14424 Carburetor Gasket
117 951-11738 Carburetor Insulator
118 951-11528 Carburetor Insulator Gasket
119 951-14425 Carb Stud M6×87
163 951-14616 Carburetor Kit
(Incl.d,g,h,I,j,m,p,q,r,s,u)
a n/a Choke Shaft
b n/a Choke Plate
c n/a Idle Jet
d n/a Bolt M3×5
e n/a Carburetor Body
f n/a Float Pin
g n/a Needle Valve
h n/a Needle Valve Spring
Ref.
Part Number Description
i n/a Float
j n/a O-Ring, Float Bowl
k n/a Float Bowl
l n/a Gasket, Drain Bolt
m n/a Drain Bolt
n n/a Bolt, Float Bowl
o n/a O-Ring, Float Bowl
p n/a Idle Jet
q n/a Nozzle Tube
r n/a Mixture Screw
s n/a Idle Speed Adjusting Screw
t n/a Gasket
u n/a Bolt M3×6
v n/a Throttle Plate
w n/a Throttle Plate
119
119
118
117
116
115
114
115
163 - Carburetor Kit
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
76
1X65CU Crankcase
Ref.
Part Number Description
31 710-04919 Bolt M6×25 Cover Plate
32 951-14597 Engine Brake Cover Plate
33 710-04918 Bolt M6×20 Ignition Coil
34 951-14598 Ignition Coil Assembly
35 710-04916 Bolt M6X14 Multi-Purpose
36 951-14404 Breather Cover Plate
37 951-14405 Breather Gasket
38 951-11596 Upper Crankshaft Seal
39 951-11730 Breather Screen
40 732-04718 Breather Valve Spring
41 951-11614 Breather Valve
51 710-04915 Bolt M6X12 Multi-Purpose
57 951-14409 Throttle Linkage Spring
58 951-14410 Throttle Linkage
59 714-04074 Governor Arm Shaft Cotter Pin
60 951-11574 Governor Seal
61 951-14416 Governor Arm Shaft
62 951-14 412 Governor Arm Assembly
64 710-04908 Governor Arm Bolt
65 712-05015 Governor Arm Nut M6
66 951-14 411 Governor Spring
67 951-14603 Ignition Switch
68 951-14604 Choke Control
69 951-14605 Air Vane Cover Plate
31
31
32
33
34
156
153
150
152
151
150
145
58
57
51 51
71
35
35
66
67
68
62
65
64
72
73
73
75
77
76
61
60
59
41
40
39
37
36
35
38
160 - Complete Engine
161 - Gasket Kit - Complete
162 - Gasket Kit -External
69
70
77
1X65CU Crankcase
Ref.
Part Number Description
31 710-04919 Bolt M6×25 Cover Plate
32 951-14597 Engine Brake Cover Plate
33 710-04918 Bolt M6×20 Ignition Coil
34 951-14598 Ignition Coil Assembly
35 710-04916 Bolt M6X14 Multi-Purpose
36 951-14404 Breather Cover Plate
37 951-14405 Breather Gasket
38 951-11596 Upper Crankshaft Seal
39 951-11730 Breather Screen
40 732-04718 Breather Valve Spring
41 951-11614 Breather Valve
51 710-04915 Bolt M6X12 Multi-Purpose
57 951-14409 Throttle Linkage Spring
58 951-14410 Throttle Linkage
59 714-04074 Governor Arm Shaft Cotter Pin
60 951-11574 Governor Seal
61 951-14416 Governor Arm Shaft
62 951-14 412 Governor Arm Assembly
64 710-04908 Governor Arm Bolt
65 712-05015 Governor Arm Nut M6
66 951-14 411 Governor Spring
67 951-14603 Ignition Switch
68 951-14604 Choke Control
69 951-14605 Air Vane Cover Plate
Ref.
Part Number Description
70 951-14413 Component Bracket
71 951-14606 Ignition Switch Ground Wire
72 951-11520 Breather Hose Assembly
73 726 -04101 Breather Hose Clamp
75 951-14415 Crankcase Cover Gasket
76 951-14617 Short Block
(Incl.35-41,59-61,75-79,83,85-88,
98,99,101-104,114,117,118,134,
137,140,141,143-145,
150-153,156)
77 951-11369 Main Bearing
145 951-14433 Piston Ring Set
150 951-116 03 Piston Pin Snap Ring
151 951-14434 Piston
152 951-14435 Piston Pin
153 951-14436 Connecting Rod Assembly
156 710-05115 Connecting Rod Bolt
160 952Z1X65CU Complete Engine
161 951-14614 Gasket Kit - Complete
(Incl.37,38,60,75,83,101,104,114,
116 ,117,118 ,134,137,140)
162 951-14615 Gasket Kit -External
(In cl. 37, 83,101,114 ,116,117,
118,134,137)
78
1X65CU Crankshaft
Ref. Part Number Description
35 710-04916 Bolt M6X14 Multi-Purpose
78 951-14607 Crankshaft Assembly
79 951-10307 Flywheel Key
80 710-04980 Bolt M6X35 Af Base/Brake/Dipstick
82 951-14612 Oil Dipstick Assembly
83 951-11547 Dipstick / Oil Fill Tube O-Ring
84 951-14613 Oil Fill Tube Assembly
85 951-11733 Oil Return Seal
86 736-04491 Crankshaft Thrust Washer
87 951-116 0 9 Governor Gear Mounting Plate
Ref. Part Number Description
88 951-11549 Governor Gear/Shaft Assembly
98 715-04096 Crankcase Cover Dowel Pin 7×14
99 715-04089 Crankcase Cover Dowel Pin 9×14
100 710-04931 Bolt M6X28 X65/P65 Crankcase
101 736-04454 Oil Drain Plug Washer
102 951-11499 Oil Drain Plug
103 951-14418 Crankcase Cover
104 951-115 45 Lower Crankshaft Seal
159 951-10370 Oil Drain Plug & Washer Ass'Y
78
79
82
83
84
83
80
102
101
159
99
100
100
100
104
100
100
103
100
98
88
100
86
85
87
35
35
79
1X65CU Flywheel & Shroud
Ref.
Part Number Description
1 951-14396 Recoil Starter Assembly
2 712-04290 Starter Acorn Nut
3 731-07925 Starter Handle
7 951-11721 Recoil Pulley & Spring Ass'Y
15 951-14397 Starter/Shroud Rear Stud M6×78.5
16 951-14398 Starter/Shroud Front Stud M6×74
Ref.
Part Number Description
18 951-14399 Engine Shroud
19 750-05320 Engine Shroud Spacer
27 712- 04287 Flywheel Nut M14
28 951-12161 Starter Cup
29 951-10934 Cooling Fan
30 951-14596 Flywheel
1
2
2
2
3
7
15
15
16
18
19
19
19
27
28
29
30
80
1X65CU Cylinder Head
Ref.
Part Number Description
35 710-04916 Bolt M6X14 Multi-Purpose
109 712- 05015 Nut M6X10Mm Starter/Carb/Mu
120 951-14448 Cylinder Head Asm
(Incl.117,118,120,123-134,137,140)
951-14445 Cylinder Head Service Kit
(Incl.121,124,134,140)
121 710-04982 Bolt M8X54 Cylinder Head
122 951-14437 Spark Plug/F5Rtc
123 951-10313 Valve Kit
124 951-11818 Intake Valve Seal
125 951-10313 Valve Kit
126 951-12004 Valve Spring
127 951-11977 Valve Spring Retainer
128 951-116 87 Push Rod Guide
129 951-116 0 6 Rocker Arm Assembly
130 710-04902 Rocker Arm Stud
131 951-12001 Rocker Arm
132 751-1112 3 Fulcrum Nut
133 751-11124 Jam Nut
134 951-11551 Valve Cover Gasket
138
109
109
139
157
158
OPTIONAL
137
136
136
35
35
35
35
135
134
127
129
133
132
131
130
130
131
132
133
126
126
124
125
123
128
120
121
121
122
121
121
140
141
143
143
142
142
141
144
160 - Complete Engine
161 - Gasket Kit - Complete
162 - Gasket Kit -External
81

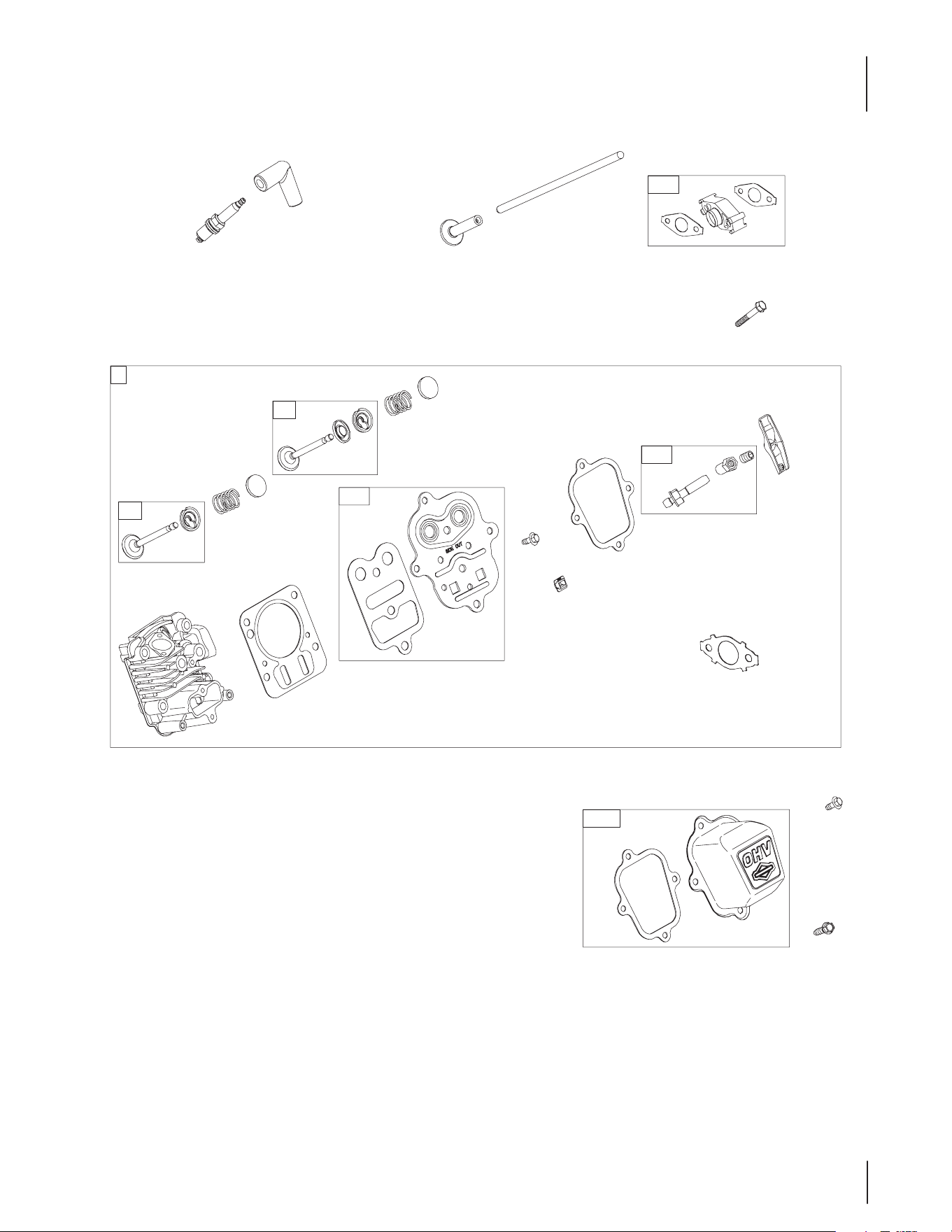

1X65CU Cylinder Head
Ref.
Part Number Description
35 710-04916 Bolt M6X14 Multi-Purpose
109 712- 05015 Nut M6X10Mm Starter/Carb/Mu
120 951-14448 Cylinder Head Asm
(Incl.117,118,120,123-134,137,140)
951-14445 Cylinder Head Service Kit
(Incl.121,124,134,140)
121 710-04982 Bolt M8X54 Cylinder Head
122 951-14437 Spark Plug/F5Rtc
123 951-10313 Valve Kit
124 951-11818 Intake Valve Seal
125 951-10313 Valve Kit
126 951-12004 Valve Spring
127 951-11977 Valve Spring Retainer
128 951-116 87 Push Rod Guide
129 951-116 0 6 Rocker Arm Assembly
130 710-04902 Rocker Arm Stud
131 951-12001 Rocker Arm
132 751-1112 3 Fulcrum Nut
133 751-11124 Jam Nut
134 951-11551 Valve Cover Gasket
Ref.
Part Number Description
135 951-14609 Valve Cover
136 951-10342 Muer Stud Assy
137 951-14427 Muer Gasket
138 951-10403 Muer Assembly
139 951-14430 Muer Shield
140 951-14431 Cylinder Head Gasket
141 715-04108 Cylinder Head Dowel Pin 10×16
142 951-10314 Push Rod Kit
143 951-14432 Tappet
144 951-11741 Camshaft Assembly
157 951-10351 Spark Arrestor
158 710-04983 Spark Arrestor Screw
160 952Z1X65CU Complete Engine
161 951-14614 Gasket Kit - Complete
(Incl.37,38,60,75,83,101,104,114,
116 ,117,118 ,134,137,140)
162 951-14615 Gasket Kit -External
(In cl. 37, 83,101,114 ,116,117,
118,134,137)
82
1X65CU Fuel Tank
Ref. Part Number Description
22 951-14442 Carbon Canister Assembly
23 951-14126 Carbon Canister
25 951-14400 Carbon Canister Filter
26 951-14127 Carbon Canister Filter Cap
35 710-04916 Bolt M6X14 Multi-Purpose
42 731- 08133 Fuel Tank Lower Grommet
43 951-14406 Fuel Tank Upper Grommet
44 731-08104 Fuel Tank Nut
45 951-14407 Fuel Cap Assembly
50 931-04629 Fuel Tank
51 710-04915 Bolt M6X12 Multi-Purpose
52 951-116 8 0 Flexible Clamp, Vent Hose
53 751-10358A Fuel Line Kit
54 951-1170 0 Fuel Hose Clamp
55 951-14438 Fuel Hose
56 723-04071 Plastic Support Clamp
44
43
42
50
45
55
53
54
54
56
51
35
52
23
22
25
26
Notes
83
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
G
E
N
U
I
N
E
F
A
C
T
O
R
Y
P
A
R
T
S
To order replacement parts, call a Customer Support Representative at (800) 965-4CUB.
Locate your nearest Cub Cadet dealer at (877) 282-8684
or visit www.cubcadet.com to find the nearest Cub Cadet dealer in your area.
