Kelvinator KCHRI81R3GDR 81 Inch Commercial Reach-In User Manual

OPERATOR MANUAL

IMPORTANT INFORMATION, KEEP FOR OPERATOR

PART NUMBER HB_738371_9F73837100, REV. A (03/23)

This manual provides information for:

REACH-INS

REFRIGERATORS/FREEZERS

THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,

UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS

CONTAINED IN THIS MANUAL.

FOR YOUR SAFETY Do not store or use gasoline or other ﬂammable vapors

and liquids in the vicinity of this or any other appliance.

NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the consignee

to inspect the container upon receipt of same and to determine the possibility

of any damage, including concealed damage. Electrolux Professional Group

suggests that if you are suspicious of damage to make a notation on the

delivery receipt. It will be the responsibility of the consignee to ﬁle a claim with

the carrier. We recommend that you do so at once.

Manufacture Service/Questions 866-339-8515.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

NOTICE: Due to a continuous program of product improvement, Electrolux

Professional Group reserves the right to make changes in design and speciﬁcations

without prior notice.

NOTICE: Please read the entire manual carefully before

installation. If certain recommended procedures are not followed, warranty claims

will be denied.

The serial number of all self-contained refrigerators and freezers is located inside

the unit on the left hand side near the top on the wall. Always have the serial

number of your unit available when calling for parts or service. This manual covers

standard units only.

USA & Canada, 866-339-8515

4003 Collins Lane, Louisville, KY 40245

www.kelvinatorcommercial.com

Kelvinator Commercial is a pending or registered trademark of Electrolux Consumer Products, Inc., and is used under a license from Electrolux Consumer Products, Inc. Information contained in

this document is known to be current and accurate at the time of printing/creation. Reference our product line website for the most updated product information and speciﬁcations.

EQUIPMENT DESCRIPTION

REV. C (09/24)

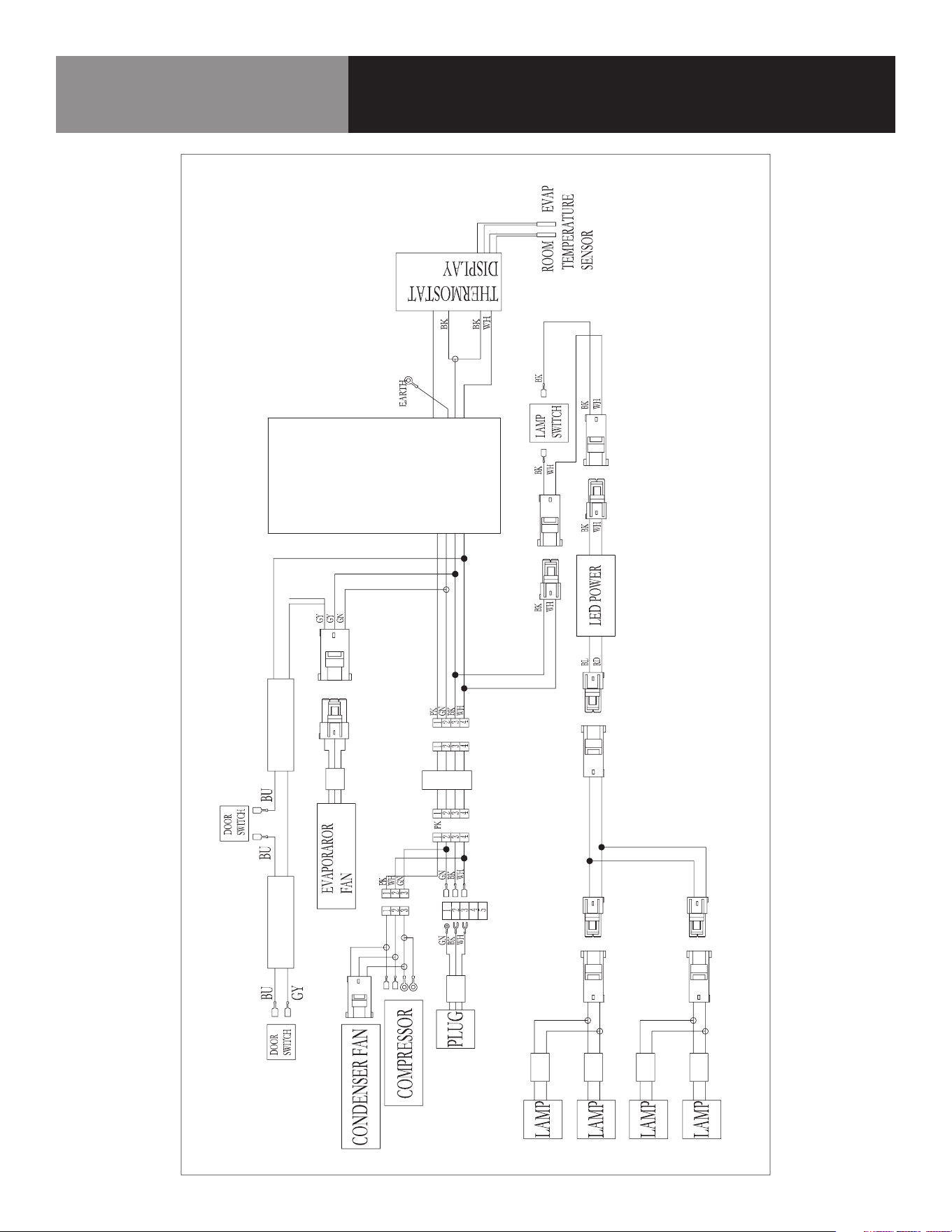

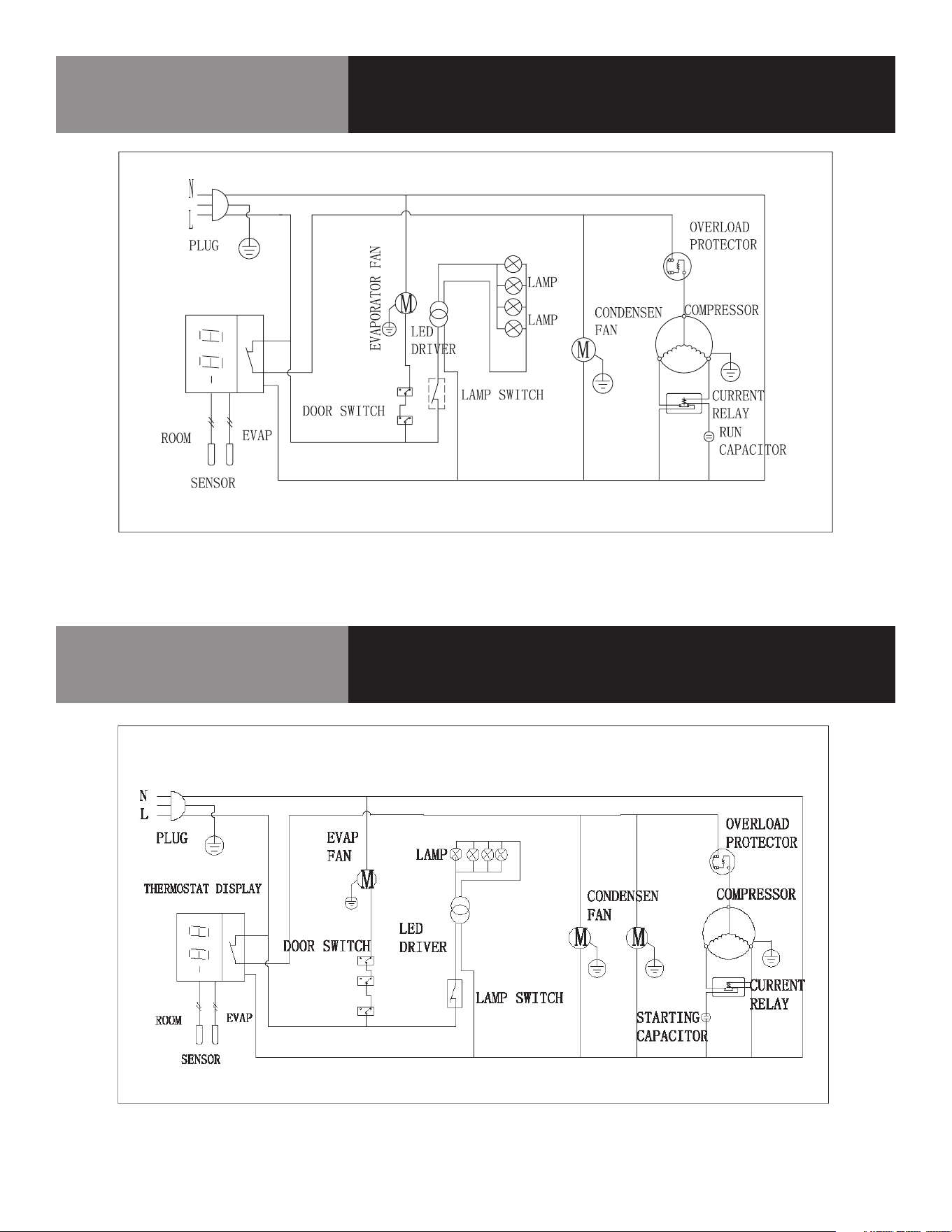

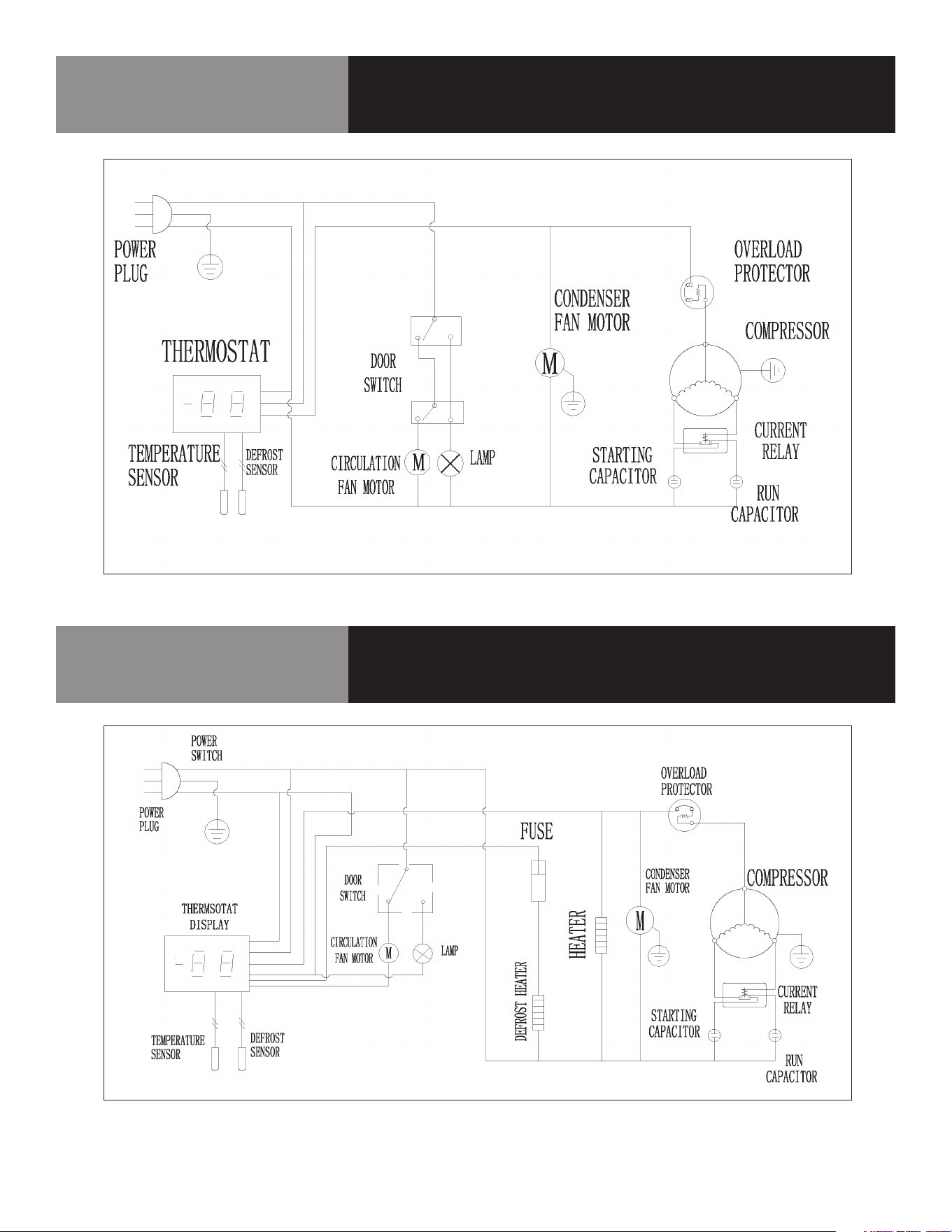

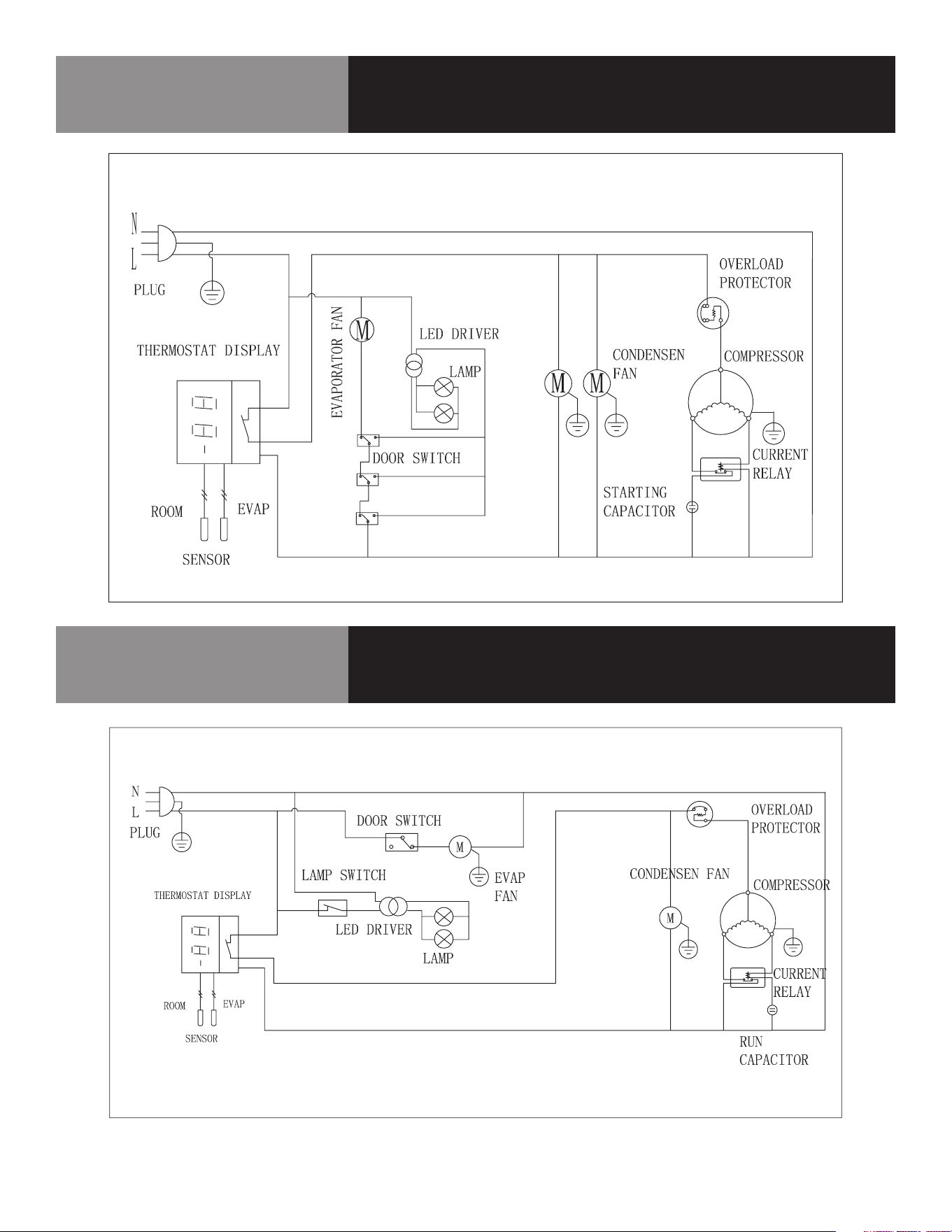

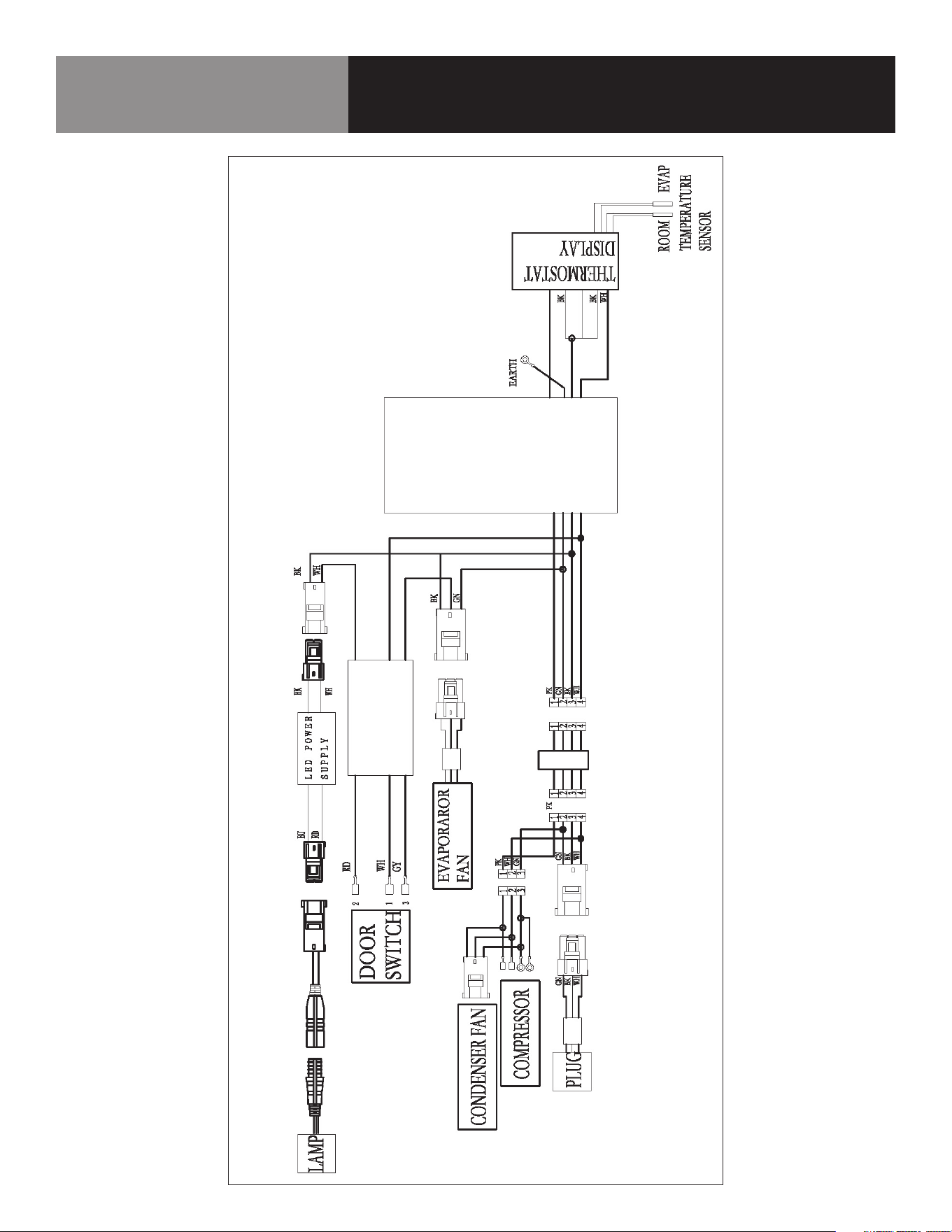

SOLID DOOR REFRIGERATORS

MODEL NO.

REFRIGERANT

TYPE

REFRIGERANT

WEIGHT, G

V/HZ/PH AMPS

CAPACITY

HP BTU

CHARGE

SHIP WEIGHT

LBS

NEMA

PLUG

STORAGE (CU FT) SHELF (SQ FT)

KCHRI27R1DRE R290 85 115/60/1 3 18.1 11 1/5 1670 3 313 5-15P

KCHRI27R1DRE-220 R290 80 220/50/1 2 18.1 11 1/6 682 3 307 -

KCHRI54R2DRE R290 105 115/60/1 4.5 41.6 24 1/3 2380 3.7 489 5-15P

KCHRI54R2DRE-220 R290 130 220/50/1 3 41.6 24 1/4 955 4.58 490 -

KCHRI81R3DR R290 150 115/60/1 7.5 66 37.14 3/4 3200 5.29 571 5-15P

HALF-SOLID DOOR REFRIGERATORS

MODEL NO.

REFRIGERANT

TYPE

REFRIGERANT

WEIGHT, G

V/HZ/PH AMPS

CAPACITY

HP BTU

CHARGE

SHIP WEIGHT

LBS

NEMA

PLUG

STORAGE (CU FT) SHELF (SQ FT)

KCHRI27R2HDR R290 85 115/60/1 3 18.1 11 1/5 1670 3 309 5-15P

KCHRI54R4HDR R290 105 115/60/1 4.5 41.6 24 1/3 2380 3.7 492 5-15P

2 REACH-INS REFRIGERATORS/FREEZERS

IMPORTANT - READ FIRST - IMPORTANT

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT.

WE HAVE PROVIDED MANY IMPORTANT SAFETY MESSAGES IN THIS MANUAL AND ON YOUR

APPLIANCE. ALWAYS READ AND OBEY ALL SAFETY MESSAGES.

OUR PRODUCT INSTRUCTIONS WILL BE UPLOADED ON OUR COMPANY OFFICIAL WEBSITE.

THIS IS THE SAFETY ALERT SYMBOL. THIS SYMBOL ALERTS YOU TO POTENTIAL

HAZARDS THAT CAN KILL OR INJURE YOU AND OTHERS. ALL SAFETY MESSAGES

WILL FOLLOW THE SAFETY ALERT SYMBOL AND EITHER THE WORDS” DANGER”,

“WARNING” OR “CAUTION”.

DANGER MEANS THAT FAILURE TO HEED THIS SAFETY STATEMENT MAY RESULT

IN SEVERE PERSONAL INJURY OR DEATH.

WARNING MEANS THAT FAILURE TO HEED THIS SAFETY STATEMENT MAY

RESULT IN EXTENSIVE PRODUCT DAMAGE, SERIOUS PERSONAL INJURY, OR

DEATH.

CAUTION MEANS THAT FAILURE TO HEED THIS SAFETY STATEMENT MAY RESULT

IN MINOR OR MODERATE PERSONAL INJURY, OR PROPERTY OR EQUIPMENT

DAMAGE.

ALL SAFETY MESSAGES WILL ALERT YOU TO WHAT THE POTENTIAL HAZARD IS, TELL YOU

HOW TO REDUCE THE CHANCE OF INJURY, AND LET YOU KNOW WHAT CAN HAPPEN IF THE

INSTRUCTIONS ARE NOT FOLLOWED.

=FOLLOW BASIC PRECAUTIONS, INCLUDING THE FOLLOWING:

DANGER: THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING

CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES,

OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN

SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A

PERSON RESPONSIBLE FOR THEIR SAFETY.

DANGER: CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH

THE APPLIANCE.

DANGER: THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE

AND PERSONS WITH REDUCED PHYSICAL SENSORY OR MENTAL CAPABILITIES

OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN

SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE

WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY

WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE

MADE BY CHILDREN WITHOUT SUPERVISION.

DANGER: KEEP THE APPLIANCE AND ITS CORD OUT OF REACH OF CHILDREN LESS THAN 8

YEARS.

DANGER: RISK OF CHILD ENTRAPMENT. BEFORE YOU THROW AWAY YOUR OLD REFRIGERATOR

OR FREEZER: TAKE OFF THE DOORS LEAVE THE SHELVES IN PLACE SO THAT

CHILDREN MAY NOT EASILY CLIMB INSIDE.

DANGER: DO NOT STORE EXPLOSIVE SUBSTANCES SUCH AS AEROSOL CANS WITH A

FLAMMABLE PROPELLANT IN THIS APPLIANCE.

DANGER: THE APPLIANCE USE FLAMMABLE INSULATION BLOWING GAS C5H10, DISPOSAL

OF THE APPLIANCE SHALL IN ACCORDANCE WITH THE REGULATIONS OF LOCAL

AUTHORITIES.

DANGER: THE KEY FOR APPLIANCE ELECTRIC BOX SHOULD BE SAFE KEPT BY QUALIFIED

PERSONS IN ORDER TO AVOID A HAZARD.

DANGER: IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER,

ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A

HAZARD.

WARNING: KEEP VENTILATION OPENINGS, IN THE APPLIANCE ENCLOSURE OR IN THE BUILT-IN

STRUCTURE, CLEAR OF OBSTRUCTION.

WARNING: DO NOT USE MECHANICAL DEVICES OR OTHER MEANS TO ACCELERATE

THE DEFROSTING PROCESS, OTHER THAN THOSE RECOMMENDED BY THE

MANUFACTURER.

WARNING: DO NOT DAMAGE THE REFRIGERANT CIRCUIT.

WARNING: DO NOT USE ELECTRICAL APPLIANCES INSIDE THE FOOD STORAGE COMPARTMENTS

OF THE APPLIANCE, UNLESS THEY ARE OF THE TYPE RECOMMENDED BY THE

MANUFACTURER.

WARNING: HANDLING, MOVING, AND USE OF THE REFRIGERATOR OR FREEZER TO AVOID

EITHER DAMAGING THE REFRIGERANT TUBING, OR INCREASING THE RISK OF A

LEAK.

CAUTION: RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW

HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH U.S. GOVERNMENT

REGULATIONS.

CAUTION: COMPONENT PARTS SHALL BE REPLACED WITH LIKE COMPONENTS AND THAT

SERVICING SHALL BE DONE BY FACTORY AUTHORIZED SERVICE PERSONNEL, SO

AS TO MINIMIZE THE RISK OF POSSIBLE IGNITION DUE TO INCORRECT PARTS OR

IMPROPER SERVICE.

CAUTION: RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW

HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.

GLASS DOOR REFRIGERATORS

MODEL NO.

REFRIGERANT

TYPE

REFRIGERANT

WEIGHT, G

V/HZ/PH AMPS

CAPACITY

HP BTU

CHARGE

SHIP WEIGHT

LBS

NEMA

PLUG

STORAGE (CU FT) SHELF (SQ FT)

KCHRI27R1GDR R290 85 115/60/1 3 19 11 1/5 1670 3 333 5-15P

KCHRI54R2GDR R290 105 115/60/1 4.5 43.9 24 1/3 2380 3.7 518 5-15P

KCHRI81R3GDR R290 150 115/60/1 7 68.8 37.14 3/4 3200 5.29 816 5-15P

HALF-GLASS DOOR REFRIGERATORS

MODEL NO.

REFRIGERANT

TYPE

REFRIGERANT

WEIGHT, G

V/HZ/PH AMPS

CAPACITY

HP BTU

CHARGE

SHIP WEIGHT

LBS

NEMA

PLUG

STORAGE (CU FT) SHELF (SQ FT)

KCHRI27R2HGDR R290 85 115/60/1 3 19 11 1/5 1670 3 331 5-15P

KCHRI54R4HGDR R290 105 115/60/1 4.5 43.9 24 1/3 2380 3.7 520 5-15P

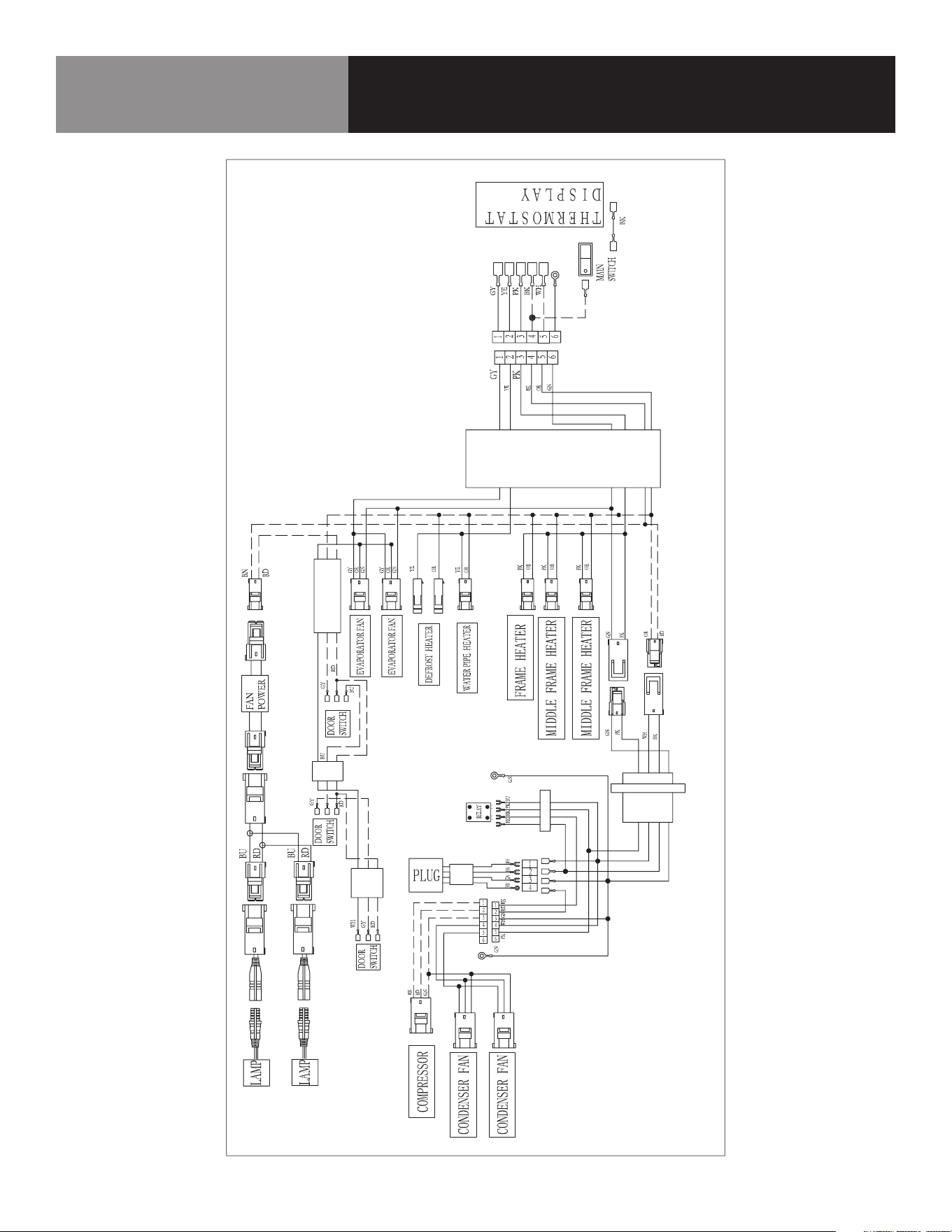

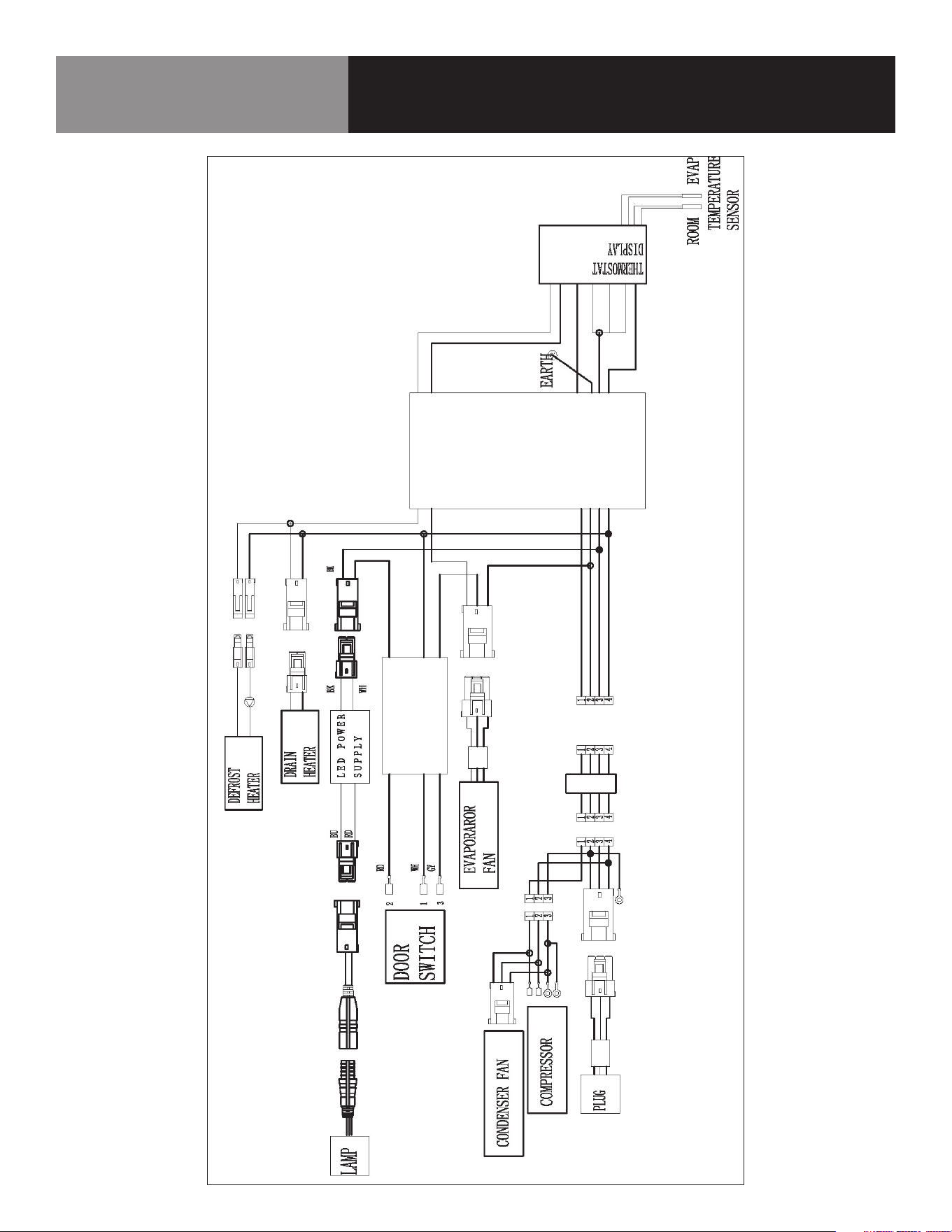

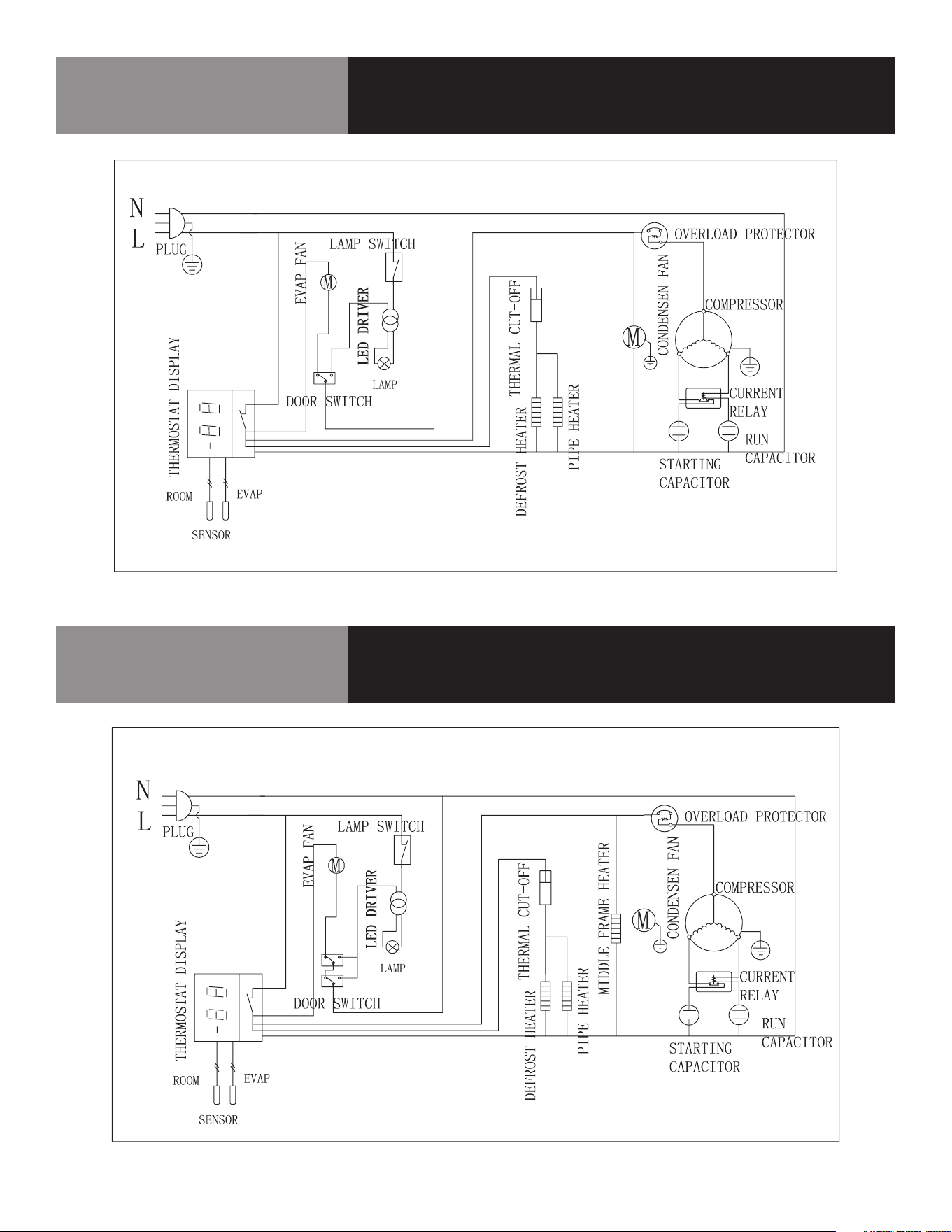

SOLID DOOR FREEZERS

MODEL NO.

REFRIGERANT

TYPE

REFRIGERANT

WEIGHT, G

V/HZ/PH AMPS

CAPACITY

HP BTU

CHARGE

SHIP

WEIGHT

LBS

NEMA

PLUG

STORAGE (CU FT) SHELF (SQ FT)

KCHRI27R1DFE R290 110 115/60/1 8 17.8 11 1 2000 3.88 328 5-15P

KCHRI27R1DFE-220 R290 90 220/50/1 4.9 17.8 11 4/5 2717 3.17 328 -

KCHRI54R2DFE R290 150 115/60/1 9 42 24 1 1/4 3650 5.29 514 5-15P

KCHRI81R3DF R290 150 115-230/60/1 9 66 37.14 1 1/2 4500 5.29 809 L14-20P

3 REACH-INS REFRIGERATORS/FREEZERS

RECEIVING & INSPECTING THE EQUIPMENT

Even though most equipment is shipped crated, care should be taken during

unloading so the equipment is not damaged while being moved into the building.

1. Visually inspect the exterior of the package and skid or container. Any

damage should be noted and reported to the delivering carrier immediately.

2. If damaged, open and inspect the contents with the carrier.

3. In the event that the exterior is not damaged, yet upon opening, there is

concealed damage to the equipment, notify the carrier. Notiﬁcation should

be made verbally as well as in written form.

4. Request an inspection by the shipping company of the damaged equipment.

This should be done within 10 days from receipt of the equipment.

5. Be certain to check the compressor compartment housing and visually

inspect the refrigeration package. Be sure lines are secure and base is still

intact.

6. Freight carriers can supply the necessary damage forms upon request.

7. Retain all crating material until an inspection has been made or waived.

INSTALLATION

NOTE:

UNIT REPAIRS WILL NOT BE SUBJECT TO STANDARD UNIT WARRANTIES IF

DUE TO IMPROPER INSTALLATION PROCEDURES.

DANGER:

THE UNIT MUST BE TURNED OFF AND DISCONNECTED FROM THE POWER

SOURCE WHENEVER PERFORMING SERVICE, MAINTENANCE FUNCTIONS OR

CLEANING THE REFRIGERATED AREA.

LOCATION: Units represented in this manual are intended for indoor use only. Be

sure the location chosen has a ﬂoor strong enough to support the total weight of

the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds.

Reinforce the ﬂoor as necessary to provide for maximum loading. For the most

efﬁcient refrigeration, be sure to provide good air circulation inside and out

INSIDE CABINET: Do not pack the units so full that air cannot circulate. The

refrigerated air is discharged at the top rear of the unit. It is important to allow

for proper air ﬂow from the top rear to the bottom of the unit. Obstructions to

this air ﬂow can cause evaporator coil freeze ups and loss of temperature or

overﬂow of water from the evaporator drain pan. The shelves have a rear turn up

on them to prevent this. However, bags and other items can still be located to the

far rear of the cabinet. Air is brought into the evaporator coil with fans mounted

to the front of the coil.

OUTSIDE CABINET: Be sure that the unit has access to ample air. Avoid hot

corners and locations near stoves and ovens. It is recommended that the unit be

installed no closer than 2” from any wall with at least 12” of clear space above

the unit.

LEVELING: A level cabinet looks better and will perform better because the

doors will line up with the frames properly. Use a level to make sure the unit

is level from front to back and side to side. Units supplied with legs will have

adjustable bullet feet to make the necessary adjustments. If the unit is supplied

with casters, no adjustments are available. Ensure the ﬂoor where the unit is to

be located is level.

STABLING: All models are supplied with casters for your convenience. It is very

important, however, that the cabinet be installed in a stable condition with the

front wheels locked while in use. Should it become necessary to lay the unit on

its side or back for any reason, allow at least 24 hours before start-up to allow

compressor oil to ﬂow back into place. Failure to meet this requirement can

cause compressor failure and unit damage.

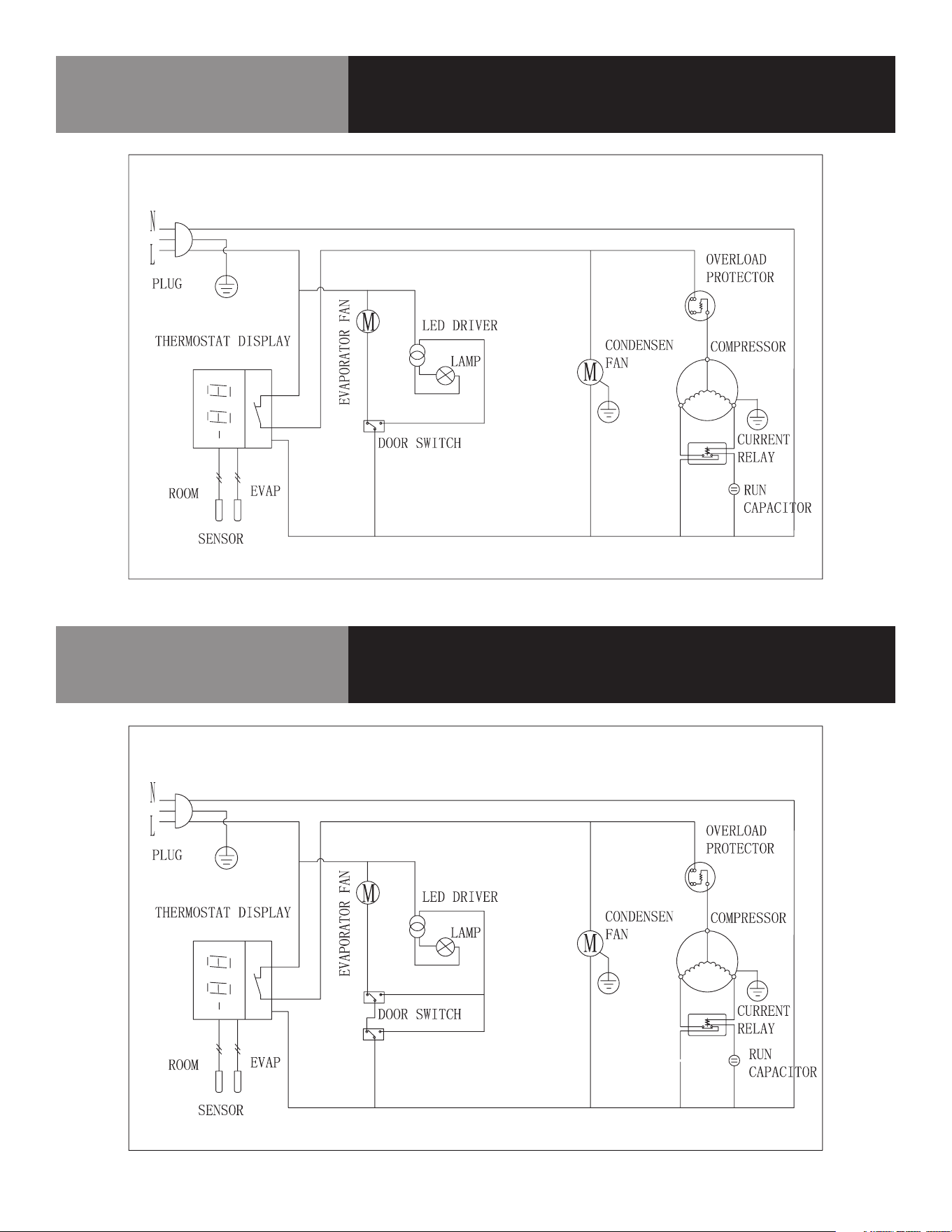

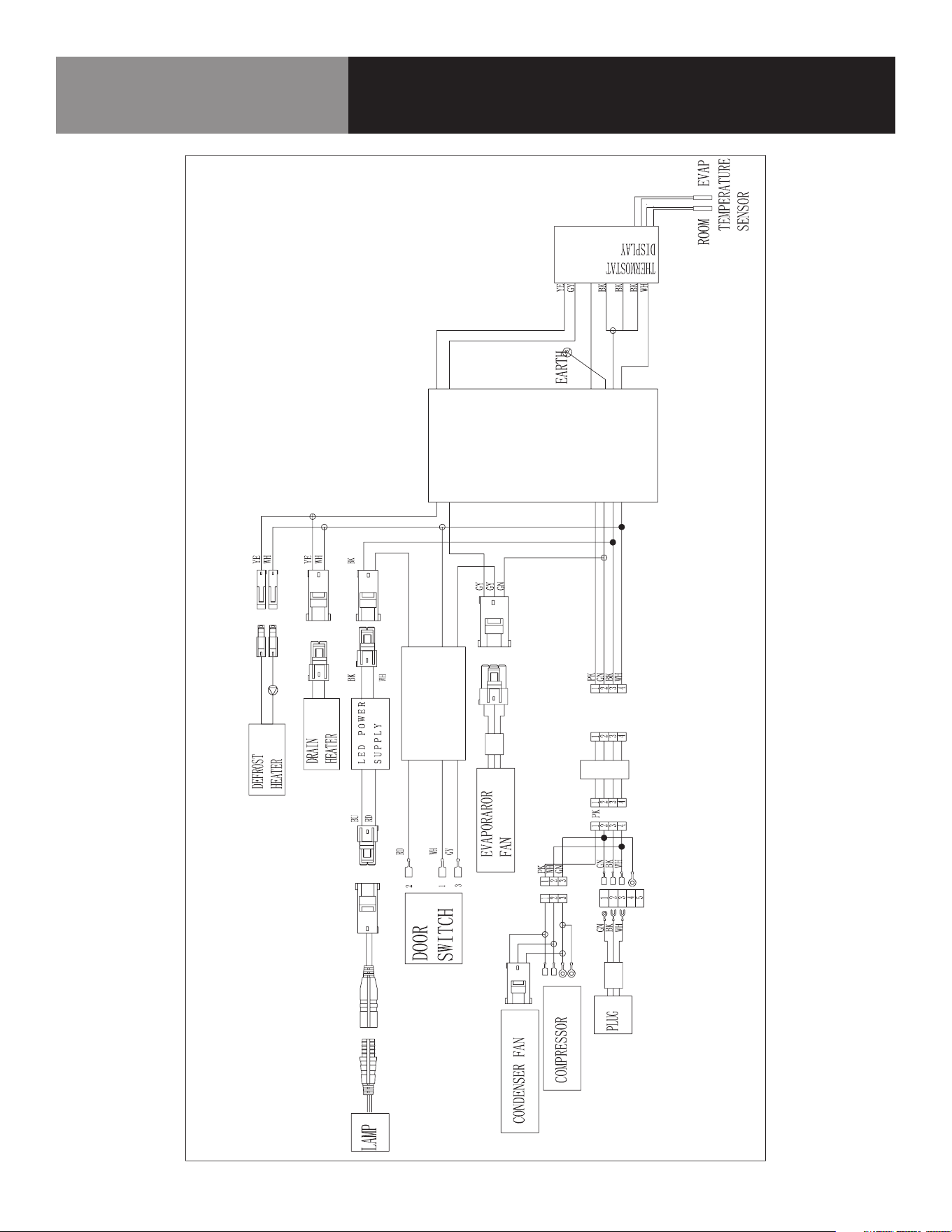

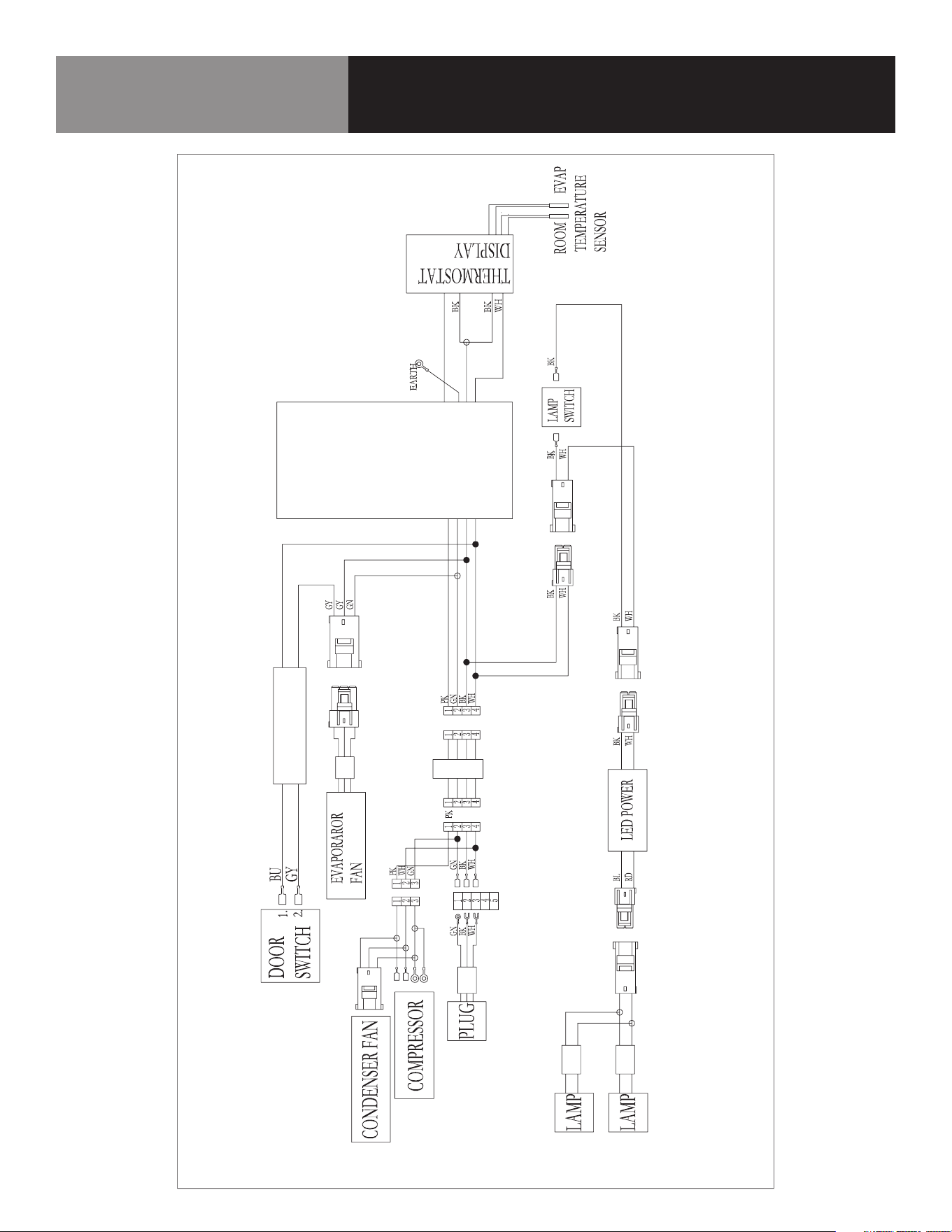

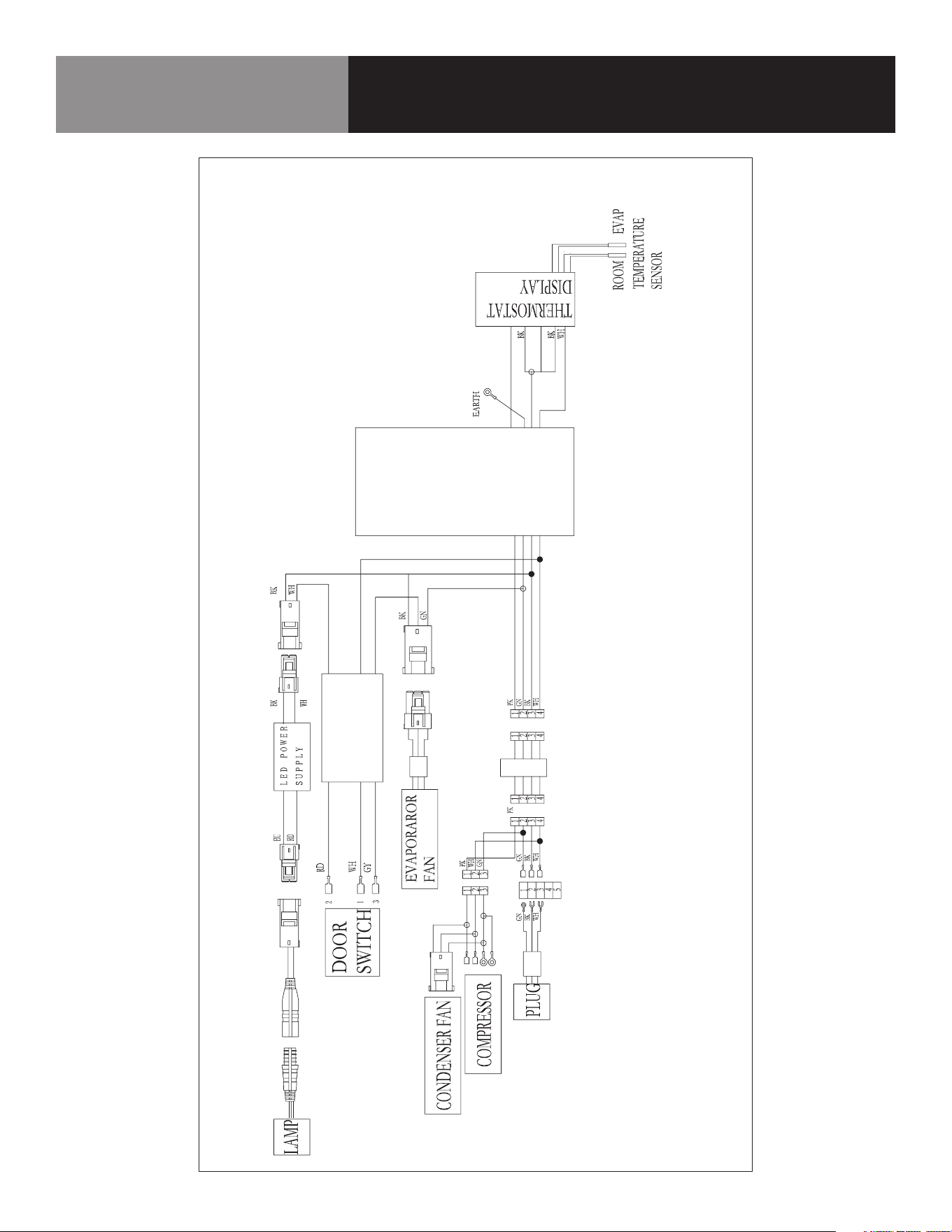

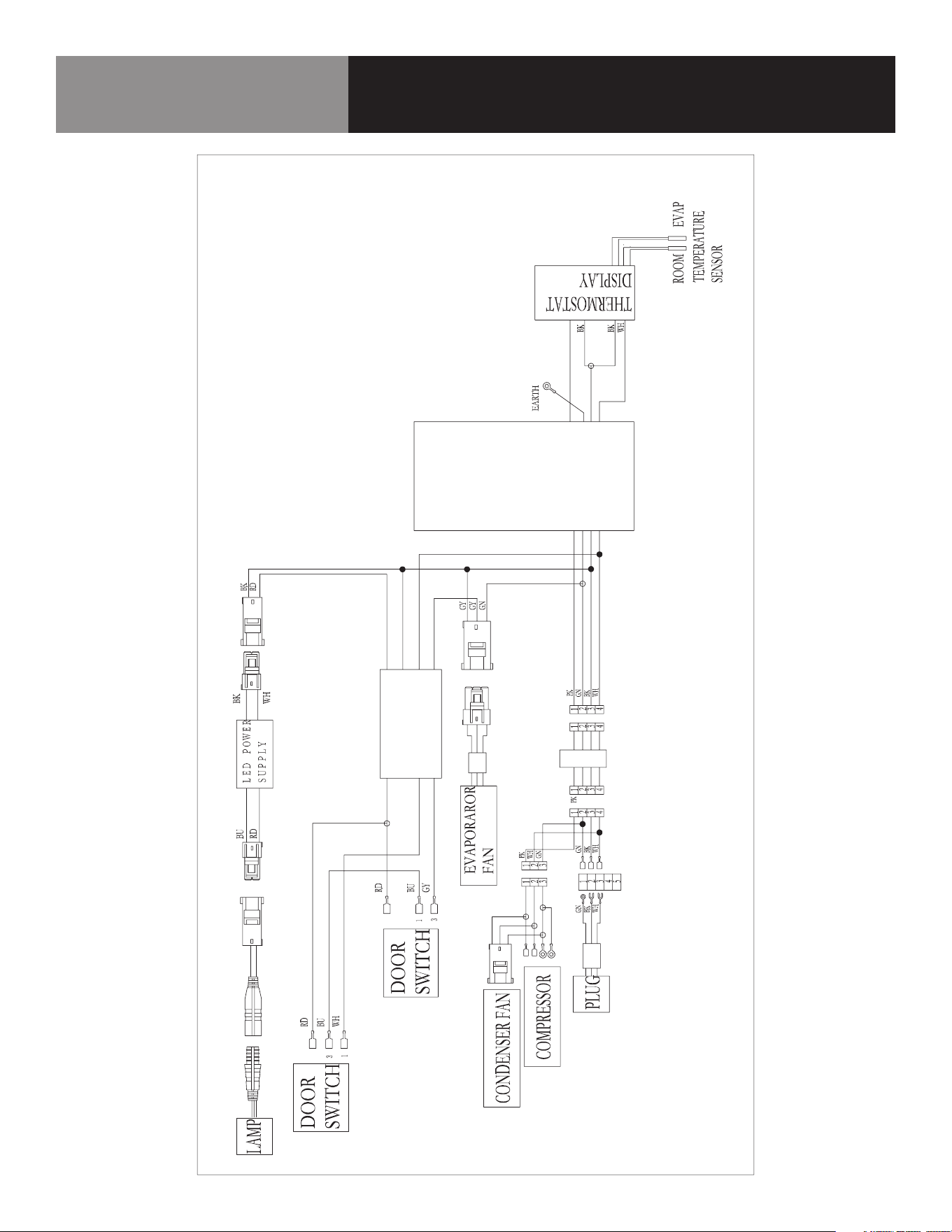

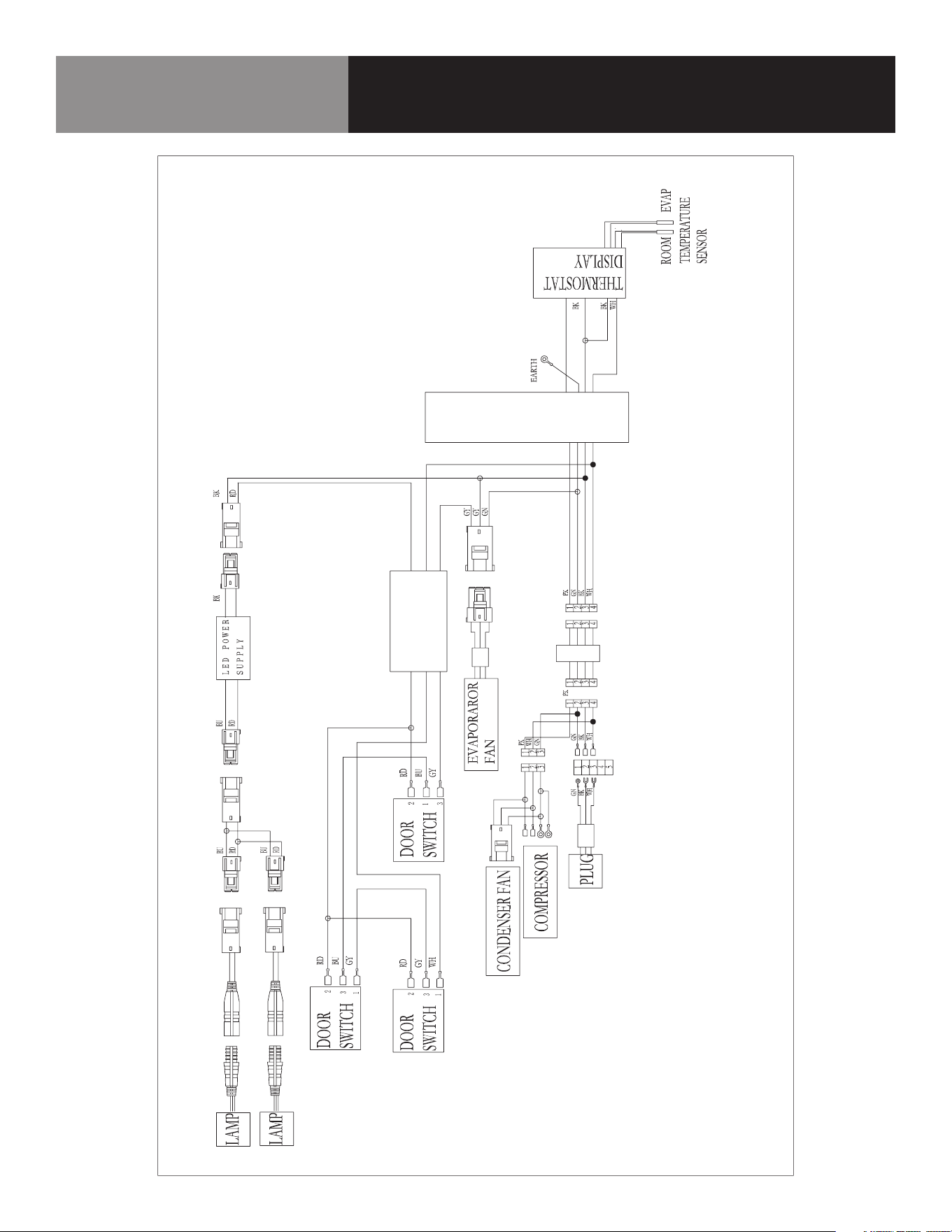

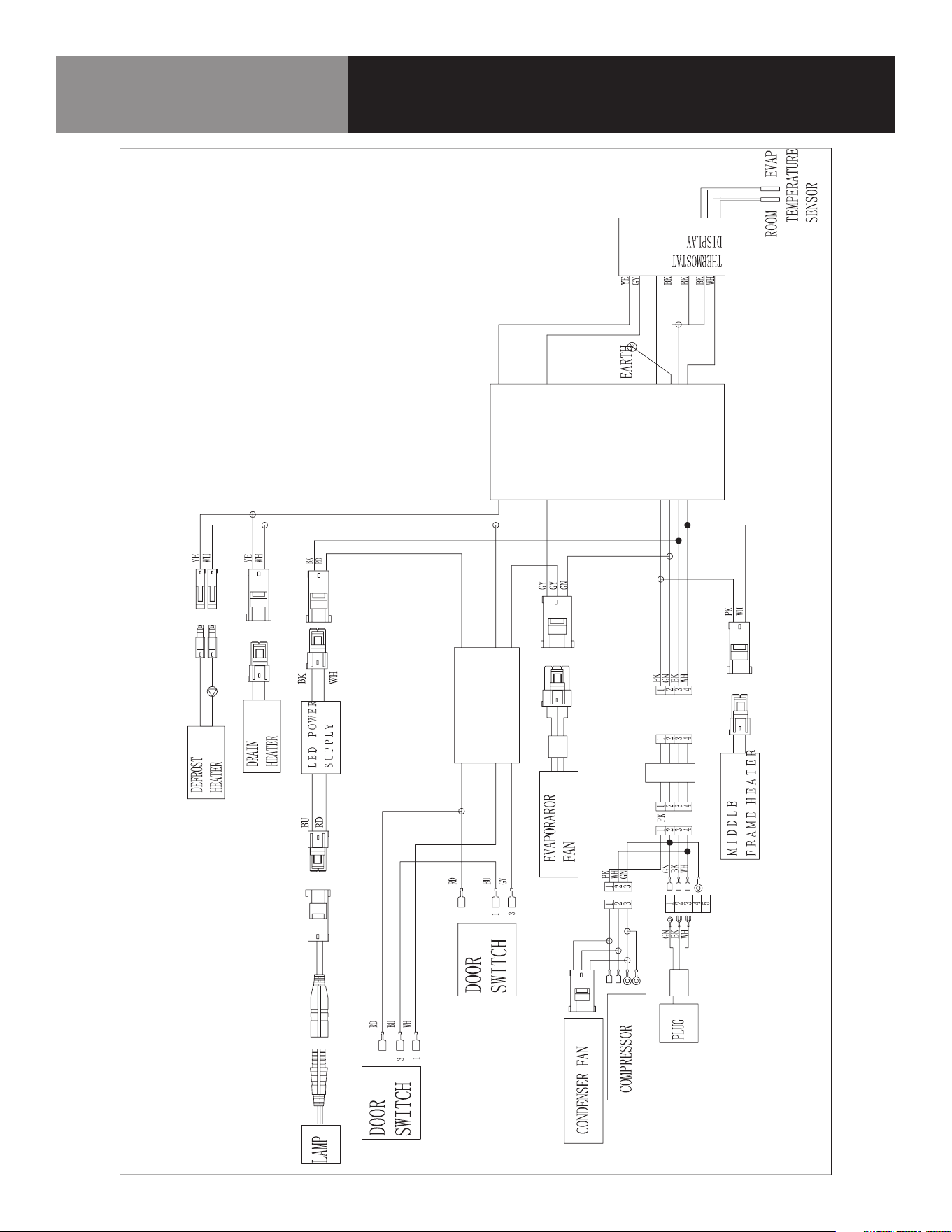

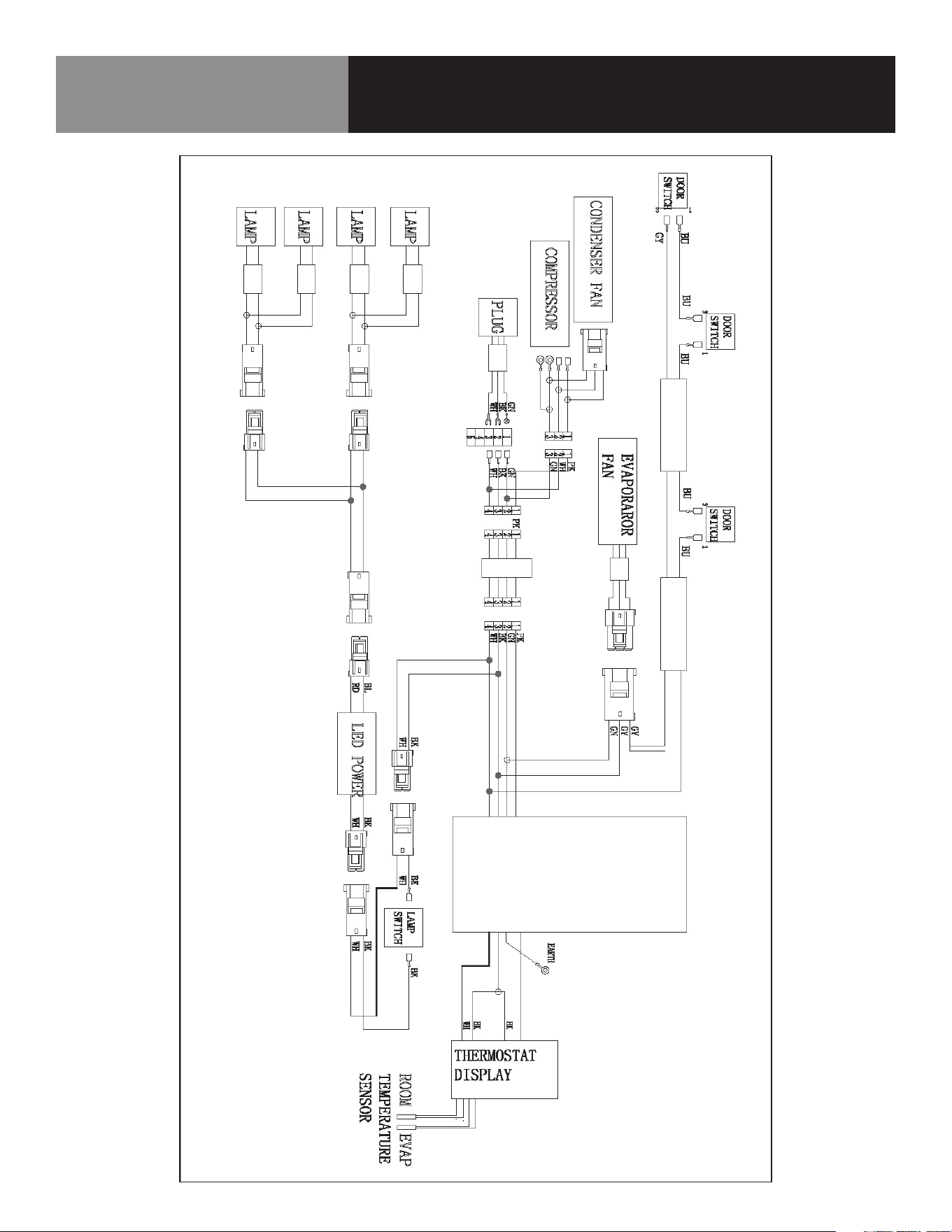

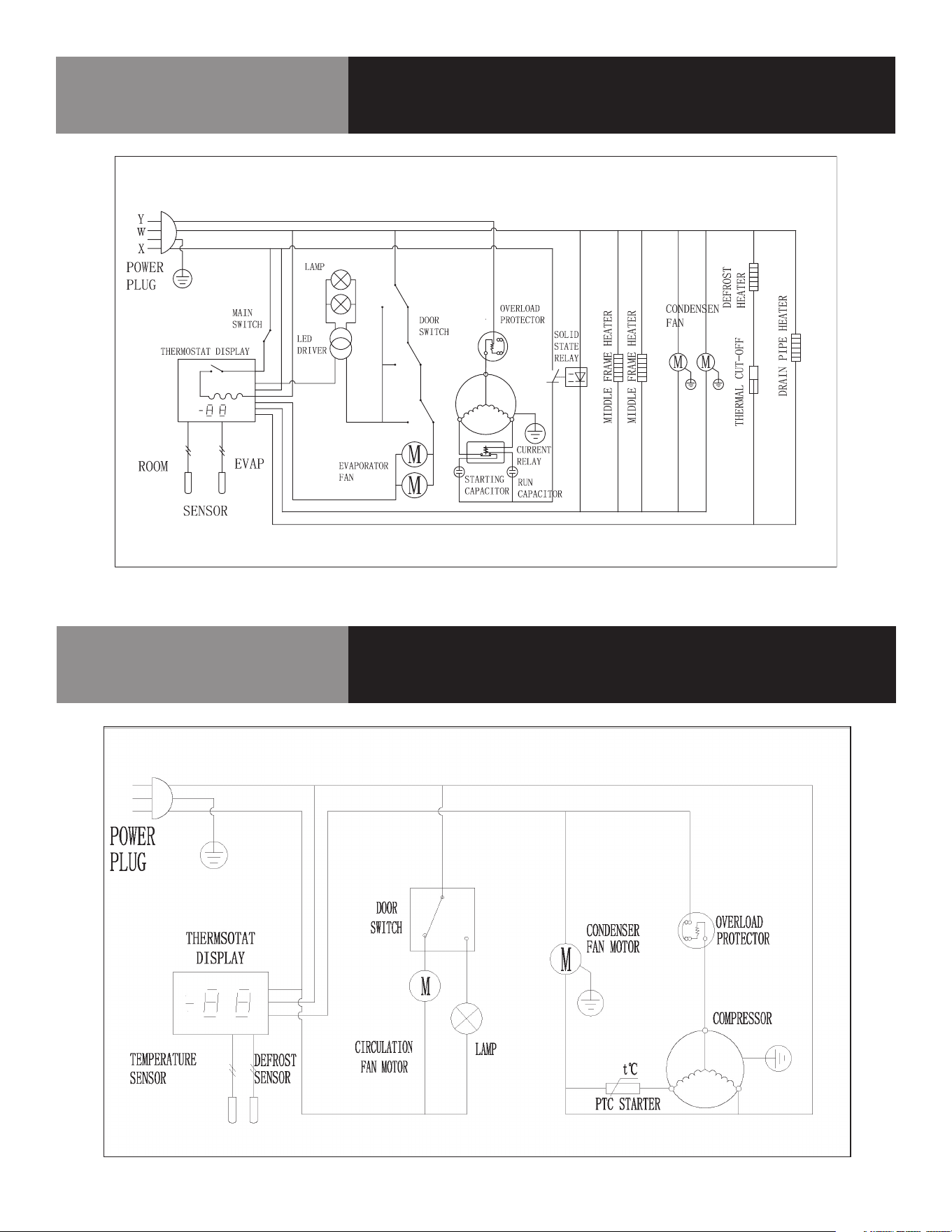

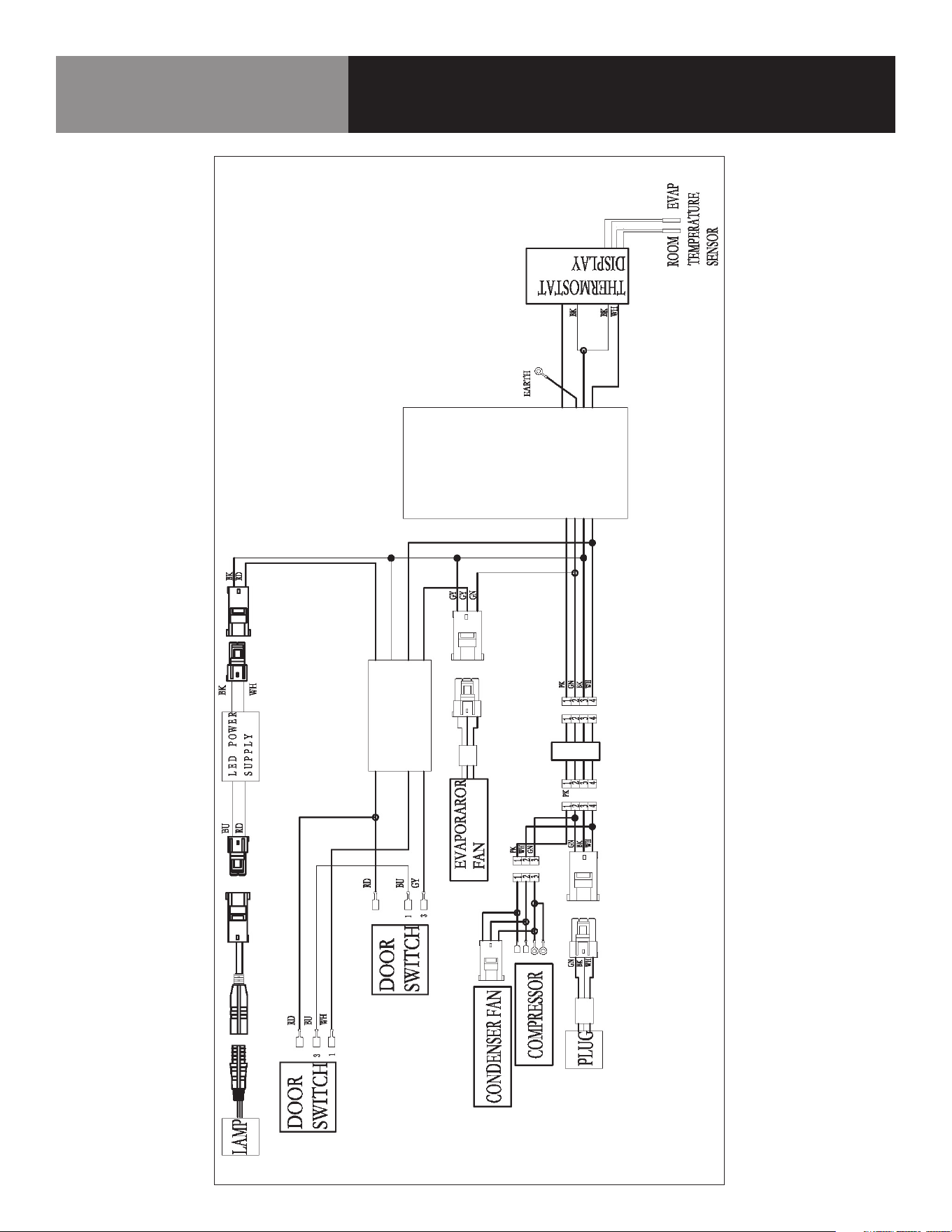

ELECTRICAL CONNECTION: Refer to the amperage data on page 1, the serial tag,

your local code or the National Electrical Code to be sure the unit is connected

to the proper power source.

OPERATION

CAUTION: DO NOT THROW ITEMS INTO THE STORAGE AREA. FAILURE TO HEED THESE

RECOMMENDATIONS COULD RESULT IN DAMAGE TO THE INTERIOR OF THE

CABINET.

REFRIGERATED CYCLE

Refrigerators: During the refrigeration cycle, the evaporator fans wilt run

continuously even when one or more doors are open. The door switch will activate

the lights when opened.

1. Every 6 hours, the unit will turn off and to allow the evaporator coil to defrost. The

controller now displays defrost symbol. When the coil temperature reaches 41°F

or after 20 minutes of defrost, the unit will turn on again.

2. Anti-condensation heaters on door frames work in conjunction with the

compressor.

3. The factory setting for the temperature range is 34°F to 38° F.

Freezers:

During the refrigeration cycle, the controller supplies power to the

condensing unit and evaporator fan motors. The evaporator fans will run at any time

when the evaporator coil temperature is below 54°F. They will also keep running

when door is open but cycle off during a defrost period. The door switch will activate

the lights when opened.

1. Every 6 hours, the unit will turn off and electric heater will turn on to defrost. The

controller now displays the defrost symbol. When the coil temperature reaches

45°F or after 20 minutes of defrost, the unit will turn on again.

2. Anti-condensation heaters on door frames work in conjunction with the

compressor.

3. The factory setting for temperature range is -7 to -3°F

HALF-SOLID DOOR FREEZERS

MODEL NO.

REFRIGERANT

TYPE

REFRIGERANT

WEIGHT, G

V/HZ/PH AMPS

CAPACITY

HP BTU

CHARGE

SHIP WEIGHT

LBS

NEMA

PLUG

STORAGE (CU FT) SHELF (SQ FT)

KCHRI27R2HDF R290 110 115/60/1 8 17.8 11 3/4 2000 3.88 331 5-15P

4 REACH-INS REFRIGERATORS/FREEZERS

CONTROL PANEL SOLID-STATE THERMOSTAT

FRONT PANEL COMMANDS

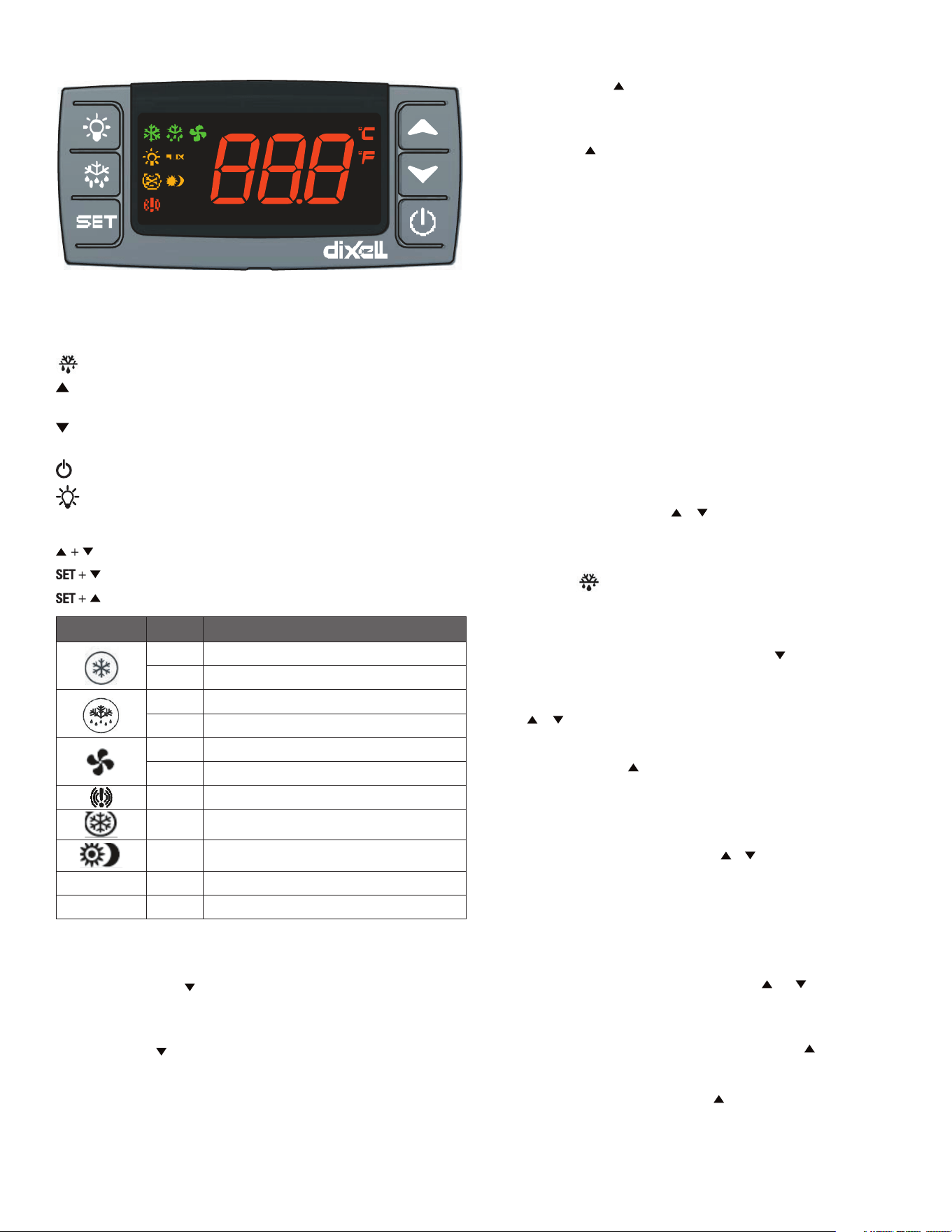

SET SET: To display target set point; in programming mode it selects a

parameter or conﬁrms an operation.

DEF: To start a manual defrost

UP: To see the max. stored temperature; in programming mode it browses

the parameter codes or increases the display valve

DOWN: To see the min. stored temperature; in programming mode it

browses the parameter codes or decreases the display value

To switch the instrument off, if onF = oFF.

Not enabled

Key combination:

To lock and unlock the keyboard

To enter in programming mode

To return to the room temperature display

LED MODE FUNCTION

On Compressor enabled

Flashing Anti-short cycle delay enabled

On Defrost enabled

Flashing Drip time in progress

On Fans enabled

Flashing Fans delay after defrost in progress

On An alarm is occurring

On Continuous cycle is running

On Energy saving enabled

ºC/ºF

On Measurement unit

ºC/ºF

Flashing Programming phase

MAX & MIN TEMPERATURE MEMORIZATION

How to see the MIN temperature:

1. Press and release the key.

2. The “Lo” message will be displayed followed by the minimum temperature

recorded.

3. By pressing the key again or by waiting 5 seconds the normal display will be

restored.

How to see the MAX temperature:

1. Press and release the key.

2. The “Hi” message will be displayed followed by the maximum temperature

recorded.

3. By pressing the key again or by waiting 5 seconds the normal display will be

restored.

How to reset the MAX and MIN temperature recorded:

1. Hold press the SET key for more than 3 seconds, while the max and min

temperature is displayed. (rST message will be displayed)

2. To conﬁrm the operation the “rST” message starts blinking and the normal

temperature will be displayed.

MAIN FUNCTIONS

How to see the setpoint:

1. Push and immediately release the SET key: the display will show the set point

value.

2. Push and immediately release the SET key or wait for 5 seconds to display the

probe value again.

How to change the setpoint:

1. Press the SET key for more than 2 seconds to change the set point value.

2. The value of the set point will be displayed and the “

ºC” or “ºF”

LED starts

blinking.

3. To change the set value, push the

or key within 10 seconds.

4. To memorize the new set point value, push the SET key again or wait 10 seconds.

How to start a manual defrost:

1. Push the DEF ( )

key for more than 2 seconds and a manual defrost will start.

How to change a parameter value:

To change the parameter’s value operate as follows:

1. Enter the programming mode by pressing the SET + keys for more than 3

seconds (the “

ºC” or “ºF”

LED starts blinking).

2. Select the required parameter. Press the SET key to display its value.

3. Use

or to change its value.

4. Press SET to store the new value and move to the following parameter.

To Exit: Press the SET + or wait 15 seconds without pressing a key.

Note: The set value is stored even when the procedure is exited by waiting the

time-out to expire.

How to lock the keyboard:

1. Press and hold for more than 3 seconds the + keys.

2. The “POF” message will be displayed and the keyboard will be locked. At this

point it will be possibly only to see the set point or the MAX or MIN temperature

stored.

3. If a key is pressed for more than 3 seconds the “POF” message will be displayed.

How to unlock the keyboard:

1. Press and hold together for more than 3 seconds the and keys, til the “Pon”

message is displayed.

The continuous cycle:

When defrost is not progress, it can be activated by holding the key pressed for

about 3

seconds

. The compressor operates to maintain the “ccS” set point for the

time set through the “CCt” parameter. The cycle can be terminated before the end

of the set time using the same activation key for 3

seconds

5 REACH-INS REFRIGERATORS/FREEZERS

The ON/OFF functions:

With “onF = oFF”, pushing the ON/OFF key, the instrument is switched off. The

“OFF” message is displayed. In this conﬁguration, the regulation is disabled. To

switch the instrument on, push again the ON/OFF key.

WARNING: Loads connected to the normally closed contacts of the relays

are always supplied and under voltage, even if the instrument is in stand

by mode.

ALARM SIGNALS

MESSAGE CAUSE OUTPUTS

“P1” Room probe failure

Compressor output acc. to par.

“Con” and “COF”

“P2” Evaporator probe failure Defrost end is timed

“HA” Maximum temperature alarm Outputs unchanged

“LA” Minimum temperature alarm Outputs unchanged

“HA2” Condenser high temperature

It depends on the “Ac2”

parameter

“LA2” Condenser low temperature

It depends on the “bLL”

parameter

“dA” Door open Compressor and fans restarts

“EA” External alarm Output unchanged

“CA” Serious external alarm (i1F=bAL) All outputs OFF

“CA” Pressure switch alarm (i1F=PAL) All outputs OFF

How to see the alarm and reset the recorded alarm:

1. Push the or key to display the alarm signals.

2. When the signal is displayed, hold the SET key until the “rst” message is

displayed. Push the SET key again. The “rst” message starts blinking and the

normal temperature will be displayed again.

Alarm recovery:

Probe alarms “P1”, “P2” start some seconds after the fault in the related probe; they

automatically stop some seconds after the probe restarts normal operation. Check

connections before replacing the probe.

Temperature alarms “HA”, “LA”, “HA2” and “LA2” automatically stop as soon as the

temperature returns to normal values.

Alarms “EA” and “CA” (with i1F=bAL) recover as soon as the digital input is disabled.

Alarm “CA” (with i1F=PAL) recovers only by switching off and on the instrument.

Other messages:

CODE DESCRIPTION

Pon Keyboard Unlocked

PoF Keyboard locked

noP

In programming mode: none parameter is present in Pr1

On the display or in dP2, dP3, dP4: the selected probe is not enabled

noA None alarm is recorded

MAINTENANCE

DANGER:

THE UNIT MUST BE TURNED OFF AND DISCONNECTED FROM THE POWER

SOURCE WHENEVER PERFORMING SERVICE, MAINTENANCE FUNCTIONS OR

CLEANING THE REFRIGERATED AREA.

DANGER:

NEVER USE A HIGH PRESSURE WATER WASH FOR THIS CLEANING

PROCEDURE AS WATER CAN DAMAGE THE ELECTRICAL COMPONENTS

LOCATED NEAR OR AT THE CONDENSER COIL.

DANGER: NEVER USE STEEL PADS, WIRE BRUSHES OR SCRAPERS!

CAUTION: NEVER USE AN ACID BASED CLEANING SOLUTION！MANY FOOD PRODUCTS

HAVE AN ACIDIC CONTENT WHICH CAN DETERIORATE THE FINISH. BE SURE

TO CLEAN THE STAINLESS STEEL SURFACES OF ALL FOOD PRODUCTS.

REFRIGERATORS AND FREEZERS

The interior and exterior can be cleaned using soap and warm water. If this isn’t

sufﬁcient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning

the exterior, always rub with the “grain” of the stainless steel to avoid marring

the ﬁnish.

Do not use an abrasive cleaner because it will scratch the stainless steel and

plastic and can damage the breaker strips and gaskets.

CLEANING THE CONDENSER COIL

The condenser coil requires regular cleaning and it is recommended every 90

days. In some instances, you may ﬁnd that there is a large amount of debris and

dust or grease accumulated prior to the 90 day time frame. In these cases the

condenser coil should be cleaned every 30 days.

If the build up on the coil consists of only light dust and debris, the condenser

coil can be cleaned with a simple brush. Heavier dust build-up may require a

vacuum or even compressed air to blow through the condenser coil.

If heavy grease is present, there are de-greasing agents available for refrigeration

use and speciﬁcally for the condenser coils. The condenser coil may require

cleaning with the de-greasing agent and then blown through with compressed

air.

Failure to maintain a clean condenser coil can initially cause high temperatures

and excessive run times. Continuous operation with dirty or clogged condenser

coils can result in compressor failures. Neglecting the condenser coil cleaning

procedures will void any warranties associated with the compressor or cost to

replace the compressor.

In order to maintain proper refrigeration performance, the condenser ﬁns must

be cleaned of dust, dirt and grease regularly. It is recommended that this be

done at least every three months. If conditions are such that the condenser is

totally blocked in three months, the frequency of cleaning should be increased.

Clean the condenser with a vacuum cleaner or stiff brush. If extremely dirty, a

commercial-grade condenser cleaner may be required.

6 REACH-INS REFRIGERATORS/FREEZERS

STAINLESS STEEL CARE AND CLEANING

To prevent discoloration of rust on stainless steel several important steps need to

be taken. First, we need to understand the properties of stainless steel. Stainless

steel contains 70-80% iron which will rust. It also contains 12-30% chromium

which forms an invisible passive ﬁlm over the steels surface which acts as a

shield against corrosion. As long as the protective layer is intact, the metal is still

stainless. If the ﬁlm is broken or contaminated, outside elements can begin to

breakdown the steel and begin to form rust of discoloration. Proper cleaning of

stainless steel requires soft cloths or plastic scouring pads, Cleaning solutions

need to be alkaline based or non-chloride based. Any cleaner containing

chlorides will damage the protective ﬁlm of the stainless steel. Chlorides are

commonly found in hard water, salts, and household and industrial cleaners.

If cleaners containing chlorides are used, be sure to rinse and dry thoroughly.

Routine cleaning of stainless steel can be done with soap and water. Extreme

stains or grease should be cleaned with a non-abrasive cleaner and plastic scrub

pad. It is always good to rub with the grain of the steel. There are also stainless

steel cleaners available which can restore and preserve the ﬁnish of the steel’s

protective layer.

Early signs of stainless steel breakdown can consist of small pits and cracks.

If this has begun, clean thoroughly and start to apply stainless steel cleaners in

attempt to restore the passivity of the steel.

GASKET MAINTENANCE

Gaskets require regular cleaning to prevent mold and mildew build up and also

to keep the elasticity of the gasket. Gasket cleaning can be done with the use of

warm soapy water. Avoid full strength cleaning products on gaskets as this can

cause them to become brittle and prevent proper seals. Do not use sharp tools

or knives to scrape or clean the gasket which could possibly tear the gasket and

rip the bellows.

Gaskets can easily be replaced and don’t require the use of tools or authorized

service technicians. The gaskets are “Dart” style and can be pulled out of the

grove in the door and replaced by pressing the new one back into place.

DOORS/HINGES

Over time and with heavy use, door hinges may become loose. If the door is

beginning to sag, tighten the screws that mount the hinge brackets to the frame

of the unit. If the doors are loose or sagging, this can cause the hinge to pull out

of the frame which may damage both the doors and the door hinges.

DRAIN MAINTENANCE

Each unit has a drain located inside the unit which removes the condensation

from the evaporator coil and evaporates it into an external condensate evaporator

pan. Each drain can become loose or disconnected from moving or bumping the

drain. If you notice excessive water accumulation on the inside of the unit, be

sure the drain tube is connected from the evaporator housing to the condensate

evaporator drain pan. If water starts to collect underneath the unit, you may want

to check the condensate evaporator drain tube to be sure it is still located inside

the drain pan. The leveling of the unit is important as the units are designed to

drain properly when on a level surface, if your ﬂoor is not level, this can also

cause drain problems. Be sure all drain lines are free of obstructions because

this may cause water to back up and overﬂow the drain pans.
