USER MANUAL
electriQ 9,200 BTU PORTABLE INDUSTRIAL
AIR CONDITIONER
CMAC10M
Thank you for choosing electriQ
Please read this user manual before using this innovative Air Conditioner and keep it
safe for future reference.
Visit our page, www.electriQ.co.uk, for our entire range of Intelligent Electricals.
2
3
CONTENTS
SAFETY INFORMATION
4
FEATURES
7
APPLIANCE DIAGRAM
7
INSTALLATION
8
OPERATION
9
EMPTYING THE INTERNAL WATER TANK
10
CLEANING AND MAINTENANCE
10
TROUBLESHOOTING
11
SUPPORT
12
TECHNICAL SPECIFICATION
12
4
SAFETY INSTRUCTIONS
Important!
• Carefully read the instructions before operating the unit
• This appliance is for indoor use only.
• Rating: This unit must be connected only to a 220-240 V / 50 Hz
earthed outlet. The fuse rating is on the plug itself.
• Installation must be in accordance with the wiring regulations, gas regulations and any
other applicable regulations of the country where the unit is used.
• If you have any doubt about the suitability of your electrical supply, have it checked and,
if necessary, modified by a qualified electrician.
• You must follow the venting and set-up instructions; failure to do so will cause damage to
the unit, which is not covered under your warranty.
• This air conditioner has been tested and is safe to use. However, as with any electrical
appliance - use it with care.
• Do not obstruct any of the ventilation openings.
• The airflow should never be restricted, for example, by venting the unit into a condenser
box or reducing the hose diameter, as this can damage the unit.
• Disconnect the power from the appliance before dismantling, assembling or cleaning.
• Avoid touching any moving parts of the appliance.
• Never insert fingers, pencils or any other objects through the guard.
• WARNING: Do not pierce or burn any part of the unit.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities. It is also not intended for use by those with a
lack of experience and knowledge unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their safety.
• Do not leave children unsupervised with this appliance.
• Do not clean the unit by spraying it or immersing it in water.
• Never connect the unit to an electrical outlet using an extension cord. If an outlet is not
available, a qualified electrician should install one.
• Never operate this appliance if the cord or plug is damaged. Ensure the power cord is not
stretched or exposed to sharp objects/edges.
• A damaged supply cord should be replaced by the manufacturer or a qualified electrician
to avoid a hazard.
• An authorised service representative should perform any service besides regular cleaning
or filter replacement. Failure to comply could result in a voided warranty.
• Do not use the appliance for any purpose other than its intended use.
• The air conditioner unit must always be stored and transported upright; otherwise, the
compressor may suffer irreparable damage. If in doubt, we suggest waiting at least 24
hours before starting the unit.
5
• Do not move the air conditioner while it is operating. When operating, the castors should
be locked in position.
• Ensure the unit is positioned on a flat, level surface and does not interfere with
walkways.
• This air conditioner is not designed for boats or any other type of transportation.
• Do not restart the air conditioning unit unless 3 minutes have passed since it was turned
off. This prevents damage to the compressor.
• Never use the mains plug as a switch to start and turn off the air conditioning unit. Use
the provided ON/OFF button located on the control panel.
• Always place the unit on a dry, stable, flat surface.
• The appliance should not be installed in the laundry or wet rooms.
• The appliance must be placed in a room without sources of ignition (e.g., open flames, an
operating gas appliance, or an operating electric heater).
• R290 refrigerant gas complies with European environmental directives.
• R290 has a low GWP (Global Warming Potential) of 3.
• This air conditioner contains around 280 g of R290 refrigerant gas.
• Do not use or store in an unventilated space with an area smaller than 18.2 m
2
per unit.
• WARNING: The appliance must be stored in a room without continuously operating
ignition sources, such as open flames, an operating gas appliance, or electric heaters.
• The room must be designed to prevent stagnation or possible leaks of refrigerant gas, as
there could be a danger of fire or explosion should the refrigerant come into contact with
electric heaters, stoves, or other ignition sources.
• Only store and use the unit whilst upright; do not lay it down or tip it.
• Do not place the unit near ovens or other heat sources. This may be dangerous, but it will
also cause the unit to work harder and use more energy.
• Do not place the unit in direct sunlight; this can affect its appearance, make it work
harder, and reduce its energy efficiency.
• Refrigerant gas may be odourless.
• Do not use the product and contact the retailer for advice if damage has occurred to the
unit, which may have compromised the refrigerant system.
• Any repairs or maintenance must only be done on the unit by a suitably qualified
engineer. Before opening and servicing the unit, the authorised engineer must possess a
copy of the manufacturer’s service manual and follow its safety information to ensure all
hazards are minimised.
• The refrigerant system should not be perforated or punctured.
• At the end of the unit’s lifetime, always dispose in line with local regulations.
• Ensure all storage conditions in the manual are followed.
• WARNING: Do not use means to accelerate the defrosting process or to clean the unit.
ENERGY SAVING AND UNIT SAFETY PROTECTION TIPS
6
• Do not cover or restrict the airflow from the outlet or inlet grills.
• For maximum performance the minimum distance from a wall or objects should be
50cm.
• Keep the filters clean. Under normal conditions, filters should only need cleaning once
every three weeks (approximately). Since the filters remove airborne particles, more
frequent cleaning may be necessary, depending on the air quality.
• For the initial start-up, set the fan speed to maximum and the thermostat to 5 degrees
lower than the current temperature. After, set the fan switch to low and set the
thermostat to your desired setting.
• To protect the unit, we recommend not using the cooling function when the ambient
temperature exceeds 35
o
C. The unit's performance may be affected at lower
temperatures than this. If a very hot day is predicted, running the unit overnight in the
desired room is recommended.
WARNING: This appliance contains flammable refrigerant. If this
leaks and comes into contact with an external ignition source,
there is a fire risk.
CAUTION: The operation manual should be read thoroughly.
CAUTION: Any service personnel working on the unit should read
the service manual prior.
CAUTION: Information on operation and servicing is in the
manual.
7
FEATURES
• The CMAC10M is great for Rooms up to 26 m
2
.
• two-speed fan: Balancing quiet operation with performance.
• Simple operation.
• Castors for Enhanced Portability.
• Durable metal casing.
HOSE SPECIFICATIONS
Hose
Hose External
Diameter (mm)
Supplied Hose Length
Max Permitted
Hose Length (cm)
Cold Air
120
37 – 48cm
200
Hot Air
160
37 – 48cm
300

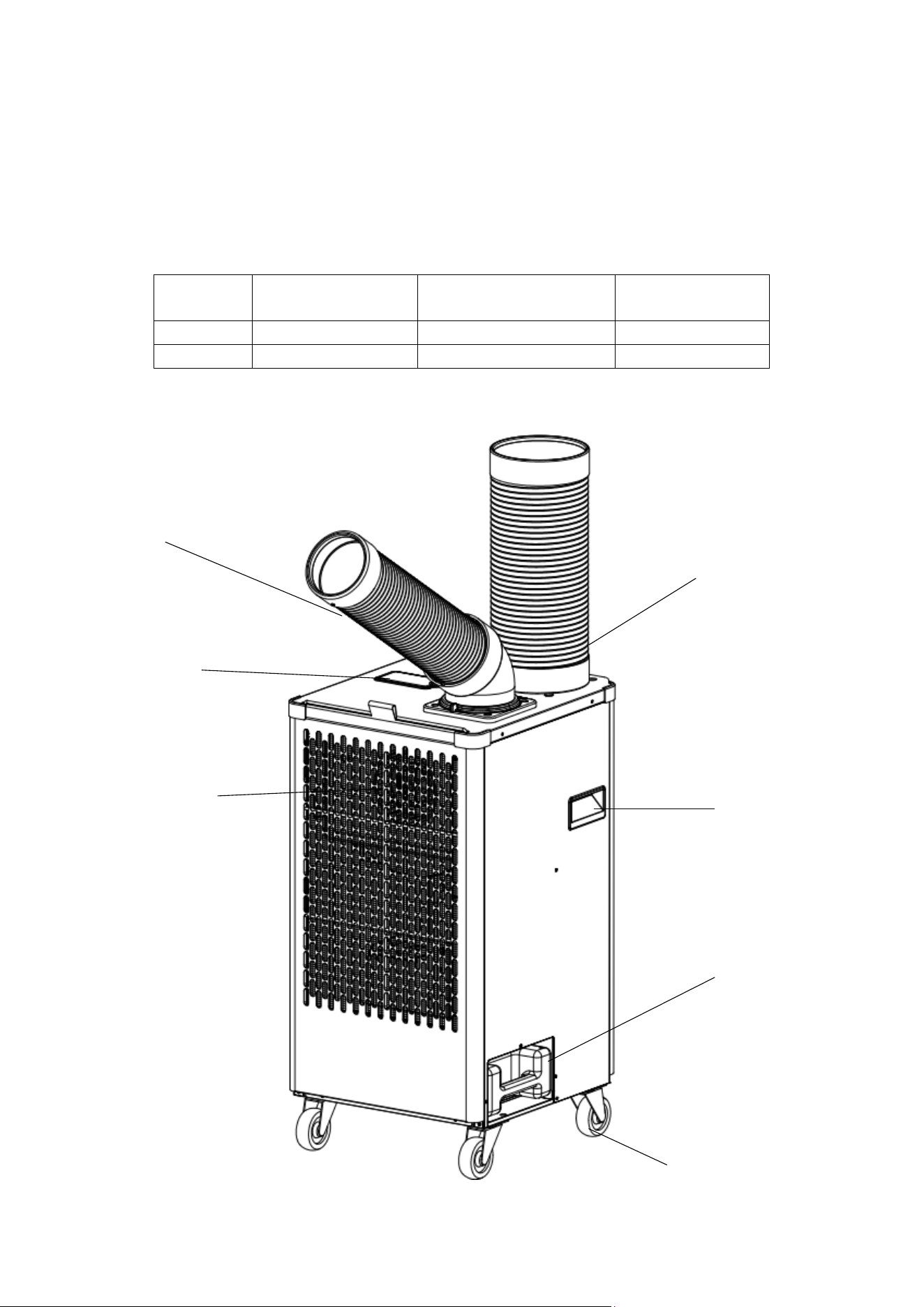

APPLIANCE DIAGRAM
Hot Air Exhaust
Hose
Cold Air Exhaust
Hose
Control Panel
Removeable Filter
Handle
Water Tank
Castors
8
INSTALLATION

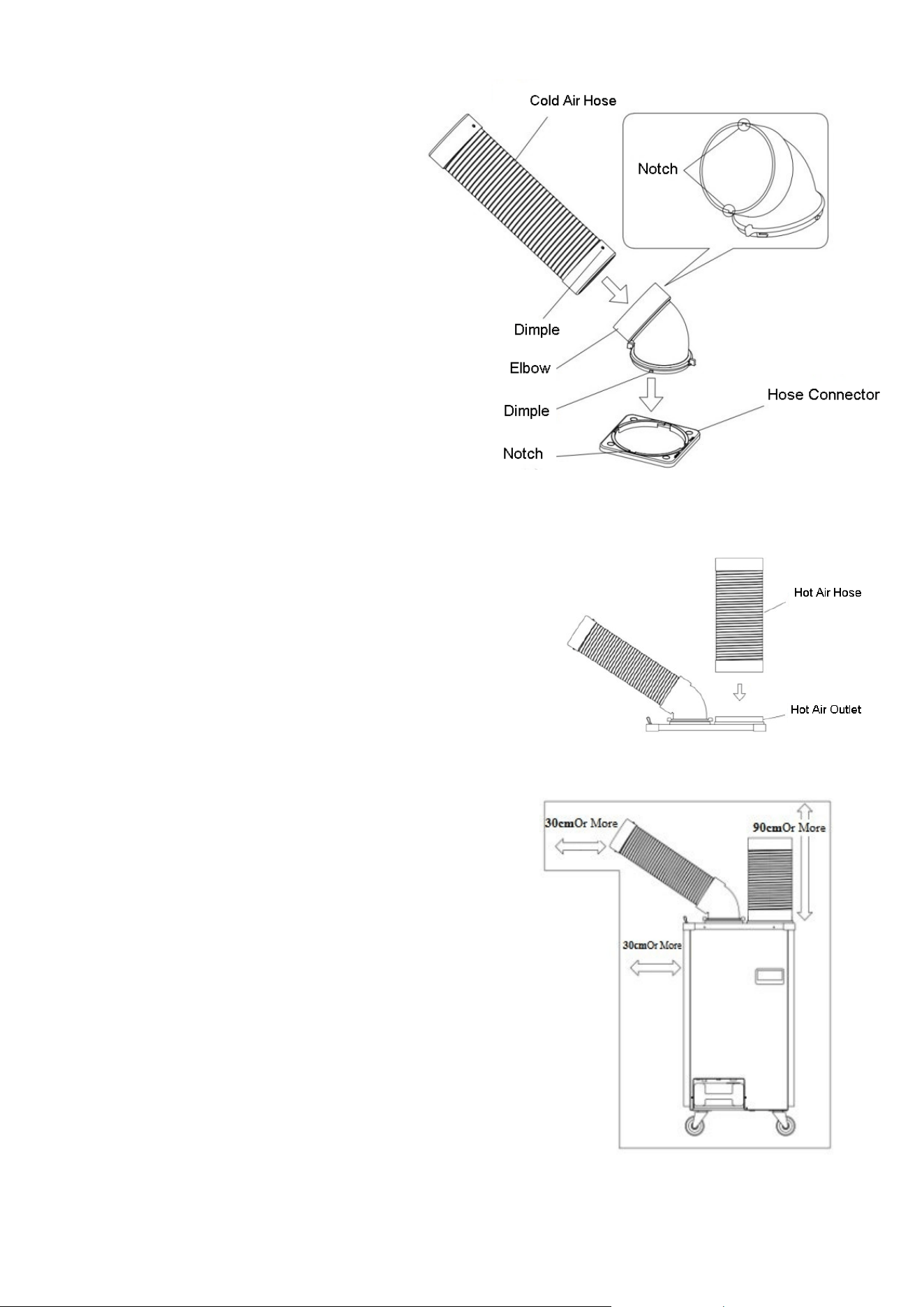

COLD AIR OUTLETS
1. Line up the dimple on the Elbow with the
notch on the Hose connector on the top of
the air conditioner.
2. Rotate anticlockwise until a click can be
heard, indicating the elbow has locked into
place.
3. Insert the Cold Air Hose into the Elbow,
again lining up the dimple with the notch in
the Elbow.
4. Rotate the pipe anticlockwise to fix it in
place.
5. The pipe can then be extended and pointed
in the desired direction.
HOT AIR OUTLET
1. Push the Hot air pipe onto the Hot air outlet on the top of the
appliance.
2. Extend the pipe and route it outside.
NOTES:
• The best form of installation is through a wall duct. Properly
venting, you expel hot air from your room while efficiently
cooling it.
IMPORTANT SAFEGUARDS
If hoses are extended above the permitted length, the unit may
malfunction, which can invalidate the warranty. The outlet vent
must be well-ventilated and not obstructed, as this will cause
the unit to overheat. Keep all the hoses as straight and short as
possible and avoid bending the air hose by more than 45
degrees to maintain the unit's performance. Excessive bends in
the hose may prevent the unit from expelling hot air, leading to
internal damage and invalidating the warranty. Ensure that
sufficient space is left in from the end of the vent pipes (30cm –
Cold air, 90cm Hot air)
9
OPERATION
Turn the control switch to select your desired fan speed between Low and High.
Turn the control switch back to the Off position when you have finished.
The unit can also be used as a dehumidifier without the hot air hose. We advise setting it up with continuous
drainage when using it as a dehumidifier.
MULTI PROTECTIVE FUNCTIONS
FROST PROTECTION
If the exhaust temperature is too low, the machine will automatically stop operating until it rises.
OVERFLOW PROTECTION
When the water in the internal water tank exceeds the warning level, the machine stops operating, and the full
indicator will illuminate the tank. To resume operation, empty the internal water tank. After emptying the
water, the machine will automatically return to its original state.
AUTO-DEFROST
The machine has an automatic defrosting function. If the temperature of the internal coils drops too low during
operation, the unit will enter auto defrost, and the heating symbol will flash on the control panel.
AUTOMATIC THERMAL PROTECTION
The machine has automatic thermal protection to protect its service life. If the temperature within the unit is
outside of the specified range, the compressor and the lower motor will stop operating. After the machine's
temperature recovers, the appliance will automatically return to normal operation.
COMPRESSOR PROTECTION
There is a 3-minute delay start protection function to prevent damage to the compressor.
10
EMPTYING THE INTERNAL WATER TANK
MANUAL DRAINAGE:
When the internal water tank is full, the unit will stop working.
Shut off and unplug the unit. Do not move the appliance, as this may cause the water in the internal tank to
spill out. Remove the water tank from the base of the unit and empty it into a sink or drain. Replace the water
tank in the unit before plugging it back in and restarting the operation.
CONTINUOUS DRAINAGE:

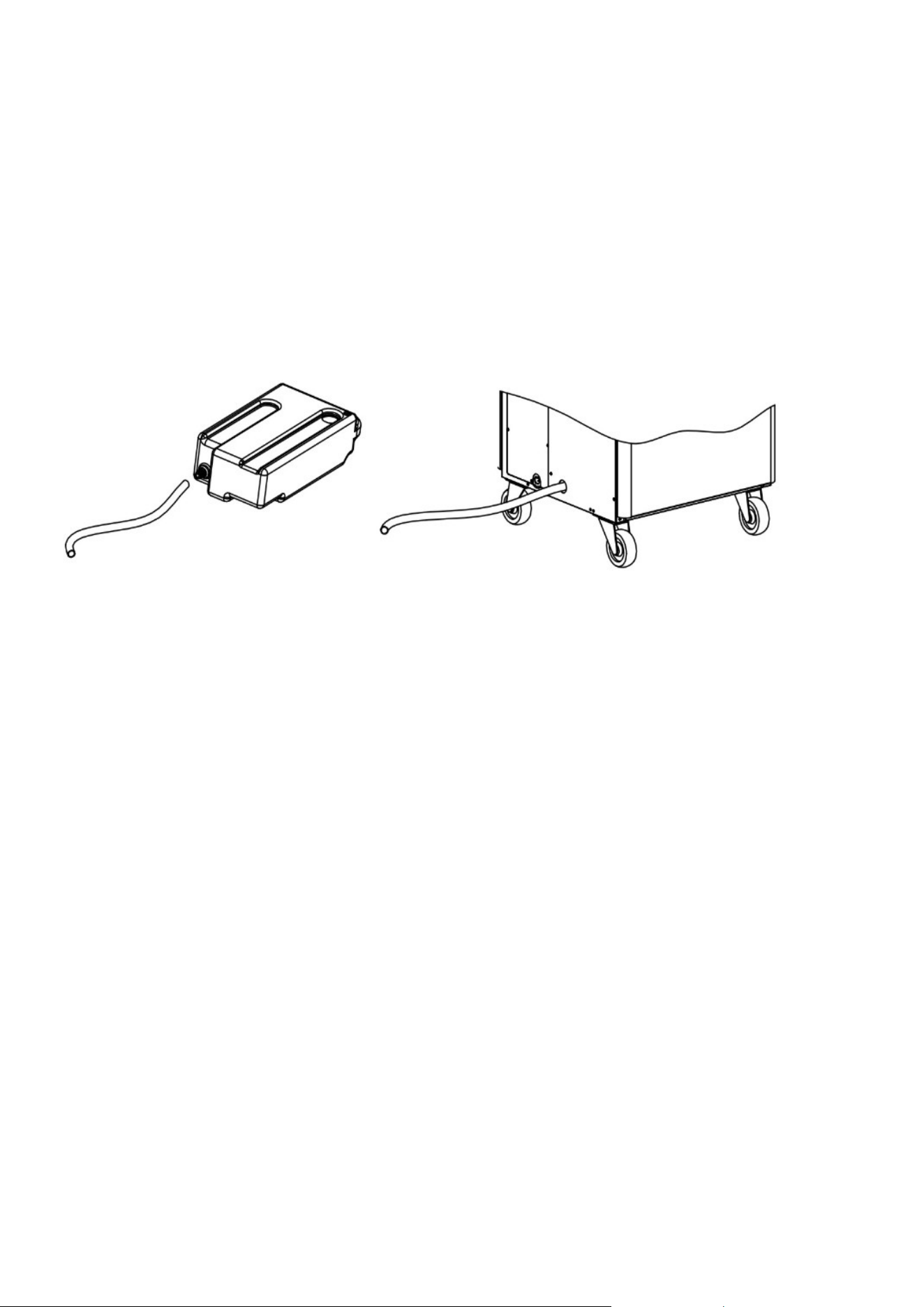

Remove the water tank from the unit and the rubber cap from the end of the drainage spout. Connect the
drainage pipe to the spout. Feed the drainage pipe through the hole in the side of the unit from the inside
before sliding the water tank back into place. The drain is gravity-fed, so it can be routed downwards to a
suitable drain. Alternatively, the pipe can be attached to an external uplift pump (not supplied) to pump the
water uphill to a suitable drainage point.
NOTE: This model has a self-evaporative function, which reduces the need to empty the water tank. If the unit
is vented correctly, most water is reused to cool the condenser coils, and any excess is evaporated. Please do
not use continuous drainage if you intend to use the self-evaporating facility.
CLEANING AND MAINTENANCE
PLEASE TURN OFF THE UNIT AND UNPLUG FROM THE MAINS BEFORE CLEANING OR PERFORMING ANY
MAINTENANCE
CLEAN THE SURFACE
Clean the machine's surface with a wet, soft cloth. Do not use chemicals such as benzene, alcohol, gasoline, etc.;
otherwise, this may damage the surface or the internal workings of the machine.
AIR FILTER CLEANING
If the filter screen is clogged with dust, the air conditioner's effectiveness is reduced. The filter screen should be cleaned
once every two weeks or as often as necessary in your environment.
END-OF-SEASON MAINTENANCE
1. Empty the internal water tank.
2. Turn off the unit and pull out the plug.
3. Leave for 24 hours to dry out.
4. Empty the water tank again, as a small amount of water may have drained.
5. Coil the wire, bind it together, and put it into the accessories space.
6. Separate the vent pipes and store them safely.
7. Cover the unit and keep it in a dry place.
11
TROUBLESHOOTING
Do not repair or disassemble the air conditioning. Unqualified repair will invalidate the warranty and may lead to failure, causing
injuries and property damage. Only use it as directed in this user manual and only perform operations advised here.
Problems
Reasons
Solutions
The air
conditioner does
not work.
There is no electricity.
Please turn it on after connecting it to a socket
with electricity.
FULL indicator is illuminated
Discharge the water inside.
The ambient temperature is too low or
too high
Only use to use the machine within a temperature
range of 18-45⁰C
In cooling mode, the room temperature is
lower than the desired temperature.
Change the desired temperature.
In dry mode, the ambient temperature is
low.
The ambient temperature must be above 18 ⁰C.
(60 ⁰F).
The cooling
effect is not good
There is direct sunlight.
Use curtains to reduce the direct sun heat.
Doors or windows are open; there are a
lot of people; or in cooling mode, there
are other sources of heat (e.g. fridges)
Close doors and windows; increase air
conditioning power
The filter screen is dirty.
Clean or replace the filter screen.
The air inlet or outlet is blocked.
Clear obstructions; make sure venting is correct as
described in this user manual and the hose is not
bent
Loud Noise
The air conditioning is not placed on a flat
surface.
Put the air conditioning in a flat, hard place (to
reduce noise).
The compressor
does not work.
Overheat protection starts.
Wait 3 minutes until the temperature is lowered,
then restart the machine.
Others
No refrigerant or there is minimal
refrigerant.
Refer to Service Centre (check leakage, wielding,
vacuum pump, charge refrigerant according to
nameplate)
Anti-freezing protection
Waiting for defrosting.
The function will recover automatically. No user
input is needed.
High-pressure protection
After the inside gas pressure comes down, it will
function normally. No user input is needed.
If problems not listed in the table occur or recommended solutions do not work, please get in touch with
the service centre.
APPENDIX
Disposal: Do not dispose of this product as unsorted municipal waste. Collection of such
waste must be handled separately as special treatment is necessary. Recycling facilities are
now available for all customers at which you can deposit your old electrical products.
Customers can take any old electrical equipment to participating civic amenity sites run by
their local councils. Please remember that this equipment will be further handled during
the recycling process, so please be considerate when depositing your equipment. Please
get in touch with the local council for details of your local household waste recycling
centres.
12
electriQ UK SUPPORT
www.electriQ.co.uk/support
Please make these simple checks before calling the service line. If the unit still fails to operate, call the
number below or complete the online form.
0330 390 3061
1. Has the unit been standing upright for at least 2 hours?
2. Is the unit plugged into the mains?
3. Is the fuse OK?
4. Switch the unit off and wait three minutes to see if the issue is resolved. Restart the unit.
5. Check if the water tank is full.
Office hours: 9 AM - 5 PM, Monday to Friday
www.electriQ.co.uk
Unit 2A Trident Business Park,
Neptune Way, Leeds Road,
Huddersfield, HD2 1UA.
TECHNICAL DATA
Model
CMAC10M
Cooling capacity:
9,200 BTU
Input power:
950 W
Fan
AC motor with two fan speeds.
Air flow volume:
400 m³/h
Input current:
4.2 A
Refrigerant:
R290/250g
Maximum working pressure of
suction/exhaust side:
1.0/2.5 MPa
Maximum Allowable Pressure
2.5 MPa
Power Supply:
AC 220-240V/50 Hz
Net Weight:
42 kg
Dimension(L*D*H):
430 x 405 x 855 mm
The unit must be vented outside when in Air Cooling mode. For the purposes of EU
regulation EN12102, this is a local air conditioner that produces less than 65dB(A) sound
energy.
V20240830S
