HUSQVARNA OUTDOOR PRODUCTS ITALIA SPA
V41000003
PNC ML Model Brand
965998501 03 GD 46 VDA Gardena
Number
of Pages 1 of 3
Factory: IIQ - Valmadrera Product Group: OP 93
Publication Number: EIPL2012 V43000003 Petrol Portable
Publication Date: 08/10/12 Sub Group 1071
HUSQVARNA OUTDOOR PRODUCTS ITALIA SPA
EIPL2012 V43000003 Page 2 of 3
HUSQVARNA OUTDOOR PRODUCTS ITALIA SPA
EIPL2012 V43000003 Page 3 of 3

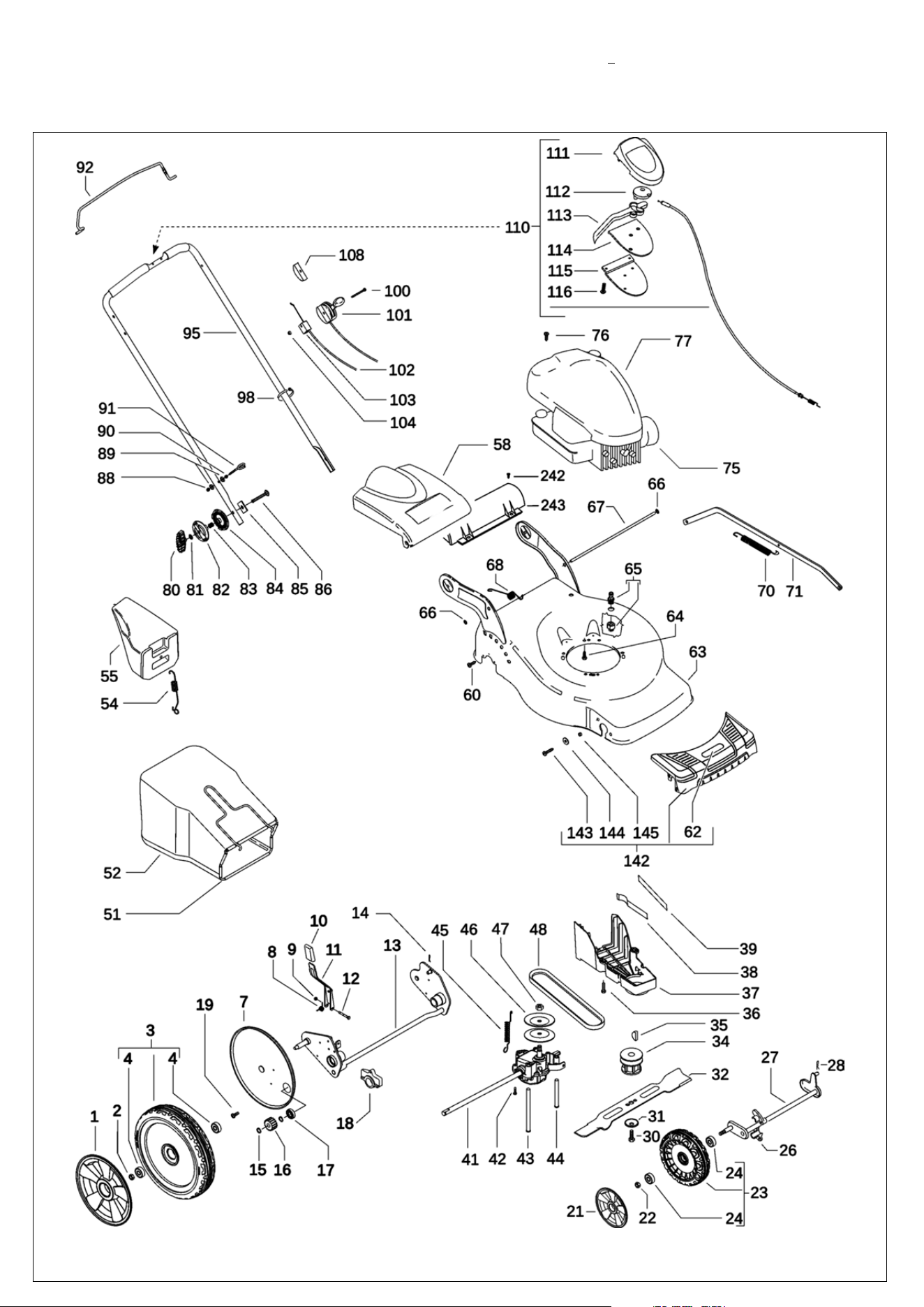

Item PN Description Qty
1 504 54 22–01 wheel cover Ø280 2
2 504 85 78–01 nut M8, self locking, flanged 2
3 505 43 60–01 wheel assy Ø280 2
4 504 54 82–01 ball bearing 4
7 504 53 99–01 dust shield Ø280 2
8 531 21 08–17 spring, wheel regulator lever 1
9 531 20 84–92 nut M5, self locking 1
10 525 34 74–02 handle, wheel regulator 1
11 525 34 84–01 wheel regulator lever 1
12 538 23 58–07 screw M5x45 1
13 510 09 28–01 rear axle 1
14 531 20 66–53 cotter pin 1
15 531 20 87–72 seeger 2
16 544 34 23–01 gear 2
17 531 20 87–78 ball bearing 2
18 531 20 59–44 rear axle housing 2
19 531 20 78–56 screw M5x10 4
21 544 44 59–01 wheel cover Ø190 1
22 504 85 78–01 nut M8, self locking, flanged 2
23 544 91 73–01 wheel assy Ø190 2
24 504 54 82–01 ball bearing 2
26 531 20 50–57 front axle housing 4
27 573 97 60–01 front axle 1
28 531 20 66–53 cotter pin 1
30 531 20 80–08 screw, 3/8” 1
31 531 20 72–37 spring washer 1
32 531 21 10–17 mulching blade 1
34 531 20 61–69 blade support 1
35 505 29 09–01 key 1
36 531 20 78–56 screw 5x10 3
37 544 46 22–01 belt cover 1
38 504 04 61–01 belt guide 1
39 544 46 25–01 belt guide 1
41 504 54 14–02 gear box 1
42 510 03 75–01 screw 4x16 w. washer 2
43 544 93 44–01 belt guide 1
44 544 93 43–01 belt guide 1
45 544 93 47–01 gear box spring 1
46 504 54 79–01 pulley plate 2
47 504 54 80–01 nut 2
48 504 03 48–01 belt Z28 10X710 1
51 531 21 34–67 sack frame 1
52 525 34 81–01 sack 1
54 531 21 11–84 spring, mulching plug 1
55 531 21 06–17 mulching plug 1
58 525 34 83–01 safety flap 1
60 531 20 82–16 screw 5x16, self threading 2
62 525 34 00–01 label, Gardena 1
63 525 55 53–01 deck 1
64 531 21 28–51 screw 3/8” + split washer 3
65 525 34 78–01 snap on connector 1/2” 1
66 531 21 08–24 lock washer 2
67 531 21 14–41 safety flap bar 1
68 531 21 18–40 spring 1
70 531 21 37–83 wheel regulation spring 1
71 531 20 50–69 wheel regulation bar 1
Item PN Description Qty
75 ——— engine, Briggs & Stratton, model
number 126T024837
1
76 531 21 38–70 screw 2
77 531 21 39–98 engine cover 1
80 525 34 74–01 knob 2
81 531 20 49–22 washer 2
82 531 21 14–74 locking disc, outer 2
83 531 21 14–76 spring 2
84 531 21 14–73 locking disc, inner 2
85 531 21 15–81 plate 2
86 531 21 14–80 screw M8x55 2
88 531 20 84–91 nut M6 self 2
89 531 20 49–61 washer 4
90 531 20 71–65 nut M6 2
91 531 20 51–69 starter cable guide 2
92 544 46 38–01 brake lever 1
95 525 34 73–03 handle 1
99 531 20 55–81 binder 2
100 531 21 35–17 screw M6x80 1
101 531 21 34–91 accelerator lever and cable 1
102 531 21 35–22 brake cable 1
103 531 20 80–43 cable support 1
104 531 20 80–63 nut M6 1
108 504 86 82–02 plate 1
110 544 93 29–12 EZ control assy 1
111 532 41 35–42 cover 1
112 532 18 73–53 pulley 1
113 505 53 12–03 lever 1
114 532 41 35–41 plate 1
115 532 18 70–97 holder 1
116 532 18 16–98 screw 5
142 574 25 45–01 front cover, kit 1
143 525 43 31–02 screw 4.2x19, self threading 4
144 505 22 74–02 washer 5x15x1.5, black 4
145 529 29 93–01 spacer 4
242 576 04 74–01 screw 2
243 579 30 09–01 grass seal 1
