E S S E N T I A L S FOR LIFE
User
Manual
MODEL
GGSCF99W
V1.5 | 1124
Hybrid Chest Fridge/Freezer
99L Capacity
Purchase Details
For future reference, please record the following
information which can be found on the rating plate
and the date of purchase which can be found on your
sales invoice.
The rating plate of your hob is located on the rear of the
appliance. Therefore please fit the duplicate data plates
or label on the outside of the cupboard to sure that the
label can be easily seen during operation.
STORE DETAILS
STORE NAME
|
ADDRESS
|
TELEPHONE
|
PURCHASE DATE
|
PRODUCT DETAILS
MODEL NO.
|
SERIAL NO.*
|
3
Contents
Customer Care
Sôlt recommends the use of original spare parts. When contacting our customer service team, please ensure
that you have the following information at hand (which can be found on your appliances’ rating plate).
— Model Number
— Serial Number
T . 1300 11 4357 | E. support@residentiagroup.com.au
2 Purchase Details
5 Welcome
6 General Safety Instructions
9 Product Overview
11 Getting Started
11 Installation Instructions
14 Maintenance and Cleaning
16 FAQs & Troubleshooting
17 Warranty
19 Specifications
20 Warranty Information
4
This page
is intentionally
left blank
5
Congratulations on purchasing
your new Hybrid Freezer!
The Sôlt brand is proudly
distributed within Australia by
Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual
for information regarding your product’s parts and labour
warranty, or visit us online at www.residentia.group
At Residentia Group, we are customer obsessed and our
Support Team are there to ensure you get the most out of
your appliance. Should you want to learn more about the
various features of your Hybrid Chest, and importantly
taking care of your appliance when cleaning, our Support
Team are here to help.
You can use our online Support Centre at anytime by
visiting http://support.residentiagroup.com.au, or you can
contact us via calling us on 1300 11 HELP (4357).
It is important that you read through the following use and
care manual thoroughly to familiarise yourself with the
installation and operation requirements of your appliance
to ensure optimum performance.
Again, thank you for choosing an Sôlt appliance and we
look forward to being of service to you.
Kind Regards,
The Residentia Team
Residentia Group
—
Head Office.
165 Barkly Ave
Burnley
Victoria 3121
Australia
—
ACN.
600 546 656
—
Online.
residentia.group
Sôlt
—
Online.
www.solt.house
—
Instagram.
/solt.house
—
Facebook.
/solt.appliances
6
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
Read this manual thoroughly before first use, even
if you are familiar with this type of product. The
safety precautions enclosed herein reduce the risk
of fire, electric shock and injury when correctly
adhered to.
Make sure you understand all instructions and
warnings.
Keep the manual in a safe place for future
reference, along with the completed warranty
card and purchase receipt. If you sell or transfer
ownership of this product, pass on these
instructions to the new owner.
Always follow basic safety precautions and
accident prevention measures when using an
electrical appliance, including the following:
IMPORTANT: Pay particular attention to messages
that contain the words DANGER, WARNING or
CAUTION. These words are used to alert you to a
potential hazard that can seriously injure you and
others. The instructions will tell you how to reduce
the chance of injury and let you know what can
happen if the instructions are not followed.
CAUTION
RISK OF FIRE
This symbol alerts you to
take care as this appliance
contains a flammable
refrigerant (isobutane) and
insulation blowing gas
(cyclopentane). Do not
expose it to high heat,
sparks and open flames.
The refrigerant isobutane (R600a) is contained
within the refrigerant circuit of the appliance, a gas
with a high level of environmental compatibility,
which is nevertheless flammable. During
transportation and installation of the appliance,
ensure that none of the components of the
refrigerant circuit become damaged.
WARNING: Do not damage the refrigerant
circuit! Never use an appliance with a damaged
refrigerant circuit! If the refrigerant circuit becomes
damaged, avoid proximity to open fires and all
types of heat and ignition sources. Thoroughly
ventilate the room in which the appliance is
located.
DANGER: It is hazardous for anyone other than an
authorised service person to service this appliance.
In Queensland, the authorised service person MUST
hold a Gas Work Authorisation for hydrocarbon
refrigerants to carry out servicing or repairs which
involve the removal of covers.
The room for installing the appliance must be at
least 1m³ per 8g of refrigerant. The amount and
type of refrigerant in the appliance can be found in
the Technical Specifications on page 17 and on the
rating plate, found on the appliance.
Usage Conditions and Restrictions
• Domestic use only: This appliance is intended
for indoor household use only. It is not intended
for commercial, industrial or outdoor use. It is not
intended for use in a recreational vehicle.
• Purpose: Do not use this appliance for anything
other than its intended purpose. Other uses are
not recommended and may cause fire, electric
shock or personal injury.
• Attachments: The use of attachments is not
recommended by the appliance manufacturer
and distributor as they may be hazardous.
• Improper use: Damage due to improper use,
or repairs made by unqualified personnel will
void your warranty. We assume no liability
for any eventual damages caused by misuse
of the product or noncompliance with these
instructions.
General Safety Instructions
7
• WARNING: Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by the
manufacturer.
• Usage restriction: This appliance is not intended
for use by persons (including children) with
reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless
they have been given supervision or instructions
concerning use of the appliance by a person
responsible for their safety.
• Children: Supervise young children to ensure
they do not play with the appliance. Never allow
children to operate, play with or crawl inside the
appliance.
• WARNING: Do not use electrical appliances
inside the appliance, unless they are of the type
recommended by the manufacturer.
• Explosive or flammable substances: Do not
store explosive substances such as aerosol
cans with a flammable propellant in this
appliance. Do not store or use petrol or any
other flammable vapours and liquids in the
vicinity of this or any other appliance. Do not use
such substances for cleaning the appliance. The
fumes can create a fire hazard or an explosion.
• Damage: Do not use the appliance if the power
cord, plug or the appliance itself is damaged.
If the cord is damaged, contact the after sales
support line and have the cord replaced by
qualified personnel in order to avoid a hazard.
• WARNING: Do not damage the refrigerant
circuit.
• Do not modify: Do not attempt to alter or
modify this appliance in any way.
• Repair: Do not attempt to repair or replace any
part of this appliance unless it is specifically
recommended in this manual. All other servicing
should be referred to a qualified technician.
Contact the after sales support line for advice.
• WARNING: Do not locate multiple portable
socket-outlets or portable power supplies at the
rear of the appliance.
Electrical Safety
• Voltage: Before connecting and turning on the
appliance, ensure the electrical voltage and
circuit frequency correspond to that indicated
on the appliance rating label.
• Earthing: This appliance should be properly
earthed for your safety. The power cord of this
appliance is equipped with a three-prong plug
for use in standard wall outlets to minimise the
possibility of electrical shock. Do not modify the
cord and/or plug provided with the appliance.
Improper use of the earthed plug can result in
the risk of electric shock.
• Connection: This appliance requires a standard
220-240 V AC 50Hz electrical outlet. Do not
overload the electrical circuit.
• Power cord: Do not kink or damage the power
cord; do not leave it exposed or dangling. Secure
it at the back of the appliance so no one steps
on or places anything on the cord or against it.
Keep the cord out of reach of children. When
moving the appliance, make sure not to damage
the power cord.
• Auxiliary Items: Do not use an inverter, adaptor
or extension cord with this appliance. If the
cord is too short, have a qualified electrician
install an outlet near the appliance. Use of an
extension cord and an inverter can negatively
affect the performance of the unit.
• Protect from moisture: To protect against the
risk of electric shock, do not immerse the unit,
cord or plug in water or spray it with any other
liquid. Do not connect or disconnect the electric
plug when your hands are wet. Turn the power
switch off before removing the plug from the
socket.
• WARNING: Disconnect! To reduce the risk of fire,
electric shock or personal injury, always unplug
the appliance from the socket when not in use,
when moving and before cleaning or servicing.
Never unplug the unit by pulling the power cord.
Always grip the plug firmly and pull straight out
from the power point.
• Electrical work: Any electrical work required
for the installation of this appliance should be
carried out by a qualified electrician.
Never use this appliance with a damaged
refrigerant circuit! If the coolant circuit becomes
damaged, avoid proximity to open fires and all
types of heat sources. The room in which the
appliance is located should be ventilated for a few
minutes
Installation
General Safety Instructions
8
Heavy: This appliance is heavy, take care when
moving it. To avoid back or other injury, consider a
two person lift or mechanical aid when installing it.
Failure to do so can result in back or other injury.
Damage: When unpacking, check the appliance
carefully for damage. If it is damaged, do not
install the appliance. Contact our after sales
support centre on 1300 43 57 for advice on
examination or return of the damaged appliance.
Protect from moisture: Install the appliance in an
indoor area protected from wind, rain, water spray
or drips.
Protect from heat: Do not install the appliance
next to an oven, grill or other source of high heat,
or where it will be exposed to direct sunlight for
prolonged periods of time.
WARNING: Ventilation: To ensure proper
ventilation, keep any ventilation openings,
in the appliance enclosure or in the built-in
structure, clear of obstructions. Ensure adequate
air circulation around the appliance to prevent
overheating.
Level: Install the appliance level in order to ensure
proper operation.
Cleaning and Maintenance
Disconnect: Unplug the appliance before
cleaning or servicing. Failure to do so can result in
electric shock, injury or death. Do not connect or
disconnect the plug when your hands are wet.
Flames: Do not let open flames or ignition sources
enter the appliance.
Flammable/explosive substances: Never clean
this appliance with flammable fluids. Do not store
or use volatile, flammable or explosive propellants
or liquids in or close to this or any other appliance.
The fumes can create a fire hazard or explosion.
Solvents: Do not use solvent based cleaning
agents or abrasives on the interior as these
may damage or discolour the surfaces of the
appliances.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process. Never
use a sharp or metal instrument to remove frost
or clean the appliance. Use a plastic scraper, if
necessary.
Service: Do not attempt to repair, modify
or replace any part of the appliance unless
specifically recommended in this manual. Refer
all other servicing to a qualified technician, or
contact the after sales support line for advice on
examination or repair of the appliance.
Responsible disposal
Note: At the end of its working life, do not throw
this appliance out with your household rubbish.
Electrical and electronic products contain
substances that can have a detrimental effect on
the environment and human health if disposed
of inappropriately. Observe any local regulations
regarding the disposal of electrical consumer
goods and dispose of it appropriately for recycling
and recovery of the refrigerant and blowing agent.
Contact your municipal authorities for advice on
recycling facilities in your area.
WARNING! This refrigeration appliance contains
flammable refrigerants and insulation blowing
gases, which must be removed before disposal.
Contact your municipal authorities for any codes
or regulations concerning the disposal of such
materials.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special
treatment is necessary.
This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic
Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to
the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
The symbol on the product indicates that it may not be treated as normal household waste.
It should be taken to a collection point for the recycling of electrical and electronic goods.
This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling
of this product please contact your local council, your household waste disposal service, or the shop where you purchased
it.
For more detailed information about treatment, recovery and recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased the product.
General Safety Instructions
9
Hybrid Chest Fridge/Freezer Layout
1. Handle
2. Shelving basket
3. Power cord
4. Shutter
5. Temperature control panel
6. Cabinet
7. Drain Hole
8. Leveling foot
Key:
Product Overview
1
2
3
6
4
5
8
7
(The above pictures are for reference only, and the actual configuration shall be subject to the actual
purchase or the seller’s statement)
• The freezer can maintain the freshness of food for a long time at low temperatures.
It is mainly used for storing frozen food and making ice cubes.
• The freezer is suitable for storing meat, fish, shrimp, and pastries that are not to be consumed in
the short term. It is not suitable for storing fluids in bottled or sealed containers, such as bottled beer
or beverages.
• Please note that the food should be consumed by its expiration date.
• The freezing speed of the product depends on the amount of food stored and the ambient
temperature.
If too much food at room temperature is placed at once, it is recommended to set the temperature
controller to the maximum level and operate it for 24 hours in advance or use ice cubes for cooling.
Moreover, large pieces of food should be divided into small pieces and stored separately to ensure
proper freezing. Otherwise, certain parts of large or excessive food may not freeze properly, leading to
potential spoilage.
Reminder:
Due to the wear and tear of the hinge during long-term opening and closing, the hinge’s service life could be affected and noise may occur.
It is recommended that users regularly apply lubricating oil to the hinges for maintenance, which can effectively eliminate noise and extend
the service life of the hinges.
10
Product Overview
Hybrid Chest Freezer Layout
• After power on the “POWER” indicator light will be light( green ).
• The area where the temperature controller knob points to “COOLING” is the refrigeration area, and
“FREEZING” is the frozen area;
• When the temperature controller knob is turned clockwise, the temperature inside the freezer
decreases;
• When the temperature controller knob is turned counterclockwise, the temperature inside the
freezer increases;
Temperature Range:
Freezer: -24°C – -12°C
Fridge: 1-10°C
(The above pictures are for reference only, and the actual configuration shall be subject to the actual
purchase or the seller’s statement)
Recommended
gear
Recommended
gear
Recommended
setting
Recommended
setting
11
Unpacking
• Packaging materials: This Beverage Centre
has been packaged to protect it against
transportation damage. Remove all packaging
materials from around and inside the Beverage
Centre and keep the original packaging carton
and materials in a safe place. It will help
prevent any damage if the product needs to
be transported in the future, and you can use
it to store the Beverage Centre when it is not in
use. In the event the carton is to be disposed of,
please recycle all packaging materials where
possible.
• Suffocation: Plastic wrapping can be a
suffocation hazard for babies and young
children, so ensure all packaging materials are
out of their reach and disposed of safely.
• Power cord: Unwind the power cord to its full
length and inspect it for damage. Do not use
the Beverage Centre if it or its cord have been
damaged or are not working properly. In case of
damage, contact our after sales support line for
advice on examination, repair or return of the
damaged product.
• Read the manual: Read this manual to
familiarise yourself with the Beverage
Centre. Pay particular attention to the safety
instructions on the previous pages.
• Clean: To remove any dust from transit and
storage, clean the interior and exterior surfaces
of the Beverage Centre with lukewarm water
and a soft cloth. Dry thoroughly.
• Two person installation: Use two or more
people to move and install the appliance.
Failure to do so can result in back or other injury.
• Freestanding design: This appliance is designed
to be freestanding only, and should not be
recessed or built-in.
• Floor surface: This appliance must be properly
positioned on a dry, sturdy, level surface that
is strong enough to support it when it is fully
loaded.
• Ambient temperature: The ambient
temperatures must correspond to the climate
class ( T ) indicated on the rating plate of the
appliance: 16° C – 43° C.
• Clearances: Ensure that air can circulate
freely around the back of the cabinet, which
is necessary to cool the compressor and
condenser. Allow at least 20cm clear space at
the back, 20cm at the sides, and 70cm at the
top of the unit.
• Wall Units Above: Ideally, the appliance should
not be positioned below overhanging wall units.
However, if the appliance must be positioned
below an overhanging wall unit, make sure to
allow sufficient room so you can comfortably
open the lid and access the contents.
DO NOT install/use the appliance in the following
locations/situations:
• In moist areas or areas of high humidity.
• In a recreational vehicle, or for use with an
inverter.
• In direct sunlight, near heat sources, next to an
open flame, cooking or heating appliance, or
near any other source of high heat.
• Direct sunlight may affect the acrylic coating
and heat sources may increase the unit’s power
consumption. For best energy efficiency install
the appliance in the coolest area of the room.
• In an area with extreme cold ambient
temperatures.
• In an area with excessive moisture and high
humidity. Make sure it is protected from
elements such as wind, rain, water spray or
drips.
• In an area where petrol or other explosive and/
or flammable liquids or fumes are used or
stored. The fumes can create a fire hazard or
explosion.
Getting Started
Installation Instructions
12
Electrical connection
• WARNING! It must be possible to disconnect
the appliance from the mains power supply; the
plug must therefore be easily accessible after
installation.
• Before plugging in your new freezer, let it stand
upright for at least 2 hours. This will allow the
refrigerant gases to settle into the compressor
and reduce the possibility of a malfunction in
the cooling system.
• The appliance must be earthed. The plug of
the power supply cord is equipped with a
contact for this purpose. Do not under any
circumstances cut or remove the third (earth)
prong from the power cord.
If the plug does not fit your outlet, consult a
licensed electrician for advice to have the outlet
changed.
• Plug the unit into a dedicated, properly earthed
wall outlet. Ensure that your outlet voltage and
circuit frequency correspond to the voltage
stated on the rating label.
• Secure the freezer’s supply cord behind the unit.
Do not leave it exposed or dangling to prevent
injury and accidental disconnection from the
power supply.
• Adjust the temperature control as described
below.
• When first starting up, and after a period out of
use, allow the unit to cool down for at least 2–3
hours
(4 hours if starting up during warm weather in
summer) before placing food in the freezer.
• Do not store food uncovered in the freezer.
Always use good quality, freezer-proof
packaging to maintain food quality. Remove
air from packages of solid food and seal bags
tightly before freezing.
• Keep portions small to ensure they are frozen
(and subsequently defrosted) rapidly.
• Make sure that fresh, unfrozen food packages
do not touch food that is already frozen, thus
avoiding a temperature rise in the frozen food.
• When freezing food, do not push food together
too much, leave some space for air to circulate
around each item. Do not place packages
directly against the back wall.
• When buying frozen food, only buy quantities
that you can store straight away; use an
insulated container for your shopping and when
you get home, place the food in the freezer
immediately.
• When storing pre-packed, commercially frozen
food, follow the food manufacturer’s instructions
for storing the food in a home freezer. Do
not exceed any storage times listed on the
packaging.
• Once you have opened a packet of frozen
food, re-wrap it airtight to prevent surface
evaporation which causes drying or freezer
burn.
• Do not place carbonated liquids such as bottles
of fizzy drink in the freezer as the container
could explode under pressure and damage the
freezer.
• Do not refreeze food once it has been defrosted.
• Frozen food which has thawed accidentally
should either be used immediately or thrown
away. Alternatively, if the food is uncooked and
has not been completely defrosted, it may be
cooked and then refrozen.
• CAUTION! Do not remove items from the freezer
if your hands are damp or wet as this could
cause skin abrasions.
Installation Instructions
Tips for Using the Appliance
13
The appliance should be placed in the coolest
area of the room, away from heat producing
appliances or heating ducts. Please avoid
placement in direct sunlight.
• Let hot foods cool to room temperature before
placing them in the appliance.
• Do not overload the appliance with unfrozen
food as this may cause it to freeze slowly and
risk food spoilage.
• Be sure to wrap foods properly and wipe
containers dry before placing them in the
appliance. This cuts down on frost building up
inside in the unit.
• Please do not wrap items in aluminium foil, wax
paper or paper towel. This materials interfere
with cold air circulation, making the appliance
less efficient.
• Organise and label food to reduce door
openings and extended searches. Remove as
many items as needed at one time, ensuring the
unit is opened as few times as possible.
Before using the freezer, please remove all the
package, which includes the base pad, the foam
cushion block in the freezer and adhesive
tape, etc. And tear off the protective film on the
door body and case.
• Select the place that is far away from the heat
source and direct sunlight Do not place it in
damp or watery areas to prevent rusting or
weakening the insulation effect.
• Place the freezer in a well-ventilated indoor
area with a flat and sturdy ground.
• The top space of the freezer should be greater
than 70cm and the distance between the
sides and back of the freezer and the wall
should be greater than 20cm, so as to facilitate
the opening and closing of the freezer door and
heat dissipation.
Tips for Energy Savings
Placement
14
Defrosting
The chest freezer requires manual defrost.
For efficient operation and minimum energy
consumption, defrost the freezer compartment
when the frost on the freezer walls is building up.
Do not let frost build up to more than 3–4mm
thickness. For efficiency, choose a time when your
stock of frozen food is low.
• Unplug the freezer and open the door. Remove
the food and storage basket. (Keep any frozen
food temporarily in a fridge or cooler bag to
keep defrosting to a minimum.)
• During defrosting, any ice and frost that has
accumulated will melt into the freezer cabinet.
To drain the water, open the drainage hole (Fig.
2). When the ice softens, an ice scraper can be
used to help speed up the process.
Cleaning
WARNING
Before cleaning the appliance, make sure it is
switched off and disconnected from the power
supply.
Failure to do so can result in electric shock or injury.
• Wash the inside surfaces and the interior
accessories with a damp, warm cloth moistened
in a water and baking soda solution. The
solution should be about 2 tablespoons of
baking soda to 1 litre of water. Rinse and wipe
dry with a soft cloth.
• Clean the outside of the unit with a damp, well
wrung out cloth, keeping the area of the controls
dry. Keep the lid gasket (seal) clean.
• Never use boiling water to accelerate
defrosting as it may damage the plastic
components.
• Regularly check the drain in the freezer for
defrost water. If necessary, clean the drain. If the
drain is blocked, water will collect in the base of
the appliance.
• After cleaning/defrosting, push the drain plug
in and also re-plug the drain plug inside the
freezer cabinet.
• After everything is dry, place appliance back
into service.
• Allow approximately 1–2 hours for the cabinet
to cool down again (depending on the length
of time the freezer was disconnected from the
power).
WARNING
Never clean the unit with an abrasive, acid,
oil or solvent based cleaning agent. Never use
flammable fluids or sprays for cleaning as the
fumes from these substances can create a fire
hazard or Explosion.
Service, repair and spare parts
Do not attempt to alter or modify this appliance
in any way, or to repair or replace any part unless
it is specifically recommended in this manual. All
other servicing should be referred to a qualified
technician. Contact our after sales support on 1300
11 43 57 for advice.
Our after sales support centre stocks a selection of
spare parts for the Solt 99L Chest Fridge/Freezer.
To enquire about purchasing a part, call us on 1300
11 43 57 or email support@residentiagroup.com.au
Power Failure
Most power failures are corrected within a few
hours and should not affect the temperature of
your appliance if you minimise the number of times
the door is opened. If the power is going to be off
for a longer period of time, take proper steps to
protect the contents.
Maintenance and Cleaning

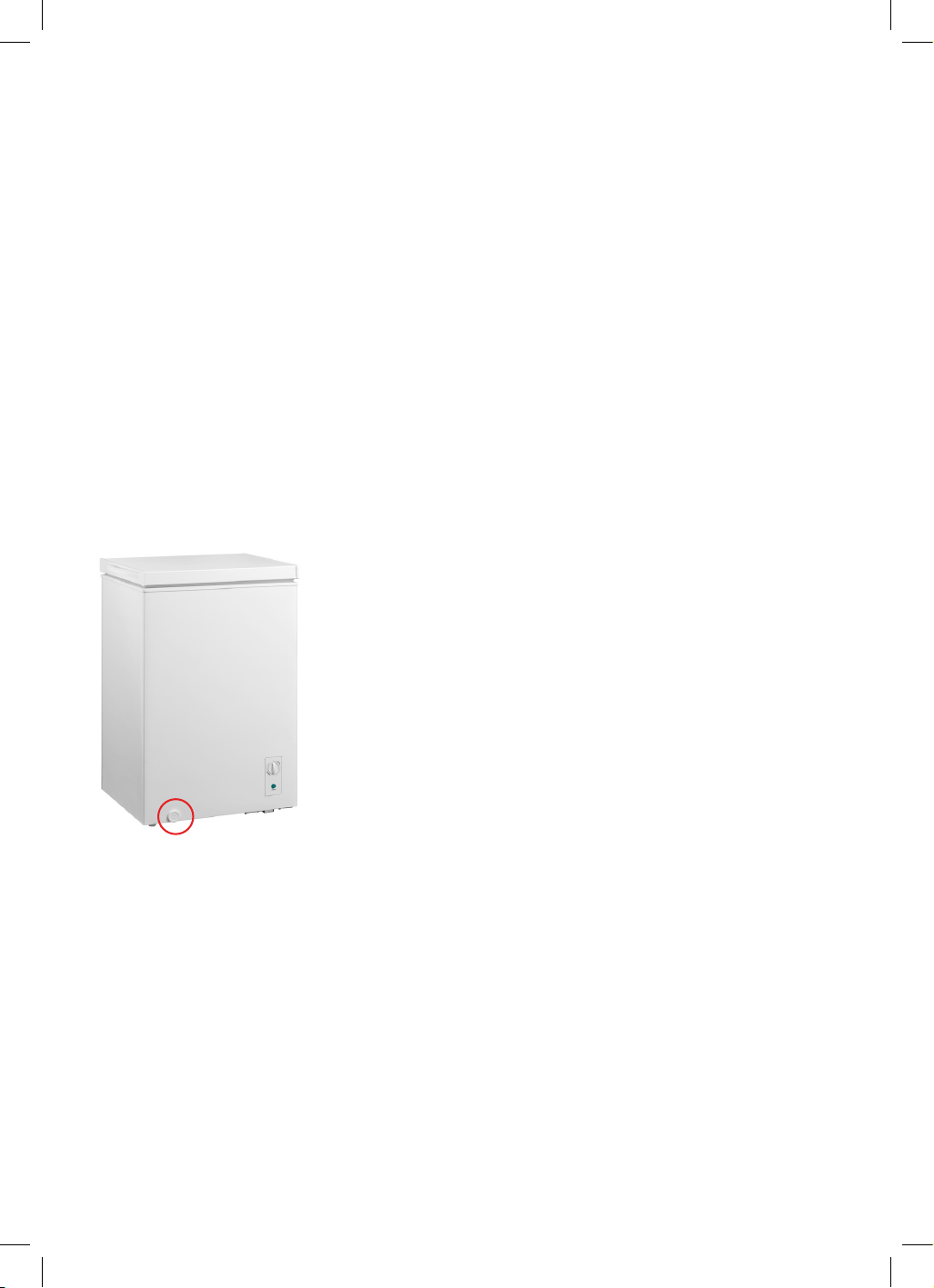

Fig. 2
15
Maintenance and Cleaning
Service, repair and spare parts
Do not attempt to alter or modify this appliance
in any way, or to repair or replace any part unless
it is specifically recommended in this manual. All
other servicing should be referred to a qualified
technician. Contact our after sales support on 1300
11 43 57 for advice.
Our after sales support centre stocks a selection of
spare parts for the Solt 99L Chest Freezer.
To enquire about purchasing a part, call us on 1300
11 43 57 or email support@residentiagroup.com.au
Power Failure
Most power failures are corrected within a few
hours and should not affect the temperature of
your appliance if you minimise the number of times
the door is opened. If the power is going to be off
for a longer period of time, take proper steps to
protect the contents.
16
Problem Possible Solution
The freezer does not work Whether the power supply is connected and the plug is firmly inserted
Whether the voltage is too low
Whether the temperature control knob is in the work area
Is there a power outage or partial circuit tripping
The freezer smells bad Odorous food should be tightly packed
Check for rotten food
The interior of the freezer needs to be cleaned
Long term operation of
the compressor
It is normal for freezers to work for a long time due to high
temperatures in summer
Do not put too much food into the freezer at one time.
Put the food into the freezer after it has cooled down
Open the freezer door too often
The frost layer of the freezer is too thick (defrosting is required at t
his time)
The freezer door cannot
be closed correctly
The food package is jammed so the door cannot be closed
Too much food has been put in
Freezer tilts
Loud noise Whether the ground is flat and the freezer is placed stably
Whether the accessories of the freezer are placed in the normal
position
It is difficult to open the
freezer for a short time
After the refrigeration of the freezer, there is a pressure
difference between
the inside and outside of the case, which can cause a temporary
difficulty in opening the door. This is a normal physical phenomenon.
Case emits heat
External condensation
When the freezer is running, the outer shell of the case will
generate heat, even generating more heat in the early stages of
operation and summer.
This is caused by the heat dissipation of the condenser and is a
normal phenomenon.
When the environmental humidity is high, there may be condensation
on the surface of the case and the door seal, which is a normal
phenomenon. Wipe dry with a dry towel.
Airflow sound
Buzzing sound
Clattering sound
The refrigerant circulating in the refrigeration pipeline will produce an
eruption sound and a grunt sound, which is a normal sound and will
not
affect the cooling effect.
The compressor produces a buzzing sound during operation, and the
sound is loud when starting or stopping.
The electromagnetic valve or electric switching valve will make a
clattering sound, which is a normal phenomenon and will not affect
its use.
FAQs & Troubleshooting
17
Product Dimensions: W: 547mm, D: 446mm, H: 850mm
Weight (Net): 17.8kg
Gross Capacity: 99L
Other Features: Mechanical thermostat control, removable freezer basket, aluminum liner,
defrost drain system, high temperature alarm, adjustable legs
Fridge Energy Rating: 5 Stars (MEPS)
Freezer Energy Rating: 4 Stars (MEPS)
Standards
This product complies with AS/NZS 60335.1 and AS/NZS 60335.2.24 electrical safety, and with
EN 55014-1:2006+A1:2009+A2:2011 for electromagnetic compatibility.

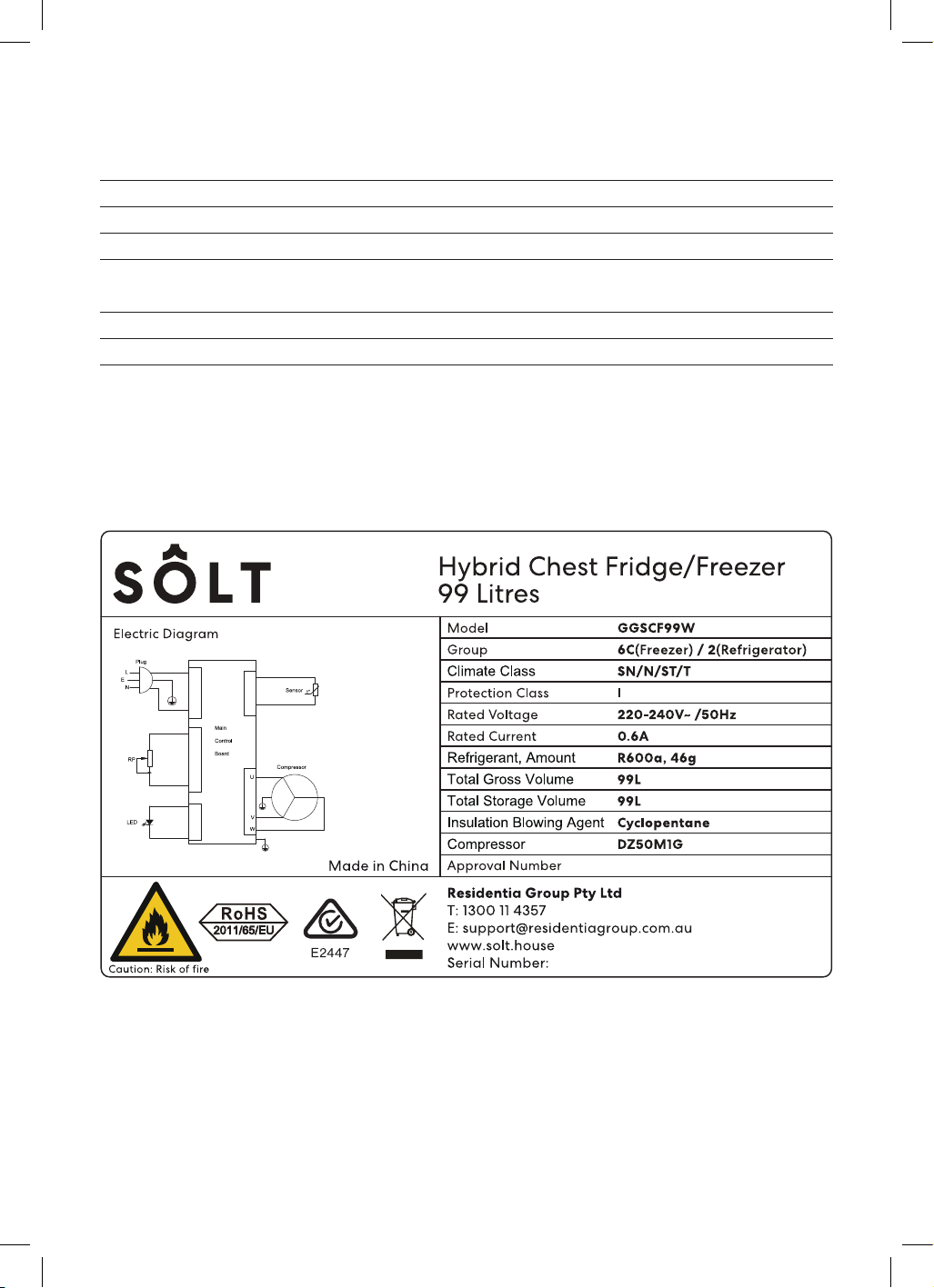

Rating Label
Specifications
18
WARRANTY TERMS AND CONDITIONS
REFRIGERATION APPLIANCES
This document sets out the terms and conditions
of the product warranties for Residentia Group
Appliances. It is an important document. Please keep
it with your proof of purchase documents in a safe
place for future reference should you require service
for your Appliance.
1. In this warranty
(a) ‘ acceptable quality’ as referred to in clause
10 of this warranty has the same meaning
referred to in the ACL;
(b) ‘ ACL’ means Trade Practices Amendment
(Australian Consumer Law) Act (No.2) 2010;
(c) ‘ Appliance’ means any Residentia Group
product purchased by you accompanied
by this document;
(d) ‘ ASR’ means Residentia Group authorised
service representative;
(e) ‘ Residentia Group’ means Residentia Group
Pty Ltd of 165 Barkly Avenue, Burnley
Victoria 3121, ACN 600 546 656 in respect
of Appliances purchased in Australia;
(f) ‘ major failure’ as referred to in clause 10
of this warranty has the same meaning
referred to in the ACL and includes a
situation when an Appliance cannot be
repaired or it is uneconomic for Residentia
Group, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for
personal, domestic or household
use (i.e. normal single family use)
as set out in the instruction manual,
the Appliance is warranted against
manufacturing defects in Australia
for 24 months following the date of
original purchase of the Appliance;
(h) ‘ you’ means the purchaser of the Appliance
not having purchased the Appliance for
re-sale, and ‘your’ has a corresponding
meaning.
2. This warranty only applies to Appliances
purchased and used in Australia and is in
addition to (and does not exclude, restrict, or
modify in any way) any non-excludable statutory
warranties in Australia.
3. During the Warranty Period Residentia Group or
its ASR will, at no extra charge if your Appliance
is readily accessible for service, without special
equipment and subject to these terms and
conditions, repair or replace any parts which it
considers to be defective. Residentia Group or
its ASR may use remanufactured parts to repair
your Appliance. You agree that any replaced
Appliances or parts become the property of
Residentia Group. This warranty does not
apply to light globes, batteries, filters or similar
perishable parts.
Warranty
19
4. Parts and Appliances not supplied by Residentia
Group are not covered by this warranty.
5. You will bear the cost of transportation, travel
and delivery of the Appliance to and from
Residentia Group or its ASR. If you reside outside
of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the
Appliance to and from Residentia Group
or its ASR, in all instances, unless the
Appliance is transported by Residentia
Group or its ASR, the Appliance is
transported at the owner’s cost and risk
while in transit to and from Residentia
Group or its ASR.
6. Proof of purchase is required before you can
make a claim under this warranty.
7. You may not make a claim under this warranty
unless the defect claimed is due to faulty or
defective parts or workmanship. Residentia
Group is not liable in the following situations
(which are not exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to
properly maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm
damage or incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate
operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional
instructions supplied with the
Appliance;
(b) the Appliance is modified without
authority from Residentia Group in writing;
(c) the Appliance’s serial number or warranty
seal has been removed or defaced;
(d) the Appliance was serviced or repaired by
anyone other than Residentia Group, an
authorised repairer or ASR.
8. This warranty, the contract to which it relates
and the relationship between you and Residentia
Group are governed by the law applicable where
the Appliance was purchased.
9. To the extent permitted by law, Residentia Group
excludes all warranties and liabilities (other than
as contained in this document) including liability
for any loss or damage whether direct or indirect
arising from your purchase, use or non use of the
Appliance.
10. For Appliances and services provided by
Residentia Group in Australia, the Appliances
come with a guarantee by Residentia
Group that cannot be excluded under the
Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and
for compensation for any other reasonably
foreseeable loss or damage. You are also entitled
to have the Appliance repaired or replaced if the
Appliance fails to be of acceptable quality and
the failure does not amount to a major failure.
The benefits to you given by this warranty are in
addition to your other rights and remedies under
a law in relation to the Appliances or services to
which the warranty relates.
11. At all times during the Warranty Period,
Residentia Group shall, at its discretion,
determine whether repair, replacement or refund
will apply if an Appliance has a valid warranty
claim applicable to it.
12. To enquire about claiming under this warranty,
please follow these steps:
(a) carefully check the operating instructions,
user manual and the terms of this
warranty;
(b) have the model and serial number of the
Appliance available;
(c) have the proof of purchase (e.g. an invoice)
available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty
claim, Residentia Group and its ASR may
exchange information in relation to you
to enable Residentia Group to meet its
obligations under this warranty.
IMPORTANT
Before calling for service, please ensure that the steps
in point 12 have been followed.
Service: Please call 1300 11 HELP (4357)
——
The Australian Consumer Law requires the inclusion
of the following statement with this warranty: Our
goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount
to a major failure.
Warranty
20
T. 1300 11 4357
E. support@residentiagroup.com.au
E S S E N T I A L S FOR LIFE
An initiative by
Residentia Group
www.solt.house
