Manual #145757
Revised: February 12, 2025
G2 GRILL STAND
ASSEMBLY INSTRUCTIONS
WWW.COOKWITHKENYON.COM
Gloves and a Helping Hand Strongly
Recommended
PLEASE READ THESE INSTRUCTIONS IN THEIR
ENTIRETY BEFORE USE. SAVE THESE
INSTRUCTIONS FOR FUTURE REFERENCE.
ITEMS REQUIRED
Phillips Head
Screwdriver
HARDWARE
S1 (18X)
#8-32 x 5/16”
Hex Drive
S3 (2x)
1/4”-20x 3/8”
Phillips Head
N1 (1X)
#6-32 Locknut
2
S2 (13X)
#6-32 x 1/2”
Phillips Head
Hooks (4X)
Thank you for choosing Kenyon, the world’s
leading manufacturer of specialty cooking
appliances. By following the instructions in
this assembly manual, your grill stand will
provide you with many years of reliable
service.
Hex Screwdriver
(Included)
S5 (1x)
#6-32 x 1-3/8’”
Phillips Head
Casters (4X)
*Optional*
S4 (4X)
1/4” x 1-1/4”
Hex Head
*Optional*
E1 (4X)
Elevator Bolt
*Optional*
Part List
3
SIDE SHELF ASSEMBLY
SIDE ASSEMBLY
STATIONARY SHELF TOP ADAPTER PLATE
SIDE TRAY TOP FRAME
If any components are missing or damaged, please
call KENYON Customer Service at 860-664-4906.

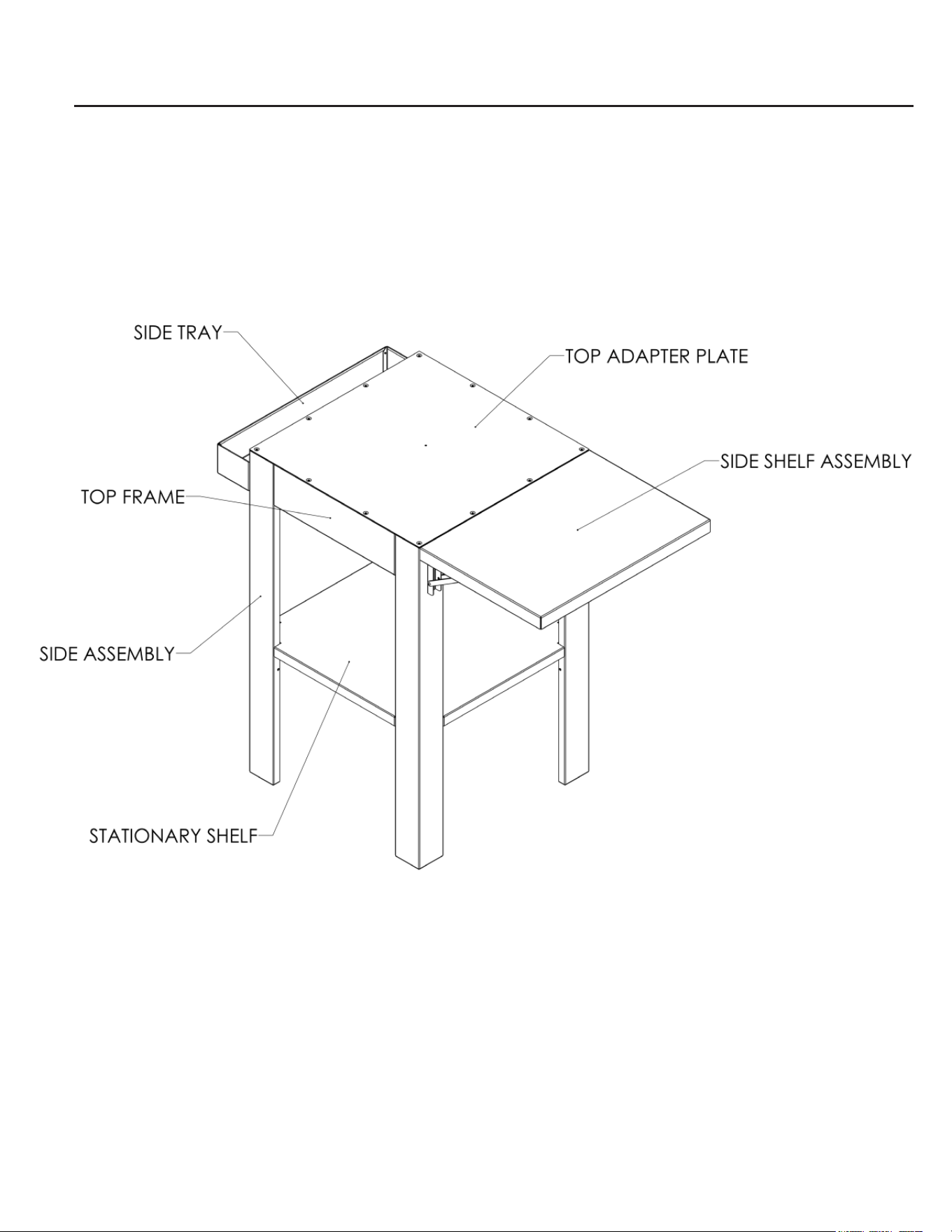

Assembled Stand
4
Assembling G2 Grill Stand
Instructions
5
4) Align the Side Shelf Assembly top
holes with the top holes of the Top Frame
Panels. Use 4X of screw S1 to fasten the
Side Shelf Assembly to both Top Frame
Panels using holes 5,6,7 & 8 as shown in
the gures below.
Use: 4x Screw S1
1) Assemble stand on a carpet or soft
surface to avoid any dents or scratches.
Kenyon recommends using gloves during
assembly.
Unpack stand parts carefully and lay the
parts out to check for shipping damage.
2) Place Side Assembly and a Top
Frame Panel on a at surface. Align the
top hole on the Top Frame Panel with
the top hole of the leg (contained within
Side Assembly). Fasten 2X of screw
S1 to the corresponding holes 1 & 2 as
shown in the gure below.
Use: 2X Screw S1
3) Align the top hole of the remaining Top
Frame Panel with the top hole of the oppo-
site leg from Step 2 on the Side Assembly.
Fasten 2X of screw S1 to the corresponding
holes 3 & 4 as shown in the gure below.
Use: 2X Screw S1
Instructions
6
6) Place the Top Adapter Plate on top of
the stand assembly. Use the label on the
part to place the plate in the correct orien-
tation. Use 12X S2 screws to fasten the
plate to the stand. Do not fully tighten the
S2 screws until all 12 screws are fastened
to the Top Adapter Plate.
Use: 12X Screw S2
5) Remove vinyl covering from the Stationary
Shelf before installation. Slide the Stationary
Shelf between the legs of the stand as shown
in the gure below. Fasten 8X of screw S1 to
the 2 holes in each of the 4 legs. Do not fully
tighten the S1 screws until all 8 screws are
fastened to the legs.
Use: 8X Screw S1
8) Place your G2 Grill on top of the stand
as shown in the gure below.
7) Fasten 2X S3 screws to the corre-
sponding holes 9 &10 as shown in the g-
ure below. Do not tighten all the way. Place
Side Tray onto Side Assembly by aligning
the keyholes on the Side Tray with the 2X
S3 screws.
Use: 2X Screw S3
Instructions
7
12) The Folding Shelf can be lifted and
lowered into position by lifting both levers
on the brackets underneath. Although there
are rubber caps on the levers to protect your
stand, do not let the Folding Shelf fall into the
down position.
Congratulations, go grill your favorite food!
If you have any questions or concerns while assembling, please
do not hesitate to call Kenyon customer service at 860-664-4906.
11) Congratulations, your G2 Grill Stand has
been assembled! Take this time to tighten all
fasteners.
9) Optional: Fasten the G2 Grill to the
Top Adapter Plate using 1X S5 screw and
1X N1 nut. Line up the hole in the bottom
pan of the G2 Grill with the hole in the Top
Adapter Plate.
Use: : 1X Screw S5 & 1X Nut N1
14) This package includes four Hooks,
which can be used to hang your grilling
accessories wherever you like, inside or
outside the stand. Keep in mind that once
attached, they cannot be removed without
damaging the surface. They use high-bond
tape, ensuring a strong hold. Before apply-
ing, thoroughly clean the desired area. Peel
off the protective layer from the double-sid-
ed tape on the back, then press rmly into
place. Allow at least two hours for the adhe-
sive to set before adding any weight.
13) Carefully remove the remaining vinyl,
pulling it off slowly to avoid leaving residue
behind. Use this time to clean and polish
the grill and stand for a beautiful shine.
Always wipe with the grain—never across
or diagonally.
10) There are three options for this step:
A) If using the elevator bolts, screw E1 into the
bottom of each leg and adjust for leveling. Use
the jam nut to secure the elevator bolt in place.
B) If fastening the Stand to a deck or patio, nd
the install location to set the Stand. Use screw
S4 to fasten in place.
C) If using the casters, fasten into the bottom of
each leg. Each caster includes a brake to se-
cure the stand in place.
Use: 4X Screw S4, OR 4X Elevator Bolt with
Jam Nut E1, OR 4X Casters
ELEVATOR BOLT E1
SCREW S3
CASTER
JAM NUT
