447APST60
Commercial Sandwich
Prep Tables
Models:
Refrigerator Models
#447APST27 #447APST48 #447APST60 #447APST72
Note:
You should read this manual in its entirety prior to equipment setup, operation, and maintenance.
Commercial Sandwich Prep Tables
User Manual
2
www.AvantcoRefrigeration.com
Table of Contents
Warnings ............................................................................................................................ 3
Installation ......................................................................................................................... 4
Cabinet Location Guidelines ........................................................................................ 4
Installation of Casters ..................................................................................................... 5
Electrical ............................................................................................................................ 5
Adjusting the Temperature ........................................................................................... 5
Safety / Warning .............................................................................................................. 6
Operation / Maintenance .............................................................................................. 7
Troubleshooting ............................................................................................................... 8
Commercial Sandwich Prep Tables
User Manual
Commercial Sandwich Prep Tables
User Manual
3
www.AvantcoRefrigeration.com
Warnings
DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY
TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.
PELIGRO – RRIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA
SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA
REFRIGERANTE.
DANGER – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES
RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE
FRIGORIGENE.
CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR MANUAL/
OWNER’S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS MUST BE
FOLLOWED.
ATENCION – RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO.
CONSULTE EL MANUAL DE REPARACIÓN / GUÍA DEL PROPIETARIO ANTES DE INTENTAR DAR SERVICIO
A ESTE PRODUCTO. DEBEN CUMPLIR CON TODAS LAS PRECAUCIONES DE SEGURIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONSULTER LE
MANUEL DU PROPRIÉTAIRE/GUIDE DE RÉPARATION AVANT DE TENTER UNE RÉPARATION. TOUTES LE
MESURES DE SÉCURITÉ DOIVENT ÊTRE RESPECTÉES.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW
HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.
ATENCION – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A LA PERFORACION DE LA TUBERÍA
REFRIGERANTE; SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO. REFRIGERANTE
INFLAMABLE UTILIZADO.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LA TUBULURE CONTENTANT LE FRIGORIGÈNE EST
PERFORÉE; SUIVRE LES INSTRUCTIONS DE MANUTENTION AVEC SOIN. LE FRIGORIGÈNE EST
INFLAMMABLE.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW
HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH LOCAL GOVERNMENT REGULATIONS.
ATENCION – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A REFRIGERANTE INFLAMABLE UTILIZADO.
SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO CONFORME A LAS REGLAS DE LA
MUNICIPALIDAD.
ATTENTION –
RISQUE DE FEU OU D’EXPLOSION SI LE FRIGORIGÈNE EST INFLAMMABLE. SUIVRE LES
INSTRUCTIONS DE MANUTENTION AVEC SOIN CONFORMÉMENT AUX RÈGLEMENTATION
GOUVERNEMENTALE
LOCAUX.
Commercial Sandwich Prep Tables
User Manual
4
www.AvantcoRefrigeration.com
This unit is intended for use in a temperature-controlled environment less than 75 degrees
Fahrenheit and 60% relative humidity.
IMPORTANT –
Please Read Before Installation:
• If the shelf has a raised lip, the lip needs to be installed facing up towards the rear of the cabinet to
promote proper air flow. Failure to install the shelves properly is considered user-error and is not
covered by warranty.
• If the unit has recently been transported on its side, please let the unit stand upright for a minimum of
24 hours before plugging it in.
• Make sure that the unit has reached the desired temperature before loading the unit with products.
This unit is meant for keeping cold products cold, not chilling warm products.
• Make sure that there is proper ventilation around the unit in the area where it will operate.
• Make sure all accessories are installed (i.e., shelves, shelf clips, casters) before plugging the unit in.
• Do not attempt to remove or repair any component of the unit. Consult an authorized service
technician for servicing/repair.
• Do not hang on doors or sit inside the unit.
• Do not store flammable, explosive, or corrosive liquids or gas in or near the cooler.
• Please read through the manual in its entirety.
• This unit is designed to perform in a temperature-controlled environment at 60% relative humidity.
The unit should be located away from doors, air ducts, and fans that could disrupt airflow and
negatively impact performance.
Installation
• Install the unit on strong and leveled surfaces.
- If the surface is uneven, the unit may be noisy.
- The unit may malfunction if the surface is uneven.
• Install the unit in an indoor, well-ventilated area.
- For best performance, please maintain clearance of 4” on the back of the unit.
- Do not use outdoors. For indoor use only.
- Avoid direct sunlight.
• Avoid installation in a high humidity and/or dusty area.
- Humidity above 60% can cause the unit to rust, collect condensation, and may decrease eciency.
- Dust collected on the condenser coil will cause the unit to malfunction.
• Select a location away from heat and moisture-generating equipment.
- Ambient temperatures above 75 degrees Fahrenheit may cause the compressor to malfunction.
- For optimal performance, this unit should not be used in environments with ambient temperatures
exceeding 75 degrees Fahrenheit.
- The unit should not be placed in areas with an ambient temperature over 90 degrees Fahrenheit.
- Equipment malfunctions due to ambient temperatures above 90 degrees could void the warranty.
- Do not install this unit inside a closet or alcove.
Cabinet Location Guidelines
Commercial Sandwich Prep Tables
User Manual
Commercial Sandwich Prep Tables
User Manual
5
www.AvantcoRefrigeration.com
Installation of Casters
• Cut the two straps which attach the unit to the pallet.
• Adjust the unit on the pallet until the pre-drilled holes are exposed.
• Using wedges or team-lift, lift the unit high enough that there is enough clearance to ax
the caster.
CAUTION! NEVER LAY UNIT ON ITS BACK! UNIT SHOULD ONLY BE PLUGGED IN WHEN IT
HAS RESTED IN THE CORRECT UPRIGHT POSITION FOR AT LEAST 24 HOURS. Failure to
meet the requirement will void warranty coverage if compressor damage ensues.
• For leveling, if dealing with a sloped or uneven floor, shims are provided. Insert any
necessary shims between the caster and the frame rail. Make sure the slot of the shim is
in contact with the treaded stem of the caster. If using more than one shim, it is necessary
to place them in opposite directions. If multiple shims are placed side by side in the same
direction, they may dislodge.
• Turn the bearing race clockwise to tighten and secure the caster. Use provided tool to secure
all casters properly.
Electrical
• Please ensure that the required voltage is being supplied at all times.
• The unit should be plugged into a grounded and properly sized electrical outlet with
appropriate over-current protection. Please refer to the electrical requirements on the
unit’s nameplate.
• The unit should have its own dedicated outlet.
• Do not use extension cords.
• Ensure the unit is not resting on or against the electrical cord.
• If the unit is not in use for a long period of time, please unplug the unit from the outlet.
• To avoid shock and fire hazards, do not plug in or unplug the unit with wet hands.
• After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so
could cause damage to the compressor.
Adjusting the Temperature
• Your new refrigerator is already factory-set to run at optimum temperatures for food safety
and should require no adjustments.
• Refrigerators are set to cycle between a minimum temperature of 33°F and a maximum
temperature of 40°F
• Adjusting the temperature changes the minimum temperature your unit will run at. Your unit
will not run constantly at this setting. To change it, follow these instructions:
Commercial Sandwich Prep Tables
User Manual
6
www.AvantcoRefrigeration.com

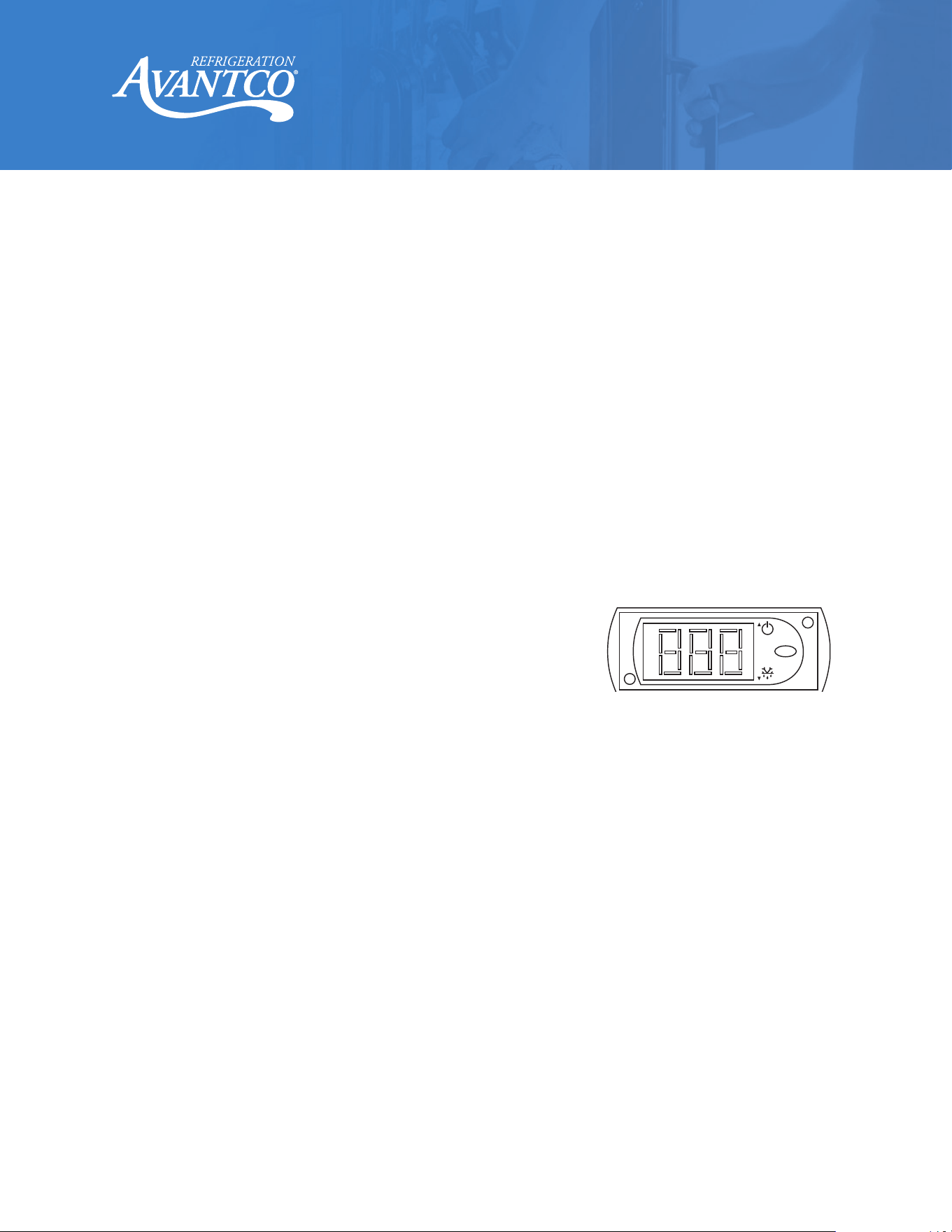

Digital Control Units
• Hold “SET” for 1 sec. The display will flash the current minimum temperature.
• Use the arrow buttons to adjust the minimum temperature you want it to run at.
• Press “SET” again to save your settings.
Always remember to calculate the dierential if you change the minimum temperature setting.
The cabinet temperature will fluctuate up to +6°F over your set minimum temperature as the
compressor runs and shuts o. Setting the temperature too high will result in unsafe maximum
temperatures and possible health code violations.
Running a Manual Defrost Cycle
This unit is pre-programmed to run automatic defrost cycles
at preset intervals. However, if you would like to run a manual
defrost cycle at any time, please follow the steps below:
Refrigerators: Press the defrost button (snowflake symbol and down arrow) for approximately 3
seconds. Repeat to stop the defrost cycle.
Defrost System
Refrigerator coils are kept below the freezing point (32 degrees Fahrenheit). During compressor
down-time, the evaporator fan continues to circulate air though the evarporator coil. This air
circulation raises the coil temperature above the freezing point, melting any accumulated frost.
Run-o water is drained into the evaporator pan and evaporated. Automatic defrost timers
automatically initiate at pre-set intervals and for a pre-determined duration.
Safety / Warning
Please pay close attention to the safety notices in this section. Disregarding these notices may
lead to serious injury and/or damage to the unit.
Attention
• To minimize shock and fire hazards, be sure not to overload outlet. please designate one
outlet for your unit.
• Do not use extension cords.
• Do not put your hands under the unit while it is being moved.
• When the unit is not in use for a long period of time, please unplug the unit from the outlet.
• After unplugging the unit, wait at leaset 10 minutes before plugging it back in. Failure to do
so could cause damage to the compressor.
set
mute
Commercial Sandwich Prep Tables
User Manual
Commercial Sandwich Prep Tables
User Manual
7
www.AvantcoRefrigeration.com
Unplug Cord
• To minimize shock and fire hazards, please do not plug or unplug the cord with wet hands.
• During maintenance and cleaning, please unplug the unit.
Proper Grounding Required
• To minimize shock and fire hazards, make sure the unit is properly grounded.
Warning
• Do not attempt to remove or repair any component unless instructed by factory.
• Make sure that the unit is not resting on or against the electrical cord and plug.
• To minimize personal injury, do not hang on the doors.
• Do not store any flammable and explosive gas or liquids inside the unit.
• Do not attempt to alter or tamper with the electrical cord.
Operation / Maintenance
WARNING: DISCONNECT POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT.
NOTE: We strongly recommend that any servicing be performed by an authorized service
technician.
Loading Product
• Make sure there is at least four inches of clearance from the evaporator.
• Ensure all shelves are sitting level and properly secured before loading products.
• Do not store flammable and explosive gas or liquids inside the unit.
Cleaning the Fan Blades and Motor
• If necessary, clean the fan blades and motor with a soft cloth.
• If it is necessary to wash the fan blades, cover the fan motor to prevent moisture damage.
Cleaning the Interior of Unit
• When cleaning the cabinet interior, use a solvent of warm water and mild soap.
• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the
interior finish.
• Wash door gaskets on a regular basis, preferably weekly. Simply remove door gasket from
the frame of the door, soak in warm water and soap for thirty (30) minutes, dry with soft cloth,
and replace.
• Check door gaskets for proper seal after they are replaced.
• Periodically remove the shelves and pilasters from the unit and clean them with mild soap
and warm water. To remove the pilasters, first remove the shelves and shelf brackets.
Then, simply lift the pilaster up and out.
Commercial Sandwich Prep Tables
User Manual
8
www.AvantcoRefrigeration.com
Cleaning the Condenser Coil
• For ecient operation, keep the condenser surface free of dust, dirt, and lint.
• We recommend cleaning the condenser coil at least once per month.
• A dusty condenser may lead to high energy consumption, less cooling eectiveness, and
compressor damage.
Condenser Coil Cleaning Instructions:
The condenser coil is located at the bottom behind the panel.
1. Disconnect the electrical power from the unit.
2. Remove the front cover and base cover with a screwdriver.
3. Using a soft brush and/or vacuum, remove the dirt, lint, etc. from the finned condenser coil in
a vertical direction.
4. Clean the condenser with a commercial condenser coil cleaner, available from any kitchen
equipment retailer. Ex: Nobel Chemical Tech Line.
5. After cleaning, straighten any bent condenser fins with a fin comb.
6. When finished, be sure to reinstall the front cover and base cover.
7. Reconnect the electrical power to the unit.
Commercial Sandwich Prep Tables
User Manual
Commercial Sandwich Prep Tables
User Manual
9
www.AvantcoRefrigeration.com
Troubleshooting
Problem
Possible Cause
Possible Solution
Compressor
not running.
Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.
Power cord unplugged. Plug in power cord.
Thermostat set too high. Set thermostat to lower temperature.
Cabinet in defrost cycle. Wait for defrost cycle to finish.
Condensing units run for
long periods of time.
Excessive amount of water product in
cabinet.
Allow adequate time for product to cool down.
Prolonged door opening or door ajar.
Ensure doors are closed when not in use. Avoid
opening the doors for long periods of time.
Door gasket(s) not sealing properly.
Ensure gasket(s) are snapped in completely. Remove
gasket and wash with soap and water. Check
condition of gasket and replace if necessary.
Dirty condenser coil. Clean the condenser coil.
Evaporator coil iced over.
Unplug unit and allow coil to defrost. Make sure
thermostat is not set too cold. Ensure that door
gasket(s) are sealing properly.
Cabinet temperature is
too warm.
Thermostat set too warm. Set thermostat to lower temperature.
Airflow blocked.
Re-arrange product to allow for proper air flow. Make
sure there is at least 4" of clearance from evaporator.
Excessive amount of warm product
placed in cabinet.
Allow adequate time for product to cool down.
Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.
Dirty condenser coil. Clean the condenser coil.
Evaporator coil iced over.
Ensure doors are closed when not in use. Avoid
opening doors for long periods of time.
Low refrigerant levels.
Contact a service technician to check refrigerant
levels.
Prolonged door opening or door ajar.
Ensure doors are closed when not in use. Avoid
opening doors for long periods of time.
Condensation is
collecting on the cabinet
and/or floor.
Gasket is not sealing properly. Clean, repair, or replace the gasket as necessary.
Relative humidity is above 60%.
Move unit to area below relative humidity or lower
humidity level.
