BULLETIN NO.
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
Combination Wrench Sets w/ PACKOUT™ Organizer
Aug. 2024
PN0003221
REVISED BULLETIN
SERVICE PARTS LIST
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO. 48-22-9483 Metric 15-Piece Combination Wrench Set
48-22-9484 SAE 15-Piece Combination Wrench Set - See Pg. 2
48-22-9485 Metric & SAE 30-Piece Combination Wrench Set - See Pg. 3
6
5
6
(2x)
4
(12x)
4
(3x)
2
2
1

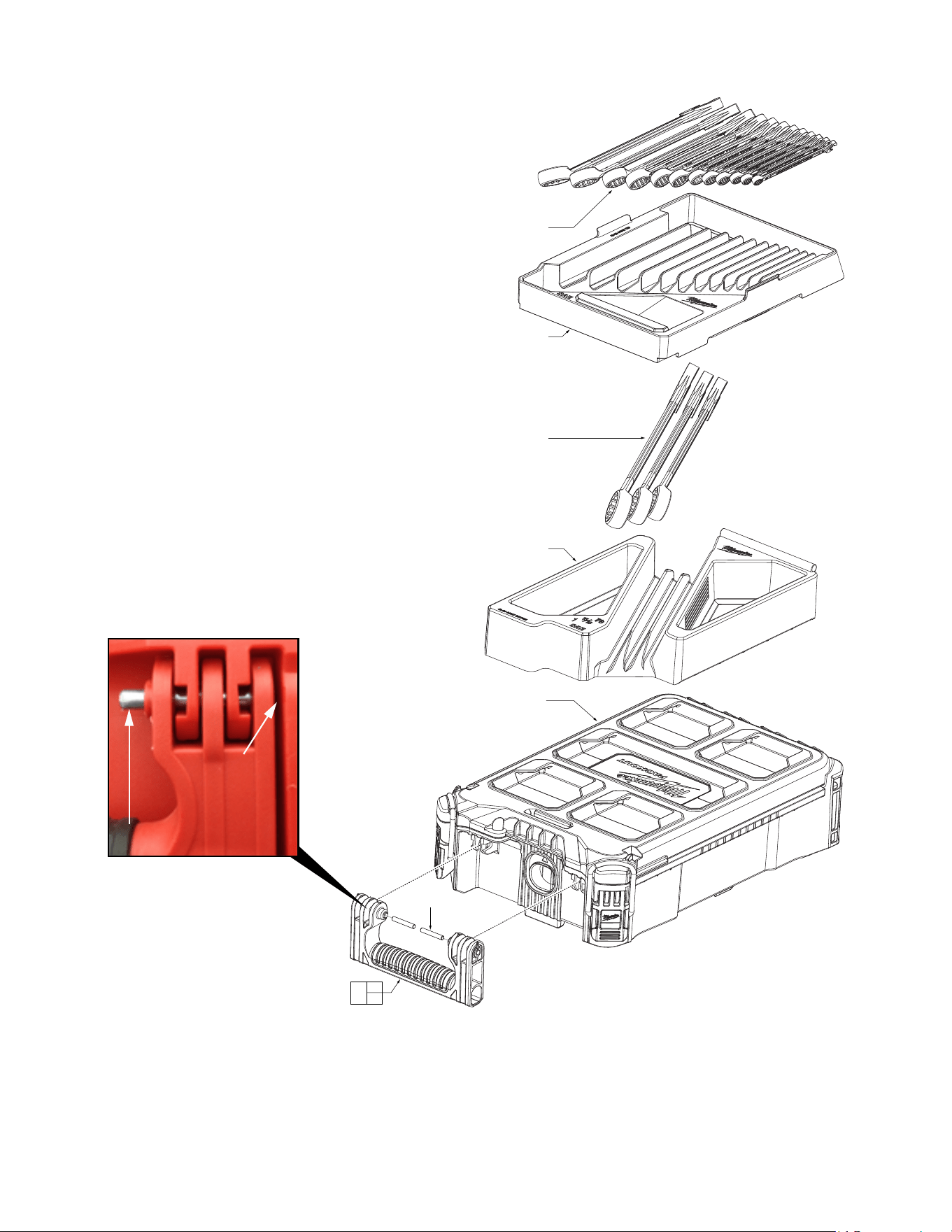

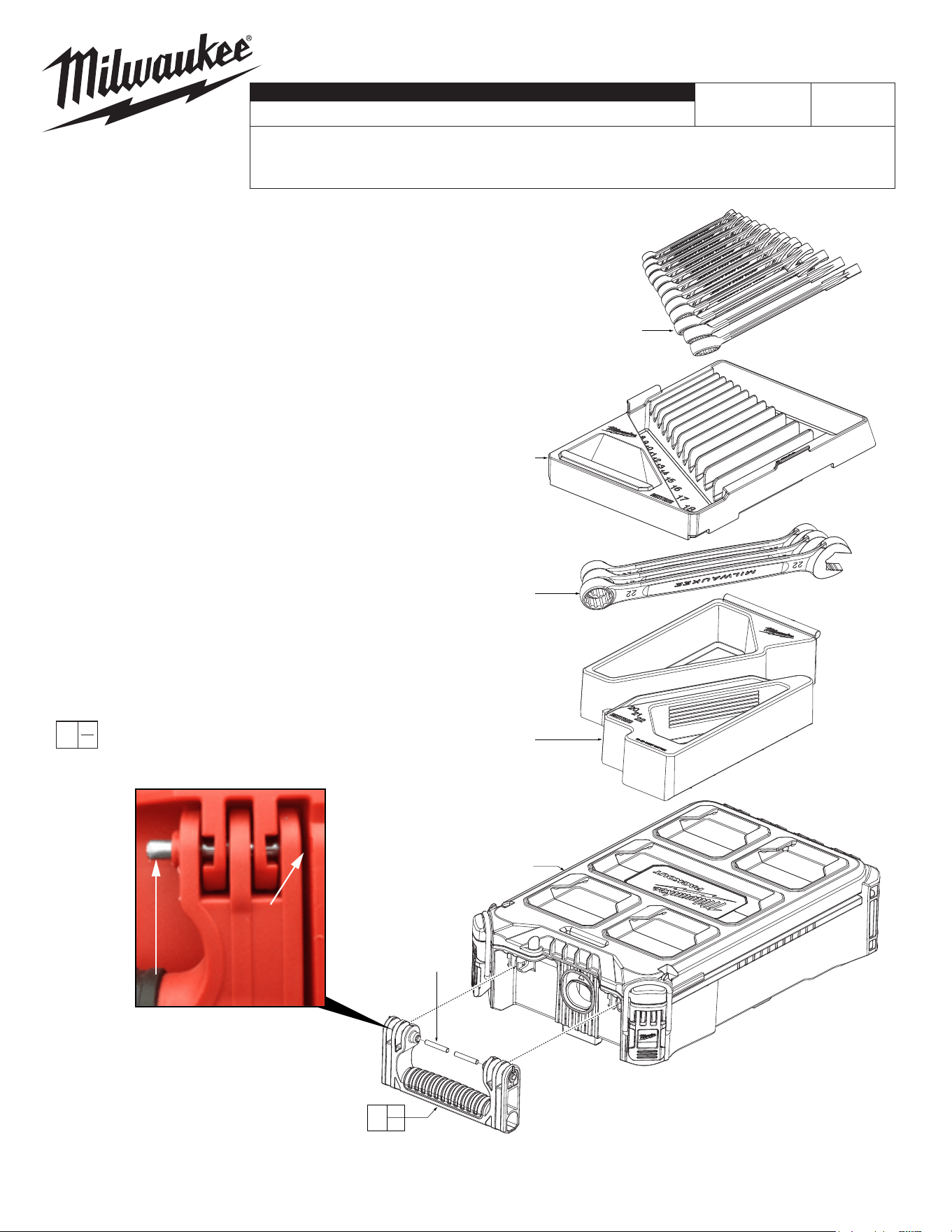

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 48-22-8435 PACKOUT Organizer (1)
2 48-22-9483T 15-piece Metric Combination Wrench Trays (1)
4 --------------- Metric Combination Wrenches (see below) (15)
5 43-62-8435 Side Handle Service Kit (1)
6 --------------- Pin (2)
7 43-44-8435 Lid Gasket (Not Shown) (1)
48-22-9483 15-pc. Metric Combination Wrench Set
with PACKOUT™ Compact Organizer
45-96-9508 8mm Combination Wrench
45-96-9509 9mm Combination Wrench
45-96-9510 10mm Combination Wrench
45-96-9511 11mm Combination Wrench
45-96-9512 12mm Combination Wrench
45-96-9513 13mm Combination Wrench
45-96-9514 14mm Combination Wrench
45-96-9515 15mm Combination Wrench
45-96-9516 16mm Combination Wrench
45-96-9517 17mm Combination Wrench
45-96-9518 18mm Combination Wrench
45-96-9519 19mm Combination Wrench
45-96-9520 20mm Combination Wrench
45-96-9521 21mm Combination Wrench
45-96-9522 22mm Combination Wrench
Metric Combination Wrenches (Fig.4)
Place flat blade
screwdriver in
here and work
pin to the inside.
Grab exposed pin with needle
nose pliers and work out.
2
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 48-22-8435 PACKOUT Organizer (1)
2 48-22-9484T 15-piece SAE Combination Wrench Trays (1)
4 --------------- SAE Combination Wrenches (see below) (15)
5 43-62-8435 Side Handle Service Kit (1)
6 --------------- Pin (2)
7 43-44-8435 Lid Gasket (Not Shown) (1)
45-96-9408 1/4" Combination Wrench
45-96-9409 9/32" Combination Wrench
45-96-9410 5/16" Combination Wrench
45-96-9411 11/32" Combination Wrench
45-96-9412 3/8" Combination Wrench
45-96-9414 7/16" Combination Wrench
45-96-9416 1/2" Combination Wrench
45-96-9418 9/16" Combination Wrench
45-96-9420 5/8" Combination Wrench
45-96-9422 11/16" Combination Wrench
45-96-9424 3/4" Combination Wrench
45-96-9426 13/16" Combination Wrench
45-96-9428 7/8" Combination Wrench
45-96-9430 15/16" Combination Wrench
45-96-9432 1" Combination Wrench
6
5
6
(2x)
4
(12x)
4
(3x)
2
2
1
SAE Combination Wrenches (Fig.4)
48-22-9484 15-pc. SAE Combination Wrench Set
with PACKOUT™ Compact Organizer
Place flat blade
screwdriver in
here and work
pin to the inside.
Grab exposed pin with needle
nose pliers and work out.
3
9
8
9
(2x)
6
(12x)
6
(3x)
2
11
2
2
1
2
7
(3x)
7
(12x)

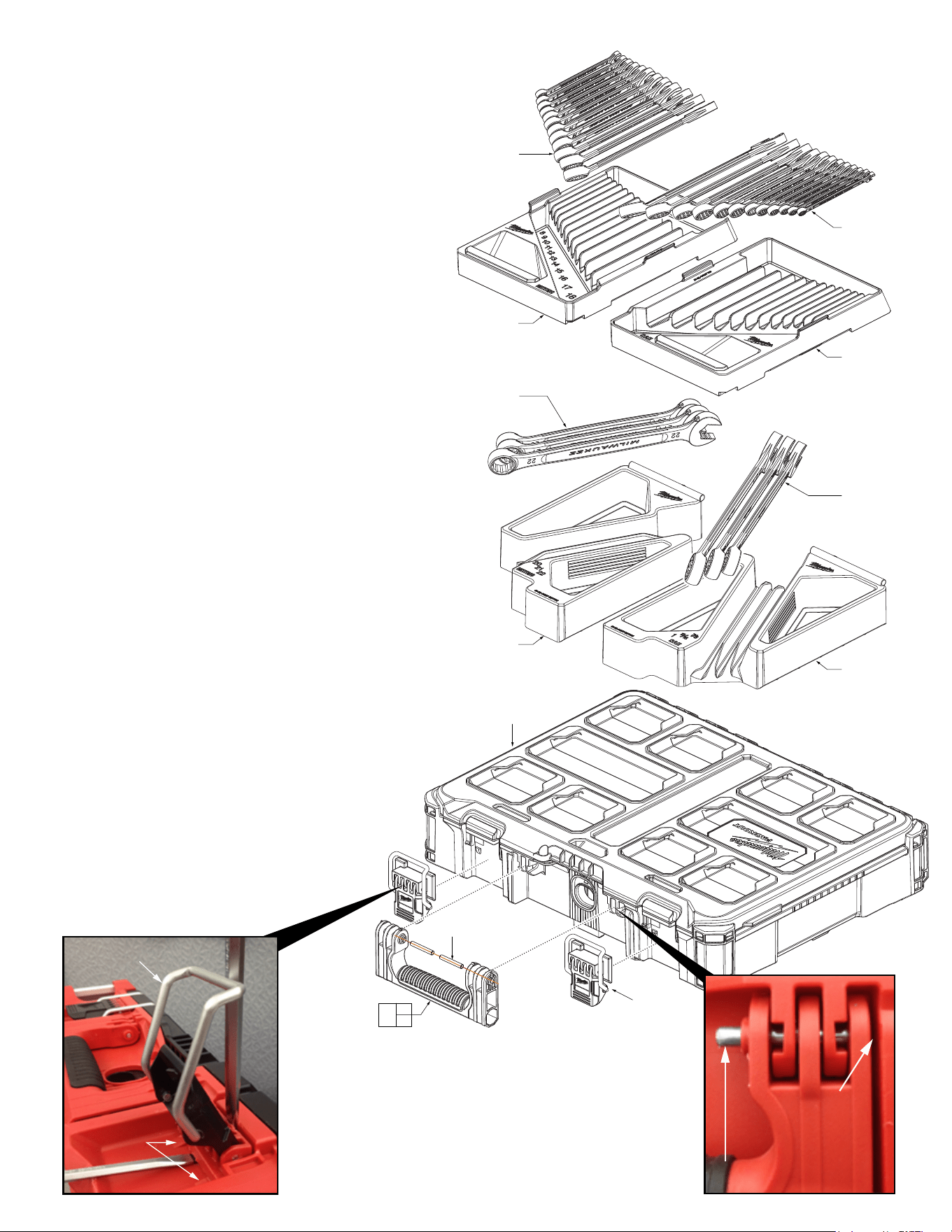

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 48-22-8430 PACKOUT Organizer (1)
2 48-22-9485T 15-piece Metric & SAE (1)
Combination Wrench Trays
6 --------------- Metric Combination Wrenches (see below) (15)
7 --------------- SAE Combination Wrenches (see below) (15)
8 43-62-8435 Side Handle Service Kit (1)
9 --------------- Pin (2)
10 43-44-8430 Lid Gasket (Not Shown) (1)
11 44-20-8430 Latch Service Assembly (Set of 2) (1)
48-22-9485 15-pc. Metric & SAE Combination Wrench Set
with PACKOUT™ Organizer
45-96-9508 8mm Combination Wrench
45-96-9509 9mm Combination Wrench
45-96-9510 10mm Combination Wrench
45-96-9511 11mm Combination Wrench
45-96-9512 12mm Combination Wrench
45-96-9513 13mm Combination Wrench
45-96-9514 14mm Combination Wrench
45-96-9515 15mm Combination Wrench
45-96-9516 16mm Combination Wrench
45-96-9517 17mm Combination Wrench
45-96-9518 18mm Combination Wrench
45-96-9519 19mm Combination Wrench
45-96-9520 20mm Combination Wrench
45-96-9521 21mm Combination Wrench
45-96-9522 22mm Combination Wrench
Metric Combination Wrenches (Fig.6)
Place flat blade
screwdriver in
here and work
pin to the inside.
Grab exposed pin with needle
nose pliers and work out.
45-96-9408 1/4" Combination Wrench
45-96-9409 9/32" Combination Wrench
45-96-9410 5/16" Combination Wrench
45-96-9411 11/32" Combination Wrench
45-96-9412 3/8" Combination Wrench
45-96-9414 7/16" Combination Wrench
45-96-9416 1/2" Combination Wrench
45-96-9418 9/16" Combination Wrench
45-96-9420 5/8" Combination Wrench
45-96-9422 11/16" Combination Wrench
45-96-9424 3/4" Combination Wrench
45-96-9426 13/16" Combination Wrench
45-96-9428 7/8" Combination Wrench
45-96-9430 15/16" Combination Wrench
45-96-9432 1" Combination Wrench
SAE Combination Wrenches (Fig.7)
Locking Tabs
Latch Assembly
As an aid to removing a damaged Latch Assembly, use two large
at blade screwdrivers. Push blades between parts as shown. Twist
both screwdrivers at same time to force the blades into opening and
work the latch assembly over the two locking tabs.
To install a new latch assembly, position entire latch assembly over
locking tabs with the two top lugs partially inserted in 'catch cavity' of
main housing. Engage latch bar onto lid and gently press latch lever
to slide assembly over two locking tabs and into place.This removal
and installation process will be the same where other service latches
are oered in this system.
