USER GUIDE
24” Powered ATV/UTV Soundbar System
PWPSB2403
Visit Our Website
SCAN ME
PyleUSA.com
www.PyleUSA.com
2
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE.
FEATURES:
• Built-in Class D Stereo Power Amplier
• (4) 3.5” Mid-bass Drivers with Y35 Ferrite Magnets
• Forward-ring Speakers for Maximum SPL and Sound Staging
• (2) 1” PEI Dome Tweeters
• Built-in BT Technology
• Supports A2DP Audio Streaming
• 3.5mm Auxiliary Input
• RCA Output for a Second Sound Bar, Subwoofer, Amplier, or Powered Speakers
• Built-in LED lights (Red, Blue, Purple)
• LED Modes: Solid Color, Pulsating
• Marine Rated with Rugged Weatherproof Exterior
• IPX6 Waterproong/Weatherproong
• Weather Resistant Grill and Hardware
TECHNICAL SPECIFICATIONS:
• Power Supply: 40 Watts RMS/80 Watts Peak
• Construction Materials: Polypropylene Mica Cone, Butyl Rubber Surround
• BT Range: 30’+ ft.
• Aluminum Clamp System Fits 1.5”- 2” Bars
• Frequency Response: 20Hz-20KHz
• Speaker Size: 3.67’’ x 3.67’’ x1.99’’ -inches
• Tweeters: 1'' -inch
• Product Dimensions (L x W x H): 23.4’’ x 4.5’’ x 6.85’’ -inches
California Prop 65 Warning
WARNING:
This product contains Di (2-ethylhexyl) phthalate (DEHP) which
is known to the state of California to cause cancer birth
defects and other reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
www.PyleUSA.com
3
WHAT’S IN THE BOX
• (1) 24’’ -inch Powered Soundbar
• (2) Aluminum Clamp Base
• (4) Aluminum Clamp Base Buckles
• (4) 1.75” -inches Aluminum Rings
• (4) 2” -inches Aluminum Rings
• (1) 1.5” & 1.875” -inches Rubber Pads Bag
• (1) Screw Bag
• (1) Audio Connection Cable, 3.5mm
BLUETOOTH CONNECTIVITY
• Wireless Music Streaming Ability
• Quick & Hassle-Free Device Pairing
• Works with All of Your Favorite BT-Enabled Devices (Smartphones, Tablets,
Laptops, Computers, etc.)
• Wireless BT Version 5.0
• Wireless BT Network Name: “PyleUSA”
PRECAUTIONS BEFORE USE
1. Secure Installation: Make sure the soundbar is rmly attached to the cage bar
to prevent it from moving or falling.
2. Power Safety: Use the recommended power supply and ensure the power
source is stable.
3. Water Protection: The soundbar is waterproof (IPX6), but do not submerge it
or expose it to heavy water jets for long periods.
4. Fit and Compatibility: Check that the mounting hardware matches your cage
bar size (1.5”–2”).
5. Bluetooth Use: Keep the device you want to pair within 30 feet of the
soundbar. Disconnect other devices before pairing.
6. Volume and Use: Avoid playing music at maximum volume for long periods to
protect the speakers.
7. Weather Conditions: Store the soundbar indoors during extreme weather like
heavy rain or freezing temperatures.
www.PyleUSA.com
4

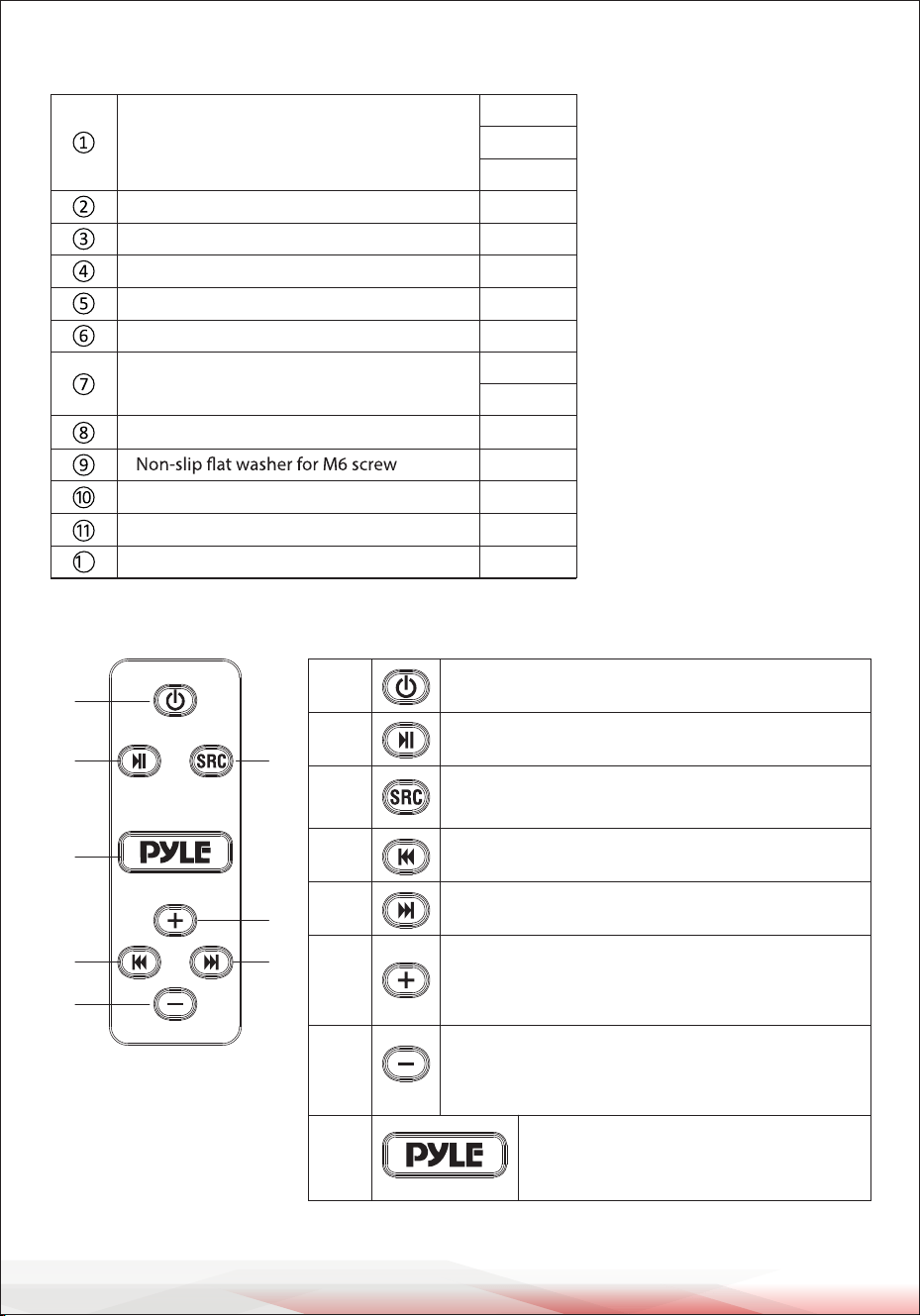

PARTS LIST
BUTTON FUNCTION
①
②
③
④ ⑤
⑥
⑦
⑧
①
②
③
④
⑤
⑥
⑦
⑧
Power On/O: Press and hold for 3 seconds.
Play/Pause: Short press.
Switching Modes: BT and AUX-IN modes.
BT Name: "PyleUSA"
Previous Song: Short press.
Next Song: Short press.
Volume Up:
Short press to increase volume gradually.
Press and hold to increase volume continuously.
LED Colors: Cycle through colors
(red, blue, purple, 3-color cycle, or o).
Volume Down:
Short press to decrease volume gradually.
Press and hold to decrease volume continuously.
Non-slip rubber pad (120 x 14 x 1mm)
Non-slip rubber pad (120 x 14 x 4mm)
Non-slip rubber pad (130 x 14 x 2mm)
Clamp base
Aluminum backle
M5x50mm screw
Spring washer for M5 screw
4 PCS
4 PCS
4 PCS
2 PCS
4 PCS
2 PCS
2 PCS
Non-slip nut (45 x 30mm)
2 PCS
Aluminum ring 1.75”
Aluminum ring 2”
4 PCS
4 PCS
M6x60mm screw
4 PCS
4 PCS
Non-slip nut for M6 screw
M5x20mm screw
Spring washer for M5 screw
4 PCS
4 PCS
4 PCS
2
www.PyleUSA.com
5
INSTALLATION

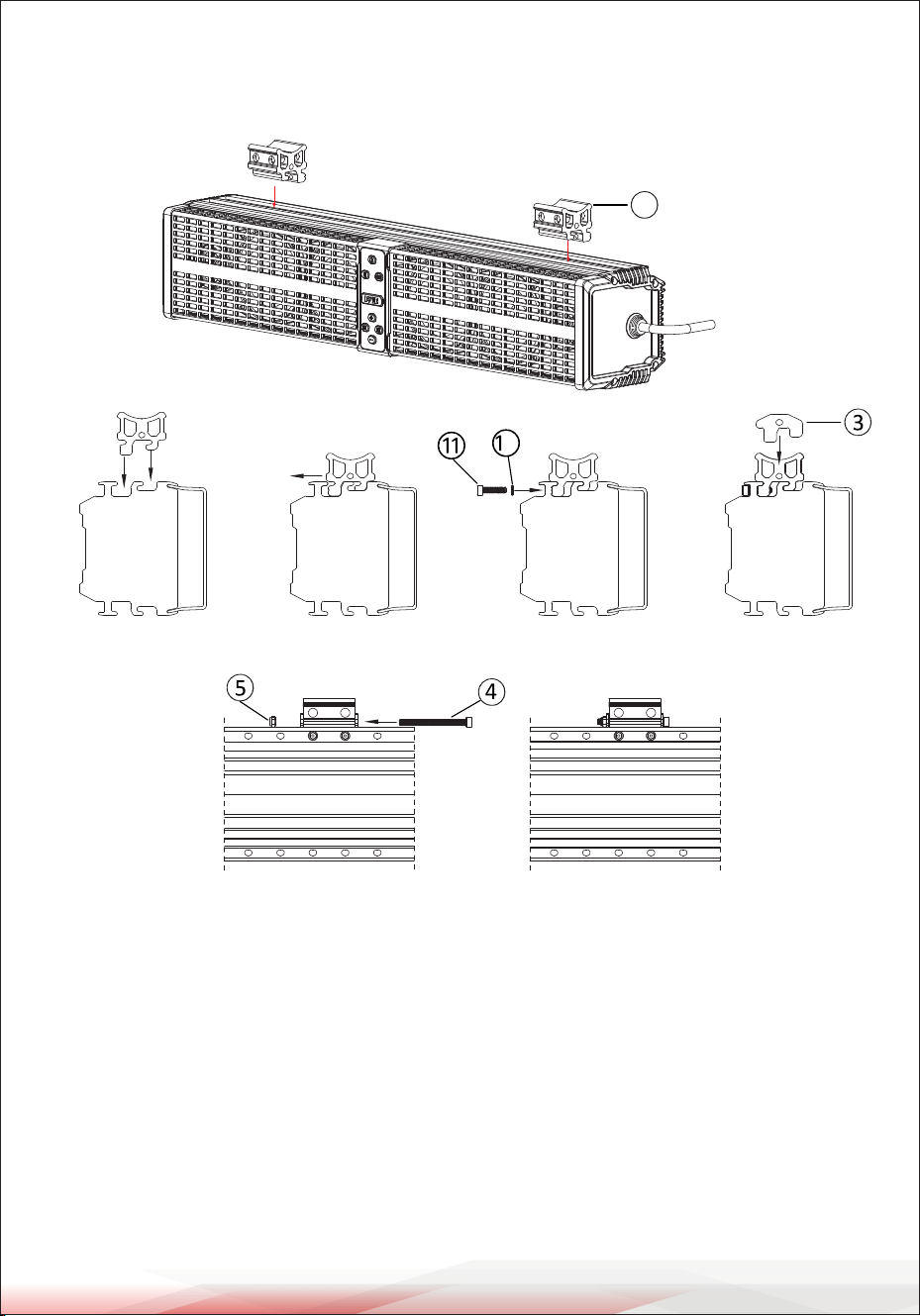

1. Installing the Clamp Base on the Soundbar:
a. Align the clamp base with the two slots on the soundbar.
b. Push the clamps horizontally into the slots.
c. Use two M5 x 20 mm screws and M5 spring washers to secure the clamps from
the back of the soundbar.
d. Once the clamps are rmly attached to the soundbar, install the buckle on the
right and left sides of the clamp base.
e. Use an M5 x 50 mm screw from the side panel to secure the buckle, then lock it
with an M5 screw.
f. The clamp base is now fully locked to the soundbar.
2
2
a
b c d
e f
www.PyleUSA.com
6
2. Attach the Non-Slip Pads:
Stick 45 x 30 x 2 mm rubber non-slip pads onto the clamp base.

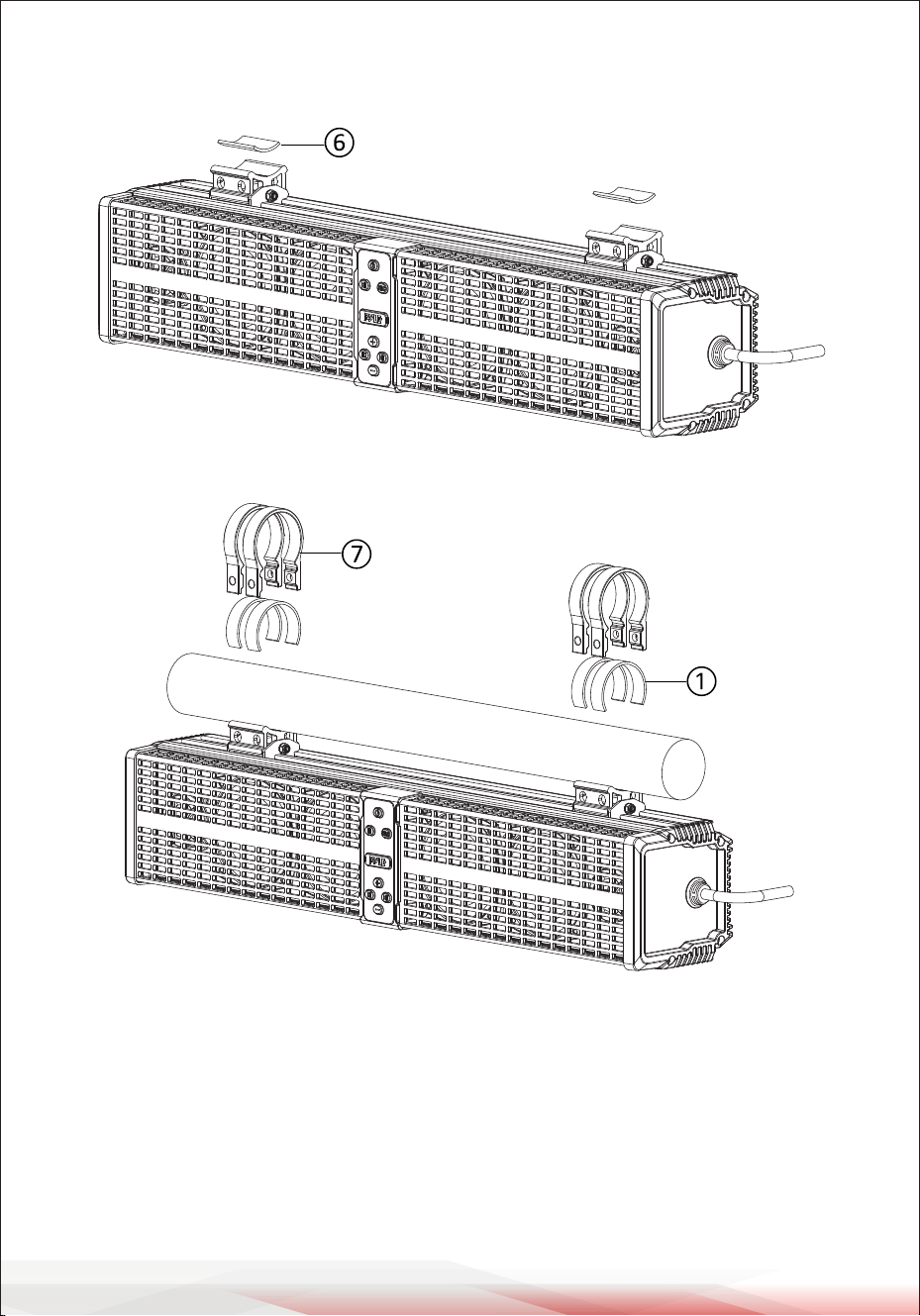

3. Installing on the Cage Bar (1.5” to 2.0” Diameter):
• Wrap the rubber strip around the cage bar to prevent scratches.
• Press the aluminum rings onto the rubber strip. Align the screw mounting holes
on the aluminum ring with the base.
• Use the appropriate components based on the cage bar size:
• 2” Cage Bar: Use a 2” aluminum ring and a 120 x 14 x 1 mm rubber strip.
• 1.875” Cage Bar: Use a 2” aluminum ring and a 130 x 14 x 2 mm rubber strip.
• 1.75” Cage Bar: Use a 1.75” aluminum ring and a 120 x 14 x 1 mm rubber strip.
• 1.5” Cage Bar: Use a 1.75” aluminum ring and a 120 x 14 x 4 mm rubber strip.
www.PyleUSA.com
7

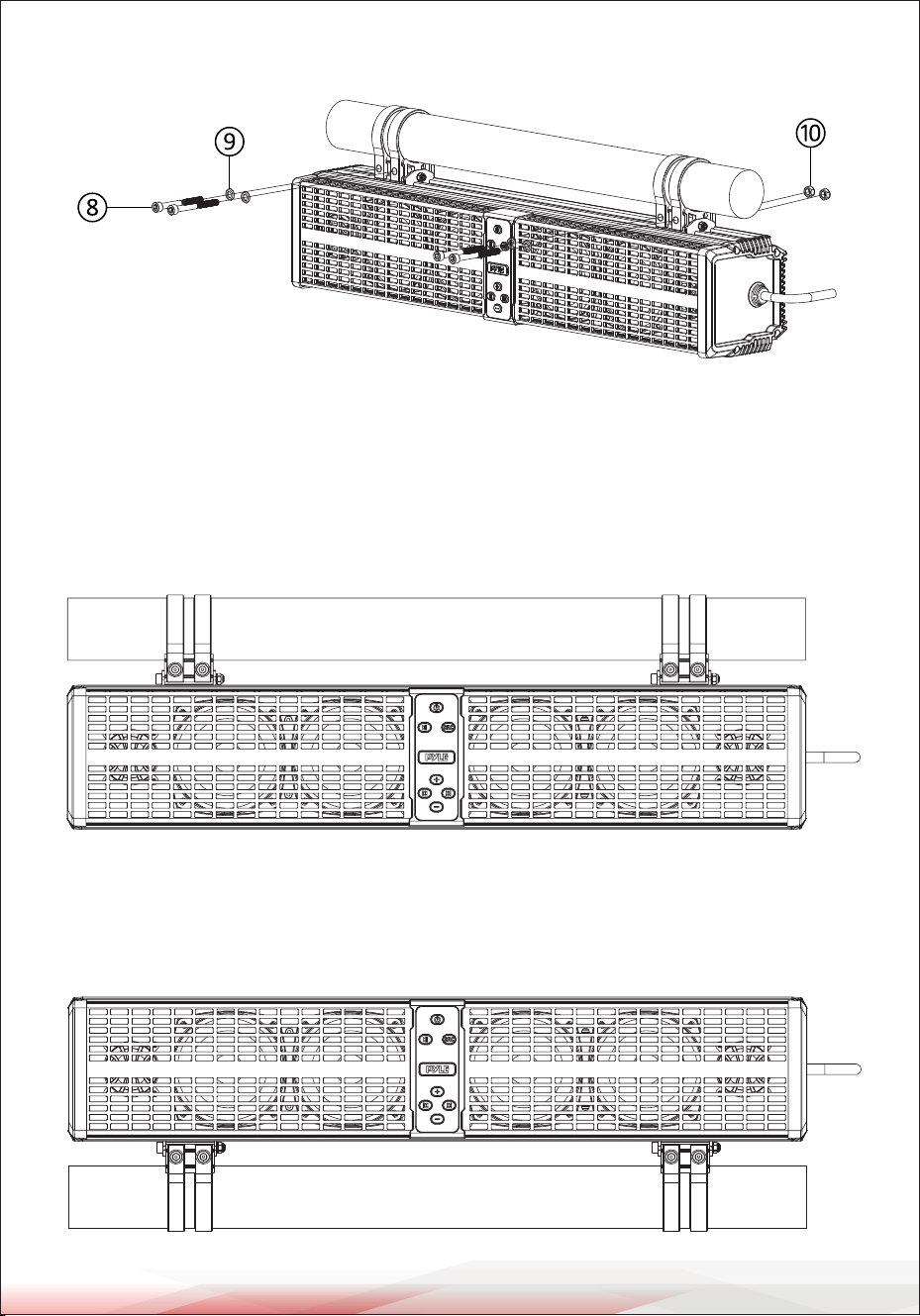

4. Secure the Aluminum Ring:
Use M6 x 60 mm screws and M6 spring washers to attach the aluminum ring to
the base. Secure it with an M6 non-slip nut on the back, ensuring each nut is
seated in the hexagonal groove.
5. Final Positioning Below the Cage Bar: After completing the steps, the PWPSB2403
soundbar will be positioned beneath the cage bar as shown in the diagram.
6. Optional Positioning Above the Cage Bar: For installation above the cage bar,
follow the same steps as above. The PWPSB2403 will be positioned above the
cage bar as shown in the diagram.
www.PyleUSA.com
8

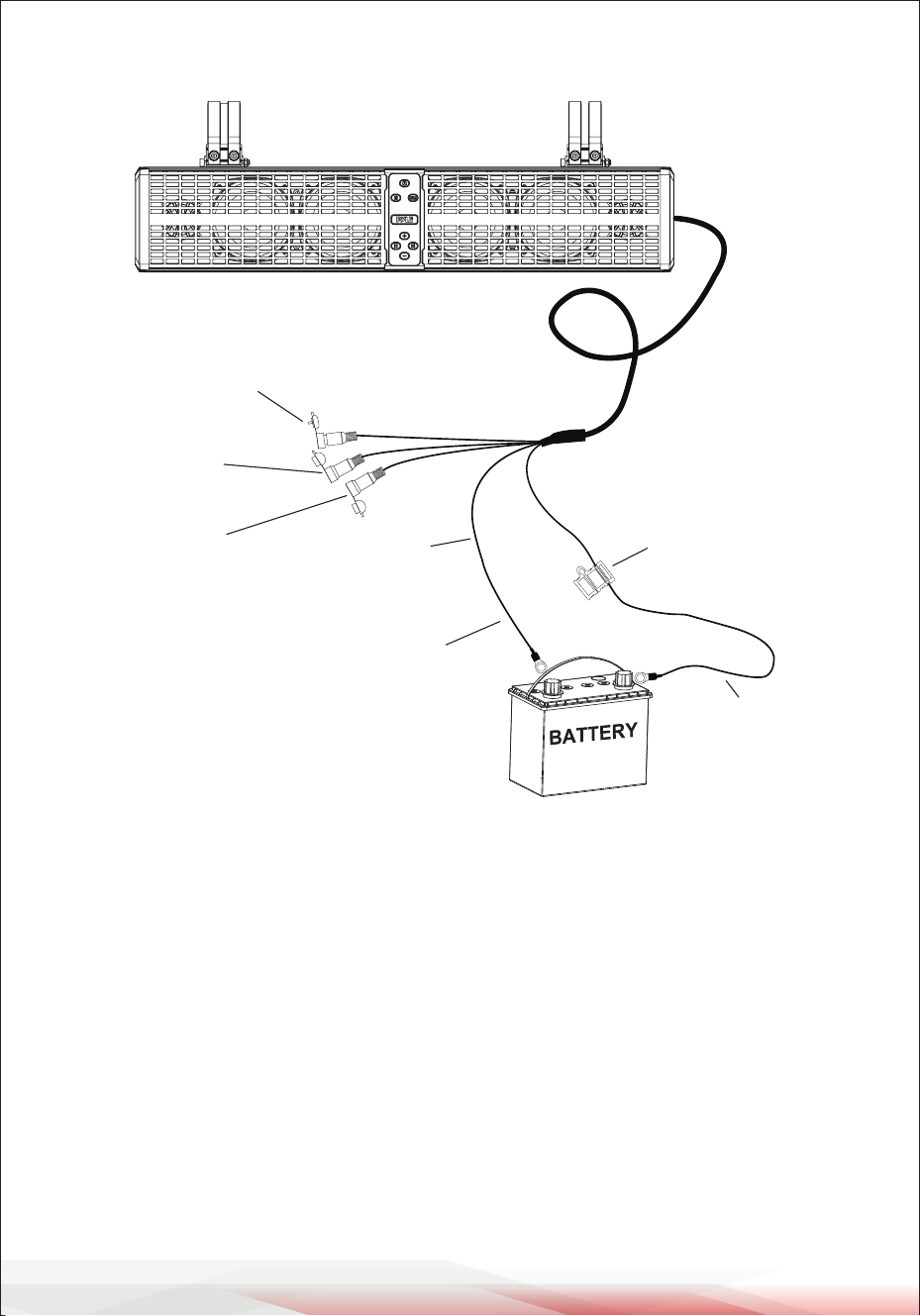

WIRE DIAGRAM
BLUETOOTH PAIRING & CONNECTION
Power: Press and hold the power button for 3 seconds to turn the device on or o.
When powered on, the background LED will light up white.
BT Pairing:
1. Turn on Bluetooth on your device and search for "PyleUSA."
2. While waiting to connect, the BT indicator will ash blue. No password is required.
3. Once connected, the BT indicator LED will remain solid blue.
AUX-IN: Press the SRC button to switch to AUX-IN mode.
The indicator LED will turn green.
AUX IN
White RCA
LINE OUT L
Red RCA
LINE OUT R
-Black
Fuse: 10A
+Red
DC12V(-) Grounded
to metal chassis
DC12V(+)
www.PyleUSA.com
9
Register Product
Thank you for choosing PyleUSA. By registering your product, you
ensure that you receive the full benets of our exclusive warranty
and personalized customer support.
Complete the form to access expert support and to keep your
PyleUSA purchase in perfect condition.
Start Here
PyleUSA.com/pages/register
AUTO CONNECTION
1. If the device moves out of Bluetooth range, it will disconnect automatically, and
the BT indicator LED will ash blue.
2. If the device returns to within Bluetooth range within 10 minutes, it will reconnect
automatically, and the BT indicator LED will remain solid blue.
3. If no reconnection occurs within 10 minutes, follow the BT pairing steps to
reconnect.
4. If another device pairs to the soundbar during the 10-minute window, follow
the BT pairing steps to reconnect.
CLEANING, MAINTENANCE, AND STORAGE GUIDE
Cleaning
1. Wipe the soundbar with a damp cloth; use mild soap for tough dirt.
2. Avoid harsh cleaners, alcohol, or submerging the soundbar in water.
3. Dry thoroughly after cleaning to prevent moisture damage.
Maintenance
1. Check and tighten screws, clamps, and hardware regularly.
2. Inspect rubber strips and seals for cracks or wear; replace if needed.
3. Test Bluetooth and LED functions to ensure they work properly.
4. Avoid extreme heat or cold to protect the soundbar.
Storage
1. Store in a cool, dry place away from sunlight and moisture.
2. Detach from the cage bar if not used for a long time.
3. Keep in original packaging or a padded case to prevent damage.
