ITEM #5466081
MODEL #GFS60055B
12X10 Soft Top Gazebo
1
Serial Number
Purchase Date
SS23656
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 877-888-8225 , 8 a.m. - 8 p.m., EST, Monday - Sunday.
You may also contact us anytime at [email protected]..
ATTACH YOUR RECEIPT HERE
STYLE SELECTIONS and logo design
are trademarks or registered trademarks
of LF, LLC. All rights reserved.
2
PRODUCT SPECIFICATIONS
TABLE OF CONTENTS
SPECIFICATIONS
in x in
Package Contents...........................................................................................................................3
Hardware Contents..........................................................................................................................4
Safety Information............................................................................................................................4
Preparation......................................................................................................................................6
6.............................................................................................. snoitcurtsnI noitallatsnI ro ylbmessA
Care and Maintenance.....................................................................................................................11
Warranty..........................................................................................................................................11

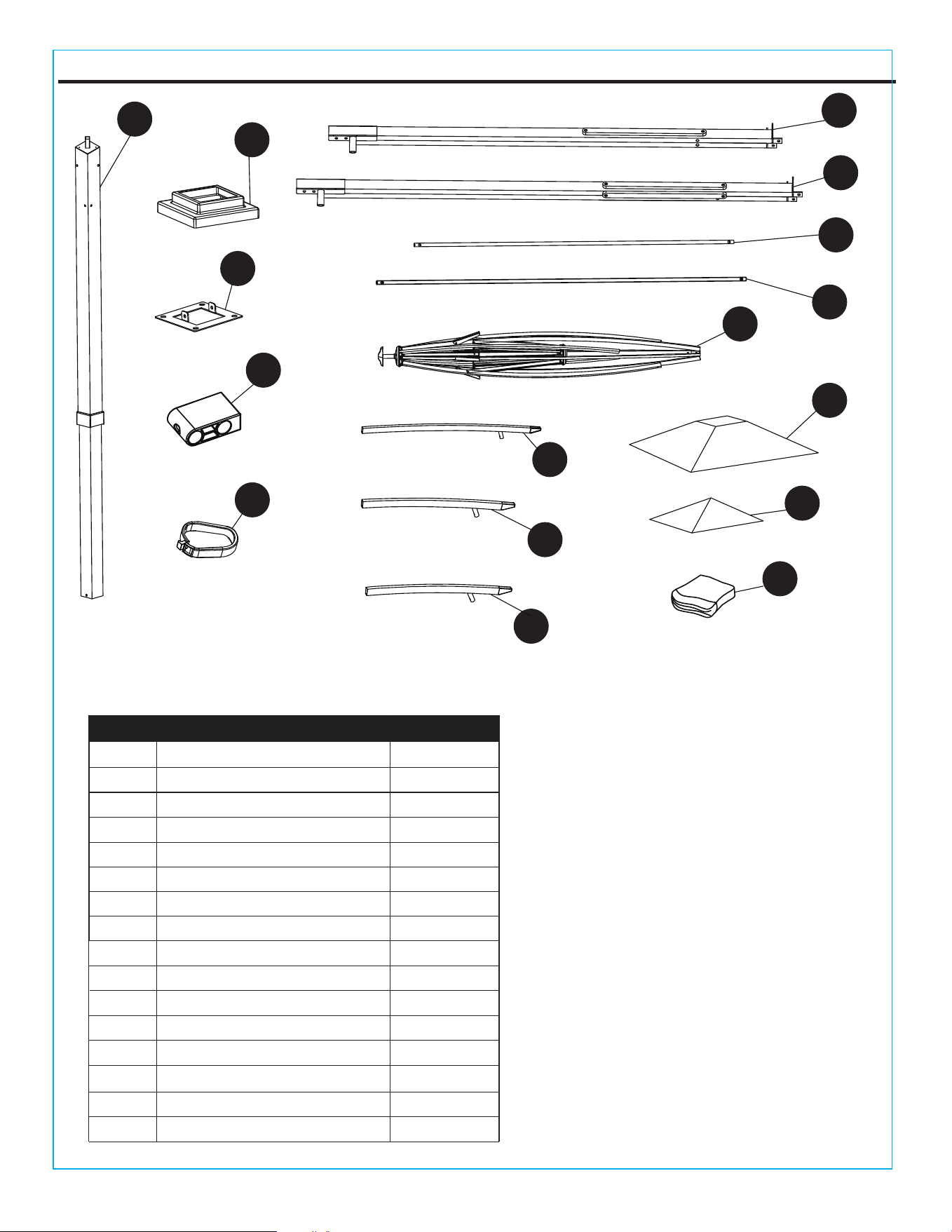

PACKAGE CONTENTS
3
PART
A
Post
4
B
Foot Plate Cover
4
C
Foot Plate
4
D1
Fold Beam 1
2
D2
Fold Beam 2
2
E1
Short Cloth Pipe
8
E2
Long Cloth Pipe
8
F
Clothing Card
16
G
H1
H2
H3
Umbrella Frame
Corner Rafter
Middle Rafter 1
Middle Rafter 2
1
4
2
2
A
D1
B
C
D2
F
I
E1
E2
G
H1
H2
H3
J1
J2
K
PART DESCRIPTION QUANTITY
I
J1
J2
K
Hanging Hook
Canopy
Second Tier Canopy
Netting
48+8
1
1
1
SAFETY INFORMATION
AAAA
AABB
AACC
AAEE
AADD
AA
FF

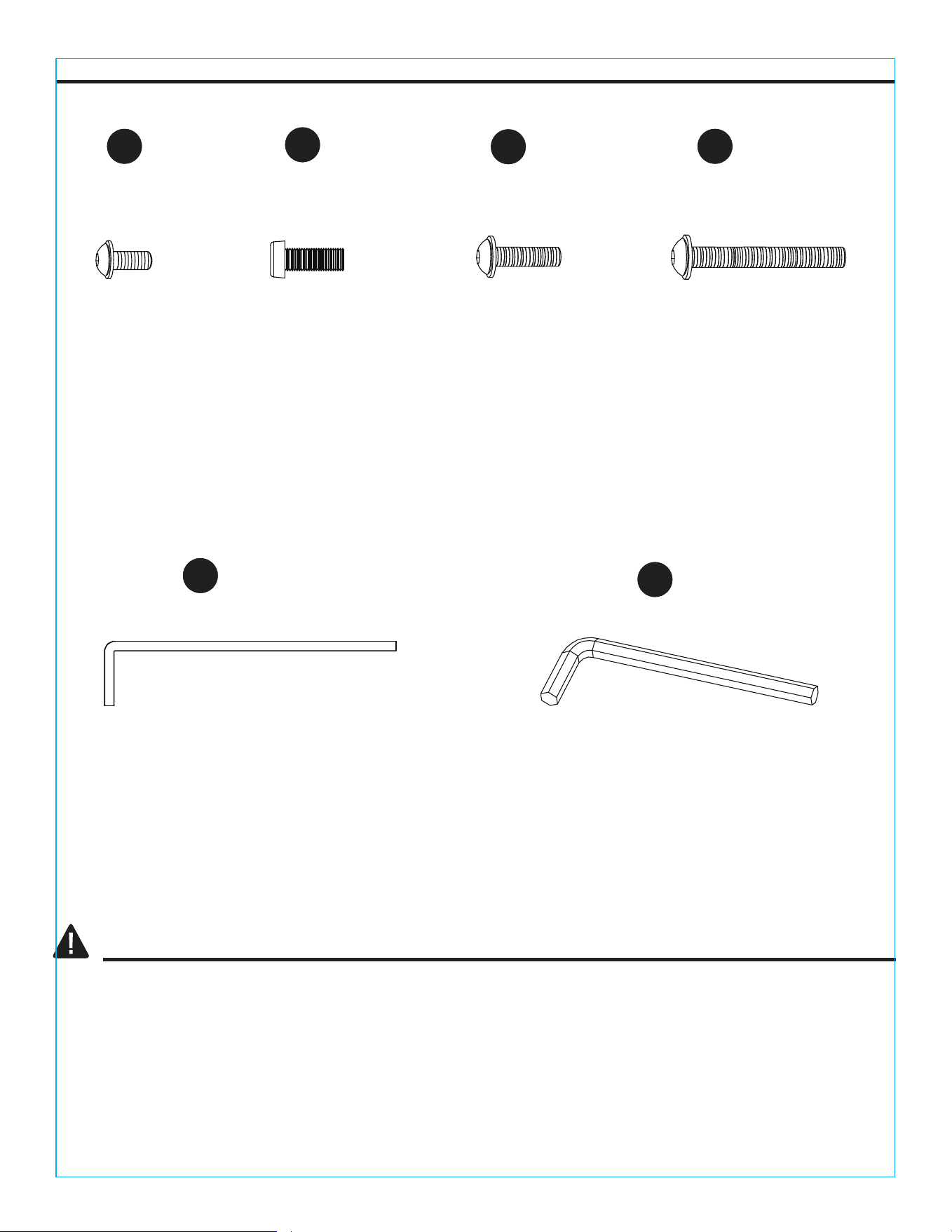

HARDWARE CONTENTS (shown actual size)
4
Qty. 32+2
M6x15mm
Bolts
Qty. 12+1
M6x15mm
Bolts
Qty. 12+1
M6x25mm
Bolts
Qty. 16+1
M6x65mm
Bolts
Qty. 8+1
Stake
Qty. 2
Hex key
WARNING
To reduce the risk of serious injury, read the following safety instructions before assembling and using
the gazebo.
Keep all flame and heat sources away from this gazebo fabric . This gazebo is made with fabric that
meets CPAl-84 specifications for flame resistance. lt is not fire proof, The fabric will burn if left in
contact with any flame source. The application of any foreign substance to the gazebo fabric may
render the flame-resistant properties ineffective.
5
SAFETY INFORMATION
DANGER
This unit is heavy! Do not assemble this item alone.
CAUTION
Always keep children under close supervision while they are using or around this product. Never
leave children unattended.
Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury, possibly even
death.
- Two people are required for this assembly.
- Some parts may contain sharp edges. Wear protective gloves if necessary.
- When assembling and using this product, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment. Please read all instructions before
assembly and usage.
- This product is intended for domestic, outdoor use only.
- The product should be placed on flat, horizontal ground.
- Ensure enough clearance around the product. Before assembling the product, find level ground not
less than 6' (18 m) away from any structures or obstructions such as fences, garages, houses,
overhanging branches, laundry lines, or electrical wires.
- The gazebo must be anchored with stakes onto the ground for added safety. lt cannot be
permanently attached to a concrete floor or platform. Do not assemble the gazebo on sandy, muddy
or loose soil as stakes do not have enough anchorage in these types of soil.
- In case you set up more than one gazebo, keep a minimum distance of 10' (3 m) between the
gazebos.
- Any assembly or maintenance of the product must be carried out by adults only.
- Arrange necessary manpower when assembling or moving the product.
- Keep children and pets away while setting up the gazebo.
- Check all nuts and bolts periodically for tightness. When required, tighten them again.
- Reparing and replacing parts should be done by a qualified technician.
- This gazebo is intended for decorative and sunshade purposes only, and it is not designed to
withstand harsh weather. including high winds, rain, and snow.
- Always remove the canopy in heavy wind conditions; otherwise, might tip over and cause damage
to the product or injuries to passersby.
- Always ensure that the roof canvas is tensioned to avoid water accumulation on the roof.
- Remove accumulated water on the roof immediately, or disassemble the gazebo in order to avoid
damages.
- If the product will not be used for a longer period (e.g., winter time), it should be stored in a clean,
dry environment.
- Do not light any fires inside or near the product!
- Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before firemen
allow you to do so.
- Do not hang any weights on the roof frame.
- Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
- Retain the original packaging to store the gazebo.
ASSEMBLY INSTRUCTIONS
6
2.
Expand fold beam (D1) and fold beam (D2),
and then secure them with M6 x 15 mm bolts (AA).
Repeat this step for the remaining fold beam.
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 1 Hour
Additional time to install hangers on porch or structure modifications.
Tools Required for Assembly :
Hex key

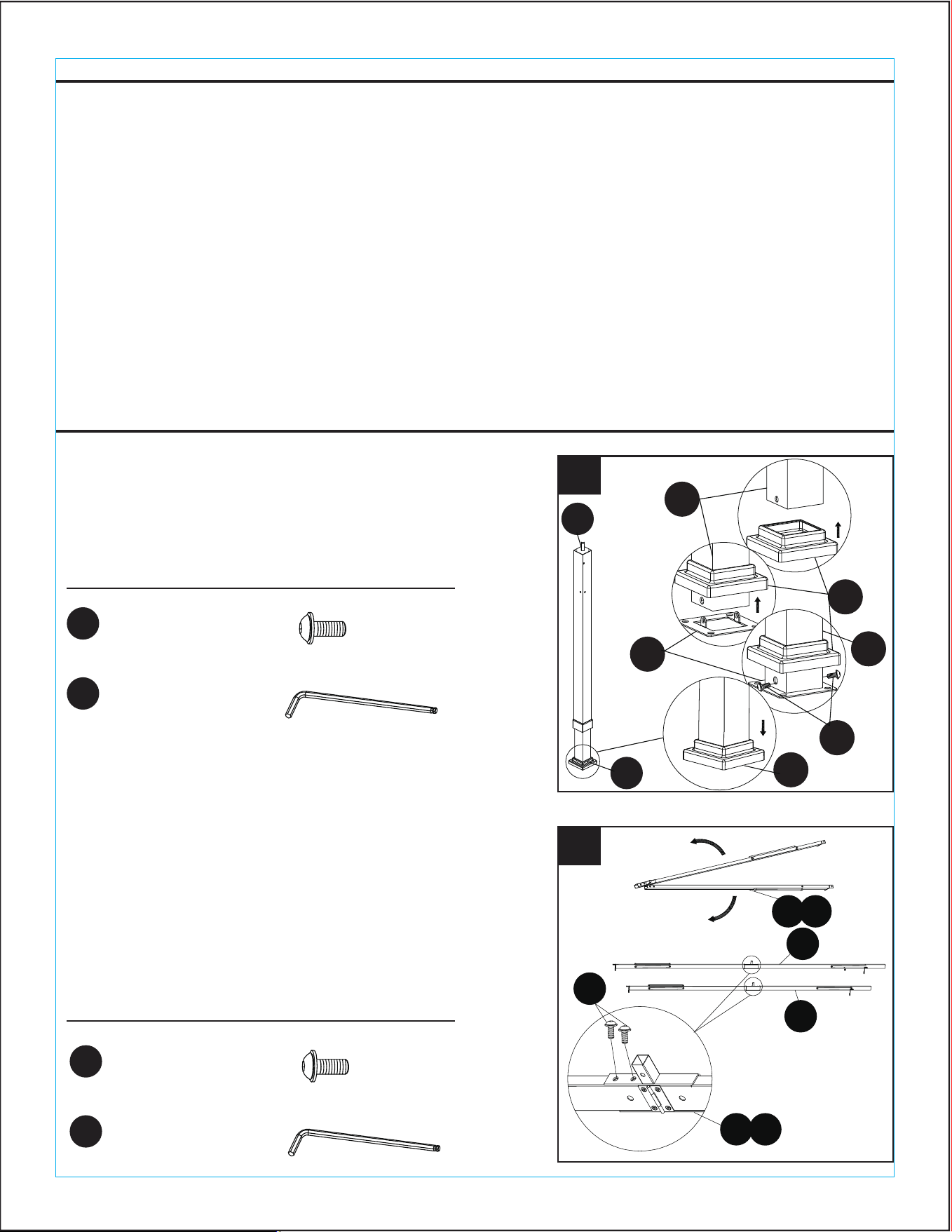

PREPARATION
2
Hardware Used
1.
AA
x 8
M6 x 15 mm Bolts
AA
1
Hardware Used
I
nsert foot plate cover (B) and foot plate (C) into post (A)
and use a hex key (FF) to tighten M6 x 15 mm bolts (AA)
to fix foot plate (C) to post (A). Repeat this step for the
remaining post.
AA
AA
AA
Hex key
FF
AA
A
AA B
A
B
A
C
AA
B
D1
D2
D1
AA
D1
D2
D1 D2
D1
AA
D1
D2
AA
x 8
M6 x 15 mm Bolts
AA
AA
AA
AA
Hex key
FF
ASSEMBLY INSTRUCTIONS
7

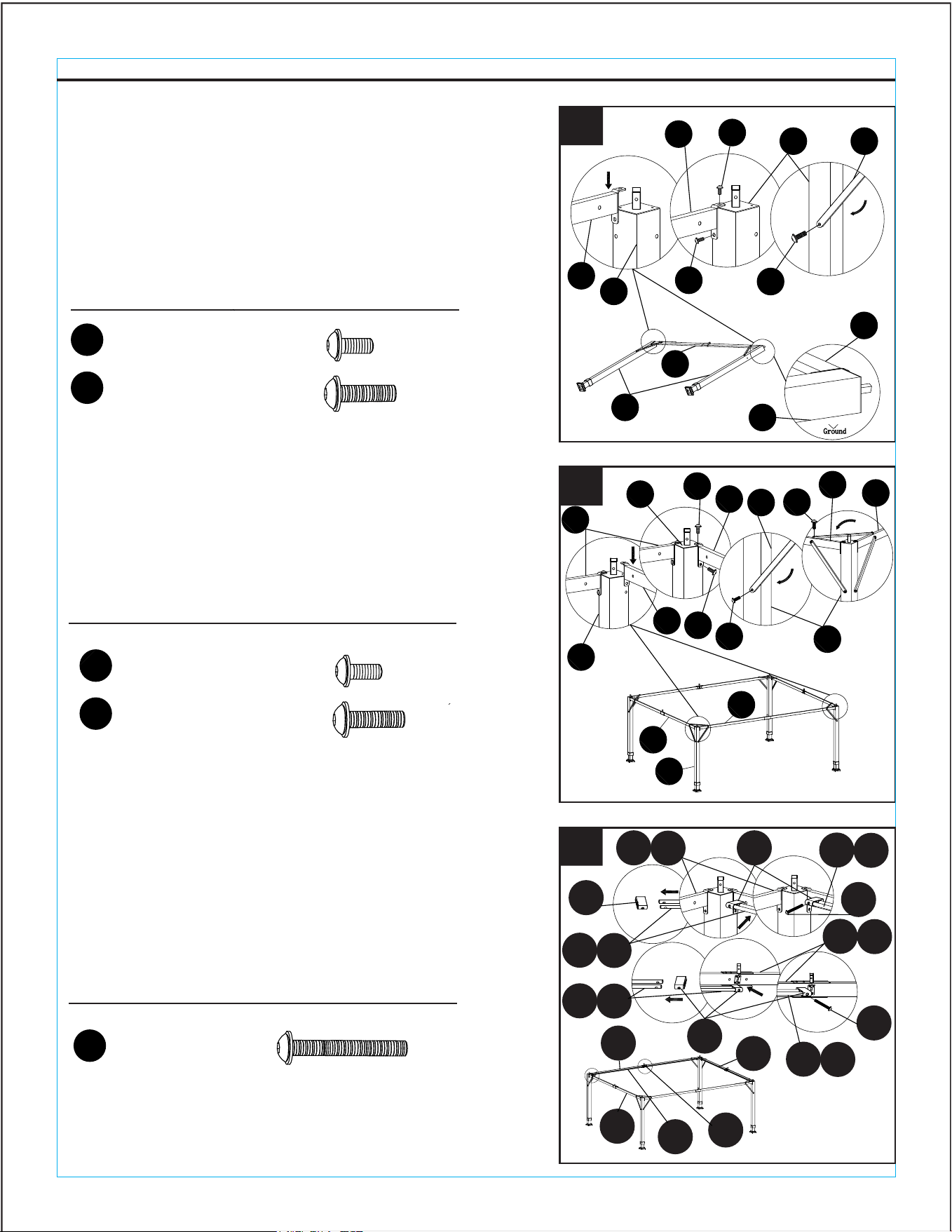

3.
Hardware Used
4.
3
4
Hardware Used
5.
5
DD
First, use M6 x 15 mm bolts (AA) to fix fold beam 1 (D1)
on post (A), then expand the support on fold beam 1 (D1),
and use M6 x 25 mm bolts (CC) to fix post (A).
Hardware Used
AA
M6 x 15 mm Bolts
x 8
CC
x 4
M6 x 25 mm Bolts
D1
CC
D1
A
AA
D2
D2
CC
D1
D2
CC
AA
D2
A
D2
D1
A
A
Use M6 x 15 mm bolts (AA) to fix fold beam 2 (D2) on
post (A), then expand the support on fold beam 2 (D2) use
M6 x 25 mm bolts (CC) to fix it on post (A) loosen the
support above fold beam 2 (D2) and use M6 x 25 mm
bolts (CC) to fix it on fold beam 1 (D1).
M6 x 65 mm
Bolts
x 16
A
A
D1
D1
D1
AA
AA
A
CC
D1
D1
A
AA
M6 x 15 mm Bolts
x 8
CC
x 8
M6 x 25 mm Bolts
D1
E2
F
F
E1
D2
E2
DD
E1
E2
E1
D2
D1
F
D2
D1
E2
E1
E2
E1
F
DD
Insert two ends of short cloth pipe (E1) into clothing card (F)
and fix them on fold beam 1 (D1) with M6 x 65 mm bolts (DD).
Then insert two ends of long cloth pipe (E2) into clothing card (F)
and fix them on fold beam 2 (D2) with M6 x 65 mm bolts (DD).
8

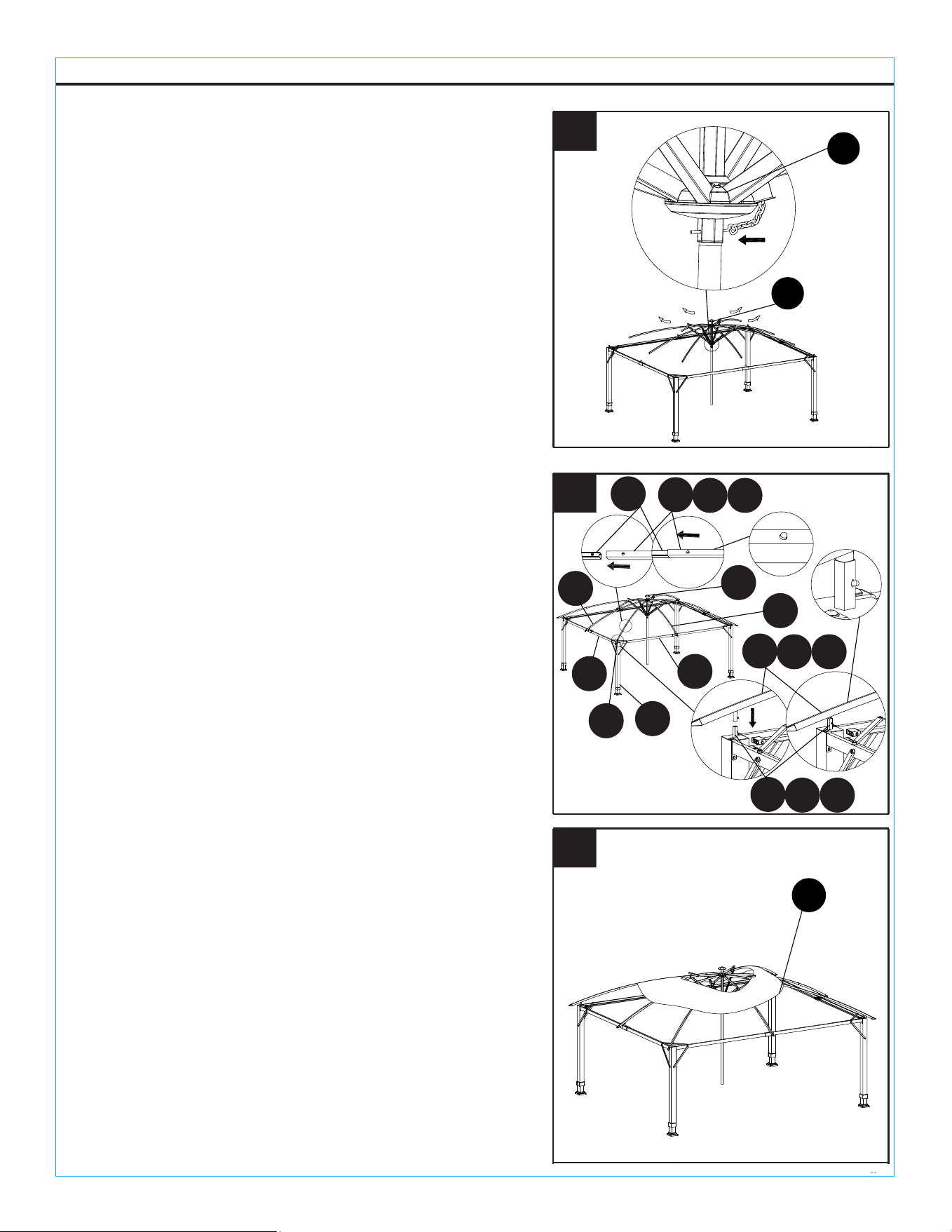

6.
6
7.
First insert the ends of corner rafter (H1) or middle rafter 1 (H2)
7
8.
8
ASSEMBLY INSTRUCTIONS
G
The umbrella frame (G) is first propped open and then
secured with a latch.
D2
D1
A
J1
J1
G
G
H1
H2
H3
A
D1
D2
H1
H2
H3
H3
G
H2
D1
D2
H1
A
or middle rafter 2 (H3) into the
umbrella frame (G)
as shown.
The silver push buttons on parts (H1 or H2 or H3) should make
an audible click and protrude from the holes of the
umbrella
frame (G)
when securely connected. Then insert the ends of
corner rafter (H1) into the post (A), middle rafter 1 (H2) into fold
beam 2 (D2) and middle rafter 2 (H3) into fold beam 1 (D1) as
shown. The silver push buttons on parts (H1 or H2 or H3)
should make an audible click and protrude from the holes of
the post (A) or fold beam 2 (D2) or fold beam 1 (D1) when
securely connected.
Insert the canopy (J1) into the
umbrella frame (G).
ASSEMBL Y INSTRUCTIONS
9
BB
9
10
11
G
BB
BB
A
A
J1
H1
H2
H3
J1
J1
J2
G
J2
M6 x 15 mm Bolts
x 12

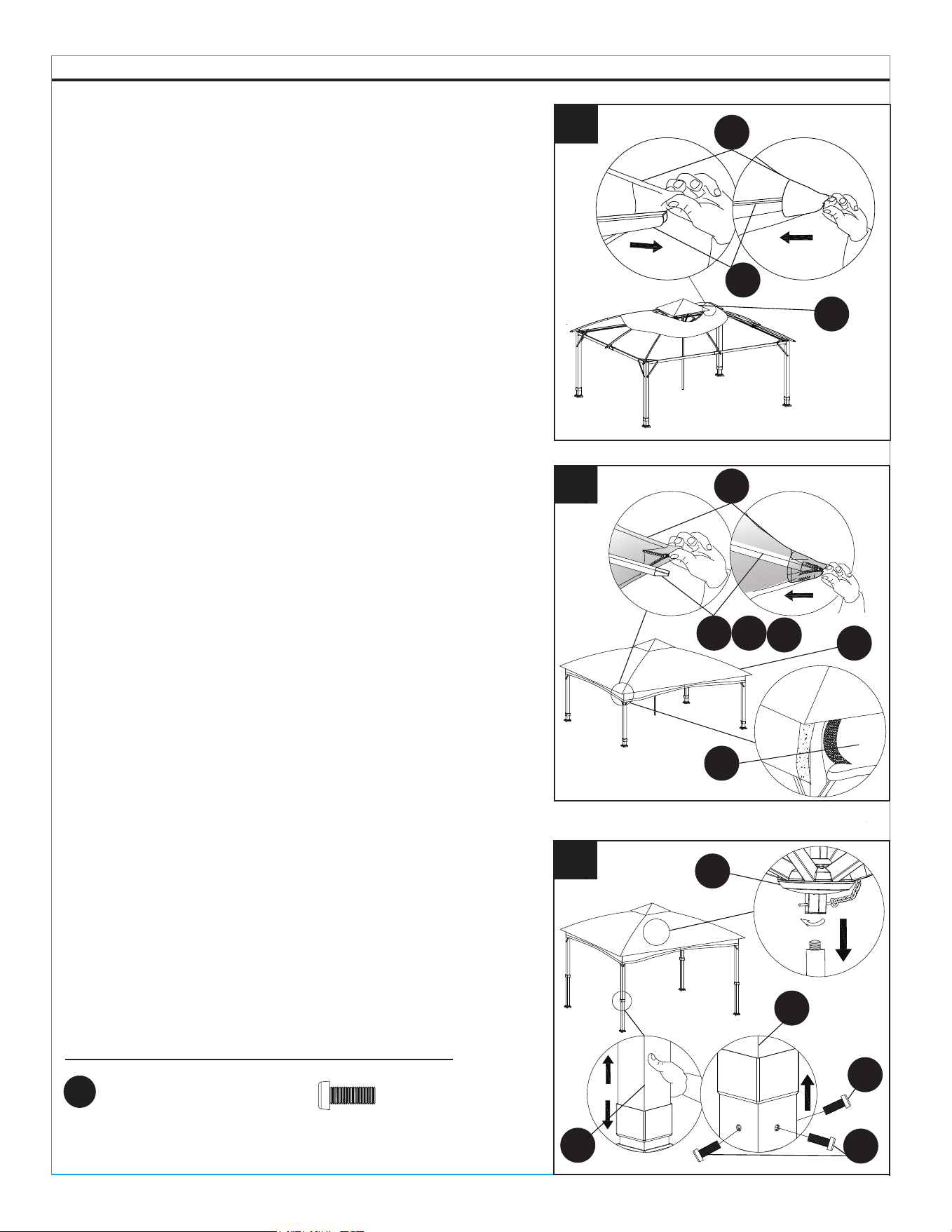

10.
Fix canopy (J1) on corner rafter (H1), middle rafter 1 (H2)
and middle rafter 2 (H3), and then fix the middle and four
corners of the hanging edge with a adhesive.
9.
Fix the four corners of second tier canopy (J2) to
the top piece of the second floor
11.
Raise post (A) and fix it with
M6 x 15 mm bolts
(BB)
(preferably with all 4 feet).
Unscrew the tube on umbrella frame (G).
Hardware Used
ASSEMBL Y INSTRUCTIONS
10

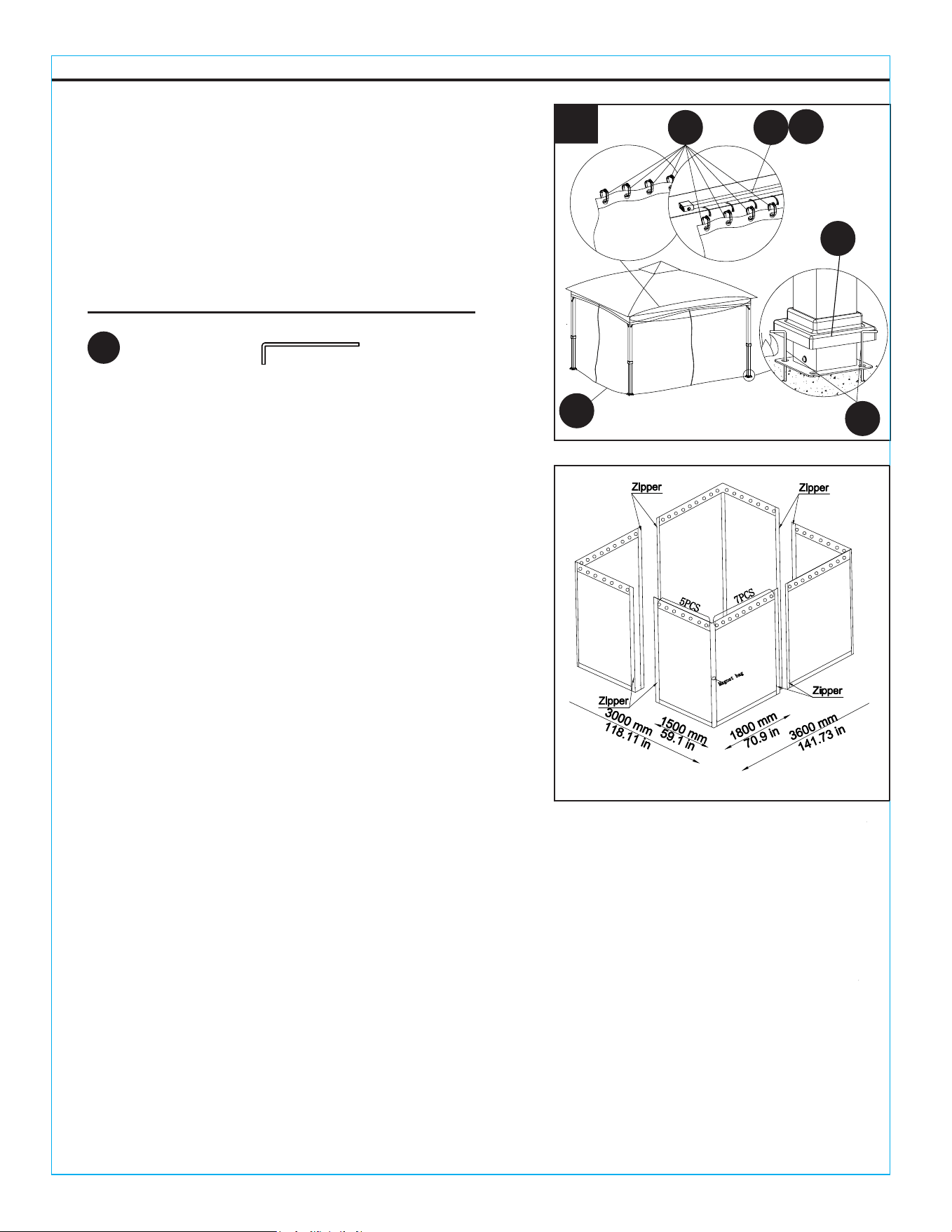

12. .
First load hanging hook (I) into netting (K), and then
buckle the loaded hanging hook (I) into short
cloth pipe (E1) and long cloth pipe (E2). Finally,
lift foot plate cover (B) and fix stake (EE) to the
ground. (Note: stake (EE) can only be used with
grass or soft soil.)
12
AA
AA
AA
x 8
Stake
EE
Hardware Used
K
EE
I
E1
E2
B
WARRANTY
CARE AND MAINTENANCE
Be careful to never allow water to build up in frames as this will cause corrosion and freeze
damage in cold climates. Wash all frames with a solution of mild soap and water, Rinse with clean
water and dry with a soft absorbent cloth towel. Frames can be treated with a liquid wax for
maximum protection against UV rays and/or salty, damp air. Canopy may be cleaned by hand
with a solution of soap and water with a clean water rinse. Never machine wash the canopy as
this will result in shrinkage or damage. Never use a commercial or home dryer to tumble dry fabric
goods. Do not use bleach or solvents to clean any product! This will void the warranty.
3-Year Limited Warranty
For a period of three (3) year after date of purchase, the Manufacturer will either repair or replace
defective components in accordance with this Limited Warranty. This warranty is between the
Manufacturer and the original purchaser and is valid only when accompanied by the original
purchaser's sales receipt showing original date of purchase and location of purchase. Replacements
under this warranty revert back to the date of original purchase for future warranty.
The Manufacturer or its authorized dealer can accept or reject warranty claims based on its findings.
This warranty applies in normal residential use only and is not intended for commerclal use, The
Manufacturer can make substitutions as required of materials, components, and sub-components of
comparable value and utility. This warranty is limited to product repair or replacement (to be
determined solely by the Manufacturer). Warranty return is limited to only the single affected
component.
This limited warranty covers only manufacturing defects and does not cover normal wear and tear,
damage due to acts of nature (such as, but not limited to freezing or high winds), abuse or misuse,
including chemical damage from suntan oil or other chemicals, exposure to extreme heat or cold,
abrasion or excessive weight.
This product is intended to be used in standard installations only. This warranty is void if the product is
not used for its intended purpose, The Manufacturer disclaims liability for any aspect of installation and
any inconvenience caused by a defective part of a component.
Certain items are not covered by this warranty, These include, but are not limited to the following:
1. Components subjected to abuse, including abuse intended to simulate failure.
2, Damages caused by retailer, shipper or installation crew (such as scratches, dents, tears, chips,
etc).
3. Any part which merely exhibits normal wear yet functions essentially as new, including chips,
scratches or stretching of materials and stitching.
4. Tears, punctures, scratches or any damage caused by improper installation or use.
5. Damage to frames/welds resulting from improper assembly or exposure to water and/or
sub-freezing temperatures is not covered. General frame rusting is not covered.
6. Fading and/or discoloration of fabrics/cushions/straps/wicker resulting from exposure to the
elements chemicals, oils, fluids or any other cause are not covered.
7. Umbrella bases are not covered under any circumstances.
8. Items sold “as is” or floor models.
To make a claim, call the toll-free number below. Please have available a copy of the original sales
receipt along with a brief description of the problem. Please also provide your email address and
daytime telephone or cell phone number. All items may be charged actual freight costs plus $15 for
handling. Repairs or replacement will be made at the Manufacturer's option. Sales and use taxes,
plus shipping and handling charges are the responsibility of the consumer.
THIS IS THE ENTIRE EXCLUSIVE EXPRESS LIMITED LIABILITY. THE MANUFACTURER
NEITHER MAKES NOR IS RESPONSIBLE FOR ANY OTHER WARRANTIES, EITHER EXPRESS
12
WARRANTY
Printed in China
OR IMPLIED INCLUDING THOSE OF RETAILING DEALERS.THIS EXCLUSIVE REMEDY IS
LIMITED TO RECEIPT OF A CREDIT IN CONNECTION WITH THE REPAIR OR REPLACEMENT
OF ANY PRODUCT OR COMPONENT DEEMED TO BE DEFECTIVE UNDER THE TERMS AND
CONDITIONS AS STATED IN THIS WARRANTY. NEITHER THE PRODUCT MANUFACTURER
NOR ITS AGENTS SHALL BE LIABLE IN ANY CASE FOR INCIDENTAL, INDIRECT, SPECIAL
OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING
OUT OF ANY BREACH OF THIS WARRANTY OR NEGLIGENCE EVEN IF IT HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES, EXCEPT AS OTHERWISE MAY BE REQUIRED BY
LAW, THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OTHER THAN THE
WARRANTY DESCRIBED HEREIN, AND ALL OTHER WARRANTIES, INCLUDING IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE
EXPRESSLY DISCLAIMED.
