ZenScreen MB249C
Portable Monitor
User Guide
ii
Copyright © 2020 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK COMPUTER INC.
(“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or
altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE
OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME
WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY
ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identication or
explanation and to the owners’ benet, without intent to infringe.
Table of contents
Notices ......................................................................................................... iii
Safety information ....................................................................................... v
Care & cleaning ........................................................................................... vi
Takeback services .................................................................................... 1-1
1.1 Welcome! ...................................................................................... 1-2
1.2 Package contents ......................................................................... 1-2
1.3 Monitor introduction .................................................................... 1-3
2.1 Adjusting the monitor .................................................................. 1-4
2.1.1 Using of handle ............................................................... 1-4
2.1.2 Using of hooks ................................................................ 1-4
2.1.3 Locking bracket ............................................................... 2-1
2.1.4 Assembly bracket ............................................................ 2-2

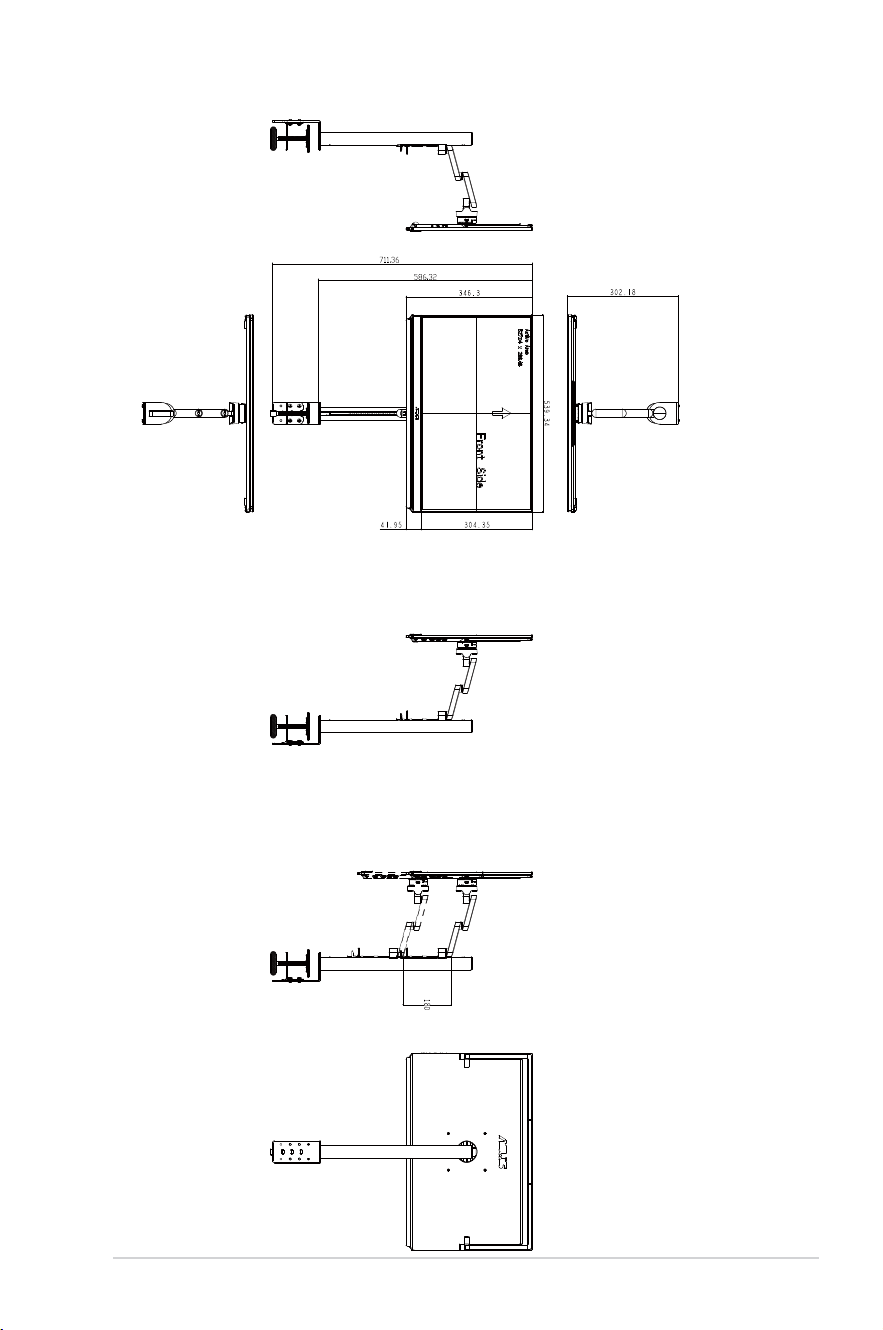

2.2 Outline dimension ........................................................... 3-1
2.3 Detaching the arm/stand (for VESA wall mount) ...................... 3-2
3.1 OSD (On-Screen Display) menu ................................................. 3-3
3.1.1 How to recongure .......................................................... 3-3
3.1.2 OSD Function Introduction .............................................. 3-4
3.2 Specications ............................................................................. 3-12
3.3 Troubleshooting (FAQ) .............................................................. 3-13
3.4 Supported Timing List ............................................................... 3-14
iii
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
NOTE:ThismonitorisENERGYSTARcertied.
This product qualies for ENERGY STAR® in the factory
default (Home conguration) setting. Changing the factory
default settings or enabling other features may increase
power consumption that could exceed the limits necessary
to qualify for ENERGY STAR®. Refer to ENERGYSTAR.gov
(www. energystar.gov) for more information on the ENERGY
STAR® program.
iv
Declaration of Conformity
This device complies with the requirements set out in the Council
Directive on the Approximation of the Laws of the Member States
relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage
Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive
(2011/65/EU). This product has been tested and found to comply with
the harmonized standards for Information Technology Equipment, these
harmonized standards published under Directives of Ofcial Journal of the
European Union.
WEEE Symbol Statement
This symbol on the product or on its packaging indicates that this product
must not be disposed of with your other household waste. Instead, it is
your responsibility to dispose of your waste equipment by handing it over
to a designated collection point for the recycling of waste electrical and
electronic equipment. The separate collection and recycling of your waste
equipment at the time of disposal will help to conserve natural resources
and ensure that it is recycled in a manner that protects human health and
the environment. For more information about where you can drop off your
waste equipment for recycling, please contact your local city ofce, your
household waste disposal service or the shop where you purchased the
product.
AEEE yönetmeliğine uygundur
ASUS CONTACT INFORMATION
ASUSTeK Computer Inc. ASUS Computer International (America) ASUS Computer GmbH (Germany and Austria)
Address Address 48720 Kato Rd, Fremont,
CA 94538, USA
Address Harkortstr. 21-23
D-40880 Ratingen, Germany
Telephone +886-2-2894-3447 Fax +1-510-608-4555
Telephone +49-1805-010920Telephone +1-510-739-3777
Fax +886-2-2894-7798
Website
http://usa.asus.com/
Website
http://www.asus.de/
E-mail
Online Contact
http://www.asus.de/sales
Website
http://www.asus.com.tw/
Technical Support
Technical Support Technical Support
Telephone +86-21-38429911
Telephone +1-812-282-2787 (English Only) Telephone +49-1805-010923
+1-905-370-2787 (French Only) Support Fax +49-2102-959911
Online Support
http://support.asus.com/ Online Support http://support.asus.com/
1F, No.15,
Lide Rd., Beitou Dist.,
Taipei City, 112
v
Safety information
• Before setting up this Portable Monitor, carefully read all the
documentation that came with the package.
• To prevent fire or shock hazard, never expose this Portable Monitor to
rain or moisture.
• Never try to open this Portable Monitor cabinet.
• Before using this Portable Monitor, make sure all cables are correctly
connected and the power cables are not damaged. If you detect any
damage, contact your dealer immediately.
• Avoid dust, humidity, and temperature extremes. Do not place this
Portable Monitor in any area where it may become wet. Place this
Portable Monitor on a stable surface.
• Never push objects or spill liquid of any kind into the slots on this
Portable Monitor cabinet.
• If you encounter technical problems with this Portable Monitor, contact
a qualified service technician or your retailer.
• DO NOT dispose of the product in fire
• DO NOT use monitor near heating equipment or in places where there
is likelihood of high temperature
• Keep your monitor away from sharp objects
• DO NOT place objects on top of your monitor
WARNING
Restriction on Hazardous Substances statement (India) This product
complies with the “India E-Waste (Management) Rules, 2016” and
prohibits use of Lead, Mercury, Hexavalent Chromium, polybrominated
biphenyls(PBBs) and polybrominated diphenyl ethers(PBDEs) in
concentration exceeding 0.1% by weight in homogenous materials
and 0.01% by weight in homogenous materials for cadmium, except of
exemptions listed in Schedule 2 of the Rule.
vi
Care & cleaning
• Cleaning. Turn your monitor off and unplug the cable. Clean the
monitor surface with a lint-free, non-abrasive cloth. Stubborn stains
may be removed with a cloth dampened with mild cleaner.
• Avoid using a cleaner containing alcohol or acetone. Use a cleaner
intended for use with the LCD. Never spray cleaner directly on the
screen, as it may drip inside the monitor and cause an electric shock.
The following symptoms are normal with the monitor:
• You may find slightly uneven brightness on the screen depending on
the desktop pattern you use.
• When the same image is displayed for hours, an afterimage of the
previous screen may remain after switching the image. The screen will
recover slowly or you can turn off the Power Switch for hours.
• When the screen becomes black or flashes, or cannot work anymore,
contact your dealer or service center to fix it. Do not repair the screen
by yourself!
Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components
when trying to complete a task.
IMPORTANT: Information that you MUST follow to complete a
task.
NOTE: Tips and additional information to aid in completing a task.
Wheretondmoreinformation
Refer to the following sources for additional information and for product
and software updates.
1. ASUS websites
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. Refer to http://www.asus.com
2. Optional documentation
Your product package may include optional documentation that may
have been added by your dealer. These documents are not part of
the standard package.
3. About Flicker
https://www.asus.com/Microsite/display/eye_care_technology/
1-1ASUS Portable Monitor MB249C
Takeback services
ASUS recycling and takeback programs come from our commitment to the
highest standards for protecting our environment. We believe in providing
solutions for our customers to be able to responsibly recycle our products,
batteries and other components as well as the packaging materials.
Please go to http://csr.asus.com/english/Takeback.htm for detail
recycling information in different region.
Product information for EU energy label
1-2 Chapter 1: Product Introduction
1.1 Welcome!
Thank you for purchasing the ASUS
®
Portable Monitor!
The latest ASUS Portable Monitor provides great portability and simplicity
to your daily life, enhancing both of your viewing experience and style.
1.2 Package contents
Check your package for the following items:
Portable Monitor
Quick Start Guide
Warranty Card
USB Type-C Cable
Power Cord
HDMI cable
Power Adapter
Monitor Arm
Partition hook kit
L-shaped Screwdriver
Screw
• If any of the above items is damaged or missing, contact your retailer
immediately.
1-3ASUS Portable Monitor MB249C
1.3 Monitor introduction
4
3
2
1
1. HDMI port
2. USB Type-C port
3. Earphone - out Port
4. DC-IN Port
1-4 Chapter 1: Product Introduction
2.1 Adjusting the monitor
2.1.1 Using of handle
• You can adjust the monitor to the best Angle for you.
• The monitor’s Angle is between 12 and 60 degrees.
12° ~60°
36° ~125°
2.1.2 Using of hooks
1. Adjust the hook and screw, and then lock it to the bafe.
2. Hang the handle of the monitor on the hook.
You can adjust and lock the screws according to the thickness.
1
2
2-1ASUS Portable Monitor MB249C
2.1.3 Locking bracket
1. Secure the head of the support using an L-shaped screwdriver. And
you can adjust the height by pinching the switch.
2. Attach the bracket to the desktop.
3. Attach the tripod to the head of the bracket.
2
1
2-2 Chapter 2: Setup
2.1.4 Assembly bracket
• For optimal viewing, we recommend that you look at the full face of the
monitor, then adjust the monitor to the angle that is most comfortable
for you.
1. Hold the stand to prevent the monitor from falling when you change
its angle.
2. Adjust the monitor follow the pictures for the most comfortable
viewing for you.
180.00
90°
0
90°
0
72.00
144.00
72.00
Swivel_C: ± 90°
-5°-20°
It is normal that the monitor slightly shakes while you adjust the
viewing angle.
3-1ASUS Portable Monitor MB249C
2.2 Outline dimension
Unit: mm [inch]
3-2 Chapter 2: Setup
2.3 Detaching the arm/stand (for VESA wall
mount)
• Avoid damaging the monitor surface. While detaching the monitor
stand, always keep the monitor inside its paper packaging.
The detachable stand of this monitor is specially designed for VESA wall
mount.
To detach the arm/stand
1. Push the locking clips inward to detach the monitor from the stand.
2. Hold the monitor with both hands, tilt the base and slide it out.
3. Detach the monitor from the stand/arm.
1
2
4. Remove the four screws and tripod from the rear cover to mount the
monitor on the wall.
MENU
• Use only the UL Listed Wall Mount Bracket with minimum weight/load
30 kg (Screw size: M4 x 10 mm).
3-3ASUS Portable Monitor MB249C
3.1 OSD (On-Screen Display) menu
3.1.1 Howtorecongure
Reading Mode
Darkroom Mode
Splendid
Standard Mode
sRGB Mode
Game Mode
Night View Mode
Scenery Mode
ASUS MB249
Scenery Mode HDMI 1080p 60Hz
Theater Mode
S
1. Press the MENU button to activate the OSD menu.
2. Press the and buttons to toggle between options in the
Menu. As you move from one icon to another, the option name is
highlighted.
3. To select the highlighted item on the menu press the
key.
4. Press the and buttons to select the desired parameter.
5. Press the
key to enter the slide bar and then use the or
buttons, according to the indicators on the menu, to make your
changes.
3-4 Chapter 3: General Instruction
3.1.2 OSD Function Introduction
1. Splendid
This function contains eight sub-functions that you can select for your
preference.
Reading Mode
Darkroom Mode
Splendid
Standard Mode
sRGB Mode
Game Mode
Night View Mode
Scenery Mode
ASUS MB249
Scenery Mode HDMI 1080p 60Hz
Theater Mode
S
• Standard Mode: This is the best choice for document editing with
SPLENDID™ Video Intelligence Technology.
• sRGB Mode: This is the best choice for viewing photos and graphics
from PCs.
• Scenery Mode: This is the best choice for scenery photo displaying with
SPLENDID™ Video Intelligence Technology.
• Theater Mode: This is the best choice for movie watching with
SPLENDID™ Video Intelligence Technology.
• Game Mode: This is the best choice for game playing with SPLENDID™
Video Intelligence Technology.
• Night View Mode: This is the best choice for playing dark-scene game
or watching dark-scene movie with SPLENDID™ Video Intelligence
Technology.
• Reading Mode : This is the best choice for book reading.
• Darkroom Mode : This is the best choice for a weak ambient light
environmen.
• In the Standard Mode, the Saturation, SkinTone, Sharpness, and ASCR
functions are not user-configurable.
• In the sRGB, the Saturation, Color Temp., SkinTone, Sharpness, Brightness,
Contrast and ASCR functions are not user-configurable.
• In the Reading Mode, the Saturation, SkinTone, Sharpness, ASCR, contrast,
and Color Temp functions are not user-configurable.
3-5ASUS Portable Monitor MB249C
2. Blue Light Filter
Adjust the energy level of blue light emitted from LED backlight.
Blue Light Filter
S
MAX
0
ASUS MB249
Scenery Mode HDMI 1080p 60Hz
• Blue Light Filter: In this function, you can adjust the blue light filter from
Min to max. Min: no changes；Max: The higher the level, the less blue
light is scattered. When blue light filter is activated, the default settings of
Standard Mode will be automatically imported. Besides maximum level,
the brightness is user-configurable. Maximum is the optimized setting.
It is compliance with TUV low blue light certification*. The brightness
function is not user configurable.
• When the user adjusts blue light filter bar to maximum level.
Please refer to the following to alleviate eye strains:
• Users should take some time away from the display if working for long hours.
It is advised to take short breaks (at least 5 mins) after around 1 hour of
continuous working at the computer. Taking short and frequent breaks is more
effective than a single longer break.
• To minimize eye strain and dryness in your eyes, users should rest the eye
periodically by focusing on objects that are far away.
• Eye exercises can help to reduces eye strain. Repeat these exercises often. If
eye strain continues please consult a physician. Eye exercises: (1) Repeating
look up and down (2) Slowly roll your eyes (3) Move your eyes diagonal.
• High energy blue light may lead to eye strain and AMD (Age-Related Macular
Degeneration). Blue light Filter to reduce 70% (max.) harmful blue light to
avoiding CVS (Computer Vision Syndrome).
3-6 Chapter 3: General Instruction
3. Color
Select the image color you like from this function.
Color
S
Brightness
Contrast
Saturation
Color Temp.
Skin Tone
ASUS MB249
Scenery Mode HDMI 1080p 60Hz
• Brightness: The adjusting range is from 0 to 100.
• Contrast: The adjusting range is from 0 to 100.
• Saturation: The adjusting range is from 0 to 100.
• Color Temp.: Contains three preset color modes (Cool, Normal, Warm)
and User Mode.
• Skin Tone: Contains three color modes including Reddish, Natural, and
Yellowish.
• In the User Mode, colors of R (Red), G (Green), and B (Blue) are user-
configurable; the adjusting range is from 0 ~ 100.
3-7ASUS Portable Monitor MB249C
4. Image
You can adjust the image Sharpness, Trace Free, Aspect Control,
VividPixel,
ASCR, FreeSync and Shadow Boost from this main
function.
S
Aspect Control
VividPixel
Trace Free
ASCR
FreeSync
Shadow Boost
Sharpness
ASUS MB249
Scenery Mode HDMI 1080p 60Hz
• Sharpness: Adjusts the picture sharpness. The adjusting range is from
0 to 100.
• Trace Free: Speeds up the response time by Over Drive technology. The
adjusting range is from lower 0 to faster 100.
• Aspect Control: Adjusts the aspect ratio to “Full”, “4:3”.
• VividPixel: ASUS Exclusive Technology that brings lifelike visuals for
crystal-clear and detail-oriented enjoyment. The adjusting range is from
0 to 100.
• ASCR: Select ON or OFF to enable or disable dynamic contrast ratio
function.
• FreeSync: It can allow a FreeSync supported graphics source to
dynamically adjust display refresh rate based on typical content frame
rates for power efficient, virtually stutter free and low-latency display
update.
• Shadow Boost:
Dark color enhancement adjust monitor gamma curve to
enrich the dark tones in an image making dark scenes and objects much
easier be found.
• 4:3 is only available when input resolution H:V < 16:9.
3-8 Chapter 3: General Instruction
5. Input Select
Select the input source from HDMI or USB Type-C input signal.
S
USB Type-C
HDMI
Input Select
ASUS MB249
Scenery Mode HDMI 1080p 60Hz
6. System Setup
Adjusts the system conguration.
S
ECO Mode
Volume
OSD Setup
Language
More
GamePlus
QuickFit
Splendid Demo Mode
System Setup
ASUS MB249
Scenery Mode HDMI 1080p 60Hz
S
Back
Key Lock
Information
Power Indicator
Power Key Lock
All Reset
System Setup
ASUS MB249
Scenery Mode HDMI 1080p 60Hz
3-9ASUS Portable Monitor MB249C
• Splendid Demo Mode: Activate the demo mode for the Splendid
function.
• Volume: Adjusts the output volume level.
• GamePlus: The GamePlus Function provides a toolkit and creates a
better gaming environment for users when playing different types of
games. Particularly, Crosshair function is specially designed for new
gamers or beginners interested in First Person Shooter (FPS) games. To
active GamePlus:
• Press GamePlus Button to enter the GamePlus main menu.
• Activate Crosshair, Timer, FPS Counter or Display Alignment
function.
• Press
and
to select and press to confirm the function
needed.
• Crosshair/Timer/FPS Counter is movable by moving
and
.
(Practice Mode)
GamePlus main menu GamePlus-Crosshair
GamePlus-Timer
• QuickFit: contains three patterns: (1) Grid (2) Paper size (3) Photo size.
1. Grid pattern: Facilitates designers and users to organize
content and layout on one page and achieve a consistent
look and feel.
Alignment Grid 2
Alignment Grid 1
3-10 Chapter 3: General Instruction
2. Paper size: Provides users to view their documents in real
size on the screen.
B5 Letter
B5
EXIT
Letter
EXIT
3. Photo size: Provides photographers and other users to
accurately view and edit their photos in real size on the
screen.
8x10
5x7
3x5
2x2
4x6
• ECO Mode: Activate this ecology mode for power saving.
• OSD Setup: Adjusts the OSD Timeout, DDC/CI, and Transparency of
the OSD screen.
• Language: Select OSD language. The selections are: English, French,
German, Spanish, Italian, Dutch, Russian, Poland, Czech, Croatia,
Hungary, Romania, Portugal, Turkey, Simplified Chinese, Traditional
Chinese, Japanese, Korean, Persian, Thai, Indonesian and Ukraine.
• More: More related Settings.
• Back: Return to the previous menu.
• Key Lock: Disable all key functions. Pressing the
button for more than
five seconds to disable key lock function.
• Power Key Lock: To disable / enable power key.
• Information:Displays the monitor information.
• Power Indicator: Turn the power LED indicator on/off.
• All Reset: Selects “Yes” to revert all settings to the factory default mode.
3-11ASUS Portable Monitor MB249C
7. Shortcut
Selecting this option allows you to set shortcut key.
S
Blue Light Filter
Splendid
Brightness
Contrast
Color Temp.
Volume
QuickFit
GamePlus
Shortcut
ASUS MB249
Scenery Mode HDMI 1080p 60Hz
• Shortcut : User can select from “Blue Light Filter” “Splendid”,
“Brightness”, “Contrast”, “Color Temp.”, “Volume”, “QuickFit”,
“GamePlus” and set as shortcut key.
8. MyFavorite
Load/Save all settings on the monitor.
S
Setting 1
Setting 2
Setting 3
Setting 4
MyFavorite
ASUS MB249
Scenery Mode HDMI 1080p 60Hz
3-12 Chapter 3: General Instruction
3.2 Specications
Model MB249C
Panel Size
23.8” (16:9, 60.45cm) wide screen
Resolution 1920 x 1080
Brightness (Typ.)
250 nits
Contrast (Typ.)
1000:1
Display Colors
16.7 M
Digital Input
DisplayPort™ Alt Mode for USB Type-C™
HDMI
Colors
Black
Power Consumption
＜ 13 W
Operating Temp. 5°C ~ 35°C
Operating Humidity 20-90% RH
Speaker
1W x 2
Phys. Dimension (WxHxD)
539.34 x 711.36 x 302.18 mm
Box Dimension (WxHxD)
600 x 426 x 124 mm
Net Weight (Esti.)
4.84 kg
Gross Weight (Esti.)
7.6 kg
Regulation Approvals
CE KCC BSMI EAC(CU) RCM VCCI J-Moss UkrSEPRO
RoHS WEEE Windows 7 & 8.1 & 10 WHQL ES8.0 ErP
MEPS CEL KCC E-Standby
Voltage Rating
19V , 4.74A
Adapter
ASUS/ADP-90LE B
100-240V~50/60Hz 1.5A
19V
, 4.74A
*Specications are subject to change without notice.
3-13ASUS Portable Monitor MB249C
3.3 Troubleshooting (FAQ)
Problem Possible Solution
Power LED is not ON
• Press the
button to check if the monitor is
in the ON mode.
• Check if the Type-C and HDMI port connected
to source of signal.
• Check if the signal source is ON.
The power LED lights white
and there is no screen image
• Check if the monitor and the computer are in
the ON mode.
• Make sure the USB Type-C and HDMI cable
is properly connected between the Portable
Monitor and the computer.
• Inspect the signal cable and make sure none
of the pins are bent.
• Connect the computer with another available
monitor to check if the computer is properly
working.
Screen image is too light or
dark
• Adjust the Brightness settings via the button.
Screen image bounces or a
wave pattern is present in the
• Make sure the USB Type-C and HDMI cable
is properly connected between the Portable
Monitor and the computer.
• Move electrical devices that may cause
electrical interference.
Screen image has color
defects (white does not look
white)
• Inspect the USB Type-C and HDMI cable
and make sure that none of the pins are
bent.
3-14 Chapter 3: General Instruction
3.4 Supported Timing List
PC Supported Primary Timing
Resolution H(KHz) V(Hz) Pixel(MHz)
640x350, 70Hz 31.469 70.087 25.175
640x480, 60Hz 31.469 59.94 25.175
640x480, 67Hz 35 66.667 30.24
640x480,72Hz 37.861 72.809 31.5
640x480,75Hz 37.5 75 31.5
720x400, 70Hz 31.469 70.087 28.322
800x600,56Hz 35.156 56.25 36
800x600,60Hz 37.879 60.317 40
800x600,72Hz 48.077 72.188, 50
800x600,75Hz 46.875 75 49.5
832x624, 75Hz 49.725 74.551 57.2832
1024x768,60Hz 48.363 60.004 65
1024x768,70Hz 56.476 70.069 75
1024x768,75Hz 60.023 75.029 78.75
1152x864,75Hz 67.5 75 108
1280x960,60Hz 60 60 108
1280x1024,60Hz 63.981 60.02 108
1280x1024,75Hz 79.976 75.025 135
1280x720, 60Hz 44.772 59.855 74.5
1280x800, 60Hz 49.702 59.81 83.5
1366x768,60Hz 47.712 59.79 85.5
1440x900,60Hz 55.935 59.887 106.5
1680x1050,60Hz 65.29 59.954 146.25
1920x1080, 60Hz 67.5 60 148.5
1920x1080, 75Hz 83.894 74.975 174.5
