USER’
S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference
HRSBS613BWX
2
Contents
Safety and warning information ............ 2
Installing your new appliance ............... 8
Description of the appliance ............... 10
Display controls ................................. 11
Using the 21-inch display ................... 15
Using your appliance .......................... 17
Cleaning and care .............................. 23
Helpful hints and tips .......................... 25
Troubleshooting ................................. 27
Disposal of the appliance ................... 29
Safety and warning information
For your safety and correct usage, before installing and first using the
appliance, read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents, it is
important to make sure that all people using the appliance are
thoroughly familiar with its operation and safety features. Save these
instructions and be sure that they remain with the appliance if it is
moved or sold, so that anyone using.
it throughout its life, will be properly informed on its usage and safety
notices.
For the safety of life and property, keep the precautions of these user's
instructions as the manufacturer is not responsible for damages
caused by omission.
Safety for children and others who are vulnerable people
According to EN standard
This appliance can be used by children aged from 8 years and above
and persons with reduced physical， sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
According to IEC standard
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
3
for their safety.
Keep all packaging away from children as there is risk of suffocation.
If you are discarding the appliance, pull the plug out of the socket,
cut the connection cable (as close to the appliance as you can) and
remove the door to prevent children playing from suffering an electric
shock or from closing themselves inside it.
If this appliance, featuring a magnetic door seals, is to replace an
older appliance having a spring lock (latch) on the door or lid, be sure
to make the spring lock unusable before you discard the old
appliance. This will prevent it from becoming a death trap for a child.
General safety
WARNING -This appliance is intended to be used in household
and similar applications such as
-staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential
type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
WARNING —Fill with potable water only.
WARNING —Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
WARNING —If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
WARNING —Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
WARNING —Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by
the manufacturer.
WARNING —Do not damage the refrigerant circuit.
WARNING —Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
WARNING —The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so only at an
4
authorized waste disposal centre. Do not expose to flame.
WARNING —When positioning the appliance, ensure the supply cord
is not trapped or damaged.
WARNING —Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
WARNING —Children should be supervised to ensure they do not
play with the appliance.
WARNING —Incorporated ice-makers are to be installed only by the
manufacturer or its service agent.
Replacing the illuminating lamps
WARNING —The illuminating lamps must not be replaced by the
user! If the illuminating lamps is damaged, contact the customer
helpline for assistance.
This warning is only for refrigerators that contain illuminating lamps.
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of
environmental compatibility, which is nevertheless flammable. During
transportation and installation of the appliance， ensure that none of
the components of the refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
WARNING
—
Refrigerators contain refrigerant and gases
in the
insulation. Refrigerant and gases must be disposed
of professionally as
they may cause eye injuries or ignition.
Ensure that tubing of the
refrigerant circuit is not damage
prior to proper disposal.
WARNING
:
Risk of fire
/
flammable materials
If the refrigerant circuit should be damaged:
-Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is situated.
-It is dangerous to alter the specifications or modify this product
in any way.
-Any damage to the cord may cause a shortcircuit, fire, and electric
shock.
5
Electrical safety
1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged. A
crushed or damaged power plug may overheat and cause a fire.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power plug.
There is a risk of electric shock or fire.
6. You must not operate the appliance without the interior lighting
lamp cover.
7. The fridge is only applied with power supply of single phase
alternating current of 220-240V/50Hz. If fluctuation of voltage in the
district of user is so large that the voltage exceeds the above scope,
for safety sake, be sure to apply A.C. Automatic voltage regulator of
more than 350W to the fridge. The fridge must employ a special
power socket instead of common one with other electric appliances.
Its plug must match the socket with ground wire.
Daily use
In order to sense the temperature and humidity near the appliance
and make the appliance run better, add temperature and humidity
sensors outside the box of appliance, there are also proximity and
light sensors on the device.
Do not store flammable gas or liquids in the appliance, there is a
risk of an explosion.
Do not operate any electrical appliances in the appliance
(e.g.electric ice cream makers, mixers etc.).
When unplugging always pull the plug from the mains socket, do
not pull on the cable.
Do not place hot items near the plastic components of this
appliance.
This refrigerating appliance is not intended to be used as a built-in
appliance.
Do not place food products directly against the air outlet on the
rear wall.
Store pre-packed frozen food in accordance with the frozen food
6
manufacture's instructions.
The appliances manufactures storage recommendations should
be strictly adhered to. Refer to relevant instructions for storage.
Do not place carbonated or fizzy drinks in the freezer compartment
as it creates pressure on the container, which may cause it to
explode, resulting in damage to the appliance.
Frozen food can cause frost burns if consumed straight from the
freezer compartment.
Do not place the appliance in direct sunlight.
Keep burning candles, lamps and other items with naked flames
away from the appliance so that do not set the appliance on fire.
The appliance is intended for keeping food stuff and/or beverages
in normal household as explained in this instruction booklet. The
appliance is heavy. Care should be taken when moving it.
Do not remove nor touch items from the freezer compartment if
your hands are damp/wet, as this could cause skin abrasions or
frost/freezer burns.
Never use the base，drawers, doors etc. to stand on or as
supports.
Frozen food must not be refrozen once it has been thawed out.
Do not consume ice popsicles or ice cubes straight from the
freezer as this can cause freezer burn to the mouth and lips.
To avoid items falling and causing injury or damage to the
appliance, do not overload the door shelves or put too much food in
the crisper drawers.
Caution!
Care and cleaning
Before maintenance, switch off the appliance and disconnect the
mains plug from the mains socket.
Do not clean the appliance with metal objects, steam cleaner,
ethereal oils, organic solvents or abrasive cleansers.
Do not use sharp objects to remove frost from the appliance. Use
a plastic scraper.
Installation Important!
For electrical connection carefully, follow the instructions given in
this manual.
7
Unpack the appliance and check if there are damages on it.
Do not connect the appliance if it is damaged. Report possible
damages immediately to the place you bought it. In this case retain
packing.
It is advisable to wait at least four hours before connecting the
appliance to allow the oil to flow back in the compressor.
Adequate air circulation should be around the appliance, lacking
this leads to overheating. To achieve sufficient ventilation, follow the
instructions relevant to installation.
Wherever possible the back of the product should not be too close
to a wall to avoid touching or catching warm parts (compressor,
condenser) to prevent the risk of fire, follow the instructions relevant
to installation.
The appliance must not be locate close to radiators or cookers.
Make sure that the mains plug is accessible after the installation of
the appliance.
Service
Any electrical work required to do the servicing of the appliance
should be carried out by qualified electrician or competent person.
This product must be serviced by an authorized Service Center,
and only genuine spare parts must be used.
1) If the appliance is Frost Free.
2) If the appliance contains freezer compartment.
This appliance employs Hydrocarbon Refrigerant type R600a.
It is hazardous for anyone other than an Authorized Service Person
to service this appliance.
In Queensland, the Authorized Service Person MUST hold a Gas
Work Authorization for hydrocarbon refrigerants to carry out servicing
or repairs which involve removal of covers.
Note: Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances. (This clause applies only to the EU region.)
8
Installing your new appliance
Before using the appliance for the first
time, you should be aware of the
following tips.
Ventilation of appliance
In order to improve efficiency of
the cooling system and save
Energy, it is necessary to maintain good
ventilation around the appliance for the
dissipation of heat. For this reason,
sufficient clear space should be
available around the refrigerator.

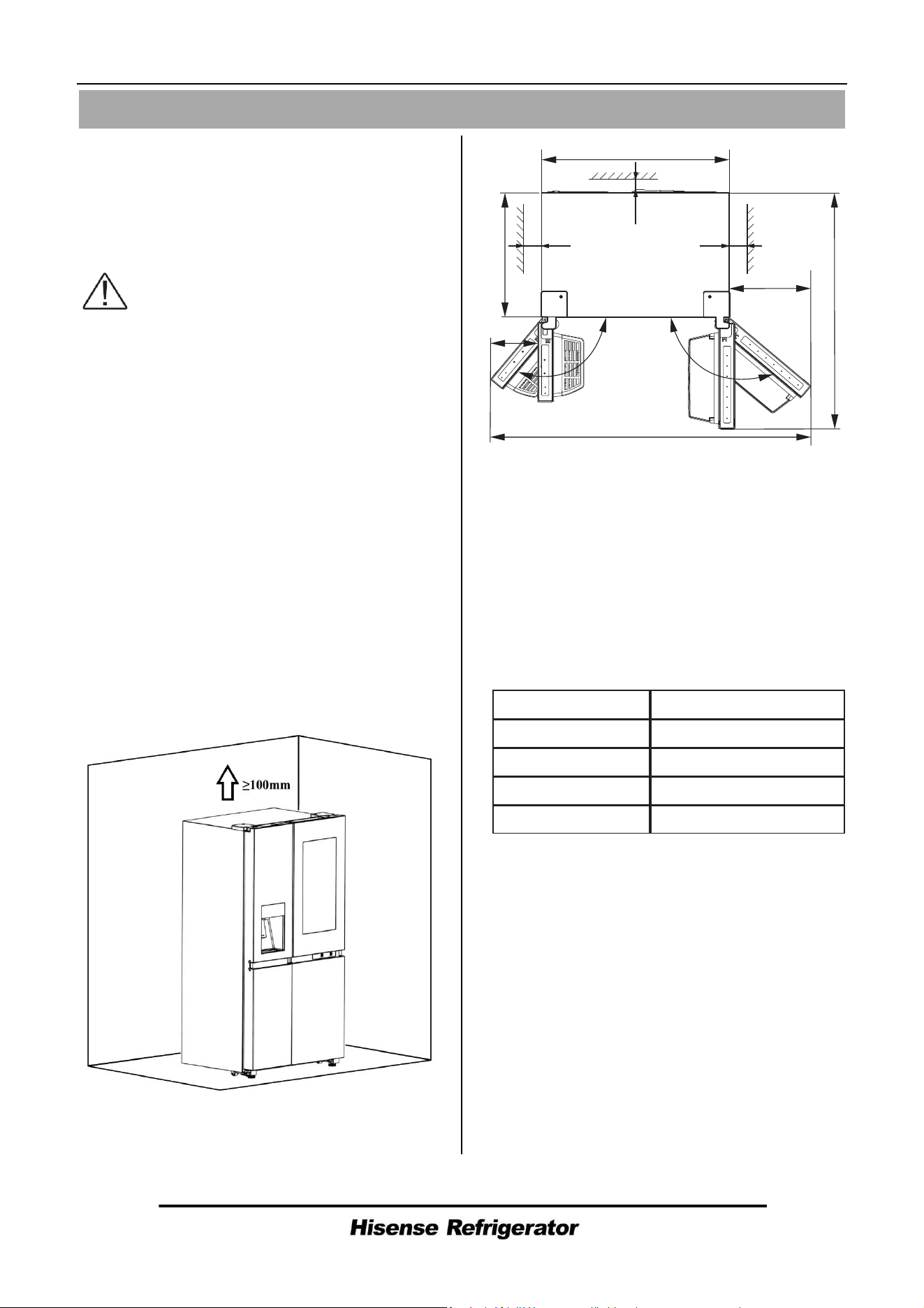

Suggest: It is advisable for there to be
at least 50mm of space from the back to
the wall, at least 100mm from its top, at
least 50mm from its side to the wall and
a clear space upfront to allow the
freezer door to open 130° and the
refrigerator door to open 135°. Please
refer to the diagrams below.
Note:
This appliance performs well in the
climate class, please refer to nameplate.
It may not work properly if being left at a
temperature above or below the
indicated range for a long period.
Stand your appliance in a dry place
to avoid high moisture damage.
Keep the appliance out of direct
sunlight, rain or frost. Stand the
appliance away from heat sources such
as stoves, fires or heaters.
Climate class
Ambient temperature
SN
+10℃ to +32℃
N
+16℃ to +32℃
ST
+16℃ to +38℃
T
+16℃ to +43℃
1563mm
908mm
610mm
1143mm
≥50mm
≥50mm
130°
135°
≥50mm
267mm
388mm
9
Leveling of appliance

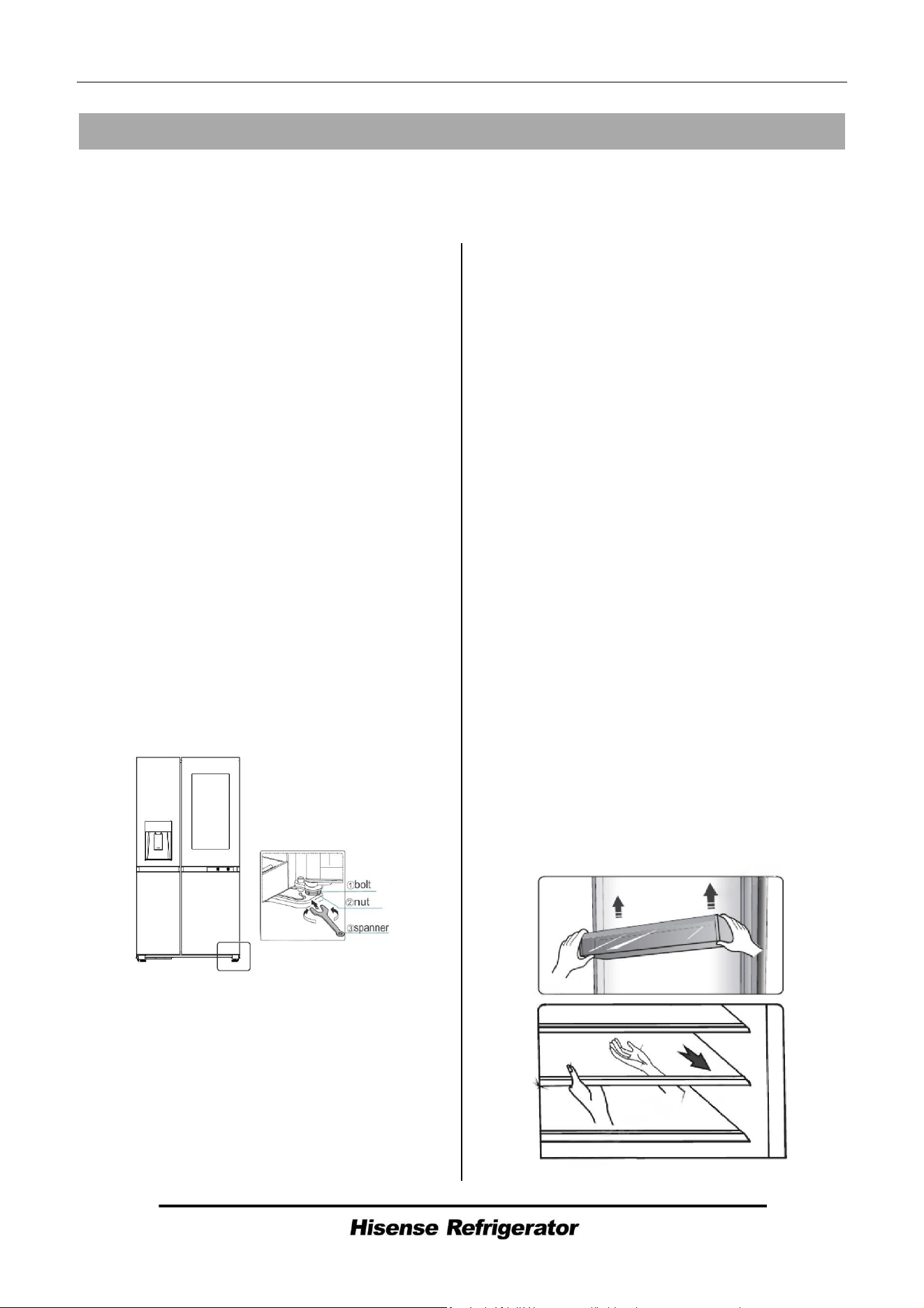

For sufficient leveling and air
circulating in the lower rear section of
the appliance, the bottom feet may need
to be adjusted. Please use a suitable
spanner.

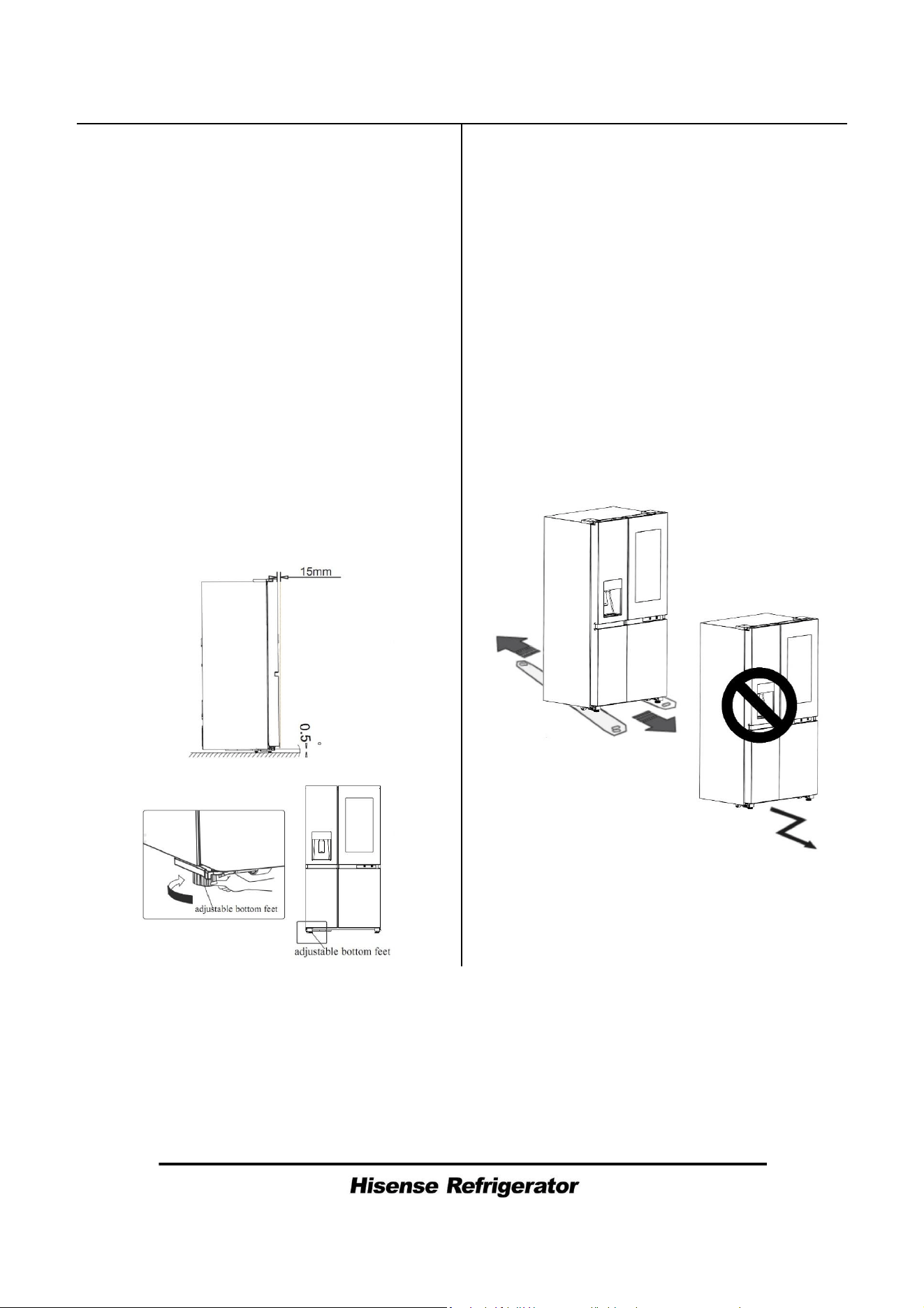

To allow the doors to self-close, tilt
back the top backwards at about 15mm
or 0.5° by turning the adjustable feet.
Whenever you want to move the
appliance, remember to turn the feet
back up, so that the appliance can roll
freely. Reinstall the appliance when
relocating.
Warning!
For proper installation, this refrigerator
must be placed on a level surface of
hard material that is the same height as
the rest of the flooring. This surface
should be strong enough to support a
fully loaded refrigerator.
The rollers, which are not castors,
should be only used for forward or
backward movement. Moving the
refrigerator sideways may damage your
floor and the rollers.
10
Description of the appliance

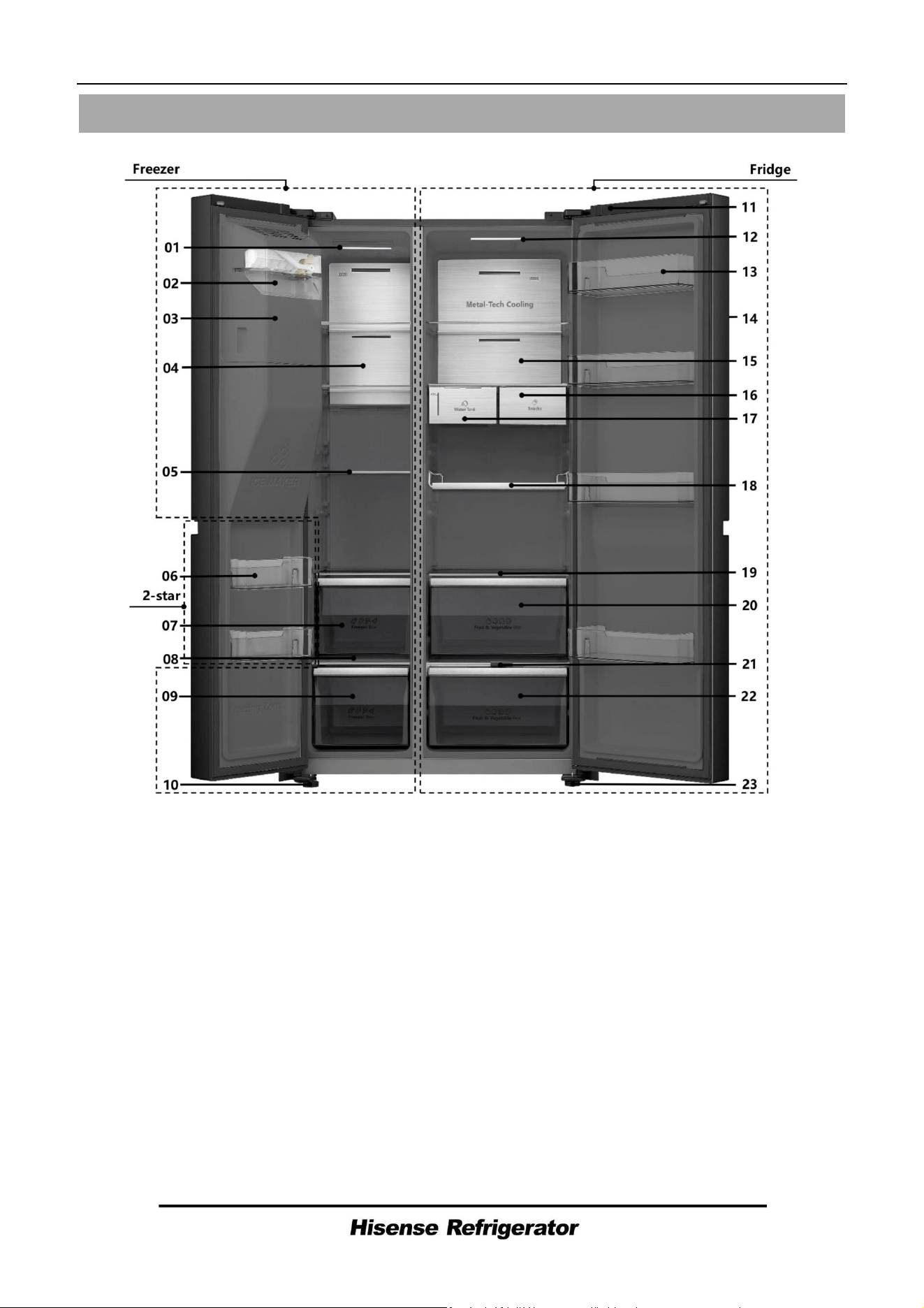

View of the appliance
1. Freezer zone LED light
2. Icemaker front cover component
3. Ice bucket component
4. Air duct cover in freezer
5. Freezer shelf
6. Freezer door shelf
7. Freezer upper drawer
8. Freezer lower drawer cover plate
9. Freezer lower drawer
10. Left adjustable bottom feet
11. Display switch
12. Fridge zone LED light
13. Fridge door shelf
14. 21-inch display
15. Air duct cover in fridge
16. Snack drawer
17. Water tank
18. Multi-use beverage tray
19. Crisper box cover plate
20. Fridge upper drawer
21. Humidity control cover plate
22. Fridge lower drawer
23. Right adjustable bottom feet
Note: Due to constant development of our products, your refrigerator may be slightly
different from this Instruction Manual, but its functions and usage remain the same.
Note: To get the best energy efficiency of this product, please place all shelves,
drawers on their original position as the illustration above.
11
Display controls

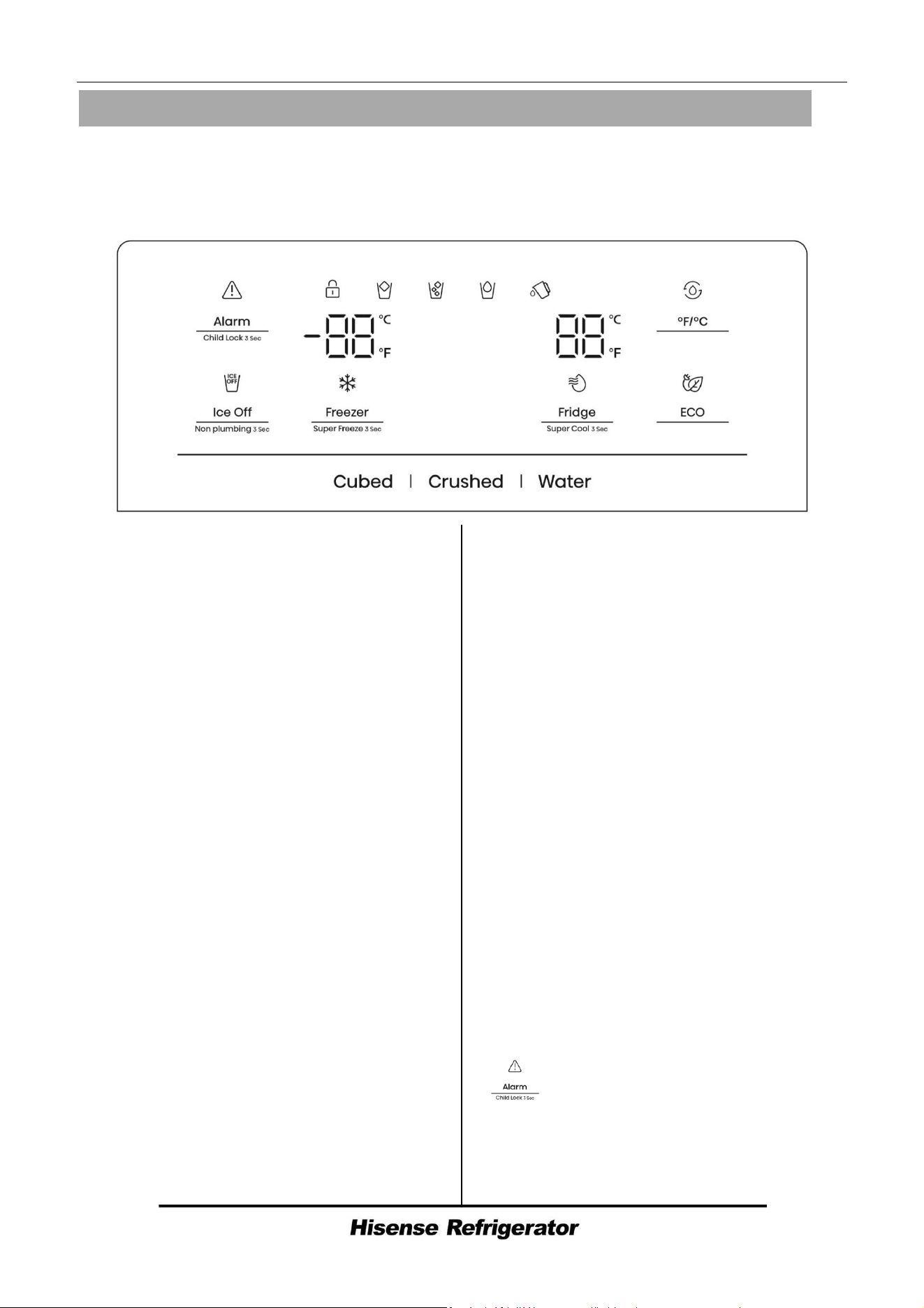

The control panel consists of two areas. The middle of topside shows conditions of
the appliance surrounded by 6 icons as well as keys. And the bottom side is three
keys related to ice maker.
Note:
Once the appliance is powered on,
all icons on the display panel will be lit
for 3 seconds with a buzzer sound. The
Child Lock is off and the temperature
setting reverts back to the previous
setting.
All the icons except "Cubed",
"Crushed", and "Water" will go off on the
condition of all keys untouched and all
doors closed for one minute.
The control panel will light up when
the door is open or you touch any
button.
Caution!
The temperature only means the
average temperature of the whole
refrigerator cabinet. Temperatures
inside each compartment may vary from
those displayed on the panel,
depending on how much food stored
and where the refrigerator is placed. In
addition, the actual temperature from
higher room and lower room will be
different.
NOTE: Setting the refrigerator running
at high temperature will accelerate food
decomposition. For optimum food
preservation, we recommend that when
starting the refrigerator for the first time,
the temperature of fridge is set to 4℃,
and that of the freezer to -18℃.
If the freezing capacity according to the
rating plate is to be used, switch on
super freezing at least 24 hours before
the fresh products are placed in the
freezer compartment.
"Child Lock, Door Alarm and
Over-temperature Alarm"
This key serves three purposes:
12
1. Child Lock
Press and hold "Alarm" for 3 seconds to
lock the Control Panel including
dispenser function. If Control Panel is
locked, the icon " " will be illuminated,
and none of the keys on the Control
Panel work. To unlock the Control
Panel, please press and hold "Alarm"
for 3 seconds again.
2. Door Alarm
Opening the fridge door or freezer door
for over 2 minutes will trigger door
alarm. The " " icon starts to wink and
the buzzer rings 3 times per minute.
Touching the "Alarm" key during door
alarm, the " " icon will be on and
buzzing will stop. Closing all the doors,
the " " icon will go off and buzzing will
stop. In addition, door alarm will stop
automatically after 10 minutes.
3. Over-temperature Alarm
When the refrigerator is charged for
more than 24h, and the freezing sensor
did not fail, and the temperature of the
freezer room is greater than -8℃, more
than 4h, the alarm starts: the buzzer
chirps (once per minute, 3 sounds each
time), and the " " icon flashes.
Exit the alarm mode when the
refrigerator meets one of the following
two conditions:
- The freezer is <-8℃, and the time of
more than 4h will be cleared;
- The failure of the temperature sensor
in the freezer or the sales mode does
not enter the over-temperature alarm,
and the timing is cleared after 4h of
over-temperature.
Press the Alarm key during the alarm
process to stop the beep, " " icon
always on. After the alarm lasted for 10
minutes, the beep stopped.
Note: There will be no over-temperature
alarm when the door opening alarm
occurs.

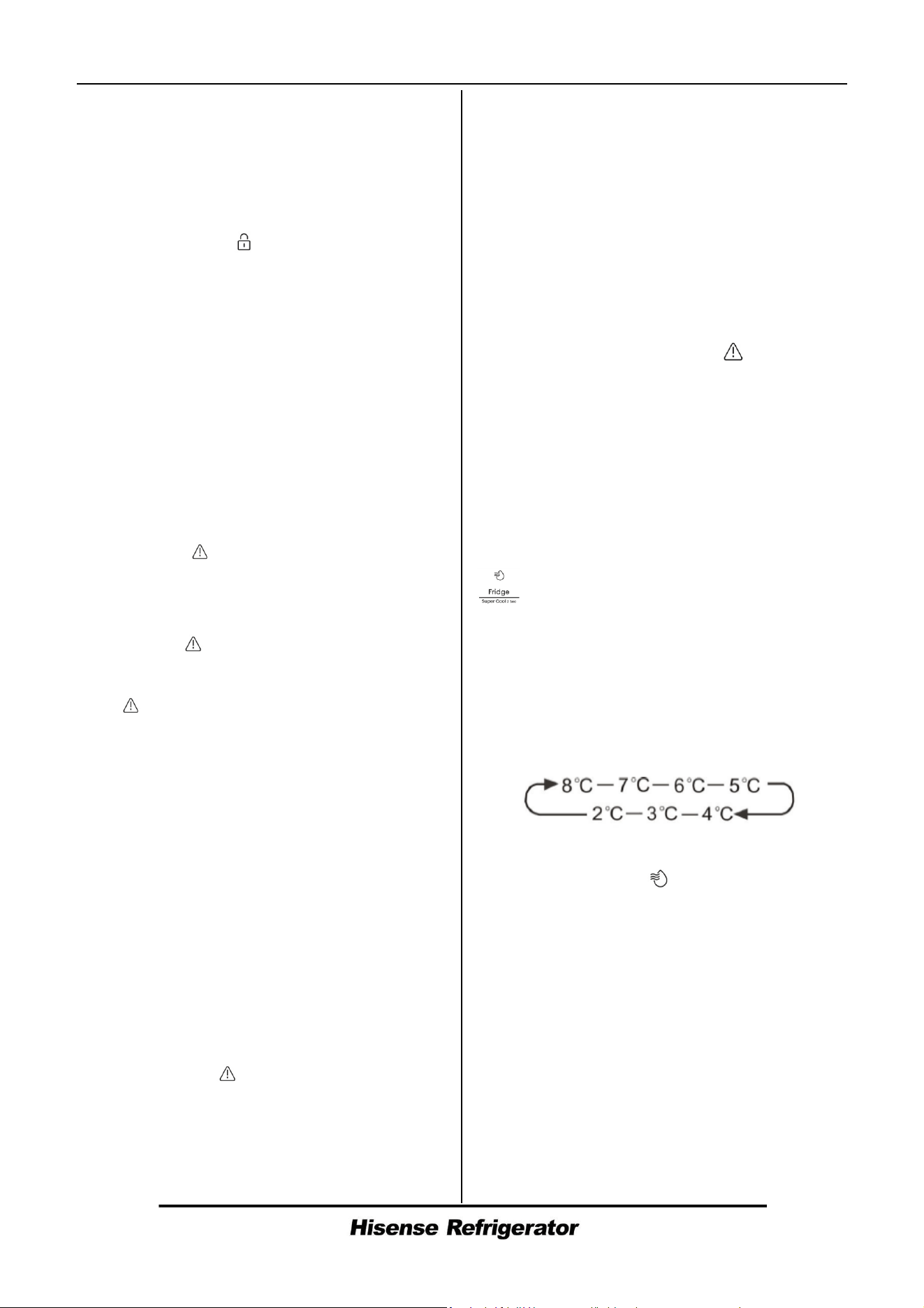

"Fridge temperature control"
Touch the "Fridge" key to activate the
temperature setting function of fridge，
After that, touch the key continuously，
the temperature will be set according to
the following sequence:
Press and hold the "Fridge" key for 3
seconds, and the " " icon will be lit,
which shows that the fridge is running in
the mode of "Super Cool". On that
condition, the temperature of fridge is
set to 2℃. "Super Cool" mode will be
switched off automatically after 6 hours,
and the fridge setting will revert back to
the previous setting. Touch the "Fridge"
key or "Eco" key so that the refrigerator
can quit "Super Cool" in advance.
Note: By touching "Fridge" key, the
13
refrigerator setting will revert back to the
previous setting, while by touching
"Eco" key, the refrigerator will run in the
function of "Eco".

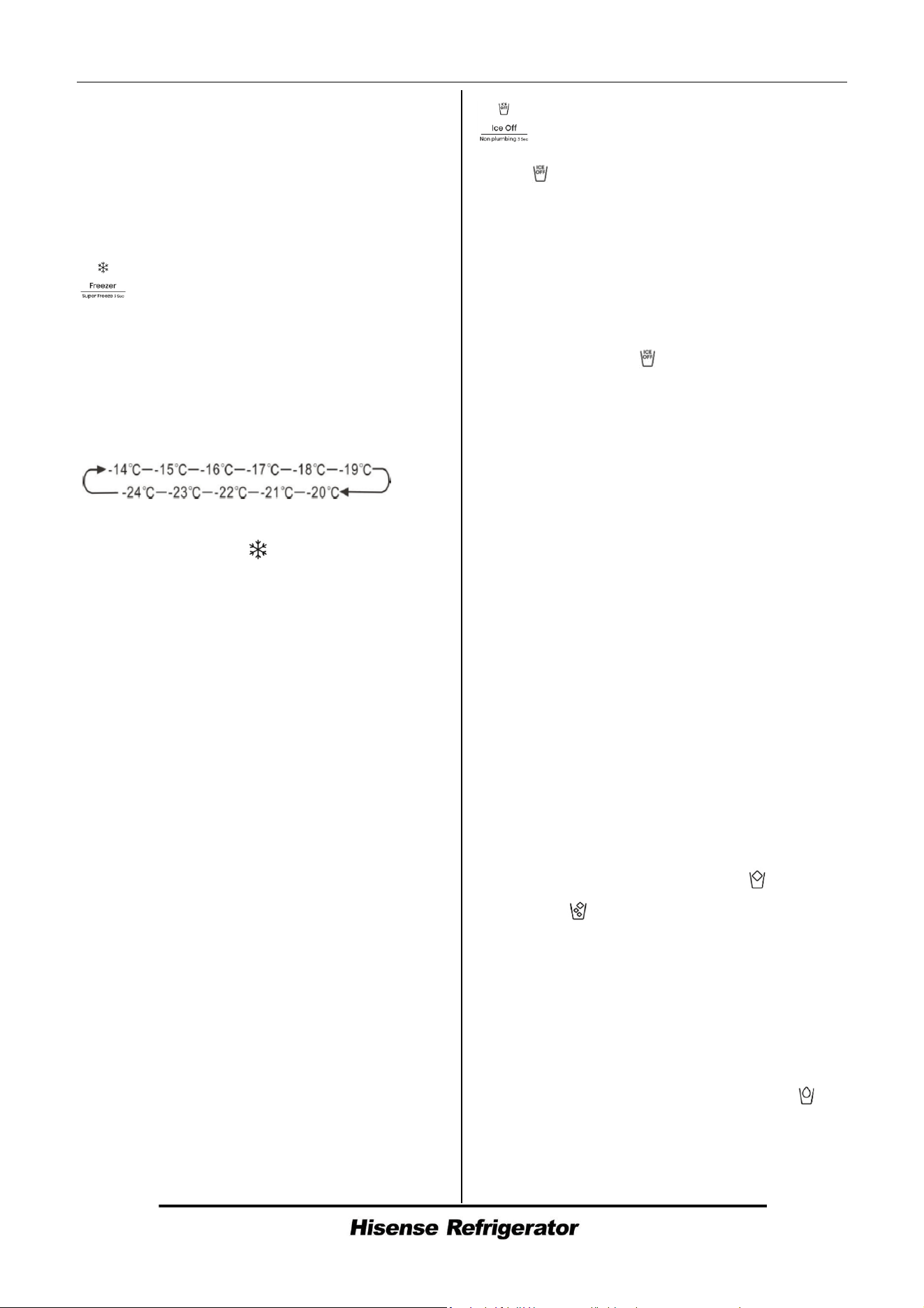

"Freezer temperature control"
Touch the "Freezer" key to activate the
temperature setting function of freezer,
after that, touch the key continuously,
the temperature will be set according to
the following sequence:
Press and hold the "Freezer" key for 3
seconds, and the " " icon will be lit,
which shows that the fridge is running in
the mode of "Super Freezer". On that
condition, the temperature of freezer is
set to -24℃.If the freezing capacity
according to the rating plate is to be
used, switch on Super Freezer at least
24 hours before the fresh products are
placed in the freezer compartment.
"Super Freezer" mode will be switched
off automatically after 52 hours, and the
freezer setting will revert back to the
previous setting. Touch the "Freezer"
key or "Eco" key so that the refrigerator
can quit "Super Freezer" in advance.
Note: By touching "Freezer" key, the
refrigerator setting will revert back to the
previous setting, while by touching
"Eco" key, the refrigerator will run in the
function of "Eco".
"Ice Control"
This " " icon shows the condition of the
ice maker function. When it is on, the
ice maker function is off: while it is off,
the function is on. This function can be
switched on or off by touching the
"Ice Off" key.
Note: When the " " icon is on, it only
indicates that the ice maker function is
off, but the dispenser still works.

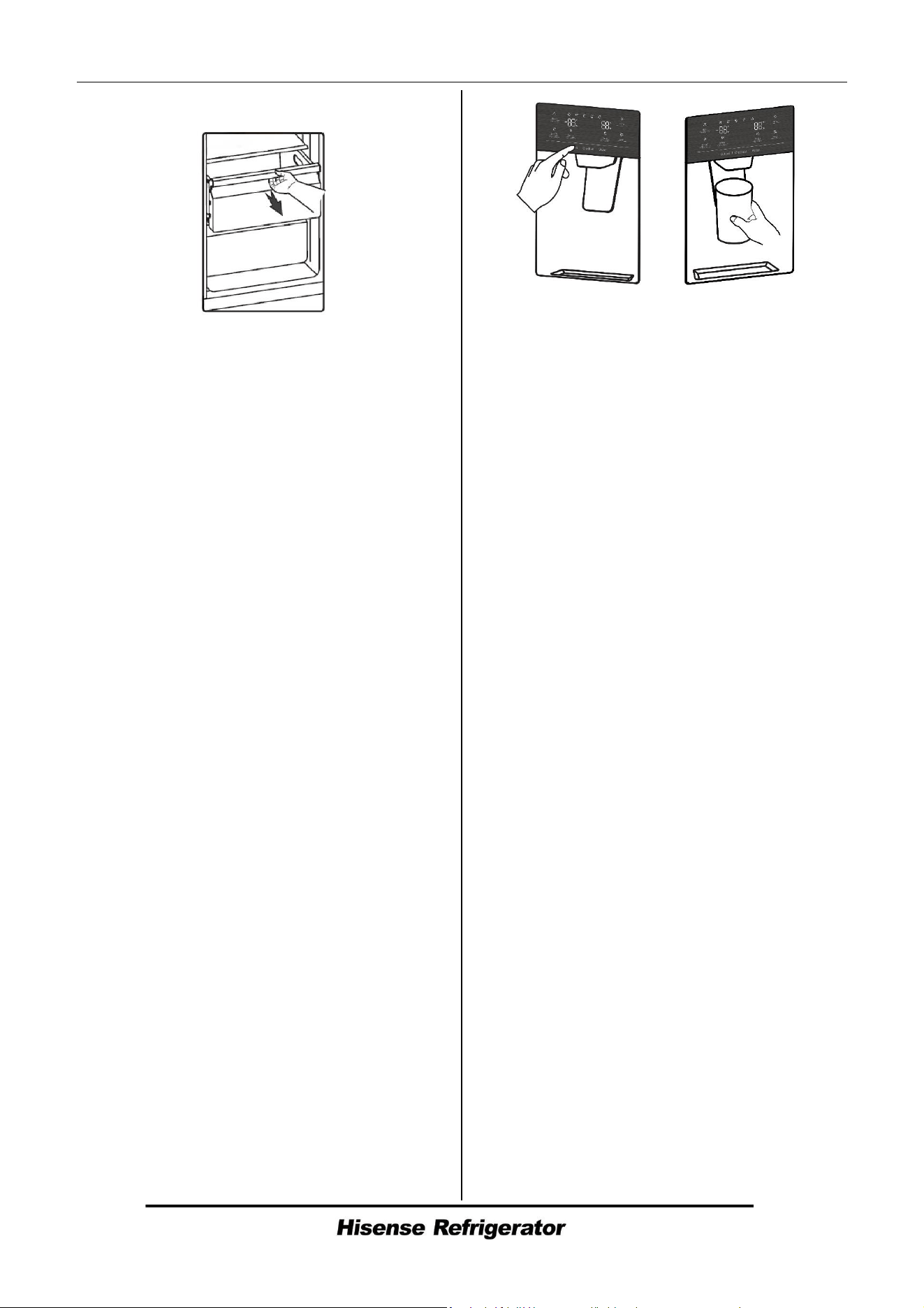

"Dispenser control"
When the freezer door is open or the
Child Lock is on, the dispenser will not
work.
The Ice Type button includes "Cubed"
and "Crushed" options. Press the
"Cubed" key or "Crushed" key to choose
the type of ice to be dispensed. Or
touch the "Water" button to activate the
water mode.
When touching the Ice Type button, the
cubed or crushed ice mode chosen will
be activated, and the Cubed " " or
Crushed " " ice icon lights up.
If there is no ice requirement, please
turn the function off to save water and
energy consumption. (See Ice Off
above.)
If you need water, please touch the
"water" button, and the water icon " "
will light up.
14
"Water tank Alarm"
If the water tank is not correctly installed
or not installed, the water tank alarm will
appear. Clear the alarm by pressing and
holding "Ice Off" button for 3 seconds.
Note!
If water is not dispensed or
dispensed slowly, please check whether
the water tank is correctly installed or
not and make sure there is enough
water in the water tank.
The light will go off without touching
any button or the doors have been
closed for one minutes.
"Celsius/Fahrenheit switching"
In the unlocked state, press the "℉/℃"
button to switch between Celsius and
Fahrenheit. The default status is
Celsius. When it switches to Fahrenheit,
the icon " " will open.
"Energ
y Save"
Touch this button to turn Energy Saver
mode on or off. When it is on, the
Energy Saver icon " " will be
illuminated. The temperature of the
fridge is automatically switched to 6℃
while the freezer to -17℃. When Energy
Saver is off, the icon goes off.
Demo mode
Demo mode is for store display, and it
prevents the refrigerator from
generating cool air. In this of Cooling Off
Mode, the refrigerator may seem like it
is working but it will not make cool air.
If you enter the Demo mode, the
temperature area will show "OF". To
switch off Demo mode, press and hold
"Alarm" and "℉/℃" buttons at the same
time for 3 seconds and the buzzer gave
a long sound.
15

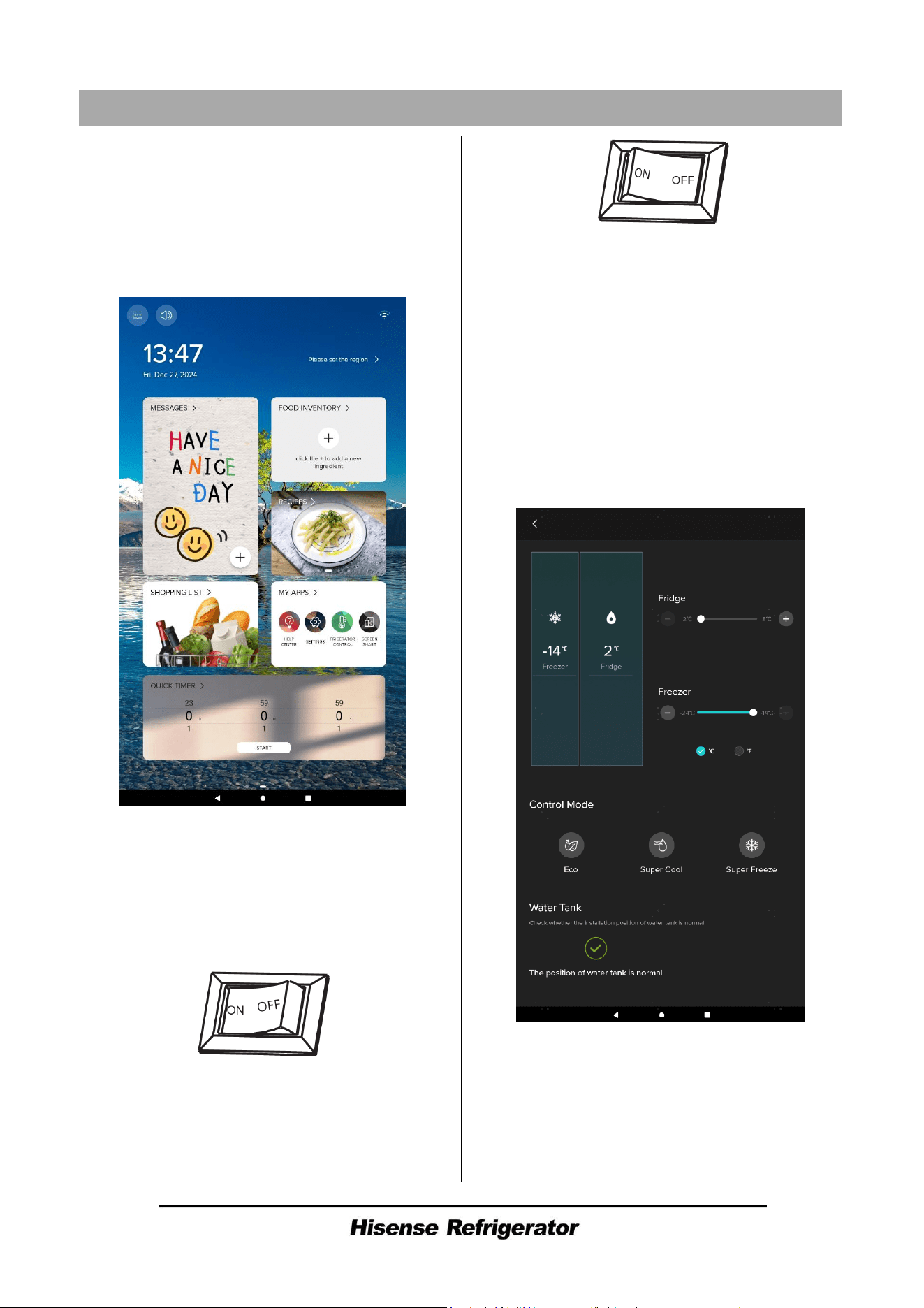

Using the 21-inch display
The 21-inch display integrates
technologies such as smart cloud,
Internet of Things, and big data, and
has functions such as smart ice control
and food management.
To switch on/off the display
1.You can press “ON” to switch on the
display.
2.If you don’t need the display, you can
press “OFF” to switch off the display.
The refrigerator control interface
The refrigerator control interface
reminds the user of the status of each
area of the refrigerator, and can set the
temperature of each compartment of the
refrigerator, with three modes of Eco,
Super Cool and Super Freeze.

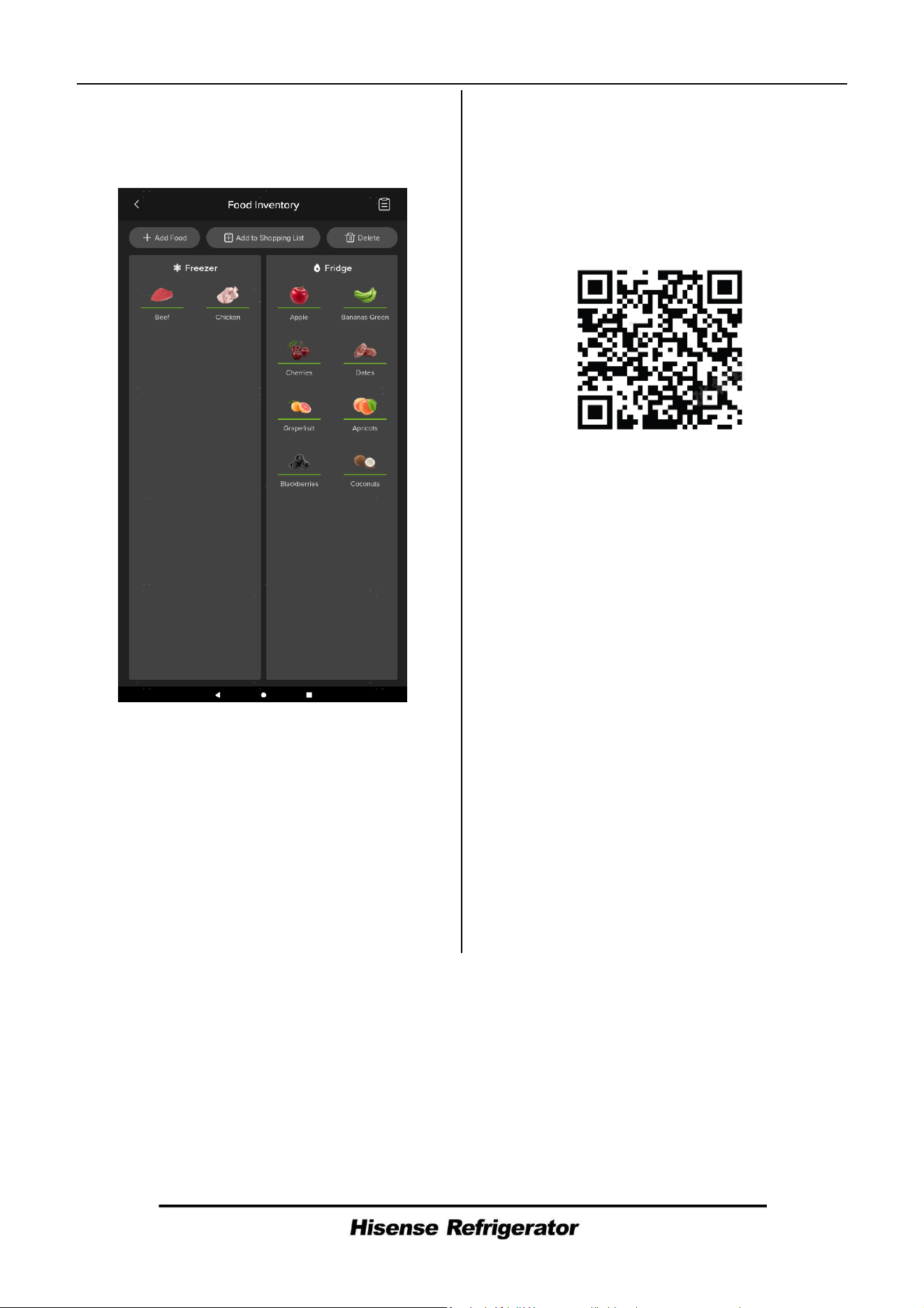

The Food management
The Food management function
displays the list of ingredients and
16
ingredient status in each room, and the
user can manually edit part of the
ingredient information.
NOTE: As the application continues to
be upgraded, please refer to the actual
display interface. The user's data can be
deleted through the Factory reset
function in the settings.
ConnectLife App
The ConnectLife App is available to
download free of charge from the Apple
App Store or from the Google Play
Store.
User manual:
Transmitting frequency band(s) and
max allowed transmitting power in the
operating frequency band(s):
2400~2483.5MHz, less than or equal to
20dBm;
5150~5350MHz, less than or equal to
23dBm;
5745~5825MHz, less than or equal to
33dBm.
This equipment should be installed
and operated with minimum distance
20cm between the radiator & your body.
17
Using your appliance
This section tells you how to use most of the useful features. We recommend that
you read through them carefully before using the appliance.
1. Adjust the door
When you found the doors are not at the
same level, you can use a screwdriver
to adjust the fridge door.
Only the fridge door can be adjusted.
When the freezer door is higher than the
fridge door. First, you can use the
spanner to turn the bolt anticlockwise on
the lower hinge that can raise the fridge
door. Once in position use the spanner
to lock the nut.
When the freezer door is lower than the
fridge door. You should use the spanner
to turn the bolt clockwise to make the
fridge door go down. Once in position
lock in place.
2. Using your refrigerator
compartment
The refrigerator compartment is suitable
for storage of vegetables and fruit. Food
inside should be packed to store in
order to avoid losing moisture or flavor
permeating into other foods.
Caution!
Never close the refrigerator door while
the shelves, crisper and/or telescopic
slides are extended. It may damage
both them and the refrigerator.
Glass shelves and Door shelves
The refrigerator compartment is
provided with several glass shelves and
several different door shelves, which are
suitable for the storage of eggs, canned
liquid, bottled drinks and packed food.
They can be placed at different heights
according to your need. But do not
place too many heavy things in shelves.
Before you lift up the door shelf
vertically, please take the food out.
18

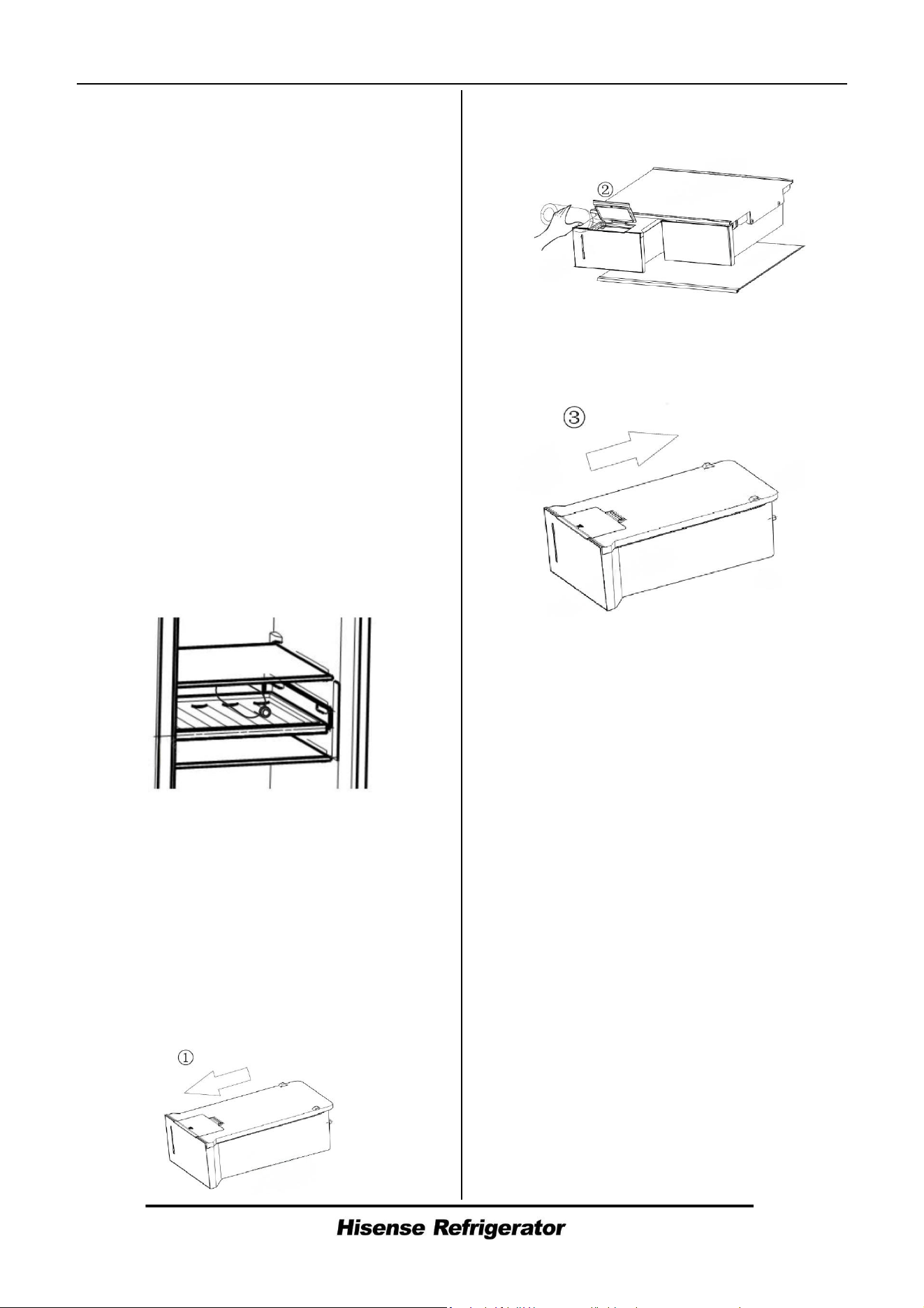

Note: The door shelves and shelves
can be taken out to be cleaned.
When you remove the shelves, gently
pull them forward until the shelf comes
clear of the shelf guides.
When you return the shelves, make
sure there is no obstacle behind and
gently push the shelf back into the
position.
Multi-use beverage tray
It is for storing bottled wine or drinks.
Note: Please use gently when you
removed the bottled wine or drinks. The
shelf can be taken out to be Cleaned or
you can adjust to save the shelf space.
Water tank
It is for providing water for ice maker
and water dispenser. You can inpouring
water into the water tank by following
steps:
① Pull out the water tank.
② Lift the front small cover, and then
inpouring directly.
③ Refitting the water tank on the fridge
shelf.
Caution:
When the water tank needs to be
refilled, please pull out the water tank
and insert it correctly to the operation
malfunction.
The suggested water volume is not
more than 4.5L.
After re-installation of the water. storage
box, please wait for 10 seconds to get
the first water supply.
Only fill WATER into the box.
SODA, JUICE, MILK, ALCOHOL, etc …,
are not allowed.
Drawers
These are suitable for storage of fruits
and vegetable. And it can be taken out
19
to be cleaned.
3. Using your freezer compartment
The freezer
The freezer compartment is suitable for
storage of foods required to be frozen,
such as meat, fish, ice cream and other
perishable items.
Caution!
Ensure that bottles are not left in the
freezer for longer than needed as
freezing may cause the bottle break.
Bottled or canned liquid are at risk of
exploding caused by volume expansion
and so should not be stored in the
freezer compartment.
4.Using the dispenser
You can choose the type of ice or water
by touching the "Cubed" or "Crushed" or
"Water" button.
When you choose ice type, push the
dispenser gently with your cup. Ice will
be released from the dispenser.
Make sure the cup is in line with the
dispenser, and the ice exactly fall into
the cup.
Note:
If you select Cubed Ice after using
the Crushed Ice feature, a small amount
of residual crushed ice might fall into
your cup.
Do not removing your cup or glass
from under the dispenser after
dispensing water or ice you need. You
should be wait for 2 or 3 seconds to
prevent spills.
Do not pull the lever out as this could
damage or break the lever’s spring.
Do not dispense ice continually more
than one minute during normal use to
avoid the excessive temperature on the
ice crusher motor.
The dispensed water is cool, not icy
cold. When you want colder water with
ice, dispense ice to your glass first, then
fill with water from the dispenser.
5. Using the Ice Bucket

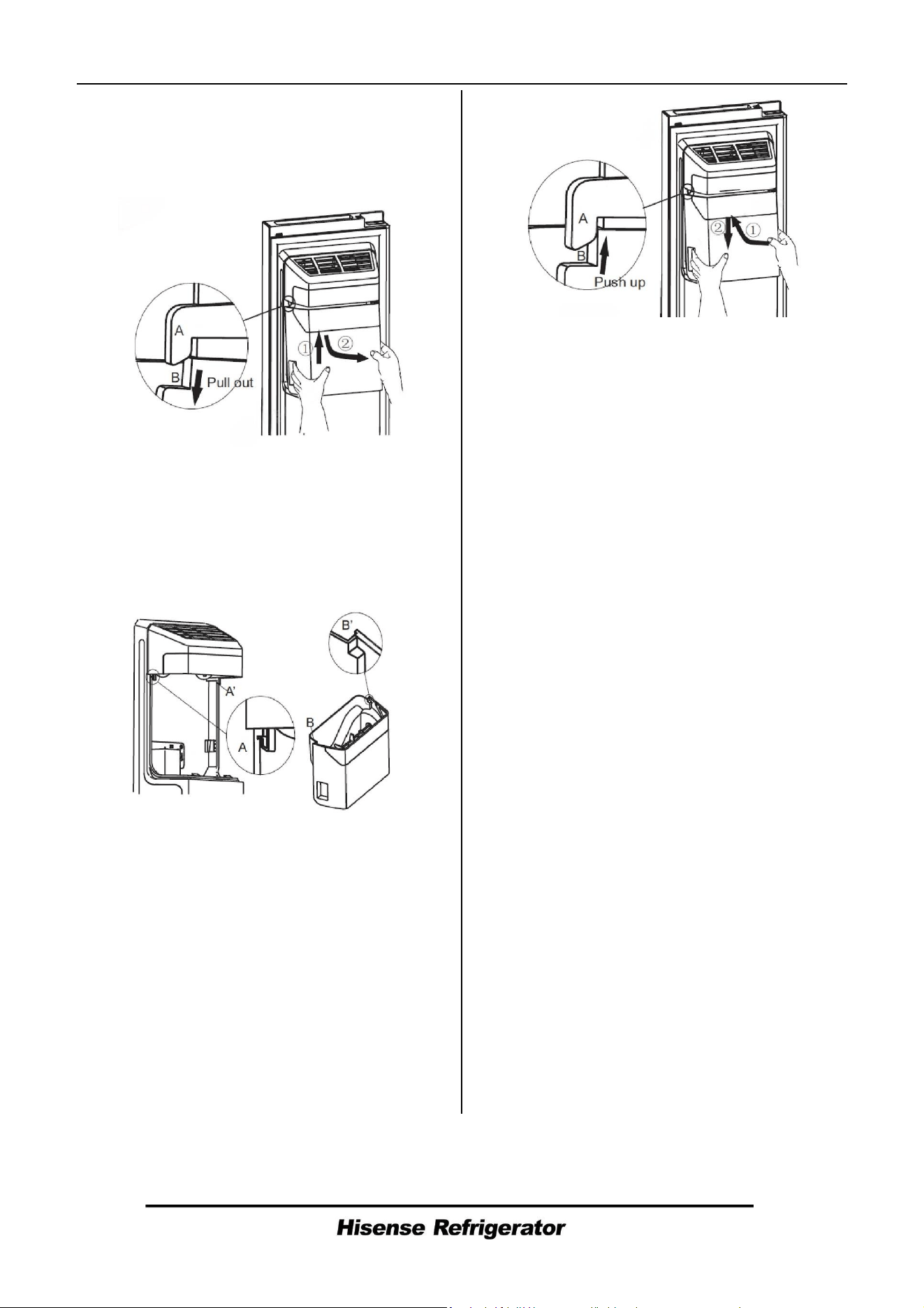

If you want to remove the Ice Bucket:
Please hold the handle as shown in the
figure below. Then lift up and pull the Ice
Bucket out slowly to prevent damage.
20
Removing Steps:
①Lift up the Ice Bucket
②Pull the Ice Bucket out slowly
When you put it back, please make sure
the two side(B&B') of Ice Bucket is
wedged into the buckles(A&A').
Installing Steps:
① Push the Ice Bucket up, and make
the two side(B&B') of Ice Bucket wedge
into the buckles(A&A').
②Pull the Ice Bucket down, and make
sure the Ice Bucket is held the bracket
firmly.
Note！
When the ice maker dumps ice into
the bucket, any sounds you hear are
part of normal operation.
If you do not dispense ice for a long
periods of time, Ice may clump in the Ice
Bucket. If this occurs, please remove all
the ice and empty the bucket.
If you are going on a long vacation
or business trip and won't be using the
ice dispensers for period of time, please
close the water valve to prevent leaks.
If the refrigerator has been power-
off too long, the ice in the bucket will
melt, and the water will flow out of the
refrigerator to the floor. To avoid this,
you should remove all the ice in the
bucket.
If ice doesn't come out, please check
for any ice stuck in the chute and
remove it. Or pull out the Ice Bucket and
check for any ice cubes clump, then
remove them.
21
The first batch of ice cubes after
installation may be small, because air
has entered the water line. Any air will
be purged during normal use. If the ice
cubes is still small, please check the
water is circulated in line, or water valve
is opened large enough, or the water is
at a high pressure properly.
To clean the Ice Bucket, wash with a
mild detergent, rinse well and dry
thoroughly it. Do not use harsh or
abrasive cleaners or solvents.

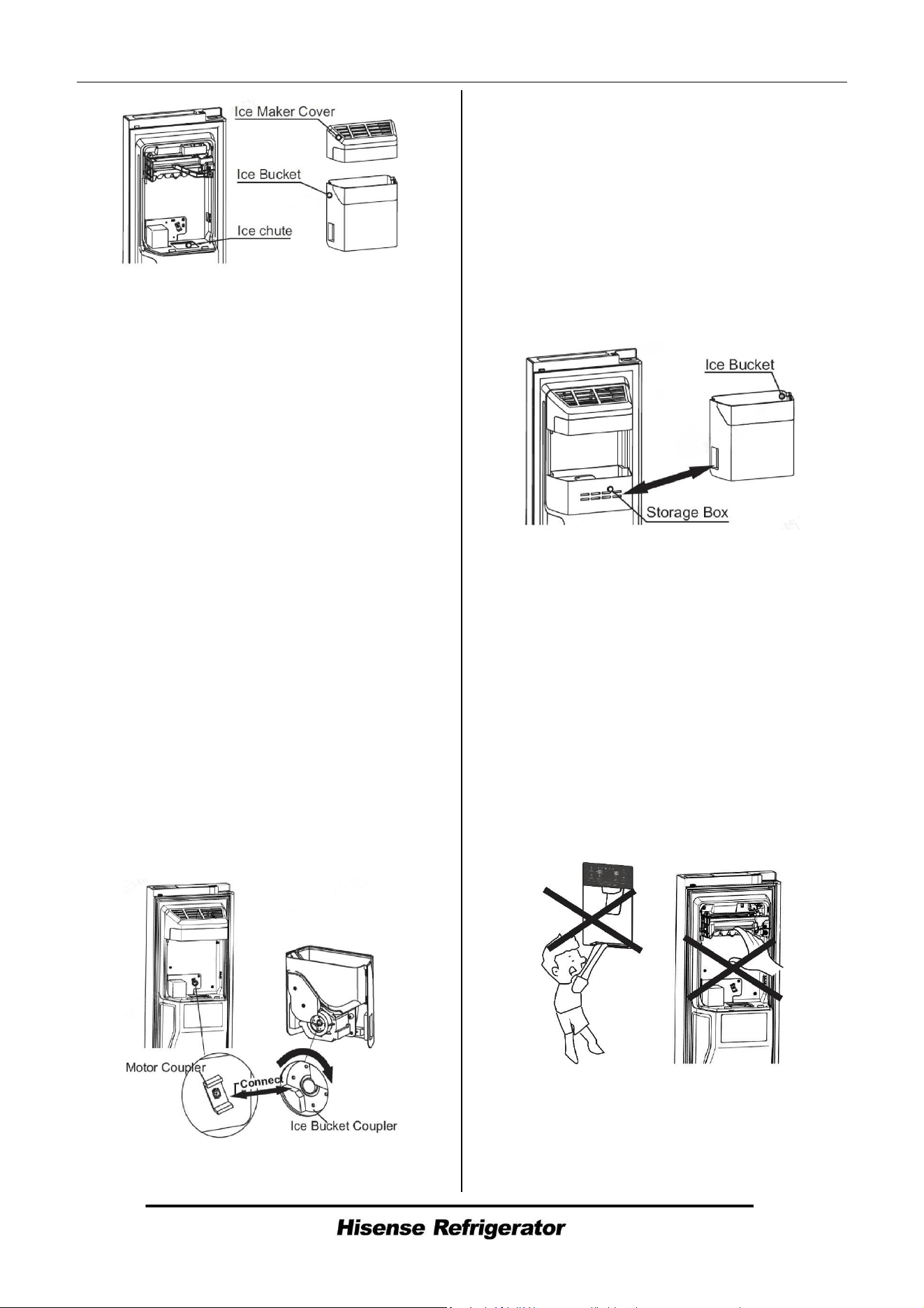

Before replacing back the Ice
Bucket, please check the two couplers
are at a suitable angle to connect
correctly. If not, please turn the Ice
bucket coupler to the right angle to
match the motor coupler.
If you want more space to store
foods, you can replace the Ice Bucket
with the storage box. The "Ice Off"
should be set on to make sure that the
ice maker is off.

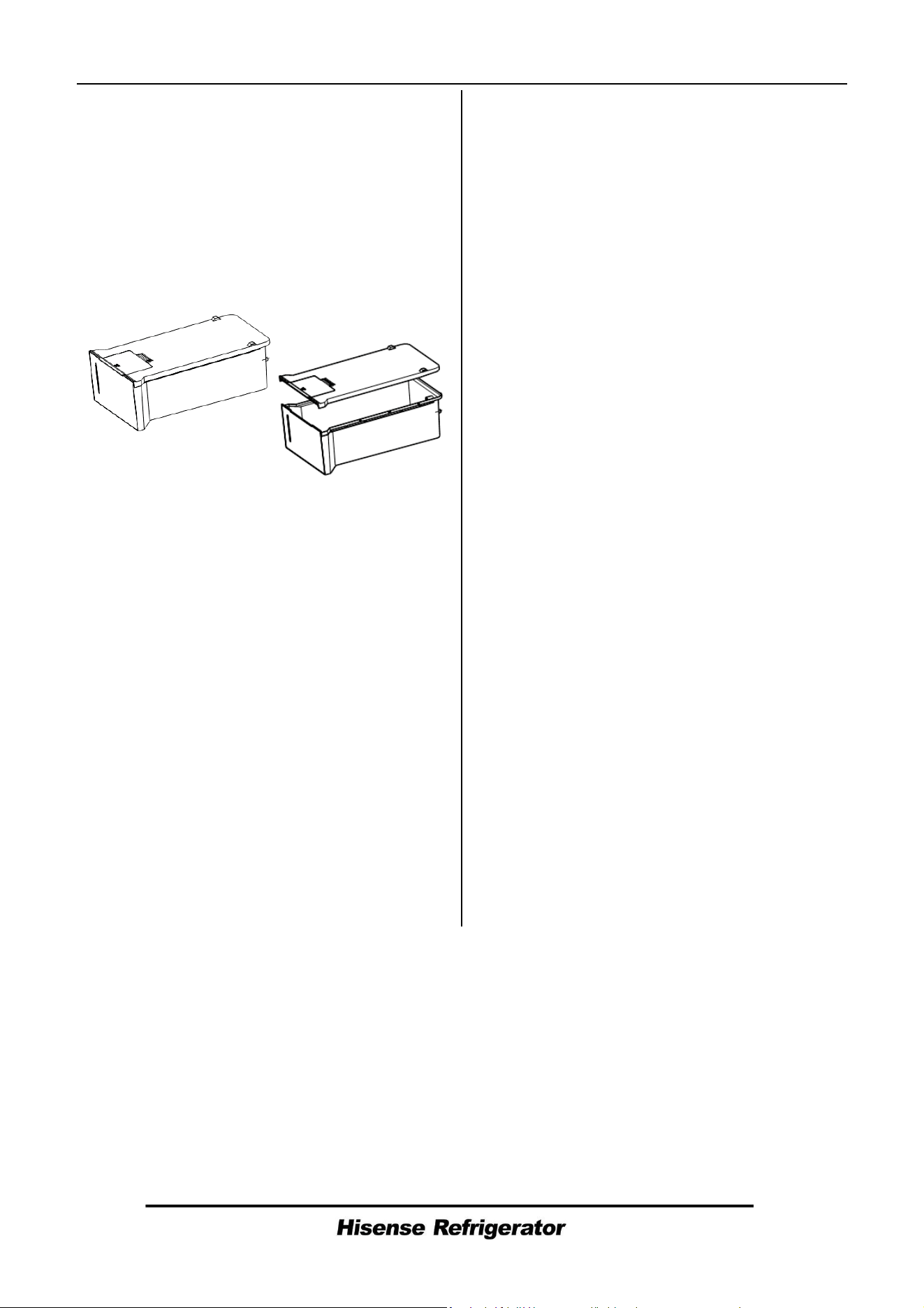

The storage box is optional (non
fixed). If the product has this accessory,
please refer to the following instructions.
Warning!
Do not put your fingers, hands, or
any other unsuitable objects in the ice
chute or ice bucket. This can cause
personal injury or material damage.
Do not allow your children to hang
off the dispenser or pluck the ice
storage bin. This could cause injury.
There is a water line connection
between ice maker and water tank, do
22
not disassemble the entire water supply
system yourself. It is recommended that
suitably qualified person to do this.
Do not use excessive force to open
or close the door, or the water may spill
out off the ice maker.
23
Cleaning and care
For hygienic reasons the appliance
(including exterior and interior
accessories) should be cleaned
regularly (at least every two months).
Warning!
The appliance must not be connected to
the mains during cleaning. Danger of
electrical shock! Before cleaning switch
the appliance off and remove the plug
from the mains socket.

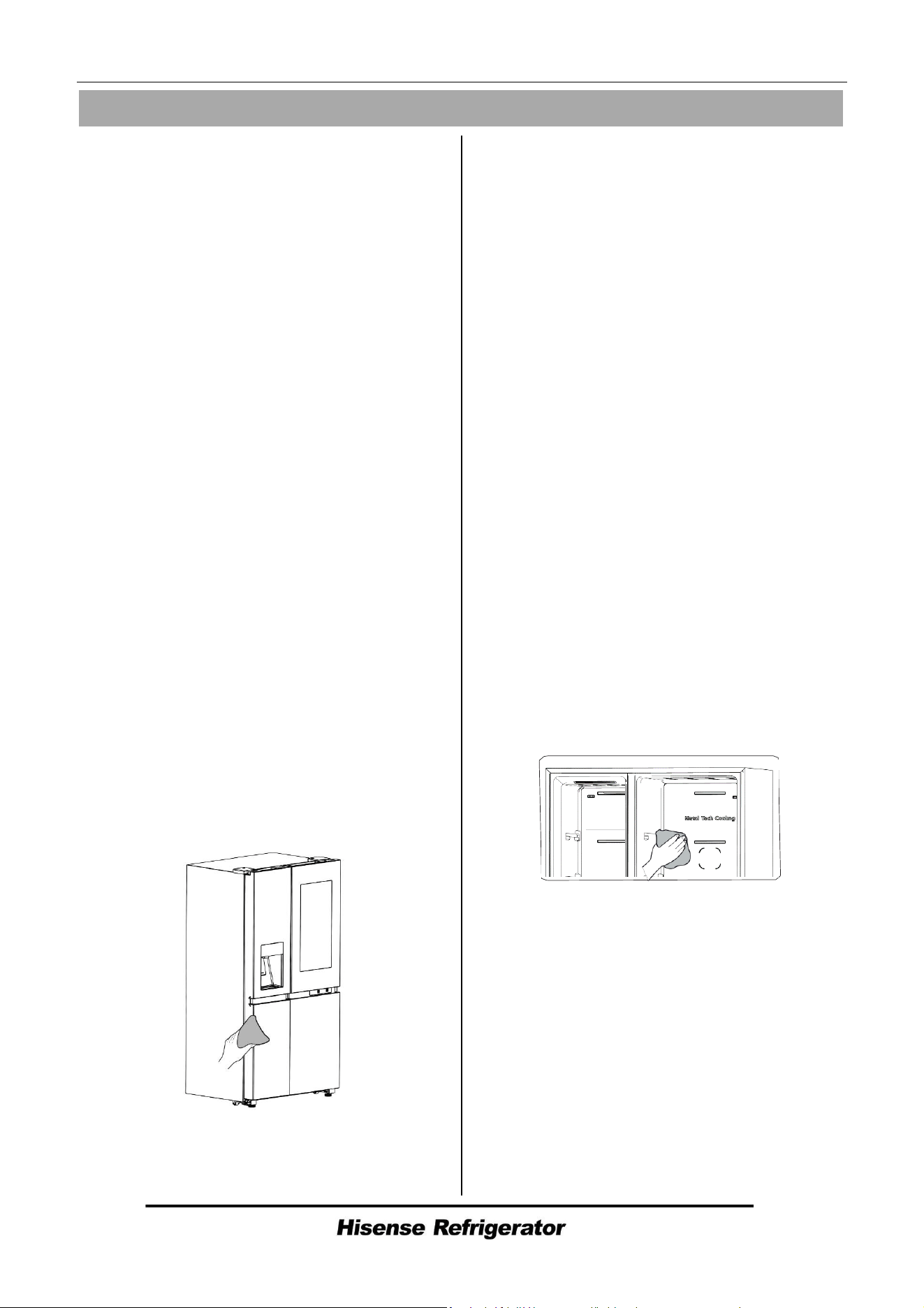

Exterior cleaning
To maintain good appearance of your
appliance, you should clean it regularly.
Wipe the digital panel and display
panel with a clean, soft cloth.
Spray water onto the cleaning cloth
instead of spraying directly on the
surface of the appliance. This helps
ensure an even distribution of moisture
to the surface.
Clean the doors, handles and
cabinet surfaces with a mild detergent
and then wiped dry with a soft cloth.
Warning!
Do not use sharp objects as they are
likely to scratch the surface.
Do not use Thinner, Car detergent,
Clorox, ethereal oil, abrasive cleansers
or organic solvent such as Benzene for
cleaning. They may damage the surface
of the appliance and may cause fire.
Interior cleaning
You should clean the appliance interior
regularly. It will be easier to clean when
food stocks are low. You can remove the
drawers and shelves for a more
thorough clean. Wipe the inside of the
freezer with a weak solution of
bicarbonate of soda, and then rinse with
warm water using a wrung-out sponge
or cloth. Wipe completely dry before
replacing the shelves and baskets.
Thoroughly dry all surfaces and
removable parts before putting them
back into place.
Water tank cleaning
You should clean the water tank
regularly. You can remove the water
tank along horizontal outward, and then
disassemble the cover of box. Wipe the
inside of the box and cover with a weak
solution of bicarbonate of soda, and
then rinse with warm water using a
wrung-out sponge or cloth, clean it with
24
directly drinking water again.
Thoroughly dry all surfaces and
removable parts before putting them
back into place.
You can assemble the water tank along
horizontal forward when you finish
cleaning.
Although this appliance automatically
defrosts, a layer of frost may occur on
the freezer compartment’s interior walls
if the freezer door is opened frequently
or kept open too long. If the frost is too
thick, choose a time when the freezer is
nearly empty and proceed as follow:
1. Remove existing food and
accessories baskets, unplug the
appliance from the mains power and
leave the doors open. Ventilate the
room thoroughly to accelerate the
process.
2. When defrosting is completed, clean
your freezer as described above.
Warning!
Do not use sharp objects to remove
frost from the freezer compartment.
Only after the interior is completely dry
should the appliance be switched back
on and plugged back into the mains
socket.
Door seals cleaning
Take care to keep door seals clean.
Sticky food and drinks can cause seals
to stick to the cabinet and tear when you
open the door. Wash the seals with a
mild detergent and warm water. Rinse
and dry them thoroughly after cleaning.
Warning!
Only after the door seals are completely
dry should the appliance be powered
on.
Warning!
The LED light must not be replaced by
the user! If the LED light is damaged,
contact the customer helpline for
assistance.
25
Helpful hints and tips
Energy saving tips
We recommend that you follow the tips
to save energy.
Try to avoid keeping the door open
for long periods in order to conserve
energy.
Ensure the appliance is away from
any sources of heat (Direct sunlight,
electric oven or cooker etc.)
Don’t set the temperature colder
than necessary.
Don’t store warm food or
evaporating liquid in the appliance.
Place the appliance in a well ventilated,
humidity free room. Please refer to the
installing your new appliance chapter.
The description of appliance diagram
shows the correct combination for the
drawers, crisper and shelves, do not
adjust the combination as this is
designed to be the most energy efficient
configuration.
Hints for fresh food refrigeration
Do not place hot food directly into
the refrigerator or freezer, the internal
temperature will increase resulting in the
compressor having to work harder and
will consume more energy.
Do cover or wrap the food,
particularly if it has a strong flavor.
Place food properly so that air can
circulate freely around it.
Hints for refrigeration
Meat (All Types) Wrap in polythene
food: wrap and place on the glass shelf
above the vegetable drawer. Always
follow food storage times and use by
dates suggested by manufacturers.
Cooked food, cold dishes, etc.:
They should be covered and may be
placed on any shelf.
Fruit and vegetables:
They should be stored in the special
drawer provided.
Butter and cheese:
Should be wrapped in airtight foil or
plastic film wrap.
Milk bottles:
Should have a lid and be stored in the
door shelves.
Hints for freezing
When first starting-up or after a
period out of use, let the appliance run
at least 2 hours on the higher settings
before putting food in the compartment.
Prepare food in small portions to
enable it to be rapidly and completely
frozen and make it possible to
subsequently thaw only the quantity
required.
Wrap up the food in aluminum foil or
polyethylene food wraps which are
airtight.
Do not allow fresh, unfrozen food to
touch the food which is already frozen to
avoid patrial defrosting.
It is recommended to label and date
26
each frozen package in order to keep
track of the storage time.
Hints for the storage of frozen food
Ensure that frozen food has been
stored correctly by the food retailer
Once defrosted, food will deteriorate
rapidly and should not be re-frozen. Do
not exceed the storage period indicated
by the food manufacturer.
Switching off your appliance
If the appliance needs to be switched off
for an extended period, the following
steps should be taken to prevent mould
on the appliance.
1. Remove all food.
2. Remove the power plug from the
mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged
open slightly to allow air to circulate.
27
Troubleshooting
If you experience a problem with your appliance or are concerned that the appliance
is not functioning correctly, you can carry out some easy checks before calling for
service, please see below. You can carry out some easy checks according to this
section before calling for service.
Warning!
Don't try to repair the appliance yourself. If the problem persists after you have
made the checks mentioned below, contact a qualified electrician, authorized
service engineer or the shop where you purchased the product.
Problem
Possible cause & Solution
Appliance is not
working correctly
Check whether the power cord is plugged into the power outlet properly.
Check the fuse or circuit of your power supply, replace if necessary.
The ambient temperature is too low. Try setting the chamber temperature to a
colder level to solve this problem.
It is normal that the freezer is not operating during the automatic defrost cycle, or
for a short time after the appliance is switched on to protect the compressor.
Odours from the
compartments
The interior may need to be cleaned.
Some food, containers or wrapping cause odours.
Noise from the
appliance
The sounds below are quite normal:
Compressor running noises.
Air movement noise from the small fan motor in the freezer compartment or
other compartments.
Gurgling sound similar to water boiling.
Popping noise during automatic defrosting.
Clicking noise before the compressor starts.
Other unusual noises are due to the reasons below and may need you to check
and take action:
The cabinet is not level.
The back of appliance touches the wall.
Bottles or containers knocking against each other.
28
The motor runs
continuously
It is normal to frequently hear the sound of the motor, it will need to run more
during following circumstances:
Temperature setting is set colder than necessary.
Large quantity of warm food has recently been stored within the appliance.
The temperature outside the appliance is too high. Doors are kept open too
long or too often.
After your installing the appliance or it has been switched off for a long time.
A layer of frost occurs
in the compartment
Check that the air outlets are not blocked by food and ensure food is placed within
the appliance to allow sufficient ventilation. Ensure the door can be fully closed. To
remove the frost, please refer to the cleaning and care chapter.
Temperature inside is
too warm
You may have left the doors open too long or too frequently; or the doors are kept
open by some obstacle; or the appliance is located with insufficient clearance at
the sides, back and top.
Temperature inside is
too cold
Increase the temperature by following the” Display controls” chapter.
Doors can’t be closed
easily
Check whether the top of the refrigerator is tilted back by 10-15mm to allow the
doors to self close, or if something inside is preventing the doors from closing.
Water drips on the
floor
The water pan (located at the rear bottom of the cabinet) may not be properly
leveled, or the draining spout under neath the top of the compressor depot may
not be properly positioned to direct water into this pan, or the water spout is
blocked. You may need to pull the refrigerator away from the wall to check the pan
and spout. Check if the refrigerator is power-off for a long time, this may cause the
ice in the bucket to melt into water, and flow to the floor .
The light is not
working
The LED light may be damaged. If the LED light is damaged, contact the
customer helpline for assistance.
The control system has disabled the lights due to the door being kept open too
long, close and reopen the door to reactivate the lights.
29
Disposal of the appliance
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the
packaging into a suitable waste collection container to recycle it.
Before disposal of the appliance
1.Pull out the mains plug from the mains socket.
2.Cut off the power cord and discard with the mains plug.
Warning!
Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases
must be disposed of professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.
Ice is not dispensing
Did you wait for 10 hours after installation of the water supply line before
making ice? if it is not sufficiently cool, it may take longer to make ice, such as
when first installed.
Is the water tank installed accurately? Make sure there is enough water
in the water tank.
Did you manually stop the ice making function? Make sure you have set the
Cubed or Crushed mode on.
Is there any ice blocked within the ice maker bucket or ice chute?
Is the freezer temperature too warm? Try setting the freezer temperature
lower.
Water dispenser is not
functioning
Is the water tank installed accurately? Make sure there is enough water in the
water tank.
Is water line broke or bent? Make sure the water line is unblocked and clear of
any obstruction.
Is the water tank frozen for the refrigerator temperature is too low? Try
selecting a warmer setting on the display panel.
Is the water pump working?
You can hear water
bubbling in the
refrigerator
This is normal. The bubbling comes from the refrigerant coolant liquid
circulating through the refrigerator.
30
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this product for
environmental safe recycling.
To avoid contamination of food, please respect the following instructions
-Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage
systems.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
Two-star frozen-food compartments are suitable for storing pre-frozen food, storing
or making icecream and making ice cubes.
One-, two- and three-star compartments are not suitable for the freezing of fresh
food.
Order
Compar
tments
type
Target
storage
temp.[
℃
]
Appropriate food
1
Fridge
+2
~
+8
Eggs, cooked food, packaged food, fruits and
vegetables,
dairy products, cakes, Drinks and
other foods which are
not suitable for freezing.
2
(***)*-
Freezer
≤-
18
Seafood (fish, shrimp, shellfish), freshwater aquatic
products and meat products
(recommended time is 3
months – nutrition
values and taste decrease with time),
suitable for frozen fresh food.
3
***-
Freezer
≤-
18
Seafood (fish, shrimp, shellfish), freshwater aquatic products
and meat products
(recommended time is 3 months –
nutrition
values and taste decrease with time). Not
suitable
for freezing fresh food.
4
**-
Freezer
≤-
12
Seafood (fish, shrimp, shellfish), freshwater aquatic products
and meat products
(recommended time is 2 months –
nutrition
values and taste decrease with time). Not
suitable
for freezing fresh food.
5
*-
Freezer
≤-
6
Seafood (fish, shrimp, shellfish), freshwater aquatic products
and meat products
(recommended time is 1 month – nutrition
values and taste decrease with time). Not
suitable for
freezing fresh food.
31
6
0-star
-6
~
0
Fresh pork, beef, fish, chicken, some packaged
processed
foods, etc. (Recommended to eat
within the same day,
preferably not later than
3 days).
Partially packed/wrapped up encapsulated processed
foods (non-freezable foods).
7
Chill
-2
~
+3
Fresh/frozen pork, beef, chicken, freshwater aquatic
products, etc. (7 days below 0
℃
and
above 0
℃
is
recommended for consumption
within that day, preferably no
more than 2 days).
Seafood (less than 0 for 15 days, it is not
recommended to
store above 0
℃
).
8
Fresh
Food
0 ~ +4
Fresh pork, beef, fish, chicken, cooked food, etc.
(Recommended to eat within the same day, preferably
no more than 3 days)
9 Wine +5 ~+20
red wine, white wine, sparkling wine etc.
Note: please store different foods according to the compartments or target storage
temperature of your purchased products.
If the refrigerating appliance is left empty for long periods, switch off, defrost, clean,
dry, and leave the door open to prevent mould developing within the appliance.
Water dispenser cleaning (special for water dispenser products):
Clean water tanks if they have not been used for 48 h; flush the water system
connected to a water supply if water has not been drawn for 5 days.
WARNING! Food needs to be packed in bags before putting into the refrigerator,
and liquids need to be packed in bottles or capped containers to avoid the problem
that the product design structure is not easy to clean.
