WINDOW TYPE ROOM AIR CONDITIONER
Owner’s Manual
IMPORTANT NOTE:
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
EN
KSTAW081WA
KSTAW101WA
KSTAW121WA
KSTAW141WA
KSTAW182WA
KSTAW242WA
Cleaning & maintenance
Troubleshooting
01
06
27
28
21
23
CONTENTS
Operation instructions
Installation instructions
Safety precautions
What is in the Box
07
08
Before you get start
Installation overview.

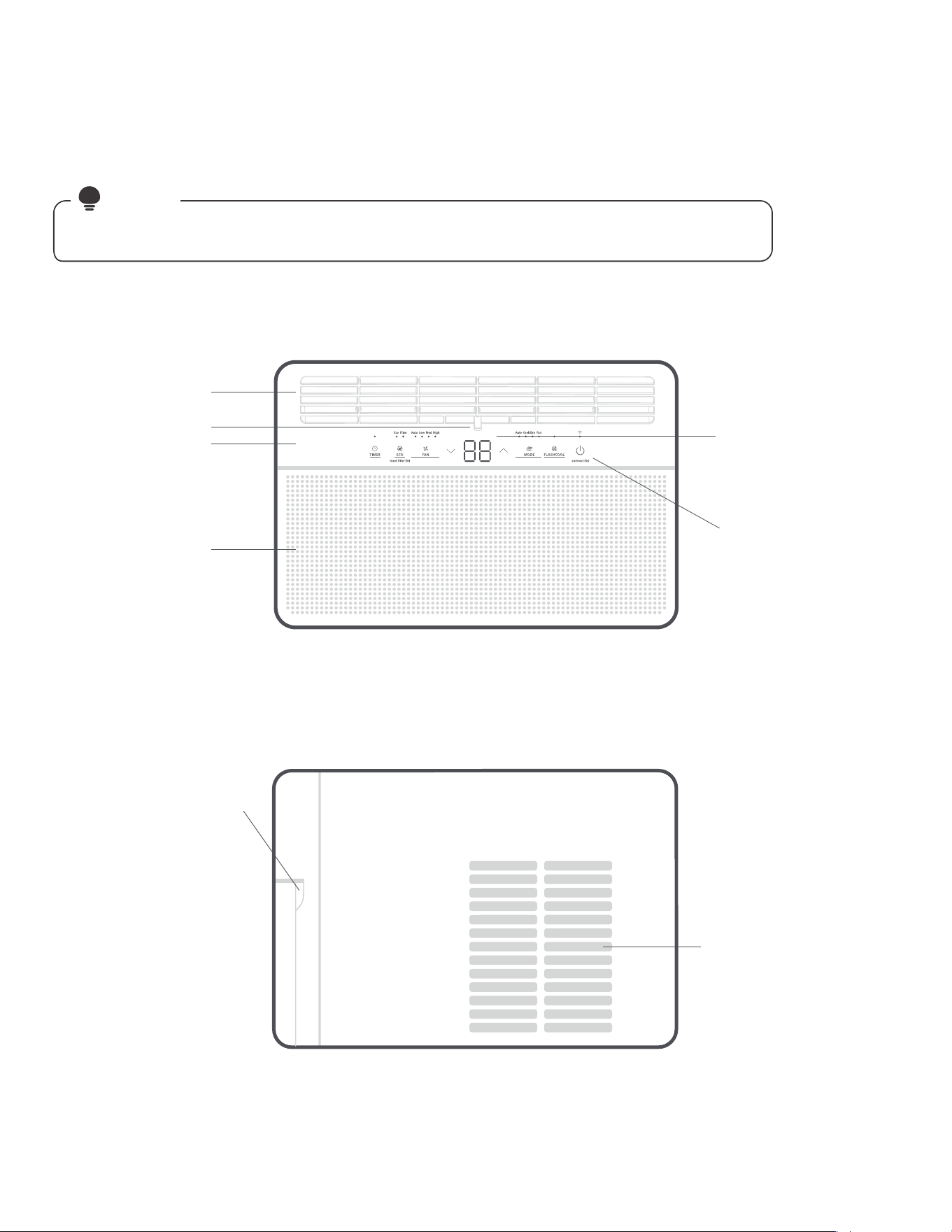

Get to know your AC.

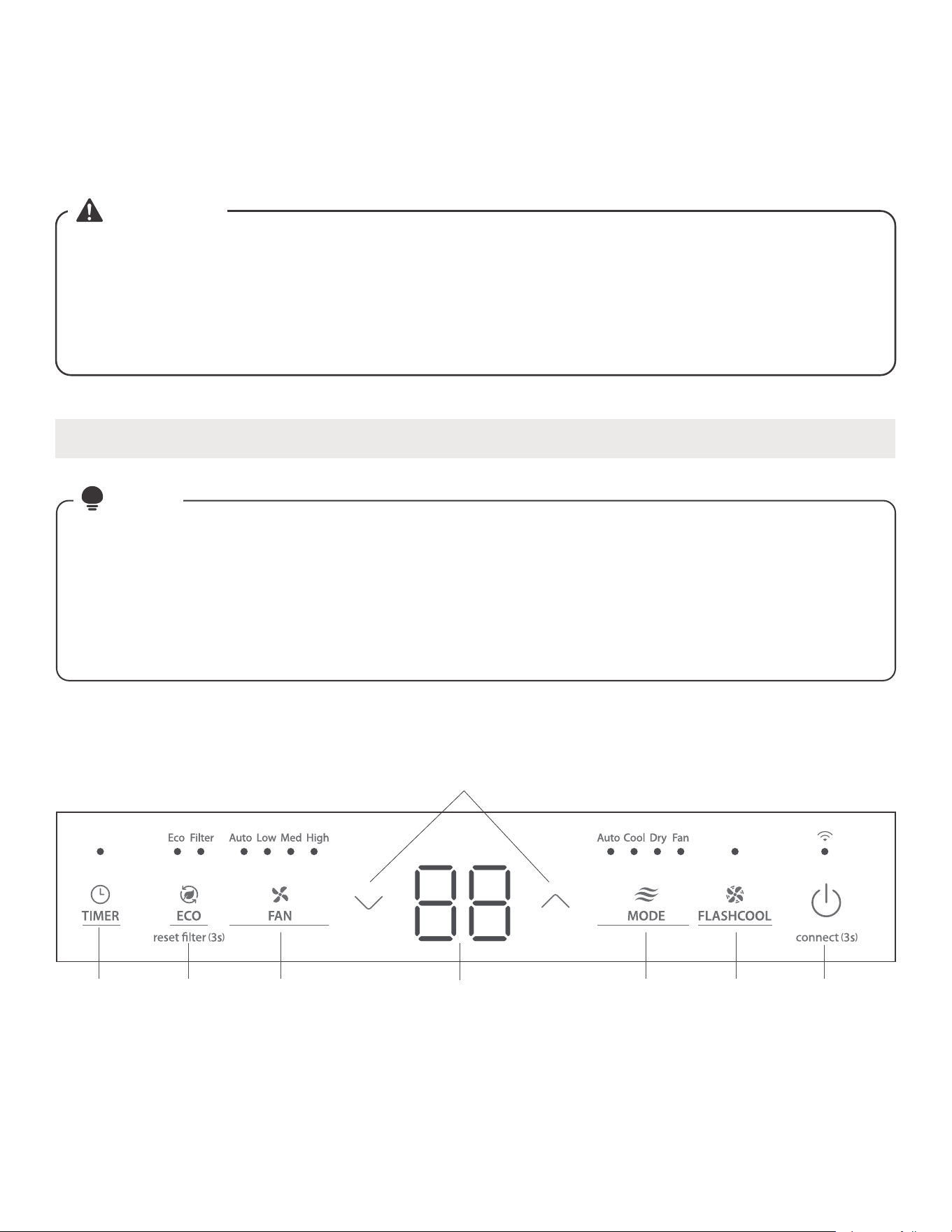

Get to know the features.
Inside you will find many helpful hints on how to use and maintain
your air conditioner properly. Just a little preventive care on your
part can save you a great deal of time and money over the life of
your air conditioner. You'll find many answers to common problems
in the chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for service at all.
To prevent injury to the user or other people and property
damage, the following instructions must be followed.
Incorrect operation due to ignoring of instructions may
cause harm or damage. The seriousness is classified by the
following indications.
Safety Precautions
WARNING
The signal word indicates a hazard with a medium level of risk which,
if not avoided, may result in serious or injury death.
CAUTION
The signal word indicates a hazard with a low degree of risk which,
if not avoided, may result in minor or moderate injury.
Explanation of Symbols
Must read the warning message
01
WARNING
• When the air filter is to be removed, do not touch the metal parts of the unit. It may cause an
injury. Ventilate the room well when used together with a stove, etc. An oxygen shortage may
occur.
• Do not use strong detergent such as wax or thinner but use a soft cloth. Appearance may be
deteriorated due to change of product color orscratching of its surface. Do not clean the air
conditioner with water. Water may enter the unit and degrade the insulation. It may cause
anelectric shock. Do not use for special purposes. Do not use this airconditioner to preserve
precision devices, food, pets, plants, and artobjects. lt may cause deterioration of quality, etc.
• Stop operation and close the window in storm or hurricane. Operation with windows opened
may cause wetting of indoor and soaking of household furniture. When the unit is to be
cleaned, switch off, and turn off the circuit breaker.
• Do not clean unit when power is on as it may cause fire and electric shock, it may cause an
injury.
• Always insert the filters securely. It can be caused failure if operated without filters. Please
clean filter once every two weeks.
• Plug in power plug properly. Otherwise, it may cause electric shock or fire due to excess
heat generation. Do not operate or stop the unit by inserting or pulling out the power plug.It
may cause electric shock or fire due to heat generation. Do not damage or use an
unspecified power cord.It may cause electric shock or fire. If the power cord is damaged, it
must be replaced by the manufacturer or an authorised service centre or a similarly qualified
person in order to avoid a hazard.
• Always install circuit breaker and a dedicated power circuit. Incorrect installation may cause
fire and electric shock. Do not operate with wet hands or in damp environment. It may cause
electric shock . Do not direct airflow at room occupants only. This could damage your
health.
• Always ensure effective grounding.Incorrect grounding may cause electric shock. Do not
allow water to run into electric parts.It may cause failure of machine of electric shock. Do
not modify power cord length or share the outlet with other appliances. It may cause
electric shock or fire due to heat generation.
• Unplug the unit if strange sounds, smell, or smoke comes from it. It may cause fire and
electric shock. Do not use the socket if it is loose or damaged. It may cause fire and electric
shock. Do not open the unit during operation. It may cause electric shock.
• Keep firearms away. It may cause fire. Do not use the power cord close to heating
appliances.It may cause fire and electric shock. Do not use the power cord near flammable
gas or combustibles, such as gasoline, benzene, thinner, etc. It may cause an explosion or
fire.
• Ventilate room before operating air conditioner if there is a gas leakage from another
appliance. It may cause explosion, fire and, burns. Do not disassemble or modify unit. It may
cause failure and electric shock.
02
CAUTION
Cooling
operation
Outdoor temp:
Indoor temp:
Heating
operation
Outdoor temp:
O
O
23-76 F/ C-5-24
Indoor temp:
O
32-80 F/
O
0-27 C
O O O O
64-109 F/18-43
C (64-125
F/18-52
C
for special tropical models)
O
60-90 F/
O
16-32 C
NOTE
Note:Performance may be
reduced outside of these
operating temperatures.
This air conditioner is designed to be operated under the following conditions:
CAUTION
• Hold the plug by the head of the power plug when taking it out. It may cause electric
shock and damage. Turn off the main power switch when not using the unit for a long time.
It may cause failure of product or fire.
• Do not place obstacles around air-inlets or inside of air-outlet. It may cause failure of
appliance or accident. Do not place heavy object on the power cord and ensure that the
cord is not compressed. There is danger of fire or electric shock. Don’t drink water drained
from air conditioner. It contains contaminants and could make you sick.
• Use caution when unpacking and installing. Sharp edges could cause injury.
• If water enters the unit, turn the unit off at the power outlet and switch off the circuit
breaker. Isolate supply by taking the power-plug out and contact a qualified service
technician.
• This appliance is not intended for use by persons (including children) with reduced
physical ,sensory or mental capabilities or lack of experience and knowledge, unless they
have been given super vision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• The appliance shall be installed in accordance with national wiring regulations.
• Installation must be performed in accordance with the requirement of NEC and CEC by
authorized personnel only.
• Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
• The appliance with electric heater shall have at least 1 meter space to the combustible
materials.
• Contact the authorised service technician for repair or maintenance of this unit.
• Contact the authorised installer for installation of this unit.
03

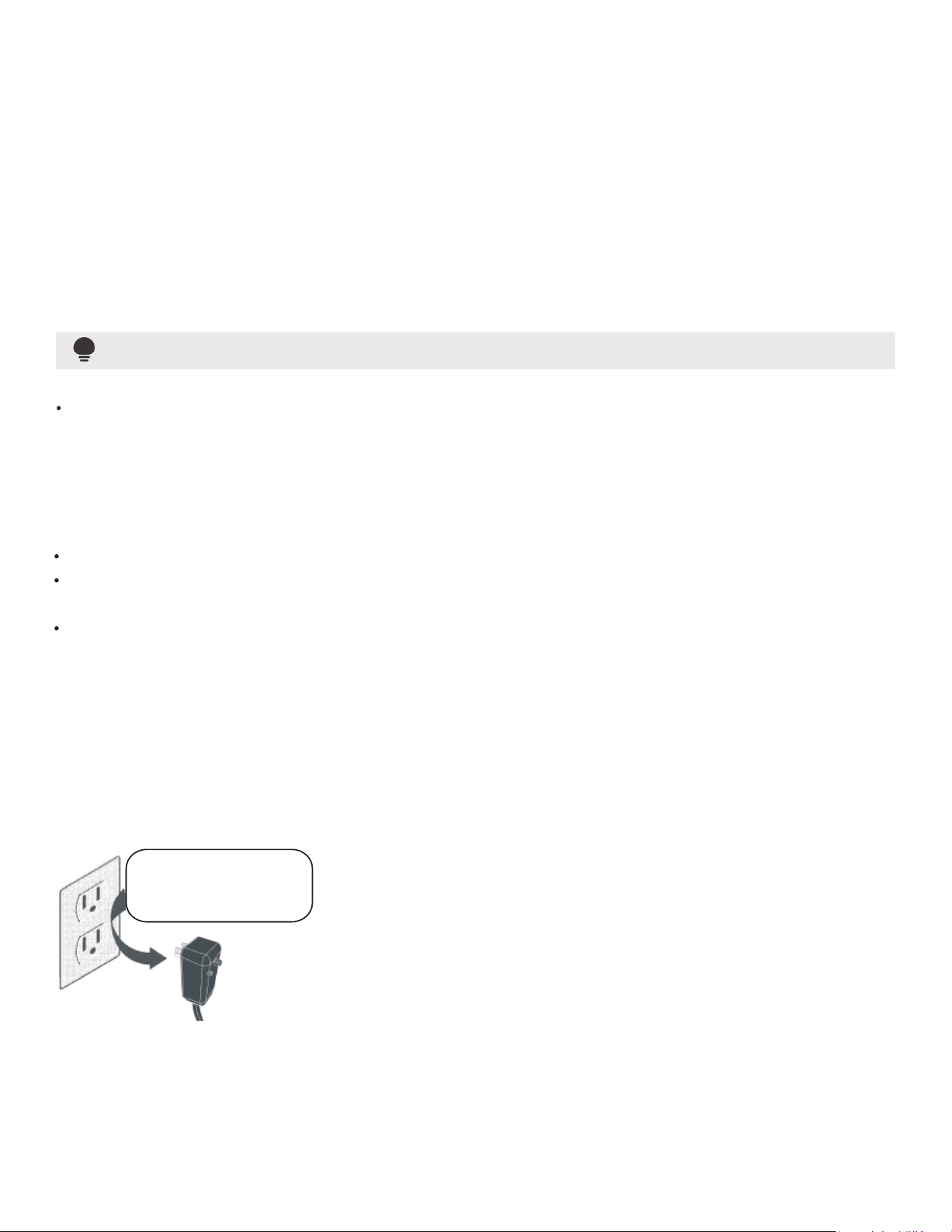

NOTE
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prongs.
Grounding type wall receptacle
Power supply cord with
3-prong grounding plug
and current detection
device.
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for
correct operation.
The power supply cord must be replaced if it fails to
reset when either the TEST button is pushed or if it
cannot be reset. A new one can be obtained from the
product manufacturer.
The power supply cord with this air conditioner
contains a current detection device designed to reduce
the risk of fire.
In the event that the power cord is damaged, it cannot
be repaired – it must be replaced with a cord from the
product manufacturer.
Operation of Current Device
The power supply cord contains a current device that senses damage to the power cord. To test
your power supply cord do
the following:
• Plug in the Air Conditioner.
• The power supply cord will have TWO buttons on the plug head. Press the TEST button,
you will notice a click as the RESET button pops out.
• Press the RESET button again, you will notice a click as the button engages.
• The power supply cord is now supplying electricity to the unit. (On some products this is
also indicated by a light on the plug head) .
04
For Your Safety
Electrical Information
Electronic Work
WARNING:
BEFORE PERFORMING ANY ELECTRICAL OR WIRING
WORK, TURN OFF THE MAIN POWER TO THE SYSTEM.
DISPLAY
MAIN
CONTROL
POWER
SUPPLY
CORD
The complete electical rating of your new room air conditioner
is stated on the serial plate. Refer to the rating when checking
the electrical requirements.
• Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper
grounding is important. The power cord is equipped with a three-prong grounding plug for
protection against shock hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle
you intend to use is not adequately grounded or protected by a time delay fuse or circuit
breaker, have a qualified electrician install the proper receptacle. Ensure the receptacle is
accessible after the unit installation.
• Do not run air conditioner without side protective cover in place.This could result in mechani-
cal damage within the air conditioner.
• Do not use an extension cord or an adapter plug.
Avoid fire hazard or electric shock. Do not use an extension
cord or an adapter plug. Do not remove any prongs from
the power cord.
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Prevent Accidents
To reduce the risk of fire, electrical shock, or injury to persons
when using your air conditioner, follow basic precautions,
including the following:
• Be sure the electrical service is adequate for the model you have chosen. This information can
be found on the serial plate, which is located on the side of the the cabinet and behind the
grille.
• If the air conditioner is to be installed in a window, you will probably want to clean both sides
of the glass first. If the window is a triple-trackty pew it has creen panel included, remove the
screen completely before installation.
• Be sure the air conditioner has been securely and correctly installed according to the
installation instructions in this manual. Save this manual for possible future use in removing or
installing this unit. When handling the air conditioner, be careful to avoid cuts from sharp
metal fins on front and rear coils.
NOTE: The cographs are for explanation purpose only. Your machine may be slightly
different. The actual shape shall prevail.
05

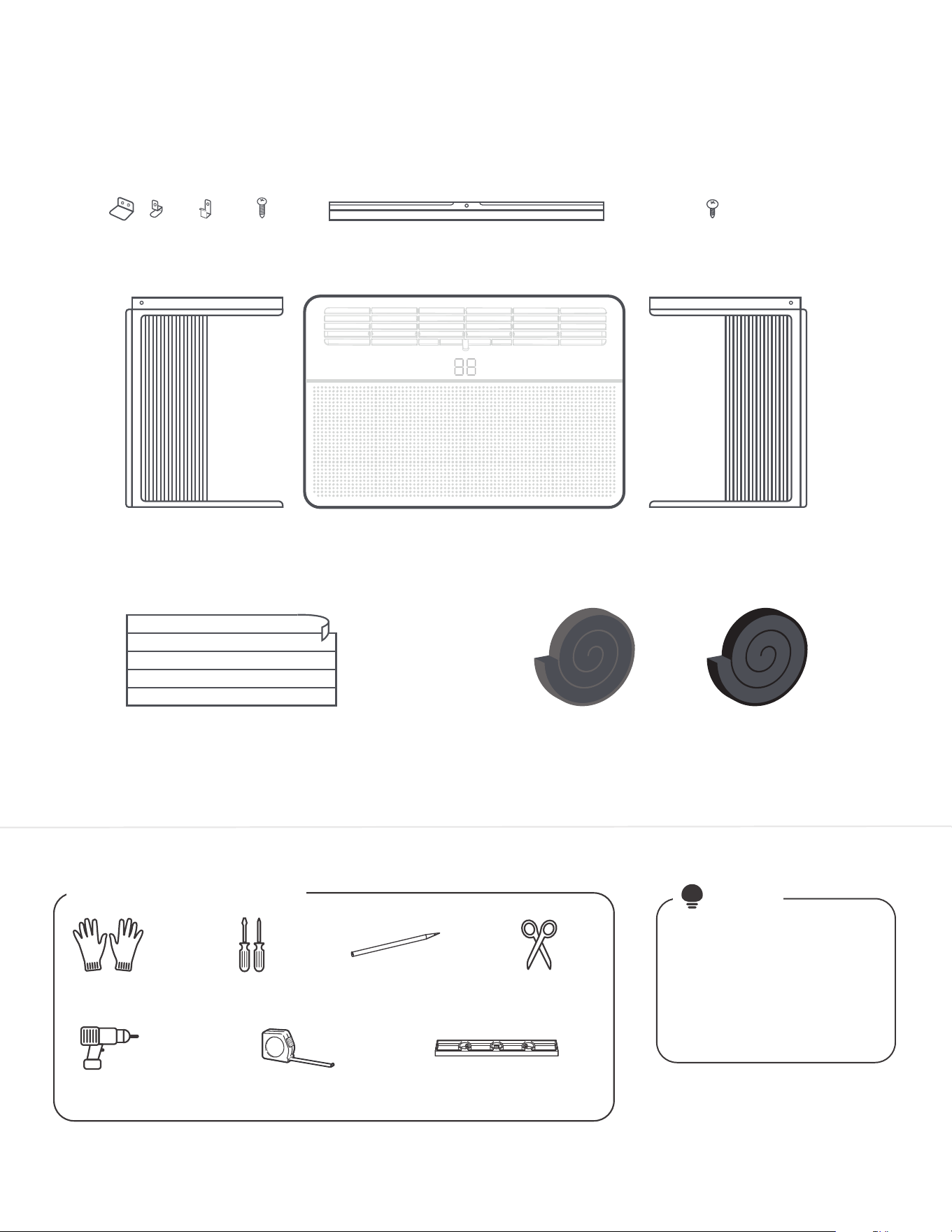

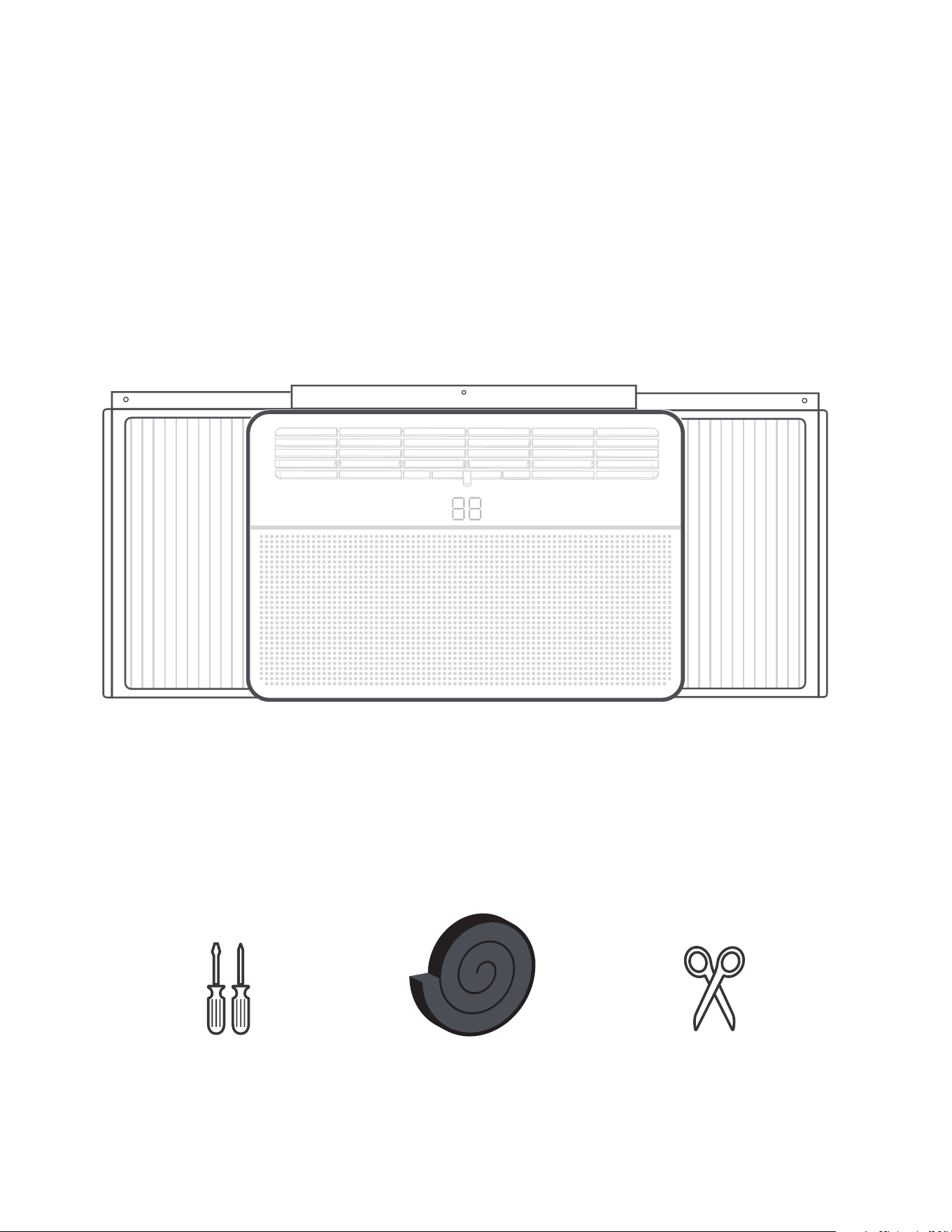

What is in the Box
Package contents
LEFT
RIGHT
X4
X2
X2
X7
Top Rail 3/8in Screws
5/8in Screws and
Safety Lock(3 Types)
Frame Assembly(Left)
Frame Assembly(Right)
Foam insert(E-Star model only)
Window Sash Seal
Foam (with glue)
Window Sash Seal
Foam (non glue)
Window Type Room
Air Conditioner unit
NOTE
Level
Ruler or tape measureDrill
*Not Included
PencilGloves Screwdriver Scissors

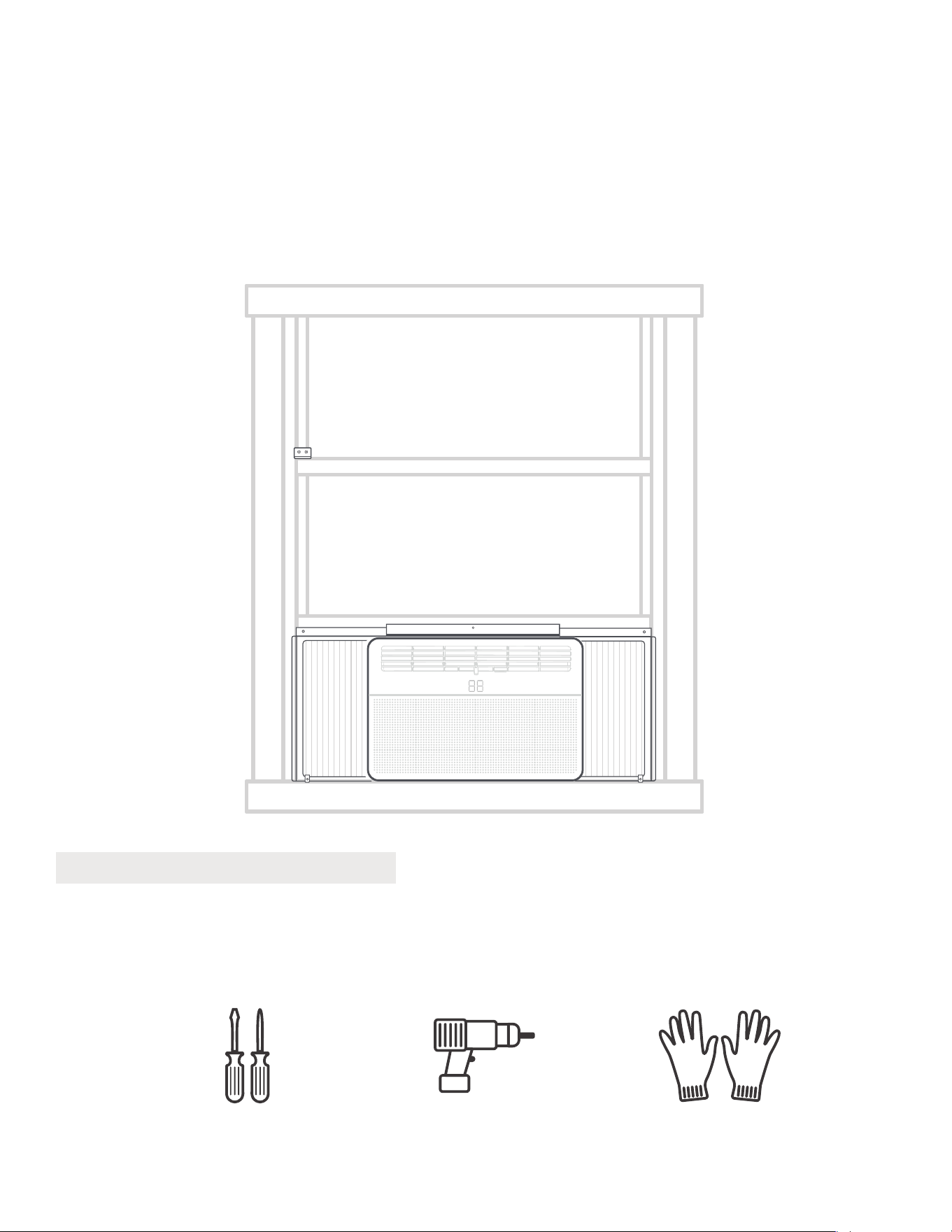

Prepare the following tools
The unit you purchased
may look like something
different, please refer to
the material in kind.
06

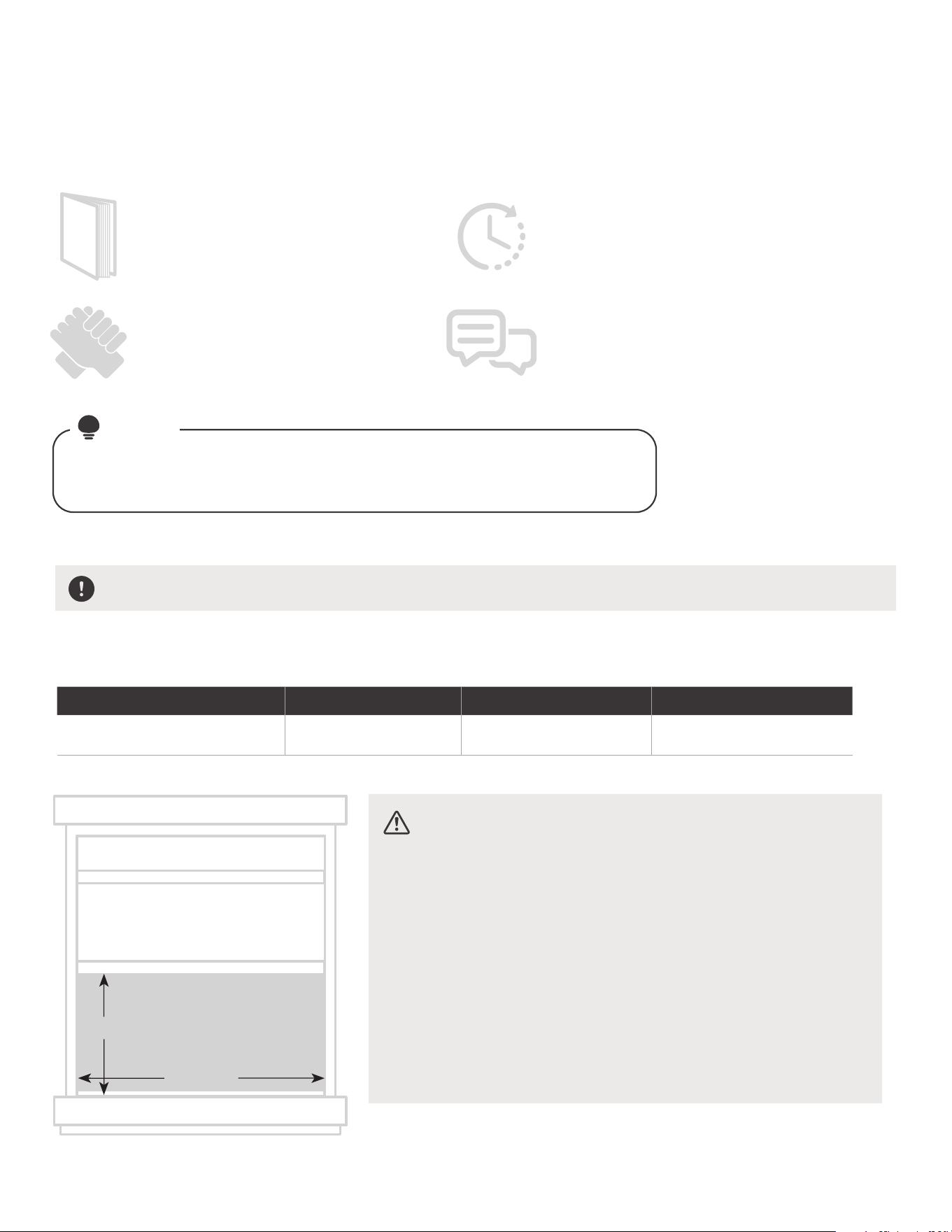

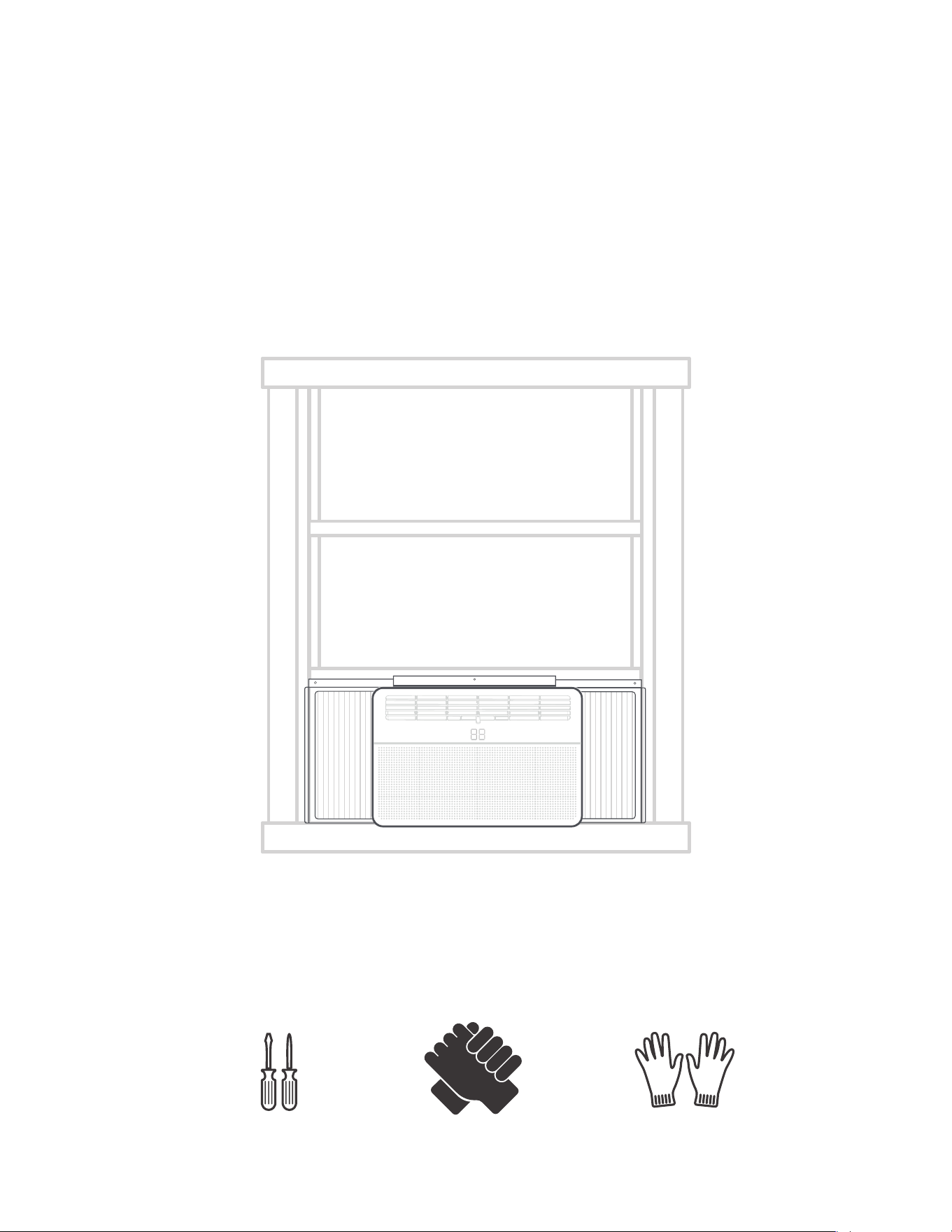

Before you get started
NOTE
Installing your AC should take about
60 minutes.
The installation must be carried out
in strict accordance with the instructions
in this manual.
Manual
We recommend doing this with a helper.
We’re here if you need us, please contact
your local distributor for assistance.
Preparations before installation
WINDOW REQUIREMENTS
23in to 36in
(584mm to 914mm)
H
Your air conditioner is designed to install in standard double hung windows with opening widths of
23 to 36 inches (584mm to 914mm).
13in (330mm) 14in (356mm) 15-1/2in (394mm)
Window opening height 5000~6000Btu/h 6000~8000Btu/h 10000~14500Btu/h
H
CAUTION
Save Carton and these Installation Instructions for future reference. The
carton is the best way to store unit during winter, or when not in use.
• Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
• Do not change the plug on the power cord of the air
conditioner. Aluminum house wiring may present special
problems- consult a qualified electircian.When handling
unit, be careful to avoid cuts from sharp metal edges
and aluminum fins on front and rear coils.
• The rear of the unit must be outdoors, not inside a
building or garage.
07

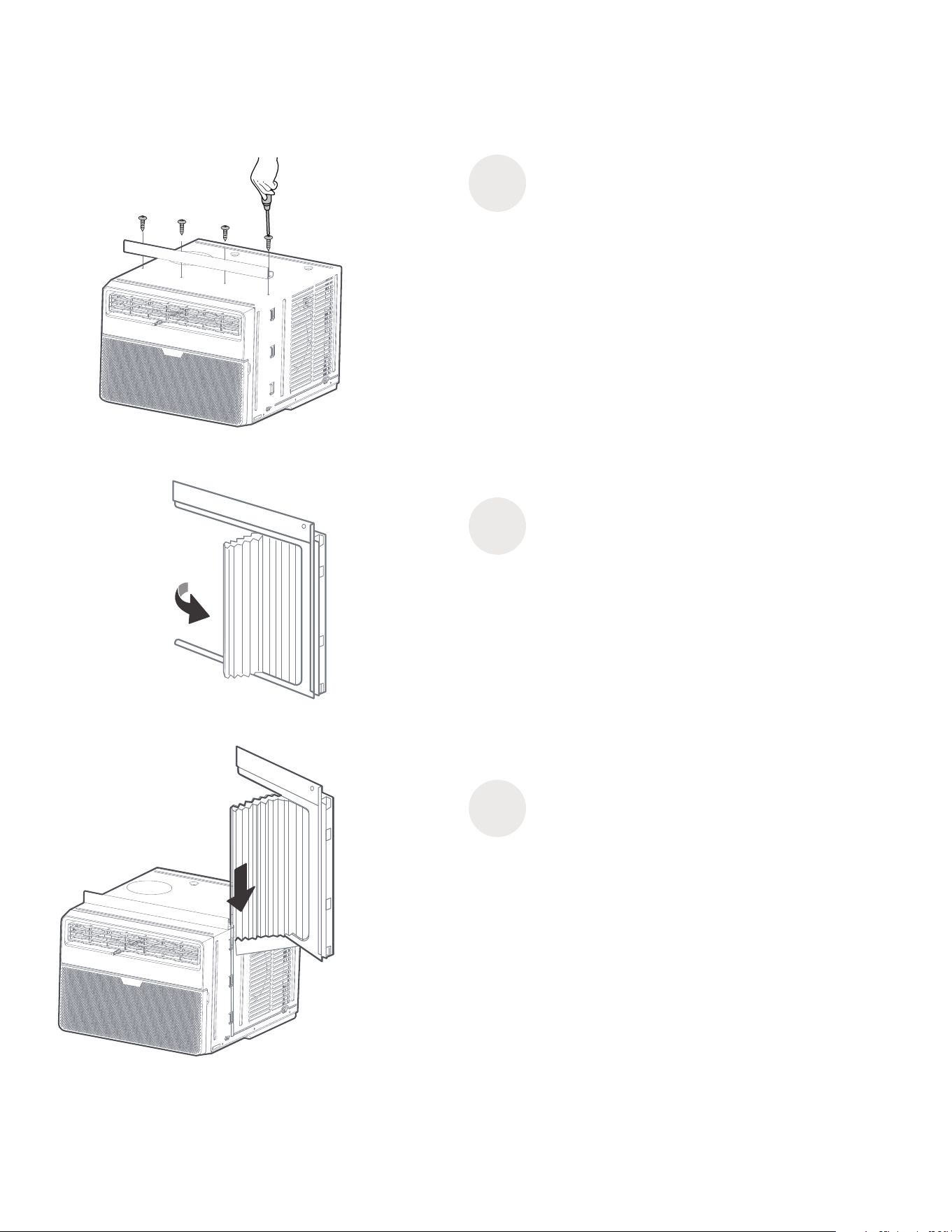

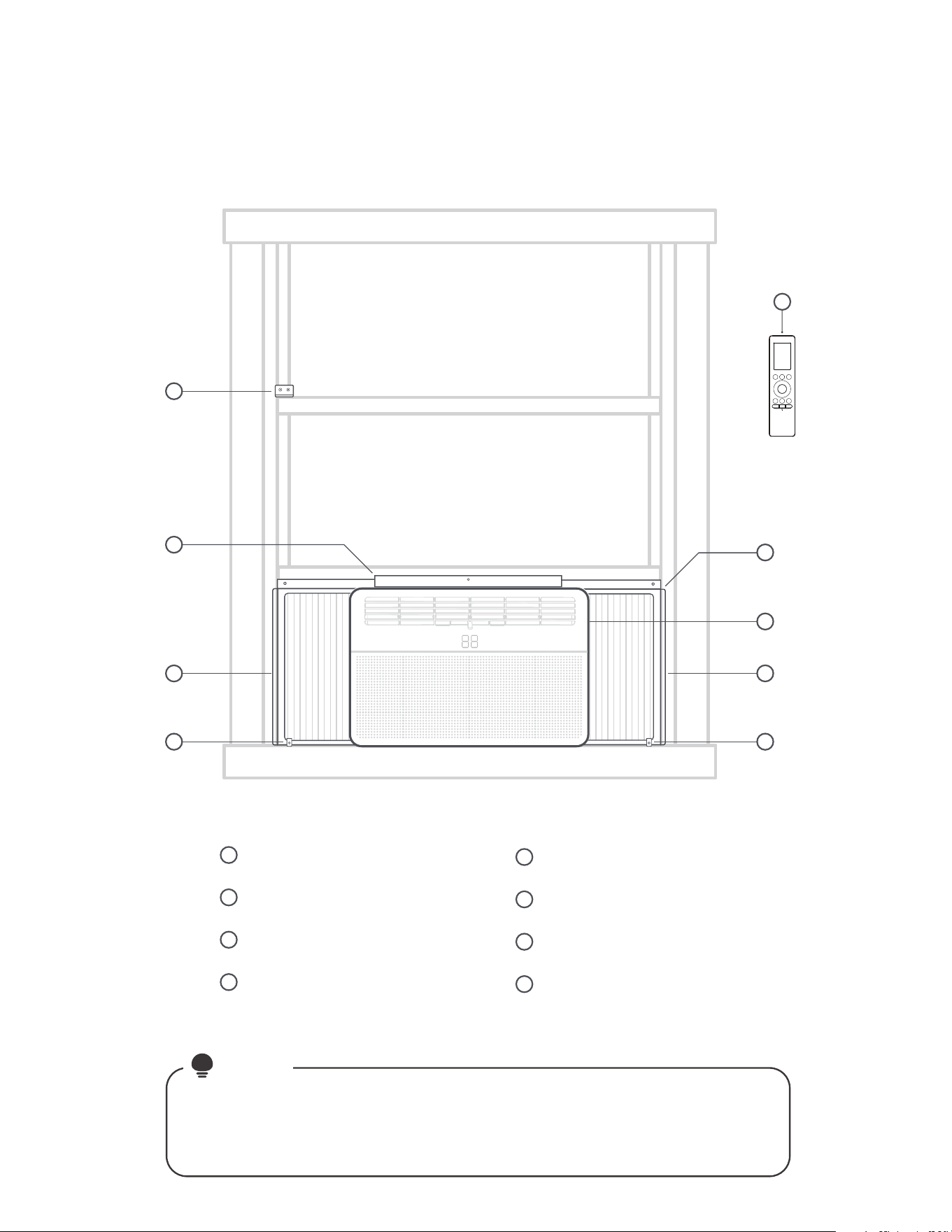

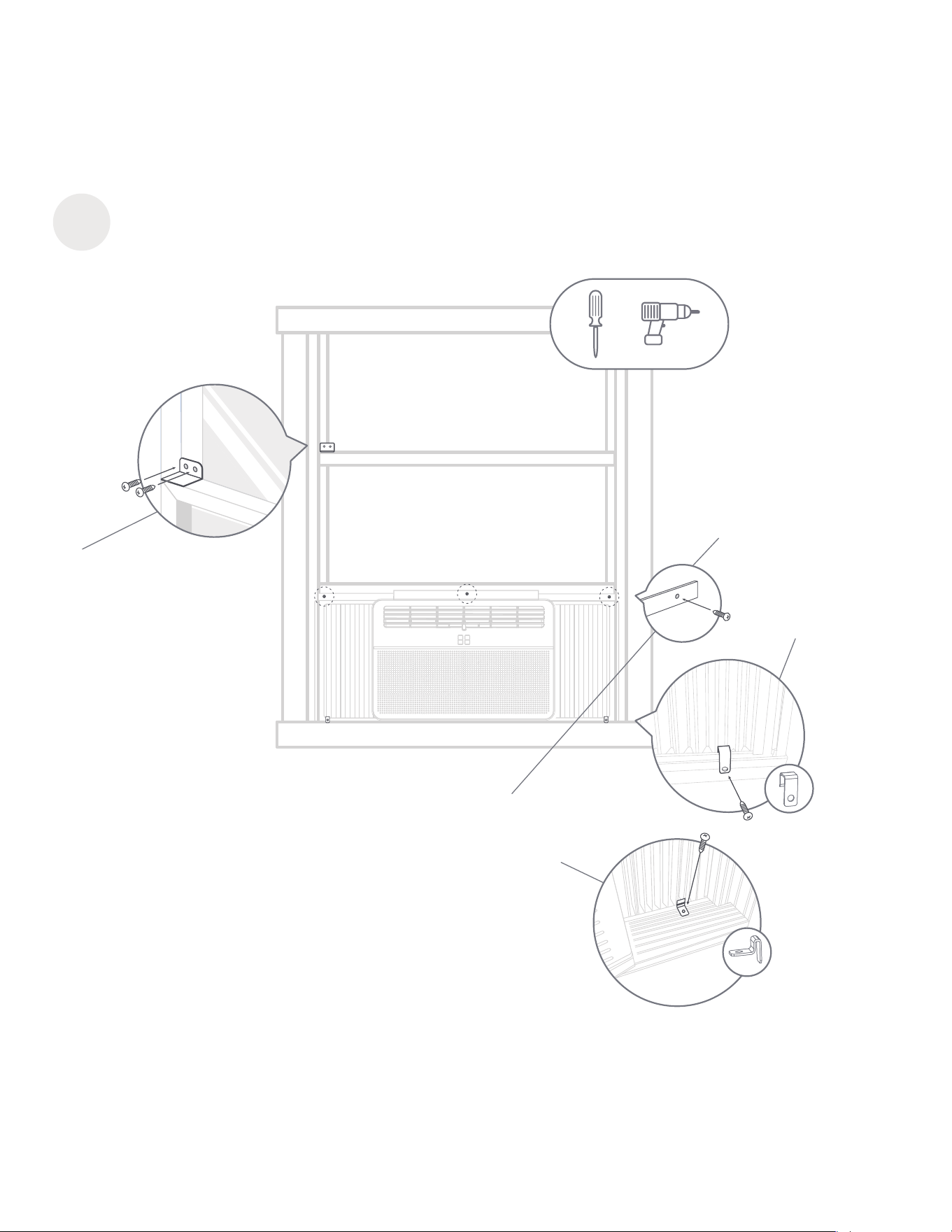

Installation view
Top Rail and 3/8in Screws
Air Conditioner unit
1
2
3
4
5
6
7
8
Safety Lock and 5/8in Screws
Safety Lock and 5/8in Screw
Frame Assembly (Left)
Frame Assembly (Right)
Window Sash Seal Foam
Remote controller
NOTE
Installation Completion Display
8
RIGHT
LEFT
1
2
3
4 4
5
6
7
Illustrations in this manual are for explanatory purposes. The actual
shape of your indoor unit may be slightly different. The actual shape
shall prevail.
08
1Step
Install your AC unit
What you need
RIGHT
LEFT
09
Install you AC
*The top rail must be assembled on
the unit for <10000Btu/h models only.
Install the top rail
on the AC
1
RIGHT
Pull the panels
out around
2
Install the
accordion panels
3
Pull the Left&Right Panels
out half way around.
NOTE: Top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of (5/16 ").
This is necessary for proper condensed water utilization and drainage. If you are not using the Side Panels
for any reason, this pitch to the rear must be maintained.
RIGHT
Install the Top Rail on the AC with 4 Screws
(3/8in) , For safety reasons, all 4 screws MUST be
securely fastened.
Insert the card slot on the side of the
AC, pay attention to the left and right
differences of the Panel.
10
4
5

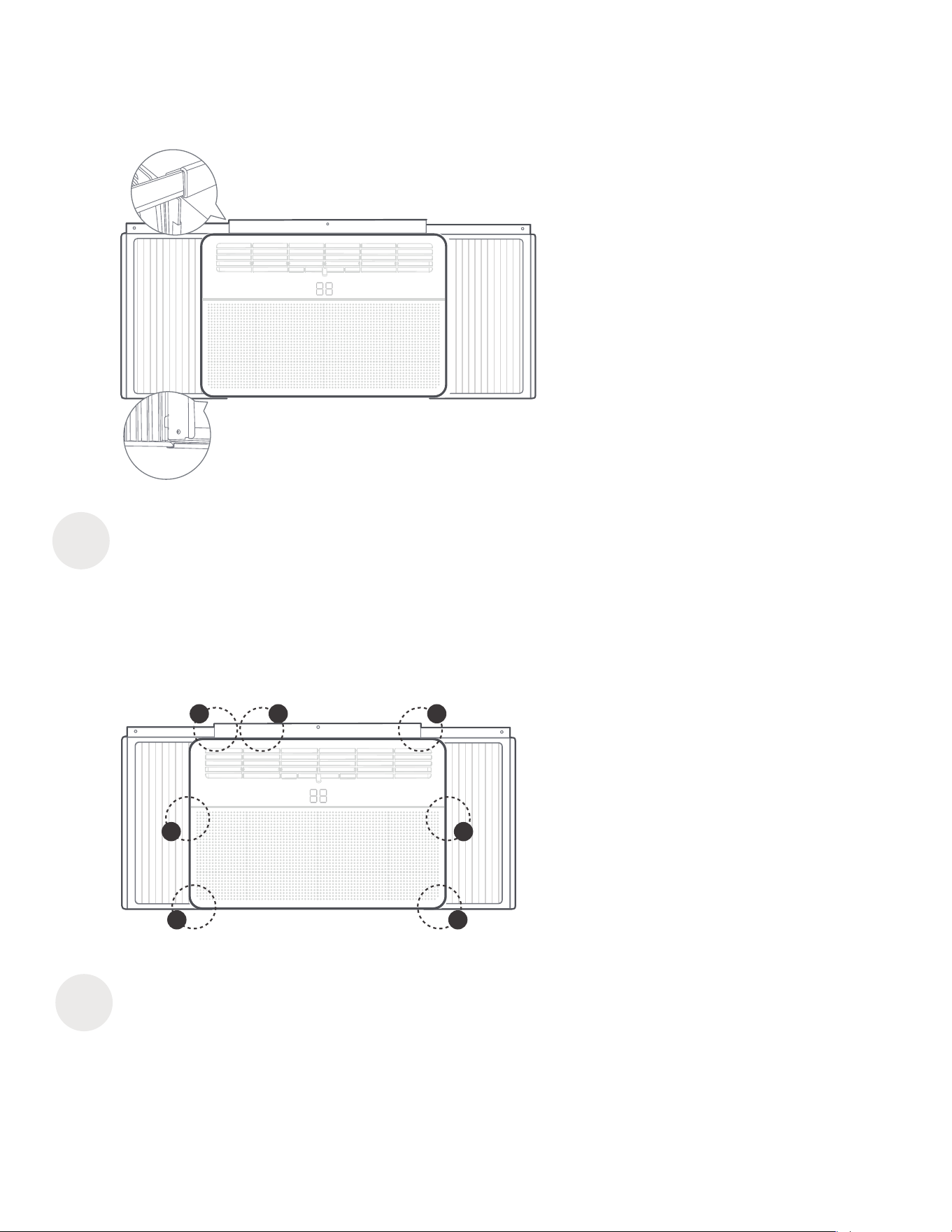

Fasten the panels to the AC
Stretch the wind screen outward and insert the upper
and lower frame strips of the Panels into the AC
card slot.
RIGHT
LEFT
A
A
C C
B
A
A
The AC unit is done
A. the upper and lower frame strips of the
Panels into the AC card slot.
B. Top Rail on the AC with 4 Screws.
C. Insert the card slot on the side of the AC.
Install you AC
RIGHT
LEFT
Before you rush to the next installation
phase, please first confirm the following
installation is in place.
11
12
2Step
Insulate your window
What you need
13
1
2

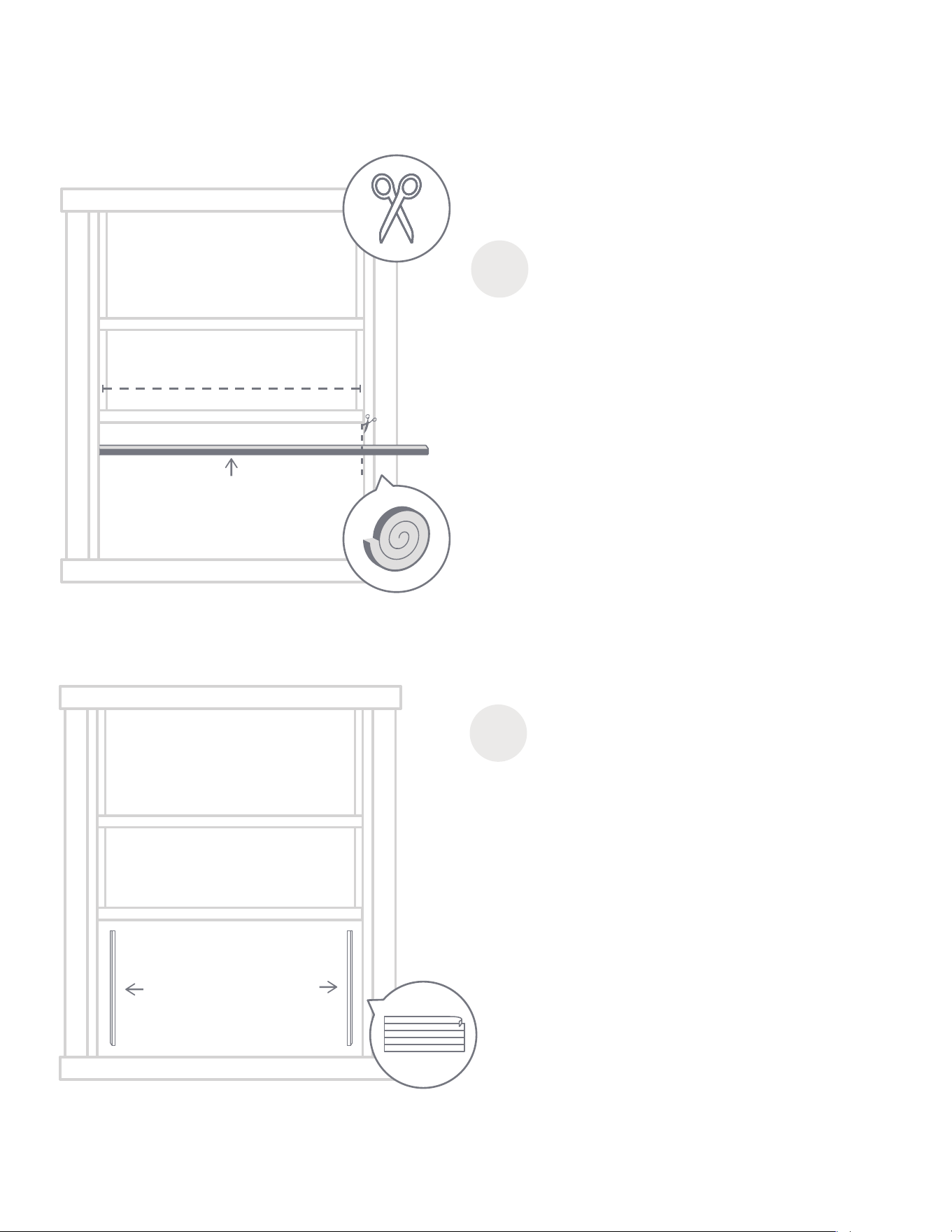

Cut the seal foam to the
width of your window,
and stick it of the underside
Insert the foam to the gaps
Insulate your window
You should cut the foam to be the width of your
window from the left to the right side. Make sure you’re
cutting the foam with the adhesive, and stick it of the
underside.
In order to improve the operation of the equipment and
reduce the noise generated during operation, you need
to foam seal the gaps.
*If your window already has a liner or insulation strip,
you can skip the above steps.
3Step
Lift the AC into
the window
What you need
RIGHT
LEFT
14
1
*Check that air conditioner is tilted back about 3°to 4°downward to the
outside. After proper installation, condensate should not drain from the
overflow drain hole during normalu se,correct the slope otherwise.
2
Properly position the bottom bar
BEHIND the inside window sill
Properly position the bottom bar behind the inside window sill and into the
bottom horizontal channel of the window frame. The front of the bottom bar
should be pressing up against the back edge of the sill.
Wooden Windows
Angle：3-4°
OutsideInside
OutsideInside
Vinyl-Clad Windows
Angle：3-4°

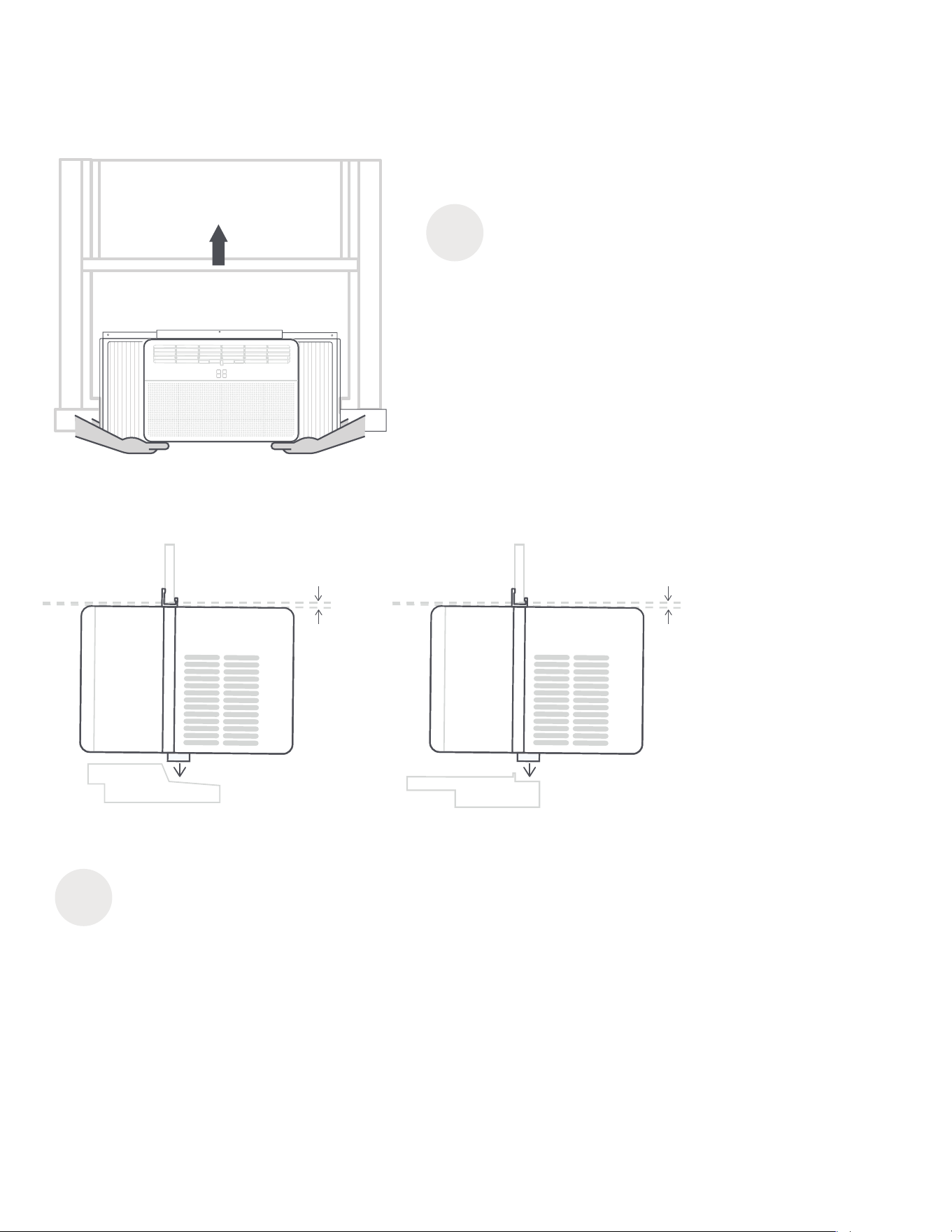

Lift the AC into the window
RIGHT
LEFT
Make sure you do this step with a helper. Very
carefully, lift the assembled AC into the window
frame. Make sure someone is holding the back of
the unit securely.
*It’s helpful to rest the unit on the inside window
sill until you’re ready to reposition it correctly.
Injury (to you and others) and property damage
can occur if not done correctly.
15

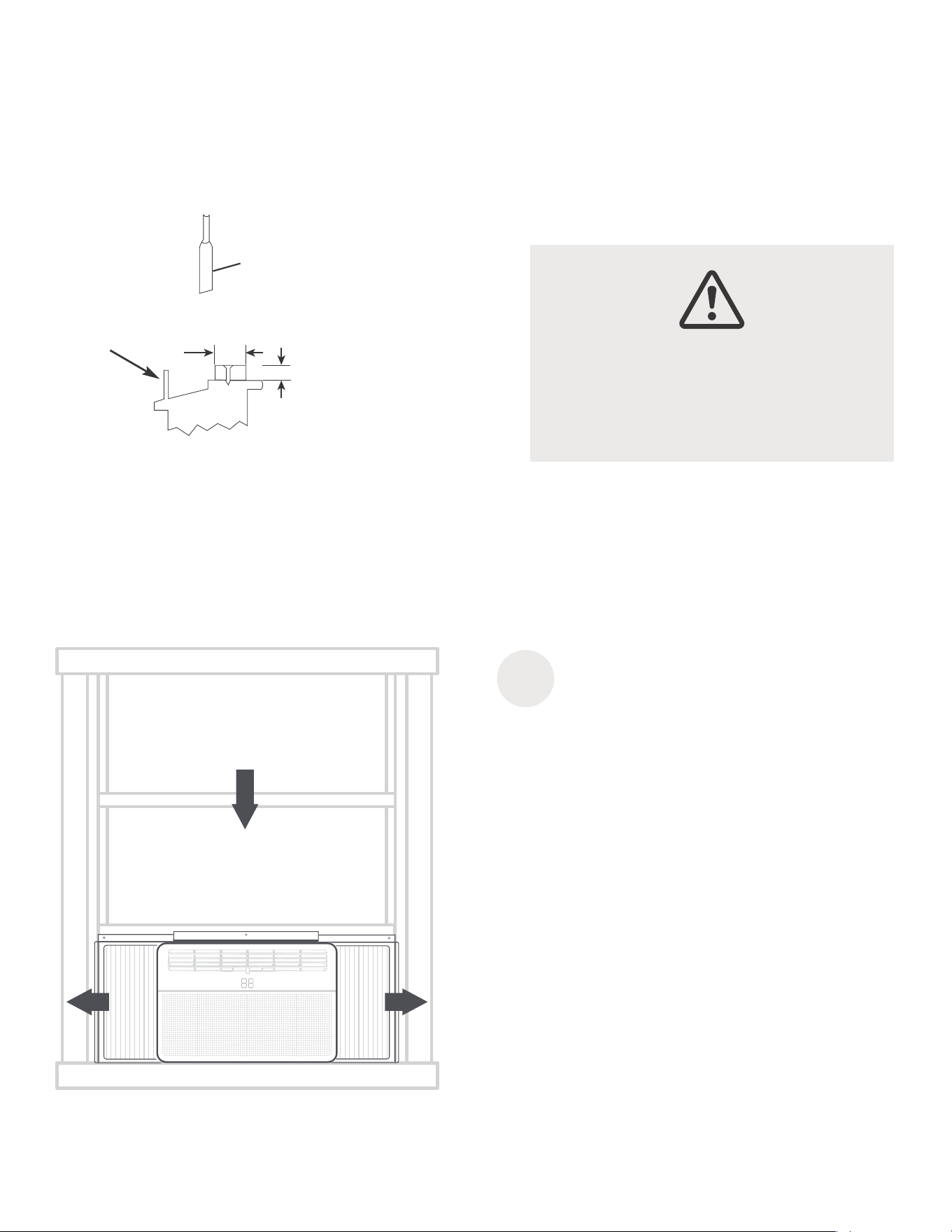

Storm window
frame or other
obstruction.
SASH
1-1/2"min
(38 mm)
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
CAUTION: If storm window blocks AC,
Please install according to the figure above.
3
Lift the AC into the window
RIGHT
LEFT
Once the AC is centered and the bottom bar is
successfully positioned, close the window down
onto the AC, behind the top bar. See diagram
above. Pull the panels to the side of the window.
Close the window down
onto the AC, and pull the
panels to the side of the
window
16
RIGHT
LEFT
4Step
What you need
Secure the AC
5. CHECK FILTER FEATURE:
17
Follow the above instructions and drive the screws.
RIGHT
LEFT
Secure the AC
or
DRIVE LOCKING SCREWS
1
Drive 1/ 2" (12.7 mm) locking screws
through the frame lock and into the
window sashl (Only Vinyl-Clad windows).
NOTE: Before driving the screws, use
a drill to drill 5 holes through the holes
in the frame lock and frame extensions
into the windows sash as
shown.
1/8 " (3mm) pilot
holes before
driving screws. Drive
1/ 2" (12.7mm)
locking screws
through frame holes
into window sash
(Only wooden
windows:)
Drive 1/ 2" (12.7 mm)
locking screws through
the frame lock and into
the sill
(Only wooden windows)
NOTE:To prevent window
sill from splitting, drill 1/8 "
(3mm) pilot holes before
driving screws.
18

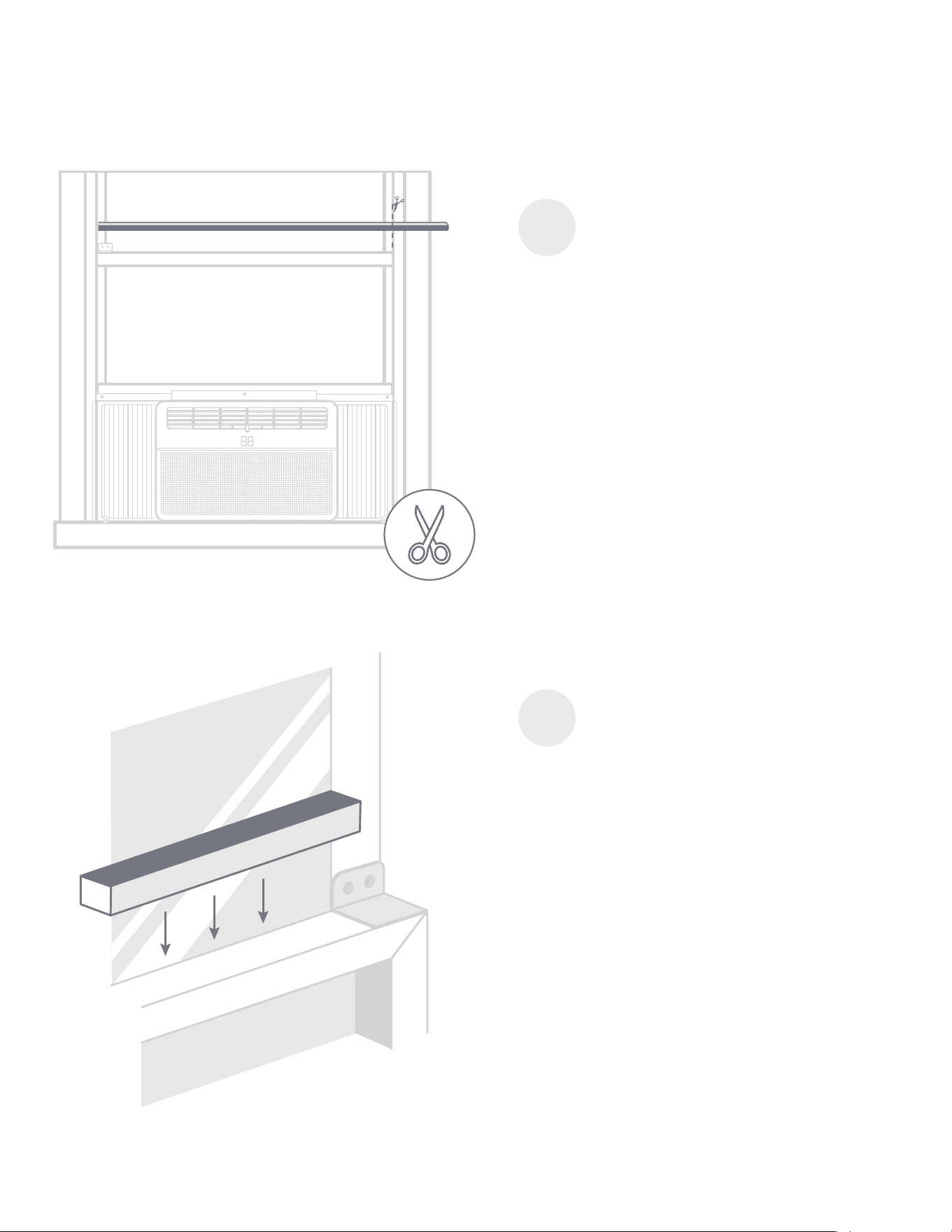

Make sure you are cutting the foam with the
non-adhesive sides. Measure and cut the foam
to be the width of your window from the left
to right side.
Cut the non-adhesive
insulation foam to fit the
width of your window
1
Stuff it between the gap of the upper and lower
sashes of your window.
This will plug any air gaps and help keep
out bugs and draft.
Use the nonadhesive
foam to fill the gaps in
your window
2
The final details
RIGHT
LEFT
19
1
2
One more thing
Add wood as shown in Caution illustration on page 16, or remove
storm window before air conditioner is installed. If Storm Window
Frame must remain, be sure the drain holes or slots are not caulked
or painted shut. Accumulated Rain Water or Condensation must be
allowed to drain out.
High Pitched Chatter
High efficiency compressors may have a high pitched chatter during the
cooling cycle.
Sound of Rushing Air
At the front of the unit, you may hear the sound of rushing air being
moved by the fan.
Gurgle/Hiss
“Gurgling or hissing”noise may be heard due to refrigerant passing
through evaporator during normal operation.
Vibration
Unit may vibrate and make noise because of poor wall or window
construction or incorrect installation.
Pinging or Switching
Droplets of water hitting condenser during normal operation may cause
“pinging or swishing” sounds. This noise can be reduce by removing the
water plug at the bottom of unit’s rear as shown below. Removing this
plug will lower the Energy Efficiency of your unit.
Note: Don’t try to drill any holes on the base pan to eliminate the normal
sounds, otherwise it will void the warranty.
If AC is Blocked by Storm Window
Normal Sounds
Additional Notes
Noise when unit is working
When you use the mute mode to start the unit. due to the compressor
being hot. the sound of the compressor may be more prominent. lasting
for about 3 minutes. It is normal.
A“da-da" sound may occur for thirty seconds when the unit is turned on
due to the compressor starting. It is normal.
Turn AC off, and disconnect power
cord. Remove sash seal from between windows, and unscrew safety
sash lock. Remove screws installed through frame and frame- lock.
Keeping a firm grip on air conditioner, raise sash and carefully
remove. Be carefully not to spill any remaining water while lifting
unit from window. Store parts with air conditioner.
Removing AC From Window
20

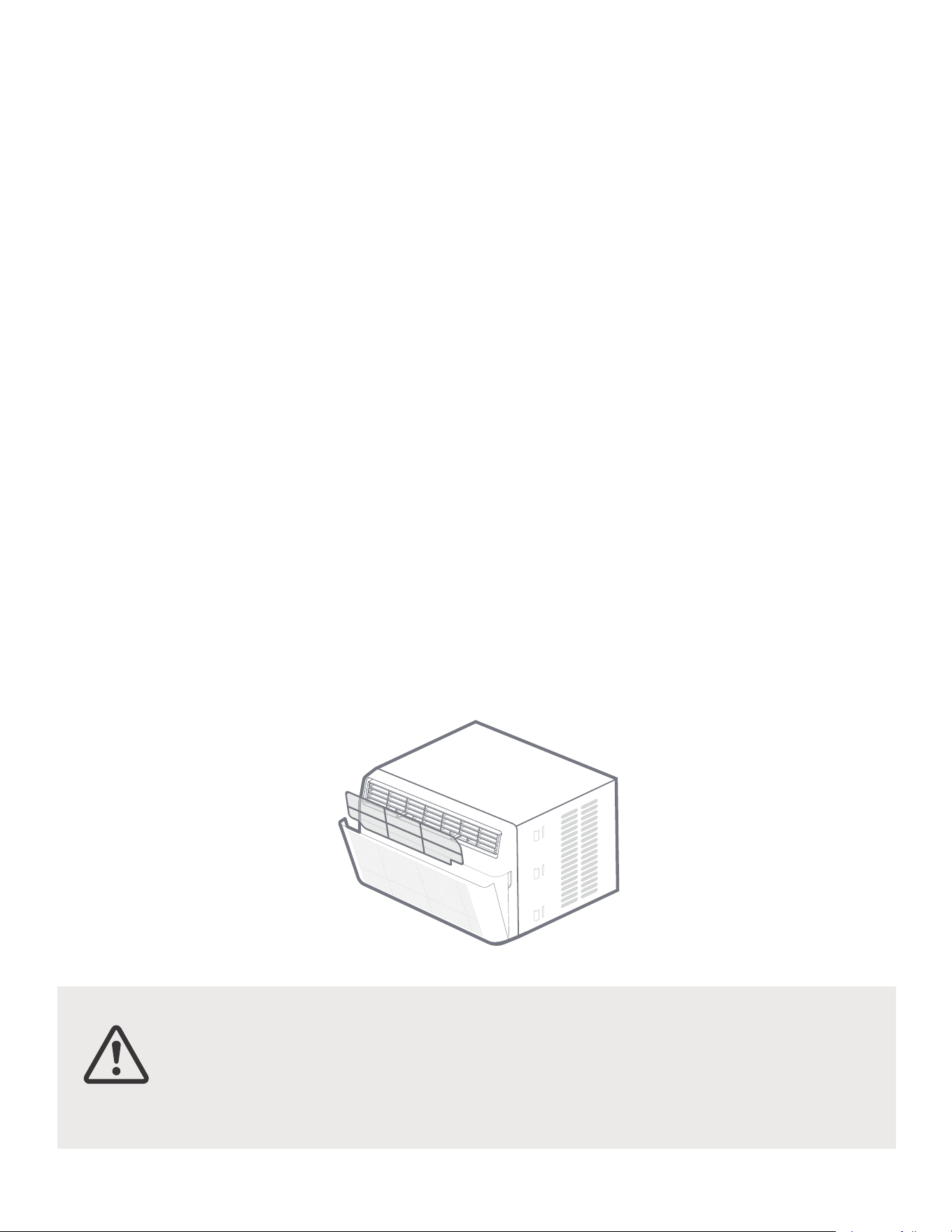

Get to know your AC
AC unit overview
Strainer
disassemble
buckle
Display
(Electronic
control panel
only)
Air Direction
Status display
Levers
Power key
Front Intake
Grille
(The filter is
behind this)
Rear
Condenser
Vents
The actual functions of your machine may differ to the example shown here..
NOTE
21

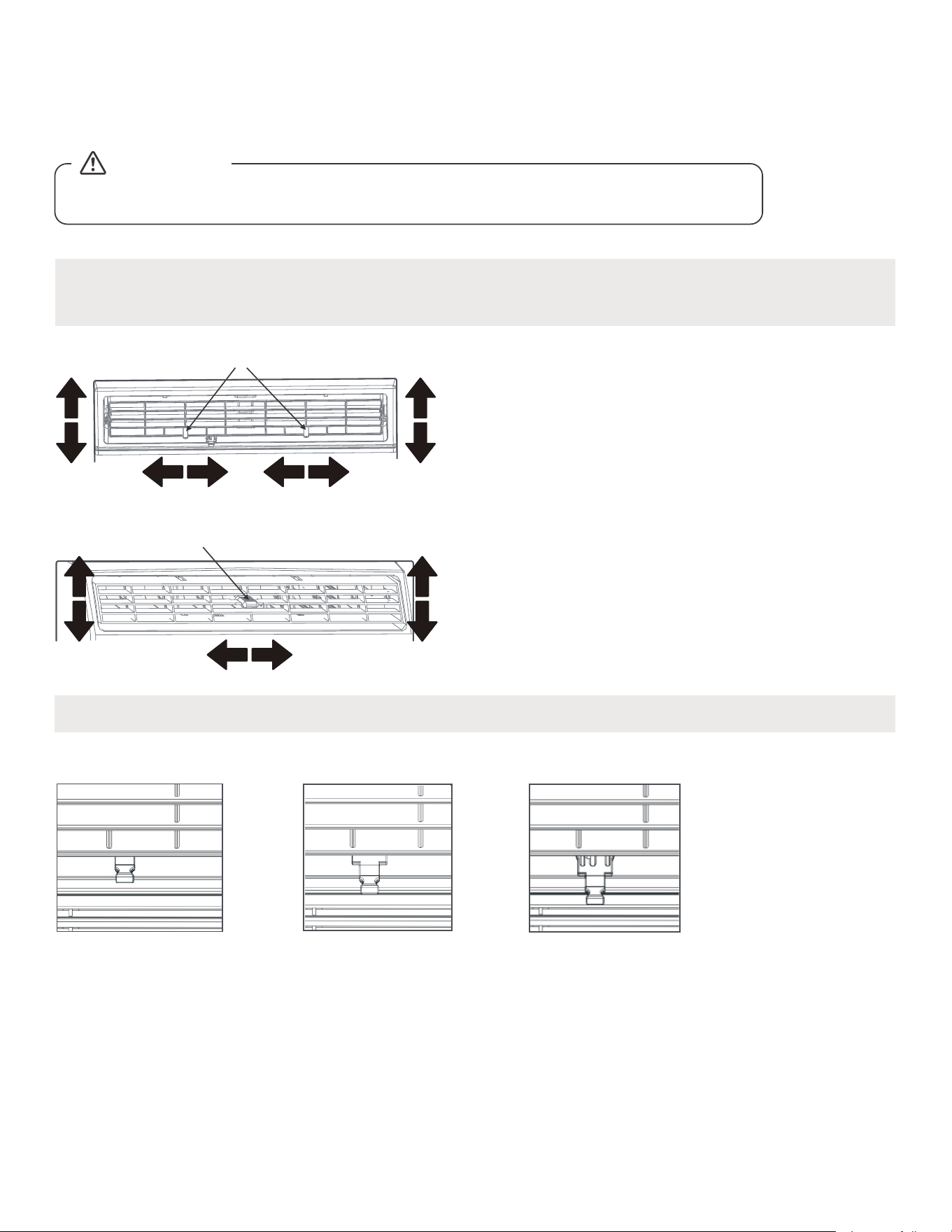

Adjust your air conditioning direction
Air conditioning louvers
Do not stick your fingers in the air outlet, it may cause an injury.
CAUTION
Four-way adjustment (up or down, left or right)
- For 06K/08K/10K/12K/14K
Fresh air vent control - For 12/14K
The louvers will allow you to direct the
air flow Up or Down (on some models)
and Left or Right throughout the room
as needed. Pivot horizontal louvers until
the desired Up/Down direction is
obtained. Move the Lever (s) from side
to side until the desired Left/Right
direction is obtained.
Lever
Lever
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Vent Closed (See Fig.A)
2. Draw fresh air into the room- Vent Open (see Fig.B)
3. Exchange air from the room and draws fresh air
into the room - Vent and Exhaust Open (see Fig.C)
Fig.B (VENT OPEN)
cord.
Fig.A (VENT CLOSED) Fig.C (VENT & EXHAUST OPEN)
22
Get to know the features
Air conditioner features
WARNING
Electronic control operating instructions
NOTE
8
4
12
53
67
• Different models have different control buttons and indicator lights. Not all the control buttons
and indicator lights describing below are available for the unit you purchased. Please check the
control panel of the unit you purchased. The unit can be controlled by the unit control alone or
with the remote controller.
• The function of the operation panel is based on typical model, the function is the same with your
air conditioner while some difference may exist in appearance.
• To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
• Please always wait 3 minutes when turning unit off then on again, and when changing from cool to
fan and back to cool. This prevents compressor from overheating & possible circuit breaker tripping.
23
1. TO TURN UNIT ON OR OFF:
Press POWER button to turn unit on or off.
Wireless button
Press and hold on the POWER button for 3 seconds to initiate the Wireless connection mode.
2. FLASHCOOL FUNCTION:
4. TO CHANGE TEMPERATURE SETTING:
Press UP/DOWN button to change temperature setting.
3. TO ADJUST FAN SPEEDS:
Electronic control operating instructions
5. TO SELECT THE OPERATING MODE:
Press this button to initiate the FlashCool function.
FlashCool provides maximum cooling and sets the fan to the highest speed. The unit will operate in this
mode until change mode, adjust fan speed or the function is turned off. The unit will then return to normal
cooling operation with the fan speed set to high.
NOTE: The FlashCool function will turn off when the mode or fan speed are adjusted.
Press Fan button to select the Fan Speed in four steps-Auto, Low, Med or High. Each time the button
is pressed, the fan speed mode is shifted. For some models, the fan speed can’t be adjusted.
NOTE: Press or hold either UP or DOWN button until the desired temperature is shown on the display.
This temperature will be automatically maintained anywhere between 60°F (16°C ) and 86°F (30°C).
If you want the display to read the actual room temperature, see“ To Operate on Fan Only ’’section.
To choose operating mode, press Mode button. Each time you press the button, a mode is
selected in a sequence that goes from Auto, Cool, Dry ,heat (cooling only models without) and
Fan. The indicator light beside will be illuminated and remained on once the mode is selected. The
unit will initiate automatically the Energy Saver function under Cool, Dry, Auto (only Auto-Cooling
and Auto-Fan) modes.
To operate on COOL mode :
• Choose Cool Mode to set the cooling function. Use the Up and Down buttons to choose the desired tem-
perature. When Cool Mode is selected, the fan speed can be adjusted by pressing the fan button.
To operate on HEAT mode (cooling only models without) :
• Choose Heat Mode to set the heating function. Use the Up and Down buttons to choose the desired
temperature .When heat Mode is selected, the fan speed can be adjusted by pressing the fan button.
NOTE: For some models, the fan speed can not be adjusted under HEAT mode.
To operate on Auto feature:
• When you set the air conditioner in AUTO mode, it will automatically select cooling, heating (cooling only
models without) , or fan only operation depending on what temperature you have selected and the room
temperature.
• The air conditioner will control room temperature automatically round the temperature point set by you.
• In this mode, the fan speed cannot be adjusted, it starts automatically at a speed according to the room
temperature.
24
7. TIMER: AUTO START/STOP FEATURE:
8. DISPLAYS:
Shows the set temperature in ” °C" or ” °F" and the Auto-timer settings.
While on Fan only mode, it shows the room temperature.
If the room temperature is too high or low, it will display " HI" or " LO".
Displays
6. ENERGY SAVER FEATURE:
• During this function, the display will show the actual room temperature, not the set temperature as in the
cooling mode.
• In Fan only mode ,the temperature is not adjusted.
To operate on Dry mode:
• In this mode, the air conditioner will generally operate in the form of a dehumidifier. Since the conditioned
space is a closed or sealed area, some
degree of cooling will continue. On Dry mode,the fan speed is controlled at Auto automatically.
Press and hold on the ECO button for 3 seconds to initiate the reset filter connection mode. Press Energy saver
button to initiate this function. This function is available on COOL, DRY, AUTO (only AUTO-COOLING and
AUTO-FAN) modes.
The fan will continue to run for 3 minutes after the compressor shuts off. The fan then cycles on for 2 minutes at
10 minute intervals until the room temperature is above the set temperature, at which time the compressor
turns back on and Cooling Starts.
This feature is a reminder to clean the Air Filter for more efficient operation. The LED (light) will illuminate after
250 hours of operation. To reset after cleaning the filter, press the ECO button and the light will go off.
• Press Timer button, the TIMER ON or TIMER OFF indicator light illuminates. It indicates the Auto Start or
Auto Stop program is initiated. For some units, keep pressing the Timer button will cancel the timer settings.
• Press or hold the UP or DOWN button to change the Auto time by 0.5 hour increments, up to 10 hours,then
at 1 hour increments up to 24 hours.
The control will count down the time remaining until start.
• The selected time will register in 5 seconds, and the system will automatically revert back to display the
previous temperature setting or room
temperature when the unit is on. (when the unit isoff,there is no display).
• Turning the unit ON or OFF at any time or a djusting the timer setting to 0.0 will cancel the Auto
Start/Stop timed program.
25
NOTICE
If the unit breaks off unexpectedly due to the power cut, it will restart
with the previous function setting automatically when the
power resumes.
ADDITIONAL THINGS YOU SHOULD KNOW
Error codes:
The unit may stop operation or continue to run safely. If the error codes appear, wait for about 10 minutes.
The problem may resolve itself. If not, disconnect the power, then connect it again. Turn the unit on.
If the problem persists, disconnect the power and contact your nearest customer service center.
Error code appears andbegins with the letters as the following in the window display of indoor unit:
EH ( xx ) , EL ( xx ) , EC ( xx ) , PH ( xx ) , PL ( xx ) , PC ( xx ) .
NOTE:If your problem persists after performing the checks and diagnostics above, turn off your unit
immediately and contact an authorized service
Now that you have mastered the operating procedure, here are more features in your control that you
should become familiar with.
• The Cool circuit has an automatic 3 minutes time delayed start if the unit is turned off and on quickly.
This prevents overheating of the compressor and possible circuit breaker tripping.The fan will continue to
run during this time.
• The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert
from one to the other, press and hold the Up andDown buttons at the same time for 3 seconds.
26
How to clean & change your filter
Cleaning & maintenance
Check the air filter once a month
to see if cleaning is necessary
Cabinet Cleaning
The air filter should be checked at least once a month to see if cleaning is necessary. Trappedparticles in the
filter can build up and cause an accumulation of frost on the cooling coils.
• Push the vent handle to the Vent Closed position (where applicable). Open the front panel.
• Take the filter by the center and pull up and out.
• Wash the filter using l iquid dishwashing
detergent and warm water. Rinse filter thoroughly. Gently shake excess water from the filter. Be sure the filter
is thoroughly dry before replacing. Instead of washing, you may vacuum the filter clean.
Note: Never use hot water over 40°C ( 104°F ) to
clean the air filter. Never attempt to operate
the unit without the air filter.
• Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and front may be dusted
with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwash-
ing detergent. Rinse thoroughly and wipe dry.
• Never use harsh cleaners, wax or polish on the cabinet front.
• Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around
the controls may cause damage to the air conditioner.
• Plug in air conditioner.
CAUTION: If you plan to store the air conditioner during the winter, remove it carefully
from the window according to the installation instructions. Cover it with plastic or return
it to the original carton.
CAUTION: Clean your air conditioner occasionally to keep it looking new. Be sure to
unplug the unit before cleaning to prevent shock or fire hazards.
27
Problem Solving
TROUBLESHOOTING
Before calling for service, review this list. It may save your time and expense.
This list includes common occurrences that are not the result of defective
workman-ship or materials in this appliance.
Air conditioner
cooling, but room
is too warm- NO
ice forming on
cooling coil behind
decorative front.
Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section.
Temperature is set too High, set temperature to a Lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Air conditioner
does not start.
Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type
or reset circuit breaker.
Plug Current Device Tripped. Press the RESET button.
Power is OFF. Turn power ON.
Air from unit does
not feel cold
enough.
Room temperature below 60°F (16°C). Cooling may not occur until room
temperature rises above 60°F (16°C).
Air conditioner
cooling, but room
is too warm- ice
forming on cooling
coil behind
decorative front.
Outdoor temperature below 64°F (18°C) . To defrost the coil, set FAN ONLY mode.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section.
To defrost, set to FAN ONLY mode.
Thermostat set too cold for night-time cooling. To defrost the coil,
set to FAN ONLY mode. Then, set temperature to a higher setting.
Problem Solution
Temperature sensing behind air filter element touching cold coil.
Keep it from the cold coil.
Set to a Lower temperature.
Compressor stopped when changing modes.
Wait for 3 minutes after set to the COOL
Front of units is blocked by drapes, blinds, furniture, etc.
- restricts air distribution. Clear blockage in front of unit.
The room may be too warm. Allow additional time to remove “Stored heat”
from walls, ceiling, floor and furniture.
An open doors, windows,or register may allow cold air to escape. Close any doors,
winows, or registers.
28
Problem Solving
The design and specifications are subject to change without prior notice for product improvement.
Any updates to the manual will be uploaded to the Midea website (www.midea.com/us) ,
please check for the current version.
Water dripping
INSIDE when unit
is cooling.
Improper installation. Tilt air conditioner slightly to the outside to allow water
drainage. Refer to installation instructions - check with installer.
Problem Solution
Air conditioner
turns on and off
rapidly
Noise when unit
is cooling
Noise when unit is
working
Dirty air filter- air restricted. Clean air filter.
Outside temperature extremely hot. Set FAN speed to a Higher setting to bring
air past cooling coils more frequently.
Air movement sound. This is normal . If too loud, set to a slower FAN setting.
Water dripping
OUTSIDE when
unit is cooling.
Unit removing large quantity of moisture from humid room.
This is normal during excessively humid days.
Remote Sensing
Deactivating
Prematurely (Only
remote models)
Remote control not located within range. Place remote control within 20 feet
and pointed in the general direction of the air conditioner unit.
Remote control signal obstructed. Remove obstruction.
Room too cold
Set temperature too low. Increase set temperatur.
For better cooling effect,The wind wheel outside the window machine will make a
splash, If you don't want to hear it, The rear side drain plug can be removed.
(Standard installation Angle of window machine 3°-5° degrees)
When you use the mute mode to start the unit. due to the compressor being hot.
The sound of the compressor may be more prominent. lasting for about 3 minutes.
It is normal.
A“da-da" sound may occur for thirty seconds when the unit is turned on due
to the compressor starting. It is normal.
Window vibration- poor installation. Refer to installation instructions or the installer
29
CWS003IU-TYBPN8(WA)
16120300001239
20230923
