This server allows portable storage and dispensing of up to 1½ gallons of hot beverage at remote locations.
Coffee can be brewed directly into the server without removing the cover when used with a BUNN
®
INFU-
SION SH brewers. The spill-resistant design lessens the chance of hot beverage burns and splashes.
USING THE SERVER
WARNING
DO NOT USE ON OPEN FLAME OR ELECTRIC ELEMENTS.
DO NOT CLEAN WITH BLEACH.
DO NOT IMMERSE SERVER.
HOT LIQUID
•
•
•
FAILURE TO COMPLY RISKS PERSONAL INJURY
OR EQUIPMENT DAMAGE.
26186.0000
INTRODUCTION
The notices on this server should be kept in good condition. Replace unreadable or damaged labels.
Simply select the desired brew batch size on the brewer and place the server beneath the funnel dripout.
Press and release the start switch to initiate a brew cycle. Fresh HOT coffee is immediately available at
the faucet.
NOTE: Be careful not to overfill the server.
The server features liquid level monitoring, temperature monitoring, and a freshness timer. Holding
temperature and freshness time are factory set, but can be adjusted by changing the programmed recipe.
The server has two LED status indicator lights. (Some servers have a blue LED only and some have a
multi-colored LED)
• LED Off: Server is not powered.
• LED On (Blue): Server is powered and all is Normal.
• Fast Flash (Blue): Brew is underway.
• Slow Flash (Blue/Red): Server needs attention – Freshness Timer is Expired and/or Server is Empty.
• Slow Flash (Yellow, RGB Server only): Server needs attention – Freshness Timer is within 7 minutes
of Expiration.
• Double Flash (Blue/Red): Server needs attention – Auto-Off Timer has expired.
• Fast Blip Off (Blue/Red): Server needs attention – Temperature Sensor Fault.
DO NOT SUBMERGE
28151.0001
5
NOTE: Bunn-O-Matic recommends the three step method for cleaning and sanitizing the server. The 3
step method consists of hot soapy water using an mild, non-citrus detergent, a fresh water rinse and an
aqueous sanitizing solution using a non-chlorine sanitizer. Do not submerge the server. Failure to follow
the recommended cleaning procedures can cause corrosion to the stainless steel surface. USE OF ANY
CHLORINATED PRODUCT VOIDS THE FACTORY WARRANTY.

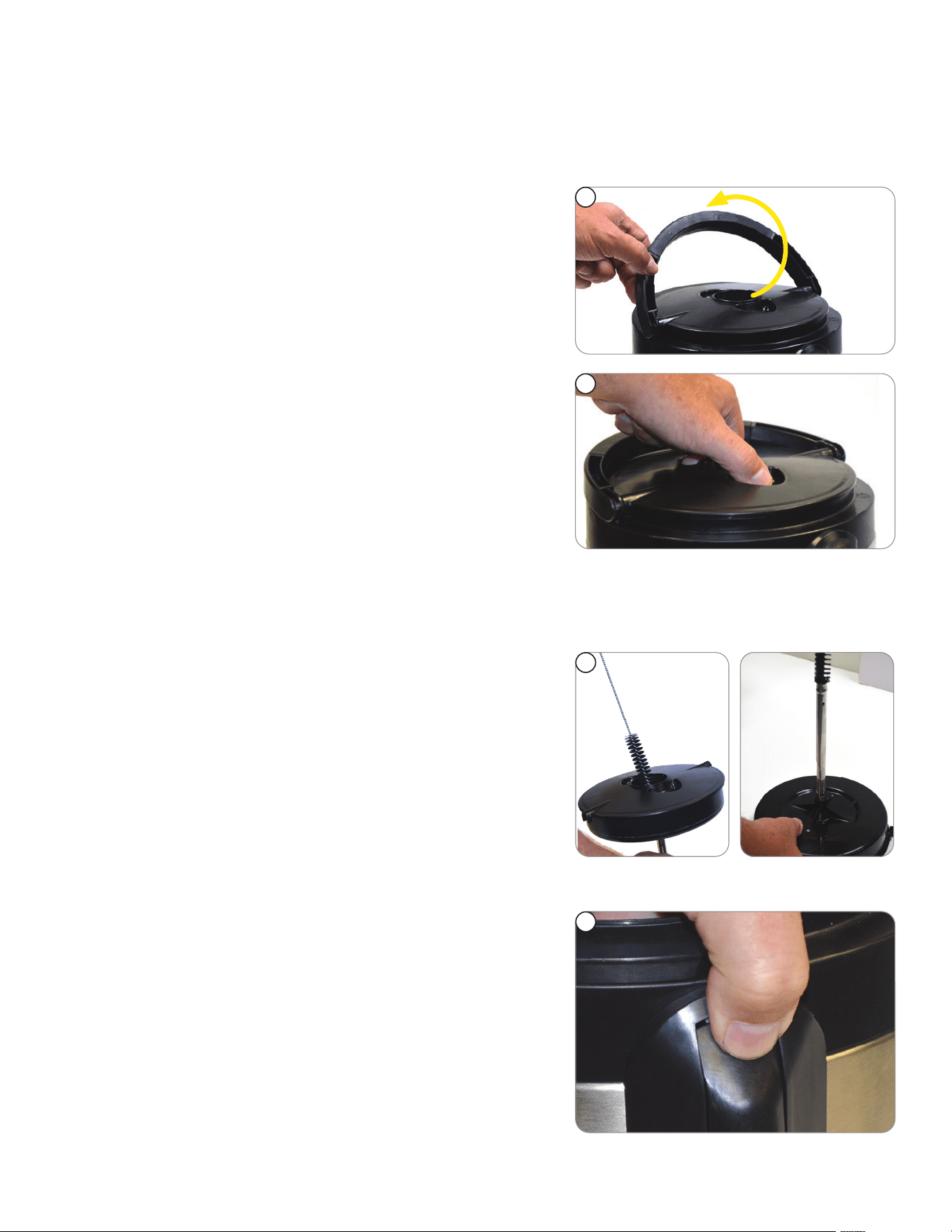

1. Rotate the lifting handle back completely to release the lid.
1
continued >

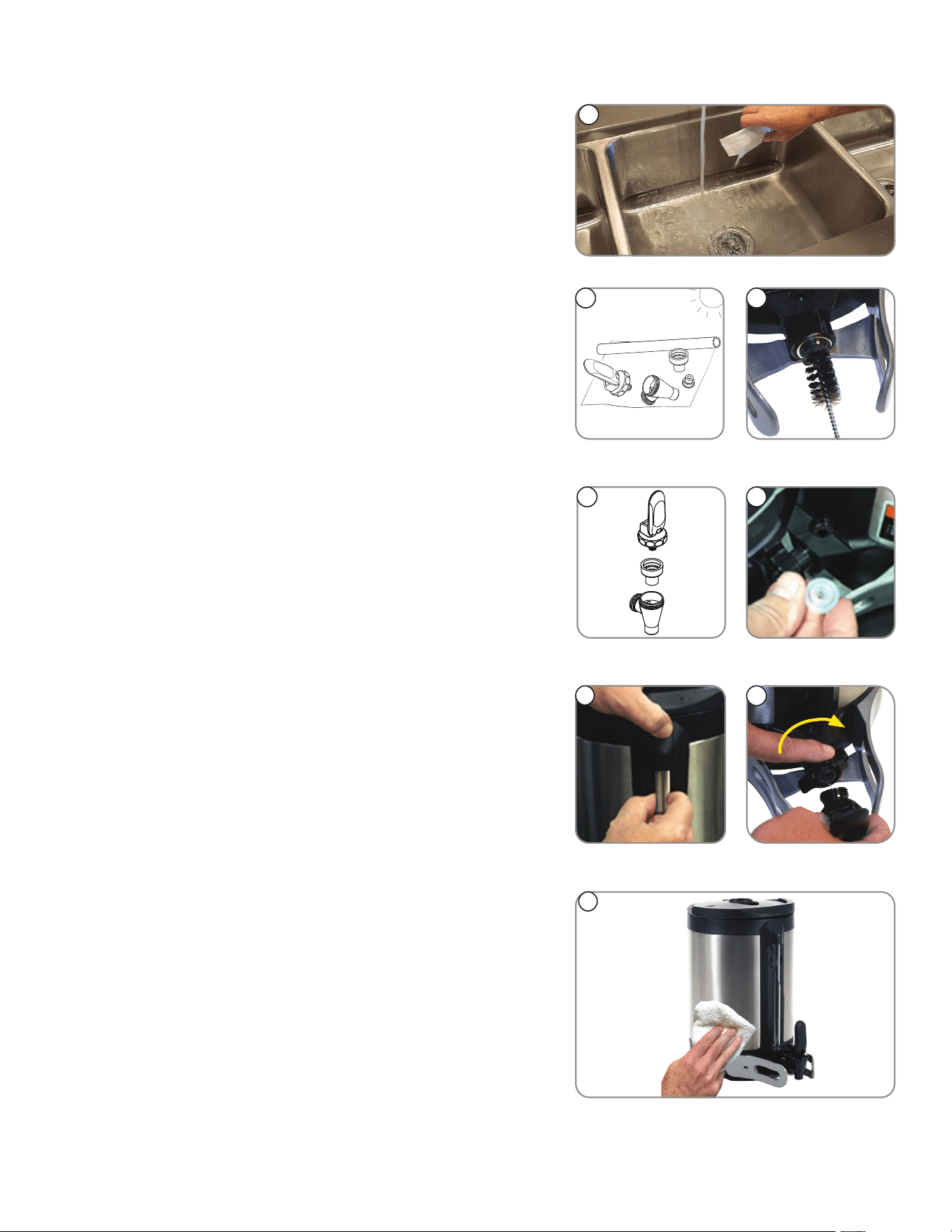

CLEANING
2
3. Fill server with non-chlorine cleaning solution, and
thoroughly clean inside of server using a SOFT,
Non-abrasive cloth or brush. Drain and thoroughly
rinse using fresh water.
5. Clean the Inlet Tube with the supplied brush
(PN 00674.0000) using the cleaning
product solution.
5
4. Fill the server with non-chlorine sanitizing solution, and
let server sit for no more than five (5) minutes, then drain
through fully open faucet.
2. Grasp the lid using the two finger holds (as shown), then
lift the lid straight up to remove.
6. Press down on the sight gauge top to release the sight
gauge tube.
6
6
11
11. Using supplied nylon bristle brush (PN 00674.0000)
thoroughly scrub the faucet body.
8
continued >

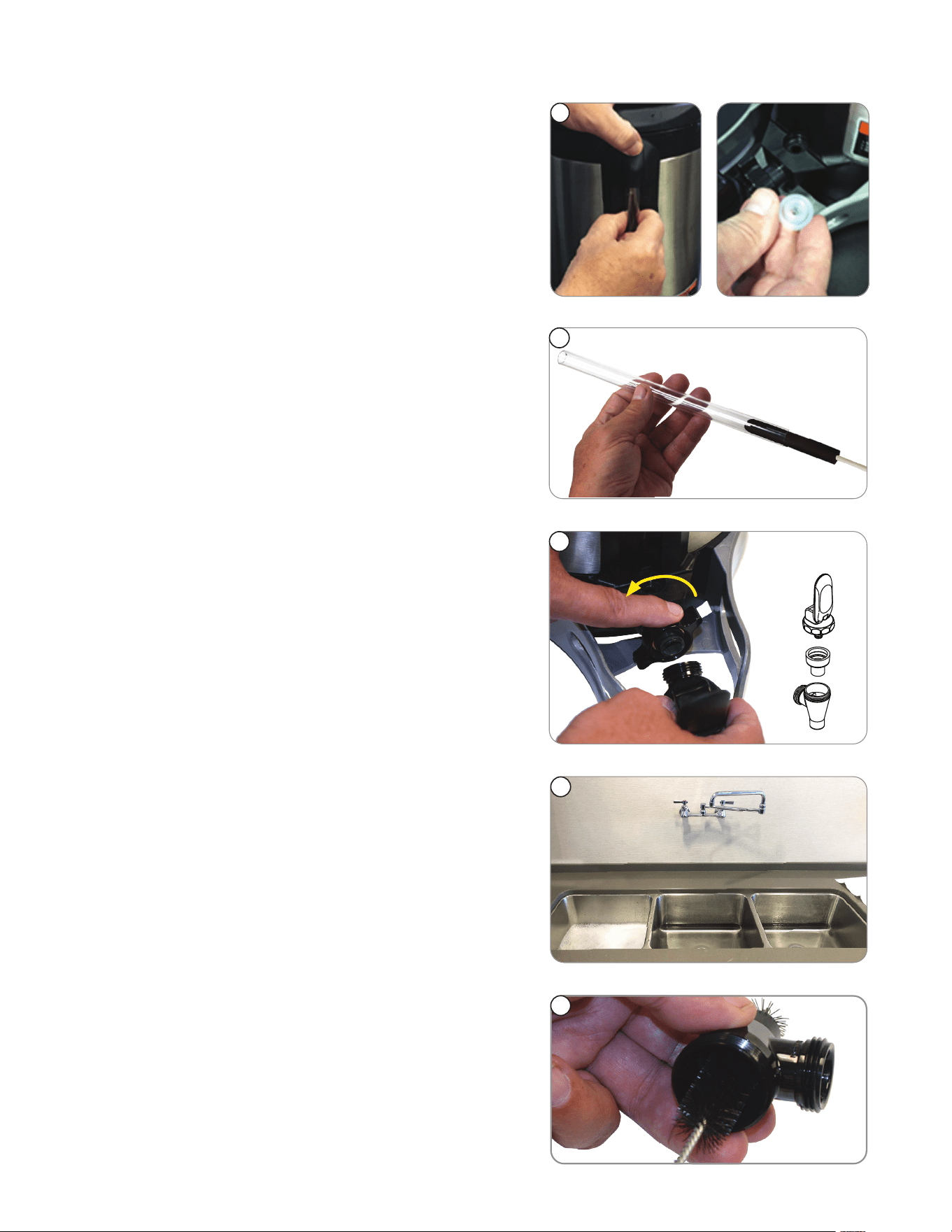

CLEANING
10. Transfer all the faucet parts to a three compartment sink
for cleaning. Fill the first sink with a soap solution using
a mild detergent, the second sink is used for clean rinse
(Hot Water), and the third is used for a sanitizer solution
(75° F warm water and approved sanitizer).
9. Turn the faucet wingnut in a counter-clockwise direction,
and remove the faucet from the dispenser. Unscrew the
faucet cap from the faucet body, then disassemble the
faucet parts.
8. Clean the sight gauge tube with the supplied foam brush
(PN 57892.0000). Do NOT use a nylon bristle brush.
Using any other brush to clean the tube VOIDS THE
FACTORY WARRANTY.
7. Remove sight gauge tube and bottom seal.
7
9
10
continued from previous page
7
CLEANING
16. Re-install sight gauge seal.
14. Clean the faucet shank using the supplied nylon bristle
brush (PN 00674.0000).
15. Reassemble faucet.
12. Allow the parts to soak in the sanitizer solution for a
minimum of five (5) minutes.
12
13. Remove the faucet parts from the sanitizer solution, and
allow to air-dry overnight.
13
15
14
18. Re-attach faucet to server shank by turning clockwise
direction. When reassembling - USE CAUTION: Do Not
over-tighten faucet wing nut - HAND TIGHTEN ONLY.
17
18
17. Re-install sight gauge tube.
16
19. Clean the entire outside surface of the server, using a
clean SOFT, Non-abrasive cloth dampened with any mild,
non-citrus, non-abrasive, liquid detergent.
20. Thoroughly rinse the entire server after cleaning.
19
continued from previous page
8

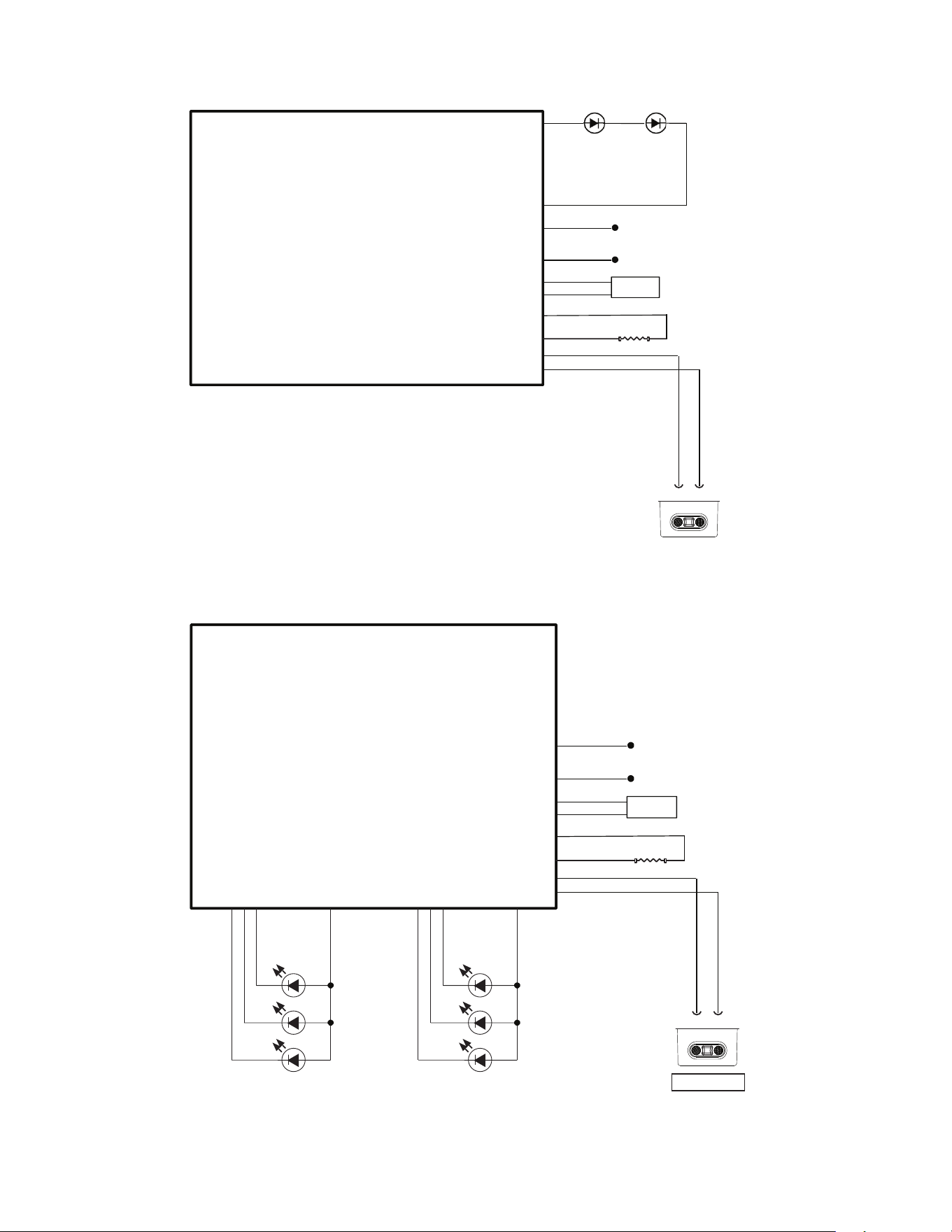

SCHEMATIC WIRING DIAGRAM FOR SH SERVER
CIRCUIT BOARD
LIQUID PROBE
TANK
TEMP SENSOR
HEATER
BLACK
GREEN
BLACK
BLACK
ORANGE
BLACK
WHITE
WHITE
WHITE
RED
RED
72W 24VDC
24VDC
24VOLTS DC
+
–
BLUE LEDs
SCHEMATIC WIRING DIAGRAM FOR SH SERVER
CIRCUIT BOARD
LIQUID PROBE
TANK
TEMP SENSOR
HEATER
GREEN
BLACK
BLACK
ORANGE
BLACK
WHITE
WHITE
RED
72W 24VDC
24VDC
24VOLTS DC
+
–
RGB LEDs
BLUE
GREEN
WHITE
RED
BLUE
GREEN
WHITE
RED
SCHEMATIC WIRING DIAGRAM
