ELECTRIC MULTI ROASTER
MODEL: PKFG14
USER MANUAL
2
IMPORTANT SAFEGUARDS
SPECIFICATIONS
Heating Element Power: 800 Watt
Maximum Time Setting: 30 Minutes
Housing Material: Carbon Steel
Power Cord Length: 3.9’ ft.
Power: 120V
Roasting Rack Size (L x W): 13.8’’ x 7.3’’
Unit Dimensions (L x W x H): 18.9’’ x 10.7’’ x 7.9’’
Weight: 8.81 lbs.
FEATURES
•Perfect for Fish, Seafood, Meats, & Vegetables
•Top & Bottom Panel Heating Element Cookers
•No Need for Turning or Flipping Your Food
•Built-in Filter Reduces Smoke & Odors
•Add Water to Steam Your Food
•Extra-Wide Cooking / Roasting Rack
•Adjustable Time Settings
•Convenient ‘Ding’ Timer Alarm
•Auto Power-O Safety Function
•Grease & Oil-Catching Drip Tray
•Removable & Washable Oven Cover & Cook Tray
•Safe Placement on Any Kitchen Table or
Countertop
•Easy-to-Clean Metal Housing
•Includes Roasting Grill Rack
1. When using electrical appliances, basic safety precautions should always be followed, including the
following:
2. Read all instructions carefully.
3. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (120V AC)
4. Before using the unit, move it two to four inches away from the wall. Remove any object that may
have been on top of the unit.
5. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced
with the same type and size or bring the unit to the nearest authorized service center.
6. Do not use a two-way socket with other high-energy appliances.
7. Do not place on or near gas stove, electric stove or in a heated oven.
8. Do not touch hot surfaces, use handles or knobs.
9. This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given instruction
concerning use of the appliances by a person responsible for their safety.
10. Children should be supervised to ensure that they do not play with the appliance.
11. Do not use accessories not recommended or sold with this unit.
12. Keep curtains, furniture, ammable materials, etc. away from the unit and from the convenience
outlet where the unit is plugged.
13. Extreme caution must be taken in moving an appliance containing hot oil or liquids.
14. Do not use this unit for anything other than its intended use.
15. Do not use metal scouring in cleaning the unit.
16. CAUTION: Never leave the unit unattended while cooking.
17. To protect against electric shock, do not immerse the unit in water.
18. Save this instruction manual for future reference.
19. For household use only, not for industrial use.
3
ASSEMBLY
1. Place the unit on a at stable surface.
2. Insert the Oil Drip Tray on the Base with Heating Element. Be sure that it is properly xed.
3. Place the Filter on the smoke vent.
4. Put the Filter Cover on top of the Filter and slide it to the right until you hear a click sound.
5. Insert the Cover Assembly on Top Heating Element. Be sure that it is properly xed.

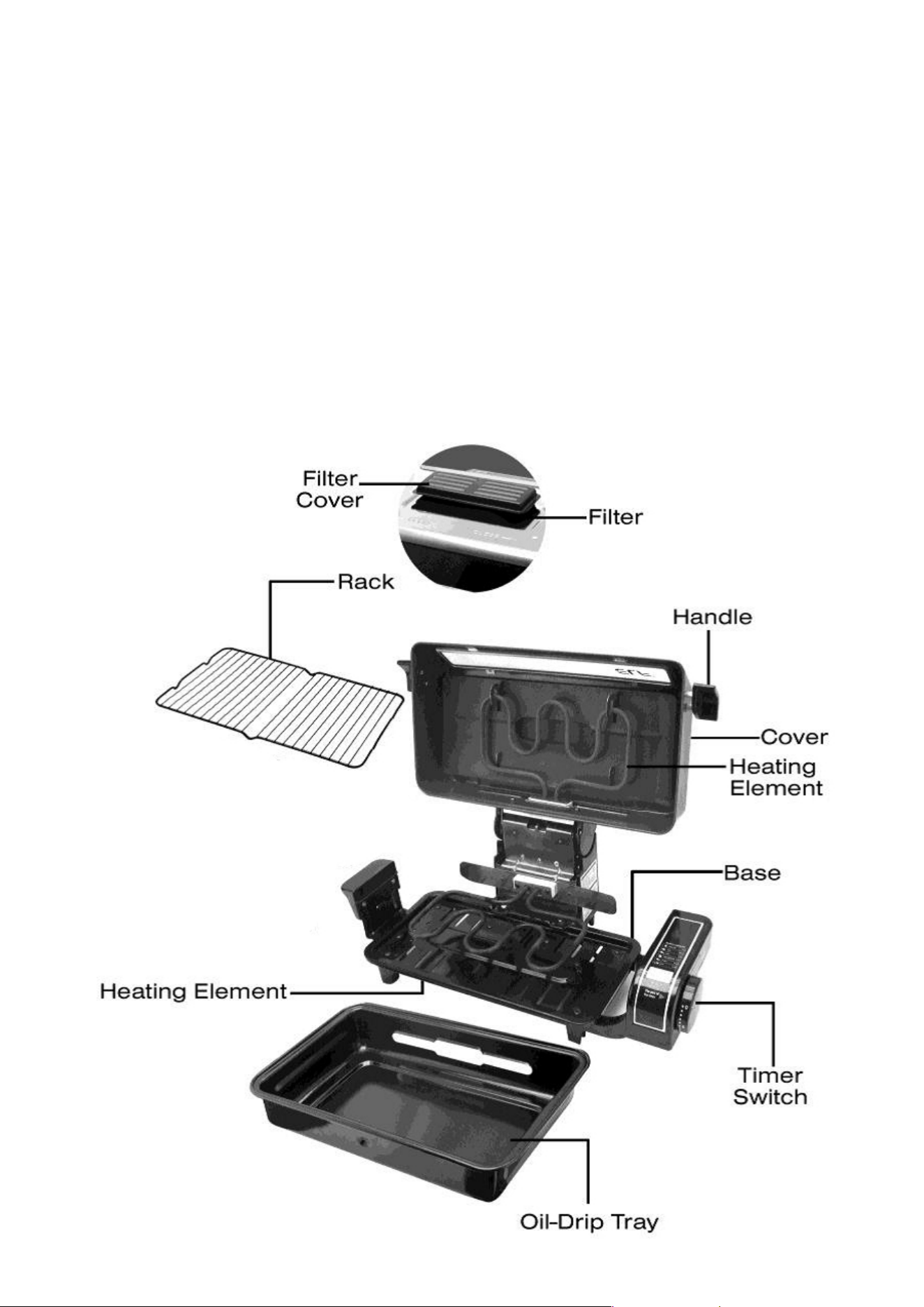

DESCRIPTION OF PARTS:
4
HOW TO USE

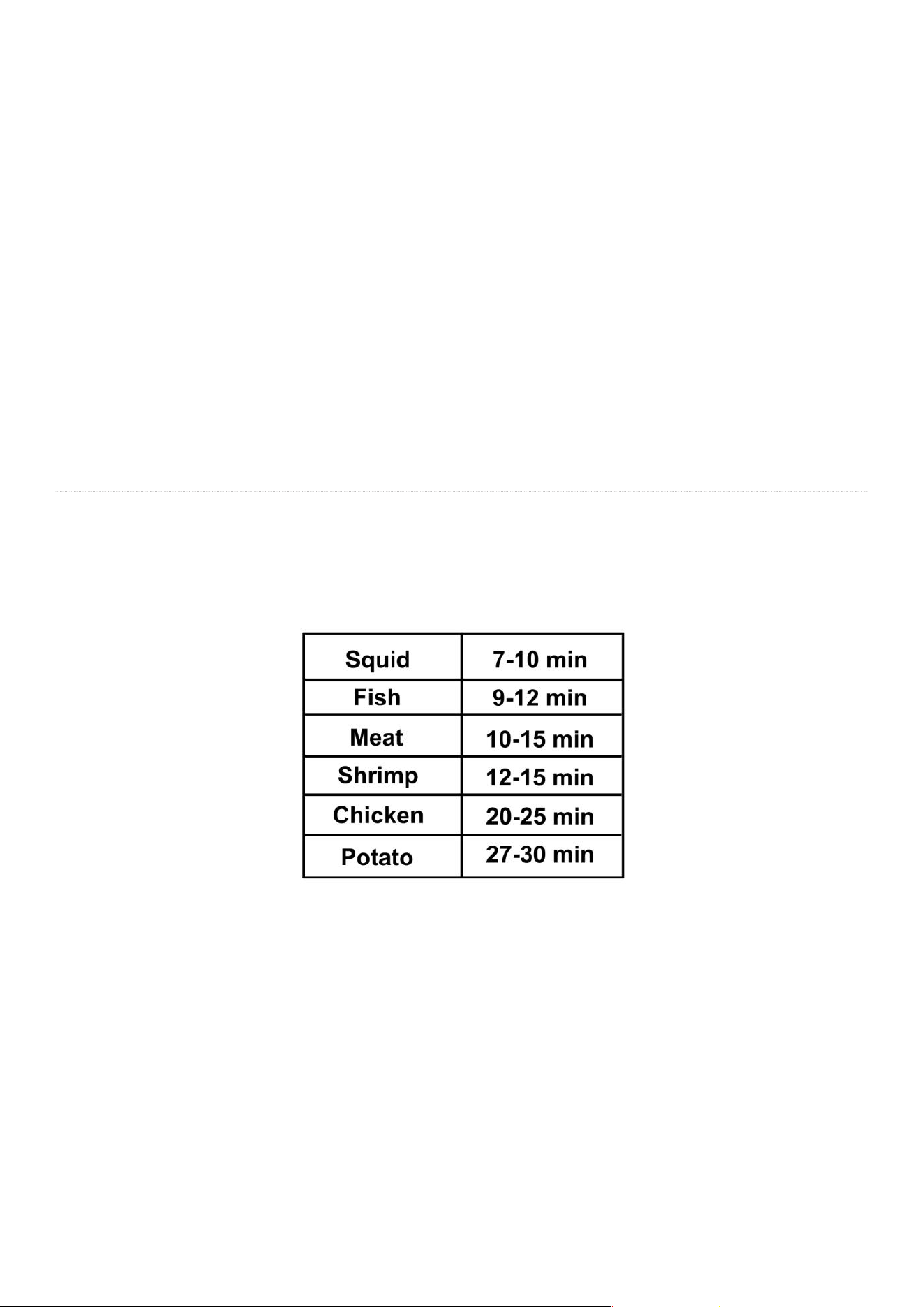

COOKING TABLE
1. Plug the unit into the convenience outlet.
2. Pull out Oil Drip Tray and pour (0.3 - 0.6L) water to reduce smoke while cooking. Do not pour water on
the Heating Element.
3. Put the food on the non-stick rack.
4 Set the timer to desired cooking time.
5. Turn OFF after use.
NOTE: For initial use, some smoke may be observed when the unit is turned ON, this is normal. Please
keep it in start-up for 5 minutes before use.
Note: Cooking time may vary on type and the amount of food to be cooked.
5
SAFE USE
Don’t clean it with volatile substances.
It may lead to damage or fading of the exterior
Keep the unit away from other heated objects.
It may lead to re if the external plastic melts
Don’t splash water on the device while in use.
It may lead to failure or an electric shock
Don’t keep the unit in a watery environment.
It may lead to rust or failure.
Please conrm whether some heavy have or
time overstock
It may lead to re or short circuit.
6
Don’t cut o the power supply by pulling out
the plug with the electric wire.
It may lead to the wire becoming damaged.
Please pull out the plug if unused.
It may lead to failure.
Don’t touch the plug if there is gas leaking.
It may lead to an explosion or re.
After a thorough cleaning out, the unit and its parts
should be dried separately before re-assembly.
It may lead to failure and/or short circuit.
* This device is only intended for domestic use.
7
Do not dispose of electrical appliances as
unsorted municipal waste, use separate
collection facilities.
It is important to thoroughly clean the unit after each use to avoid the buildup of food residue.
1. Turn OFF and unplug the unit from the convenience outlet.
2. Allow the unit to cool before putting ON or taking OFF parts and before cleaning.
3. Cover, Rack, Filter, Filter Cover, and Oil Drip Tray are washable with soap and water.
4. Do not immerse the Base with Heating Element in water. Wipe it with damp cloth.
5. Do not use abrasive materials to avoid scratches.
CLEANING AND MAINTENANCE
