ISLAND
INSTALLATION & USER
INSTRUCTIONS
Qasair Rangehoods Installation Instructions2
Qasair Rangehoods Installation Instructions
3
Standard Warranty / Extended Warranty
Important Information
Instructions for Models
4F / PRE / FRA / MA / SQ 420 / MOL / FPR / BUR / BEL
Instructions for Models
D 400 / D 500 / SEN
Instructions for Models
TR CT / LIV

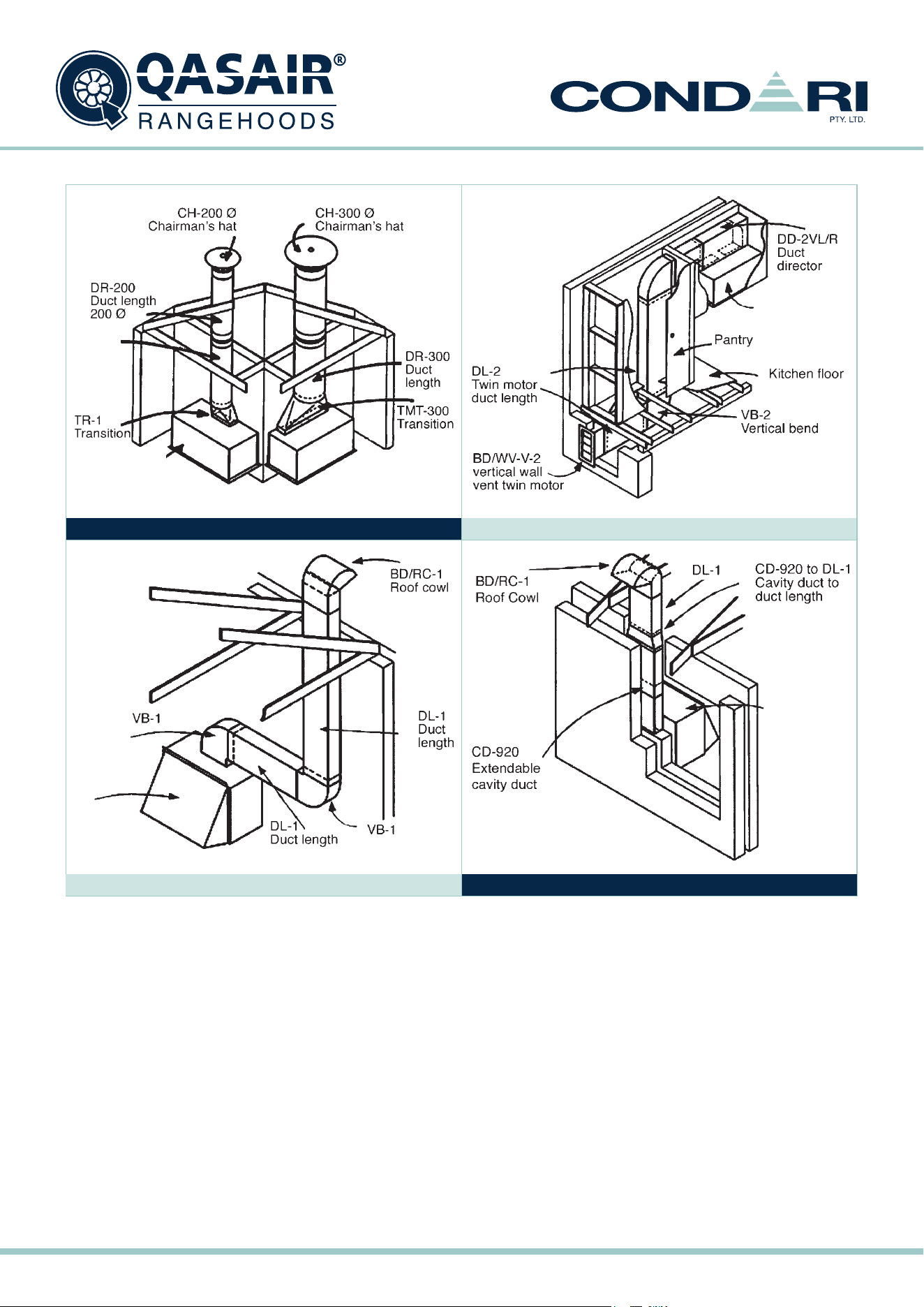

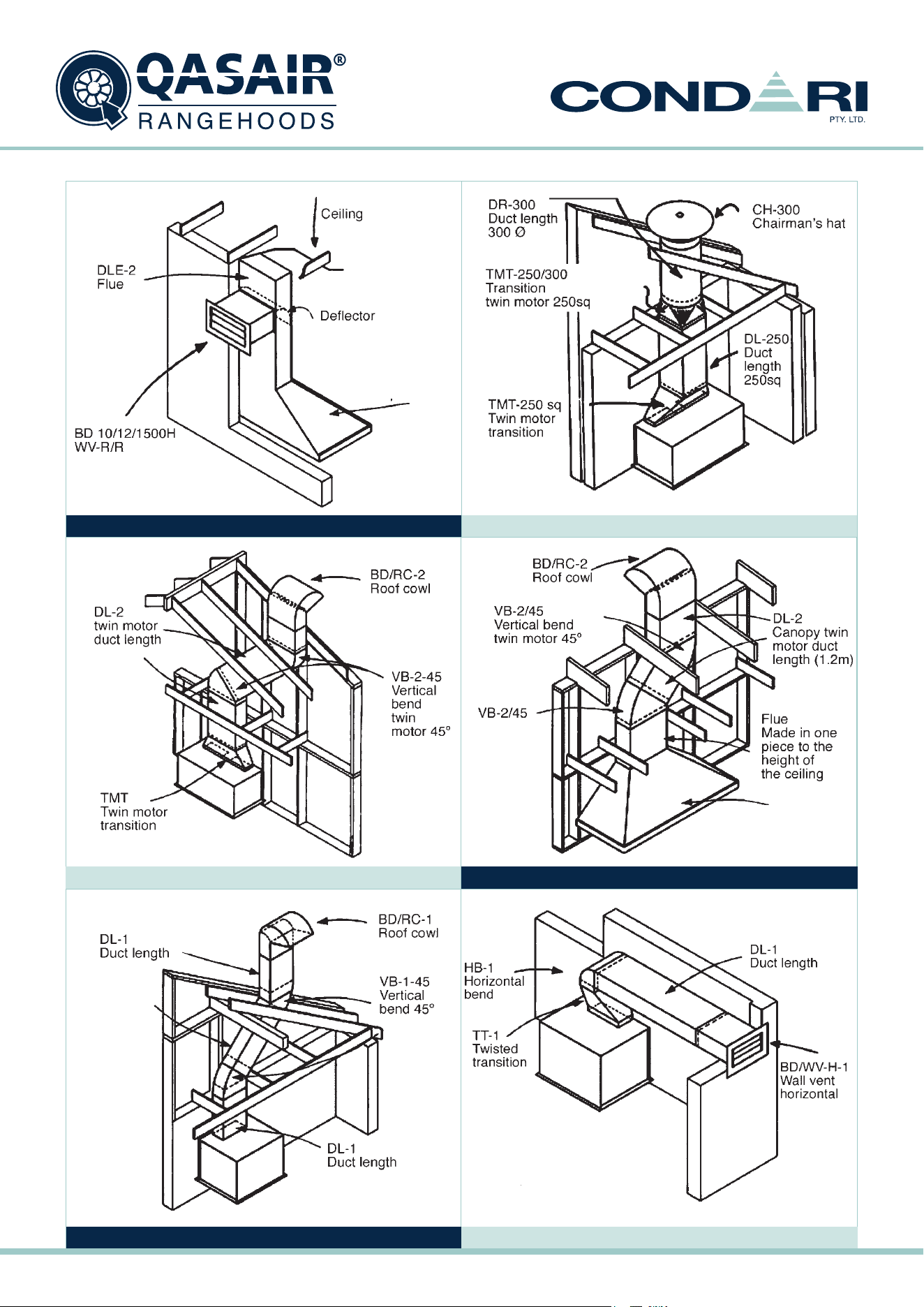

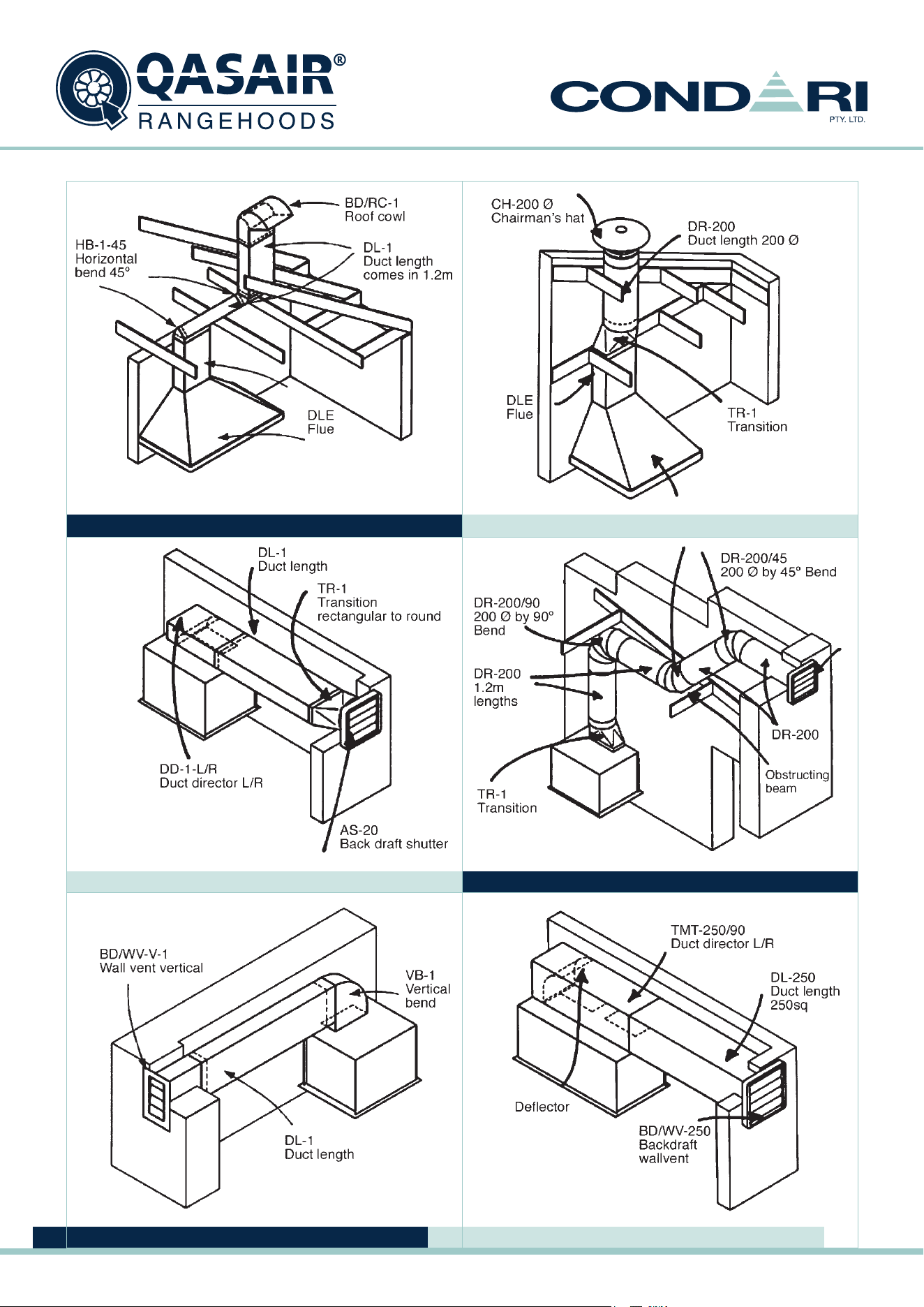

Installation Ideas
Operation Details, Rangehood Cleaning, Filter Cleaning
Ducting Pieces
Remote Switching Specications
Appliance Guarantee
Guarantee Exclusions
6
4
20
23
26
29
42
47
50
49
48
Qasair Rangehoods Installation Instructions4
The installation of QASAIR Rangehoods must comply with the information in this booklet. QASAIR Rangehoods are
designed and made to work efciently over all domestic cookware available on the Australian market.
Clearance from cooktop to Rangehood
For electric hot plate cooktops
As there are no regulations for Rangehoods over an electric hot plate, please follow the manufacturers Instructions /
Recommendations.
For Induction cooktops
Induction cooktops may present problems with condensation on lters of Rangehoods.
All Qasair Rangehoods installed above an induction cooktop must be installed no less than 750mm between the
induction cooktop and the Rangehood, with the exception of the Eastmore (EAS) Rangehood which can be installed
no less than 600mm. Undermount (NDCH) and Conley (CON) Rangehoods are not suitable for induction cooktops.
For gas cooktops
All Qasair Rangehood installations over a gas appliance must comply with (AS/NZS 5601.1).
The Regulations for the installation of Gas Appliances (AS/NZS 5601.1) states that the clearance between the
highest part of the burner of a gas cooking appliance and a Rangehood be no less than 600mm. If the gas
appliance is designed for use without a cooking vessel like an indoor barbecue or open ame grill, then the
clearance from the cooking surface to the Rangehood shall be no less than 1200mm.
All Qasair Rangehoods installed above a gas cooktop must be installed no less than 600mm between the highest
part of the burner and the Rangehood.
The recommendation for Qasair Wallmount Rangehoods is that they be installed between 700 to 800mm above the
highest part of the burner. When the Rangehood is installed in a galley or partially enclosed kitchen the Rangehood
can be installed between 900 to 1000mm above the highest part of the burner.
Qasair Island Rangehoods should not be installed any higher than 800mm above the highest part of the burner as
any movement around the bench will result in fumes being drawn out from the catchment area of the Rangehood
with the exception of the Thermidor and Liverpool which for aesthetic reasons is installed ush with the ceiling.
Ducting
1. Every QASAIR Rangehood must be ducted to the outside atmosphere by the use of zinc-alume duct or
non-porous and non-ammable materials. Do not use of any type of exible ducting or plastic PVC piping.
Rangehoods must not be vented into a wall cavity or a ceiling space. Externally ducting the rangehood prevents
a build up of grease, which can be a re risk. Ensure the external outlet vent does not restrict the airow in any
way, as this may result in reduced performance.
2. QASAIR Rangehoods must be ducted in duct work equivalent to the outlet of the rangehood ie: The cross
sectional area of the rangehood outlet and the duct work must be equal. Do not reduce the duct size or have
sharp bends. Enlarge the duct size if the duct is to run 6 metres or longer. Advice from CONDARI is available to
ensure optimum performance. Always use nonammable materials to minimise the risk of re in the duct.
3. Ensure all ducting pieces are correctly tted and sealed with either duct tape or silicone to ensure that fumes
do not escape into the ceiling space and seep into living areas through vents or light ttings.
IMPORTANT INFORMATION
Qasair Rangehoods Installation Instructions
5
Other Important Information
1. Always adequately ventilate the room when the rangehood is in use at the same time as appliances
burning gas or other fuels.
2. WARNING: Incorrect venting will result in additional noise and a reduction in efciency. Exhaust air must not be
discharged into any chimney or ue, which may carry combustible products from other sources.
a) Do not discharge the air-ow from the rangehood into a ue used for exhausting fumes
from burning gas or fuel;
b) For cleaning purposes please refer to page 47 of installation instructions for stainless steel;
c) If cleaning is not carried out in accordance with the instructions as listed on page 47, there may be an
increased risk of re;
d) Some parts of the rangehood may become hot when cooking;
e) This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
3. The installation and tting of the rangehood should be done in such a way that will allow the unit to be removed
if service is required. Additional costs incurred in the removal of wall tiles, damage to walls or bench tops are not
covered by warranty.
4. To reduce the risk of xing screws coming in contact with live parts, do not drill or screw into the rangehood.
Live wires are encapsulated where possible to prevent user contact. If necessary drill from the inside out and
only through single sheet material.
5. NOTE: CONDARI recommend an air movement of between 1000 to 1400 cubic metres per hour over an indoor
barbecue, depending on the length of the duct run. Ensure a twin motor unit is installed over indoor barbecues
for optimum results. Barbecues should be positioned under the centre of the hood where the fans are mounted
and not near the outer edges where leakage may occur.
6. The lights in the rangehoods are LED and come with a night light except for D400L-1 and SEN400L-1.
7. If the supply cord is damaged, an authorised service centre or licensed electrician must replace it.
8. Do not ambé under the rangehood.
9. QASAIR domestic rangehoods must not to be used over barbecues approved for outdoor use only,
CONDARI make a range of hoods specically for outdoor barbecues in alfresco areas under the CONDOR
name.
10. CONDARI can manufacture rangehoods to be used over commercial cookers in domestic applications.
12. NOTE: Ensure all requirements are met with gas and electrical regulations and or state authorities.
Qasair Rangehoods Installation Instructions
6
INSTALLATION INSTRUCTIONS
• 4F
• PRE / FRA
• MA
• SQ 420 / MOL
• FPR
• BUR / BEL
• D 400 / D 500 / SEN
It is recommended that the rangehood be mounted 100mm back from the edge of the benchtop.
1. The rangehood can be installed between 700mm and 800mm above the cooking surface. The installer should
check for local requirements in case additional provisions apply.
2. It is advisable to remove fans for easier handling of unit by removing retaining bolts or clips and unplugging
electrical connector.
3. Measure hole centres and duct size on top of the rangehood. This will vary with the hood size, model and
number of fans fitted and will determine the ducting required.
4. Using a plumb line, mark the ceiling before making the cut out. Check for obstructions like electrical cables etc.
5. Cut two (2) supporting beams approximately 1.0m long and pre-drill hole centres so that the supporting beams
are 90 degrees to the ceiling joists.
6. Fit 8mm all thread (threaded rod) through holes provided and secure with nuts and washers.
7. Level unit by tensioning the 8mm nuts. Do not over tighten.
8. Fit off ducting as required.
Installation Suggestions
1) 2)
Qasair Rangehoods Installation Instructions
7
4 Flare
Technical Specification Sheet
4F
Ceiling Mounted
PMS 539C
R= 0
G= 48
B= 73
PMS 5503C
R= 156
G= 197
B= 202
Model 4F 1000L-2 4F 1200L-2
Body Width
429mm x 260mm
Corner Type
Condari Pty Ltd.
All-thread
Fixing Centres
Conversion
Top/Back Back/Top
Filter Size
3
YES
PowderKote
Available
300mm x 200mm
Version: D 20/03/2017F
Page 1 of 1
380mm
Maximum Height
(H =)
350mm x 200mm
YES
Round
1660mm
N/A
480mm
6
Cool
2
4
430mm
Light Qty
Filter Qty
Light Centres
Nightlight
Motor Qty
LED Light
Motor Box /
Flue Width
Minimum Height
(H =)
Round
YES
Model4F 1200L-24F 1000L-2
10 Amp Lead
Cool
1000mm
350mm
2
400mm
1200mm
YES
2
Electrical Connection
10 Amp Lead
N/A
355mm x 250mm
480mm
1660mm
Power Entry
Ø15mm Radius
Power Entry
A Transition is supplied to suit standard DL2 ducting.
B
o
d
y
W
i
d
t
h
F
l
u
e
W
i
d
t
h
700
80
480
H
250
Ø15mm Radius
A
l
l
-
T
h
r
e
a
d
1
1
5
B
o
d
y
W
i
d
t
h
F
l
u
e
W
i
d
t
h
1
1
5
A
l
l
-
T
h
r
e
a
d
210
2
6
0
A
l
l
-
T
h
r
e
a
d
A
l
l
-
T
h
r
e
a
d
2
6
0
4 FLARE - 4F
Qasair Rangehoods Installation Instructions8
President
Technical Specification Sheet
PRE
Ceiling Mounted
PMS 539C
R= 0
G= 48
B= 73
PMS 5503C
R= 156
G= 197
B= 202
Model
Body Width
Motor Box /
Flue Width
PRE 1000L-2
Condari Pty Ltd.
Corner Type
Motor Qty
Nightlight
Light Qty
All-thread
Fixing Centres
Maximum Height
(H =)
6
380mm430mm
Cool
4
Filter Qty
Light Centres
LED Light
360mm x 320mm 360mm x 320mm
1600mm
YES
429mm x 260mm
PRE 1000L-2
Electrical Connection
NO
550mm
10 Amp Lead
Version: D 28/03/2017F
Round
550mm
YES
Page 1 of 2
Round
1000mm
420mm
2
YES
2
PRE 1200L-2 Model
1600mm
NO
10 Amp Lead
PowderKote
Available
Minimum Height
(H =)
3
Cool
YES
2
1200mm
420mm
Filter Size
Conversion
Top/Back Back/Top
PRE 1200L-2
355mm x 250mm
Power Entry
B
o
d
y
W
i
d
t
h
100
H
85 85250
420
1
4
0
M
o
t
o
r
B
o
x
W
i
d
t
h
2
5
0
A
l
l
-
T
h
r
e
a
d
A
l
l
-
T
h
r
e
a
d
5
0
700
Ø15mm Radius
5
0
B
o
d
y
W
i
d
t
h
M
o
t
o
r
B
o
x
W
i
d
t
h
Power Entry
2
5
0
A
l
l
-
T
h
r
e
a
d
1
4
0
A
l
l
-
T
h
r
e
a
d
5
0
5
0
Ø15mm Radius
PRESIDENT - PRE
Qasair Rangehoods Installation Instructions
9
President
Technical Specification Sheet
PRE
Ceiling Mounted
ModelPRE 1800L-3PRE1500L-3Model
Body Width
Nightlight
Light Qty
Minimum Height
(H =)
All-thread
Fixing Centres
Light Centres
LED Light
Filter Qty
Motor Qty
Motor Box /
Flue Width
Corner Type
Maximum Height
(H =)
Electrical Connection
Conversion
Top/Back Back/Top
Condari Pty Ltd.
PowderKote
Available
Filter Size
Page 1 of 2
3
Cool
YES
8
510mm
3
1500mm
900mm 900mm
1800mm
4
Cool
3
422mm
10
YES
840mm x 320mm
Round
YES
840mm x 320mm
YES
1600mm
PRE 1800L-3
10 Amp Lead
550mm
PRE 1500L-3
NO
340mm x 260mm
NO
340mm x 260mm
10 Amp Lead
Round
Version: D 28/03/2017F
1600mm
550mm
250
85
H
100
B
o
d
y
W
i
d
t
h
B
o
d
y
W
i
d
t
h
85
1
4
0
M
o
t
o
r
B
o
x
W
i
d
t
h
M
o
t
o
r
B
o
x
W
i
d
t
h
420
A
l
l
-
T
h
r
e
a
d
5
0
A
l
l
-
T
h
r
e
a
d
1
4
0
A
l
l
-
T
h
r
e
a
d
4
5
0
5
0
A
l
l
-
T
h
r
e
a
d
Power Entry
700
Ø15mm Radius
Ø15mm Radius
Power Entry
4
5
0
5
0
5
0
PRESIDENT - PRE
Qasair Rangehoods Installation Instructions10
Franklyn
Technical Specification Sheet
FRA
Ceiling Mounted
Model
Body Width
Motor Box /
Flue Width
FRA 1000L-2
Condari Pty Ltd.
Corner Type
Motor Qty
Nightlight
Light Qty
All-thread
Fixing Centres
Maximum Height
(H =)
6
380mm430mm
Cool
3
Filter Qty
Light Centres
LED Light
360mm x 320mm 360mm x 320mm
1600mm
N/A
429mm x 260mm
FRA 1000L-2
Electrical Connection
NO
550mm
10 Amp Lead
Version: C 12/12/2017F
Square
550mm
N/A
Page 1 of 2
Square
1000mm
420mm
2
YES
2
FRA 1200L-2 Model
1600mm
NO
10 Amp Lead
PowderKote
}
Available
Minimum Height
(H =)
3
Cool
YES
2
1200mm
420mm
Filter Size
Conversion
Top/Back Back/Top
FRA 1200L-2
350mm x 250mm
Power Entry
700
100
H
85 85250
420
Front
Front
Power Entry
FRANKLYN - FRA
Qasair Rangehoods Installation Instructions
11
840mm x 320mm
Square
840mm x 320mm
Square
N/A
550mm
10 Amp Lead
NO NO
1600mm
10 Amp Lead
PowderKote
}
Available
All-thread
Fixing Centres
3
Cool
1800mm
900mm
Maximum Height
(H =)
43
510mm
10
422mm
8
Cool
YES YES
900mm
1500mm
3
FRA 1500L-3
FRA 1800L-3
N/A
550mm
340mm x 260mm 340mm x 260mm
1600mm
Model
Conversion
Top/Back Back/Top
FRA 1800L-3
Corner Type
Electrical Connection
Minimum Height
(H =)
FRA 1500L-3
Condari Pty Ltd.
Filter Size
LED Light
Filter Qty
Motor Box /
Flue Width
Motor Qty
Light Centres
Light Qty
Nightlight
Model
Body Width
Version: C 12/12/2017F
Page 2 of 2
Franklyn
Technical Specification Sheet
FRA
Ceiling Mounted
Power Entry
250
85
H
100
700
85
420
Front
Front
Power Entry
FRANKLYN - FRA
Qasair Rangehoods Installation Instructions12
Maddison
Technical Specification Sheet
MA
Ceiling Mounted
Light Centres
Filter Qty
All-thread
Fixing Centres
Varies depending on
length of rangehood
Varies depending on
length of rangehood
Corner Type
Page 1 of 1
PowderKote
}
Available
Condari Pty Ltd.
Varies depending on
length of rangehood
YES
Varies depending on
length of rangehood
Nightlight
Light Qty
Varies depending on
length of rangehood
Varies depending on
length of rangehood
2000mm-2500mm
Model MA 2500-3000L-4
420mm
Model
Body Width
LED Light
4
10 Amp Lead
550mm
Motor Qty
1600mmYES
CoolCool
4
Filter Size2500mm-3000mm
MA 2000-2500L-4
420mm
Conversion
Top/Back Back/Top
Motor Box /
Flue Width
360mm x 250mm
Square
Version: C 31/05/2017F
10 Amp Lead
360mm x 250mm
Square
MA 2000-2500L-4
Varies depending on
length of rangehood
N/A
N/A
MA 2500-3000L-4
N/A
Maximum Height
(H =)
Electrical Connection
Minimum Height
(H =)
N/A
Varies depending on
length of rangehood
1600mm
550mm
H
Motor Box
Width
Motor Box
Width
250 250
420
250
Flues are equally spaced
across the body width.
Power Entry.
150
2020
Body Width
700
Equal Equal Equal
MADDISON - MA
Qasair Rangehoods Installation Instructions
13
Winton
Technical Specification Sheet
SQ 420
Ceiling Mounted
Conversion
Top/Back Back/Top
Filter Size
Model
Electrical Connection
Minimum Height
(H =)
Maximum Height
(H =)
PowderKote
Available
All-thread
Fixing Centres
Page 1 of 1
Corner Type
YES
Filter Qty
1
Motor Qty
Light Qty
Light Centres
Motor Box /
Flue Width
Body Width
Model
Cool
YES
1
SQ 420L-2
2
420mm
N/A
Centre
LED Light
Nightlight
Condari Pty Ltd.
10 Amp Lead
SQ 420L-2
Square
Version: B 27/11/2014F
NO
250mm X 320mm
1450mm
520mm
355mm
x
2
5
0
m
m
Front
Power Entry.
4
2
0
4
2
0
H
8
5
2
5
0
8
5
8
5
2
5
0
8
5
WINTON - SQ420
Qasair Rangehoods Installation Instructions14
Molina
Technical Specification Sheet
MOL
Ceiling Mounted
Conversion
Top/Back Back/Top
Filter Size
Model
Electrical Connection
Minimum Height
(H =)
Maximum Height
(H =)
PowderKote
Available
All-thread
Fixing Centres
Page 1 of 1
Corner Type
N/A
Filter Qty
1
Motor Qty
Light Qty
Light Centres
Motor Box /
Flue Width
Body Width
Model
Cool
YES
1
MOL 420L-2
2
420mm
N/A
Centre
LED Light
Nightlight
Condari Pty Ltd.
10 Amp Lead
MOL 420L-2
Square
Version: B 27/11/2014F
NO
250mm X 320mm
1100mm
520mm
355mm
x
2
5
0
m
m
8
5
2
5
0
8
5
4
2
0
4
2
0
8
5
2
5
0
8
5
Power Entry.
H
Front
MOLINA - MOL
Qasair Rangehoods Installation Instructions
15
D
E
F
G
Fremont
Technical Specification Sheet
FPR
Ceiling Mounted
PMS 539C
R= 0
G= 48
B= 73
PMS 5503C
R= 156
G= 197
B= 202
Light Centres
Filter Qty
All-thread
Fixing Centres
Varies depending on
length of rangehood
Varies depending on
length of rangehood
Corner Type
Page 1 of 1
PowderKote
Available
Condari Pty Ltd.
Varies depending on
length of rangehood
YES
Varies depending on
length of rangehood
Nightlight
Light Qty
Varies depending on
length of rangehood
Varies depending on
length of rangehood
1600mm-2600mm
Model FPR 2600-3600L-2
420mm
Model
Body Width
LED Light
2
10 Amp Lead
550mm
Motor Qty
1600mm
YES
CoolCool
2
Filter Size
2600mm-3600mm
FPR 1600-2600L-2
420mm
Conversion
Top/Back Back/Top
Motor Box /
Flue Widt
h
360mm x 250mm
Square
Version: B 31/06/2017F
10 Amp Lead
360mm x 250mm
Square
FPR 1600-2600L-2
Varies depending on
length of rangehood
N/A
N/A
FPR 2600-3600L-2
N/A
Maximum Height
(H =)
Electrical Connection
Minimum Height
(H =)
N/A
Varies depending on
length of rangehood
1600mm
550mm
Power Entry.
Motor Box can be
either L/H or R/H
A
l
l
-
T
h
r
e
a
d
700
150
H
250
20
420
5
0
A
l
l
-
T
h
r
e
a
d
1
4
0
M
o
t
o
r
B
o
x
W
i
d
t
h
Support Alternatives
Rigging
Round
Square
Square w-cross brace
Ø16mm S-S Tube
25mm x 25mm SQ S-S Tube
25mm x 25mm SQ S-S Tube
These centre dimensions are
typical for all support fixings
2
8
2
8
B
O
D
Y
W
I
D
T
H
FREMONT - FPR
Qasair Rangehoods Installation Instructions16
Burdett
Technical Specification Sheet
BUR
Ceiling Mounted
Motor Box /
Flue Width
Body Width
LED Light
Motor Qty
Model
PowderKote
}
Available
Maximum Height
(H =)
N/A
BUR 1000L-2
1000mm
Cool
BUR 1200L-2
6
380mm
All-thread
Fixing Centres
Corner Type
Condari Pty Ltd.
Light Centres
Light Qty
Nightlight
Page 1 of 2
Filter Qty
Electrical Connection
Conversion
Top/Back Back/Top
Model
Minimum Height
(H =)
400mm
NO
10 Amp Lead
429mm x 260mm
BUR 1000L-2
4
430mm
YES
500mm x 1000mm
1450mm
Square
500mm x 800mm
Square
1450mm
YES
10 Amp Lead
Version: D 28/03/2017F
YES23
YES
N/A
Cool
2
1200mm
2
Filter Size
355mm x 250mm
400mm
BUR 1200L-2
NO
Power entry location
is the same for all
Burdett models.
700
H
250
Front
Front
BURDETT - BUR
Qasair Rangehoods Installation Instructions
17
Burdett
Technical Specification Sheet
BUR
Ceiling Mounted
Version: D 28/03/2017F
500mm x 1000mm
Square
500mm x 1300mm
Square
400mm
1450mm
10 Amp Lead
BUR 1500L-3
NO
340mm x 260mm
YES
BUR 1200L-3
NO
355mm x 250mm
Page 2 of 2
YES
400mm
1450mm
10 Amp Lead
Body Width
Motor Box /
Flue Width
Nightlight
Motor Qty
LED Light
Light Qty
N/A
3
Cool
YES
3
N/A
3
Cool
YES
8
510mm
3
BUR 1500L-3
1500mm
Model
1200mm
BUR 1200L-3
Filter Qty
6
Light Centres
380mm
Condari Pty Ltd.
Corner Type
PowderKote
}
Available
Conversion
Top/Back Back/Top
Filter Size
Model
Electrical Connection
Maximum Height
(H =)
All-thread
Fixing Centres
Minimum Height
(H =)
Power entry location
is the same for all
Burdett models.
700
H
Front
Front
BURDETT - BUR
Qasair Rangehoods Installation Instructions18
Belgrad
Technical Specification Sheet
BEL
Ceiling Mounted
Motor Box /
Flue Width
Body Width
LED Light
Motor Qty
Model
PowderKote
}
Available
Maximum Height
(H =)
N/A
BEL 1000L-2
1000mm
Cool
BEL 1200L-2
6
380mm
All-thread
Fixing Centres
Corner Type
Condari Pty Ltd.
Light Centres
Light Qty
Nightlight
Page 1 of 2
Filter Qty
Electrical Connection
Conversion
Top/Back Back/Top
Model
Minimum Height
(H =)
400mm
NO
10 Amp Lead
429mm x 260mm
BEL 1000L-2
4
430mm
YES
500mm x 900mm
1450mm
Square
500mm x 800mm
Square
1450mm
N/A
10 Amp Lead
Version: C 13/12/2017F
N/A23
YES
N/A
Cool
2
1200mm
2
Filter Size
355mm x 250mm
400mm
BEL 1200L-2
NO
Power entry location
is the same for all
Belgrad models.
700
H
250
Front
Front
BELGRAD - BEL
Qasair Rangehoods Installation Instructions
19
Belgrad
Technical Specification Sheet
BEL
Ceiling Mounted
Version: C 13/12/2017F
500mm x 1000mm
Square
500mm x 1300mm
Square
400mm
1450mm
10 Amp Lead
BEL 1500L-3
NO
340mm x 260mm
N/A
BEL 1200L-3
NO
355mm x 250mm
Page 2 of 2
N/A
400mm
1450mm
10 Amp Lead
Body Width
Motor Box /
Flue Width
Nightlight
Motor Qty
LED Light
Light Qty
N/A
3
Cool
YES
3
N/A
3
Cool
YES
8
510mm
3
BEL 1500L-3
1500mm
Model
1200mm
BEL 1200L-3
Filter Qty
6
Light Centres
380mm
Condari Pty Ltd.
Corner Type
PowderKote
}
Available
Conversion
Top/Back Back/Top
Filter Size
Model
Electrical Connection
Maximum Height
(H =)
All-thread
Fixing Centres
Minimum Height
(H =)
Power entry location
is the same for all
Belgrad models.
700
H
Front
Front
BELGRAD - BEL
Qasair Rangehoods Installation Instructions20
Albany
Technical Specification Sheet
D
Ceiling Mounted
Light Centres
Filter Qty
All-thread
Fixing Centres
Centre
1
Corner Type
Page 1 of 1
PowderKote
Available
Condari Pty Ltd.
1
NO
Centre
Nightlight
Light Qty
1
1
400mm
Model D 500L-2
N/A
Model
Body Diameter
LED Light
1
10 Amp Lead
550mm
Motor Qty
1500
m
m
YES
CoolCool
2
Filter Size500mm
D 400L-1
N/A
Conversion
Top/Back Back/Top
Motor Box /
Flue Width
300mm
x
1
6
0
m
m
N/A
Version: A 01/07/2014F
10 Amp Lead
410mm
x
1
6
0
m
m
N/A
D 400L-1
272mm
x
2
7
2
m
m
N/A
N/A
D 500L-2
N/A
Maximum Height
(H =)
Electrical Connection
Minimum Height
(H =)
N/A
379mm
x
2
9
0
m
m
1500mm
650mm
Power Entry.
Power Entry.
A
l
l
-
T
h
r
e
a
d
A
l
l
-
T
h
r
e
a
d
2
3
5
1
1
0
B
o
d
y
D
i
a
m
e
t
e
r
B
o
d
y
D
i
a
m
e
t
e
r
A
l
l
-
T
h
r
e
a
d
A
l
l
-
T
h
r
e
a
d
2
5
0
2
5
0
9
0

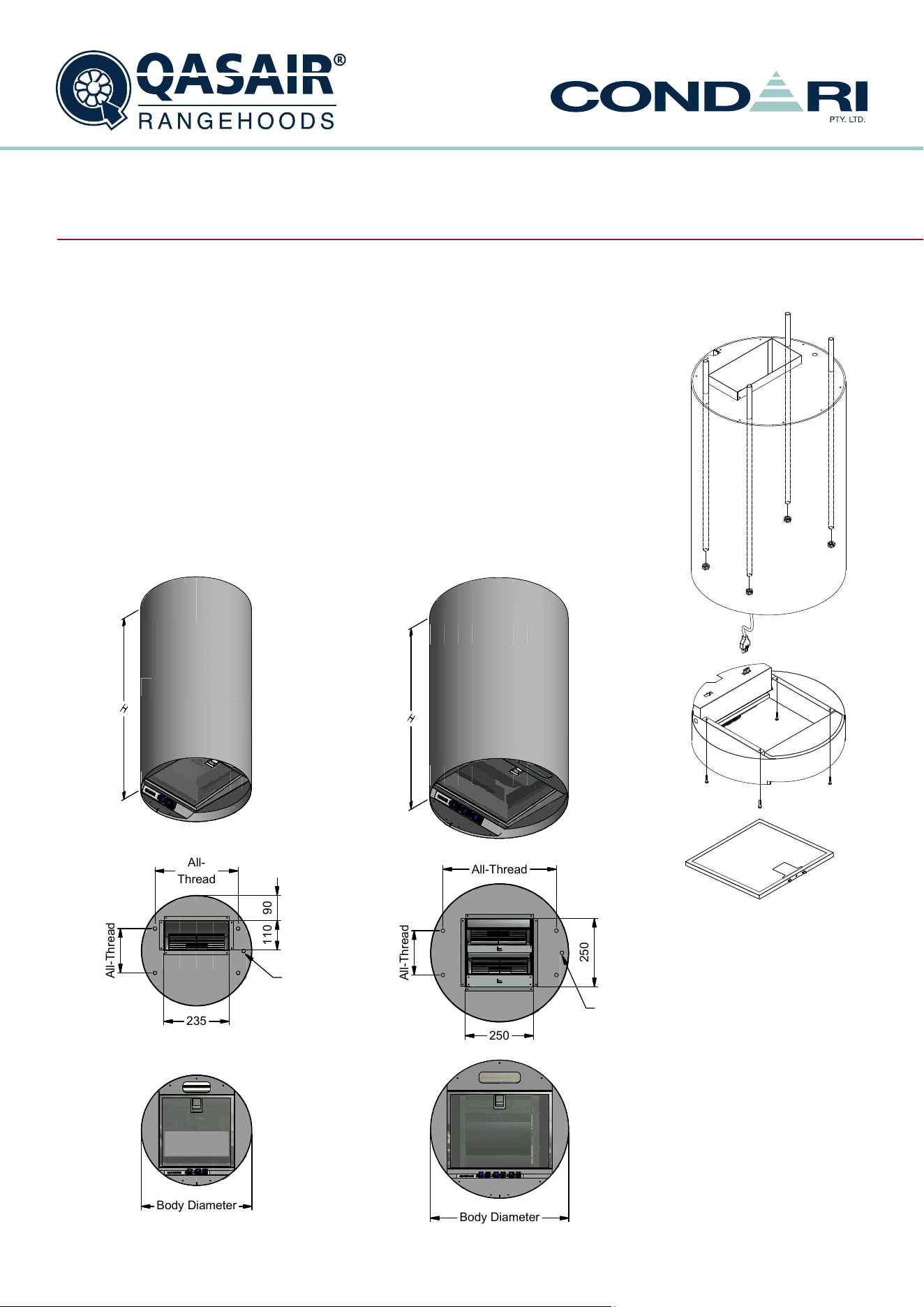

D400 & D500
Instructions
1. Remove Rangehood from packaging and place on a flat clean surface.
2. Remove the filter.
3. Remove the four screws in the corners of the filter apperture.
4. Gently pull the base from the tube.
5.Onceremoved,thepowersupplyplug
becomesvisible.Disconnectandplace
thebaseassemblytooneside.
6.PlacethefourlengthsofAll'threadRod
throughtheholesinthehoodan d(make
suretheseamisfacingtherightdirection)
securethroughabraceintheceiling.Feed
theplugandcordintotheceilingspace.
7.FitnutstotopandbottomofAll'thread
Rodsandtighten.
8.Reconnectthepowerplugandreinstall
baseassembly.
9.Connectpowersupplyinceilingandtest
Rangehood.
10.Fitoffductingasrequired.
Donotuseflexibleducting.
Donotreduceductsize.
Allductpiece sareavailablefrom
'Condari'orthroughyou rdealer.
1. Remove Rangehood from packaging and place on a at clean surface.
2. Remove the lter.
3. Remove the four screws in the corners of the lter apperture.
4. Gently pull the base from the tube.
5. Once removed, the power supply and fan plug becomes visible. Disconnect and
place the base assembly to one side.
6. Place the four lengths of All-thread Rod through the holes in the hood and (make
sure the seam is facing the right direction) secure through a brace in the ceiling.
Feed the plug and cord into the ceiling space.
7. Fit nuts to top and bottom of All-thread Rods and tighten.
8. Reconnect the power plug and reinstall base assembly.
9. Connect power supply in ceiling and test Rangehood.
10. Fit off ducting as required
D 400L-1 / SEN 400L-1
D 500L-2 / SEN 500L-2
Qasair Rangehoods Installation Instructions
21
Albany
Technical Specification Sheet
D
Ceiling Mounted
Light Centres
Filter Qty
All-thread
Fixing Centres
Centre
1
Corner Type
Page 1 of 1
PowderKote
Available
Condari Pty Ltd.
1
NO
Centre
Nightlight
Light Qty
1
1
400mm
Model D 500L-2
N/A
Model
Body Diameter
LED Light
1
10 Amp Lead
550mm
Motor Qty
1500
m
m
YES
CoolCool
2
Filter Size500mm
D 400L-1
N/A
Conversion
Top/Back Back/Top
Motor Box /
Flue Width
300mm
x
1
6
0
m
m
N/A
Version: A 01/07/2014F
10 Amp Lead
410mm
x
1
6
0
m
m
N/A
D 400L-1
272mm
x
2
7
2
m
m
N/A
N/A
D 500L-2
N/A
Maximum Height
(H =)
Electrical Connection
Minimum Height
(H =)
N/A
379mm
x
2
9
0
m
m
1500mm
650mm
Power Entry.
Power Entry.
A
l
l
-
T
h
r
e
a
d
A
l
l
-
T
h
r
e
a
d
2
3
5
1
1
0
B
o
d
y
D
i
a
m
e
t
e
r
B
o
d
y
D
i
a
m
e
t
e
r
A
l
l
-
T
h
r
e
a
d
A
l
l
-
T
h
r
e
a
d
2
5
0
2
5
0
9
0
ALBANY - D
Qasair Rangehoods Installation Instructions22
Seneca
Technical Specification Sheet
SEN
Ceiling Mounted
Light Centres
Filter Qty
All-thread
Fixing Centres
Centre
1
Corner Type
Page 1 of 1
PowderKote
Available
Condari Pty Ltd.
1
NO
Centre
Nightlight
Light Qty
1
1
400mm
Model SEN 500L-2
N/A
Model
Body Diameter
LED Light
1
10 Amp Lead
550mm
Motor Qty
1100
m
m
YES
CoolCool
2
Filter Size500mm
SEN 400L-1
N/A
Conversion
Top/Back Back/Top
Motor Box /
Flue Width
300mm
x
1
6
0
m
m
N/A
Version: A 01/07/2014F
10 Amp Lead
410mm
x
1
6
0
m
m
N/A
SEN 400L-1
272mm
x
2
7
2
m
m
N/A
N/A
SEN 500L-2
N/A
Maximum Height
(H =)
Electrical Connection
Minimum Height
(H =)
N/A
379mm
x
2
9
0
m
m
1100mm
650mm
Power Entry.
Power Entry.
A
l
l
-
T
h
r
e
a
d
A
l
l
-
T
h
r
e
a
d
2
3
5
1
1
0
B
o
d
y
D
i
a
m
e
t
e
r
B
o
d
y
D
i
a
m
e
t
e
r
A
l
l
-
T
h
r
e
a
d
A
l
l
-
T
h
r
e
a
d
2
5
0
2
5
0
9
0
SENECA - SEN
Qasair Rangehoods Installation Instructions
23
INSTALLATION INSTRUCTIONS
• TR CT (REMOTE SWITCHED)
• LIV (REMOTE SWITCHED)
1. Remove hood from packaging being careful not to touch the stainless steel front.
2. Locate centre of stove and using level or plumb line, mark centre line up to the ceiling.
3. In a new house the hood can be fixed into the ceiling space by bolting or screwing into the ceiling joists or by
building a frame to support the hood.
4. In an existing home, a hole must be cut into the ceiling and pushing the hood into the space. Ensure there are no
obstructions to placing the hood in position. In these cases a ceiling flange in stainless can be supplied to finish
the hood to the ceiling. It is not supplied in colours.
5. The outlets are either top or back ducted and can be changed on site and the hood can be reversed to suit the
intended ducting direction.
6. Once secure in position standard ducting pieces can be used.
7. Switches are not provided and remote switching in a convenient position must be installed. The switching used
must be an electrically approved switch and is not provided by Condari Pty Ltd.
8. The TR CT can be wired with either individual fan control or one pair of switches to control all fans together.
Contact Condari for further information
Installation must be carried out by the procedure outlined.
Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations.
Connection to be carried out by a registered electrician.
Qasair Rangehoods Installation Instructions24
Thermidor
Technical Specification Sheet
TR CT
Ceiling Cavity Mounted
Grill Size
Filter Qty
All-thread
Fixing Centres
498mm x 596mm
5
Corner Type
Page 1 of 1
PowderKote
Available
Condari Pty Ltd.
2
NO
598mm x 596mm
Nightlight
Grill Qty
4
3
1200mm
Model TR CT 1500-3
N/A
Model
Body Width
LED Light
3
Remote Switching
N/A
Motor Qty
N/ANO
NONO
3
Filter Size1500mm
TR CT 1200-3
N/A
Conversion
Top/Back Back/Top
Motor Box /
Flue Width
N/A
Square
Version: B 03/12/2014F
Remote Switching
N/A
Square
TR CT 1200-3
290mm
x
4
8
0
m
m
YES
N/A
TR CT 1500-3
YES
Maximum Height
(H =)
Electrical Connection
Minimum Height
(H =)
N/A
290mm
x
4
8
0
m
m
N/A
N/A
6
0
0
3
5
0
2
0
1
1
0
2
0
1
1
0
This view is shown with grills
removed to expose filters.
Power entry location
is the same for all
Thermidor models.
Optional Flange
THERMIDOR - TR CT
Qasair Rangehoods Installation Instructions
25
Liverpool
Technical Specification Sheet
LIV
Ceiling Cavity Mounted
Motor Box /
Flue Width
Body Width
LED Light
Motor Qty
Model
PowderKote
}
Available
Maximum Height
(H =)
N/A
LIV 1200-3
1200mm
N/A
LIV 1500-3
5
N/A
All-thread
Fixing Centres
Corner Type
Condari Pty Ltd.
Light Centres
Light Qty
Nightlight
Page 1 of 1
Filter Qty
Electrical Connection
Conversion
Top/Back Back/Top
Model
Minimum Height
(H =)
N/A
YES
Remote Switching
290mm x 480mm
LIV 1200-3
4
N/A
N/A
N/A
N/A
Square
N/A
Square
N/A
N/A
Remote Switching
Version: A 20/04/2017F
N/AN/A N/A
N/A
N/A
N/A
3
1500mm
3
Filter Size
290mm x 480mm
N/A
LIV 1500-3
YES
600
300
110
20
20
110
Optional Flange
Power entry locations
are the same for all
Liverpool models.
LIVERPOOL - LIV
Qasair Rangehoods Installation Instructions26
REMOTE SWITCHING SPECIFICATIONS
3 FAN (no lights)
1. Wiring to the appliance must comply with State and local regulations.
2. Switching is not provided with this unit. - The order was for the controls to be separate from the unit.
3. You may use any switching to connect the rangehood (e.g. Clipsal switches).
4. All fans must be controlled by at least one ON/OFF and one HI/LO switch.
(i.e. single or twin motor models).
5. Please refer to Wiring Diagram below for detailed wiring information.
DRAWING NUMBER
CIRCUIT DIAGRAM
DESIGNER
CHECKED
M. Malesevic REVISION
CONDARI PTY LTD
DATE
8 Argent Place, Ringwood VIC 3134
Ph: (03) 9873 5877 / Fx: (03) 9873 5748
REM SW 3 FAN
REMOTE SWITCH 3 FAN
A
22/08/2013
BROWN
BLUE
BLUE
BLACK
BROWN
M. Brewin
BLACK
BLUE
BLUE
BROWN BROWN
WHITE
GREEN
WHITE
GREEN
JUNCTION
BOXES
-------------------- CABLES TO REMOTE SWITCHES --------------------
NOTES:-
1. IT IS NECESSARY TO PROVIDE
AN ON/OFF AND A HIGH/LOW
SWITCH FOR EACH FAN.
2. THE WIRING FOR THE FANS ARE 4 CORE -
LOW SPEED - BROWN
HIGH SPEED - WHITE
NEUTRAL - BLUE
EARTH - GREEN
BROWN
BLUE
BROWN
BLACK
BLUE
WHITE
GREEN
JUNCTION
BOXES
www.condari.com.au
WIRING DIAGRAM
For further information, please contact Condari Pty Ltd
phone: 03 9482 7088 fax: 03 9482 7011
NOTE: This diagram is for reference only. A qualied elecrician must connect remote
switching to rangehood.
Reected in this drawing is the most common method of connecting the rangehood.
Be aware that Active voltage must NOT be applied to both the ‘White- High’ or
‘Brown-Low’ wires at the same time. This will cause the fan to fail.
ALL FANS MUST BE CONTROLLED
BY AT LEAST ONE ON/OFF AND
ONE HI/LO SWITCH.
Qasair Rangehoods Installation Instructions
27
REMOTE SWITCHING SPECIFICATIONS
3 FAN, LED and NIGHTLIGHT
1. Wiring to the appliance must comply with State and local regulations.
2. Switching is not provided with this unit. - The order was for the controls to be separate from the unit.
3. You may use any switching to connect the rangehood (e.g. Clipsal switches).
4. All fans must be controlled by at least one ON/OFF and one HI/LO switch.
(i.e. single or twin motor models).
5. Please refer to Wiring Diagram below for detailed wiring information.
www.condari.com.au
WIRING DIAGRAM
For further information, please contact Condari Pty Ltd
phone: 03 9482 7088 fax: 03 9482 7011
NOTE: This diagram is for reference only. A qualied elecrician must connect remote
switching to rangehood.
Reected in this drawing is the most common method of connecting the rangehood.
Be aware that Active voltage must NOT be applied to both the ‘White- High’ or
‘Brown-Low’ wires at the same time. This will cause the fan to fail.
ALL FANS MUST BE CONTROLLED
BY AT LEAST ONE ON/OFF AND
ONE HI/LO SWITCH.
Qasair Rangehoods Installation Instructions28
REMOTE SWITCHING SPECIFICATIONS
3 FAN with LED
1. Wiring to the appliance must comply with State and local regulations.
2. Switching is not provided with this unit. - The order was for the controls to be separate from the unit.
3. You may use any switching to connect the rangehood (e.g. Clipsal switches).
4. All fans must be controlled by at least one ON/OFF and one HI/LO switch.
(i.e. single or twin motor models).
5. Please refer to Wiring Diagram below for detailed wiring information.
AC1 AC2
LED
AC2
AC1
LED
BLUE
BLUE
BROWN
BLUE
BROWN
BLUE
BROWN
DRAWING NUMBER
CIRCUIT DIAGRAM
DESIGNER
CHECKED
M. Malesevic REVISION
CONDARI PTY LTD
DATE
8 Argent Place, Ringwood VIC 3134
Ph: (03) 9873 5877 / Fx: (03) 9873 5748
REM SW 3 FAN LED
REMOTE SWITCH 3 FAN LED
A
22/08/2013
BROWN
BLUE
BLUE
BLACK
BROWN
M. Brewin
BLACK
BLUE
BLUE
BROWN
BROWN
WHITE
GREEN
WHITE
GREEN
JUNCTION
BOXES
-------------------- CABLES TO REMOTE SWITCHES --------------------
NOTES:-
1. IT IS NECESSARY TO PROVIDE
AN ON/OFF AND A HIGH/LOW
SWITCH FOR EACH FAN.
2. THE WIRING FOR THE FANS ARE 4 CORE -
LOW SPEED - BROWN
HIGH SPEED - WHITE
NEUTRAL - BLUE
EARTH - GREEN
3. THE WIRING FOR THE LIGHTS IS 2 CORE -
ACTIVE - BROWN
NEUTRAL - BLUE
BROWN
BLUE
BROWN
BLUE
JUNCTION
BOXES
BLUE
BROWN
WHITE
GREEN
BLACK
BLUE
BROWN
JUNCTION
BOXES
www.condari.com.au
WIRING DIAGRAM
For further information, please contact Condari Pty Ltd
phone: 03 9482 7088 fax: 03 9482 7011
NOTE: This diagram is for reference only. A qualied elecrician must connect remote
switching to rangehood.
Reected in this drawing is the most common method of connecting the rangehood.
Be aware that Active voltage must NOT be applied to both the ‘White- High’ or
‘Brown-Low’ wires at the same time. This will cause the fan to fail.
ALL FANS MUST BE CONTROLLED BY
AT LEAST ONE ON/OFF AND ONE
HI/LO SWITCH.
Qasair Rangehoods Installation Instructions
29
I/I: Inside to Inside Measurement
SINGLE MOTOR DUCTING
NOTE:
This Zinc Alume Strip is provided to join some duct pieces together.
It will be clearly shown on the drawing of the piece it is supplied with.
110. DD-1H L
Duct Director Single Motor Horizontal Left
102. HB-1
Horizontal Bend Single Motor 90º
101. DL-1 Single Motor Duct Length 1200mm
DL-1 CB Single Motor Duct
Length
1200mm Colourbond
105. BD/WV-H-1 SS
Back Draft Wall Vent Single Motor Horizontal
445M2 Stainless Steel
106. VB-1
Vertical Bend Single Motor 90º
104. BD/WV-H-1
Back Draft Wall Vent Single Motor Horizontal
See alternative Duct Piece No. 145
108. BD/WV-V-1
Back Draft Wall Vent Single Motor
Vertical
107. VB-1/45
Vertical Bend Single Motor 45º
109. BD/WV-V-1 SS
Back Draft Wall Vent Single Motor Vertical
445M2 Stainless Steel
103. HB-1/45
Horizontal Bend Single Motor 45º
101. DL-1 E
Single Motor Duct Length Extension
101. DL-1 A
Single Motor Duct Length 300mm
Qasair Rangehoods Installation Instructions30
SINGLE MOTOR DUCTING
120. DR-200/90
200Ø Bend 90º
122. BD/WV-200Ø
Back Draft Wall Vent
123. CH-200
Chairman’s Hat 200Ø
124. CH-200 CB
Chairman’s Hat 200Ø Colourbond
125. BD/RC-1
Back Draft Roof Cowl Single Motor
121. BD-6/7/9-WV-R/R
Back Draft Wall Vent Rear Register Kit to
Suit 6/7/900H
112. TT-1
Twisted Transition Single Motor
113. DLE-DLE
Flue Joiner Single Motor
119. DR-200/45
200Ø Bend 45º
116. TR-1
Single Motor Transition DL-1 to 200Ø
117. DR-200
Duct Length 200Ø
118. DR-200 CB
Duct Length 200Ø Colourbond
115. CD-920 TO DL-1
Cavity Duct to DL-1
114. CD-920
Cavity Duct Extendible
111. DD-1H R
Duct Director Single Motor Horizontal
Right
Qasair Rangehoods Installation Instructions
31
SINGLE MOTOR DUCTING
138. RCP 200 SS
Roof Cap 200Ø 445M2 Stainless Steel
137. WVC-6/7/9H-R/R
Wall Vent Cover to Suit Rear Register Kit
for 6/7/900H
133. WVC-V-1
Wall Vent Cover Single Motor Vertical
136. EV/DL-1
Eave Vent to Suit DL-1
132. WVC-H-1 SS
Wall Vent Cover Single Motor Horizontal
445M2 Stainless Steel
134. WVC-V-1 SS
Wall Vent Cover Single Motor Vertical
445M2 Stainless Steel
135. 6/7/900H-SC
Spiggot Cap to Suit 6/7/900H
130. CF 6/7/900H
Ceiling Flange to Suit 6/7/900H
131. WVC-H-1
Wall Vent Cover Single Motor Horizontal
See alternative Duct Piece No. 145
139. RC 200 SS
Roof Cowl 200Ø 445M2 Stainless Steel
140. RC 200
Roof Cowl 200Ø
127. BD/SQ-RC 200
Back Draft Roof Cowl Single Motor 200Ø
128. DLE-S/S CAP
Stainless Steel Flue Cap to Suit DLE
129. BD/M-1
Back Draft Damper Single Motor
126. BD/RC-1 CB
Back Draft Roof Cowl Single Motor
Colourbond
Qasair Rangehoods Installation Instructions32
WALL VENT
144. FRWV-V-1 SS
Fire Rated Wall Vent Vertical
445M2 Stainless Steel
143. FRWV-H-1 SS
Fire Rated Wall Vent Horizontal
445M2 Stainless Steel
142. FRC 200 SS
Fire Rated 200Ø Roof Cowl
445M2 Stainless Steel
141. RC 1 SS
Roof Cowl Single Motor 445M2 Stainless Steel
WALL VENT
145. BD/WV/K-H-1
Back Draft Wall Vent & Cover Single Motor
Horizontal kit assembled as one piece
BDWVK-H-1
400
75
150
250
2
4
0
I
/
I
1
1
0
I
/
I
7
5
1
5
0
2
5
0
3
1
7
2
4
8
3
1
8
I
/
I
All the above ducting pieces
are all made in stainless
steel type 445M2 which
has a chromium content of
22% which is far greater
than marine grade stainless
steel and provides better
protection.
This is stated on the
description of each piece in
the ducting brochure.
ROOF COWLS, WALL VENTS
AND WALL VENT COVERS
WALL VENT
The wall vent covers have
stainless steel screening
type 316 and meets the
requirements for stainless
steel screening under the
Australian Standard.
AS 3959-2009 Construction
of Buildings in Bushfire
prone areas.
WALL VENT COVERS SPECIFICATIONS
FIRE RATED APPROVED
Qasair Rangehoods Installation Instructions
33
I/I: Inside to Inside Measurement
TWIN MOTOR DUCTING
NOTE:
This Zinc Alume Strip is provided to join some duct
pieces together. It will be clearly shown on the drawing
of the piece it is supplied with.
212. DLE-2 TO DLE-2
Flue Joiner Twin Motor
210. BD/WV-V-2 SS
Back Draft Wall Vent Twin Motor Vertical
445M2 Stainlerss Steel
209. BD/WV-V-2
Back Draft Wall Vent Twin Motor Vertical
203. HB-2
Horizontal Bend Twin Motor 90º
208. VB-2/45
Vertical Bend Twin Motor 45º
207. VB-2
Vertical Bend Twin Motor 90º
206. BD/WV-H-2 SS
Back Draft Wall Vent Twin Motor Horizontal
445M2 Stainless Steel
205. BD/WV-H-2
Back Draft Wall Vent Twin Motor
Horizontal
204. HB-2/45
Horizontal Bend Twin Motor 45º
202. DL-2
Twin Motor Duct Length 1200mm
201. TMT
Twin Motor Transition
211. TT-2
Twisted Transition Twin Motor
Qasair Rangehoods Installation Instructions34
TWIN MOTOR DUCTING
224. HB-250
Horizontal Bend 250SQ 90º
223. DL-250
Duct Length 250SQ
222. TMT-250
Twin Motor Transition to 250SQ
220. DL-2/250SQ
Twin Motor Transition DL-2 to 250SQ
221. TMT-250/300
Twin Motor Transition 250SQ to 300Ø
219. DR-300/90
300Ø Bend 90º
225. HB-250/45
Horizontal Bend 250SQ 45º
226. TMT-250/90 L
Duct Deflector 250SQ Left
227. TMT-250/90 R
Duct Deflector 250SQ Right
218. DR-300/45
300Ø Bend 45º
217. DR-300 CB
Duct Length 300Ø Colourbond
216. DR-300
Duct Length 300Ø
215. TR-2
Twin Motor Transition from DL-2 to 300Ø
214. TMT-300
Twin Motor Transition to 300Ø
213. BD-10/12/15-WV-R/R
Back Draft Wall Vent 10/12/1500H
Qasair Rangehoods Installation Instructions
35
TWIN MOTOR DUCTING
232. CH-300
Chairman’s Hat 300Ø
233. CH-300 CB
Chairman’s Hat 300Ø Colourbond
234. BD/SQ-RC 300
Back Draft Roof Cowl 300Ø
236. DLE-2-S/S CAP
Stainless Steel Flue Cap to Suit DLE-2
237. CF 10/12/1500H
Ceiling Flange to Suit 10/12/1500H
235. BD/RC-250 SQ
Back Draft Roof Cowl 250SQ
239. CF 3F-1200-2
Ceiling Flange tp suit 3F 1200-2
240. CF 4F-900-2
Ceiling Flange to Suit 4F 900-2
238. CF 3F-900-2
Ceiling Flange to Suit 3F 900-2
230 BD/RC-2
Back Draft Roof Cowl Twin Motor
229. BD/WV-250 SQ SS
Back Draft Wall 250SQ 445M2 Stainless
Steel
231. BD/RC-2 CB
Back Draft Roof Cowl Twin Motor
Colourbond
242. WVC-H-2
Wall Vent Cover Twin Motor Horizontal
241. CF 4F-1200-2
Ceiling Flange to suit 4F 1200-2
228. BD/WV-250 SQ
Back Draft Wall Vent 250SQ
Qasair Rangehoods Installation Instructions36
TWIN MOTOR DUCTING
244. WVC-V-2
Wall Vent Cover Twin Motor Vertical
245. WVC-V-2 SS
Wall Vent Cover Twin Motor Vertical
445M2 Stainless Steel
246. WVC-250 SQ
Wall Vent Cover 250SQ
250. DD-2H-L
Duct Director Twin Motor Horizontal Left
248. WVC-10/12/15H-R/R
Wall Vent Cover to suit 10/12/1500H
247. WVC-250 SQ SS
Wall Vent Cover 250SQ 445M2 Stainless
Steel
249. 10/12/15H-SC
Spiggot Cap to Suit 10/12/1500H
253. DD-2V-R
Duct Director Twin Motor Vertical Right
254. EV/DL-2
Eave Vent to Suit DL-2
256. BD/WV-300Ø
Back Draft Wall Vent
257. BD/WVC-SBS
Twin Motor Wall Vent Deflector
255. BD/M-250SQ
Back Draft Damper Twin Motor 250SQ
243.WVC-H-2 SS
Wall Vent Cover Twin Motor Horizontal
445M2 Stainless Steel
251. DD-2H-R
Duct Director Twin Motor Horizontal Right
252. DD-2V-L
Duct Director Twin Motor Vertical Left
Qasair Rangehoods Installation Instructions
37
TWIN MOTOR DUCTING
FRBDWVK-H-2
9
5
2
4
0
I
/
I
1
1
0
I
/
I
75
400
150 210
250
EXTENDED
COMPRESSED
2
5
0
1
5
0
6
5
3
I
/
I
6
5
2
2
4
8
7
5
268. FRWV/K-H-2
Kit assembled as one piece. Fire rated Two
Single Motor Back Draft Wall Vent Horizontal
with telescopic length & cover
BDWVK-H-2
250
75
150 210
400
2
4
0
I
/
I
1
1
0
I
/
I
9
5
EXTENDED
COMPRESSED
6
5
2
2
4
8
6
5
3
I
/
I
2
5
0
7
5
1
5
0
267. BD/WV/K-H-2
Kit assembled as one piece. Two Single Motor
Back Draft Wall Vent Horizontal
with telescopic length & cover
261. RC 300 SS
Roof Cowl 300Ø 445M2 Stainless Steel
262. RC 2 SS
Roof Cowl Twin Motor 445M2 Stainless
Steel
258. CF 3F-1500-2
Ceiling Flange to Suit 3F 1500-2
259. RCP 300 SS
Roof Cap 300Ø 445M2 Stainless Steel
260. RV 300 SS
Roof Ventilation Cowl 300Ø 445M2
Stainless Steel
263. FRC 300 SS
Fire Rated Roof Cowl 300Ø
445M2 Stainless Steel
WALL VENT
265. FRWV-V-2 SS
Fire Rated Wall Vent Twin Motor Vertical
445M2 Stainless Steel
266. FRWV-250 SQ SS
Fire Rated Wall Vent Twin Motor 250SQ
445M2 Stainless Steel
WALL VENTWALL VENT
264. FRWV-H-2 SS
Fire Rated Wall Vent Twin Motor Horizontal
445M2 Stainless Steel
WALL VENTWALL VENT
All the above ducting pieces
are all made in stainless
steel type 445M2 which
has a chromium content of
22% which is far greater
than marine grade stainless
steel and provides better
protection.
This is stated on the
description of each piece in
the ducting brochure.
ROOF COWLS, WALL VENTS
AND WALL VENT COVERS
The wall vent covers have
stainless steel screening
type 316 and meets the
requirements for stainless
steel screening under the
Australian Standard.
AS 3959-2009 Construction
of Buildings in Bushfire
prone areas.
WALL VENT COVERS SPECIFICATIONS
FIRE RATED APPROVED
Qasair Rangehoods Installation Instructions38
NOTE:
This Zinc Alume Strip is provided to join some duct pieces together.
It will be clearly shown on the drawing of the piece it is supplied with.
I/I: Inside to Inside Measurement
TRIPLE MOTOR DUCTING
306. VB-3/45
Vertical Bend Triple Motor 45º
305. VB-3
Vertical Bend Triple Motor 90º
304. HB-3/45
Horizontal Bend Triple Motor 45º
302. DL-3
Triple Motor Duct Length
303. HB-3
Horizontal Bend Triple Motor 90º
301. 3MT-DL-3
Three Motor Transition to DL-3
307. TT-3
Triple Motor Twisted Transition
308. TMT-400x200/350
Triple Motor Transition DL-3 to 350Ø
311. DR-350 CB
Duct Length 350Ø Colourbond
310. DR-350
Duct Length 350Ø
312. DR-350/45
350Ø Bend 45º
309. TR-3
Triple Motor Transition to 350Ø
Qasair Rangehoods Installation Instructions
39
TRIPLE MOTOR DUCTING
324. WVC-H-3
Wall Vent Cover Triple Motor Horizontal
323. BD/WV-V-3 SS
Back Draft Wall Vent Triple Motor Vertical
445M2Stainless Steel
322. BD/WV-V-3
Back Draft Wall Vent Triple Motor Vertical
320. BD/WV-H-3
Back Draft Wall Vent Triple Motor Horizontal
321. BD/WV-H-3 SS
Back Draft Wall Vent Triple Motor Horizontal
445M2 Stainless Steel
319. CH-350 CB
Chairmans Hat 350Ø Colorbond
325.WVC-H-3 SS
Wall Vent Cover Triple Motor Horizontal
445M2 Stainless Steel
326. WVC-V-3
Wall Vent Cover Triple Motor Vertical
327. WVC-V-3 SS
Wall Vent Cover Triple Motor Vertical
445M2 Stainless Steel
317. BD/SQ-RC 350 SS
Back Draft Roof Cowl 350Ø
445M2 Stainless Steel
318. CH-350
Chairmans Hat 350Ø
316. BD/SQ-RC 350
Back Draft Roof Cowl Triple Motor 350SQ
313. DR-350/90
350Ø Bend 90º
314. BD/RC-3
Back Draft Roof Cowl Triple Motor
315. BD/RC-3 SS
Back Draft Roof Cowl Triple Motor
445M2 Stainless Steel
Qasair Rangehoods Installation Instructions40
TRIPLE MOTOR DUCTING
329. DD-3V-R
Duct Director Triple Motor Vertical Right
328. DD-3V-L
Duct Director Triple Motor Vertical Left
330. BD/WV-350Ø
Back Draft Wall Vent
332. FRWV-V-3 SS
Fire Rated Wall Vent Triple Motor Vertical
WALL VENT
WALL VENT
331. FRWV-H-3 SS
Fire Rated Wall Vent Triple Motor
Horizontal
333. FRC 350 SS
Fire Rated Roof Cowl 350Ø 445M2
Stainless Steel
FRBDWVK-H-3
9
5
9
5
2
4
0
I
/
I
1
1
0
I
/
I
75
400
250
150 210
EXTENDED
COMPRESSED
9
8
7
2
4
8
9
8
8
I
/
I
2
5
0
1
5
0
7
5
335. FRWV/K-H-3
Kit assembled as one piece. Fire rated Three
Single Motor Back Draft Wall Vent Horizontal
with telescopic length & cover
BDWVK-H-3
9
5
9
5
2
4
0
I
/
I
1
1
0
I
/
I
250
75
150 210
400
EXTENDED
COMPRESSED
2
4
8
9
8
7
1
5
0
2
5
0
7
5
9
8
8
I
/
I
334. BD/WV/K-H-3
Kit assembled as one piece. Three Single
Motor Back Draft Wall Vent Horizontal
with telescopic length & cover
WALL VENT WALL VENT
All the above ducting pieces
are all made in stainless
steel type 445M2 which
has a chromium content of
22% which is far greater
than marine grade stainless
steel and provides better
protection.
This is stated on the
description of each piece in
the ducting brochure.
ROOF COWLS, WALL VENTS
AND WALL VENT COVERS
The wall vent covers have
stainless steel screening
type 316 and meets the
requirements for stainless
steel screening under the
Australian Standard.
AS 3959-2009 Construction
of Buildings in Bushfire
prone areas.
WALL VENT COVERS SPECIFICATIONS
FIRE RATED APPROVED
Qasair Rangehoods Installation Instructions
41
NOTE:
This Zinc Alume Strip is provided to join some duct pieces together.
It will be clearly shown on the drawing of the piece it is supplied with.
All 450 x 250 Duct Pieces can be supplied in Stainless Steel (SS)
and Colorbond/Powdercoat (C/P), just add SS or C/P to the part
number. Eg. DL-4SS.
I/I: Inside to Inside Measurement
450 x 250 DUCTING
405. BD/WV-H-450X250
Back Draft Wall Vent 450 x 250 Horizontal
404. VB-450X250/45
Vertical Bend 450 x 250 45º
403. HB-450X250/45
Horizontal Bend 450 x 250 45º
401. HB-450X250
Horizontal Bend 450 x 250 90º
402. VB-450X250
Vertical Bend 450 x 250 90º
400. DL-4
450 x 250 Duct Length 1200
406. BD/WV-V-450X250
Back Draft Wall Vent 450 x 250 Vertical
407. RCB
Roof Cowl 450 x 250
410. WCV-V-450X250
Wall Vent Cover 450 x 250 Vertical
409. WCV-H-450X250
Wall Vent Cover 450 x 250 Horizontal
411. BD/RC-4
Back Draft Roof Cowl 450 x 250
408. RCBA
Roof Cowl 450 x 250
Qasair Rangehoods Installation Instructions42
3. FA 60L-1 T 4. FA 60L-1 T
5. FA 60L-1 T
6. FA 60L-1 T / FA 60L-1 B
INSTALLATION IDEAS
Condari recommends Qasair and Condor Rangehoods be installed using ducting that is:
• rigid
• non-ammable
• correctly sized
to ensure maximum air movement and minimum noise levels.
Ducting incorrectly with exible or smaller diameter ducting will dramatically reduce the air movement
and increase the noise level of the rangehood and will void the manufacturer’s warranty.
The Installation Ideas below will give you some guidelines on how to correctly duct your Qasair and
Condor Rangehood using Qasair and Condor ducting pieces.
FA 60L-1 T
FA 60L-1 B
Rangehood
FA 60L-1 T
Rangehood
FA 60L-1 T
Rangehood
FA 60L-1 T
Rangehood
Qasair Rangehoods Installation Instructions
43
7. FA 90L-2 T 8. FA 90L-2 T
9. FA 90L-2 T 10. FA 90L-2 B
11. FA 90L-2 T 12. FA 90L-2 T
FA 90L-2 T
Rangehood
FA 90L-2 T
Rangehood
FA 90L-2 T
Rangehood
FA 90L-2 T
Rangehood
FA 90L-2 T
Rangehood
FA 90L-2 B
Rangehood
Qasair Rangehoods Installation Instructions44
13. 600HL-1 T / 700HL-1 T / 900HL-1 T 14. 600HL-1 T
15. CON 60L-1 T 16. CON 80L-1 T
17. CON 60L-1 T 18. CON 80L-2 T
CON 80L-2 T RangehoodCON 60L-1 T Rangehood
CON 60L-1 T Rangehood
CON 80L-1 T Rangehood
600HL-1 T Rangehood
600HL-1 T / 700HL-1 T / 900HL-1 T
Rangehood
Qasair Rangehoods Installation Instructions
45
19. 1200HL-2 T 20. LIS 800L-2 T
21. LIS 1000L-2 T 22. 3F 900L-2 T / 1200L-2 T
23. LIS 500L-1 T 24. LIS 800L-1 T
LIS 800L-2 T
Rangehood
1200HL-2 T
Rangehood
LIS 1000L-2 T
Rangehood
3F 900L-2 T / 1200L-2 T
Rangehood
LIS 800L-1 T
Rangehood
LIS 500L-1 T
Rangehood
Qasair Rangehoods Installation Instructions46
25. CON 80L-1 T / LIS 1000-2 T 26. LIS 1200L-2 B
1. FA 60L-1 B2. FA 90L-1 T
FA-60L-1 B
Rangehood
FA-90L-1 T
Rangehood
LIS 1200L-2 B
Rangehood
LIS 1000L-2 T
Rangehood
CON 80L-1 T
Rangehood
Qasair Rangehoods Installation Instructions
47
FILTER CLEANING
OPERATION DETAILS
RANGEHOOD CLEANING
For the best results, please clean filters regularly.
Condari recommends cleaning filters once per month, or immediately after heavy use.
You can do this by hand washing in warm soapy water, or by placing filters in the top rack of the
dishwasher using a detergent of pH 8 or less.
Note: Washing the filters in the dishwasher may cause discolouration of the filters.
We recommend washing filters in the dishwasher without detergent or use one of the powder
detergent.
Ensure the filters are completely dry before placing them back.
Do not operate the rangehood without the filters installed.
Condari does not recommend the use of corrosive, caustic or acidic products, particulary industrial
or citric products.
Condari has experienced problems with many of the dishwashing detergents now on the market.
Particularly with the tablet type detergents as many come from overseas, which are made for a hard
water environment. We have found that these detergents have a deleterious effect on the filters and
the result is that the filters last for about 50 to 60 washes.
This is equivalent to about 5 to 6 years life.
Qasair Rangehoods are made from stainless steel, either type 304 or type 316.
* Type 304 is classied as 18/8 stainless steel
* Type 316 is classied as 18/10 stainless steel
This means that the stainless steel is made of 18% nickel and either 8% or 10% of chromium respectively.
Stainless steel gets its protective coating from the chromium oxidising in the air to form a protective surface
of chromium oxide. This can be attacked by different substances, such as salt water or sea air. The stainless
steel will start to show pit marks which are referred to in the industry as tea staining. This will happen to
marine grade stainless steel type 316 in the same way it will happen to stainless steel type 304, it will just
take longer to happen.
The way to overcome this is to clean the stainless steel with warm soapy water and then polish it with a cloth
so that the chromium will oxidise again.
When exposed to sea water or sea side conditions this is only a stop gap measure as the attack will start
again.
With stainless steel rangehoods exposed in Alfresco areas we recommend spraying the hood with vegetable
oil and rubbing it all over the rangehood, if it is going to be unused over a period of time.
Light ON and OFF
Fan Left Side ON and OFF
Right Side Fan/s ON and OFF
Light High and Low
Fan Left Side High and Low
Right Side Fan/s High and Low
Qasair Rangehoods Installation Instructions48
CONDARI PTY LTD APPLIANCE GUARANTEE
The benefits conferred by this warranty are in addition to all other rights and remedies in respect of the product
which the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.
Condari P/L in Melbourne (and by their agency in Country Areas and other States) warrants that the appliance
will be free from defects in materials and workmanship for a period of 36 months from the date of purchase of
the appliance to the consumer.
If there is a breach of this warranty, Condari will rectify, free of charge, at it’s nearest service centre or
authorised service agency any fault caused by faulty workmanship or material at the time of manufacture
occurring in the appliance within 36 months from the date of purchase of the appliance to the customer.
This warranty is conditional upon the appliance being used only for personal, domestic and household purposes
and installed and operated in accordance with QASAIR Instructions and does not apply to articles which by their
nature are consumable.
If a defect is caused by neglect, misuse, or failure to follow operating instructions where special precautions are
detailed for user attention then a charge shall be made for the service call.
For example:
With the filters the user is specifically requested:
• To clean filter regularly by handwashing or placing in a dishwasher at least once a month.
• To turn rangehood off after each use.
• Note: Warranty under filter cleaning on page 47.
Where a claim is made under warranty, CONDARI reserves the right to determine whether or not the fault is
caused by faulty workmanship or material or that the part is defective.
The consumer shall be fully responsible for all expenses whatsoever incidental to the removal of parts from
the unit or to their replacement. Amongst other things, such responsibility shall extend to damaged walls, tiles,
fixtures and fittings whether or not the unit has been built into a cupboard and irrespective of the stage either of
its installation or the fitting of any other item whatsoever in its vicinity.
No other person, or firm or corporation is authorised by Condari to offer or give on its behalf any other greater
warranty than that given by Condari under this warranty.
Condari Pty Ltd provides to all QASAIR Rangehoods a 10 year motor replacement warranty. This is a change
over warranty.
The installation of the rangehood must comply with the information in this guide. Failure to follow the instructions
may result in loss of the warranty.
We do point out that incorrect installation such as the ducting being the incorrect size or the duct run being too
long will result in the motor failing and possible burning out.
The change over will be carried out by a authorized technician and will be charged at the rates applicable at
time of the change over.
Qasair Rangehoods Installation Instructions
49
EXCLUSIONS
There are some exclusions from the Condari Pty Ltd Guarantee. (on previous page)
CONDOR Rangehoods are designed to be used over all domestic barbecues available
in AUSTRALIA.
QASAIR Rangehoods are not to be used over barbecues approved for outdoor use only.
Outdoor barbecues will have a rating plate on them specifying that they are approved for outdoor use only and
also a mega joule rating per burner or a total mega joule rating.
In practice any barbecue or outdoor cooking appliance over 50 mega joule will need a specially made
rangehood with an air movement exceeding 2000 cubic meters per hour.
QASAIR have hoods to go over domestic cookers such as VIKING, WOLF and CAPITAL cooking appliances.
These brands have a mega joule rating of up to 95 mj and therefore special hoods are required for the
appliances.
CONDARI will manufacture special rangehoods to go over commercial cooking appliances situated in domestic
kitchens.
Once the heat output is over 50 mega joule a special rangehood is required.
Qasair Rangehoods Installation Instructions50
Date purchased
Purchased from
Model
Serial No
The purchaser must fill in the above information and keep this with the original purchase document.
This form must be produced if and when
a claim is made under this warranty.
QASAIR Rangehoods are made in Ringwood, Australia.
Tel: +61 3 9482 7088
Fax: +61 3 9482 7011
Email: [email protected]
STANDARD
WARRANTY
Pleae Note that the Warranty is from the date of installation and the service technician will need to see proof of
purchase so he can provide service under the guarantee.
If no proof of purchase then the service call will be charged at standard rates and if proof provided later,
reimbursement will be made.
Qasair Rangehoods Installation Instructions
51
Customer Name:
Model Number: Serial Number:
Purchased from:
Purchased Date: Installed Date:
Installer Name:
Installer Signature:
Condari Pty Ltd authorised installer stamp:
(This is required for validity of extended warranty)
EXTENDED
WARRANTY
Pleae note: The installation warranty does not cover the ageing process in a building or any problems due to
storm damage.
Condari Pty Ltd provides an extended warranty from 36 months to 72 months if installed by an authorised
Qasair installer and the below form is completed.
The authorised installer also offers a warranty on their workmanship for the same period of 72 months with a
guarantee that the installation is in compliance with
‘Qasair installation instructions’.
Qasair Rangehoods Installation Instructions52
NOTES
Qasair Rangehoods Installation Instructions
53
NOTES
Qasair Rangehoods Installation Instructions54
NOTES
Qasair Rangehoods Installation Instructions
55
NOTES
www.condari.com.au
DISTRIBUTED IN AUSTRALIA BY CONDARI PTY LTD
Tel: 1300 360 563
HEAD OFFICE
VIC Tel: 03 9482 7088 Fax: 03 9482 7011
Email: sales@condari.com.au
Website: www.condari.com.au
YOUR DISTRIBUTORS
QLD Tel: 07 3423 3503 Fax: 07 3282 9122 Email: [email protected]
WA Tel: 08 9242 5387 Fax: 08 9201 0887 Email: saleswa@qasair.com.au
TAS Tel: 03 9482 7088 Fax: 03 9482 7011 Email: sales@qasair.com.au
New Zealand
Singapore
QASAIR RANGEHOODS MADE IN RINGWOOD 3134
CONDARI RESERVES THE RIGHT TO CHANGE SPECIFICATION WITHOUT NOTICE
rev. 150318
