Read this manual before you use this Powerjack. Follow all safety warnings and instructions. If you
are uncertain about the operation of the Powerjack, call us directly at 1-800-323-1653 for assistance or
contact the closest Powernail Dealer for help. Please retain this information for future reference.
REV 2024.04.25
MODEL 500 Powerjack
User Manual
POWERNAIL
®
CO.
1020 Williams Road, Genoa City, WI 53128 US
Phone: 1-800-323-1653
www.powernail.com
™

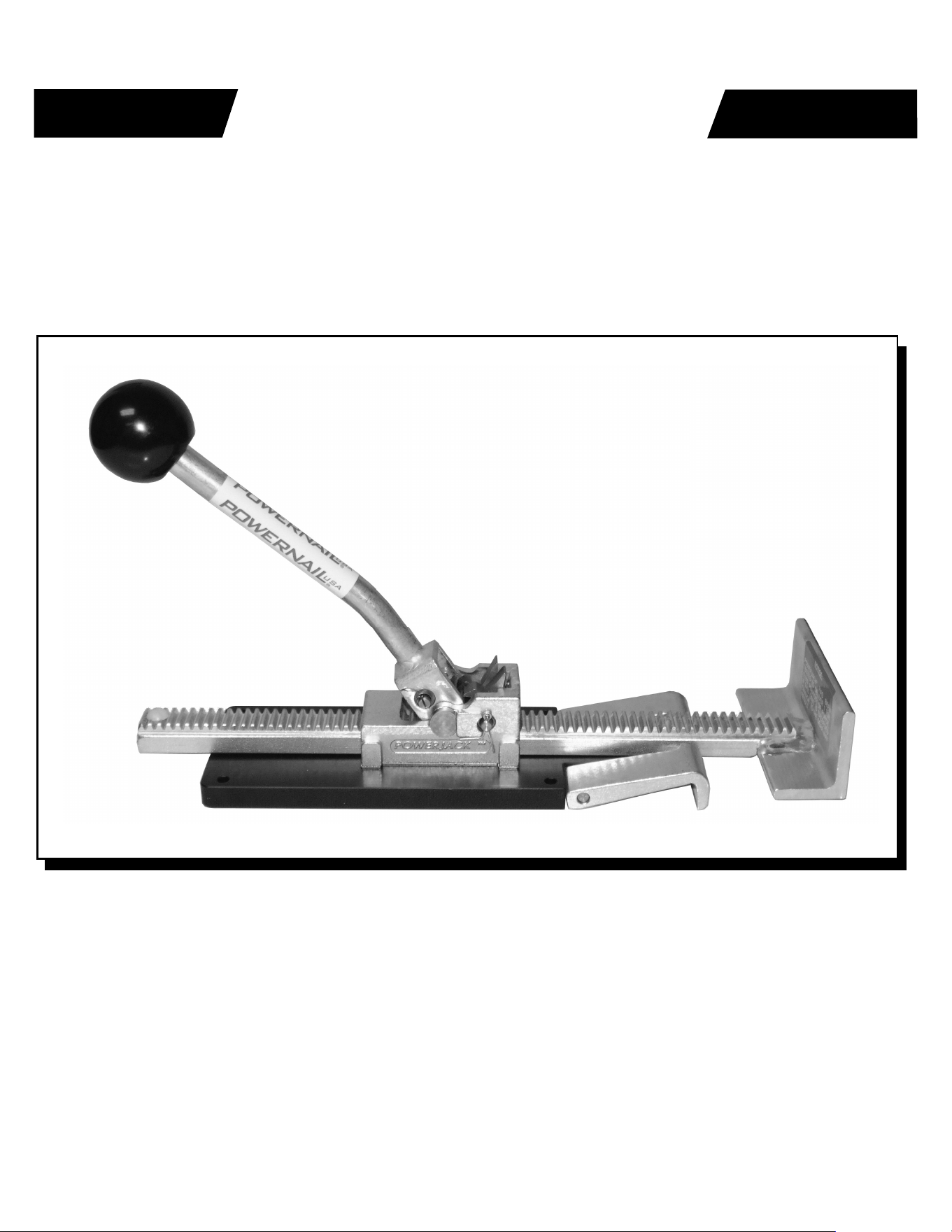

The Model 500 Powerjack is used to either push or pull hardwood
fl ooring strips into place. The Powerjack can be left in place, hands
free, while that seciton of fl ooring is being nailed down.
WARNING
Model 500 Powerjack
2
To Use:
1. Only push against a stationary surface such as a wall stud. When between wall
studs, push against a board long enough to span the distance of the studs so as to
prevent breaking through the drywall.
2. Ratchet the lever handle until faceplate contacts the stationary surface
3. Continue to ratchet until the self-adjusting jaw draws the fl oor tight for nailing
4. The Powerjack 500 can be left in place, hands free, while that section of fl ooring
is being nailed down.
5. When using the Powerjack mid-fl oor, screw the base plate to the subfl oor in front
of your fl ooring and use the Powerjack to push against your fl ooring strips.
To release:
To release the Powerjack 500, push the handle to the full forward position.
The POWERJACK Model 500 is designed to push or pull fl ooring strips into place
and hold them tightly.
Easy to operate! Use the lever handle to ratchet the faceplate against a stationary
surface. Continue to ratchet until the self-adjusting jaw draws the fl ooring to the
desired position. The POWERJACK can be left in place while you nail down the
fl ooring strip. To release the POWERJACK, simply push the handle to full forward
position.

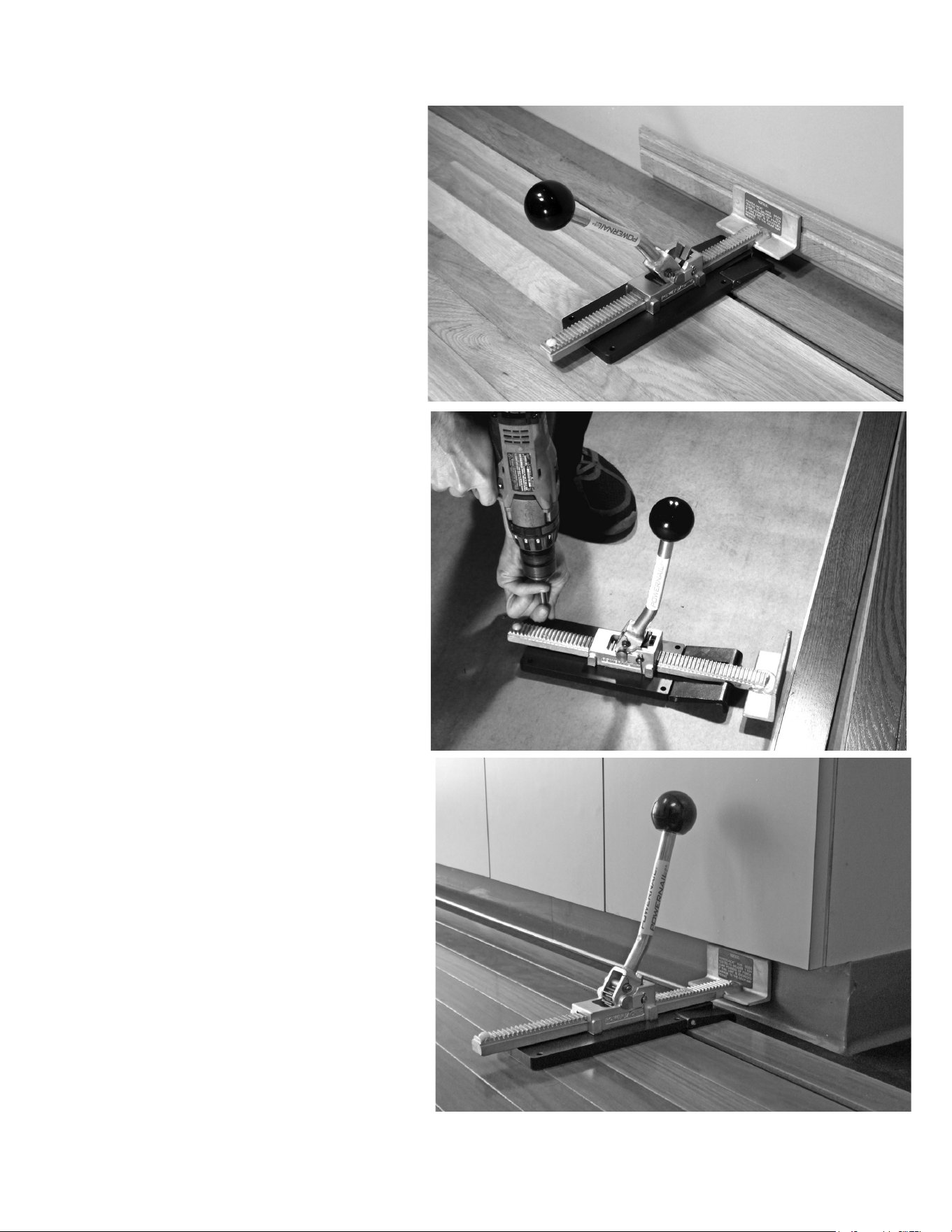

The Model 500 POWERJACK sits on top of your fl ooring and gains leverage against
a wall or a wall-stud. When a stud location cannot be determined, a board long
enough to span the distance of the studs should be used to prevent breaking through
the drywall (picture 1).
When not near a wall, the Model 500 can also be used mid-fl oor by screwing the base
plate directly to the sub fl oor and pushing against your fl ooring strips.
(see picture 2).
Under the toe kick of a cabinet, the POWERJACK Model 500 can be used to tighten
boards and hold them in place (see picture 3).
The Powerjack 500 self adjusts to the thickness of the wood fl ooring being installed.
Powerjacks™ are made in the USA
When near a wall, only push against a
stationary surface such as a wall stud.
When wall stud locations cannot be
determined, push against a board long
enough to span stud spacing to prevent
breaking through the drywall
(see picture 1).
The Model 500 can be used mid-fl oor
by screwing the base directly to the sub
fl oor and pushing the fl ooring strips
into place (see picture 2).
When under the toe kick of a cabinet, the
Powerjack Model 500 tightens boards and
holds them in place hands-free while that
section of fl ooring is nailed down (see
picture 3).
Picture 2
Picture 1
3
Picture 3
16
19
13
6
8
20
12
2
4
18
5
15
9
3
1
11
17
22
21
10
7
14
Model 500 Powerjack Safety
POWERNAIL
®
CO.

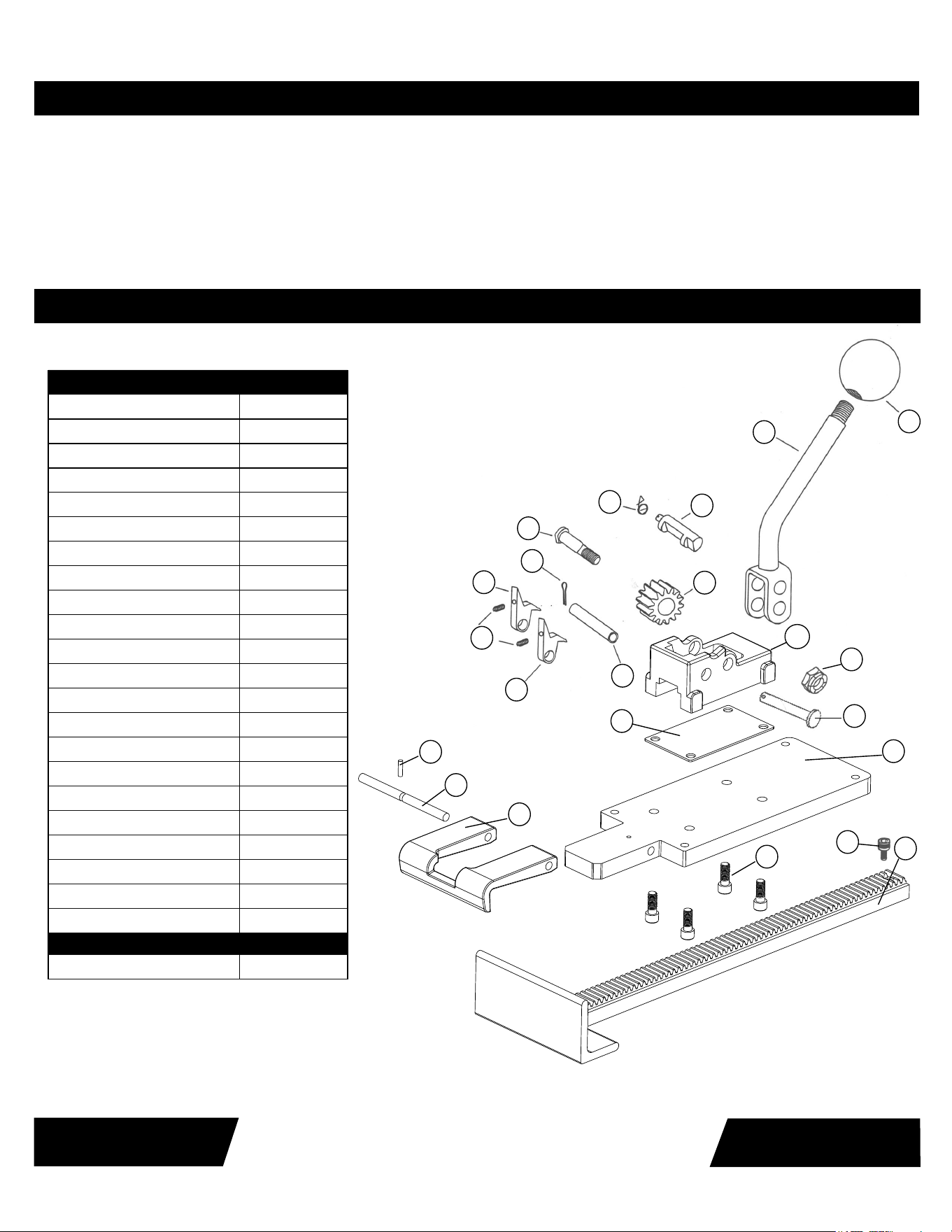

Model 500 Powerjack Exploded View
Always use approved eye protection.
Keep fi ngers away from gear area.
Do not hit the ratchet handle with a mallet.
Do not over torque.
PART NAME PART NO.
1. KNOB 08-10000010
2. HANDLE 08-10000020
3. RATCHET SHAFT 08-10000030
4. RATCHET SPRING 08-10000040
5. GEAR SHAFT 08-10000050
6. GEAR 08-10000060
7. GEAR SHAFT NUT 08-10000070
8. COTTER PIN 08-10000080
9. PAWL BUSHING 08-10000090
10. PAWL PIN 08-10000100
11. PAWL #1 08-10000110
12. PAWL #2 08-10000120
13. PAWL SPRING (2) 08-10000130
14. CAP SCREW 08-10000140
15. RACK ASSEMBLY 08-500232A
16. BASE PLATE
08-50000250
17. HOUSING
08-50000180
18. HOUSING SPACER
08-50000190
19.1/4-20 x .625 S.H.C.S. (x4)
08-50000270
20. HOOK
08-50000260
21. PIN
08-50000280
22. SET PIN
08-50000220
REPAIR KIT PART NO.
TUNE-UP KIT 08-100TUKIT
Visit our web page at www.powernail.com
