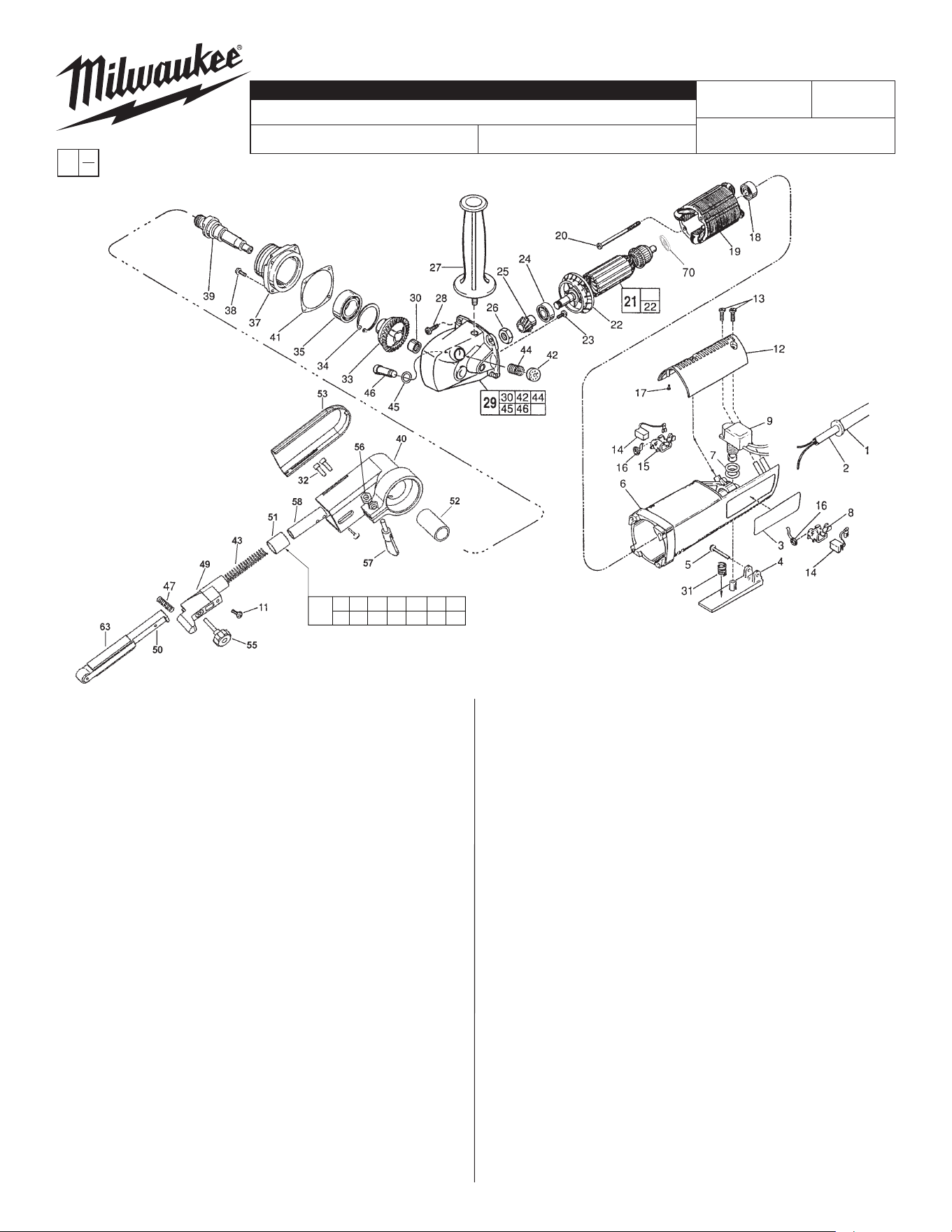

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 44-76-0130 Cord Protector (1)
2 22-64-0215 Cord Set (1)
3 ------------- Service Nameplate Kit (1)
4 31-92-0112 Trigger (1)
5 06-72-0815 .146 Dia. x 1-3/8" Rivet (1)
6 31-50-0426 Motor Housing (1)
7 34-40-4015 O-Ring (2)
8 22-20-0691 Left Brush Holder (1)
9 23-66-2171 Switch (1)
11 45-04-0115 Shoulder Screw (1)
12 31-15-0143 Cover (1)
13 06-82-7270 8-16 x 5/8" Pan Hd. Slt. Plastite T-20 (3)
14 22-18-0710 Carbon Brush Assembly (2)
15 22-20-0692 Right Brush Holder (1)
16 23-52-0240 Brush Spring (2)
17 42-38-0181 Rubber Bumper (2)
18 02-04-0848 Ball Bearing (1)
19 18-07-7055 120 Volt Field (1)
20 06-82-7430 8-16 x 2-1/8" Pan Hd. Plastite T-20 (2)
21 16-10-7060 120 Volt Armature (1)
22 22-84-0680 Fan (1)
23 06-82-2292 8-32 x 3/8" Pan Hd. Slt. Taptite T-20 (2)
24 02-04-1020 Ball Bearing (1)
25 32-60-1305 Pinion (1)
26 06-55-1115 1/4-28 Hex Jam Nut (1)
27 49-15-0310 Side Handle (1)
28 06-82-7260 7-18 x 5/8" Pan Hd. Slt. Plastite T-20 (4)
29 14-30-0302 Gear Case Kit (1)
30 02-50-2423 Needle Bearing (1)
31 40-50-1300 Coil Spring (1)
32 05-84-0015 Skt. Hd. Cap Screw (2)
33 32-05-2240 Spiral Bevel Gear (1)
34 34-80-2960 Retaining Ring-Internal (1)
35 02-04-1745 Ball Bearing (1)
37 28-52-0222 Spindle Hub (1)
38 06-82-5316 8-32 x 1/2" Pan Hd. Slt. Taptite T-20 (4)
39 38-50-5212 Spindle (1)
40 28-50-0350 Housing (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
41 43-44-1080 Gasket (1)
42 31-12-0205 Cap (1)
43 40-50-0205 Spring (1)
44 40-50-8650 Coil Spring (1)
45 34-40-4300 O-Ring (1)
46 44-60-0845 Lock Pin (1)
47 40-50-0210 Spring (1)
49 42-09-0250 Tension Arm (1)
50 42-09-0260 1/2" Contact Arm Assembly (1)
51 42-92-1200 Dust Cover (1)
52 43-12-0100 Drive Wheel (1)
53 43-54-0615 Cover (1)
55 43-98-0700 Knob (1)
56 05-55-0116 Nut (1)
57 45-04-0015 Clamp Screw (1)
58 45-60-0450 Support Rod (1)
63 44-66-5518 1/2" Platen (Pkg. of 10 - Cut to length) (1)
70 23-16-1670 Commutator Insulator (1)
71 14-46-0975 BandleHeadAssembly (1)
FIG. LUBRICATION
29 1/4 Oz. "Y" Grease, No. 49-08-5270.
FIG. NOTES:
26 Torque To 45 In./Lbs.
11 32 40 43 47 49 50
51 52 53 55 56 57 58
71
WIRING INSTRUCTION
REVISED BULLETIN DATE
SERVICE PARTS LIST
6101-6 878F
BULLETIN NO.
54-38-0830
Dec. 2023
58-01-0309
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #)
0
00
CATALOG NO.
Heavy Duty BANDFILE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
54-38-0827
SERIAL NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 4
