aosu
Wireless Security Camera
＿
Quick Start Guide
G United States:+ 1-866-905-9950 Mon-Fri 9AM-5PM (PST}
United Kingdom: +44-20-3885-0830 Mon-Fri 9AM-5PM (GMT}
Germany: +49-32-221094692 Mon-Fri 9AM-5PM (CET}
Japan: +81-SO-S840-2601 Mon-Fri 9AM-5PM (JST)
e [email protected] 。www.aosulife.com O @aosulife
AOSUCare
Hi Customer
Thank you for choosing AOSU security products. We have always put
OU「customers first and foremost.
There are 3 things you should know before using this product:
1. Micro SD Card
If you don't have a Micro SD Card available at home now and don't
want to spend extra time choosing one, please contact us directly.
TIP: the Micro SD Card goa be formated after inserting it up.
2. Select 2.4G Wi-Fi
The product only supports 2.4G Wi-Fi, please select 2.4G Wi-Fi when
setting up the app.
3. Select installation location.
Please use your mobile phone to test the coverage of the home
Wi-Fi signal at the planned installation position before installation
,
so that the product can receive a bette「signal.
Get all the tutorial videos of using product including but no limit to
set up
the
app,
installation and format micro sd card, visit:
aosulife.com
」oin "AOSUCare" today as three ways below to get all of your
problems solved by one-on-one live chat and phone service tech
support.
@ United States: +1-866-905-9950 Mon-Fri 9AM-5PM (PST)
United Kingdom: +44-20-3885-0830 Mon-Fri 9AM-5PM (GMT)
Ge『many: +49-32-221094692 Mon-Fri 9AM-5PM (CET)
Japan: +81-50-5840-2601 Mon-Fri 9AM-5PM (」ST)
@ www.aosulife.com
o @aosulife e [email protected]
TABLE OF CONTENTS
01 What's Included
POl
02 Product Overview
P02
03 Setting Up the System
P03
04 Mounting the Camera
P04-07
05
Notice
P08-P09
06 Customer Service
PlO
What's Included
产
[
•0� 血
，
J
｀
[\\\>0 � 吐
年
止心
它
，
[\\S=�丘)
c,,,,,,,,,,,,,,,,,,.o� 立�王)
Camera
Screw Pack
USB-C Charging
Cable
。
曰
三
Position Sticker
Security Sticker
Quick Start Guide
—
01
—
Product Overview
Lens
Infrared Leds
PIR Motion Sensor
Microphone
Base bracket
Spotlights
Power
Type七port
SD Card Slot
Reset button
CAUTION: Please insert the Micro SD Card according to the direction
shown in the diagram. Micro SD Card might JAM if inserted
incorrectly and device could be damaged.
SD Card Port: Support Micro SD Card for local storage (Max 512GB).
Reset button: Press and hold the button for 3 seconds, and then the
device will be ready to be connected.
Card capacity requirements: 8-512GB.
Read and write speed requirements: class1 O level.
File format: FAT32.
—
02
—

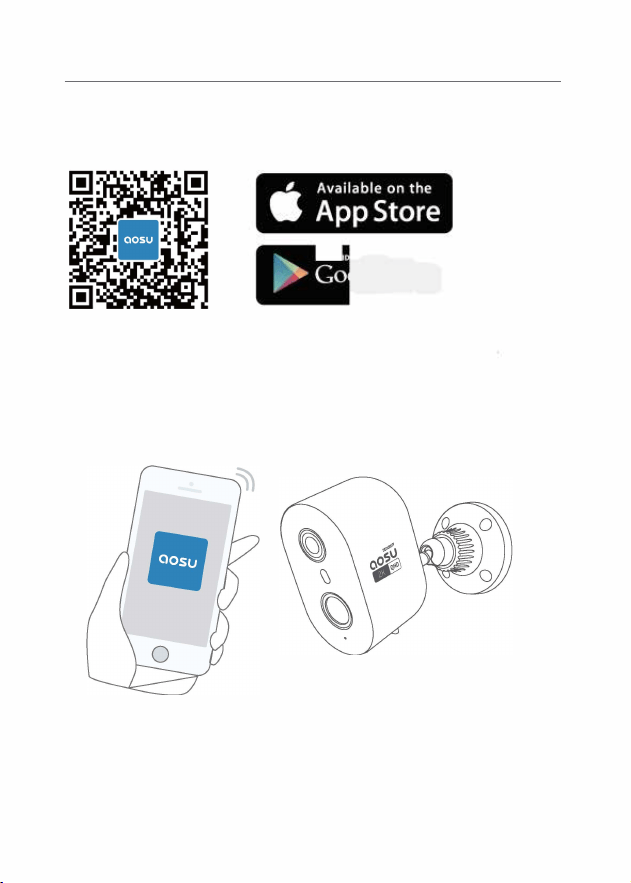

Setting Up the System
Download the Aosu App from the App Store (iOS devices) or
Google Play (Android devices).
1
Sign up for an Aosu App account, then follow the onscreen
instructions to complete the setup.
—
03
—
Mounting the Camera
Find a Good Mounting Spot
To find a spot to mount Camera, you need to test wireless
signal strength.
Open the Aosu A
pp, go to Camera Settings> Mounting
Guide.
@To test the wireless signal strength, take your camera and
phone to the location where you want to mount the camera.
®Move the camera as close to the Wi-Fi Router as possible to
get a better signal.
,,.,
"''一
Camara1
X
Test Signal
T扯""叩飘,_出心心心'心"'�
仰-�,.,-,.,鲁�·咖,,中配"""
"'""''"心.,心.,_,..,,心l
会
G,ea<
_,,�� 氓 s,飞叩h
O 沁<k>也闷··-··-·
—
04
—

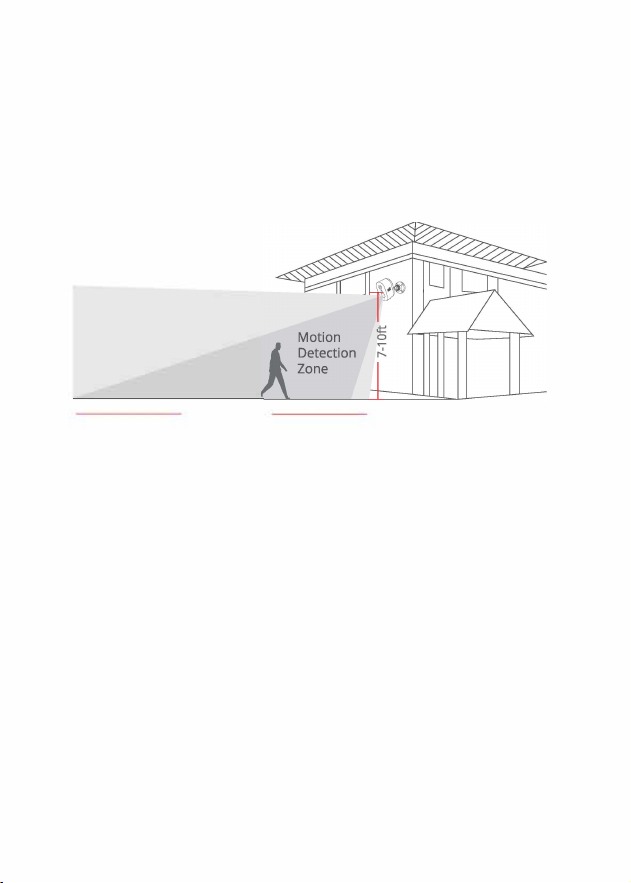

Select Height and Location
Hang AOSUCam 7-1 Oft (78-118 inches) above the ground. This
height maximizes the detection range of the motion sensor of
AOSUCam. oid placing AOSUCam under direct sunlight.
Camera field
of view
I Up to 32 I
—
05
—

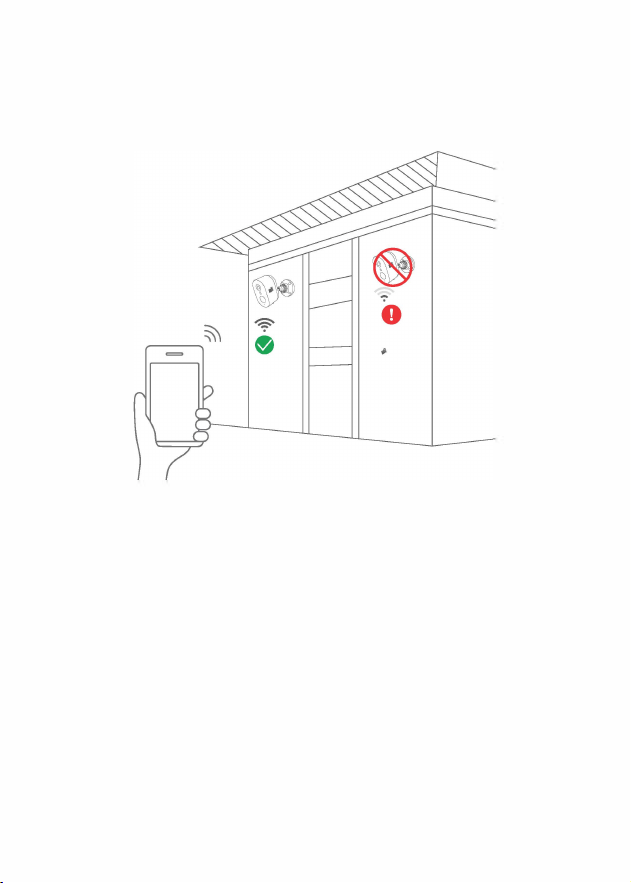

Test the Wi-Fi signal at installation position
Use cell phone to test Wi-Fi signal quality at the installation position
before installing camera, make sure the Wi-Fi router can provide good
Wi-Fi signal.
—
06
—
Installation
1. Drilling according to position sticker, drill bit: 15/64"(6 mm).
2. Insert the plugs.
3. Tighten the screws.
What is required:
Sticker
Wall
—
07
—
Screw
Camera
Notice
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is
sub」ect to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications not expressly approved by
the party responsible for compliance could void the user's
authority to operate the equipment. Note: This equipment has
been tested and f
o
und to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency
ener窃and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communi
cations. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on,
the user is encouraged to try to correct the interference by one
or more of the f
o
llowing measures: (1) Reorient or relocate the
receiving antenna. (2) Increase the separation between the
equipment and receiver. (3) Connect the equipment into an
outlet on a circuit dierent from that to which the receiver is
connected. (4) Consult the dealer or an experienced radio/ TV
technician for help.
FCC Radio Frequency Exposure Statement
The device has been evaluated to meet general RF exposure
requirements.
The device can be used in fixed/mobile exposure condition. The
min separation distance is 20cm.
—
08
—
(E T
his product complies with the radio inteerence
requirements of the European Community.
Declaration of Conformi
Hereby, Aosu declares that this device is in compliance with the
essential requirements and other relevant provisions of Directive
2014/53/EU.
For the declaration of conformit
y
, visit the Web site:https://www.aosu
life.com.
This product can be used across EU member states.
Do not use the Device in the environment at too high or too low
temperature, never expose the Device under strong sunshine or too
wet environment.
The suitable temperature for Camera and accessories is -10
°
(-5守C.
RF exposure information: The Maximum Permissible Exposure (MPE)
level has been calculated based on a distance of d=20 cm between
the device and the human body. To maintain compliance with RF
exposure requirement, use product that maintain a 20cm distance
between the device and human body.
For Camera : Wi-Fi Operating Frequency Range: 24 l 2-2472MHz; Wi-Fi
Max Output Power: l 7.l 3dBm(EIRP)
卒 This product is designed and manufactured with high
屯 quality materials and components, which can be recycled
and reused.
冗三：三三勹���三0�
。
三；��三三三三���;;�i
recycling helps protect natural resources, human health and
-
th
e environment. For more information on disposal and
recycling of this product, contact your Local municipalit
y
,
disposal seice, or the shop where you bought this
product.
—
09
—
Customer Service
Waan
12-month limited warranty (The actual warranty period shall be
implemented according to the requirements of local laws and
regulations)
Email Us
Customer Support: [email protected]
Call Us
United States: + 1-866-905-9950 Mon-F『i 9AM-5PM (PST}
United Kingdom: +44-20-3885-0830 Mon-Fri 9AM-5PM (GMT}
Germany: 49-32-221094692 Mon-Fri 9AM-SPM (CET}
Japan: +81-50-5840-2601 Mon-Fri 9AM-5PM (」ST)
