BS9304001 OVEN USER MANUAL
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
2
CONTENTS
4 Safety information
7 Product description
9 Before first use
10 Control panel
11 Daily use
16 Clock functions
17 Automatic programmes
19 Using the accessories
20 Additional functions
22 Helpful hints and tips
22 Care and cleaning
26 What to do if…
27 Installation
29 Environment concerns
29 Warranty
The following symbols are used in this user
manual:
Important information concerning your
personal safety and information on how to
avoid damaging the appliance.
General information and tips
Environmental information
Subject to change without notice
Contents
3
SAFETY INFORMATION
Before the installation and use, read this manual carefully:
• For your personal safety and the safety of your property
• For the respect of the environment
• For the correct operation of the appliance.
Always keep these instructions with the appliance also if you move or sell it.
The manufacturer is not responsible if incorrect installation or use results in damage.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in safe
way and understand the hazards involved. Children shall not play with the appliance.
• Keep all packaging away from children. There is the risk of suffocation or physical injury.
• WARNING: Keep children and animals away from the appliance when the door is open
or the appliance is in the operation, because it becomes hot. There is the risk of injury or
other permanent disability.
• If the appliance has Child Lock or Key Lock (Control Lock) function, use it. It prevents
children and animals from accidental operation of the appliance.
General safety
• Do not change the specifications of this appliance. There is the risk of injury and damage
to the appliance.
• Do not let the appliance stay unattended during operation.
• Switch off the appliance after each use.
Installation
• Only an approved electrician can install and connect the appliance. Contact an approved
service centre. This is to prevent the risks of structural damage or physical injury.
• Make sure that the appliance is not damaged because of transport. Do not connect a
damaged appliance. If necessary, contact the supplier.
• Remove all packaging, stickers and layers from the appliance before first use. Do not re-
move the rating plate. It can invalidate the guarantee.
• Make sure that the appliance is disconnected from the power supply during the installa-
tion.
• Be careful when you move the appliance. The appliance is heavy. Always use safety
gloves. Do not lift the appliance by the handle.
• The electrical installation must have an isolation device which lets you disconnect the
appliance from the mains at all poles. The isolation device must have a contact opening
width of minimum 3 mm.
• You must have correct isolation devices: line protecting cut-outs, fuses (screw type fuses
removed from the holder), earth leakage trips and contactors.
4 Safety information
• Before the installation, make sure that the kitchen cabinet has the recess dimensions ap-
plicable.
• Make sure that the appliance is installed below and adjacent safe structures.
• Keep the minimum distances to the other appliances and units.
• The appliance cannot be positioned on a base.
• Built in ovens and built in cooking surfaces are attached with special connection system.
To prevent damage to the appliance, only use an appliance with the appliances from the
same manufacturer.
Electrical connection
• The appliance must be earthed.
• Make sure that the electrical data on the rating plate agree with your domestic power
supply.
• Information on the voltage is on the rating plate.
• Always use a correctly installed shockproof socket.
• Do not use multi-way plugs, connectors and extension cables. There is the risk of fire.
• Do not replace or change the mains cable. Contact the service centre.
• Make sure not to squash or cause damage to the mains plug (if applicable) and cable
behind the appliance.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug – if
applicable.
Use
• The appliance is only for domestic use. Do not use the appliance for commercial and in-
dustrial use.
• Only use the appliance for domestic cooking tasks. This is to prevent physical injury to
persons or prevent damage to property.
• Do not use the appliance as a work surface or storage surface.
• The interior of the appliance becomes hot during use. There is the risk of burns. Do not
touch the heating elements in the appliance. Use gloves when you insert or remove the
accessories or pots.
• Be careful when you remove or install the accessories to prevent damage to the oven
enamel.
• Always stay away from the appliance when you open the door while the appliance is in
operation. Hot steam can release. There is the risk of skin burns.
• To prevent damage or discoloration to the enamel:
– Do not put any objects directly on the appliance floor and do not cover it with alumi-
nium foil.
– Do not put water directly into the hot appliance.
– Do not keep moist dishes and food in the appliance after you finish the cooking.
• Discoloration of the enamel has no effect on the performance of the appliance so it is
not a defect in the sense of the warranty law.
• Do not apply pressure on the open door.
Safety information
5
• Always close the appliance door when you cook, even while grilling.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the appliance from the
power supply.
• Before maintenance, make sure that the appliance is cold. There is the risk of burns.
There is the risk that the glass panels can break.
• Keep the appliance clean at all times. A build-up of fats or other foodstuff can result in a
fire.
• Regular cleaning prevents the surface material from deteriorating
• Use a deep baking tray for very moist cakes to prevent that fruit juices cause stains that
can be permanent.
• For your personal safety and the safety of your property, only clean the appliance with
water and a soap. Do not use flammable products or products that can cause corrosion.
• Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects,
abrasive cleaning agents, abrasive sponges and stain removers
• If you use an oven spray, follow the instructions from the manufacturer.
• Do not clean the glass door with abrasive cleaning agents or metal scraper. Heat resist-
ant surface of the inner glass can break and shatter.
• When the door glass panels are damaged they become weak and can break. You must
replace them. Contact the service centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Do not clean catalytic enamel (if applicable).
Risk of fire
• Open the door carefully. The use of ingredients with alcohol can cause a mixture of alco-
hol and air. There is the risk of fire.
• Do not let sparks or open flames come near the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products, and/or
fusible objects (made of plastic or aluminium) in, near or on the appliance.
Steam cooking
• Do not open the oven door during Steam cooking. Steam can release. There is the risk of
skin burns. There is the risk that steam causes moisture damage to units.
Oven lamp
• The type of light bulb or halogen lamp used for this appliance is only for household ap-
pliances. Do not use it for house lighting.
• If it becomes necessary to replace the lamp, use one of the same power and specifically
designed for household appliances only.
• Disconnect the appliance from the power supply before the replacement of the oven
lamp. There is the risk of electrical shock.
6 Safety information
Service centre
• Only an approved engineer can repair or work on the appliance. Contact an approved
service centre.
• Use only original spare parts.
Disposal of the appliance
• To prevent the risk of physical injury or damage
– Disconnect the appliance from the power supply.
– Cut off the mains cable and discard it.
– Discard the door catch. This prevents children or small animals from being closed in-
side of the appliance. There is the risk of suffocation.
PRODUCT DESCRIPTION

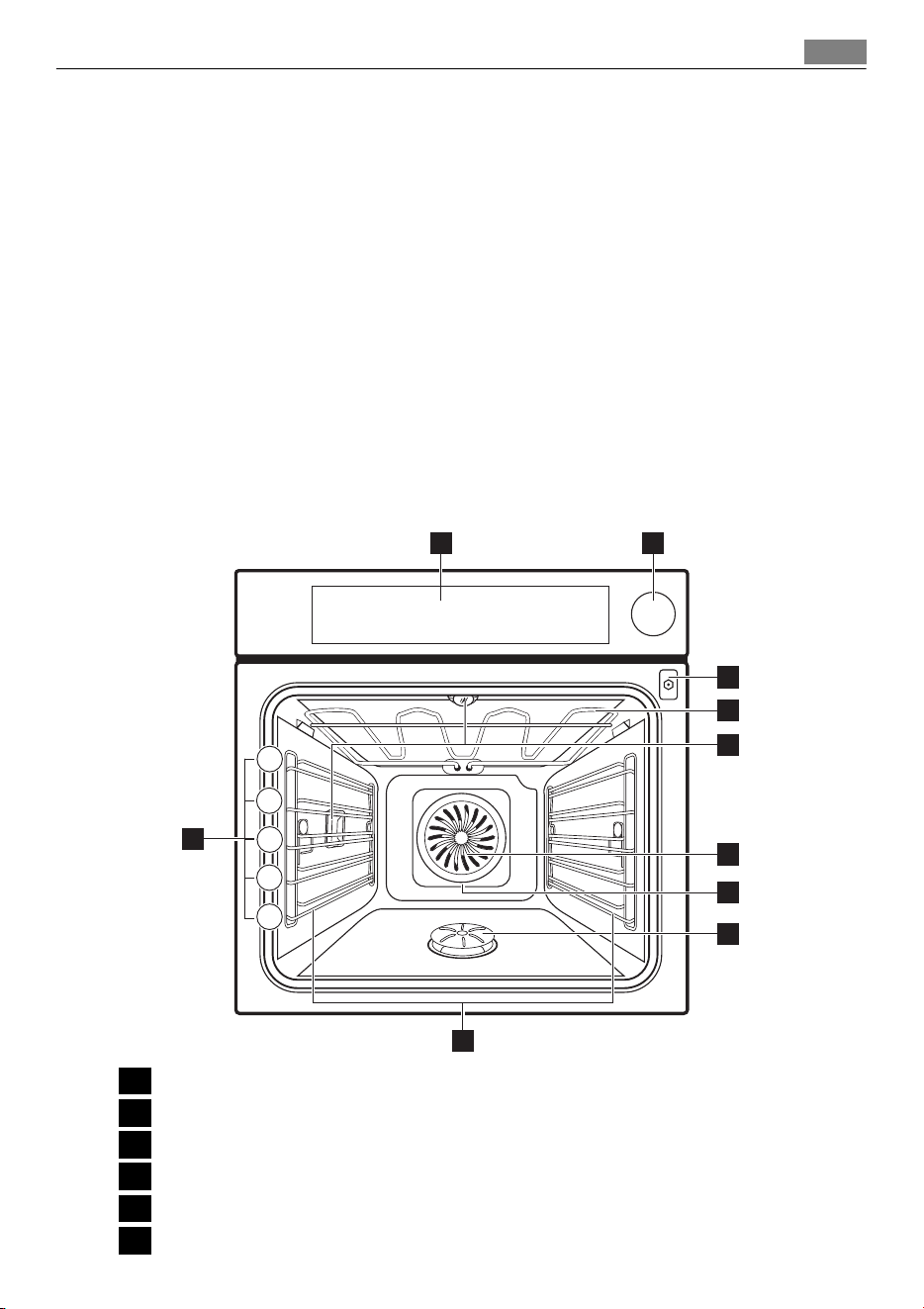

General overview
1
10
4
3
5
6
8
9
5
4
3
2
1
7
2
1
Control panel
2
Water drawer
3
Socket for the core temperature sensor
4
Heating element
5
Oven lamp
6
Fan
Product description
7
7
Rear wall heating element
8
Steam generator
9
Shelf support, removable
10
Shelf positions

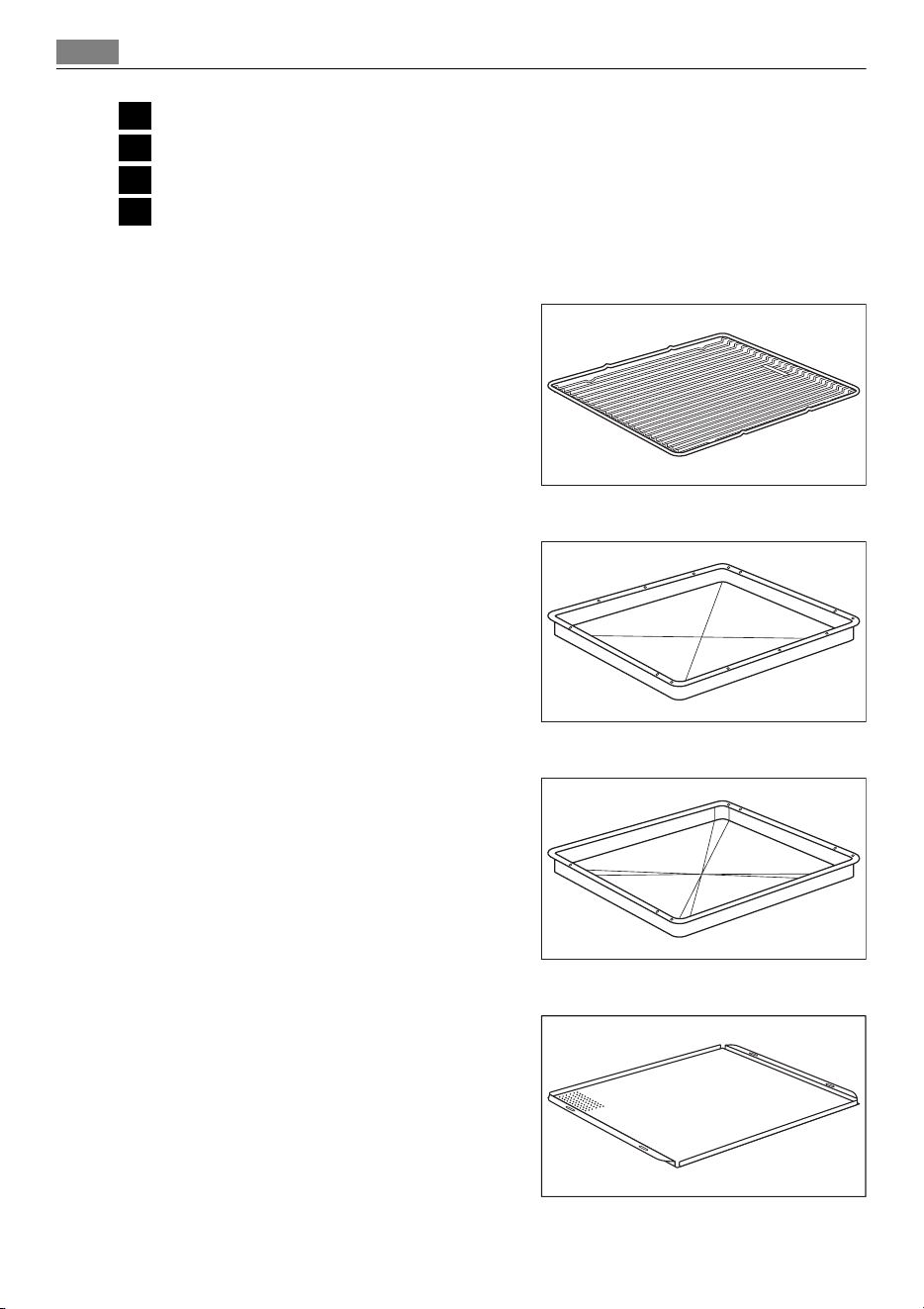

Accessories
• Wire shelf
For cookware, cake tins, roasts.
• Baking tray
For cakes and biscuits.
• Grill / roasting pan
To bake and roast or as pan to collect fat.
• Patisserie tray
For rolls, brezels and small pastries.
Suitable for steam functions. Discoloration
of the surface has no effect on function.
8 Product description
• Sponge
For absorbing residual water from the steam
generator.

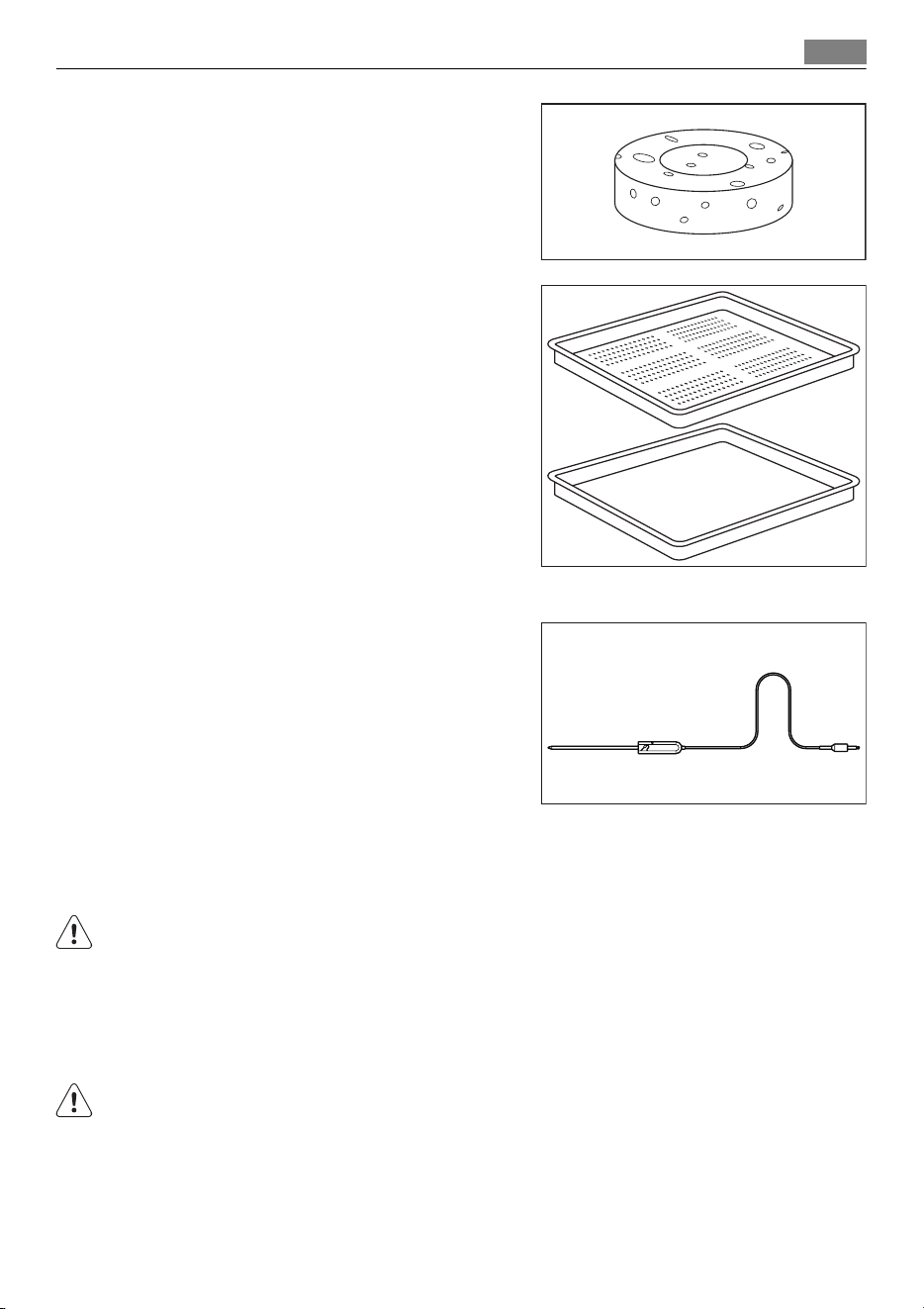

• Steam set
One unperforated and one perforated food
container.
The steam set drains the condensing water
away from the food during steam cooking.
Use it to prepare food that should not be in
the water during the cooking (e.g. vegeta-
bles, pieces of fish, chicken breast). The set is
not suitable for food that needs to soak in
the water (e.g. rice, polenta, pasta).
• Core Temperature Sensor
To measure how far the food is cooked.
BEFORE FIRST USE
WARNING!
Refer to "Safety information" chapter.
Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
CAUTION!
Do not use abrasive cleaning agents! This can damage the surface. Refer to chapter "Care
and Cleaning".
Before first use 9
First Connection
When you connect the appliance to the mains or after the power cut, you have to set the
language, display contrast, display brightness and time of the day. Use the shuttle to set the
value. Press OK to confirm.
CONTROL PANEL
Control Panel
Electronic programmer
1 2 3 4 5 6 7 8 9
Use the sensor fields to operate the appliance
Num-
ber
Sen-
sor
field
Function Comment
1
-
Display Shows the current settings of the appli-
ance.
2
On/off To activate and deactivate the appli-
ance.
3
OK and Shuttle To confirm the selection or setting. Ro-
tate the shuttle to navigate.
4
Home Key To show the main menu.
5
Time and additional functions To set different functions. When a heat-
ing function operates, touch the sensor
field to set the timer, Child Safety, Fa-
vourite Programme memory, Heat +
Hold , Set + Go , or to change the set-
tings of the Core Temperature Sensor.
6
Heating Functions or Assisted Cooking To choose a heating function, touch the
sensor field once. To choose the Assisted
Cooking function, touch it twice. To ac-
tivate or deactivate the light, touch the
field for 3 seconds.
10 Control panel
Num-
ber
Sen-
sor
field
Function Comment
7
Temperature selection To set the temperature or show the cur-
rent temperature in the appliance. To
activate or deactivate the Fast Heat Up
function, touch the field for 3 seconds.
8
Minute Minder To set the Minute Minder.
9
Favourite Programme To view your favourite programmes.
Display
123
45
1
Heating function
2
Shows the current time
3
Heat-up indicator
4
Temperature
5
Shows duration time or end time of a
function
Other indicators of display
Symbol Function
Minute Minder The function is active.
Time Shows the current time.
Duration Shows the time required for the cooking cycle.
End Time Shows when the cooking cycle ends.
Time Indication Shows how long the heating function operates.
Heat-up indicator Indicates the temperature level in the cavity. The display
shows it also when you deactivate the appliance and the
cavity is still warm.
Fast Heat Up indicator The function is active. It decreases the heat up time.
Weight Automatic The display shows that the automatic weight system is ac-
tive or that weight can be changed.
Heat + Hold The function is active.
DAILY USE
WARNING!
Refer to "Safety information" chapter.
Daily use
11
The menus in overview
Main menu
Symbol Menu item Application
Heating Functions Contains a list of heating functions.
Assisted Cooking
Contains a list of automatic cooking pro-
grammes.
Steam Cleaning Procedure for cleaning with steam.
Basic Settings Contains a list of other settings.
Favourite Programme
Contains a list of favourite cooking pro-
grammes stored by user.
Refer to Recipe Book for Assisted Cooking menu listing.
Submenus for: Basic Settings
Sy
m
bol
Submenu Description
Set Time of Day Sets the current time on the clock.
Time Indication
When ON, the display shows the current time
when you deactivate the appliance.
SET + GO
When ON, you can activate the functions
when you activate the heating function.
Heat + Hold
When ON, you can activate this function
when you activate the heating function.
Extra time Activates and deactivates the function.
Display Contrast Adjusts display contrast by degrees.
Display Brightness Adjusts display brightness by degrees.
Set Language Sets the language for the display.
Buzzer Volume
Adjusts volume of press- tones and signals by
degrees.
Key Tones
Activates and deactivates the tone of the
touch fields.
Alarm/Error Tones Activates and deactivates the alarm tones.
Cleaning Assistant Guides you through the cleaning procedure.
Service
Shows the software version and configura-
tion.
12 Daily use
Sy
m
bol
Submenu Description
Factory Settings Resets all settings to factory settings.
Favourite Programme : you can save 20 programs.
Heating functions
Submenu for: Heating Functions
heating function Application
Full Steam For vegetables, fish, potatoes, rice, pasta or special
side-dishes.
Half Steam + Heat For dishes with a high moisture content and for
poaching fish, custard royale and terrines.
Quarter Steam + Heat To bake bread, roast large pieces of meat or to warm
up chilled and frozen meals.
Eco Steam ECO functions let you to optimize the energy con-
sumption during cooking. Thus it is necessary to set
the cooking time first. To get more information about
the recommended settings, refer to the cooking ta-
bles with the equivalent usual heating function.
Moist Fan Baking For energy-saving baking and cooking of mainly dry
bakery items as well as for baking in tins on one shelf
position.
True Fan Cooking For baking on up to three levels at the same time. Set
the temperatures 20-40 °C lower than when using
Conventional cooking .
Pizza Setting For baking on one level dishes that require more in-
tensive browning and a crispy base. Set the tempera-
tures 20-40 °C lower than when using conventional.
Slow Cook For preparing especially tender, succulent roasts.
Conventional Cooking For baking and roasting on one level
Frozen Foods To make your convenience food like e.g. French Fries,
Wedges, spring rolls crispy.
Turbo Grilling To roast larger meat joints or poultry with bones on
one shelf position. Also to gratinate and to brown.
Fast Grilling To grill flat food in large quantities. To toast bread.
Daily use 13
heating function Application
Grilling To grill flat food in the middle of the grill. To toast
bread.
Keep Warm To keep food warm.
Defrost To defrost frozen food.
Bottom Heat For baking cakes with crispy or crusty bases and to
preserve food.
Dough Proving For controlled rising of yeast dough before baking.
Bread Baking To bake bread.
Au Gratin For dishes like lasagna or potato gratin. Also to grati-
nate and brown.
Preserving To preserve vegetables e.g. mixed prickels in glasses
and liquid.
Drying For drying of sliced fruits like apples, plums, peaches
and vegetables as tomatoes, zucchini or mushrooms.
Plate Warming To preheat your plate for serving.
Steam Reheating To reheat your already cooked food directly on a
plate.
Eco Roasting ECO functions let you to optimize the energy con-
sumption during cooking. Thus it is necessary to set
the cooking time first. To get more information about
the recommended settings, refer to the cooking ta-
bles with the equivalent usual heating function.
Navigating the menus
Operation of the menus:
1. Activate the appliance.
2. Rotate the shuttle clockwise or counterclockwise to select the menu option.
3. Press OK to move to submenu or accept the setting.
At any time you can get back to the main menu with
.
Activating a heating function
1. Activate the appliance.
2. Select the Heating Functions menu. Press OK to confirm.
3. Set the heating function. Press OK to confirm.
14 Daily use
4. Set the temperature. Press OK to confirm.
Press to go directly to the Heating Functions menu. You can also use it when the appli-
ance is deactivated.
Steam cooking
The water drawer cover is in the control panel.
1. Fill the water drawer with 800 ml of water.
The water supply is sufficient for approximately 50 minutes.
CAUTION!
Do not put water directly in the steam generator!
Use only water as the liquid. Do not use filtered (demineralised) or distilled water.
2. Activate the appliance.
3. Set the steam heating function and temperature.
4. If necessary, set the function Duration
or End Time .
The first steam shows after approximately 2 minutes. When the appliance reaches set
temperature an acoustic signal sounds.
The signal sounds again at the end of the cooking time or when water finishes.
5. Deactivate the appliance.
When the water drawer has been emptied, an acoustic signal sounds.
When the appliance has cooled down, soak up all remaining water from the steam genera-
tor with the Sponge. If necessary, clean the steam generator with some vinegar.
Let the appliance dry fully with the door open.
Heat-up indicator
When you activate an heating function, the bar on the display comes on. The bar shows
that the temperature increases.
Fast Heat Up indicator
This function decreases the heat-up time. To activate the function hold for 3 seconds.
You will see the heat-up indicator alternates.
Residual heat indicator
When you deactivate the appliance, the display shows the residual heat. You can use the
heat to keep the food warm.
Daily use
15
Energy saving
The appliance has some features that help you save energy during everyday cooking:
• Residual heat:
– the heating function or programme operates: the heating elements are deactivated
10% time earlier (the lamp and fan continue to operate). The condition: the cooking
time is longer than 30 minutes or you use the clock functions (Duration, End Time).
– the appliance is deactivated: you can use the heat to keep the food warm. The display
shows the remaining temperature, the bars show the decreasing temperature.
• Deactivate the lamp - touch and hold
for 3 seconds to deactivate the lamp during
cooking.
• Eco functions - refer to section "Heating Functions" (for selected models only).
CLOCK FUNCTIONS
Timer functions
Symbol Function Description
Minute Minder
To set a countdown (max 2 hours 30 minutes). This function has
no effect on the operation of the appliance. You can also acti-
vate it in off state. Use
to activate the function. Use the
shuttle to set the minutes and OK to start.
Duration
To set how long the appliance has to be in operation (max. 23 h
59 min).
End Time
To set the switch-off time for an heating function (max. 23 h
59 min).
You can use Duration and End Time at the same time, if you want to automatically activate
and deactivate the appliance on a given time later.
If you set the time for a clock function, the time starts to count down after 5 seconds.
If you use the clock functions Duration and End Time, the appliance deactivates the heating
elements after 90% of the set time. The appliance uses the residual heat to continue the
cooking process until the time ends (3-20 minutes).
Setting the Duration and End Time
1. Set the heating function.
2. Press
again and again until the display shows the necessary clock function and the
related symbol.
3. Use the shuttle to set the necessary time. Press OK to confirm.
After 90% of the set time, an acoustic signal sounds. The appliance deactivates. The
display shows a message.
4. Press a sensor field or open the door to stop the signal.
With Duration and End Time the appliance deactivates automatically.
16 Clock functions
With Duration and End Time you must set the heating function and the temperature first.
Then you can set the clock function.
When you use the Core Temperature Sensor, Duration and End Time do not work.
Heat + Hold
You can activate or deactivate the function in the Basic Settings menu.
The Heat + Hold function keeps prepared food warm at 80°C for 30 minutes. It activates
after the baking or roasting procedure ends.
Conditions for the function:
• The set temperature is more than 80°C.
• The function Duration is set.
Activating the function
1. Activate the appliance.
2. Select the heating function.
3. Set the temperature above 80°C.
4. Press
again and again until the display shows Heat + Hold . Press OK to confirm.
When the function ends, an acoustic signal sounds.
The Heat + Hold function operates for 30 minutes.
The Heat + Hold function stays on if you change the heating functions.
Extra Time
The Extra Time makes the heating function continue after the Duration ends.
• Applicable for all heating functions with Duration or Weight Automatic.
• Not applicable for heating functions with Core Temperature Sensor.
Activating the function:
1. When the cooking time ends, an acoustic signal sounds. Press any sensor field.
2. The display shows the message for Extra Time for five minutes.
3. Press
to activate (or to cancel).
4. Set the Extra Time period. Press OK to confirm.
AUTOMATIC PROGRAMMES
WARNING!
Refer to "Safety information" chapter.
Assisted Cooking with Recipe Automatic
This appliance has a set of recipes you can use. Recipes are fixed and you cannot change
them.
Automatic programmes
17
Activating the function:
1. Activate the appliance.
2. Select the Assisted Cooking menu. Press OK to confirm.
3. Select the category and dish. Press OK to confirm.
4. Select Recipe Automatic . Press OK to confirm.
When you use the Manual function, the appliance uses automatic settings. You can change
them as with other functions.
Assisted Cooking with Weight Automatic
This function calculates automatically the roasting time. To use, it you need to input the
food weight.
Activating the function:
1. Activate the appliance.
2. Select Assisted Cooking . Press OK to confirm.
3. Select the category and dish. Press OK to confirm.
4. Select Weight Automatic . Press OK to confirm.
5. Use the shuttle to set the food weight. Press OK to confirm.
The automatic programme starts. You can change the weight at any time. Use the shuttle
to change the weight. When the time ends, an acoustic signal sounds. Press a sensor field
to deactivate the signal.
With some programmes, turn over the food after 30 minutes. The display shows a reminder.
Favourite Programme
You can store your favourite settings like duration, temperature or heating function. They
are available in the Favourite Programme menu. You can store 20 programmes.
Storing a programme
1. Activate the appliance.
2. Select the heating function or the Assisted Cooking function.
3. Press
again and again until the display shows " SAVE ". Press OK to confirm.
4. The display shows the first empty memory position.
Press OK to confirm.
5. The first letter flashes.
Use the shuttle to change the letter. Press OK.
6. Turn the selector to move the cursor to the right or to the left. Press OK.
The letter flashes.
7. Repeat steps 5 and 6 again to write the name of the programme.
Press and hold OK to save.
Press and hold for 3 seconds to save the current programme in Favourite Programme
18 Automatic programmes
You can overwrite a memory position. Refer to section „Storing a programme“. At step 4
use the shuttle to overwrite an existing programme.
You can change the name of a programme in the menu “Edit Programme Name”.
Activating the programme
1. Activate the appliance.
2. Select the Favourite Programme menu. Press OK to confirm.
3. Select your favourite programme name. Press OK to confirm.
Press to go to Favourite Programme directly, also from the off state.
USING THE ACCESSORIES
WARNING!
Refer to "Safety information" chapter.
Core temperature sensor
The core temperature sensor measures the core temperature of the meat. When the meat
reaches the set temperature, the appliance deactivates automatically.
You have to set:
• The appliance temperature
• The core temperature
Use only original parts. It ensures the best cooking result.
Using the core temperature sensor:
1. Put the tip of the core temperature sensor into the centre of the meat.
2. Activate the appliance.
3. Put the plug of the core temperature sensor into the socket on the right-upper side of
the cavity front.
The display shows the core temperature sensor.
4. Use the shuttle in less than 5 seconds to set the core temperature.
5. Set the heating function and, if necessary, the temperature.
The appliance calculates an approximate end time. The end time varies for different
quantities of food, the set temperatures (minimum 120°C) and the operating modes.
The appliance calculates the end time in approximately 30 minutes.
The core temperature sensor must stay in the meat and in the socket during the cooking
process.
6. When the meat reaches the set core temperature, an acoustic signal sounds. The appli-
ance deactivates automatically.
Use any key to stop the signal.
Using the accessories
19
7. Remove the core temperature sensor plug from the socket and remove the meat from
the appliance.
To change the core temperature, press .
WARNING!
The core temperature sensor is hot! There is a risk of burns! Be careful when you remove
the tip and the plug of the core temperature sensor.
Inserting the Oven Accessories
The deep pan and the wire shelf have side edges.
These edges and the shape of the guide-bars cau-
ses the anti-tilt safety for the oven accessories.
Inserting the wire shelf and the deep pan to-
gether
Put the wire shelf on the deep pan. Push the deep
pan between the guide-bars of one of the shelf
positions.
ADDITIONAL FUNCTIONS
Control Lock
The Control Lock prevents an accidental change of the heating function. You can activate
the Control Lock only when the appliance operates.
Activating the Control Lock :
1. Activate the appliance.
2. Set the heating function or setting.
3. Press
again and again until the display shows Control Lock.
4. Press OK to confirm.
20 Additional functions
If the appliance has the Pyrolytic cleaning function, the door is locked.
Deactivating the Control Lock :
1. Press
.
2. Press OK to confirm.
Child Lock
The Child Lock function prevents an accidental operation of the appliance.
Activating and deactivating the Child Lock function:
1. Activate the appliance.
2. Touch
and at the same time until the display shows a message.
If the appliance has the Pyrolytic cleaning function, the door is locked.
A message comes on in the display when you turn the shuttle or touch a sensor field.
SET + GO
The SET + GO function lets you set a heating function (or programme) and use it later with
one press of the sensor field.
Activating the function:
1. Activate the appliance.
2. Set the heating function.
3. Press
again and again until the display shows Duration .
4. Set the time.
5. Press
again and again until the display shows SET + GO .
6. Press OK to confirm.
To start SET + GO, press any sensor field (except for
). The set heating function starts.
When the heating function ends, an acoustic signal sounds.
When the heating function operates, the function Control Lock is on.
You can activate and deactivate the SET + GO function in the Basic Settings menu.
Automatic switch-off
For safety reasons the appliance deactivates automatically after some time:
• if an heating function operates.
• if you do not change the temperature.
Appliance temperature Switch-off time
30 °C -120 °C 12.5 h.
120 °C - 200 °C 8.5 h.
200 °C -230 °C 5.5 h.
Additional functions 21
The Automatic switch-off works with all heating functions, except Light , Core Temperature
Sensor, Duration , End Time .
Cooling fan
When the appliance operates, the cooling fan activates automatically to keep the surfaces
of the appliance cool. If you deactivate the appliance, the cooling fan can continue to oper-
ate until the appliance cools down.
HELPFUL HINTS AND TIPS
Inner side of door
In some models on the inner side of the door you can find:
• the numbers of the shelf positions (selected models)
• information about the heating functions, recommended shelf positions and tempera-
tures for typical dishes (selected models).
The temperature and baking times in the tables are guidelines only. They depend on the
recipes, quality and quantity of the ingredients used.
Information on acrylamides
Important! According to the newest scientific knowledge, if you brown food (specially the
one which contains starch), acrylamides can pose a health risk. Thus, we recommend that
you cook at the lowest temperatures and do not brown food too much.
CARE AND CLEANING
WARNING!
Refer to "Safety information" chapter.
Notes on cleaning:
• Clean the front of the appliance with a soft cloth with warm water and cleaning agent.
• To clean metal surfaces use a usual cleaning agent.
• Clean the appliance interior after each use. Then you can remove dirt more easily and it
does not burn on.
• Clean stubborn dirt with a special oven cleaner.
• Clean all accessories (with a soft cloth with warm water and cleaning agent) after each
use and let them dry.
• If you have nonstick accessories, do not clean them using an aggressive agents, sharp
edged objects or dishwasher. It can cause a damage to the nonstick coating.
Steam generation system
CAUTION!
Dry the steam generator after each use. Soak up water with the Sponge.
22 Helpful hints and tips
Remove a limescale with water and vinegar.
CAUTION!
Chemical de-scaling agents can cause a damage to the enamel. Obey instructions of the
manufacturer!
Cleaning the Water Drawer and the Steam Generator:
1. Fill the water and vinegar mixture (approximately 250 ml) through the water drawer
in the steam generator.
Wait for approximately 10 minutes.
2. Remove the water and vinegar with the Sponge.
3. Use clean water (100-200 ml) to flush the steam generation system through the water
drawer.
4. Remove water from the steam generator with the Sponge and rub dry.
5. Keep the door open to let the appliance dry fully.
Steam Cleaning
1. Remove the worst of the residual dirt manually.
2. Pour 250ml of water with 3 tablespoons of vinegar into the steam generator.
3. Activate Steam Cleaning in the main menu. The process duration is shown in the dis-
play.
4. An acoustic signal sounds when the programme has finished. Press any button to
switch the signal off.
5. Wipe out the appliance with a soft cloth. Remove any residual water from the steam
generator.
6. Leave the appliance door open for around 1 hour. Wait until the appliance is dry.
Shelf support
You can remove the shelf support to clean the side walls.
Removing the shelf support

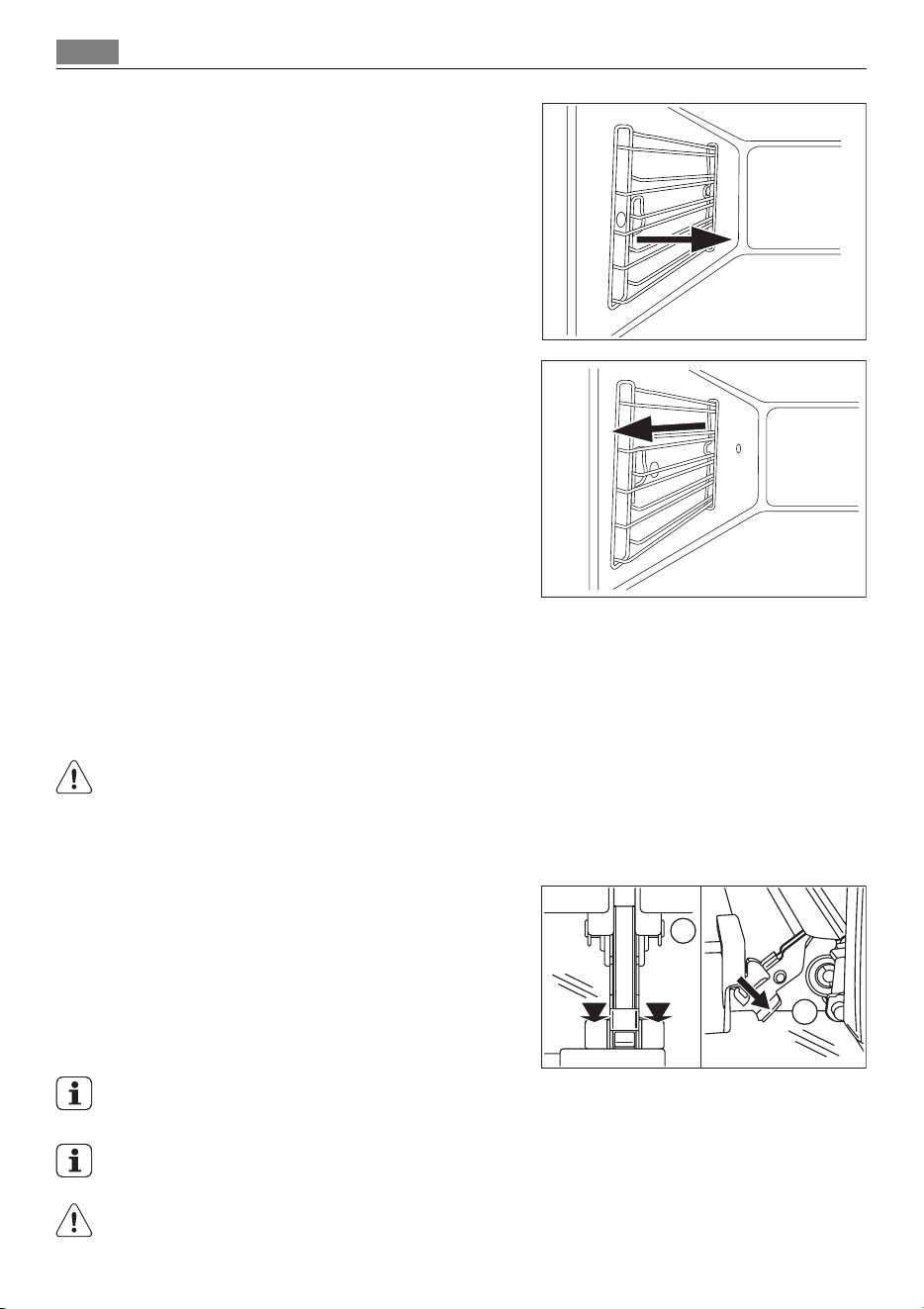

1. Carefully pull the support up and out of
the front catch.
Care and cleaning 23
2. Lightly move the support on the front
catch inwards.
3. Pull the support out of the rear catch.
Installing the shelf support
Install the shelf support in the opposite sequence.
Door and glass panels
To clean the door, remove it.
CAUTION!
Be careful when you remove the door from the appliance. The door is heavy!
Removing the door
1. Open the door as far as it goes.
2. Fully press clamping levers (A) on the
two door hinges.
3. Close the door until the first position
(angle approximately 70°).
4. Hold of the door with one hand on each
side and pull it away from the at an up
angle.
To install the door follow the procedure in
reverse.
The number of glass panels if different for the different models.
CAUTION!
Put the door with the outer side down on a soft and level surface to prevent scratches.
A
A
24 Care and cleaning
Removing and cleaning the door glass panels
1. Remove the door.
2. Hold the door trim (B) on the top edge
of the door at the two sides and push
inwards to release the clip seal.
3. Pull the door trim to the front to re-
move it.
4. Hold the door glass panels on their top
edge one by one and pull them up out
of the guide
5. Clean the door glass panels.
To install panels follow the procedure in re-
verse. Install the smaller panel first, then the
larger.
Oven lamp
WARNING!
There is a risk of electrical shock.
The oven lamp and the lamp glass cover can be hot.
Before you change the oven lamp:
• Deactivate the appliance.
• Remove the fuses from the fuse box or deactivate the circuit breaker.
CAUTION!
Put a cloth on the bottom of the interior of the appliance. It prevents damage to the lamp
glass cover and the cavity.
Replacing the lamp:
1. You can find the lamp glass cover at the cavity ceiling.
Turn the lamp glass cover counterclockwise to remove it.
2. Remove the metal ring and clean the glass cover.
3. If necessary, replace the lamp with applicable 300°C heat-resistant lamp.
Use the same lamp type.
4. Fit the metal ring to the glass cover.
5. Install the glass cover.
B
Care and cleaning 25
Replacing the oven lamp:
1. You can find the lamp glass cover at the left side of the cavity.
Remove the left shelf support.
2. Use a torx 20 screwdriver to remove the cover.
3. Remove and clean the metal frame and the seal.
4. Replace the oven lamp with applicable 300°C heat-resistant oven lamp.
Use the same oven lamp type.
5. Install metal frame and seal. Tighten screws.
6. Install the left shelf support.
WHAT TO DO IF…
WARNING!
Refer to "Safety information" chapter.
Problem Possible cause Remedy
The appliance does not
heat up.
The appliance is deactivated. Activate the appliance.
The appliance does not
heat up.
The clock is not set. Set the clock.
The appliance does not
heat up.
The necessary settings are not set. Check the settings.
The appliance does not
heat up.
The Child Lock is activated. Refer to "Deactivating the Child
Lock".
The appliance does not
heat up.
The fuse is released. Make sure that the fuse is the
cause for the malfunction. If the
fuse releases again and again, re-
fer to an authorized electrician.
The display shows F111. The CT Sensor plug is not correctly
installed into the socket.
Put the plug of core temperature
sensor as far as possible into the
socket.
The oven lamp does not
operate.
The oven lamp is defective. Refer to "Replacing the oven
lamp".
If you cannot find a solution to the problem yourself, contact your dealer or the service
centre.
The necessary data for the service centre is on the rating plate. The rating plate is on the
front frame of the appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
26 What to do if…
Serial number (S.N.) .........................................

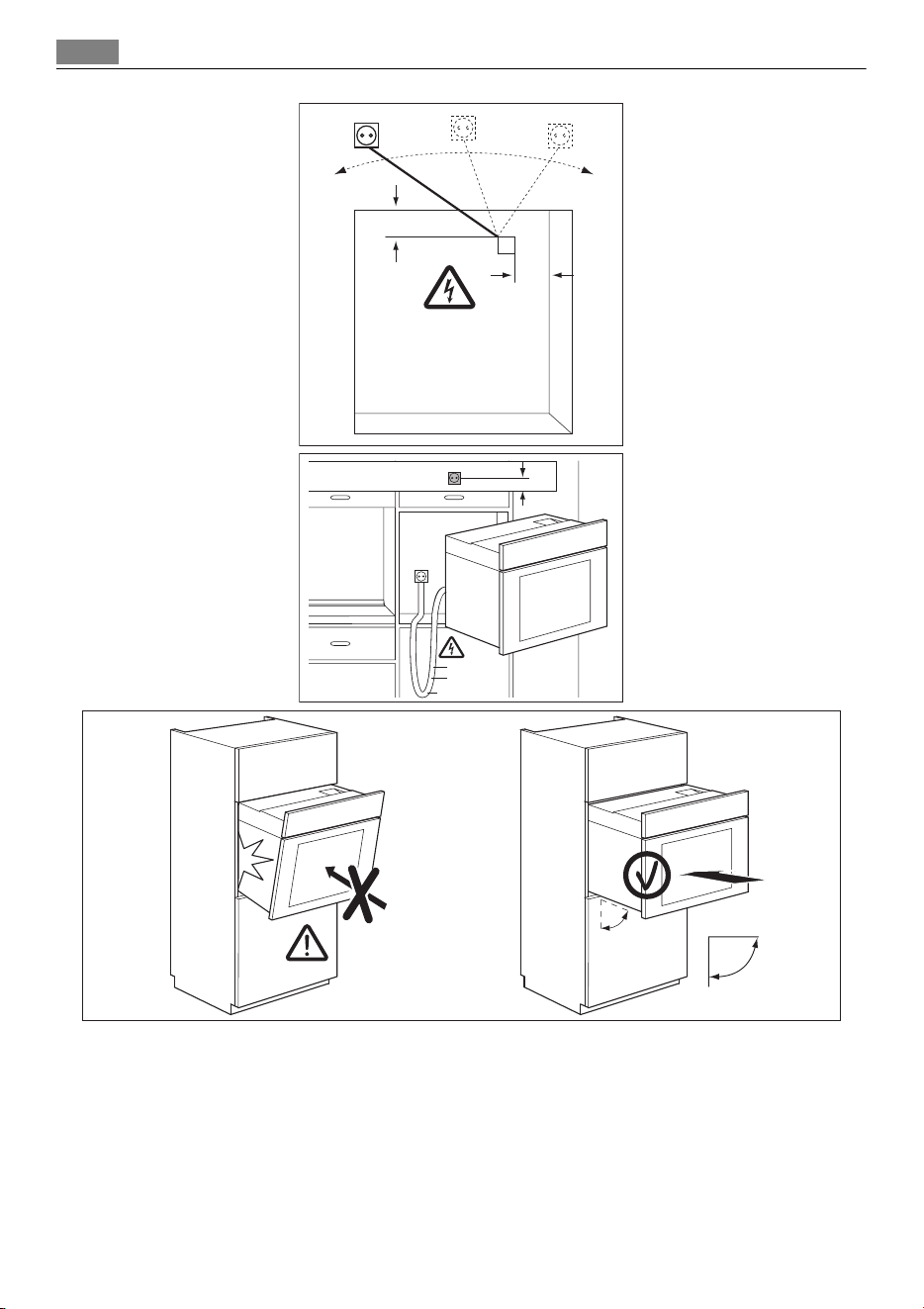

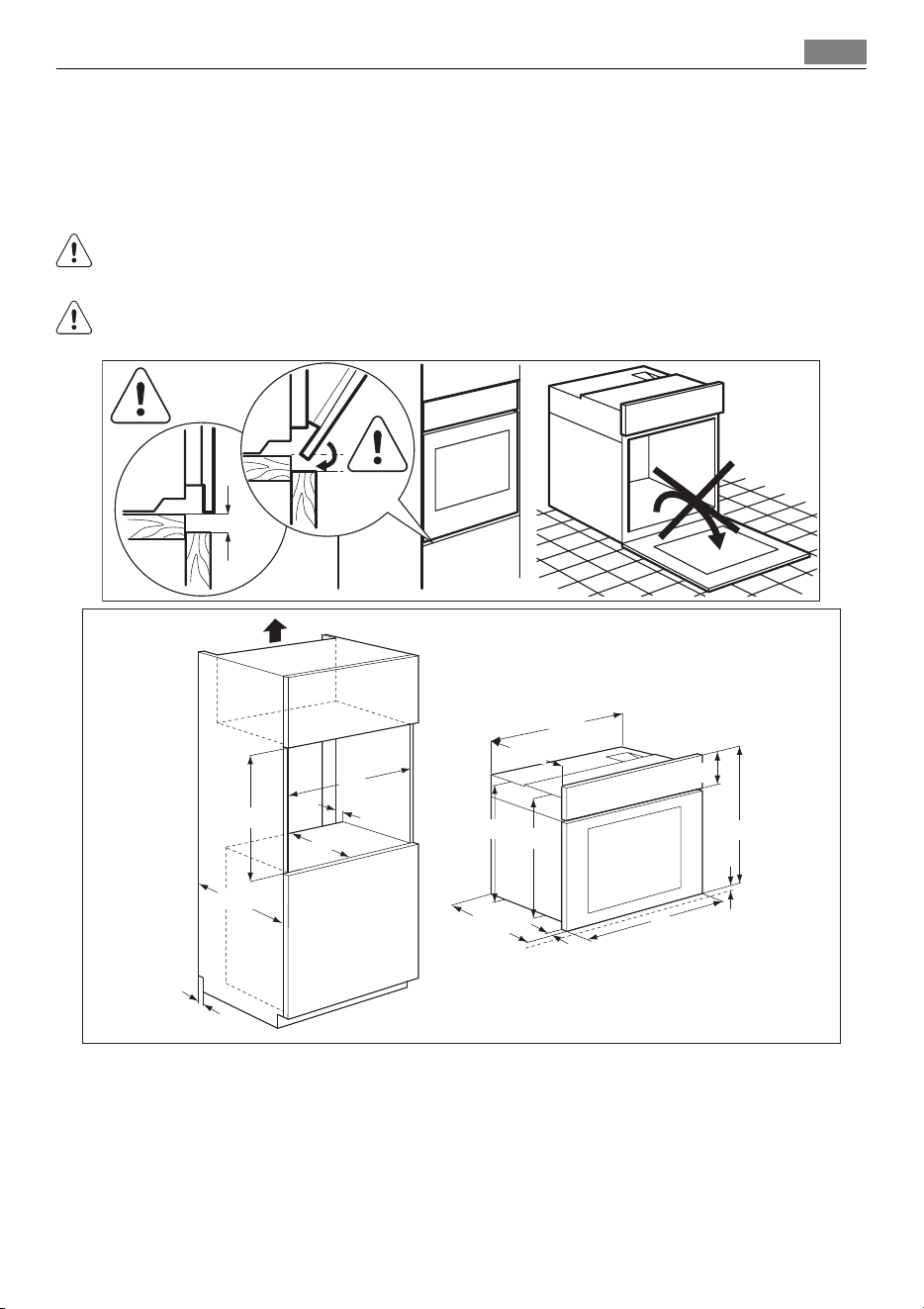

INSTALLATION
WARNING!
Refer to "Safety information" chapter.
The built-in unit must meet the stability requirements of DIN 68930.
min.
3 mm
20
30
5
21
200
590
567
579
572
547
546
594
594
114
590 min.
530 min.
560 min.
cm
2
Installation 27
max. R1200 mm
130
140
alternativ 100
H05VV-F
H05RR-F
min. 1600 mm
90
º
28 Installation
2x3,5x25
ENVIRONMENT CONCERNS
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it should be taken to the appropriate collection point
for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling of this product,
please contact your local council, your household waste disposal service or the shop where
you purchased the product.
Packaging material
The packaging material is environmentally friendly and recyclable. Plastic parts are marked
with international abbreviations such as PE, PS, etc. Dispose of the packaging material in
the containers provided for this purpose at your local waste management facility.
Environment concerns
29
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
ALL AEG BRANDED APPLIANCES
This document sets out the terms and conditions of the product warranties for AEG Appliances.
It is an important document. Please keep it with your proof of purchase documents in a safe place
for future reference should you require service for your Appliance.
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred
to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any AEG product purchased by you accompanied by this document;
(d) ‘ASC’ means AEG’ authorised serviced centres;
(e) AEG is the brand controlled by Electrolux Home Products Pty Ltd of 163 O’Riordan Street,
Mascot, NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and
Electrolux (NZ) Limited of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances
purchased in New Zealand;
(f) ‘major failure’ as referred to in clause 10 of this warranty has the same meaning referred to in
the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for
Electrolux, at its discretion, to repair an Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal, domestic or household use (i.e. normal single
family use) as set out in the instruction manual, the Appliance is warranted against
manufacturing defects in Australia and New Zealand for 60 months, following the date of
original purchase of the Appliance;
(ii) this Appliance is not designed for commercial use and therefore no warranty applies in this case;
(h) ‘you’ means the purchaser of the Appliance not having purchased the Appliance for re-sale, and
‘your’ has a corresponding meaning.
2. This warranty only applies to Appliances purchased and used in Australia or New Zealand and is
in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory
warranties in Australia or New Zealand.
3. During the Warranty Period AEG or its ASC will, at no extra charge if your Appliance is readily
accessible for service, without special equipment and subject to these terms and conditions, repair or
replace any parts which it considers to be defective. AEG or its ASC may use remanufactured parts to
repair your Appliance. You agree that any replaced Appliances or parts become the property of AEG.
This warranty does not apply to light globes, batteries, filters or similar perishable parts.
4. Parts and Appliances not supplied by AEG are not covered by this warranty.
5. You will bear the cost of transportation, travel and delivery of the Appliance to and from AEG or its
ASC. If you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from AEG or its ASC,
In all instances, unless the Appliance is transported by AEG or an AEG authorised representative, the
Appliance is transported at the owner’s cost and risk while in transit to and from AEG or its ASC.
6. Proof of purchase is required before you can make a claim under this warranty.
7. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective
parts or workmanship. AEG is not liable in the following situations (which are not exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions supplied with the Appliance;
(b) the Appliance is modified without authority from AEG in writing;
(c) the Appliance’s serial number or warranty seal has been removed or defaced;
(d) the Appliance was serviced or repaired by anyone other than AEG, an authorised repairer or ASC.
8. This warranty, the contract to which it relates and the relationship between you and AEG are
governed by the law applicable where the Appliance was purchased. Where the Appliance was
purchased in New Zealand for business purposes the Consumer Guarantee Act does not apply.
9. To the extent permitted by law, AEG excludes all warranties and liabilities (other than as
contained in this document) including liability for any loss or damage whether direct or indirect
arising from your purchase, use or non use of the Appliance.
10. For Appliances and services provided by AEG in Australia, the Appliances come with a
guarantee by AEG that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if
the Appliance fails to be of acceptable quality and the failure does not amount to a major failure.
The benefits to you given by this warranty are in addition to your other rights and remedies
under a law in relation to the Appliances or services to which the warranty relates.
11. At all times during the Warranty Period, AEG shall, at its discretion, determine whether repair,
replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.
12. For Appliances and services provided by AEG in New Zealand, the Appliances come with a
guarantee by AEG pursuant to the provisions of the Consumer Guarantees Act, the Sale of
Goods Act and the Fair Trading Act.
13. To enquire about claiming under this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (eg an invoice) available;
(d) telephone the numbers shown below.
14. You accept that if you make a warranty claim, AEG and its ASC may exchange information in
relation to you to enable AEG to meet its obligations under this warranty.
Important Notice
Before calling for service, please ensure that the steps listed in point 13 above have been followed.
FOR SERVICE
or to find the address of your nearest
state service centre in Australia
PlEASE CAll 1300 363 664
OR EMAIl customercar[email protected]
For the cost of a local call (Australia only)
SERVICE AUSTRAlIA
www.aeg.com/au
FOR SPARE PARTS
or to find the address of your nearest
state spare parts centre in Australia
PlEASE CAll 13 13 50
OR EMAIl customercar[email protected]
For the cost of a local call (Australia only)
FOR SERVICE
or to find the address of your nearest
authorised service centre in New Zealand
FREE CAll 0800 10 66 10
OR EMAIl customercare@electrolux.co.nz
(New Zealand only)
SERVICE NEW ZEAlAND
FOR SPARE PARTS
or to find the address of your nearest
state spare parts centre in New Zealand
FREE CAll 0800 10 66 20
OR EMAIl customercare@electrolux.co.nz
(New Zealand only)
AEG _Wa r r_ Jul11
www.aeg.com/au 892945083-G-282011
AMAN_892945083-G_Oct11
