Operating and installation
instructions
Wine conditioning unit
To avoid the risk of accidents or damage to the appliance it is essen-
tial to read these instructions before it is installed and used for the
first time.
en-GB M.-Nr. 12 712 650
Contents
2
Warning and Safety instructions ............................................................................... 5
Caring for the environment......................................................................................... 12
Saving energy................................................................................................................. 13
Appliance description .................................................................................................. 14
Control panel...................................................................................................................
14
Symbols ...........................................................................................................................
15
* The SommelierSet consists of: ........................................................................... 16
Accessories.................................................................................................................... 17
Accessories supplied.....................................................................................................
17
Optional accessories .....................................................................................................
17
Switching on and off..................................................................................................... 18
Before using for the first time.......................................................................................
18
Operating the wine conditioning unit..........................................................................
18
Switching the wine conditioning unit on ............................................................... 18
Switching the wine unit off...................................................................................... 18
Switching off for longer periods of time......................................................................
19
Selecting further settings............................................................................................ 20
Safety lock ..................................................................................................................
20
Audible tones............................................................................................................
21
Display brightness.....................................................................................................
22
The optimum temperature and air quality ............................................................... 23
Perfectly storing wine ....................................................................................................
23
The correct temperature ...............................................................................................
23
Recommended drinking temperatures.................................................................. 23
Setting the temperature .......................................................................................... 24
Temperature range.................................................................................................... 25
Temperature display ................................................................................................. 25
Air quality and humidity.................................................................................................
26
Using DynaCool (constant humidity) ............................................................... 26
Air filtration with the Active AirClean filter............................................................ 27
Temperature and door alarm ...................................................................................... 28
Feature lighting.............................................................................................................. 30
Switching the feature lighting on and off ....................................................................
30
Setting the brightness of the feature lighting....................................................... 30
Lighting duration of the feature lighting................................................................. 31
Contents
3
Storing wine bottles ..................................................................................................... 32
Wooden shelves .............................................................................................................
32
Moving the wooden shelves ................................................................................... 32
Adjusting the wooden shelves................................................................................ 34
Annotating wooden shelves.................................................................................... 34
Setting up the PresenterFrame .............................................................................. 35

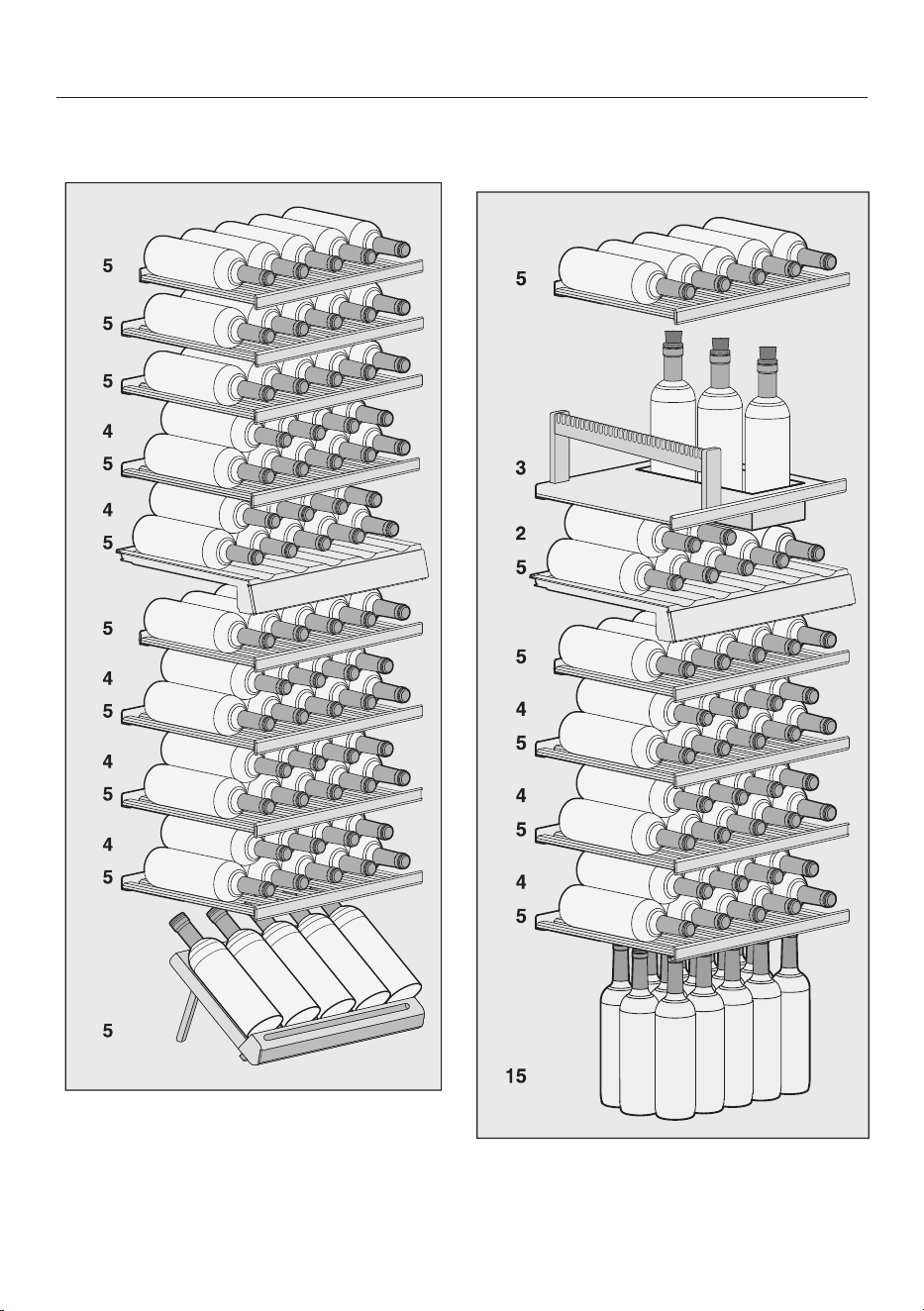

Maximum capacity.........................................................................................................
35
SommelierSet ................................................................................................................ 39

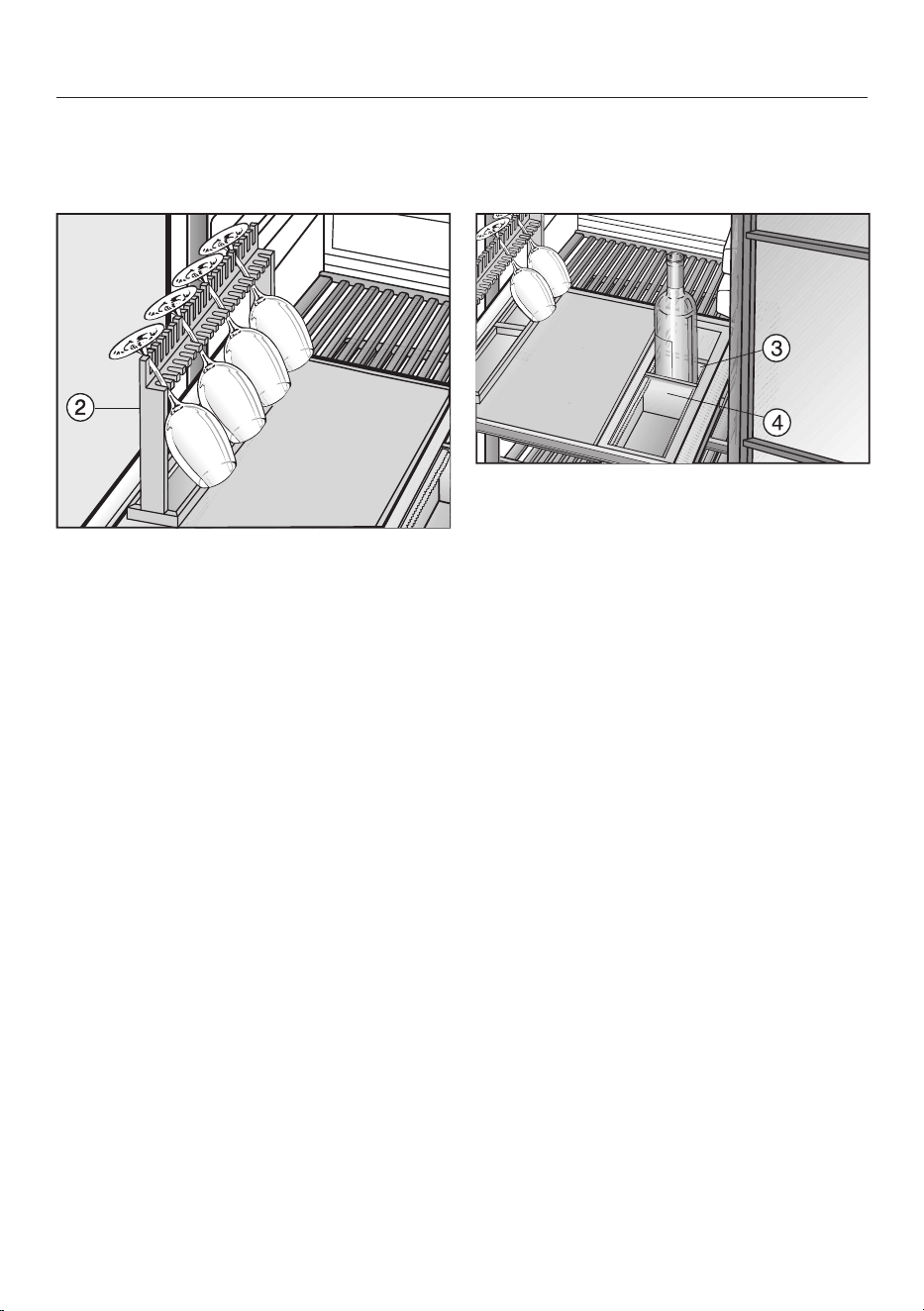

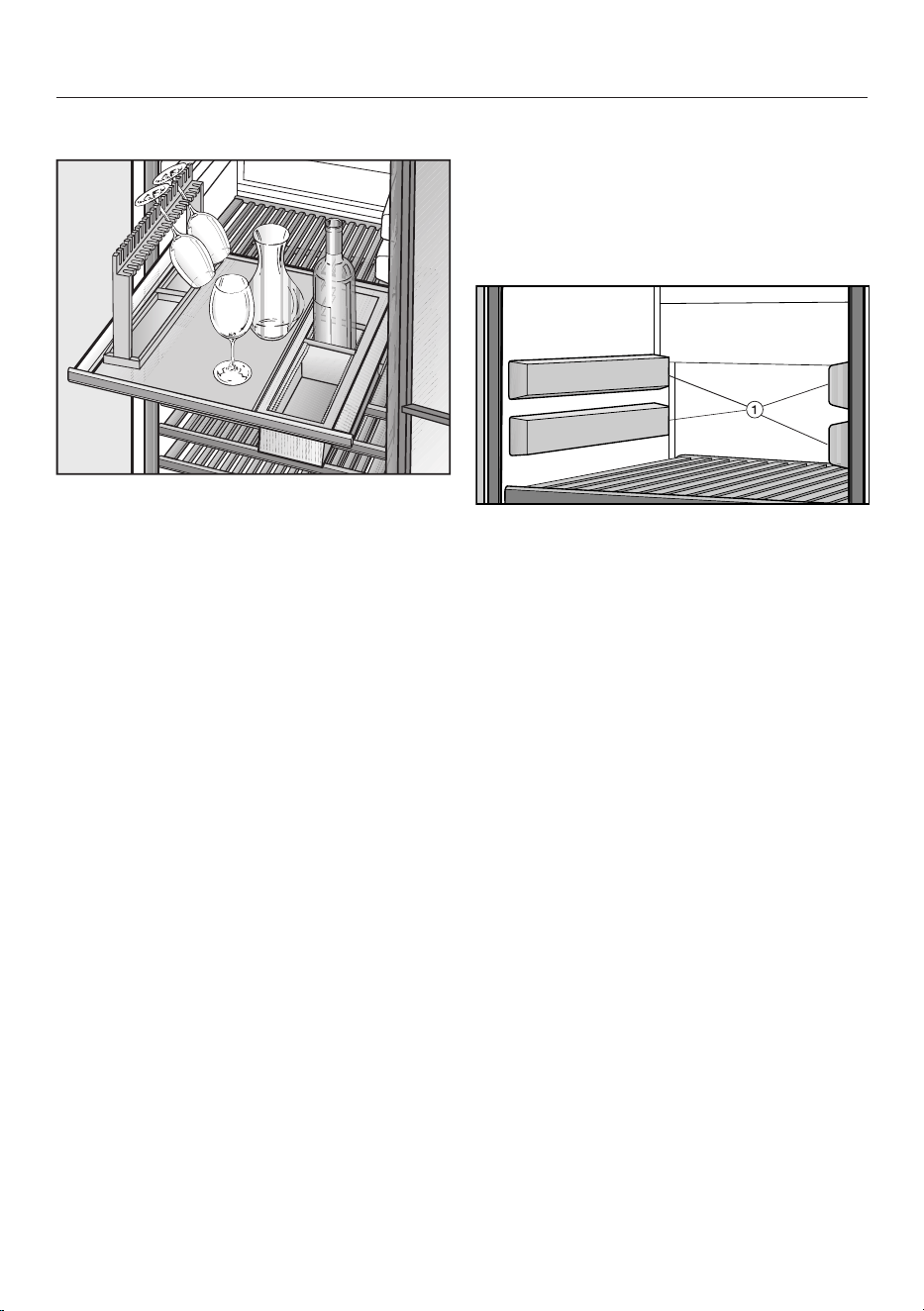

Setting up the SommelierSet.......................................................................................
39
Fitting the runner covers.......................................................................................... 39
Inserting the glass holder ........................................................................................ 40
Inserting the bottle holder....................................................................................... 40
Automatic defrosting.................................................................................................... 41
Cleaning and care ......................................................................................................... 42
Cleaning agents ..............................................................................................................
42
Preparing the wine unit for cleaning ............................................................................
43
Interior, accessories and appliance door ....................................................................
43
Cleaning the ventilation gaps .......................................................................................
43
Cleaning the door seal...................................................................................................
43
After cleaning ..................................................................................................................
43
Active AirClean filters................................................................................................... 44
Replacing the Active AirClean filters ...........................................................................
44
Problem solving guide.................................................................................................. 46
Noises.............................................................................................................................. 51
Service............................................................................................................................. 52
Contact in the event of a fault......................................................................................
52
EPREL database .............................................................................................................
52
Warranty ..........................................................................................................................
52
Installation...................................................................................................................... 53
Installation site ...............................................................................................................
53
Load-bearing capacity of the niche floor.....................................................................
54
Climate range..................................................................................................................
54
Side-by-side....................................................................................................................
54
Ventilation........................................................................................................................
55

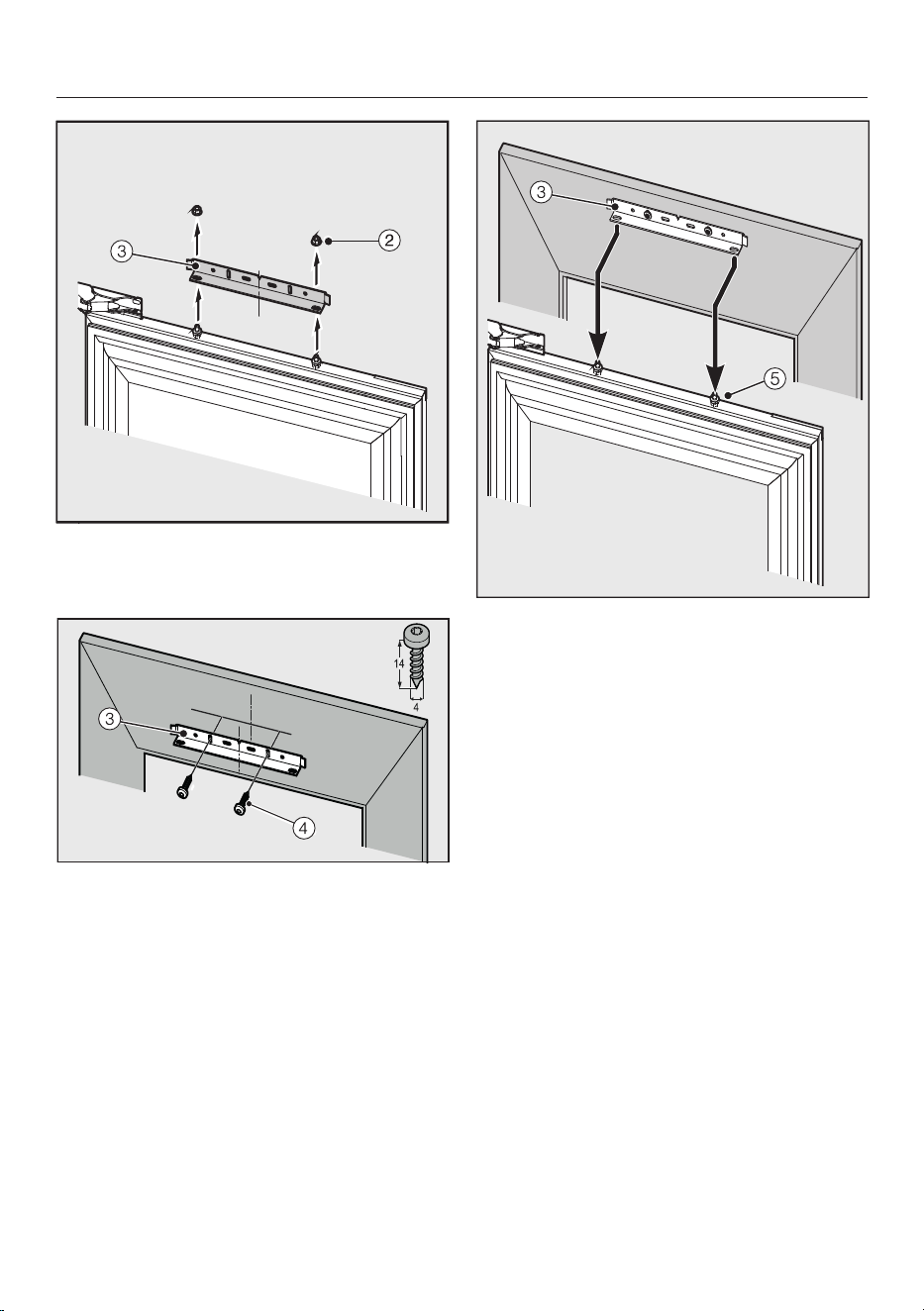

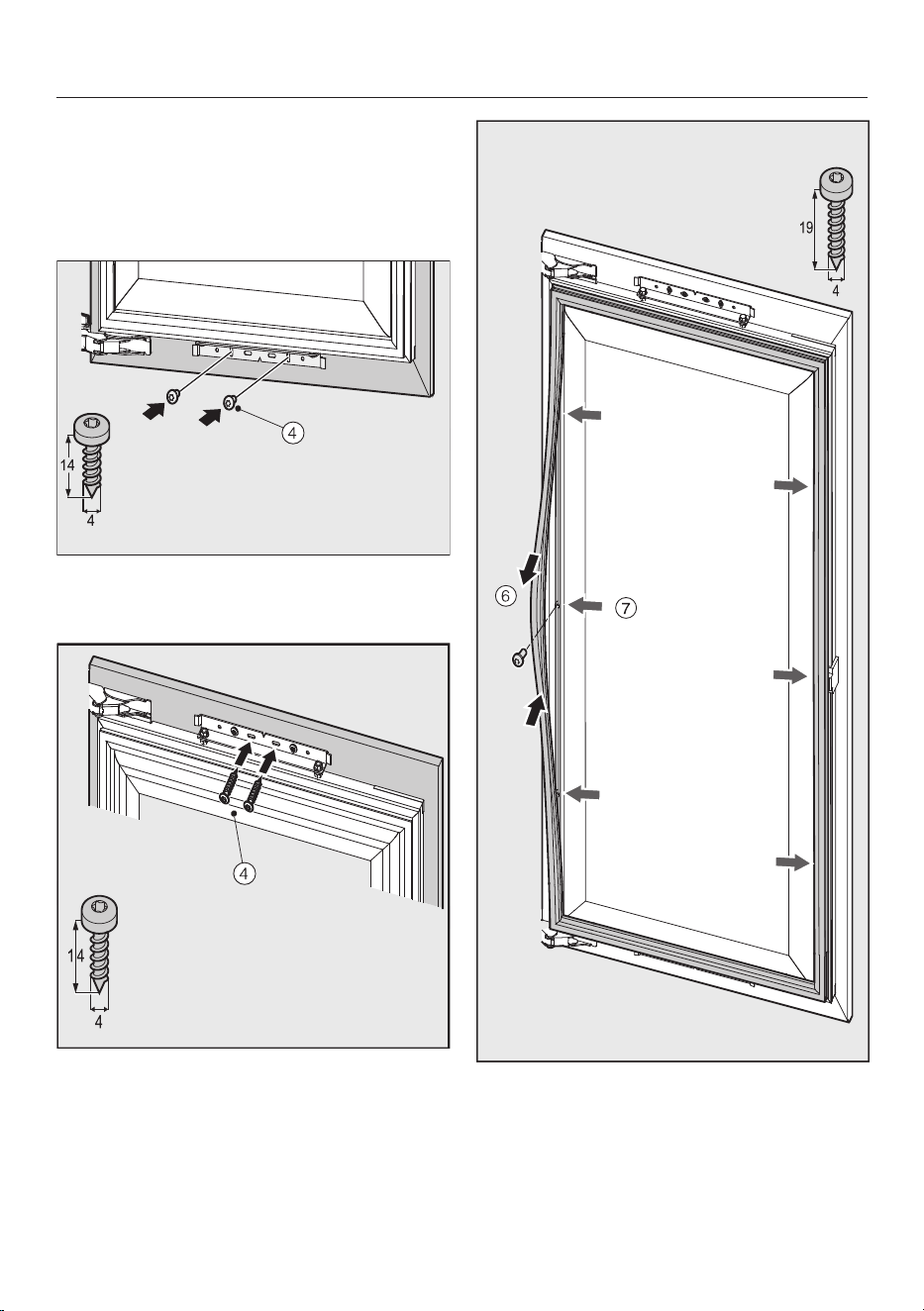

Furniture door panel.......................................................................................................
56

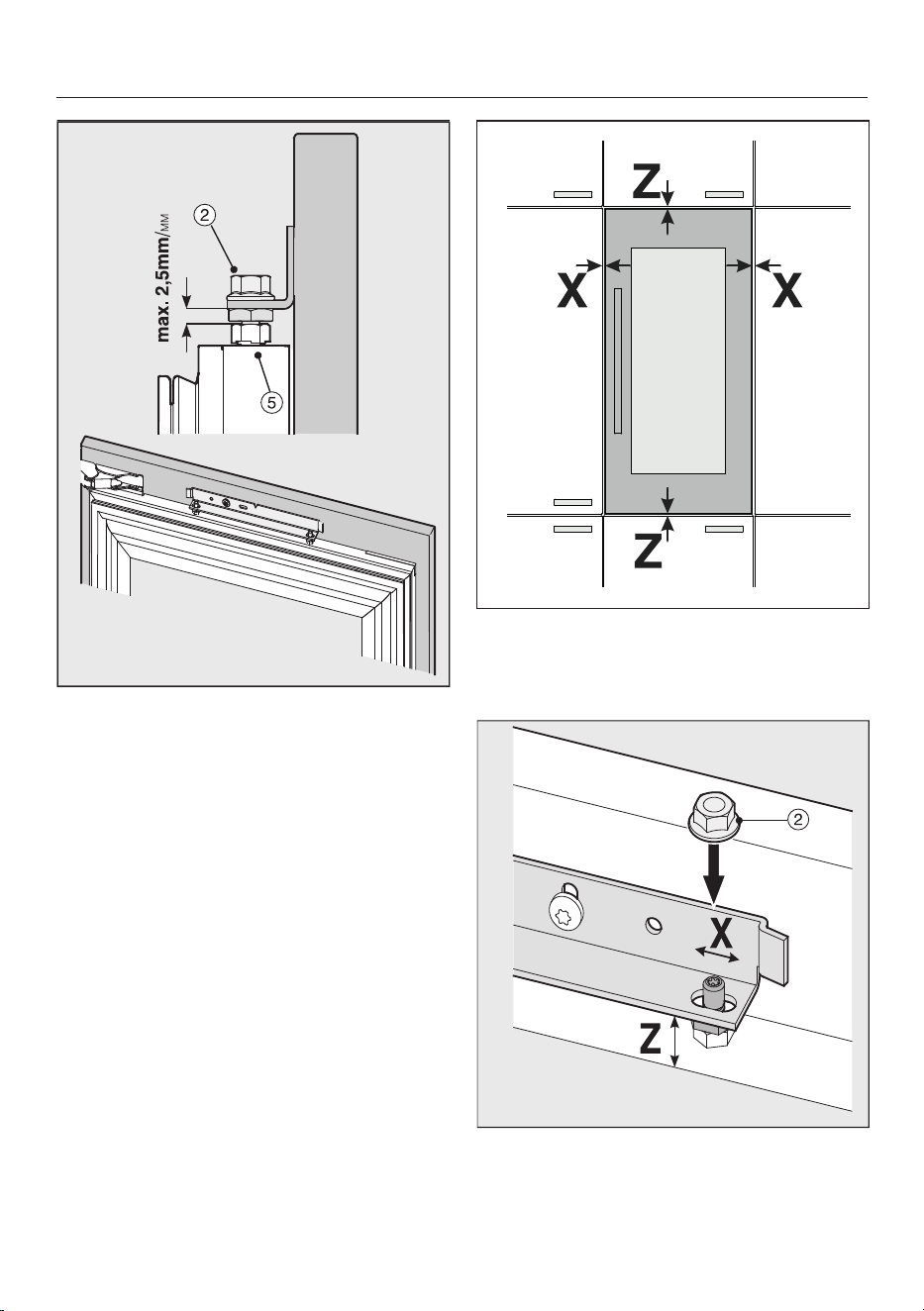

Horizontal and vertical gaps.................................................................................... 56
Weight of the furniture door.................................................................................... 57
Installation dimensions .................................................................................................
57
Furniture door dimensions............................................................................................
58
Contents
4

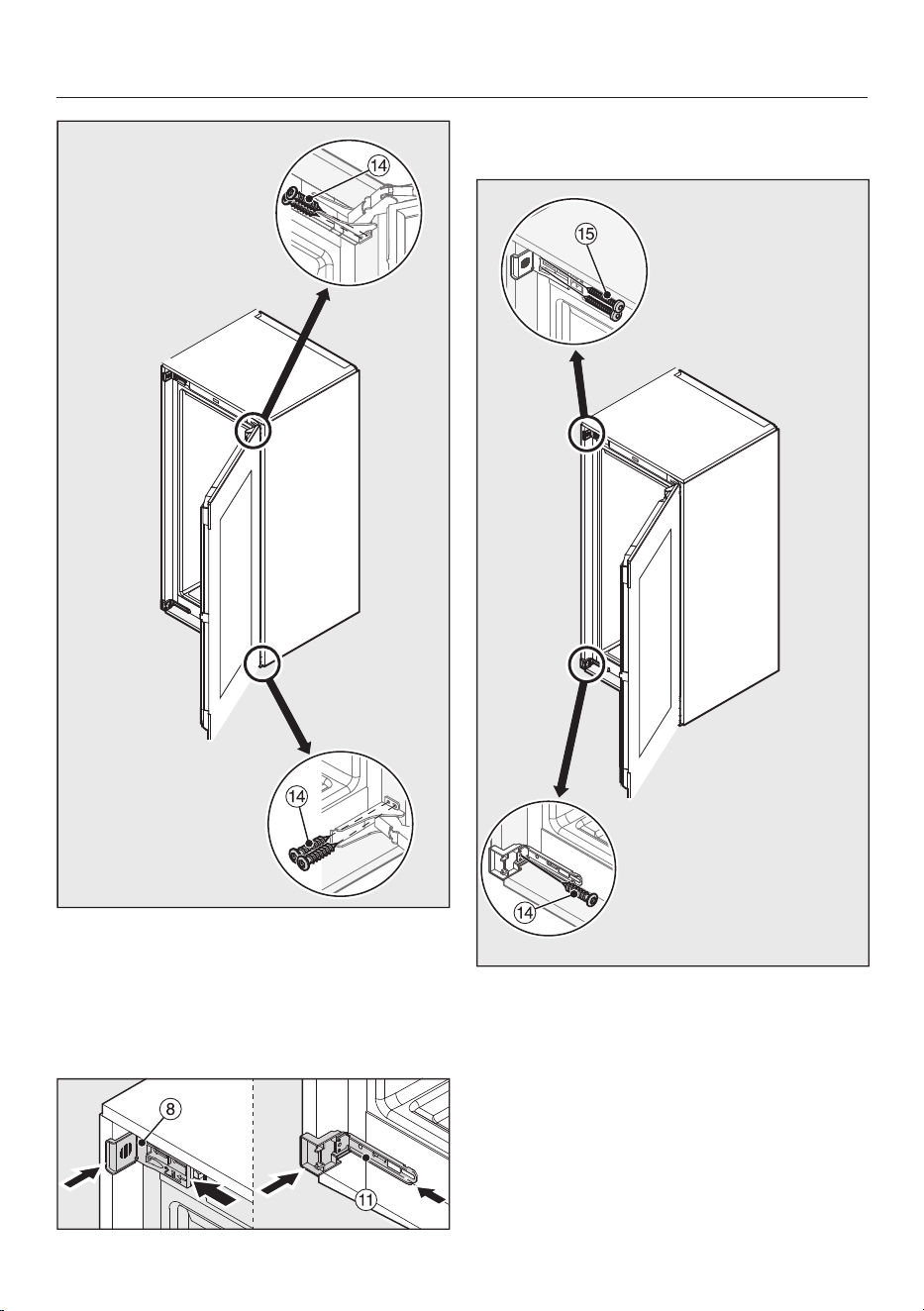

Changing the door hinging ............................................................................................
58
Before installing the wine conditioning unit ...............................................................
62
Installing the wine conditioning unit............................................................................
63
Setting up the wine unit........................................................................................... 64
Electrical connection .....................................................................................................
75
Information for dealers ................................................................................................ 76
Demo mode .................................................................................................................
76
Warning and Safety instructions
5
This wine conditioning unit complies with all current local and na-
tional safety requirements. Inappropriate use can, however, lead to
personal injury and material damage.
Read the operating and installation instructions carefully before us-
ing the wine conditioning unit. They contain important information
on safety, installation, use and maintenance. This is to protect
yourself from injury, and from damaging your wine conditioning
unit.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the wine conditioning unit as well as the
safety instructions and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any fu-
ture owner.
Risk of injury from broken glass.
If installed at altitudes above 1500m there is a risk of the glass in
the appliance door breaking because of changes in air pressure.
Shards of glass can cause severe injury.
Correct application
This wine conditioning unit is intended for use in the home and in
similar environments, for example
– in shops, offices and similar work settings
– on agricultural estates
– by the guests in hotels, motels, bed & breakfasts and other typical
home settings.
This wine conditioning unit is not intended for outdoor use.
The wine conditioning unit is intended for domestic use only for
storing wine.
It must not be used for any other purpose.
Warning and Safety instructions
6
The wine conditioning unit is not suitable for storing and keeping
cool medicines, blood plasma, laboratory preparations or other such
materials or products. Incorrect use of the wine conditioning unit for
such purposes can cause deterioration of the items stored. The wine
conditioning unit is not suitable for use in areas where there is a risk
of explosion.
Miele cannot be held liable for damage resulting from improper or in-
correct use of the appliance.
This wine conditioning unit may only be used by people (including
children) with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they are supervised whilst using it.
The wine conditioning unit may only be used by these people without
supervision if they have been shown how to use it in a safe way and
recognise and understand the consequences of incorrect operation.
Safety with children
Children under 8years of age must be kept away from the wine
conditioning unit unless they are constantly supervised.
Children aged 8 and older may only use the wine conditioning unit
without supervision if they have been shown how to use it in a safe
manner. Children must be able to understand and recognise the pos-
sible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the wine condi-
tioning unit unsupervised.
Please supervise children in the vicinity of the wine conditioning
unit and do not let them play with it.
Danger of suffocation! Whilst playing, children could become en-
tangled in packaging (such as plastic wrapping) or pull it over their
head and suffocate. Keep packaging material away from children.
Warning and Safety instructions
7
Technical safety
The refrigerant circuit has been checked for leaks. The wine condi-
tioning unit complies with statutory safety requirements and the ap-
propriate EU directives.
This wine unit contains the refrigerant Isobutane (R600a), a nat-
ural gas which is environmentally friendly. The refrigerant does not
damage the ozone layer and does not contribute to the greenhouse
effect.
The use of this refrigerant has, however, led to a slight increase in the
noise level of the appliance. In addition to the noise of the com-
pressor, you might be able to hear the refrigerant flowing around the
cooling circuit. Unfortunately, this cannot be avoided, but it does not
affect the performance of the wine unit.
When transporting and installing the wine unit, ensure that no parts
of the cooling circuit are damaged. Splashes of refrigerant can dam-
age the eyes.
In the event of damage:
- Avoid naked flames or anything which creates a spark.
- Disconnect the wine unit from the mains electricity supply.
- Ventilate the room where the wine unit is located for several
minutes.
- Contact the Miele Customer Service Department.
The more refrigerant there is in a wine unit, the larger the room it
should be installed in. In the event of a leakage, if the appliance is in a
small room, there is the danger of a combustible gas/air mixture
building up. For every 8g of refrigerant at least 1m
3
of room space is
required. The amount of refrigerant in the wine unit is stated on the
data plate inside the appliance.
To avoid the risk of damage to the wine conditioning unit, make
sure that the connection data (fuse rating, frequency and voltage) on
the data plate corresponds to the household supply.
Check that this is the case before connecting the wine conditioning
unit. Consult a qualified electrician if in any doubt.
Warning and Safety instructions
8
The electrical safety of this wine unit can only be guaranteed when
continuity is complete between it and an effective earthing system. It
is essential that this basic safety feature is present.
If in doubt, the electrical installation should be checked by a qualified
electrician.
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronised with
the mains power supply (e.g. island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply system
complies with the specifications of EN50160 or an equivalent stand-
ard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised service technician to protect the user from
danger.
Do not connect the wine conditioning unit to the mains electrical
supply by a multi-socket adapter or extension lead. These are a fire
hazard and do not guarantee the required safety of the appliance.
If moisture gets into electrical components, it could cause a short
circuit. Therefore, do not operate this wine conditioning unit in areas
which are exposed to moisture (e.g in a garage or utility room).
This wine conditioning unit must not be used in a non-stationary
location (e.g. on a ship).
Do not use a damaged wine conditioning unit. It could be danger-
ous. Check the wine conditioning unit for visible signs of damage.
For safety reasons, this wine conditioning unit may only be used
after it has been built in.
The wine conditioning unit must be isolated from the electricity
supply during installation, maintenance and repair work.
Unauthorised installation, maintenance and repairs can cause con-
siderable danger for the user.
Installation, maintenance and repairs must only be carried out by a
Miele authorised technician.
Warning and Safety instructions
9
While the wine conditioning unit is under warranty, repairs should
only be undertaken by a Miele authorised service technician. Other-
wise the warranty is invalidated.
Faulty components must only be replaced with genuine Miele ori-
ginal spare parts. Miele can only guarantee the safety standards of
the appliance when Miele replacement parts are used.
This wine unit is supplied with a special lamp to cope with particu-
lar conditions (e.g. temperature, moisture, chemical resistance, abra-
sion resistance and vibration). This lamp must only be used for the
purpose for which it is intended. The lamp is not suitable for room
lighting. Replacement lamps may only be fitted by a Miele authorised
technician or by the Miele Customer Service Department. This wine
unit contains several light sources with at least energy efficiency
classE.
Correct use
This wine unit is designed for use within specific ambient temper-
atures (climate range). Do not use in ambient temperatures for which
it is not designed. The climate range is stated on the data plate inside
the wine unit. A lower ambient temperature will cause the com-
pressor to switch off for longer periods, meaning that the wine unit is
unable to maintain the required temperature in some circumstances.
Do not cover or block the air vents as this could impair the effi-
ciency of the appliance, increase the electricity consumption and
could cause damage to the components.
If the wine unit is used for storing food which contains fat or oil,
make sure that it does not come into contact with plastic compon-
ents. Any spillages of oil or fat could cause stress cracks to the
plastic and cause it to break or split.
Risk of fire and explosion. Do not store explosive materials in the
wine conditioning unit or any products containing propellants (e.g.
spray cans). Electrical components can cause flammable mixes of
gases to ignite.
Danger of explosion. Do not operate any electrical appliances in-
side the wine conditioning unit. Danger of sparking and explosion.
Accessories and spare parts
Only use original Miele accessories. If other parts are used, war-
ranty, performance and product liability claims will be invalidated.
Warning and Safety instructions
10
Miele will guarantee to supply functional spare parts for a min-
imum of 10years and up to 15years following the discontinuation of
your wine unit.
Cleaning and care
Do not use any oils or grease on the door seals, as these will cause
the seals to deteriorate and become porous with time.
Do not use a steam cleaning appliance to clean this wine condi-
tioning unit.
The steam could reach electrical components and cause a short cir-
cuit.
Sharp edged or pointed objects will damage the evaporator, caus-
ing irreversible damage to the wine conditioning unit. Do not use
sharp edged or pointed objects to
- remove frost and ice,
- remove labels, stickers etc.
Transporting the appliance
Always transport the wine conditioning unit in an upright position
and in its original transport packaging to avoid damage in transit.
Risk of injury and damage. The wine unit is very heavy and must be
transported by two people.
Disposing of your old appliance
Children playing could become trapped in the wine unit and could
suffocate.
- Remove the appliance door.
- Leave the wooden/metal shelves in the wine unit so children can-
not climb inside.
- If the wine unit has a door lock, make sure that children cannot
lock themselves inside while playing as this could endanger their
lives.
Risk of electric shock!
- Cut the plug off the mains connection cable.
- Cut the mains connection cable off the old appliance.
Dispose of the plug and mains connection cable separately from
the old appliance.
Warning and Safety instructions
11
During and after disposal, make sure that the wine unit is not
placed near petrol or other flammable gases and liquids.
Risk of fire due to escaping oil or refrigerant!
The refrigerant and oil inside the appliance are flammable. In high
enough concentrations, escaping refrigerant or oil may ignite if they
come into contact with an external heat source.
During disposal, make sure that the cooling circuit is not damaged in
order to prevent refrigerant and oil escaping in an uncontrolled man-
ner (see the data plate for details of the refrigerant).
Splashes of coolant can damage the eyes. Be careful not to dam-
age any part of the pipework whilst awaiting disposal, e.g. by
- puncturing the coolant channels in the condenser,
- bending any pipework, or
- scratching the surface coating.
Symbol on the compressor (depending on model)
This information is only relevant for recycling. There is no risk during normal opera-
tion.
The oil in the compressor can be fatal if swallowed or if it penet-
rates the airways.
Caring for the environment
12
Disposing of the packaging ma-
terial
The packaging material is used for hand-
ling and protects the appliance from
transport damage. The packaging ma-
terial used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material re-
duces the use of raw materials. Use ma-
terial-specific collection points for valu-
able materials and take advantage of re-
turn options. Your Miele dealer will take
the packaging material away.
Disposing of your old appliance
Electrical and electronic appliances con-
tain many valuable materials. They also
contain certain materials, compounds
and components which were essential
for their correct functioning and safety.
These could be hazardous to human
health and to the environment if dis-
posed of with household waste or if
handled incorrectly. Please do not,
therefore, dispose of your old appliance
with household waste.
Take care not to damage your refrigera-
tion appliance before or during disposal
in an authorised, environmentally
friendly manner.
This is to ensure that refrigerant in the
cooling circuit and oil in the compressor
is contained, and will not leak into the
environment.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle elec-
trical and electronic appliances in your
local community, with your dealer or
with Miele, free of charge. By law, you
are solely responsible for deleting any
personal data from the old appliance
prior to disposal. You are legally obliged
to remove any old batteries which are
not securely enclosed by the appliance
and to remove any lamps without des-
troying them, where this is possible.
These must be taken to a suitable col-
lection point where they can be handed
in free of charge. Please ensure that
your old appliance poses no risk to chil-
dren while being stored for disposal.
Saving energy
13
Normal energy consump-
tion
Increased energy consump-
tion
Installation / Main-
tenance
In a ventilated room. In an enclosed, unventilated
room.
Protected from direct sun-
light.
In direct sunlight.
Not near to a heat source
(radiator, oven).
Near to a heat source (radi-
ator, oven).
Where the ideal ambient
room temperature is approx.
20°C.
Where the ambient room
temperature is above 25°C.
Ventilation gaps uncovered
and dusted regularly.
Ventilation gaps covered or
dusty.
Temperature
setting
10 to 12°C The lower the temperature,
the higher the energy con-
sumption.
Use Wooden shelves arranged as
they were when the appli-
ance was delivered.
Only open the door when
necessary and for as short a
time as possible. Store wine
bottles in an organised way.
Frequent opening of the door
for long periods will cause a
loss of coldness. The wine
conditioning unit works
harder to cool down and the
compressor runs for longer
periods.
Do not over-fill the appliance
to allow air to circulate.
Poor air circulation will cause
a loss of coldness.
Appliance description
14
Control panel
a
For switching
the whole wine conditioning unit on and off
b
Optical interface
(for Service technicians only)
c
For selecting the upper or lower wine conditioning zone
d
For switching the DynaCool function (constant humidity) on and off
e
For switching the feature lighting on and off
f
For setting the temperature
( for colder)
g
For confirming a selection (OK sensor)
h
For setting the temperature
( for warmer)
i
For selecting and deselecting settings mode
j
For switching the temperature or door alarm off
k
Display with temperature and symbols (symbols only visible in settings mode;
see chart for an explanation of the symbols)
Appliance description
15
Symbols
Symbol Meaning Function
Lock function To prevent inadvertent switching off and al-
tering of settings
Audible tones Choice of keypad tone and door alarm tone
Miele@home Only visible when a communication module
or communication stick is fitted and signed
on
Demo mode
(only visible when
Demo mode is
switched on)
For switching off Demo mode
Display brightness set-
tings
For adjusting the brightness of the display
Active AirClean filters Lights up when the active charcoal filter
needs changing
Mains connection
(only visible when the
wine conditioning unit
is switched off)
Confirms that the wine conditioning unit is
connected to the electricity supply; flashes
in the event of a power cut
Alarm
(only visible when the
door or temperature
alarm sounds)
Lights up when there is a door alarm;
flashes when there is a temperature alarm,
power cut or other fault
Appliance description
16
a
Lighting strip
(in both wine conditioning zones)
b
Wooden shelves with labels
(FlexiFrames with Noteboard)
c
Glass holder*
d
Bottle holder* (ConvinoBox)
e
Control panel for the upper and
lower wine conditioning zones/
isolation plate for thermal separation
of the zones
f
Charcoal filter (ActiveAirCleanfilter)
g
Isolation strips for thermal
separation of the temperature zones
h
Safety glass door with UV filter
i
3D bottle presenter
* The SommelierSet consists of:
A glass holder, a bottle holder and four
covers for the runners.
Accessories
17
Accessories supplied
Chalk
Use the chalk to annotate the magnetic
strips on the wooden shelves to identify
your wines quickly and easily.
Optional accessories
A range of useful Miele accessories and
care products are available for your wine
conditioning unit.
Multi-purpose microfibre cloth
The microfibre cloth is suitable for re-
moving fingerprints and light soiling
from surfaces such as stainless steel,
glass, plastic and chrome without the
use of chemicals.
MicroCloth Kit
The MicroCloth Kit contains a universal
cloth, a glass cloth and a polishing cloth.
These cloths are extremely resistant to
tearing and very robust. Thanks to very
fine microfibres these cloths achieve an
excellent cleaning performance.
Active AirClean filter
The Active AirClean filter ensures op-
timum air quality in the wine condition-
ing unit by filtering the incoming air.
WiFi stick (Miele@home)
The WiFi stick enables your wine condi-
tioning unit to communicate, so that you
can access appliance data at any time.
Accessories are available to order via
the Miele Webshop, from Miele dir-
ectly (see back cover for contact de-
tails) or from your Miele dealer.
Switching on and off
18
Before using for the first time
Packaging material
Remove all packaging material from
the inside of the appliance.
Cleaning the wine unit
Please refer to the relevant instruc-
tions in “Cleaning and care”.
Clean the inside of the appliance and
the accessories.
Operating the wine conditioning
unit
A light touch of the finger on the
sensors is all that is required to operate
this wine conditioning unit.
Every touch of a sensor is confirmed
with an audible tone. This tone can be
switched off (see “Selecting further set-
tings” – “Audible tones ”).
Switching the wine conditioning unit
on
When the wine conditioning unit is con-
nected to the electrical supply, the
power connection symbol will ap-
pear in the display after a short while.
Touch the On/Off control.
The power connection symbol will
go out and the wine conditioning unit
will start to cool.
The selected wine conditioning zone will
be highlighted yellow and the temperat-
ure of the selected zone will show in the
display.
The first time the appliance is turned on,
the sensors for the wine conditioning
zones and the alarm symbol will
flash until the selected temperature has
been reached in the zones.
As soon as the set temperature has
been reached, the sensor for the re-
spective wine conditioning zone will
light up constantly and the alarm sym-
bol will go out.
The interior lighting will come on when
the door is opened.
Selecting settings
A different setting can be set for each
wine conditioning zone.
Touch the sensor for the wine condi-
tioning zone you want to adjust the
settings for.
The sensor that has been selected is
highlighted in yellow. Now you can
- Set the temperature, and
- Switch on the DynaCool function.
Tip: Please refer to the relevant sections
for more information.
If you then select a different wine con-
ditioning zone, the settings for the pre-
viously selected zone will remain un-
changed.
Switching the wine unit off
Touch the On/Off control.
If this does not work, the safety
lock is activated.
The sensor controls for the 2 wine con-
ditioning zones will go out in the control
field.
Switching on and off
19
The temperature shown on the display
will go out and the power connection
symbol appears.
The interior lighting goes out and cool-
ing is turned off.
Switching off for longer periods
of time
If, during a long absence, the wine
unit is switched off but not cleaned
and the door left shut, there is a
danger of mould building up inside
the appliance.
The wine unit must be cleaned.
If the wine unit is not going to be used
for a longer period of time, observe the
following:
Switch the wine unit off.
Switch off at the wall and disconnect
the plug from the socket, or discon-
nect the fuse.
Clean the wine unit and leave the
door ajar to air the wine unit and avoid
odours building up inside it.
Selecting further settings
20
Certain settings on the wine condition-
ing unit can only be selected in settings
mode.
The door alarm is automatically dis-
abled when the appliance is in settings
mode.
Safety lock
The safety lock can be activated to pre-
vent:
- the appliance being switched off by
mistake,
- the temperature being changed by
mistake,
- DynaCool being switched on by mis-
take,
- the feature lighting being switched on
by mistake.
Activating or deactivating the safety
lock
Touch the settings sensor.
All symbols available for selection will
appear in the display and the symbol
flashes.
Touch the OK sensor to confirm your
selection.
The last selected setting flashes and the
symbol lights up in the display.
By touching the or sensor, you
can now select whether the safety
lock is activated or deactivated:
0: the safety lock is deactivated
1: the safety lock is activated
Touch the OK sensor to confirm your
selection.
The selected setting is applied, the
symbol flashes.
Touch the settings sensor to leave
settings mode.
Otherwise the appliance exits set-
tings mode automatically after ap-
proximately one minute.
The symbol will appear in the display
when the lock is activated.
Selecting further settings
21
Audible tones
The wine conditioning unit has audible
tones such as the keypad tone and the
door and temperature alarms.
You can switch the keypad tone or the
door alarm tone on or off but you cannot
deactivate the temperature alarm.
There are four settings to choose from.
Option 3 is set the factory, i.e. the
keypad tone and the door alarm are
switched on.
Switching audible signals on/off
Touch the settings sensor.
All symbols available for selection ap-
pear in the display and the symbol
flashes.
Touch the sensors for setting the tem-
perature ( or ) repeatedly until the
symbol flashes.
Touch the OK sensor to confirm the
selection.
The most recently selected setting
flashes and the symbol lights up in
the display.
Touch the or sensor now to se-
lect:
0: keypad tone off; door alarm off
1: keypad tone off; door alarm on
(after 4minutes)
2: keypad tone off; door alarm on
(after 2minutes)
3: keypad tone on; door alarm on
(after 2minutes).
Touch the OK sensor to confirm the
selection.
The selected setting is applied, the
symbol flashes.
Touch the settings sensor to exit set-
tings mode.
Otherwise, the appliance electronics
will exit the settings mode automatic-
ally after approximately one minute.
Selecting further settings
22
Display brightness
The display brightness can be adjusted
to suit lighting conditions in the room.
The display brightness can be adjusted
in steps from 1to3. The factory default
setting is 3 (maximum brightness).
Altering the display brightness
Touch the settings sensor.
All symbols available for selection will
appear in the display and the symbol
flashes.
Touch the sensors for setting the tem-
perature ( or ) repeatedly until the
symbol flashes.
Touch the OK sensor to confirm your
selection.
The last selected setting flashes and the
symbol lights up in the display.
By touching the or sensor you
can now alter the brightness of the
display:
1: dimmest setting
2: medium setting
3: brightest setting.
Touch the OK sensor to confirm your
selection.
The selected setting is applied, the
symbol flashes.
Touch the settings sensor to leave
settings mode.
Otherwise the appliance exits set-
tings mode automatically after ap-
proximately one minute.
The optimum temperature and air quality
23
Perfectly storing wine
Wine keeps on maturing depending on
the surrounding conditions. The length
of time for which wine can be kept in
good condition will therefore depend
not only on the temperature but also on
the air quality.
The wine unit with its constant and
wine-specific temperature, optimum
humidity level and odour-free atmo-
sphere offers the perfect conditions for
storing your wine.
The wine unit also guarantees (as op-
posed to a refrigerator) an environment
without vibrations so that the maturing
process of the wine is not disturbed.
The correct temperature
Wine can ideally be stored at a temper-
ature between 6 and 18°C. If red and
white wines are being stored together,
select a temperature between 12 and
14°C. This temperature is suitable for
both white and red wines. Red wine
should be taken out and opened at least
2hours before drinking so that the wine
is exposed to oxygen and can develop
its aroma.
If the storage temperature is too high
(above 22°C), wine matures too quickly,
which means aromas are not able to
continue to develop. On the other hand,
if the storage temperature is too low
(below 5°C), the wine is unable to ma-
ture properly.
Heat causes wine to expand and cold
causes it to contract. Temperature fluc-
tuations mean stress for wine and inter-
rupt the maturity process. It is therefore
very important to ensure minimal fluctu-
ation of temperature.
The temperature depends on the follow-
ing factors:
- How often and for how long the appli-
ance door is opened
- How many wine bottles are being
stored
- How warm the stored wine bottles are
- How high or low the ambient temper-
ature of the wine unit is
Recommended drinking temperatures
Type of wine Recommended
drinking temper-
ature*
Light, fruity reds: 14°C to 16°C
Full-bodied
reds:
18°C
Rosé wines: 8°C to 10°C
Delicate, aromatic
whites:
8°C to 12°C
Full-bodied or
sweet whites:
12°C to 14°C
Sparkling white
wines, Prosecco:
7°C to 9°C
Champagne: 5°C to 7°C
* Store the wine 1 or 2°C cooler than
the recommended drinking temperature
as it warms up a little when poured into
the glass.
Tip: Full-bodied reds should be opened
2–3hours before drinking to allow the
wine to breathe and develop its aroma.
The optimum temperature and air quality
24
Safety feature for low ambient tem-
peratures
In order to protect the wine from low
ambient temperatures, a safety thermo-
stat ensures that the temperature in the
wine unit cannot decrease too drastic-
ally. If the ambient temperature falls
briefly, a heater in the wine unit
switches on automatically and main-
tains a constant internal temperature. If
the ambient temperature continues to
remain low, the wine unit will eventually
switch itself off.
Isolator plate for thermal separation
The unit comes with a fixed isolation
panel that partitions the interior of the
wine conditioning unit into two separate
temperature zones. This enables you to
store different types of wine at the same
time, e.g., red wine and Champagne.
The isolation strips inside the glass door
prevent the exchange of heat between
the individual zones.
Setting the temperature
The temperatures in the wine condition-
ing zones can be set independently of
one another.
Touch the sensor for the zone for
which you wish to change the tem-
perature, so that it is highlighted in
yellow.
The current temperature for the selec-
ted zone appears in the display.
Use the two sensors underneath the
display to set the temperature.
By touching the sensor
- The temperature decreases
- The temperature increases
Touch the OK sensor to confirm your
selection
or
Wait approximately 5 seconds after
the last touch of a sensor
The temperature being set will flash in
the display.
The following information shows in the
display while the sensors are being
touched:
- Touching a sensor once:
The last temperature selected
flashes.
The optimum temperature and air quality
25
- Each subsequent touch of the sensor:
Adjusts the temperature shown in 1°C
increments.
- Leaving a finger on the sensor:
Changes the temperature continu-
ously.
A negative tone will sound (if the
keypad tone is switched on) when the
lowest or highest possible temperat-
ure is reached.
Approximately 5seconds after the last
time a sensor has been touched, the ac-
tual temperature inside the wine condi-
tioning zone is automatically shown.
When the temperature is altered, there
is a short delay until the temperature
selected is set.
The temperature display on the control
panel always shows the actual tem-
perature.
Temperature range
In both zones it is possible to set tem-
peratures between 5 and 20°C.
A room temperature above 32°C
may cause the temperature in the
lower section of the wine unit to in-
crease slightly so that the temperat-
ure is approx. 2°C above the temper-
ature set for this section.
Wines which may not be stored un-
der these slightly raised temperature
conditions should preferably not be
placed on the PresenterFrame, but
instead should be placed on one of
the wooden shelves above it.
Temperature display
In normal operation the temperature
display shows the actual temperature in
the zone.
If the temperature in one of the zones is
not within the range that the appliance
is able to display, dashes will light up in
the temperature display.
Depending on the ambient temperature
and the temperature setting, it can take
the appliance a few hours to reach the
temperature required and for this tem-
perature to then be shown as a constant
temperature in the display.
The optimum temperature and air quality
26
Air quality and humidity
In most refrigerators the humidity is too
low for wine and therefore a refrigerator
is not suitable for wine storage. High hu-
midity levels are necessary when storing
wine to moisten corks from the outside.
When the humidity is too low the corks
dry out and the bottle is no longer
tightly sealed. For this reason wine
bottles should always be stored hori-
zontally to ensure that corks are also
kept moist from the inside. If air gets
into the bottle, this will have a negative
impact on the wine!
Danger of damage from excess
amounts of moisture
An increase in humidity will lead to
condensation on the interior walls.
Condensate can cause damage such
as corrosion to the wine unit.
Do not introduce additional moisture
to air in the cabinet, e.g. by placing a
dish of water in the wine unit.
Using DynaCool (constant humid-
ity)
DynaCool raises the relative humidity
inside the whole of the wine condition-
ing unit. It also distributes the humidity
and the temperature evenly around the
interior so that you can store all your
wine under the same excellent condi-
tions.
This will create a stable climate in the
unit which imitates that of a wine cel-
lar.
Switching on DynaCool
If you would like to use the wine condi-
tioning unit to store wine over the long
term, we recommend that you keep the
DynaCool function switched on.
Touch the sensor to switch the
DynaCool function on/off. The sensor
will be highlighted in yellow.
Even if DynaCool has not been
switched on, the fans in the wine con-
ditioning unit will come on automatic-
ally as soon as the cooling system
switches on. This ensures the op-
timum climate for your wine is main-
tained.
The fans automatically switch off when
the door is open.
The optimum temperature and air quality
27
Switching off DynaCool
The wine conditioning unit uses
slightly more energy and is a little nois-
ier when the DynaCool function is
switched on. You can switch it off now
and then if you wish.
Touch the sensor for switching the
DynaCool function on and off so that
it is no longer highlighted in yellow.
Air filtration with the Active AirClean
filter
The Active AirClean filter achieves op-
timum air quality by filtering the incom-
ing air.
Fresh air from the room enters the appli-
ance via the Active AirClean filter.
The fans (DynaCool function) then dis-
tribute the air evenly throughout the
cabinet.
Filtering the incoming air through the
Active AirClean filter ensures that all the
air entering the appliance is fresh and
free from dust and odours.
This also ensures your wine does not
absorb any unwanted odours through
the corks.
Replace the Active AirClean filter regu-
larly. The symbol will appear in the
display to remind you (see “Active
AirClean filter”).
Temperature and door alarm
28
This wine conditioning unit is equipped
with an alarm system so that the tem-
perature cannot rise or fall unnoticed,
thus possibly damaging the wine.
Temperature alarm
If the temperature in one of the wine
conditioning zones rises or falls by a
certain amount, the sensor for that zone
will flash in the control panel and at the
same time the alarm symbol will
flash in the display. An audible alarm will
also sound.
Audible and visual signals will be activ-
ated, for example,
- when the wine unit is switched on and
the temperature in one of the temper-
ature zones differs greatly from the set
temperature,
- when too much warm ambient air
enters the cabinet when bottles are
being rearranged or taken out,
- when a large number of bottles are
stored for the first time,
- in the event of a power cut,
- if there is a fault with the wine unit.
The alarm will stop and the alarm sym-
bolgoes out as soon as the reason
for the alarm has been resolved. The
sensor for the relevant zone will light up
constantly again.
Switching the temperature alarm off
early
If the noise disturbs you, you can switch
the alarm off if you wish.
Touch the sensor for switching off the
temperature alarm.
The alarm will stop.
The relevant wine conditioning zone will
continue to flash in the control panel
and the alarm symbol will continue
to flash in the display until the cause of
the alarm has been rectified.
Temperature and door alarm
29
Door alarm
An alarm will sound if the appliance
door has been left open for longer than
approx. 2minutes. The sensors for the
wine conditioning zones will flash in the
control panel. The alarm symbol
lights up in the display.
As soon as the door is closed, the alarm
will stop. The sensors for the wine con-
ditioning zones and the alarm sym-
bol will go out in the control panel.
If the audible signal does not sound in
the event of a door alarm, then the
audible signal has been switched off in
settings mode (see “Selecting further
settings – Audible signals”).
Switching the door alarm off early
If the noise disturbs you, you can switch
the alarm off if you wish.
Touch the sensor for switching off the
door alarm.
The alarm will stop.
The sensors for the wine conditioning
zones will continue to flash and the
alarm symbol will remain lit up until
you close the door.
Feature lighting
30
The interior lighting can be set to remain
on when the door is closed so your
wines can be on display at all times.
Each wine conditioning zone has its own
light so that your wine unit is lit up to
maximum effect.
Thanks to the use of LED lighting, the
wine will not be adversely affected by
heat or UV light.
Switching the feature lighting
on and off
Touch the On/Off sensor for the fea-
ture lighting so that it is highlighted in
yellow.
The interior lighting is now switched on,
even when the appliance door is closed.
To switch the feature lighting off again:
Touch the On/Off sensor for the fea-
ture lighting so that it is no longer
highlighted in yellow.
The interior lighting is now switched off
when the appliance door is closed.
Setting the brightness of the feature
lighting
The brightness of the feature lighting
can be adjusted.
Touch the On/Off sensor for the fea-
ture lighting so that it is highlighted in
yellow.
Touch the sensor for the feature light-
ing again for approximately four
seconds until flashes in the display
(after two seconds will flash).
Use the sensors for altering the tem-
perature to set the feature lighting
brightness(and). To do this,
touch and hold the sensors. The
brightness is adjusted directly and is
infinitely variable. The results are not
visible in the display.
By touching the sensor
- the lighting becomes dimmer
- the lighting becomes brighter.
Feature lighting
31
Touch the OK sensor to confirm your
choice.
The set brightness is saved to memory.
The temperature display then appears
again.
As soon as the appliance door is closed,
the set brightness for the feature light-
ing takes effect. When the appliance
door is opened, the interior lighting re-
turns to its normal level.
Lighting duration of the feature lighting
The lighting duration for the feature
lighting is set to 30minutes as stand-
ard.
The lighting duration can be set to 30,
60, 90minutes up to 00 (unlimited).
The feature lighting will have the bright-
ness setting you have selected previ-
ously.
Open the appliance door.
Touch the On/Off sensor for the fea-
ture lighting so that it is highlighted in
yellow.
Touch the sensor for the feature light-
ing again for approx. two seconds un-
til flashes in the display.
Use the and sensors for altering
the temperature to set the feature
lighting duration.
The duration (in minutes) will flash in
the display.
By touching the sensor
- lighting duration is reduced by
30minutes
- lighting duration is increased by
30minutes.
Touch the OK sensor to confirm your
choice.
The selected lighting duration is saved
and the temperature reappears in the
display.
The lighting duration set starts anew
whenever the appliance door is opened
and closed.
Risk of injury from LED lighting.
This lighting corresponds to risk
group RG2. If the cover is defective,
there is a risk of eye injury.
If the lighting cover is defective, do
not look from a close range directly
into the lighting with optical instru-
ments (e.g. magnifying glass or sim-
ilar).
Storing wine bottles
32
Vibration and movement have a negat-
ive effect on the maturing process,
which can in turn affect the taste of the
wine.
To avoid disturbing other bottles when
removing a bottle of wine, store bottles
of the same type beside each other on
the same wooden shelf. Avoid stacking
bottles on top of one another on the
wooden shelves.
Always place the bottles in a horizontal
position so that the natural corks can be
kept moist on the inside and air is pre-
vented from getting into the bottles.
Tip: We also recommend increasing the
humidity level inside the wine condition-
ing unit for wine bottles with natural
corks (see “The optimum temperature
and air quality – Using DynaCool (con-
stant humidity)”).
Risk of injury from falling wine
bottles.
Wine bottles may become wedged in
the wooden shelves above and fall
out of the wine unit when the shelves
are pulled out.
Always pull out the wooden shelves
slowly and carefully.
Risk of damage and injury from
broken glass.
If wooden shelves and bottles pro-
trude too far forwards, they may
damage the glass door when it is
closed.
Please ensure that the wooden
shelves and wine bottles do not pro-
trude.
Do not cover the ventilation slots in
the rear wall, as they are essential for
keeping the appliance cool.
Wooden shelves
The wooden shelves are on telescopic
runners which can be pulled out to
make it easier to store and remove
bottles.
Moving the wooden shelves
The wooden shelves can be removed
and replaced again if required.
Pull the wooden shelf out until it
stops .
Release the wooden shelf at the back,
lifting the shelf on the left and right at
the same time .
Lift the wooden shelf forwards to re-
move it.
Storing wine bottles
33
If you require more room, cover the
runners at the top on both sides
which are now not needed with the
covers supplied. The thicker side of
the cover should point forwards. The
covers are held in position with mag-
nets.
To replace the wooden shelf, position
it on the extended runners. The
notches in the wooden shelf fit over
the retaining pins. The magnetic strip
should be pointing forwards.
Slide the wooden shelf back into the
appliance as far as it will go .
Push the wooden shelf right back so
that it clicks into place at the front.
Press down on the back of the
wooden shelf until it clicks into place
at the back .
Storing wine bottles
34
Adjusting the wooden shelves
The slats in the wooden shelves can be
individually adjusted to suit, so that
every bottle is stored in perfect safety
regardless of shape or size.
Simply lift individual slats to move or
remove them from the wooden
shelves.
Annotating wooden shelves
For quick and easy identification of the
wines stored, you can write on the
blackboard-painted surface on the mag-
netic strips on the wooden shelves.
Use the chalk supplied. You can write
directly on the magnetic strip or remove
it from the wooden shelf. To do so:
Hold the magnetic strip by the sides
and pull it forwards. The magnetic
strip is held on the wooden shelf by
magnets.
The magnetic strip can be wiped
clean with a damp cloth.
Risk of damage from unsuitable
cleaning methods.
Cleaning the magnetic strips with a
cleaning agent may damage the
blackboard surface on them.
Use clean water only to wipe the
magnetic strips.
Annotate the magnetic strip with the
chalk supplied and replace it on the
front of the wooden shelf.
Storing wine bottles
35
Setting up the PresenterFrame
Set up the PresenterFrame in the bot-
tom of the wine unit:
Fold out the rear struts of the
PresenterFrame.
Simply lift individual wooden slats
on the shelf forwards to move or re-
move them from the wooden shelves.
This will adapt the PresenterFrame
perfectly to the size of the wine
bottles.
Carefully place the wine bottles on
the PresenterFrame.
Tip: You can place your chalk in the
shelf on the PresenterFrame to pre-
vent it from getting lost.
If you do not wish to use the Presen-
terFrame for presentation purposes,
simply fold down the rear struts.
Place the PresenterFrame flat on the
floor of the wine unit and push it back
until it touches the rear wall of the ap-
pliance.
Important! The PresenterFrame can
only take bottles up to a maximum
bottle height of 270mm (e.g. Piccolo
bottles) when laid flat in the wine unit.
Risk of damage and injury.
If wooden shelves and bottles pro-
trude too far forwards, they may
damage the glass door when it is
closed.
Please ensure that the wooden
shelves and wine bottles do not pro-
trude.
The PresenterFrame can only take
bottles up to a maximum bottle
height of 270mm (e.g. Piccolo
bottles) when laid flat in the wine
unit. If you wish to stack taller
bottles, please use one of the other
shelves.
Maximum capacity
Risk of damage.
Do not exceed the maximum load-
bearing capacity of 25kg for each
wooden shelf.
Do not stack bottles on the wooden
shelves in more than two layers.
Storing wine bottles
36
Without SommelierSet
- Without PresenterFrame
With the PresenterFrame removed, up
to 80Bordeaux-type bottles (0.75l)
can be stored in the wine unit, with 33
in the upper zone and 47bottles in the
lower zone.
The maximum capacity of 80 bottles
can only be reached if the Presenter-
Frame is removed.
Storing wine bottles
37
- With
PresenterFrame set up
With the PresenterFrame set up, up to
70Bordeaux-type bottles (0.75l) can
be stored in the wine unit, with 33 in the
upper zone and 37bottles in the lower
zone.
With SommelierSet
- Without PresenterFrame
Up to 62 Bordeaux-type bottles
(0.75l) can be stored in the wine unit,
with 15 in the upper zone and 47 in the
lower zone.
Storing wine bottles
38
- With
PresenterFrame set up
With the PresenterFrame set up, up to
52Bordeaux-type bottles (0.75l) can
be stored in the wine unit, with 15 in the
upper zone and 37bottles in the lower
zone.
SommelierSet
39
Setting up the SommelierSet
The SommelierSet can be used to have
the wine in your wine unit ready for
drinking. You can store wine glasses and
accessories, decant your wine and store
open bottles in the wine unit.
You can place the SommelierSet in the
upper or lower wine conditioning zone.
Simply remove the two wooden shelves
at the top of these zones.
Fitting the runner covers
Remove both wooden shelves above
the SommelierSet by pulling them out
as far as they will go and lifting them
off the runners. To do this, hold them
by the frame.
Place the four covers supplied over
the runners which are now visible.
The thicker side of the cover should
be pointing forwards.
SommelierSet
40
Inserting the glass holder
This can be used for storing and chilling
wine glasses.
To fit the glass holder, remove the
necessary number of slats from the
wooden shelf.
Place the glass holder on the
wooden shelf.
Tip: There are two compartments un-
derneath the glassware rail for ac-
cessories such as corkscrews, knives
and chalk.
Inserting the bottle holder
You can store opened wine bottles in
bottle holder.
Remove the necessary number of
slats and place bottle holder on the
wooden shelf.
Position dividers in the bottle
holder to suit the size of bottles being
held. They should be held securely
and not rattle against each other.
Tip: For wine which has been opened
we recommend removing the oxygen
from the bottle as otherwise the wine
will lose its aroma and taste and spoil
more quickly. Special devices (e.g. a
wine pump with bottle stopper) create a
vacuum by extracting the air.
Automatic defrosting
41
The wine unit defrosts automatically.
Cleaning and care
42
The data plate located inside the wine
unit must not be removed. It contains
information which is required in the
event of a fault.
Do not let water get into the elec-
tronic unit or the lighting.
Risk of damage due to moisture
ingress.
The steam from a steam cleaner can
damage plastic and electrical com-
ponents.
Do not use a steam cleaner to clean
the refrigeration appliance.
Cleaning agents
Cleaning and conditioning agents
used in the interior cabinet of the re-
frigeration appliance must be food
safe.
To avoid damaging the surfaces of the
appliance, do not use the following:
- Cleaning agents containing soda, am-
monia, acids or chlorides
- Cleaning agents containing descaling
agents
- Abrasive cleaning agents (e.g. scour-
ing powder, scouring liquid or pumice
stones)
- Cleaning agents containing solvents
- Stainless steel cleaners
- Dishwasher cleaning agents
- Oven sprays
- Glass cleaner (except on the glass in
the appliance door)
- Hard, abrasive sponges and brushes
(e.g. pot scourers)
- Eraser stain remover blocks
- Sharp metal scrapers
We recommend using a clean sponge
cloth and lukewarm water with a little
washing-up liquid to clean the surfaces
of the appliance.
Cleaning and care
43
Preparing the wine unit for
cleaning
Switch the wine unit off.
Take any wine bottles out of the wine
unit and store them in a cool place.
Take out any removable accessories
for cleaning (see “Removing, dismant-
ling and cleaning accessories”).
Remove the magnetic strips from the
wooden shelves before cleaning
them.
Interior, accessories and appli-
ance door
Clean the wine conditioning unit at
least once a month.
Remove soiling immediately to pre-
vent it from drying on.
Clean the interior with a solution of
lukewarm water and a little washing-
up liquid.
The wooden shelves should only be
wiped with a well wrung-out damp
cloth. They must not be allowed to
get wet.
Risk of damage due to incorrect
cleaning.
The blackboard coating on the mag-
netic strips may be damaged.
Use clean water only to wipe the
magnetic strips at the front of the
wooden shelves. Do not use a clean-
ing agent.
After cleaning, wipe the interior and
accessories with a damp cloth and
dry with a soft cloth. Leave the door
open to air the wine conditioning unit
for a short while.
Clean the glass panes in the appli-
ance door with glass cleaner.
Cleaning the ventilation gaps
A build-up of dust will increase the en-
ergy consumption of the appliance.
The ventilation gaps should be
cleaned on a regular basis with a
brush or vacuum cleaner (you could
use a Miele vacuum cleaner dusting
brush, for example).
Cleaning the door seal
Risk of damage as a result of in-
correct cleaning.
If you treat the door seal with oils or
grease, it can become porous.
Do not use any oils or grease on the
door seal.
The door seal should be cleaned regu-
larly with clean water, and then wiped
dry with a soft cloth.
After cleaning
Replace all shelves and accessories in
the wine unit.
Switch the wine unit on.
Place the wine bottles in the wine unit
and close the appliance door.
Active AirClean filters
44
Fresh air from the room enters the wine
unit via the ActiveAirCleanfilter. Filter-
ing the incoming air through the Act-
iveAirCleanfilter ensures that all the air
entering the wine unit is fresh and free
from dust and odours.
The reminder to change the Act-
iveAirCleanfilter will be displayed at
the latest every 12months.
When the ChangeActiveAirCleanfil-
ter symbol lights up in the display,
the ActiveAirCleanfilter needs to be
changed.
Replacing the Active AirClean
filters
Press the top right-hand cover in until
you hear it click and then release it.
Remove the filter.
Insert the new filter.
Press the top right-hand cover into
position until you hear it click and
then release it.
Active AirClean filters can be obtained
from the Miele Customer Service De-
partment, your Miele dealer or from
the Miele website.
To confirm the filters have been
changed
Touch the settings sensor.
All symbols available for selection will
appear in the display and the symbol
flashes.
Active AirClean filters
45
Touch the sensors for setting the tem-
perature ( or ) repeatedly until the
symbol flashes.
Touch the OK sensor to confirm your
selection.
The will flash in the display (means:
Active AirClean filter is fitted in the ap-
pliance), the symbol lights up.
Touch the symbols for setting the
temperature ( or ) repeatedly, until
the symbol is displayed (means: the
counter has been reset).
Touch the OK sensor to confirm your
selection.
The selected setting is applied, the
symbol flashes.
Touch the settings sensor to leave
settings mode.
Otherwise the appliance exits set-
tings mode automatically after ap-
proximately one minute.
The in the display goes out.
Problem solving guide
46
Many malfunctions and faults that can occur in daily operation can be easily
remedied. You can save time and money in many cases, as you do not need to call
the Miele Customer Service Department.
Information to help you rectify faults yourself can be found at www.miele.com/ser-
vice.
The following tables are designed to help you to find the cause of a malfunction or a
fault and to resolve it.
To prevent cold from escaping, open the appliance as little as possible until the
fault has been corrected.
Problem Cause and remedy
The wine conditioning
unit is not getting cold,
the interior lighting does
not come on when the
door is opened, and the
display is not lit up.
The wine conditioning unit is not switched on and the
mains connection symbol is lit up in the display.
Switch on the wine conditioning unit.
The plug is not inserted in the socket correctly.
Insert the plug correctly into the socket. The mains
connection symbol appears in the display when
the wine conditioning unit is switched off.
Check whether the mains fuse has tripped. If it has
there could be a fault with the appliance, the house-
hold electrical wiring or another electrical appliance.
Contact a qualified electrician or Miele.
The symbol is dis-
played, the wine condi-
tioning unit is not getting
cold. However, the appli-
ance and the interior
lighting are working fine.
Demo mode is turned on and the symbol is illumin-
ated in the display.
Switch off Demo mode (see “Information for dealers
- Demo mode”).
Problem solving guide
47
Problem Cause and remedy
The compressor is
switching on more fre-
quently and for longer
periods of time, the tem-
perature in the wine
conditioning unit is fall-
ing.
The temperature in the wine conditioning unit is set
too low.
Adjust the temperature.
The appliance door is not properly closed.
Check that the appliance door closes properly.
The appliance door has been opened too frequently.
Only open the door when necessary and for as short
a time as possible.
The ventilation gaps have been covered over or be-
come dusty.
Do not cover the ventilation gaps and dust them
regularly.
The ambient temperature is too warm.
Decrease the ambient temperature.
The compressor comes
on less and less often
and for shorter periods
of time. The temperature
in the wine conditioning
unit rises.
Not a fault. The temperature setting is too high.
Correct the temperature setting.
Check the temperature again after 24hours.
The fan runs continu-
ously although the
DynaCool function is not
turned on.
This is not a fault. The fan turns itself on automatically
from time to time depending on the set temperature
and ambient temperature.
Problem solving guide
48
Display warnings
Message Cause and remedy
The alarm symbol is
lit in the display and
both sensors for the
wine conditioning zones
are flashing in the con-
trol field. Furthermore,
an audible alarm is also
sounding.
The door alarm has been activated.
Close the appliance door. Both sensors for the wine
conditioning zones and the alarm symbol will go
out and the audible alarm will stop.
The alarm symbol is
flashing in the display,
and the sensor for one of
the wine conditioning
zones is also flashing. An
alarm tone is also
sounding.
The temperature in the zone concerned has risen
higher or fallen lower than the temperature set.
Possible reasons for this include:
– The appliance door has been opened too fre-
quently.
– The ventilation gaps have been blocked.
– A prolonged power cut (power outage) has oc-
curred.
Rectify the cause of the alarm. The alarm symbol
goes out and the sensor for the affected wine condi-
tioning zone lights up again constantly. The alarm
will stop.
The Change Active
AirClean filter symbol
is lit up.
This is the reminder to change the Active AirClean fil-
ter.
Replace the Active AirClean filter and then confirm
the filter change in settings mode (see “Active
AirClean Filter”).
A dash is lit up up/flash-
ing in the display.
Only temperatures within the range the wine condi-
tioning unit can display will be shown.
“F0”, “F1”, “F8”,“E1”, “E2”,
“E7” or “E8” appears in
the display.
There is a fault.
Call Service.
Problem solving guide
49
The interior lighting is not working.
Problem Cause and remedy
The LED interior lighting
is not working.
The wine conditioning unit is not switched on.
Switch the wine conditioning unit on.
To avoid overheating, the LED lighting switches itself
off automatically after approx. 15minutes if the door is
left open.
If this is not the cause, then there is a fault.
Danger of electric shock.
There are live electrical components under the
lighting cover.
The LED lighting may only be repaired or replaced
by the Customer Service Department.
Risk of injury from LED lighting.
This lighting corresponds to risk group RG2. If the
cover is defective, there is a danger of eye injury.
If the lighting cover is defective, do not look from a
close range directly into the lighting with optical in-
struments (e.g. magnifying glass or similar).
Call the Customer Service Department.
The interior lighting is on
even when the appliance
door is closed.
This is not a fault. The feature lighting is switched on.
Switch off the feature lighting (see “Feature light-
ing”).
Problem solving guide
50
General problems with the wine conditioning unit
Problem Cause and remedy
The door seal is dam-
aged or needs to be re-
placed.
No tools are required to change the door seal.
Change the door seal. A replacement is available
from Miele or from specialist retailers.
There is no audible alarm
although the door has
been open for a long
time.
This is not a fault. The alarm tone has been switched
off in settings mode (see “Selecting further settings –
Audible signals”).
The wine conditioning
unit cannot be switched
off.
The safety lock has been activated.
Completely deactivate the safety lock (see “Select-
ing further settings – Activating and deactivating the
safety lock”).
The wooden slats in the
wooden shelves are
warping.
A change in volume due to moisture absorption or
drying out is a typical characteristic of wood. An in-
crease in humidity in the wine unit causes wooden
components to warp. Therefore, under certain cir-
cumstances, wooden parts can warp and cracks can
develop. Knots and grain patina are part of the natural
character of the wood.
Mildew has begun to
form on the wine bottle
labels.
Mildew can begin to form on the labels, depending on
the type of label adhesive used.
Clean the wine bottles and remove any adhesive
residue.
A white deposit has
formed on the wine
bottle corks.
The corks have oxidised due to contact with the air.
Use a dry cloth to wipe off the deposit. The deposit
will not affect the quality of the wine.
Noises
51
Normal noises What is causing them?
Brrrrr... A humming noise is made by the motor (compressor). The
humming noise can get louder for brief periods when the motor
switches on.
Blubb, blubb... A gurgling noise can be heard when the refrigerant circulates
through the pipes.
Click... Clicking sounds occur whenever the thermostat switches the
motor on or off.
Sssrrrrr... With a multi-zone wine unit a slight hissing sound may eman-
ate from the interior due to the circulation of the air.
Crack... A cracking sound can be heard when material inside the wine
unit expands.
Please bear in mind that a certain amount of noise is unavoidable (from the com-
pressor and the refrigerant circulating through the cooling circuit).
Noises that you
can easily rectify
Cause Remedy
Rattling, vibrating The wine unit is uneven. Realign the wine unit using a
spirit level. Do so by raising
or lowering the screw feet
underneath the appliance or
place something underneath
it.
Shelves are unstable or stick-
ing.
Check all removable items
and refit them correctly.
Bottles or containers are
touching.
Separate them.
The transport cable clips are
hanging loose at the back of
the appliance.
Remove the cable clips.
Service
52
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/ser-
vice.
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Customer Ser-
vice call-out online at www.miele.com/
service.
Contact information for Miele Cus-
tomer Service can be found at the end
of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer Ser-
vice. Both numbers can be found on the
data plate inside the refrigeration appli-
ance or, depending on the model, in
Settings mode under Information.
The data plate can be found inside the
wine unit.
EPREL database
Since 1 March 2021, information on en-
ergy labelling and ecodesign require-
ments has been available in the
European Product Database (EPREL).
You can find the product database at
the following link https://
eprel.ec.europa.eu/. You will be asked to
enter the model identifier.
The model identifier can be found on the
data plate inside the refrigeration appli-
ance or, depending on the model, in
Settings mode under Information.
SN-ST
R600a:
XXXXXX
Nr. XX/ XXXXXXXXX.
XXX l
XXg
Warranty
For information on the appliance war-
ranty specific to your country please
contact Miele. See back cover for ad-
dress.
In the UK, your appliance warranty is
valid for 2 years from the date of pur-
chase. However, you must activate your
cover by calling 0330 160 6640 or re-
gistering online at www.miele.co.uk.
Installation
*INSTALLATION*
53
Installation site
Risk of injury and damage.
A wine unit that has not been in-
stalled in its niche can tip up.
Keep the appliance door shut until
the wine unit has been built in and
secured in its building-in niche in ac-
cordance with these operating and
installation instructions.
Risk of fire and damage.
This wine unit must not be installed
underneath a hob.
Risk of fire and damage.
Do not install a warming drawer un-
der the wine unit.
Risk of damage.
Do not install a vacuum drawer under
the wine unit.
Risk of tipping over.
Risk of injury and damage.
If you install the wine unit by itself in
a separate housing unit, this housing
unit must be securely fixed to the
wall.
This appliance should be installed in a
dry, well-ventilated room.
When deciding where to install your
wine unit, please bear in mind that it will
use more energy if installed near to a
heater, a cooker or another appliance
that gives off heat. Direct sunlight
should also be avoided.
The higher the room temperature, the
longer the compressor runs and the
higher the energy consumption is.
When installing the wine unit, please
note:
- The socket must be easily accessible
in an emergency, not concealed be-
hind the appliance.
- The plug and cable must not touch the
back of the wine unit as they could be
damaged by vibrations from the appli-
ance.
- Do not plug in other appliances be-
hind the wine unit.
Installation
*INSTALLATION*
54
Load-bearing capacity of the
niche floor
To ensure the safe installation of the
wine unit and to guarantee its correct
functioning, the floor to the niche where
the appliance is to be installed must be
smooth and even.
It must be made from strong, rigid ma-
terial.
Because the wine unit is extremely
heavy when fully loaded, it is essential
that the floor it stands on is able to bear
its weight.
When fully loaded, the weight of the
wine unit is approx. 200kg.
Danger from broken glass!
Danger of injury from broken glass.
If installed at altitudes above 1500m
there is a risk of the glass in the door
breaking because of changes in air
pressure. Shards of glass can cause
severe injury if not handled with care.
Risk of damage due to high hu-
midity.
In environments with high humidity,
condensation can build up on the ex-
ternal wine unit panels, which can
cause corrosion.
Install the wine unit with sufficient
ventilation in a dry and/or air-condi-
tioned room.
After installation, make sure that the
appliance door closes properly, the
ventilation gaps are not covered and
that the wine unit has been installed
in accordance with these operating
and installation instructions.
Climate range
This wine unit is designed for use within
specific ambient temperatures (climate
range). Do not use in ambient temperat-
ures for which it is not designed. The cli-
mate range is stated on the data plate
inside the wine unit.
Climate range Ambient temper-
ature
SN 10 to 32°C
N 16 to 32°C
ST 16 to 38°C
T 16 to 43°C
SN-ST 10 to 38°C
SN-T 10 to 43°C
A lower ambient temperature will cause
the compressor to switch off for longer
periods, meaning that the wine unit is
unable to maintain the required temper-
ature in some circumstances.
Side-by-side
This wine conditioning unit can be in-
stalled side-by-side with another wine
conditioning unit or a refrigeration appli-
ance.
Your dealer will be able to advise you
which combination of models is pos-
sible.
Installation
*INSTALLATION*
55
Ventilation
Risk of fire and damage due to in-
sufficient ventilation.
If the wine conditioning unit is not
ventilated sufficiently, the com-
pressor will run more frequently and
for longer periods. This will result in
increased energy consumption and a
higher operating temperature for the
compressor. This may, in turn, cause
damage to the compressor.
Please ensure that there is adequate
ventilation around the wine condi-
tioning unit.
It is essential to observe the required
ventilation gaps. The ventilation gaps
must not be covered or blocked in
any way.
Air at the back of the wine conditioning
unit gets warm. The appliance housing
unit must therefore be constructed to
allow sufficient space for ventilation
(see “Installation – Building-in dimen-
sions”):
Air intake occurs via the plinth at the
bottom of the appliance and the air es-
capes at the top at the back of the
housing unit.
- A ventilation gap of at least 40mm
depth must be allowed for behind the
appliance for air to circulate.
- The ventilation cross-sections in the
plinth, housing unit and above the ap-
pliance must each provide an unob-
structed airflow of at least 200cm²
to ensure that air can circulate without
hindrance.
If ventilation grilles are to be inserted
into the ventilation gaps, the ventila-
tion gaps must be larger than
200cm². The unobstructed airflow
of 200cm² is calculated by adding
up the total area of ventilation gaps in
the grille.
- Important! The larger the ventilation
gaps, the less energy the wine condi-
tioning unit will use.
Installation
*INSTALLATION*
56
The ventilation gap at the top of the ap-
pliance can be constructed in different
ways:
- : Directly above the wine condition-
ing unit
- : Above a top box
- : In a top box through a ventilation
grille at the front
The ventilation gaps must not be
covered or blocked in any way. They
must also be regularly dusted.
Furniture door panel
Horizontal and vertical gaps
Depending on the style of kitchen fur-
niture, the thickness and edge radius of
the furniture door and the gap that runs
around the door, vertically and horizont-
ally, are specified.
It is essential to pay attention to the
following:
- Horizontal gap
The gap between the furniture door and
the housing unit door above or below it
must be at least 3mm.
- Vertical gap
If the gap between the wine unit fur-
niture door and the adjoining housing
unit door or wall on the hinged side is
too small, the appliance door could
collide with the adjoining housing
unit door or wall when opened.
It may be necessary to adjust the size
of this gap to suit the thickness and
edge radius of the furniture door.
This must be taken into consideration
when planning your kitchen and when
replacing an old wine unit with a new
one to ensure the installation conditions
required are met.
Appliance
furniture
door
thickness
A [mm]
Gap X [mm]
for different
edge radii B
R0 R1.2 R2 R3
≥16–19 min. 3
20 5 4 4 3.5
21 5.5 5 4.5 4
22 6.5 6 5.5 5
Adjoining kitchen furniture front
A=Furniture front thickness
B=Edge radius
X=Gap
Installation
*INSTALLATION*
57
Adjoining side wall
A=Furniture front thickness
B=Edge radius
X=Gap
Tip: Fit a spacer between the housing
unit carcase and the side wall. This way
you will get a sufficiently wide gap.
Weight of the furniture door
Before fitting a furniture door, ensure
that the weight of the door does not ex-
ceed the maximum permitted.
Wine unit Maximum weight of
furniture door in kg
KWT6x22i(S) 20
Fitting a door which is heavier than
the maximum permitted weight could
damage the hinges.
Installation dimensions
The mains connection cable is
2800mm long.
The socket must be easily accessible
in an emergency, not concealed be-
hind the appliance.
Installation
*INSTALLATION*
58
Furniture door dimensions
Risk of damage.
Never fit a sealed furniture door in
front of the glass door as this can
lead to a build-up of moisture and
cause corrosion of the wine unit.
Changing the door hinging
The wine unit is supplied with right-
hand hinging. If left-hand hinging is re-
quired, the hinges must be changed.
To change the door hinging, you will
need the following tools:
Risk of injury and damage.
The glass door is breakable.
The glass door is heavy (approx.
31kg). Always change the door
hinging with the assistance of an-
other person.
Risk of injury and damage.
The glass door can drop.
When changing the door hinging
make sure that all fixing parts are se-
curely screwed into position.
Tip: Place a suitable cover on the floor
in front of the wine unit to protect the
glass door and your floor from damage
when changing the door hinging.
Be careful not to damage the door
seal. If the door seal is damaged, the
appliance door may not close prop-
erly and cooling will be insufficient.
Installation
*INSTALLATION*
59
Open the appliance door and remove
covers and on the left and right
of the wine unit.
Remove cover from the bottom of
the wine unit.
Unscrew the transport safety
device.
Tip: Keep this device in a safe place for
refitting should the appliance need to be
moved in the future.
Risk of injury and damage.
The appliance door is not secure
once the screws in the hinges have
been removed.
The second person must support the
appliance door.
Risk of injury.
If the hinges close there is a risk of
injury.
Leave the hinges open.
Slightly unscrew the bottom and top
screws from the hinges. The appli-
ance door must be held by a second
person whilst you do this.
Remove the appliance door.
Carefully place the dismantled appli-
ance door on a soft surface.
Now undo the screws completely.
Risk of injury.
Do not close the hinges.
Installation
*INSTALLATION*
60
Take off the upper retaining bracket
and refit it on the opposite side.
Remove the stopper from the ap-
pliance door.
Remove the spacer from the appli-
ance door, rotate it 180° and fit it on
the opposite side.
Refit the stopper on the opposite
side of the door.
Unscrew the hinges and covers
from the appliance door.
Installation
*INSTALLATION*
61
Fit the hinges and covers diag-
onally on the opposite side.
Risk of injury.
The second person must support the
appliance door during the following
steps.
Fit the screws through the hinges
at the top and bottom.
Tighten the bottom screws followed
by the top screws.
Replace the top covers and and
click them into place.
Replace the bottom cover and click
it into place.
Installation
*INSTALLATION*
62
Check that the wine unit is standing
securely in the building-in niche and
that the appliance door closes prop-
erly.
Before installing the wine con-
ditioning unit
Take any accessories out of the appli-
ance.
Remove the cable clip from the back
of the appliance (depending on
model).
The door hinges on the wine unit are set
ex-works to enable the appliance door
to be opened wide.
However if the opening angle of the ap-
pliance door needs to be limited for any
reason, the hinge can be adjusted to ac-
commodate this.
If the appliance door hits an adjacent
wall when opened, for example, the
opening angle can be limited to ap-
prox.90°.
The locking pins for limiting the door
opening must be fitted before the
wine unit is installed.
Insert the locking pins supplied for
limiting the door opening into the
hinges from above.
The appliance door opening angle is
now limited to approx. 90°.
Installation
*INSTALLATION*
63
Installing the wine conditioning
unit
Risk of damage and injury from
the wine unit tipping over.
There is an increased risk of injury
and damage if the wine unit is in-
stalled by a single person.
Two people are required for installing
the wine unit.
Install the wine unit in a stable, solid
housing unit, positioned on an even
and level floor.
The building-in niche must be hori-
zontally and vertically aligned.
The required ventilation gaps must be
provided (see “Installation” – “Ventil-
ation” and “Building-in dimensions”).
The following parts are supplied with
the wine unit:
All installation parts are number coded.
This coding is also used in the installa-
tion instructions.
- Required for installing the wine unit in
its niche:
Installation
*INSTALLATION*
64
All fitting instructions given are for a
wine unit with right-hand hinging. If
you have converted the appliance to
left-hand hinging, you will need to ad-
apt these instructions accordingly.
Setting up the wine unit
Unscrew the transport safety
devices from both sides on the
back of the wine unit and remove
them upwards.
Feed the power cable through to the
socket.
Fire hazard due to short circuit.
When pushing the wine unit into its
niche make sure that the mains cable
does not get trapped. Never operate
a wine unit with a faulty power cable.
Push the wine unit two thirds of the
way into the building-in niche.
Turn the front adjustable feet of the
wine unit all the way in using the open
spanner supplied.
Installation
*INSTALLATION*
65
Slide the filler panel supplied from
the front into the holders on the wine
unit as shown.
If the wine unit is left-hinged, allow
for the position of the lug (see illustra-
tion above).
If the wine unit is right-hinged, allow
for the position of the lug (see illustra-
tion above).
Unscrew the transport safety
device from the front of the wine
unit, if you have not already done so.
Tip: Keep this device in a safe place for
refitting should the appliance need to be
moved in the future.
With 16mm thick unit walls only:
Clip spacers and supplied onto
the hinges on the right.
Open the appliance door.
Remove top cover.
Installation
*INSTALLATION*
66
Screw the supplied fixing bracket
loosely with the screws supplied
into the top left of the wine unit (1st
and 3rd hole from the left). Do not
tighten the screws so that you can
adjust the position of fixing bracket
later on.
Fit the stopper supplied onto the
fixing bracket also supplied.
Screw the fixing bracket loosely
with the screws supplied into the
bottom of the wine unit. Do not
tighten the screws so that you can
adjust the position of this part.
Carefully remove the protective foil
from the supplied sealing strip.
Fix the sealing strip flush with the
front of the appliance on the door
opening side.
1. Position the sealing strip flush with
the lower edge of the top fixing
bracket.
2. Stick it down along its entire length.
If necessary, insert the locking pins
supplied for limiting the door opening
into the hinges from above (see
“Changing the door hinging”).
Installation
*INSTALLATION*
67
Installing the wine unit
If the wine unit is pushed too far into
the niche, the appliance door will not
close properly. This can cause ice to
build up, condensate to accumulate
and lead to faults in the appliance.
These can all lead to increased en-
ergy consumption.
Push the wine unit into the building-
in niche, making sure a gap of 42mm
is maintained all round between the
appliance carcase and the front of
the housing unit side walls.
Push the wine unit into the niche until
the fixing brackets at the top and bot-
tom touch the front edge of the side
walls of the housing unit.
- With 16mm thick unit walls:
The spacers should touch the front
edge of the housing unit side walls at
the top and bottom.
- With 19mm thick unit walls:
The front edges of the top and bot-
tom hinges should be flush with the
front edge of the housing unit side
wall.
Check the position of the fixing brack-
ets at the top and bottom front edge
of the housing unit side wall again.
This will create a gap all round of
42mm to the front edges of the hous-
ing unit side walls.
Align the height of the wine unit as
necessary on both sides with adja-
cent furniture fronts by altering the
adjustable feet using the open span-
ner supplied.
Installation
*INSTALLATION*
68
Push the hinged side of the wine unit
to the housing unit wall.
To secure the wine unit to the housing
unit, screw the supplied chipboard
screws through the hinge plates at
the top and bottom (1. + 2.).
Push the fixing brackets and
against the housing unit wall.
Now secure the wine unit to the other
side of the housing unit by screwing
the supplied chipboard screws
and through the hinge plates at the
top and bottom (3. + 4.).
Installation
*INSTALLATION*
69
Now tighten screws and.
Snap off any protruding ends from fix-
ing brackets and. They are no
longer required and can be disposed
of in the household waste.
Fit the cover to the top fixing
bracket.
Fit the supplied cover to the bot-
tom fixing bracket.
For additional stability of the wine unit
in the housing unit, push the stabilising
rods supplied in underneath the appli-
ance between it and the floor of the
housing unit:
Then secure the handle to one of
the stabilising rods.
Push the stabilising rod into the
guide hole as far as it will go. Remove
the handle, fit it to the other rod
supplied and push this into its guide
as far as it will go.
Tip: Important! Keep the handle
somewhere safe in case you ever need
to fit the wine unit into new cabinetry.
Check that the wine unit is standing
securely in the building-in niche and
that the appliance door closes prop-
erly.
Installation
*INSTALLATION*
70
Fitting the furniture door
If fitted in a run of units make sure that
the top edge of the furniture door is at
the same height as neighbouring cab-
inet doors.
The furniture door must be fitted cor-
rectly and not under tension.
Please use the screws for the furniture
door as well as the gap cover included
in the accessories supplied.
Open the appliance door.
Remove the covers from the top
and bottom of the appliance door.
Measure the distance X between the
top edge of the furniture wall above
and the middle of the vertical slots in
the fixing bracket.
Place the furniture door on a firm sur-
face, with the external side facing
downwards (place on a blanket or
similar to prevent it from becoming
scratched).
8
9
Mark the distance X on the inner side
of the furniture door.
Similarly, locate and mark the vertical
midpoint Y on the furniture door.
Installation
*INSTALLATION*
71
Unscrew the nuts and remove the
fixing bracket from the appliance
door.
8
9
Position the fixing bracket on the
furniture door according to the mark-
ings and screw it tightly using the two
screws supplied.
Open the appliance door and hang
the furniture door from its fixing
bracket onto the threaded bolts
from above.
Installation
*INSTALLATION*
72
Screw the nuts loosely onto the
threaded bolts. Do not tighten the
nuts yet.
Close the appliance door carefully and
check the distance between the door
and adjacent furniture doors. The dis-
tance should be the same.
Align the sides of the appliance door
X and the height Y using the threaded
bolts.
Installation
*INSTALLATION*
73
Close the appliance door again and
check the distance between the door
and adjacent furniture doors.
Now screw on the top nuts. The
appliance door is now secured.
Secure the furniture door to the appli-
ance door at the bottom using the
screws supplied.
Re-secure the furniture door at the
top using the screws supplied.
Carefully move the seal on the ap-
pliance door to one side and secure
the furniture door to the appliance
door at 3 points on both sides using
the screws supplied.
Installation
*INSTALLATION*
74
Replace the covers at the top and
bottom on the appliance door.
Insert the gap cover supplied into
the gap between the furniture door
and the appliance door.
The following confirms that the wine
unit is correctly installed:
- The appliance door closes properly.
- The appliance door does not touch
the housing unit.
- The seal on the top corner of the
handle side is firmly seated.
To double check place a torch in the
wine unit and close the appliance
door.
Turn the lights out in the room. Check
whether you can see any light shining
out from the sides of the wine unit. If
you can, double check each stage of
the installation.
Installation
*INSTALLATION*
75
Electrical connection
The wine unit is supplied with a mains
cable with moulded plug ready for con-
nection to an earthed socket.
The socket must be easily accessible
after the wine unit has been installed. If
the socket is not easily accessible, en-
sure that a suitable means of discon-
nection is provided on the installation
side for each pole.
Risk of fire from overheating.
Connecting the refrigeration appli-
ance to a multi-socket plug adapter
or to an extension lead can overload
the cable.
For safety reasons, do not use an ex-
tension lead or multi-socket adapter.
The electrical installation must comply
with VDE0100 requirements.
For safety reasons, we recommend us-
ing a type residual current device
(RCD) in the assigned electrical installa-
tion for connecting the wine unit.
If the mains connection cable is dam-
aged, it must only be replaced with a
specific mains connection cable of the
same type (available from the Miele
Customer Service Department). For
safety reasons, such replacement may
only be carried out by a qualified spe-
cialist or the Miele Customer Service
Department.
These operating instructions and the
data plate indicate the nominal power
consumption and the appropriate fuse
rating. Compare this information with
the data of the on-site electrical con-
nection.
If in any doubt, consult a qualified elec-
trician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not syn-
chronised with the mains power supply
(e.g. island networks, back-up systems)
is possible. A prerequisite for operation
is that the power supply system com-
plies with the specifications of
EN50160 or an equivalent standard.
The function and operation of the pro-
tective measures provided in the do-
mestic electrical installation and in this
Miele product must also be maintained
in isolated operation or in operation that
is not synchronised with the mains
power supply, or these measures must
be replaced by equivalent measures in
the installation. As described, for ex-
ample, in the current version of VDE-
AR-E2510-2.
Information for dealers
76
Demo mode
The wine conditioning unit can be
demonstrated in the showroom or at ex-
hibitions in “Demo mode”. In this mode
the control panel and interior lighting are
active but the compressor remains
switched off, so that the appliance does
not cool down.
Switching on demo mode
Switch the wine conditioning unit off
by touching the On/Off sensor.
The temperature display will go out and
the mains connection symbol will
appear.
Place your finger on the sensor, and
leave it there.
At the same time, briefly touch the
On/Off sensor (without letting go of
the sensor).
Leave your finger on the sensor un-
til the symbol appears in the display.
Then release the sensor.
Demo mode is activated and the sym-
bol appears in the display.
Switching off Demo mode
The symbol is lit up in the display.
Touch the settings sensor.
All symbols available for selection will
appear in the display and the symbol
flashes.
Touch the sensors for setting the tem-
perature ( or ) repeatedly until the
symbol flashes.
Touch the OK sensor to confirm your
selection.
1 flashes in the display (means: Demo
mode is switched on) and the symbol
lights up.
Information for dealers
77
Touch the or sensor until 0 ap-
pears (means: Demo mode is
switched off).
Touch the OK sensor to confirm your
selection.
The selected setting is applied, the
symbol flashes.
Touch the settings sensor to leave
settings mode.
Otherwise the appliance exits set-
tings mode automatically after ap-
proximately one minute.
Demo mode is switched off, the sym-
bol goes out.
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
E-mail: [email protected]
Internet: www.miele.com.au
Miele Electrical Appliances Co., Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: [email protected]
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
E-mail:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9, Mathura Road,
Jasola, New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191
Fax: +65 6735 1161
E-mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place, Bryanston 2194
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1, Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
E-mail: customercare@miele.co.nz
P.O. Box 69434, Bryanston 2021
M.-Nr. 12 712 650 / 00en-GB
KWT 6722 i S
