About This Guide
This guide provides information about monitor features, setting up the monitor, using the software and
technical specications.
WARNING! Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
IMPORTANT: Indicates information considered important but not hazard-related (for example, messages
related to property damage). A notice alerts the user that failure to follow a procedure exactly as described
could result in loss of data or in damage to hardware or software. Also contains essential information to
explain a concept or to complete a task.
NOTE: Contains additional information to emphasize or supplement important points of the main text.
TIP: Provides helpful hints for completing a task.
This product incorporates HDMI technology.
iii
iv About This Guide
Table of contents
1 Getting started ............................................................................................................................................. 1
Important safety information ............................................................................................................................... 1
Product features and components ........................................................................................................................ 2
Features ............................................................................................................................................... 2
Rear components ................................................................................................................................ 3
Front components ............................................................................................................................... 4
Setting up the monitor .......................................................................................................................................... 4
Attaching the monitor stand ............................................................................................................... 5
Mounting the monitor head ................................................................................................................ 6
Removing the monitor stand ............................................................................................ 6
Attaching the monitor head to a mounting device ........................................................... 7
Connecting the cables ......................................................................................................................... 7
Adjusting the monitor ......................................................................................................................... 9
Turning on the monitor ..................................................................................................................... 11
Installing a security cable ................................................................................................................. 12
2 Using the monitor ........................................................................................................................................ 13
Software and utilities .......................................................................................................................................... 13
The Information le ........................................................................................................................... 13
The Image Color Matching le ........................................................................................................... 13
Using the OSD menu ............................................................................................................................................ 13
Using the function buttons .................................................................................................................................. 15
Reassigning the function buttons ....................................................................................................................... 15
Adjusting blue light output (select products only) .............................................................................................. 15
Using Auto-Sleep Mode ....................................................................................................................................... 16
Changing the Power Mode setting (select products only) .................................................................................. 16
3 Support and troubleshooting ........................................................................................................................ 17
Solving common issues ....................................................................................................................................... 17
Button lockouts ................................................................................................................................................... 18
Using the auto-adjustment function (analog input) ........................................................................................... 18
Optimizing image performance (analog input) ................................................................................................... 19
Contacting support .............................................................................................................................................. 20
Preparing to call technical support ..................................................................................................................... 20
Locating the serial number and product number ............................................................................................... 21
v
4 Maintaining the monitor .............................................................................................................................. 22
Maintenance guidelines ....................................................................................................................................... 22
Cleaning the monitor ......................................................................................................................... 22
Shipping the monitor ......................................................................................................................... 23
Appendix A Technical specications ................................................................................................................. 24
60.5 cm/23.8 in model ........................................................................................................................................ 24
68.6 cm/27 in model ............................................................................................................................................ 25
Preset display resolutions ................................................................................................................................... 26
Energy saver feature ........................................................................................................................................... 27
Appendix B Accessibility ................................................................................................................................. 28
HP and accessibility ............................................................................................................................................. 28
Finding the technology tools you need ............................................................................................ 28
The HP commitment ......................................................................................................................... 28
International Association of Accessibility Professionals (IAAP) ....................................................... 28
Finding the best assistive technology .............................................................................................. 29
Assessing your needs ..................................................................................................... 29
Accessibility for HP products .......................................................................................... 29
Standards and legislation .................................................................................................................................... 30
Standards .......................................................................................................................................... 30
Mandate 376 – EN 301 549 ............................................................................................ 30
Web Content Accessibility Guidelines (WCAG) ................................................................ 30
Legislation and regulations .............................................................................................................. 30
Useful accessibility resources and links .............................................................................................................. 31
Organizations .................................................................................................................................... 31
Educational institutions .................................................................................................................... 31
Other disability resources ................................................................................................................. 31
HP links .............................................................................................................................................. 32
Contacting support .............................................................................................................................................. 32
vi
1 Getting started
Important safety information
A power cord is included with the monitor. If you use another cord, use only a power source and connection
appropriate for this monitor. For information about the correct power cord set to use with the monitor, refer
to the
Product Notices provided in your documentation kit.
WARNING! To reduce the risk of electric shock:
• Plug the power cord into an AC outlet that is easily accessible at all times.
• If the power cord has a 3-pin attachment plug, plug the cord into a grounded (earthed) 3-pin outlet.
For your safety, do not place anything on power cords or cables. Care should be taken to route all cords and
cables connected to the monitor so that they cannot be stepped on, pulled, grabbed, or tripped over.
To reduce the risk of serious injury, read the Safety & Comfort Guide provided with your user guides. It
describes proper workstation setup and proper posture, health, and work habits for computer users. The
Safety & Comfort Guide also provides important electrical and mechanical safety information. The Safety &
Comfort Guide is also available on the Web at http://www.hp.com/ergo.
IMPORTANT: For the protection of the monitor and the computer, connect all power cords for the computer
and its peripheral devices (such as a monitor, printer, scanner) to a surge protection device such as a power
strip or uninterruptible power supply (UPS). Not all power strips provide surge protection; the power strip
must be specically labeled as having this capability. Use a power strip whose manufacturer oers a damage
replacement policy so that you can replace the equipment if surge protection fails.
Use the appropriate and correctly sized furniture designed to properly support your monitor.
WARNING! Monitors that are inappropriately situated on dressers, bookcases, shelves, desks, speakers,
chests, or carts may fall over and cause personal injury.
NOTE: This product is suitable for entertainment purposes. Consider placing the monitor in a controlled
luminous environment to avoid interference from surrounding light and bright surfaces that may cause
disturbing reections from the screen.
Important safety information 1
Product features and components
Features
This guide describes features of the following monitors:
● 60.5 cm (23.8 in) diagonal viewable screen area with 2560 × 1440 resolution, plus full-screen support
for lower resolutions; includes custom scaling for maximum image size while preserving original aspect
ratio
● 68.6 cm (27.0 in) diagonal viewable screen area with 2560 × 1440 resolution, plus full-screen support
for lower resolutions; includes custom scaling for maximum image size while preserving original aspect
ratio
The monitor features include the following:
● Nonglare IPS panel with an LED backlight
● Wide viewing angle to allow viewing from a sitting or standing position, or when moving from side to
side
● Tilt capability
● Pivot capability to rotate the monitor panel from landscape to portrait mode
● Swivel and height adjustment capabilities
● Removable stand for exible monitor panel mounting solutions
● VGA video input
● One HDMI (High-Denition Multimedia Interface) video input (cable provided)
● Plug and Play capability, if supported by your operating system
● Security cable slot provision on rear of monitor for optional security cable
● On-screen display (OSD) adjustments in several languages for easy setup and screen optimization
● HP Display Assistant software for adjusting monitor settings and enabling the theft deterrence features
● HDCP (High-bandwidth Digital Content Protection) copy protection on all digital inputs
● Energy saver feature to meet requirements for reduced power consumption
NOTE: For safety and regulatory information, see the Product Notices provided on your optical disc, if one is
included, or in your documentation kit. To access the latest user guide, go to http://www.hp.com/support and
following the instructions to nd your product. Then select User Guides.
2 Chapter 1 Getting started
Rear components

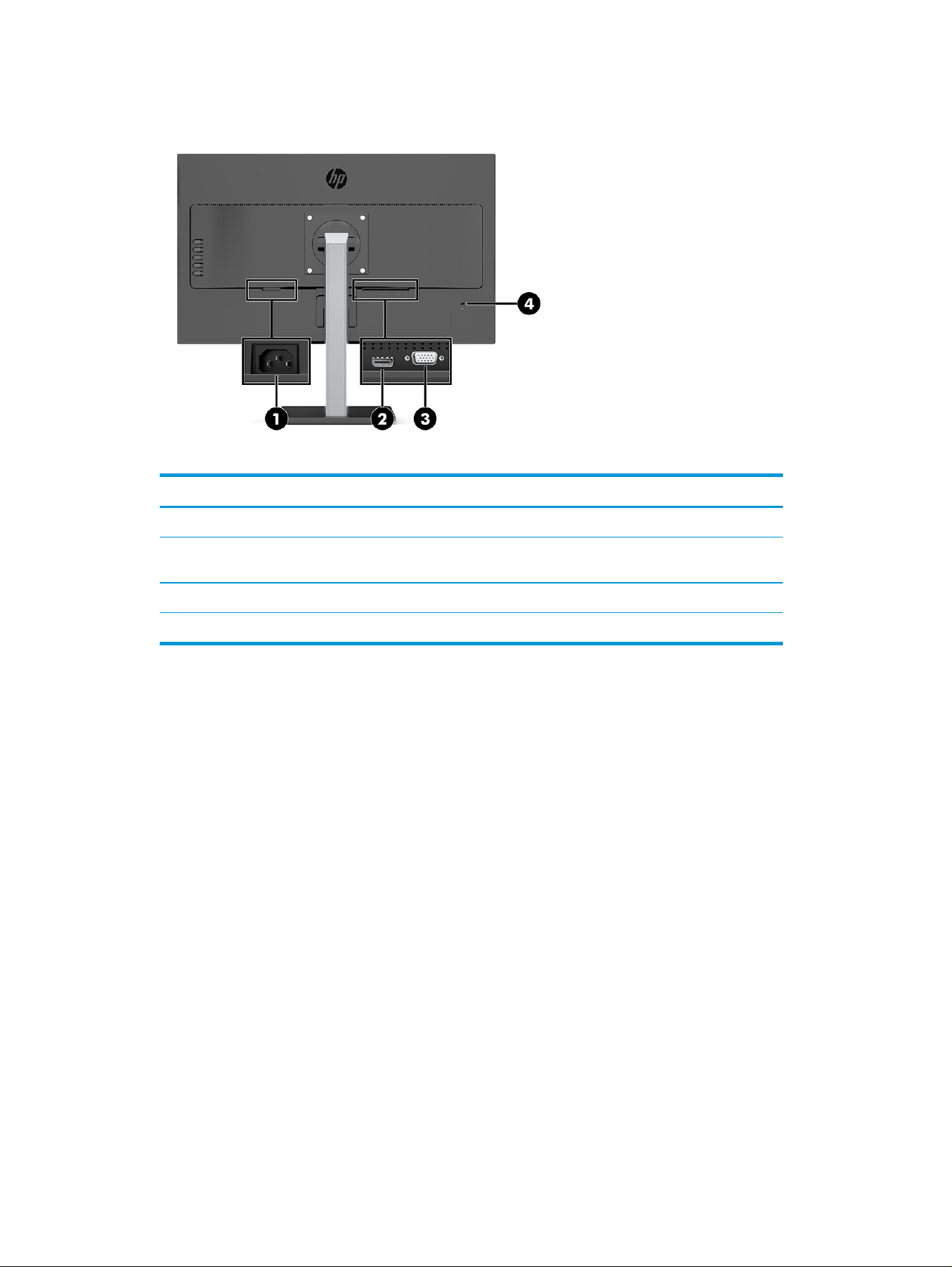

Table 1-1 Rear components
Component Function
1 Power connector Connects the power cord.
2 HDMI port Connects the HDMI cable to a source device such as a computer
or game console.
3 VGA port Connects the VGA cable to the source device.
4 Security cable slot Connects an optional security cable to the monitor.
Product features and components 3
Front components
Table 1-2 Front components
Control Function

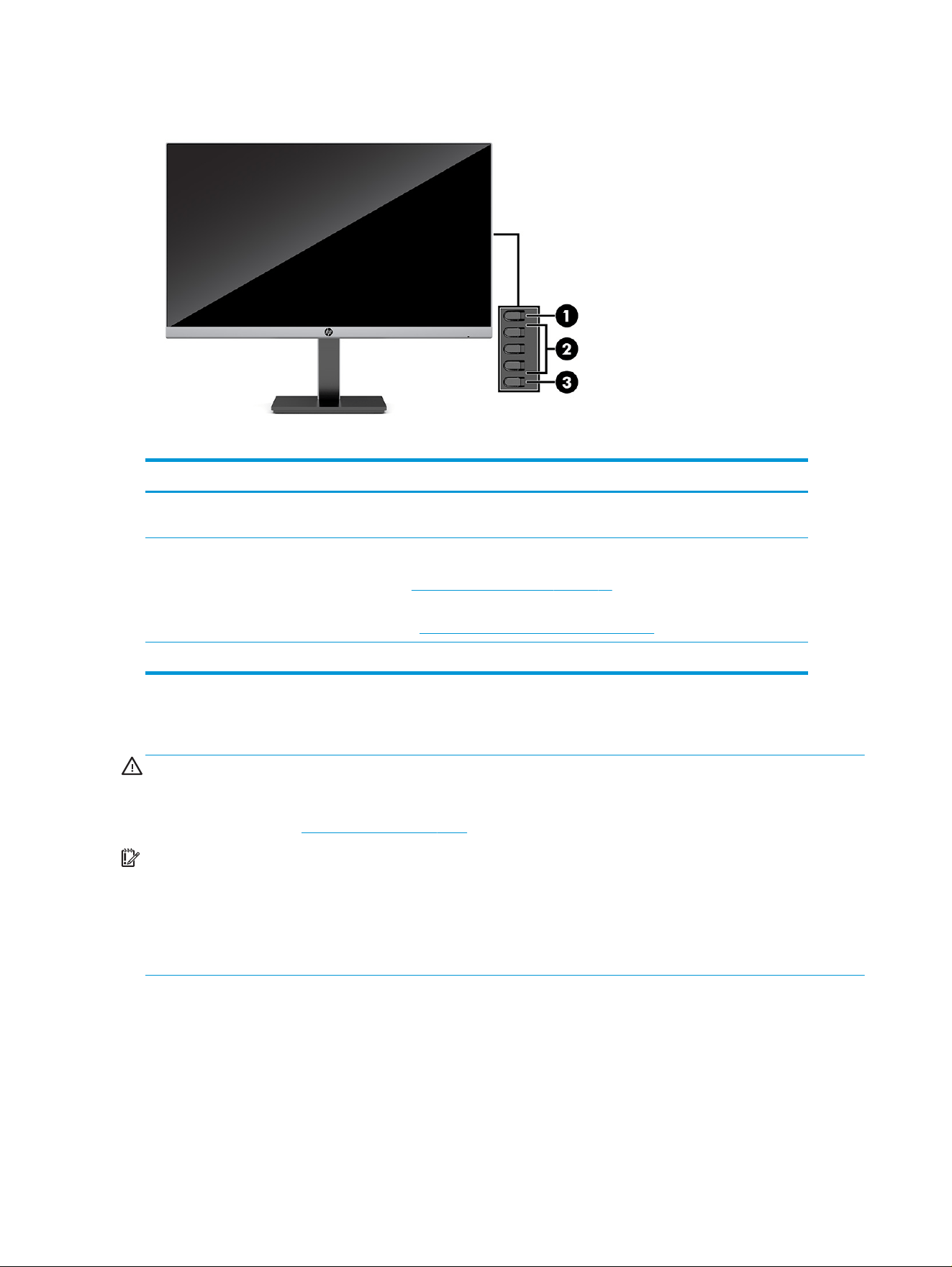

1 Menu button Press to open the OSD menu, select a menu item from the OSD, or close the OSD menu.
When the OSD menu is open, the Menu light turns on.
2 OSD buttons
(assignable)
When the OSD menu is open, press the buttons to navigate through the menu. The
function light icons indicate the default button functions. For a description of these
functions, see Using the function buttons on page 15
You can reassign the function buttons to quickly select the most commonly used
operations. See Reassigning the function buttons on page 15.
3 Power button Turns the monitor on or o.
Setting up the monitor
WARNING! To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper
workstation setup and proper posture, health, and work habits for computer users. The Safety & Comfort
Guide also provides important electrical and mechanical safety information. The Safety & Comfort Guide is
available on the Web at http://www.hp.com/ergo.
IMPORTANT: To prevent damage to the monitor, do not touch the surface of the LCD panel. Pressure on the
panel may cause nonuniformity of color or disorientation of the liquid crystals. If this occurs, the screen will
not recover to its normal condition.
IMPORTANT: To prevent the screen from getting scratched, defaced, or broken and prevent damage to the
control buttons, position the monitor facedown on a at surface covered with protective sheet foam or a
nonabrasive cloth.
4 Chapter 1 Getting started
Attaching the monitor stand
TIP: Consider the placement of the monitor, because surrounding light and bright surfaces might cause
interfering reections.

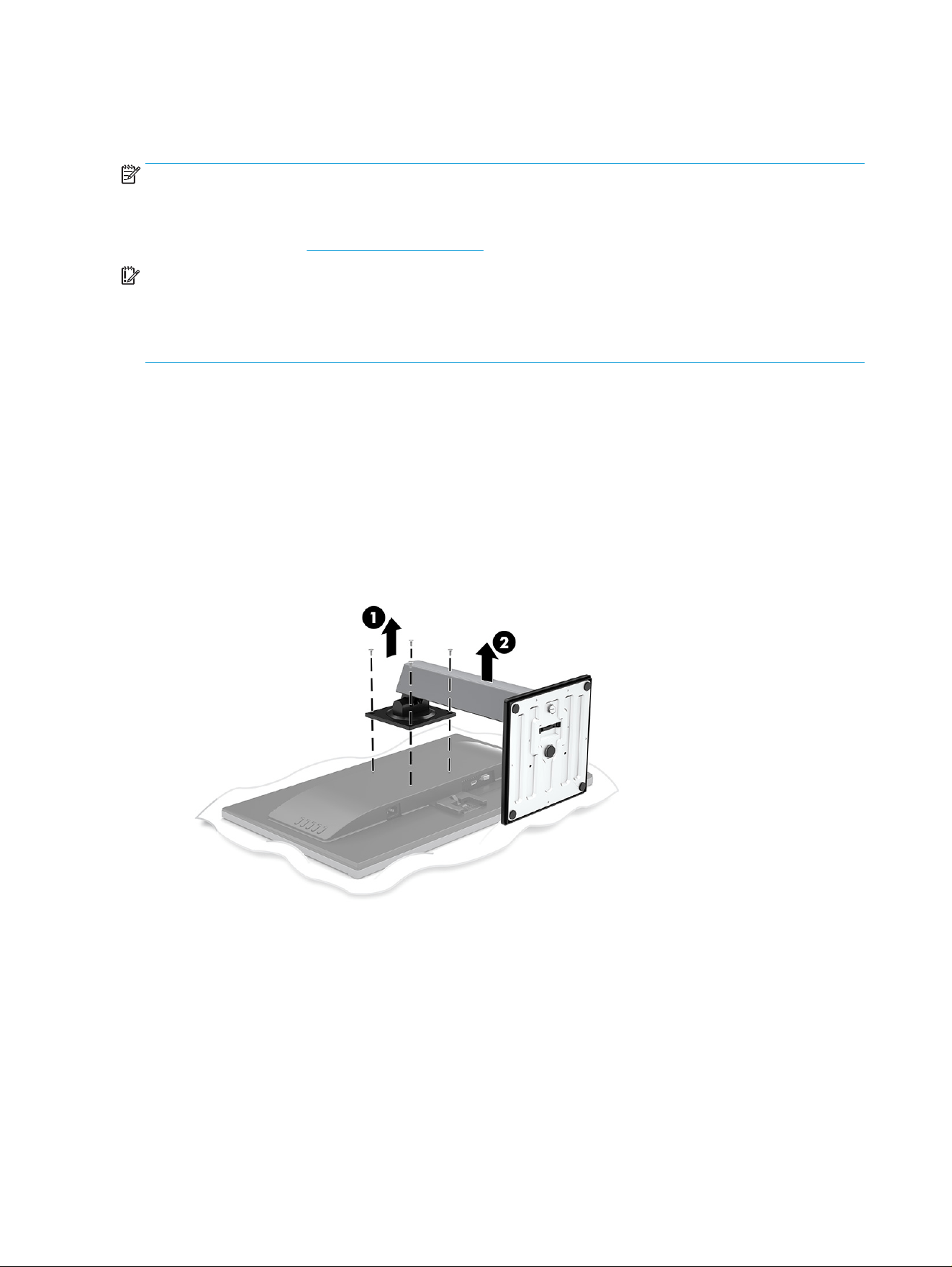

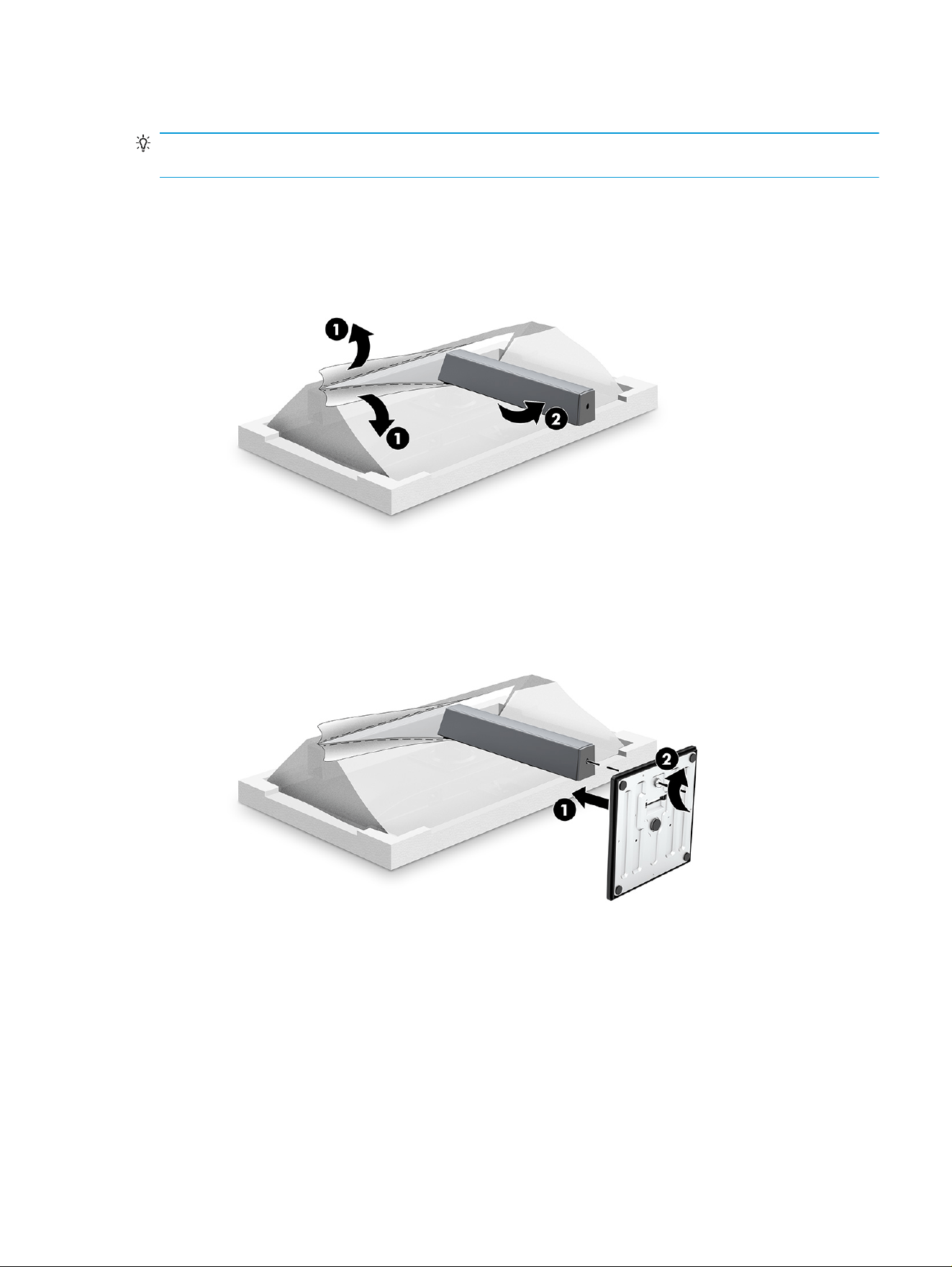

1. With the monitor placed facedown inside the packaging foam, tear open the packaging bag along the
tear line (1).
2. The stand is attached to the monitor head in portrait view orientation when the monitor is shipped from
the factory. To change to landscape view, rotate the stand 90° (2).
3. With the monitor still placed facedown inside the packaging foam, insert the base into the bottom of the
monitor stand (1).
4. Lift the screw handle on the back of the base, and fully tighten the screw (2).
Setting up the monitor 5
Mounting the monitor head
The monitor head can be attached to a wall, swing arm, or other mounting xture.
NOTE: This apparatus is intended to be supported by a UL or CSA Listed wall-mount bracket.
If the monitor is TCO certied, the power cord plugged into the monitor head must be a shielded power cable.
The use of a shielded power cable meets the TCO Certied criteria for monitor products. For information on
TCO requirements, go to www.tcodevelopment.com.
IMPORTANT: This monitor supports the VESA industry standard 100 mm mounting holes. To attach a third-
party mounting solution to the monitor head, four 4 mm, 0.7 pitch, and 10 mm long screws are required.
Avoid longer screws because they can damage the monitor head. Be sure to verify that the manufacturer’s
mounting solution is compliant with the VESA standard and is rated to support the weight of the monitor
head. For best performance, use the power and video cables provided with the monitor.
Removing the monitor stand
You can remove the monitor panel from the stand to install the monitor panel on a wall, a swing arm, or other
mounting xture.
1. Disconnect and remove all cables from the monitor.
2. Position the monitor facedown on a at surface covered by a clean, dry cloth.
3. Remove the four screws from the monitor stand (1).
4. Lift the stand straight up o the monitor head (2).
6 Chapter 1 Getting started
Attaching the monitor head to a mounting device

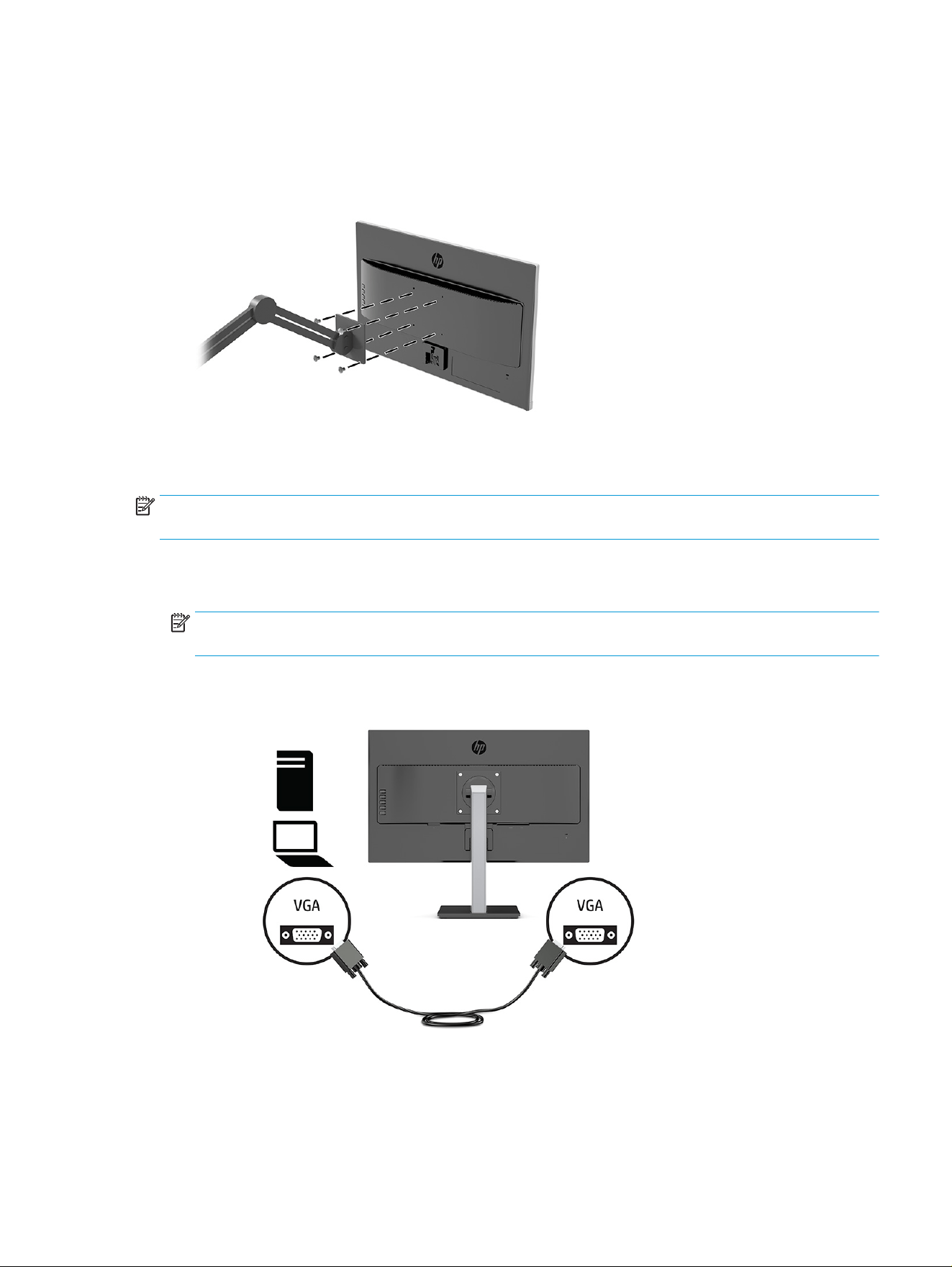

▲ To attach the monitor head to a swing arm or other mounting device, insert four mounting screws
through the holes on the mounting device and into the VESA screw holes on the back of the monitor
head.
Connecting the cables
NOTE: The monitor ships with select cables. Not all cables shown in this section are included with the
monitor.
1. Place the monitor in a convenient, well-ventilated location near the computer.
2. Connect a video cable.
NOTE: The monitor automatically determines which inputs have valid video signals. To select any input
manually, open the OSD and select Input.
● Connect one end of a VGA cable to the VGA connector on the rear of the monitor and the other end
to the VGA connector on the source device.
Setting up the monitor 7

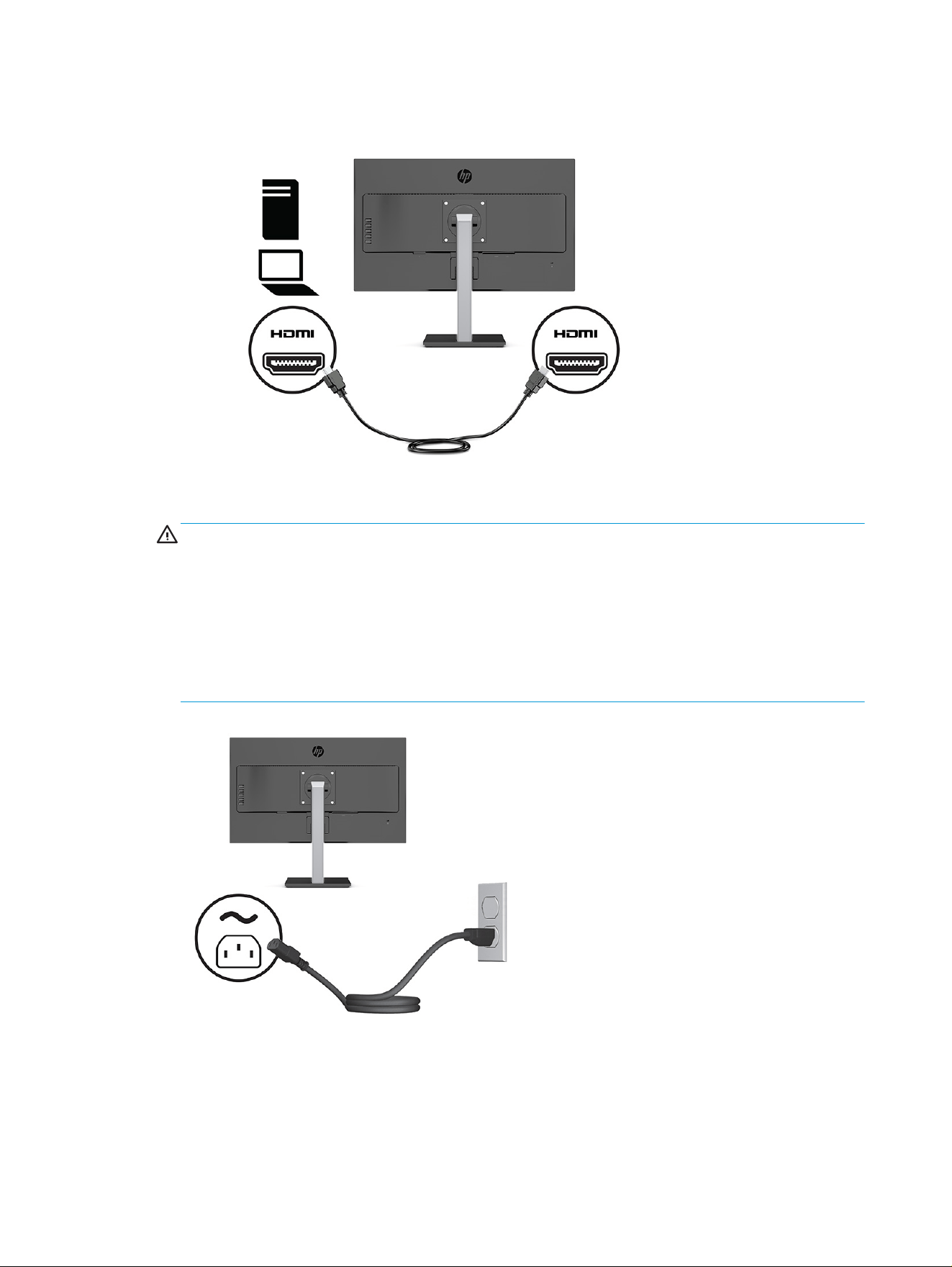

● Connect one end of an HDMI cable to the HDMI port on the rear of the monitor and the other end to
the HDMI port on the source device.
3. Connect one end of the power cord to the power connector on the rear of the monitor and the other end
to a grounded AC outlet.
WARNING! To reduce the risk of electric shock or damage to the equipment:
Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
Plug the power cord into a grounded (earthed) AC outlet that is easily accessible at all times.
Disconnect power from the equipment by unplugging the power cord from the AC outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one may
accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging the power cord
from the AC outlet, grasp the cord by the plug.
8 Chapter 1 Getting started
Adjusting the monitor
WARNING! To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper
workstation setup and proper posture, health, and work habits for computer users. The Safety & Comfort
Guide also provides important electrical and mechanical safety information. The Safety & Comfort Guide is
available on the Web at http://www.hp.com/ergo.
NOTE: Do not touch the front of the monitor screen. When adjusting the tilt, swivel, and height, place a hand
on the left and right side of the back of the monitor head and adjust as needed.

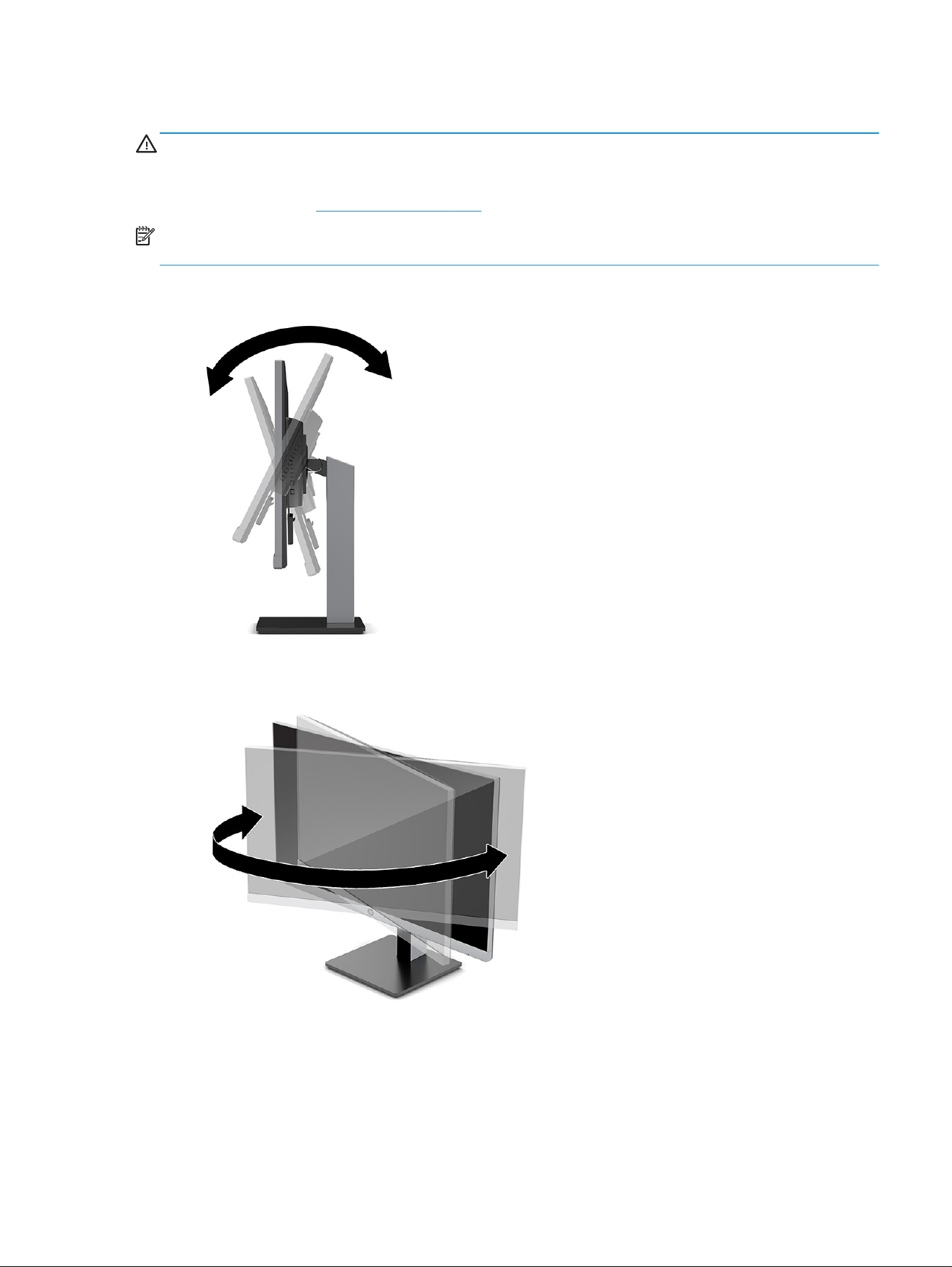

1. Tilt the monitor head forward or backward to set it to a comfortable eye level.
2. Swivel the monitor head to the left or right for the best viewing angle.
Setting up the monitor 9
3. Adjust the monitor’s height to a comfortable position for your individual workstation. The monitor’s top
bezel edge should not exceed a height that is parallel to your eye height. A monitor that is positioned
low and reclined may be more comfortable for users with corrective lenses. The monitor should be
repositioned as you adjust your working posture throughout the work day.

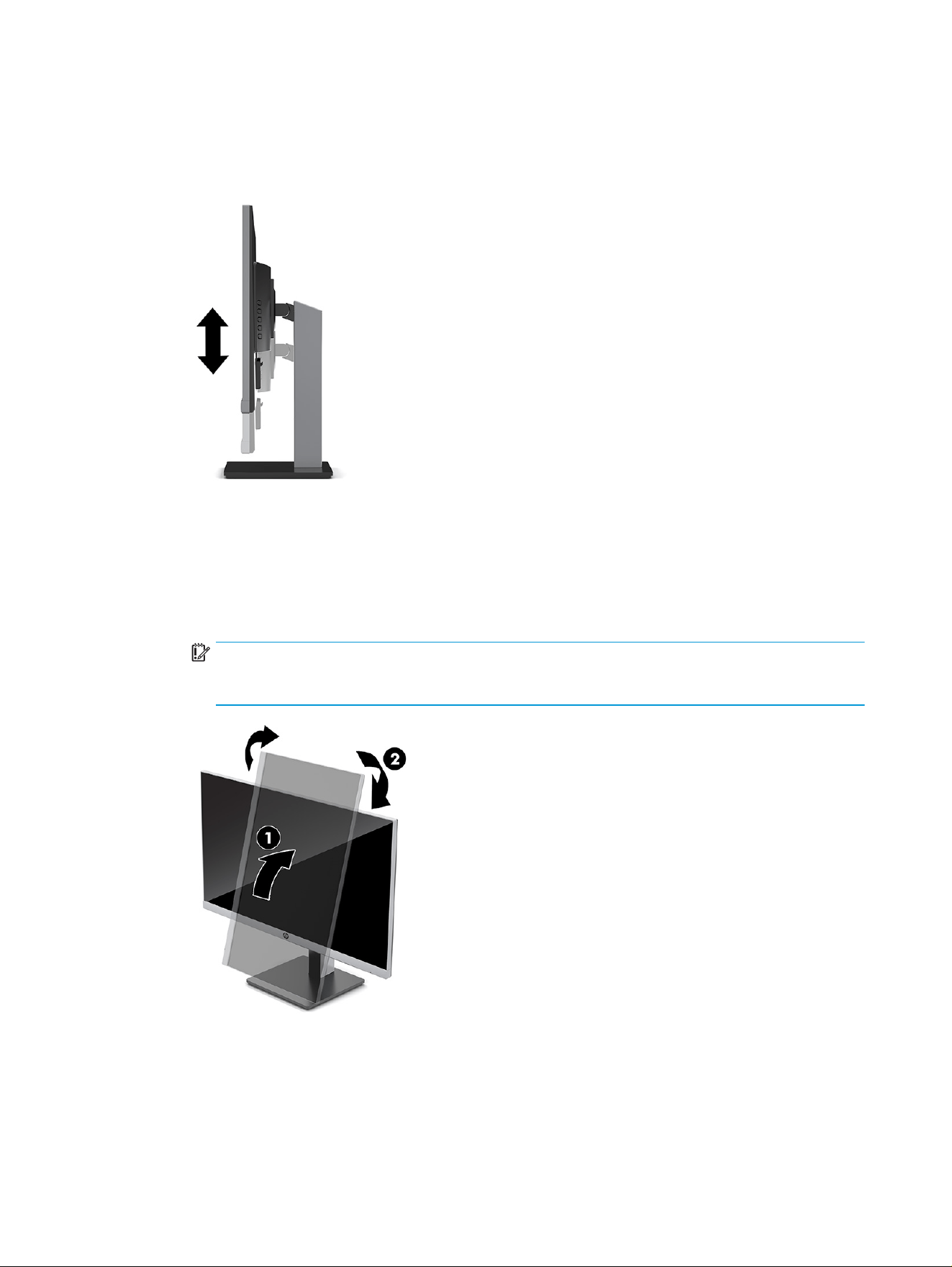

4. You can pivot the monitor panel from landscape to portrait orientation viewing to adapt to your
application.
a. Adjust the monitor to full height position and tilt the monitor panel back to full tilt position (1).
b. Pivot the monitor panel clockwise or counterclockwise 90° from landscape to portrait orientation
(2).
IMPORTANT: If the monitor is not in full-height and full-tilt position when pivoting, the bottom
right corner of the monitor panel will come in contact with the base and potentially cause damage
to the monitor.
10 Chapter 1 Getting started
Turning on the monitor

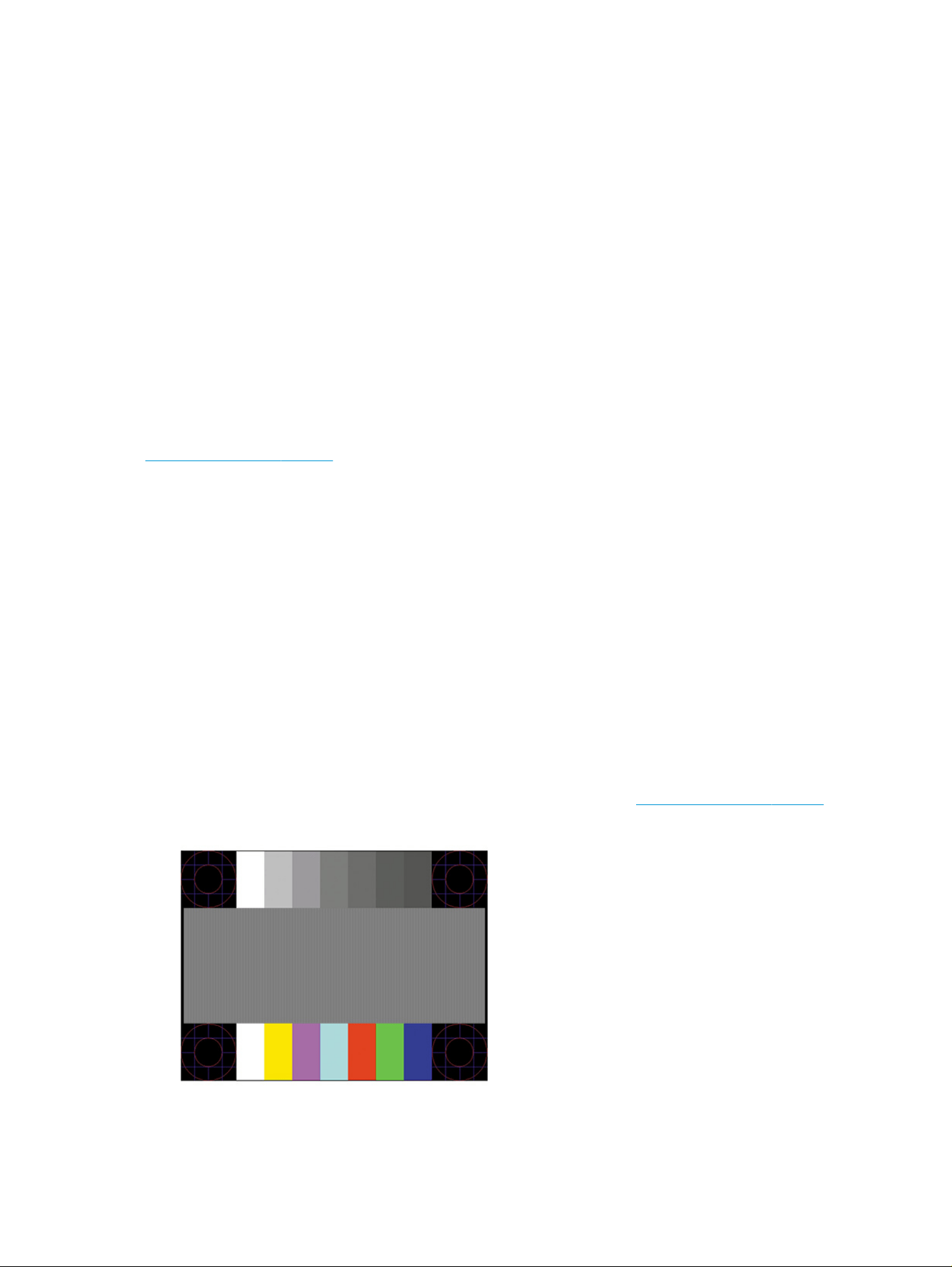

IMPORTANT: Burn-in image damage may occur on monitors that display the same static image on the
screen for 12 or more hours. To avoid burn-in image damage, you should always activate a screen saver
application or turn o the monitor when it will not be in use for a prolonged period of time. Image retention is
a condition that may occur on all LCD screens. Burn-in damage on the monitor is not covered under the HP
warranty.
NOTE: If pressing the power button has no eect, the Power Button Lockout feature may be enabled. To
disable this feature, press and hold the monitor power button for 10 seconds.
NOTE: You can disable the power light in the OSD menu. Press the Menu button to open the OSD, and then
select Power, select Power LED, and then select O.

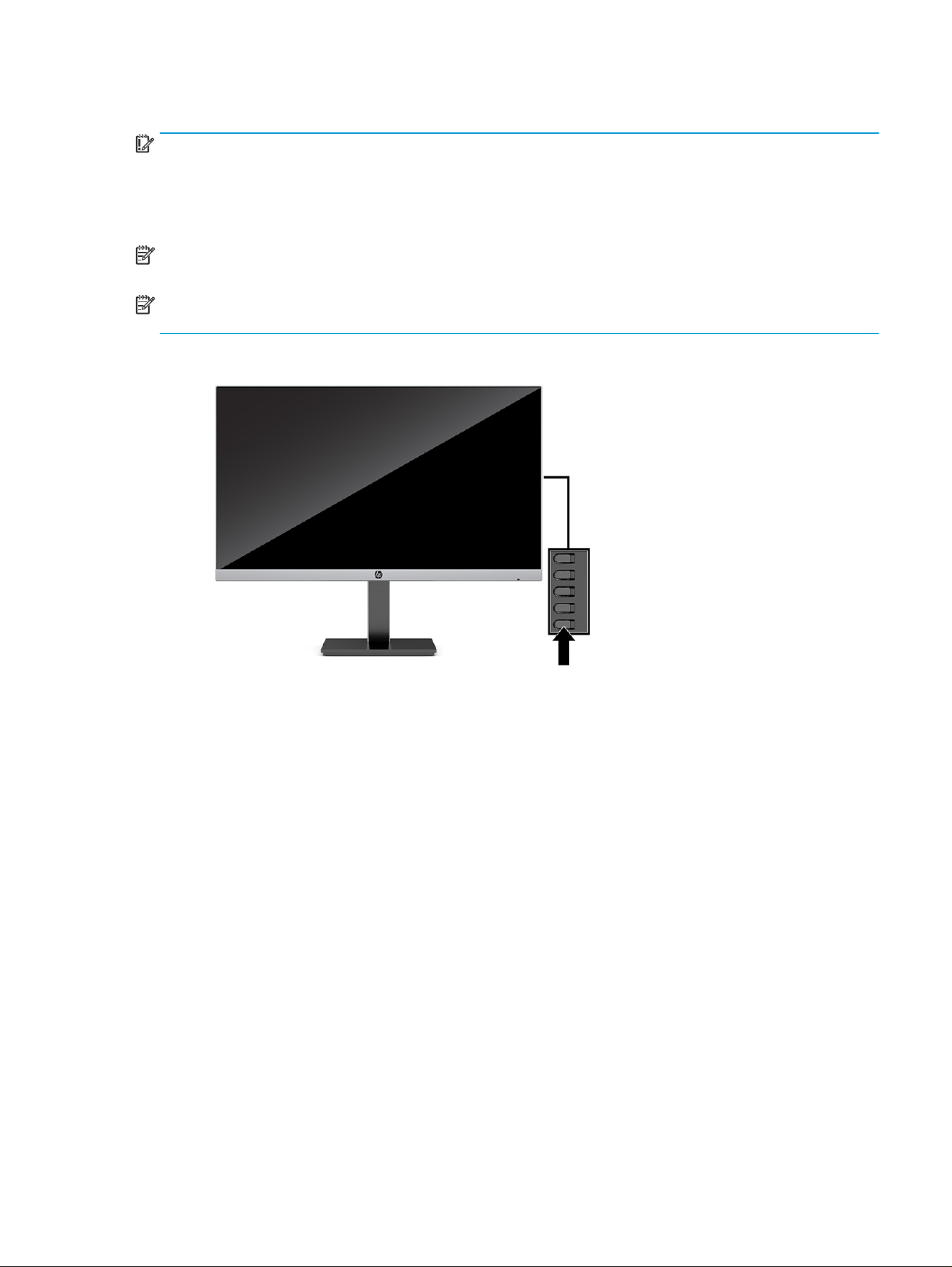

▲ Press the power button on the bottom of the monitor to turn it on.
When the monitor is rst turned on, a monitor status message is displayed for 5 seconds. The message shows
which input is the current active signal, the status of the auto-switch source setting (On or O; default setting
is On), the current preset display resolution, and the recommended preset display resolution.
The monitor automatically scans the signal inputs for an active input and uses that input for the display.
Setting up the monitor 11

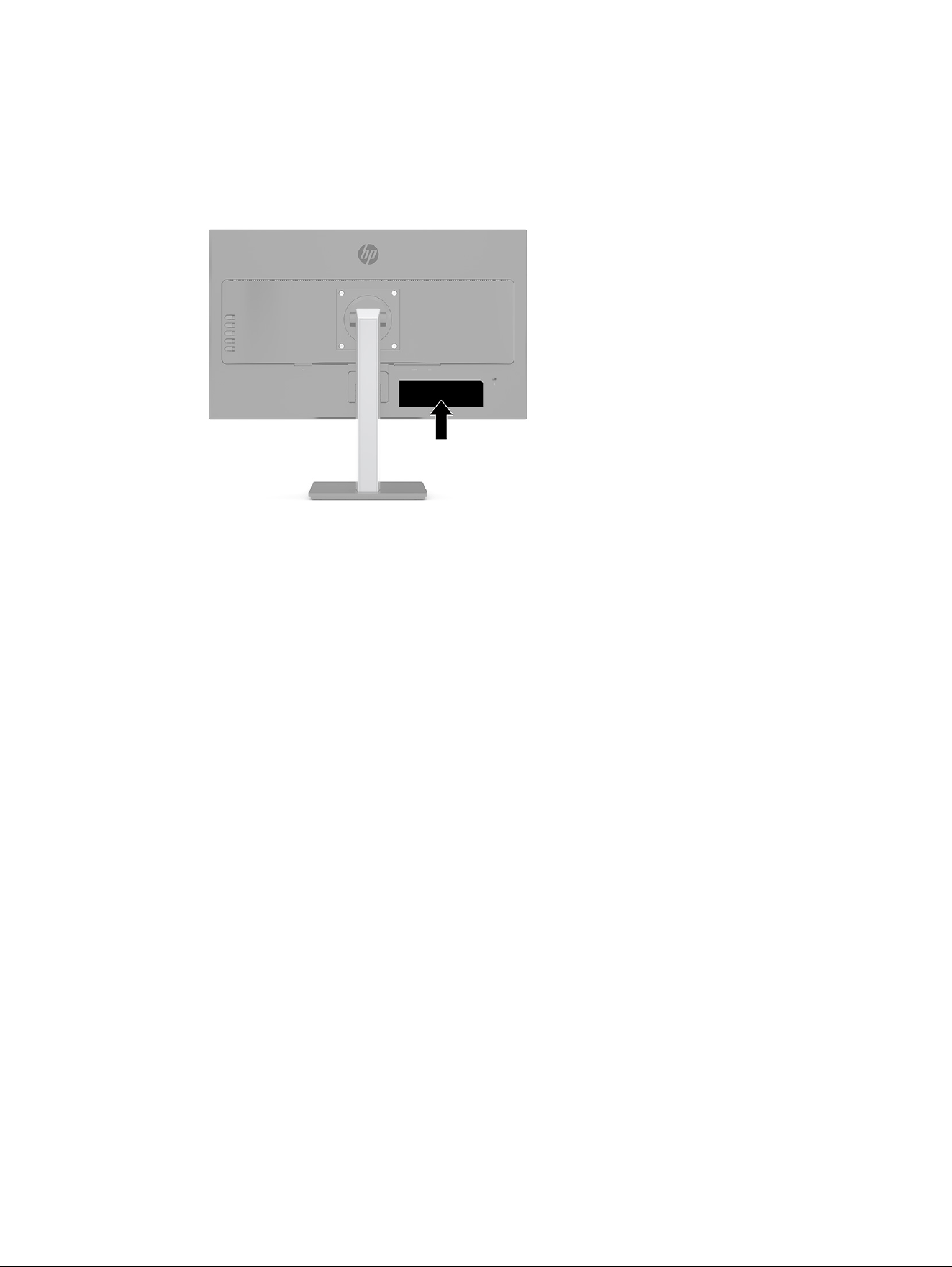

Installing a security cable

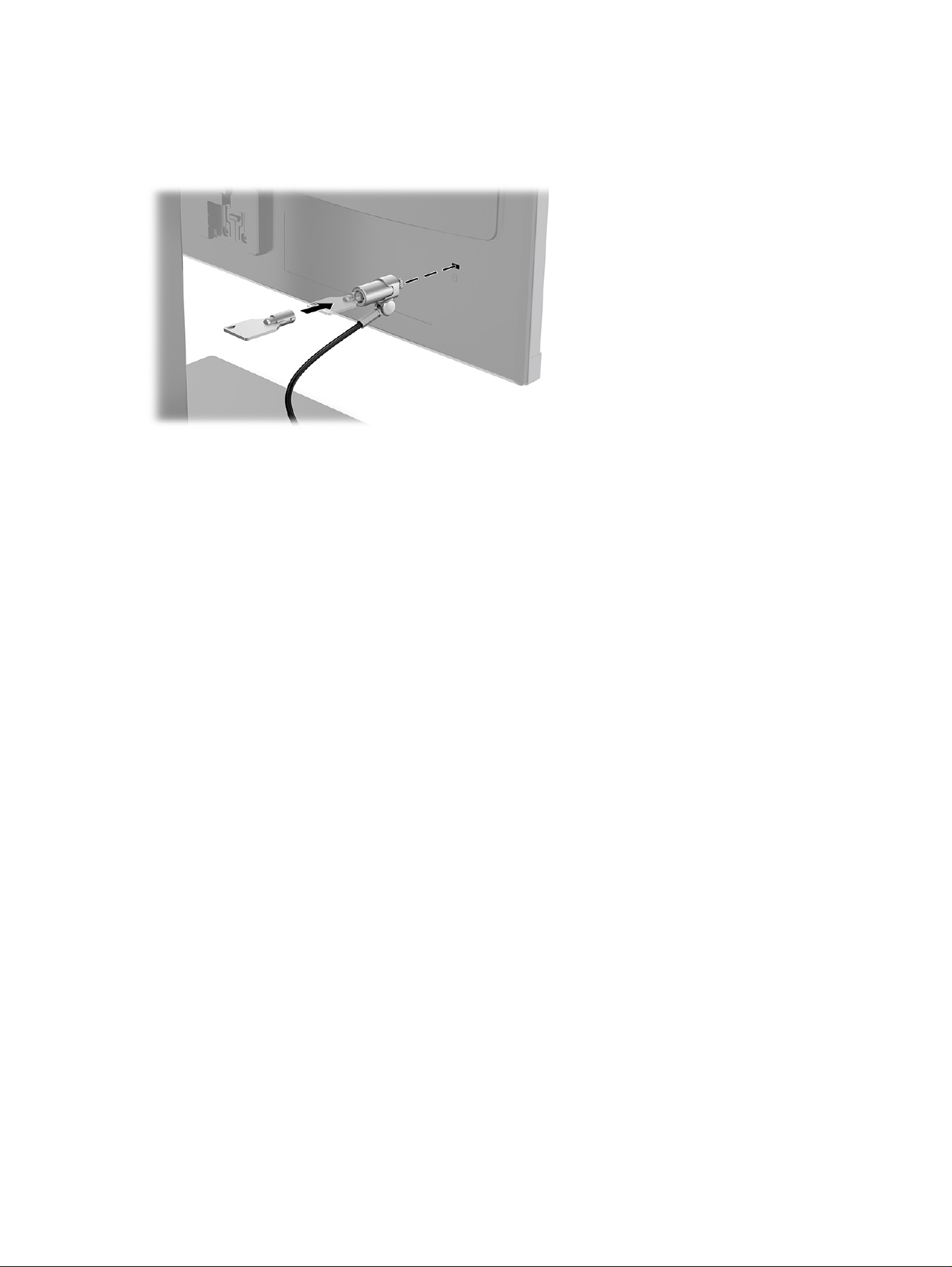

You can secure the monitor to a xed object with an optional security cable available from HP. Use the key
provided to attach and remove the lock.
12 Chapter 1 Getting started
2 Using the monitor
Software and utilities
You can download and install the following les from http://www.hp.com/support:
● INF (Information) le
● ICM (Image Color Matching) les
● HP Display Assistant: Adjusts the monitor settings and enables theft deterrence features
To download the les:
1. Go to http://www.hp.com/support.
2. Select Software and Drivers.
3. Select your product type.
4. Enter your HP monitor model in the search eld and follow the on-screen instructions.
The Information le
The INF le denes monitor resources used by Windows® operating systems to ensure monitor compatibility
with the computer’s graphics adapter.
This monitor is Microsoft® Windows Plug and Play–compatible and the monitor will work correctly without
installing the INF le. Monitor Plug and Play-compatibility requires that the computer’s graphic card is VESA
DDC2–compliant and that the monitor connects directly to the graphics card. Plug and Play does not work
through separate BNC-type connectors or through distribution buers/boxes.
The Image Color Matching le
The ICM les are data les that are used in conjunction with graphics programs to provide consistent color
matching from monitor screen to printer, or from scanner to monitor screen. This le is activated from within
graphics programs that support this feature.
NOTE: The ICM color prole is written in accordance with the International Color Consortium (ICC) Prole
Format specication.
Using the OSD menu
Use the OSD menu to adjust the screen image based on your viewing preferences. You can access and make
adjustments in the OSD menu using the buttons on the monitor's rear cover.
NOTE: Changing the default settings may increase power consumption.
To access the OSD menu and make adjustments, do the following:
Software and utilities 13
1. If the monitor is not already on, press the power button to turn on the monitor.
2. Press the Menu button.
3. Use the three function buttons to navigate, select, and adjust the menu choices. The on-screen button
labels vary depending on which menu or submenu is active.
The following table lists menu selections in the OSD main menu.
Table 2-1 OSD menu options and descriptions for using a button (select products only)
Main Menu Description
Brightness Adjusts the brightness level of the screen. The factory default is 90.
Contrast Adjusts the contrast level of the screen. The factory default is 80.
Color Control Selects and adjusts the screen color.
Input Control Selects the video input signal.
Image Control Adjusts the screen image.
Power Control Adjusts the power settings.
Menu Control Adjusts the on-screen display (OSD) and function button controls.
Management Adjusts the DDC/CI settings and returns all OSD menu settings to the factory default settings.
Language Selects the language in which the OSD menu is displayed. The factory default is English.
Information Selects and displays important information about the monitor.
Exit Exits the OSD menu screen.
14 Chapter 2 Using the monitor
Using the function buttons
Pressing one of the function buttons activates the buttons and displays the icons above the buttons. The
factory default button icons and functions are shown in the following table.

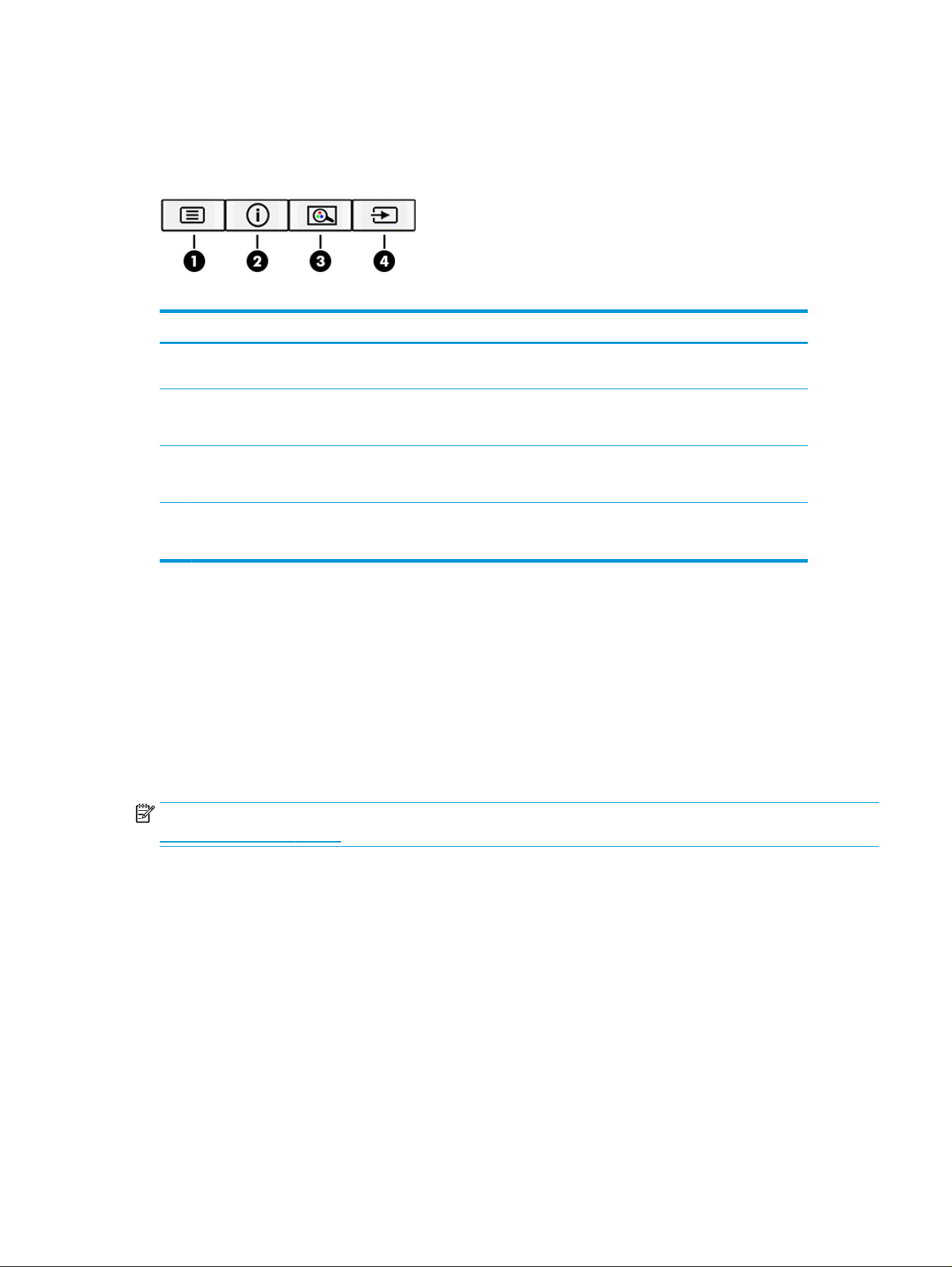

Table 2-2 Button names and functions
Button Function
1 Menu button Opens the OSD main menu, selects a menu item from the OSD, or closes
the OSD menu.
2 Information button
(function button 1 - assignable)
Opens the Information menu.
3 Viewing Modes button
(function button 2 - assignable)
Opens the Viewing Modes menu where you can adjust the monitor screen
to a comfortable viewing light or select a preset viewing mode.
4 Next Active Input button
(function button 3- assignable)
Switches the monitor’s input source to the next active input.
Reassigning the function buttons
You can change the assignable function buttons from their default values so that when the buttons are
activated you can quickly access commonly used menu items. You cannot reassign the Menu button.
To reassign the function buttons:
1. Press the Menu button to open the OSD menu.
2. Select Menu, select Assign Buttons, and then select one of the available options for the button you
want to assign.
NOTE: To view an OSD menu simulator, visit the HP Customer Self Repair Services Media Library at
http://www.hp.com/go/sml.
Adjusting blue light output (select products only)
Decreasing the blue light emitted by the monitor reduces the blue light exposure to your eyes. This monitor
allows you to select a setting to reduce blue light output and create a more relaxing and less stimulating
image while you read content on the screen.
To adjust the blue light output from the monitor:
1. Press one of the rear panel OSD buttons to activate the buttons, and then press the Menu button to open
the OSD. Select Color and Viewing Mode.
2. Select the setting that you want.
Using the function buttons 15
● Low Blue Light: (TUV certied) Reduces blue light for improved eye comfort.
● Night: Adjusts to the lowest blue light and reduces the impact on sleep.
● Reading: Optimizes blue light and brightness for indoor viewing.
3. Select Save and Return to save your setting and close the menu. Select Cancel if you do not want to
save the setting.
4. In the Main menu, select Exit.
Using Auto-Sleep Mode
The monitor supports an on-screen display (OSD) menu option called Auto-Sleep Mode that allows you to
enable or disable a reduced power state for the monitor. When Auto-Sleep Mode is enabled, the monitor
enters a reduced power state when the host computer signals low power mode in the absence of either
horizontal or vertical sync signal. Auto-Sleep Mode is enabled by default.
Upon entering this reduced power state (sleep mode), the monitor screen is blanked, the backlight is turned
o, and the power light indicator turns amber. The monitor draws less than 0.5 W of power when in this
reduced power state. The monitor wakes from the sleep mode when the host device sends an active signal to
the monitor (for example, if you activate the mouse or keyboard).
To disable Auto-Sleep Mode:
1. Press the Menu button to open the OSD.
2. In the OSD menu, select Power, select Auto-Sleep Mode, and then select O.
Changing the Power Mode setting (select products only)
When in sleep mode, to comply with international power standards, the monitor default setting is Power
Saver mode. If your display supports Performance mode, then to keep the USB ports enabled even when the
monitor is in Auto-Sleep Mode, change the Power Mode setting from Power Saver to Performance.
To change the Power Mode setting:
1. Press the Menu button to open the OSD menu.
2. Select Power, select Power Mode, and then select Performance.
3. Select Save and close the OSD.
NOTE: To change Auto-Sleep Mode, see Using Auto-Sleep Mode on page 16.
16 Chapter 2 Using the monitor
3 Support and troubleshooting
Solving common issues
The following table lists possible issues, the possible cause of each issue, and the recommended solutions.
Table 3-1 Common issues and solutions
Issues Possible cause Solution
Screen is blank or video is
ashing.
Power cord is disconnected. Connect the power cord.
Monitor is o. Press the monitor power button.
NOTE: If pressing the power button has no eect, press and
hold the power button for 10 seconds to disable the Power
Button Lockout feature.
Video cable is improperly connected. Connect the video cable properly. See Connecting the cables
on page 7 for more information.
System is in Auto-Sleep Mode. Press any key on the keyboard or move the mouse to
inactivate the screen blanking utility.
Video card is incompatible. Open the OSD menu and select the Input menu. Set Auto-
Switch Input to O and manually select the input.
or
Replace the video card or connect the video cable to one of
the computer’s on-board video sources.
Image appears blurred,
indistinct, or too dark.
Brightness setting is too low. Open the OSD menu, and select Brightness to adjust the
brightness scale as needed.
“Check Video Cable” is
displayed on the screen.
Monitor video cable is disconnected. Connect the appropriate video signal cable between the
computer and monitor. Be sure that the computer power is o
while connecting the video cable.
“Input Signal Out of Range” is
displayed on screen.
Video resolution and/or refresh rate
are set higher than the monitor
supports.
Change the settings to a supported setting (see Preset display
resolutions on page 26).
The monitor does not enter
into a low-power sleep state.
The monitor's power saving control is
disabled.
Open the OSD menu and select Power, select Auto-Sleep
Mode, and then set auto-sleep to On.
“OSD Lockout” is displayed. The monitor's OSD Lockout function
is enabled.
Press and hold the Menu button for 10 seconds to disable the
OSD Lockout function.
“Power Button Lockout” is
displayed.
The monitor's Power Button Lockout
feature is enabled.
Press and hold the Power button for 10 seconds to unlock the
power button function.
Solving common issues 17
Button lockouts
Holding down the power button or Menu button for 10 seconds disables that button. You can re-enable the
button by holding the button down again for 10 seconds. The button lockout function is available only when
the monitor is on, an active signal is displayed, and the OSD menu is closed.
Using the auto-adjustment function (analog input)
The auto-adjustment feature automatically engages and attempts to optimize your screen under the
following conditions:
● Monitor setup
● Factory reset of the computer
● Changing monitor resolution
You can manually optimize the screen performance for the VGA (analog) input at any time from the Auto
Adjustment menu in the OSD. You can download the auto-adjustment pattern software utility from
http://www.hp.com/support.
Do not use this procedure if the monitor is using an input other than VGA. If the monitor is using a VGA
(analog) input, this procedure can correct the following image quality conditions:
● Fuzzy or unclear focus
● Ghosting, streaking, or shadowing eects
● Faint vertical bars
● Thin, horizontal scrolling lines
● An o-center picture
To use the auto-adjustment feature:
1. Turn the monitor on, and then wait for for 20 minutes before adjusting.
2. Press the Menu button to open the OSD menu, select Image, and then select Auto Adjustment. If the
result is not satisfactory, continue with the procedure.
3. Open the auto-adjustment utility. (You can download this utility from http://www.hp.com/support.) The
setup test pattern is displayed.
4. Press the Esc key or any other key on the keyboard to exit the test pattern.
18 Chapter 3 Support and troubleshooting
Optimizing image performance (analog input)
You can adjust two controls in the on-screen display to improve image performance: Clock and Phase
(available in the OSD menu). Use these controls only when the auto-adjustment function does not provide a
satisfactory image.
NOTE: The Clock and Phase controls are adjustable only when you use an analog (VGA) input. These controls
are not adjustable for digital inputs.
The Clock must rst be set correctly because the Phase settings are dependent on the main Clock setting.
● Clock: Increases or decreases the value to minimize any vertical bars or stripes visible on the screen
background.
● Phase: Increases or decreases the value to minimize video ickering or blurring.
NOTE: When using the controls, you will obtain the best results by using the auto-adjustment pattern
software utility. You can download this utility from http://www.hp.com/support.
When adjusting the Clock and Phase values, if the monitor images become distorted, continue adjusting the
values until the distortion disappears. To restore the factory settings, press the Menu button to open the OSD
menu, then select Management, select Factory Reset, and select Yes.

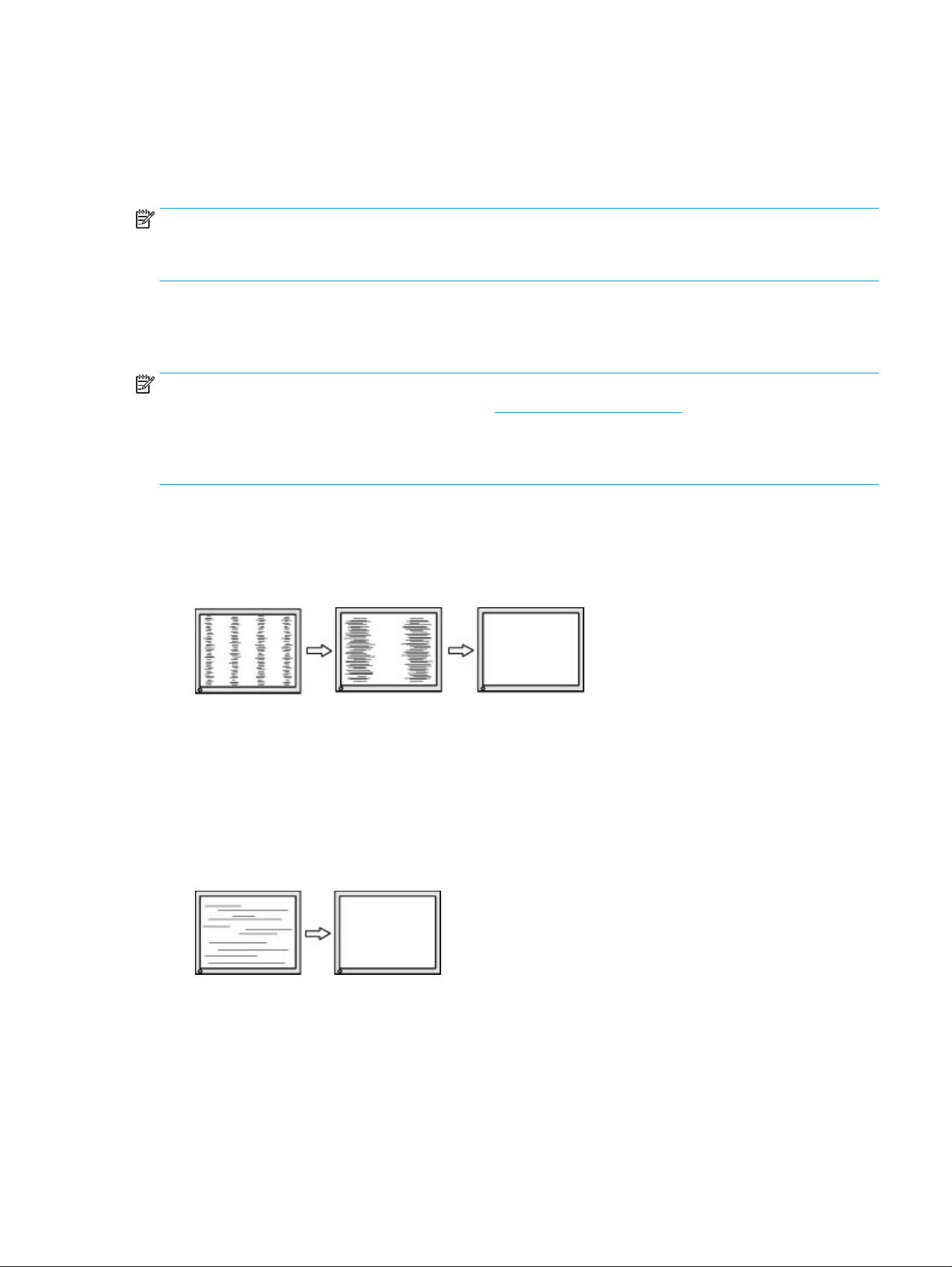

To eliminate vertical bars (Clock):
1. Press the Menu button to open the OSD menu, select Image, and then select Clock and Phase.
2. Select Clock, and then use the OSD buttons on the monitor that display up and down arrow icons to
eliminate vertical bars. Press the buttons slowly so that you do not miss the optimum adjustment point.
3. After adjusting the Clock, if ickering, blurring, or bars appear on the screen, proceed to adjust the
Phase.
To remove ickering or blurring (Phase):
1. Press the Menu button to open the OSD menu, select Image, and then select Clock and Phase.
2. Select Phase, and then use the OSD buttons on the monitor that display up and down arrow icons to
eliminate ickering or blurring. Flickering or blurring may not be eliminated, depending on the computer
or graphics controller card installed.
To correct screen position (Horizontal Position or Vertical Position):
1. Press the Menu button to open the OSD menu, select Image, and then select Image Position.
Optimizing image performance (analog input) 19
2. Press the OSD buttons on the monitor that display up and down arrow icons to properly adjust the
position of the image in the display area of the monitor. The Horizontal Position shifts the image left or
right; the Vertical Position shifts the image up or down.
Contacting support
To resolve a hardware or software problem, go to http://www.hp.com/support. Use this site to get more
information about your product, including links to discussion forums and instructions on troubleshooting. You
can also nd information about how to contact HP and open a support case.
NOTE: Contact customer support to replace the power cord, the AC adapter (select products only), or any
other cables that shipped with your monitor.
Preparing to call technical support
If you cannot solve a problem using the troubleshooting tips in this section, you may need to call technical
support. Have the following information available when you call:
● Monitor model number
● Monitor serial number
● Purchase date on invoice
● Conditions under which the problem occurred
● Error messages received
● Hardware conguration
● Name and version of the hardware and software you are using
20 Chapter 3 Support and troubleshooting
Locating the serial number and product number
Depending on the product, the serial number and product number are located on a label on the rear of the
monitor or on a label under the front bezel of the monitor head. You might need these numbers when
contacting HP about the monitor.
Locating the serial number and product number 21
4 Maintaining the monitor
Maintenance guidelines
To enhance the performance and extend the life of the monitor:
● Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those controls
that are covered in the operating instructions. If the monitor is not operating properly or has been
dropped or damaged, contact an authorized HP dealer, reseller, or service provider.
● Use only a power source and connection appropriate for this monitor, as indicated on the label or back
plate of the monitor.
● Be sure that the total ampere rating of the products connected to the outlet does not exceed the current
rating of the AC outlet and that the total ampere rating of the products connected to the cord does not
exceed the rating of the cord. Look on the power label to determine the ampere rating (AMPS or A) for
each device.
● Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping the plug
rmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
● Turn the monitor o when it is not in use and use a screen saver program. Doing this can substantially
increase the life expectancy of the monitor.
NOTE: A burned-in image on the monitor is not covered under the HP warranty.
● Never block the slots and openings of the cabinet or push objects into them. These openings provide
ventilation.
● Do not drop the monitor or place it on an unstable surface.
● Do not allow anything to rest on the power cord. Do not walk on the cord.
● Keep the monitor in a well-ventilated area, away from excessive light, heat, or moisture.
Cleaning the monitor
1. Turn o the monitor and unplug the power cord from the AC outlet.
2. Disconnect any external devices.
3. Dust the monitor by wiping the screen and the cabinet with a soft, clean antistatic cloth.
4. For more diicult cleaning situations, use a 50/50 mix of water and isopropyl alcohol.
IMPORTANT: Do not use cleaners that contain any petroleum-based materials such as benzene,
thinner, or any volatile substance to clean the monitor screen or cabinet. These chemicals may damage
the monitor.
IMPORTANT: Spray the cleaner onto a cloth and use the damp cloth to gently wipe the screen surface.
Never spray the cleaner directly on the screen surface. It may run behind the bezel and damage the
electronics. The cloth should be moist, but not wet. Water dripping into the ventilation openings or other
points of entry can cause damage to the monitor. Allow the monitor to air-dry before use.
22 Chapter 4 Maintaining the monitor
Shipping the monitor
Keep the original packing box in a storage area. You may need it later if you ship the monitor or move.
Maintenance guidelines 23
A Technical specications
NOTE: All specications represent the typical specications provided by HP’s component manufacturers;
actual performance may vary either higher or lower.
For the latest specications or additional specications on this product, go to http://www.hp.com/go/
quickspecs/ and search for your specic monitor model to nd the model-specic QuickSpecs.
60.5 cm/23.8 in model
Table A-1 Model specications
Specication Measurement
Display, wide-screen
Type
60.5 cm
IPS
23.8 in
Viewable image size 60.5 cm diagonal 23.8 in diagonal
Maximum weight (unpacked) 5.59 kg 12.32 lbs
Dimensions (include base)
Height (highest position)
Height (lowest position)
Depth
Width
46.33 cm
36.33 cm
21.16 cm
54.06 cm
18.24 in
14.30 in
8.33 in
21.28 in
Tilt –5° to 23°
Environmental requirements
Operating temperature
Storage temperature
Storage humidity
Operating humidity
5°C to 35°C
–20°C to 60°C
41°F to 95°F
–4°F to 140°F
5% to 95% (noncondensing)
20% to 80% (noncondensing)
Power source 100 V ac–240 V ac 50/60 Hz
Input terminal One HDMI connector, one VGA connector
24 Appendix A Technical specications
68.6 cm/27 in model
Table A-2 Model specications
Specication Measurement
Display, wide-screen
Type
68.6 cm
IPS
27.0 in
Viewable image size 68.6 cm diagonal 27.0 in diagonal
Maximum weight (unpacked) 6.84 kg 15.08 lbs
Dimensions (include base)
Height (highest position)
Height (lowest position)
Depth
Width
50.49 cm
40.49 cm
21.16 cm
61.42 cm
19.88 in
15.94 in
8.33 in
24.18 in
Tilt –5° to 23°
Environmental requirements
Operating temperature
Storage temperature
Storage humidity
Operating humidity
5°C to 35°C
–20°C to 60°C
41°F to 95°F
–4°F to 140°F
5% to 95% (noncondensing)
20% to 80% (noncondensing)
Power source 100 V ac–240 V ac 50/60 Hz
Input terminal One HDMI connector, one VGA connector
68.6 cm/27 in model 25
Preset display resolutions
The following display resolutions are the most commonly used modes and are set as factory defaults. This
monitor automatically recognizes these preset modes, and they will appear properly sized and centered on
the screen.
Table A-3 Preset display resolutions
Preset Pixel format Horz freq (kHz) Vert freq (Hz)
1 640 × 480 31.469 59.940
2 720 × 400 31.469 70.087
3 800 × 600 37.879 60.317
4 1024 × 768 48.363 60.004
5 1280 × 720 45.000 60.000
6 1280 × 800 49.702 59.810
7 1280 × 1024 63.981 60.020
8 1440 × 900 55.935 59.887
9 1600 × 900 60.000 60.000
10 1600 × 1200 75.000 60.000
11 1680 × 1050 65.290 59.954
12 1920 × 1080 67.500 60.000
13 1920 × 1200 74.038 59.950
14 2560 × 1440 88.787 59.951
Table A-4 Preset timing resolutions
Preset Timing name Pixel Format Horz freq (kHz) Vert freq (Hz)
Pixel rate
(MHz)
1 480p 720 × 480 31.469 59.940 27.000
2 720p60 1280 × 720 45.000 60.000 74.250
3 1080i60 1920 × 1080 33.750 60.000 74.250
4 576p 720 × 576 31.250 50.000 27.000
5 720p50 1280 × 720 37.500 50.000 74.250
6 1080p60 1920 × 1080 67.500 60.000 148.500
7 1080p50 1920 × 1080 56.250 50.000 148.500
26 Appendix A Technical specications
Energy saver feature
The monitors support a reduced power state. The reduced power state will be entered into if the monitor
detects the absence of either the horizontal sync signal or the vertical sync signal. Upon detecting the
absence of these signals, the monitor screen is blanked, the backlight is turned o, and the power light is
turned amber. When the monitor is in the reduced power state, the monitor will utilize 0.5 watts of power.
There is a brief warm-up period before the monitor will return to its normal operating mode.
Refer to the computer manual for instructions on setting energy saver features (sometimes called power
management features).
NOTE: This power saver feature works only when the monitor is connected to a computer that has energy
saver features.
By selecting the settings in the monitor's Energy Saver utility, you can also program the monitor to enter into
the reduced power state at a predetermined time. When the monitor's Energy Saver utility causes the monitor
to enter the reduced power state, the power light blinks amber.
Energy saver feature 27
B Accessibility
HP and accessibility
Because HP works to weave diversity, inclusion, and work/life into the fabric of the company, it is reected in
everything HP does. HP strives to create an inclusive environment focused on connecting people to the power
of technology throughout the world.
Finding the technology tools you need
Technology can unleash your human potential. Assistive technology removes barriers and helps you create
independence at home, at work, and in the community. Assistive technology helps increase, maintain, and
improve the functional capabilities of electronic and information technology. For more information, see
Finding the best assistive technology on page 29.
The HP commitment
HP is committed to providing products and services that are accessible for people with disabilities. This
commitment supports the company's diversity objectives and helps ensure that the benets of technology
are available to all.
The HP accessibility goal is to design, produce, and market products and services that can be eectively used
by everyone, including people with disabilities, either on a stand-alone basis or with appropriate assistive
devices.
To achieve that goal, this Accessibility Policy establishes seven key objectives to guide HP actions. All HP
managers and employees are expected to support these objectives and their implementation in accordance
with their roles and responsibilities:
● Raise the level of awareness of accessibility issues within HP, and provide employees with the training
they need to design, produce, market, and deliver accessible products and services.
● Develop accessibility guidelines for products and services, and hold product development groups
accountable for implementing these guidelines where competitively, technically, and economically
feasible.
● Involve people with disabilities in the development of accessibility guidelines and in the design and
testing of products and services.
● Document accessibility features, and make information about HP products and services publicly
available in an accessible form.
● Establish relationships with leading assistive technology and solution providers.
● Support internal and external research and development that improves assistive technology relevant to
HP products and services.
● Support and contribute to industry standards and guidelines for accessibility.
International Association of Accessibility Professionals (IAAP)
IAAP is a not-for-prot association focused on advancing the accessibility profession through networking,
education, and certication. The objective is to help accessibility professionals develop and advance their
careers and to better enable organizations to integrate accessibility into their products and infrastructure.
28 Appendix B Accessibility
As a founding member, HP joined to participate with other organizations to advance the eld of accessibility.
This commitment supports HP’s accessibility goal of designing, producing, and marketing products and
services that people with disabilities can eectively use.
IAAP will make the profession strong by globally connecting individuals, students, and organizations to learn
from one another. If you are interested in learning more, go to http://www.accessibilityassociation.org to join
the online community, sign up for newsletters, and learn about membership options.
Finding the best assistive technology
Everyone, including people with disabilities or age-related limitations, should be able to communicate,
express themselves, and connect with the world using technology. HP is committed to increasing accessibility
awareness within HP and with our customers and partners. Whether it’s large fonts that are easy on the eyes,
voice recognition that lets you give your hands a rest, or any other assistive technology to help with your
specic situation—a variety of assistive technologies make HP products easier to use. How do you choose?
Assessing your needs
Technology can unleash your potential. Assistive technology removes barriers and helps you create
independence at home, at work, and in the community. Assistive technology (AT) helps increase, maintain,
and improve the functional capabilities of electronic and information technology.
You can choose from many AT products. Your AT assessment should allow you to evaluate several products,
answer your questions, and facilitate your selection of the best solution for your situation. You will nd that
professionals qualied to do AT assessments come from many elds, including those licensed or certied in
physical therapy, occupational therapy, speech/language pathology, and other areas of expertise. Others,
while not certied or licensed, can also provide evaluation information. You will want to ask about the
individual's experience, expertise, and fees to determine if they are appropriate for your needs.
Accessibility for HP products
The following links provide information about accessibility features and assistive technology, if applicable,
included in various HP products. These resources will help you select the specic assistive technology
features and product(s) most appropriate for your situation.
● HP Elite x3–Accessibility Options (Windows 10 Mobile)
● HP PCs–Windows 7 Accessibility Options
● HP PCs–Windows 8 Accessibility Options
● HP PC’s–Windows 10 Accessibility Options
● HP Slate 7 Tablets–Enabling Accessibility Features on Your HP Tablet (Android 4.1/Jelly Bean)
● HP SlateBook PCs–Enabling Accessibility Features (Android 4.3, 4.2/Jelly Bean)
● HP Chromebook PCs–Enabling Accessibility Features on Your HP Chromebook or Chromebox (Chrome
OS)
● HP Shopping–peripherals for HP products
If you need additional support with the accessibility features on your HP product, see Contacting support
on page 32.
Additional links to external partners and suppliers that may provide additional assistance:
● Microsoft Accessibility information (Windows 7, Windows 8, Windows 10, Microsoft Oice)
● Google Products accessibility information (Android, Chrome, Google Apps)
HP and accessibility 29
● Assistive Technologies sorted by impairment type
● Assistive Technologies sorted by product type
● Assistive Technology vendors with product descriptions
● Assistive Technology Industry Association (ATIA)
Standards and legislation
Standards
Section 508 of the Federal Acquisition Regulation (FAR) standards was created by the US Access Board to
address access to information and communication technology (ICT) for people with physical, sensory, or
cognitive disabilities. The standards contain technical criteria specic to various types of technologies, as well
as performance-based requirements which focus on functional capabilities of covered products. Specic
criteria cover software applications and operating systems, web-based information and applications,
computers, telecommunications products, video and multimedia, and self-contained closed products.
Mandate 376 – EN 301 549
The EN 301 549 standard was created by the European Union within Mandate 376 as the basis for an online
toolkit for public procurement of ICT products. The standard
species the functional accessibility
requirements applicable to ICT products and services, together with a description of the test procedures and
evaluation methodology for each accessibility requirement.
Web Content Accessibility Guidelines (WCAG)
Web Content Accessibility Guidelines (WCAG) from the W3C's Web Accessibility Initiative (WAI) helps web
designers and developers create sites that better meet the needs of people with disabilities or age-related
limitations. WCAG advances accessibility across the full range of web content (text, images, audio, and video)
and web applications. WCAG can be precisely tested, is easy to understand and use, and allows web
developers exibility for innovation. WCAG 2.0 has also been approved as ISO/IEC 40500:2012.
WCAG specically addresses barriers to accessing the web experienced by people with visual, auditory,
physical, cognitive, and neurological disabilities, and by older web users with accessibility needs. WCAG 2.0
provides characteristics of accessible content:
● Perceivable (for instance, by addressing text alternatives for images, captions for audio, adaptability of
presentation, and color contrast)
● Operable (by addressing keyboard access, color contrast, timing of input, seizure avoidance, and
navigability)
● Understandable (by addressing readability, predictability, and input assistance)
● Robust (for instance, by addressing compatibility with assistive technologies)
Legislation and regulations
Accessibility of IT and information has become an area of increasing legislative importance. The links listed
below provide information about key legislation, regulations, and standards.
● United States
● Canada
● Europe
30 Appendix B Accessibility
● United Kingdom
● Australia
● Worldwide
Useful accessibility resources and links
The following organizations might be good resources for information about disabilities and age-related
limitations.
NOTE: This is not an exhaustive list. These organizations are provided for informational purposes only. HP
assumes no responsibility for information or contacts you encounter on the Internet. Listing on this page
does not imply endorsement by HP.
Organizations
● American Association of People with Disabilities (AAPD)
● The Association of Assistive Technology Act Programs (ATAP)
● Hearing Loss Association of America (HLAA)
● Information Technology Technical Assistance and Training Center (ITTATC)
● Lighthouse International
● National Association of the Deaf
● National Federation of the Blind
● Rehabilitation Engineering & Assistive Technology Society of North America (RESNA)
● Telecommunications for the Deaf and Hard of Hearing, Inc. (TDI)
● W3C Web Accessibility Initiative (WAI)
Educational institutions
● California State University, Northridge, Center on Disabilities (CSUN)
● University of Wisconsin - Madison, Trace Center
● University of Minnesota computer accommodations program
Other disability resources
● ADA (Americans with Disabilities Act) Technical Assistance Program
● ILO Global Business and Disability network
● EnableMart
● European Disability Forum
● Job Accommodation Network
● Microsoft Enable
Useful accessibility resources and links 31
HP links
Our contact webform
HP comfort and safety guide
HP public sector sales
Contacting support
NOTE: Support is in English only.
● Customers who are deaf or hard of hearing who have questions about technical support or accessibility
of HP products:
– Use TRS/VRS/WebCapTel to call (877) 656-7058 Monday through Friday, 6 a.m. to 9 p.m. Mountain
Time.
● Customers with other disabilities or age-related limitations who have questions about technical support
or accessibility of HP products, choose one of the following options:
– Call (888) 259-5707 Monday through Friday, 6 a.m. to 9 p.m. Mountain Time.
– Complete the Contact form for people with disabilities or age-related limitations.
32 Appendix B Accessibility
