1. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, then
secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 20-1/4" to 50-1/4". Use fewer rods if
shorter length is desired.
2.
Thread the fixture wire through the canopy kit, then secure the rod
assembly to the set threaded pipe of the canopy kit.
3. Unscrew the bolt nuts (D), remove the mounting strap unit (A) from
the canopy kit.
4.
Attach the
mounting strap unit (A)
to outlet box by using two mounting
screws
(B)
.
5. Pull out the source wires from the outlet box. Make wire connections
using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black
wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the
white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting strap
unit (A) with green ground screw, then depending on local code,
connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
6. Attach the canopy kit to the mounting strap unit (A) by inserting the
fixture mounting screws, then secure it with two bolt nuts (D).
7. Attach the glass shade to fixture, then secure it with the socket ring.

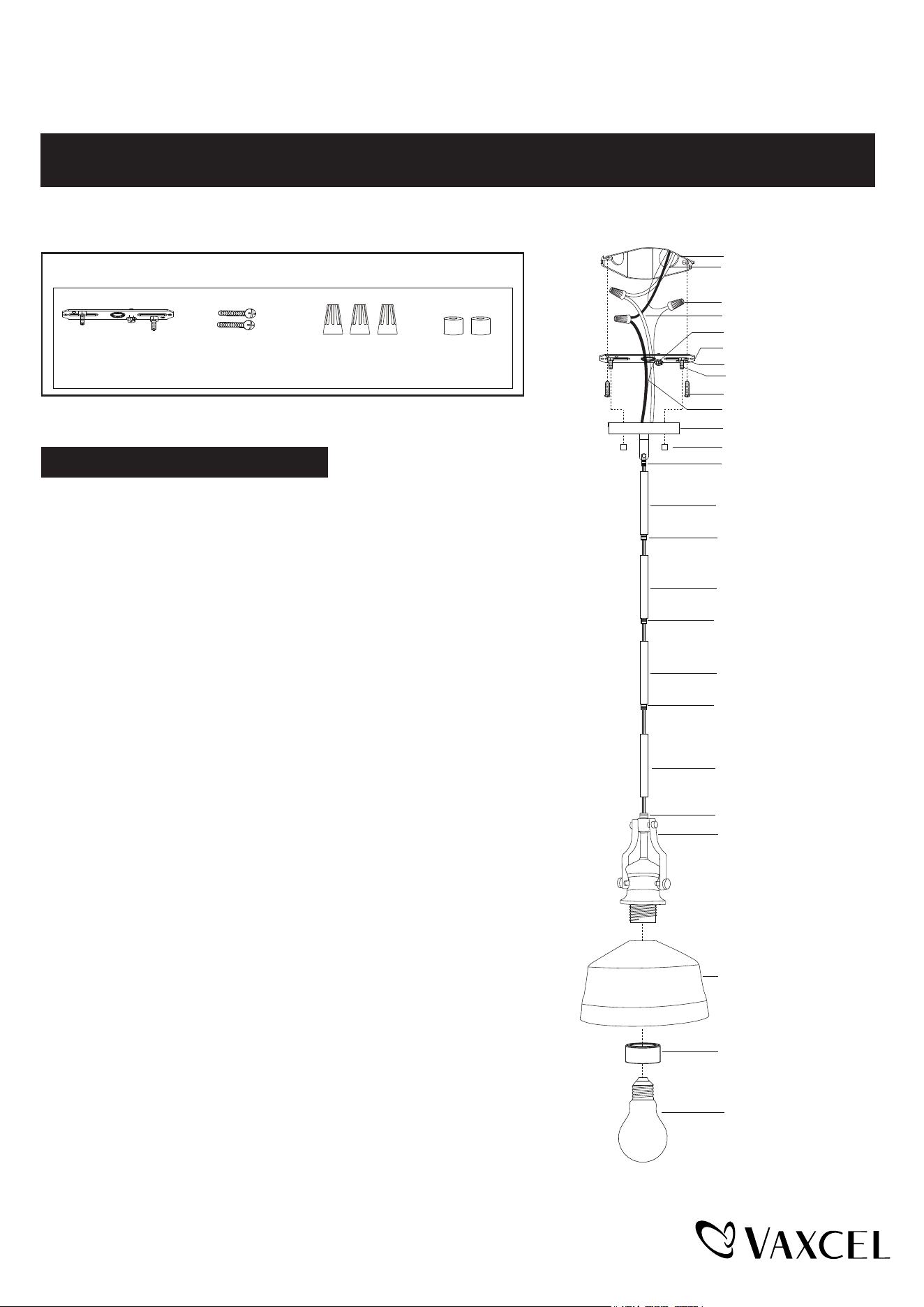

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
P0429
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Canopy Kit
Outlet Box
House Ground Wire
Wire Connector (C)
Lock Nut
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Upper Rod
Middle Rod
Lower Rod
Threaded Pipe
Threaded Pipe
Fixture Wire
Fixture Mounting Screw
Fixture Ground Wire
Set Threaded Pipe
Bolt Nut (D)
Middle Rod
Threaded Pipe
Fixture
Glass Shade
Socket Ring
Max. 60W Type A Bulb
(Not Included)
Threaded Pipe
Bolt Nut (D)
Mounting Screw (B)
Mounting Strap Unit (A)
Wire Connector (C)
Page 1 / 2
240719

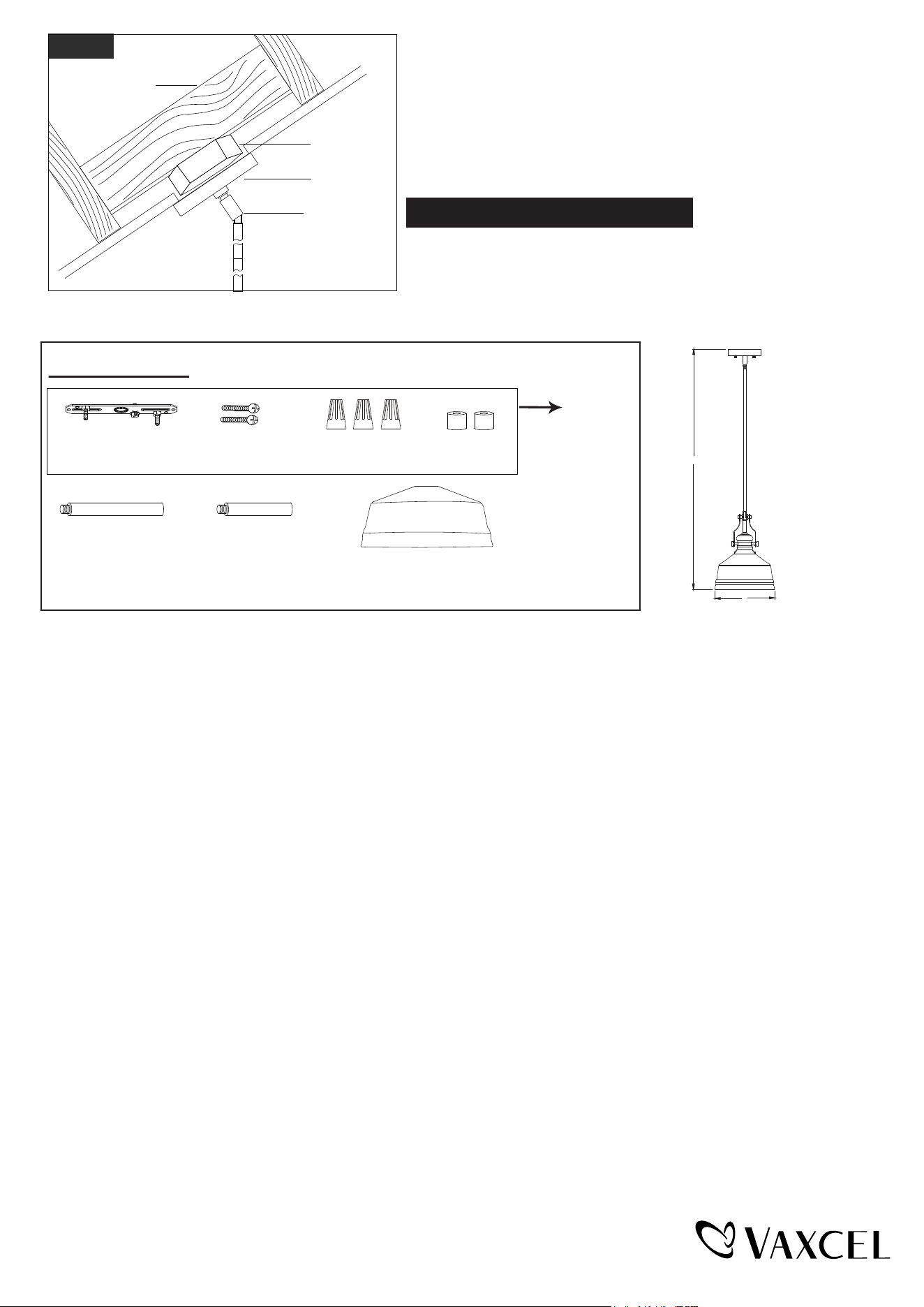

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Mounting Hardware
6875MM (1 SET)
Fig. 1
Outlet Box
Support Brace
Canopy
Coupling Kit
12" Rod
3411RD
6" Rod
3410RD
A: 20-1/4" ~ 50-1/4"
B: 9"
A
B
7. Install 1 X 60W Max. medium base bulb (not included).
See relamping label at socket area or packaging for maximum
wattage allowed.
8. Angled mounting recommended for a vaulted or angled ceiling.
(See Fig.1)
Turn on the power at fuse or circuit box.
Glass Shade
10439CS
Bolt Nut (D)
Mounting Screw (B)
Mounting Strap Unit (A)
Wire Connector (C)
Page 2 / 2
