Room Air Conditioner Accessories
PARTS THAT
KEEP YOU COOL
2
VERTICAL ZONELINE
®
UNITS
3

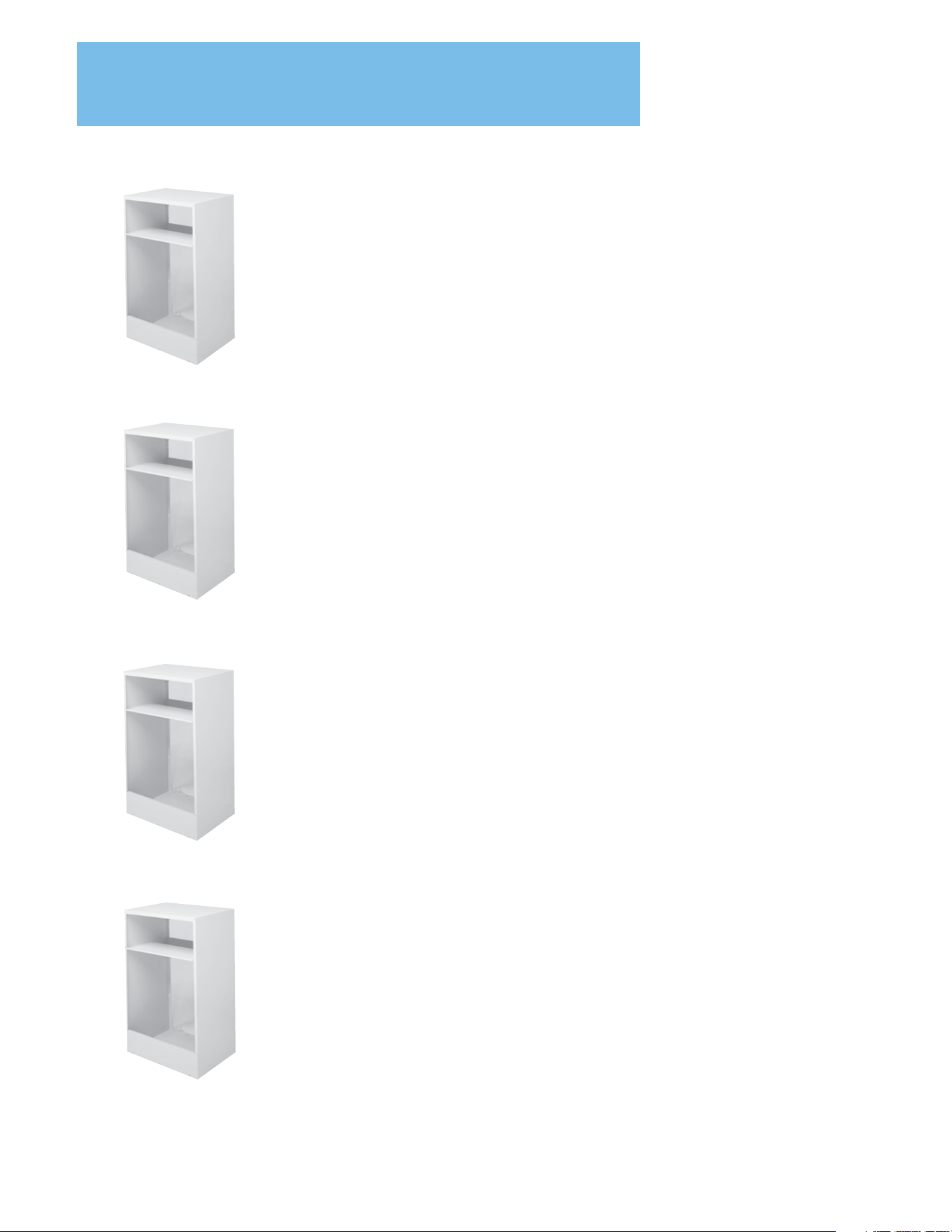

RAVWP6
(AZ Series*—75/85)
Wall Plenum
• Wall plenum for installation in walls less than 6" thick
• Wall plenum 19-3/4" x 32"
• Wall cutout dimensions 20" x 32-1/4"
• Warm gray beige color
RAVWP8
(AZ Series*—75/85)
Wall Plenum
• Wall plenum for installation in walls less than 8" thick
• Wall plenum 19-3/4" x 32"
• Wall cutout dimensions 20" x 32-1/4"
• Warm gray beige color
RAVWP12
(AZ Series*—75/85)
Wall Plenum
• Wall plenum for installation in walls less than 12" thick
• Wall plenum 19-3/4" x 32"
• Wall cutout dimensions 20" x 32-1/4"
• Warm gray beige color
RAVWP15
(AZ Series*—75/85)
Wall Plenum
• Wall plenum for installation in walls less than 15" thick
• Wall plenum 19-3/4" x 32"
• Wall cutout dimensions 20" x 32-1/4"
• Warm gray-beige color
VERTICAL ZONELINE
®
UNITS
*A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
4

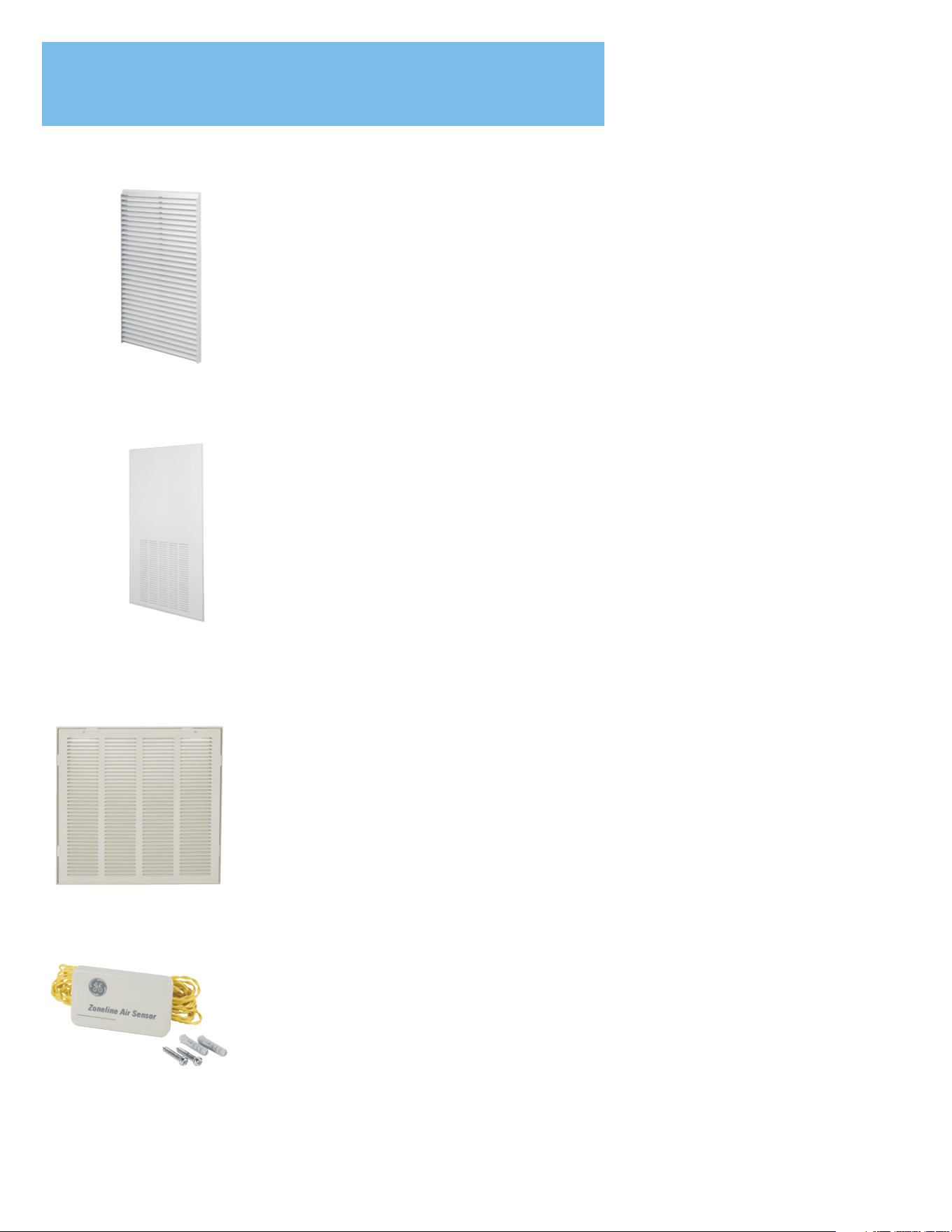

RAVRG1
(AZ Series*—75/85)
Access Panel with Return Air Grille
• Access panel with return air grille for installation
in closet wall
• Allows access/removal of Vertical Zoneline for
cleaning or service
• Outside dimensions 30" x 50"
• Wall cutout dimensions 28" x 48"
• Accepts 20" x 20" x 1" field-supplied filter
• Warm gray-beige color
RAVAL1
(AZ Series*—75/85)
Aluminum Outdoor Grille
• Extruded aluminum outdoor grille for installation
on RAVWP series wall plenums
• Grille is 19-3/4" x 32" x 1-1/4"
• Mill finish
RAVRG2
(AZ Series*—75/85)
Return Air Grille
• Return air grille for installation in closet wall
• Exterior dimensions 22-1/2" x 22-1/2"
• Wall cutout dimension 20-3/8" x 20-3/8"
• Accepts 20" x 20" x 1" field-supplied filter
• Warm gray-beige color
RAVRMS
(AZ Series*—75/85)
Wall-Mounted Room Air Sensor
• Wall-mounted room air sensor provides Temperature
Limiting and Freeze Sentinel
™
capability
• Includes 3-meter conductor wire for hook-up to
Vertical Zoneline
• Required for Motion Sensor/Door Switch applications
VERTICAL ZONELINE
®
UNITS
* A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
5

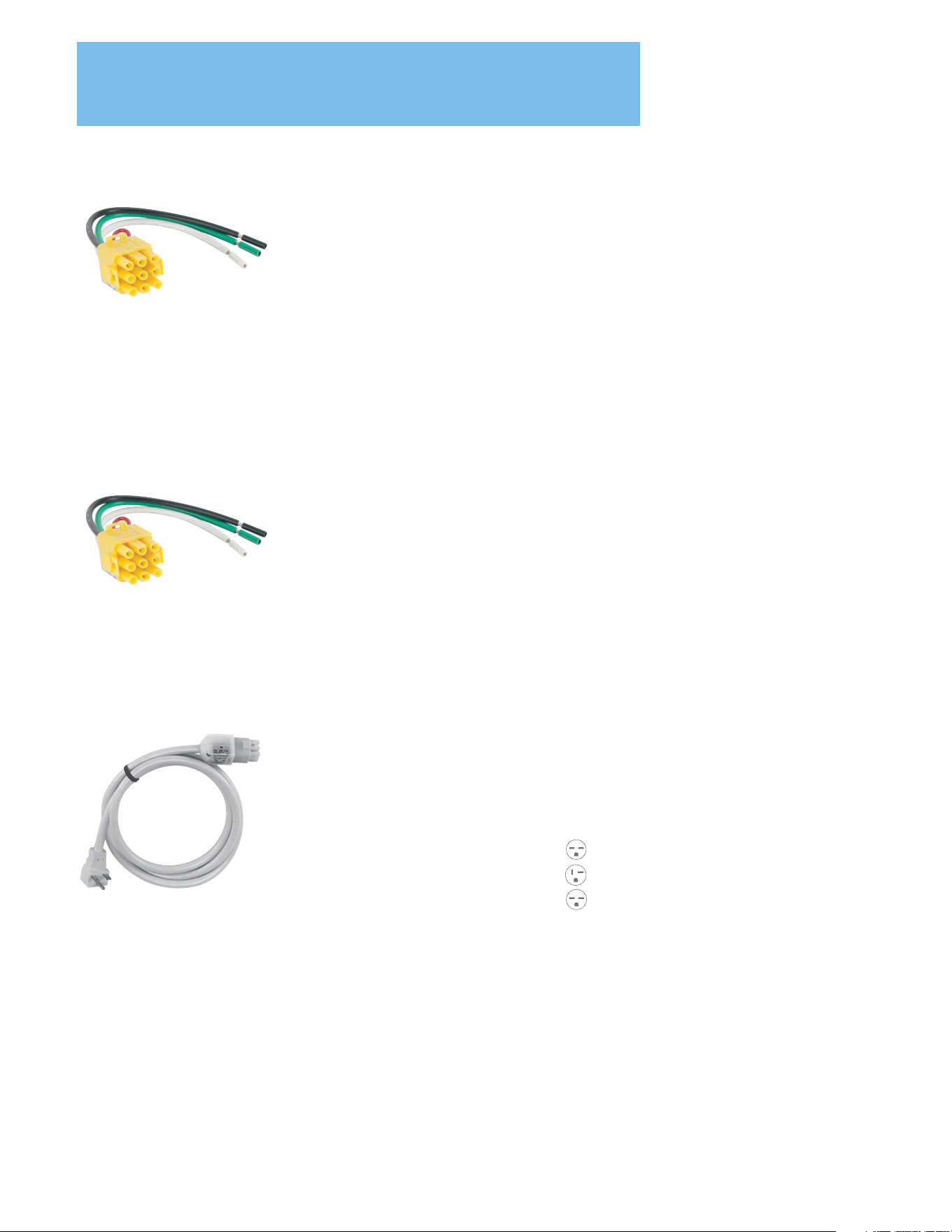

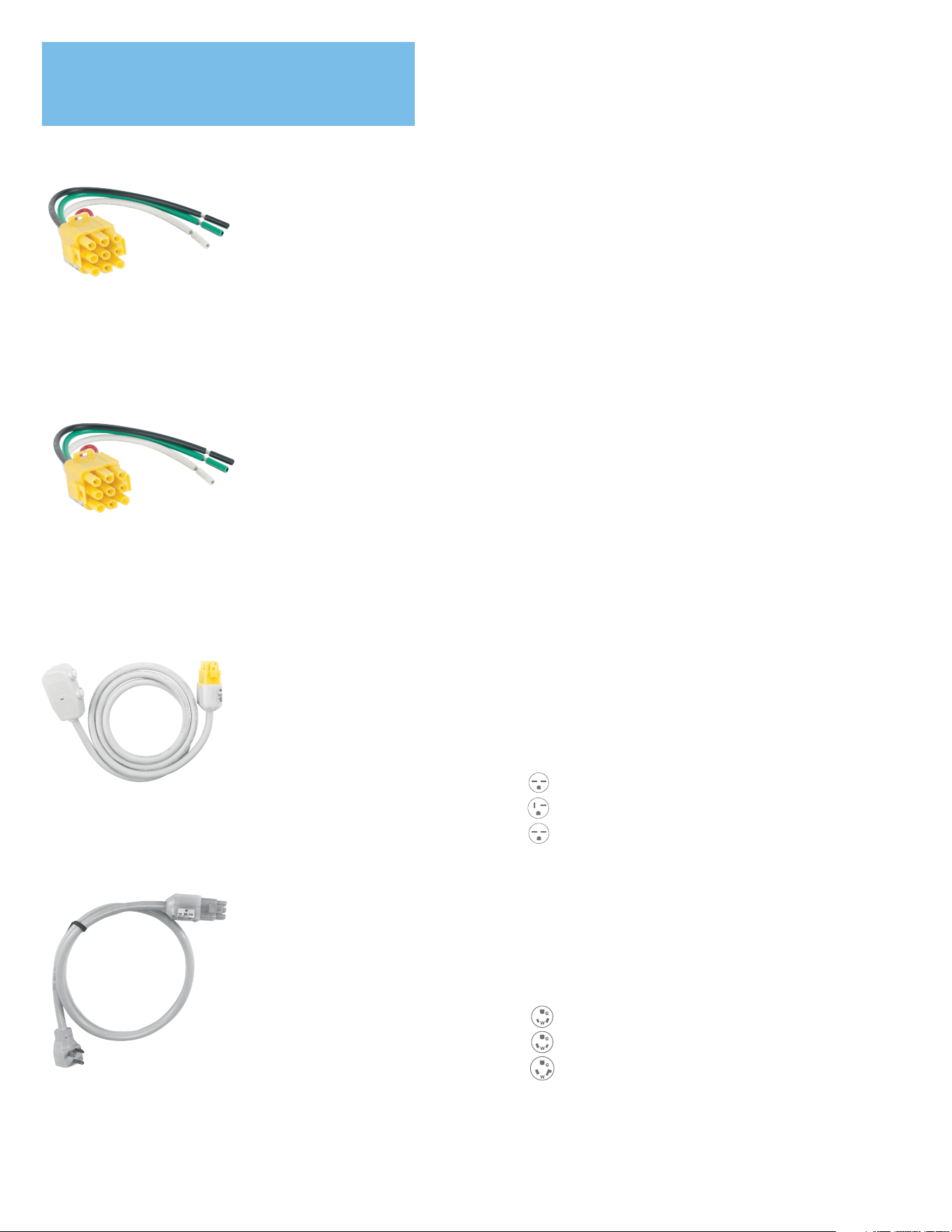

RAK4157/4207/4307
†
(AZ Series*—75/85)
230/208-Volt Universal Power Supply Kit
• 9-pin connector with three 7" 12-gauge conductor wires.
Circuit
Kit No. Volts Heater Wattage Ampacity
RAK4157 230/208 2,610/2,190 15
RAK4207 230/208 3,420/2,870 20
RAK4307 230/208 4,810/4,070 30
RAK5157/5207/5307
†
(AZ Series*—75/85)
265/277-Volt Universal Power Supply Kit
• 9-pin connector with three 7" 12-gauge conductor wires.
Circuit
Kit No. Volts Heater Wattage Ampacity
RAK5157 265/277 2.71 kw 15
RAK5207 265/277 3.55 kw 20
RAK5307 265/277 5.03 kw 30
RAK3152/3202/3302
†
(AZ Series*—75/85)
15, 20, and 30 Amp (230/208 Volts)
Universal Power Supply
Circuit
Kit No. Volts Heater Wattage Ampacity
RAK3152 230/208 2,610/2,190 15
RAK3202 230/208 3,420/2,870 20
RAK3302 230/208 4,810/4,070 30
* A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
† The power connection kit determines the heater wattage and current requirements when it is plugged into the Zoneline unit. NOTE: 7,000 BTU models do not have 5,000-watt heaters.
VERTICAL ZONELINE
®
UNITS
6
ZONELINE
®
UNITS
7

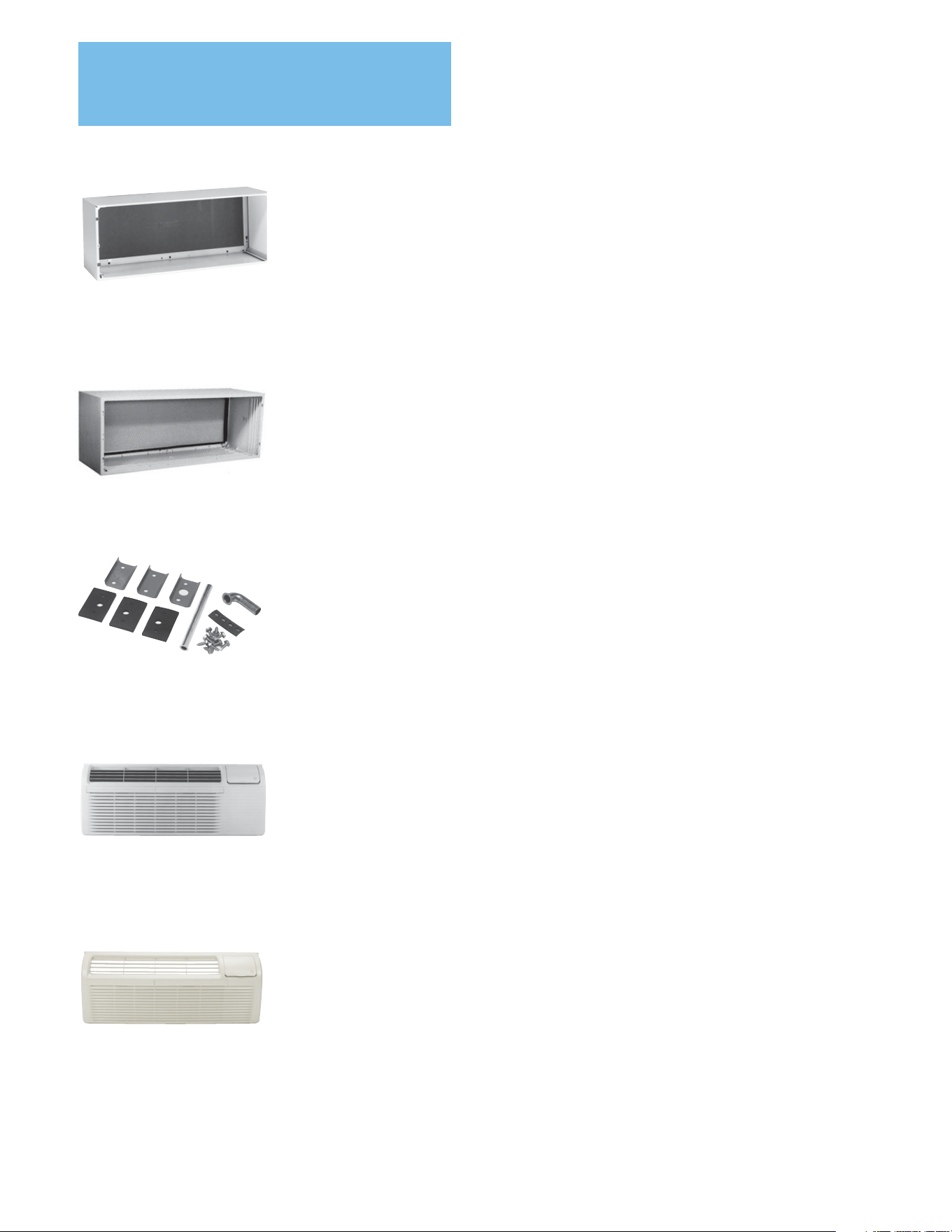

RAB71A (All Zoneline Series)
Standard Wall Case
The RAB71A is a galvanized steel wall sleeve with expanded polystyrene
foam insulation. It is mechanically fastened and protected with baked-
on enamel and protected with a sealing compound to prevent rust.
The RAB71A wall case accepts all Zoneline chassis models.
Also available with extended depths:
• RAB7116—16" deep • RAB7128—28" deep
• RAB7124—24" deep • RAB7131—31" deep
* A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
RAD10 (All Zoneline Series)
Internal/External Drain Kit
For more positive control of condensate water, the RAD10 drain kit
routes condensate to the exterior or to the interior of the building
through the wall case. Suitable provision (field applied) should be
made to connect the RAD10 drain tube to a drain system in the
building. Drain tube assemblies are 1/2" OD copper and consist of
a short right-angle tube and a 6"-long straight tube to suit the
particular application.
RAF452 (while quantities last)
(AZ Series*—22, 32 and 52 only)
Replacement Standard Room Cabinet
Room cabinet with wraparound design has attractive textured finish
which matches unit sleeve. Cabinet is injection-molded of high-impact
polystyrene. Cabinet fastens to chassis without tools or hardware. The
room cabinet contains the slide-out filters and 2-position reversible
discharge louvers.
RAB77A4 (All Zoneline Series)
SMC Wall Case
The Zoneline SMC universally designed wall case by GE utilizes a
fiberglass-reinforced polyester compound to produce a durable,
non-corrosive wall case for all Zoneline Packaged Terminal Air
Conditioners and Heat Pumps. The RAB77A4 SMC wall case
accepts all Zoneline chassis models.
RAF452A (while quantities last)
(AZ Series*—25, 35 and 55 only)
Replacement Standard Room Cabinet
Room cabinet with wraparound design has attractive textured finish
which matches unit sleeve. Cabinet is injection-molded of high-impact
polystyrene. Cabinet fastens to chassis without tools or hardware. The
room cabinet contains the slide-out filters and 2-position reversible
discharge louvers.
ZONELINE
®
UNITS
8

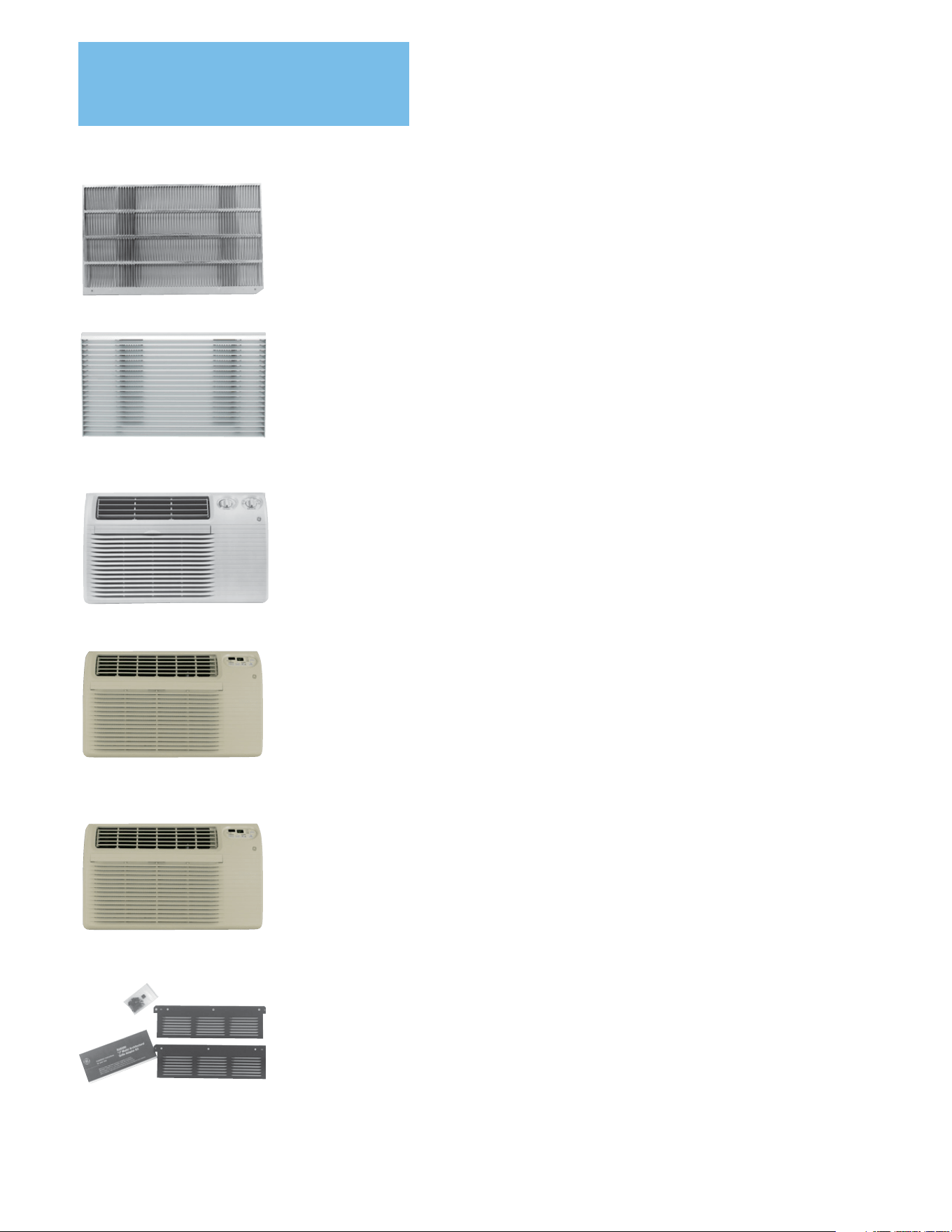

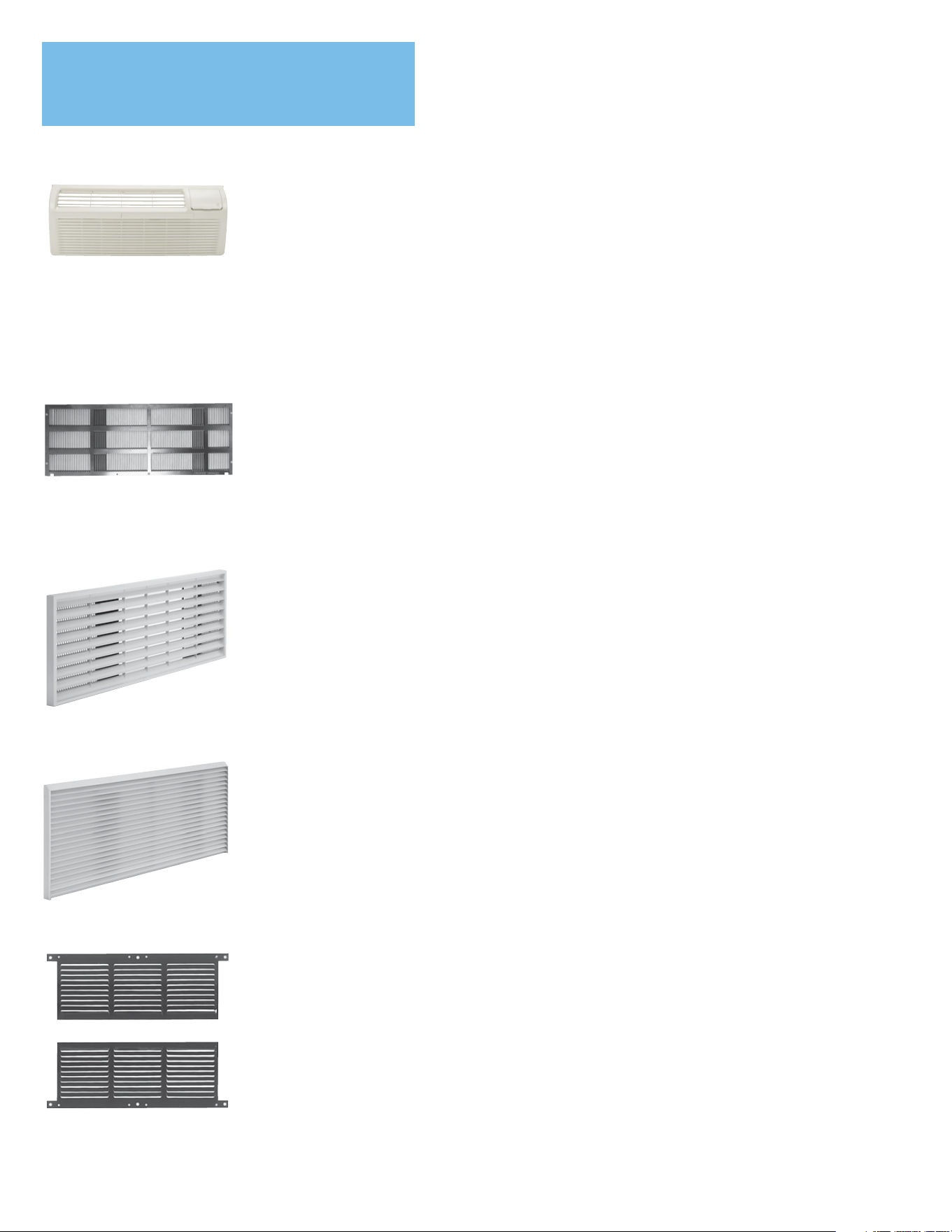

RAG67
(AZ Series*)
Aluminum Architectural Outdoor Grille
• Extruded aluminum outdoor grille for use with RAB71A, RAB77A4,
and extended wall cases
• Grilles are paintable to match building décor
RAK40
(AZ Series*)
Air Deflector Kit
Kit adapts AZ chassis for use with older GE architectural grilles. The
aluminum deflectors are installed to the condenser end sheet flanges
to prevent condenser airflow recirculation. The kit also allows some
custom (non-standard) rear grilles to be used, provided they have
sufficient open area.
RAG61/62/63
(AZ Series*)
Architectural Rear Grille
Optional, one-piece molded grille and frame assembly for improved
appearance and protection. Grilles are molded of GE Cycoloy
®
and
have a slightly textured, colorfast surface to blend with most walls.
RAG61 – Beige, RAG62 – Maple, RAG63 – Dark Brown
RAG61/62/63
RAG60
(AZ Series*)
Stamped Aluminum Exterior Rear Grille
The standard exterior grille is made of durable aluminum to protect
chassis components and minimize air recirculation.
RAF453A
(AZ Series*—28, 29, 38, 39, 41, 58 and 61 only)
Replacement Standard Room Cabinet
Room cabinet with wraparound design has attractive textured finish
which matches unit sleeve. Cabinet is injection-molded of high-impact
polystyrene. Cabinet fastens to chassis without tools or hardware. The
room cabinet contains the slide-out filters and 2-position reversible
discharge louvers.
ZONELINE
®
UNITS
* A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
9

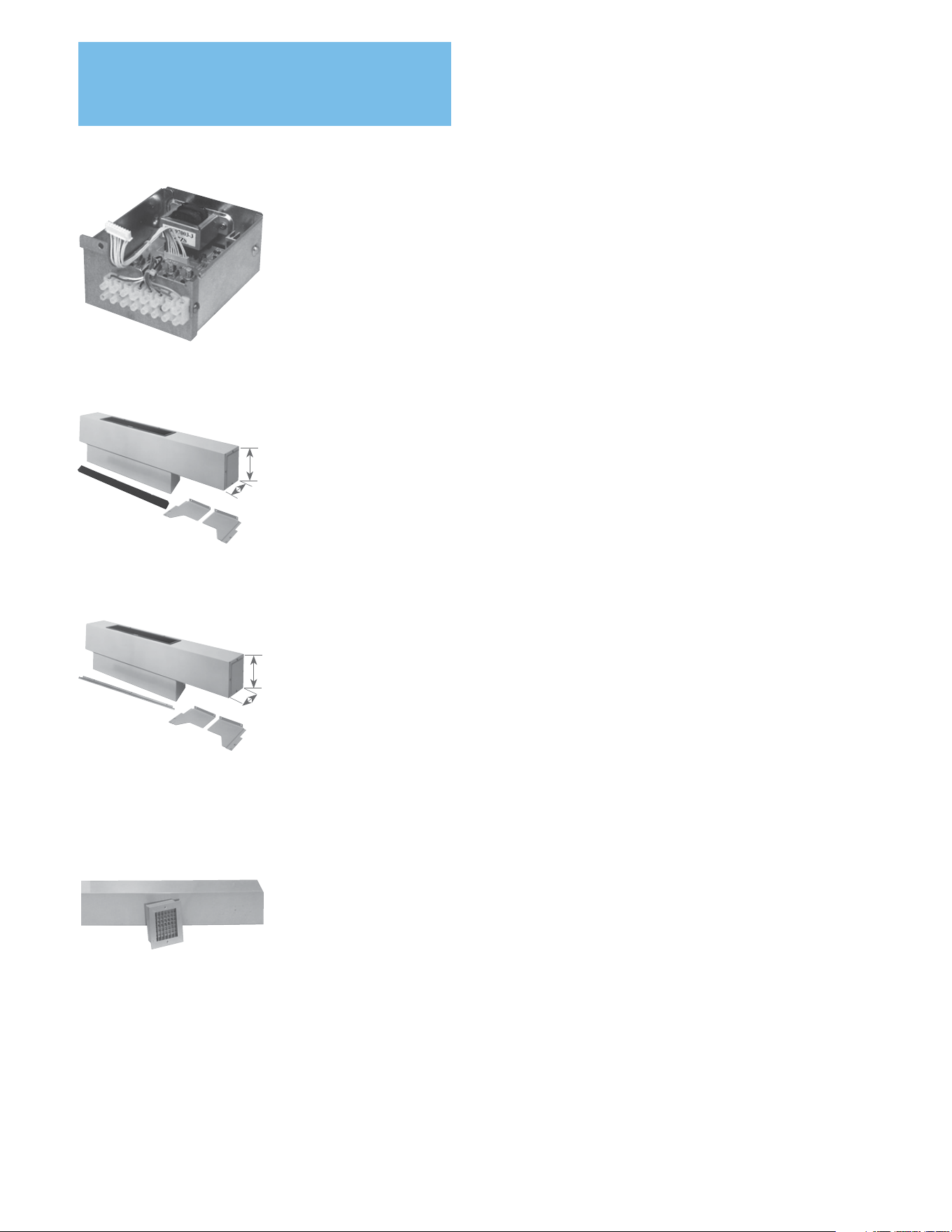

RAKOIM
(AZ Series*—22, 32 and 52 only)
Optional Interface Module for Central Desk
Control or Remote Thermostat Control
The RAKOIM is required if a unit is to be installed with a Central Desk
Control or a Remote Thermostat Control. Includes screw, and a short
wire harness on the RAKOIM that is plugged into the mating receptacle
on the front of the control box.

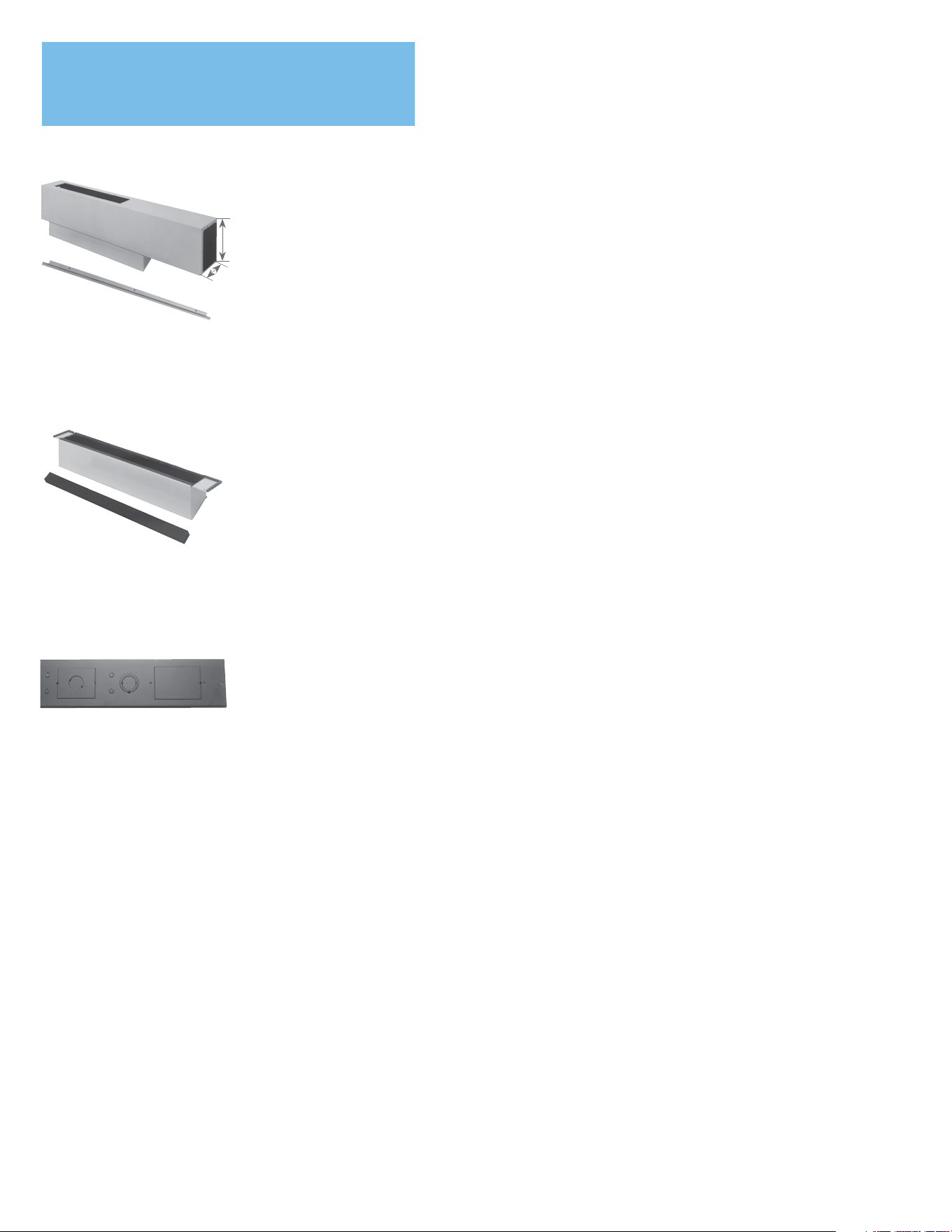

RAK601/602
(AZC and AZ Series*—21, 22, 25, 28, 29, 31, 32, 35, 38,
39, 41 and 61 only)
Duct Extension, Register and Trim Flange
RAK601 is a 44"-long duct and includes an air register and trim flange for
the secondary space. If two extensions are made from one RAK601 duct,
an additional air register and trim flange can be ordered separately as an
RAK602, reducing the cost of the installation. For use with RAK605 and
RAK6052.
RAK605 (while quantities last)
(AZ Series*—21 and 31 only)
Duct Adapter
(Not for 26 and 51 Series)
The RAK605 duct adapter is attached to the top of the wall case to
allow the air from the Zoneline unit to heat or cool an adjacent room.
Duct extension RAK601 can be applied to right or left of the adapter.
(Zoneline 26 and 51 Series not approved for ducted application).
7-3/32"
6-1/2"
RAK6052
(AZ Series*—22, 25, 28, 29, 32, 35, 38, 39, 41
and 61 only)
Duct Adapter
(Not for 52, 55 or 58 Series)
The RAK6052 duct adapter is attached to the top of the wall case
to allow the air from the Zoneline unit to heat or cool an adjacent
room. Duct extension RAK601 can be applied to right or left of
the adapter. (Zoneline 52, 55 and 58 Series not approved for
ducted application).
6-1/2"
7-3/32"
ZONELINE
®
UNITS
* A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
10

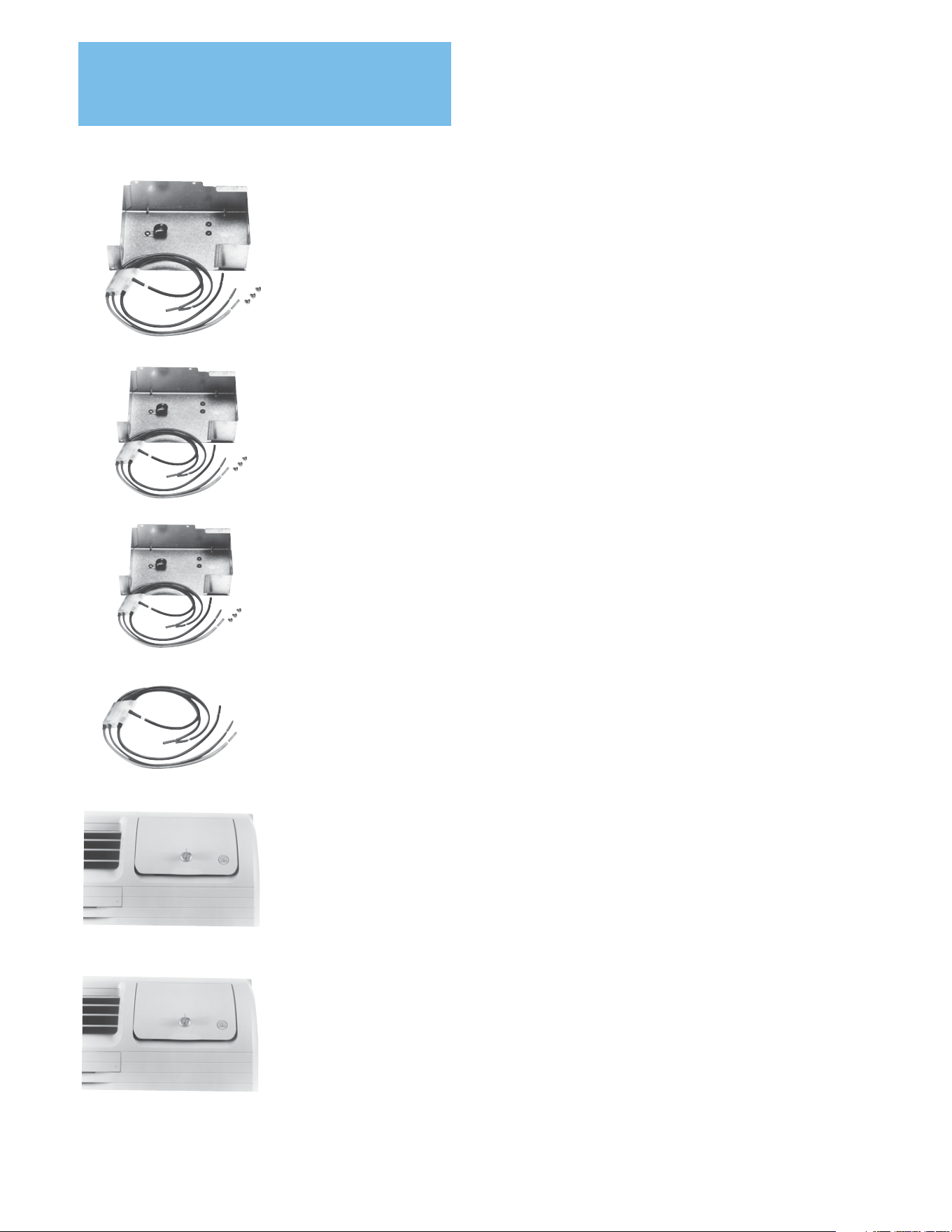

RAK201
(AZC and AZ Series*)
Access Plate Cover
The RAK201 access plate cover is made of heavy-gauge steel with
multiple knockouts for special applications. Will adapt to service
conduit .875" or 1.125"; circuit breaker up to 30 amp or 30 amp
receptacle. The RAK201 fits old sub-bases RAK120, RAK121 and
RAK122 for easy replacement of A-B series with AZC and AZ series.
RAK7022
(AZ Series*—22, 25, 28, 29, 32, 35, 38, 39, 41 and 61 only)
Duct Transition for Replacement of AZC with Rounded-Front AZ Chassis
The RAK7022 duct transition is designed to allow duct installation where the
original chassis was a slope-front discharge (AZC/AZR/AZ21/AZ31) chassis.
Using the RAK7022 will allow the existing duct adapter and extension to
be used without requiring the relocation of the hole through the wall to the
adjacent room.
RAK7012
(AZ Series*—22, 25, 32, 35, 28, 29, 38, 39, 41 and 61)
Duct Adapter for Replacement of A_B with Rounded-Front AZ Chassis
The RAK7012 duct adapter is designed to line up with the duct extension
where the original chassis was a flat-top discharge A-B Series. Using the
RAK7012 will allow the existing duct extension to be used without requiring
the relocation of the hole through the wall to the adjacent room. Discharge
grille, end plate and extension mounting hardware must be removed from
old duct adapter and installed on the RAK7012.
8-3/8"
6-1/2"
ZONELINE
®
UNITS
* A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
11
Chaseway

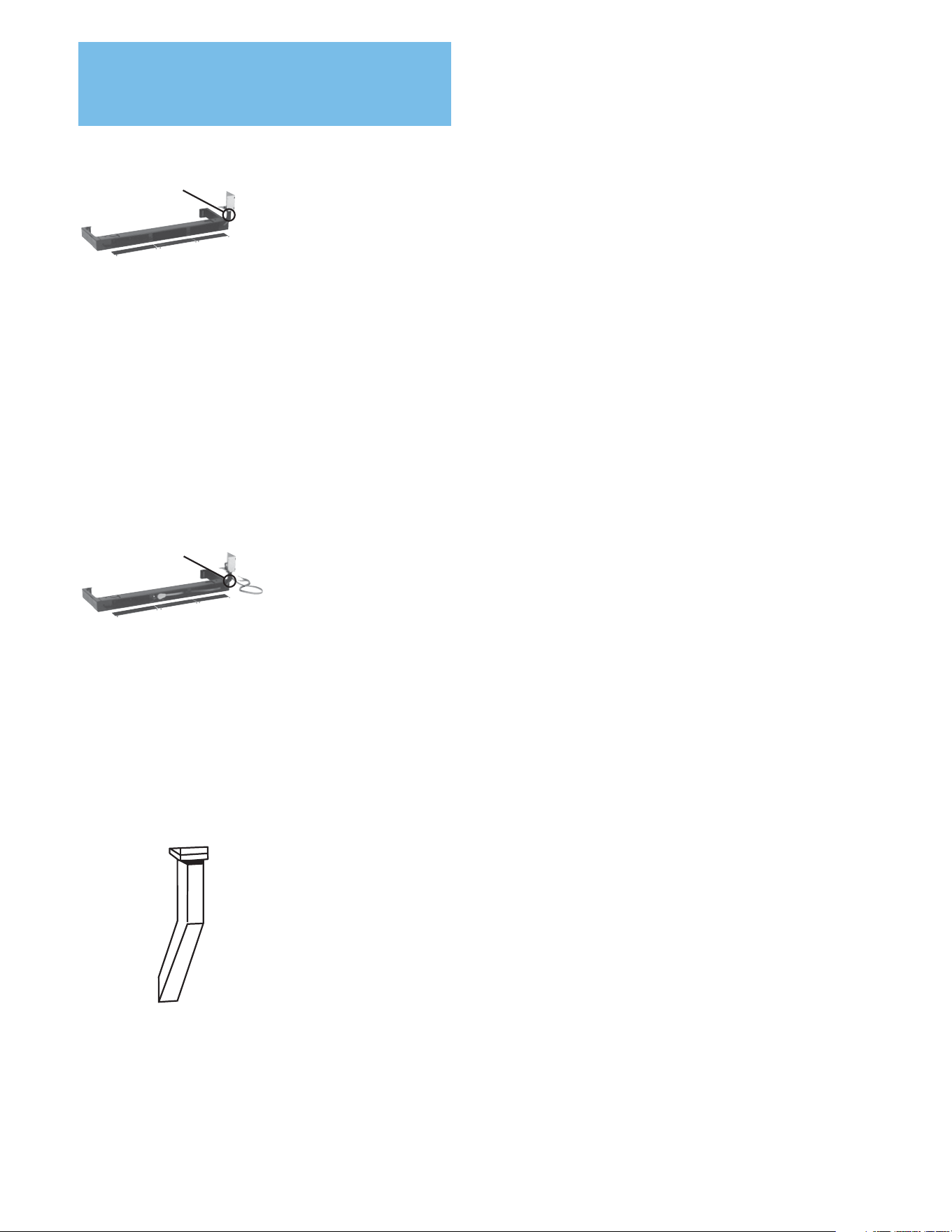

RAK204
(AZ Series*)
Standard Sub-Bases WITHOUT power cord included
The RAK204 sub-base is made of heavy-gauge steel to provide support of the wall case.
It has full base enclosure with breakaway side channels, simple connection to wall case
and 4-point leveling legs. The sub-base will adapt to service conduit, circuit breakers and
receptacles up to 30 amps. It may also be used as a non-electrical sub-base to provide
support for the unit.
Circuit
Kit No. Sub-Base Ampacity Chaseway Power Cord
RAK204U** Standard N/A Not Included Not Included
RAK204E15 Sub-Base 265/277V 15 Included Not Included
RAK204E20 Sub-Base 265/277V 20 Included Not Included
RAK204E30 Sub-Base 265/277V 30 Included Not Included
Power cord and junction box
not included with sub-base.
RAK205CW
(AZ Series*)
Chaseway
Chaseway for wiring containment between junction box on
chassis and RAK204U sub-base.
Chaseway
RAK204
(AZ Series*)
Standard Sub-Bases WITH power cord included
The RAK204 sub-base is made of heavy-gauge steel to provide support of the wall case.
It has full base enclosure with breakaway side channels, simple connection to wall case and
4-point leveling legs. The sub-base will adapt to service conduit, circuit breakers and receptacles
up to 30 amps. It may also be used as a non-electrical sub-base to provide support for the unit.
Circuit
Kit No. Sub-Base Ampacity Chaseway Power Cord
RAK204D15P Sub-Base 230/208V 15 Included Included
RAK204D20P Sub-Base 230/208V 20 Included Included
RAK204D30P Sub-Base 230/208V 30 Included Included
* A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000;AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
**RAK204U May be used with AZC and AZ 21, 31, 26 and 51.
ZONELINE
®
UNITS
12
*A _B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
†The power connection kit determines the heater wattage and current requirements when it is plugged into the Zoneline unit. NOTE: 7,000 BTU models do not have 5,000-watt heaters.
RAK5172/5202/5302
†
(AZ Series*—28, 29, 38, 39, 41, 55, 58 and 61 only)
15, 20, and 30 Amp (265/277 Volts)Universal Power Supply
• Branch circuit plug to be used only in connection to appropriate sub-base
Circuit
Kit No. Volts Heater Wattage Ampacity
RAK5172 265/277 2.4 kw 15
RAK5202 265/277 3.4 kw 20
RAK5302 265/277 4.8 kw 30
RAK4157/4207/4307
†
(AZ Series*—28, 29, 38, 39, 41, 55, 58 and 61 only)
230/208-Volt Universal Power Supply Kit
• 9-pin connector with three 7" 12-gauge conductor wires.
Circuit
Kit No. Volts Heater Wattage Ampacity
RAK4157 230/208 2.4/2.32 kw 15
RAK4207 230/208 3.3/3.2 kw 20
RAK4307 230/208 4.7/4.53 kw 30
RAK3153A/3203A/3303A
(AZ Series*—28, 29, 38, 39, 41, 55, 58 and 61 only)
15 and 20 Amp (230/208 Volts)
Universal Power Supply with LCDI
Circuit
Kit No. Volts Heater Wattage Ampacity
RAK3153A 230/208 2.4/2.32 kw 15
RAK3203A 230/208 3.3/3.2 kw 20
RAK3303A 230/208 4.7/4.53 kw 30
RAK5157/5207/5307
†
(AZ Series*—28, 29, 38, 39, 41, 55, 58, 61)
265/277-Volt Universal Power Supply Kit
• 9-pin connector with three 7" 12-gauge conductor wires
Circuit
Kit No. Volts Heater Wattage Ampacity
RAK5157 265/277 2.4 kw 15
RAK5207 265/277 3.4 kw 20
RAK5307 265/277 4.8 kw 30
ZONELINE
®
UNITS
13
RAK4002A (AZ Series*—25, 28, 29, 35, 38, 39, 41 and 61 only)
Direct-Connect Junction Box (230/208 and 265/277 Volts)
RAK4002 junction box kit for permanent connection of 230/208- and 265/277-volt
units to building power supply.
Includes multi-circuit connector harness for use on value line units. Junction box is
included on 265/277-volt units.
*A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
†The power connection kit determines the heater wattage and current requirements when it is plugged into the Zoneline unit. NOTE: 7,000 BTU models do not have 5,000-watt heaters.
RAK4002B (AZ Series*—55 and 58 only)
Direct-Connect Junction Box(230/208 and 265/277 Volts)
RAK4002 junction box kit for permanent connection of 230/208- and 265/277-volt
units to building power supply.
Includes multi-circuit connector harness for use on value line units. Junction box is
included on 265/277-volt units.
RAK8023 (AZ Series*—28, 29, 38, 39, 41, 58 and 61 only)
Locking Door Kit
The RAK8023 provides door lock kit and key to prevent access to Zoneline unit controls.
Also provides two thumb screws for securing the room cabinet to the chassis on the
lower right and left sides.
RAK4002CW (AZ Series*)
Direct-Connect Junction Box Wiring (230/208 and 265/277 Volts)
In-line 3-pin connector and wiring harness. Allows easy disconnect of direct-
connected applications.
RAK8022 (while quantities last)
(AZ Series*—22, 25, 32, 35, 52 and 55 only)
Locking Door Kit
The RAK8022 provides door lock kit and key to prevent access to Zoneline unit controls.
Also provides two thumb screws for securing the room cabinet to the chassis on the
lower right and left sides.
RAK4002 (while quantities last)
(AZ Series*—22, 32 and 52 only)
Direct-Connect Junction Box (230/208 and 265/277 Volts)
RAK4002 junction box kit for permanent connection of 230/208- and 265/277-volt
units to building power supply.
Includes multi-circuit connector harness for use on value line units. Junction box is
included on 265/277-volt units.
ZONELINE
®
UNITS
14

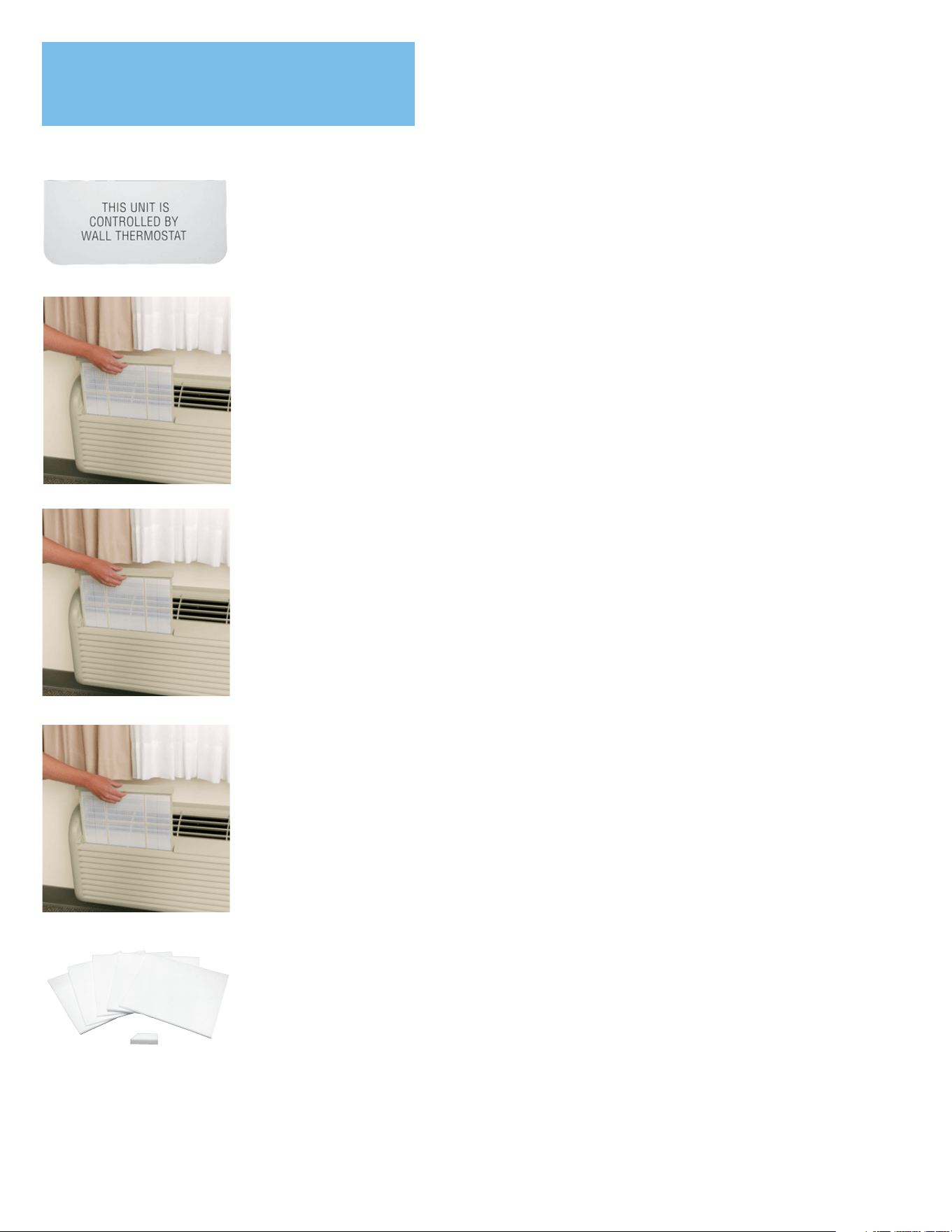

RAK901L
(AZ Series*)
Wall Case Insulation Kit
Five pieces of 13" x 14" x 1/4" adhesive-backed polyethylene to insulate
the inside of the RAB71A or RAB77A4 wall case. The RAK901L minimizes
the formation of moisture on exterior of wall case.
RAA63
(AZ Series*—28, 29, 38, 39, 41, 58 and 61 only)
Replacement Filters
• Replacement filters, in pairs
• 10 pairs per box
RAA62A
(AZ Series*—25, 35 and 55 only)
Replacement Filters
• Replacement filters, in pairs
• 20 pairs per box
RAA62
(AZ Series*—22, 32 and 52 only)
Replacement Filters for AZ Models
(20 pairs per box)
The up-front filters on the GE Zoneline unit are conveniently accessed
by simply pulling them up from the top of the room cabinet. By
simplifying the task, filter cleaning is more likely to occur on schedule
and the unit will operate as efficiently as possible. Sold in pairs.
RAK806
Universal Cover Label (10 covers per kit)
The RAK806 provides a cover for the control area to refer room
occupant to use a remote thermostat. Double-sided tape provided.
ZONELINE
®
UNITS
* A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
15
BUILT-IN UNITS
16
RAD4A1
Drain Kit
Internal/External Drain Kit
Drain kit for use on “J” series wall cases. For more positive control of
condensate water, the RAD4A1 drain kit routes condensate to the
exterior or to the interior of the building through the wall case. Suitable
provision (field applied) should be made to connect the drain tube to a
drain system in the building. Drain tube assembly is 1/2" O.D. copper.
Note: The RAG14E exterior grille is NOT compatible with the RAD4A1
EXTERNAL drain tube. Use of this grille would require the use of the
INTERNAL TUBE configuration to drain the unit.
RAB48B
Tenant Option Wall Cases for “J” Chassis
When the air conditioner is offered as a tenant option, these wall cases
provide protection against outside elements.
RAB48B—includes wall case, exterior grille, insulated steel indoor
closure panel and outdoor panel.
RAB46A
Standard Wall Case for “J” Chassis Built-in Unit
Solid-sided wall case fabricated of galvanized steel with baked-enamel
(beige) finish. Welded areas are coated with a sealing compound to
help resist rust and corrosion. Polymer gasket surrounds opening to
assure tight weather seal. Aluminum grille (RAG13) is included. Panels
on interior and between case and grille provide weather protection
prior to installation of chassis.
BUILT-IN UNITS
17
RAF622 (while quantities last)
Replacement Room Front for Rounded-Front “J” Chassis
(1997–2000)
Used as replacement grille for rounded-front “J” chassis units. (Not for
use with high-mount units.)
RAG14E
Architectural Louvered Exterior Grille for “J” Series
Extruded aluminum grille for application with RAB46A, 47A, 48A and 48B.
NOTE: The RAG14E exterior grille is NOT compatible with the RAD4A1
EXTERNAL drain tube. Use of this grille would require the use of the
INTERNAL TUBE configuration to drain the unit.
RAG13A
Stamped Aluminum Exterior Grille “J” Series
Used to replace exterior grille on old “J” wall case to maximize efficiency
and capacity of new chassis. The grille is included with new wall cases
RAB46A, 47A, 48A and 48B.
RAF622A
Replacement Room Front for Rounded-Front “J” Chassis for A, B
and C Series and D Series ending in “1” or “2” (2001–2011)
Replacement room front for “J” series chassis with oval control
pushbutton opening. (Not for use on high-mount models.)
RAF822
Replacement Room Front for “D” Series ending in “5” and “E”
Series Rounded-Front “J” Series (2011–present)
Replacement room front for “J” series chassis with oval control
pushbutton opening. (Not for use on high-mount models.)
RAK690
Architectural Louver Grille Adapter for “J” Chassis Units
Permits most existing architectural louvered grilles to be used with “J”
chassis units. Kit consists of two wire mesh screen sections, clips to
attach screen to existing wall case and two aluminum air deflectors to
be mounted to new chassis.
BUILT-IN UNITS
18

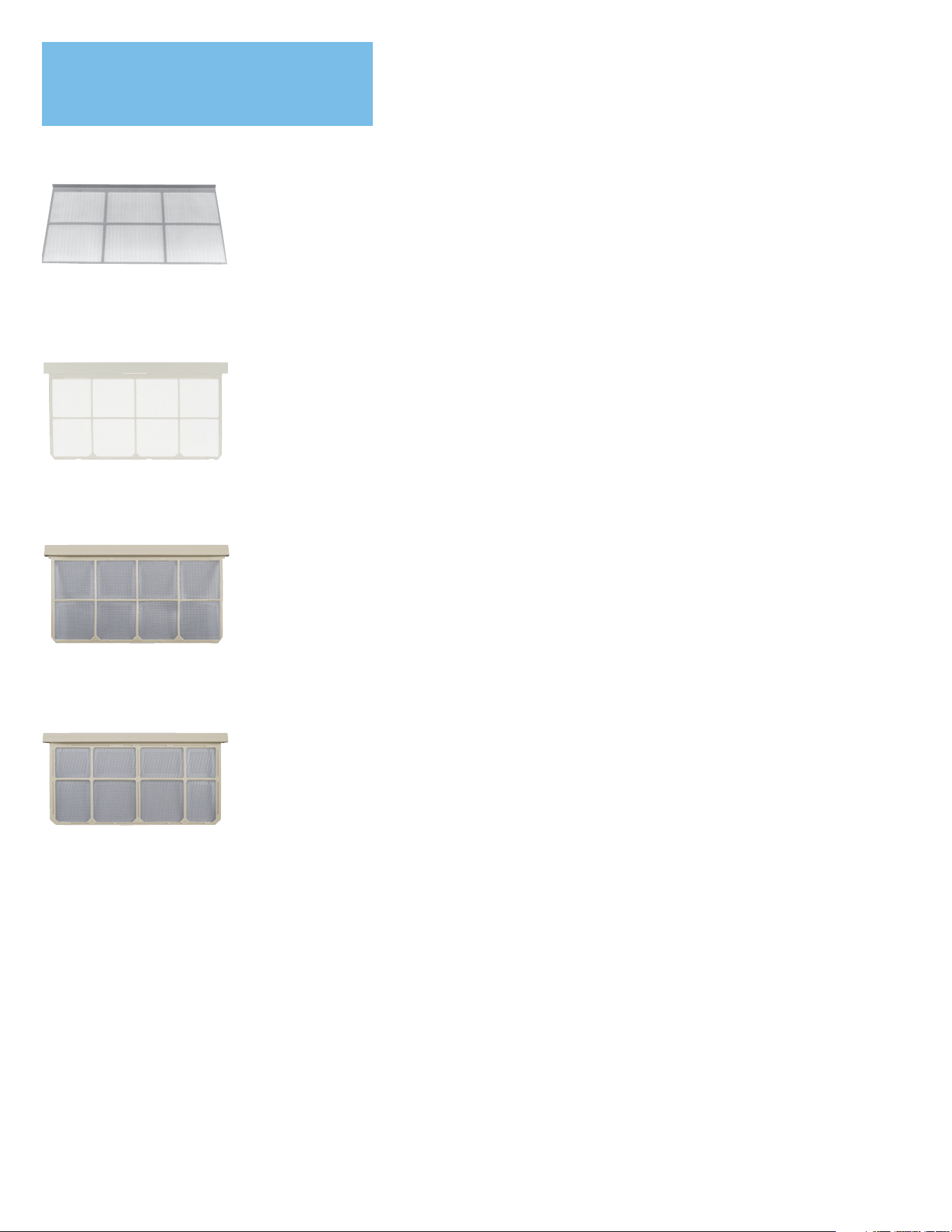

RAA72
Replacement Filter for Rounded-Front “J” Chassis (1997–2000)
• Replacement filter for use in room fronts with
2 round control openings ONLY
• Washable/reusable nylon mesh filter
• Order individually or by box of 20
• Used for standard or high-mount models
RAA72A
Replacement Filter for Rounded-Front “J” Chassis for A, B and C
Series and D Series ending in “1” or “2” (2001–2011)
• Replacement filter for use in room fronts with oval control
pushbutton openings ONLY
• Washable/reusable nylon mesh filter
• Order individually or by box of 20
• Used for standard or high-mount models
RAA83
Replacement Filter For “D” Series ending in “5” and “E” Series
Rounded-Front “J” Chassis—Standard-Mount (2011–present)
• Replacement filter for standard-mount only
• Washable/reusable nylon mesh filter
• Order individually
RAA84
Replacement Filter For “D” Series ending in “5” and “E” Series
Rounded-Front “J” Chassis—High-Mount (2011–present)
• Replacement filter for high-mount only
• Washable/reusable nylon mesh filter
• Order individually
BUILT-IN UNITS
19

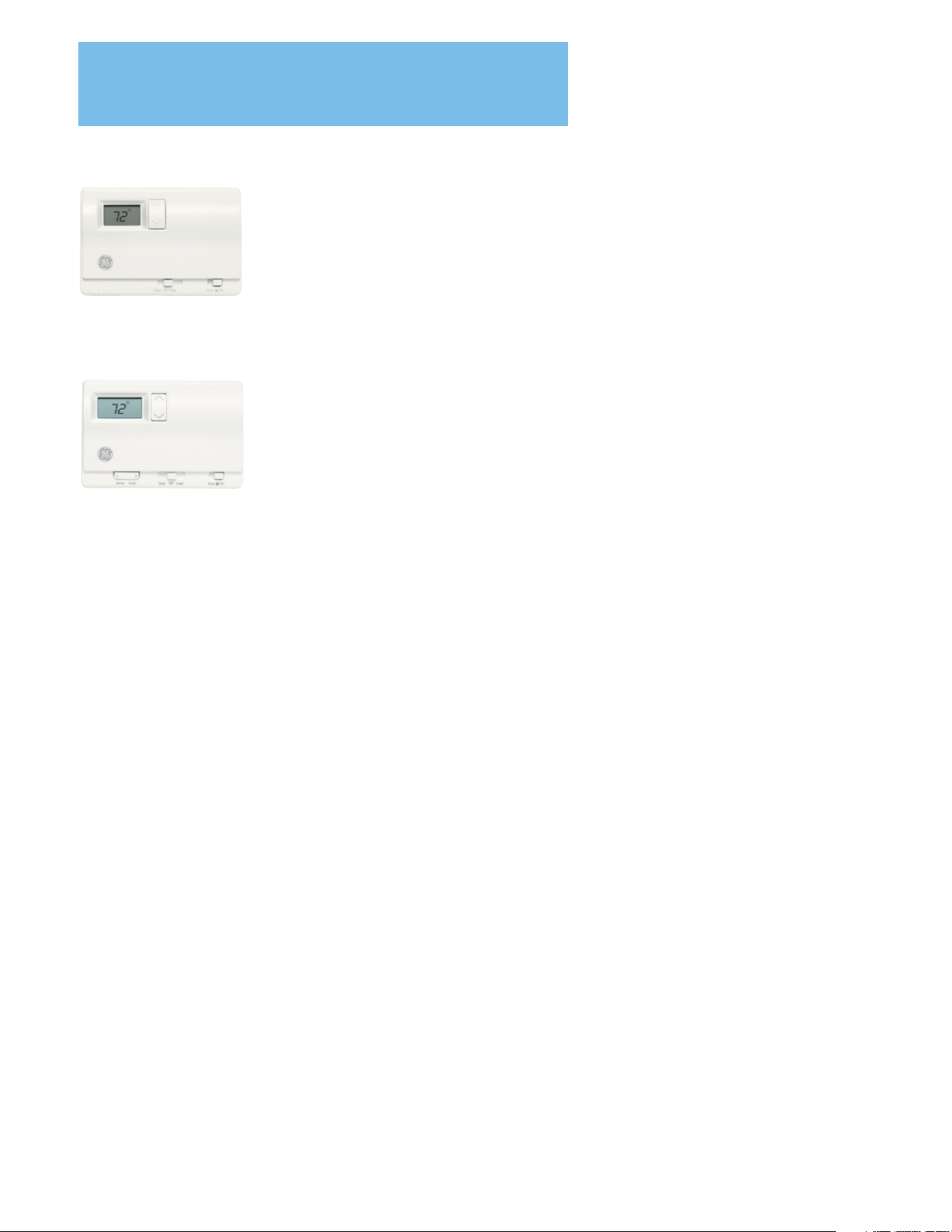

RAK148D1
(A-B, AZ, 35, 38, 39, 55, 58, 61, 75, 85 and
AZR Series*)
Heat Pump Digital Remote Thermostat
• 24V AC digital remote wall thermostat with single-stage cooling and
2-stage heating for heat pump models
• Requires 6-wire hookup
RAK148P1
(A-B, AZ, 35, 38, 39, 55, 58, 61, 75, 85 and
AZR Series*)
Heat Pump Programmable Remote Thermostat
• 24V AC programmable remote wall thermostat with single-stage cooling
and 2-stage heating for heat pump models
• Programmable for 7-day or 5+2-day programs
• Requires 6-wire hookup
THERMOSTATS – HEAT PUMP
* A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
20

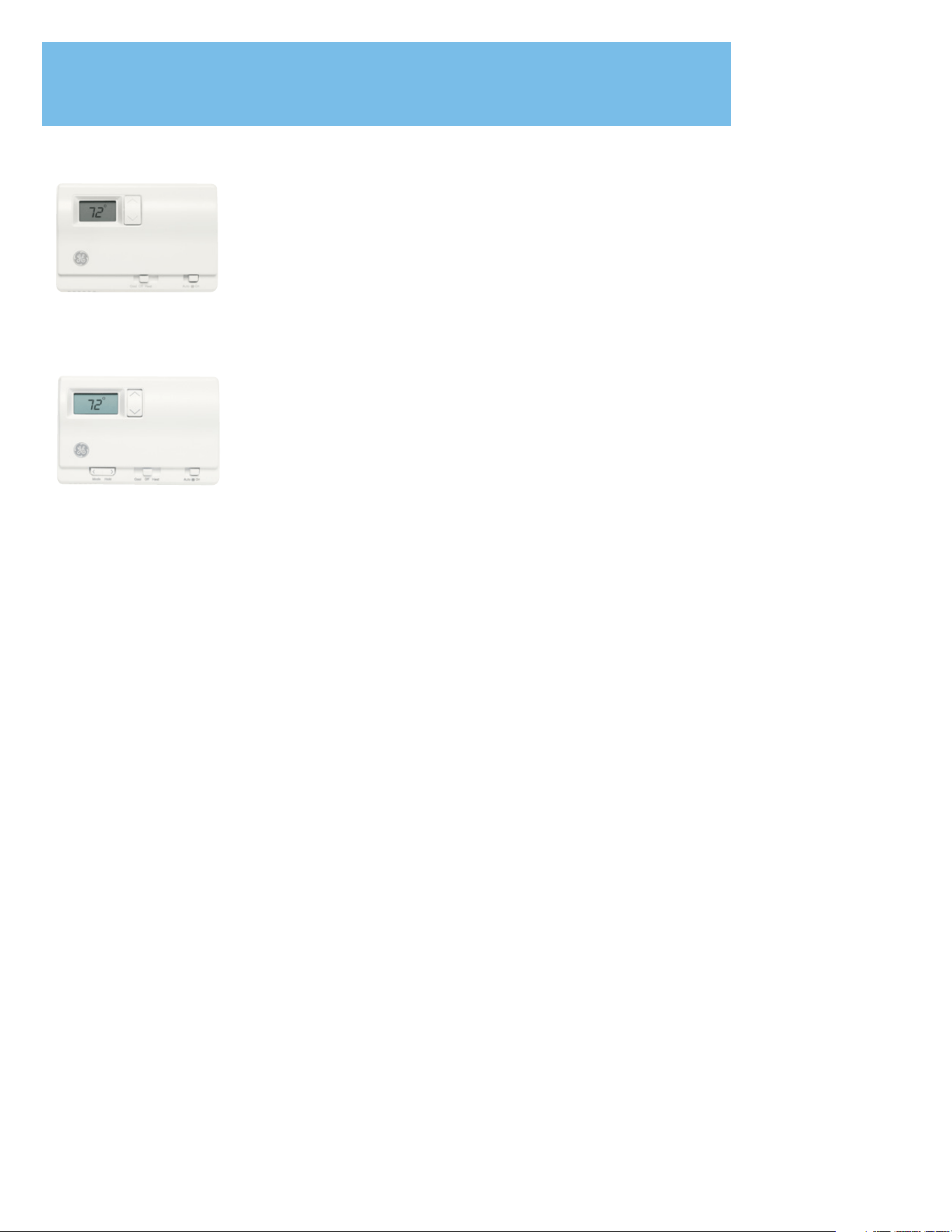

RAK164P1
(A-B, AZ, 25, 28, 29, 41, 75, 85 and AZR Series*)
Cooling with Electric Heat Programmable Remote Thermostat
• 24V AC programmable remote wall thermostat with single-stage
cooling and single-stage heating for resistance heat models
• Programmable for 7-day or 5+2-day programs
• Requires 5-wire hookup
RAK164D1
(A-B, AZ, 25, 28, 29, 41, 75, 85 and AZR Series*)
Cooling with Electric Heat Digital Remote Thermostat
• 24V AC digital remote wall thermostat with single-stage cooling and
single-stage heating for resistance heat models
• Requires 5-wire hookup
THERMOSTATS – ELECTRIC RESISTANCE HEAT
* A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
21
All sales kits are stocked in Appliance Distribution Centers
* A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR Series – Zoneline 1000, 2000, 2500, 2700, 3000,
4000, 5000; AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 / Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41, 58, 61, 75, 85.
Number Description Model Type* Page No.
RAK3152 208/230V Universal power supply kit (15 Amp) AZ 5
RAK3202 208/230V Universal power supply kit (20 Amp) AZ 5
RAK3302 208/230V Universal power supply kit (30 Amp) AZ 5
RAK4157 208/230V Universal power supply kit (15 Amp) AZ 5
RAK4207 208/230V Universal power supply kit (20 Amp) AZ 5
RAK4307 208/230V Universal power supply kit (30 Amp) AZ 5
RAK5157 265/277V Universal power supply kit (15 Amp) AZ 5
RAK5207 265/277V Universal power supply kit (20 Amp) AZ 5
RAK5307 265/277V Universal power supply kit (30 Amp) AZ 5
RAVAL1 Aluminum outdoor grille AZ 4
RAVRG1 Access panel with return air grille for closet wall AZ 4
RAVRG2 Return air grille for common closet wall AZ 4
RAVRMS Wall-mounted room air sensor AZ 4
RAVWP6 Wall plenum for up to 6" walls AZ 3
RAVWP8 Wall plenum for up to 8" walls AZ 3
RAVWP12 Wall plenum for up to 12" walls AZ 3
RAVWP15 Wall plenum for up to 15" walls AZ 3
Vertical Zoneline
®
units
Number Description Model Type* Page No.
RAA62 Replacement filters for AZ models (20 pairs per box) for 22, 32 & 52 only AZ 14
RAA62A Replacement filters (20 pairs per box) for 25, 35 & 55 only AZ 14
RAA63 Replacement filters (10 pairs per box) for 28, 38, 41, 58 & 61 only AZ 14
RAB71A Standard wall case All Zoneline 7
RAB77A4 SMC wall case All Zoneline 7
RAD10 Internal/external drain kit All Zoneline 7
RAF452 Replacement standard room cabinet (2-position louvers) for 22, 32 & 52 only AZ 7
RAF452A Replacement standard room cabinet (2-position louvers) for 25, 35 & 55 only AZ 7
RAF453A Replacement standard room cabinet (2-position louvers) for 28, 29, 38, 39, 41, 58 & 61 only AZ 8
RAG60 Stamped aluminum exterior rear grille AZ 8
RAG61 Architectural rear grille, beige AZ 8
RAG62 Architectural rear grille, maple AZ 8
RAG63 Architectural rear grille, dark brown AZ 8
RAG67 Aluminum architectural outdoor grille AZ 8
RAKOIM Optional interface module for central desk control or remote thermostat control for 22, 32 & 52 only AZ 9
RAK40 Air deflector kit AZ 8
RAK4002 Direct-connect junction box, 230/208 and 265/277V for 22, 32 & 52 only AZ 13
RAK4002A 230/208V direct-connect junction box for 25, 35, 28, 29, 38, 39, 41 & 61 only AZ 13
RAK4002B 230/208V direct-connect junction box for 55, 58 only AZ 13
RAK4002CW 230/208V and 265/277 direct-connect junction box wiring AZ 13
RAK201 Access plate cover AZC, AZ 10
RAK3153A Universal power supply, 15 Amp for 52, 28, 29, 38, 39, 41, 55, 58 & 61 only AZ 12
RAK3203A Universal power supply, 20 Amp for 52 28, 29, 38, 39, 41, 55, 58 & 61 only AZ 12
RAK3303A Universal power supply, 30 Amp for 52 28, 29, 38, 39, 41, 55, 58 & 61 only AZ 12
RAK4157 208/230V Universal power supply, 15 Amp for 28, 29, 38, 39, 41, 55, 58, 61, 75 & 85 only AZ 12
RAK4207 208/230V Universal power supply, 20 Amp for 28, 29, 38, 39, 41, 55, 58, 61, 75 & 85 only AZ 12
RAK4307 208/230V Universal power supply, 30 Amp for 28, 29, 38, 39, 41, 55, 58, 61, 75 & 85 only AZ 12
RAK5157 265/275V Universal power supply, 15 Amp for 28, 29, 38, 39, 41, 55, 58, 61, 75 & 85 only AZ 12
RAK5207 265/275V Universal power supply, 20 Amp for 28, 29, 38, 39, 41, 55, 58, 61, 75 & 85 only AZ 12
RAK5307 265/275V Universal power supply, 30 Amp for 28, 29, 38, 39, 41, 55, 58, 61, 75 & 85 only AZ 12
RAK5172 Universal power supply, 15 Amp, 265V for 28, 29, 38, 39, 41, 55, 58 & 61 only AZ 12
RAK5202 Universal power supply, 20 Amp, 265V for 28, 29, 38, 39, 41, 55, 58 & 61 only AZ 12
RAK5302 Universal power supply, 30 Amp, 265V for 28, 29, 38, 39, 41, 55, 58 & 61 only AZ 12
Zoneline units
ORDER INFORMATION
22
Number Description Model Type* Page No.
RAK205CW Chaseway for RAK204U sub-base AZ 11
RAK204D15P 230/208V, 15 amp standard sub-base with power cord AZ 11
RAK204D20P 230/208V, 20 amp standard sub-base with power cord AZ 11
RAK204D30P 230/208V, 30 amp standard sub-base with power cord AZ 11
RAK204E15 265V, 15 amp standard sub-base AZ 11
RAK204E20 265V, 20 amp standard sub-base AZ 11
RAK204E30 265V, 30 amp standard sub-base AZ 11
RAK204U Standard sub-base without electrical devices or wiring AZ 11
RAK601 Duct extension AZC, AZ 9
RAK602 Air register and trim flange AZC, AZ 9
RAK605 Duct adapter for 21 & 31 only AZ 9
RAK6052 Duct adapter for 22 , 32 , 25 , 35 , 28 , 29 , 38 , 39 , 41 & 61 AZ 9
RAK7012 Duct adapter for replacement of A-B with rounded-front AZ chassis for 22 , 32 , 25 , 35 , 28 , 29 , 38 , 39 , 41
& 61 only
AZ 10
RAK7022 Duct transition for replacement of AZC with rounded-front AZ chassis for 22 , 32 , 25 , 35 , 28 , 29 , 38 , 39 , 41
& 61 only
AZ 10
RAK8022 Locking door kit for 22 , 25 , 32 , 35 , 52 & 55 only AZ 13
RAK8023 Locking door kit for 28 , 29 , 38 , 39 , 41 , 58 & 61 only AZ 13
RAK806 Universal cover label (10 covers per kit) AZ 14
RAK901L Wall case insulation kit AZ 14
Zoneline units
Number Description Page No.
RAA72 Replacement filter for rounded-front "J" chassis – 2 round control knob openings 18
RAA72A Replacement filter for rounded-front "J" chassis – oval control openings 18
RAA83 Replacement filter for “D” and “E” series—standard-mount 18
RAA84 Replacement filter for “D” and “E” series—high-mount 18
RAB46A Standard wall case for "J" chassis built-in unit 16
RAB48B Tenant option wall case for "J" chassis with insulated panel 16
RAD4A1 Drain kit 16
RAF622 Replacement room front for rounded-front "J" chassis – 2 round control knob openings 17
RAF622A Replacement room front for rounded-front "J" chassis – oval control openings 17
RAF822 Replacement room front for “D” Series ending in “5” and “E” Series 17
RAG13A Stamped aluminum exterior grille for "J" series 17
RAG14E Architectural louvered exterior grille for "J" series 17
RAK690 Architectural louvered grille adapter for "J" chassis unit 17
Built-in units
ORDER INFORMATION
23
ORDER INFORMATION
All sales kits are stocked in Appliance Distribution Centers
*A_B Series: Zoneline units built before 1987 – Zoneline I, II , III , and
IV; AZC Series: Zoneline units built from 1987 to 1992 – includes AZR
Series – Zoneline 1000, 2000, 2500, 2700, 3000, 4000, 5000;
AZ Series: Zoneline units built after 1992 – Zoneline 21, 31, 26, 51 /
Zoneline 22, 32, 52 / Zoneline 25, 35, 55 / Zoneline 28, 29, 38, 39, 41,
58, 61, 75, 85.
Fedders
®
is a registered trademark of Fedders North America, Inc.
Whirlpool
®
is a registered trademark of Whirlpool U.S.A.
Number Description Page No.
RAK148D1 Heat pump digital remote thermostat 19
RAK148P1 Heat pump programmable remote thermostat 19
RAK164D1 Cooling with electric heat digital remote thermostat 20
RAK164P1 Cooling with electric heat programmable remote thermostat 20
Thermostats
For builder resources and
support visit: buildwithge.com
or call 800.GE.CARES
SERVICE AND SUPPORT
For product information and
service visit : geappliances.com
or call 800.626.2000
WHY GE?
GE’s commitment to appliances has never been stronger. Backed by an investment
of more than $1 billion, that legacy continues. We’re streamlining our manufacturing.
Conducting more consumer research. Launching new product innovations. Creating
more U.S. jobs. Advertising on a national scale. And delivering the support our partners
need to succeed well into the future. The opportunity for growth has never been so
promising. We’re not just imagining. We’re doing.
© 2013 General Electric Company
Pub. No. 20-S113-1 rev 5/2013 PC74777
GE
A
pp
liance
s
Appliance Park
L
ouisville
,
KY 40225
g
ea
pp
liances.com
